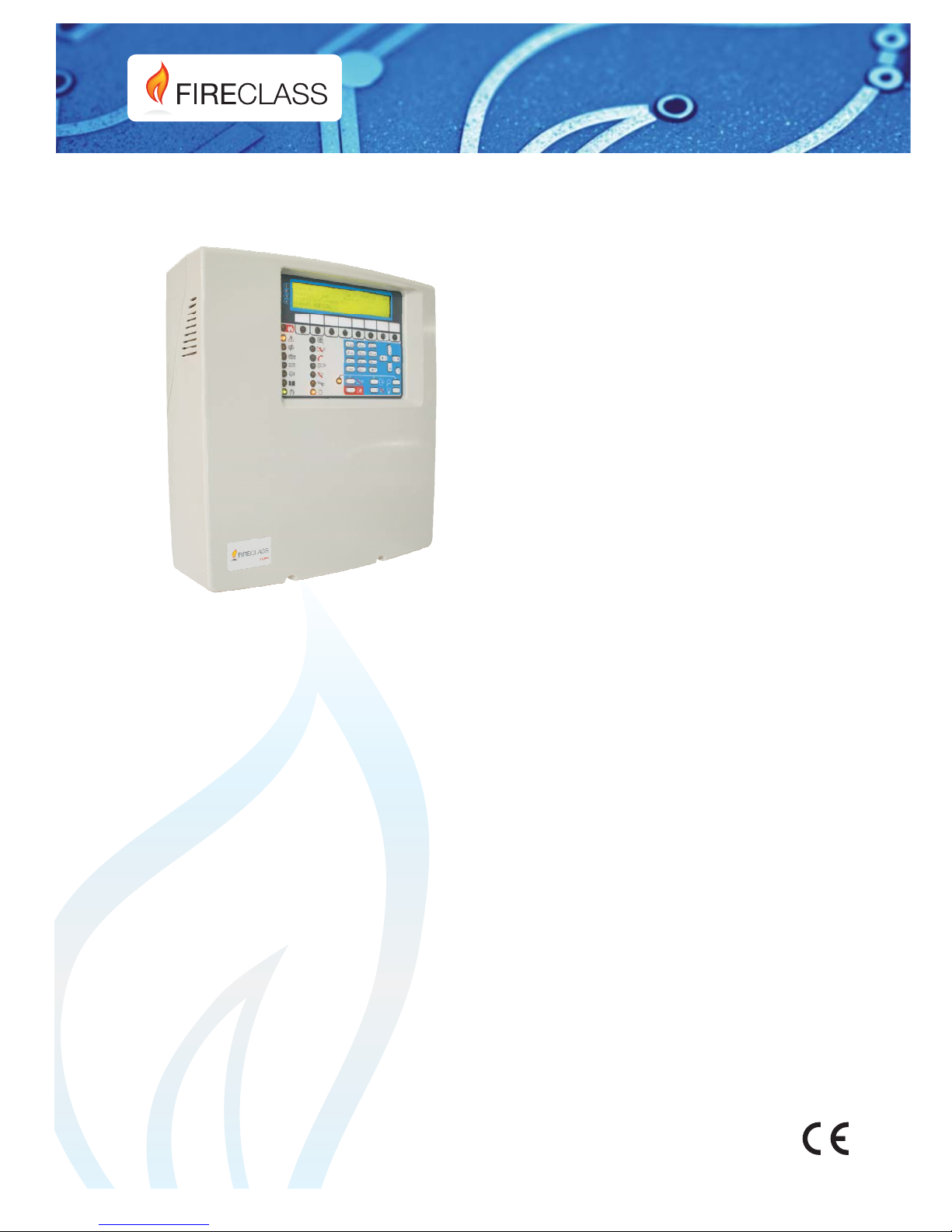

FireClass FC501 Installation Manual

Download

FC501

www.fireclass.net

Addressable

Fire

Control Panels

Installation Manual

This Fire Control panel can only be programmed using the Software FireClass Console release 1.0 or higher. Control panel FW ver. 1.0 or higher.

TYCO and BENTEL SECURITYsrl shall not assume the responsibility for damage arising from improper ap

plication or use.

Installation of this Control panel must be carried out strictly in accordance with the instructions described in this manual and in compliance with the local laws and bylaws in force.

The FC501-L,FC501-H and FC501-HK Fire Control pa

nels comply with the essential requirements of stan

dards EN54-2; EN54-4 and EN54-21.

Contents of the box and Unpacking

The control panel is contained in a carton box, inside which are located:

the plastic cabinet (backplate and cover) with the motherboard and the power supply Switching as

sembled.

The Quick Start Guide.

A transparent plastic bag inside:

- A CD-ROM with Installation and User manuals and the FireClass software console to manage the pa

nel;

- Another transparent plastic bag containing:

-the KST thermal Probe;

- Two 3.9 kOhm resistors;

- a red and a black cable L = 300 mm with a faston terminal to connect batteries;

- a black cable L = 300 mm with two faston terminal to connect batteries. Proceed carefully to unpack the contents and dispose of recyclable materials in accordance with the local law.

Recycling information

The manufacturer recommends that customers dispose of their used

equipment (panels, detectors, sirens, and other devices) in an environmen

tally sound manner. Potential methods include reuse of parts or whole pro

ducts and recycling of products, components, and/or materials.

Waste Electrical and Electronic Equipment (WEEE) Directive

In the European Union, this label indicates that this product

should NOT be disposed of with household waste. It should be depo

sited at an appropriate facility to enable recovery and recycling.

NOTE- The FC501 Fire control panel can support several addressa

ble devices (Detectors, Modules, Manual call Points, etc). The pre

sent manual includes the instructions for their programming, but for

further information on those devices and their accessories, please vi

sit: www.fireclass.net, logging in the Reserved Area, under Installa

tion Manuals.

The manufacturer reserves the right to change the technical specifi

cations of these products without prior notice.

0051

BENTEL SECURITY s.r.l.

Via Gabbiano, 22 - Zona Ind. S. Scolastica

64013 Corropoli (TE) - ITALY

0051-CPR-0406 (FC501-L)

0051-CPR-0407 (FC501-H)

0051-CPR-0419 (FC501-HK)

EN 54-2:1997+A1:2006 EN 54-21

Control and indicating equipment for fire detection and fire alarm systems for buildings with alarm transmission and fault warning routing equipment.

EXPECTED OPTIONS

Fault signals from points Dependencies on more than one alarm signal: type A and B Delays to outputs Disablement of addressable point Test condition Output to fire alarm device

EN 54-2 ESSENTIAL CHARACTERISTICS

Performance under fire conditions Passed Response delay (response time to fire) Passed Operational reliability Passed Durability of operational reliability, Temperature resistance Passed Durability of operational reliability, Vibration resistance Passed Durability of operational reliability, Electrical stability Passed Durability of operational reliability, humidity resistance Passed

EN 54-21 ESSENTIAL CHARACTERISTICS

Performance of transmission Passed Operational reliability Passed Durability of operational reliability, Temperature resistance Passed Durability of operational reliability, Vibration resistance Passed Durability of operational reliability, Electrical stability Passed Durability of operational reliability, humidity resistance Passed

EN 54-4 ESSENTIAL CHARACTERISTICS

Performance of power supply Passed Operational reliability Passed Durability of operational reliability, Temperature resistance Passed Durability of operational reliability, Vibration resistance Passed Durability of operational reliability, Electrical stability Passed Durability of operational reliability, humidity resistance Passed

0051

BENTEL SECURITY s.r.l.

Via Gabbiano, 22 - Zona Ind. S. Scolastica

64013 Corropoli (TE) - ITALY

0051-CPR-0408 (FC500IP in FC501-L/FC501-H/FC501-HK)

EN 54-21

Alarm transmission and fault warning routing equipment for fire alarm systems installed in buildings.

EN 54-21 ESSENTIAL CHARACTERISTICS

TABLE of CONTENTS

INTRODUCTION 5

FC501 Fire Control Panel 5

Accessory Items 5

Description 5

Input 5 Outputs 5 Operating Features 6 Interface 8 Access to Signalling and Commands 9 Users and Installers Features 9 Power Supply 9

Description of the FC500REP Repeater Signalling

FC500REP Repeater Control keys 10 FC500REP Repeater LED description 10

Description of the Control keys (Panel) 11 The status LED 12

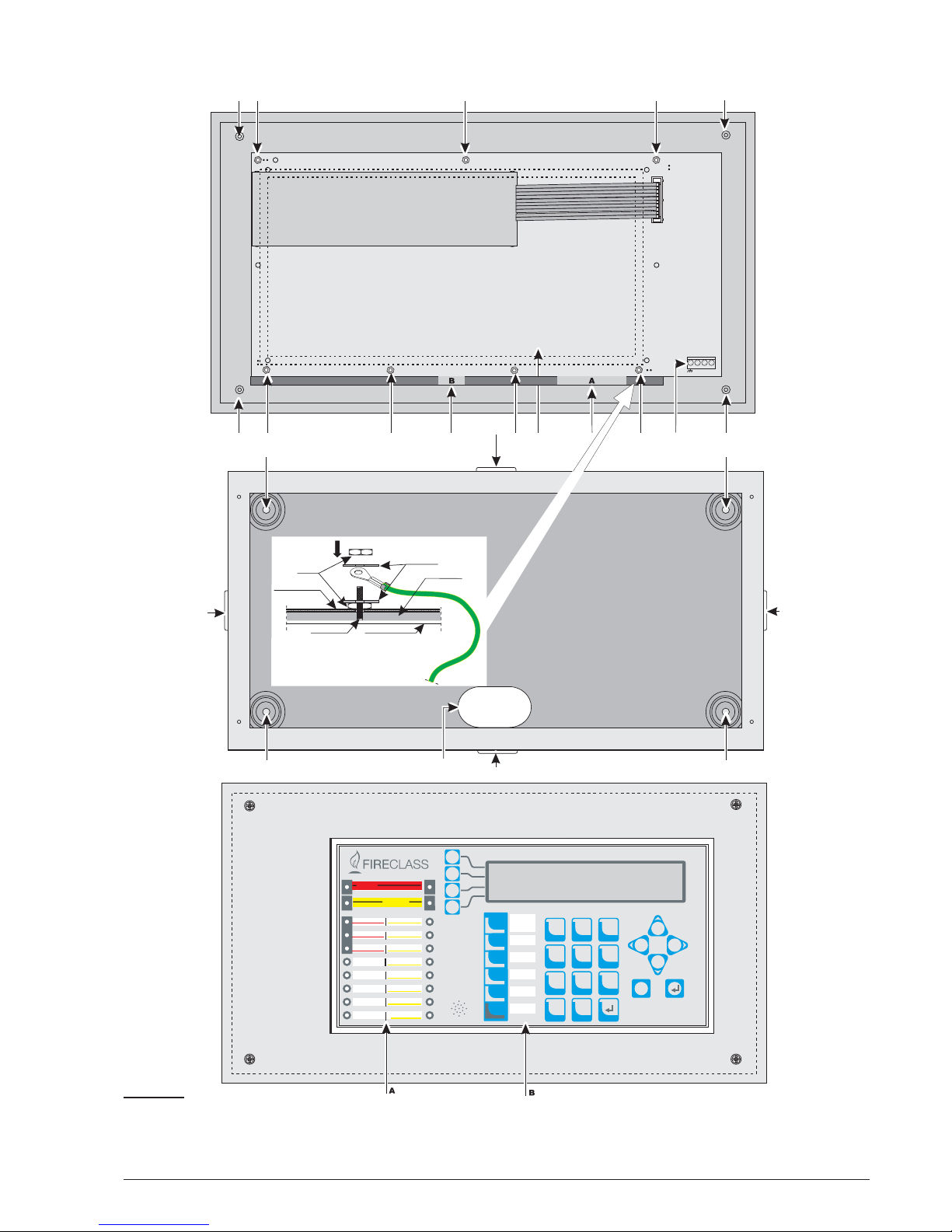

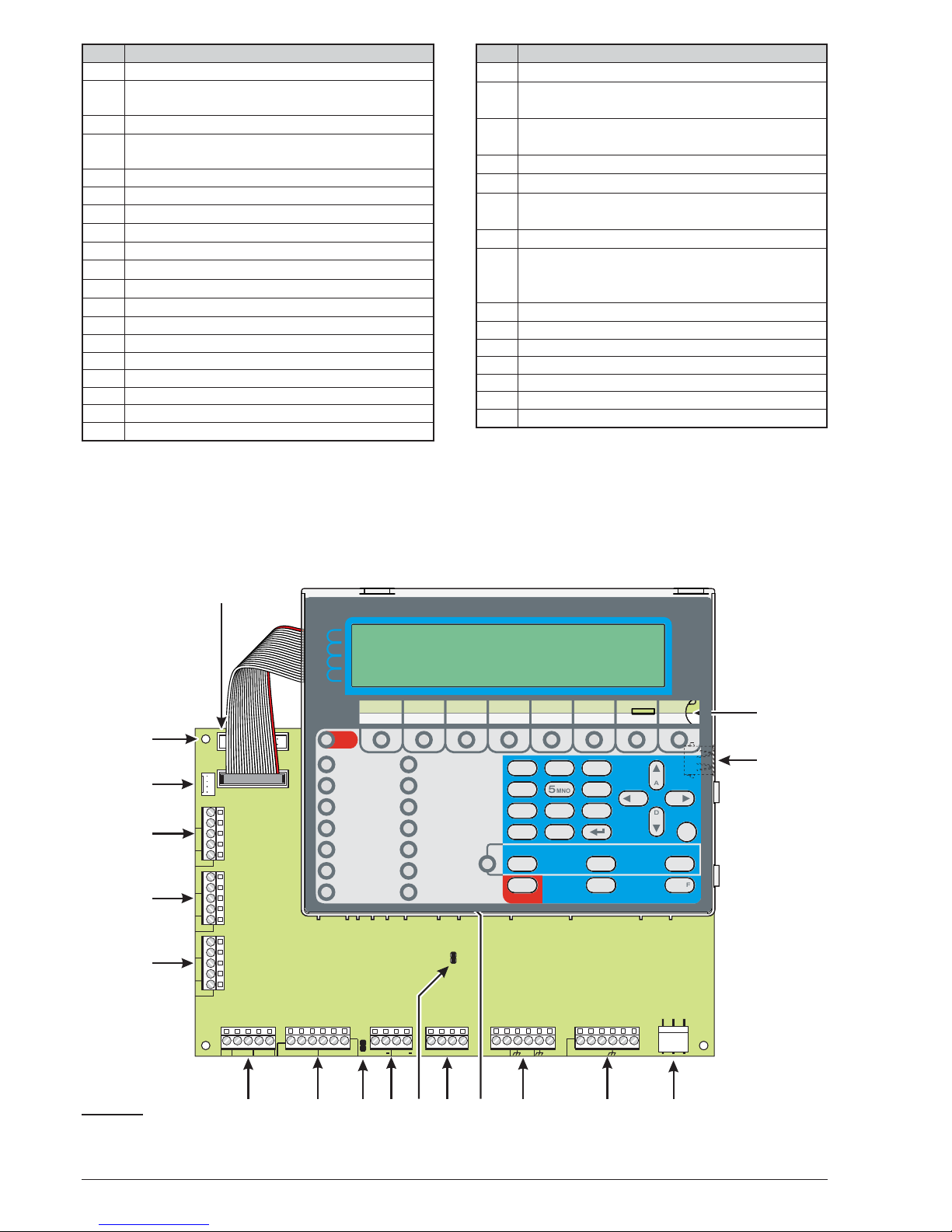

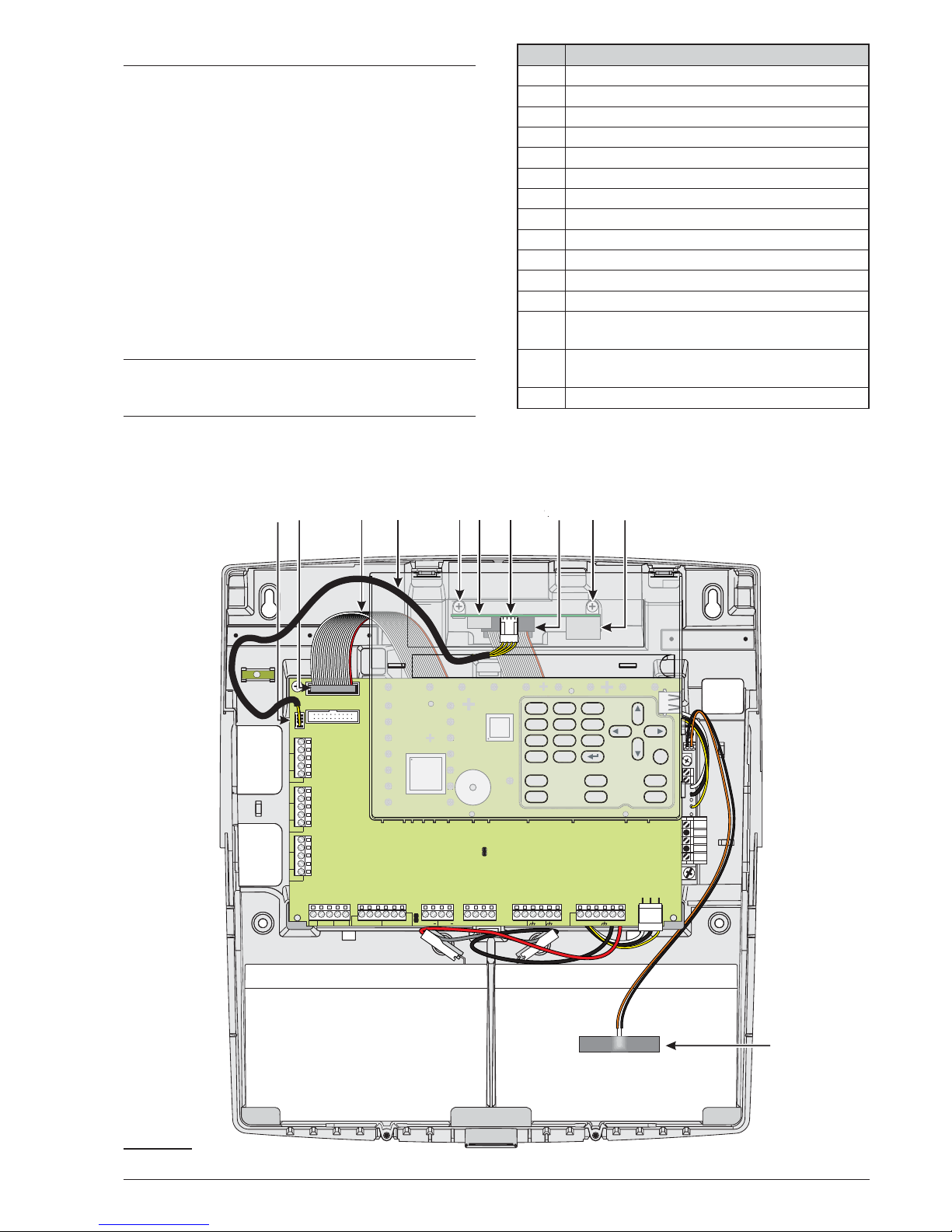

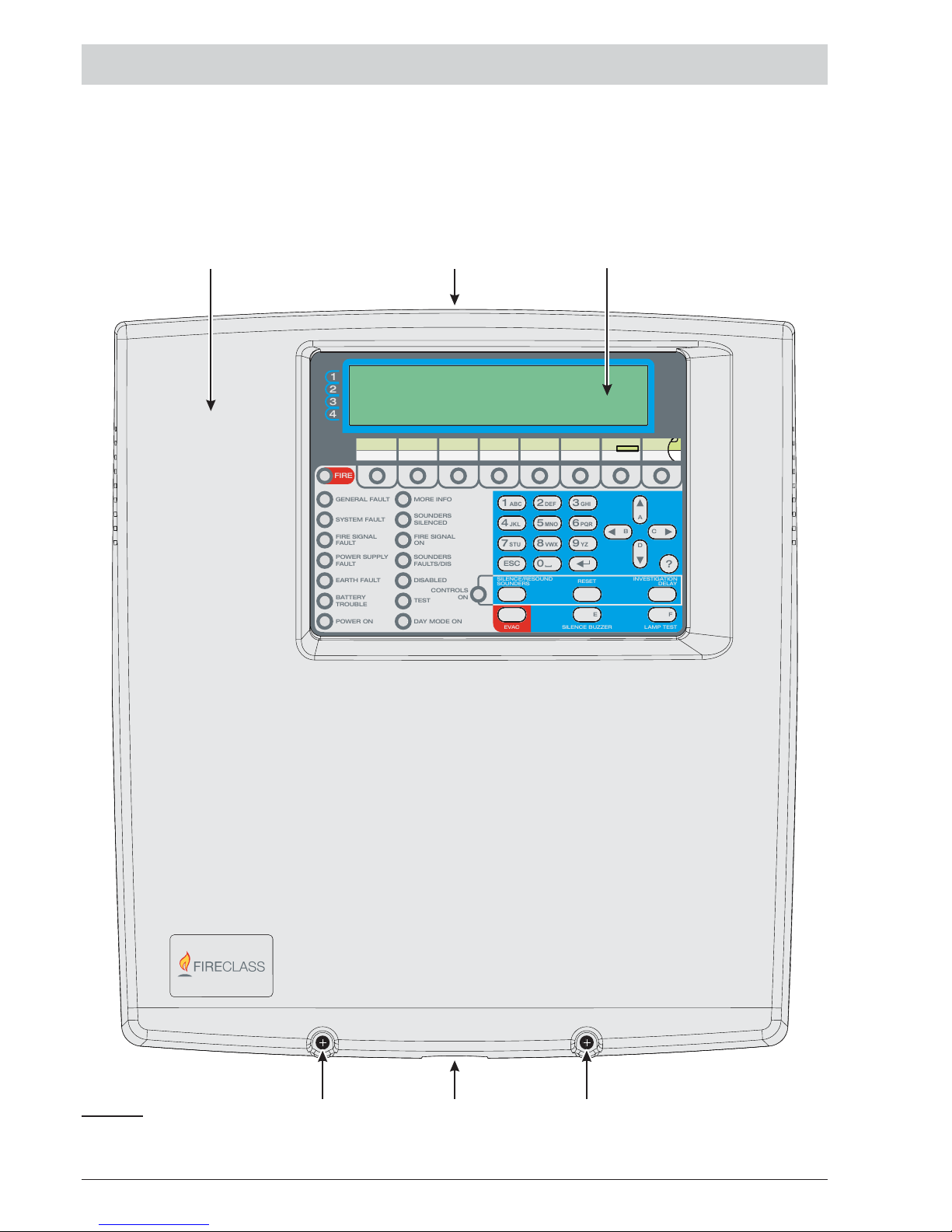

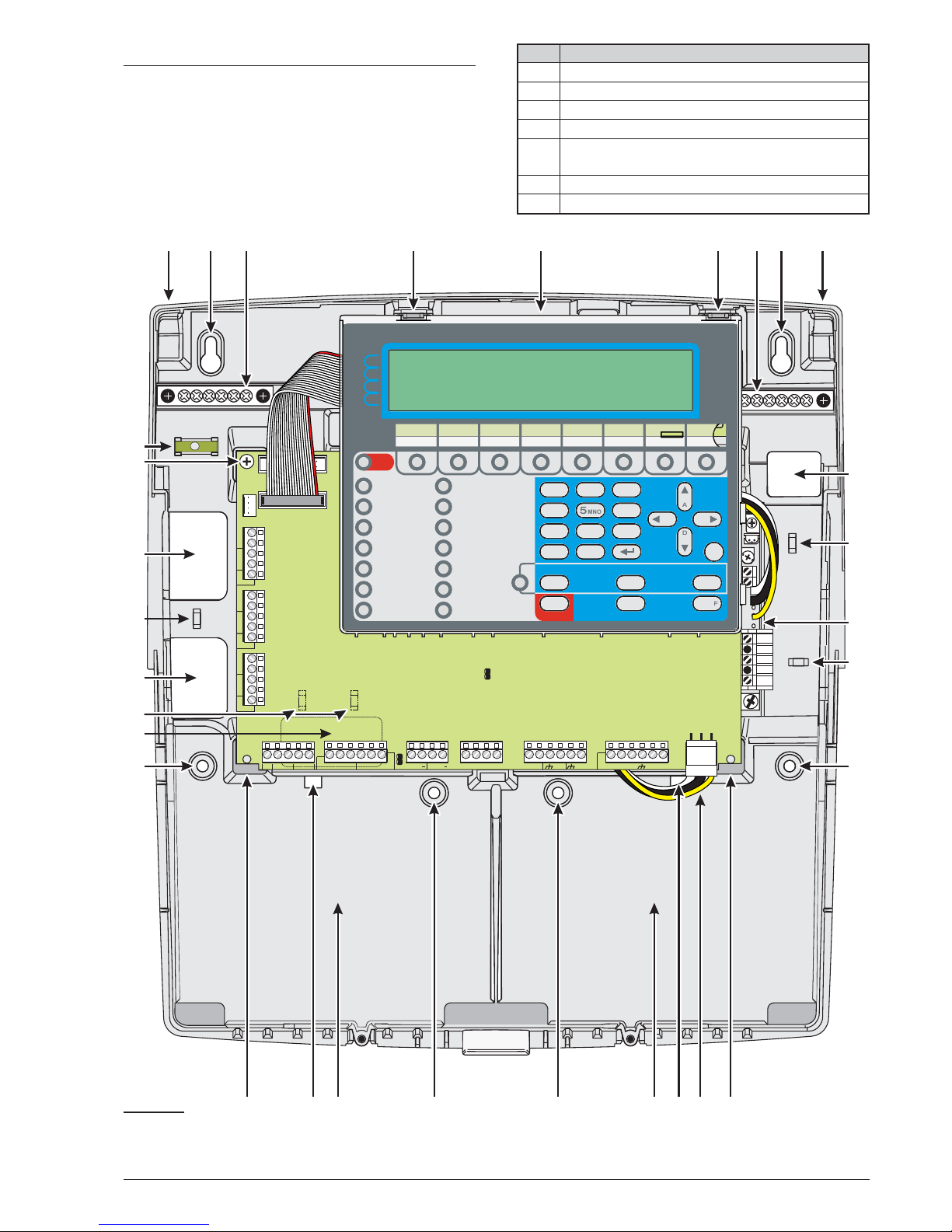

PARTS IDENTIFICATION 13

Description of Parts 14

INSTALLATION 17

Installing the Control panel 17

Control panel closure 17

Installing FC500REP Repeater 17 Description of the Terminals 19

Loop 19 Telephone line 19 Fire 19 Fault 19 Audio station 20 Auxiliary outputs 21 RS485 22 Battery 22

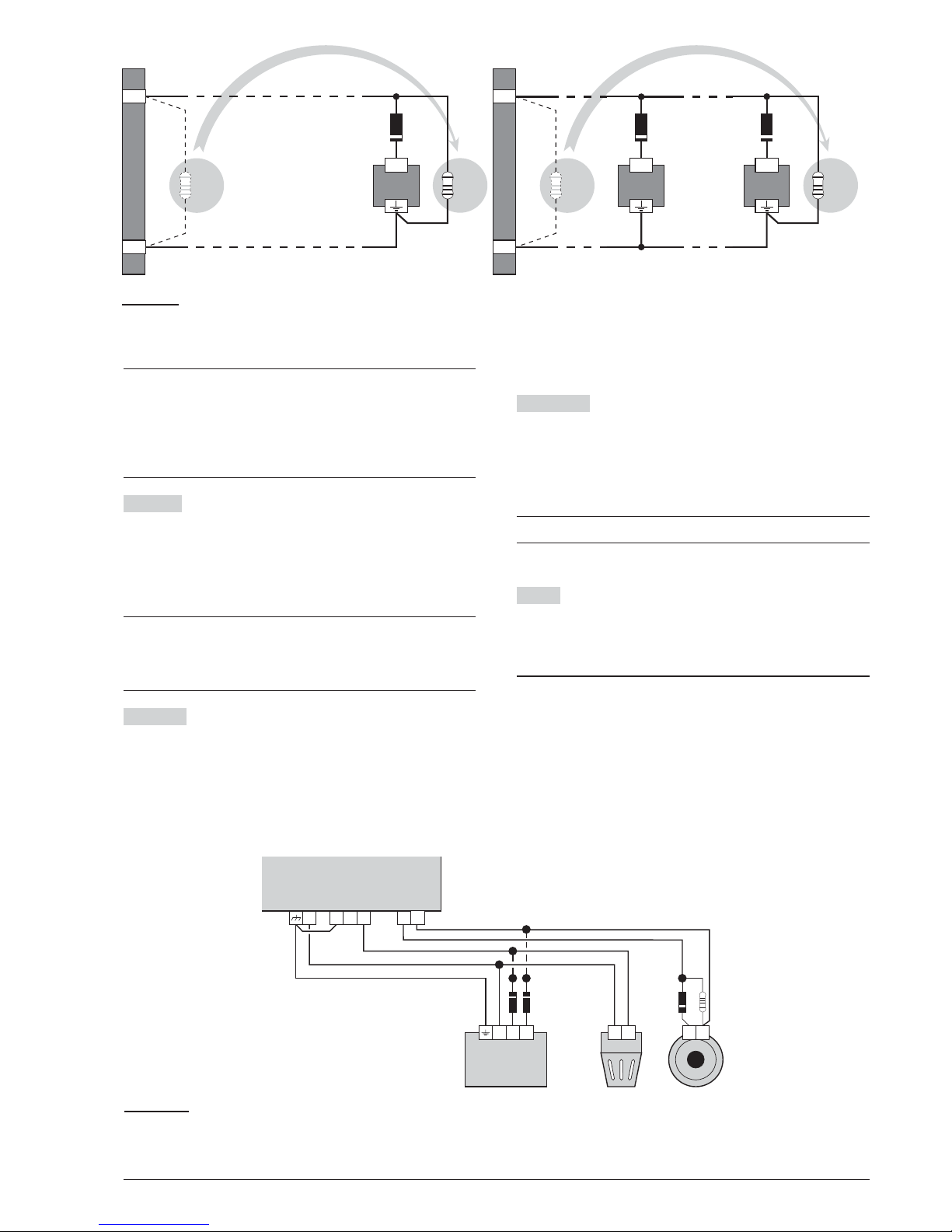

The System Wiring 22

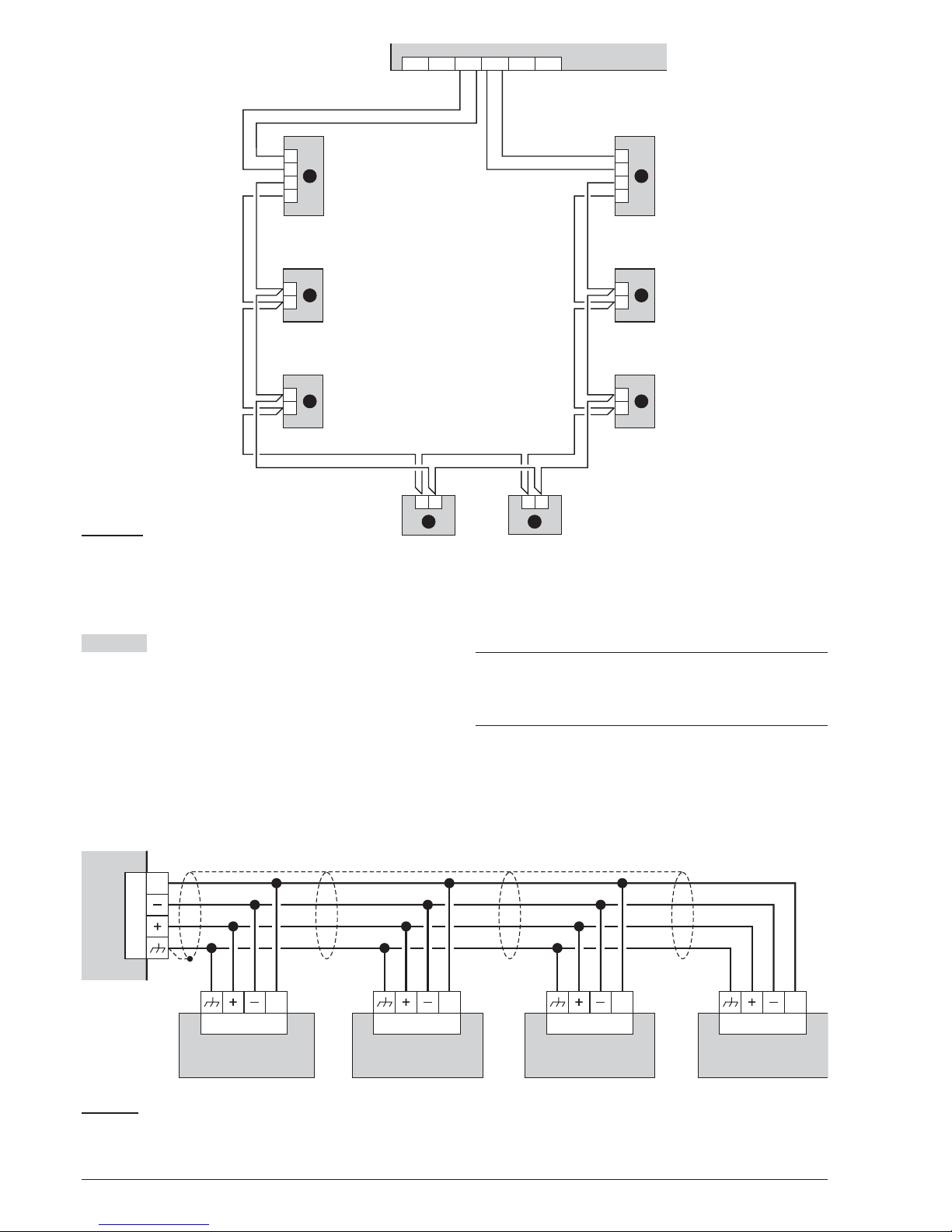

Connecting Addressable Devices 22 Connecting Repeater FC500REP 23 Connecting Output Devices 23 Bell Outputs 23

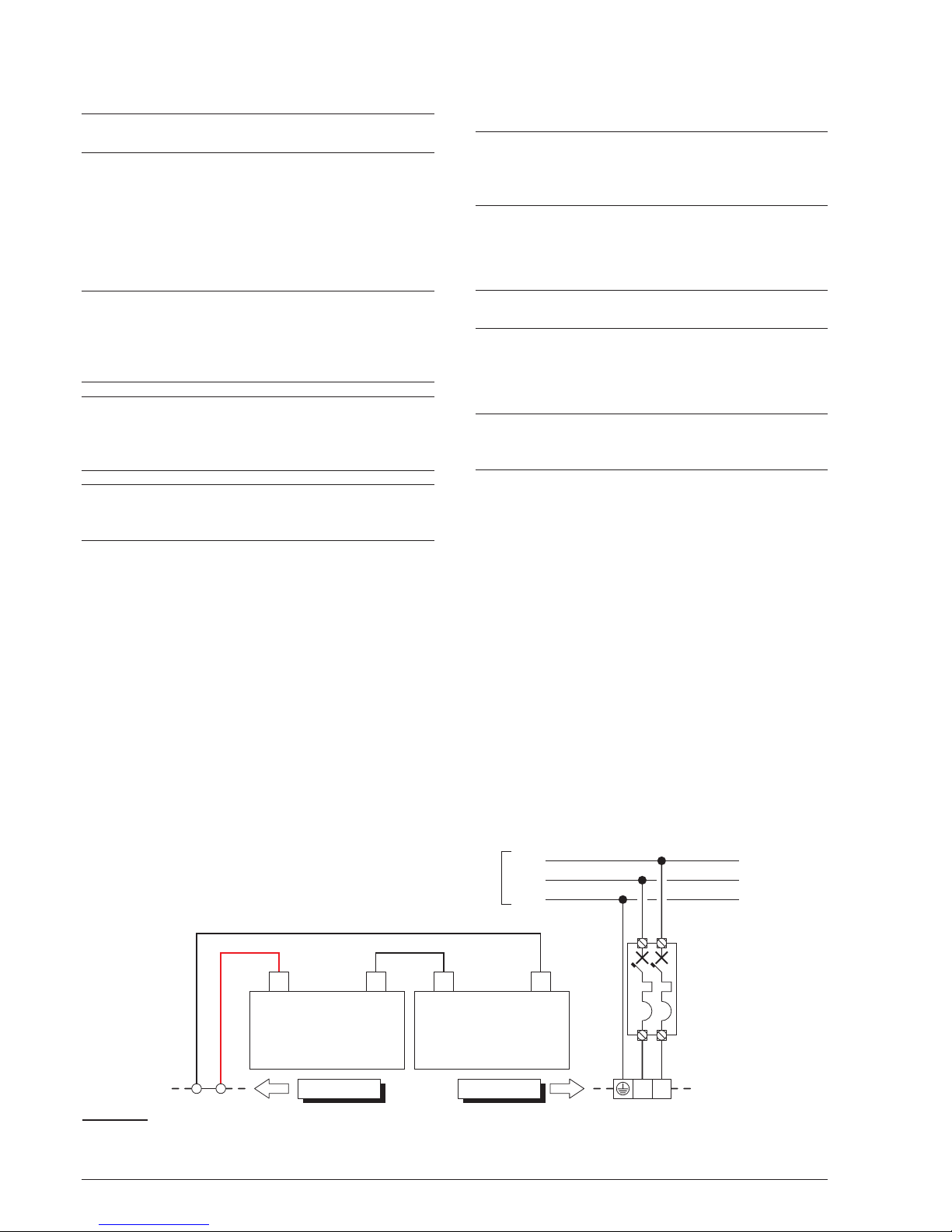

Connecting the Power Supply 24

Thermal Probe 24

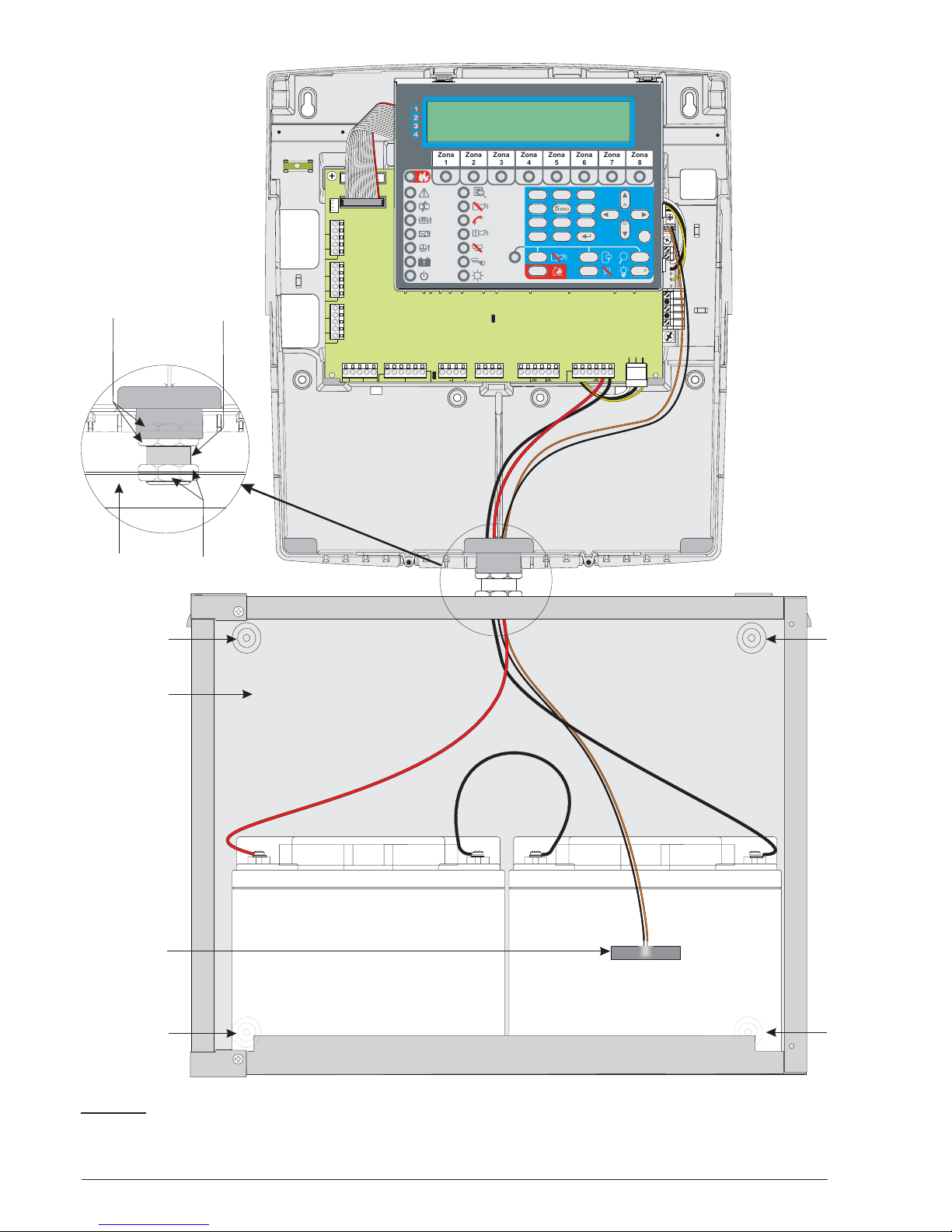

Installing FC500IP board 25 Installing the 38Ah battery metal Box 26 Maintenance 28

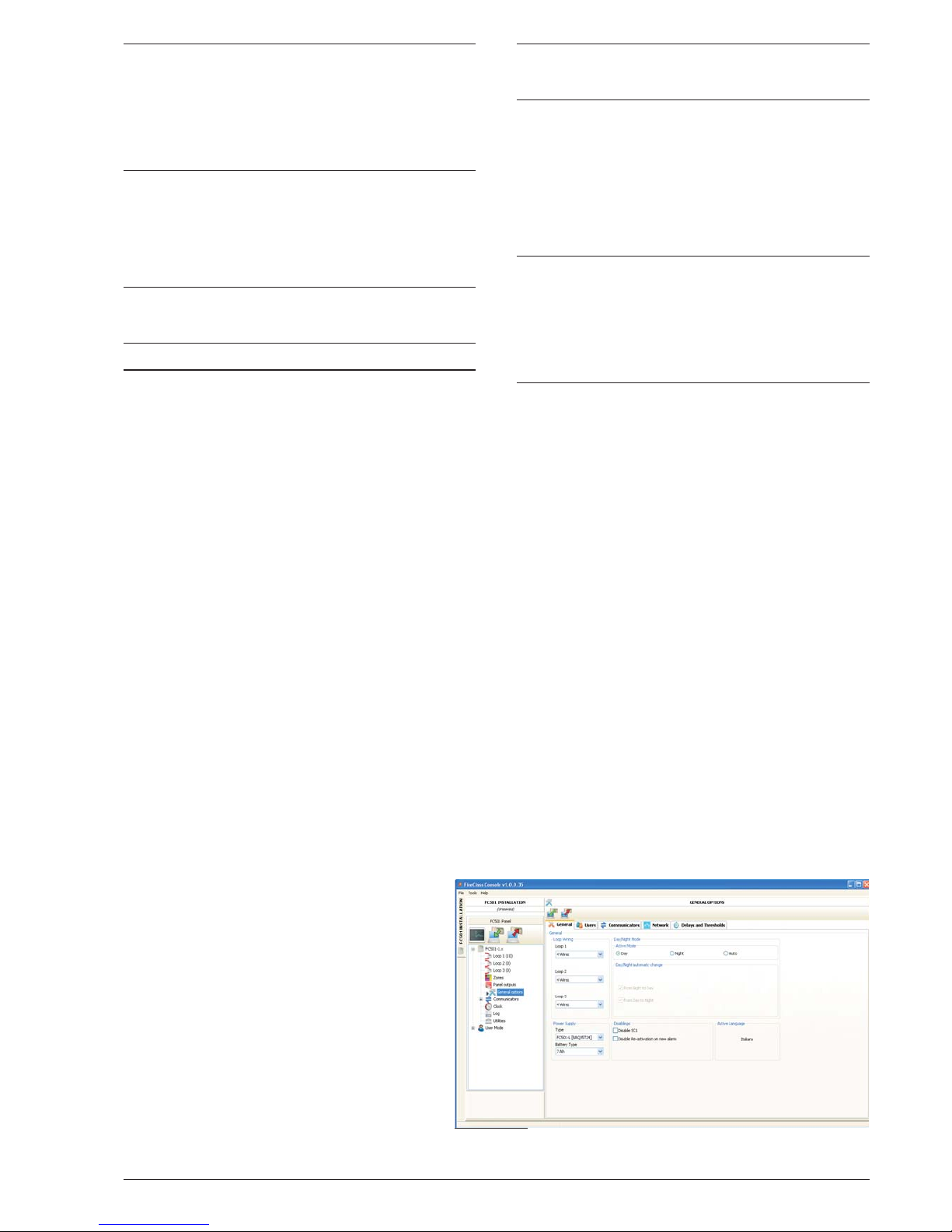

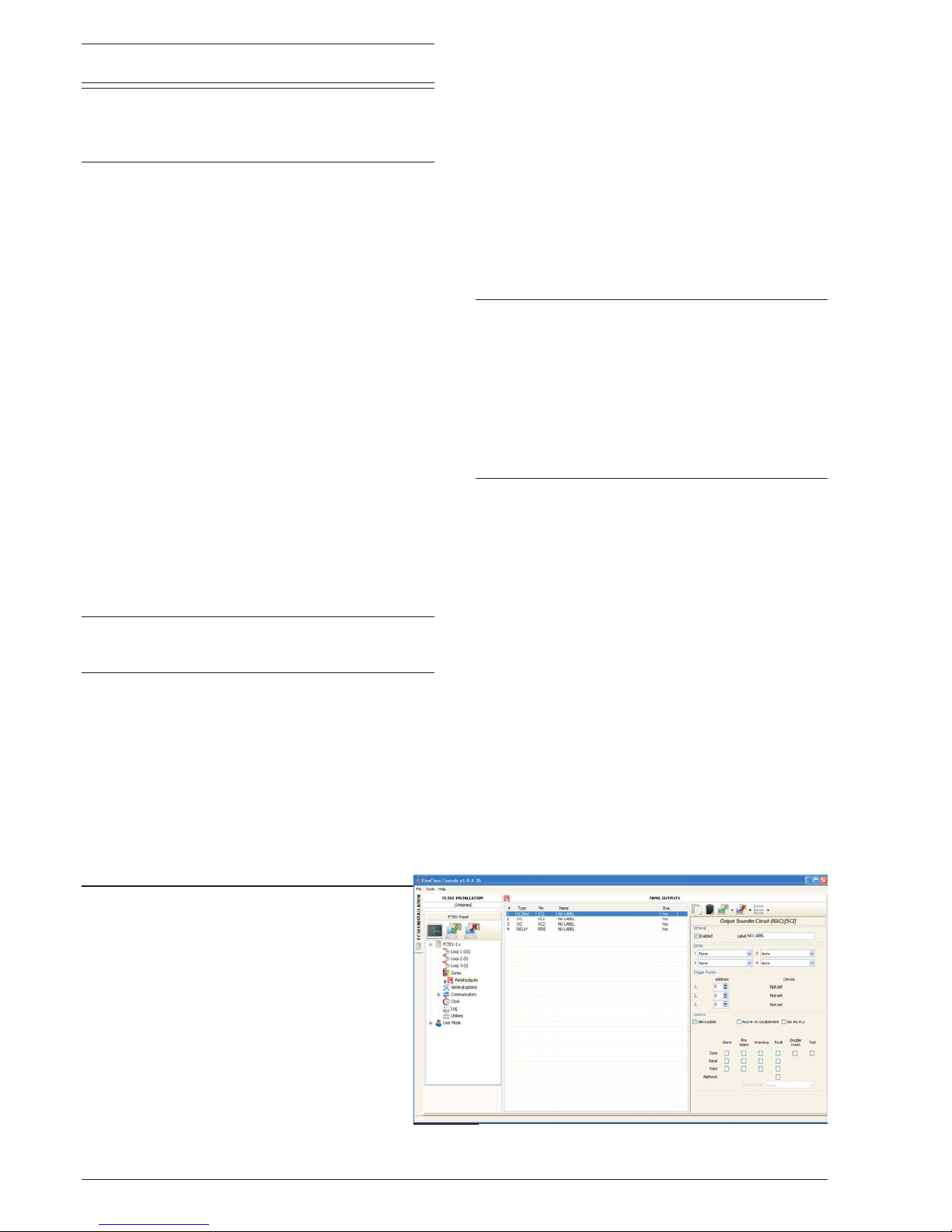

PC PROGRAMMING 29

Installation 29 Select language 29

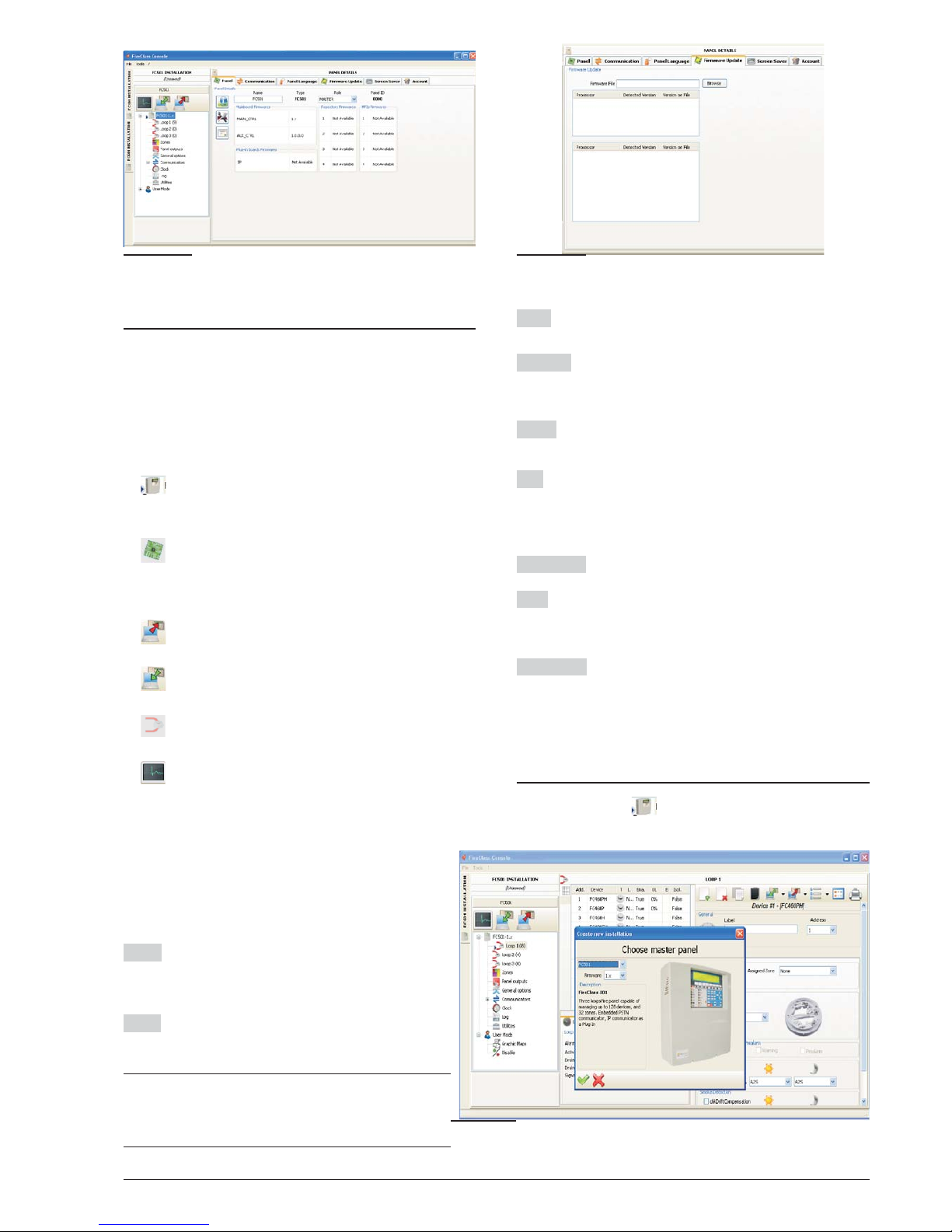

Software window Look 29 Control panel connections 29 Main window 30

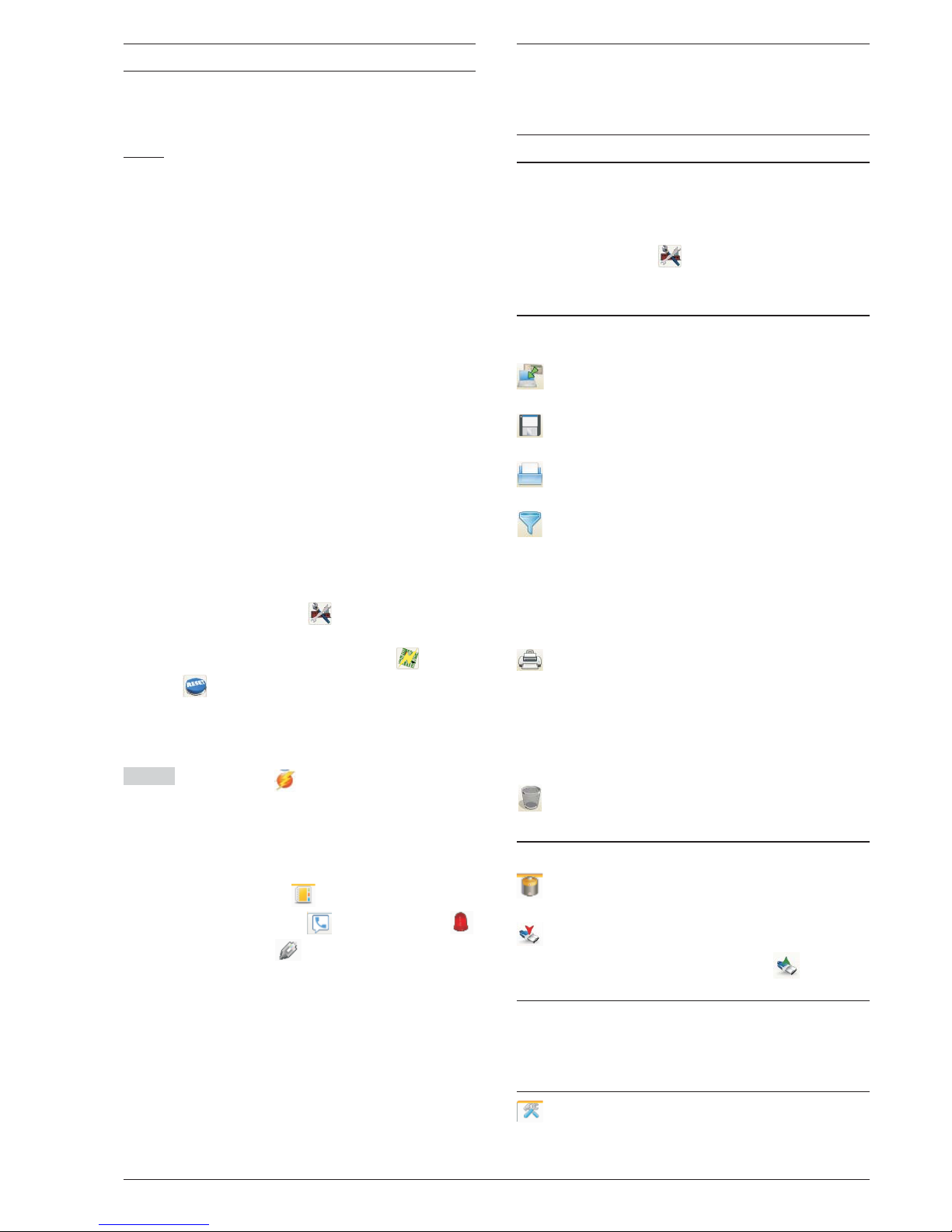

Icons description 30

File menu 30

Tools menu 30

Panel Details 30

Panel Details Menu 31 Communication Menu 31 Language Menu 31 Firmware Update menu 31 ScreenSaver menu 31 Account Menu 32 Help Menu 32

Programming Pages 32 Loop Devices programming 32

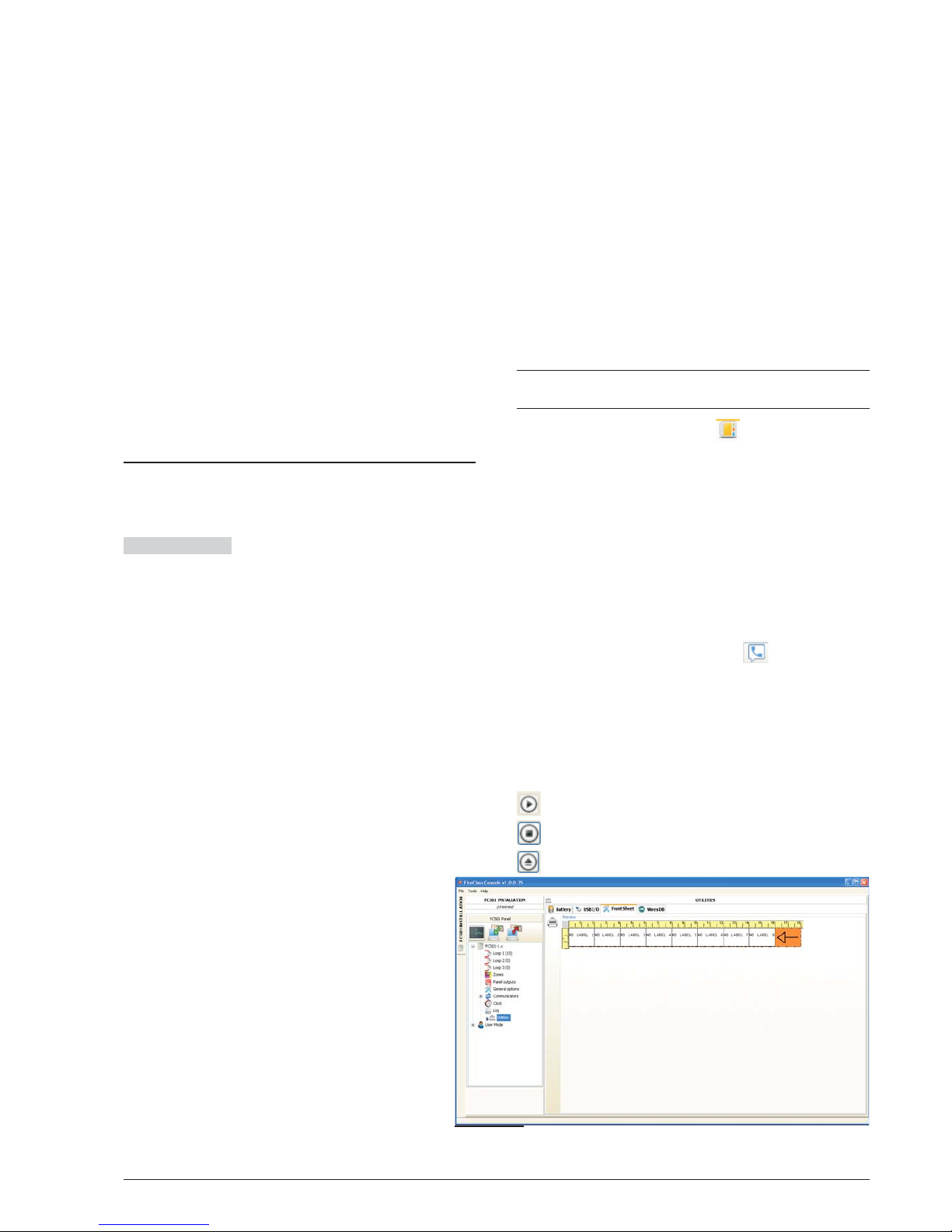

Description of the icons in the tool bar. 32 Loop wiring Calculation 33 Detectors parameters programming 33 Input module parameters programming 34

Output module parameters programming 34 Multiple Input-Output Module - Parameters Programming (FC410MIO/FC410QIO) 35 Manual Call Point parameters programming 35

Zones programming 35 Outputs Programming 36

SC1, SC2 Outputs 36 OC1, OC2 Outputs 36 Relay Outputs 36

General Options programming 37 Communicators Programming 38 CLOCK 40 LOG 40 UTILITIES 40

Battery Calculation 41

User mode 41

PROGRAMMING FROM THE PANEL 43

Using the system 43 Operating the system from the Panel 43

Alphanumeric entry (Editing text) 43

Assistant text composition 43

Single Selection 44 Multiple Selection 44 Date and Time 44 Numeric entry 44

Main Page - Accessing the system 45 Insert password 45 Programming Page 46 0 KEY - insert Modify password 46 1 KEY- Auto Enrolling (Autolearning) 46

Automatic zones assignment 47 Warning Enrolling (Autolearning) 47

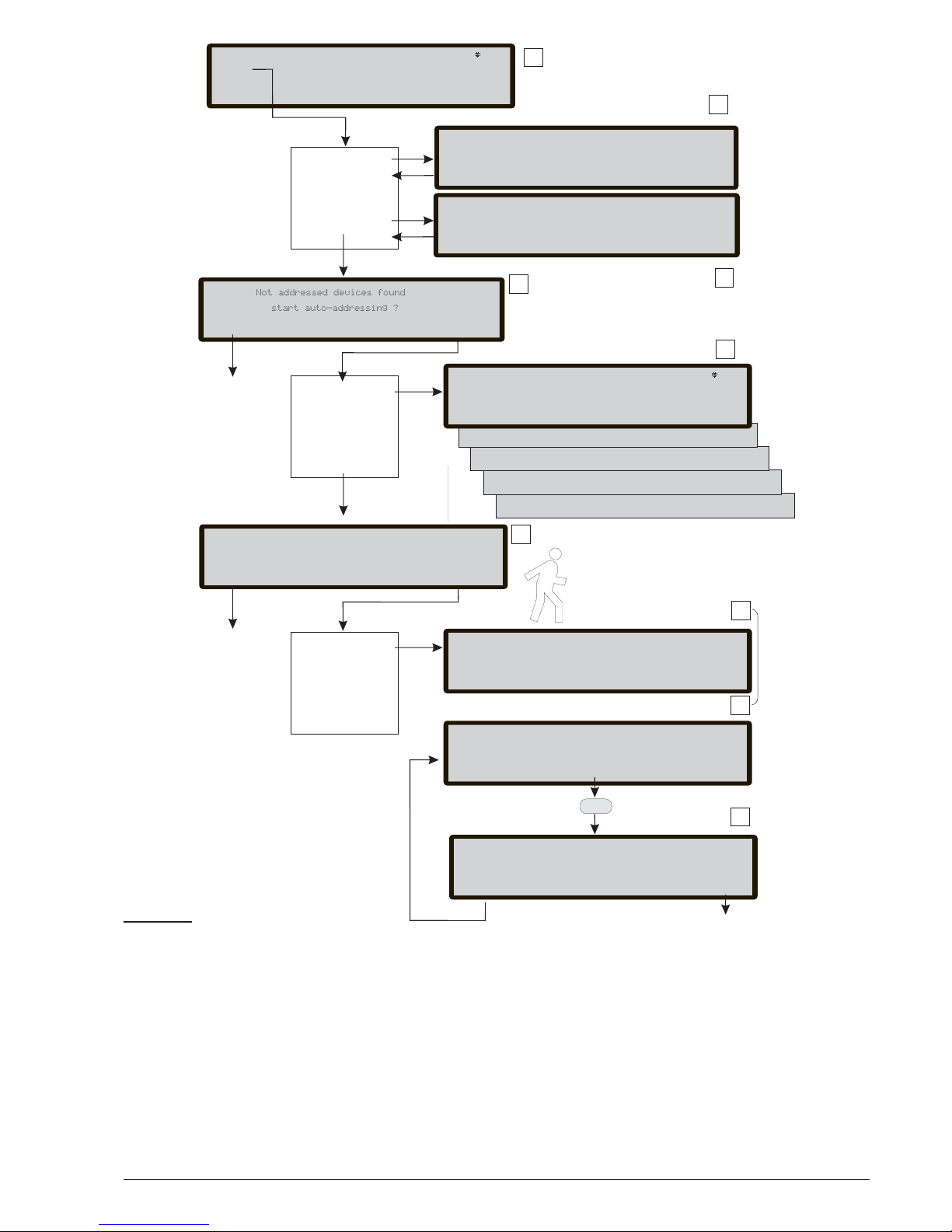

Auto addressing procedure 48

2 KEY -Device 49

Choose the Loop (see User Manual View Devices)49 Choose the Device 50 Loop devices programming page 50

3 KEY - SW zone 51

SW zone in WALK TEST 51 Detector alarm verification (Smoke delay) 51 Prealarm 51

4 KEY- OUTPUT 52

Choose Output 52 SC on disablements 52

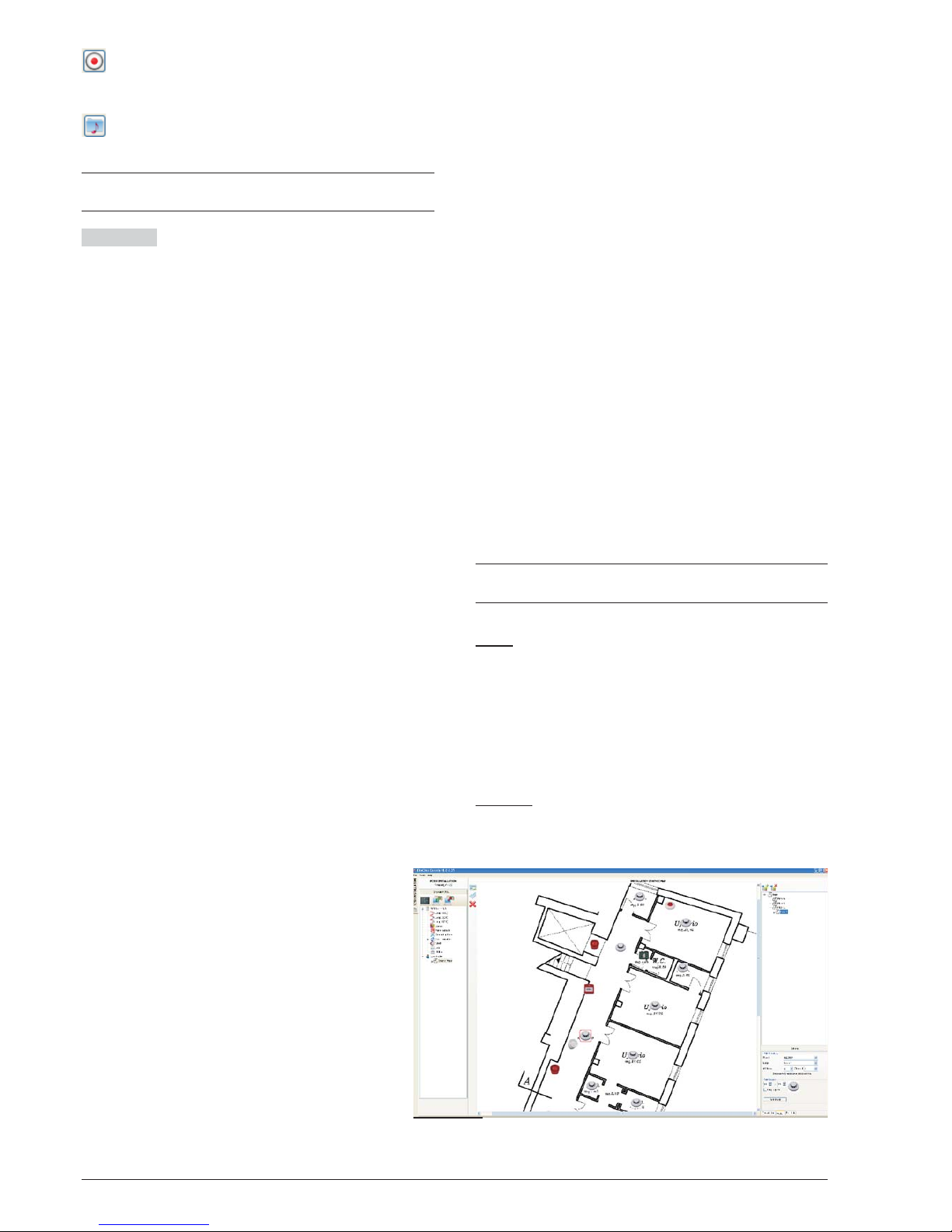

5 Key- Network 52 6 KEY - MAP DEVICE 53 7 KEY -USB 53 8 KEY -SYSTEM 55

Panel ID 55 Day / Night / Auto 55 Pre-alarm time 55 Copy on Zone? 55

9 KEY- Restore Default 55 FC500REP Repeater Address from the Repeater panel ONLY 56

QUICK START-UP PROCEDURE 57

PROCEDURE 57 System default 60

Zone assignment 60 System default parameters 60

ACCESSORY 63

FC500IP - IP Module 63 4B - Universal Base 63 FC460H or FC400H-Addressable Heat Detector 63 FC460P or FC400P - Addressable Optical Smoke 63 FC460PH or FC400PH - Addressable Optical Smoke & Heat Detector 63 FC460PC Addressable Optical Smoke & Heat Detector & CO 64 FC410LI - Line Isolator Module 64 FC410MIM - Mini Input Module 64 FC410MIO - Small Addressable Multi I/0 Module 64 FC410SIO - Single Input/Output Module 64 FC420CP - Addressable Break Glass Callpoint (indoor) 64 FC421CP - Addressable Break Glass Callpoint (outdoor) 64 FC430SAB/SAM - Sounder Base Address Modules 64 FC430SB - Loop Low Power Sounder Base 64 4B-I - Isolator Base 64 FC490ST - Loop Service Tool 65 FC410BDM - Beam Detector Module 65 FC410CIM - Contact Input Module 65 FC410DIM - Detector Input Module 65 FC410RIM - Relay Interface Module 65

FC400CH - Addressable Carbon Monoxide + Heat Detector 65 801RIL - Remote LED Indicator 65 801HL - Remote LED Indicator 65 HVR800-High Voltage Relay 65 MP69-Duct Probe Unit 66 FIRERAY 50/100-Optical Beam Smoke Detector 66 FC410LPSY and FC410LPAV loop powered sounders and sounder-beacons

FC410LPBS-R/W loop powered sounders and sounder-beacons (EN54-23)

FC430LPSB and FC430LPASB Loop Powered Addressable Sounder/Beacon Base 66 FC430LPBSB Loop Powered Addressable Sounder/Beacon Base (EN54-23) 67 FC410SNM Sounder Notification Module 67 FC410TSM – door control module 67 FC410DDM – Universal fire and gas detector module 67 FC410QIO Quad input output module 67 FC410QRM Quad relay module 67 FC410QMO Quad Monitored Output Module 67

SPECIFICATIONS 69

Technical features 69 Description of the terminals 69 Table of distribution of currents 70

4 Addressable Fire Panel FC501

INTRODUCTION

FC501 Fire Control Panel

The FC501 Fire panel serie has been designed and manufactured to the highest standards of quality and performance adopted by Bentel Security.

The FC501 Fire panel serie is available in the following models:

FC501-L: Analogue addressable Fire Control Panel with 3 Loops, that can support up to 128 addressable device and 32 zones. Powered: BENTEL BAQ35T24 Switching Power Supply (1.5A @ 27,6V). Suitable batteries: 2 * 12 V/ 7Ah

2 * 12 V/ 12Ah.

User Interface with Icons.

FC501-H: Analogue addressable Fire Control Panel with 3 Loops, that can support up to 128 addressable device and 32 zones. Powered: BENTEL BAQ60T24 Switching Power Supply (2.5 A @ 27.6V). Suitable batteries: 2 * 12 V/ 12Ah

2 * 12 V/ 38Ah

User Interface with LEDs descriptions in English.

Ø FC501-HK: Analogue addressable Fire Control Panel

with 3 Loops, that can support up to 128 addressable device and 32 zones. Powered: BENTEL BAQ60T24 Switching Power Supply (2.5 A @ 27.6V). Suitable batteries: 2 * 12 V/ 12Ah

2 * 12 V/ 38Ah

User Interface with Icons.

In this manual the term FC501 is used to describe the characteristics common to all versions while the version name is used to describe the differen

ces between the versions listed above

The components of these Control panels operate as intended when the external ambient conditions comply with the requirements of class EN 60721-3-3:1995.

The FC501 control panel has a 4-line, 40 characters per line LCD module with a backlight, which provides writ

ten information regarding the system status and for pro

gramming the control panel.

Accessory Items

FC500REP This Repeater panel is intended for con

nection (via 4 wires) to FC501 Control panels. It provi

des all the visual and audible warnings generated by the Control panel and allows end-users to manage the system from a remote location (up to 1000 m, with dou

ble twist shielded cable). The FC501 Control panels can support up to 4

FC500REP Repeater panels.

FC500-MFI FC500-MFI is a Programmable Multi fun

ctional Module for connection of a real time event prin

ter; furthermore, thanks to the terminal blocks, it is also possible to connect a “standard interface” to remotely control and manage a set of Inputs and Outputs to con

trol the panel.

FC500IP Module to connect the control panel to a LAN (see page 25 and page 29).

FireClass Console This user-friendly software application (Microsoft Windows XP & above) offers a quick and easy way to program the Control panel and provides event log functions.

Description

Input

The 3 Loops manage up to 128 devices.

Outputs

This section describes how the Control panel outputs operate.

Supervised outputs The Control panel will be able to detect and signal short-circuits and power supply inter

ruptions on this type of output.

Bypassable(Disabled) outputs The user will be able to disable (by means of the respective key) this type of output.

Silenceable outputs The user will be able to stop (via

the Silence/Resound Sounders key) this type of output. The outputs can be silenced for an indefinite period (du

ring Day Mode), or for the programmed Silence Time (during Night Mode).

INTRODUCTION 5

Operating Features

Warning The FC501 control panel can be program

med to provide WARNINGS or PREALARMS status be

fore ALARM status. This status will be signalled by the WARNING display. The panel will generate a warning when an input point (detector) exceeds its warning threshold and there is risk of an alarm.

-WARNING STATUS will be signalled by:

control panel buzzer (2 sec. of sound at 440 Hz and then 2 sec. of pause)

a WARNING message on LCD display

the WARNING output points if the Pre-alarm option is enabled;

Pre-alarm If a zone generates an alarm during Day Mode, the Control panel will start the Pre-alarm Time. This status will be signalled by:

control panel buzzer (0,5 sec. of sound at 880 Hz and then 0,5 sec. of pause);

Blinking on the Pre-al. LED (for the first 8 zones only);

Message ALARM+DLY on LCD display;

Activation of respective outputs , if the Pre-alarm option is enabled;

This Control panel will generate an Instant Alarm if alarm conditions are detected during Night Mode or if an alarm is triggered from a Callpoint.

During Pre-alarm status, you will be able to (see Access to Signalling and Commands): Ø Access Level L1 activate an Evacuation Alarm by

pressing and holding the Evacuate Key ( ),

Ø Access Level L2 stop the Silenceable outputs and

interrupt the Pre-alarm Time by pressing the Silence

key ( ).

During Silence status ( Silence LED glowing), it is

possible to use the Silence key to release the Si

lenceable outputs, or use the ( ) Reset key to resto

re standby status.

If the Control panel is operating in Night Mode, the Control panel will exit from Silence status automati

cally when the programmed Silence Time expires

Alarm The Control panel will generate an alarm when the Pre-Alarm Time expires. Alarm status will be si

gnalled by:

control panel buzzer (0,2 sec. of sound at 3300 Hz and then 0,2 sec. of pause);

glowing of the Alarm LED ( )

an alarm message on LCD display;

activation of the FIRE and SC1 outputs;

activation of other outputs SC2, OC1 o OC2 if pro

grammed.

During Alarm status, (see Access to Signalling and Commands) it is possible:

Access Level 2 stop the Silenceable outputs by

pressing the Silence key ( );

Access Level 2 press the Reset key ( ) and Silen

ce Buzzer ( )

During Silence status (Silence LED glowing), it is pos

sible to use the Silence key to release the Silenceable outputs, and the Reset key to restore standby status.

If the Control panel is in Night Mode (Day Mode LED OFF), the Control panel will exit Silence sta

tus when the programmed Night mode Silence time expires

Day/Night Mode The control panel can operate in DAY or NIGHT Mode. See “PC PROGRAMMING” chapter. If the system is silenced during DAY Mode, SILENCE status will be held until the system is unsilenced (i.e. un

less new alarms occurs). If the system is silenced du

ring NIGHT Mode, SILENCE status will be held until the Night Mode Silence time expires. On power up (at default) the system will set to DAY Mode. During this operating mode, silenced alarms/fa

ults will not be unsilenced automatically until the Night Mode Silence time expires.

Fault This Control panel can detect and signal the Faults shown in the Table n.1:

Fault conditions will be signalled by: Ø control panel buzzer (1 sec. of sound at 660 Hz and

then 1 sec. of pause);

Ø glowing on the Fault LED ( ) and on relative Fault

LED;

a Fault message on LCD display;

activation of the Fault output;

activation of other outputs SC2, OC1 or OC2 if pro

grammed.

The Fault output and any additional programmed fault outputs (if correctly programmed by Installer) will resto

re to standby automatically when fault conditions clear. Under certain circumstances, fault conditions may clear spontaneously, if this occurs, the event will be stored in the memory until the Control panel Resets. Stored Fault events will be signalled by:

slow blinking on the Fault LED ( ).

Silence

This Control panel provides a Silence key

( ) which can be used to restore the Silenceable outputs to standby status. Silence status will be signalled by:

glowing on the Silence LED ( ).

Silence status will be held until the Silence key ( ) is pressed again or, if the Control panel is operating in

Night Mode, until the programmed Night mode Silen

ce time expires, or until a new Alarm condition is detec

ted.

6 Addressable Fire Panel FC501

INTRODUCTION 7

Message Problem

Switching 1

Switching power supply 1 Fault

Mains fault The Control panel is NOT powered from the Mains

Battery The Control panel batteries charger not working properly

Low battery The Control panel batteries are empty

Earth Leakage to Earth

24A Output 24A Output is shorted

24R Output 24R Output is shorted

Flash writing Flash writing error

Flash erasing LOG erasing error

Main controller Main controller fault

Firmware main contr. Checksum fault

Prog.data main cont Data programming Checksum fault

Prog.data tel.board Aux Controller data programming Checksum fault

Loop Communication Communication Loop fault controller

Not programmed dev Loop device without address

Loop return open Loop negative signal open

Loop signal open Loop positive signal open

Loop local short Local short on Loop controller

Loop right short Right side Loop short

Loop left short Left side Loop short

Non answer Loop device doesn' t answer

Dirty level (Smoke detector ONLY) the dirty threshold has been exceeded

Short circuit Short circuit on Input module

Open circuit Open circuit on Input module

Power supply Main fault

Wrong value A Loop device has a wrong value

Stuck output An Output module relay is not switched

Same address Several Loop devices have the same address

Wrong Type Different loop device from that programmed in the panel

IP Communicator The communication with IP controller is lost

IP receiver The communication with IP receiver is lost

Display communic. Communication fault on Display controller

PSTN communicator The communication with PSTN controller is lost

Telephone line Telephone Line fault

LOG Full LOG fault

Backup PSTN line Backup Telephone Line fault

PSTN Action not Ack. A PSTN action has not been acknowledged

SC x short SC x= (1 or 2) short circuit

SC X open SC x (1 or 2) open terminal

Transistor SC x Transistor SC x (1 or 2) fault

Table 1 Faults table (Continued..)

The Silenceable outputs can only be manually si

lenced at access level 2 or 3.

Disabled This Control panel can disable:

Ø the devices on the Loop, SC2 Output, OC1 and OC2

outputs, the software zones, the RS485 network devices (FC500MFI).

Ø DISABLED zones cannot generate alarms or war-

nings of any kind, and DISABLED outputs cannot be activated.

Disabled status will be signalled by:

Ø glowing on the Disabled LED ( );

The DISABLE facility is only available at access le

vel2or3.

Reset Resetting the Control panel will restore the out

puts to standby status, clear the memory, and interrupt the power supply to terminals 24R.

The panel can only be Reset at access level 2 or 3

Interface

Visual Signalling The system status will be signalled

on the Control panel LEDs as follows:

GREEN indicates normal operating conditions; AMBER indicates specific operating modes (for exam

ple Day or Night mode), and/or Fault conditions;

RED indicates Alarm conditions.

Memory The Control panel will signal Fault events

(FAULT LED blinking ) until the system Resets, even if the event clears in the meantime.

Audible Signalling The Buzzer will signal the Control panel status as in the following table 2:

When an alarm is silenced and a new fault is detec

ted, the control panel will resound the previously silenced alarm.

Test

LAMP TEST ( ) key will allow ALL users to test

the Control panel Buzzer and LEDs.

8 Addressable Fire Panel FC501

Message Problem

LOOP x NOISY

The devices on the loop x (1, 2 or 3) don't communicate properly with

the panel (Check the quality of wiring)

PERIODIC TEST D The digital call for periodic test has failed

PERIODIC TEST V The vocal call for periodic test has failed

REPEATER COMMUNIC. A repeater on the RS485 does not respond

MFI x COMMUNIC. (x from 1 to 4)

PRINTER x FAULT (x from 1 to 4)

PRINTER x ABSENT (x from 1 to 4)

MFI x SERIAL CHANN. (x from 1 to 4)

MFI x RADIO LINK (x from 1 to 4)

MFI x RADIO PATH (x from 1 to 4)

MFI x INy SHORT (xfrom1to4;yfrom1to5)

DEFAULT DATA The fire panel resets to default data

Table 1 Faults Table

Status Sound Pause Frequency

SYSTEM

FAULT

(main

processor fail)

2.5 s 2.8 s 1300 Hz

SYSTEM

FAULT

(Programming

data corrupted)

1 s 1 s 660 Hz

Warning 2 s 2 s 440 Hz

Delay to Alarm

(Prealarm)

0,5 s 0,5 s 880 Hz

Alarm 0,2 s 0,2 s 3300 Hz

Fault 1 s 1 s 660 Hz

Table 2 Buzzer signalling

Access to Signalling and Commands

There are 4 access levels, in compliance with the Fire Safety Regulations in force.

Access Level1 (L1)

Viewing: ALL persons can view

the Control panel status (No Password requested).

Access Level 2 (L2) Operating the system (PIN Code entered): Password Code Users can operate the system (User level).

Access Level 3 (L3) Programming and Opening the Control panel (Password Code entered): ONLY Quali

fied persons with authorization are allowed to open

the Control panel door (requires removal of the Cover screws) for maintenance purposes or to replace batte

ries. (Installer Level).

Access Level 4 Repairing or replacing the PCB: ONLY the Manufacturer should be allowed to repair or replace the PCB, (requires removal of the Cover screws).

Users and Installers Features The panel will be able to recognize and manage up to 8 different users and 2 different installers. At each login of any users will be logged the login event with the ID of the user. At each login of any installers will be logged the login event with the ID of the installer. It will also logged the return to access level 1 of the panel to indicate the end of the user or installer session. In the following the default Password for the eight Users. USER #1 11111 USER #2 22222 USER #3 33333 USER #4 44444 USER #5 55555 USER #6 66666 USER #7 77777 USER #8 88888 In the following the default Password for the two Installers:

INSTALLER #1 00000 INSTALLER #2 99999.

By default only the USER #1 is working with its default password. All the other users are not available and not enabled. The USER #1 may not be disabled or made unavailable. By default only the INSTALLER #1 is working with its default password. All the other installers are not availa

ble and not enabled. The INSTALLER #1 may not be di

sabled or made unavailable. Only the INSTALLER #1,via Fireclass Console or panel User Interface, may modify the availability and enabling

status of the USERs #2.... #8 and INSTALLER #2.

The INSTALLER #1, via Fireclass Console or panel User Interface, may modify the password value for the

USERs #1.... #8 and INSTALLER #2.

Each Installer o each User can modify its own password.

When the first password is entered via User Interface by INSTALLER #1 to a User/Installer, it will be declared as "available" and will be automatically enabled.

If the first installer lost the password, it is possible to en

ter a new password using the following procedure:

- open the fire panel after removing the two screws (ac

cess level 4) and remove the jumper J5 of the main bo

ard,

- access to the installer menu page,

- go to programming page of the installer password and enter the new password,

- now the new password is stored as the current INSTALLER #1, the user interface will return back to the MAIN page indicating an activity of local programming, followed by a panel reset,

- replace the J5 jumper to restore the normal program menu page functionality (see Figure 40 b).

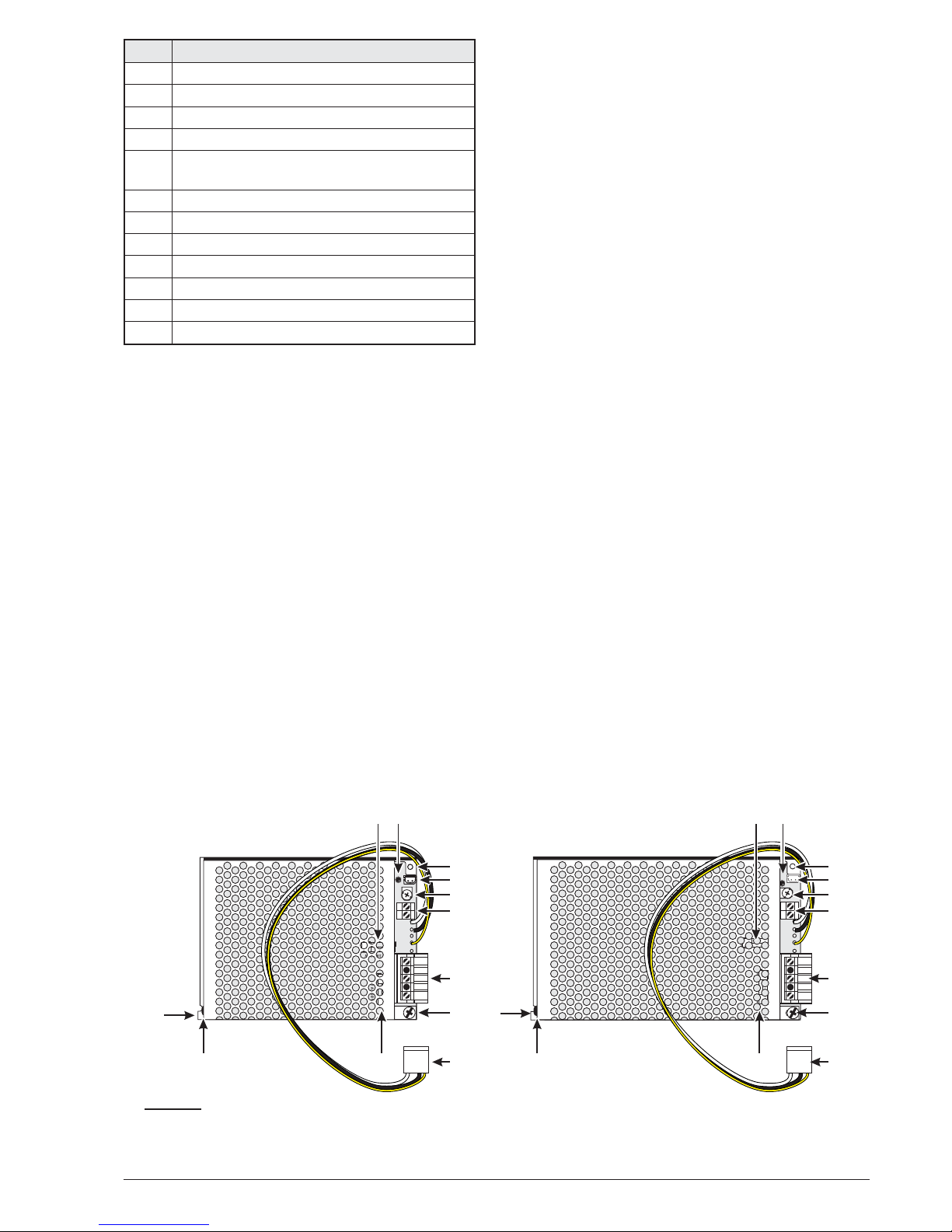

Power Supply

The power supply system of the FC501 Control panels complies with EN54-4. All models are powered by the Mains (230V, 50 Hz):

the FC501-L has Switching Power Supply which supplies up to 1.5 A at 27.6V;

the FC501-H has Switching Power Supply which supplies up to 2.5 A at 27.6V;

Ø the FC501-HK has Switching Power Supply which

supplies up to 2.5 A at 27.6V; All models can house two 12V batteries which, when connected in series, will supply 24V to the Control panel and peripherals in the event of black-out.

The FC501-L can house two 12V, 7Ah batteries (YUASA NP or 12V 12Ah FR model or similar — flame class UL94-V2 or higher).

If necessary, (full configured Loop or for particular requirements of the system) the FC501-H and FC501-HK control panel can be connected to two 12V, 38 Ah batteries in an external metal box (see Figure 14).

This Control panel can detect, signal and store in me

mory the following power faults: shorted 24A or 24R outputs; Low battery, Battery fault or Battery discon

nected Battery trouble LED ( ), Ground fault Earth

LED ( ) and Mains failure Power Supply Fault LED

().

The “ Battery or Low Battery” fault may be signal

led with a delay up to 1 minute (see Table n.1). The “Mains” (Amber) fault will be signalled when the programmed delay expires.

INTRODUCTION 9

Description of the FC500REP Repeater Signalling

FC500REP Repeater Control keys

Test, Silence Buzzer and Evacuate Control keys ONLY can be activated without password (access level L1), all the others Control keys can be activa

ted with password (access level L2 and L3) (see table n.3).

FC500REP Repeater LED description In the table n. 5, the FC500REP LED descriptions are shown.

10 Addressable Fire Panel FC501

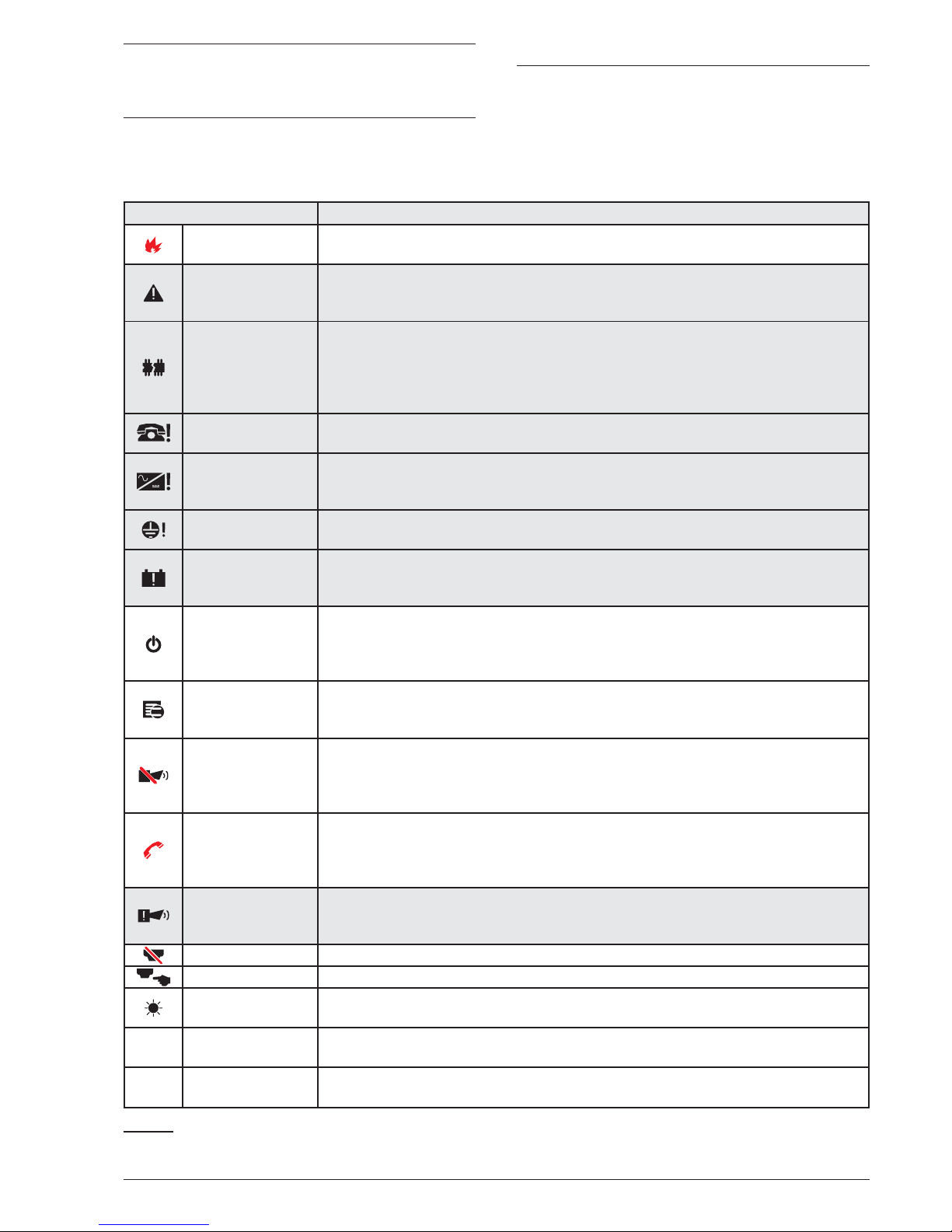

LEDs DESCRIPTION

FIRE Glowing indicates Alarm status. In the event of an Alarm, the Control panel will activate the

unbypassed alarm outputs.

More Alarms Glowing indicates more Alarm status.

Pre-alarms Blinking indicates Pre-alarm status.

Communicator

(Red)

Glowing indicates that transmission was successful. Blinking indicates that transmission is in progress.

The control panel display will show the connection type: PSTN, GSM, or LAN network.

FAULT Glowing indicates the presence of a Fault: the following LEDs or the screen on the display indicate

the type of the Fault. Slow blinking indicates a fault event in memory (Reset turns OFF ).

Logic Unit Glowing indicates a blocked Control panel. IMPORTANT: Maintenance required.

NOTE – When the Control panel is switched on for the first time, this LED will blink until a Reset has been performed.

Lost Device Glowing indicates that a Loop device has disappeared (missing address).

Communicator

(Amber)

Glowing indicates the Dialer has been disabled; Slow blinking indicates that the dialer has broken down

(SC)Nac Fire

Output

Glowing indicates that SC FIRE Output is bypassable (disabled), Slow blinking indicates the pre

sence of a Fault on SC FIRE Output.

Earth Glowing indicates a Voltage leakage to Earth.

IMPORTANT: Check wiring insulation

Low Battery Glowing indicates Batteries empty or faulty. If this condition persists, the batteries will be unable to

function as intended in the event of blackout, IMPORTANT: New batteries required.

NO Battery Glowing indicates Batteries empty or disconnected ; check if the connections are correct.

MAINS

(amber)

Glowing indicates Mains failure (230 V) or Switching Power supply fault. During this condition, the Control panel will be powered by the batteries.

Day mode Glowing indicates that the Control panel is operating in Day Mode

OFF indicates that the Control panel is operating in Night Mode

Disabled Glowing indicates the Disabled status of any bypassable entity.

Silence Glowing indicates that Silenceable outputs have been forced to standby by means of SILENCE key;

in Day Mode the SILENCE will remain until the SILENCE key will not been pressed again, while in Night Mode after the Silence Time expires automatically the SILENCE will end.

Test Glowing indicates Test conditions on at least one zone.

MAINS

(Green)

OFF indicates Mains failure (230 V). IMPORTANT: Power must be restored before the batteries empty.

Table 3 Description of the status LEDs

Description of the Control keys (Panel)

Test, Silence Buzzer and Evacuate Control keys ONLY can be activated without PIN (access level L1), all the others Control keys can be activated with PIN (access level L2 and L3)

Silence

The Silence key is used to restore the Silenceable outputs to standby status. If the Control panel is operating in Night Mode, the Si-

lence will be active until the programmed Night mode Silence time expires, or in Day Mode until the Silence

key is pressed again. Both modes the Silence is auto

matically canceled whenever a new Alarm condition is detected.

Reset The Reset key is enabled only at Level L2 (PIN) as the fire panel returns to the Stand-by status after the Alarm, Prealarm, Warning and FAULT conditions will stop. The system will reprocess, at the end of the Reset time, any alarm, prealarm, warning or fault signal which is not cleared by RESET operations.

When RESET is running the command keys cannot be used.

In the English User Interface version, the icons will not be present.

INTRODUCTION 11

KEY DESCRIPTION

SILENCE/

RESOUND

SOUNDERS

This key can be used to restore the Silenceable outputs, and the Loop devices to standby status. Silence status will be held until the Silence key is pressed again in Day

Mode, or if the Control panel is operating in Night Mode, until the Night mode Silence time expires or until a new Alarm/Trouble condition is detected.

RESET This key can be used to reset the Fire detectors and restore all outputs to standby sta

tus.

INVESTIGATION

DELAY

This key can be used to refresh the “PreAlarm Time”: if this key is pressed during “PreAlarm”, the remaining PreAlarm time will be increased with the programmed "Investigation delay".

EVAC key to activate the evacuation: if this key is pressed , the system will generate an alarm.

SILENCE

BUZZER

Key to silence the local buzzer of the control panel: the buzzer will be operating every time a new event will be activated.

LAMP

TEST

This key can be used to test the buzzer and LEDs . If this key is pressed (when the Con

trol panel is functioning as intended), all the LEDs will glow and the buzzer will emit a continuous beep.

Table 4 Description of the control keys (Panel)

KEY DESCRIPTION

Lamp/Buzz

Test

This key can be used to test the buzzer and LEDs . If this key is pressed (when the Control panel is functioning as intended), all the LEDs will glow and the buzzer will emit a continuous beep.

Silence

This key can be used to restore the Silenceable outputs to standby status. Silence status will be held until the Silence key is pressed again in Day Mode, or if the Control panel is operating in Night Mode, until the Night mode Silence time expires or until a new Alarm/Trouble condition is detected.

Investigate

This key can be used to refresh the “PreAlarm Time”: if this key is pressed during “PreAlarm”, the remaining PreAlarm time will be increased with the programmed "Recognition delay".

Silence

Buzzer

Key to silence the local buzzer of the control panel: the buzzer will be operating every time a new event will be activated

Reset

This key can be used to reset the Fire detectors and restore all outputs to standby status (Su

pervised/Silenceable outputs, NON-Supervised/Non-Silenceable outputs and Alarm zone outputs)

Evacuate

key to activate the evacuation: if this key is pressed for over 2 seconds, the system will genera

te an alarm.

F1, F2, F3, F4

Function keys of the Display; their function will be various according to different screen of display.

Table 5 Description of the FC500REP Control keys

The reset of the Fire Panel can also be carried out by any repeaters FC500REP connected to the Pa

nel: also in this case it is necessary to know a PIN to access the L2 level or higher.

For the Evacuate, Lamp/Buzz/Test, Investigate, Si

lence Buzzer keys, see table 4.

The status LED

The following section describes how the Control panel LEDs operate. During standby status, ONLY the GREEN Mains LED and the Day mode LED (if the con

trol panel is in Day mode) should be On (glowing) .

12 Addressable Fire Panel FC501

LED DESCRIPTION

FIRE

(Red)

Glowing indicates Alarm status. In the event of an Alarm, the Control panel will activate the unbypassed alarm outputs.

GENERAL FAULT

(Amber)

Glowing indicates the presence of a Fault: the following LEDs or the screen on the di

splay indicates the type of the Fault. Slow blinking indicates a fault event in memory (Reset turns OFF )

SYSTEM FAULT

(Amber)

Glowing indicates a blocked Control Panel. IMPORTANT: Maintenance required. Slow blinking indicates the Control Panel restart Fast blinking indicates that the data panel programming is corrupted

NOTE – When the Control panel is switched on for the first time, this LED will blink un

til a Reset has been performed.

FIRE SIGNAL

FAULT (Amber)

Glowing indicates the communicator has been disabled; Slow blinking indicates that the communicator has broken down

POWER SUPPLY

FAULT (Amber)

Glowing indicates Mains failure (230 V) ; Fast blinking indicates Switching Power supply fault.

During this condition, the Control panel will be powered by the batteries.

EARTH FAULT

(Amber)

Glowing indicates a Voltage leakage to Earth. IMPORTANT: Check wiring insulation

BATTERY

TROUBLE

(Amber)

Glowing indicates Batteries empty or faulty. If this condition persists, the batteries will be unable to function as intended in the event of blackout, IMPORTANT: New batteries required.

POWER ON

(Green)

Glowing indicates panel is supplied with power. OFF indicates Mains failure (both mains & battery power is lost) (Battery disconnect

threshold: 19,2 V). Power must be restored before the batteries reach the disconnect threshold.

MORE INFO

(Amber)

Glowing indicates that there are hidden information with lower priority: access to the page View List to show the hidden information. OFF indicates No suppressed Info are available

SOUNDERS

SILENCED

(Amber)

Glowing indicates that Silenceable outputs and Loop device have been forced to standby by means of SOUNDER SILENCED key; in Day Mode the SILENCE will re

main until the SILENCE key will not been pressed again, while in Night Mode after the Silence Time expires automatically the SILENCE will end.

FIRE SIGNAL ON

(Red)

Glowing indicates that transmission was successful. Slow Blinking indicates that transmission is in progress.

On display of control panel it is possible to know the connection type: PSTN, GSM, or LAN network.

SOUNDERS

FAULTS/DIS

Glowing indicates that SC 1 Output is disabled or SC2 "act as SC1" is disabled, Slow blinking indicates that SC1 is in fault or SC2 "act as SC1" is in fault. OFF indicates all the SC outputs function properly.

DISABLED Glowing indicates the Disabled status of any bypassable entity.

TEST Glowing indicates Test conditions on at least one zone.

DAY MODE Glowing indicates that the Control panel is operating in DAY MODE

OFF indicates that the Control panel is operating in NIGHT MODE

1- 8 SOFTWARE ZONES

RED

Glowing indicates that the corresponding Software zones is in Alarm status Slow Blinking indicates that the corresponding Software zones is in Pre-Alarm status.

N/D CONTROLS ON

(AMBER)

Glowing indicates that the Control Panel is at least at level 2 so the Silence/Reso

und Sounders, Reset and Investigation Delay Keys are enabled

Table 6 Description of the status LEDs

PARTS IDENTIFICATION

PARTS IDENTIFICATION 13

ABC

JKL

STU

ESC

DEF

MNO

VWX

GHI

PQR

]

SILENCE/RESOUND SOUNDERS

RESET

INVESTIGATION

DELAY

ABC

JKL

STU

ESC

DEF

MNO

VWX

GHI

PQR

]

FIRECLASS FC501

1 2 3 4

GENERAL FAULT MORE INFO

SYSTEM FAULT

SOUNDERS SILENCED

FIRE SIGNAL FAULT

FIRE SIGNAL ON

POWER SUPPLY FAULT

SOUNDERS

FAULTS/DIS

EARTH FAULT

DISABLED

BATTERY TROUBLE

TEST

POWER ON DAY MODE ON

CONTROLS

SILENCE BUZZER

SILENCE/RESOUND SOUNDERS

RESET

INVESTIGATION

DELAY

LAMP TEST

EVAC

FIRE

MSACMNEEFC501D0.0

1 2 3 4

GENERAL FAULT MORE INFO

SYSTEM FAULT

SOUNDERS SILENCED

FIRE SIGNAL FAULT

FIRE SIGNAL ON

POWER SUPPLY FAULT

SOUNDERS FAULTS/DIS

EARTH FAULT

DISABLED

BATTERY TROUBLE

TEST

POWER ON DAY MODE ON

CONTROLS

SILENCE BUZZER

SILENCE/RESOUND SOUNDERS

RESET

INVESTIGATION

DELAY

LAMP TEST

EVAC

FIRE

MSACMNEEFC501D0.0

FC501

123

454

Figure 1 FC501 Parts: external view

Description of Parts

This section describes the components of the FC501 Control panels.

Unless otherwise stated, the numbers in boldface in this Manual refer to the Tables and Diagrams in this section.

P. Description

1 FC501 cover 2 Knockouts for cables ducted externally 3 Display 4 Screws (2) to close the Cover on Backplate 5 Knockout for connection FC501-H Panel with

FC500BX battery cabinet (accessory item)

6 Hooks to secure the cover on the backplate 7 Backplate anchor screw locations

14 Addressable Fire Panel FC501

AC/N

GND

B+

B–

GND

AC/L

F 2A/25ØV

F6.3A/25ØV

FIRE

FAULT

LE LI

NC NOCNC NO

+SC1

+SC2

MICSPK BLKRED OC1 Oc2

24R 24A

RS485

24V

BAT

PSU

PC LINK

ADD ON

+ LEFT - +RIGHT-

LOOP1

+ LEFT - +RIGHT-

LOOP2

+ LEFT - +RIGHT-

LOOP3

B078-P0

LCD

ABC

JKL

STU

ESC

DEF

MNO

VWX

GHI

PQR

]

SILENCE BUZZER

SILENCE/RESOUND SOUNDERS

RESET

INVESTIGATION

DELAY

LAMP TEST

EVAC

ABC

JKL

STU

ESC

DEF

MNO

VWX

GHI

PQR

]

FIRECLASS FC501

1 2 3 4

GENERAL FAULT MORE INFO

SYSTEM FAULT

SOUNDERS SILENCED

FIRE SIGNAL FAULT

FIRE SIGNAL ON

POWER SUPPLY FAULT

SOUNDERS FAULTS/DIS

EARTH FAULT

DISABLED

BATTERY TROUBLE

TEST

POWER ON DAY MODE ON

CONTROLS

SILENCE BUZZER

SILENCE/RESOUND SOUNDERS

RESET

INVESTIGATION

DELAY

LAMP TEST

EVAC

FIRE

MSACMNEEFC501D0.0

8910 98

1516171

1715

1 2 3 4

GENERAL FAULT MORE INFO

SYSTEM FAULT

SOUNDERS SILENCED

FIRE SIGNAL FAULT

FIRE SIGNAL ON

POWER SUPPLY FAULT

SOUNDERS FAULTS/DIS

EARTH FAULT

DISABLED

BATTERY TROUBLE

TEST

POWER ON DAY MODE ON

CONTROLS

SILENCE BUZZER

SILENCE/RESOUND SOUNDERS

RESET

INVESTIGATION

DELAY

LAMP TEST

EVAC

FIRE

MSACMNEEFC501D0.0

Figure 2 FC501 parts, internal view.

P. Description

8 Terminals (2) for the earth connection wires 9 Hooks (2) to secure Main module on the

backplate

10 Main Module (see figure 3) 11 Cable entry for channeled undertrack cables:

power cable

12 Anchors (2) for power cable 13 Switching power supply (see figure 4) 14 Backplate anchor screw locations 15 Main module supports (2) 16 Power cable for Main module 17 Opening (2) to secure batteries 18 Location for 2 batteries 12V, 7Ah or 12Ah 19 Backplate auxiliary anchor screw locations (2) 20 Cable entry (3) for channeled undertrack cables 21 Cables anchor (3) 22 Screw to secure main module 23 Tubular spirit level 24 Connector for FC500IP Module 25 Opening to insert the zone location text strip 26 USB port

P. Description

27 Power supply main module connector 28 RS485 Serial port & battery connection termi

nals

29 Programmable outputs and auxiliary power

supply terminals

30 Buzzer (not visible) 31 Terminals for future use 32 Jumper J5 to reset the installer PIN n. 1 to the

factory default (0000)

33 SC outputs 34 Jumper for the exclusion of the Earth Fault:

// = Earth Fault detected (Default); oo = Earth Fault ignored

35 FIRE and FAULT relay outputs 36 Terminals for phone line connection 37 Loop1 38 Loop2 39 Loop3 40 RS232 Serial (PC link) 41 Hole for Main module fixing

INSTALLATION 15

FIRE

FAULT

LE LI

NC NOCNC NO

+SC1

+SC2

MICSPK BLKRED OC1 Oc2

24R 24A

RS485

24V

BAT

PSU

PC LINK

ADD ON

+ LEFT - +RIGHT-

LOOP1

+ LEFT - +RIGHT-

LOOP2

+ LEFT - +RIGHT-

LOOP3

B078-P0

LCD

ABC

JKL

STU

ESC

DEF

MNO

VWX

GHI

PQR

]

SILENCE BUZZER

SILENCE/RESOUND SOUNDERS

RESET

INVESTIGATION

DELAY

LAMP TESTEVAC

ABC

JKL

STU

ESC

DEF

MNO

VWX

GHI

PQR

]

FIRECLASS FC501

1 2 3 4

GENERAL FAULT MORE INFO

SYSTEM FAULT

SOUNDERS SILENCED

FIRE SIGNAL FAULT

FIRE SIGNAL ON

POWER SUPPLY FAULT

SOUNDERS FAULTS/DIS

EARTH FAULT

DISABLED

BATTERY TROUBLE

TEST

POWER ON DAY MODE ON

CONTROLS

SILENCE BUZZER

SILENCE/RESOUND SOUNDERS

RESET

INVESTIGATION

DELAY

LAMP TESTEVAC

FIRE

MSACMNEEFC501D 0.0

36 35 34 33 32 31 30 2

1 2 3 4

GENERAL FAULT MORE INFO

SYSTEM FAULT

SOUNDERS SILENCED

FIRE SIGNAL FAULT

FIRE SIGNAL ON

POWER SUPPLY FAULT

SOUNDERS FAULTS/DIS

EARTH FAULT

DISABLED

BATTERY TROUBLE

TEST

POWER ON DAY MODE ON

CONTROLS

SILENCE BUZZER

SILENCE/RESOUND SOUNDERS

RESET

INVESTIGATION

DELAY

LAMP TESTEVAC

FIRE

MSACMNEEFC501D 0.0

Figure 3 Main module Parts

16 Addressable Fire Panel FC501

P. Description

42 Protection Fuse: F 6.3A 250V

43 Main Power LED

44 Hole for switching Power supply fixing

45 Thermal probe connector

46 Fine trimmer for the Switching-power-supply

output Voltage

47 Auxiliary power-supply terminals (27.6 V)

48 Mains power terminals (230 V 50/60 Hz)

49 Switching-power-supply fixing screw

50 Cable for connecting Main Module

51 Protection Fuse: F 2A 250V

52 Switching-power-supply closure plastic rivet

53 Switching-power-supply anchor

* NOTE (1) Before connecting the Fire control panel to PC for the PC programming phase, remove the jumper 34 (“ )of main board. After the programming phase is finished, replace the jumper otherwise the Earth fault (Leakage to Earth) will not be detected.

AC/N

GND

B+

B–

GND

AC/L

F 2A/25ØV

F6.3A/25ØV

B+

B–

GND

F6.3A/25ØV

F 2A/25ØV

42 43

44 45

46 47

BAQ60T24

The BAQ60T24 is suitable when the use of an add-on units (FC500IP) is required or the loop current exceeds 250mA or the Auxiliary 24V output current required is greater than 250mA.

42 43

44 45

46 47

BAQ35T24

The BAQ35T24 is suitable for basic systems where no add-on (FC500IP) is used, the loop current is 250mA or less & the Auxiliary 24Vdc output current is 250mA or less.

Figure 4 BAQ35T24 and BAQ60T24 Switching-power-supply

INSTALLATION

Installation of this system must be carried out strictly in accordance with the instructions in this section, and in compliance with the local safety regulations in force.

Prior to commencing installation of the control panel, ensure that adequate precautions are taken to prevent damage to the sensitive electronic components on the display board and the control board due to electrostatic discharge. You should discharge any static electricity you may have accumulated by touching a convenient earthed object such as an unpainted copper radiator pipe. You should repeat the process at regular intervals during the installation process.

To install the fire panel work through the following steps:

choose suitable mounting locations for the Control pa

nel, detectors, fire warning and fire control devices.

The panel must be located in a clean, dry position, which is not subject to shock or vibration and at least 2 metres away from pager systems or any other radio transmitting equipment.

Ø Lay the cables between the Control panel and the

system peripherals.

Fire alarm cables must be separated from all other wiring (not related to the fire alarm system).

If necessary, install any accessory modules.

Carry out the necessary connections, leaving the po

wer-supply connection until last.

Program the Control panel in accordance with the in

structions in the “PROGRAMMING” section.

Test the entire system (Control panel, detectors, fire warning and fire control devices).

FC500IP module (Accessory Modules) should be installed before mounting the Control panel as de

scribed in the paragraph: FC500IP module Instal

lation.

Ensure that the Control panel power supply (Mains and Batteries) has been disconnected before installing any accessory Modules.

Installing the Control panel

Work carefully through the following steps (see the Fi

gures 1 and 2).

1. Remove the screws (4) and open the Control panel.

2. Drill the anchor screw holes 7 and 14.

Check for water pipes and electrical wiring before drilling.

When using 12Ah batteries use mounting holes 19 to provide additional support.

Use the Tubular spirit level (23) for leveling the Pa

nel backplate

Check for water pipes and electrical wiring before drilling.

3. If necessary, remove the surface conduit wire knoc- kouts 2.

The cable conduit union with the cabinet must be secured by HB Flame Class (or higher) lock nuts.

4. Pull the channeled undertrack cables through the cable entry 11 and 20 (for the power supply cable) then, using the anchor screws locations, secure the backplate to the wall.

Use anchors 12, (for the power supply cable) and 21 to secure the cables through the cable ties.

Control panel closure

To close the panel:

1. Attach the cover to the hooks (6) and then rotate the cover down.

2. Use the screws (4) to secure the cover on the backplate.

Installing FC500REP Repeater

Repeaters can be wall mounted, or flush mounted to an

ave

BL08 outlet box (or similar).

Work carefully through the following steps.

INSTALLATION 17

18 Addressable Fire Panel FC501

68 68

70 73

RS485

24V

69 69 69

69 69 69 69a

Repeater earth connection (nut 69a)

LEDS AND KEYS LABELS

To insert the LED and Keys Labels (supplied) in the Repeater User Interface (see Figure below) work through the following steps:

1) Remove the screws 68 and open the Repeater FC500REP. Corresponding the A or B (in the overlay) insert the relevant LED and KEYS Labels.

3) Check that the labels are correctly inserted and then close the Repeater FC500REP.

Repeater PCB

Nut M3

Support

Earth connection

Repeater Cover

Plastic Frame

Washer

ESC

ABC DEF GHI

JKL MNO PQR

STU VWX YZ

ESC

MIC

FC500

LAMP BUZZ TEST

SILENCE

INVESTIGATE

SILENCE BUZZER

RESET

EVACUATE

MORE ALARMS

LOGIC UNIT

PRE-ALARM

LOST DEVICE

COMMUNICATOR

DAYMODE

NAC FIRE OUTPUT

DISABLED

HEARTH

SILENCE

LOW BATTERY

TEST

NO BATTERY

MAINS

FIRE

FAULT

COMMUNICATOR

MAINS

Figure 5 Installation FC500REP Repeater

1. Lay the connection cables (refer to “Connecting Repeaters”).

2. Remove the screws (68) (see Figure 5) and open the Repeater FC500REP.

3. If you are flush mounting the Repeater, go to step

4. If you are wall mounting the Repeater, drill the anchor screw holes (66).

4. Pull the wires through the wire entry (67), then,

using the anchor screws, secure the Repeater to the wall.

5. Complete the connections to the terminal board 73 of the RS485 Interface, as described in the “Con

necting Repeaters” section.

- Connect the earth wire to the threaded support

69a on the cover, as illustrated in Figure 5.

P. Description

65 Knockouts for cables ducted externally 66 Holes for cabinet mounting 67 Cable entry for channeled undertrack cables 68 Screws to secure cover 69 Fixing nuts for User Interface on Cover

Repeater nuts for earth connection

70 User interface Repeater board 71 LED label slot 72 Key label slot 73 Connector for the Repeater RS485 interface

Description of the Terminals

This section describes the Control panel terminals.

Loop

LOOP1 Loop 1 terminals:

+LEFT: Positive signal

- LEFT: Negative signal (return).

+RIGHT: Positive signal

-RIGHT: Negative signal (return).

-SH: Cable shield terminal.

LOOP2 Loop 2 terminals (as Loop1)

LOOP3 Loop 3 terminals (as Loop1)

The three loops of the panel can manage up to 128 addressable devices.

The total length of the cables connected to the three loops must NOT exceed 2000 m.

The max current load for the three loops must not exceed 500 mA +25%.

Telephone line

LE Terminals for connecting the external telephone

line.

LI Terminals for connecting the internal telephone line: connect these terminals to other telephone devices that need to share the same phone line as the fire panel.

Terminal for connecting the earth wire.

Fire

[NC][NO][C]

Non-supervised fire output. Dry contact relay for non-supervised devices. It is activated, by default, at the entering of the panel in to the alarm status (first fire event). The de-activation of the fire output is executed during the panel reset. The fire output may be silenced (programmable option; default=NOT silenceable). The fire output may be disabled. The fire output may be programmed to works differently (only via FCConsole Software).

During standby status, terminal [C] closes to terminal [NC];

In the event of fire, terminal [C] closes to terminal [NO].

EN54-2 certification applies ONLY when FIRE output is not C and/or J and/or G (EN 54-1) type. Therefore this output MUST NOT BE UTILIZED to manage Fire Alarm devices and/or Fire/Fault transmission devices and/or Automatic Fire alarm system.

n Fault

[NC][NO][C]

Non-supervised Fault output. Dry contact relay for non-supervised devices. It is activated at:

the entering of the panel in to the fault status (first fault event).

in the case of Logic fault

in the case of total loose of the power. The de-activation of the fault output is executed during the panel reset. The fault output may not be silenced. The fault output may not be disabled. The fault output may not be programmed to works diffe

rently.

During standby status, terminal [C] closes to terminal

[NC];

In the event of fault, terminal [C] closes to terminal

[NO].

EN54-2 certification applies ONLY when FAULT output is not J (EN 54-1) type. Therefore this output MUST NOT BE UTILIZED to manage Fault tran

smission devices.

SC1 (Sounder Circuit)

Supervised/Silencea

ble/Bypassable (Disabled) Bell output, for the Alarm

signalling devices. Terminals for the connection of devi

INSTALLATION 19

ces that are activated with the positive (24V) and must be supervised.

During standby status: negative pull-down to 0 V on [+] terminal; positive pull-up to 27.6 V on the [–] terminal. When control panel is in alarm status: positive pull-up to

27.6 V on the [+] terminal; negative pull-down to 0 V on the [–] terminal.

SC1 can be Silenced (forced to standby) by the menu command DISABLE.

This output is not programmable, it is activated every time the control panel goes into ALARM status.

SC2 (Sounder Circuit Supervised/Silencea

ble/Bypassable (Disabled), Programmable Bell out

put, for the Panel Alarm signalling or Panel Pre-Alarm or Panel Warning or Panel Fault or 1,2,3 or 4 Softwa

re zones(OR) Alarm, or 1,2,3 or 4 Software zo

nes(OR) Pre-alarm, or 1,2,3 or 4 Software zones(OR) Warning or 1,2,3 or 4 Software zones(OR) Fault or 1,2 or 3 Points(OR) Alarm or 1,2 or 3 Points(OR) Pre-Alarm or 1,2 or 3 Points(OR) Warning or 1,2 or 3 Points(OR) Fault.

During standby status: negative pull-down to 0 V on [+] terminal; positive pull-up to 27.6 V on the [–] terminal. When a programmed event occurs: positive pull-up to

27.6 V on the [+] terminal; negative pull-down to 0 V on the [–] terminal.

The SC1 and SC2 outputs can be forced to standby by resetting the control panel.

The SC Outputs will hold standby status for the pro

grammed Silence Time. If Alarm conditions are present when the programmed Silence Time expires for the SC1 or another programmed event for the SC2, they will re-activate.

SC1, SC2 accept devices that operate within SELV limits ONLY.

The SC2 output, if programmed as SC1, will be of type C.

If the 2-wire connection loop is used, the EN54-2 certification applies ONLY when the total number of devices (detectors, manual callpoints etc.) does not exceed 32.

Audio station

MIC|SPK|BLK|RED Terminals for future use.

20 Addressable Fire Panel FC501

L-L-

L-

L+L+

L+

L-L-

L+L+

+L2-

FC501

+L2-+L1-+L1-

LEFT RIGHT LEFT RIGHT

+L3-+L3-

LEFT RIGHT

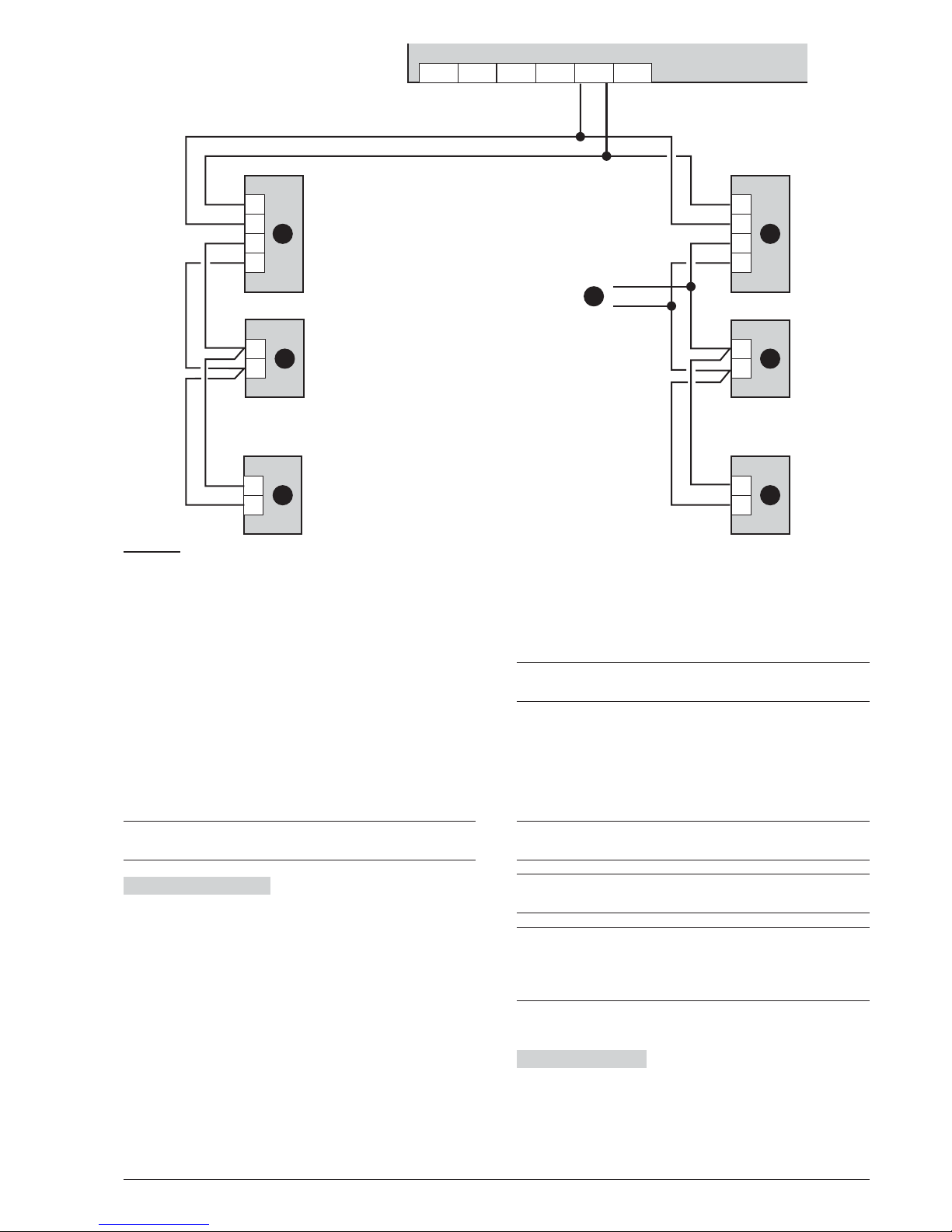

Figure 6 1) Wiring diagram of a 2-wire connection, a) Isolators; b) Compatible analogue devices (Fire detector, Input modules, Output modules, Manual callpoints); c) T connection

n Auxiliary outputs

OC1-OC2 Silenceable, Bypassable (Disabled), NOT

Supervised Outputs, programmable

. These are

open-collector terminals for the Panel Alarm signalling (Default) or Panel Pre-Alarm or Panel Warning or Panel Fault or 1,2,3 or 4 Software zones(OR) Alarm, or 1,2,3 or 4 Software zones(OR) Pre-alarm, or 1,2,3 or 4 Sof

tware zones(OR) Warning or 1,2,3 or 4 Software zo

nes(OR) Fault or 1,2 or 3 Points(OR) Alarm or 1,2 or 3 Points(OR) Pre-Alarm or 1,2 or 3 Points(OR) Warning or 1,2 or 3 Points(OR) Fault, which will close to ground, when the connected event becomes active, and will re

main in this state until the generating event has ended (so after a manual reset or a fault restore)

The output OC1 can also be programmed to signal the failure of the telephone line so as to be used in combination with a relay, for switching from the pri- mary phone line to the reserve line.

The OC1 and OC2 outputs can be forced to standby by resetting the control panel.

The OC1 and OC2 outputs will activate with a delay equal to the Pre-alarm time when the programmed event occurs.

INSTALLATION 21

24V

RS485

24V

RS485

24V

RS485

24V

RS485

24V

RS485

FC501

FC500RepeaterFC500Repeater FC500Repeater FC500Repeater

Figure 7 Wiring diagram of four (max) FC500REP Repeaters connected to the RS485

L-L-

L-

L+L+

L+

L-L-

L+L+

L- L-L+ L+

B B

FC501

+L2-+L2- +L1-+L1-

LEFT RIGHT LEFT RIGHT

+L3-+L3-

LEFT RIGHT

Figure 8 Wiring diagram of a 4-wire connection: a) Isolators; b) Compatible analogue devices (Fire detector, Input modules, Output modules, Manual callpoints)

EN54-2 certification applies ONLY when OC1 and OC2 outputs are not C and /or J and/or G (EN 54-1) type. Therefore this output MUST NOT UTILIZED to manage Fire Alarm device and/or Fire/Fault transmission devices and/or Automatic Fire alarm system.

24R [M]

Reset able auxiliary power supply to devices that operate at 24 V (0.5A max) (powered by the standby batteries):

ØPositive (27.6 V) on terminal [24R]; ØNegative on terminal [M].

This power supply is disconnected during the reset of the Control Panel (about 2 s) so it is suitable for devices that are restored when power supply is disconnected.

24A [M]

Auxiliary Power supply to devices that ope

rate at 24 V (0.5A max) always present and guaranteed by the batteries:

Ø Positive (27.6 V) on terminal [24A];

Negative on terminal [M].

RS485

24V|–|+|M

Terminals for FC500REP repeater (maxi

mum 4) and FC500MFI module (maximum 4) (0.5A max).

Serial bus terminals [+] and [-];

27.6 V power voltage terminals [M] and [24V].

The maximum cable run allowed is 1000m.

n Battery

+BAT- Terminals to connect the batteries inside the

FC501 control panel.

The System Wiring

High Voltage leads (230 V) must be bunched separately from Low Voltage leads (24 V). All le

ads must be bunched in such a way as to avoid contact with other wiring and components.

Connecting Addressable Devices

The control panel has 3 loops for addressable analogue devices.

22 Addressable Fire Panel FC501

A+ A+A+

(a) (b)

3k93k9 3k93k9

1N4002 1N40021N4002

SC 1

Figure 9 Wiring diagram of the connection of a single device (a) and several devices (b) to Bell outputs (device acti

vated by positive (27.6 V) on terminal [A+]).

24A NC

–

–L –A

+–+–

SC1

1N4002 1N4002 2K7

Self-powered siren

CALL-R24

Flasher Bell

FC501

Figure 10 Wiring diagram: NON-silenceable and Silenceable Output connections

The maximum for all 3 loops is 128 addressable analo

gue fire detectors and analogue devices (Input modu

les, Output modules).

Every detector and module connected to the loops must be assigned a unique address.

You can use 2 or 4 wires for the loop connections.

NOTE: The loop connection type must be specified du

ring the programming phase. Figure 6 illustrates the 2-wire connection to Loop1. Figure 8 illustrates the 4-wire connection to Loop2.

Whatever the type of connection performed, make sure that any short circuit or open circuit in the wi

ring does not lead to the loss of more than 32 de

tectors. An isolator should be fitted at least every 32 detectors.

If the connection is 2-wire connection type, addres

sable analogue fire detectors and analogue devi

ces (Input modules, Output modules)connect on the left.

Use only shielded cable for all connections, with one end of the shield connected to the SH terminal of the Control panel and the other left free.

n Connecting Repeater FC500REP

An example of how to connect two FC500REP repeaters in Figure 7.

The RS485 port of the FC500 (terminals [M], [+], [-] and [24V]) accepts up to 4 FC500REP repeaters;

Terminals [+] and [-] supply the power (27.6 V) to the repeater panels (see figure 7). When a mains fault occurs, the Repeaters considerably decreases the absorbed power, switching off the LCD display backlighting (the LCD display backlighting swit

ches on again, for 20 sec. when a key will be pressed). But the absorption of the Repeaters connected to the control panel, will contribute to run down the backup batteries, and so the decrease of the Stand-by supply

time of the system. As one control panel only is in the system all the Repea

ters must be supplied by the control panel itself, unless a Power supply Station is in the system.

Use only shielded cable, with one end of the shield connected to the earth terminal of the Control pa

nel and the other left free; the continuity, between several segments of connection must be secured.

Connecting Output Devices

The control panel has supervised outputs, NON super

vised outputs and 2 Bell outputs.

Output devices can be connected to the loops by means of Output modules.

Bell Outputs

The Bell outputs are indicated by the letter SC and their address number.

The SC1, and SC2 Bell Outputs are Supervised, Silenceable, Bypassable (Disabled) SC2 also Pro

grammable.

The Bell outputs can be forced to standby status by me

ans of the SILENCE button. Once an alarm has been acknowledged, you can silence the audible signalling devices and leave the visual signalling devices active until the alarm conditions cease.

For example, a connection similar to the wiring diagram in figure 10 will activate the Flasher, the Bell and the visual and audible signalling device of the Self-powered Siren in the event of an alarm.

Using the SILENCE button will stop the horn but not the flasher, which will continue to signal Alarm status until the RESET button is pressed.

INSTALLATION 23

Main Board

Automatic isolating switch

–

Battery 12 V

Live

Neutral

Earth

230 V 50 Hz

–

Battery 12 V

Power Supply

RED wire

BLACK wire

Jumper

Figure 11 Wiring diagram for the power supply

Connecting the Power Supply

The power circuits of this Control panel comply with the EN54-4 standard.

In order to comply with the Safety regulations in force, the Mains must be equipped with a bi

polar isolating device for protection against over voltage and short-circuit to Earth (e.g. au

tomatic isolating switch).

This Control panel is powered from the Mains (230V 50/60 Hz) through a switching power supply, located inside the case. The FC501-L Control panel provides housing for two 12V, 7Ah or 12Ah maximum batteries; the FC501-H Control panel can be connected to two 12V, 12Ah or 38Ah in an external metal box (see Figure

14) for power during Mains failure.

The non-volatile memory will hold the programmed data at all times.

In the event of MAIN failure, the: AMBER Power Supply LED will turn ON.

The Control panel will check the batteries at all times, (refer to Static Test and Dynamic Test).

Static Test

The Static Test monitors the battery charge during Mains failure. In the event of Low battery status (below 22.8 V), the Low Battery LED will turn ON. If this occurs, the Mains power must be restored before the batteries empty, otherwise, the system will shutdown.

Dynamic Test

The Dynamic Test monitors the operating capacity of the batteries. In the event of a Failed Test result (batteries do not meet the Test requirements), the No Battery LED will turn ON. If this occurs, the backup battery must be replaced im

mediately, otherwise, the system will be unable to fun

ction in the event of Mains failure (black-out).

Work carefully through the following steps to connect the Mains Supply.

1. Locate the backup batteries in the housing (see Fi

gure 2). Secure the batteries to the backplate of the panel, using the cable ties, in the appropriate ope

ning.

2. Using the Jumper (supplied), connect the batteries in series.

3. Observing the battery polarity, connect the battery terminals to terminals -BAT+ on Main Board (wires supplied).

4. FC501-L use 7 or 12Ah @ 12 V YUASA batteries; FC501-H/FC501H-K use 12 or 38Ah @ 12 V

YUASA batteries or similar with case flame class UL94-V2 (or higher).

5. Connect the switching power supply BAQ35T24/BAQ60T24 with the ‘external power supply (Main): connect the Earth wire to the [Q] ter

minal on the mains terminal block 48.

6. Connect the Neutral wire to terminal [N], and the Live wire to terminal [L] on the terminal board 48.

7. Connect the BAQ connector 50 to the main Board

connector 16.

The Control panel will reset on power up.

DO NOT allow the power cable to cross over ot

her wiring (see Figure 2). The power cable must be routed and held firmly in place by a two ca

ble tie.

Thermal Probe

This Control panel supports the KST thermal probe. The probe will optimize the battery charging process by regulating the charge voltage in accordance with the battery temperature.

Work carefully through the following instructions (refer to the figure 13:

1. Connect the probe 54 to the connector 45 on the BAQ35T24/BAQ60T24 switching Power supply.

2. Attach the probe to one of the batteries, in such a way as to obtain optimum heat transfer.

3. Measure the Probe temperature.

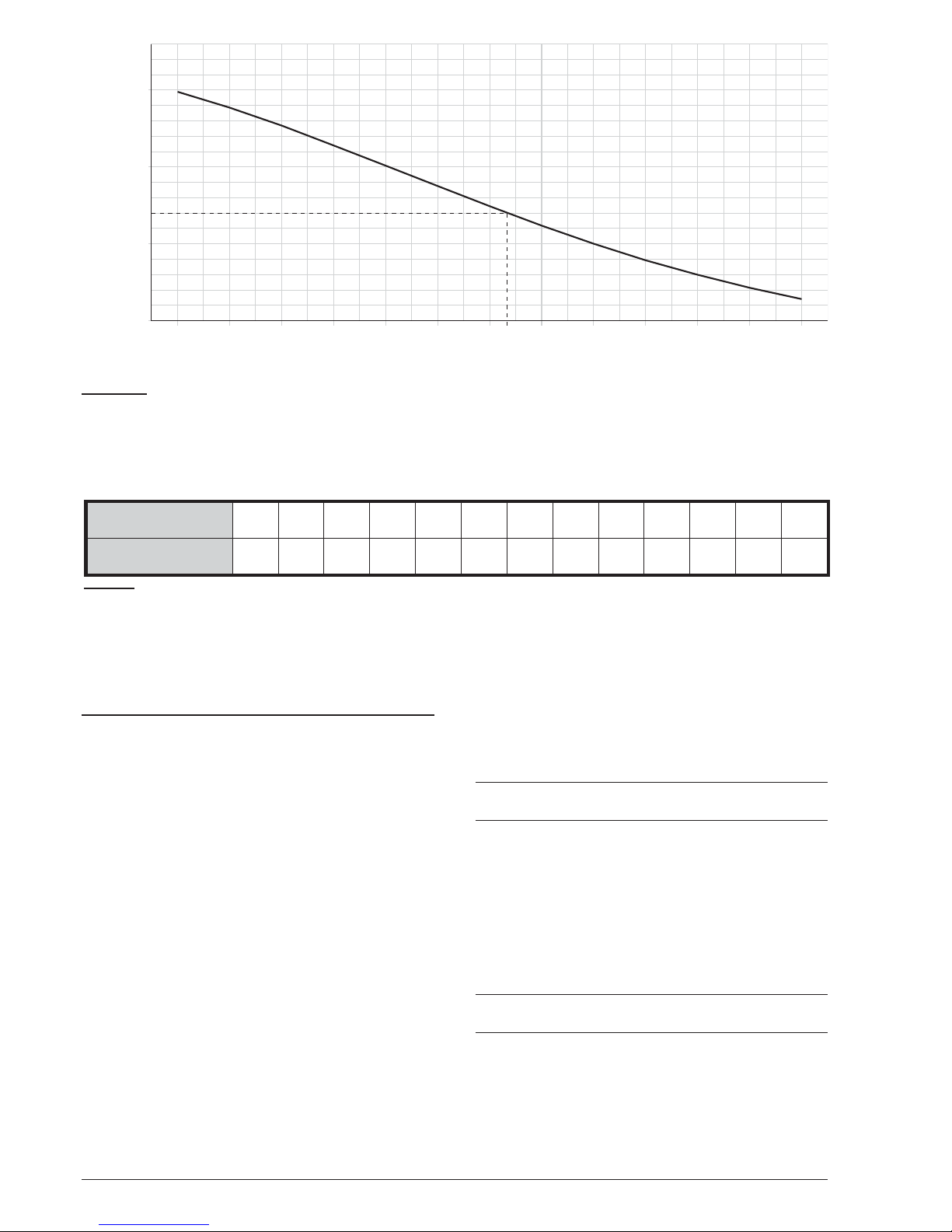

4. Using the graph in Figure 12 and/or Table 7, find

the value (in accordance with the battery temperature) that the output voltage of the Switching Power Supply will be based on.

5. Using the trimmer 46, adjust the voltage on the ter

minal board 47 to the required value.

To verify the battery efficiency, the charger circuit will measure the internal resistance of the batte

ries. In order for this measure is not distorted, you should use only the cables supplied; cables that are longer and/or have an insufficient section may erroneously simulate the condition of an inefficient battery.

24 Addressable Fire Panel FC501

Installing FC500IP board

The IP Module should be installed into the base of the control Panel, as illustrated in Figure 13. Proceed as fol

lows:

Before installing the FC500IP Module, discon

nect control panel from its power supply (ma

ins and the batteries).

1. Open the control panel by unscrewing the two screws

4, then lift the cover from the bottom to separate it from the backplate. Remove the fastening screw, figure 2, item 22, between the motherboard and the backplate and unlock the support of motherboard + User Interfa

ce, figure 2, item 9, using a flat screwdriver. Lift the con

trol board & display from the base.

2. Fix the IP Module on the base of the control panel using the supplied screws 56.

3. Connect the connector 58 of the IP Module to the connector 55b of the control panel using the supplied flat cable 55. If you need to manage the control panel ONLY/ALSO via IP, connect the connector 57a of the IP

module to the connector 55a of the control panel via the supplied PC-Link cable 55c.

4. Connect connector 59 to the LAN using an Ethernet cable.

Use a category 5 (or better) shielded Ethernet ca

ble (STP or FTP).

5. Re-fit the control board & display and secure with the screw.

6. Reconnect the control panel to the power supply.

7. Program the IP Module as described in the section

“PC Programming” on page 29. For further information, please refer to the dedicated manuals.

See page 29, paragraph “To connect the control panel to a PC remotely”.

INSTALLATION 25

-10-5 0 5 101520253035404550

26,0

27,0

28,0

29,0

LTAGE (V)

27,4

Figure 12 Switching Power Supply Output Voltage graph. To find the Output Voltage using the graph: — indicate the

Probe temperature on the TEMPERATURE (°C) axis; draw a line from the temperature value point up to the curve a); draw a line from the intersection point across to the VOLTAGE (V) axis; adjust the Output Voltage of the Switching Po

wer Supply to the resultant value. For example, if the Probe temperature is 22 °C, the Output Voltage of the Switching Power Supply must be set at 27.4 V.

TEMPERATURE (°C) -10 -5 0 5 10 15 20 25 30 35 40 45 50

VOLTAGE (V) 29,0 28,8 28,6 28,2 28,0 27,8 27,6 27,2 27,0 26,8 26,6 26,4 26,2

Table 7 Switching Power Supply Output Voltage chart. To find the Output Voltage using the chart: — select the nea-

rest value to the Probe temperature on the TEMPERATURE (°C) row; read the respective value on the VOLTAGE (V) row; adjust the Output Voltage of the Switching Power Supply to the indicated value. For example, if the Probe temperature is 22 °C, the Output Voltage of the Switching Power Supply must be set at 27.4 V.

Installing the 38Ah battery metal Box

Work carefully through the following steps (see Figure 14), for the FC501-H/FC501-HK fire panel only.

1. Remove the two screws on the cover and open the metal box.

2. Drill the anchor screw holes 64.

Check for water pipes and electrical wiring be

fore drilling.

3. If necessary, using a hammer or similar tool, remove

the surface conduit wire knockouts of the metal Box.

4. Secure the metal base to the wall.

The cable conduit union with the cabinet must be secured by HB Flame Class (or higher) lock nuts (see particular in fig.14).

5 Pull the wires through the cable entry and connect

them. See paragraph: "Connecting the power supply".

P. Description

54 Thermal probe (see Fig.13 and14)

55 Flat cable for the connection with FC500IP 55a Serial port RS 232 (PC LINK) 55b Module IP (FC500IP) connector 55c PC Link cable

56 FC500IP fixing screws

57 FC500IP board 57a PC Link connector

58 Flat cable connector

59 Ethernet connector

60 38Ah Batteries cabinet (Accessory item)

61 Connecting Threaded tube

Nuts on Control Panel Backplate (FC501-H and FC501-HK only)

Nuts on 38Ah Batteries Backplate (FC501-H /FC501-HK)

64 Holes for cabinet mounting

26 Addressable Fire Panel FC501

AC/N

GND

B+

B–

GND

AC/L

F 2A/25ØV

F6.3A/25ØV

FIRE

FAULT

LE LI

NC NOCNC NO

+NAC1

+NAC2

MICSPKBLK RED OC1 Oc2

24R 24A

RS485

24V

BAT

PSU

PC LINK

ADD ON

+ LEFT- +RIGHT-

LOOP1

+ LEFT- +RIGHT-

LOOP2

+ LEFT- +RIGHT-

LOOP3

B078-P0

LCD

ABC

JKL

STU

ESC

DEF

MNO

VWX

GHI

PQR

]

ABC

JKL

STU

ESC

DEF

MNO

VWX

GHI

PQR

]

55 5856

55b

57a

55a

55c

Figure 13 FC501 connection with the FC500IP.

INSTALLATION 27

AC/N

GND

B+

B–

GND

AC/L

F2A/25ØV

F6.3A/25ØV

FIRE

FAULT

LE LI

NC NOCNC NO

+NAC1

+NAC2

MICSPKBLK RED OC1 Oc2

24R 24A

RS485

24V

BAT

PSU

PCLINK

ADDON

+LEFT - +RIGHT-

LOOP1

+LEFT - +RIGHT-

LOOP2

+LEFT - +RIGHT-

LOOP3

B078-P0

LCD

ABC

JKL

STU

ESC

DEF

MNO

VWX

GHI

PQR

]

ABC

JKL

STU

ESC

DEF

MNO

VWX

GHI

PQR

]

FIRECLASS FC501

Zona1Zona2Zona3Zona4Zona5Zona6Zona7Zona

MSACMNE0FC501IC0.0

Zona1Zona2Zona3Zona4Zona5Zona6Zona7Zona

MSACMNE0FC501IC0.0

64 64

Figure 14 Control Panel (FC501-H/FC501-HK) and 38Ah Batteries metal Box connection (accessory item).

Maintenance

In order to ensure that the system can continue to ope

rate normally it must be maintained with regular testing by the user and periodic maintenance by the installer in accordance with local laws.

For the maintenance of other devices such as de

tectors, modules, etc. follow the dedicated instruc

tions for the devices.

The following operations must be carried out regularly.

A Using a damp cloth (DO NOT USE SOLVENTS OF ANY KIND), remove dust from the Control panel cabi

net.

Using the Lamp Test key, check that the LEDs and

buzzer are functioning properly.

C Ensure that the batteries are sufficiently charged and functioning properly. If not, replace them immediately.

D Ensure that all cables and connections are intact.

E Ensure that there are no unrelated objects inside the

Control panel case.

F Ensure that the control panel is capable of processing a fire alarm and operating the relevant sounders and/or outputs in consequence of this alarm. If there is a facility for transmission of fire alarm signals to a Central Station, it should also be ensured that the signal is correctly received.

G Also verify the actual functionality of the circuit for the detection of earth fault. The procedure is as follows:

connect one of the SH terminals of the loop to the ground;

verify that the fault is reported correctly by the Fire Panel;

remove the connection previously made.

Points A and B may be carried out by users. Points C, D, E, F and G must be carried out by qua

lified persons only.

28 Addressable Fire Panel FC501

RS-232 Female Connector

Solder Side

PC-LINK Cable

4way MTA Connector

PC LINK

ADD ON

+ LEFT - +RIGHT-

LOOP1

LCD

Fire panel B

oard

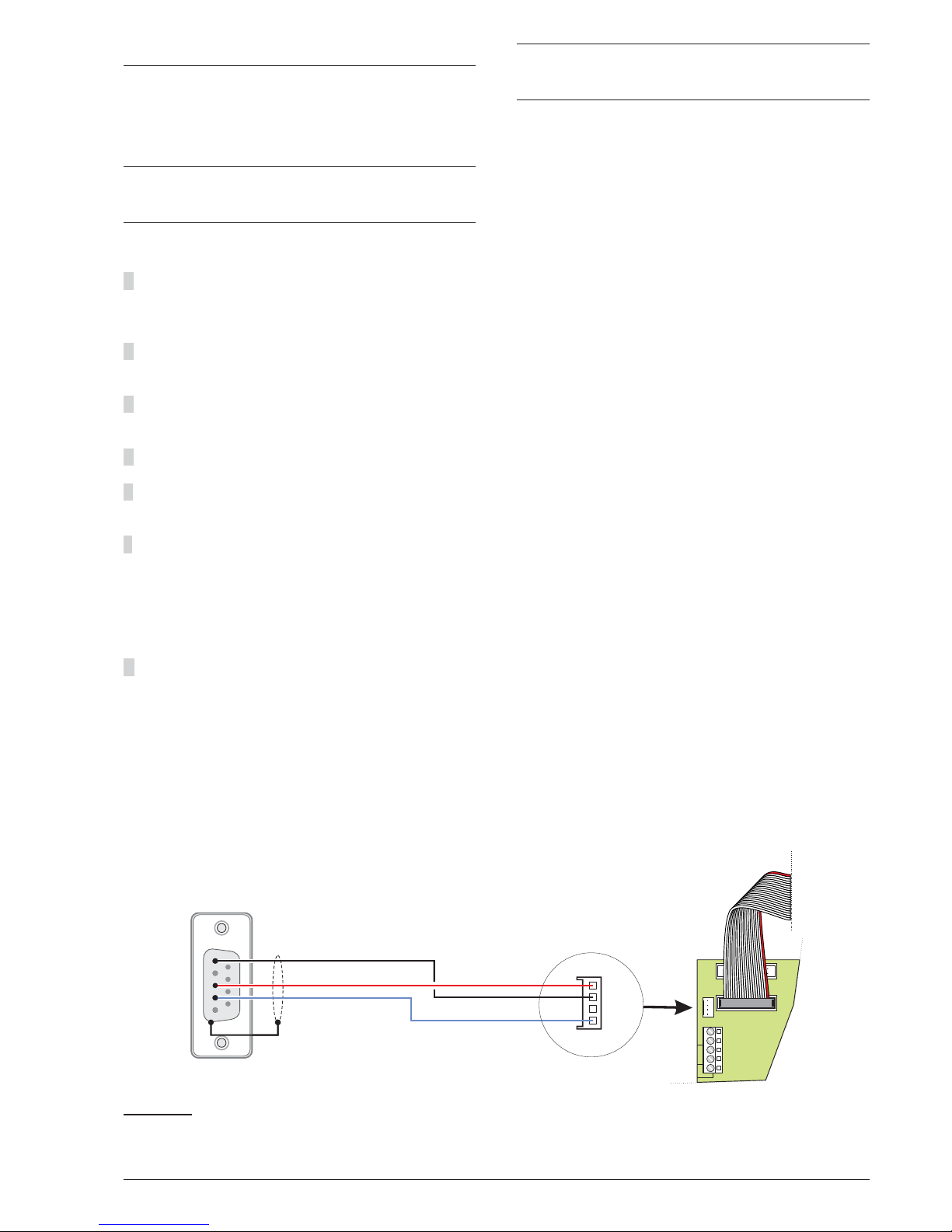

Figure 15 Schematic diagram of the PCLink cable

PC PROGRAMMING

The system can be programmed from the Control panel (User Interface) or from a computer, using the FireClass Console. This section describes how to program the system from a computer. If you intend programming the system from the Control panel refer to the “PROGRAMMING FROM THE PANEL” section. To ma

nage and program the FC501 control panel by a PC the Fi

reClass Console application must be installed on the PC.

Installation

Work carefully through the following steps to install the FireClass console application.

Ensure your PC is running Windows XP or above.

Ensure you are logged on with Administrator rights.

In Windows, click on the START button then select “My Computer”.

Select (double-click) the local Hard Disk Drive (Usually Drive ‘C’).

Ø Create a suitable directory (e.g. C:\FCConsole). Ø Copy the Fireclass Console Files into this directory. If you

have a ZIP file, then extract the files into the directory.

There should now be a File called “Fireclass Console” in your directory. Note: This file has a ‘.exe’ extension which may or may not be visible.

Ø Click the right mouse button on the file “Fireclass

Console” and select COPY from the menu. Click the right mouse button anywhere on your desktop (near to the various icons).

Select ‘Paste Shortcut’ from the menu.

You can now double-click the Fireclass Console shortcut icon to run Fireclass Console.

When FireClass Console starts for the first time will prompt you to choose the country you belong to, select and press the check button to confirm.

Select language

You can select the language of the FireClass Console, from the Languages provided. To Select the application language:

Run the FireClass Console application;

Select Tools from the Main window;

Select Language from the drop-down menu to open a window with the language list;

Select a language from the Language list;

The selected language will be immediately initialised.

Software window Look

To modify the look of the FireClass Console window, select Tools from the Main window and click “ Skin”. This option allows you to modify the look of the window in the offer range (see Figure 16).

Control panel connections

If you are using the Supervisory, Management, Downlo

ading and Log Management functions, the control panel must be connected to your PC in local communication (RS232/USB) or remote by PSTN line, GPRS or LAN.

To connect the control panel in local: connect the PCLINK connector of the control panel (see Figure 3, item 40) to a serial port of the PC using the PCLINK cable (accessory item, see Figure 15) or use the USB socket of the control Panel (see Figure 3 item 26) and a USB cable (Type A-A) or the USB BENTEL cable USB5M (length 5 m.).

Ø To connect the control panel to PC remotely: install

the FC500IP board, as described in the paragraph

"Installing FC500IP board". If the control panel is not connected to your PC when you start the communication, the following warning will be shown: “Response from Panel Timed!”. If the serial port for the local communication is invalid, the following warning will be shown: “Cannot open serial port”.

PC PROGRAMMING 29

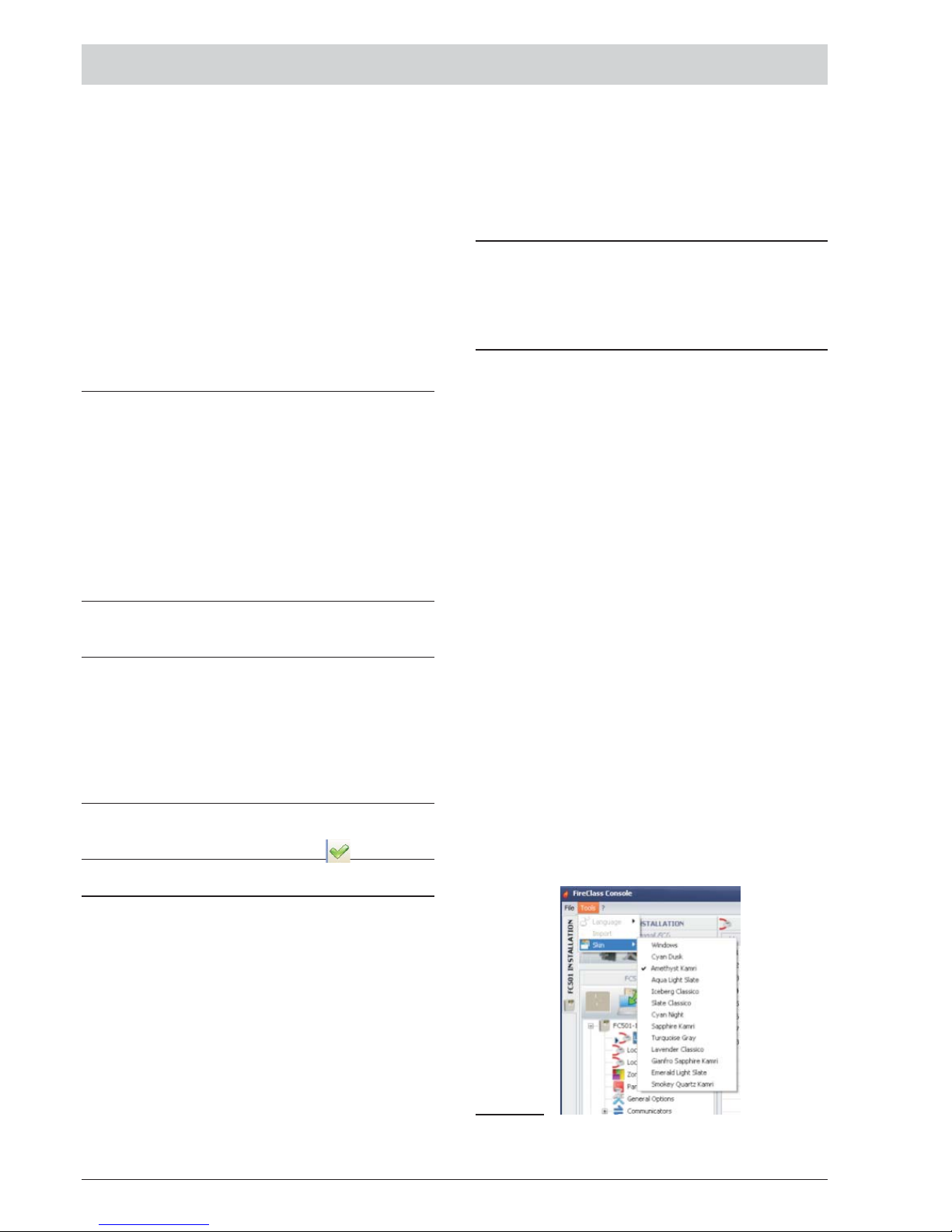

Figure 16 To modify the window look (skins).

Main window

From the FireClass Console main screen, select "File" and then "New", to display the window as shown in figu

re 18 where you can select the Firmware Release of the Control Panel to program. Click on the green tick to ac

cept the selection. The following sections describe the File, Tools, and Help menus.

Icons description

Click on this icon, opens the window in Figure 17 "Panel Details" where you can check/insert various programming.

Ø Click on on this icon in the window shown in Fi-

gure 21, you can see the details of the Panel, enter the name and address of the Control Panel/Customer.

Ø Click on this icon to download the programming

(via serial link) to the connected control panel.

Ø Click on this icon to upload all the programming

of the connected Control Panel.

Click on this icon to select the Loop for inserting devices.

Click on the icon to start operations in Real Time. This feature allows you to view the status of the FC501 control panel in real time on a computer using the FC500IP module connected to the network or using the serial port.

File menu

The menu File: New, Open, Save, Save as, Close, Exit will allow you to manage customer account

data.

New

The New option creates a New installation

and assigns the factory default values to all pro

gramming parameters.

Open Click on “Open”, to retrieve a previously sa

ved customer installation file. Locate the required installation file and double click it to open it.

You can have more than one installation file open at the same time. Pay attention to the tabs on the left-hand side to ensure you are editing the correct file.

Save If the installation data is modified, click on “Save” to save the changes to the current installation.

Save as If you have created a new installation or want to save an existing installation under a new name then click on "Save as".

Close Click on “Close” to close the current installation. You will be prompted to save any changes made.

Exit Click on “Exit” to close Fireclass Console. You will be prompted to save any changes made to the current installation.

n Tools menu

Language See paragraph "Select language" on page 29.

Skin To change the look of FireClass Console, click on Tools and then "Skin" that allows to choose, in a list, the

available looks (see Figure 16).

Advanced In this section you can set the Tooltip duration; Load the driver to use the USB. It is also possible to associate the files .FCI (files generated by the programming/management of the fire system) with FireClass console, so to open it just click on it.

Panel Details

Click on this icon , the window in figure 17, will be shown, where we have the following menu tabs:

30 Addressable Fire Panel FC501

Figure 17 Control Panel Details window.

Figure 18 From File menu and then "New".

Figure 19 Firmware Update window

- Panel

- Communication

- Panel Language

- Firmware Update

- Screen Saver

- Account.

Panel Details Menu

In this window, it is possible to enter the name of the Pa

nel/Customer. By clicking on the icon it is possible to check the firmware version of MainBoard, Loop con

troller, User Interface, Repeater and FC500FMI modu

le. Click on the icon to restore the Control Panel to the factory default.

Click on the icon to open the Installation Manual.

n Communication Menu

In the Communication menu you can choose the connection mode between the Panel and the PC: TCP/IP,

RS232 or USB. Click on the icon , to update the type of connection, and click on the TEST button to verify the functionality of the connection status. In the TCP/IP mode, it is necessary to enter the FC500IP parameters and the Installer password already in the system. The IP Module screen is used to program the parameters corresponding to the IP Module as described below.

IP address – Enter the IP address assigned to the IP Module you wish to program or, if DHCP (dynamic IP address) mode has been selected, contact the net

work administrator to request details of the IP ad

dress assigned to the IP Module. Alternatively, follow the procedure outlined in the “View IP ad

dress” paragraph to view the IP address on the con

trol unit display.

The default setting is 192.168.0.101.

IP Module port – Enter the details of the port as

signed to the IP Module you wish to program (contact the network administrator).

The default setting is 3064.

IP Module code – Enter the access code assi

gned to the IP Module you wish to program. The default setting is 5555.

Encryption key – Enter the encryption key assi

gned to the IP Module you wish to program. The de

fault setting is 32 zeros.

Language Menu

The Language menu allows you to change the system language (User Interface or Repeater) to any of the lan

guages currently loaded. In the Loaded Language sec

tion, click on Change System Language , then select the language and the device (User Interface or Repeater)

click-on to override the language in the Control panel memory. As soon as the download of the new language is completed, the panel will start to use it, and update any pe

ripherals, if necessary.

n Firmware Update menu

Click on “Firmware Update”: the window (see figure 19) will be shown. From a source file, this option allows the Firmware Update of all system interface: Mainboard, User interface, Loop controller, Repeater.

If the FC500REP repeater has a Firmware V3 or less, and the language is Italian while on the Panel there is English, the installer after the firmware update, have to realign the strings of languages, performing the process of language change (see Program 8 Key-System)

ScreenSaver menu

In the ScreenSaver menu it is possible to insert 4 lines of text (such as Installer address/telephone) that will be loaded on the display of the User Interface when the pa

nel is in the stand-by status. The four row could be: Ste

ady or Scroll or Blink.

PC PROGRAMMING 31

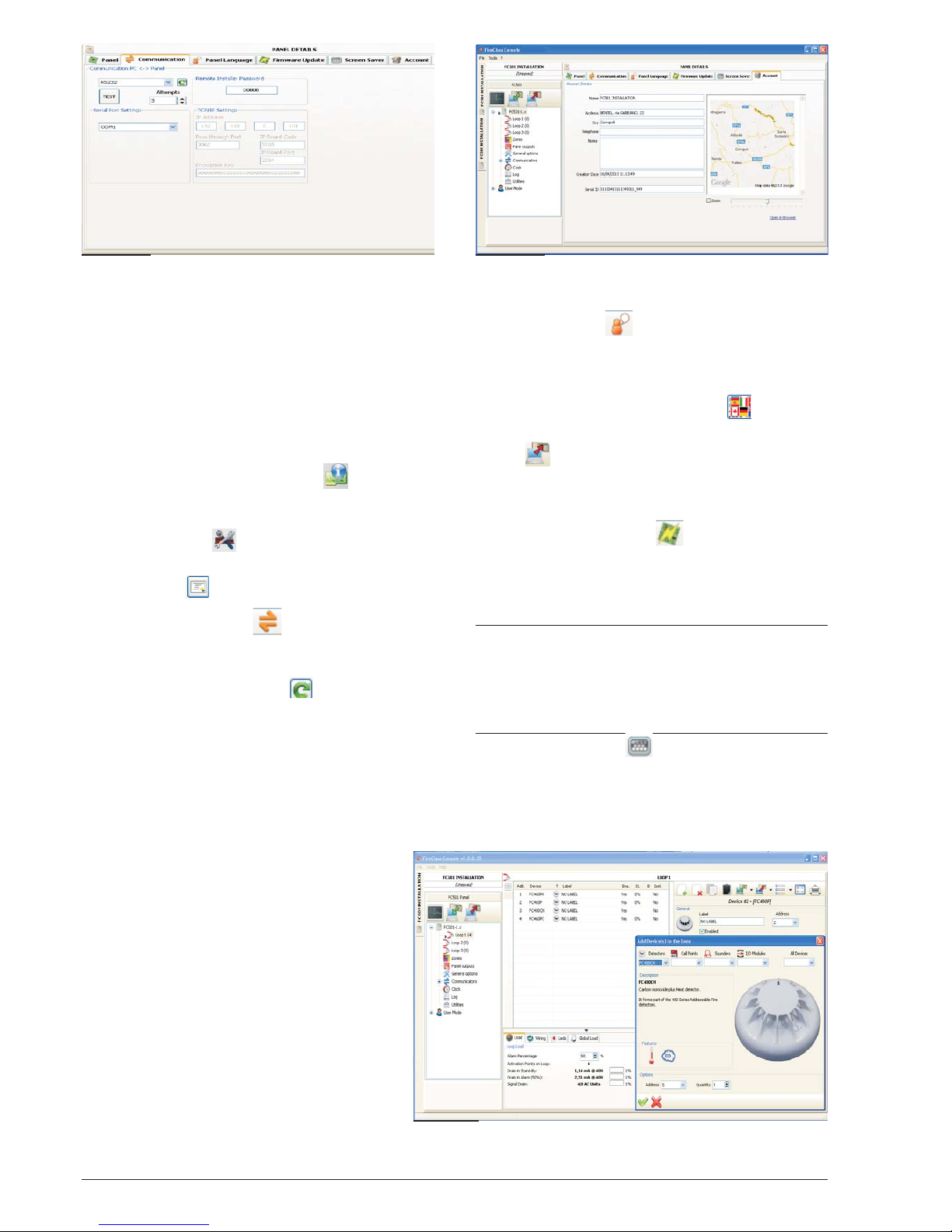

Figure 20 Communication window. Figure 21 Account window.

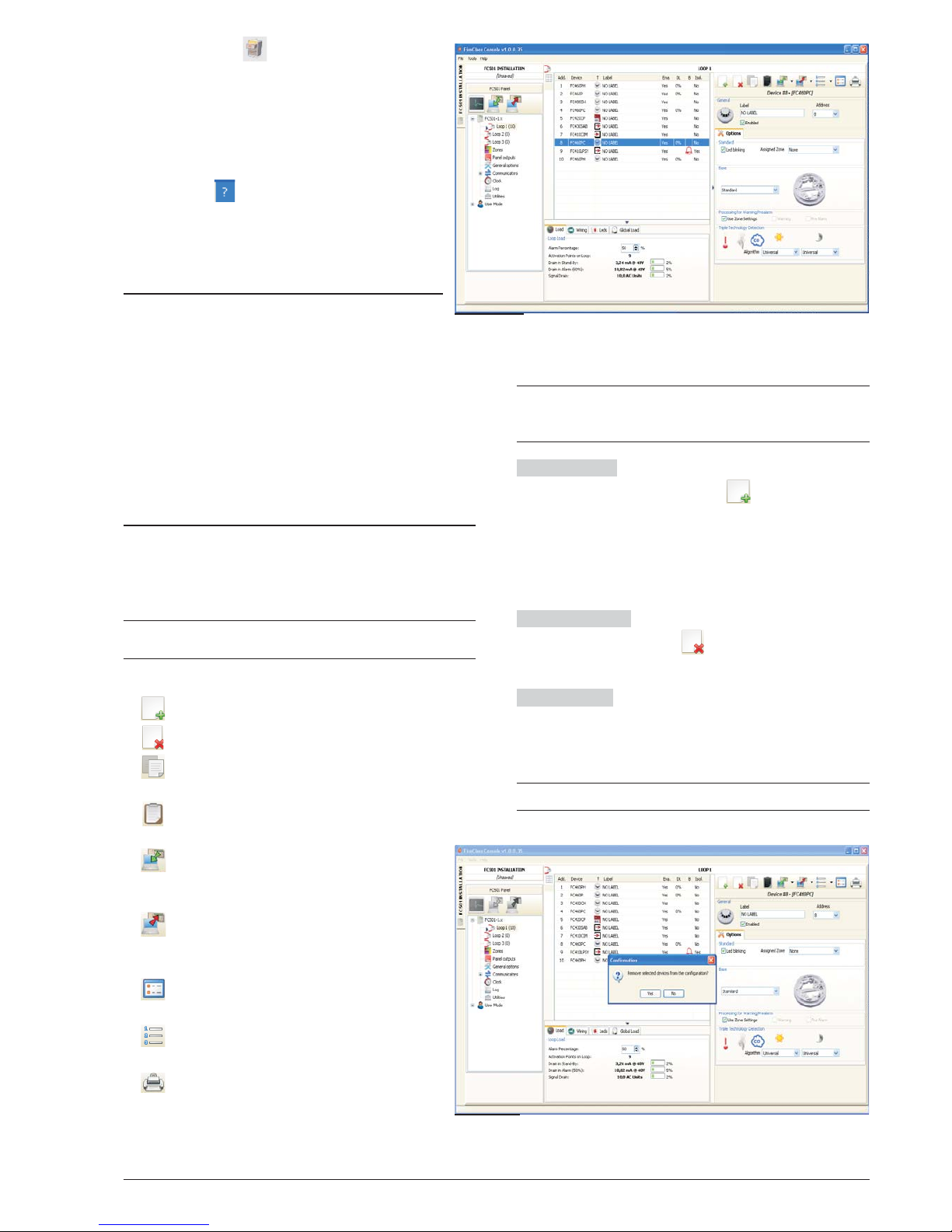

Figure 22 Devices programming window

Account Menu

In the Account menu enter the account data, and for better identification of the account, after entering the address (location) by clicking on the address field, the software will attempt to find the address using Google Maps (assuming you have an active internet connection).

Help Menu

Click on Help option; a technical support file will be opened. This application allows you the lear

ning and the use of FireClass Console.

Programming Pages

The programming pages of the system are:

-Loop devices

-Zones

-Panel Outputs

-General Options

-Communicators

-Clock

-Log

-Utilities

-User mode illustrated below.

Loop Devices programming

In the window on the left, click on the panel name to expand the tree view. Then click on the required loop (1,2 or 3). The devices programming window will shown (Figure 22).

On the right of Loop1 or Loop 2 or Loop3, the current number of devices is shown in brackets ().

n Description of the icons in the tool bar.

Add Device: select new devices;

Remove device: remove the installed devices;

Copy device on the clipboard: allows you to copy the

device data to the clipboard for use in another account.

Paste clipboard content: allows you to add devi

ce data previously copied to the clipboard.

Read Loop: allows you to upload the cur

rent loop data from the panel (via the serial data link).

Send Element(s): allows you to download the current loop data to the panel (via the serial data link).

Device’s details: this open a new window to

allow you to see status of the device.

Selection: allows you to select all devices or

invert the current selection.

Print to file: print to a .csv file the list of devi

ces of the selected loop. The .csv file can be edited with Microsoft Excel.

If different devices have common programming pa

rameters, you can use the multiple selection of the devices and assign the same parameters.

Select devices

Click on Panel 1, select Loop 1 or Loop

2 or Loop3, click on “new device” , the window in Fi

gure 22 will shown. Select the programming device, check the address, (autoaddressing) and then click on the tick

3 (Enable) to add the device to the loop. For others

devices, repeat the same procedure. The detector type is shown by the icon in the Features field.

Remove devices Select the device in the list, then

click on “Remove device” , and then click YES to remove or NO to cancel (see Figure 24).

Loop Loading At the bottom of the programmed devices list, Figure 23, there is a Loop Load section. This win

dows displays the number of Activation points on the loop, the Drain in stand-By, the Drain in Alarm and the Signal Drain. The Alarm percentage can be adjusted.

The remote LEDs may be entered in the calculation.

32 Addressable Fire Panel FC501

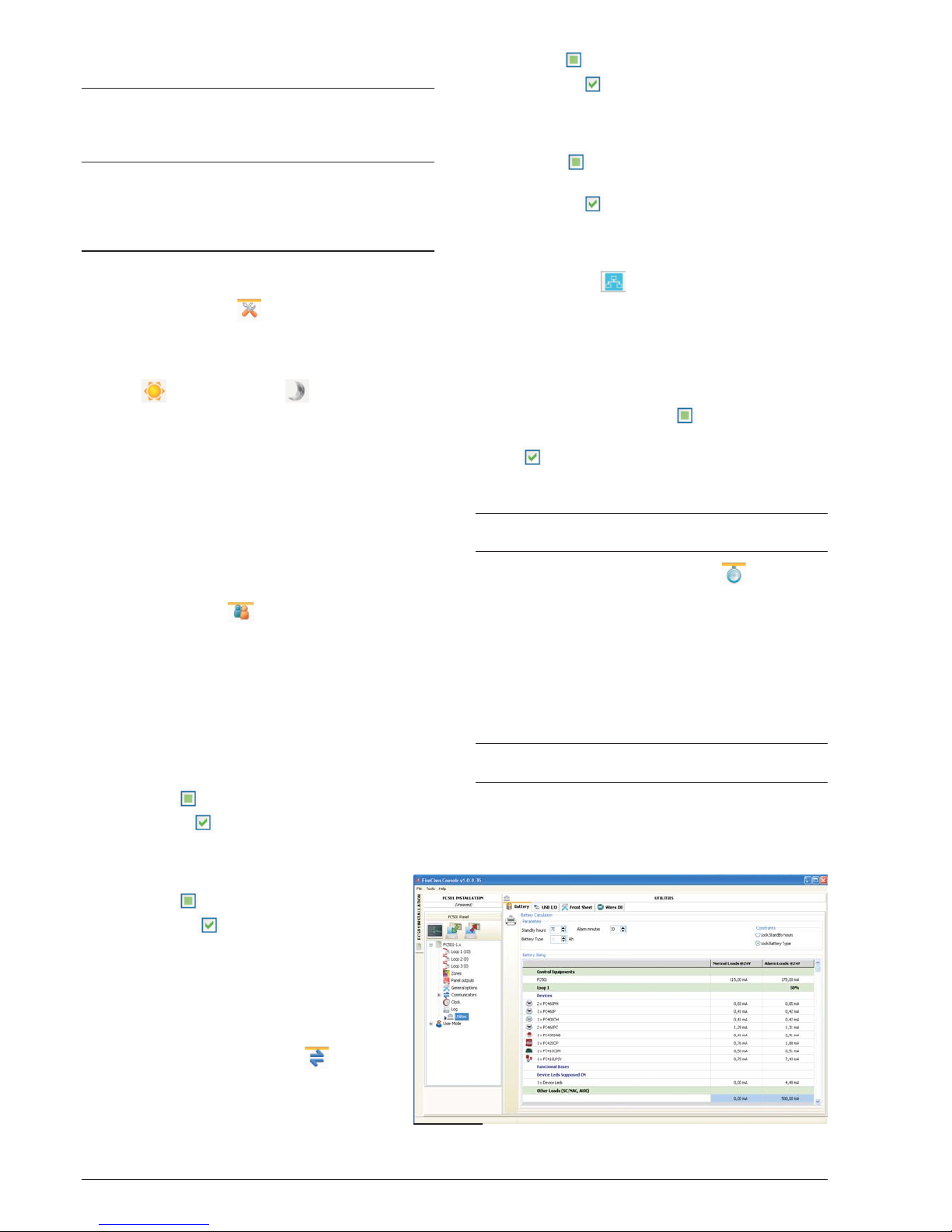

Figure 23 Detectors parameters programming Window

Figure 24 Detector Disablement confirmation window.

The percentage shown in the “Loop drain in alarm (50%)” is the programmed value in “Battery calculation” an option of Utilities page (see dedicated paragraph), for the bat

tery calculation after the cable lenght is entered; it is possi

ble to choose the type of cable if you have a database.

Loop wiring Calculation

The tab next to the Loop Load tab is the Loop Wiring tab. This gives you the maximum permitted resistance of the loop based on the cable length and the Alarm Percentage. If cable data is available from the Utilities section then suitable cable may also be shown.

n Detectors parameters programming

Click on a device in the Device list. The relevant device programming window will be shown on the right (every device has the dedicated programming window). For the detectors (see figure 22); in the First section (GENERAL):

Enabled:atick[

3] indicates that the detector is enabled.

Label: this is for the editable device-label. The system will use the label as the device identifier

Address: in this field you can modify the address of the detector.

OPTIONS section: LED Blinking: a tick [

3] indicates that the LED detec

tor will flash.

Assigned Zones: each fire detector, Input module and Manual call Point can be associated with 1 of the available software zones (32 for FC501 control pa

nel). If a device goes into ALARM status, the zones it is assigned will also go into ALARM status.

Base In this section it is possible to select the base for the detector (click on available bases).

Remote LED In this section it is possible to enable the activation of programmable Remote LED of the detectors. The detectors have an output used to dri

ve the remote LED. This output was activated only for detector alarm which it belonged. Now, it will be possible to program it to activate for other events, exactly as it happens for the other panel outputs, as well as for the detector alarm which it belongs.

This option (Remote LED) will be possible to program also on control panel User interface, in the program

ming page of the detectors.

PROCESSING for WARNING/PREALARM section: this determines the actions the control panel will per

form when the device threshold is exceeded. Ø Use zone settings: the detector uses the parameters

of the assigned zone; if this option is disabled, the Warning and/or Pre-alarm can be manually selected.

Ø Prealarm: the control panel will activate the ALARM

delay

Ø Warning: the control panel will activate a WARNING

signal. Depending on the type of detector: Smoke, Heat, Smoke and Heat, Heat and Carbon Monoxide (CO), Smoke Heat and Carbon Monoxide (Co), will have three sections: OPERATING MODE HEAT DETECTOR SECTION:

Day mode- Night mode for Temperature detec

tor (see table 8), choose the Class of the selected de

tector. OPERATING MODE SMOKE DETECTOR SECTION:

Day mode- Night mode for Smoke and Heat

detectors:

Drift Compensation: Drift compensation effects op

tical smoke sensors only. It will supply a precise analysis about dust accumulation, and therefore, the alarm threshold will be modified accordingly (false alarms).

Default: for smoke detectors only and for Smoke and Heat detectors only;

Enhanced: for Smoke and Heat detectors only;

Sensitivity: Sensitivit can set: Low, Medium and High.

OPERATING MODE CARBON MONOXIDE SECTION:

Day mode- Night mode for Co and Heat detec

tors:

Default

Enhanced

Disabled

PC PROGRAMMING 33

Detector

Class

Typical application

Temperature °C

Max. Application Temperature °C

Min.Static

Response

Temperature °C

Max.Static

Response

Temperature °C A1 25 50 54 65 A2 25 50 54 70

B 40656985 C 558084100 D 709599115 E 85 110 114 130 F 100 125 129 145 G 115 140 144 160

Table 8 Detector classification Temperature - Detector shall conform to one or more of the following classes: A1, A2, B, C, D, E, F or G . Manufacturers may optionally give additional information concerning the type of response exhibited by the detector, by adding the suffix S or R to the above classes. Detectors, with a suffix S to their class, do not respond below the minimun static response temperature, even at high rates of rise of air temperature. Detectors, with a suffix R to their class, incorporate a rate of rise characteristic, which meets the response time requirements for high rates of rise of air temperatu

re even when starting at air temperature substantially below the typical application temperature (EN54-5:2000).

Sensitivity, this can be set to: Low, Normal or High. For the FC460PC detector (Smoke, Heat and Co) can be set to: HIGH IMMUNITY or UNIVERSAL, in the TRIPLE TECHNOLOGY DETECTION.

Click-on to open or close the relative section of parameters programming

If a detector linked to an Output or Input-Output Mo

dule, is disabled (remove a tick [3]in the proper sec

tion), a window will show to ask confirmation. Click on Detail to see further data.

For the sirens of the FC410LPA/S series and the base FC430LPA/S, in the “Sounder Options” sec

tion you can set the tone, volume & frequency of flash of the beacon.

For the sirens of the FC410LPSY/AV series you must also choose the Subtype.

Input module parameters programming

Click on an entered Input Module, the relevant pro

gramming window will be shown as per the following description. First section: as per the Detectors section; Assigned zone: as per the Detectors section; Second section: select the operating mode style: B, C. There are 2 operating mode style: B, C; Ø B style: two wire connection mode: the short-circuit

condition as an Alarm condition.

Ø C style: two wire connection mode: the short-circuit

condition as a Fault condition.

As different styles are selected, the electrical operating diagram changes

PROCESSING for WARNING/PREALARM section: see the same section in the Detectors parameters programming.

For every digital input of loop devices it will be possi

ble to program the Restorable warning parameter (when Warning option is selected for the input). Also it applies to the Multiple Input-Output modules but not for the detectors. When this option is program

med for a certain input, the control panel will enter the Warning status when the appropriate conditions are detected by the input, and will exit this status when the loop device goes back to standby status.

When the loop device is activated and the War

ning event is generated, the LED of the device will be switched ON. When the event is resto

red, the LED will be switched OFF.

For the FC410DDM module only, it is possible to set the thresholds of gas detection, selecting: Conven

tional (for conventional detectors) or Gas Source or Gas Sink (for signalling detectors). In addition:

LED blinking: click on to enable/disable signa

ling LED module.

External Power: click on to enable/disable an ex

ternal 24Vdc PSU.

Output module parameters programming

Click on an entered Output Module, the relevant pro

gramming window will be shown as per the following description.

FIRST section: as per the Detectors section; SECOND section: Assigned zone; each Output modu

le can be associated with up to 4 of the 32 available sof

tware zones for FC501 panel. An Output module will be activated when any of the zones, where it is enabled, go into ALARM status. Base: in this section the base for the Output module can be selected; click-on available bases (for FC430SAM and FC430SAB only).

Beacon: Activate the blinking or glowing (ON). THIRD section: Trigger points, each output module can be

assigned to 3 Activation points : in this case the Output Mo

dule is activated when at least one of the Input points to which it belongs is in a alarm status, indicate:

the loop the device is connected to;

the device address. FOURTH section: Options, these options will allow you to select the conditions that will activate the output module:

Zone warning, Zone fault, Zone Prealarm, Zone

Alarm, Zone Double Knock, Zone Test;

Point warning, Point fault, Point Prealarm, Point

Alarm;

Panel warning, Panel fault, Panel prealarm, Panel

alarm, Ø Network fault. It is also possible to program the Output Module as: Si- lenceable, Set as SC1 (see Outputs programming). Ø Linked Delay: see the same option in the paragraph

“Panel Output Programming”. For the following types of devices:

FC410LPAV (all versions) FC430LPASB FC430SAB (with FC430SB),

In addition to those certified to EN54-23:

FC410LPS-R/W FC410LPBS FC430LPBSB,

it is possible the separated programming of the Soun

der and Beacon, in two different programming tabs. The two tabs, for Sounder and Beacon, have the same pro

gramming options, except for "Set As SC1", which will be present only for the Sounder output.

34 Addressable Fire Panel FC501

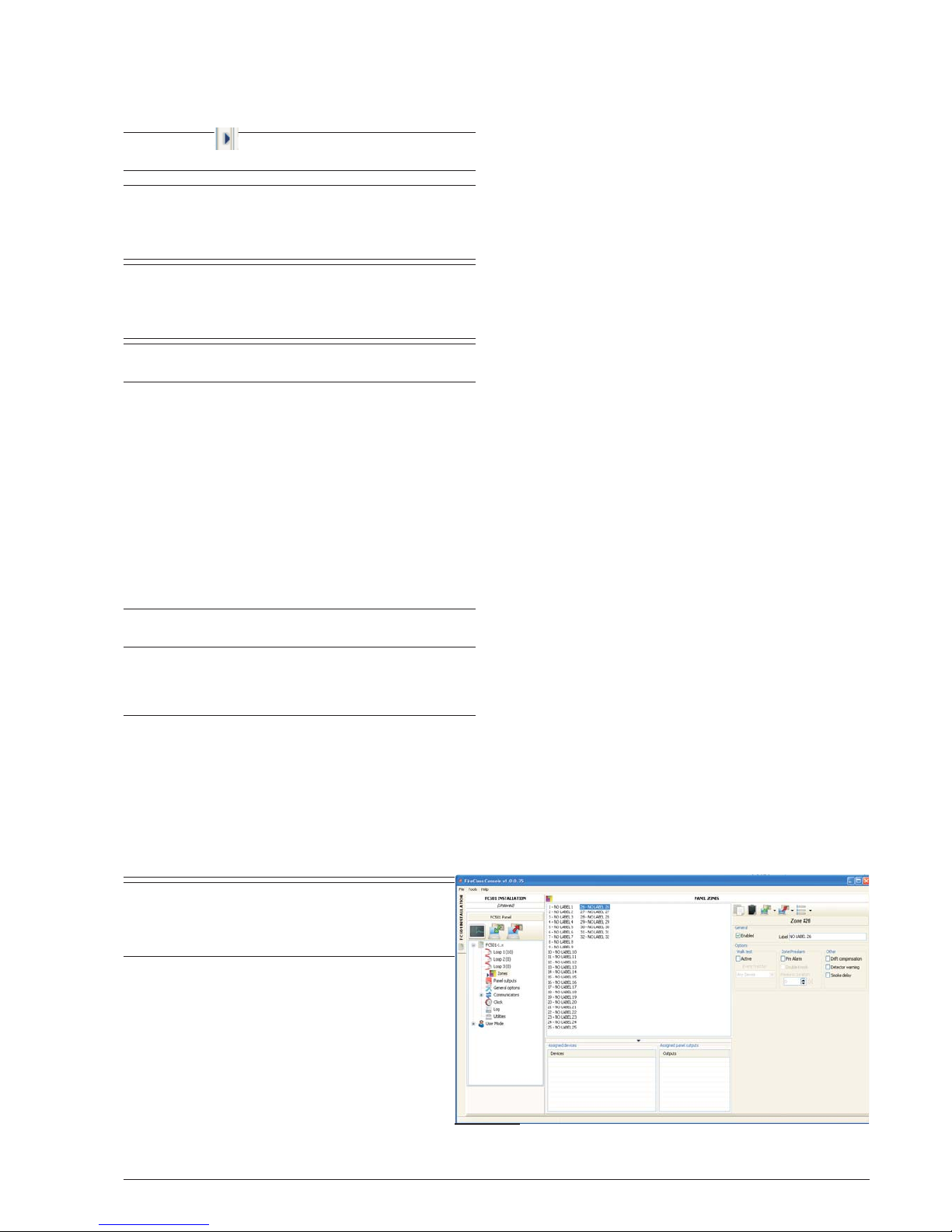

Figure 25 Zones Programming window.

It will not be possible to enable/disable separately the two output channels.

The separated programming of the Sounder and Beacon of the devices (named previously), it will be possible also by Control Panel User Interface in the Devices programming pages.

Multiple Input-Output Module - Parameters Programming (FC410MIO/FC410QIO)

Click on an entered Multiple Input/Output Module FC410MIO (3 Inputs and 4 Outputs Module) or FC410QIO (4 Inputs and 4 Outputs Module), see the customized Manuals, the relevant programming win

dow will be shown. The options descriptions are as per the Input and Out

put Modules paragraphs. In the field “Label” a description of Input/Output Module will be inserted. For Trigger Points see same section on "Output module parameters programming". OPTIONS section:

Oppo interface: ActUnit/KeySafe, allows you to manage the procedure for the automatic opening of the doors of the factory / Office / Shop, Warehouse, in case of fire. This avoids the breakage of these structures. The outputs of this module can control these actions.

LED blinking: click on to enable/disable signaling LE. The FC410TSM Door Control Module (one Input/one output) designed to close a fire door in case of alarm or fault. The FC410TSM monitors:

- the external Power supply;

- Loop voltage Test, if the relevant option are enabled.

In an eventual connection on the right side (2 wires connection), the module enables the yellow (isolator) LED blinking (Not correct installation)

n Manual Call Point parameters programming

Click on a Manual Call Point (FC420CP, FC421CP) the relevant programming will be shown as per the following description. GENERAL section: as for the detectors;

OPTIONS section:

assigned zones: each Manual Call Point can be as

sociated with 1 of the available software zones (32 for FC501).

Led blinking: if this option is enabled, the Manual Call Point LED will blink every Loop scanning.

Zones programming

The Zones option from the panel tree menu will al

low you to access the software-zone parameters (see Figure 25). The software zones parameters will be applied automatically to all the devices asso

ciated with the zone concerned.

GENERAL section (FIRST section);

Enabled:atick[

3] indicates that the zone is ena

bled.

Label: this is for the editable device-label (up to 20 characters). The system will use the label as

the zone identifier. OPTIONS section: a number of parameters can be programmed in this section. Walk test:

Active: if this option is enabled, the zones in alarm status will activate the programmed Outputs with Walk test event, while the control panel will not gene

rate an alarm. Select if the event is fired by: Any device means Modules + CP + Detectors, CallPoints means CPs only, Detectors means Modules + Detectors (No CPs).

Prealarm:

Prealarm: if this option is enabled, the control panel will activate the ALARM delay.

Double Knock: if this option is enabled and the zone is in Prealarm status, when an other devices (other address) associated to this zone are activated, the zone will immediately generate an Alarm status.

if "Use zone settings" option is not checked for a de

vice, it means that you can individually decide, for that device, if it has to process Warning and/or Prea

larm. Once you have decided that the device proces

ses prealarm, its activation will cause Prelarm of the panel (with panel prealarm time) and, because it be

longs to a zone, that zone will go into the prealarm status. If another point belonging to the zone goes into Prealarm, the Double Knock option becomes active if enabled in Zone programming page.

Prealarm Duration: an input device programmed with Prealarm time will generate ALARM status when the prealarm time elapses. (see parameters programming detector). Select the Prealarm time. The prealarm time can be set from 0 seconds to 300 seconds in 1-second steps. Other:

Ø Drift Compensation: see the same option in “Para-

meters detectors Programming”;

Ø Detector Warning: if this option is enabled the con-

trol panel will activate a WARNING signal. N.B. To activate the Warning option for a Module, tick the corresponding box on the Module program

ming screen.

Smoke delay: for each zone, you can program the dela

yed activation of the smoke detectors. The SMOKE DELAY (60s/30min) parameter, when set, applies to all smoke detectors assigned to the selected zone the alarm verification algorithm as described in the EN54-2, (see page 51).

PC PROGRAMMING 35

Figure 26 Outputs programming window.

Under the list of Zones (Zone Programming page, see figure 25 ) two windows are displayed which de

vices and what outputs are enabled on it. If you click the right mouse button on a Device in the list, a new menu will be displayed. Selecting Device Details will open a new window, where it is possible to see what points and what output is assigned to the device.

In the section COMMUNICATORS: PSTN: each zone can be associated with one or more

voice messages linked to an Alarm, Pre-alarm, Start-up, Breakdown or Walk Test event; these may be sent to a maximum of 32 telephone numbers. IP: see PSTN above.

The Communicators section will be activated after that the PSTN and/or IP communicator are ena

bled (double clicks) in the General Options page.

Outputs Programming

The Panel Outputs option will allow you to access the outputs parameters. The relevant programming will be shown as per the following description (see Figure 26).

SC1, SC2 Outputs

Supervised/Silenceable/Bypassable (Disabled) Alarm Outputs.

Output ACTIVE: positive pull-up to 27.6 V on the [+] ter

minal; negative pull-down to0Vonthe[–]terminal. Click on an Output, the relevant programming window will be shown: In the GENERAL section: Ø Enabled: a tick [

3] indicates that the Output is ena-

bled.

Ø Label: this is for the editable Output-label. The

system will use the label as the Output identifier. In the ZONES section: each Output can be associated with up to 4 of the available software zones (32 for FC501 fire panel). In the TRIGGER POINTS section: each Output can be associated with 3 Input Points. If any one of its Input Po

ints goes into ALARM status, the Output will activate. For each Point it is necessary to indicate:

the address,

channel of selected device.

OPTIONS Section:these options will allow you to se

lect the conditions that will activate the outputs; example: if “Zone warning” option is enabled, the control panel will activate the output when one of its associated points goes into Warning status.

Warning Zone, Fault Zone, Prealarm Zone, Alarm Zone, Double knock (see Zones pro

gramming), Walk Test Zone;

Point Warning, Point Fault, Point Prealarm, Po

int Alarm,

Panel Warning, Panel Fault, Panel Prealarm, Panel Alarm,

Set as SC1 If this option is enabled, the SC1 output is transformed into a SC FIRE output (it is activated in the event of an alarm and cannot be programmed). It is a C-type output (EN 54-1).

When Set as SC1 has been enabled, the SC1 out

put LED blinks if the SC1 output breaks down; it remains Glowing if the SC1 output is disabled.

Silenceable The output, if activated, can be Silen

ceable by checking this option. In the case of output silenceable, once silenced, it will be automatically re

activated in the case of a new fire event.

Active on Disablement Click on this option to acti

vate the programmable SC outputs when any part of the system is disabled.

This feature will be available for all programmable control panel outputs and for loop modules which provide dry contacts. This is the list of the devices affected by the modification: programmable control panel outputs: OC1, OC2 and FIRE. Loop modules: FC410RIM, FC410SIO, FC410MIO, FC410QMO, FC410QRM, FC410QIO

Linked Delay One of the 5 available timers (set using the General Options page on Delays Thre

sholds) can be associated with an output activated by

a zone, point or control panel alarm. The output will be activated by the programmed event, after the delay in

dicated by the Timer.

n OC1, OC2 Outputs

These are programmed, NON-SUPERVISED, non-silenceable, bypassable (Disabled) outputs. These are normally-open terminals (open-collector) which close to ground when the corresponding zones go into alarm status. These terminals will remain closed to ground even after the generating event has ended. See the common parameters descriptions as per SC1, SC2 Outputs. Ø Backup PSTN line For the output OC1 ONLY, selec-

ting this option and having a secondary communicator connected , in the case of malfunction of the PSTN, this

output can manage the secondary communicator. The Options section contains parameters for setting the conditions to activate the outputs (see same section in the SC Outputs paragraph).

Relay Outputs

Relay FIRE Non-supervised Fire output. Dry contact

relay for non-supervised devices:

36 Addressable Fire Panel FC501

Figure 27 General Options window

Relay FAULT Non-supervised Fault output. Dry contact relay for non-supervised devices.

EN54-2 certification applies ONLY when FAULT output is not J (EN 54-1) type, therefore this output MUST NOT BE UTILIZED to manage Fault tran

smission devices.

The Options section contains parameters for setting the conditions to activate these outputs (see same sec

tion in the SC Outputs paragraph).

General Options programming

The Panel parameters can be programmed through the General Options page (see Figure 27).

In the General section :

Loop Wiring: select a 2 wire connection or a 4 wire connection for the Panel Loop configuration.

Day/night Mode: select the operation mode: Day

Mode , or Night Mode : or click-on Auto

matic to set the time (hour and minutes) of transition

from one mode to another.

Power Supply: select the Power Supply of the system: BAQ35T24 or BAQ60T24.

Disabling: Disable SC1

- Allows disabling of the SC1 output (enabled by de

fault). This Output is programmable; it is activated every time the control panel goes into ALARM status.

Ø Disable Re-activation on new alarm. If this disa-

blement is set, then reactivation of the SC1 output on a new alarm will be prevented.

In the USERS section : in this section it is possible to change the installer code and user code. Each code must be 5 digits; the digits from 0 to 9 are allowed. Ø PANEL USER AND INSTALLER section: this sec-

tion will allow you to change the Installer and User codes. Codes with 1 to 5 digits (0 through 9). Installer code allows you to manage the 3 access Levels of control panel: L1(View), L2 (User), L3 (Installer). The default installer code is 00000:

a click only the password is present,

a second click the installer password is enabled.

User code allows you to manage 2 access Levels of control panel: L1(View) and L2 (User). The default User code is 11111:

a click only the password is present,

a second click the user password is ena

bled.

Lock Installers Password: if you select this option it is not possible to perform the procedu

re to change the password Installer from the pa

nel User Interface: Program Menu, 0=L3 PWD Key.

In the COMMUNICATORS section it is possi

ble to enable the PSTN functionality and the FC500IP module.

PSTN section:

a click only the PSTN is present, but not enabled;

a double click the PSTN is enabled. When PSTN is enabled you can also select whether to enable both events, alarm and fault or one of two. IP section:

a click only the FC500IP is present, but not ena

bled;

a double click the FC500IP is enabled. When IP is enabled you can also select whether to ena

ble both events, alarm and fault or one of two.

In the NETWORK section: a tick [

3] on:

Enable Network to enable the network;

Allow buzzer silence If this option is enabled it is

possible to silence a device that is activated in every

part of the network.

The Network Repeaters section and Network MFI

section allows you to enable Repeaters and FC500

MFI modules. A click only the Repeater and

FC500MFI are present, but not enabled; a double

click are enabled.

For FC500MFI module see the programming from

the panel at page 52.

The Repeater address can be inserted from the panel (see Programming from the panel).

DELAYS and THRESHOLDS section In this sec- tion it is possible to program: Ø The ALARM DELAYS: it is possible to choose 5 ti-

mers; in the Panel Outputs page, selecting the out-

put, the timer will be set in the Linked Delay option.

Ø The PANEL DELAYS: Ø Investigation Time: a Delay will be added automati-

cally to the Prealarm remaining delay, when the

Investigate Key will be pressed.

The sum of Investigation Time and Prealarm Time must not exceded 10 minutes

Fault delay: this field controls how long it takes for the panel to signal a Mains failure. the Amber signalling LED (Power Supply Fault) will be

PC PROGRAMMING 37

Figure 28 Utilities window

ON, the relevant event will be shown on the display. Prealarm duration: an input device programmed with Prealarm time will generate ALARM status when the prealarm time elapses. Prealarm status is signalled by: an audible signal emit

ted by the control panel;

blinking on the PREALARM LED (this LED is on the Repeater FC500REP only);

the message on the display;

activation of outputs with programmed Prealarms.

Silence duration: when the control panel is in Night Mode the Silence delay is the maximum silence time of

the Outputs. Reset: program the Reset time ( min Time: 2 sec; max Time: 15 sec.). The THRESHOLDS section is reserved for the DDM Gas Detector;

SET: allows you to choose between 4 levels of thre

shold. In the section SET VALUES, the relevant de

fined values are connected to the chosen threshold. After the DDM Gas device is selected in the loop, set the same level threshold.

Communicators Programming

The Communicators page is for programming the para

meters of the PSTN interface, of the FC500IP module and of Panel events, as described below.

PSTN interface The PSTN interface section is activated, after the PSTN Telecom interface has been enabled on the General Options page (Figure 27). In the OPTIONS section:

Ø Call attempts – Set the maximum number of at-

tempts that the PSTN interface makes for each Telephone Number: set from 1 to 9, the default setting is 3 attempts.

Ø Iterations – Set the number of times the PSTN inter-

face repeats the Voice Message: set from 1 to 9, the default setting is 3;

Tone Check – If enabled , the PSTN interface con

trols whether it could obtain a Dialling Tone,ifitcould obtain it move to the next step, otherwise it will consider the phone call failed, hang up and try again;

Call All Telemonitoring – If the Call all Telemonito

ring numbers option is enabled, the PSTN Interface

calls all the numbers which have been programmed for the event which has occurred, up to the time when all telephone calls succeed or, at the most, for the number of Call Attempts which has been programmed. If the Call All Telemonitoring numbers option is disabled, the PSTN Interface will interrupt the call as soon as it succeeds.

If the Call All Voice Messages numbers option is enabled (default setting), the PSTN Interface will call all programmed numbers for the event which has occurred, until all phone calls fully succeed ac

cording to the number of Call Attempts which have been programmed. If the Call All Voice Messages numbers option is disabled, the PSTN Interface will interrupt the calls as soon as one is successful.

In the section PLAY MESSAGE AFTER, sets the con

dition for the playing back of the Voice Message.

Dialing - the Message is played back as soon as the Telephone number is dialled.

Voice - the message is played back when the PSTN Interface detects a voice answer.

Delay - the Message is played back when the pro

grammed Delay elapses after that the Telephone number has been dialled: the Delay could be set from 0 up to 99 seconds, with 1 second steps; the de

fault setting is 0 seconds.

In the section PERIODIC REPORT: sets the parameters corresponding to the Period Test, as described below:

Date and Time First Test – Set the date and time for the first Periodic Test.

Period – Set the interval between two Periodic Tests: the interval can be set from 1 up to 25 hours, in steps of one hour; the default setting is 24 hours.

The Periodic Test event IS NOT recorded in the Events Log.

The section ADDRESS BOOK is used to program the telephone numbers that can be used to send:

-Voice Messages (Dialler function) or

-Telemonitoring data, when the events, recognized by the panel, will occur. In the case of Telemonitoring, select: the type of protocol (SIA, ADEMCO Contact ID) and:

Customer Code.

Phone numbers are:

-only for alarms;

-only Faults,

-and numbers of general use.

In the section VOICE MESSAGES parameters related to voice messages are programmed , as described below. (1-7) MESSAGES – These messages (from 1 up to 7) are NOT editable. (8-32) MESSAGES – In this section, a description of 20 characters max, can be assigned to messages from n. 8n.32.

Allows to listen a present message.

Allows to stop the message playback.

Allows to delete the selected message.

38 Addressable Fire Panel FC501

Figure 29 Page to print the zones label.

Allows a voice message to be recorded via the mi

crophone on the PC (max 6 sec., Header message 12 sec.).

Allows to import an audio file (mp3, wav) to be used

as a voice message (max 6 sec.).

The USB memory stick is the ONLY way to downlo

ad in the panel the AUDIO files

IP interface

The IP interface section is active after the module FC500IP has been enabled in the General Options page (Figure 27). The IP module programming is in 3 sections: OPTIONS, ADDRESS BOOK and ADVANCED. OPTIONS: DHCP – Select this option if you wish to use a dynamic address for the IP Module you are programming.

- IP static– Select this option if you wish to assign a sta

tic IP address to the IP Module you are programming, then set the following parameters:

- IP address: enter the IP address to be assigned to the IP Module; the network administrator will provide you with this information. The default setting is

192.168.0.101.

- Subnet mask: this must be the same as the subnet mask for the local network; only one subnet mask is valid for each local network. All nodes on the same subnet will use the same subnet mask; the network administrator will provide you with this information. The default setting is 255.255.0.0.

- Gateway IP address: enter the IP address of the local gateway which may be used by the IP Module to connect to a PC outside the LAN (WAN). The default setting is

0.0.0.0.

Ethernet speed

This section is used to set the parameters corresponding to the Ethernet interface of the IP Module: the Auto setting is selected by default.

Auto – If this option is enabled, the IP Module will take the speed and duplex values from the network. If this option is disabled, the speed and duplex valu

es must be set as described below.

Speed – If the Auto option is disabled, set the speed

value as appropriate: 10 Mbps or 100 Mbps. Duplex – If the Auto option is disabled, set the Data exchange (Duplex) mode as appropriate:

Half or Full. Read-only options

The values in this section cannot be modified. They display information relating to the connected IP Module.

MAC Address – Displays the MAC address of the

IP Module: the MAC address is a unique identifica

tion number assigned to every IP device throughout the world.

Firmware version – Displays the version of the program running on the IP Module.

Boot version – Displays the boot version.

Current IP address – Displays the IP address as

signed to the IP Module.

General options This section is used to select the general options for the IP Module. Encryption key – If it has been programmed, the IP Module will use this key to encode and decode the pac

kets exchanged with the PC. The encryption key may include between 1 and 32 hexadecimal characters (numbers 1 to 9 & letters A to F). To disable encryption, enter 0 (zero). If the encryption key does not corre

spond to that of the IP Module, communication between the PC and the IP Module will NOT be permitted. The default setting is 0 (encryption key not enabled). Board port – This is the port which should be used to communicate with the IP Module. The default setting is

3064. Pass Through port – This is the port which should be used to communicate with the control unit. The default setting is 3062. Board code – This code should be applied when the Fi

reClass Console is used to program the IP Module, eit

her remotely or locally. The code should consist of 4 hexadecimal digits. The default setting is 5555. Idle Connection Timeout – Enter the maximum time pe

riod during which no data is transmitted before the connec

tion is terminated. The default setting is 20 seconds.

ADDRESS BOOK

Account Code – The account number is used by the central station to distinguish between transmitters. The

re is one account number programmable for the FC500IP. Default value: (0000FFFFFF).

Account codes 0000FFFFFF,FFFFFFFFFF and 0000000000 are not valid accounts.

Ø Supervision-To enable Supervision mode, tick this option. Main

Ø IP_Address – Static IP address for the receiver. Pro-

gram the IP address of the central station receiver. If an IP receiver is not connected program 0.0.0.0 address. Default value: 000.000.000.000.

Local Port and Remote Port – These values show the ports to communicate with receiver. The same recei

ver supplies these values. Default values:3060 (Local

Port) and 3061 (Remote Port).

Backup

Receiver IP – Static IP address for the second recei

ver. Program the IP address of the second receiver. Default value: 000.000.000.000.

PC PROGRAMMING 39

Figure 30 Example of the graphical maps

Receiver will be used for backup only; not checked.

Local Port and Remote Port – These values repre

sent the ports to be used for communication with the backup receiver. Default values: 3065 (Local Port) and 3066 (Remote Port).

Third

Receiver IP – This is the IP address assigned to the receiver of the domotics system with which you wish to interact. It is supplied by the receiver itself. Default value: 40000.

Local Port and Remote Port – These values represent the ports to be used when communicating with the do

motics system receiver. They are supplied by the recei

ver itself. Default value: 40001. The receiver will be used for the domotics system only; not checked.

ADVANCED

LED Trouble mask / Output Trouble mask. This section can be used to enable/disable signals from the OC output and the indicator light , for certain events recognised by the IP Module: Network Absent. A tick indicates that the corresponding event will be si

gnalled! The LAN not detected event indication is ena

bled by default. Output polarity. This section is used to set the operating mode of the OC output on the IP Module. Ø Open on trouble – The outlet is suspended when a

breakdown occurs (default setting).

Ø Close on trouble – The output is connected to the

earthing system when a breakdown occurs. For the IP module, the procedure to “restore to the

factory defaults” , use the icon in the Advanced section. In the same section, Advanced, can be fo-

und the button to upgrade the firmware and the

button to reset the FC500IP board. For an explanation of the further parameters and the programming, see the dedicated manual of the FC500IP module.

Events

In this section , for each event recognized by the Panel, it is possible to program: the telephone numbers to call, the Voice Message and the Events code to be sent. The Alarm, Prealarm, Warning, Fault and Walk Test events can be sent to up to 32 telephone numbers . The telephone numbers are set in the

ADDRESS BOOK section . It is also possible to set

the type of phone call: Voice or Telemonitoring

or for IP communicator . There are these options to use the voice messages:

1)- record them directly on PC or import present messa

ges on PC using the functionality of the buttons in the Messages section;

2)- first: importing them on PC from an external source, a USB stick, second: upload them, using the functiona

lity of the buttons in the Messages section.

To load the voice messages in the Panel it is ne

cessary to use the USB connector on the mother

board and to start the Programming procedure of the Panel by User Interface (see Programming from the Panel, 7 KEY -USB-.

CLOCK

The Date/Time option from the CLOCK menu is for the control panel clock settings. Enter the required Time and Date. Schedule the automatic application of summer time if

required. The button will change the daylight sa

ving to the default values.

LOG

This option allows to read the Log stores events. Description of the icons in the LOG bar:

Up load from Board: click on this icon to upload the

LOG of the connected control panel.

Export LOG to file: click on this icon to export the

Import LOG from file: click on this icon to import the

LOG from a (*.fcl) or (*.xml) or (*.xmc) file.

Apply filter: click on this icon to select the LOG filter (if necessary): Ø Enabled/Disabled/Restore/Alarm/Prealarm/Warning

/Fault/Generic/Walk test If required set other filters for the Event Log: Ø Filter by panel/Filter by Loop/Filter by device /Filter

by zone.

Print a text file; in this case the control panel Event Log, or part of it. The following data will be stored in the LOG: the Event’s Number, the Date, the Time, the Class (Fault, Alarm, Warning, Generic and Walk test), the Event’s descrip

tion, the Control panel number, the Loop, the Device type, the Status, the Threshold and the Zone.

Clicking on this icon will delete the Event Log.

UTILITIES

In the Utilities page, it is possible:

shows the calculation of the batteries (see next de

dicated paragraph );

enable a USB stick both to load the firmware, voice

messages, panel programming, then download the data of a customer;

Clicking on "Overrride" now it is possible to chan

ge the panel ID for export/import, and if also the option "Any Panel [XXXX]" is implemented it is pos

sible to utilize this configuration in any Panel (e.g. to load same voice messages in several panels)

Load the label of the first 8 zones, which should be

printed and inserted in the transparent window in the

40 Addressable Fire Panel FC501

User Interface (see Description of the parts);

clicking on this icon for printing a. pdf file containing descriptions of the first 8 zones. The size of the front label is predetermined and can not be resized (see Figure 29).

Set in the Printer driver, into “Page resizing” the op

tion “None"

Import the type of wiring (from a database) for use in various connections Loop and so these type of wires will be used in the Loop wire calculation (see same paragraph). (see Figure 24).

The database can be moved from one system to anot

her. The Console searchs for the wire database while starting, so, if the user cannot access a moved data

base, simply close the software, and start it again.

Battery Calculation

The Battery calculation window allows you to see (Figu

re 28):

the FC501 Loads,

the Loop1,Loop 2, Loop3 devices loads, in the condition of Normal Load and Alarm Loads (percentage of devices in alarm status), when the Ma

ins fails. Below this window, in the option “Others Load”, if needed, the Loads on Auxliary terminals will be inser

ted. Automatically the Total Load, the Battery needed and the Battery Recharge Time will be shown. Set the Stand-by hours, Alarm minutes values and the calculation will be done. Battery calculation Parameters:

Ø Stand-by hours (From 1 to 144 h) Ø Alarm minutes (From 1 to 240 m)

Battery Type: this is the battery (Ah) arising from calculation. Battery calculation constraints:

Ø Lock stand-by hours Ø

Lock battery type. Lock stand-by hours: “Battery Type” value (Ah) will be calculated, fixed Stand-by hours, Alarm minutes; Lock battery type: “Stand-by hours” value will be cal

culated, fixed Battery Type (Ah), Alarm minutes.

The software calculation is a rough calculation and cannot substitute the Installer and/or Qualified person calculation.

Print a text file; in this case the calculation used to

determine the loop charge and establish the type of bat

tery required.

User mode

If the option "Installer Mode" is enabled, with the use of the Installer password, is now possible to program/ change the installation. If the option "User Mode"is enabled this feature shall allow the user to perform the real time monitoring of the panel zones and the loop devices associated to them. The loop device or zone is displayed in a way that immediately informs the user about its state with a coloured background, an overlapped icon, etc. Selecting the loop device the user can also get real time information about the last measured value (that can be expressed in

°C, ppm, %, V, etc., depending on the device type). While the FC501 Console is running, the user can choose whether to work in Normal mode of commu

nication (communication with the panel takes place only when required), or in Real Time mode. The communication in Real Time mode is activated by

the button , and start a session of continuous com

munication with the control panel. While the FC501 Console is in Real time mode, it con

stantly receives data from the panel, and provides the user with feedback on the changes of status of the con

trol panel. The communication in Real Time mode pro

vides the user with two additional controls: Events in real time, and Remote control. The Event log in real time is similar to that found in the “Event Log” page, but it is updated constantly, and always shows the last 16 events generated by the control panel. The remote control panel is used to send commands to the Fire Panel as if a graphical interface were being used. This feature will allow the user to remotely press the functional buttons that are present on the panel user interface:

Silence, Reset, Investigation, Lamp test, Silence Buz

zer, Evacuate. The sending of a remote command to the panel through this interface will require the SW User to insert the pa

nel’s User or Installer password for security reasons. A control keypad will be shown to request the password when commands are sent to the fire panel. The remote control panel also shows the detailed status of the connected fire panel, and provides a ready visualization of status changes.

A second click on the button , ends the communication in real time mode and returns to normal mode. The User mode provides the use of Graphics Maps. The activation procedure follows. Ø 1) First, it is necessary to create the tree structure to

contain the Graphics map. Click on the icon and define the first map/background, click on the icon

‘to import it.

The system of Graphic maps allows the use of vector graphics file (WMF) as well as the more tra

ditional bitmap formats (BMP, JPG, GIF, PNG).

PC PROGRAMMING 41

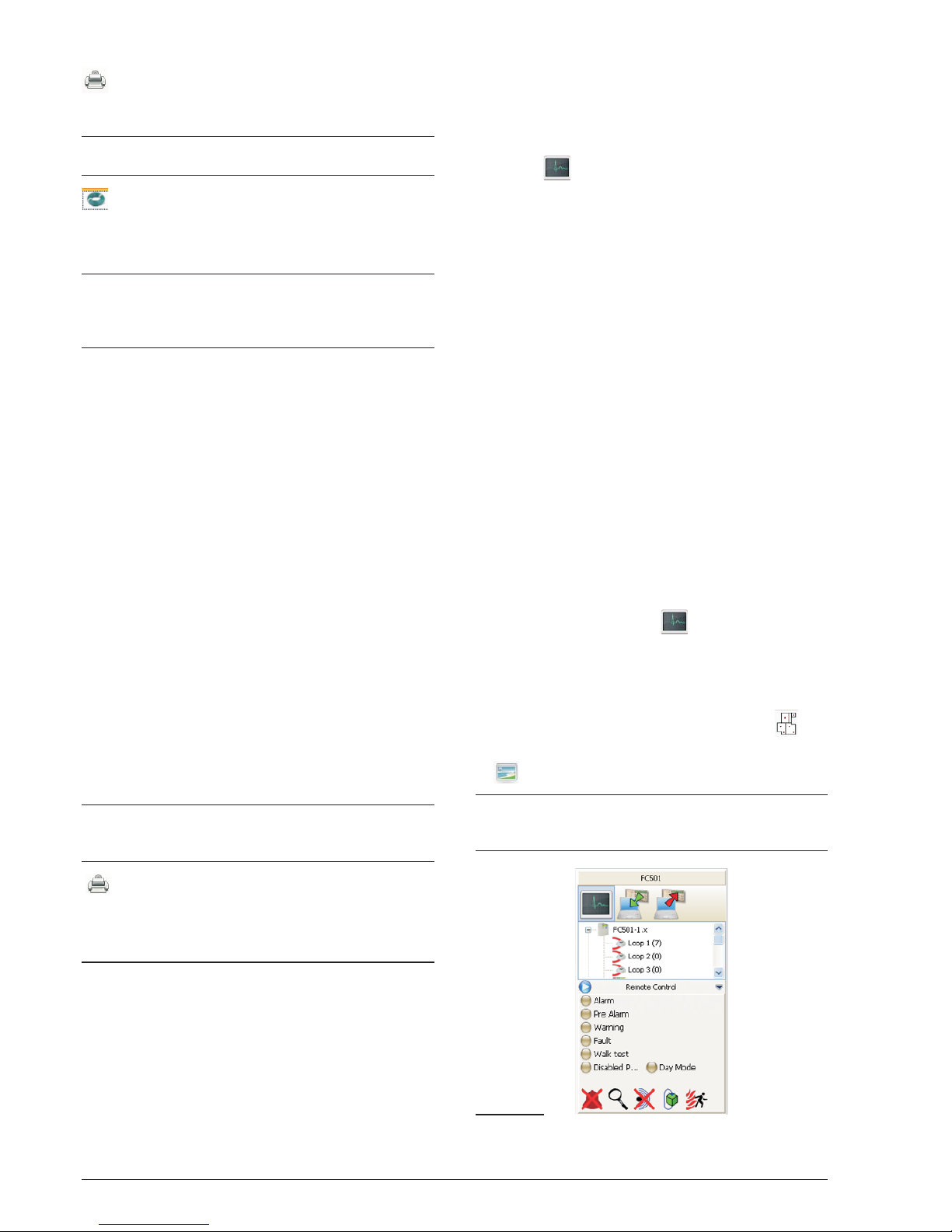

Figure 31 Remote Control display

This is the map that will be shown in the condition of ab

sence of events.

2) Do the same for more level of maps and insert in each node of the tree structure its plan (e.g. the pictu

re of the building, the floor where the system is instal

led and the installation plan).

3) Use the icon to delete any map/structure.

4) Insert the devices on the maps; after the map has been selected, click on the name of the installation, in the same window, under the tree. A list of all devi

ces on the loop will be shown. At this point it is suffi

cient to drag the selected device in the relevant position on the map in question.

5) The final map consists of a series of separate pa

ges linked together and easily accessible with a few mouse clicks, or by accessing to the tree diagram.

The Graphic Map, in Real time, is shown in a dedica

ted window. It is possible to analyze more than one device at a time, but each new image requires additio

nal system resources. Consequently, to analyze more than four devices simultaneously is inadvisable

In Real-time mode, the Graphic map is normally shown in stand-by status (first map/Background).

6) When the fire panel detects and reports a changed status of detector or module, the FC501 console re

places the icon of the detector with the icon of the event (Fire Alarm, Fault, etc.).

Ø 7) The FC501 console activates the Graphic map

where the detector/module has changed status. Through the connection between the activated map and the first map/background of higher level, the area associated will blink.

8) Use the icon to realize the drawing of possi

ble areas, that will blink when the contained devices will be activated. To close the area: a double click using the Dx button.

9) Use the icon to delete any devices or areas, after they are selected.

For more info about the functioning and use of Graphic maps, follow the Help, accessible both by main menu and by the Graphic maps.

Disable The Disable page (click-on the right button on the selected device) is available only when the FC501 Console communicates in Real Time. The items that can be disabled/enabled are: devices, zones. Before sending a Disable/Enable command, the FC501 Console prompts to enter the User password.

42 Addressable Fire Panel FC501

DAY/ NIGTH

INIT. MESSAGE

FWVERSION

DISABLE

CHANGE USER PWD

DATE& TIME

SWZONE

DEVICE

OUTPUTS

LOG

SYSTEM

TELECOM

INSER PANELNAME

VIEW FWVER.

INSER NEWUSER PASSWORD

CHOOSEWHAT DISABLE/ENABLE

NETWORKDEVICE OUTPUT COMMUNIC.SWZONE

DISABLE

ZONE

CHOOSE SWZONE

DISABLE COMMUNIC.

CHOOSE OUTPUT

DISABLE OUTPUT

CHOOSENET EQUIPMENT

DISABLENET EQUIPMENT

DISABLE DEVICE

SHOW DEVICE

CHOOSE DEVICE

CHOOSE

LOOP

SHOW OUTPUT STATUS

SHOW

OPTIONS

VIEW LOG

NETWORK

SHOW

NETWORK

STATUS

SHOW

SWZONE

STATUS

CHOOSEWHAT MODIFY

LOOP

SCAN& SHOW LOOPPARAM.

MAINPAGE

MODIFY

PROGRAM ANALYZE VIEW LOG

LIST

VIEW LIST

INSERT USER

PASSWORD

WRONG

CHOOSE

INTERFACE

DISABLED DEVICES

DISABLED

ZONE

DISABLED PARTS

VIEW& SCAN DISABLED SWZONE

VIEW& SCAN DISABLED DEVICE

VIEW& SCAN DISABLED PARTS

VIEWLISTS

ALARM

FAULT

WARNING

PREALARM

WALKTEST

CHOOSEWHAT TO ANALYZE

1 3 4

5 6 7 8 9

SHOW

TELECOM

STATUS

LOG

CLEARING

INSERT

DATE& TIME

3 42

1 32

1 3 42 5 6

Lev.1

Lev.2

412

423

2 3

CLEAR LOG

ZONE

WALKTEST

5 6

SELECT

DAY/NIGHT

MODE

IMPOSTA

ZONE

WALKTEST

SWZONE IN WALKTEST

FAULTS LIS T

VIEW& SCAN SWZONE INWALK TEST

4 5 6 7

ACTIVE WALKTEST

WARNINGS LIST

VIEW& SCAN ACTIVEFAULTS

VIEW& SCAN ACTIVE WARNINGS

VIEW& SCAN DEVICEIN WALKTEST

INSERT INSTALLER PASSWORD

SHOWS RESULTS

PROGRAM

DEVICE

AUTO

SWZONE SYSTEM

USB

FACTORY DEFAULT

PROGRAM SWZONE

CHOOSE ZONE

PROGRAM SYSTEM

USB

ACTIVITIES

DEVICE

OUTPUT

CHOOSE DEVICE

CHOOSE LOOP

CHOOSE OUTPUT

PROGRAM OUTPUT

SELECTWHAT TO PROGRAM

WRONG

PASSWORD

SHOWS DETAILS

DIFFERENCES FOUND

ENROLL

3 4 7 8 9

L3PWD

CONFIRM PAGE

DEFAULT DATA FORCE

MODIFY INSTALLER PWD

WALKTEST

UPGRADE

LANGUAGE

Lev.3

ENROLL

WAIT

PLEASE

SMOKEDELAY

30-60min

SAVE LOG SAVE PROGRAM LOAD PROGRAM SAVE AUDIO LOAD AUDIO

PANEL ID

* **

Seethe “Loop device programming” page

Seethe “Output programming” page

PAGEDIRECTLY ACTIVATED BY EVENTS

CHOOSE DEVICE

CHOOSE LOOP

INSERT USER

PASSWORD

WRONG

NETWORK

CHOOSE

MFI

ACTIVATE

MFI

DISABLED DEVICES

DISABLED

ZONE

DISABLED PARTS

VIEW& SCAN DISABLED SWZONE

VIEW& SCAN DISABLED DEVICE

VIEW& SCAN DISABLED PARTS

1 32

PASSWORD

DISABLE PASSWORD

CHOOSE USEROR INSTALLER

FIRERELAY

DISABLE FIRERELAY

***

ENTRYVALID ONLYFOR INSTALLER #1 (00000= Default)

***

Lev.1

VIEW IDNUMBER

PANEL

MAP.DEVICE

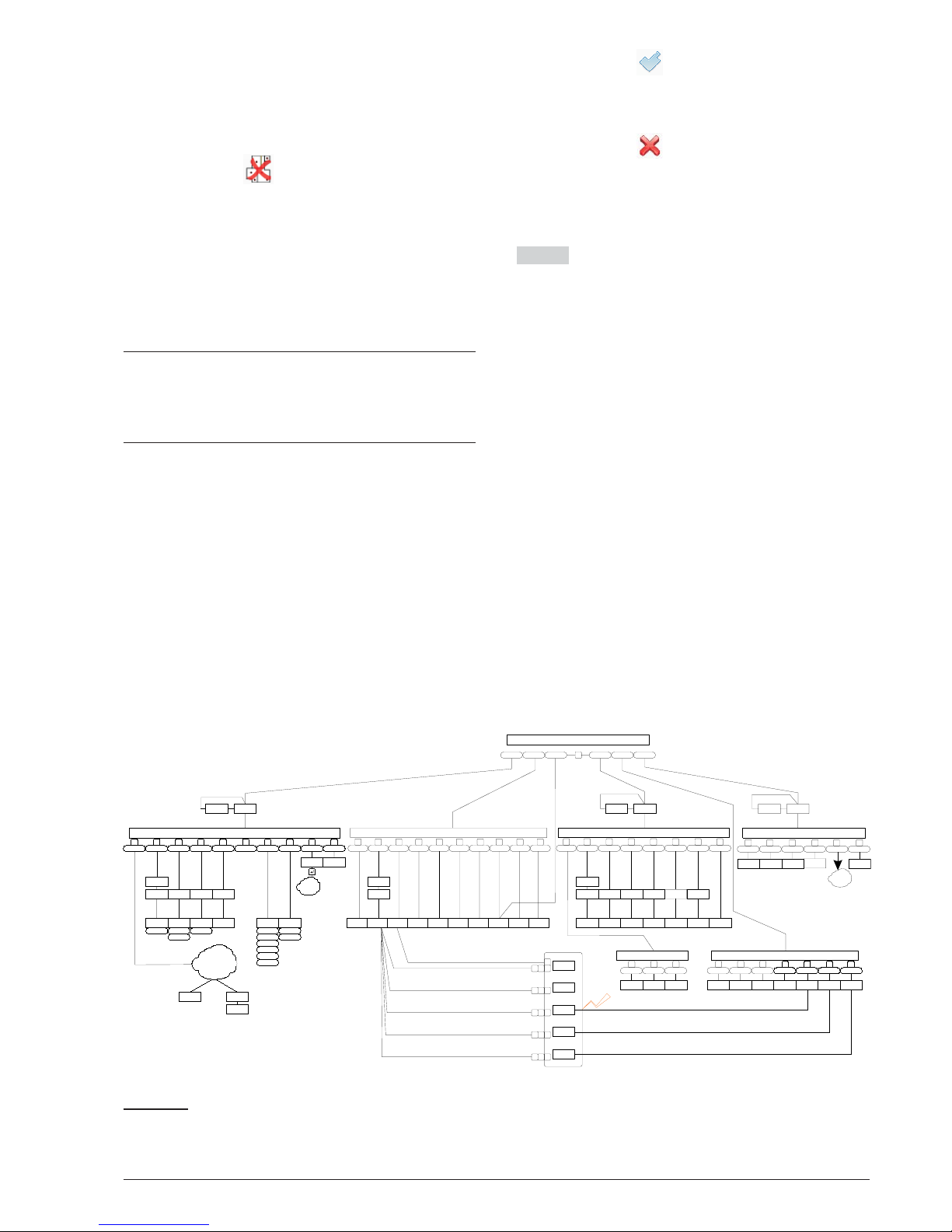

Figure 32 Diagram of all possible operations from the panel, L1, L2 and L3 Levels

PROGRAMMING FROM THE PANEL

Read through the following section carefully, in order to get an overall view of how to use the User interface Program

ming (Main panel) of control panel. For details regarding the parameters of each phase, refer to the respective para

graph in the “PROGRAMMING FROM A PC” chapter.

Using the system

The FC501 system can be managed from the User in

terface (main panel) and/or through the FireClass Con

sole application. The User interface (main panel) allows access to different authorized Level . There are three different access levels, as follows.

L1= First Level: this level allows the Reading of Para

meters ONLY:

-ANALYZE button (see Figure 32) views the status of the: LOOP, DEVICE, SW ZONES, OUTPUT, NETWORK, TELECOM, OPTIONS, LOG and the FW Vers.;

-View LOG;

-View Lists button views the lists of: DIS. ZONES, DIS. DEVICES, DIS. PARTS, WALK TEST, FAULTS, WARNINGS and Dev. in TEST. L2= Second Level or USER Level: access to this level requires entry of the USER PIN (Access Level 2). This level allows all the operations of the First Level, but also allows you to MODIFY:

-MODIFY button for: Init MSG (MESSAGE), L2 USER PASSWORD, DAY/NIGHT, TIME and DATE, CLEAR LOG and ZONE WALK TEST ;

-DISABLE button for: DIS LISTS, DEVICE, SW ZONES, OUTPUT, NETWORK, COMMUNIC. L3= Third Level or INSTALLER Level: access to this level requires entry of the INSTALLER PIN (Access Level 3). This level allows all the operations of the First and Se

cond Level, but also allows you to program the system; the Programming phase allows the installer to program the control panel and peripheral devices (detectors, modules, repeater), in detail: AUTO, DEVICES, SW ZONES, OUTPUTS, NETWORK, MAP DEVICE, USB, SYSTEM, DEFAULT and PWD L3.

Operating the system from the Panel

To manage the system from the User interface (Main panel) the Alphanumeric keypad, the Cursor keys, the ESC Key & the ENTER key are used.

The use of the keypad, cursor keys, ESC key & Enter key is explained in detail in the following sec

tions.

Alphanumeric entry (Editing text)

Use the Alphanumeric keypad to create labels and en

ter data and codes. The string must be 20 characters max.

Alphanumeric keypad Each time the alphanumeric key is pressed in the selected position, pointed by the cursor, the characters printed on the key will appear in sequence and cyclically. 1= ABC, 2= DEF, 3= GHI, 4= JKL, 5= MNO, 6= PQR, 7=STU, 8=VWX, 9=YZ.

0 key: is used to create a space and to clear the po

sition of used string.

Cursor keys

Use the UP key for upper-case letters and the DOWN key for lower-case letters. Use LEFT and RIGHT keys to scroll along the line, then press the alphanumeric key to insert in the selected position.

ENTER key Once the text has been completed, press the ENTER key to confirm and step forward, or in the main page signaling a local programming activity followed by a panel reset.

ESC Key

The ESC key is used to cancel the operation

and to step back to previous page.

For additional functionality about the keys use, see the User Manual, Chapter "User Interface".

The following pages show all possible operations managed at Level 3 ( Installer Level). The operation managed at Level L1 and L2 (User Level) are shown in the User Manual.

Assistant text composition

To make the entry of text strings easier, an assisted procedure has been included, based on a pre-compiled 128 words (18 char max) vocabulary. When one of the numeric keys is pressed to enter a letter, the first word in the vocabulary beginning with that letter will be inser

ted. The upper and down arrow will load the next or the previous, respectively, word in the vocabulary. This "as

sisted entry procedure" is entered or leaved keep pres

sed the UP key for more than 3s, while pressing for more than 3s the DOWN key the "assisted entry proce

dure" is leaved and the normal single characters entry is active (see Figure 34). When the "assisted entry pro

cedure" is active the string "Vocabulary ON" blinks on the upper right area of the LCD display. In the "Vocabu

PROGRAMMING FROM THE PANEL 43

lary area" is displayed the word currently selected (row aligned with the "Entry area"), the word that precede in the vocabulary (upper row) and the word that follow (lo

wer row). In the "Entry area" are displayed the words used to compose the label. To entry a word it is neces

sary to press the numeric key (more than one time if ne

cessary) related to the first letter of the word that have to be entered, in this case the first word in the vocabulary that begins with the expected letter is entered. If this word isn’t the wanted one, it is possible to scroll the vo

cabulary using the UP and DOWN keys until a suitable word is found. During the vocabulary scanning the word in the centered row is entered in the "Entry area"at the cursor position. Using the LEFT and RIGHT keys it is possible to move the cursor at the beginning of each single word.

Single Selection

This is normally used to select a single value between a set (max 8) of possible values.

ON off ^

The selected value is displayed in Upper case. The se

lection of a further value will automatically deselect the previous selected value. In this phase:

Alphanumeric keypad No function is related to Alphanumeric keypad.

Cursor keys

Up key: No function is related to UP key Down key: No function is related to Down key; Right key: Moves the cursor to the next value position

and select the value pointed; Left key: Moves the cursor to the previous value position and select the value pointed. ESC Key: Use ESC key to cancel the operation and to step back to previous page. ENTER key: Accept the programmed string and the User Interface moves to the next programming parameter page, if any, otherwise returns to the main page signaling a local programming activity followed by a panel reset.

Multiple Selection

This is normally used to select more than one va

lue between a set (max 8) of possible values.

SUN mon tue wed thu FRI SAT ^

The selected value is displayed in Upper case.

In this phase:

Alphanumeric keypad No function is related to Alphanumeric keypad.

Cursor keys

Up key: select the value pointed by the

curso

Down key: deselect the value pointed by the cursor; Right key: Moves the cursor to the next value position

and select the value pointed; Left key: Moves the cursor to the previous value posi

tion and select the value pointed. ESC Key: Use ESC key to cancel the operation and to step back to previous page. ENTER key: Accepts the programmed string and the

User Interface moves to the next programming parameter page, if any, otherwise returns to the main page signaling a local programming activity followed by a panel reset.

Date and Time

This is normally used to enter the time and date in the following format: hh: mm: ss dd/mm/yy

Above is the default time format. It is possible to select an alternative time format displayed below: hh: mm: ss mm/dd/yy

In this phase:

Alphanumeric keypad Used to enter date and time numeric value.

Cursor keys

Up key: select the data&time format

;

Down key: select the data&time format; Right key: Moves the cursor to the next char position; Left key: Moves the cursor to the previous char position; ESC Key: Use ESC key to cancel the operation and to

step back to previous page. ENTER key: Accept the programmed string and the User Interface moves to the next programming parameter page, if any, otherwise returns to the main page signaling a local programming activity followed by a panel reset.

Numeric entry

Normally used for enter numeric data up to 20 digit

[] ^

In this phase:

Alphanumeric Keypad

Used to enter digit

Cursor keys

UP key: No function is related to UP key.

Down key: No function is related to Down key; Right key: Moves the cursor to the next char position; Left key: Moves the cursor to the previous char position; ESC Key: Use ESC key to cancel the operation and to

step back to previous page.

44 Addressable Fire Panel FC501

WRONG VALUE

Inser the parameter again

Figure 33 Wrong value display

DEVICE NAME

[area ] area

MS: L1 det002 Vocabulary ON

bathroom

Device coordinate

Cursor

Assisted procedure active

Vocabulary area

Entry area

Figure 34 Assisted entry procedure

ENTER key: Accepts the programmed string and the User Interface moves to the next programming parameter page, if any, otherwise returns to the main page signalling a local programming activity followed by a panel reset.

To program each parameters or options inside the system will be used the same page that adapts it

self to the most appropriate program mode for the parameter to program.

In the case of wrong value entered, the following mes

sage will be displayed for 5s (see Figure 33).

Main Page - Accessing the system

After the Control panel has been installed and powered by the Mains (230V 50/60 Hz), the first time will prompt to choose the language of the display, then the Main Page will be shown as per Figure 35. In this phase:

Alphanumeric keypad

Key 1 brings the panel in the “Program” or “Analyze” mode; Key 2 brings the panel in the “Disable” mode or “View List”; Key 3 shows the events of the LOG or brings the panel in the “Modify” mode; key 4 selects between groups of related functions of the keys 1,2, and 3.

Cursor keys

The UP Key: increase the brightness of LCD display; the Down Key: decrease the brightness of LCD display; the Right Key: increase the contrast of LCD display; the Left Key: decrease the contrast of LCD display.

ESC Key Exit from the main page, moves the User Interface to Front page or event driven page, if any. Pressing the key for more than 3s the panel will be forced to access level 1.

ENTER Key No function is related to ENTER key.

When the panel starts its normal activity and no ac

cesses to the User Interface are sensed for a period of 30s, the User Interface leaves the Main page and rea

ches the Front page. For more features see the de

scription of the MAIN page in the User Manual.

Insert password

From the MAIN page by selecting 1 key “PROGRAM” the panel will prompt the Installer password to operate at Level 3; the default installer code is 00000: every digit will be hidden by *(star) symbol. in this phase (see figure 36):

Alphanumeric keypad Use the Alphanumeric keypad to insert the 5-digit password.

Cursor keys

No function is related to UP, Down,

Right and Left keys.

ESC Key If the entry field for the password is empty:

abort the enter password procedure and move back to the User Interface to calling page, otherwise clear the entered digits (clears the entry field).

ENTER key Accepts the password and starts the password verification process. If a Password is wrong or missing, the screen shown in Figure 38 will appear.

To return to the previous screen, press the Esc key or wait for 5 seconds.

PROGRAMMING FROM THE PANEL 45

1=Program lev.1 : ACTIVE

2=Disable MASTER PANEL

3=Modify SCANNING LOOP

18:50 27 - 17/10/12:

4=More

Access Level

If blinking control panel working properly

Current phase

Control panel status

Control Panel name

(It can be modified by User)

1=Analyze lev.1 : ACTIVE

2= ew istVi L MASTER PANEL

3=View Log

18:50 27 - 17/10/12

SCANNING LOOP

4=More

Figure 35 Main page window

FC501 Panel lev.3: PROGRAM

INSTALLER

Insert the Password

[____ ]_

Name of Control Panel

Field to insert the password

Control panel Status

Access Level

If blinking control panel working properly

Figure 36 Insert password (Installer code).

FIRECLASS 501

FireClass

www.fireclass.net

Figura 37 Front page window

FC501 Panel lev.3 : PROGRAM

INSTALLER

Wrong Password

Figure 38 Display Wrong Password

Programming Page

From the MAIN page, use the 1 Key to select the Pro

gramming phase. Insert the password (installer code) and then the page, in Figure 39, is shown: in this phase:

Alphanumeric keypad Use the Alphanumeric keypad to select the different programming functions: 0= L3 PWD; start the page to insert the password of L3 level (Installer code) (see Insert-Modify password page); 1= Auto: start the auto-learning of the loop devices and the RS485 network devices (Repeater only); 2= FC Dev: start the selection and programming page of the loop devices; 3= SW Zones: start the programming page of the sof

tware zones;

4=Outputs: start the programming page of the Outputs; 5= Network: start the programming page of the RS485

network, FC500MFI modules; 6=Map Device: activates the "On Demand device map

ping" feature; 7=USB: start the programming page for the manage

ment of the USB memory stick; 8=System: start the programming page of the system parameters;

9=Default: forces a default setting restore procedure;

Cursor keys

No function is related to UP, Down,

Right and Left key.

ESC Key

Use ESC key to cancel the operation and to

step back to MAIN page.

ENTER Key

No function is related to ENTER key.

0 KEY - insert Modify password

Inside the PROGRAM page, press the 0 key for the di

splay (see figure 40): in this phase: Installer Code at Default is 00000; every digit will be masked by * symbol.

See the Installer and User features in relation to the password on page 8

Alphanumeric keypad Use the Alphanumeric keypad to insert the password of 5 digit. The first digit must be 0 for the installer 1 (Main Installer) and 9 for the next one.

The panel will verify the correct entry of the identifi

cation digit, in the case of error a denial tone is ge

nerated

Cursor keys

No function is related to UP,Down,Right

and Left key.

ESC Key Short press: aborts the enter password proce

dure and moves back the User Interface to calling page; Long press: clears all the entered digits.

ENTER key Accepts the password and starts the pa

ssword verification process.

If a wrong or not allowed password is entered, the Figure 40b will be displayed for 5s..

In order to avoid the entering of a duplicated password (two different users/installers with the same password) the users and installers are driven to use a specific digit as first digit of their password, in this way the most signi

ficant digit acts as user/installer identifier. The first digit for USER #1 is: 1 The first digit for USER #2 is: 2 The first digit for USER #3 is: 3 The first digit for USER #4 is: 4 The first digit for USER #5 is: 5 The first digit for USER #6 is: 6 The first digit for USER #7 is: 7 The first digit for USER #8 is: 8

The first digit for INSTALLER #1 is: 0 The first digit for INSTALLER #2 is: 9.

1 KEY- Auto Enrolling (Autolearning)

The Auto option from the PROGRAMMING menu will allow you to enrol the loop devices and the RS485 network devices automatically (repeater FC500REP only) The Auto option consists of three main phases: 1-Auto enrolling, 2- Auto addressing, 3- Devices mapping (see notes on page 57, 58).

Auto enrolling (Autolearning) can be done during the installation phase and after changes of the loop and network configurations.

46 Addressable Fire Panel FC501

FC501 Panel lev.3 :PROGRAM

1=Auto 2=Device 3=SW Zone 4=Output

5=Network 6=Map. Dev. 7=USB 8=System

9=Default 0=L3 PWD

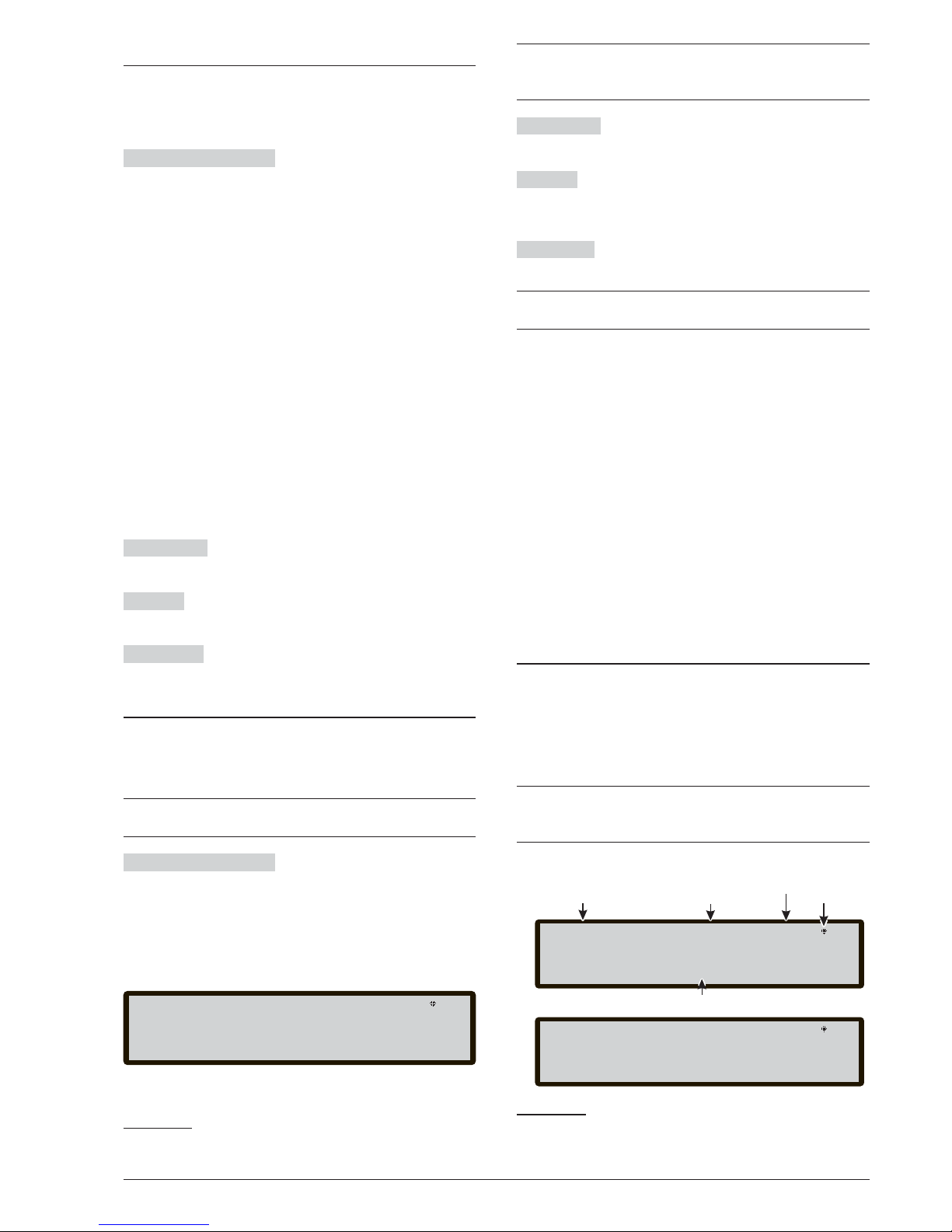

Figure 39 Program Page window

FC501 Panel lev.3 : PROGRAM

INSTALLER 1

Modify any Installer Password

[_____]

Field to insert password

Access Level

If blinking control panel working properly

Control panel status

Control Panel name

FC501 Panel lev.3 : PROGRAM

INSTALLER

Wrong Password

Figure 40 Insert/Modify Password window

Use the 1 Key to select Auto option, the display will show the Figure 41: in this phase:

Alphanumeric keypad No function is related to Alphanumeric keypad.

Cursor Keys

No function is related to UP, Down,

Right, Left Key;

ESC Key

Use ESC key to cancel the operation and to

step back to MAIN page.

ENTER key

No function is related to ENTER key.

Automatic zones assignment

After few seconds: the panel will prompt to choose the type of automatic zones assignment.

This feature allows to assign the zone to each enrolled detector, and define the first trigger zone for the activa

tion of all outputs channels in the enrolled modules.

The possible schemes used to assigned the zones are proposed to the installer by the panel during the enroll process (see Figure 41d): 1 = on Loop basis 2 = on device address basis 3 = no assignment.

Three different schemes are possible:

Scheme 1): all the devices located on loop1 will be assi

gned to zone 1; all the devices located on loop 2 will be assigned to zone 2; all the devices located on loop 3 will be assigned to zone 3. Scheme 2) From address 01 to address 16 assigned to zone 1 From address 17 to address 32 assigned to zone 2 From address 33 to address 48 assigned to zone 3 From address 49 to address 64 assigned to zone 4 From address 65 to address 80 assigned to zone 5 From address 81 to address 96 assigned to zone 6 From address 97 to address 112 assigned to zone 7 From address 113 to address 128 assigned to zone 8.

Scheme 3)

All the devices found all over the loop are assigned to zone #0 (system zone).

The previous zone assignment schemes are ap

plied also to the first "trigger zone" in the case of output only devices (sounder, beacon, SNM modu

le) or output channel of Input/output devices. After the Zones assignment is selected

For devices already addressed (1-128) the zone assignment procedure is that explained above (see Figure 42d). For not addressed devices, if you choose ESC at the end of Auto addressing, the pa

nel assigns the zone based on the loop, but if you choose ENTER the panel assigns the zone based on its address (see table on page 57, 58, 59)

In this phase, the Alphanumeric Keypad only is active:

Alphanumeric keypad used to select the appropriate zone assignment scheme 1÷ 3.

Warning Enrolling (Autolearning)

When there are some differences between the present configuration and that of the Enrolling (Autolearning) re

sults, the display will show the Figure 40b: in this phase:

Alphanumeric keypad

1 = delete the old configura

tion and accept the new one; 2 = To accept only the differences between the new and the previous configuration detected. The new devices will be added, while the devices that are no longer pre

sent will be removed. This applies both to the loop devi

ces and 485 network devices; 3 = The current configuration, detected, will be discar

ded, the previous configuration will still be valid.

Cursor Keys

No function is related to UP, Down,

Right, Left Key;

ESC Key

Use ESC key to cancel the operation and to

step back to MAIN page.

ENTER Key

The ENTER key activate the device de

tails page

. The fields “Loop1”, “Loop2" and ”Loop3"

show if there are any devices connected. In both cases: Autoscan OK or NO, it is possible to view details on the Loop, Figure 41c). The “RS485net: Rep“ show the number of repeaters found on the network RS485.

In this phase:

Cursor Keys

The UP key: shows information relating to the next Loop; The Down Key: shows the information relating to the previous Loop; No function is related to Right and Left Keys.

ESC Key

Use ESC key to cancel the operation and to

step back to MAIN page.

PROGRAMMING FROM THE PANEL 47

FC501 Panel lev.3: PROGRAM

ENT to view details

List of Loop with the resultpresent autoscan

Loop1=OK Loop2=OK Loop3=OK

Differences found!

2 Add new devices:

3 Discard changes:

Loop= 01 lev.3: PROGRAM

Modules : 125

ENT to program devices

Num. analyzed Loop

ILoop=073 mA (400ma max)

Value of the current in the three loops,

in real time, (data are updated )every 5s

Detectors: 125

Num. detectorsfound

Num.of

found modules

FC501 Panel lev.3: PROGRAM

ENROLLING IN PROGRES

N.B. If the Enrolling phase finds page will be shown,

otherwise the page b)

differences, the following

PLEASE WAIT

1: Accept new configuration

Rs485net: REP.=4

Access Level

blinking control panel working properly

Control panel status

Control Panel name

If blinking control panel working properly

Control panel status

Access Level

Control Panel name

Access Level

Control panel status

If blinking control panel working properly

Automatic zones assignment 1 = on loop basis 2 = on device address basis 3 = no assignment

Figure 41 Autoscan results window

ENTER Key

The ENTER key accept the device selec

tion and activate the loop device programming

Attention: when the Enrolling is done, the devices programming data (except their assigned names) will restore to the factory defaults; therefore a pre

vious configuration will be lost (Selection 1).

Auto addressing procedure

For auto-addressing is intended a sequence of operation that allows to the installer to make all the devices acces

sible by the panel without executing any previous confi

guration action on the devices , during their installation phase (device acquire phase).This involves for the in

staller, no longer necessary the use of the FC490ST, the programming Tool of the Loop devices, and conse

quently is no longer needed the procedure for the ma

nual assignment of the devices addresses. Furthermore the auto-addressing procedure have to be able to allow to the installer to know or set the geographical position of the devices in the site (device mapping phase). The Auto addressing procedure is part of the loop devi

ces enroll process in the FC501 panel. The loop devi

ces enroll process is initiated by the installer:

- press the 1 key to enter in PROGRAMMING mode. Enter the Installer PIN (00000) at default, each digit will

be masked by

* (star).

- Select option 1: AUTO (see notes on page 57, 58). After all the devices are initialized in Loop: the panel will prompt to choose the type of automatic zones assig

nment : 1 = according to the Loop 2 = based on the addresses of the devices 3 = do not assign. Made the choice, the panel get to the results phase:

press the ENTER key to activate the AUTOADDRESSING phase;

or press ESC to the FAULT page (not addressable

devices) By default, any addressable device has the address 255; the fire panel examines the serial number of each device and assigns each an address from 1 to 128. If the control panel finds a device with a different address than default (255) it leaves the address set at that device.

The control panel is ready to work, at this time, (with the default basic programming)

48 Addressable Fire Panel FC501

DEVICE MAPPING RUNNING 0=stop Evt time type add counter 017 016 10:15:33 PH L1:--017 10:17:19 PH L1:---

AUTO ADDRESSING END Found: 018 detectors, 004 modules

ENT to DEVICE MAPPING, ESC to exit

DEVICE MAPPING STOPPED 1=run Evt time type add done:000/022 001>10:15:33 PH L1:---< enter the add. 002 10:17:19 PH L1:---

DEVICE MAPPING STOPPED 1=run Evt time type add done:017/022

--- unique RIM L1:---< enter the add.

--- unique LPAV L2:---

DEVICE MAPPING STOPPED 1=run Evt time type add done:001/022 001>10:15:33 PH L1:089< ENT to config. 002 10:17:19 PH L1:---

DEVICE MAPPING STOPPED 1=run Evt time type add done:020/022

--->*active*LPSB L3:---<enter the add.

--- --:--:--LPSB L3:---

DEVICE MAPPING STOPPED 1=run Evt time type add done:018/022

--->unique RIM L1:015< ENT to config.

--- unique LPAV L2:---

DEVICE MAPPING STOPPED 1=run Evt time type add done:021/022

--->--:--:--LPSB L3:005<ENT to config.

--- --:--:--LPSB L3:---

EXIT

MAIN PAGE

DEVICE MAPPING PHASE

(charge of the Installer)

BASIC DEVICE

CONFIGURATION PHASE

otes:

AUTO ADDRESSING RUNNING

PLEASE WAIT

ESC to exit

Master panel Lev.3: Program Detector: 50 Modules: 44

Iloop=073 mA (400ma MAX) Not addressed dev.> ENT to AUTO-ADDRESS

PANEL IS READY TO WORK

AT THIS TIME

(with the default basic programming)

MS: Det 089 lev.3 :PROGRAM

WORKING MODE Master panel

[First flo ]

MS: Det 089 lev.3 :PROGRAM DEVICE NAME Master panel

MS: Det 089 lev.3 :PROGRAM

ASSIGNED ZONE Master panel

[First flo ]

MS: Det 089 lev.3 :PROGRAM DEVICE NAME Master panel

[First flo ]

MS: Det 015 lev.3 :PROGRAM

TRIGGER ZONE EVENT Master panel

[First flo ]

MS: Det 089 lev.3 :PROGRAM DEVICE NAME Master panel

MS: Det 015 lev.3 :PROGRAM

TRIGGER ZONE#1 Master panel

[First flo ]

MS: Det 089 lev.3 :PROGRAM DEVICE NAME Master panel

MS: Det 015 lev.3 :PROGRAM

TRIGGER ZONE#1 Master panel

[First flo ]

MS: Det 015 lev.3 :PROGRAM DEVICE NAME Master panel

[First flo ]

MS: Det 005 lev.3 :PROGRAM

TRIGGER ZONE EVENT Master panel

[First flo ]

MS: Det 089 lev.3 :PROGRAM DEVICE NAME Master panel

MS: Det 005 lev.3 :PROGRAM

TRIGGER ZONE#1 Master panel

[First flo ]

MS: Det 089 lev.3 :PROGRAM DEVICE NAME Master panel

MS: Det 005 lev.3 :PROGRAM

TRIGGER ZONE#1 Master panel

[First flo ]

MS: Det 005 lev.3 :PROGRAM DEVICE NAME Master panel

[First flo ]

BY WALKING

(Panel +installer)

ESC

]

EXIT

MAIN PAGE

DEVICE ACQUIRING

(charge of the Panel)

BY DEVICE

“Unique”, in the time field, indicates that it is the only device of it's type on the loop. For example if only one FC410DDM module is used in the system, it is tagged as “Unique” so it is not necessary to activate it , the installer knows where it is. “Active”, in the time field, indicates that the relevant device is active, it is applicable ONLY to the output device type like sounders, beacons, SNM modules, etc., When the installer, scanning the list of previously auto-addressed devices, reaches an output-only device type, this device becomes active (a sounder starts to sound, a beacon starts to flash, an output module illuminates its LED) until a new device is selected or the permanent address is entered. In this way it will be possible to locate where the device is.

EXIT

FAULTPAGE

(not addressable devices)

ESC

EXIT

FAULTPAGE

(not addressable devices)

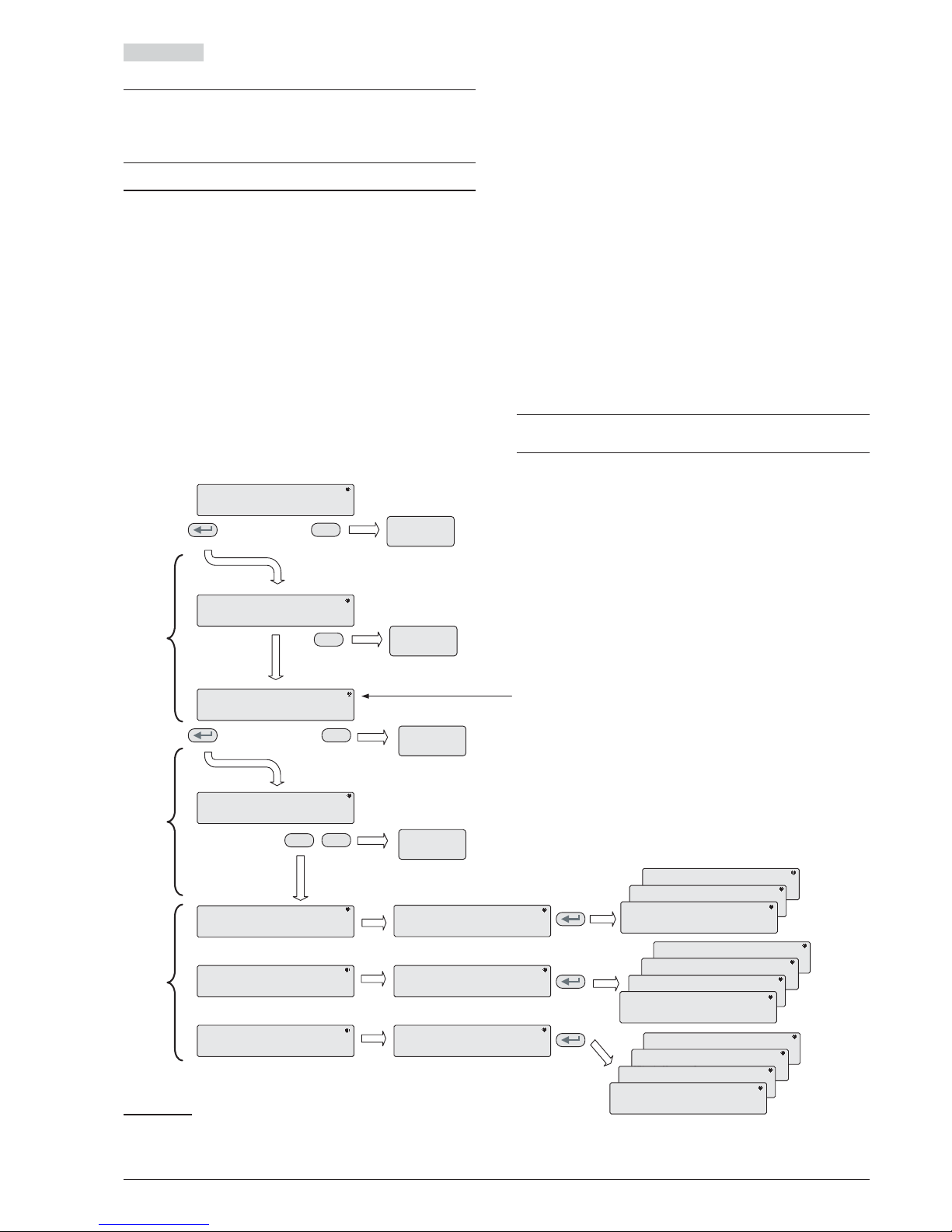

Figure 42 Autoaddressing scheme

If for requirements of the system, the installer wants to set the system: example set the address 1 to detector 1, address 2 to detector 2, and so on:

press the ENTER key, so the fire panel initiates the MAPPING DEVICES phase. First phase:

In this phase, the installer must activate in sequence, moving in the plant, all input devices: detectors, in

put modules, Manual Call Point, and then return in front of the fire panel.

Report the sequence of activation on the map of system. The fire panel will store the activation sequence (even temporarily). The installer using the User Interface UP and DOWN key will start to examine the first activated device.

Select the device, the address will blink, so the instal

ler can change the address. Press ENTER to confirm. At this point the address will became fixed.

If the ENTER key is pressed again, the installer can switch to programming phase of the device in question.

"Unique”, indicates that it is the only device of it’s type on the loop. So it is not necessary to activate it, the in

staller knows where it is. Second phase: In this phase, the installer examines the sounders,the beacons and the output module. Ø When the installer, scanning the list of previously

auto-addressed devices, reaches an output-only device type, this device becomes active (a sounder starts to sound, a beacon starts to flash, an output module illuminates its LED) until a new device is selected or the permanent address is entered.

In this way it is possible to locate where the device is.

The enroll process doesn’t take place until all loop wiring trouble have been removed.

The auto-addressing procedure have to be used when on the loop there are NG1 devices, otherwise it doesn’t have effect.

The device mapping process doesn’t take place until all double address faults have been removed

2 KEY -Device

The Device option in the PROGRAMMING menu acti

vates the screen used to select and program the devi

ces on the loops (see figure 43);

Choose the Loop (see User Manual View Devices)

In this phase:

Alphanumeric keypad No function is related to the Alphanumeric keypad.

PROGRAMMING FROM THE PANEL 49

FC501 panel lev 3: PROGRAM

Master Panel

[L1]L2

Choose loop Loop 1

Name

selected

loop

FC501 Panel lev 3 : PROGRAM

FC501 Panel

d001 [d187] m250

Programmed

address

Loop 1

Add=<123>

400PH

Selected address Selected device

MS:L1 det001 lev 3 : PROGRAM

FC501 Panel

Detector

to program

[Temperature]

Device name

Parameter to program

Name of

Control Panel

Control panel Status

Access Level

blinking the panel works properly

Detector

MS:L1 det001 lev 3 : PROGRAM

FC501 PanelREMOVE DEVICE?

Select

NO yes

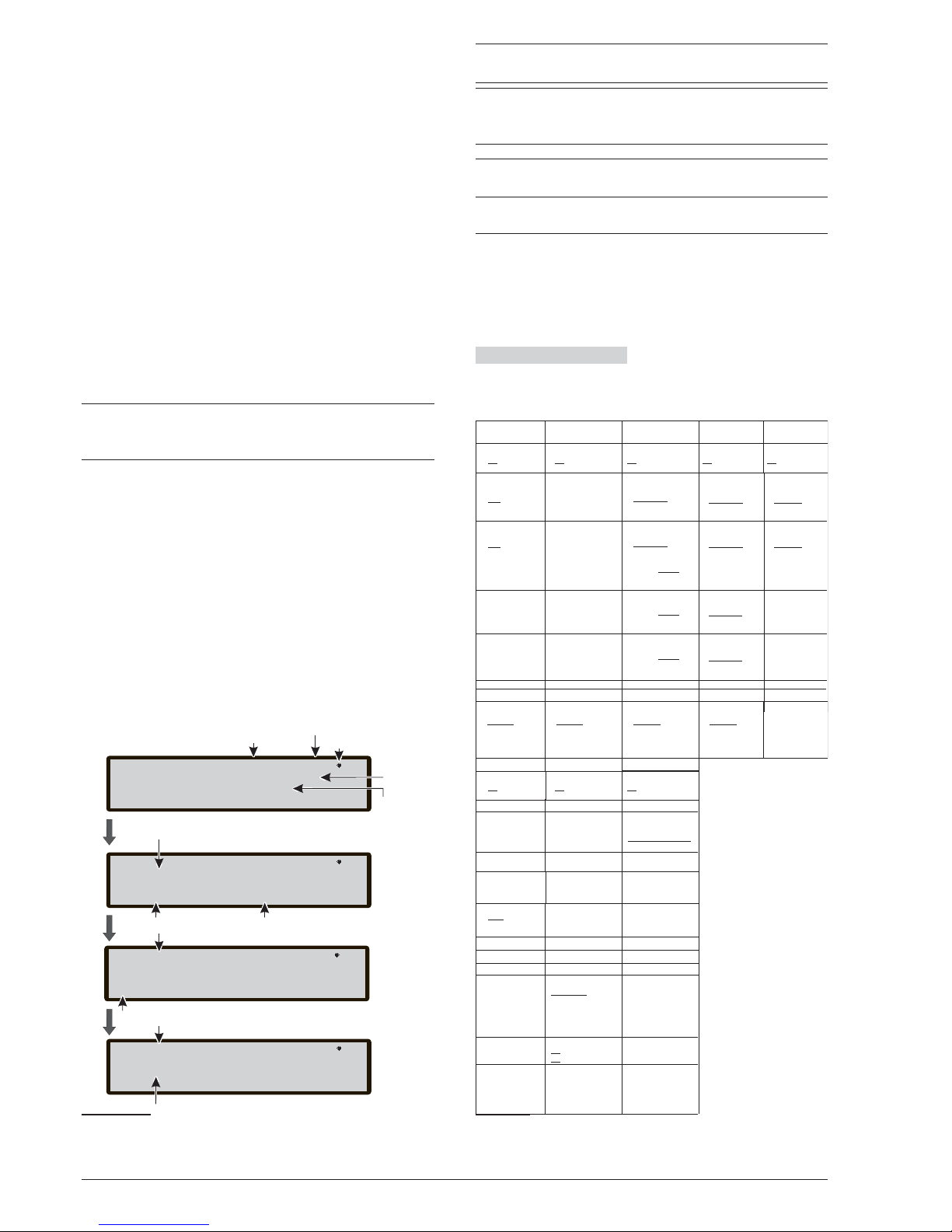

Figure 43 Pages of Selecting and programming Devi

ces on Loop

Heat detector

Smoke detector

Smoke + Heat detector

Heat+Smoke + CO detector

Working mode: DAY:

CR A1R

A2S

Temp= A2S

A1R

DIS

High Immunity

Universal

Detector label Detector label Detector label Detector label Assigned zone Assigned zone Assigned zone Assigned zone

Callpoint DDM Module

Detector type

Channel to program

Callpoint label Module label

CNV conventional

GSI 4-20 mA sink

GSO 4-20 mA source

Generic digital output channel (loop devices)

DDM input channel

Working mode: BNO CNO CNC

Input label Output label

Assigned Zone Trigger Zone # 1

Trigger Zone # 2 Trigger Zone event

ALA Alarm DLY Delay to alarm WAR warning FAU fault TST Test DK Double Knock

Channel to program

Generic digital input channel (loop devices)

Input label

Assigned Zone

Detector base

Standard Isolator Relay Sounder Addressable

Detector base

Standard

Isolator

Relay

Sounder

Addressable

Detector base

Standard Isolator Relay Sounder Addressable

Heat + CO detector

Working mode: DAY:

Enhanced Disabled

CO=Default

Detector label Assigned zone

Detector base

Standard Isolator Relay Sounder Addressable

Remove device?

Yes

Remove device?

Yes

Remove device?

Yes

Remove device?

Yes

Remove device?

Yes

Working mode: NIGHT:

CR A1R

A2S

Temp= A2S

Default

A1R

DIS

Smoke=

Enhanced Disable

High Immunity

Universal

Working mode: NIGHT:

Enhanced Disabled

CO=Default

Working mode: DAY: Smoke=

Enhanced Disable

Default

Working mode: DAY: Temp= A2S

A1R

DIS

Working mode: NIGHT: Smoke=

Enhanced Disable

Default

Working mode: NIGHT: Temp= A2S

A1R

DIS

Generic Module

Remove device?

Yes

Remove device?

Yes

Remove device?

Yes

Module label

Assigned zone

Silenceable On Off

Trigger Zone # 3 Trigger Zone # 4

Trigger Point # 2

Trigger Point # 1

Trigger Point # 3

Table 9 Values table of the programming devices

Note: The underlined options are the default options.

Cursor Keys

No function is related to UP Key; No function is related to Down Key; The Right key selects the next available Loop; The Left key selects the previous available Loop

ESC key : ESC key deletes the procedure and returns to the previous page;

ENTER The ENTER key accepts the selection and acti

vates the corresponding programming page. Regarding the figure 43, the “selected device” field shows the currently selected device. The “Add ” field is used to enter the address of the selected device. The scroll bar of available devices shows the addresses and the class of all devices configured in the selected loop. d087 address of the device (three digits); class of device: d = detector, m = module. The scroll can be viewed by using the cursor keys or en

tering a device address in the “Add ” field.

In case the address entered does not exist, the scroll bar moves to the next available address.

Choose the Device

In this phase:

Alphanumeric keypad Used to enter the address of the device that has to be selected; if the address do

esn’t exist the next device available will be selected.

If the device exists, square brackets will appear dext to the address, but if the entered address does not exist or is different from the one selected in the bar below, arrows appear.

Cursor Keys

No function is related to UP or Down Key. The Right key selects the next available Device. The Left key selects the previous available Device.

ESC Key

The Esc key deletes the procedure and re-

turns to the previous page.

ENTER Key

The ENTER key accepts the selection

and activates the corresponding programming page.

Loop devices programming page

After selecting the Loop and the device, (see the Figure

43) it is possible to program various parameters rele

vant to the type of device, see Table 9.

Remote LED After other parameters, it is possible to enable the activation of programmable Remote LED of the detectors. The detectors have an output used to dri

ve the remote LED. This output was activated only for detector alarm which it belonged. Now, it will be possi

ble to program it to activate for other events, exactly as it happens for the other panel outputs, as well as for the detector alarm which it belongs.

This option (Remote LED) will be possible to pro

gram also on FireClass Console, in the program

ming page of the detectors.

Separated programming of the Sounder and Beacon

When one of the following devices is selected:

FC410LPAV (all versions) FC430LPASB FC430SAB (with FC430SB),

In addition to those certified EN54-23:

FC410LPS-R/W FC410LPBS FC430LPBSB,

in the programming menu, it will be possible to choose which channel (Sounder or Beacon) to be program

med. The User interface will ask the installer, before the alarm conditions: "SOUNDER = BEACON" "yes no" If the installer chooses "yes", the alarm conditions are selected (and applied to both channels), otherwise the channel selection will be displaied (and thus the alarm conditions are valid for the selected channel).

See "PC PROGRAMMING" FireClass Console paragraph "Output module parameters programming"

50 Addressable Fire Panel FC501

FC501 Panel lev.3: PROGRAM

Master Panel

Enter the SW zone number

Ifblinking the panel works properly

SW zone: 097

Index of

SW zone program

SW zone lev.3: PROGRAM

Master Panel

On OFF

ZONE IN WALK TEST

Choose between the two options

Control panel

Status

Access Level

Control panel

Status

Access Level

Name of

Control Panel

Name of

Control Panel

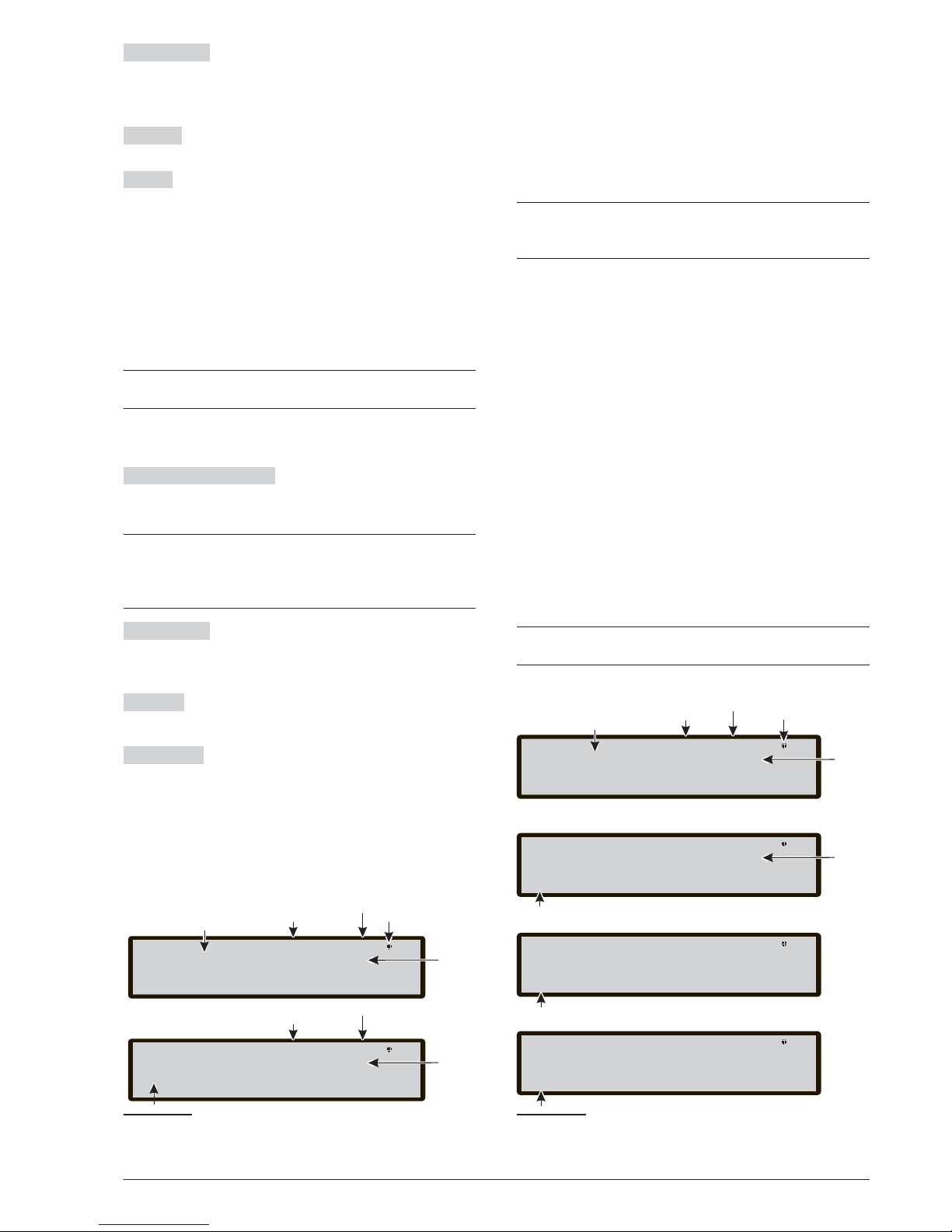

Figure 44 Pages of Selecting and programming of

SW zones

FC501 Panel lev 3: PROGRAM

Master panel

Enter the SW zone number

Access Level

Control panel

status

SW Zone: 097

SW Zone Index to

program

SW Zone lev 3: PROGRAM

Master Panel

On OFF

ZONE IN WALK TEST

Select the option

Name of

Control Panel

Name of selected

Control Panel

SW Zone lev 3: PROGRAM

Master Panel

On OFF

DELAY.SMOKE

Select the option

If blinking the panel works properly

SW Zone lev 3: PROGRAM

Master Panel

On OFF

PREALARM

Select the option

Figure 45 Page of programming option delay Detec

tor alarm verification

3 KEY - SW zone

The SW zone option in the PROGRAMMING menu ac

tivates the screen used to select and program the Sof

tware zone (see figure 44).

The Alphanumeric keypad The Alphanumeric key

pad is used to select the zones number (ID).

Cursor Keys

No function is related to UP and Down Keys. The Right key to selects the next available SW zone. The Left key to selects the previous available SW zone.

ESC key

The ESC key deletes the procedure and re

turns to the previous page;

ENTER Key Accept the SW zone selection and acti

vate the loop device programming page, if the SW zone exists, otherwise a warning page is displayed for 5s "WRONG VALUE! enter the parameter again". After 5s the User Interface moves back to the choose SW zone pages.

SW zone in WALK TEST

After selecting the SW Zone, you will be able to enable or disable the option Zone in WALK TEST (OFF) or not (off);

if the option all (ALL) is selected , all the devices assi

gned to zones in WALK TEST mode, will NOT generate alarm in the case of their activation but they will reach the TEST status.

Ø If the option det (DET) is selected , only the detectors

assigned to zones in WALK TEST mode, will NOT generate alarm in the case of their activation but will reach the TEST status.

Ø If the option cp (CP) is selected , only the call-points

assigned to zones in WALK TEST mode, will NOT generate alarm in the case of their activation but will reach the TEST status. The presence of a zone in WALK TEST mode is si

gnalled by the TEST yellow LED on the User Interface. More than one zone can be put in WALK TEST mode at the same time.

Cursor Key

No function is related to UP and Down Keys. Right key: selects the following ON -OFF-ALL-det-cp. Left key: selects the previous ON-OFF-ALL-det-cp.

ESC Key

ESC key deletes the procedure and returns

to the programming page.

ENTER key The ENTER key accepts the selection and activates the corresponding programming page

Detector alarm verification (Smoke delay)

For each zone, it is possible to program the delayed ac

tivation of smoke detectors, according to the following schedule: when the smoke level exceeds the alarm threshold, the panel does not signal anything at first;

- after 60 seconds if the smoke level is still above the threshold, the system goes into alarm condition, other

wise there are no signals;

- within 30 minutes, a new alarm or activation of another sensor in the same zone causes the alarm of fire panel. To program the delay on the activation of smoke detec

tors, from Programming menu: SW Zone (KEY 3).

- After selecting the SW Zone, on the subsequent di

splay about the zone to test, select OFF and press Enter.

- on the fsubsequent display about the new option “De

tector alarm verification”, select ON (to enable) and press Enter. In this phase:

Cursor Keys

No function is related to Up and Down keys. Use the Right and Left keys to select: On-OFF.

ESC key

Use the ESC key to delete the operation and

to step back to previous page.

ENTER key

Use the ENTER key to accept the selec-

tion and activate the programming page.

Prealarm

For each zone, it is possible to program the activation of a common pre-alarm delay ( 10 min.). The procedure is

PROGRAMMING FROM THE PANEL 51

FC501 Panel lev. 3: PROGRAM

SC Output: 001

Control Panel name

Access Level

Outputs type

Output

Number

SC Output 001 ev.l 3 :PROGRAM

[]

OUTPUT NAME

Insert Output label

Up or Down to select the type Enter the SC Output number

Control panel Status

Access Level

Control panel Status

Output

Number

Enter the parameter again

WRONG VALUE!

If blinking the panel works properly

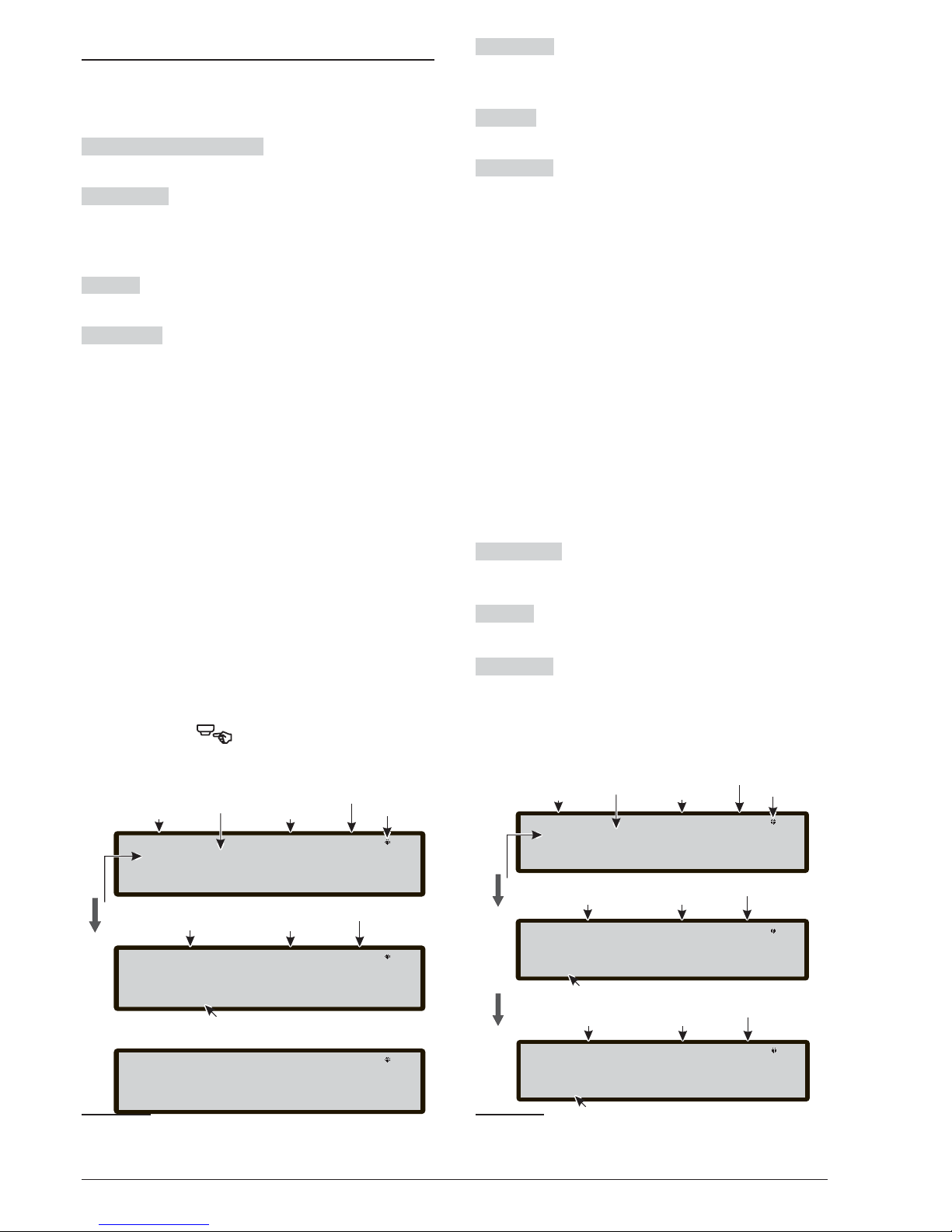

Figure 46 Pages for programming "SC active on disa

blements" option.

FC501 Panel lev. 3: PROGRAM

SC Output: 001

Control Panel name

Access Level

Outputs type

Output

Number

SC Output 002 ev.l 3 :PROGRAM

[]

OUTPUT NAME Master Panel

Insert Output label

Up or Down to select the type Enter the SC Output number

Control panel Status

Access Level

Control panel Status

Output

Number

blinking the panel works properly

SC Output 02 lev 3 :PROGRAM

Output type

on OFF

elect on or OFF

SC on DISABLEMENT Master Panel

Access Level

Control panel Status

Figure 47 Pages of Selecting and programming SC

active on disablement

the same of the previous parameters and also the fun

ctionality of the Cursors, Esc and Enter key is the same (see Fig.45d).

4 KEY- OUTPUT

The Outputs option, KEY 4 in the PROGRAMMING menu, activates the output programming screen. It is used to select the type of Output; followed by the pro

gramming procedure for that output.

Choose Output

In this phase:

Alphanumeric keypad The Alphanumeric keypad is used to enter the number of SC output.

Cursor Keys

The UP Key: shows the next output cate

gory (SC-OC). The Down Key shows the previous output category.

Right and Left keys: no functions is related to these keys.

ESC Key

Use ESC key to cancel the operation and to

step back to previous page.

ENTER Key Use the ENTER key to accept the selec

tion and activate the output selection and activate the loop device programming page if the output exists, ot

herwise a warning page is displayed for 5s. "WRONG VALUE! enter the parameter again" After 5s the User Interface moves back to the page for selecting the outputs.

Once the Output has been programmed (type and identification number) and the ENTER key is pressed to accept the selection, enter the label for that output.

n SC on disablements

In reference only to SC2 programmable output, the SC Outputs can be programmed to activat on disablement of any part of the system.

trol panel outputs: OC1, OC2 and FIRE. Loop modules: FC410RIM, FC410SIO, FC410MIO, FC410QMO, FC410QRM, FC410QIO

From PROGRAMMING Menu select Output (KEY 4) and then work through the steps shown in Figure 47:

-select the SC2 to program the option “SC on disable

ments”;

-in the subsequent display diplay insert the name of Output and than press ENTER;

-in the following diplay, press ON to enable the new op

tion and then press ENTER. In this phase:

Cursor Keys

No function is related to Up key; No function is related to Down key; Use the Right key to select: On-OFF; Use the Left key to select: On-OFF.

ESC key

Use ESC key to cancel the operation and to

step back to previous page.

ENTER key

Use the ENTER key to accept the selec

tion and activate the programming page.

If the SC2 has this option programmed, it will be not silenceable.

The parameters that may be programmed via panel’s User Interface

-Output label

-Trigger zone #1

-Trigger zone #2 Events trigger alarm zone, as shown below:

-ALA alarm

-DLY Delay to Alarm

-WAR warning

-FAU fault

-TST test

-DK Double knock.

-Silenceable Output or Not. Programming procedures and functions of the keys are the same as for the SC on disablements.

5 Key- Network

The Network option of Programming menu activates the procedure to configure the modules FC500MFI.

When all the Control panels and the FC500MFI modu

les are connected in the Network, 1- use the 5 Key to select Network, from Programming page (Figure 39) in the User interface; 2- the Display of Figure 48 will be shown; 3- moving with the arrow keys to select the FC500MFI module to be configured ï or ð (the symbol ^ under the name show the selected module),

52 Addressable Fire Panel FC501

System lev3. : PROGRAMMING

FC500 MFI MASTER Panel

on1 on2 on3 on3

Symbol show the selected module to enable

If it blinks the panel is operating normall

Access Level

Control panel Status

Figure 48 Display to enable the FC500FMI module

Device Mapping

001> 00: 19.50 P L2:001< enter the address

Evt Time Type add done 000/002

002 00: 19.50 PH L1:

Figure 49 Display "on demand device mapping"

enable a FC500MFI module by the arrow ñ or disable it by the arrow ò: the module name will appear in uppercase if enabled. Press the Enter key to confirm.

In the ANALYZE status (L1 level): to display the related status is used an acronym. The acronym are:

" OK!", The net. device is sensed as connected and working; " ko!", The net. device is sensed as not connected " FAU", The net. device is faulty " DIS", The net. device is disabled " -- ", The net. device is not configured in the network " OLD", The net. device has an obsolete FW version.

For an explanation of the features and program

ming (addresses), see the dedicated manual of the FC500MFI module.

In this phase:

Alphanumeric keypad No function is related to the Alphanumeric keypad.

Cursor Keys

The Up key enables the selected modu

le (e.g. ON1-uppercase). The Down key disables the selected module (e.g. on1-lowercase). Use the Right key to select the module. Use the Left key to select the module.

ESC Key

Use ESC key to abort the programming pro-

cedure.

ENTER key

Use the ENTER key to confirm the pro

gramming procedure and to leave the page.

6 KEY - MAP DEVICE

This option activates the "On Demand device mapping" feature to modify the devices addressing scheme in a working system. In a system where the addressing scheme is well known because all devices are singu

larly addressed via Service Tool or via the "device map

ping" feature embedded in the loop enroll process (1 KEY). This means that this new feature is not intended to acquire new devices on the loops (for this purpose the Enroll feature have to be used). Differently from the "device mapping" feature embed

ded in the loop enroll process, the "On Demand" ver

sion will not automatically modify: devices labels and assigned zone (see Figures 49, 57).

All the devices, comprised also the "unique" types will put in the "activated list". The "only output" type devices are treated as in the standard device map

ping procedure (they will be singularly activated when selected in the list).

In this phase:

Alphanumeric keypad The Alphanumeric keypad is used to enter the new address value: 0-9;

Cursor Keys the UP key, Short press: to scroll to the previous event in the list, Long press: to start the automatic scroll of the previous event in the list. the Down key, Short press: to scroll to the next event in the list, Long press: to start the automatic scroll of the next event in the list. The RIGHT key: to program the selected device; The LEFT to continue the mapping procedure.

ESC key The ESC key: to end the mapping procedure and exit.

ENTER key the ENTER key: to confirm the entered ad

dress value.

To stop the automatic scroll, short press of the UP or Down key.

7 KEY -USB

The option USB in the PROGRAMMING menu activa

tes the USB programming page. 7 Key is used to select USB programming page, Figure 50 shows:

0) Extra

1) Load Audio

2) Save Audio

3) Load programming

4) Save programming

5) FW Upgrade

6) Save LOG. In this phase:

Alphanumeric keypad Allows the selection of USB activities.

0) While the panel is running it will be possible to load the two languages present in the USB key flash me

PROGRAMMING FROM THE PANEL 53

FC501 Panel lev.3 : PROGRAM

ctivities

1=Load Audio 2=Save audio 3=Load program

USB activities

4=Save program 5=FW Upgrade 6=Save LOG

0=Extra

Access Level

Control panel

Status

If blinking the panel work

properly

Figure 50 Page of USB activities

USB activity

Example of USB activity

IN PROGRESS

Wait please

LOAD Audio

USB activity

DONE!

LOAD Audio

USB activity

FAILED!

LOAD Audio

ESC= EXIT

Figure 51 Example USB activities

mory (previously downloaded from the CD supplied with the panel or from the FireClass site), see the diagram of operation in figure 52.

1) To load, from USB pendrive to panel, the AUDIO file containing the voice messages.

2) To save, from the panel to USB pendrive, the currente AUDIO messages.

3) To load, from USB pendrive to panel, the program

ming data (*).

4) To save, from panel to USB pendrive, the current pa

nel programming data.

5) To upgrade the panel Firmware from USB pendrive (**) (***).

6) To save, from panel to USB pendrive, the current LOG data in the panel.

Cursor Keys

No function is related to UP, Down,

Right and Left Keys.

ESC Key

The ESC key is used to exit from the USB

activity result page.

ENTER Key

No function is related to the ENTER Key.

(*) The loaded data will overwrite the current data in the panel.

(**) The file containing the expected FW version to upgrade the panel has to be present in the F_fw di

rectory in the pendrive.

(***)To do the firmware upgrade of the FC500 Re

peater and the MFI module is not possible using the USB pendrive.

54 Addressable Fire Panel FC501

Fc501 Panel lev.3 : PROGRAM

access level

If blinking the panel works properly

Panel Status

Types of activities

1=Load AUDIO 2=Save AUDIO 3=Load PROG

USB actions

4=Save PROG 5=FW Upgrade 6=Save LOG

0=Extra

Fc501 Panel lev.3 : PROGRAM

Choice of Language

1=load first lang.

2=load second lang.

ESC

ABC

DEF

USB File

Gathering information

RUNNING

USB FC501

Go to select language

to change page

FRANCAIS

PORTUGUESE

wait please

USB FC501

FAILED

CORRUPTED FILE

USB File

TROUBLE

ESPANOL >>> [ ]ESPANOL

ESC

PAGE for

SELECT THE LANGUAGE

Figure 52 The scheme in the figure displays the LCD pages sequence required by this feature: "Language strings

download during panel run time"

Animation

USB FC501

Go to the native

languages

selection page

FRANCAIS

PORTUGUESE

List of languages In the USB

memory stick

>>> [ ]ESPANOL ESPANOL

ESC

USB FC501

>>> [ ESPA------- ]ESPANOL

40%

NOTE: at the end of this process the initial

configuration steps (front page) will continue.

If the language strings transfer process, from

USB to panel, fails a fault page is displayed

and the native Italian language is restored

POWER ON

ESC

LANGUAGE LIST WAITING PAGE

Figure 53 This figure displays the LCD page sequen

ce required by feature: "Language strings download via USB key at the first panel power-up" (USB memory stick inserted and correct language file present)

In reference to the point 0) "EXTRA", at the first panel po

wer-up and/or at the end of the FW upgrade process of the control panel, only a language can be loaded overwri

ting the second languages previously present (the first will be the English). The available language will be contained in a file of a dedicated folder on a USB stick connected to the control panel before first Power up. This loaded language will be the language of the control panel. If the USB stick is not present at the first panel power-up, the system will propose the default langua

ge: Italian and English (see figures 52, 53).

In the case of FW UPGRADE of the control panel, at the end of the FW upgrade process, the panel will start the pro

cedure "Language strings download via USB key at the first panel power-up", (see figure 53) in order to allow the load again the right version of the required language.

8 KEY -SYSTEM

The option SYSTEM in the programming menu activates:

- the system language selection page (Display langua

ge) see Figure 54.

Other languages can be loaded from software

After selecting the language, it is possible to program:

-PANEL ID

-PANEL TYPE (FC501-L/FC501-H)

-BATTERY TYPE (7Ah/12Ah/38Ah)

-DAY/NIGHT MODE or AUTO

-PREALARM TIME.

-COPY ON ZONE?

Alphanumeric keypad No function is related to the Alphanumeric keypad.

Cursor Keys

No function is related to UP and Down Keys. Use the Right key to select the next option. Use the Left key to select the previous option.

ESC Key

Use ESC key to cancel the operation and to

step back to MAIN page.

ENTER Key

ENTER Key accepts the selection.

In sequence:

Panel ID

Enter up to 4 digits to identify the configuration file system, so it is possible to distinguish it from other con

figuration files (for example on a USB stick, it is possible to load multiple systems without any configuration files overlap). In sequence:

-PANEL TYPE (FC501-L/FC501-H)

-BATTERY TYPE (7Ah/12Ah/38Ah

Day / Night / Auto

The display for programming Day/Night/Auto mode will be shown. If Automatic mode is choosen, it is necessary to set the transition time from one mode to another.

See the LED Day/Night mode LED change status.

In sequence:

Pre-alarm time

Enter the Prealarm time in minutes (max 9). The amount of Prealarm Time+Investigation Time sho

uld not exceed 10 min.

Copy on Zone?

Moving on the YES option using the Cursor keys it is possible to copy the same Prealarm time in all the zo

nes.

9 KEY- Restore Default

The Restore Default option from the PROGRAMMING menu will allow you to restore default setting.

Use the 9 Key to select Restore Default, the display will show the Figure 55: in this phase:

Alphanumeric keypad No function is related to Alphanumeric keypad.

Cursor Keys

No function is related to UP, Down,

Right and Left Keys.

ESC Key

The ESC Key cancels the procedure and re

turns to the previous page;

ENTER key

The ENTER Key starts the default settings

restore procedure.

PROGRAMMING FROM THE PANEL 55

System lev 3 : PROGRAM

Choose Language

ITA eng

LANGUAGE

Master Panel

Access Level

Control panel Status

If blinking the panel work

properly

Figure 54 Page to select the language of the system

All programming data will be lost.

Do you want to continue?

ESC=NO ENTER=YES

WARNING!

Figure 55 Restore default page

If the motherboard of the Panel is connected with a FC500IP module, the procedure to Restore factory Default (key 9) will have no effect on the FC500IP module. To restore the FC500IP module to factory default use the procedure of the FireClass Conso

le software.

FC500REP Repeater Address from the Repeater panel ONLY

After the FC501 control panel has been connected, at the first start-up the FC500REP will verify the presence of the address and its conformity. If the address is cor

rect, the Repeater will start to work; if the address is not correct the display will ask to insert a new address. The display on Figure 56 will be shown; in this phase:

Alphanumeric keypad Use the alphanumeric keypad to insert the address of 1 digit.

Cursor Keys

No function is related to UP, Down,

Right and Left Keys;

ESC Key

Use ESC key to cancel the operation and to

step back to previous page.

ENTER Key Use the ENTER Key to confirm the ad

dress.

If for any reason the address of a repeater is chan

ged by mistake, the system will show the message in the Figure 56, in this case the address of the re

peater can changed using the ESC key.

(1) In the Dutch version of Control panel, (Dutch language, as the language of Panel),

56 Addressable Fire Panel FC501

!!FAULT!!

Serial link is down

unable to communicate with the system

press ESC to change repeater address

Figure 56 Display "the repeater link is down"

QUICK START-UP PROCEDURE

This procedure allows the quick start-up of the FC501 fire detection system. When the loops are wired, electrically verified and all the devices have been installed in to the loop, it is pos

sible to connect the loops terminals to the panel.

Before powering-on the Fire control panel, ensure that the Earth Line has been connected.

PROCEDURE

1. At first panel power-on will start a FW procedure to

verify/program if some vital information for the User Interface and for the panel, are programmed and are consistent. These information are:

Ø Selected language Ø Panel Identification number Ø The panel Type (FC501-L/FC501-H) Ø Installed batteries capacity (7Ah/12Ah/38Ah)

2. After have verified/programmed the previous data, insert the date and time, see MODIFY Procedure (User Manual). This step is important to guarantee the Log file consistency.

At this point the panel will start the first system initializa

tion verifying the loops integrity, warming up the smoke sensor circuitry, and the autoaddressing phase of the devices, with the consequent search for no addressa

ble devices, and devices with the same address (see procedure 1 Key Autoenrolling and Note on Autoad

dressing).

NOTE: The panel in this phase is configured to ma

nage closed loops (4 wires loop), if it is connected to a spur (2 wires loop) it will generate broken loop faults.

At the end of this first initialization phase the User Inter

face will be displayed at the main page with the capabi

lity to accept to the command and control functions.

3. Select the function Program pressing the key 1.

4. Insert the installer password (default=00000) every

digit will be masked by * symbol.

5. Choose the option by pressing the key 1.

The panel will start the enrolling procedure.

This procedure is divided into three main phases: 1 Auto-learning 2 Auto- addressing 3 Device Mapping It is possible to stop the "AUTO" option at the end of each phase; the results are different.

1 AUTO-LEARNING

In the first phase the panel looks for all the devices on the loop already addressed (with the service tool).

During this phase, the panel will ask what pattern of au

tomatic assignment of zones shall be applied to found devices (see Figure 57, 1B).

In the case of panel already configured, it indicates any differences and asks how to proceed (see Figure 55, 1A), in which case the scheme of Automatic assignment of the zones will be applied only to new devices found.

If you stop the AUTO option at the end of this first phase, see Figure 57 (A) will happen : Ø The control panel will take over all devices with an

address between 1 and 128.

Ø The programming device at their default configuration. Ø

Automatic assignment of labels.

Automatic assignment of the zones according to the scheme chosen during that phase.

The output channels of the modules, sounders and beacons will be enabled to active on fire alarm of the assigned area (except in the case the zone auto-as

signment phase will not be chosen, accordingly all the output channels of the modules, sounders and the beacons will be activated for panel alarm.

The faults "NOT PROGRAMMING DEVICE" and "wrong addresses" will be generated in the case of not addressed devices or with address greater than 128, respectively.

If the enrolling result differs from the previously sto

red loop configuration a warning message will be displayed and it is possible to reject the present en

rolling result, maintaining the previous configura

tion, or accept them.

The enrolling function will not be activated if there are loop related faults present.

QUICK START-UP PROCEDURE 57

2 AUTO-ADDRESSING

The second phase will be started, if during Auto-lear

ning phase, not addressed devices have been identified or have an address greater than 128. During this phase all the not addressed devices will be detected. The pa

nel assigns them a temporary address and configure them at default (see Figure 57, 2A).

If you stop the AUTO option at the end of this second phase, see Figure 57 (B) will happen:

The auto assignment of the address to the not ad

dressed devices

The control panel will take over all devices

The programming devices to their default configura

tion.

Automatic assignment of labels.

Automatic assignment of zones based on a loop of belonging.

58 Addressable Fire Panel FC501

AUTO ENROLLING

AUTO ADDRESSING

2/5 Temporary addresses assignment

RUNNINGAuto-Addressing

Wait please

1/5 devices searching

ESC to stop

3/5 Locate devices over the loops

4/5 1 minute preliminary polling

5/5 Devices inizialization

MAP. DEVICE

Auto-Addressing END

Addressed: 100 detectors

28 modules

ESC to exit ENTER to device Mapping

Device Mapping RUNNING 0= Stop Evt time type counter: 102

101 12:55:58 CP L1

102 12:57:45 CP L1

STOPPED <= ResumeDevice Mapping

Evt time type add done 000:102

001> 12:55:58 CP L1 025<enter the Add.

002 12:57:45 CP L1

ESC

Are you sure

to leave the device mapping proc. ?

ESC = No ENTER = Yes

FC501 Panel lev.3 :PROGRAM

1=Auto 2=Device 3=SW Zone 4=Output

5=Network 6=Map. Dev. 7=USB 8=System

9=Default 0=L3 PWD

Not addressed devices found

start auto-addressing ?

Automatic zones assignment 1 = on loop basis 2 = on device address basis 3 = no assignment

Differences found!

2 Add new devices:

3 Discard changes:

1: Accept new configuration

ESC = no ENTER =yes

Figure 57 Programming option "AUTO"

The output channels of the modules, sounders and beacons will be set to active on the alarm of the assi

gned zone.

3-DEVICE MAPPING

The third and last phase is activated on demand at the end of the Auto-addressing phase.

This phase allows:

Locate the positioning in the system of all the devices through their activation (in the case of output modu

les only, sounders or beacons, they will be suitably activated by the panel ( see Figure 57, 3A).

Carry out a preliminary test of the system.

Program the most important parameters of each lo

cated device.

Automatically assign labels to all devices.

Assign automatically the zones based on assigned address to each device.

Automatically configure the output channels of the modules, sounders and beacons to activate on the

alarm of the assigned zone. The third phase represents a powerful and flexible tool that allows to "draw" the plant being in front of the panel and without the use of a PC and its SW configuration.

A series of controls have been designed to prevent the generation of incorrect or not manageable conditions.

For each device to locate occurs that:

The address to be assigned does not belong to an ol

der generation device (FC400 series).

The address to be assigned is in the range from 1 to

128.

The address to be assigned belongs to a new gene

ration device and that device is present in the list of devices to locate.

The address to be assigned is not among those assi

gned automatically.

QUICK START-UP PROCEDURE 59

LOOP PANEL

MESSAGE

Differences found!

Automatic zones

assignment

Not addressed devices

found

start autoaddressing ?

All devices not

addressed

DEFAULT

Some devices

addressed

Some devices not

addressed

DEFAULT

(Applicable only to the

already addressed

devices)

All devices

addressed

DEFAULT

Fully addressed

Same configuration

CONFIGURED

Fully addressed

Different

configuration

CONFIGURED

New

configuration

(Applicable only to all

already

addressed devices)

Add

devices

(Applicable only to new

already addressed

devices)

Same configuration

Not addressed

devices

CONFIGURED

Different

configuration (*)

Not addressed

devices

CONFIGURED

New

configuration

(Applicable only to all

already

addressed devices)

Add

devices

(Applicable only to the

new

already addressed

devices)

Figure 58 The table shows the kind of messages, and relevant action required during the enroll process in function of the loop and panel configuration. Note (*) indicates that the message is displayed and relevant action is executed

In each case at the end of the device Mapping phase (see Figure 57, C) a check is performed to detect the presence of "doubles addresses"; in this case the invol

ved addresses will be indicated and it will not be possi

ble to abandon the procedure until the complete removal of the error condition.

The procedure for the devices mapping can also be launched outside the AUTO function,by activating the programming function called "localization. (Key 6, on the PROGRAM status) that allows to activate the procedure for devices mapping on demand, on a system already configured and without the need to proceed to their activation. It is meant to correct er

rors or change the system "on the run" and use all the features and capabilities described above.

System default

Zone assignment

To mimic a conventional panel the acquired device over the loops will be automatically assigned to a predefined zone. Two different scenarios are possible:

Exit at the end of the Auto Addressing phase without executing the Device Mapping process, in this case: Ø all the devices located on loop #1 will be assigned to

zone #1

Ø all the devices located on loop #2 will be assigned to

zone #2

Ø all the devices located on loop #3 will be assigned to

zone #3.

At the end of the Device Mapping process.

The device address to zone assignment scheme is the follow:

From address 01 to address 16 assigned to zone #1

From address 17 to address 32 assigned to zone #2

From address 33 to address 48 assigned to zone #3

From address 49 to address 64 assigned to zone #4

From address 65 to address 80 assigned to zone #5

From address 81 to address 96 assigned to zone #6

From address 97 to address 112 assigned to zone #7

From address 113 to address 128 assigned to zone #8

If an address is not manually assigned to a device ( eit

her via FC490ST or during the device mapping phase) no zone will be assigned to it. The previous zone assignment schemes are applied also to the first "trigger zone" in the case of output only devices(sounder, beacon, SNM module,…) or output channel of Input/output devices.

Note that in the case of none zone assigned, the output channel trigger event is the panel alarm.

System default parameters

Temperature detector default values

Label See note (**) Enablement Enabled Led blink On Assigned zone (see: "Zone assignment) Base type Normal Use zone setting Yes Day operating mode A2S Night operating mode A2S

Smoke detector default values

Label See note (**) Enablement Enabled Led blink On Assigned zone (see: "Zone assignment) Base type Normal Use zone setting Yes Day smoke sensitivity Medium Night smoke sensitivity Medium

Smoke+Temperature detector default values

Label See note (**) Enablement Enabled Led blink On Assigned zone (see: "Zone assignment) Base type Normal Use zone setting Yes Day temp. operating mode A2S Day smoke operating mode normal Day smoke sensitivity Medium Night temp. operating mode A2S Night smoke operating mode normal Night smoke sensitivity Medium

CO + Temperature detector default values

Label See note (**) Enablement Enabled Led blink On Assigned zone (see: "Zone assignment) Base type Normal Use zone setting Yes Day temp. operating mode A2S Day CO operating mode normal Day CO sensitivity medium Night temp. operating mode A2S Night CO mode normal Night CO sensitivity medium

60 Addressable Fire Panel FC501

CO+Smoke+Temperature detector default values

Label See note (**) Enablement Enabled Led blink On Assigned zone (see: "Zone assignment) Base type Normal Use zone setting Yes Day algorithm Universal Night temp. operating mode Universal

Modules default values

Label See note (**) Enablement Yes Led blink On Activation unit (where applicable) Off Act as SC1 (where applicable) Off

Input Channels

Enablement Yes Channel Label See note (**) Assigned zone Address related (see: "Zone assignment) Operating mode Style C, NO Use zone setting Yes

Output Channels

Enablement Yes Channel label See note (**) Trigger zone #1 Address related (see: "Zone assignment) Trigger zone #2 None Trigger zone #3 (where applicable) None Trigger zone #4 (where applicable) None Trigger point #1 None Trigger point #2 None Trigger point #3 None Silenceable Yes Active on disablement (where applicable) Off Trigger on event Zone Alarm Delay from alarm Off Silenceable Yes Sounder pattern (where applicable) 7Hz fast sweep Sounder volume (where applicable) high Beacon enablement (where applicable) Yes Beacon flash rate (where applicable) 0.5 Hz

DDM module default values

Label See note (**) Enablement Enabled Led blink On External power On Detector type 4/20 mA Source Threshold set Set #1

Input Channels

Enablement Enabled Channel Label See note (**) Assigned zone Address related (see: "Zone assignment) Use zone setting Yes

TSM module default values

Label See note (**) Enablement Enabled Led blink On External power On Input function Door monitoring Loop monitoring Off Door monitoring event Fault Monitoring time 30s

Input Channel

Enablement Enabled Channel Label See note (**) Assigned zone Address related (see: "Zone assignment) Operating mode Style C, NO

Output channel

Enablement Yes Channel label See note (**) Trigger zone #1 Address related

(see: "Zone assignment) Trigger zone #2 None Trigger point #1 None Trigger point #2 None Trigger point #3 None Silenceable Yes Trigger on event Zone Alarm Delay from alarm Off

Zones default values

Label Zone AAA(*) Enablement Enabled Walk test Off Detector warning Off Delay to alarm Off Drift compensation Off Double knock Off Smoke verification Off Delay to alarm duration 0s

On board programmable outputs default values

Enablement Yes Channel label tttt y(****) Trigger zone #1 none Trigger zone #2 None Trigger zone #3 None Trigger zone #4 None

QUICK START-UP PROCEDURE 61

Trigger point #1 None Trigger point #2 None

Trigger point #3 None Silenceable Yes Active on disablement (where applicable) Off Trigger on event none Delay from alarm Off

General options default values

Investigation delay 300s Main fault delay 1m Delay to alarm 60s Silence duration 60s Reset 2s Loop 1 wires 4 wires Loop 2 wires 4 wires Loop 3 wires 4 wires Day/Night mode Day mode SC1 disablement Enabled PSTN communicator enablement Not operative IP communicator enablement Not present NETWORK enablement Disabled Delay from alarm #1 0s Delay from alarm #2 0s Delay from alarm #3 0s Delay from alarm #4 0s Delay from alarm #5 0s

PSTN communicator default values

Tone check On Start playing after Selection Call attempts 3 Iteration 3 Call all telemonitoring numbers No Call all voice message numbers No Telephone number label TEL. NUMBER xx(*****) All Telephone numbers behavior None Trigger events Panel alarm, Panel Fault Message #1 to #7 Pre recorded

Notes: (**) Automatically assigned Module label.

The label is composed by a brief description of the devi

ce followed by its address.

Automatically assigned Module channel label The label is composed by a first part containing the mo

dule acronym and address followed by the brief de

scription of the channel using the acronym printed on the module PCB.

xxx = module acronim yyy= module address

For example "DDM098: Ingresso A" is the default label for the input #1 of the FC410DDM module at address 98.

(****) tttt represent the on board output type (4 chars),

SC outpts -> tttt="SC "

Programmabel outputs -> tttt="OC "

y = output number

(*****) xx represent the telephone number ID (2 digits),

62 Addressable Fire Panel FC501

ACCESSORY

The following is a list of accessories for FC501 control panel, with a description of the main features. For fur

ther information about these accessories, please refer to the instructions supplied with the accessories them

selves or download them from the website: web: http://www.fireclass.net.

FC500IP - IP Module

The FC500IP is an IP Module which is used to connect the FC501 fire panel to a LAN. The IP Module may be connected to a LAN using a pri

vate IP address or a DHCP address. The same procedures may be performed using the FireC

lass console application, either through the serial port or the network. With a public IP address, it is also possible to manage and monitor the control panel from anywhere in the world, as long as you have access to the Internet.

4B - Universal Base

The 4B Universal base is for use with the FC460/FC400/600 series of detectors. The base may be fixed directly to: Ø British (fixing centres 50mm) or European (fixing

centres 70mm) conduit box;

Ø 4B EM Euro Mounting Box; Ø the suspended ceiling, through the CTA adapter; Ø directly to the ceiling.

FC460H or FC400H-Addressable Heat Detector

The detector is intended to plug into the following:

4B 4” Universal Base

4B-I 4” Isolator Base

FC430SB Low Power Sounder Base

FC430LPSB Loop Powered Addressable Sounder Base.

FC430LPASB Loop Powered Addressable Soun

der/Beacon Base.

Software within the controller is used to interpret the re

turned heat values to raise an alarm or other appropria

te response according to the type of detector configured in Fire Class Console. The mode of detector may be:

EN54-5 A1R, rate-of-rise normal ambient

EN54-5 A2S, fixed 60oC

EN54-5 CR, rate-of-rise high ambient..

FC460P or FC400P - Addressable Optical Smoke

The FC460P/FC400P optical smoke detector forms part of the FC460/FC400 Series Addressable Fire de

tectors.

4BI 4”Isolator Base

4B 4” Universal Base

FC430SB Low Power Sounder Base

FC430LPSB Loop Powered Addressable Sounder Base.

FC430LPASB Loop Powered Addressable Soun

der/Beacon Base.

Software within the controller is used to interpret the re

turned optical and heat values to raise alarm or other appropriate response according to the type of detector configured in Fire Class Console.

FC460PH or FC400PH - Addressable Optical Smoke & Heat Detector

The detector is intended to plug into one of the following:

Ø 4B 4” Universal Base Ø

4B-I 4” Isolator Base

FC430SB Low Power Sounder Base

FC430LPSB Loop Powered Addressable Sounder Base.

Ø FC430LPASB Loop Powered Addressable Soun-

der/Beacon Base. Software within the controller is used to interpret the returned optical and heat values to raise alarm or other appropriate response according to the type of detector configured in Fire Class Console. The mode of detector may be:

Mode 1 - Optical smoke only detector (sensitivity High, Normal or Low)

Mode 2 - Optical ( sensitivity High, Normal or Low ) and heat fixed temperature 60

C (A2S)

Mode 3 - Heat only rate-of-rise (A1R) detector (no sensitivity selection)

Mode 4 - Heat fixed temperature 60oC (A2S) (no sen

sitivity selection)

Mode 5 - Heat rate-of-rise (A1R) detector and optical smoke (sensitivity High, Normal or Low)

Mode 6 - HPO (Advanced) smoke detector (sensivity High, Normal or Low)

Mode 7 - HPO (Advanced) and heat fixed temperatu

re 60

C (A2S)

Mode 8 - HPO (Advanced) and heat rate-of-rise (A1R).

ACCESSORY 63

FC460PC Addressable Optical Smoke & Heat Detector & CO

Detector of high performance, of smoke, temperature and CO. The use of the three elements of the sensor, in synergy, allows to determine with accuracy the presence of all types of fires and at the same time having an excep

tional immunity to false alarms. The functionalities of the FC460PC detector are: self-monitoring, self-testing, status indicator, remote LED and threshold compensation. The detector FC460PC is compatible with the existing bases.

FC410LI - Line Isolator Module

The FC410LI Line Isolator Module is designed to be used on the FC addressable controller loop circuits. It monitors the line condition and when detecting a short circuit will isolate the affected section whilst allowing the rest of the addressing circuit to function normally. The purpose of the FC410LI Line Isolator Module is to en

sure that, on a looped addressable system, no short circu

it fault can disable more detection devices then would be lost on a conventional non-addressable fire circuit.

FC410MIM - Mini Input Module

The FC410MIM Mini Input module is designed to moni

tor fire contacts, such as extinguishing system control, ventilation control, fire door control etc.The module provides one identifiable detection spur which is capable of monitoring multiple normally open contacts or a single normally closed contact. The FC410MIM may be mounted in any electrical enclosure with sufficient depth to accommodate FC410MIM and the contacts monitored by the IN+ and IN- terminals, ie, no field wiring. The remote LED (if required, not supplied) must be located within the same electrical enclosure.

FC410MIO - Small Addressable Multi I/0 Module

The FC410MIO Multi I/O Module has three class B inputs and two outputs from latching relays. The class B inputs can monitor fire contacts such as extinguishing system control, ventilation control, fire door control etc. The two relays outputs are dry form C that provide volt-free relay changeover contacts. A maximum of two HVR800 High Voltage Relay Modules can be individually driven and controlled by an FC410MIO if all HVR800s are powered by 24V dc or 24V ac. In this application, the HVR800s are controlled by the two latching relays on the FC410MIO. A maximum of four HVR800 High Voltage Relay Modules can be individually driven and controlled by an FC410MIO if all HVR800s are powered by 120V ac or 240V ac. In this application, the HVR800s are controlled by the four con

trol outputs (O1+/O1- to O4+/O4-) on the FC410MIO.

FC410SIO - Single Input/Output Module

The FC410SIO Single Input/Output Module is designed to provide a monitored open collector input and a volt free relay changeover output. FC410SIO can switch up to2A@24Vdc.

FC420CP - Addressable Break Glass Callpoint (indoor)

FC420CP Addressable Break Glass Callpoint is desi

gned to monitor and signal the condition of a switch contact that is operated by activating the break glass element. The type of alarm generated by the callpoint is configured in FireClass Console.The FC420CP call po

int meets the requirements of EN54 Pt.11. The FC420CP is fitted to a standard surface mount plastic backbox, standard single gang metal plaster box (35 mm for flush mounting) or standard single gang metal plaster box (25 mm) with backbox.

FC421CP - Addressable Break Glass Callpoint (outdoor)

FC421CP Weatherproof Addressable Break Glass Cal

lpoint is designed to monitor and signal the condition of a switch contact that is operated by activating the break glass element. The type of alarm generated by the cal

lpoint is configured in FireClass Console. The FC421CP callpoint meets the requirements of EN54 Pt.11. The FC421CP is fitted into a standard weather

proof break glass callpoint housing.

FC430SAB/SAM - Sounder Base Address Modules

The Sounder Base Address Modules (FC430SAM /FC430SAB) are designed to control a loop powered sounder base for use with the FCsystem, one variant (FC430SAB) has an integral beacon. They may also be used to drive a relay base. The units are used to supply the address decoding in place of a detector, thus providing a loop powered sounder when used in conjunction with an FC430SB. The modules are colour matched to the sounder bases. The FC430SAM/FC430SAB is locked into the base using the locking device integral to the sounder base.

FC430SB - Loop Low Power Sounder Base

The FC430SB Loop Low Power Sounder Base provides an additional sounder function on the FC addressable loop circuit. The FC430SB Loop Low Sounder Base re

quires an associated detector in order to operate, as it uses the address of the detector that is fitted to it. Remo

val of the detector or loss of power to the loop will cause the sounder to cease operating. A maximum of 45 Soun

der Bases at full volume may be connected to the loop.

4B-I - Isolator Base

The FC460/FC400 Series Detectors, as supplied, use a common 4B-I Isolator Base assembly. The base may be fixed directly to:

British (fixing centres 50mm) or European (fixing centres 70mm) conduit box;

FC450EMB Euro Mounting Box;

Directly to the ceiling.

64 Addressable Fire Panel FC501

FC490ST - Loop Service Tool

The FC490ST Loop Service Tool is used to program the loop address into FC addressable devices. The FC490ST displays information and performs tests on devices. It has a 32 character backlit LCD alphanumeric display, arranged in 2 rows of 16 characters and four ‘softkeys’, F1, F2, F3 and F4. Power for the FC490ST is derived from 4 AA size nickel metal hydride rechargea

ble batteries. It may be run from an unregulated +12V dc input ie, car cigarette lighter connection or 110/230V ac mains adaptor, both of which will recharge the batte

ries as well.

FC410BDM - Beam Detector Module

The FC410BDM Beam Detector Interface Module is de

signed to interface FIRERAY 50 Beam Detectors to the FC Digital Addressable Loop (it must not be used with other types of beam detector). The FC410BDM moni

tors the Fire and Fault contacts and also monitors for open and short circuits on the connections between the interface and the beam detector. For remote siting of the FIRERAY 50 an optional BTM800 Terminal Module can be used with 4 core cable. The FIRERAY 50 transmitter and receiver units are mo

unted in the same housing. The FC410BDM Loop Powered Beam Detector Interface Module is contained on a double sided printed circuit board (PCB) which is fitted into a custom built fascia plate with a protective cover being fitted over the PCB, leaving only the connection terminals exposed. The fascia plate is then fitted onto a standard dual-gang back box with BESA fittings.

FC410CIM - Contact Input Module

The FC410CIM FC Addressable Contact Input Module is designed to monitor fire contacts such as extingui

shing system control, ventilation control, fire door con

trol etc. The FC410CIM can be configured as:

Two spur circuits (Class B) monitoring multiple nor

mally open contacts, with short circuit giving a fault output.

Two spur circuits (Class B) monitoring single nor

mally closed contacts, with short circuit giving a fault output.

Two spur circuits (Class B) monitoring multiple nor

mally open contacts, with short circuit giving an alarm.

FC410DIM - Detector Input Module

The Addressable FC410DIM provides the ability to con

nect and Interface one or two zones of 24V dc 2-wire conventional detectors (non-addressable) to the Fire Alarm Controller. The FC410DIM monitors the status of detectors and wi

ring to detectors and signals detector and wiring status back to the Controller.

FC410RIM - Relay Interface Module

The FC410RIM Relay Interface Module provides one volt-free relay changeover contact on a latching relay.

The relay is controlled by a command sent from the FC fire controller via the addressable loop. The relay state (activated, deactivated or stuck) is returned to the con

troller.

FC400CH - Addressable Carbon Monoxide + Heat Detector

The FC400CH carbon monoxide plus heat detector forms part of the FC400 Series Addressable Fire detectors. The detector is intended to plug into the following:

5B 5” Universal Base.

FC450IB 5” Isolator Base.

FC430SB Low Power Sounder Base.

FC430LPSB Loop Powered Addressable Sounder Base.

FC430LPASB Loop Powered Addressable Soun

der/Beacon Base. The detector is designed to transmit, to a remote Fire Class controller, digital signals which represent status of the carbon monoxide and heat elements of the detec

tor. Software within the controller is used to interpret the returned carbon monoxide and heat values to raise alarm or other appropriate response according to the type of detector configured in Fire Class Console.

801RIL - Remote LED Indicator

The 801RIL Remote Indicator is used where a detector LED is not visible ie, when the detector is mounted in a roof void, lift shaft etc.The 801RIL is mounted to a single gang electrical box and is supplied with 2 x M3.5 screws.

801HL - Remote LED Indicator

The 801HL Remote Indicator is used where a detector LED is not visible ie, when the detector is mounted in a roof void, lift shaft etc. The 801HL provides a larger indicator for use in place of the 801RIL when longer distances are involved or in VdS influenced markets. The 801HL can be mounted to any suitable flat surface and has fixing centres at 60 and 80mm.

HVR800-High Voltage Relay

The HVR800 High Voltage Relay Interface is a non-ad

dressable multi-voltage relay module (operating from 24V dc, 24V ac, 120V ac and 240V ac). The encapsulated HVR800 provides a 10 amp volt-free contact that can be used to extend the contact ratings of FC410RIM Addressable Relay Module applications. A maximum of four HVR800s can be individually driven and controlled by an FC410MIO Small Addressable Multi-Input/Output module if all HVR800s are powered by 120V ac or 240V ac. For ac operation, no external dc power supply unit is required to operate the relay. When used to switch 24V dc, the HVR800 must be pro

vided with an external 24V dc supply which should be switched through the clean relay contacts of an FC410MIO or FC410RIM.

ACCESSORY 65

MP69-Duct Probe Unit

The MP69 Duct Probe units are designed to be installed in air conditioning supply and exhaust ducts for the pur

pose of monitoring the airflow for smoke and combu

stion products. The Duct Probe Units are designed to accept and will operate satisfactorily with the 600 and FC400 Series detectors. The Duct Probe units are factory fitted with the FireClass Universal Base 5B.

FIRERAY 50/100-Optical Beam Smoke Detector

The Detector comprises a Transmitter and Receiver contained within one enclosure. The Transmitter emits an infrared light beam that is re

flected via a prism mounted directly opposite and with a clear line of sight. The reflected infrared light is detected by the Receiver and analysed. The Detector has a maximum lateral detection defined by the local National Standard. As a guide a common lateral distance of 7.5m will be used in this guide. Use the latest beam detector standards EN54 part 12, VdS2095 or BS5839 part 1 for further guidance. The optimal beam distance from the ceiling will be bet

ween 500mm and 600mm, again the Local National Standard will give guidance. range: Fireray100 = 50-100 meter

Fireray50 = 5-50 meter

Coverage area: Fireray100 = up to 1500 sqm.

Fireray50 = up to 750 sqm.

FC410LPSY and FC410LPAV loop powered sounders and sounder-beacons

The FC410LP Series of Loop Powered Addressable Sounder/ Sounder-Beacons are designed to be driven from an FireClass control panel via the addressable loop. The FC410LP Series of sounders/sounder bea

cons consist:

FC410LPSYR:Sounder (indoor use) - red housing FC410LPSYW:Sounder (indoor use) - white housing FC410LPSY:Sounder IP65 (outdoor use) - red housing FC410LPAVR:Sounder-Beacon (indoor use) - red hou

sing

FC410LPAVW:Sounder-Beacon (indoor use) - white housing FC410LPAV:Sounder-Beacon IP65 (outdoor use) - red housing The sounder has two volume settings ‘High’ (103 dB ±3) or ‘Low’ (90 dB ±3). The beacon has two flash rates ‘Slow Flash’ (1/2 Hz) or ‘Fast Flash’ (1 Hz). The FC410LP devices are synchronised, but not synchronous with other FireClass sounders (FC410SNM) and beacons (FC430SAB). The first flash of the beacon is synchronised with the start of the tone. The FC410LP devices have a built in two port isolator.

FC410LPBS-R/W loop powered sounders and sounder-beacons (EN54-23)

The FC410LPBS Series of Loop Powered Addressable Sounder/ Sounder-Beacons are designed to be driven from a FC501 control panel via the addressable loop. The FC410LPBS Series of sounders/sounder beacons consist:

FC410LPBS-R: Sounder (indoor use) - red housing FC410LPBS-W: Sounder (indoor use) - white housing FC410LPAV: Sounder-Beacon IP65 (outdoor use) - red

housing The sounder has two volume settings ‘High’ (103 dB ±3) or ‘Low’ (90 dB ±3). The beacon has two flash rates ‘Slow Flash’ (1/2 Hz) or ‘Fast Flash’ (1 Hz). The FC410LPBS devices are synchronised, but not synchronous with other FireClass sounders and beacons of the FC400 serie. The first flash of the beacon is synchronised with the start of the tone. The FC410LPBS devices have a built in two port isolator.

FC430LPSB and FC430LPASB Loop Powered Addressable Sounder/Beacon Base

The FC430LP Series of Loop Powered Addressable Soun

der/Sounder- Beacons are designed to be driven from an

66 Addressable Fire Panel FC501

FireClass Product

code (Current Dev.)

FireClass Device

name (Current Dev.)

Description

FireClass

Product code

(EN54-23 Dev.)

FireClass

Device name

(EN54-23 Dev.)

516.800.758 FC430LPASB

Loop Powered Beacon

Sounder Base

516.800.973 FC430LPBSB

516.800.763 FC410LPAVR

Loop Powered

Beacon/Sounder (indoor use)

red

516.800.970

FC410LPBS-R

516.800.764 FC410LPAVW

Loop Powered

Beacon/Sounder (indoor use)

white

516.800.971 FC410LPBS-W

516.800.766 FC410LPAV

Loop Powered

Beacon/Sounder IP65

(outdoor use)

516.800.972

FC410LPBS

FC501 control panel via the addressable loop. Tone, volume and flash rates are set in FireClass Console. The sounder has four volume settings ‘High’ (90dB ±3), ‘Mid High’ (80 ±3dB), ‘Mid Low’ (70 ±3dB)or ‘Low’ (60dB ±3). The beacon has two flash rates ‘Slow Flash’ (1/2Hz) or ‘Fast Flash’ (1Hz).The FC430LP Series have a built-in line isolator.

FC430LPBSB Loop Powered Addressable Sounder/Beacon Base (EN54-23)

The FC430LPBS Series of Loop Powered Addressable Sounder/Sounder- Beacons are designed to be driven from an FC501 control panel via the addressable loop. Tone, volume and flash rates are set in FireClass Console. The sounder has four volume settings ‘High’ (90dB ±3), ‘Mid High’ (80 ±3dB), ‘Mid Low’ (70 ±3dB)or ‘Low’ (60dB ±3). The beacon has two flash rates ‘Slow Flash’ (1/2Hz) or ‘Fast Flash’ (1Hz). The FC430LPBS Series have a built-in line isolator.

The table below, cross connect the managed devices in the current version and the new EN54-23.

It is possible to substitute old devices with corre

spondent new ones (EN54-23), keeping the same program data. When the old device is physically re

moved from the loop, the control panel will signal the "No answer" fault. When the new device with the same address is connected to the loop, the control panel will restore the "No answer" fault and automatically update its internal database with the new device type. It is not possible to substitute new devices (EN54-23) with old ones (they are not EN54-23 approved).

FC410SNM Sounder Notification Module

The FC410SNM Sounder Notification Module is desi

gned to provide an output, in response to a command signalled from a controller, to activate a number of pola

rised and suppressed sounders. The sounders are po

wered from an independent power supply and the module is capable of passing up to a maximum of 2A (eg, 24V dc 50mA company sounders or a mixture of different current rated sounders not exceeding a maxi

mum current of 2A).

The possibility of the configuration of extinction, al

though present in the FC410SNM module, is not available for FC501 control panel.

FC410TSM – door control module

The FC410TSM Door Control Module is designed to close a fire door in case of alarm or fault. The door is normally kept open by electromagnets. The door con

trol module disconnects the electromagnets from power supply in order to allow the door to close. The FC410TSM has a relay changeover output and a moni

tored input. The FC410TSM contains an integrated line isolator and self-monitoring circuits (monitoring of com

munication with a panel, loop power monitoring), which enables the fire door to be closed when communication with a panel is lost for longer than 45s (±5s) or the loop power drops below Umin=19V for more than 15s (± 5s). In addition, the FC410TSM monitors the external 24V supply.

FC410DDM – Universal fire and gas detector module

The FC410DDM provides the ability to connect and in

terface 2 zones of 20 V DC 2-wire conventional fire de

tectors, or two 4-20 mA signalling sensors, to the FireClass fire alarm controller. The FC410DDM moni

tors the status of the detectors and the wiring to the de

tectors and signals detector and wiring status back to the controller. The conventional detector circuits can be configured in one way: To monitor 1 or 2 Class B spur circuits The 4-20 mA signalling sensors may be one of two types:

Current sinking

Current sourcing.

FC410QIO Quad input output module

The module provides four monitored digital inputs and four potential free relay changeover outputs. The outputs are monitored with parallel contacts of the relays. The outputs can be connected to an Auxiliary Voltage source and its voltage can be monitored. Additionally, all the outputs can be connected to the HVR800, for switching high power galvanic isolated loads. For more details refer to the HVR800 documentation.The module has an integral loop isolator. If this activates a yellow LED illuminates. The activation remains in place until the short is removed. The digital input monitoring and isolator functions are both configurable. Maximum relay current: 2A. Maximum relay voltage: 30V.

FC410QRM Quad relay module

The module provides four voltage free relay changeo

ver outputs. The outputs are monitored, with parallel contacts of the relays. The outputs can be connected to an Auxiliary Voltage source and its voltage can be mo

nitored. Additionally, all the outputs are configurable to the HVR (High Voltage Relay) mode, which allows you to connect up to four HVR800 modules for switching; for example 240V loads galvanically isolated. The module has an integral loop isolator. If this activa

tes a yellow LED illuminates. The activation remains in place until the short is removed. Maximum relay current: 2A. Maximum relay voltage: 30V.

FC410QMO Quad Monitored Output Module

The module comprises of four relays with selectable wi

ring supervision.

The output wiring is monitored for any short or open cir

cuit. Spur and Loop configurations are supported.

ACCESSORY 67

The module has an integral loop isolator. If this activa

tes a yellow LED illuminates. The activation remains in place until the short is removed.

68 Addressable Fire Panel FC501

SPECIFICATIONS

This specifications is for installers with knowledge of the control panels, and fire control panels in general.

Technical features

Some of the technical features, regarding the terminals on the Main, are described in the following paragraph.

The following table shows the technical features of the Repeater FC500REP.

REPEATER FC500REP

Operating voltage 27.6Vdc Maximum current 80mA Temperature range -5 to +40° Storage Temperature -40 to +80 °C

Operating Humidity

Up to 95%

non-condensing

Dimensions (W*H*D) 390x215x50 mm Weight 2.05 Kg

Description of the terminals

The terminals of the Main board and Switching power supply, are described briefly in the Table 11: the standby (normal) status is the first, followed by the alarm status. Moreover, the Voltage present during the different operating conditions is indicated for each terminal, as well as the maximum current (in amps) that can circulate.

Notes (1) and (2) are valid for the table 10. Notes (3) and (4) are valid for the table:

" MAX WITHDRAWABLE CURRENT"

1) For the power supply of the external devices. (see table 11).

2) Connect a 3900 ohm resistor between the [+] and [-] terminals of the SC1, SC2 Outputs, if not used (see ta

ble 11).

3) The sum of the currents of SC1 and SC2 must not exceed 500 mA.

4) The sum of the currents of 24A and 24R must not ex

ceed 500 mA.

SPECIFICATIONS 69

Control Panel FC501-L/FC501-H/FC501-HK

Main voltage 230 V~ 50/60 Hz -15/+10%

Aux. Outputs Nominal Voltage

27.6V

Aux. Outputs Min. and Max. Voltage

19.0 ÷ 27.6V

Minimum output voltage

19.0Vdc ±5%

Max current drawn

0.5A (FC501-L)

0.9A (FC501-H/FC501-HK)

Ripple 1%

Maximum internal resistance of the battery and associated circuitry

Temperature range -5 to +40°C

Storage Temperature

-40 to +80°C

Operating Humidity Up to 95% non-condensing

Dimensions (W*H*D)

335*369*115 mm

Weight 3Kg(without batteries)

Table 10 FC501 Technical features

Table of distribution of currents

70 Addressable Fire Panel FC501

FC501-H/FC501-HK CONTROL PANEL

SWITCHING POWER SUPPLY BAQ60T24 (Imax=2500mA)

12 Ah BATTERY

load 80% in 24h

= (12x0.8)/24=400mA -> 400mA

for panel

= 2500-400=2100mA

Panel load distribution

electronic

=175mA

total

LOOPs @40V

(*)

= 400mA à 625mA @Vbattery

total

OUTPUTS

(*)

= 1150mA

FC500IP

= 100mA

(**)

residual

= 50mA

38Ah BATTERY

load 80% in 24h

= (38x0.8)/24=1267mA -> 1300mA

for panel

= 2500-1300=1200mA

Panel load distribution

electronic

=175mA

total

LOOPs @40V

(*)

= 200mA à 313mA @Vbattery

total

OUTPUTS

(*)

= 450mA

FC500IP

= 100mA

(**)

residual

= 163mA

NOTE: (*)I

total

LOOPs is the sum of the currents absorbed on the three loops;

total

OUTPUTS is the sum of the currents drawn by the terminals SC1, SC2, 24A, 24R, 24V-RS485. If the FC500IP module will not be used, the relative amount of current (100mA) can be taken from the SC1,SC2,24A, 24R, 24V-RS485 terminals.

The notes and the table "Max withdrawable current" apply to the two models of control Panels.

MAX WITHDRAWABLE CURRENT

TERMINALS max Current

SC1 500mA SC2 500mA

24A 500mA 24R 500mA

24V-RS485 500mA

FC501-L CONTROL PANEL

SWITCHING POWER SUPPLY BAQ35T24 (Imax=1500mA)

7 Ah BATTERY

Load 80% in 24h

= (7x0.8)/24=233mA -> 250mA

for panel

= 1500-250=1250mA

Panel load distribution

electronic

=175mA

total

LOOPs @40V

(*)

= 200mA à 313mA @Vbattery

total

OUTPUTS

(*)

= 550mA

FC500IP

= 100mA

(**)

residual

= 113mA

12Ah BATTERY

load 80% in 24h

= (12x0.8)/24=400mA -> 400mA

for panel

= 1500-400=1100mA

Panel load distribution

electronic

=175mA

total

LOOPs @40V

(*)

= 200mA à 313mA @Vbattery

total

OUTPUTS

(*)

= 450mA

FC500IP

= 100mA

(**)

residual

= 63mA

SPECIFICATIONS 71

TERM. DESCRIPTION v(V) i(A)

MAIN BOARDS

+L1-

LEFT

(+)Loop 1-Positive signal, left side.

(-)Loop 1-Negative signal (return), left side

——

+L1-

RIGHT

(+)Loop 1-Positive signal, right side.

(-)Loop 1-Negative signal (return), right side

——

+L2-

LEFT

(+)Loop 2-Positive signal, left side.

(-)Loop 2-Negative signal (return), left side.

——

+L2-

RIGHT

(+)Loop 2-Positive signal, right side.

(-)Loop 2-Negative signal (return), right side.

——

+L3-

LEFT

(+)Loop 3-Positive signal, left side.

(-)Loop 3-Negative signal (return), left side.

+L3-

RIGHT

(+)Loop 3-Positive signal, right side.

(-)Loop 3-Negative signal (return), right side.

SH Terminal for connection of the shield of cables

+RS485- SERIAL BUS. Terminals to connect the FC500REP and FC500MFI modules — —

[M]

[24R]

24 V RESET ABLE AUXILIARY POWER SUPPLY:

negative present on terminal [M];

positive present on terminal [24R].

27.600.5(1) —

[M]

[24A]

24 V AUXILIARY POWER SUPPLY:

negative present on terminal [M];

positive present on terminal [24A].

27.600.5(1) —

[LE]

[LI]

[-]

Terminal for connection of the external telephone line

Terminal for connection of the internal telephone line

Terminal for connection of the Earth cable

[NC] [NO]

[C]

FIRE

FIRE ALARM OUTPUT - Non-Supervised:

standby è [C] connected to [NC] with [NO] open

;

in the event of ALARM è [C] connected to [NO] with [NC] open — —

[NC] [NO]

[C]

FAULT

FAULT ALARM OUTPUT - Non-Supervised:

standby è [C] connected to [NC] with [NO] open

in the event of fault è [C] connected to [NO] with [NC] open — —

+BAT- BATTERY CONTROL PANEL POWER SUPPLY 27.6

[OC1]...

[OC2]

Programmable Outputs(Open collector)- Silenceable-Bypassable

(Disabled)-Supervised

(The polarity is not programmable)

27.6

[MIK]

[SPK]

[BLK]

[RED]

FUTURE USE

[SC1] [SC2]

(Programmable, SC2 only),Supervised, Silenceable, Bypassable (Disabled) ALARM Outputs:

Panel in Standby è negative on [+] terminal; positive 27.6V on [–] terminal

Panel in Alarm è positive 27.6V on [+] terminal; negative 0 V on [–] terminal —

(2)

Table 11 Terminals description

via Gabbiano 22, Z. Ind. S. Scolastica 64013 Corropoli (TE), Italy

Hillcrest Business Park Cinderbank Dudley West Midlands DY2 9AP United Kingdom

www.fireclass.net ISTISFKEFC501 3.0 070114 V10

FireClass FC501 Installation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
