Page 1
FireClass 500
www.fireclass.net
FIRECLASS
Addressable Fire
Control Panels
Installer Manual
Page 2
This Fire Control panel can be programmed only using
the Software FireClass500 Console release 2.0 or hi
gher.
Control panel FW ver. 2.0 or higher.
TYCO shall not assume the responsibility for damage ari
sing from improper application or use. This Fire Control
panel has been designed and manufactured to the hi
ghest standards of quality and performance.
Installation of this Control panel must be carried out
strictly in accordance with the instructions described in
this manual, and in compliance with the local laws and
bylaws in force
The FC510 and FC520 Fire Control panels comply with
the essential requirements of standards EN54-2;
EN54-4.
Recycling information
The manufacter recommends that customers dispose of their used equip-
ments (panels, detectors, sirens, and other devices) in an environmentally
sound manner. Potential methods include reuse of parts or whole pro-
ducts and recycling of products, components, and/or materials.
Waste Electrical and Electronic Equipment (WEEE) Directive
In the European Union, this label indicates that this product
should NOT be disposed of with household waste. It should be depo-
sited at an appropriate facility to enable recovery and recycling.
NOTE- The series FC500 Fire control panel can support several ad-
dressable devices (Detectors, Modules, Manual call Points, etc). The
present manual includes the instructions for their programming, but
for further informations on those devices and their accessories, plea-
se visits: www.fireclass.net.
The manufacter reserves the right to change the technical specifications of these products without prior notice.
0051
Tyco Fire & Security GmbH
Victor von Bruns-Strasse 21
8212 Neuhausen am Rheinfall
Switzerland
09
DoP-2015-4178
(FC500PSTN in FC510/FC520)
EN 54-21
Alarm transmission and fault warning routingequipment forfire alarm
systems installed in buildings.
EN 54-21 ESSENTIAL CHARACTERISTICS
Performance of transmission Passed
Operational reliability Passed
Durability of operational reliability, Temperature resistance Passed
Durability of operational reliability, Vibration resistance Passed
Durability of operational reliability, Electrical stability Passed
Durability of operational reliability, humidity resistance Passed
0051
Tyco Fire & Security GmbH
Victor von Bruns-Strasse 21
8212 Neuhausen am Rheinfall
Switzerland
09
DoP-2015-4212 (FC510)
DoP-2015-4213 (FC520)
EN 54-2:1997+A1:2006 EN54-4: 1997+A1:2002+A2:2006
Control and indicating equipment with integrated power supply
equipment for fire detection and fire alarm systems for buildings.
EXPECTED OPTIONS
Fault signals from points
Dependencies on more than one alarm signal: type A and B
Delays to outputs
Disablement of addressable point
Test condition
Output to fire alarm device
EN 54-2 ESSENTIAL CHARACTERISTICS
Performance under fire conditions Passed
Response delay (response time to fire) Passed
Operational reliability Passed
Durability of operational reliability, Temperature resistance Passed
Durability of operational reliability, Vibration resistance Passed
Durability of operational reliability, Electrical stability Passed
Durability of operational reliability, humidity resistance Passed
EN 54-4 ESSENTIAL CHARACTERISTICS
Performance of power supply Passed
Operational reliability Passed
Durability of operational reliability, Temperature resistance Passed
Durability of operational reliability, Vibration resistance Passed
Durability of operational reliability, Electrical stability Passed
Durability of operational reliability, humidity resistance Passed
0051
Tyco Fire & Security GmbH
Victor von Bruns-Strasse 21
8212 Neuhausen am Rheinfall
Switzerland
12
DoP-2015- 4179
(FC500IP in FC510/FC520)
EN 54-21
Alarm transmission and fault warning routingequipment forfire alarm
systems installed in buildings.
EN 54-21 ESSENTIAL CHARACTERISTICS
Performance of transmission Passed
Operational reliability Passed
Durability of operational reliability, Temperature resistance Passed
Durability of operational reliability, Vibration resistance Passed
Durability of operational reliability, Electrical stability Passed
Durability of operational reliability, humidity resistance Passed
The Declaration of Performance (DoP) can be found on
the product webpage at: www.fireclass.net
.
Page 3
TABLE of CONTENTS
INTRODUCTION 5
FC500 Fire Contro Panel 5
Accessory Items 5
Description 5
Input 5
Outputs 5
Operating Features 6
Interface 8
Access to Signalling and Commands 8
Power Supply 8
PARTS IDENTIFICATION 9
The status LED 9
Description of Parts 14
LEDs and KEYs Labels 17
Description of the Control keys 18
INSTALLATION 19
Installing accessory boards 19
Installing the Control panel 19
Installing FC500REP Repeaters 19
Installing the FC500PS e FC500IP board 19
Installing the FC500 Slave control panel 19
Description of the Terminals 20
Main Board terminals 20
The System Wiring 21

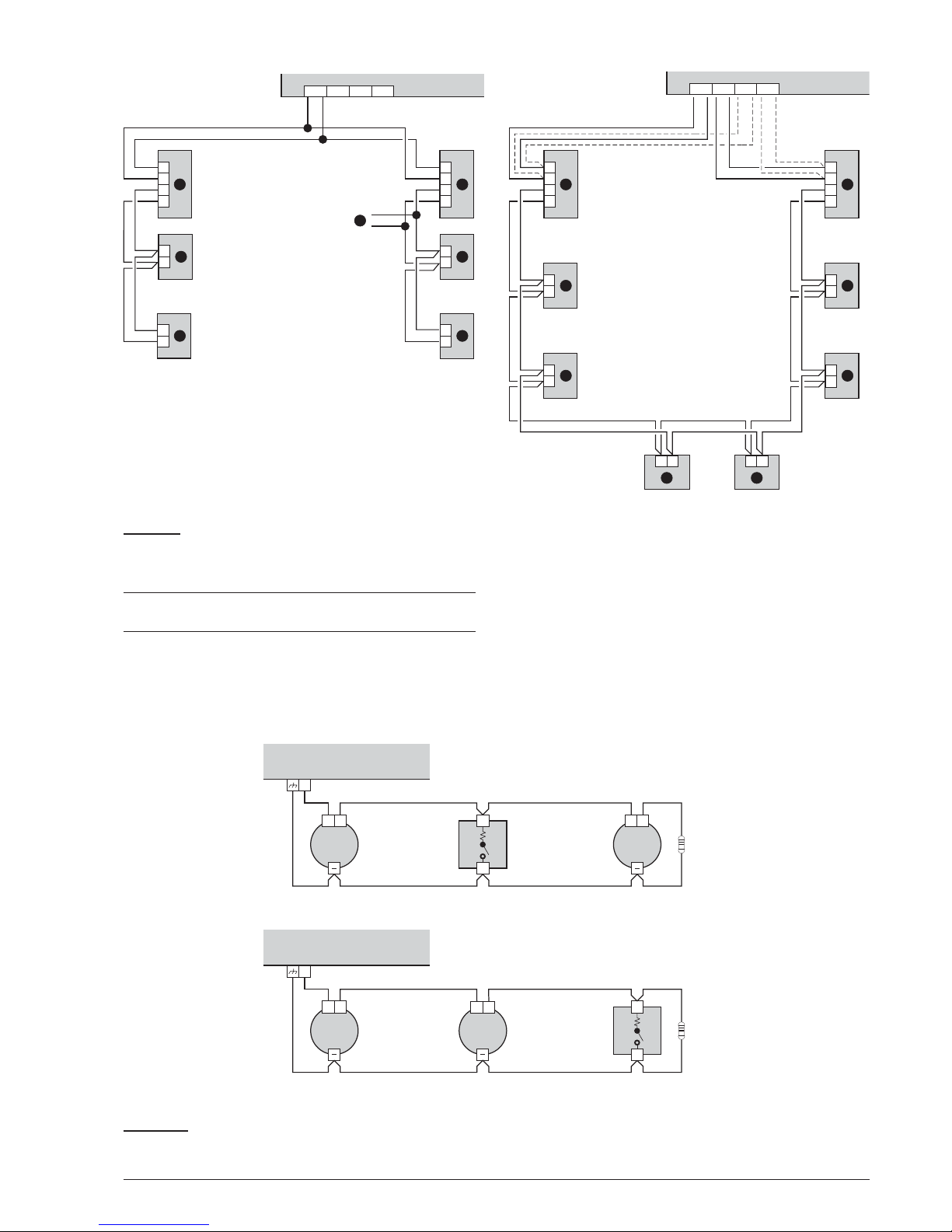

Connecting Addressable Analogue Devices 21
Connecting Conventional Devices 22

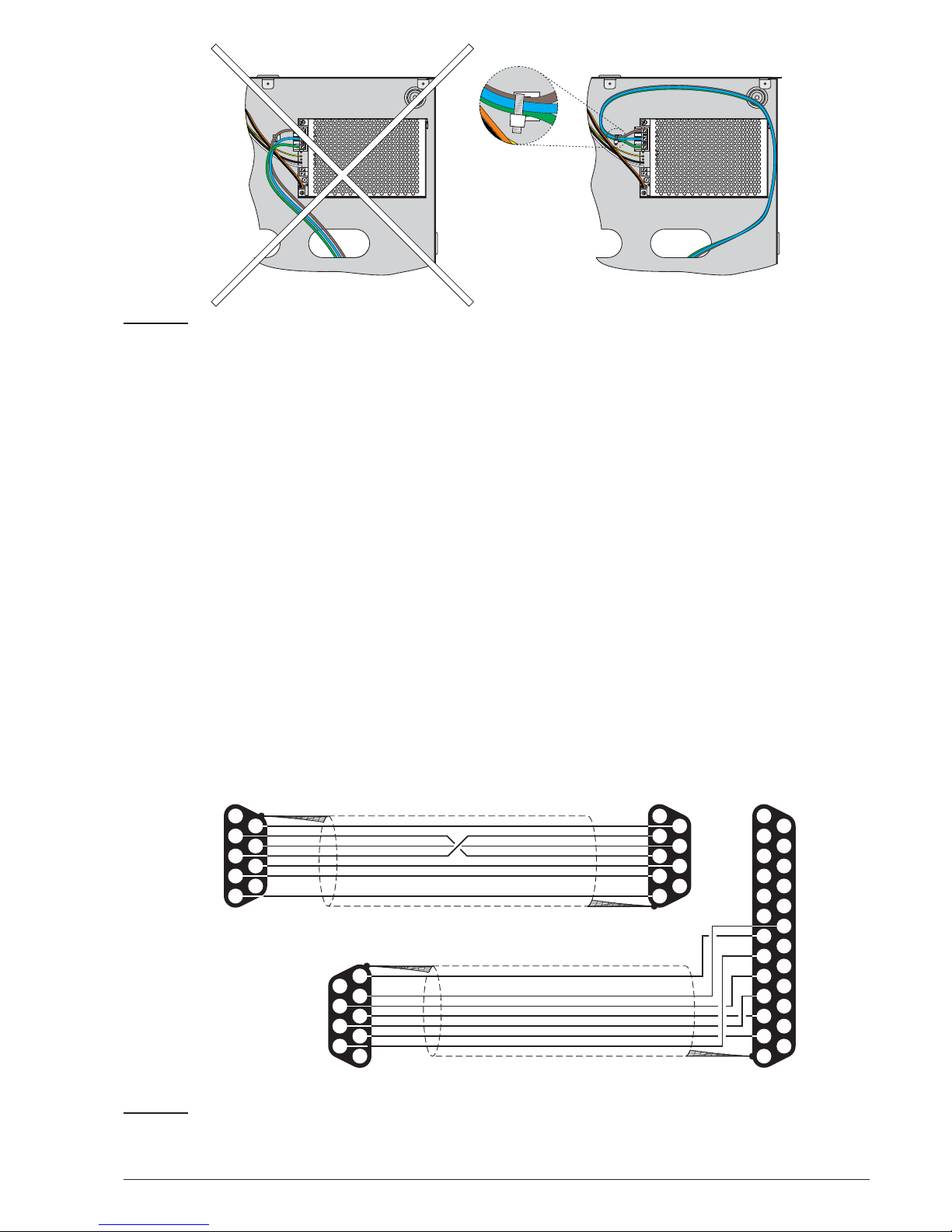

Connecting Repeater and Slave Control panel
23
Connecting Output Devices 23
Bell Outputs 23

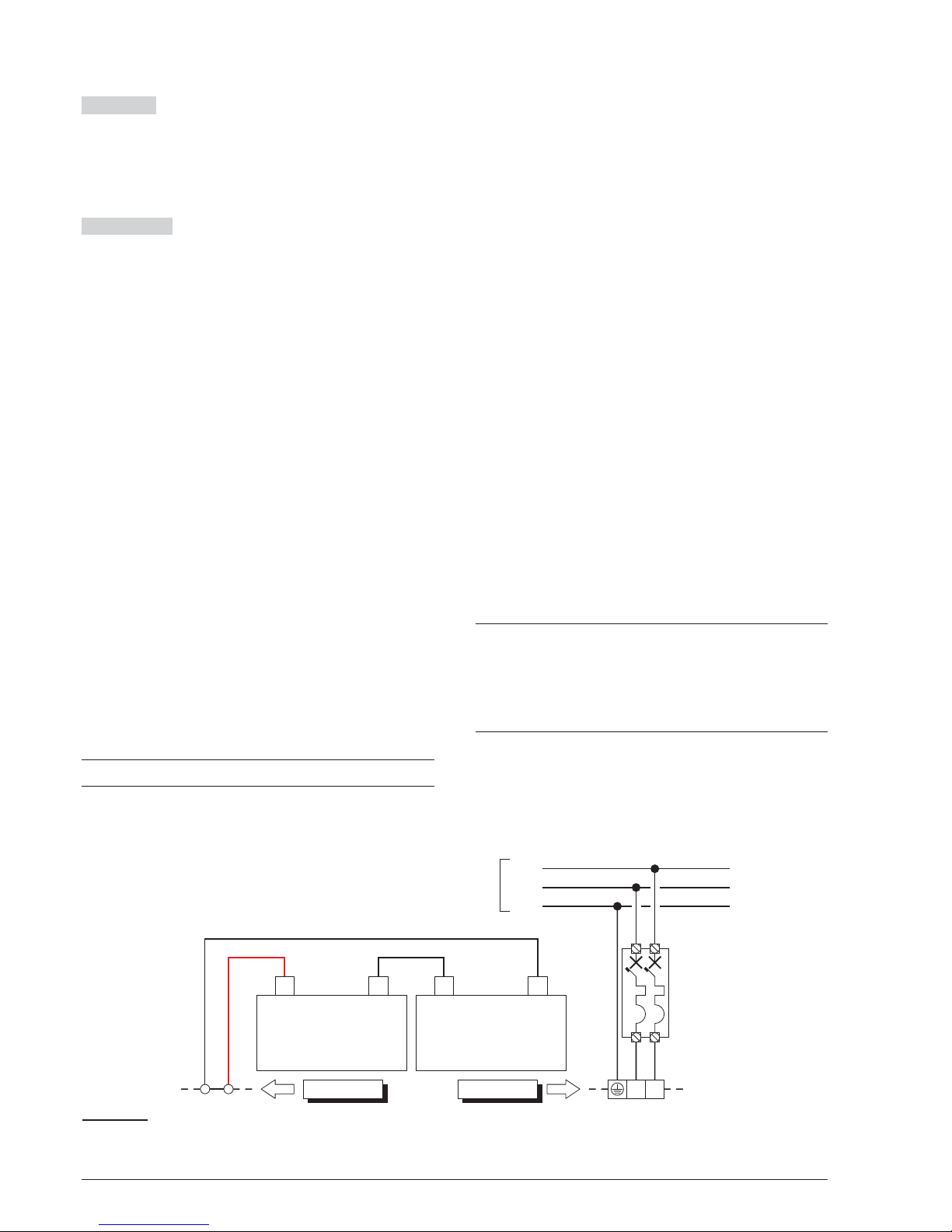

Connecting a Power Supply 24
Thermal Probe 25
Installing the 38Ah battery metal Box 27
Maintenance 27
PC PROGRAMMING 29
Introduction 29
Installation 29
Select language 29

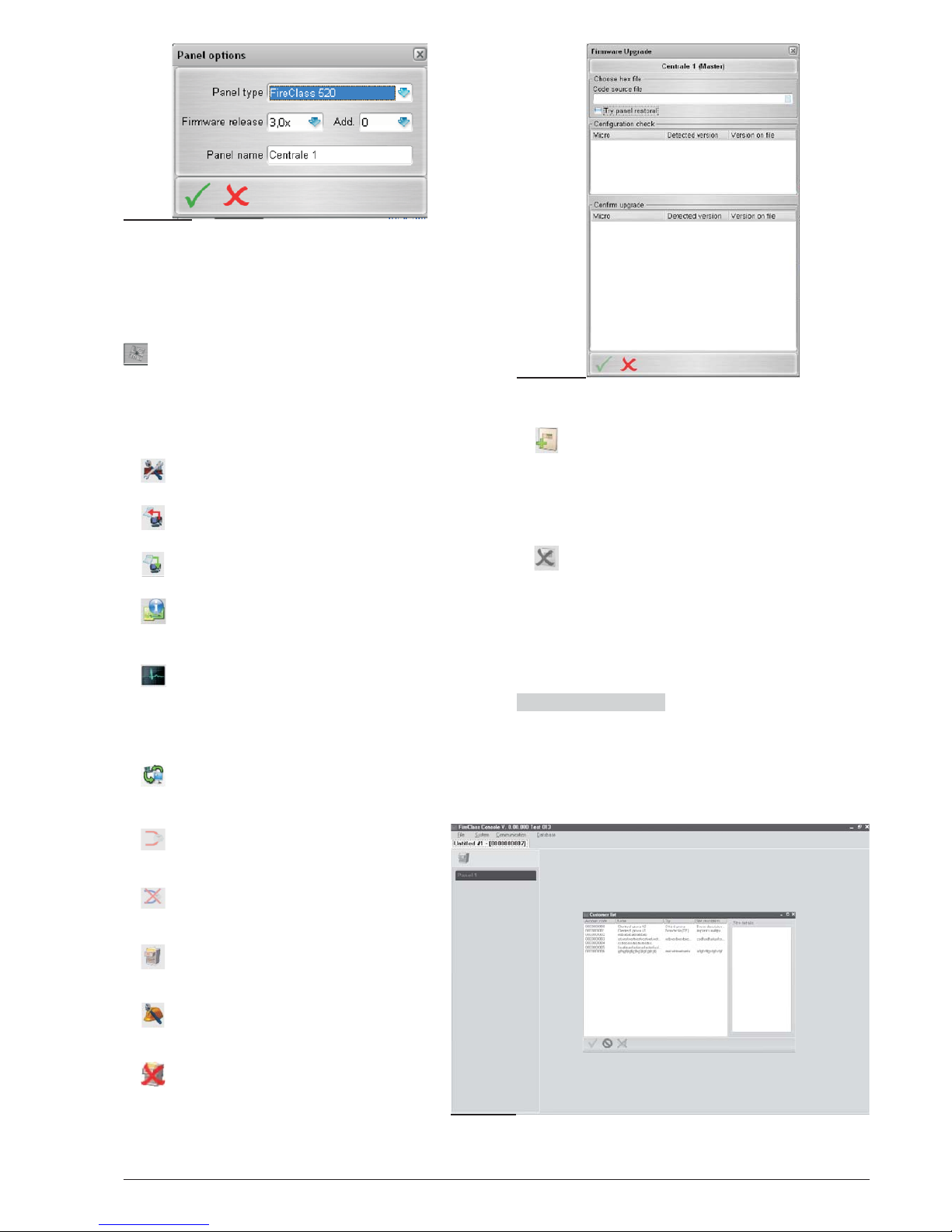

Software window Look 29
Control panel connections 29
Main window 29
Icons description 30
File 30
Communication 31
Options 31
Database 31
Mode setup 31
Help 31
Devices programming 31
Description of the icons in the tool bar. 31
Parameters detectors programming 32
Input modules programming 33
Output modules programming 33
Multiple Input-Output Module - Programming
Parameters (FC410MIO) 33
Manual Call Point programming parameters 34
Zones programming 34
Outputs Programming 34
NAC1, NAC2 and NAC3 Outputs 34
OS1....OS8 Outputs 35
O9....O16 Outputs 35
General Options programming 35
PSTN interface 36
IP interface 37
CLOCK 37
LOG 37
Battery Calculation 37
Loop Wiring calculation 37
User mode 40
Page 4
PROGRAMMING FROM THE PANEL 41
Using the system 41
L1= First Level: this level allows the Reading
Parameters ONLY: 41
L2= Second Level or USER Level: access to this
level requires entry of the USER PIN (Access Level
2).41
L3= Third Level or INSTALLER Level: access to
this level requires entry of the INSTALLER PIN
(Access Level 3). 41
Operating the system 41
Main Page - Accessing the system 42
Insert password 43
Programming Page 44
1 KEY- Auto Enrolling (Autolearning 44
Warning Enrolling (Autolearning) 44
0 KEY - insert-Modify password 45
9 KEY- Restore Default 46
KEY 2 -Device 46
KEY 3- SW zone 47
Detector alarm verification (Smoke delay) 47
4 KEY- OUTPUT 48
Choose Output 48
NAC active on disablements 48
5 Key- Network 49
FC500-MFI programming Procedure 49
KEY 6-TELECOM 50
KEY 7-OPTIONS 50
KEY 8-SYSTEM 51
FC500REP Repeater Address
from the Repeater panel ONLY 51
NETWORK Configuration 51
QUICK START-UP PROCEDURE 52
PROCEDURE 52
Detectors 52
Modules 52
Zones 53
Panel outputs 53
Conventional zone 53
Panel general option 53
ACCESSORY 54
FC500IP - IP Module 54
FC500PSTN - Telecom Module 54
4B - Universal Base 54
FC400H or FC460H - Addressable Heat Detector 54
FC400P or FC460P - Addressable Optical
Smoke 54
FC400PH or FC460PH - Addressable Optical
Smoke & Heat Detector 54
FC410LI - Line Isolator Module 55
FC410MIM - Mini Input Module 55
FC410MIO - Small Addressable Multi I/0 Module 55
FC410SIO - Single Input/Output Module 55
FC420CP - Addressable Break Glass Callpoint
(indoor) 55
FC421CP - Addressable Break Glass Callpoint
(outdoor) 55
FC430SAB/SAM - Sounder Base Address
Modules 55
FC430SB - Loop Low Power Sounder Base 55
4B-I - Isolator Base 56
FC490ST - Loop Service Tool 56
FC410BDM - Beam Detector Module 56
FC410CIM - Contact Input Module 56
FC410DIM - Detector Input Module 56
FC410RIM - Relay Interface Module 56
FC400CH - Addressable Carbon Monoxide + Heat
Detector 56
801RIL - Remote LED Indicator 56
801HL - Remote LED Indicator 56
HVR800-High Voltage Relay 56
MP69-Duct Probe Unit 57
FIRERAY 50-Optical Beam Smoke Detector 57
FC410LPSY and FC410LPAV loop powered
sounders and sounder-beacons
57
FC430LPSB and FC430LPASB Loop Powered
Addressable Sounder/Beacon Base 57
FC410SNM Sounder Notification Module 57
FC410TSM – door control module 57
FC410DDM – Universal fire and gas detector
module 57
FC410QIO Quad input output module 58
FC410QRM Quad relay module 58
FC410LPBS-R/W loop powered sounders and
sounder-beacons (EN54-23)
58
FC430LPBSB Loop Powered Addressable
Sounder/Beacon Base (EN54-23) 58
QUICK GUIDE 59
Technical features 59
Description of the terminals 59
Page 5
INTRODUCTION
FC500 Fire Contro Panel
In this manual we will use the term FC500 control panel
to indicate the common features of Fire control panel.
Otherwise we will use the specific terms.
FC500 Fire control panel is avalaible in the following
models:
Ø
FC510 - Analogue addressable Fire Control Panel
with one not expandable Loop and with Switching
Power supply 5,5 A;
Ø
FC520 - Analogue addressable Fire Control Panel
with two not expandable Loops and with Switching
Power supply 5,5 A;
+
The components of these Control panels operate
as intended when the external ambient conditions
comply with the requirements of class EN
60721-3-3:1995.
The Loops of FC500 control panel provide the following features:
Ø max 250 analogue devices.
Ø The conventional line of the FC500 contro Panel can
support up to 30 devices.
In any case, FC500 Fire control panel cannot support more than 2000 devices (500 devices for every
couple of Loop) (up to 2000 m (Loop) with shielded
cable 2x2.5).
The FC500 control panel must be powered by
BAQ140T24 (27,6 V - 5,5 A ) switching power supply.
Moreover all FC500 models provide housing for an LCD
module with 40 characters for line and 4 lines backlit,
which provides written information regarding the
system status and for programming the control panel.
n
Accessory Items
FC500REP
This Repeater panel is intended for con
-
nection (via 4 wires) to FC500 Control panels. It provi
des all the visual and audible warnings generated by
the Control panel and allows end-users to manage the
system from a remote location (up to 1000 m, with dou
ble twist shielded cable).
The FC500 "Master" Control panels can support up to
(8) eight FC500REP Repeater panels.
FC500 Slave
The FC500 "Master" Control panels can
support up to (7) seven FC500 Slave Control panels.
These Control Panels can be used to expand the
FC500 system, in modular way.
Software
FireClass500 Console This user-friendly
software application (Windows) offers a quick and easy
way to program the Control panel and provides event
log functions.
Description
n Input
250 devices max every Loop
30 devices max on the conventional line
n
Outputs
This section describes how the Control panel outputs
operate.
Supervised outputs The Control panel will be able to
detect and signal short-circuits and power supply inter
-
ruptions on this type of output.
Bypassable(Disabled) outputs The user will be able
to disable (by means of the respective key) this type of
output.
Silenceable outputs The user will be able to stop (via
the Silence key) this type of output.
The outputs can be silenced for an indefinite period (du
ring Day Mode), or for the programmed Silence Time
(during Night Mode).
INTRODUCTION 5
Page 6
n
Operating Features
Warning The FC500 control panel can be program
-
med to provide WARNINGS or PREALARMS status be
fore ALARM status.
This status will be signalled by the WARNING display.
The panel will generate a warning when an input point
(detector) exceeds its warning threshold and there is
risk of an alarm.
-WARNING STATUS will be signalled by:
Ø
a screen on LCD display
Ø
the WARNING output points if the Pre-alarm option
is enabled;
Pre-alarm If a zone generates an alarm during Day
Mode, the Control panel will start the Pre-alarm Time.
This status will be signalled by:
Ø
a slow intermittent beep;
Ø
glowing on the Pre-al. LED;
Ø
a screen on LCD display
Ø
Activation of respective outputs , if the Pre-alarm
option is enabled;
+
This Control panel will generate an Instant Alarm if
alarm conditions are detected during Night Mode
or if an alarm is triggered from a Callpoint.
During Pre-alarm status, you will be able to:
Ø activate an Evacuation Alarm by pressing and hol-
ding the Evacuate Key (Access Level 1 — refer to
“Access to signalling and commands”),
Ø stop the Silenceable outputs and interrupt the
Pre-alarm Time by pressing the Silence key
(Access Level 2).
During Silence status (Silence LED glowing), it is possible to use the Silence key to release the Silenceable
outputs, or use the Reset key to restore standby status.
+
If the Control panel is operating in Night Mode, the
Control panel will exit Silence status automatically
when the programmed Night mode Silence time
expires.
Alarm The Control panel will generate an alarm when
the Pre-Alarm Time expires. Alarm status will be signalled
by:
Ø
a fast intermittent beep;
Ø
glowing on the Alarm LEDs;
Ø
a screen on LCD display;
Ø
activation of the NAC FIRE output;
Ø
activation of the FIRE outputs;
Ø
activation of other programmed outputs
During Alarm status, PIN Code users (Access Level 2 —
refer to “Access to signalling and commands”) will be
able to:
Ø
stop the Silenceable outputs by pressing the Silence key.
During Silence status (Silence LED glowing), it is pos
sible to use the Silence key to release the Silenceable
outputs, and the Reset key to restore standby status.
+
If the Control panel is in Night Mode (Day Mode
LED OFF), the Control panel will exit Silence sta
-
tus when the programmed Night mode Silence
time expires
Day/Night Mode The control panel can operate in
DAY or NIGHT Mode. See "PC PROGRAMMING"
chapter.
If the system is silenced during DAY Mode, SILENCE
status will be held until the system is unsilenced (i.e. un
less new alarms). If the system is silenced during
NIGHT Mode, SILENCE status will be held until the
Night Mode Silence time expires.
On power up (at default) the system will set to DAY
Mode. During this operating mode, silenced alarms/fa
ults will not be unsilenced automatically until the Night
Mode Silence time expires.
Fault This Control panel can detect and signal the
Faults shown in the Table n.1:
Fault conditions will be signalled by:
Ø
a slow intermittent beep (at 1 second intervals);
Ø glowing on the Fault LED and on relative Fault LED;
Ø a screen on LCD display;
Ø activation of the Fault output;
Ø activation of other programmed outputs;
Ø slow blinking on the Fault LED.
The Fault output and other outputs (if duly programmed by your Installer) will restore to standby automatically when fault conditions clear.
Under certain circumstances, fault conditions may clear
spontaneously, if this occurs, the event will be stored in
the memory until the Control panel Resets.
Stored Fault events will be signalled by:
Ø
slow blinking on the Fault LED.
6 Addressable Fire Control Panels FC500
Page 7
Silence
This Control panel provides a Silence key
which can be used to restore the Silenceable outputs to
standby status.
Silence status will be signalled by:
Ø
glowing on the Silence LED.
Silence status will be held until the Silence key is pres
sed again or, if the Control panel is operating in Night
Mode, until the programmed Night mode Silence time
expires, or until a new Alarm condition is detected.
+
Only when the control panel is at Level 2 or at Le
-
vel 3 can SILENCE the Silenceable outputs.
INTRODUCTION 7
Switching 1 Switching 1 Fault
Switching 2 Switching 2 Fault
Mains fault
T
he Control panel is NOT
powered from the Mains
Battery
The Control panel batteries
charger not working properly
Low battery
The Control panel batteries are
empty
Earth Leakage to Earth
24A Output 24A Output is shorted
24R Output 24R Output is shorted
Conv. zone open
Conventional zone (LC terminal )
open
Conv. zone short
Conventional zone (LC terminal)
is shorted
Flash writing Flash writing error
Flash erasing LOG erasing error
Main controller Main controller fault
Firmware main contr. Checksun fault
Prog.data main cont
Data programming Checksun
fault
Firmware Display Display Checksun fault
Loop Communication
Communication Loop fault
controller
Loop return open Loop negative signal open
Loop signal open Loop positive signal open
Loop local short Local short on Loop controller
Loop right short Right side Loop short
Loop left short Left side Loop short
Non answer Loop device does'nt answer
Dirty level
(Smoke detector ONLY) the dirty
threshold has been exceeded
Short circuit Short circuit on Input module
Open circuit Open circuit on Input module
Power supply Main fault
Wrong value A Loop device has a wrong value
Stuck output
An Output module relais is not
switched
Same address
Loop several devices have the
same address
Display communic.
Communication fault on Display
controller
LOG Full LOG fault
LOG not valid LOG contents not valid
OS1 Open
OS1 terminal (Supervised output)
open
OS2 Open "
OS3 Open "
OS4 open "
OS5 open "
OS6 open "
OS7 open "
OS8 open "
OS1 short
OS1 terminal is shorted
OS2 short "
Table 1 Faults table (Continued..)
OS3 short "
OS4 short "
OS5 short "
OS6 short "
OS7 short "
OS8 short "
TRANSISTOR OS1
OS1 Transistor fault
TRANSISTOR OS2 "
TRANSISTOR OS3 "
TRANSISTOR OS4 "
TRANSISTOR OS5 "
TRANSISTOR OS6 "
TRANSISTOR OS7 "
TRANSISTOR OS8 "
NAC FIRE short
NAC Fire terminal is shorted
NAC 1 short "
NAC 2 short "
NAC 3 short "
NAC FIRE open
NAC FIRE terminal is open
NAC 1open NAC1 terminal is open
NAC 2open "
NAC 3open
"
Transistor NAC FIRE NAC FIRE transistor fault
Transistor NAC 1 NAC 1 transistor fault
Transistor NAC 2 "
Transistor NAC 3 "
Device not
programmed
Device on the loop without
address
Incorrect type
Device on the loop different from the
one programmed in the control unit
Noisy loop
The devices on the loop are not
communicating correctly with the control
unit (check the quality of the wiring)
Control unit transm.
A 485 control unit is not
responding
Repeater transm,. A 485 repeater is not responding
Control panel Fault A 485 control panel has a fault
Prog. data Controller
An error has been detected in the
Controller programming Data
Table 1 Faults Table
Page 8
Disabled This Control panel can disable:
the devices on the Loop (input and Output devices),
the bell outputs, the software zones;
the network devices (Repeaters or Slave control pa
-
nels).
DISABLED zones cannot generate alarms or warnings
of any kind, and DISABLED outputs cannot be activa
-
ted.
Disabled status will be signalled by:
Ø
glowing on the Disabled LED;
+
Only when the control panel is at Level 2 or at Le
-
vel 3 can DISABLE zones and/or outputs.
Reset Resetting the Control panel will restore the out
puts to standby status, clear the memory, and interrupt
the power supply to terminals 24R.
+
Only when the control panel is at Level 2 or at Le
-
vel 3 can Reset the system.
n
Interface
Visual Signalling The system status will be signalled
on the Control panel LEDs as follows:
GREEN indicates normal operating conditions;
AMBER indicates specific operating modes (for exam-
ple Day or Night mode), and/or Fault conditions;
RED indicates Alarm conditions.
Memory The Control panel will signal Fault events
(FAULT LED blinking) until the system Resets, even if
the event clears in the meantime.
Audible Signalling The Buzzer will signal the Control
panel status as follows:
Test
LAMP-BUZZ-TEST key will allow ALL users to test
the Control panel Buzzer and LEDs.
n
Access to Signalling and Commands
There are 4 access levels, in compliance with the Fire
Safety Regulations in force.
Access Level1 (L1)
Viewing: ALL persons can view
the Control panel status (No password requested).
Access Level 2 (L2) Operating the system (PIN Code
entered): PIN Code Users can operate the system.
(User level)
Access Level 3 (L3) Programming and Opening the
Control panel (PIN Code entered): ONLY Qualified
persons with authorization are allowed to open the
Control panel door (requires removal of the screws) for
maintenance purposes or replace batteries. (Installer
Level).
Access Level 4 Repairing or replacing the PCB:
ONLY the Manufacturer should be allowed to repair or
replace the PCB, (requires removal of the screws).
n
Power Supply
The power supply system of the FC500 Control panels
complies with EN54-4.
All models are powered by the Mains (110/230 V~,
60/50 Hz):
Ø
the FC510 model has Switching Power Supply which
supplies up to 5.5 A at 27.6 V;
Ø
the FC520 model has Switching Power Supply which
supplies up to 5.5 A at 27.6 V;
All models can house two 12 V batteries which, when
connected in series, will supply 24 V to the Control pa
nel and peripherals in the event of black-out, and will
also provide any pickup currents which exceed the maximum current supplied by the Switching Power Supply.
The FC510 and FC520 model can house two 12V 17 Ah
batteries (YUASA NP 17-12 FR model or similar — flame
class UL94-V2 or higher).
+

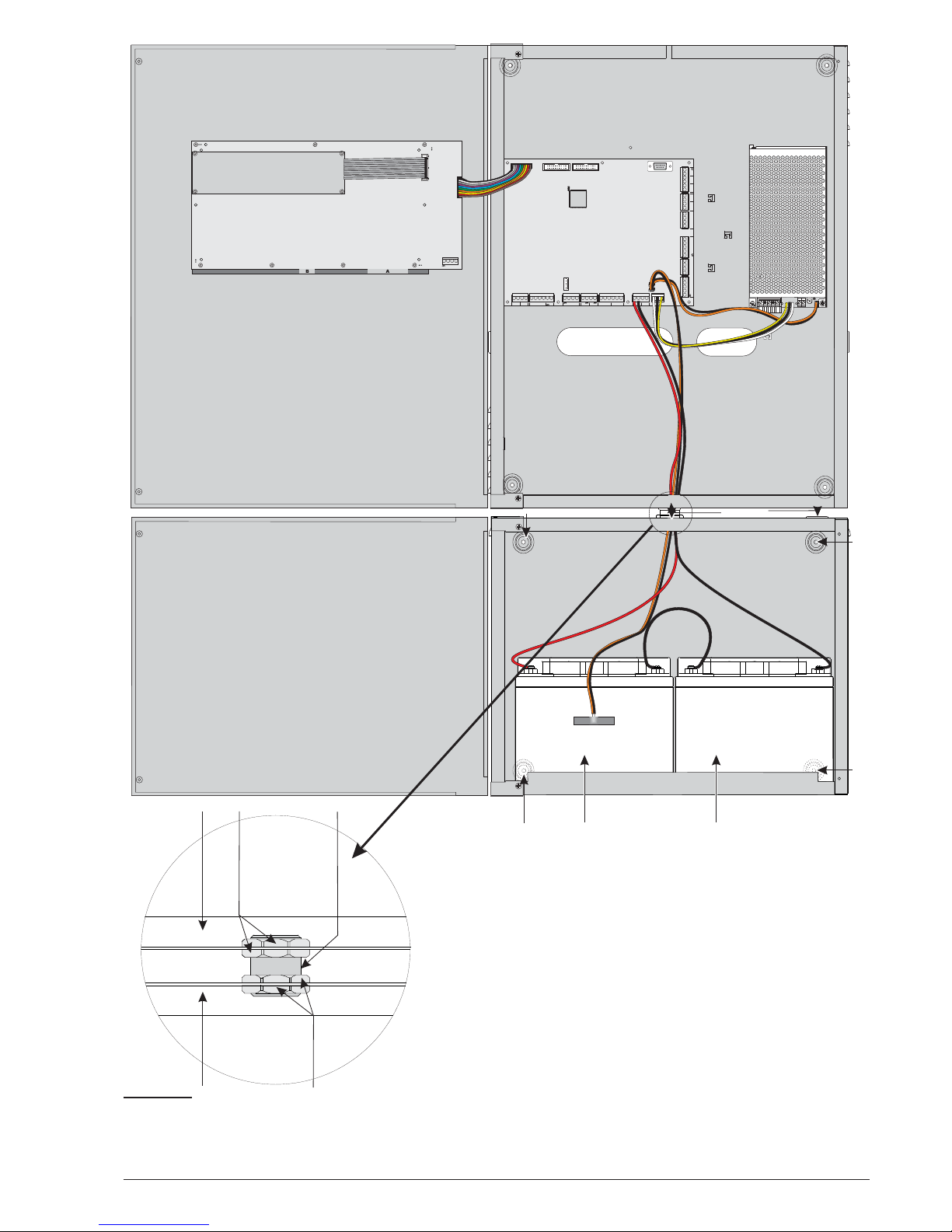

If necessary, (Full configured Loop or for particular
requirements of the system) FC510 or FC520 control panel model can be connected to two 12V
38 Ah batteries in an external metal box (see Figu
-
re 16).
This Control panel can detect, signal and store in memory
the following power faults: shorted 24V or 24R outputs;
Low battery, Battery fault or Battery disconnected (Low
Battery LED and No Battery LED), Ground fault (Earth
LED) and Mains failure (Mains LED).
+
The “No Battery or Low Battery” fault may be si
-
gnalled with a delay up to 1 minute. The “Mains”
(Amber) fault will be signalled when the program
-
med delay expires.
8 Addressable Fire Control Panels FC500
Status Sound Pause Description
Warning 2 s 2 s Slow Intermittent Beep
Prealarm 0,5 s 0,5 s Intermittent beep
Alarm 0,2 s 0,2 s Fast Intermittent Beep
Fault 1 s 1 s Slow Intermittent Beep
Reset no sounds
Test no sounds
Table 2 Buzzer signalling
Page 9
PARTS IDENTIFICATION
The status LED
The following section describes how the Control panel
LEDs operate. During standby status, ONLY the
GREEN Mains LED and the Day mode LED (if the con
-
trol panel is in Day mode) should be On (glowing) .
+
ONLY the two FAULT LEDs slow blinking indi
-
cate a FAULT event in memory.
PARTS IDENTIFICATION 9
LEDs DESCRIPTION
FIRE Glowing indicates Alarm status. In the event of an Alarm, the Control panel will activate the
unbypassed alarm outputs.
More Alarms Glowing indicates more Alarm status.
Pre-alarms Blinking indicates Pre-alarm status.
Communicator
(Red)
Glowing indicates that transmission was successful.
Blinking indicates that transmission is in progress.
On display of control panel it is possible to know the connection type: PSTN, GSM, or LAN network.
FAULT Glowing indicates the presence of a Fault: the following LEDs or the screen on the display indicate
the type of the Fault. Slow blinking indicates a fault event in memory (Reset turns OFF ).
Logic Unit Glowing indicates a blocked Control panel. IMPORTANT: Maintenance required.
NOTE – When the Control panel is switched on for the first time, this LED will blink until a Reset has
been performed.
Lost Device Glowing indicates that a Loop device has disappeared (missing address).
Communicator
(Amber)
Glowing indicates the Dialer has been disabled; Slow blinking indicates that the dialer has broken
down
Nac Fire
Output
Glowing indicates that NAC FIRE Output is bypassable (disabled), Slow blinking indicates the
presence of a Fault on NAC FIRE Output.
Earth Glowing indicates a Voltage leakage to Earth.
IMPORTANT: Check wiring insulation
Low Battery Glowing indicates Batteries empty or faulty. If this condition persists, the batteries will be unable to
function as intended in the event of blackout, IMPORTANT: New batteries required.
NO Battery Glowing indicates Batteries empty or disconnected ; check if the connections are correct.
MAINS
(amber)
Glowing indicates Mains failure or Switching Power supply fault. During this condition, the Con
-
trol panel will be powered by the batteries.
Day mode Glowing indicates that the Control panel is operating in Day Mode
OFF indicates that the Control panel is operating in Night Mode
Disabled Glowing indicates the Disabled status of any bypassable entity.
Silence Glowing indicates that Silenceable outputs have been forced to standby by means of SILENCE key;
in Day Mode the SILENCE will remain until the SILENCE key will not been pressed again,
while in Night Mode after the Silence Time expires automatically the SILENCE will end.
Test Glowing indicates Test conditions on at least one zone.
MAINS
(Green)
OFF indicates Mains failure.
IMPORTANT: Power must be restored before the batteries empty.
Table 3 Description of the status LEDs
Page 10
ESC
ABC DEF GHI
JKL MNO PQR
STU VWX YZ
1
4
7
2
5
8
0
3
6
9
ESC
F1
F2
F3
F4
MIC
FC500
LAMP
BUZZ
TEST
SILENCE
INVESTIGATE
SILENCE
BUZZER
RESET
EVACUATE
MORE ALARMS
LOGIC UNIT
PRE-ALARM
LOST DEVICE
COMMUNICATOR
DAYMODE
NAC FIRE OUTPUT
DISABLED
HEARTH
SILENCE LOW BATTERY
TEST
NO BATTERY
MAINS
FIRE
FAULT
COMMUNICATOR
MAINS
1
4
a)
3
5
1
1

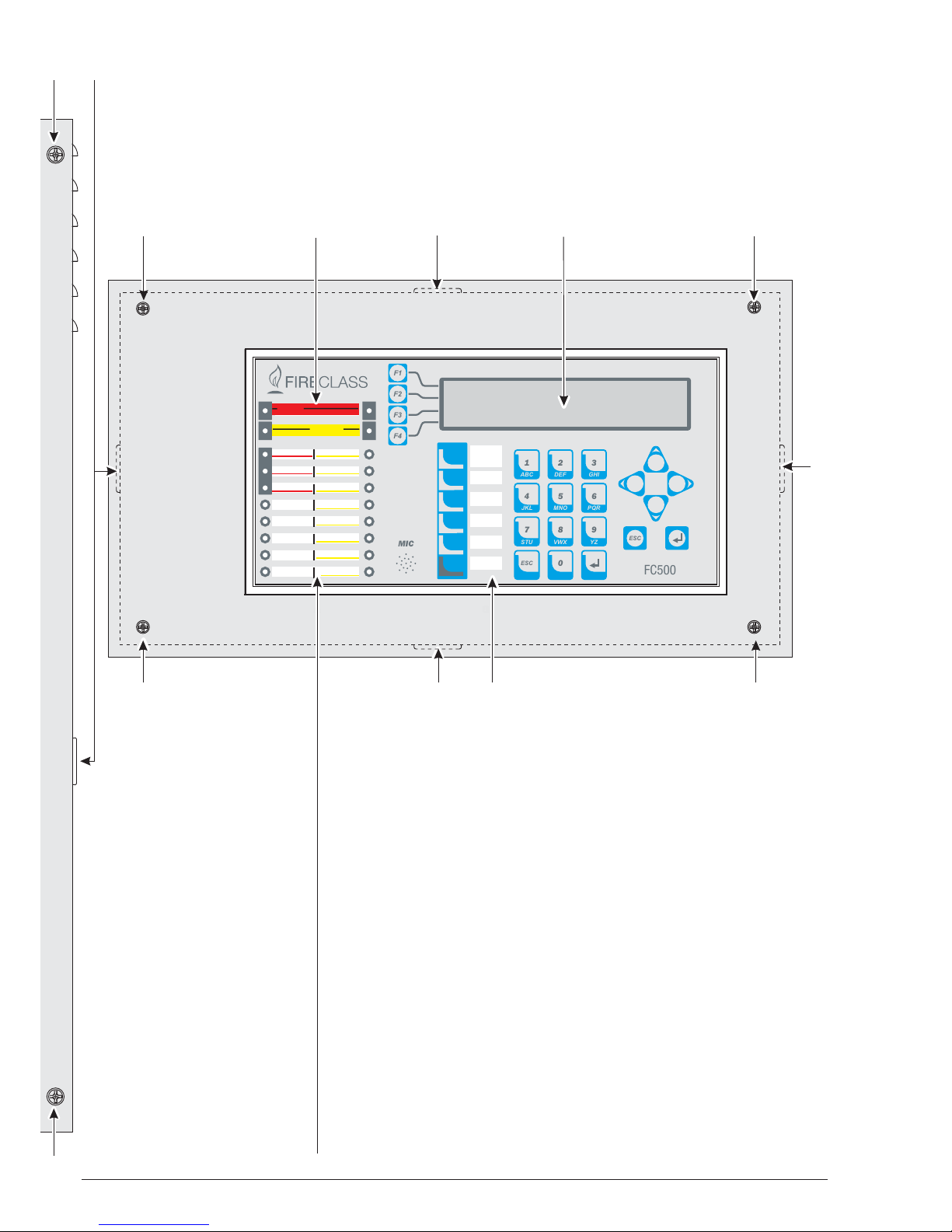

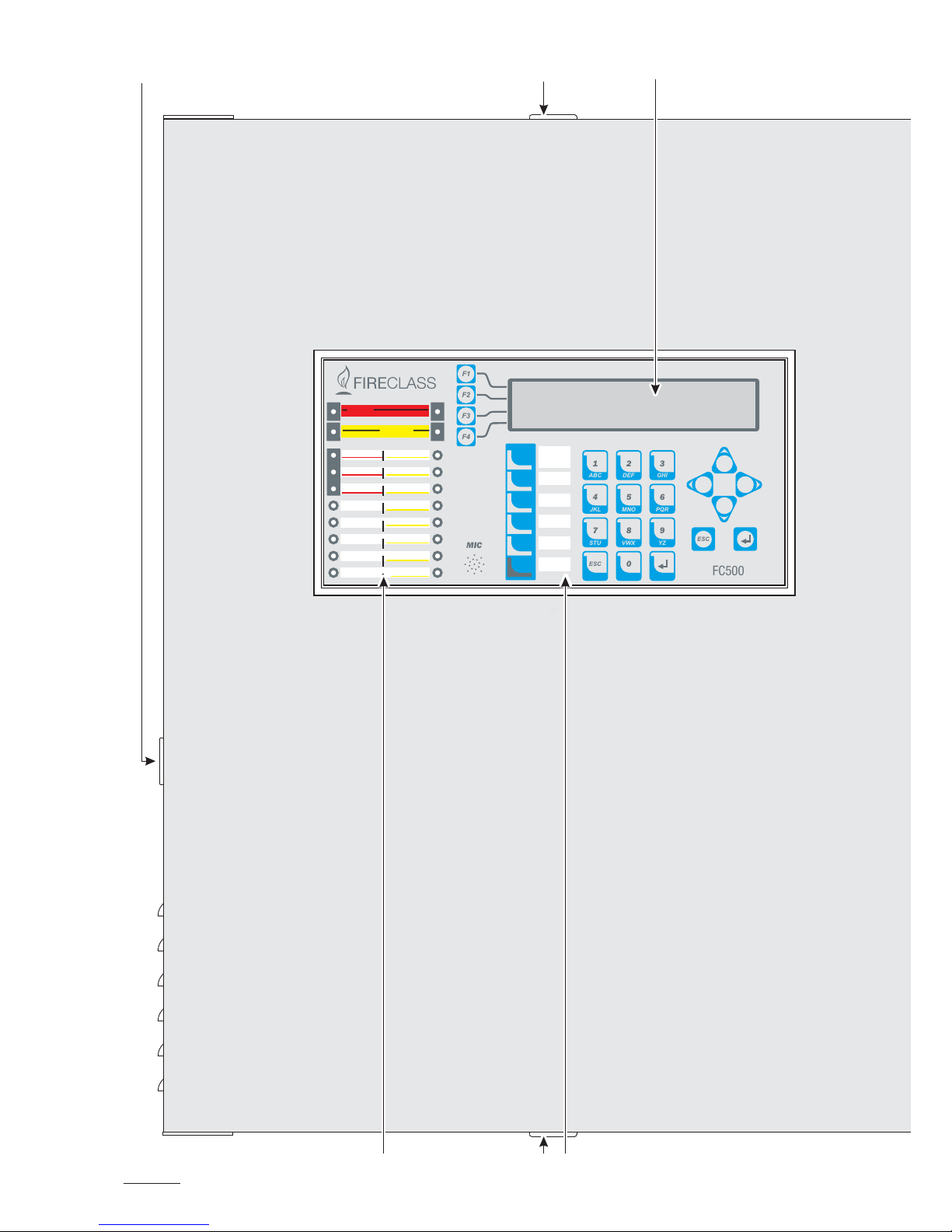

Figure 1 Front view of the FC510, FC520 control panel (a), and of Repeater FC500REP (b)
Page 11
ESC
ABC DEF GHI
JKL MNO PQR
STU VWX YZ
1
4
7
2
5
8
0
3
6
9
ESC
F1
F2
F3
F4
MIC
FC500
LAMP
BUZZ
TEST
SILENCE
INVESTIGATE
SILENCE
BUZZER
RESET
EVACUATE
MORE ALARMS
LOGIC UNIT
PRE-ALARM
LOST DEVICE
COMMUNICATOR
DAYMODE
NAC FIRE OUTPUT
DISABLED
HEARTH
SILENCE
LOW BATTERY
TEST
NO BATTERY
MAINS
FIRE
FAULT
COMMUNICATOR
MAINS
2
1
b)
2 2
2
1
2
35
1 4
1
1
3
PARTS IDENTIFICATION 11
Page 12
+
-
RS485
24V
7
8
9
10
6
23
7 7
7 7 7 714 13

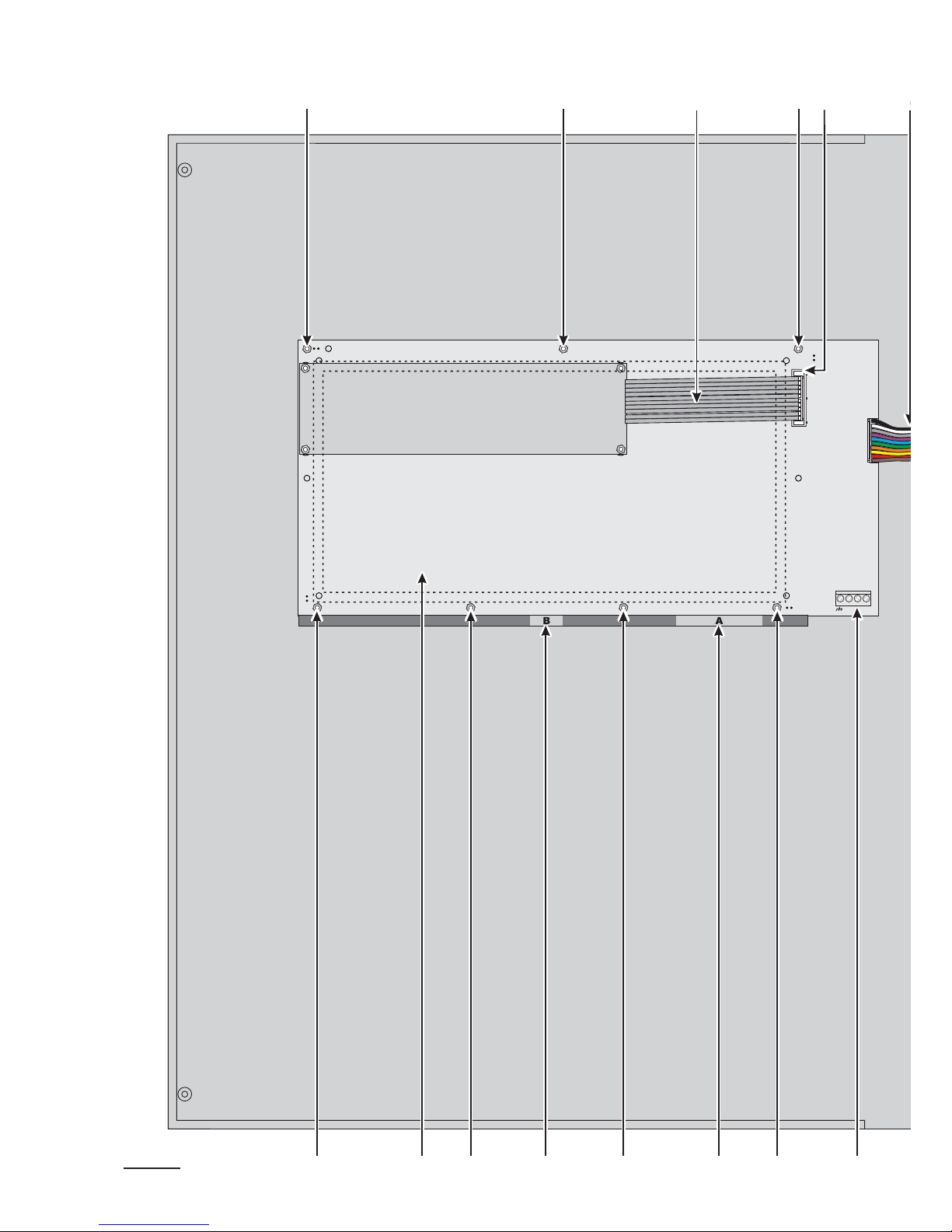

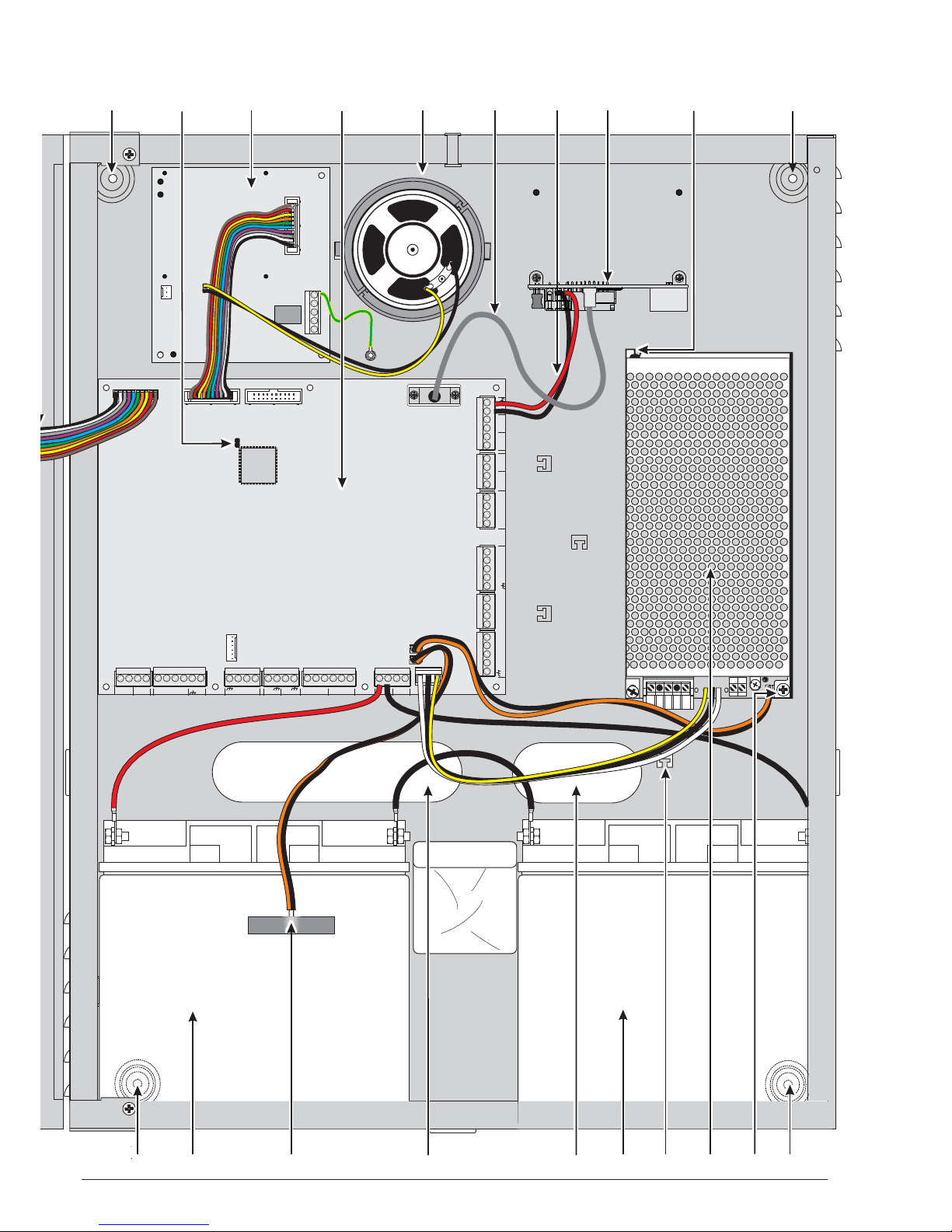

Figure 2 Configuration of the FC510, FC520 control panel.
Page 13
AC/NFG
+VGND
B+
L
B–
GND
+V
AC/L
F10A/25ØV
LEFT
+
-
RS485
24V
+L2- +L2- +L1- +L1-
RIGHT LEFT RIGHT
LC
24A
AUX
24R
AUX-RESNCFIRE
NOCNC
FAULT
NO
C
+
BAT2
-
+
BAT1-PS1 PS2
OS1
OS2
OS3
OS4
OS5
OS6
OS7
OS8
O9
O10
O11
O12
O13
O14
O15
O16
+
NAC
-
FIRE
+
NAC1
+
NAC2
+
NAC3
12V
-
SP
LE LI
17
0
12
15
12
19
22
20
12
12
11
20
18
16
24
25 2626a 26b
PARTS IDENTIFICATION 13
Page 14

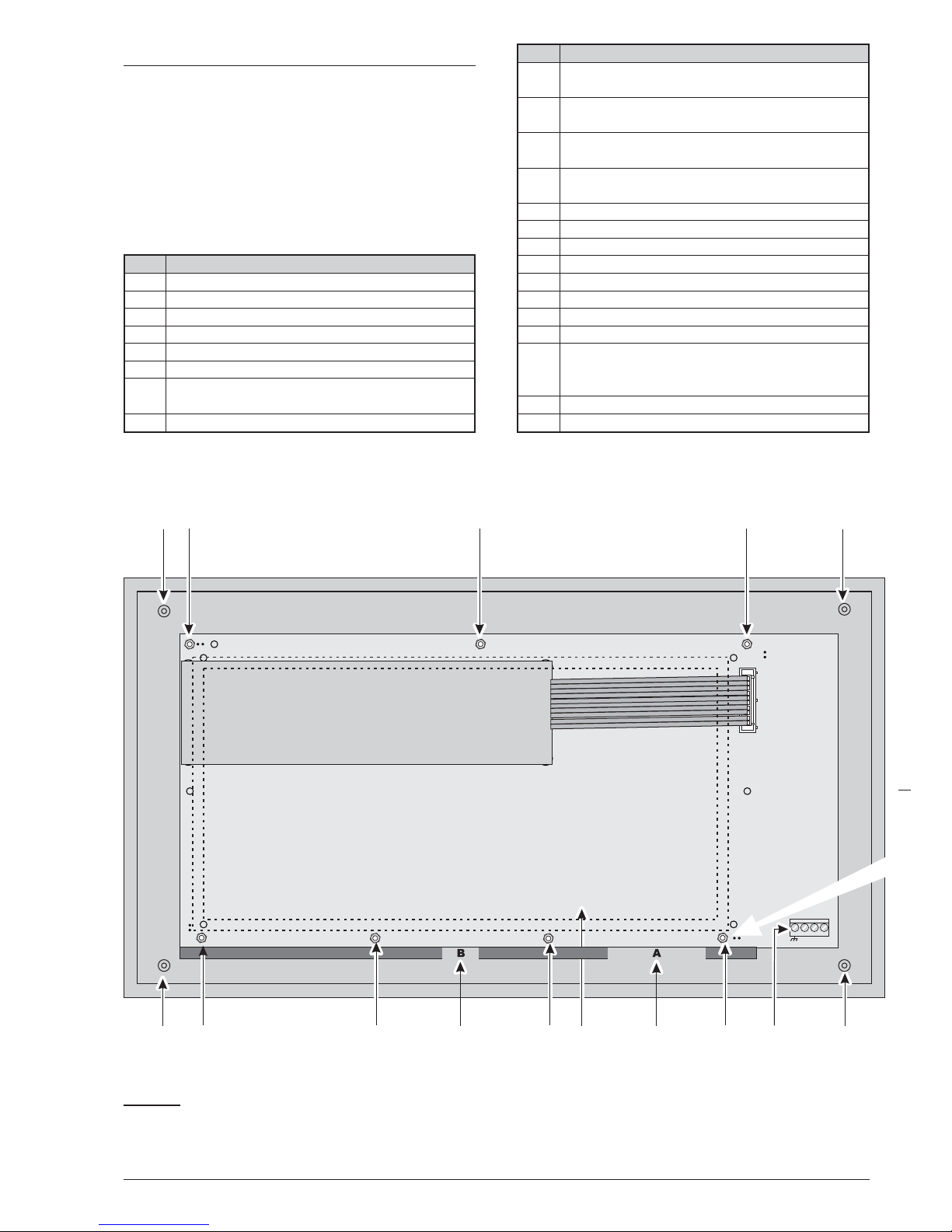

Description of Parts
This section describes the components of the FC500
serie Control panels, and FC500REP Repeater.
Unless otherwise stated, the numbers in boldface in this
Manual refer to the Tables ands Diagrams in this sec
-
tion.
The parts identification numbers in the diagrams go cloc
-
kwise.
P. Description
1 Surface Cable conduit entry
2 Door screws
3 LED label slots
4 KEYs label slots
5 Display
6 User interface board
7 Nuts to secure the User interface board on the
cover of Control Panel or Repeater
7a Earth connection (see figure 3)
P. Description
8 Flat cable: for the Display module board con
-
nection with User interface board
9 Jack for the connection between display mo
-
dule and User interface board
10 Flat cable: for the User interface board con
-
nection with Main board
11 Jumper to Default programming (Future use)
(Default //)
12 Anchor screw locations
13 Signalling LEDs Label
14 Identification Keys Label
15 Main Board
16 Switching power supply support
17 Switching power supply screw
18 Switching power supply
19 Anchor for power supply wires
20 Batteries (NOT supplied):
FC510, FC520 = 2 da 12 V 17 Ah
(Accessory item: 2 da 12V 38 Ah -see figure 16-
21 Chased cable conduit entry
22 Thermal probe
14 Addressable Fire Control Panels FC500
2
a)
2 2
2
1
6 23
+
-
RS485
24V
7 7 7
7 7 7 7a
14 13
Figure 3 Configuration of the FC500REP Repeater a) frontplate (inside view); b) backplate.
Page 15
P. Description
23 Jack for the connection between the User interfa
-
ce to Repeater (RS485 interface accessory item)
24 FC500PS Telecom Module
25 Loudspeaker
26 FC500IP board
P. Description
26a Connection FC500IP with PCLINK cable,see
note*(2)
26b Power FC500IP,see note*(2)
PARTS IDENTIFICATION 15
1
1
b)
12
12
12
12
21
1
Repeater PCB
Nut M3
Support
Earth connection
Repeater Cover
Plastic Frame
Washer
Repeater earth connection (nut 7a)
O13
O14
O15
O16
+
NAC
-
FIRE
+
NAC1
+
NAC2
+
NAC3
12V
2626c

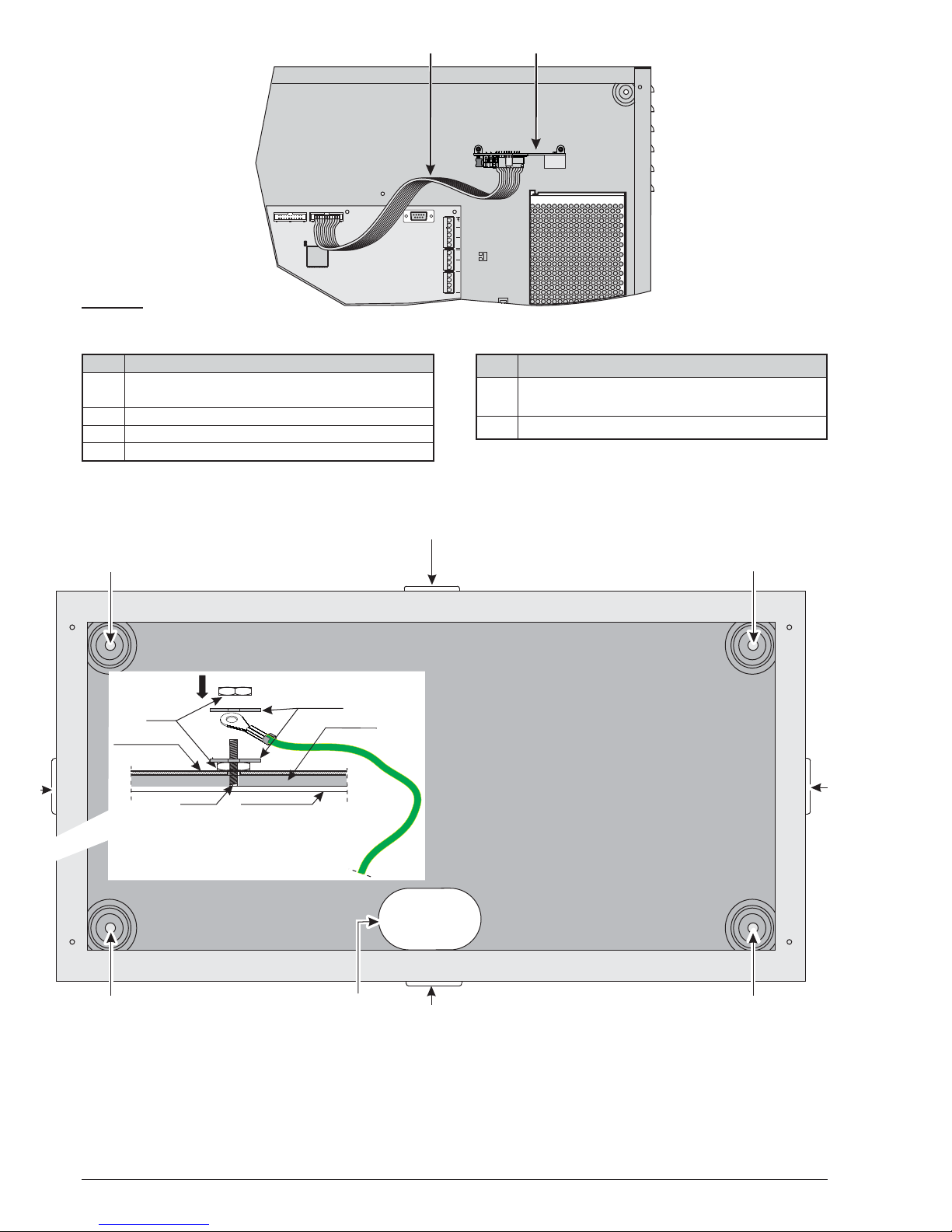

Figure 4 FC500IP board connection with the motherboard via the flat cable.
Page 16
16 Addressable Fire Control Panels FC500
26c Connection FC500IP with Flat cable, see
note*(2)
27 Mains indicator LED (switching power supply)
28 Switching-power-supply anchor hole
29 Switching-power-supply output voltage con
-
trol input (connected at factory)
30 Fine trimmer for the Switching-power-supply
output Voltage
31 Auxiliary power-supply terminals (27.6 V)
32 Mains power terminals (110/230V~ 60/50 Hz)
33 Switching-power-supply screws
34 Switching-power-supply fuse — protects aga
inst overload:
BAQ140T24 = F 4A 250V
35 Cable: connects the Switching power supply
to the Main board (connected at factory)
35a Voltage switch (110V or 230V)
36 Switching-power-supply anchor
37 Switching-power-supply closure rivet
38 Jack for the User interface board
39 Microprocessor
40 RS232 Serial Port
41 Terminal board
42 Terminal board
43 Jack for the thermal probe
44 Jack for the BAQ140T24 Switching power
supply
45 Battery output voltage control panel (connec-
ted at factory)
46 RS485 terminal board
47 Jack for Extinguishment Module (Future use)
48 Jack (Future use)
49 Jack (Future use)
50 Jumper for Earth Fault (Leakage to Earth)
signalling (Default // ) *(1)
51 Microphone
52 Jack for the connection between User Interfa
ce board and the Main board
53 Buzzer
54 Control Panel Backplate
55 38Ah Batteries Backplate
56 Connecting Threaded tube
57 Nuts on Control Panel Backplate
58 Nuts on 38Ah Batteries Backplate
59 12V 38Ah Batteries (accessory item)
(see Figure 16)
*NOTE(1)
Before connecting the Fire control panel to PC for the PC
programming phase, remove the jumper 50 of main bo
ard.
After the programming phase is finished, replace the
jumper otherwise the Earth fault (Leakage to Earth) will
not be detected.
+
*(2) If you connect the FC500 IP board with the mot
-
herboard via flat cable (26c) (Fig. 4) the Digital Com
municator function will be activated. If the Digital
Communicator function only is requested the
PCLINK cable (26a) and the cables for board power
are not necessary (26b) (see Figure 4). If both Digital
Communicator than PC interface functions are re
quested the flat cable and the PCLINK cable are ne
cessary, but not the power connection (26b).
!
Be sure that the main voltage is the same of the
input voltage set on the BAQ140T24 power
supplier. Move the switch 35a if the BAQ140T24
input voltage is different from the main voltage,
ONLY when the power supplier is not connec
ted to the main power. Please note that the po
wer supplier will be damaged if it is connected
to the 230 V main power when it is set for 110 V.
AC/NFG
+VGND
B+
L
B–
GND
+V
AC/L
F4A/25ØV
F10A/25ØV
110V
220V
110/220 is selected by switch.
Before power on please check
Input voltage avoiding damage

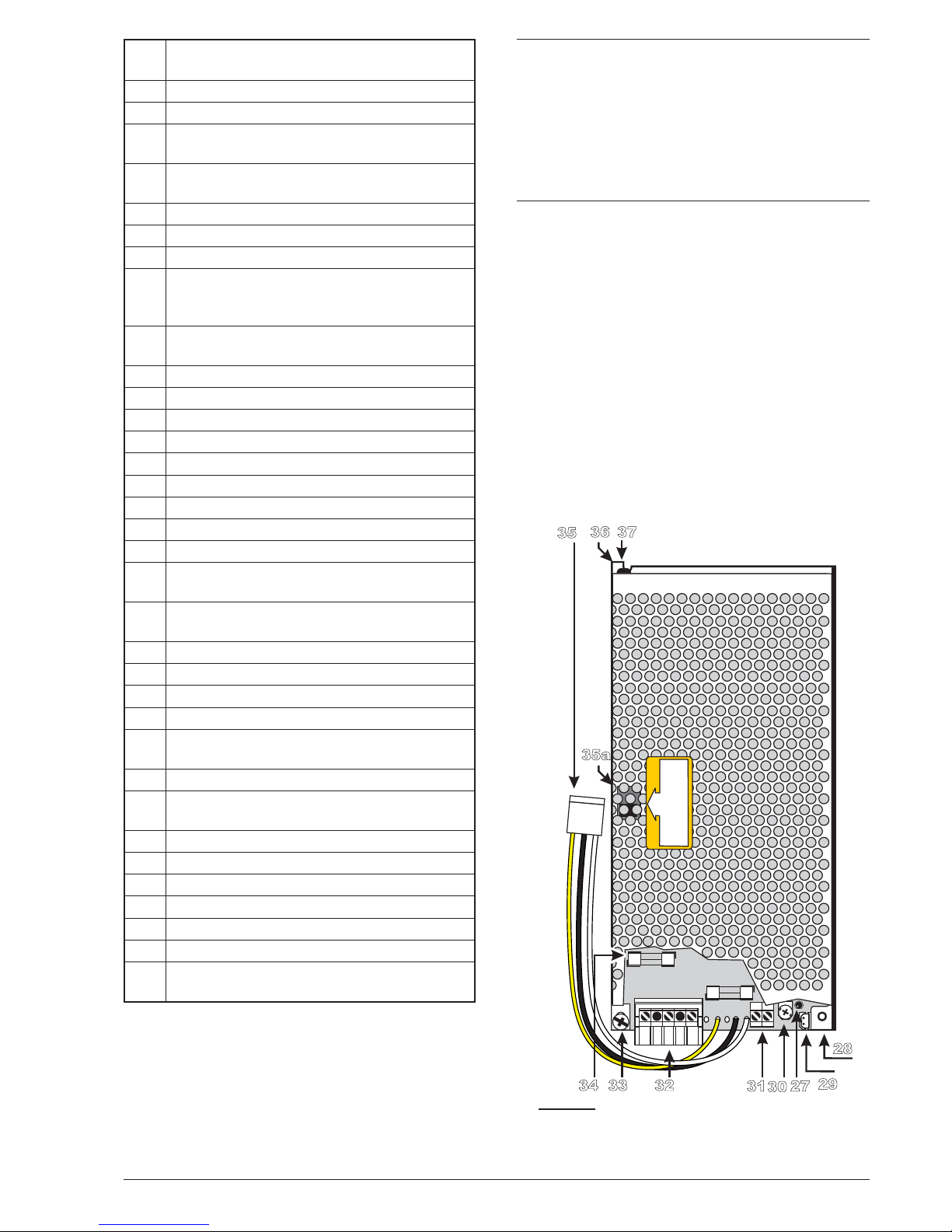

Figure 5 BAQ140T24 Switching-power-supply
Page 17
LEDs and KEYs Labels
To insert the LED and Keys Labels (supplied) in the
User Interface (see Figure 2, parts 13 and 14) work
through the following steps:
1) Remove the screws 2 and open the Control panel or
Repeater FC500REP (see Figure 3).
2) Corresponding the A or B (in the overlay) insert the
relative LED and KEYS Labels (see Figure 1, parts 3
and 4);
3) check the right position (Figure 1) and then secure
the Control panel or the Repeater FC500REP.
PARTS IDENTIFICATION 17
+
-
RS485
24V
5
9
51
53
23
52

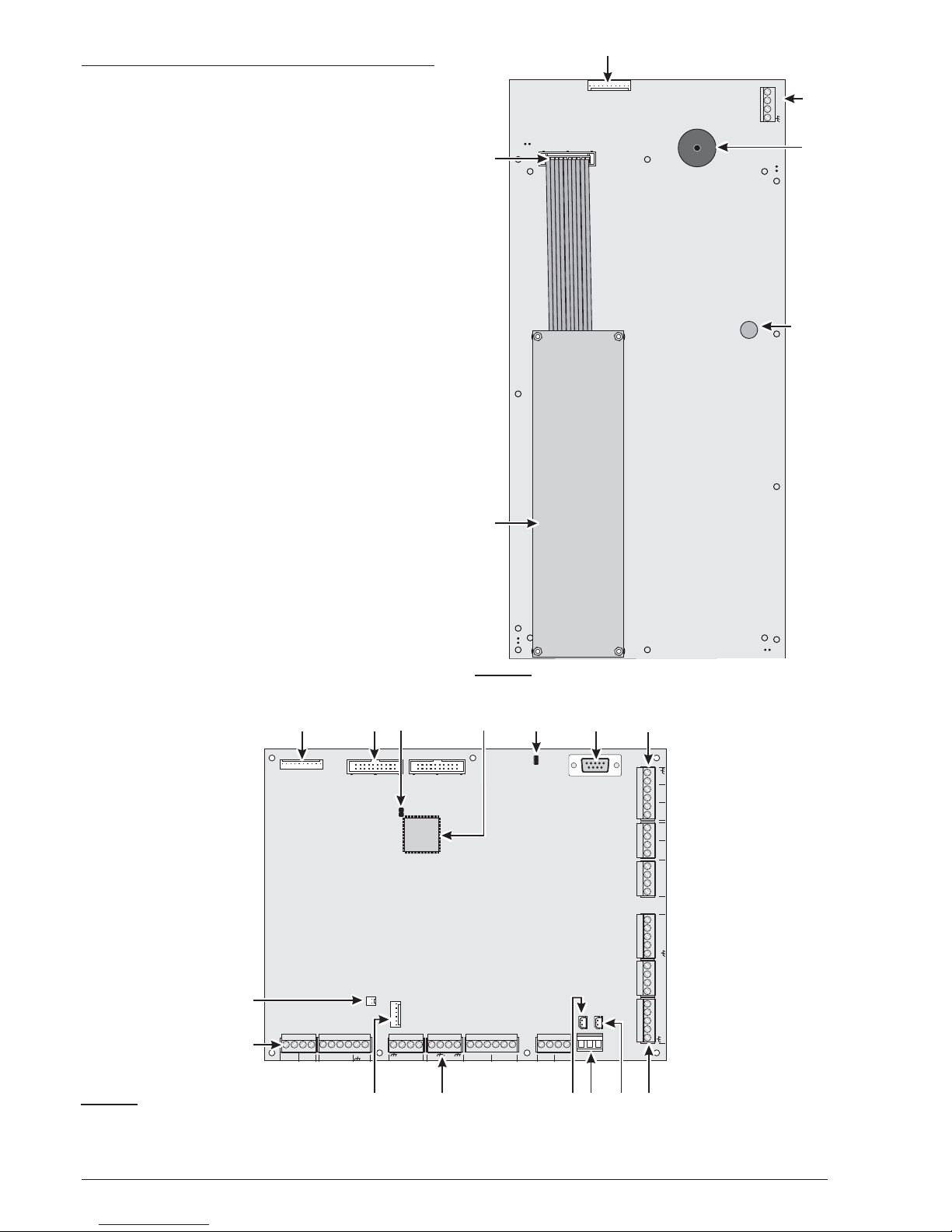

Figure 6 Parts: User interface-LCD board
LEFT
+
-
RS485
24V
+L2- +L2- +L1- +L1-
RIGHT LEFT RIGHT
LC
24A
AUX
24R
AUX-RES
NC
FIRE
NOCNC
FAULT
NO
C
+
BAT2
-
+
BAT1
PS1 PS2
OS1
OS2
OS3
OS4
OS5
OS6
OS7
OS8
O9
O10
O11
O12
O13
O14
O15
O16
+
NAC
-
FIRE
+
NAC1
+
NAC2
+
NAC3
12V
38 11 40
41
47
42
46 44 4345 42
39
48
49 50
Figure 7 Identification of the parts: a) Main board .
Page 18
Description of the Control keys
+
Test, Silence Buzzer and Evacuate Control keys
ONLY can be activated without password (access
level L1), all the others Control keys can be activa
-
ted with password (access level L2 and L3)
Lamp/Buzz/Test See table 4
Silence See table 4
Investigate See table 4
Silence Buzzer See table 4
Reset RESET will stop Alarm, Prealarm, Warning and
FAULT conditions. Access to this command is limited to
authorized personnel only (installer or user code PINs
).
The system will reprocess any alarm, prealarm, war
-
ning or fault signal which is not cleared by RESET ope
rations. Command keys cannot be used when RESET
is running.
The repeaters FC500REP can be RESET by the instal
ler or user code PINs
.
Evacuate See table 4
F1, F2, F3, F4 See table 4
18 Addressable Fire Control Panels FC500
KEY DESCRIPTION
Lamp/Buzz
Test
This key can be used to test the buzzer and LEDs . If this key is pressed (when the Control panel is
functioning as intended), all the LEDs will glow and the buzzer will emit a continuous beep.
Silence This key can be used to restore the Silenceable outputs to standby status. Silence status will be held
until the Silence key is pressed again in Day Mode, or if the Control panel is operating in Night
Mode, until the Night mode Silence time expires or until a new Alarm/Trouble condition is detec
-
ted.
Investigate This key can be used to refresh the “PreAlarm Time”: if this key is pressed during “PreAlarm”, the
remaining PreAlarm time will be increased with the programmed "Recognition delay".
Silence
Buzzer
Key to silence the local buzzer of the control panel: the buzzer will be operating every time a new
event will be activated
Reset This key can be used to reset the Fire detectors and restore all outputs to standby status (Supervi
-
sed/Silenceable outputs, NON-Supervised/Non-Silenceable outputs and Alarm zone outputs)
Evacuate key to activate the evacuation: if this key is pressed for over 2 seconds, the system will generate an
alarm.
F1, F2, F3, F4 Function keys of the Display; their function will be various according to different screen of display
Table 4 Description of the keys
Page 19
INSTALLATION
!
Installation of this system must be carried out
strictly in accordance with the instructions in
this section, and in compliance with the local
safety regulations in force.
To install the control panel work through the following
steps:
Ø
Choose suitable mounting locations for the Control
panel, detectors, fire warning and fire control devi
-
ces.
Ø
Lay the cables between the Control panel and the
system peripherals.
Ø
If necessary, install any accessory modules.
Ø
Before mounting the Control panel to the wall, insert
the LED and Keys Labels (supplied) in the Interface
User (see pag.17).
Ø
Carry out the necessary connections, leaving the po
-
wer-supply connection until last.
Ø Program the Control panel in accordance with the in-
structions in the “PROGRAMMING” section.
Ø Test the entire system (Control panel, detectors, fire
warning and fire control devices).
+
Accessory Modules should be installed before mounting the Control panel to the wall.
Installing accessory boards
!
Ensure that the Control panel power supply
(Mains and Batteries) has been disconnected
before installing any accessory Modules.
Installing the Control panel
Work carefully through the following steps (see the Fi
-
gures 1, 2 and 3).
1. Remove the screws (2) and open the Control panel.
2. Drill the anchor screw holes.
!
Check for water pipes and electrical wiring be
-
fore drilling.
3. If necessary, using a hammer or similar tool, remo
-
ve the surface conduit wire knockouts 1.
+
The cable conduit union with the case must be se
-
cured by HB Flame Class (or higher) lock nuts.
4.
Pull the wires through the chased wire entry 21 then,
using the anchor screws, secure the backplate to the
wall.
Installing FC500REP Repeaters
Repeaters can be wall mounted, or flush mounted to an
ave
®
BL08 outlet box (or similar).
Work carefully through the following steps.
1. Lay the connection cables (refer to “Connecting
Repeaters”).
2. Remove the screws 2 (see Figure 3) and open the
Repeater FC500REP.
3. If you are flush mounting the Repeater, go to step
5. If you are wall mounting the Repeater, drill the
anchor screw holes 12.
4. Pull the wires through the wire entry 21, then, using
the anchor screws, secure the Repeater to the wall.
5. Complete the connections to the terminal board 23
of the RS485 Interface, as described in the “Connecting Repeaters” section.
- Connect the earth wire to the threaded support 7a
on the cover, as illustrated in Figure 3.
6. Set the Repeater Address.
Installing the FC500PS e FC500IP board
Please refer to the dedicated manuals.
Installing the FC500 Slave control panel
See "Installing the Control panel paragraph".
INSTALLATION 19
Page 20
Description of the Terminals
This section describes the Control panel terminals.
n
Main Board terminals
+L1-/LEFT (+)Loop 1-Positive signal, left side.
(-)Loop 1-Negative signal (return), left side.
+L1-/RIGHT (+)Loop 1-Positive signal, right side.
(-)Loop 1-Negative signal (return), right side.
+L2-/LEFT (+)Loop 2-Positive signal, left side.
(-)Loop 2-Negative signal (return), left side.
+L2-/RIGHT (+)Loop 2-Positive signal, right side.
(-)Loop 2-Negative signal (return), right side.
+
Each Loop supports 250 (Analogue detectors, Input
modules, Conventional Zone modules, Manual callpo
ints, Output modules and Sounders). In all the control
panel supports up to 500 devices with 2 Loop.
LC
Conventional Input Line - Supervised and
Bypassable (Disabled) — This line supports 30 con
-
ventional fire devices (Optic Smoke detectors, Heat de
-
tectors, Manual callpoints).
Connect terminal [LC] to ground terminal [ M]) using a
3900 ohm resistor (orange-white-red). A 680 ohm resistance (normal value for Fire detectors) parallel to the
3,900 ohm resistor will activate the programmed actions
and preset times of the Conventional Line outputs and the
Non-supervised output (terminals NC, NO and C).
+
The Conventional Line supports 30 Conventional
detectors. ATTENTION: DO NOT connect more
than 500 detectors and/or manual call points to
each main PCB.
[M]
Negative.
485
Serial Bus Terminals for FC500REP repeater pa
-
nels (maximum 8) and FC500 as Slave panels (maxi
-
mum 7). Serial bus terminals [+] and [-]; 27.6 V power
voltage terminals [M] and [24V].
AUX
Auxiliary power 24 V (0.5A max) Power supply to
devices that operate at 24 V (powered by the standby
batteries):
Ø Positive (27.6 V) on terminal [24A];
Ø Negative on terminal [M].
AUX-RES
Auxiliary power 24 V (0.5A max). The
system will interrupt power from terminal [24R] during
Reset. Power supply to devices that operate at 24 V
(powered by the standby batteries):
Ø Positive (27.6 V) on terminal [24R];
Ø Negative on terminal [M].
[NC][NO][C] FIRE
Non-supervised fire output. Dry
contact relay for non-supervised devices:
Ø
During standby status —— terminal [C] closes to ter
-
minal [NC];
Ø
In the event of fire —— terminal [C] closes to terminal
[NO].
[NC][NO][C] FAULT
Non-supervised fault output. Dry
contact relay for non-supervised devices:
Ø
During standby status —— terminal [C] closes to ter
-
minal [NC];
Ø
In the event of fault —— terminal [C] closes to termi
-
nal [NO].
+
EN54-2 cerification applies ONLY when, FAULT
output is not J (EN 54-1) type, therefore this output
MUST NOT UTILIZED to manage Fault transmis
-
sion devices.
+BAT2- Terminals to connect the batteries inside the
FC500 control panel (see Figure2).
+BAT1- Terminal to connect remote batteries or Po
-
wer supply.
PS1 BAQ140T24 power supply first connector.
PS2 BAQ140T24 power supply second connector.
OS1...OS8
Programmable, Silenceable, Bypassa-
ble (Disabled), Supervised Outputs
.
These are normally-open terminals (open-collector)
which will close to ground, when the connected event
becomes activ, and will remain in this state until the generating event has ended (so after a manual reset or a
fault restore.
Ø
These outputs can be bypassed via the DISABLE
menu.
Connect an EOL 27.000 ohm resistor between termi
nals [OS] and [ M] of these outputs. This will allow the
control panel to detect and signal when the outputs are
shorted and/or open.
+
NOTE: The EOL resistor must be connected to
the last device on the Supervised output. Connect
a diode (1N4002 or 1N4007) in series to the devi
-
ces connected to these outputs.
O9...O16
Programmable, Silenceable, Bypassable
(Disabled) NOT Supervised outputs —— These are
normally-open terminals(open-collector) which close to
ground when the connected event will active. These ter
minals will remain closed to ground even after the gene
rating event has ended. These outputs can be forced to
standby (Not programmable polarity) by resetting the
control panel.
20 Addressable Fire Control Panels FC500
Page 21
-NAC FIRE+
Type C output (EN54-1). - Silenceable,
Bypassable (Disabled), Supervised
—— Terminals
for supervised devices activated by positive (24 V):
Ø
During ALARM status —— positive (27.6 V) on ter
-
minal [+]; negative on terminal [-].
Ø
During STANDBY status —— negative on terminal
[+]; positive (27.6 V) on terminal [-].
Ø
This output can be bypassed via the DISABLE menu.
ALARM status will activate this non-programmable out
-
put.
[12V] [M]
Auxiliary power 12 V . Power supply to de
-
vices that operate at 12V (powered by the standby bat
-
teries and protected by self recover termic fuse):
Ø Positive (13.8 V) on terminal [12V];
Ø Negative on terminal [M].
Max current on terminal [12V] must not exceded
200mA.
NAC1 NAC2 and NAC3
Supervised/Silencea
-
ble/Bypassable (Disabled) Programmable Alarm
Outputs.
These Outputs are for the Alarm signalling devices.
Operating principles:
Ø in Standby status, these Outputs will be INACTIVE
(read on for details);
Output INACTIVE: negative pull-down to 0 V on [+] terminal; positive pull-up to 27.6 V on the [–] terminal.
Output ACTIVE: positive pull-up to 27.6 V on the [+] terminal; negative pull-down to 0 V on the [–] terminal.
Ø NAC1, NAC2 and NAC3 will restore to standby when
the Control panel Resets.
Ø NAC1, NAC2 and NAC3 can be Silenced (forced to
standby).
The NAC Outputs will hold standby status for the pro
-
grammed Silence Time. If Alarm conditions are pre
sent when the programmed Silence Time expires,
they will re-activate.
+
NAC1, NAC2 and NAC3 accept devices that ope
-
rate within SELV limits ONLY.
+
EN54-2 cerification applies ONLY when, NAC1,
NAC2, NAC3, OS1, OS2, OS3, OS4, OS5, OS6,
OS7, OS8, O9, O10, O11, O12, O13, O14, O15,
O16 and RELAY FIRE outputs are not C , E , J , G
(EN 54-1) type,
therefore these outputs MUST NOT UTILIZED to
manage Fire Alarm devices and/or Fire Alarm
Transmission devices and/or Fire Fault Transmis
-
sion devices and/or Automatic Fire Alarm Systems.
The System Wiring
+
Use shielded cable only for all connections, with
one end of the shield connected to the Control pa
-
nel negative terminal and the other left free.
!
High Voltage leads (110/230 V) must be bun
ched separately from Low Voltage leads (24 V).
All leads must be bunched in such a way as to
avoid contact with other wiring and compo
nents.
n
Connecting Addressable Analogue Devices
The control panel has 2 loops for addressable analogue
devices.
Each loop supports 250 addressable analogue fire de
-
tectors and ananalogue devices (Input modules, Conventional Zone modules, Output modules).
+
Every detector and every module connected to a
loop must be assigned a DIFFERENT address
(using the special Loop Service Tool FC490ST)
from the other detectors on the same loop.

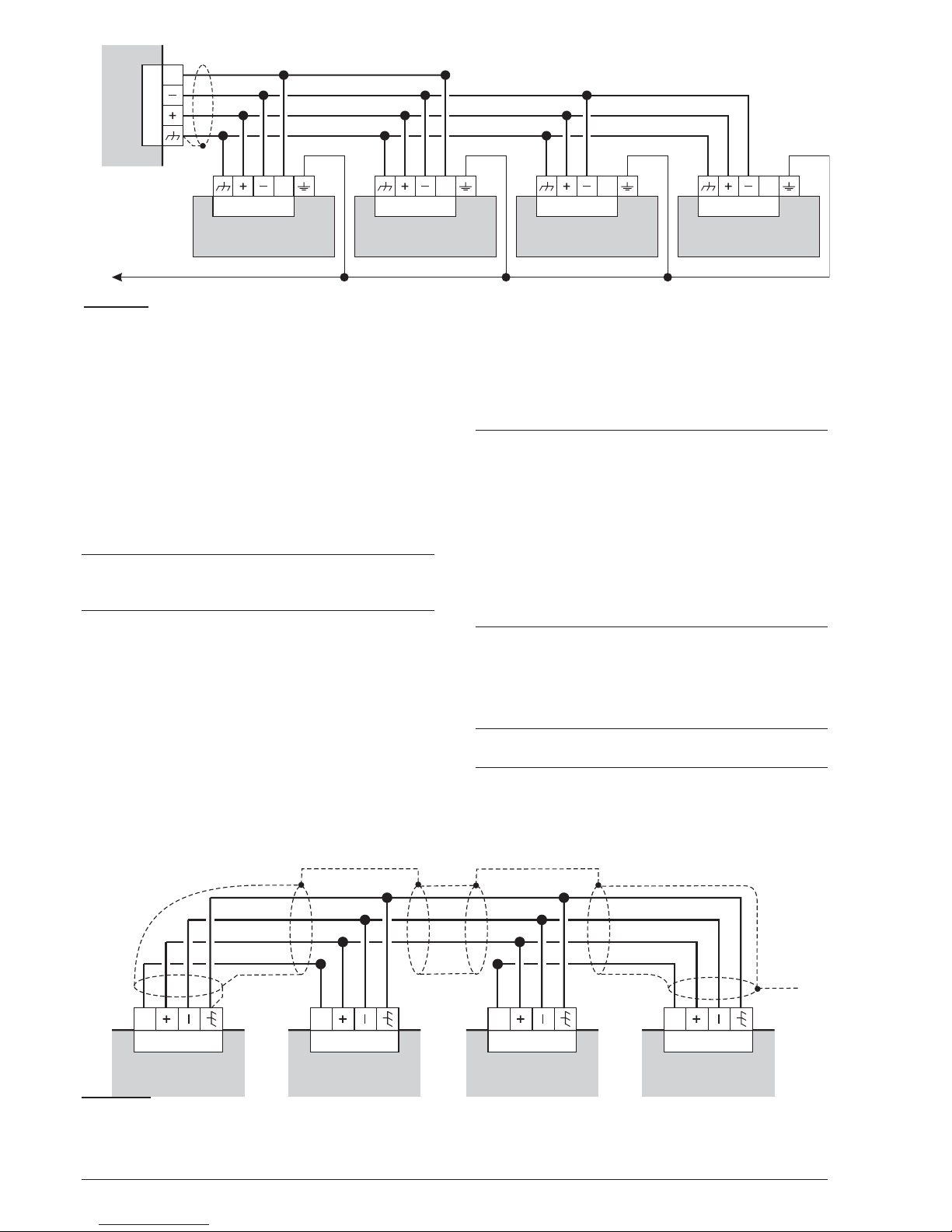

You can use 2 or 4 wires for the loop connections.
NOTE: The loop connection type must be specified du
-
ring the programming phase.
Figure 9(1) illustrates the 2-wire connection to Loop2.
Figure 9(2) illustrates the 4-wire connection to Loop2.
+
Whatever the type of connection performed, make
sure that any short circuit or open circuit in the wi
ring does not lead to the loss of more than 32
detectors. An insulator should be fitted at least
every 32 detectors
INSTALLATION 21
Osx
27,6V
FireClass
1N4007
LOAD
27K
SUPERVISED

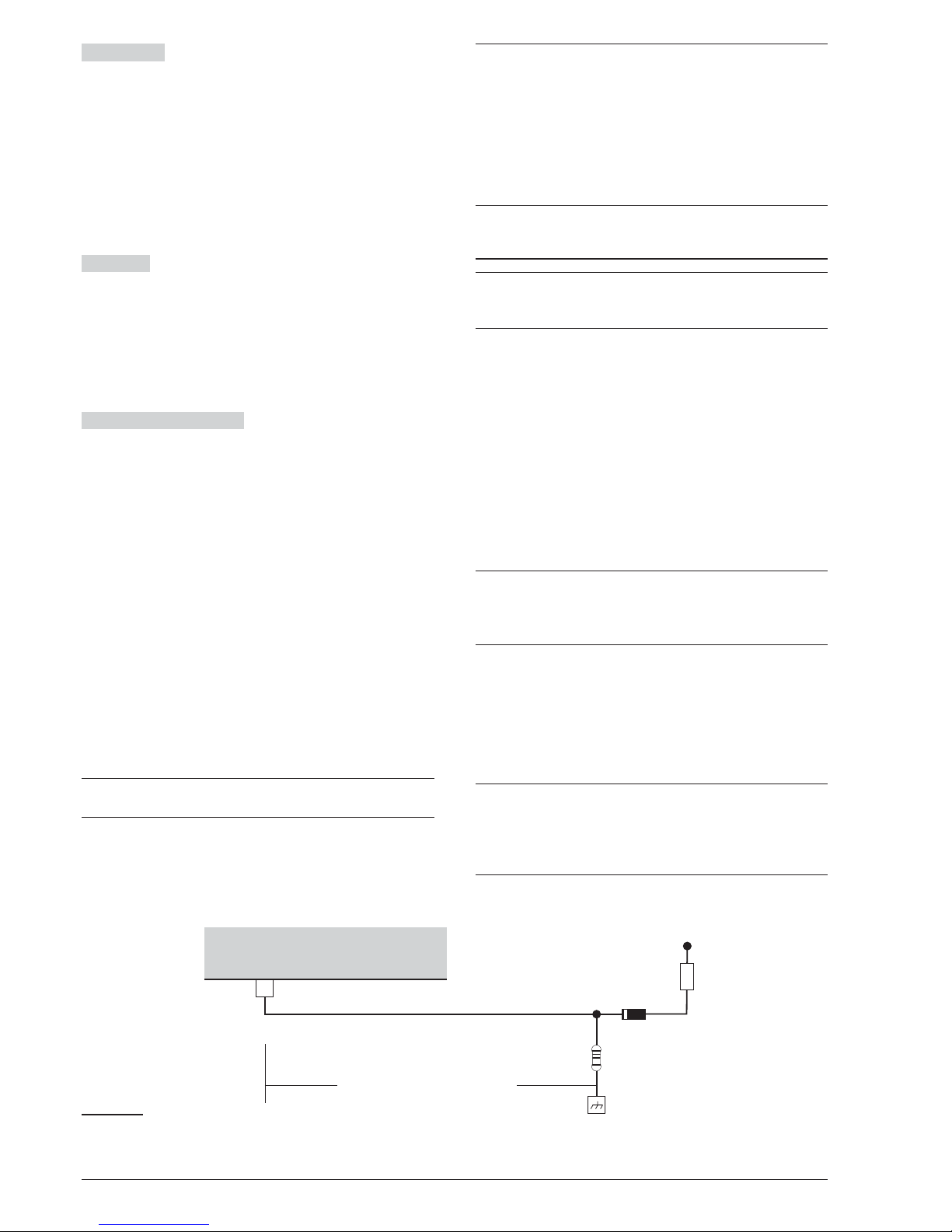

Figure 8 OSx Outputs connecting
Page 22
+
If the connection is 2-wire connection type, connect
on the left
n Connecting Conventional Devices
Connect Conventional devices to terminals [M] and
[LC]. Fire detectors and Manual call point.
Connect the Conventional Fire detectors in parallel to
terminals [LC] and [M].
The resistor (3,900 ohm) connected to these terminals
must be moved to the terminals indicated in the instructions of the last device on the Conventional Line (see
figure 9a).
22 Addressable Fire Control Panels FC500
L-L-
L-
L-
L-
L-
L+L+
L+
L+
L+
L+
L-LL+L+
L- L-L+ L+
A
BB
B
B B
B
A
FireClass
L-L-
L-
L-
L-
L-
L+L+
L+
L+
L+
L+
L-L-
L+L+
+L2-
A
C
BB
BB
A
FireClass
1) 2)
+L2-+L1-+L1-
LEFT RIGHT LEFT RIGHT
+L2-+L2-+L1-+L1-
LEFT RIGHT LEFT RIGHT
Figure 9 1) Wiring diagram of a 2-wire connection - 2) Wiring diagram of a 4-wire connection: a) Insulators; b) Com-
patible analogue devices (Fire detector, Input modules, Output modules, Conventional Zone modules, Manual callpoints); c) T connection
.
A+
A+
A+
A+
NA
NA
C
C
B+
B+
B+
B+
LC
LC
Conventional
detector
Manual
Call Point
680 W
680 W
EOL End of
line resistor
(3K9 1/4 W)
A)
B)
FireClass
FireClass
Conventional
detector
Manual
Call Point
Conventional
detector
Conventional
detector
EOL End of
line resistor
(3K9 1/4 W)
Figure 10 Wiring diagram of Conventional device connections
Page 23
n
Connecting Repeater and Slave Control panel
An example of how to connect two FC500REP repea
-
ters and two FC500 SLAVEs is shown in Figure 10.
The RS485 port of the FC500 (terminals [ M], [+], [-]
and [24V]) accepts up to 8 FC500REP repeaters and
up to 7 FC500 SLAVEs, so a panel will be configured as
a "Master" control panel while the others seven will be
configured as "Slave" control panel; the eight Repea
-
ters will be the Repeaters of the "Master" control panel.
+
Assign an address to FC500REP repeaters ( see
the procedure "Programming from the Panel"
page 51).
Terminals [+] and [-] supply the power (27.6 V) to the repeater panels (see figure 10,11).
When a mains fault occurs, the Repeaters considerably
decreases the absorbed power, switching off the LCD
display backlighting (the LCD display backlighting
switches on again, for 20 sec. when a key will be pres
sed). But the absorption of the Repeaters connected to
the control panel, will contribute to run down the backup
batteries, and so the decrease of the Stand-by supply
time of the system.
When one control panel only is in the system all the Re
peaters must be supplied by the control panel itself, un
less a Power supply Station is in the system.
When several Control panels are in the system, the Re
peaters supply Load can be shared between these
Control panels (see Figure 11).
+
The control panel [24V] terminals must not be con
-
nected between them, because the switching Po
-
wer supply cannot work in parallel and the entry in
protection status (OFF) can be produced with the
effect of overloading the switching Power supply
still working.
Use shielded cable only, with one end of the shield
connected to the "Master" Control panel Negative
terminal and the other left free; the continuity, between several segments of connection must be secured (see Figure 11).
n Connecting Output Devices
The control panel has 8 supervised outputs, 8 NON supervised outputs and 4 Bell outputs (supervised and
silenceable) .
+
NOTE: Output devices can be connected to the loops
by means of Output modules.
n
Bell Outputs
The Bell outputs are indicated by the letter NAC and
their address number.
INSTALLATION 23
24V
RS485
24V
RS485
24V
RS485
24V
RS485
24V
RS485
Main Board
FC500 SlaveFC500 SlaveFC500REPFC500REP
Connect to the
earth connector
Figure 11 Wiring diagram of two FC500REP Repeaters and two FC500 Slave Control panels connected to the RS485
24V
RS485
24V
RS485
24V
RS485
24V
RS485
Master Panel Repeater 1 Slave Panel Repeater 2
Figure 12 Network connection example: the Repeaters supply load is shared on several Control panel. In this case
the“Repeater 1” is supplied by "Master" panel while the “Repeater 2” is supplied by ”SLAVE” control panel.
Page 24
+
The NAC1, NAC2 and NAC3 Bell Outputs are Pro
grammable, Supervised, Silenceable, Bypassable
(Disabled).
+
The terminal marked "-NAC FIRE +"is a Bell output
(C type, EN54-1),Supervised, Silenceable, Bypassa
ble (Disabled) but Non-programmable. This output
will activate when the Control panel goes into
Alarm status.
The Bell outputs can be forced to standby status by means of the SILENCE button. Once an alarm has been
acknowledged, you can silence the audible signalling
devices and leave the visual signalling devices active
until the alarm conditions cease.
For example, a connection similar to the wiring diagram
in figure 12 will activate the Flasher, the Bell and the visual and audible signalling device of the Self-powered
Siren in the event of an alarm.
Using the SILENCE button will stop the horn but not the
flasher, which will continue to signal Alarm status until
the RESET button is pressed.
Connecting a Power Supply
+
The power circuits of this Control panel comply
with the EN54-4 standard.
!
In order to comply with the Safety regulations
in force, the Mains must be equipped with a bi
polar isolating device for protection against
over voltage and short-circuit to Earth (e.g. au
tomatic isolating switch).
This Control panel is powered from the Mains
(110/230V~ 60/50 Hz) through a Switching power
supply, located inside the case. The FC510 and
FC520 Control panel provide housing for two 12 V, 17
Ah maximum batteries;
moreover, the FC510 and FC520 Control panel can be
connected to two 12 V, 38 Ah in an external metal box
(see Figure 15) for power during Mains failure.
The non-volatile memory will hold the programmed data
at all times.
In the event of Mains failure, the:
Ø
GREEN Mains LED will turn OFF
Ø
AMBER Mains LED will turn ON
24 Addressable Fire Control Panels FC500
+
-

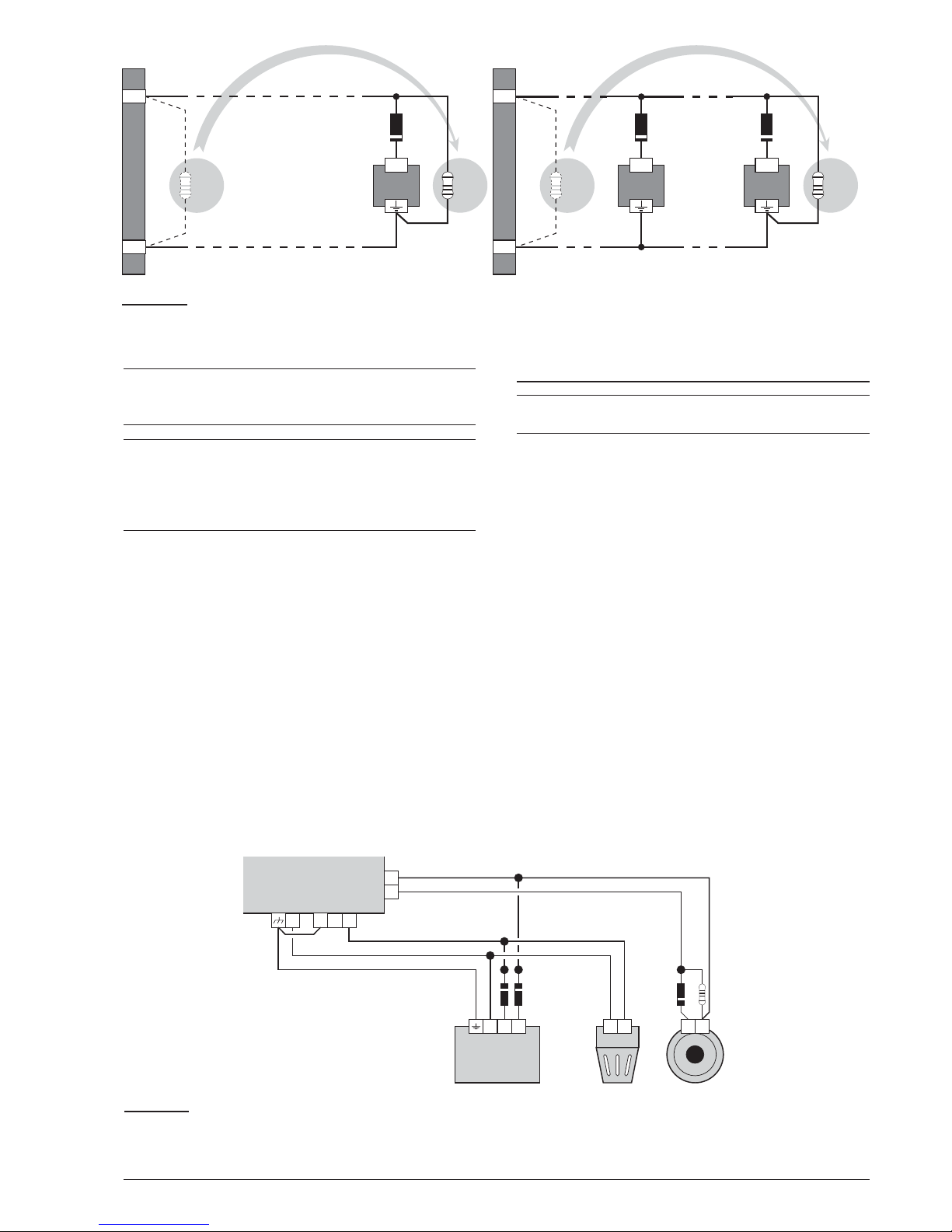

A+ A+A+
(a) (b)
3k93k9 3k93k9
1N4002 1N40021N4002
NAC FIRE
+
-
NAC FIRE
Figure 13 Wiring diagram of the connection of a single device (a) and several devices (b) to Bell outputs (device acti
-
vated by positive (27.6 V) on terminal [A+]).
AUX NC
NO
+
–
C
+N
–L –A
+–+–
NAC FIRE
1N4002 1N4002 2K7
Self-powerd Siren
CALL-R24
Flasher Bell
FireClass
Figure 14 Wiring diagram: NON-silenceable and Silenceable Output connections
Page 25
The Control panel will monitor the batteries at all times,
(refer to Static Test and Dynamic Test).
Static Test
The Static Test monitors the battery char
-
ge during Mains failure. In the event of Low battery sta
tus (below 22.8 V), the Low Battery LED will turn ON. If
this occurs, the Mains power must be restored before
the batteries empty, otherwise, the system will shut
down.
Dinamic Test
The Dynamic Test monitors the opera
ting capacity of the batteries. In the event of a Failed
Test result (batteries do not meet the Test require
ments), the No Battery LED will turn ON.
If this occurs, the backup battery must be replaced im
mediately, otherwise, the system will be unable to
function in the event of Mains failure (black-out).
Work carefully through the following steps to connect
the Mains Supply.
1. Locate the backup batteries in the housing (see Fi
-
gure 2, 3) .
2. Using the Jumper (supplied), connect the batteries
in series.
3. Observing the battery polarity, connect the battery
terminals to terminals BAT1 or BAT2 on Main Board (wires supplied).
4. FC510-FC520 Use 17 Ah @ 12 V YUASA NP
17-12 FR batteries; or similar with case flame class
UL94-V2 (or higher).
5. Connect the Earth wire to the [Q] terminal on the
terminal board 32.
6. Connect the Neutral wire to terminal [N], and the
Line wire to terminal [L] on the terminal board 32.
+
The Control panel will reset on power up.
!
DO NOT allow the power cable to cross over ot
her wiring (see Figure 19a). The power cable
must be routed as per Figure 19c and held
firmly in place by a cable tie (see Figure 19b).
n
Thermal Probe
This Control panel supports the KST thermal probe.
The probe will optimize the battery charging process by
regulating the charge voltage in accordance with the
battery temperature.
Work carefully through the following instructions (refer
to the figure 2):
1. Connect the probe 22 to the connector 43 on the
Main board of the Control panel and the wire (sup
plied) between the connector 45 on Main Board and
the connector 29 on the BAQ140T24 switching Po
wer supply.
2. Attach the probe to one of the batteries, in such a
way as to obtain optimum heat transfer.
3. Measure the Probe temperature.
4. Using the graph in Figure 17 and/or Table 5, find
the value (in accordance with the battery tempera
ture) that the output voltage of the Switching Power
Supply will be based on.
5. Using the trimmer 30, adjust the voltage on the terminal board 32 to the required value.
+
NOTE: to verify the battery efficiency, the PCB will
measure the internal resistance. In order for this
measure is not distorted, you should use only the
cables supplied; cables that are longer and have
an insufficient section may erroneously simulate
the condition of inefficient battery.
INSTALLATION 25
L
Main Board
N
Automatic
isolating
switch
+
–
12 V Battery
Line
Neutral
Earth
230 V
50 Hz
+
–
12 V Battery
Power Supply
RED wire
BLACK wire
Jumper
Figure 15 Wiring diagram for the power supply
Page 26
26 Addressable Fire Control Panels FC500
AC/NFG
+VGND
B+
L
B–
GND
+V
AC/L
F10A/25ØV
LEFT
+
-
RS485
24V
+L2- +L2- +L1- +L1-
RIGHT LEFT RIGHT
LC
24A
AUX
24R
AUX-RES
NC
FIRE
NOCNC
FAULT
NOC+
BAT2
-
+
BAT1
PS1 PS2
OS1
OS2
OS3
OS4
OS5
OS6
OS7
OS8
O9
O10
O11
O12
O13
O14
O15
O16
+
NAC
-
FIRE
+
NAC1
+
NAC2
+
NAC3
12V
+
-
RS485
24V
54 57 56
58
55
59
59
CONNECTION BETWEEN CONTROL PANEL BACKPLATE and
12V 38Ah BATTERIES BACKPLATE -Accessory Item-
1 1
12
12
12
12
Figure 16 Control Panel and 38Ah Batteries metal Box connection (accessory item).
Page 27
Installing the 38Ah battery metal Box
Work carefully through the following steps (see Figure
16).
1. Remove the screws (2) and open the metal box.
2. Drill the anchor screw holes.
!
Check for water pipes and electrical wiring be
-
fore drilling.
3. If necessary, using a hammer or similar tool, remo
-
ve the surface conduit wire knockouts 1.
4. Secure the metal backplate to the wall
+
The cable conduit union with the case must be se
-
cured by HB Flame Class (or higher) lock nuts.
Pull the wires through the chased wire entry 1 and con
-
nect them. See paragraph: Connecting a power supply.
Maintenance
The following operations must be carried out regularly.
A Using a damp cloth (DO NOT USE SOLVENTS OF
ANY KIND), remove dust from the Control panel case.
B
Using the Lamp/Buzz/Test key, check that the
LEDs and buzzer are functioning properly.
C Ensure that the batteries are sufficiently charged and
functioning properly. If not, replace them immediately.
D Ensure that all cables and connections are intact.
E Ensure that there are no unrelated objects inside the
Control panel case.
+
Points A and B may be carried out by users.
Points C, D and E must be carried out by qualified
persons only.
INSTALLATION 27
-10-5 0 5 101520253035404550
26,0
27,0
28,0
29,0
VOLTAGE (V)
a)
27,4
22

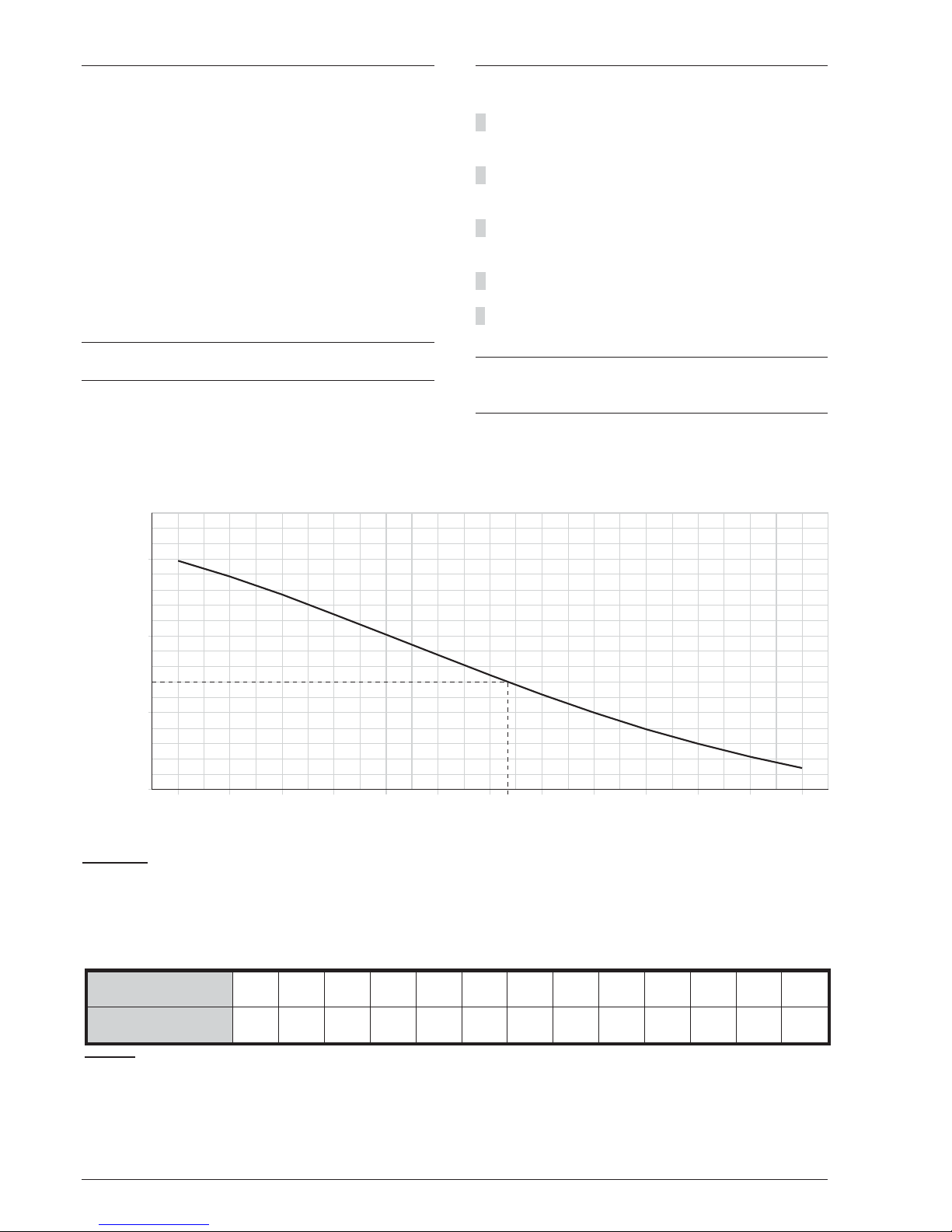

Figure 17 Switching Power Supply Output Voltage graph. To find the Output Voltage using the graph: — indicate the
Probe temperature on the TEMPERATURE (°C) axis; draw a line from the temperature value point up to the curve a);
draw a line from the intersection point across to the VOLTAGE (V) axis; adjust the Output Voltage of the Switching Po
wer Supply to the resultant value. For example, if the Probe temperature is 22 °C, the Output Voltage of the Switching
Power Supply must be set at 27.4 V.
TEMPERATURE (°C) -10 -5 0 5 10 15 20 25 30 35 40 45 50
VOLTAGE (V) 29,0 28,8 28,6 28,2 28,0 27,8 27,4 27,2 27,0 26,8 26,6 26,4 26,2
Table 5 Switching Power Supply Output Voltage chart. To find the Output Voltage using the chart: — select the nea
rest value to the Probe temperature on the TEMPERATURE (°C) row; read the respective value on the VOLTAGE (V)
row; adjust the Output Voltage of the Switching Power Supply to the indicated value. For example, if the Probe tempe
rature is 22 °C, the Output Voltage of the Switching Power Supply must be set at 27.4 V.
Page 28
28 Addressable Fire Control Panels FC500
5
4
6
5
4
3
2
1
9
18
8
19
17
16
15
14
7
20
21
22
23
24
25
6
3
7
2
8
9
10
11
12
13
1
a)
b)
DB25 Female
Connector
5 5
4 4
9 9
8 8
7 7
6 6
3 3
2 2
1 1
DB9 Female
Connector
7- wire cable
shield
DB9 Female
Connector
7- wire cable
shield
DB9 Female
Connector
Figure 18 Wiring diagram for the serial link between the Control panel and PC
AC/N
FG
+V
GND
B+
L
B–
GND
+V
AC/L
F3.15A/25ØV
F6.3A/25ØV
AC/N
FG
+V
GN
D
B+
L
B–
GND
+V
AC/L
F3.15A/25ØV
F6.3A/25ØV
a) b) c)
NO
YES
Figure 19
Page 29
PC PROGRAMMING
You can program this system from the Control panel or
from a computer, using the FireClass 500 Console ap
plication, inside the FireClass Suite.
This section describes how to program the system from
a computer. If you intend programming the system from
the Control panel refer to the “PROGRAMMING FROM
THE PANEL” section.
Introduction
The FC500 software console contains:
Ø
FC500 console : the application to manage and pro
-
gram the FC500 series control panels.
Installation
Work carefully through the following steps to install the
FC500 software applications.
Ø Run the Setup.exe application contained in the
CdRom "Fire Suite".
Ø Select a folder for the FC500 software applications.
Ø Run as Administrator.
Select language
You can select the language of the FC500 Software,
from the Languages provided.
To Select the application language:
Ø
Run the FC500 Software application;
Ø
Select Options from the Main window;
Ø
Select Language from the drop-down menu to open
a window with the language list;
Ø
Select a language from the Language list;
Ø
Click-on
3 OK,
The selected language will be immediately initialised.
+
At the first start up, FireClass Console software will
ask to choose the language.
Software window Look
To modify the look of the FC500 software window, clickon Key "Avalaible Skin" in the left bottom of the Main
window or click-on right key on the title bar. This option
allow you to modify the look of the window in the offer
range (see Figure 20).
Control panel connections
If you are using the Supervisory, Management, Downlo
ading and Log Management functions, the control panel
must be connected to your PC in local communication
or remote by PSTN line, GPRS or LAN.
To connect the control panel in local:
(see note page n. 16)
Using a CVSER/9F9F cable (accessory item) or similar
cable (see figure 18), connect the control panel serial
port (refer to “PARTS IDENTIFICATION”) to a serial
port on your PC.
Ø
Select the PC serial port from the Option menu
(Choose serial port ) and then Click-on
3 OK,.
For 25 pin serial ports, use an ADSER/9M25F adapter
(accessory item) or make a cable as per figure 18b.
If the control panel is not connected to your PC when
you start the communication, the following warning will
be shown: "Communication error! Check serial link"
If the serial port for the local communication is invalid,
the following warning will be shown: "Cannot open se-
rial port".
Main window
The FC500 Software opens on the Main window (see
fig. 20). The following section describes the File,Com-
PC PROGRAMMING 29

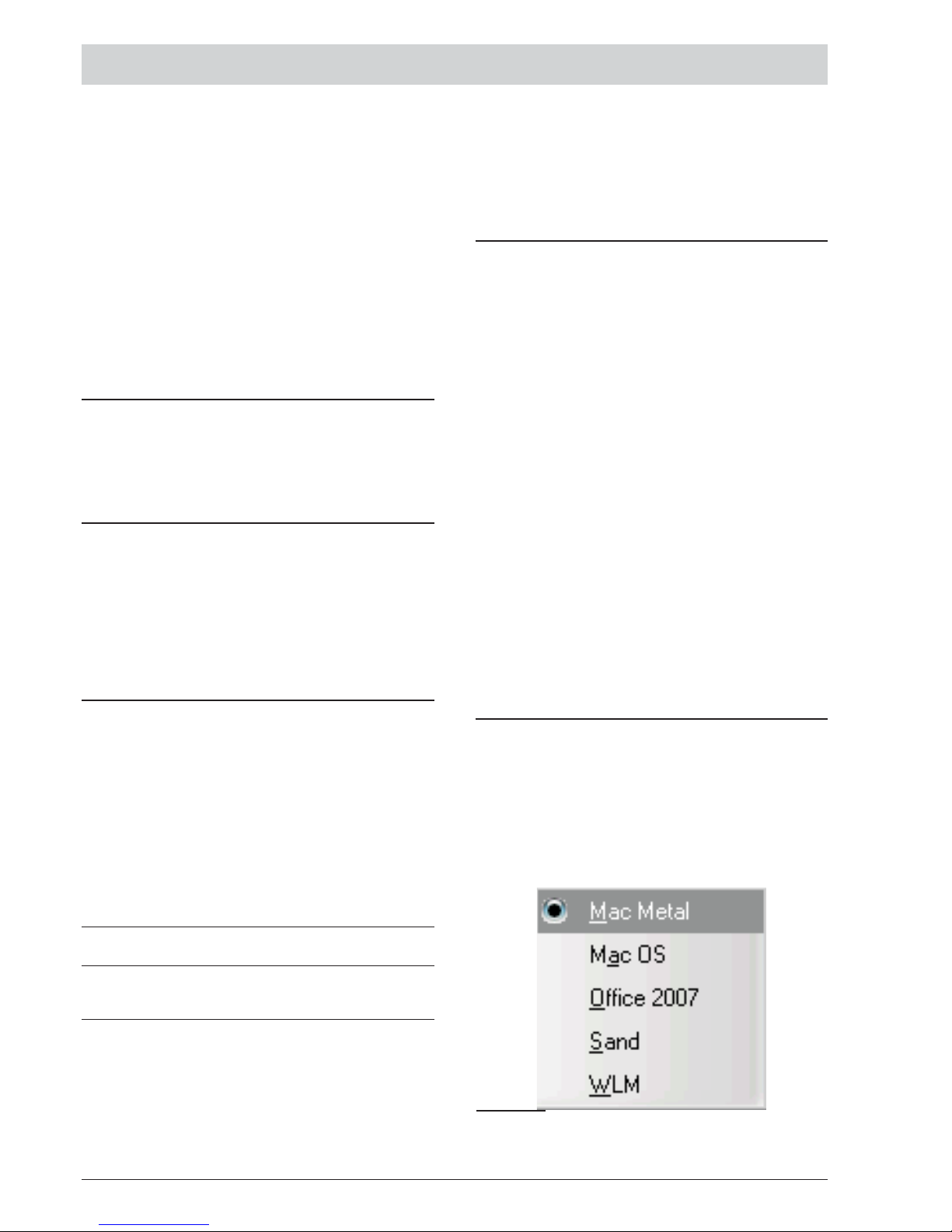

Figure 20 To modify the window look (Available
skins).
Page 30
munication, Options, DataBase, Mode setup and
Help menus, in the top left-hand corner of Main window.
n
Icons description
Click-on this icon under "Panel 1" the window "New
panel" will open, Figure 21. Here, you can choose the
type of control panel, the Firmware Release, the control
panel name and the possible address if more control
panel are present in the system.
Description of the icons under "Panel 1"
Ø
Click-on this icon and then confirm to restore the
factory defaults.
Ø Click-on this icon to download the programming
(via serial link) to the connected control panel.
Ø Click-on this icon to upload all the programming
(via serial link) of the connected control panel.
Ø Click-on this icon to see the firmware version of
MainBoard , Loop controller, User Interface, Repeater
and FMI module.
Ø Clicking on the icon begins operation in Real
Time, in other words it is possible to view the status
of the FC500 control panel in real time and on a com
puter using the FC500IP module connected to the
network or using the serial port.
Ø
Click the icon to select the Real Time operating
mode: using the FC500IP module (enter IP address) or
using the serial port (select the port).
Ø
Click-on this icon to add a new Loop ex
-
pansion board.
Ø
Click-on this icon to remove a Loop ex
-
pansion board.
Ø
Click-on this icon to open the Data custo
-
mer window.
Ø
Click-on this icon to insert-modify the
Installer Password.
Ø
Selected a stored customer, click-on this
icon to delete the customer, after confirm:
OK.
Ø
Click-on this icon, in a Master control panel, a
window in Figure 21 will be shown. In this window, a
Slave control panel can be inserted with a name and
an address, the same programmed address from the
user interface of Slave control panel (see Programming from the panel).
Ø Click-on this icon to remove the selected Slave
control panel, after a request of confirmation.
n File
The File options (New, Open, Save, Close,
Export/Import configuration file, Exit) will allow you
to manage customer account data.
New (New customer)
The New option creates a
New customer and restore the factory default to all pro
-
gramming parameters.
30 Addressable Fire Control Panels FC500
Figure 21 New panel window(Type of control panel)
Figure 22 "Open" window .
Figure 23 Firmware Upgrade window
Page 31
Open Click-on "Open", to retrieve customer data from
the "Customer List" (see Figure 22). Click-on selected
customer and after confirm:
3 OK.
Save If a new customer is programmed or the exiting
data customer are modified, click-on "Save" a new cu
-
stomer or the new configuration will be saved.
Close Click-on "Close", the selected customer will be
closed.
Exit Click-on "Exit", the FC500 software will be closed.
Export configuration file: Click-on this option, all the
data customer will be exported in a single file.
Import configuration file: Click-on this option, all the
data customer will be imported from a single file.
n Communication
In this menu: the option Firmware Upgrade only.
Firmware upgrade Click-on "Firmware Upgrade": the
window (see figure 23) will be shown.
From a source file, this option allow you to do the Fir
mware Upgrade of all system interface: Mainboard,
User interface, Loop controller.
n
Options
In this menu you find the options: serial Port,
Language and Realtime options . See the pre
-
vious paragraph: "Select language", "Control pa
-
nel connections" and icon "Realtime".
n
Database
The Database menu provides the following op
-
tions: Maintenance and database Options .
Maintenance This option opens the window in fi
gure 25 where you can check the database. If faults
will be found, you can do the database rebuilt.
Options This option opens the window in figure
24, where you can program the delay between
more database checks, and more database bac
kup.
n
Mode setup
Click on Mode setup to set the operating mode of the
software, installer or user and the communication
mode:Normal or Real-Time Communication (see Help).
n
Help
Click on Help option; a technical support file will be
opened. This application allows you the learning and
the use of FireClass 500 Console software.
Devices programming
Click-on Control panel name, and than on Loop1 or Loop2, the devices programming window will shown (Figura 26).
+
Close Loop1 or Loop 2 name, in the round brackets
( ) there is the Loop devices number.
n Description of the icons in the tool bar.
Ø New Device: select new devices;
Ø
Remove device: remove the installed devices;
Ø
Copy device on clipboard: allow you to copy the
devices data and after paste them in another customer.
PC PROGRAMMING 31

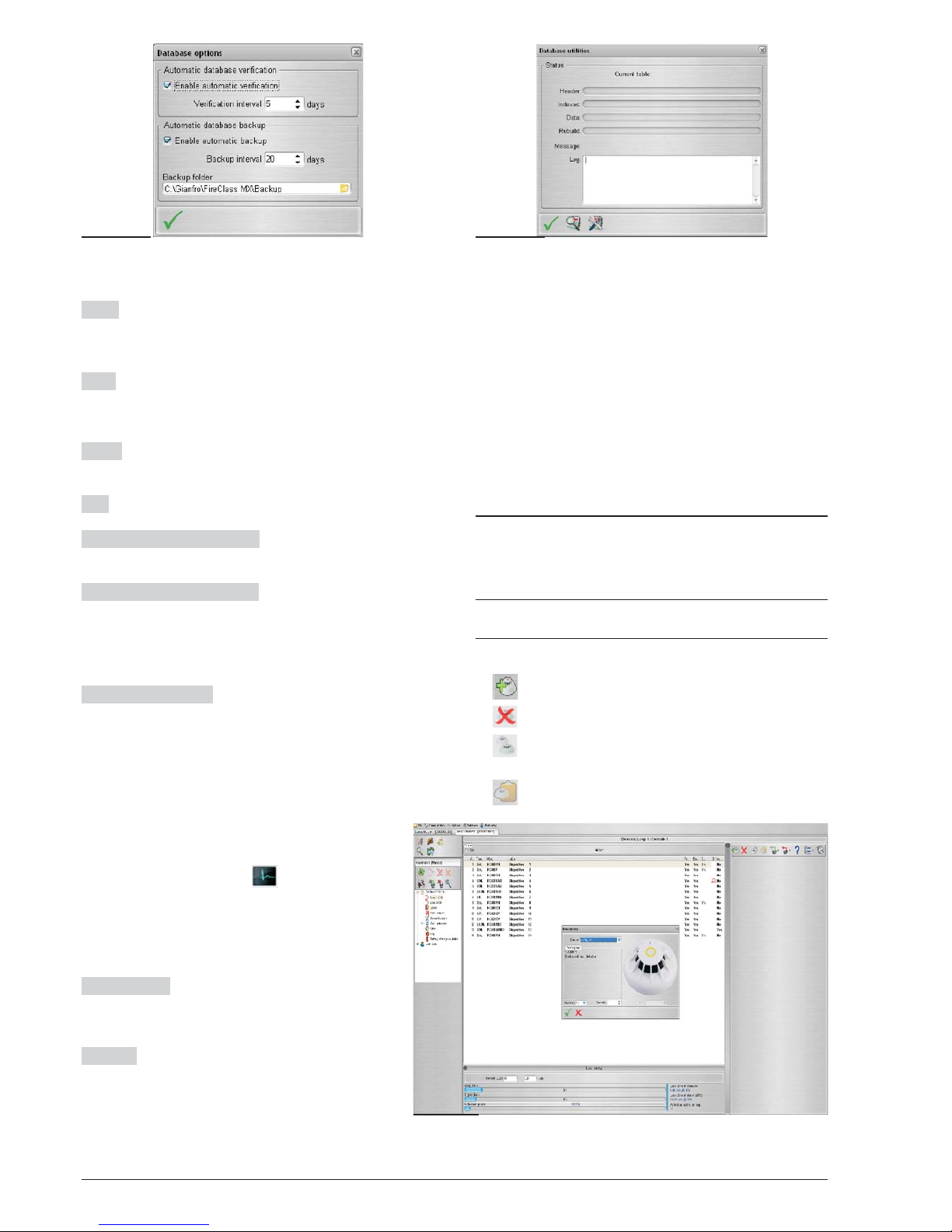

Figure 24 Database Options window. Figure 25 "Maintenace" database window.
Figure 26 Devices programming window
Page 32
Ø
New device from clipboard: allow you to copy
the devices data from a customer and after paste
them in another customer.
Ø Upload from board: to download the program-
ming (via serial link) to the connected control panel.
Ø Download to board: to upload all the program-
ming (via serial link) of the connected control panel.
Ø Print a text file; in this case, the list of devices fit-
ted within the control panel loop.
Ø Device's details: a further window allow you to see the
points and the Outputs where the devices is enabled.
Ø
Select: allow you to select all present devices.
+
If different devices have common programming pa
rameters, you can use the multiple selection of the
devices and assign the same parameters.
+
You can see (view) the list of devices included
in List or Grid, put the check.
Select devices
Click-on Panel 1, select Loop 1
or Loop 2, click on "new device" , the window
in Figure 26 will shown:
select the programming devices, enter a valid ad
-
dress, and after click-on
3 OK to put the devices
in configuration. For others devices, repeat the
same procedure.
Remove devices Select the device, therefore
click-on "Remove device" , and confirm the
choose
3 OK.
Loop Loading At the end of "Device programming
window", Figure 26, there is a Loop Loading section.
Here, the "Loop drain" and the "Signal drain" will be
shown . On the right, the "Loop drain in stand by", the
"Loop drain in alarm (50%)", and the "battery needed"
will be shown.
+
The remote LEDs may be entered in the calculation
The percentage shown in the "Loop drain in alarm
(50%)" is the programmed value in "Battery calculation"
an option of Configuration menu (see dedicated paragraph).
n
Parameters detectors programming
Click-on device in configuration, the relative program
-
ming window will shown (every device has the dedica
ted programming window).
For the detectors (see figure 26);
in the Multiple sources section:
32 Addressable Fire Control Panels FC500
Detector
Class
Typical application
Temperature
°C
Max. Application
Temperature
°C
Min.Static
Response
Temperature
°C
Max.Static
Response
Temperature
°C
A1 25 50 54 65
A2 25 50 54 70
B 40656985
C 558084100
D 709599115
E 85 110 114 130
F 100 125 129 145
G 115 140 144 160
Table 6 Detector classification Temperature - Detector shall conform to one or more of the following classes: A1,
A2, B, C, D, E, F o G . Manufacturers may optionally give additional information concerning the type of response exhi
bited by the detector, by adding the suffix S or R to the above classes.
Detectors, with a suffix S to their class, do not respond below the minimun static response temperature, even at high
rates of rise of air temperature.
Detectors, with a suffix R to their class, incorporate a rate of rise characteristic, which meets the response time requi
rements for high rates of rise of air temperature even when starting at air temperature substantially below the typical
application temperature (EN54-5:2000).
Figure 27 Detector Disablement confirmation window.
Page 33
Ø
Enable: a tick [
3] indicates if the detector is enable.
Ø
LED Blinking: a tick [
3] indicates if the LED de
-
tector is enable or disable.
Ø
Label: this is for the editable device-label. The
system will use the label as the device identifier
.
Ø
Address: in this field you can modify the address of
the detector;
Options section:
Ø
assigned zones: each fire detector, Input module and
Manual call Point can be associated with 1 of the avala
-
ible software zones (64 for FC510, 128 for FC520 con
trol panel). If a device goes into ALARM status, all the
zones it is connected to (assigned zones) will also go
into ALARM status.
Ø
Base In this section it is possible to select the base
for the detector (click on available bases).
Ø
Processing section:
Processing: this determines the actions the control
panel will perform when the device threshold is exce
eded.
Drift Compensation: Drift compensation effects analo
-
gue smoke sensors only. It will supply a precise anal
-
ysis about dust accumulation, and therefore, the alarm
threshold will be modified accordingly.
Use zone setting: the detector uses the parameters
of the assigned zone; if this options is disabled, the pro
-
cessing type will be selected.
Prealarm - the control panel will activate the ALARM
delay
;
Warning - the control panel will activate a WARNING
signal.
Operating mode Heat detector:
Day mode-Night mode for Temperature detector (see
table 6).
Operating mode Smoke detector: Day mode-Night
mode for Smoke and Heath detectors:
Ø
Default: for smoke detectors only (813P) and for
Smoke and Heath detectors only (801PH)
Ø
Enhanched: (for Smoke and Heath detectors only)
Ø
Sensitivity: Sensitivit can set:
Low, Medium and High.
+
Click-on yellow bar to open or close the relative
section of parameters programming
+
If a detector linked to an Output or Input-Output Mo
-
dule, will be disabled (remove a tick [3] in the proper
section), a window will shown to ask confirmation.
Click on Detail to see further data (Figure 27).
+
Only for the sirens of the series FC410LPA / S and
their base FC430LPA / S the window "Advanced"
opens in which you program, tone, volume and fre
-
quency of the flashing
n
Input modules programming
Click-on an entered Input Modules, the relative pro
-
gramming window will shown as per the following de
scription.
Input module section: as per the same Detectors
section;
Assigned zones: as per the same Detectors section;
Operating mode section: select the operating mode
style: B, C.
There are 2 operating mode style: B, C;
Ø
Bstyle: two wire connection mode: the short-circuit
condition as an Alarm condition.
Ø
C style: two wire connection mode: the short-circuit
condition as a Fault condition.
+
As different styles are selected, the electrical ope
-
rating diagram changes
n
Output modules programming
Click-on an entered Output Modules, the relative pro
gramming window will shown as per the following de
scription.
Output module section: as per the same Detectors sec
tion;
Assigned zones: each Output module can be associa
ted with up to 4 of the 64 avalaible software zones for
FC510 control panel, (128 for FC520). An Output module will activated when the zones where is enabled will
go into ALARM status.
Base In this section it is possible to select the base for
the Output module, click on available bases (for
FC430SAM and FC430SAB only).
Beacon It is possible activate the blinking or glowing (ON)
Assigned points: each Output module can be associa-
ted with 3 Input Points. If any one of its Input Points
goes into ALARM status, the Output module will activa
te. For each Point it is necessary to indicate:
Ø
the loop the device is connected to (1 or 2);
Ø
the device address.
Options section: this option will allow you to select the
conditions that will activate the output module:
Ø
Zone warning, Zone fault, Zone Prealarm, Zone Alarm,
Zone Double Knock;
Ø
Point warning, Point fault, Point Prealarm, Point
Alarm,
Ø
Panel warning, Panel fault, Panel prealarm, Panel
alarm,
Ø
Network warning, Network fault, Network prealarm,
Network alarm,
moreover it is possible to program the Output Module
as: Silenceable, Pass trough and Walk test.
Linked Delay see the same option in the paragraph
"Output Programming".
n
Multiple Input-Output Module - Programming
Parameters (FC410MIO)
Click-on an entered Multiple Input/Output Module
FC410MIO (3 Input Modules and 4 Outputs Modules,
PC PROGRAMMING 33
Page 34
see the customized Manaul), the relative programming
window will shown.
+
Click-on yellow bar to open or close the relative
section of parameters programming
The description is as per the same Input/Output Modu
les section. Compared to this paragraphs, there is a
further field "Label" where a description of Input/Output
Module will be inserted.
n
Manual Call Point programming parameters
Click-on a Manual Call Point (FC420CP) the relative
programming will shown as per the following description.
Manual call point section: come per i Sensori
assigned zones: each Manual Call Point can be asso
ciated with 1 of the avalaible software zones (64 for
FC510, 128 for FC520 control panel).
Ø
Led blinking: if this option is enabled, the Manual Call
Point LED will blink every Loop scanning.
Zones programming
The Zone option from the pull-down menu will allow you to
access the software-zone parameters (see Figure 28).
The software zones parameters will be applied automati
cally to all the devices associated with the zone concerned.
First section (see Figure 28) on the right;
Ø Enable: a tick [
3] indicates if the zone is enable.
Ø Label: this is for the editable device-label (up to 20
characters). The system will use the label as the
zone identifier.
Ø Preallarm Duration: an input device programmed with
Prealarm time will generate ALARM status when the
prealarm time elapses. (see parameters programming
detector).
Select the Prealarm time;
the default prealarm time is 1 minute.
Enter values of 0.00 through 10.00 minutes with
steps of 5 seconds.
Options section: many parameters can be program
med in this section.
Ø
Walk test: if this option is enabled, the zones in
alarm status will activate the programmed
Outputs with Walk test, while the control panel
will not generate an alarm.
Ø
Detector Warning: if this option is enabled the
control panel will activate a WARNING signal.
N.B. To activate the Warning option for a Mo
dule, tick the corresponding box on the Module
programming screen.
Ø
Prealarm: if this option is enabled, the control
panel will activate the ALARM delay.
Ø
Drift Compensation: see the same option in
"Parameters detectors Programming";
Ø
Double Knock: if this option is enabled and
the zone is in Prealarm status, when an other
devices (other address) associated to this
zone will be activated, the zone will immedia
tely generate an Alarm status.
Ø
Smoke delay: for each zone, you can program
the delayed activation of the smoke detectors.
The procedure can be triggered via software or panel
(see page 47)
+
Click on Zone number to see which devices are ena
-
bled on that zone. Moreover a double ckick on asso
-
ciated device to zone, opens a Details Device window.
PSTN interface The PSTN interface section is activa
ted, after the FC500PSTN Telecom module has been
enabled on the General Options screen (Figure 30). In
this section, each zone may be associated with one or
more voice messages linked to an Alarm, Pre-alarm,
Start-up, Breakdown or Walk Test event; these may be
sent to a maximum of 32 telephone numbers (please re
fer to the specific FC500PSTN manual).
IP interface
The IP interface section is active after the
module FC500IP has been enabled in the General
Options page (Figure 30). Each zone can be associated
with an event of alarm, Prealarm, Warning, Fault and
Test (see the dedicated manual of FC500IP module).
+
If the procedure to "restore the factory defaults" of
control panel will be executed (see Icon descrip
tion), even the FC500PSTN Interface is restored to
the factory defaults, while the programming data of
FC500IP are not affected.
Outputs Programming
The Outputs option from the pull-down menu will allow
you to access the outputs parameters. The relative programming will shown as per the following description
(see Figure 29).
n NAC1, NAC2 and NAC3 Outputs
Supervised/Silenceable/Bypassable (Disabled) Alarm
Outputs.
Output ACTIVE: positive pull-up to 27.6 V on the [+] ter
-
minal; negative pull-down to 0 V on the [–] terminal.
Click-on a Output, the relative programming window will
shown:
In the first sezione:
34 Addressable Fire Control Panels FC500

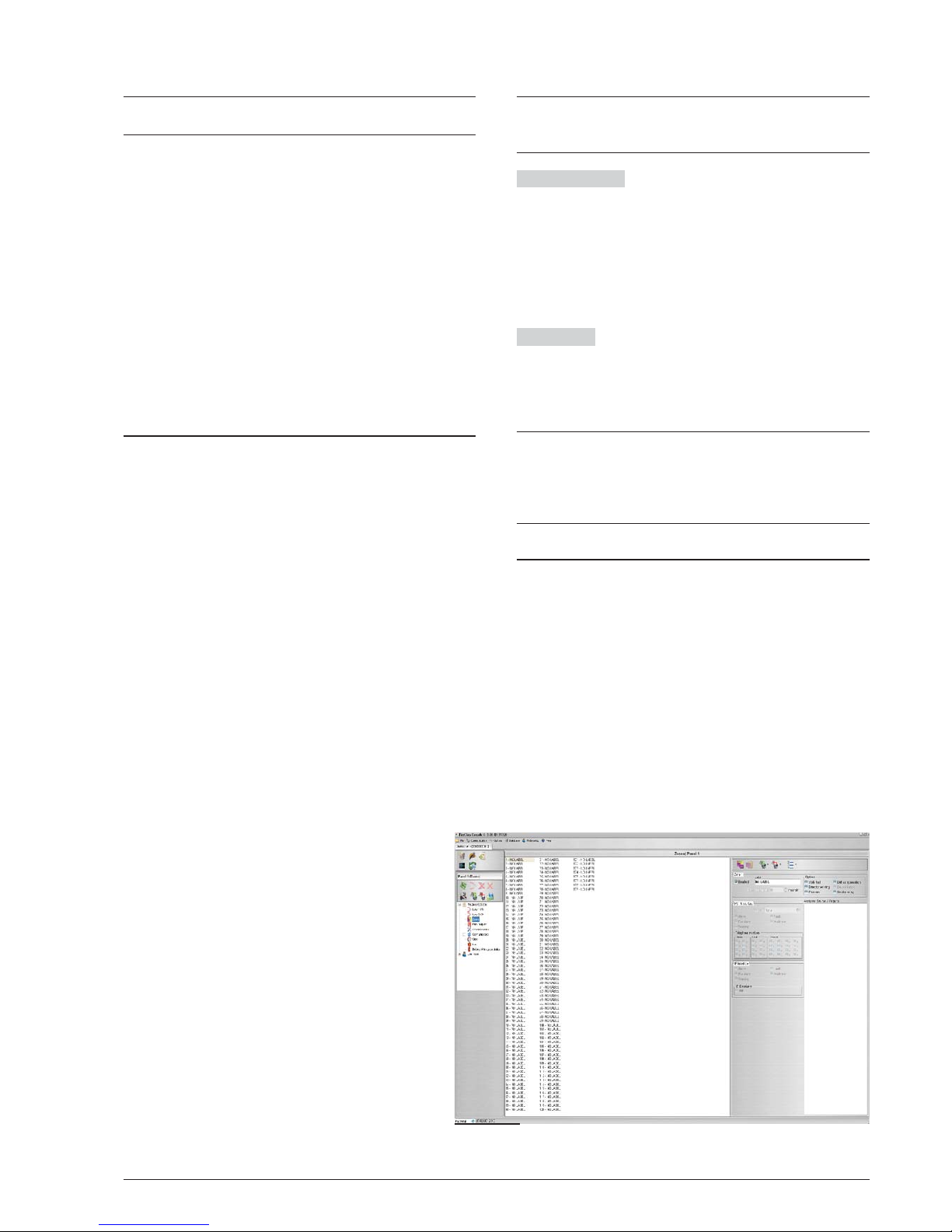

Figure 28 Zones Programming window.
Page 35
Ø
Enable: a tick [
3] indicates if the zone is ena
-
ble.
Ø
Label: this is for the editable Output-label. The
system will use the label as the Output identi
-
fier.
Program as NAC FIRE
If this option is ticked,
the NAC1 output is transformed into a NACFIRE
output (it is activated in the event of an alarm and
cannot be programmed). It is a C-type output (EN
54-1).
+
When Program as NACFIRE has been ticked,
the NACFIRE output indicator light blinks if the
NACFIRE output and/or NAC1 output breaks
down; it remains Glowing if the NACFIRE out
-
put and/or NAC1 output is disabled.
Assigned zones: : each Output can be associated
with up to 4 of the avalaible software zones (64 for FC510
128 for FC520 control panel).
Assigned points: each Output can be associated with 3
Input Points. If any one of its Input Points goes into
ALARM status, the Output will activate. For each Point it
is necessary to indicate:
Ø
the loop the output is connected to (1 or 2);
Ø
the address.
Options Section: this options will allow you to select
the conditions that will activate the outputs; exaple: if
"Zone warning" option is enabled, the control panel will
activate the output when one of its associated points
goes into Warning status.
Ø Zone Warning, Fault Zone, Prealarm Zone, Alarm
Zone, Double knock (see Zones programming),
Pass trought, zone Walk Test ;
Ø Point Warning, Point Fault, Point Prealarm, Point
Alarm, Network warning, Network fault;
Ø
Panel Warning, Network Warning, Panel Fault,
Network fault, Panel Prealarm, Network prealarm,
Panel Alarm, Network alarm, Backup PSTN line (see
FC500PS manual).
n
OS1....OS8 Outputs
Positive outputs - Programmable - SUPERVISED
—— Terminals for supervised devices activated
by positive (24 V):
Output active — positive (27.6 V) on terminal
[OS]; ground on terminal [M].
See the parameters descriptions as per Uscite
NAC1, NAC2, NAC3 Outputs.
n
O9....O16 Outputs
These are programmed, NON-SUPERVISED,
non-silenceable, bypassable (Disabled) outputs.
These are normally-open terminals (open-collec
-
tor) which close to ground when the correspon
ding zones go into alarm status. These terminals
will remain closed to ground even after the gene
rating event has ended.
See the parameters descriptions as per NAC1,
NAC2, NAC3 Outputs.
Linked Delay One of the 5 available timers (set using
the General Options screen) may be associated with an
output activated by a zone, point or control unit alarm. The
output will be activated to coincide with the programmed
event, after the delay indicated by the Timer.
General Options programming
The Panel parameters can be programmed through the General Options from the pull-down menu (see Figure 30).
Delays section In this section it is possible to program:
Ø Recognition delay: a Delay will be added automati-
cally to the Prealarm remaining delay, when the Inve-
stigate Key will be pressed.
+
The sum of Recognition delay and Prealarm
Time must not exceded 10 minutes
Main Fault delay: in this field it is possible to program
the delay of signalling of Mains failure.
The green signalling LED (Main OK) will be OFF, the
Amber signalling LED (Main Fault) will be ON, the rela
-
tiv event will be shown on the diplay.
PC PROGRAMMING 35

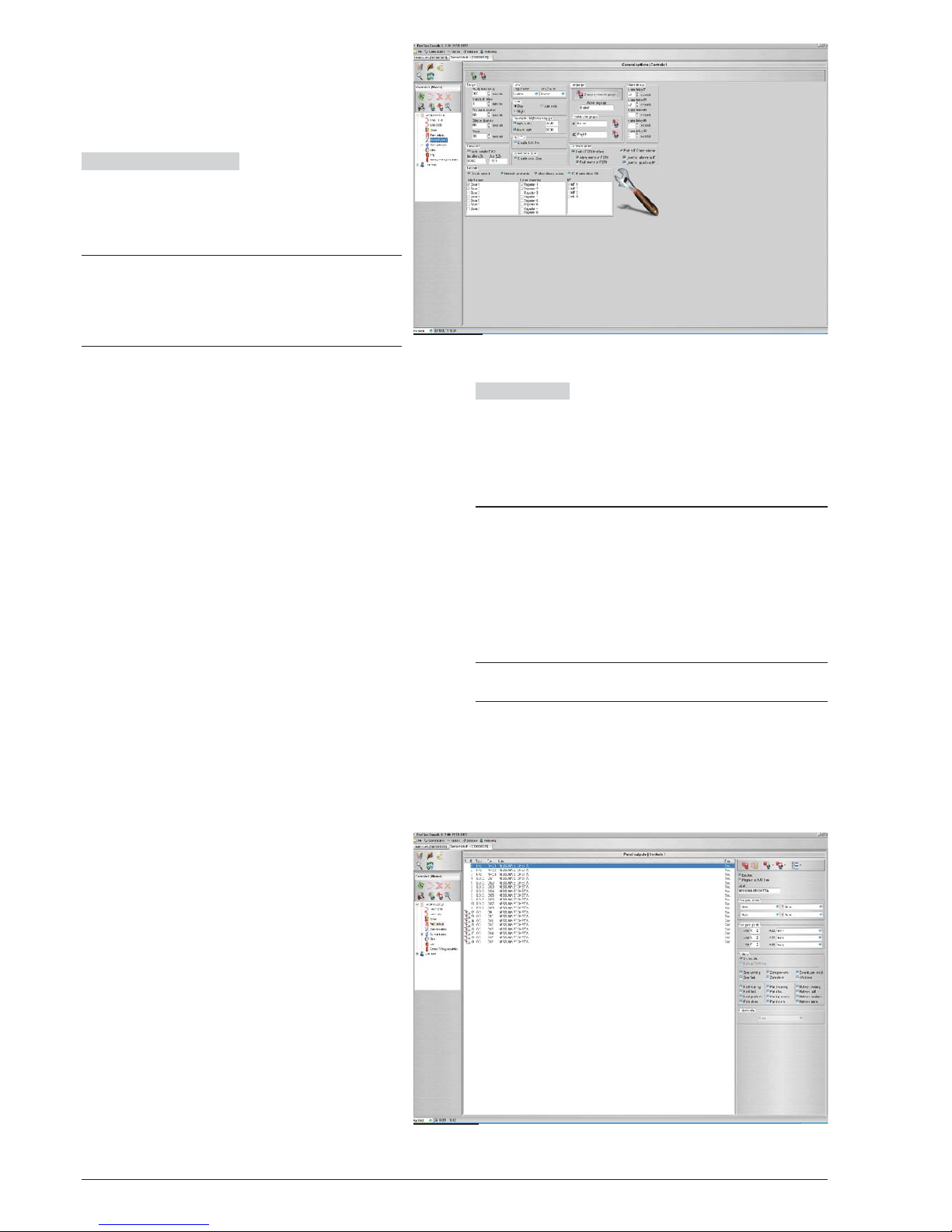

Figure 29 Outputs programming window.
Figure 30 General Options programming window.
Page 36
Prealarm duration: an input device programmed with
Prealarm time will generate ALARM status when the
prealarm time elapses.
Prealarm status is signalled by: an audible signal emit
-
ted by the control panel;
Ø
blinking on the PREALARM LED;
Ø
the message on the display;
Ø
activation of outputs with programmed Prealarms.
Silence duration: when the control panel is in Night
Mode the Silence delay is the maximum silence time of
the Outputs.
Reset: program the Reset time ( min Time: 2 sec; max
Time: reset AUX-RES Output, see AUX-RES terminal).
Password section: the Password section will allow
you to change the Installer and User codes. Codes
with 1 to 5 digits (0 through 9).
Installer code allows to manage the 3 access Levels of
control panel: L1(View), L2 (User), L3 (Installer).
The default installer code is 00000: every digit will be
hidden by *(star) symbol.
User code allows to manage 2 access Levels of con
trol panel: L1(View) and L2 (User).
The default User code is 11111: every digit will be hid
den by *(star) symbol.
Loop section: in this section select the required Loop
configuration: a 2 wire connection or a 4 wire connection.
Language section: select the avalaible language the
display of Control panel and Repeater will use. It is possible to upload others languages from the software.
Day-Night mode section: select the DAY or NIGHT
mode, or a tick [
3]onAutomatic enter the time (hour
and minutes) when the day-night mode changes
.
+
When you set the time to transition from DAY to
NIGHT mode make sure that the time is less than
the hour to be set for switching between Day and
Night mode.
FC500REP: a tick [
3] enables the Repeater faults si
gnalling.
Network: a tick [
3]onEnable Network enables the
Slave control panel on the Network, and a a tick [
3]on
Network Commands enables the Control pa
-
nels that have the same tick [
3] to do the com
-
mands (Reset, Silence, Investigate) programmed
in other Network control panels.
Allow silence buzzer: If this option is enabled it is
possible to silence a device that is activated by
every part of the network.
In the section Network (Figure 30): the options
Linked slaves, Linked repeaters and MFI allow
you to enable Slave control panels, Repeaters and
FC500 MFI modules. For FC500MFI module see
the programming from the panel at pag. 50.
NAC Fire: a tick [
3] indicates if the NAC FIRE is
disabled.
Conventional zone: a tick [
3] indicates if Con
-
venzional zone is disabled.
+
The Slave control panel address can be inserted
from the User interface of the same control panel;
the Repeater address can be inserted from the pa
nel of the same Repeater (see Programming from
the panel).
The FC500PSTN interface and the FC500IP module
are enabled in the Communicators section. A single
click means the interface will be present but not active,
while a double-click enables the FC500PSTN or
FC500IP module. You may also choose whether to
enable both alarm and breakdown events or just one of
the two. The delay times corresponding to the zone, po
-
int and control panel alarms are set in the Alarm Ti
-
mers section.
Languages:in the Languages section, you have the
option to change the system language from those avai
-
lable. Once in the Available Languages have loaded
the two languages among those available, press the
button to overwrite one of the two languages in the
panel memory. As soon as the download of the new lan
-
guage will be completed, the plant will start to use it, and
update their device, if necessary. To change the lan
-
guage currently active on the system, use the button
in the section Change system Language.
Advanced
In the Advanced section you have the
possibility to set the thresholds for gas detection device
FC410DDM, press the icon .
PSTN interface
For an explanation of the various commands and programming procedures, please refer to the dedicated
FC500PSTN manual.
36 Addressable Fire Control Panels FC500

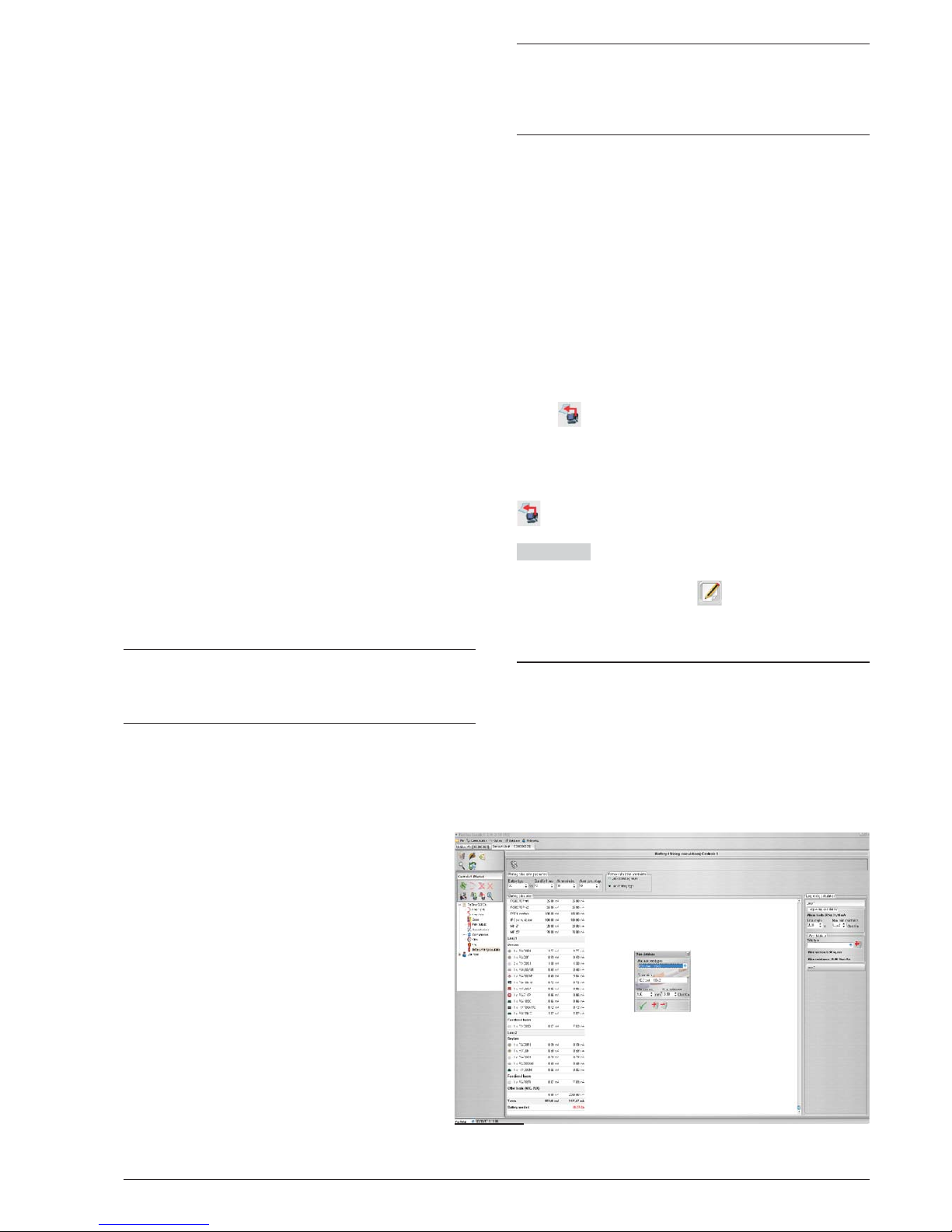

Figure 31 Battery calculation window
Page 37
IP interface
For an explanation of the various commands and pro
gramming procedures, please refer to the dedicated
FC500IP interface manual.
CLOCK
The Date/Time option from the CLOCK menu is for the
control panel clock settings.
Enter the required Time and Date.
In case schedule the automatic application of summer
time if required.
LOG
This option allows to read the Log stores events.
When a Customer will be closed, the system save auto
matically the present LOG. In this way the LOG is al
ways updated. Description of the icons in the LOG bar:
Up load from Board: click-on this icon to upload the
LOG of the connected control panel.
Export LOG to file: click-on this icon to export the
LOG in a .fcl file.
Import LOG from file: click-on this icon to import
the LOG from a .fcl file.
Apply filter: click-on this icon to select the LOG fil-
ter (if necessary):
Ø No filter
Ø Restore
Ø
Alarm
Ø
Prealarm
Ø
Warning
Ø
Fault
Ø
Generic
Ø
Walk test
Print a text file; in this case the control panel Event
Log, or part of it.
Filter: click-on this icon to select others LOG filter (if
necessary):
Ø
Filter by panel
Ø
Filter by Loop
Ø
Filter by device
Ø
Filter by zone.
The following data will be stored in the LOG: the Event's
Number, the Date, the Time, the Class (Fault, Alarm,
Warning, Generic and Walk test), the Event's descrip
tion, the Control panel number, the Loop, the Device
type, the Status, the Threshold and the Zone.
Clicking on the icon will delete the Event Log, or
part of it.
Battery Calculation
The Battery calculation window allows you to see (Figu
-
re 31):
Ø
the FireClass500 Loads
Ø
the Loop1,Loop 2 devices loads
in the condition of Normal Load and Alarm Loads
(percentage of devices in alarm status), when the Ma
ins faults.
Below this window, in the option "Others Load", if nee
ded, the Loads on Auxliary terminals will be inserted.
Automatically the Total Load and the Battery needed
will be shown.
Fixed the Stand-by hours, Alarm minutes and Alarm
percentage values the calculation will be done.
Battery calculation Parameters:
Ø
Stand-by hours (From 1 to 144 h)
Ø
Alarm minutes (From 1 to 240 h)
Ø
Alarm percentage
Battery Type: this is the battery (Ah) arising from calcu
lation.
Battery calculation constraints:
Ø
Lock stand-by hours
Ø
Lock battery type.
Lock stand-by hours: "Battery Type" value (Ah) will be
calculate, fixed Stand-by hours, Alarm minutes and
Alarm percentage ;
Lock battery type: "Stand-by hours" value will be cal-
culate, fixed Battery Type (Ah), Alarm minutes and
Alarm percentage.
+
The software calculation is a rough calcolation and
cannot substitute the Installer and/or Qualified person calculation.
Loop Wiring calculation
In the same Battery Calculation window (see Figure
31), on the right, FireClass500 Console allows you the
Loop Wiring Calculation.
After the Loop devices have been programmed, clicking
on Loop1 or Loop 2 field (Installation Loop), the Loop
Wiring Calculation window will open. Insert the wire
type in the Max wire Resistance field (value in
Ohm/Km); automatically, the max Loop length will be
shown in the Loop Length field (value in m.) .
Vice versa, inserted the Loop Length, automatically,
the Max wire Resistance (Wire type) will be shown.
Clicking on this Icon the Wire database will be
open. In this database it is possible to insert many type
of wires and so these type of wires will be used in the
Loop wire calculation.
PC PROGRAMMING 37
Page 38
38 Addressable Fire Control Panels FC500
INSER
INSTALLER
PASSWORD
SHOW
RESULT
PROGRAM
DEVICE
AUTO
SW ZONE
SYSTEM
TELECOM
OPTION
DEFAULT
SW ZONE
DEVICE
OUTPUT
TELECO
PROGRAM
SW ZONE
SELECT
SW ZONE
PROGRAM
SYSTEM
SELECT
CHANNEL
PROGRAM
OPTIONS
NET
DEVICE OUPUT
SELECT
DEVICE
CHOOSE
LOOP
PROGRAM
PANEL TYPE
SELECT
OUTPUT
PROGRAM
OUTPUT
SHOW
DEVICE
CHOOSE
DEVICE
CHOOSE
LOOP
SHOW
SW ZONE
STATUS
SHOW
OUTPUT STATUS
SELECT WHAT TO PROGAM
NET
SHOW
NET PSTAT
CHOOSE
PANEL
LOOP
SCAN & SHOW
LOOP PARAM.
PR
WRONG
PASSWORD
200
200
310
330
312
440
430
431
432
440
800
800
800
440
314
A20
EEEE
AF0
EEEE
432
431
430
SHOW
DETAILS
314
DIFFERENCES
FOUND
311
CHOOSE PANEL
430
800800
800
ENROLL
RECORD/PLAY
VOICE MESSAGE
820
1
2
3
4
5
6
7
8
9
0
L3 PWD
SELECT
HOW TO
PROCEED
311
ADD
DIFFERENCES
NEW
1
REFUSE
2
3
CONFIRM
PAGE
EEEE
DEFAULT
DATA FORCED
CHANGE
INSTALLER
PASSWORD
200
SELECT WHAT TO ANALYZE
5
6
SHOW
TELECOM i/f
STATUS
EEEE
1
3 4
2
LABEL
WALK TEST
LABEL
MASTER SLAVE
DAY/NIGHT
LANGUAGE
Lev. 3
Lev. 1
CHOOSE PANEL

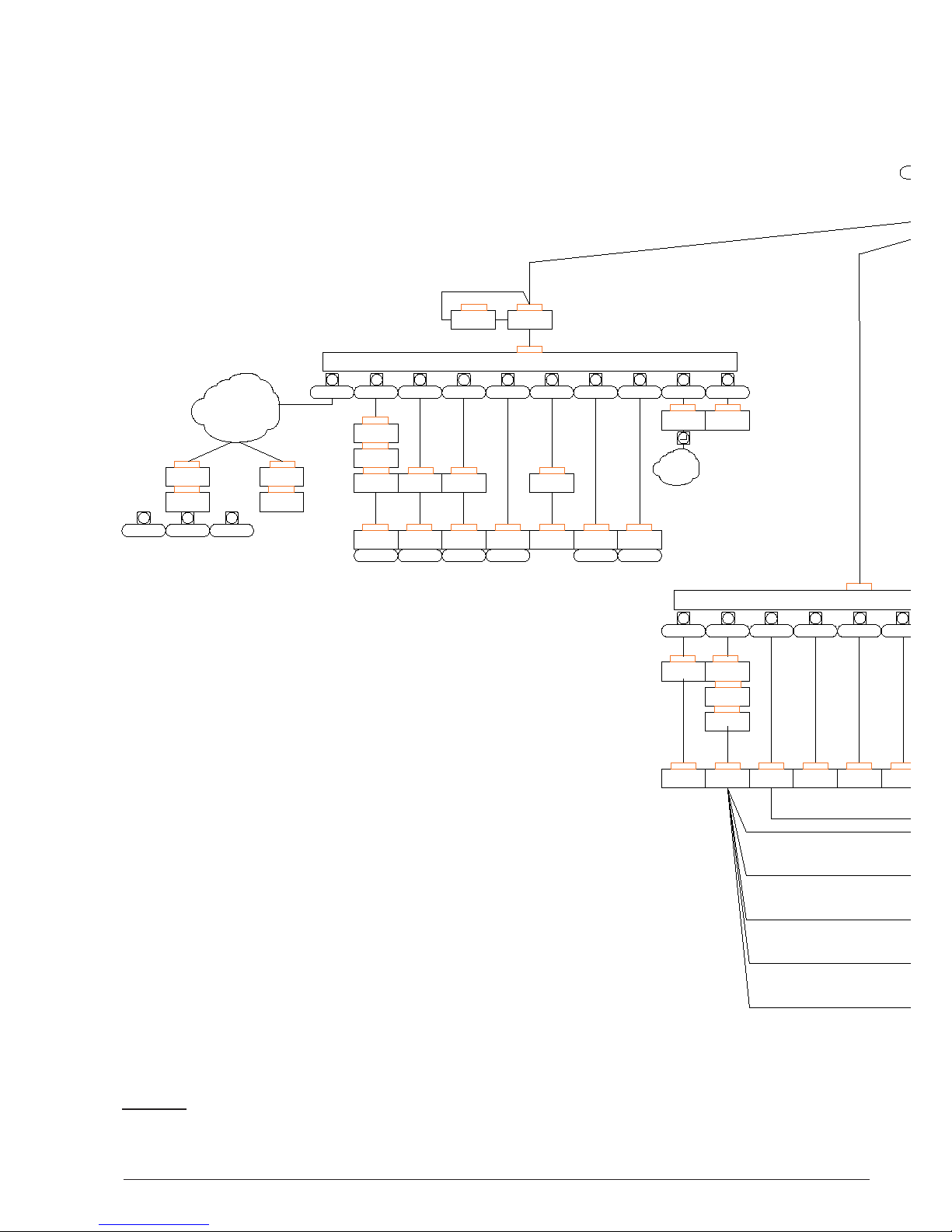

Figure 32 Diagram of all possible operations from the panel, L1, L2 and L3 Levels
Page 39

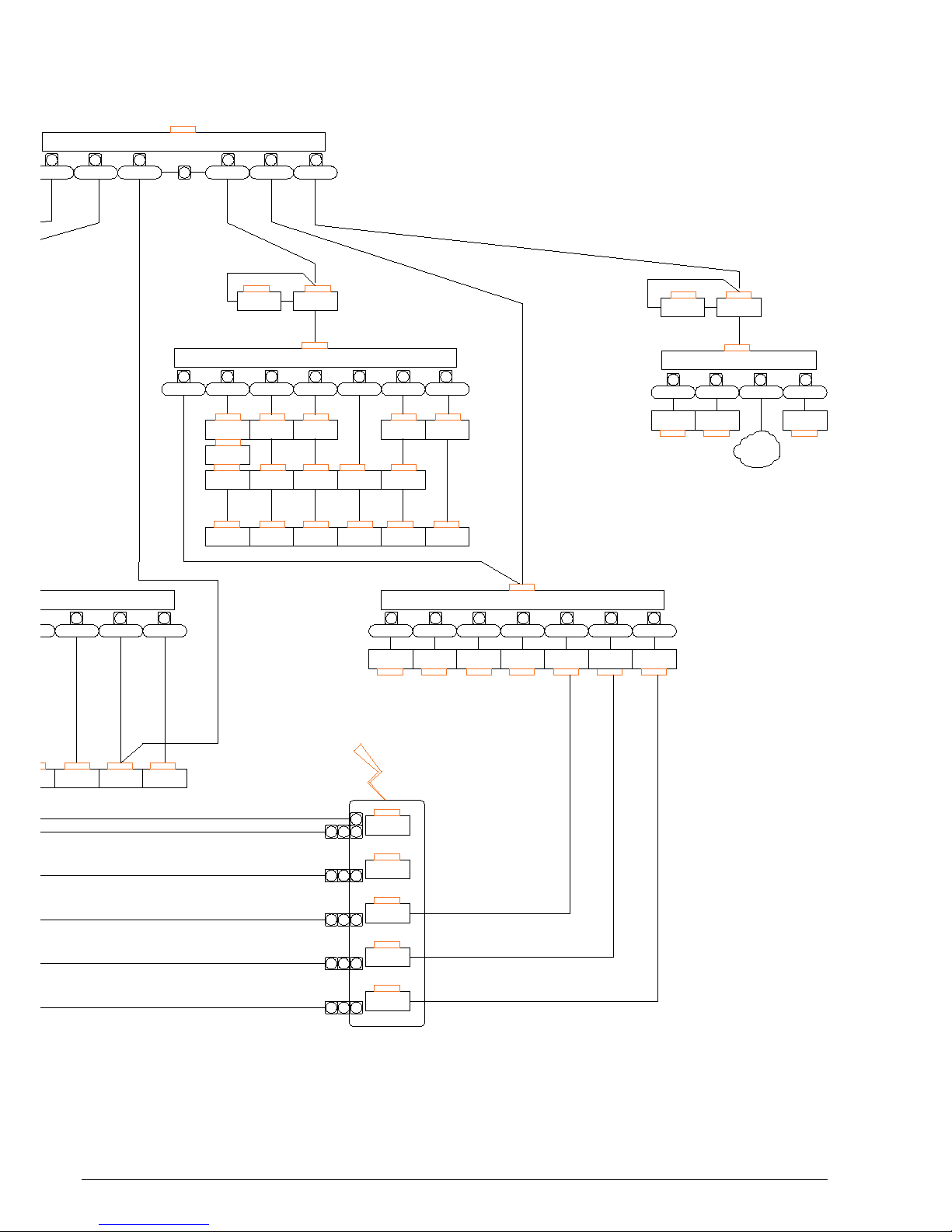

PC PROGRAMMING 39
INSERT USER
PASSWORD
CHANGE
USER PWD
PANEL NAME
FW VERSION
DIASABLE
CLEAR LOG
DATE & TIME
LOGOPTION
INSER PANEL
NAME
VIEWFWVER.
INSERT
NEW USER
PASSWORD
SELECT WHAT TO BE DISABLED/ENABLED
NET
DEVICE
OUTPUT
TELECOMSW ZONE
DISABLE
ZONE
CHOOSE
SW ZONE
DISABLE
TELECOM
CHOOSE
OUTPUT
DISABLE
OUTPUT
CHOOSE NET
EQUIPMENT
DISABLE NET
EQUIPEMNT
DISABLE
DEVICE
CHOOSE
DEVICE
CHOOSE
LOOP
SHOW
OPTIONS
VIEW LOG
US
CHOOSE
PANEL
SELECT WHAT MODIFY
MAIN PAGE
MODIFYROGRAM
ANALYZE
VIEW LOG
WRONG
PASSWORD
200
200
320
800
200
323
430
431
432 440440
440
440* 440*440* 440*440*
A70
800*
EEEE
LIST
VIEW LIST
INSERT USER
PASSWORD
WRONG
PASSWORD
200200
CHOOSE
INTERFACE
440
DISABLED
DEVICES
DISABLED
ZONE
DISABLED
PARTS
SW ZONE IN
WALK TEST
FAULTS LIST
SCAN & SHOW
DISABLED SW ZONES
SCAN & SHOW
DISABLED DEVICES
SCAN & SHOW
DISABLED PARTS
VIEW LISTs
340
A70*
SCAN & SHOW
SW ZONES
IN WALK TEST
A70* A70*
A70*
ALARM
F00
FAULT
F00
WARNING
F00
PRE ALARM
F00
WALK TEST
F00
430 430
CONV. ZONE
DISABLE
CONV. ZONE
430
440*
F1 F2
F3
F4
F1
F2
F3
100
1 3 4
7
8 9
2
LOG CLEARING
INSERT
DATA & TIME
800
1 3 42 5 6 7
430
ACTIVE
WALK TEST
WARNINGS
LISTS
SCAN & SHOW
ACTIVE FAULTS
F00 F00
SCAN & SHOW
DEVICES IN
WALK TEST
F00
1 3 42 5 6 7
Lev. 2
Lev. 1
Lev. 2
F4
F1
F2
F3
F4F2
F3
F4
F2 F3
F4
F2
F3
F4
F2
F3
SCAN & SHOW
ACTIVE
WARNINGS
CHOOSE
PANEL
CHOOSE
PANEL
CHOOSE
PANEL
CHOOSE
PANEL
PAGE DIRECTLY ACTIVATED BY EVENTS
Page 40
+
The wire database data is stored in the file "Wire
-
sList.fcw" inside the FireClass 500 Console Lan
guage folder. The database can be moved from
one system to another. The Console searchs for
the wire database while starting, so, if the user can
not access a moved database, simply close the
software, and start it again.
Print a text file; in this case the calculation used to
determine the loop charge and establish the type of bat
-
tery required.
User mode
User mode provides an introduction to the use of Grap
-
hical maps. For an explanation of how it works and how
to use it, select the Help command from the menu or
from the Graphical Maps themselves.
40 Addressable Fire Control Panels FC500
Page 41
PROGRAMMING FROM THE PANEL
Read through the following section carefully, in order to
get an overall view of how to use the User interface Pro
-
gramming (Main panel) of control panel.
For details regarding the parameters of each phase, re
fer to the respective paragraph in the
“PROGRAMMING FROM A PC” chapter.
Using the system
The FC500 system can be managed from the User in
terface (main panel) and/or through the FireClass500
Console application (the computer must be connected
locally via RS232 serial port). The User interface (main
panel) allows access to different Level authorized.
There are three different access levels, as follows.
n L1= First Level: this level allows the Reading
Parameters ONLY:
- F2-ANALYZE button (see Figure 36) views the status
of the: LOOP, DEVICE, SW ZONES, OUTPUT,
NETWORK, TELECOM, OPTIONS, LOG and the FW
Vers.;
- F3-View LOG;
- F2-Wiew. Lists button views the lists of: DIS.
ZONES, DIS. DEVICES, DIS. PARTS, WALK TEST,
FAULTS, WARNINGS and Dev. in TEST.
n
L2= Second Level or USER Level: access to this
level requires entry of the USER PIN (Access
Level 2).
This level allows all the operations of the First Level,
moreover allows to MODIFY:
F3-MODIFY button for: Init MSG (MESSAGE), L2
USER PASSWORD, DAY/NIGHT, TIME and DATE
and Clear LOG;
+
To make sure the DAY/NIGHT mode has been up
-
dated correctly, check whether the DAY mode LED
is switched ON or OFF.
F1-DISABLE button for: Dis lists, Device, SW ZONES,
OUTPUT, NETWORK, Telecom and Conv. ZONE .
n
L3= Third Level or INSTALLER Level: access to
this level requires entry of the INSTALLER PIN
(Access Level 3).
This level allows all the operations of the First and Se
cond Level, moreover allows to program the security
system; the Programming phase allows the installer to
program the control panel and peripheral devices (de
tectors, modules, repeater and slave panels), in details:
AUTO, DEVICES, SW ZONES, OUTPUTS,
NETWORK, TRANSM., OPTIONS, SYSTEM,
DEFAULT and PWD L3
n
Operating the system
To manage the system from the User interface (Main
panel) is used the Alphanumeric keypad, the Cursor
keys, the ESC Key , the ENTER key and the
Functions Keys F1 ,F2 , F3 and F4 .
+
In detail the use of Alphanumeric keypad, the Cursor keys, the ESC Key , the ENTER key and the
Functions Keys F1, F2, F3 and F4 is shown in
every page of
PROGRAMMING/DISABLE/MODIFY/READING
PARAMETERS.
Editing a text Use the Alphanumeric keypad to create
labels and enter data and codes.
Use LEFT and RIGHT keys to scroll along the
line, then press the alphanumeric key to insert in the se
lected position.
Use the UP key for upper-case letters and the
DOWN key for lower-case letters.
Use the RIGHT key to enter a space in the text.
Once the text has been completed, press the ENTER
key to confirm and step forward, or position the cur
sor on the first letter of the text then press the key to
step back.
+
In the following pages are shown all possible ope
-
rations managed at Level 3 ( Installer Level).
The operation managed at Level L1 and L2 (User
Level) are shown in the User Manual.
PROGRAMMING FROM THE PANEL 41
ESC
F1F2F3
F4
Page 42
Main Page - Accessing the system
After this Control panel has been installed and powered
from the Mains, the main page of the display shows as
per Figure 33.
In this phase:
Alphanumeric keypad No function is related to
Alphanumeric keypad.
Cursor keys
The UP Key: increase the brightness of
LCD display;
the Down Key: decrease the brightness of LCD display;
the Right Key: increase the contrast of LCD display;
the Left Key: decrease the contrast of LCD display;
ESC Key No function is related to ESC key.
ENTER Key No function is related to ENTER key.
Function Keys
Use F1 Key to select the Program
-
ming or Disable phase;
Use F2 Key to show the List Disabled devices or to se
-
lect the Analize phase;
Use F3 Key to select the Modify phase or to show the
events in the LOG;
Use F4 Key to select the related functions to F1, F2, F3
Keys.
42 Addressable Fire Control Panels FC500
F1=Program lev.1: ACTIVE
F2=Analyze MASTER PANEL
F3=View LOG SCANNING LOOP
F4=More
Related
functions to the keys
F1, F2, F3, F4
Access Level
This symbol shows the presence
of the connection between the
User Interface and the Main Board
Current phase
Control panel
Status
18 50 27 - 17/05/07::
Figure 33 The Main Page of Display
Page 43
Insert password
After the F1 Key is pressed the Figure 34 will shown;
in this phase:
the default installer code is 00000: every digit will be
hidden by *(star) symbol.
Alphanumeric keypad Use the Alphanumeric keypad
to insert the password of 5 digit.
Cursor keys
No function is related to UP key.
No function is related to Down key;
No function is related to Right key;
No function is related to Left key.
ESC Key
Use the ESC key to cancel the input of pa
-
ssword and to step back to previous page.
ENTER key
Use the ENTER key to confirm the pa
-
ssword.
Function key
No function is related to F1 key.
No function is related to F2 key.
Use the F3 key to cancel the digits of password, if mista
-
ken; insert the new digits;
No function is related to F4key.
If a Password is wrong or missing, the following screen
will appear:
to return to the previous screen, press the Esc button or
wait for a few seconds
PROGRAMMING FROM THE PANEL 43
Master Control Panel l3-stat: PROGRAM
INSTALLER
Insert the Password
[____ ]_
Name of Control Panel
Spaces to insert the password
This symbol shows the presence
of the connection between the
User Interface and the Main Board
Control panel
Status
Access Level
Figure 34 Insert password (Installer code).
Master Panel lev.3 : PROGRAM
INSTALLER
Wrong Password
Figure 35 Display Wrong Password
Page 44
Programming Page
From Main page, use the F1 Key to select the Program
ming phase. Insert the password (installer code) and
then the page is shown in Figure 36:
in this phase:
Alphanumeric keypad Use the Alphanumeric keypad
to select the different programming functions:
0= L3 PWD; start the page to insert the password of L3 le
vel (Installer code) (see Insert-Modify password page);
1= Auto: start the auto-learning of the loop devices and the
RS485 network devices automatically;
2= FC Dev: start the selection and programming page
of the loop devices;
3= SW Zones: start the programming page of the sof
tware zones;
4=Outputs: start the programming page of the Outputs;
5= Network: start the programming page of the RS485
network devices;
6= Telecom: start the programming page of the teleco
munication devices;
7=Options: start the programming page of the options;
8=System: start the programming page of the system
parameters;
9=Default: forces a default setting restore procedure;
Cursor keys
No function is related to UP key.
No function is related to Down key;
No function is related to Right key;
No function is related to Left key.
ESC Key
Use ESC key to cancel the operation and to
step back to previous page.
ENTER Key
No function is related to ENTER key
Function Key
No function is related to F1 key;
No function is related to F2 key;
No function is related to F3 key;
No function is related to F4 key.
1 KEY- Auto Enrolling (Autolearning
The Auto option from the PROGRAMMING menu will
allow you to enrol the loop devices and the RS485 net
-
work devices automatically.
+
Autolearning (enrolling) can be done during the in
stallation phase and after changes of the loop and
network configurations.
Use the 1 Key to select Auto option, the display will
show the Figure 37:
in this phase:
Alphanumeric keypad No function is related to
Alphanumeric keypad.
Cursor Keys
No function is related to UP Key;
No function is related to Down Key;
No function is related to Right Key;
No function is related to Left Key .
ESC Key
Use ESC key to cancel the operation and to
step back to previous page.
ENTER key
Use ENTER key to view the page of the
Loop details.
Function Keys
No function is related to F1 key;
No function is related to F2 key;
No function is related to F3 key;
No function is related to F4 Key.
n Warning Enrolling (Autolearning)
When there are some differences between the present
configuration and that of the Enrolling (Autolearning) results, the display will show the Figure 37b:
in this phase:
Alphanumeric keypad
1 = delete the old configura
tion and load the new one;
2 = keep the old configuration, remove the devices no
longer present and add the new ones;
3 = keep the old configuration.
Cursor Keys
No function is related to UP Key;
No function is related to Down Key;
No function is related to Right Key;
No function is related to Left Key.
ESC Key
No function is related to ESC Key.
ENTER Key
No function is related to ENTER Key.
Function Key
No function is related to F1 Key;
No function is related to F2 key;
No function is related to F3 key;
No function is related to F4 Key.
44 Addressable Fire Control Panels FC500
Master Control panel l3-stat: PROGRAM
1=Auto 2=FC dev. 3=SW zone 4=Output
5=Network 6=Telecom 7=Options 8=System
9=Default 0=L3 PWD
Options
Name of Control Panel
This symbol shows the presence
of the connection between the
User Interface and the Main Board
Control panel
Status
Access Level
Figure 36 Main programming page
Page 45
In both cases: Auto OK or NOT, the Loop details will
shown (see Figure 37c).
In this phase:
Cursor Keys
The UP key: shows information relating
to the next Loop;
The Down Key: shows the information relating to the
previous Loop;
No function is related to Right Key;
No function is related to Left Key .
+
Attention: when the Enrolling is done, the devices pro
-
gramming data (except their assigned names) will re
store to the manufacturers settings (Default) ; therefore
a previous configuration will be lost (Choise 1).
0 KEY - insert-Modify password
In this phase (see figure 38):
Installer Code at Default is 00000; every digit will be
masked by * symbol.
Alphanumeric keypad Use the Alphanumeric keypad
to insert the password of 5 digit.
Cursor keys
No function is related to UP key.
No function is related to Down key;
No function is related to Right key;
No function is related to Left key.
ESC Key
Use the ESC key to cancel the input of pa
-
ssword and to step back to previous page.
ENTER key
Use the ENTER key to confirm the pa
-
ssword.
Function key
No function is related to F1 key.
No function is related to F2 key.
Use the F3 key to cancel the digits of password, if mista
-
ken; insert the new digits;
No function is related to F4.
PROGRAMMING FROM THE PANEL 45
Control panel master lev 3: PROGRAM
Slaves=NO Rep. =NO ENT to view details
Loop list with
Autoscan results
Presence of
slave panel
Loop1=OK Loop2=OK
Presence of
repeaters
Differences found!
1:New configuration
a)
b)
2:Add new devices
3:Discard changes
Loop= 01 l3-stat: PROGRAM
Modules : 125
Status: Working
Loop Num.
ILoop=073 mA
Loop current value Loop Status
Detectors: 125
Detectors Num.
c)
Modules
numbers
Name of Control Panel
This symbol shows the presence
of the connection between the
User Interface and the Main Board
Control panel
Status
Access Level
This symbol shows the presence
of the connection between the
User Interface and the Main Board
Control panel
Status
Access Level
d)
Control panel master lev 3: PROGRAM
Name of Control Panel
This symbol shows the presence
of the connection between the
User Interface and the Main Board
Control panel
Status
Access Level
ENROLLING IN PROGRESS
PLEASE WAIT
Figure 37 Auto (Enrolling) results pages
Master Control Panel l3-stat: PROGRAM
INSTALLER
Insert the NEW Password
[____ ]_
Name of Control Panel
Spaces to insert the password
This symbol shows the presence
of the connection between the
User Interface and the Main Board
Control panel
Status
Access Level
Figure 38 Insert-Modify password (Installer code).
Page 46
9 KEY- Restore Default
The Restore Default option from the PROGRAMMING
menu will allow you to restore default setting.
Use the 9 Key to select Restore Default, the display
will show the Figure 39:
in this phase:
Alphanumeric keypad No function is related to
Alphanumeric keypad.
Cursor Keys
No function is related to UP Key;
No function is related to Down Key;
No function is related to Right Key;
No function is related to Left Key .
ESC Key
The ESC Key deletes the procedure and re
-
turns to the previous page;
ENTER key
The ENTER Key starts the default settings
restore procedure.
Function Keys
No function is related to F1 key;
No function is related to F2 key;
No function is related to F3 key;
No function is related to F4 Key.
KEY 2 -Device
The Device command in the PROGRAMMING menu
activates the screen used to select and program the de
-
vices on the loops;
The Alphanumeric keypad The Alphanumeric key
-
pad is used to digit the address of the device.
Cursor Keys
No function is related to UP Key;
No function is related to Down Key;
The Right key selects the next available device;
The Left key selects the previous available device
ESC key : ESC key deletes the procedure and returns
to the previous page;
ENTER The ENTER key accepts the selection and acti
-
vates the corresponding programming page.
Function Keys
No function is related to F1 key;
No function is related to F2 key;
The F3 key resets the address value entered using the
numeric keypad;
No function is related to F4 Key.
46 Addressable Fire Control Panels FC500
All programmings data will be lost.
Do you want to continue?
ESC=NO ENTER=YES
WARNING!
Figure 39 Restore default page
Master panel lev 3: PROGRAM
Master Panel
[L1]L2
Choose loop
Lev 3: PROGRAM
Master panel
[MS]
Choose Panel
Loop 1
Name
selected
loop
Master Panel lev 3 : PROGRAM
Master Panel
d001 [d187] m250
Programmed
address
Loop 1
Add=<123>
400PH
Selected address Type selected detector
MS:L1 det001 lev 3 : PROGRAM
Master Panel
Detector
to program
[Temperature]
Device name
Paramether to program
Master panel
Name of
Control Panel
This symbol shows the presence
of the connection between the
User Interface and the Main Board
Control panel
Status
Access Level
Name of
Control Panel
Control panel
Status
Access Level
Figure 40 Pages of Selecting and programming Devi
-
ces on Loop
Page 47
KEY 3- SW zone
The SW zone command in the PROGRAMMING menu
activates the screen used to select and program the
Software zone on the loops;
The Alphanumeric keypad The Alphanumeric key
-
pad is used to select the number of the zones.
Cursor Keys
No function is related to UP Key;
No function is related to Down Key;
No function is related to Right key;
No function is related to Left key.
ESC key
The ESC key deletes the procedure and re
-
turns to the previous page;
ENTER
The ENTER key accepts the selection and acti
-
vates the corresponding programming page.
Function Keys
No function is related to F1 key;
No function is related to F2 key;
The F3 key resets the value entered using the numeric
keypad;
No function is related to F4 Key.
After selecting the SW Zone, you will be able to enable
or disable the option Zone in TEST (ON) or not (OFF); in
this phase:
Cursor Key
No function is related to UP Key;
No function is related to Down Key;
Right key: selects ON -OFF;
Left key: selects ON-OFF.
ESC Key ESC key deletes the procedure and returns
to the programming page.
ENTER key The ENTER key accepts the selection
and activates the corresponding programming page
Detector alarm verification (Smoke delay)
For each zone, you can program the delayed activation
of smoke detectors, according to the following schedule:
when the smoke level exceeds the threshold of alarm,
the panel does not signal anything at first;
- after 60 seconds if the smoke level is still above the
threshold, the system goes into alarm condition, other
-
wise there are no signals;
- within 30 minutes, a new level exceeded the threshold
of alarm or activation of another sensor in the same
zone causes the alarm of control panel.
To program the delay on the activation of smoke detec
-
tors, from Programming menu: SW Zone (KEY 3).
- After selecting the SW Zone, on the following display
about the zone to test, select OFF and press Enter.
- on the following display about the new option "Detec
tor alarm verification", select ON (to enable) and press
Enter.
In this phase:
Cursor Keys
No function is related to Up key;
No function is related to Down key;
Use the Righ key to select: On-OFF;
Use the Left key to select: On-OFF.
ESC key
Use ESC key to delete the operation and to
step back to previous page.
ENTER key Use the ENTER to accept the selection
and activate the programming page.
PROGRAMMING FROM THE PANEL 47
Master Panel lev 3: PROGRAM
Master panel
Enter the SW zone number
Access Level
Control panel
status
SW Zone: 097
SW Zone Index to
program
SW Zone lev 3: PROGRAM
Master Panel
On OFF
ZONE IN WALK TEST
Select the option
a)
b)
Name of
Control Panel
This symbol shows the presence
of the connection between the
User Interface and the Main Board
Name of
selected
Control Panel
Figure 41 Pages of Selecting and programming of
SW zones
Master Panel lev 3: PROGRAM
Master panel
Enter the SW zone number
Access Level
Control panel
status
SW Zone: 097
SW Zone Index to
program
SW Zone lev 3: PROGRAM
Master Panel
On OFF
ZONE IN WALK TEST
Select the option
a)
b)
Name of
Control Panel
This symbol shows the presence
of the connection between the
User Interface and the Main Board
Name of
selected
Control Panel
SW Zone lev 3: PROGRAM
Master Panel
On OFF
DELAY.SMOKE
c)
^
Select the option
^
Figure 42 Page of programming option delay Detec
-
tor alarm verification
Page 48
4 KEY- OUTPUT
The Outputs command in the PROGRAMMING menu
activates the output programming screen. If KEY 4 is
used to select Output programming, you will be asked
to select the output you wish to program; this will be fol
-
lowed by the programming procedure for that output.
n
Choose Output
In this phase:
Alphanumeric keypad The Alphanumeric keypad is
used to select the number of the Output.
Cursor Keys
The UP Key: shows the next/previous
output category (NAC-OC-OS);
The Down Key shows the previous output category;
No function is related to Right key.
No function is related to Left key.
ESC Key
Use ESC key to delete the operation and to
step back to previous page.
ENTER Key Use the ENTER to accept the selection
and activate the view of the next page.
Function Keys
No function is related to F1 key;
No function is related to F2 key;
Use the F3 key to reset the value entered using the alphanumeric keypad (if incorrect). Navigate using the
Right or Left keys;
No function is related to F4 Key.
Once the Output has been programmed (type and identification number) and ENTER pressed to accept the
selection, enter the label for that output.
NAC active on disablements
The programming NAC Outputs can be activated on di
-
sablements of any part of the system.
From PROGRAMMING Menu select Output (KEY 4)
and than work through the following steps:
-insert the number of NAC you want to program the op
-
tion "NAC active on disablements";
-in the following diplay insert the name of Output and
than press ENTER;
-in the following diplay, press ON to enable the new op
-
tion and than press ENTER.
In this phase:
Cursor Keys
No function is related to Up key;
No function is related to Down key;
Use the Righ key to select: On-OFF;
Use the Left key to select: On-OFF.
ESC key
Use ESC key to delete the operation and to
step back to previous page.
ENTER key Use the ENTER to accept the selection
and activate the programming page.
+
If a NAC has this option programmed, it shall be not
silenceable.
48 Addressable Fire Control Panels FC500
Master Panel lev 3: PROGRAM
NAC Output: 001
Control Panel name
Access Level
Outputs type
Output
Number
NAC Output 001 ev.l 3 :PROGRAM
[]
OUTPUT NAME
Insert Output label
Up or Down to select the type
Enter the NAC Output number
This symbol shows the presence
of the connection between the
User Interface and the Main Board.
The symbol KO will be shown
when the connection fails
Control panel
Status
Access Level
Control panel
Status
Output
Number
Figure 43 Pages of Selecting and programming
Outputs
Master Panel lev 3: PROGRAM
NAC Output: 001
Control Panel name
Access Level
Outputs type
Output
Number
NAC Output 001 ev.l 3 :PROGRAM
[]
OUTPUT NAME
Insert Output label
Up or Down to select the type
Enter the NAC Output number
This symbol shows the presence
of the connection between the
User Interface and the Main Board.
The symbol KO will be shown
when the connection fails
Control panel
Status
Access Level
Control panel
Status
Output
Number
NAC Output 001 ev.l 3 :PROGRAM
on OFF
NAC ACTIVE ON DISAB.
Select the option
Access Level
Control panel
Status
^
Figure 44 Pages for programming "NAC active on di
-
sablements" option.
Page 49
5 Key- Network
At default, every FC500 Control panel is a Master Con
-
trol Panel disabled in the Network.
+
If a control panel is already configured as "Master",
verify, via PC, if it is enabled in the Network.
If a control panel is already configured as "Slave",
in the new installation, insert the Slave address
from the user interface of the Contro panel itself.
In the Network ONLY one Master control panel
must be present.
When all the Control panels and the Repeaters are con
nected in the Network, the system can be supplied.
Now it is necessary to configure the Network, so work
through the following steps:
1- use the 5 Key to select Network, from Programming
page (Figure 45) in the User interface of the control pa
nel to be configured;
2- the Display of Figure 45 will be shown;
3- use the cursor keys to select the type of control panel
assigned as "Slave" (address);
4- use the Enter key to confirm.
+
Every "Slave" control panel inserted in the Network
must have a different address.
Alphanumeric keypad No function is related to
Alphanumeric keypad;
Cursor Keys
No function is related to UP Key;
No function is related to Down Key;
Use the Righ key to move on the Right to select the
type of the control panel.
Use the Left key to move on the Left to select the type of
the control panel.
ESC Key
Use ESC key to cancel the operation and to
step back to previous page.
ENTER Key Use the ENTER Key to confirm the ad
-
dress.
Function KeysNo function is related to F1 key;
No function is related to F2 key;
No function is related to F3 key;
No function is related to F4 Key.
FC500MFI programming Procedure
To program the module FC500MFI, do the following
from Programming menu (Network), press 5 key.
In the programming page "Network" press the ENTER
key to confirm the type of panel (FC500MFI),
Select and enable one or more FC500MFI modules
(max 4);
select a module by the arrow ï or ð (the symbol ^ un
der the name show the selected module),
enable a module by the arrow ñ or disable it by the ar
row ò:
the module name, if enabled, will appear in uppercase
(see figure n.46).
Press the Enter key to confirm.
+
For an explanation of the features and program
-
ming (addresses), see the dedicated manual of the
FC500MFI module.
in this phase:
Alphanumeric keypad No function is related to the
Alphanumeric keypad.
Cursor Keys The Up key enable the selected module
(es. ON1-uppercase);
The Down key disable the selected module (es. on1-lowercase);
Use the Righ key to select the module;
Use the Left key to select the module;
ESC Key
Use ESC key to cancel the operation and to
step back to previous page.
ENTER key The ENTER key confirm the program
ming.
Function Keys No function is related to F1, F2, F3 e
F4.
PROGRAMMING FROM THE PANEL 49
System lev3. : PROGRAM
PANEL TYPE MASTER PANEL
Ms s1 s2 s3 s4 s5 s6
^
Access level
This symbol show the
presence of the connection
between the User Interface
and the Main Board.
Symbol to choose the control panel to enable as slave
Control panel
Status
Figure 45 Page to program the address of Slave con
-
trol panel.
System lev3. : PROGRAMMING
FC500 MFI MASTER Panel
on1 on2 on3 on3
^
Symbol show the selected module to enable
This symbol shows the presence
of the connection between the
User Interface and the Main Board
Access Level
Control panel
Status
Figure 46 Display to enable the FC500-FMI module
Page 50
KEY 6-TELECOM
The Telecom option in the PROGRAMMING menu ac
tivates the transmission device programming page. If
Key 6 is used to select Telecom device programming,
you will be taken to the Voice message recording/repla
ying page, Figure 47:
in this phase:
Alphanumeric keypad The Alphanumeric keypad is
used to select the number of the Voice message.
Cursor Keys
No function is related to UP Key;
No function is related to Down Key;
Use the Righ key to select the next voice message.
Use the Left key to select the previous voice message.
ESC Key
Use ESC key to cancel the operation and to
step back to previous page.
ENTER Key No function is related to ENTER Key.
Function Keys
No function is related to F1 key;
Use the F2 key to start the record of voice message;
Use the F3 key to start the play of voice message;
Use the F4 Key to stop the record or the play of the voi
-
ce message.
+
The transmitter (Telecom module) can record 32
voice messages up to 8 seconds long – See chapter “Appendix: FC500PSTN”
KEY 7-OPTIONS
The term OPTIONs in the PROGRAMMING menu acti
vates the DAY-NIGHT-AUT mode programming page.
If Key 7 is used to select Functioning mode, Figure 48
will show:
+
For an explanation of Day mode and Night mode
operation, please refer to page 6. If you select Auto
-
matic, switching between one mode and the other
will take place automatically.
in this phase:
Alphanumeric keypad No function is related to the
Alphanumeric keypad.
Cursor Keys
No function is related to UP Key;
No function is related to Down Key;
Use the Righ key to select the next operating mode.
Use the Left key to select the previous voice message.
ESC Key
Use ESC key to cancel the operation and to
step back to previous page.
ENTER Key ENTER Key accepts the selection.
Function Keys
No function is related to F1 key;
No function is related to F2 key;
No function is related to F3 key;
No function is related to F4 key.
50 Addressable Fire Control Panels FC500
Master Panel lev 3.: PROGRAM
F2=REC
Type of voice function
Number message
F3=PLAY
F4=STOP
[Message [01]
STOP Messagge 1
ъъъъъ
Activ status
This symbol shows the presence
of the connection between the
User Interface and the Main Board.
The symbol KO will be shown
when the connection fails
Control Panel name
Access Level
Control panel
Status
Figure 47 Page to program the PSTN Communicator
Options lev.3 : PROGRAM
Mode type
DAY ngt aut
DAY NIGTH MODE
^
Master Panel
This symbol shows the presence
of the connection between the
User Interface and the Main Board.
The symbol KO will be shown
when the connection fails
Access Level
Control panel
Status
Figure 48 Page to program DAY-NIGHT mode
Page 51
KEY 8-SYSTEM
The option SYSTEM in the programming menu activa
-
tes the system language selection page.
+
Other language pairs may be loaded from software
in this phase:
Alphanumeric keypad No function is related to the
Alphanumeric keypad.
Cursor Keys
No function is related to UP Key;
No function is related to Down Key;
Use the Righ key to select the next language.
Use the Left key to select the previous language.
ESC Key
Use ESC key to cancel the operation and to
step back to previous page.
ENTER Key
ENTER Key accepts the selection.
Function Keys
No function is related to F1, F2, F3, F4
keys.
FC500REP Repeater Address
from the Repeater panel ONLY
After the FC500 control panel has been connected, at
the first start-up the FC500REP will verify the presence
of the address and its conformity. If the address is correct, the Repeater will start to work; on the contrary
the display will ask to insert a new address; the display
of Figure 50 will be shown; in this phase:
Alphanumeric keypad Use the alphanumeric keypad
to insert the address of 1 digit.
Cursor Keys
No function is related to UP, Down,
Right, Left Keys.
ESC Key
Use ESC key to cancel the operation and to
step back to previous page.
Tasto ENTER Use the ENTER Key to confirm the ad
-
dress.
Function Keys
No function is related to F1, F2, F3, F4
keys.
+
If for any reason the address of a repeater is chan
ged by mistake, the system will show the message
of the Figure 51, in this case the address of the re
peater will be changed using the ESC key.
NETWORK Configuration
Two ways are available to enrol the Network:
first:
1- the Master Control panel can do the Enrolling (autolear-
ning) after one or more Slave Control panels and one or
more Repeaters have been enabled in the network (see
previous paragraphs);
1a-usethe
1 Key to enroll (see page 47);
1b- use the "Upload from board" key (Software FireClass500
console) in the Master control panel;
second:
2- Use the Software (FireClass500 console) to insert one
or more Slave Control panels (from Master control panel);
2a- Use the "General Options" section (FireClass500 con
-
sole) in every Slave control panels to enable the Slave pa
-
nel in the network;
2b- Use the "General Options" section (FireClass500
console) in the Master control Panel to enable the Slave
Control panels, the Repeaters and the Master control pa
-
nel itself in the network .
2c- Use the " Download to board" key.
After the "Auto" Enrolling the system configure the Net
-
work devices (Slave control panels and Repeaters) and
besides the Loop devices.
At the end of the "Auto" Enrolling, the "Master" control
panel can manage the "Slave" control panels and the
Repeaters.
PROGRAMMING FROM THE PANEL 51
!!FAULT!!
Serial link is down
unable to communicate with the system
press ESC to change repeater address
Figure 49 Display "the repeater link is down"
System lev.3: PROGRAM
Access level
This symbol shows the presence
of the connection between the
User interface and the main Board.
The symbol KO will be shown
when the connection fails.
Control panel Status
Language choise
ITA eng
LANGUAGE
^
Master Panel
Figure 50 Page to select the language of the system
FC500REP REPEATER
Insert the number of the address [1-8]
[_]
Space to insert the address
This symbol shows the presence
of the connection between the
FC500REP repeater the Master
Control Panel and the relative
address.
Figure 51 Display to insert a new FC500REP address
Page 52
QUICK START-UP PROCEDURE
These procedure allows the quick start-up of the
FC510/520 fire detection system.
When the loops are wired, electrically verified and all
the devices have been programmed with their related
address (using the special FC490ST Loop Service Tool)
and installed to the loop, it is possible to connect the lo
-
ops terminals to the panel.
+
Before powering-on the Fire control panel, ensure
that the Earth Line has been connected.
!
Be sure that the main voltage is the same of the
input voltage set on the BAQ140T24 power
supplier. Move the switch 35a if the BAQ140T24
input voltage is different from the main voltage,
ONLY when the power supplier is not connec
ted to the main power. Please note that the power supplier will be damaged if it is connected
to the 230 V main power when it is set for 110 V.
PROCEDURE
1. Power-on the panel
2. Insert the data and time , if requested ( this step it is
important to guarantee the Log file consistency).
At this point the panel will start the first system initializa
-
tion verifying the loops integrity, warming up the smoke
sensor circuitry, looking for not address programmed
devices over the loops and searching devices with the
same address.
+
NOTE: The panel in this phase is configured to ma
nage closed loops (4 wires loop), if it is connected
to a spur (2 wires loop) will be generate broken
loop faults.
At the end of this first initialization phase will be activa
-
ted on the user interface the main page with the capabi
-
lity to accede to the command and control functions
3. Select the function Program pressing the key F1
4. Insert the installer password (default=00000) every
digit will be masked by * symbol.
5. Choose the option Auto pressing the key 1
The panel will start the enrolling procedure. At the end
of this phase will be presented the result of the enrolling
in terms of loop with devices connected (OK) or not
(KO) and it will be possible view the details for each acti
-
ve loop (number of detectors, number of modules, cur
rent drawn), pressing the key [ESC] it is possible to
reach again the main page.
+
If the enrolling result differ from the previously sto
-
red loop configuration a warning message will be di
-
splayed and it is possible to reject the present
enrolling result ,maintaining the previous configura
-
tion, or accept them.Suddenly after the enrolling
phase the panel starts the loops initialization phase.
At the end of this phase, which duration is related to the
number and type of the devices connected over the lo
ops, the panel it is able to act according the directive of
the EN54-2 standard.
+
The enrolling function will not be activated if there
are present loop related faults.
The functional parameters of the panel and devices at
the end of the enrolling procedure are listed below
n Detectors
FC400H: A2S mode
FC400P: standard mode, medium sensitivity
FC400PH: (temp. = A2S) + (Smoke = standard mode,
medium sensitivity).
FC400CH: (temp. = A2S) + (Carbon Monoxide = stan
dard mode, normal sensitivity).
+
All detectors activation will generate panel ALARM
n
Modules
FC410MIM: input style=C,NO
FC410SIO: input style=C,NO,
output NOT active
FC410MIO: inputs style=C,NO,
outputs NOT active
FC420CP: Call-point fully active
FC430SAB: NOT active
52 Addressable Fire Control Panels FC500
Page 53
FC430SAM: NOT active
FC421CP: Call-point fully active
FC410CIM: inputs style=C,NO
FC410DIM: standard mode
FC410BDM: standard mode
FC410RIM NOT active
+
All modules activation will generate panel ALARM
n
Zones
No zone active
n
Panel outputs
“NAC FIRE” (output EN54-2 type C) active on alarm
event
“FIRE” (dry contact) active on alarm event
“FAULT” (dry contact) active on fault event
n
Conventional zone
Active,
pre-alarm on detector activation (680 W load),
alarm on call-point activation (270 W load),
n Panel general option
Pre-alarm time: 60s
Investigation time: 300s
Silence time: 30s
Mains fault delay: 1min
Day mode
Loop configuration: 4 wires
QUICK START-UP PROCEDURE 53
Page 54
ACCESSORY
The following is a list of accessories for control panel in
the FC500 series, with a description of the main featu
res. For further information about these accessories,
please refer to the instructions supplied with the acces
sories themselves or download them from the FireClass
website: http://www.fireclass.net.
FC500IP - IP Module
The FC500IP is an IP Module which is used to connect
control units in the FC500 range to a LAN.
The IP Module may be connected to a LAN using a pri
vate IP address or a DHCP address.
The same procedures may be performed using the Fi
reClass500 console application, either through the
serial port or the network. With a public IP address, it is
also possible to manage and monitor the control unit
form anywhere in the world, as long as you have access
to the Internet.
FC500PSTN - Telecom Module
FC500PSTN is a Telecom Module which allows implementing the functions of Channel Telephone Dialler and Telemonitoring (functions E and J of standard EN54-1:1996), within
the control panels of the FC500 series.
General features:
Ø
Possibility of associating up to 3 voice messages for
each event.
Ø
Built-in multiprotocol digital communicator.
Ø
32 programmable telephone numbers.
Ø
Programming by PC.
Ø
Check for telephone line cutting.
Ø
Excluded line tone check.
Ø
Overvoltage protection.
Ø
Digital message recording playback.
Ø
Built-in speaker for message playback.
4B - Universal Base
The 4B Universal base is for use with the
FC460/FC400/600 series of detectors.
The base may be fixed directly to:
Ø
British (fixing centres 50mm) or European (fixing
centres 70mm) conduit box;
Ø
Euro Mounting Box AB-EM;
Ø
suspended ceiling, via the CTA adapter;
Ø
Directly to the ceiling.
FC400H or FC460H - Addressable Heat Detector
The FC400H heat detector forms part of the FC400 Se
-
ries of Addressable Fire detectors.The detector is inten
-
ded to plug into the following:
Ø
5B 5”Universal Base
Ø
FC450IB 5” Isolator Base
Ø
FC430SB Low Power Sounder Base
Software within the controller is used to interpret the re
-
turned heat values to raise an alarm or other appropria
te response according to the type of detector configured
in Fire Class 500 Console.
The mode of detector may be:
Ø
EN54-5 A1R, rate-of-rise normal ambient
Ø
EN54-5 A2S, fixed 60oC
Ø
EN54-5 CR, rate-of-rise high ambient.
FC400P or FC460P - Addressable Optical
Smoke
The FC400P optical smoke detector forms part of the
FC400 Series Addressable Fire detectors.
Ø
FC450IB Isolator Base
Ø
5B 5” Universal Base
Software within the controller is used to interpret the returned optical and heat values to raise alarm or other
appropriate response according to the type of detector
configured in Fire Class 500 Console.
FC400PH or FC460PH - Addressable
Optical Smoke & Heat Detector
The FC400PH optical smoke and heat detector forms
part of the FC400 Series of Addressable Fire detec
tors.The detector is intended to plug into one of the fol
lowing:
Ø
5B 5” Universal Base
Ø
FC450IB 5” Isolator Base
Software within the controller is used to interpret the re
turned optical and heat values to raise alarm or other
appropriate response according to the type of detector
configured in Fire Class 500 Console. The mode of de
tector may be:
Ø
Mode 1 - Optical smoke only detector (sensitivity
High, Normal or Low)
Ø
Mode 2 - Optical ( sensitivity High, Normal or Low )
and heat fixed temperature 60
o
C (A2S)
Ø
Mode 3 - Heat only rate-of-rise (A1R) detector (no
sensitivity selection)
Ø
Mode 4 - Heat fixed temperature 60oC (A2S) (no sen
-
sitivity selection)
54 Addressable Fire Control Panels FC500
Page 55
Ø
Mode 5 - Heat rate-of-rise (A1R) detector and optical
smoke (sensitivity High, Normal or Low)
Ø
Mode 6 - HPO (Advanced) smoke detector (sensivity
High, Normal or Low)
Ø
Mode 7 - HPO (Advanced) and heat fixed temperatu
-
re 60
o
C (A2S)
Ø
Mode 8 - HPO (Advanced) and heat rate-of-rise (A1R).
+
FC460P, FC460H and FC460PH, these devices
shall be managed only in backward compatible
mode, i.e. their new feature (auto-addressing) will
not be available . In the control panel and in the PC
software (FireClass500 console), they will be vi
sualized as the devices they substitute (FC400P,
FC400H and FC400PH respectively)
FC410LI - Line Isolator Module
The FC410LI Line Isolator Module is designed to be
used on the FC addressable controller loop circuits. It
monitors the line condition and when detecting a short
circuit will isolate the affected section whilst allowing the
rest of the addressing circuit to function normally.
The purpose of the FC410LI Line Isolator Module is to
ensure that, on a looped addressable system, no short
circuit fault can disable more detection devices than wo
-
uld be lost on a conventional non-addressable fire circuit.
FC410MIM - Mini Input Module
The FC410MIM Mini Input module is designed to monitor fire contacts, such as extinguishing system control,
ventilation control, fire door control etc.The module provides one identifiable detection spur which is capable of
monitoring multiple normally open contacts or a single
normally closed contact.
The FC410MIM can be mounted in any electrical enclosure with sufficient depth to accommodate FC410MIM and
the contacts monitored by the IN+ and IN- terminals, ie, no
field wiring. The remote LED (if required, not supplied)
must be located within the same electrical enclosure.
FC410MIO - Small Addressable Multi I/0
Module
The FC410MIO Multi I/O Module has three class B in
-
puts and two outputs from latching relays. The class B
inputs can monitor fire contacts such as extinguishing
system control, ventilation control, fire door control etc.
The two relays outputs are dry form C that provide
volt-free relay changeover contacts.
A maximum of two HVR800 High Voltage Relay Modu
-
les can be individually driven and controlled by an
FC410MIO if all HVR800s are powered by 24V dc or
24V ac. In this application, the HVR800s are controlled
by the two latching relays on the FC410MIO.
A maximum of four HVR800 High Voltage Relay Modu
-
les can be individually driven and controlled by an
FC410MIO if all HVR800s are powered by 120V ac or
240V ac. In this application, the HVR800s are control
-
led by the four control outputs (O1+/O1- to O4+/O4-) on
the FC410MIO.
FC410SIO - Single Input/Output Module
The FC410SIO Single Input/Output Module is designed
to provide a monitored open collector input and a volt
free relay changeover output.
FC410SIO can switch up to2A@24Vdc.
FC420CP - Addressable Break Glass
Callpoint (indoor)
FC420CP Addressable Break Glass Callpoint is desi
gned to monitor and signal the condition of a switch
contact that is operated by activating the break glass
element. The type of alarm generated by the callpoint is
configured in FireClass 500 Console.The FC420CP call
point meets the requirements of EN54 Pt.11. The
FC420CP is fitted to a standard surface mount plastic
backbox, standard single gang metal plaster box (35
mm for flush mounting) or standard single gang metal
plaster box (25 mm) with backbox.
FC421CP - Addressable Break Glass
Callpoint (outdoor)
FC421CP Weatherproof Addressable Break Glass Cal
lpoint is designed to monitor and signal the condition of
a switch contact that is operated by activating the break
glass element. The type of alarm generated by the cal
lpoint is configured in FireClass 500 Console. The
FC421CP callpoint meets the requirements of EN54
Pt.11. The FC421CP is fitted into a standard weatherproof break glass callpoint housing.
FC430SAB/SAM - Sounder Base Address
Modules
The Sounder Base Address Modules (FC430SAM
/FC430SAB) are designed to control a loop powered sounder base for use with the FCsystem, one variant
(FC430SAB) has an integral beacon. They may also be
used to drive a relay base. The units are used to supply the
address decoding in place of a detector, thus providing a
loop powered sounder when used in conjunction with an
FC430SB. The modules are colour matched to the soun
der bases. The FC430SAM/FC430SAB is locked into the
base using the locking device integral to the sounder base.
FC430SB - Loop Low Power Sounder Base
The FC430SB Loop Low Power Sounder Base provides
an additional sounder function on the FC addressable
loop circuit. The FC430SB Loop Low Sounder Base re
quires an associated detector or a FC430SAB module
or a FC430SAM module in order to operate, as it uses
the address of the detector or module that is fitted to it.
Removal of the detector or module or loss of power to the
loop will cause the sounder to cease operating. If a de
tector is associated to FC430SB, the FC430SB is acti
vated only when the detector (i.e. the detector which is
mounted on it) enters the alarm condition (according to
its settings). It is not silenceable.A maximum of 45 So
under Bases at full volume may be connected to the
loop.
ACCESSORY 55
Page 56
4B-I - Isolator Base
The FC400/FC460 Series Detectors, as supplied, use a
common 4B-I Isolator Base assembly.
The base may be fixed directly to:
Ø
British (fixing centres 50mm) or European (fixing
centres 70mm) conduit box;
Ø
Euro Mounting Box AB-EM;
Ø
suspended ceiling, via the CTA adapter;
Ø
Directly to the ceiling.
FC490ST - Loop Service Tool
The FC490ST Loop Service Tool is used to program
the loop address into FC addressable devices. The
FC490ST displays information and performs tests on
devices. It has a 32 character backlit LCD alphanume
ric display, arranged in 2 rows of 16 characters and
four ‘softkeys’, F1, F2, F3 and F4. Power for the
FC490ST is derived from 4 AA size nickel metal hydri
de rechargeable batteries. It may be run from an unre
gulated +12V dc input ie, car cigarette lighter
connection or 110/230V ac mains adaptor, both of
which will recharge the batteries as well.
FC410BDM - Beam Detector Module
The FC410BDM Beam Detector Interface Module is designed to interface FIRERAY 50 Beam Detectors to the
FC Digital Addressable Loop (it must not be used with
other types of beam detector). The FC410BDM monitors the Fire and Fault contacts and also monitors for
open and short circuits on the connections between the
interface and the beam detector. For remote siting of
the FIRERAY 50 an optional BTM800 Terminal Module
can be used with 4 core cable.
The FIRERAY 50 transmitter and receiver units are mounted in the same housing.
The FC410BDM Loop Powered Beam Detector Interfa
ce Module is contained on a double sided printed circuit
board (PCB) which is fitted into a custom built fascia
plate with a protective cover being fitted over the PCB,
leaving only the connection terminals exposed. The fa
scia plate is then fitted onto a standard dual-gang back
box with BESA fittings.
FC410CIM - Contact Input Module
The FC410CIM FC Addressable Contact Input Module
is designed to monitor fire contacts such as extingui
shing system control, ventilation control, fire door con
trol etc. The FC410CIM can be configured as:
Ø
Two spur circuits (Class B) monitoring multiple nor
-
mally open contacts, with short circuit giving a fault
output.
Ø
Two spur circuits (Class B) monitoring single nor
-
mally closed contacts, with short circuit giving a fault
output.
Ø
Two spur circuits (Class B) monitoring multiple nor
-
mally open contacts, with short circuit giving an alarm.
FC410DIM - Detector Input Module
The Addressable FC410DIM provides the ability to con
nect and Interface one or two zones of 24V dc 2-wire
conventional detectors (non-addressable) to the Fire
Alarm Controller.
The FC410DIM monitors the status of detectors and wi
ring to detectors and signals detector and wiring status
back to the Controller.
FC410RIM - Relay Interface Module
The FC410RIM Relay Interface Module provides one
volt-free relay changeover contact on a latching relay. The
relay is controlled by a command sent from the FC fire
controller via the addressable loop. The relay state (acti
vated, deactivated or stuck) is returned to the controller.
FC400CH - Addressable Carbon Monoxide
+ Heat Detector
The FC400CH carbon monoxide plus heat detector forms
part of the FC400 Series Addressable Fire detectors.
The detector is intended to plug into the following:
Ø
5B 5” Universal Base.
Ø
FC450IB 5” Isolator Base.
Ø
FC430SB Low Power Sounder Base.
The detector is designed to transmit, to a remote Fire
Class controller, digital signals which represent status of
the carbon monoxide and heat elements of the detector.
Software within the controller is used to interpret the returned carbon monoxide and heat values to raise alarm
or other appropriate response according to the type of
detector configured in Fire Class 500 Console.
801RIL - Remote LED Indicator
The 801RIL Remote Indicator is used where a detector
LED is not visible ie, when the detector is mounted in a
roof void, lift shaft etc.The 801RIL is mounted to a single
gang electrical box and is supplied with 2 x M3.5 screws.
801HL - Remote LED Indicator
The 801HL Remote Indicator is used where a detector
LED is not visible ie, when the detector is mounted in a
roof void, lift shaft etc.
The 801HL provides a larger indicator for use in place of
the 801RIL when longer distances are involved or in
VdS influenced markets.
The 801HL can be mounted to any suitable flat surface
and has fixing centres at 60 and 80mm.
HVR800-High Voltage Relay
The HVR800 High Voltage Relay Interface is a non-ad
dressable multi-voltage relay module (operating from
24V dc, 24V ac, 120V ac and 240V ac).
The encapsulated HVR800 provides a 10 amp volt-free
contact that can be used to extend the contact ratings of
FC410RIM Addressable Relay Module applications.
A maximum of four HVR800s can be individually driven
56 Addressable Fire Control Panels FC500
Page 57
and controlled by an FC410MIO Small Addressable
Multi-Input/Output module if all HVR800s are powered
by 120V ac or 240V ac.
For ac operation, no external dc power supply unit is re
quired to operate the relay.
When used to switch 24V dc, the HVR800 must be pro
vided with an external 24V dc supply which should be
switched through the clean relay contacts of an
FC410MIO or FC410RIM.
MP69-Duct Probe Unit
The MP69 Duct Probe unit are designed to be installed
in air conditioning supply and exhaust ducts for the pur
pose of monitoring the airflow for smoke and combu
stion products.
The Duct Probe Units are designed to accept and will
operate satisfactorily with the 600 and FC400 Series
detectors. The Duct Probe units are factory fitted with
the FireClass Universal Base 5B.
FIRERAY 50-Optical Beam Smoke Detector
The Detector comprises a Transmitter and Receiver
contained within one enclosure.
The Transmitter emits an invisible infrared light beam
that is reflected via a prism mounted directly opposite
and with a clear line of sight. The reflected infrared light
is detected by the Receiver and analysed.
The Detector has a maximum lateral detection defined
by the local National Standard. As a guide a common
lateral distance of 7.5m will be used in this guide. Use
the latest beam detector standards EN54 part 12,
VdS2095 or BS5839 part 1 for further guidance.
The optimal beam distance from the ceiling will be between 500mm and 600mm, again the Local National
Standard will give guidance.
FC410LPSY and FC410LPAV loop
powered sounders and sounder-beacons
The FC410LP Series of Loop Powered Addressable So
under/ Sounder-Beacons are designed to be driven from
an FireClass control panel via the addressable loop. The
FC410LP Series of sounders/sounder beacons consist:
FC410LPSYR Sounder (indoor use) - red housing
FC410LPSYW Sounder (indoor use) - white housing
FC410LPSY Sounder IP65 (outdoor use) - red housing
FC410LPAVR Sounder-Beacon (indoor use) - red ho
using
FC410LPAVW Sounder-Beacon (indoor use) - white
housing
FC410LPAV Sounder-Beacon IP65 (outdoor use) red housing
The sounder has two volume settings ‘High’ (103 dB ±3)
or ‘Low’ (90 dB ±3).
The beacon has two flash rates ‘Slow Flash’ (1/2 Hz) or
‘Fast Flash’ (1 Hz).
The FC410LP devices are synchronised, but not
synchronous with other FireClass sounders
(FC430SB/FC410SNM) and beacons (FC430SAB).
The first flash of the beacon is synchronised with the
start of the tone.
The FC410LP devices have a built in two port isolator.
FC430LPSB and FC430LPASB Loop
Powered Addressable Sounder/Beacon Base
The FC430LP Series of Loop Powered Addressable Soun
der/Sounder- Beacons are designed to be driven from an
FC500 control panel via the addressable loop.
Tone, volume and flash rates are set in FireClass Console.
The sounder has four volume settings ‘High’ (90dB ±3), ‘Mid
High’ (80 ±3dB), ‘Mid Low’ (70 ±3dB)or ‘Low’ (60dB ±3).
The beacon has two flash rates ‘Slow Flash’ (1/2Hz) or
‘Fast Flash’ (1Hz).The FC430LP Series have a built-in
line isolator.
FC410SNM Sounder Notification Module
The FC410SNM Sounder Notification Module is designed
to provide an output, in response to a command signalled
from a controller, to activate a number of polarised and
suppressed sounders. The sounders are powered from
an independent power supply and the module is capable
of passing up to a maximum of 2A (eg, 24V dc 50mA com
pany sounders or a mixture of different current rated so
unders not exceeding a maximum current of 2A).
+
The possibility of the configuration of extinction, although present in the FC410SNM module, is not
available for FC510 and FC520 control panel.
FC410TSM – door control module
The FC410TSM Door Control Module is designed to close a fire door in case of alarm or fault. The door is normally
kept open by electromagnets. The door control module disconnects the electromagnets from power supply in order
to allow the door to close. The FC410TSM has a relay
changeover output and a monitored input. The
FC410TSM contains an integrated line isolator and
self-monitoring circuits (monitoring of communication with
a panel, loop power monitoring), which enables the fire
door to be closed when communication with a panel is lost
for longer than 45s (±5s) or the loop power drops below
Umin=19V for more than 15s (±1.5s). In addition, the
FC410TSM monitors the external 24V supply.
FC410DDM – Universal fire and gas
detector module
The FC410DDM provides the ability to connect and in
terface 2 zones of 20 V DC 2-wire conventional fire de
tectors, or two 4-20 mA signalling sensors, to the
FireClass fire alarm controller. The FC410DDM moni
tors the status of the detectors and the wiring to the de
tectors and signals detector and wiring status back to
the controller. The conventional detector circuits can be
configured in one way: To monitor 1 or 2 Class B spur
circuits The 4-20 mA signalling sensors may be one of
two types:
Ø
Current sinking
Ø
Current sourcing.
ACCESSORY 57
Page 58
FC410QIO Quad input output module
The module provides four monitored digital inputs and
four potential free relay changeover outputs.
The outputs are monitored with parallel contacts of the
relays. The outputs can be connected to an Auxiliary
Voltage source and its voltage can be monitored.
Additionally, all the outputs can be connected to the
HVR800, for switching high power galvanic isolated loads.
For more details refer to the HVR800 documentation.
The module has an integral loop isolator. If this activa
tes a yellow LED illuminates. The activation remains in
place until the short is removed.
The digital input monitoring and isolator functions are
both configurable.
Maximum relay current: 2A.
Maximum relay voltage: 30V.
FC410QRM Quad relay module
The module provides four potential free relay changeo
ver outputs. The outputs are monitored, with parallel
contacts of the relays. The outputs can be connected to
an Auxiliary Voltage source and its voltage can be mo
nitored.
Additionally, all the outputs are configurable to the HVR
(High Voltage Relay) mode, which allows you to con
nect up to four HVR800 modules for switching; for
example 240V loads galvanically isolated.
The module has an integral loop isolator. If this activates a yellow LED illuminates. The activation remains in
place until the short is removed.
Maximum relay current: 2A.
Maximum relay voltage: 30V.
FC410LPBS-R/W loop powered sounders
and sounder-beacons (EN54-23)
The FC410LPBS Series of Loop Powered Addressable
Sounder/ Sounder-Beacons are designed to be driven
from a FC501 control panel via the addressable loop.
The FC410LPBS Series of sounders/sounder beacons
consist:
FC410LPBS-R: Sounder (indoor use) - red housing
FC410LPBS-W: Sounder (indoor use) - white housing
FC410LPAV: Sounder-Beacon IP65 (outdoor use) - red
housing
The sounder has two volume settings ‘High’ (103 dB ±3)
or ‘Low’ (90 dB ±3).
The beacon has two flash rates ‘Slow Flash’ (1/2 Hz) or
‘Fast Flash’ (1 Hz).
The FC410LPBS devices are synchronised, but not
synchronous with other FireClass sounders and beacons
of the FC400 serie.
The first flash of the beacon is synchronised with the start
of the tone.
The FC410LPBS devices have a built in two port isolator.
FC430LPBSB Loop Powered Addressable
Sounder/Beacon Base (EN54-23)
The FC430LPBS Series of Loop Powered Addressable
Sounder/Sounder- Beacons are designed to be driven
from an FC501 control panel via the addressable loop.
Tone, volume and flash rates are set in FireClass Console.
The sounder has four volume settings ‘High’ (90dB ±3),
‘Mid High’ (80 ±3dB), ‘Mid Low’ (70 ±3dB)or ‘Low’ (60dB
±3). The beacon has two flash rates ‘Slow Flash’
(1/2Hz) or ‘Fast Flash’ (1Hz).
The FC430LPBS Series have a built-in line isolator.
The table below, cross connect the managed devices in
the current version and the new EN54-23.
+
It is possible to substitute old devices with correspondent new ones (EN54-23), keeping the same
program data. When the old device is physically removed from the loop, the control panel will signal
the "No answer" fault. When the new device with
the same address is connected to the loop, the
control panel will restore the "No answer" fault and
automatically update its internal database with the
new device type.
It is not possible to substitute new devices
(EN54-23) with old ones (they are not EN54-23 ap
-
proved).
58 Addressable Fire Control Panels FC500
FireClass Product
code (Current Dev.)
FireClass Device
name (Current Dev.)
Description
FireClass
Product code
(EN54-23 Dev.)
FireClass
Device name
(EN54-23 Dev.)
516.800.758 FC430LPASB
Loop Powered Beacon
Sounder Base
516.800.973 FC430LPBSB
516.800.763 FC410LPAVR
Loop Powered
Beacon/Sounder (indoor use)
red
516.800.970
FC410LPBS-R
516.800.764 FC410LPAVW
Loop Powered
Beacon/Sounder (indoor use)
white
516.800.971 FC410LPBS-W
516.800.766 FC410LPAV
Loop Powered
Beacon/Sounder IP65
(outdoor use)
516.800.972
FC410LPBS
Page 59
QUICK GUIDE
This quick guide is for installers with knowledge of the
control panels, and fire control panels in general. This
chapter holds all the necessary installation details.
Technical features
Some of the technical features, regarding the terminals
on the Main, are described in the following paragraph.
The following table shows the technical features of the
Repeater FC500REP.
REPEATER FC500REP
Main voltage 27,6 V
Maximum current 180 mA
Temperature range -5 ÷ +40°
Dimensions (W*H*D) 390x215x50 mm
Weight 2,05 Kg
Description of the terminals
The terminals of the Main board and Switching power
supply, are described briefly in the a Table 8: the
standby (normal) status is the first, followed by the
alarm status. Moreover, the Voltage present during the
different operating conditions is indicated for each terminal, as well as the maximum current (in amps) that
can circulate.
In the following table the current values of every functions of control panel.
Avalaible Current 5,5A 5,5A
ttery capacity 17Ah 38Ah
Battery charge 1A 2A
NACs Outputs 2A 1A
Auxiliary Outputs
(24AUX, 24RES)
0,5A 0,5A
LOOPs (2) 0,8A 0,8A
12V Output 0,15A 0,15A
Conventional Zone 0,06A 0,06A
1) For the power supply of the external devices. (see
table 8)
2) Connect a 3900 ohm resistor between the [+] and [-]
terminals of the NAC1, NAC2 and NAC3 Outputs, if not
used (see table 8).
QUICK GUIDE 59
Control Panel FC510-FC520
Main voltage
110/230 V~
60/50 Hz -15/+10%
Aux. Outputs
Nominal Voltage
27,6 V
Aux. Outputs Min.
and Max. Voltage
19,0 ÷ 27,6 V
Minimum output
voltage
19,0V±5%
Max. current draw
1,6 A (230V)
2,7 A (110V)
Power 35 W
Maximum avalaible
current (1)
4,2 A with 17Ah batteries
3,2 A with 38Ah batteries
Control Panel max.
current draw at 27.6V
0,3 A
Ripple 1%
Suitable batteries:
make
model
2 * 12 V/17 Ah
YUASA
NP 17-12 FR
or equivalent with case
flame class UL94-V2 or
higher
Maximum internal
resistance of the
battery and
associated circuitry
1
W
Temperature range -5 ÷ +40 °C
Dimensions (W*H*D) 445*578*111 mm
Weight 9Kg(without batteries)
Table 7 Technical features
Page 60
© FireClass
Tyco Fire & Security GmbH
Victor von Bruns-Strasse 21
8212 Neuhausen am Rheinfall
Switzerland
Tel.: +41 (0)52 633 02 44 Fax: +41 (0)52 633 02 59
www.fireclass.net ISTISFKEFC520 2.0 160615 V10
TERM. DESCRIPTION v(V) i(A)
MAIN BOARDS
+L1-
LEFT
(+)Loop 1-Positive signal, left side.
(-)Loop 1-Negative signal (return), left side
——
+L1-
RIGHT
(+)Loop 1-Positive signal, right side.
(-)Loop 1-Negative signal (return), right side
——
+L2-
LEFT
(+)Loop 2-Positive signal, left side.
(-)Loop 2-Negative signal (return), left side.
——
+L2-
RIGHT
(+)Loop 2-Positive signal, right side.
(-)Loop 2-Negative signal (return), right side.
——
[LC]
CONVENTIONAL LINE:
balanced line with 3900 ohm è control panel in standby
unbalanced line è Conventional Zone activated
line in short-circuit or open è fault on the Conventional Zone
——
[M] Ground 0 —
+485- SERIAL BUS. Terminals to connect the FC500REP and SLAVE control Panel — —
[M]
[24V]
24 V POWER Output for the FC500REP and SLAVE control Panel:
Positive pull-up to 27.6 V on [24V] terminal
Negative pull-down to0Von[M] terminal
27,600,5(1)
—
[AUX]
24 V AUXILIARY POWER SUPPLY:
negative present on terminal [M];
positive present on terminal [24A].
0
27,6 0,5(1)
[AUX-
RES]
24 V AUXILIARY POWER SUPPLY:
negative present on terminal [M];
positive present on terminal [24A].
0
27,6 0,5(1)
[NC]
[NO]
[C]
FIRE
FIRE ALARM OUTPUT - Non-Supervised:
standby è [C] connected to [NC] with [NO] open
;
in the event of ALARM è [C] connected to [NO] with [NC] open — —
[NC]
[NO]
[C]
FAULT
FAULT ALARM OUTPUT - Non-Supervised:
standby è [C] connected to [NC] with [NO] open
in the event of fault è [C] connected to [NO] with [NC] open — —
+BAT2- BATTERY CONTROL PANEL POWER SUPPLY 27,6
+BAT1- BATTERY CONTROL PANEL POWER SUPPLY 27,6
[OS1]...
[OS8]
Programmable Outputs(Open collector)- Silenceable-Bypassable (Disabled)-Supervised
(The polarity is not programmable)
27,6
[O9]...
[O16]
Programmable Outputs(Open collector)- Silenceable-Bypassable (Disabled)-NOT
Supervised
(The polarity is not programmable)
01
-NAC
FIRE+
Type C output (EN54-1) - Silenceable, Bypassable (Disabled), Supervised
Terminals for supervised devices activated by positive (24 V):
During ALARM status —— positive (27.6 V) on terminal [+]; negative on terminal [-].
27,6
[NAC1]
[NAC2]
[NAC3]
Programmable—Supervised—Silenceable—Bypassable (Disabled) ALARM Outputs:
Panel in Standby è negative on [+] terminal; positive 27.6V on [–] terminal
Panel in Alarm è positive 27.6V on [+] terminal; negative 0 V on [–] terminal —
(2)
[12V]
12 V AUXILIARY POWER SUPPLY:
on [12V] terminal è positive
on [M] terminal è negative
13,8
0
—
Table 8 Terminals description
Loading...
