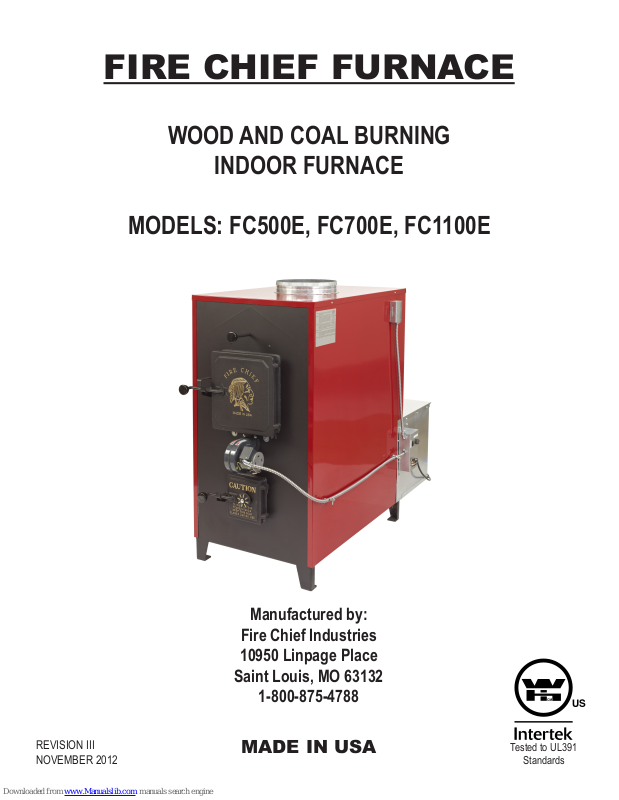

FIRE CHIEF FURNACE

WOOD AND COAL BURNING

INDOOR FURNACE

MODELS: FC500E, FC700E, FC1100E

REVISION III NOVEMBER 2012

Manufactured by:

Fire Chief Industries

10950 Linpage Place

Saint Louis, MO 63132

1-800-875-4788

MADE IN USA

Tested to UL391

Standards

FIRE CHIEF INDOOR FURNACE MANUAL

MODELS: FC500E, FC700E, FC1100E

SAVE THESE INSTRUCTIONS

Congratulations! You have selected the nest quality wood and coal burning indoor furnace, manufactured with pride in the USA. Please take a few moments to carefully read the owner’s manual. By taking the time to familiarize yourself with your new Fire Chief Furnace, you will be able to look forward to years of trouble-free, dependable service.

Installation:

First: Check local codes. The installation must comply with all local rules and requirements.

Furnace installation is to be performed by a qualied installer. This furnace must not be installed in trailers, modular or mobile homes. Always have a properly installed and functioning smoke detector in your home. To prevent accidental injury, do not allow anyone who is unfamiliar with the furnace to operate it. Spend time familiarizing yourself with your Fire Chief Furnace, especially the different settings and the effects they have on burn patterns. It is impossible to predict how each setting will affect your furnace due to variations in conditions, fuels and temperatures.

Transportation Damage:

Every effort has been made to ensure that your Fire Chief Furnace will arrive in perfect condition. Any visible damage should be noted on the freight bill at the time of delivery. If upon unpacking your Fire Chief Furnace you nd damage has occurred during transit, notify your supplier immediately. Your supplier will advise you what actions must be taken to address the problem.

Disclaimer Notice:

The listed BTU rating for your new Fire Chief Furnace was obtained using laboratory calculations. The actual BTU output you experience may vary somewhat depending on the type, condition and moisture content of the fuel used, damper adjustment, chimney type and other factors. Therefore, the manufacturer disclaims any guarantee as to the BTU output or capacity. Fire Chief Industries disclaims any responsibility for the following: installation of a furnace that has been altered or modied in any way; installation of the furnace other than as instructed in this manual; installation and/or use of any component or part not approved by Fire Chief Industries for use with this furnace. Be sure to complete and return your warranty card within 30 days of purchase in order to activate warranty coverage on your furnace.

Manufacturer’s Notice:

Please be advised that we periodically make changes to improve our products, therefore the information in this manual may not be completely applicable to your Fire Chief Furnace. Please refer to markings on the appliance for additional information.

THIS IS A WOOD AND COAL BURNING FURNACE ONLY AND SHOULD NOT BE ALTERED IN ANY WAY.

TABLE OF CONTENTS

General Information 3

Location and Installation 3

Assembly of Unit 4

Blower and Housing 4

Filter Box 5

Draft Blower 6

Fan Limit / Electrical Control Center 6

Chimney Types and Recommendations 7

Duct Runs 9

General Operation 10

Types of Wood to Use 10

First Wood Fire 11

Loading Wood 12

First Coal Fire 12

Disposal of Ashes 13

Draft Blower 13

Creosote Formation 13

Creosote Prevention 13

Chimney Fire Warning 14

Power Failure 14

Furnace Diagram with Parts List 15

Grate System Diagram - FC500E 16

Grate System Diagram - FC700E 16

Grate System Diagram - FC1100E 17

Blower Motor Assembly Diagram 17

Wiring Diagram 18

Troubleshooting 19

Warranty Information 24

DOUBLE CHECK TO MAKE SURE YOU HAVE RECEIVED ALL OF THE REQUIRED COMPONENTS. IF YOU FIND THAT THERE IS A PART MISSING, CALL 1-800-875-4788 FOR FASTEST SERVICE, PLEASE DO NOT GO BACK TO THE DEALER. DEALER DOES NOT HAVE REPLACEMENT PARTS.

General Information

The Fire Chief Furnace has been engineered to accommodate the heating requirements of the average sized home, even during winter’s coldest months. It is constructed with high grade, heavy gauge steel and is continuously welded to assure the highest structural strength. In addition, the rebox is lined with rebrick to ensure many years of energy efcient service. The design of the secondary combustion chamber increases fuel efciency by creating a “secondary burn” of smoke and wood gases before they are vented up the chimney. The cast iron doors are custom tted to provide an airtight seal, greatly extending the burn time and ensuring maximum efciency in fuel consumption. The heavy-gauge cast iron grate, designed for maximum heat transfer, allows for convenient ash removal and reduced maintenance.

For total comfort and convenience, a thermostatically controlled draft and circulation blower system is included. These fully automatic components furnish rapid heat disbursement throughout your home, minimizing recovery time when the wall thermostat demands heat.

All of these features are standard, offering you the most efcient, durable and affordable indoor wood and coal burning furnace.

Your Fire Chief Furnace is designed to be either a supplemental or central heating source for your home. This wood and coal burning furnace may be installed in parallel with a properly operating electric, gas or oil-red central furnace, listed or certied in accordance with a nationally recognized safety standard, and within clearances specied on the nameplate. When in a parallel installation the static pressure of the central furnace plenum may not exceed 0.15 water column inches and the maximum setting on central furnace limit switch is 182°F. With the Fire Chief Furnace in an “Interconnection Arrangement” your furnace should be upstream of the central furnace. The Fire Chief Furnace warm air supply should never be connected to return air for the central furnace. A qualied installer should

perform the installation.

IMPORTANT: FOR TECHNICAL SUPPORT OR CUSTOMER SERVICE ISSUES, DO NOT RETURN TO THE DEALER (THE DEALER DOES NOT HAVE REPLACEMENT PARTS), CALL 1-800-875-4788.

Forced Hot Air Circulation:

The plenum size of your Fire Chief Furnace must not be reduced to less than 12 inches in diameter or 113 square inches, and must provide a minimum of 18 inches between the top of your Fire Chief Furnace and the main trunk connection. The plenum attached to the furnace must be constructed of metal. The warm air supply duct system should be constructed of materials with a minimum temperature

rating of 250° Fahrenheit.

Clearances:

Unit must be placed on a non-combustible oor. This oor must extend at least 16 inches in front, 8 inches on either side of fuel loading and ash removal doors, underneath the chimney connector and must extend 2 inches on either side of the chimney connector. The furnace must maintain the following clearances to combustibles:

• Heat plenum = 2 inches

• Chimney connector = 18 inches

• Front = 48 inches

• Rear = 31 inches

• Sides = 12 inches

• Main furnace = 12 inches These are minimum clearances and should be strictly followed. In the case of a power outage, a dangerous level of heat accumulation may develop. Do not store fuel or other combustible materials within installation clearances.

Location and Installation

NOTE: Before beginning installation, consult proper local authorities regarding local codes governing all such applications and

installations.

DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVING ANOTHER APPLIANCE. Your furnace must be placed on a non-

combustible oor. Position the furnace as close to the chimney as possible. Air for combustion must be provided into the room where the

Mounting Screw

1/4-20 Bolt

furnace is located. Allow air free access to the furnace for combustion and ventilation.

RECOMMENDATION: Purchase Chimfex™ Dry Chemical Chimney Fire Extinguisher. These are readily available at most stove shops and hardware stores. Smoke detectors should be installed on all levels of your home. Having a re extinguisher in the furnace room or

area is strongly recommended.

OPEN/CLOSE

RETURN DAMPERS

3 PLACES

SUPPLY DUCT

BACK DRAFT

DAMPERS

RETURN AIR DUCT

Assembly of Unit

Please review the parts list and diagrams contained on pages 15 - 17 of this manual.

DOUBLE CHECK TO MAKE SURE YOU HAVE RECEIVED ALL THE REQUIRED COMPONENTS. IF YOU FIND THAT THERE IS A PART MISSING, CALL 1-800-875-4788 FOR FASTEST SERVICE, PLEASE DO NOT GO BACK TO THE DEALER. DEALER DOES NOT CARRY REPLACEMENT PARTS.

NOTE: For your convenience your Fire Chief Furnace has been factory assembled and the electrical control assembly pre-wired.

1. Fasten the right and left side angle brackets to the circulation blower using (4) ¼ - 20 bolts and nuts. Line up the blower with the pre-drilled holes on the backside of the furnace, rmly attach with the

screws provided.

1/4 - 20 Bolt

Four Places

Angle Bracket

2. Attach blower to the left and right mounting brackets.

1/4-20 Nut

1/4 - 20 Nut

Blower Assembly

Mounting Screw

3. Assemble the following parts using 6 #10 sheet metal screws. Both “B” and “C” panels should t inside of “D” and “A” panel

Side Panel With Electric (B)

#10 Sheet Metal Screw

anges. Attach “D” (bottom panel) to “B” (side panel with electric) and “C” (side panel). After the top and sides are assembled, attach ”A” (top panel) using 6 #10 sheet metal screws provided.

Top Panel (A)

#10 Sheet Metal Screw

Twelve Places

Side Panel (C)

Side Panel with Electric (B)

Bottom Panel (D)

4. Position the assembled lter box on rear of furnace, supporting it approximately 4 inches from the oor, covering the rear distribution blower. Make sure the lter box is tightly pressed to the back of the furnace. Use 8 #10 self-tapping screws (included) to rmly attach the lter box to the sides of the furnace.

Filter Box

#10 Screw

5. Mount the forced draft blower with 3 ¼-20 x 3/4 inch bolts (provided).

rew

1/4-20 Sc

1/4 - 20 Bolt

6. Attach Fan limit with 3 #10 screws in pre-drilled holes.

7. Mount the electrical control center with 4 #10 screws (provided).

Fan Limit Control:

Fan Limit thermostat

To install, remove cover, attach with

To install, remove thermostat cover, attached with three #10

three #10 sheet metal screws and

sheet metal screws and replace thermostat cover

replace cover.

THERMOSTAT TERMINALS

DETAIL B

SCALE 1

Attach the two wall thermostat wires

ATTACH THE TWO WALL THERMOSTAT WIRES TO

to the terminals shown

THE TERMINALS SHOWN

8. Secure the ex conduit to the side of the furnace using the bracket with 1 screw (provided).

9. Plug motor into the back of the electrical control center.

10. Connect the thermostat wire (not included - use 28 ga wire) to the 2 posts located on the side of the control center. For convenience, you might consider locating the wall thermostat next to your existing thermostat in your home. The thermostat MUST be installed for the furnace to operate. (See diagram for step 7)

11. Plug the 3 pronged grounded plug into a grounded electrical outlet.

The lter box requires one 20” x 25” x 1” lter (not included, but available at most hardware and home centers).

See diagram for proper installation of electrical assembly and lter box. The bracket must be attached to the side of the furnace to secure the conduit. With the connection of the thermostat, chimney pipe and ductwork, your furnace installation is complete.

Inspect your lter regularly and replace the lter every 30 days during heating season for maximum efciency.

Chimney Types and Recommendations

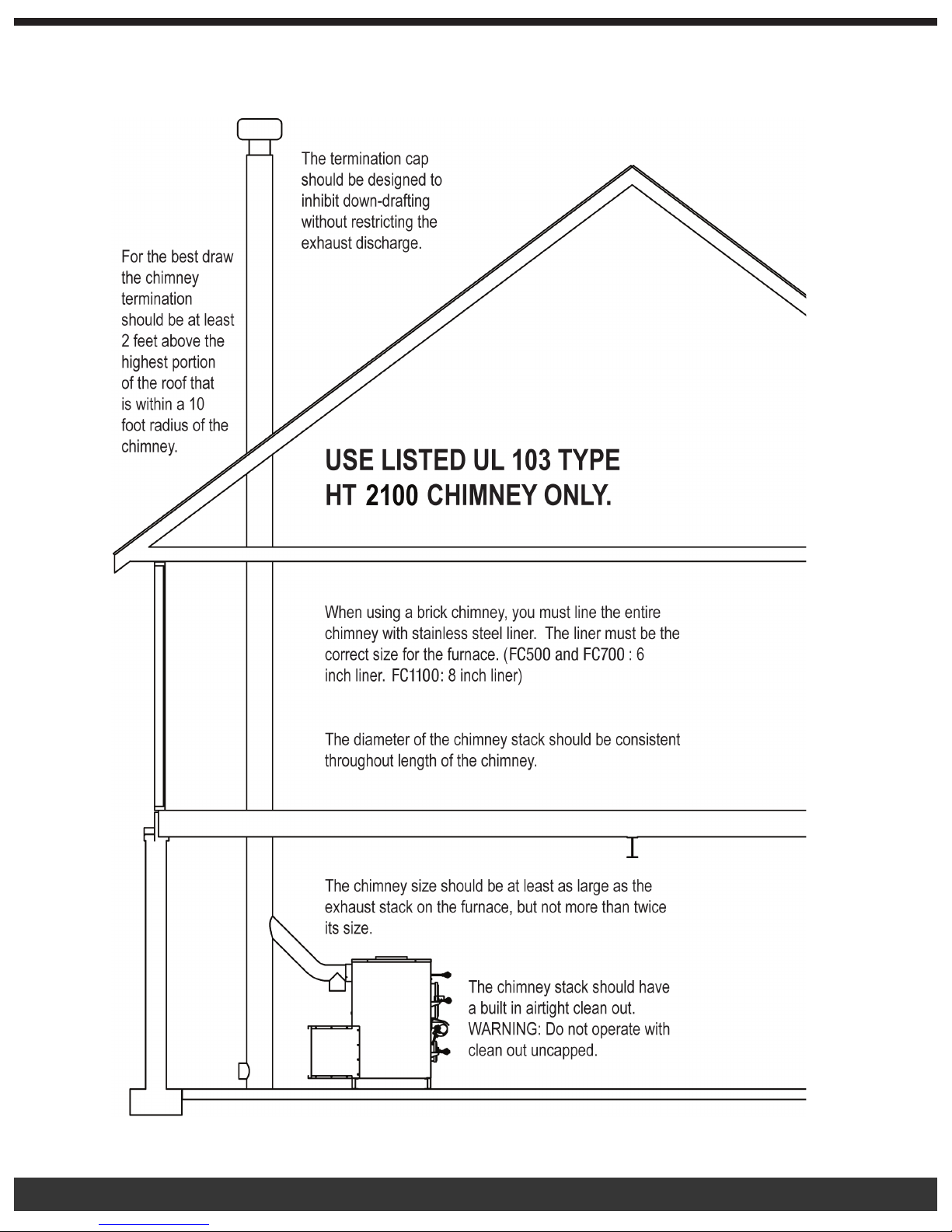

See Diagram on page 8.

Safety requirements demand that your Fire Chief Furnace be connected to “Class A” HT2100 All Fuel, or stainless-lined masonry chimney

ONLY.

By denition, “Class A” refers to either a lined masonry chimney or all fuel factory-built chimney. Although experts have expressed differing opinions as to which system is the best, it is a matter of what you nd most suitable. Regardless of your choice of chimney type, for models FC500E and FC700E, a minimum 6-inch diameter chimney is needed. For model FC1100E, a minimum 8-inch diameter chimney is needed. In order to create the most effective draft, the chimney size should not exceed 12 inches, with a maximum .08 water column inches of draft. The ue draft can be measured with the use of a draft gage or manometer. If there is more than .08 water column inches of draft, it can be adjusted with the installation of a ue damper. The stovepipe required to connect the furnace to the chimney should be a minimum of 24 gauge black or stainless steel. NEVER USE GALVANIZED PIPE. Horizontal run should not exceed 5 feet and should have a minimum rise of 2 inches per foot. No installation should have more than 2 elbows, a 45° elbow is recommended over a 90° elbow.

As a safety precaution, all pipe selections should be fastened together with a minimum of 3 sheet metal screws. For your convenience, the crimped male ends of the pipe should point toward the furnace to form drip-free connections, thereby reducing the possibility of creosote leakage from the joints. Installing a heat reclaimer in the pipe is not recommended because it reduces the stack temperature thus causing creosote formation. Installing a manually operated cast iron damper in the stovepipe between the furnace and the chimney pipe is recommended. The addition of a damper will greatly assist in regulating the re and achieving optimum results. Always install a tee with clean-out cap to the chimney outlet on the back of the furnace. This allows for easier cleaning of the chimney system. Never use a 90° elbow off the back of the furnace. When using a masonry chimney, you must line the chimney with a stainless steel liner. The stainless steel liner will keep the chimney temperature hotter for better draw and signicantly reduce the creosote formation in the chimney. If using this method, a 6-inch stainless liner should be used for models FC500E and FC700E; an 8-inch stainless liner should be used for the FC1100E.

WARNING- RISK OF FIRE:

• Do not operate with ue draft exceeding .08 water column inches (19.9 Pa).

• Do not operate with fuel loading or ash removal doors open.

• Do not store fuel or other combustible materials within marked installation clearances.

• Inspect and clean ues and chimney regularly.

DANGER: Risk of Fire and Explosion. Do not burn garbage, gasoline, naphtha, engine oil, or other ammable liquids/inappropriate materials.

WARNING:

• NEVER use galvanized pipe in your chimney connection, it produces poisonous gases when subjected to extreme temperatures.

• USE only lined masonry or manufactured Class “A” HT2100 All Fuel Chimney for your furnace.

• INSPECT chimney system periodically for structural integrity.

• CLEAN the chimney system regularly to prevent creosote accumulation.

• NEVER leave the ash pan in your furnace during operation.

• DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVING ANOTHER APPLIANCE.

Duct Runs

Ductwork should be designed so the external static pressure on high speed does not exceed .02 water column inches while developing air velocities of 450 - 600 feet per minute at the registers. The heat outlet area should never be less than 12 inches round or 113 square inches. The furnace can be installed with a cold air return system, or the return air can be drawn from the basement. If the return air is drawn from the basement, you will have to install 3 “open and close” air register vents in the return air duct connected to your existing furnace; the air will take the path of least resistance without using ductwork to connect the two together. The return air system should be a minimum of 10% larger than the heat outlet to readily transfer the cold air back to the furnace. Avoid using 90° elbows in duct runs; 45° elbows provide better airow and less resistance. CAUTION: The warm air supply outlet of the supplementary furnace should not be connected to the cold air return inlet of the central furnace, because a possibility exists for components to overheat and cause the central furnace to operate other than intended.

Canadian Requirements for Supplemental/Add-On Furnaces

• DO NOT USE DUCT ELBOWS HAVING AN INSIDE RADIUS OF LESS THAN 6 inches (150mm) ON OIL, ELECTRIC, OR GAS FURNACES.

• DO NOT CONNECT TO A DOWNFLOW FURNACE.

• DO NOT CONNECT DUCTWORK SO THAT A REVERSE FLOW IS POSSIBLE.

• OPERATE THE GAS/OIL/ELECTRIC/ FURNACE PERIODICALLY TO ENSURE THAT IT WILL OPERATE SATISFACTORILY WHEN NEEDED.

• CERTIFIED FOR INSTALLATION WITH APPROPRIATE DUCTWORK CONFIGURATIONS ONLY.

• DO NOT RELOCATE OR BYPASS ANY OF THE SAFETY CONTROLS IN THE ORIGINAL GAS/OIL/ELECTRIC

FURNACE INSTALLATION.

• DO NOT CONNECT TO ANY GAS FURNACE THAT HAS NOT BEEN CERTIFIED INITIALLY AS COMPLYING WITH CAN/CGA-2.3.

• THE OPERATION OF THE GAS FURNACE MUST BE VERIFIED FOR ACCEPTABLE OPERATION BEFORE AND AFTER INSTALLATION OF THE ADD-ON APPLIANCE BY A GAS FITTER WHO IS RECOGNIZED BY THE REGULATORY AUTHORITY.

• DO NOT CONNECT TO ANY GAS FURNACE THAT IS NOT EQUIPPED WITH AN AIR-CIRCULATION BLOWER, OR TO A CHIMNEY OR VENT SERVICING A GAS FURNACE OR GAS APPLIANCE.

The add-on unit should only be installed on a furnace duct system and chimney that are in good operating condition.

On a belt-driven system, blower and motor pulleys may be changed but the electrical current owing through the motor cannot exceed the nameplate rating. On a direct-drive system, the motor should not be changed, however, the speed of the motor may be increased. The

blower cannot be changed. This equipment should be installed, acceptable to regulatory authority, by experienced licensed personnel.

The installation should comply with requirements of CAN/CSA-B365, and changes to the installation should comply with CSA-B139 (for oil-red), C22.1 (for electric), or CAN/CGA-B149.1 or CAN/CGA-B149.2 (for gas-red).

IMPORTANT: FOR TECHNICAL SUPPORT OR CUSTOMER SERVICE ISSUES, DO NOT RETURN TO THE DEALER (THE DEALER DOES NOT HAVE REPLACEMENT PARTS), CALL 1-800-875-4788.

BURN WOOD AND COAL ONLY!

General Operation

NOTE: Always pull the bypass rod all the way out before opening the fuel door.

Types of Wood to Use:

We advise using only dry, seasoned hardwoods in your Fire Chief Furnace rather than high resin woods such as pine. Firewood should be cut at least one full season prior to the time of its intended use, for optimum heat output. Firewood should be stacked to provide a free ow of air between the logs, thus allowing more rapid seasoning of the wood. If wood is stored outdoors, it should be completely covered year round to protect it from moisture and exposure to the elements.

FUEL RECOMMENDATIONS: (Log size by model)

• FC500E – 22 inch maximum log length

• FC700E – 28 inch maximum log length

• FC1100E – 34 inch maximum log length

Use extreme caution when opening the door during operation, temperatures can exceed 300°F. Always pull the bypass rod all the way out before opening the fuel door. Wait at least 10 seconds after releasing the latch, and then proceed to the fully open position. Opening the door in this manner is designed to eliminate the possibility of gaseous ignition. Heat resistant gloves are recommended when opening the fuel door, regulating the spin draft, or emptying the ash pan.

CAUTION: HOT SURFACES. KEEP CHILDREN AWAY. DO NOT TOUCH DURING OPERATION.

CAUTION:

• INSPECT FLUE PIPES, JOINTS AND SEALS REGULARLY TO ENSURE THAT SMOKE AND FLUE GASES ARE NOT DRAWING INTO, AND ARE NOT BEING CIRCULATED BY THE AIR-CIRCULATION SYSTEM.

• CLEANING OF THE HEAT EXCHANGER, FLUE PIPE, CHIMNEY AND DRAFT INDUCER (IF USED), IS ESPECIALLY IMPORTANT AT THE END OF THE HEATING SEASON TO MINIMIZE CORROSION DURING THE SUMMER MONTHS CAUSED BY THE ACCUMULATED ASH.

• Never use chemicals or gasoline to start or maintain your re.

• Do not burn oil, garbage, trash, plastic, or any fuel other than wood or coal in your furnace. Doing so will void the warranty.

• DO NOT operate your furnace with the fuel bypass rod open; the handle must be pushed all the way in (except when refueling).

• DO NOT leave the ash pan inside your furnace during operation.

WARNING: – RISK OF FIRE

• DO NOT operate with ue draft exceeding .08 water column inches (19.9 Pa).

• DO NOT store fuel or other combustible materials within marked installation clearances.

• Inspect and clean ues and chimney regularly.

• DO NOT operate your furnace with the fuel or ash doors open.

WARNING: NEVER fuel your furnace with wet, unseasoned wood or wood that has been exposed to a recent rainfall. Burning wood with high moisture content will cause a rapid accumulation of hazardous creosote, which has been proven to be the most common cause of

ue res. NEVER burn plastics, any wood product containing glue, or wood treated with chemical preservatives in your furnace. The combustion of these substances may release harmful, toxic gases.

DANGER: RISK OF FIRE OR EXPLOSION – do not burn garbage, gasoline, naphtha, engine oil, or other ammable liquids/inappropriate materials.

Supplemental Outside Combustion air may be necessary if:

• The solid-fuel-red appliance does not draw steadily, smells, experiences smoke rollout, burns poorly, or back-drafts whether or not there is combustion present. Opening a window slightly on a calm day may alleviate these symptoms.

• The house is equipped with a well-sealed vapor barrier and tight tting windows, and/or has any powered devices which exhaust house air.

• There is excessive condensation on windows in the winter.

• A ventilation system is installed in the house.

BURN WOOD AND COAL ONLY!

First Wood Fire:

Set the wall thermostat to 90°F. Check to make sure the spin draft is wide open to allow oxygen into the rebox. Make sure the switch for the draft blower is in the ON position. Adjust slide cover on draft blower to an opening of approximately ⅜ inch.

slide cover to

OPEN

make adjustment

Place several crumpled newspapers on the grate with some dry kindling layered on top of the papers, then ignite the newspaper. When the kindling is burning, add several small pieces of wood, allow wood to fully ignite. After about 20 minutes the re should be established, allowing you to add more wood – do not overload which would smother the re. Add more wood slowly, so the ames have time to engulf the fresh wood. Once the re is burning and there is a glowing ember bed, adjust the draft to achieve desired burn pattern. Learning how to adjust the draft to maintain the desired temperature for your home may take several days. After a short time you will know which settings and adjustments work best for your home. Set the wall thermostat to the desired home temperature.

Do not over-re the furnace. Over-ring by overloading/over fueling the furnace causes the metal to superheat and expand, then cool rapidly, which causes cracking, therefore voiding the warranty. Over-ring or abuse can easily be determined upon inspection.

It will take about 40 minutes to establish a bed of hot embers. Once you have achieved the hot ember bed, add larger pieces of rewood and push the bypass rod in all the way. Within 30 to 40 minutes, adjust the spin draft and the damper to obtain optimum performance. Finally adjust the wall thermostat and draft blower cover to a comfortable setting. Ash pan must remain out of furnace during operation.

NOTE: Your new Fire Chief Furnace is capable of producing a very high BTU output. Do not fuel your furnace to capacity upon initial ring. It’s recommended that you become thoroughly familiar with your Fire Chief Furnace before operating at full capacity.

The new steel and metal components of the furnace have a protective coating or paint on the surface which could produce an odor during

the break in period. Adequate ventilation within the home and furnace room or area is recommended during the initial ring and break in period to accommodate this possibility. Your new Fire Chief Furnace is classied as having airtight construction. This type of design should enable you to experience an average burn time between 6 and 12 hours per full load of fuel (dry, seasoned hardwood). However, abnormally cold weather may reduce the burn time somewhat, but if your burn cycle is signicantly less, for instance, 2 to 4 hours, you are over-ring your furnace. This type of occurrence is usually symptomatic of heat demands in excess of furnace capacity. Contact an authorized professional to determine if your Fire Chief Furnace has been improperly sized for your home.

Loading Wood:

When opening the fuel door during operation, always pull the bypass rod all the way out before opening the fuel door, wait 10 seconds after releasing the rst latch, then open the door the rest of the way. The dual latch system has been incorporated as a safety feature, designed to eliminate the possibility of gaseous ignition. Laboratory testing has determined that when incomplete combustion occurs the partially spent fuel sometimes concentrates large amounts of potentially hazardous gases within the re chamber. If the door is opened suddenly under these conditions, the oxygen may combine with these gases and cause ignition referred to as “back ash.” Use EXTREME CAUTION when opening the fuel door.

When reloading the furnace, spread embers evenly over the grate. Place smaller pieces of wood or coal on the hot embers and layer larger pieces on top of them. Finally, due to the wide variety of temperature ranges during the winter, you may experience periods when it is not necessary to fully load the re chamber in order to maintain an overnight burn. Your Fire Chief Furnace will operate at the highest efciency by adding fuel in amounts needed to maintain comfortable temperatures in your home.

Starting the First Coal Fire:

Burning coal is much harder than burning wood. There is more care and work in building and maintaining a coal re than a wood re. Anthracite is the best coal to burn, due to its long even burn with higher heat output and clean burn quality but is more difcult to manage than Bituminous coal.

The size of coal is important. “Nut” coal sizes of 4 inches for Bituminous and 2¾ to 4½ inches for Anthracite coal are recommended. Never use coal other than the sizes recommended. If the coal is too small it will smother the re and if it is too large the coal will not burn well.

When burning Bituminous coal, start the re with wood (as described above). Always use dry kindling, as this will provide a hotter re and add small pieces of wood until you get a good hot ember bed. At this point add a small amount of coal. When the coal is hot enough to ignite, add small amounts at a time, so as not to smother the re. Keep in mind that Bituminous coal will require more maintenance as this type of coal will produce more soot, requiring more frequent cleaning to prevent buildup.

Also make sure that the spin draft is wide open to establish the correct burn pattern. When adding coal to Bituminous res always add coal to the center of the bed creating the cone effect. Bituminous coal is more volatile and adding coal to the center of the bed causes the ames to drive off the volatile gases. Remember that no two installations and chimney set-ups are the same, so be prepared to experiment until you achieve the desired results. Always allow enough air to the rebox and keep the damper open so that volatile gases are properly burned. When adding fuel, remember to break up the cone with a poker if it has formed a crust, but be careful to avoid mixing the coal as this can form clinkers. Rotate the grates slightly so as not to disturb the re. Excessive movement wastes fuel and exposes the grate to extreme heat, which will cause warping or burnout. For overnight burn operations, follow the above instructions and adjust the chimney damper and set the thermostat.

When burning Anthracite coal, start the re with wood (as described above). Add layers of coal making sure not to smother the re, the third layer should be a little heavier, but should not to extend above 2 inches below the top of the brick in the rebox. Before adding more fuel, be sure to leave a red spot in the center of the bed. This hot spot will help ignite the gases given off the new charge. A deep charge will give a more even heat and a longer re. It may take up to a couple hours before the whole bed is fully ignited. When the re is established and the home is becoming warm, you may adjust the damper. It may still take some experimenting with the wall thermostat to ensure proper operation, as no two installations are the same. Once the coal bed has reduced to half its original depth it is time to add fuel to the furnace. At this point pull out the bypass rod and turn up the wall thermostat. This will allow the re to burn off the accumulated gases. Open the fuel door, using a small rake or hoe pull the coals towards the front of the bed, trying not to disturb the re too much. Next, add coal to the back, being careful not to seal off the top. Only rotate the grates a couple times a day to allow the ash to fall into the ash pan. Keep the ash pan cleaned out to ensure good airow. You may want to start this banking process early in the evening before retiring or before leaving the home so that you may make proper adjustments after the re is well established.

WARNING: It is unsafe to load any type of coal within 2 inches of the top of the rebrick. Load fuel carefully or damage may result.

NOTE: Do not burn coke, charcoal, highly volatile Bituminous coal, sub Bituminous, lignite or cannel coal (sometimes called channel coal or candle coal). Never burn chemically processed logs, such as re logs, as their use is intended for replaces only. Please follow all guidelines in this manual concerning wood and coal burning applications due to safety concerns and to maintain warranty coverage.

BURN WOOD AND COAL ONLY!

Disposal of Ashes:

Heat resistant gloves are recommended. In order to remove ashes from your Fire Chief Furnace, open the ash door and slide the ash pan to the rear of the furnace. Remove the ash pan from the furnace and dump the ashes into a metal container with a tight tting lid. The closed container of ashes should be placed on a non-combustible oor or on the ground, well away from all combustible materials, pending nal disposal. If the ashes are disposed of by burial in soil or otherwise locally dispersed, they should be retained in the closed metal container until all cinders have thoroughly cooled.

The ash pan must be removed from your Fire Chief Furnace during operation. This precautionary measure is recommended because if the ash pan is allowed to remain inside the furnace during operation, it will become dangerously hot to touch, block the ow of air under the grates and reduce the efciency of the furnace.

Remove the ashes from your Fire Chief Furnace at least once a day, or as often as necessary to ensure the ashes do not accumulate to the height of the grates. If ash build-up occurs at grate level, it will cause premature failure of the grate system, voiding the warranty on the grates. Unacceptably high temperatures will result because the ashes have restricted the ow of cooling air beneath the grates. This ow of air was designed to not only cool the grates, but to also provide warmed air for better combustion. If the ash level is improperly maintained the rebox will be starved of combustion air, greatly reducing the efciency and heat output of your Fire Chief Furnace.

CAUTION: HOT SURFACES. KEEP CHILDREN AWAY. DO NOT TOUCH DURING OPERATION.

IMPORTANT: FOR TECHNICAL SUPPORT OR CUSTOMER SERVICE ISSUES, DO NOT RETURN TO THE DEALER (THE DEALER DOES NOT HAVE REPLACEMENT PARTS), CALL 1-800-875-4788.

Draft Blower:

The front draft blower plays an important role in the operation of your Fire Chief Furnace. When the wall thermostat calls for heat, the draft motor turns on and supplies fresh air into the rebox producing a hotter re, which in turns provides more heat in the heat chamber. The heat is then sent through the duct system throughout your home. When the wall thermostat temperature is met, the draft blower shuts off until the thermostat calls for heat, beginning the cycle again. The draft blower has a slide cover located on the side of the motor that is factory preset, with an opening of approximately 3/8”. The cover should be fully closed only when there is a power failure and electricity is lost. With the cover closed, no air is introduced into the rebox, then the re dies, preventing the furnace from possible overheating and damage. The manual combustion air spin damper control on the ash door should be set with a 1/8 inch gap to start. Adjust slowly by making 1 rotation at a time to nd the correct air setting.

Creosote Formation and Need for Removal:

When wood is burned slowly, it produces compounds in exhaust smoke which combine with expelled moisture to form creosote. The creosote vapors condense in the relatively cooled chimney ue of a slow burning re. As a result, creosote residue accumulates on the ue lining. When ignited, this creosote makes an extremely dangerous re in the chimney. The chimney connector and the chimney should be inspected at least twice monthly during the heating season to determine if a creosote build-up has occurred. If creosote has accumulated it should be removed to reduce risk of a chimney re.

Creosote Prevention:

To help reduce the formation of creosote within the ue, ALWAYS BURN DRY, SEASONED WOOD. Dry wood burns hotter, allowing ue gases to maintain temperatures above 212°F which should reduce the quantity of creosote in the chimney. If the ue gas temperature falls below 212°F, condensation occurs causing creosote formation and accumulation within the chimney.

As an added precaution, periodic chimney inspections are recommended during the heating season to determine if creosote formation has occurred. For safety and efciency, it is recommended that the chimney system be inspected and cleaned prior to each heating

season.

Chimney Fire Warning:

In the event of a chimney re, take the following actions immediately:

• Activate and toss a Chimfex™ Dry Chemical Chimney Fire Extinguisher into the rebox.

• Close the ash door, fuel door, spin draft and slide cover on the draft motor.

• Alert entire household and prepare to evacuate if necessary.

• Call your local re department.

Power Failure:

In case of power failure, to prevent your Fire Chief Furnace from over-heating and causing damage to the electrical components, follow these steps:

• Ensure that the bypass rod is pulled out, allowing heat to go up the chimney.

• Close the spin damper control on the ash door.

• Close the slide cover on the side of the draft motor.

• Do NOT add more fuel (coal or wood) to the rebox.

There is no warranty on electrical components damaged due to power failure.

NOTE: OVER-FIRING OR DELIBERATE ABUSE CAN EASILY BE DETERMINED UPON INSPECTION AND WILL VOID THE WARRANTY.

Always keep your wood covered year round. Dry wood will produce a higher BTU output and a longer burn time. Refer to the nameplate on furnace for additional information.

WARNING: RISK OF FIRE

• Do not operate with the ue draft exceeding .08 water column inches (19.9 Pa).

• Do not operate with fuel loading or ash removal doors open.

• Do not store fuel or other combustible material within marked installation clearances.

• Inspect and clean ues and chimney regularly.

THIS IS A WOOD AND COAL BURNING FURNACE ONLY AND SHOULD NOT BE ALTERED IN ANY WAY.

Furnace Diagram

ITEM

QUANTITY

ITEM DESCRIPTION

NUMBERS

FC500E ITEM

NUMBERS

FC700E ITEM

NUMBERS

FC1100E ITEM

NUMBERS

1 1

4 5

PARTS LIST

DESCRIPTIONQTY

ASH DOOR ASSEMBLY

ASH PAN TRAY 12

DRAFT BLOWER

FURNACE SHELL 14

RIGHT SIDE PANEL

ELECTRICAL CONTROL CENTER FAN LIMIT CONTROL17 FILTER BOX 18

SMOKE SLIDE DAMPER

BLOWER ASSEMBLY1

TOP PANEL1

SMOKE DAMPER ROD

LEFT SIDE PANEL1

DOOR HINGE PIN FUEL DOOR ASSEMBLY1

AIR CONTROL DAMPER KNOB

PARTS LIST

TOTAL

COMMON ITEM

1 1 Ash Door Assemply SFFDA - - 2 1 Ash Pan Tray - FC5AP FC7AP FC11AP 3 1 Draft Blower FCDB - - 4 1 Furnace Shell - FC5SHELL FC7SHELL FC11SHELL 5 1 Right Side Panel with Insulation - FC5RA FC7RA FC11RA 6 1 Electrical Control Center ECC - - 7 1 Fan Limit Control FCFLC - - 8 1 Filter Box FCFB - - -

9 1 Smoke Slide Damper FC000-15 - - 10 1 Blower Assembly FC3SPMOTOR - - 11 1 Top Panel - FC5TOP FC7TOP FC11TOP 12 1 Smoke Bypass Rod - FC5DR FC7DR FC11DR 13 1 Left Side Panel with Insulation - FC5LA FC7LA FC11LA 14 4 Door Hinge Pin FCDP - - 15 1 Fuel Door Assembly FCFDA - - 16 1 Spin Draft FCSD - - -

Grate System Diagram - FC500E

PARTS LIST

FC500E

ITEM

QTY

ROLLER GRATE BASE11 ROLLER GRATE SUPPORT ROLLER GRATE EXTENSION BASE-SHORTEST13 FC000 ROLLER GRATE EXTENSION-SHORTEST FC000 ROLLER GRATE15 FC000 ROLLER GRATE HANDLE16

PART NUMBER

Grate System Diagram - FC700E

PARTS LIST

ITEM

FC700E

QTY

PART NUMBER ROLLER GRATE BASE11 ROLLER GRATE SUPPORT ROLLER GRATE EXTENSION BASE13 FC000 ROLLER GRATE EXTENSION14 FC000 ROLLER GRATE

FC000 ROLLER GRATE HANDLE

Grate System Diagram - FC1100E

PARTS LIST

PART NUMBERQTYITEM ROLLER GRATE BASE11 ROLLER GRATE SUPPORT22 FC000 ROLLER GRATE17 FC000 ROLLER GRATE

EXTENSION ROLLER GRATE EXTENSION BASE FC000 ROLLER GRATE EXTENSION-SHORT ROLLER GRATE EXTENSION BASE-SHORT FC000 ROLLER GRATE HANDLE

FC1100E

PARTS LIST

PART NUMBERQTYITEM ROLLER GRATE BASE11 ROLLER GRATE SUPPORT22 FC000 ROLLER GRATE17

FC000 ROLLER GRATE EXTENSION

ROLLER GRATE EXTENSION BASE FC000 ROLLER GRATE

EXTENSION-SHORT ROLLER GRATE

EXTENSION BASE-SHORT

FC000 ROLLER GRATE HANDLE

Blower Motor Assembly Diagram

ITEM

DESCRIPTIONQTY BLOWER WHEEL11 BLOWER HOUSING MOTOR CAPACITOR13 BLOWER MOTOR

ITEM

PARTS LIST

BLOWER WHEEL11

BLOWER HOUSING MOTOR CAPACITOR13

BLOWER MOTOR

DESCRIPTIONQTY

Wiring Diagram

WIRING DIAGRAM

INDOOR FURNACE

WALL THERMOSTAT

FAN LIMIT CONTROL

ORANGE

BLACK

RED

YELLOW

RED

120V AC

POWER SUPPLY

WHITE

BLACK

GREEN

120V AC/24V AC TRANSFORMER

RED

RELAY

BLACK

DRAFT MOTOR ON/OFF SWITCH

DRAFT BLOWER

MOTOR

3 SPEED SWITCH

RED (LOW)

BLUE (MED)

BLACK (HI)

WHITE

3 SPEED BLOWER

MOTOR

Troubleshooting

Problem: Circulation blower runs constantly. NOTE: Make sure the white button on fan

limit control is pulled out and in the “auto” position.

Possible Causes:

• “Off”setting on fan limit control is low.

• White button on fan limit control is pushed in.

• Defective fan limit.

• Improper wiring.

• Backdraft damper is in the “closed” position.

Remedies:

• Remove cover on fan limit control and check for the proper setting. The point indicators should be set at 100° “Off” and 150° “On.” Do NOT attempt to adjust the fan limit by manually adjusting the temperature indicators on the dial.

• Pull white button out and the blower should stop.

• Check by moving “ON” and “OFF” point indicator to a temperature position where blower should turn off. If the blower continues to run,

replace the fan limit.

• Review wiring diagram. If unit is wired correctly, seek professional

assistance.

• Open backdraft damper.

Problem: Circulation blower vibrates during operation.

Possible Causes:

• Screw on squirrel cage is not

tight.

Remedies:

• Check squirrel cage alignment and position so that it does not drag on the housing during rotation, then tighten the screw sufciently to fasten the squirrel cage securely to the shaft.

• Balance weights on squirrel cage have become dislocated.

• Defective main bearings.

• You may attempt to adjust the weights yourself to obtain an acceptable balance. If you are unsuccessful, contact your supplier.

• Return the blower to your supplier for replacement.

Problem: Flames discharging from fuel door during reloading.

Possible Causes:

• Opening the door has provided additional oxygen which has ignited the accumulated gases from partially spent fuel.

• Bypass rod is in the “CLOSED” position.

“CLOSED” position.

• Insufcient natural draft or an obstruction in the ue system.

• Fire chamber lled to capacity with unburned fuel.

Remedies:

• Always open the door cautiously and allow the safety latch system to perform its designed function, containing gases within the re chamber.

• Pull out bypass rod.

• Open damper.• Cast iron damper in the

• See #6 and #9.

• Do not attempt to overload the furnace.

Problem: Draft blower will not run. NOTE: Verify that the wall thermostat is in the “HEAT” position, and make sure batteries are installed.

Possible Causes:

• Defective rocker switch on control

center.

• Defective wall thermostat.

• Wall thermostat is in the wrong position.

• Defective relay in transformer.

• Defective draft motor.

• Improper wiring.

Remedies:

• Replace rocker switch.

• This can be checked by turning the thermostat to a temperature setting that is higher than the temperature in your home. If the draft blower does not operate, the thermostat may be defective. Replace if necessary.

• Move switch on wall thermostat to the “HEAT” position.

• Replace relay.

• Replace draft motor.

• Review wiring diagram. If unit is wired correctly, seek professional

assistance.

Problem: Excessive dirt accumulation surrounding air registers in the home.

Possible Causes:

• Smoke discharge from loading door while refueling.

Remedies:

• Always pull exhaust bypass rod completely forward before opening fuel door.

• Furnace is not connected to return air duct and is drawing dirt from furnace room oor and disbursing it throughout home.

• Filter box not installed, or no lter in lter box.

• Connect to return air duct system.

• Install lter box on furnace. Install lter in lter box.

Problem: Smoke from the re chamber is pufng back through the forced draft motor.

Possible Causes:

• Furnace is not connected to return air and is drawing smoke fumes from the ue.

• Excessively long run of stove pipe from furnace to ue.

• Too many elbows.

• Insufcient ue size.

Remedies:

• Connect to return air duct system. Or room may be too airtight, refer to “Location and Installation” section on page 3.

• Relocate the furnace so the horizontal run does not exceed 5 feet and has a 2 inch rise per foot.

• The run should not contain more than 2 elbows.

• Replace with a larger ue providing a minimum of 50 square inches but not more than 100 square inches of draft area. If the ue is within these specications, check the draft with a draft gage (manometer). Your ue should provide a minimum of .04 water column inches and a maximum of .08 water column inches.

Problem: Draft blower runs constantly.

Possible Causes:

• Defective wall thermostat.

Remedies:

• This can be checked by turning the thermostat to a lower setting than the temperature in your home. If the draft blower continues to run, the thermostat may be defective. Replace if necessary.

• Defective relay in transformer.

• Home is not being supplied with a sufcient amount of heat to satisfy the wall thermostat.

• Replace transformer and relay.

• Have a professional determine the proper size furnace and insulation factor of your home.

Problem: Rapid accumulation of creosote in furnace and ue.

Possible Causes:

• Use of high resin wood, such as pine.

• Under-ring the furnace has caused low ue gas temperature.

• Insufcient chimney draft.

• Using uninsulated stove pipe for the chimney, especially if the construction is on the exterior of the home.

Remedies:

• Completely avoid using if at all possible. If hardwoods are not available, fuel the furnace with smaller loads. This will cause the thermostat to call for more heat more often, which will initiate the running of the draft blwoer. Consequently, the res will be hotter, thereby reducing the accumulation of creosote.

• Install ue gas thermometer and maintain stack temperatures between 300° and 400° F.

• See #9.

• DANGER: Never use uninsulated stove pipe as chimney. It must not be used on the inside of your home due to high stack temperatures, which create an extreme re hazard. Uninsulated pipe cannot be used as an outside ue because it causes rapid cooling of the stack gases, which causes them to condense as creosote on the inside of the ue.

• Improper connection in stove pipe causing air leakage or a structural defect in the chimney itself.

• Fire box not receiving adequate

amount of oxygen.

• Use of an unlined masonry

chimney with a large clay tile opening.

• Inspect entire ue run, from the exhaust stack of the furnace to the termination cap. Repair as necessary.

• Furnace room may be too airtight to supply sufcient amount of oxygen for combustion. Install an aperture to the outside consisting of a minimum of 12 square inches or 4 inches round.

• Install stainless steel liner in masonry chimney to reduce creosote formation and improve draw. Use appropriate size stainless liner for the furnace.

Problem: Down draft on chimney caused by one or more of the following.

Possible Causes:

• Cast iron damper in “CLOSED” position.

Remedies:

• Open damper.

10.

• Flue has a cold spot which inhibits exhaust discharge from rising properly.

• There is an obstruction outside chimney, such as a tree.

• Flue is located too close to the peak of the roof or does not rise above it to provide the proper draft.

• Backdraft damper is in the “closed” position.

• This problem may occur in factory built ues because the insulation has settled or a seam has ruptured. In masonry ues, mortar loss may be causing seepage of cooler outside air into the stack. Check entire ue for structural integrity and leakage. Correct or repair as needed, or replace or re-line the chimney.

• Remove obstruction.

• Increase chimney height.

• Open backdraft damper.

Problem: Odor detected in home during initial ring.

Possible Causes:

• There is an oily lm that remains on the steel after the manufacturing process. Firing the furance has raised the temperature of the re box to a level that is sufcient to vaporize the residue.

Remedies:

• The odor should disappear after a few hours of usage.

Problem: Excessive smoke discharge from fuel door during reloading.

11.

Possible Causes:

• Exhaust bypass rod is in “CLOSED” position.

• Cast iron damper in the “CLOSED” position.

• Excessively long stove pipe run from furnace ue.

• Insufcient draft.

Remedies:

• Always pull the exhaust bypass rod completely out before opening

the loading door.

• Open damper.

• See #6.

• See #6.• Too many elbows.

• See #6.

• See #9.• Excessive smoke accumulation.

12.

Problem: Home does not achieve comfortable temperature.

Possible Causes:

• Improper ductwork connection to existing furnace.

Remedies:

• Refer to information in the manual relating to the proper installation procedures or contact your local heating and cooling contractor.

• Improperly sized ducting.

• Excessive dirt accumulation in air lter.

• Combustion chamber not

receiving an adequate amount of oxygen.

• Furnace size is inadequate for your home.

• Slide cover on draft blower is “CLOSED.”

• Fueling furnace with wet or unseasoned wood.

• Refer to information in the manual relating to the proper ducting procedures or consult your local heating and cooling contractor.

• Check and replace lter. Proper lter size is 20” by 25” by 1.”

• Furnace room may be too airtight. Install an aperature to the outside consisting of a minimum of 12 square inches or 4 inches round.

• Consult a professional to determine correct sizing.

• Open slide cover.

• Completely avoid using if at all possible. If circumstances necessitate the use of wet or unseasoned wood, then fuel the furnace with smaller loads. This will cause the thermostat to call for heat more often, which will initate the running of the draft blower. Consequently, the res will be hotter, thereby reducing the accumulation of creosote.

13.

14.

• Ash pan is in the furnace, resulting in an insufcient air ow for combustion.

• Remove ash pan and store under furnace during operation.

Problem: Bugs found in wood.

Possible Causes:

• Wood has rotted or has been laying around for an extended period of time.

Remedies:

• Inspect the wood for obvious signs of insect infestation such as burrows or holes, avoid using if possible. Do not store wood indoors.

Problem: Circulation blower will not turn on.

Possible Causes:

• Defective fan limit control.

• Defective capacitor.

• Defective blower.

Remedies:

• Check by pushing the white button on the fan limit control to the manual position where the blower should turn on. If the blower fails to run, replace the fan limit.

• Replace capacitor.

• Contact your supplier for replacement.

• Improper wiring.

• Review wiring diagram. If wired correctly, seek professional

assistance.

Warranty Information

CERTIFICATE OF LIMITED WARRANTY:

EXTENT OF COVERAGE: This warranty covers any Fire Chief Furnace FC500E, FC700E, and FC1100E sold in the United States and

Canada. This warranty applies only if the Fire Chief Furnace is installed, maintained, and operated in accordance with the instructions in the owner’s manual and local codes. This warranty applies to the original purchaser/owner of the Fire Chief Furnace and is not transferable. Replacement or repair parts are warrantied for the remaining period of the original warranty.

All warranty claims must include:

• Date of purchase

• Model and serial number

• Proof of purchase (dated invoice, bill of sale, cancelled check, or payment record)

• The name / address of the store from which you purchased the furnace

Fire Chief Industries warranties the rebox and cast iron grates to be free of defects in material and workmanship for the liftetime of the original purchaser. Intentional misuse or abuse causing burn through of the cast iron components voids all warranties. Over ring the furnace will cause the front face to crack and is not covered by the warranty. Furthermore, some cosmetic deterioration can be expected as the result of normal operation, therefore the physical appearance is not guaranteed to remain unchanged. The manufacturer warranties all electrical components for 1 year and the blower motor for 2 years. Please be advised that the rebrick and door gaskets are excluded from this warranty.

In order to exercise the aforementioned warranty, a certied professional must determine the appliance/part to be defective. He or she must submit a written statement to Fire Chief Industries detailing an assessment of the problem. This assessment MUST be accompanied by substantiating proof of purchase (dated invoice, bill of sale, cancelled check, or payment record), model and serial number. Fire Chief Industries will then authorize repair or replacement as appropriate to the submitted claim. Fire Chief Industries will not honor expenses incurred from any action that was not expressly consented to in writing. The owner is hereby notied that he or she will be obligated to assume liability for removal, reinstallation, shipping, and labor costs involved in servicing/repairing or replacing the part or unit. The merchandise in question must be shipped via PREPAID FREIGHT to Fire Chief Industries. Fire Chief Industries will return the repaired or replacement part to the purchaser on a FREIGHT COLLECT basis.

This warranty will be rendered null and void if this part/unit exhibits symptoms of obvious over-ring, deliberate abuse or negligence, improper installation, or is used for commercial purposes.

Finally, Fire Chief Industries will not be responsible for any claim not stated in our warranty nor does any implied warranty extend beyond the limits stated above.

Please contact Fire Chief Industries with all pertinent information including daytime phone number and detailed description of the type of problem you are having. Fire Chief Industries technical service personnel will contact you as soon as possible. Call 1-800-875-4788 or mail information to: Fire Chief Industries, 10950 Linpage Place, Saint Louis, MO 63132.

Fire Chief FC500E, FC700E, FC1100E Operating Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
