Fire Cam FIRE User Manual

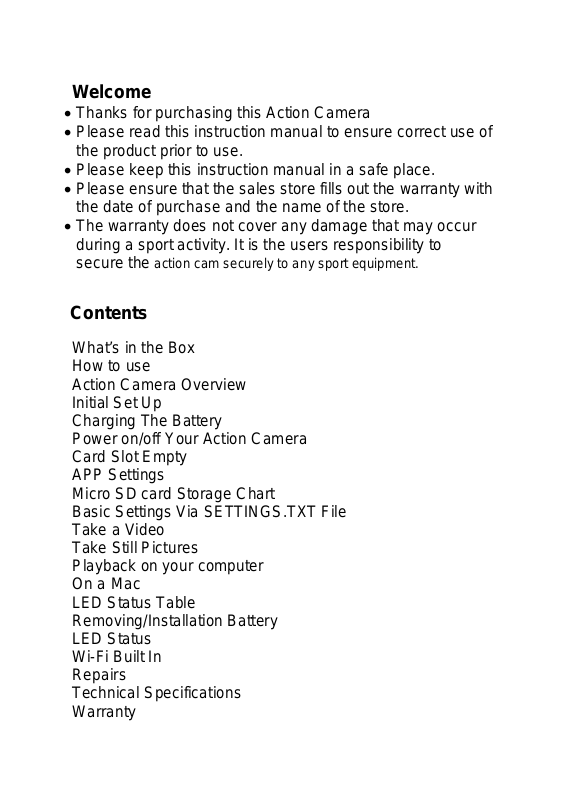

Welcome

 Thanks for purchasing this Action Camera
 Please read this instruction manual to ensure correct use of

the product prior to use.

 Please keep this instruction manual in a safe place.
 Please ensure that the sales store fills out the warranty with

the date of purchase and the name of the store.

 The warranty does not cover any damage that may occur

during a sport activity. It is the users responsibility to
secure the

action cam securely to any sport equipment.

Contents

What’s in the Box
How to use
Action Camera Overview
Initial Set Up
Charging The Battery
Power on/off Your Action Camera
Card Slot Empty
APP Settings
Micro SD card Storage Chart
Basic Settings Via SETTINGS.TXT File
Take a Video
Take Still Pictures
Playback on your computer
On a Mac
LED Status Table
Removing/Installation Battery
LED Status
Wi-Fi Built In
Repairs
Technical Specifications
Warranty

What’s In The Box

1. Camcorder with Sound Cap (water resistant)

2. Camcorder Mount

3. Universal Mount

4. Roll Bar Mount

5. Curved Mount

6. Battery

7. USB Cable

8. Adhesive Stickers 5pcs

9. Magic Tape 2pcs

10. Hand Safety Strap

11. User Manual

12. Waterproof Cap

13. Rubber O-ring 6pcs

14. Silicon Grease

How to use

1. Camera on handlebar

2. Camera on vented helmet

3. Camera on top of helmet / any curved surface

4.Camera on any flat surface / tripod

Action Camera OVERVIEW

① LED ② Power / Shutter ③ Rear Cap ④ WiFi OFF/WiFi On

⑤ USB ⑥ Micro SD Card Slot ⑦ Battery ⑧ Battery Charging LED

Initial Set Up

1. Make sure the Action Camera is OFF before adding or removing the
memory card!

2. Screw out the rear cap (open) located at the back of the Action
Camera ③.

3. Install a micro SD memory card (max up to 128GB(FAT32) into the
rear slot. To insert the micro SD card, slide the micro SD card into the
card slot on the back of the Action Camera with the card label facing
down. The micro SD card will click into place once it is inserted past
flush with the Action Camera. Use your fingernail to do this. Then
screw in the rear cap till is complete lock.

4. If no micro SD memory is inserted in the Action Camera, the LED on
top of the camera will blink red and blue.

5. When using a micro SD memory card in the Action Camera, there
should be no data from other devices on the card. If you are using a
micro SD memory card for the first time in the Action Camera, first you
should format the card in your computer.

Using Action Camera for Water Sports

Remind you to put some silicon grease to the rubber O-ring from time to
time, especially before using underwater. Make sure the rear cap ③ was
closed tight.

Charging The Battery

Screw out the rear cap located at the rear of the camera ③ and Plug the USB charger to
the camera. The charging LED

charged. On the first use charge the battery 10 hours before use! You can record up to 90
minutes with one charge.

⑧ is on while charging, goes off when the battery is fully

Power on/off Your Action Camera

Turn Action Camera On

Turn Action Camera Off

Turn on the Action Camera by pressing the
Power/Shutter button ② for at least 3 seconds until the
blue LED turns on. The camera will vibrate once long.
After releasing the button the red LED flashes and beep
three times, indicating that the Action Camera is in
standby mode.
Turn the Action Camera off by pressing the
Power/Shutter button ② in standby mode until the red
LED flashes. The Action Camera will short vibrate twice
and beep 6 times and will switch off.

Card Slot Empty

If there is no Micro SD card in the camera, the red and red LED will
flash for 15 seconds. Then, the camera will switch off automatically.
Friendly reminder: Please insert the Micro SD card before using the
camera!

APP Settings

4K@24fps
1080P@60fps (defaut)

Video Resolution

Time Lapse

Loop Record

Video time

1080P@30fps
720P@60fps
720P@30fps
Off(default)
1 frame per second
1 frame per 2 second
1 frame per 5 second
1 frame per 10 second
1 frame per 30 second
1 frame per 60 second
Off (defaut)
ON
3min
5min (defaut)
10min
15min

Audio Record

Auto Recording

Date Stamp

Image Size

Quality

30min(4K\1080P@60fps)
Off
ON (defaut)

Off
ON (defaut)

Off (defaut)
ON
12M 4032x3024
5M 2593x1944 (defaut)
Fine (defaut)
Good
Normal
