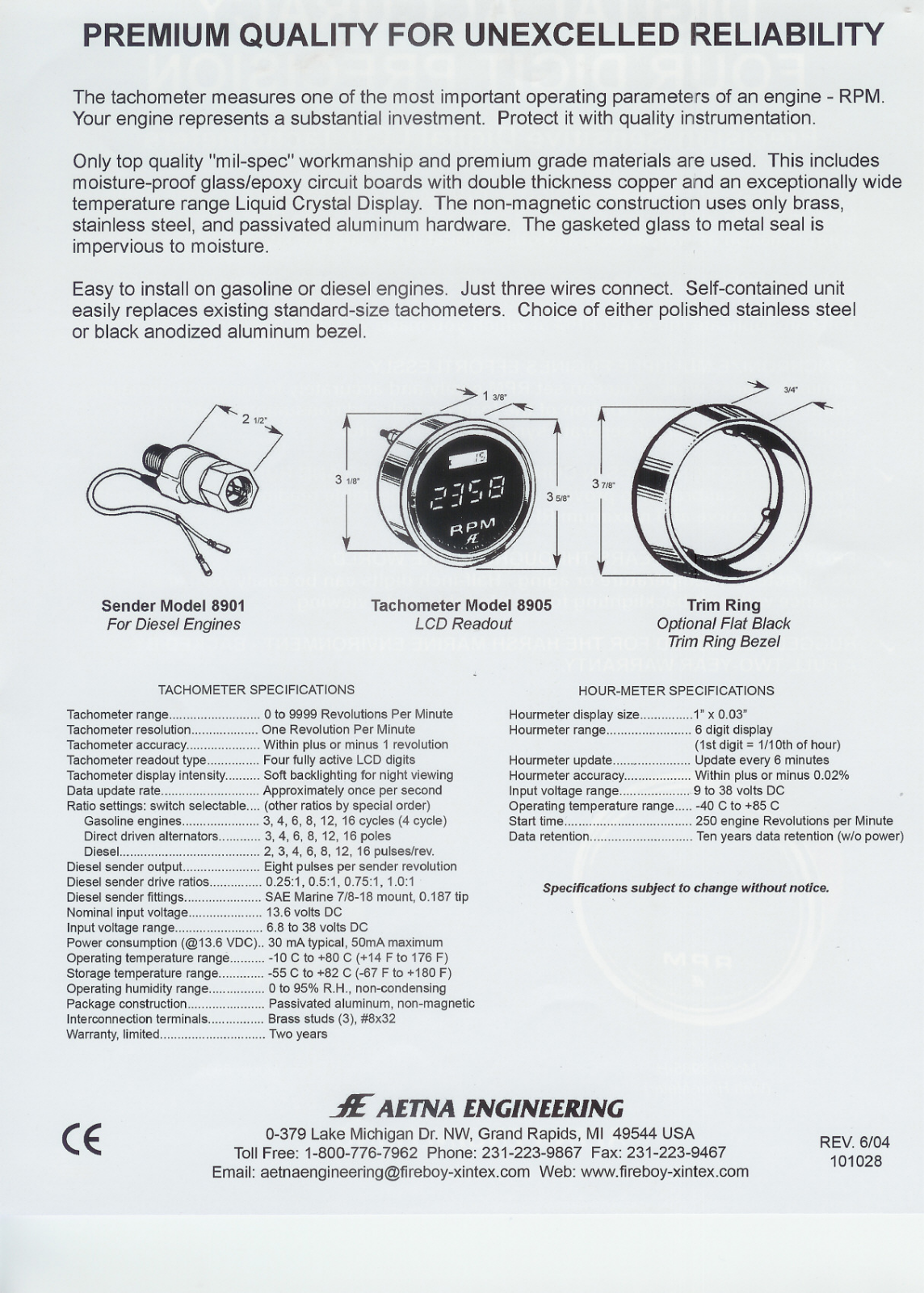

PREMIUM QUALITY FOR UNEXCELLED RELIABILITY

The tachometer measures one of the most important operating parameters of an engine - RPM.
Yourengine represents a substantial investment. Protect it with quality instrumentation.

Only top quality "mil-spec" workmanship and premium grade materials are used. This includes
moisture-proof glass/epoxy circuit boards with double thickness copper and an exceptionally wide
temperature range Liquid Crystal Display. The non-magnetic construction uses only brass,
stainless steel, and passivated aluminum hardware. The gasketed glass to metal seal is
impervious to moisture.

Easy to install on gasoline or diesel engines. Just three wires connect. Self-contained unit
easily replaces existing standard-size tachometers. Choice of either polished stainless steel

or black anodized aluminum bezel.

>~~

Sender Model 8901

For Diesel Engines

TACHOMETER SPECIFICATIONS

Tachometerrange 0 to 9999 Revolutions Per Minute
Tachometerresolution One Revolution Per Minute

Tachometeraccuracy Within plus or minus 1 revolution
Tachometerreadout type Four fully active LCD digits
Tachometerdisplay intensity Soft backlighting for night viewing
Data updaterate Approximately once per second
Ratio settings: switch selectable (other ratios by special order)

Gasoline engines 3, 4, 6, 8,12,16 cycles (4 cycle)

Direct driven alternators 3,4,6,8,12, 16 poles
DieseL 2, 3,4,6,8,12,16 pulses/rev.

Diesel sender output Eight pulses per sender revolution
Diesel sender drive ratios 0.25:1,0.5:1, 0.75:1, 1.0:1

Diesel sender fittings SAE Marine 7/8-18 mount,0.187 tip
Nominal inputvoltage 13.6 volts DC
Inputvoltage range 6.8 to 38 volts DC
Power consumption (@13.6 VDC).. 30 mAtypical, SOmAmaximum
Operating temperature rangE) -10 Cto +80 C (+14 Fto 176 F)
Storage temperature range -55 Cto +82 C (-67 Fto +180 F)
Operating humidity range 0 to 95% R.H., non-condensing
Package construction Passivated aluminum, non-magnetic
Interconnectionterminals Brass studs (3), #8x32
Warranty, limited Two years

Tachometer Model 8905

LCD Readout

Trim Ring

Optional Flat Black

TrimRing Bezel

HOUR-METER SPECIFICATIONS

Hourmeter display size 1" x 0.03"
Hourmeter range 6 digit display

(1st digit = 1110thof hour)

Hourmeter update Update every 6 minutes
Hourmeter accuracy Within plus or minus 0.02%
Input voltage range 9 to 38 volts DC
Operating temperature range -40 C to +85 C
Start time 250 engine Revolutions per Minute
Data retention Tenyears data retention (w/o power)

Specifications subject to change without notice.
