Combi HE





HEATING SOLUTIONS

CONDENSING BOILER

TECHNICAL MANUAL



This manual must remain with the householder once installation is complete

ENVIRONMENT

INNOVATION

TECHNOLOGY

CONTENTS

FOREWORD

We would like to thank you for purchasing a high efficiency Firebird condensing liquid fuel boiler with an Elco low NOx burner. This instruction manual is produced for the reference and guidance of qualified installation engineers, preferably OFTEC (Oil Firing Technical Association) registered. EU legislation governs the manufacture, operation and efficiency of all domestic central heating oil boilers. Our boilers and burners are supplied as matched units.

PAGE

1. SAFETY .................................................................................................................................................................................................................................................. 2

2. STANDARDS & REGULATIONS ................................................................................................................................................................... 3

2.1 Condensate Disposal ....................................................................................................................................................................................... 4

2.2 Flue Regulations ....................................................................................................................................................................................................... 7

2.3 Flue Systems ..................................................................................................................................................................................................................... 10

2.4 Liquid Fuel Supply ................................................................................................................................................................................................... 11

3 . COMBI HE & COMBIPAC HE

3.1 Householder/End User Information ......................................................................................................................................... 12

3.2 Installer Guidelines ............................................................................................................................................................................................... 13

3.3 Technical Details ....................................................................................................................................................................................................... 18

4 . SLIMLINE COMBI

4.1 Householder/End User Information ......................................................................................................................................... 22

4.2 Installer Guidelines ............................................................................................................................................................................................... 23

4.3 Technical Details ....................................................................................................................................................................................................... 26

5. COMMISSIONING ............................................................................................................................................................................................................... 29

6. SERVICING ....................................................................................................................................................................................................................................... 30

7. TERMS & CONDITIONS OF WARRANTY ....................................................................................................................................... 31

8. PRODUCT FICHE .................................................................................................................................................................................................................. 32

SAFETY

HEALTH & SAFETY INFORMATION

The installer should be aware of his/her responsibilities under the current, local Health and Safety at Work Act. The interests of safety are best served if the boiler is installed and commissioned by a competent, qualified engineer, preferably OFTEC trained and registered. A Building Notice may be required in England and Wales and other parts of the United Kingdom.

Under the Consumer Protection Act 1987 (UK), section 6 of the Health and Safety Act 1974 (UK) and the Safety, Health and Welfare at Work Act 2005 (ROI), we are required to provide information on substances hazardous to health.

INSULATION AND SEALS

Ceramic Fibre, Alumino - Silicone Fibre material are used for boards, ropes and gaskets. Known hazards are that people may suffer reddening and itching of the skin. Fibre entering the eye will cause foreign body irritation. It may also cause irritation to the respiratory tract.

Precautions should be taken by people with a history of skin complaints or who may be particularly susceptible to irritation. High dust levels are only likely to arise following harsh abrasion. Suitable personal protective equipment should be worn where appropriate.

Generally, normal handling and use will not give discomfort. Follow good hygiene practices, wash hands before consuming food, drink or using the toilet.

First Aid - medical attention should be sought following eye contact or prolonged reddening of the skin.

The small quantities of adhesives and sealants used in the product are cured. They present no known hazards when used in the manner for which they are intended.

Safety - conformity was demonstrated by meeting the following standards:

BS EN 60335-1: 2012 + A13: 2017: Household and Similar Electrical Appliances - Safety - Part 1: General Requirements

BS EN 60335-2-102: 2006 + A2: 2016: Household and Similar Electrical Appliances - Safety - Part 2-102: Particular Requirements for Gas, Oil and Solid-fuel Burning Appliances having Electrical Connections

SAFETY

Safe use of Kerosene. These fuels give off a flammable vapour when heated moderately. Vapour ignites easily, burns intensely and may cause explosion. The vapour can follow along at ground level for considerable distances from open containers and spillages collecting as an explosive mixture in drains, cellars, etc.

Fuels remove natural oils and fats from the skin and this may cause irritation and cracking of skin. Barrier cream containing lanolin is highly recommended together with good personal hygiene and where necessary appropriate persona protection equipment (P.P.E.).

Gas oil may also cause irreversible damage to health on prolonged or repeated skin contact.

Always store fuels in a properly constructed and labelled tank. Always handle fuel in open air or well ventilated space away from sources of ignition and refrain from smoking.

Always drain fuel using a proper fuel retriever, funnel or mechanical siphon. Never apply heat to a fuel tank, container or pipework. Never siphon fuel through tube by mouth.

Avoid inhaling fuel vapour as this can cause light headedness and seriously impair judgement.

THIS PRODUCT HAS BEEN DESIGNED TO THE FOLLOWING STANDARDS:

This equipment complies with the Low Voltage Directive 2014/35/EU and Directive 2014/30/EU.

EMC - conformity was demonstrated by meeting the

following standards:

BS EN 55014-2: 2015: Electromagnetic Compatibility Requirements for Household Appliances, Electric Tools and Similar Apparatus - Part 1: Emission

BS EN 55014-1: 2017: Electromagnetic Compatibility Requirements for Household Appliances, Electric Tools and Similar Apparatus - Part 2: Immunity - Product Family Standard

BS EN 61000-3-2: 2014: Electromagnetic Compatibility (EMC) Part 3-2: Limits - Limits for Harmonic Current Emissions (equipment input current <16 A per phase)

BS EN 61000-3-3: 2013: Electromagnetic Compatibility (EMC) Part 3-3: Limits - Limitation of Voltage Changes, Voltage Fluctuations and Flicker in Public Low-voltage Supply Systems (equipment with rated current <16 A per phase and not subject to conditional connection)

FUEL SPILLAGE

1. Switch off all electrical and other ignition sources.

2. Remove all contaminated clothing to safeguard against fire risk and skin damage. Wash affected skin thoroughly with soap and water and remove clothing to a safe well ventilated area and allow to air before cleaning.

3. Contain and smother the spill using sand or other suitable oil absorbent media or non-combustible material.

4. Do not allow fuel to escape into drains or water courses. If this happens, contact the relevant authorities in your area (Ireland).

5. Consult local authority about disposal of contaminated soil.

FIRST AID

If fuel is accidentally swallowed:

* Seek medical attention immediately.

Do NOT induce vomiting.

If fuel is splashed into eyes:

* Wash out with running water for at least ten

minutes and seek medical attention.

STANDARDS & REGULATIONS

To ensure the highest standards of installation & safety, it is important that the boiler be installed in compliance with the following regulations where applicable. It is the responsibility of the installer and everyone concerned with any aspect of installation, to ensure that all applicable standards and regulations are fully adhered to.

The following is a list of some of the applicable standards and regulations. Please always check for the most up to date version.

All relevant building standards and regulations for Ireland, England, Scotland, Wales and Northern Ireland.

BS 5410-1: 2014 Code of practice for oil firing.

Installations up to 45kW output capacity for space heating and hot water supply purposes.

BS 5410-2:2018 Code of practice for liquid fuel firing.

Non-domestic installations.

BS 799-5: 2010 Oil burning equipment. Carbon steel

oil storage tanks. Specification.

BS EN 303-1: 2017 Heating boilers. Heating boilers with

forced draught burners. Terminology, general requirements, testing and marking.

BS EN 12828: 2012 Heating systems in buildings. Design + A1: 2014 for water based heating systems.

BS 7074-1: 1989 Application, selection and installation

of expansion vessels and ancillary equipment for sealed water systems. Code of practice for domestic heating and hot water supply.

BS 7593: 2006 Code of practice for treatment of water

in domestic hot water central heating systems.

BS EN 13502: 2002 Chimneys. Requirements and test

methods for clay/ceramic flue terminals.

Regional water supply (water fittings) regulations/ byelaws.

Regional control of pollution (oil storage) regulations.

OFTEC also publish excellent guides including:

• OFTECTechnicalBookOne-Safeworkingforoil

firing and delivery technicians.

• OFTECTechnicalBookTwo-Domestic&light

commercial servicing and commissioning.

• OFTECTechnicalBookThree-Domesticand commercialrequirementsforoilstorage&supply

equipment.

• OFTECTechnicalBookFour-Oilfiredappliance&

system installation requirements.

COPIES OF BRITISH STANDARDS MAY

BE PURCHASED DIRECT FROM:

BSI (Customer Services),

389 Chiswick High Rd., London W4 4AL.

Tel.: +44 (0)345 0869001

International and EC Standards are

also available from above.

OFTEC PUBLICATIONS ARE AVAILABLE FROM:

OFTEC, Oil Firing Technical Association,

Foxwood House, Dobbs Lane,

Kesgrave, Ipswich, IP5 2QQ.

www.oftec.org

BOILER INSTALLATION:

Other than special considerations for condensate removal and plume dispersal, the installation of liquid fuel fired condensing boilers is the same as for non-condensing oil fired boilers.

BS 5410:1: 2014 gives the requirements for domestic boiler and liquid fuel storage installations.

BS EN 1856-1: 2009

BS 8558: 2015 Guide to the design, installation,

BS 7671: 2018 Requirements for Electrical

BS EN 304: 2017 Heating boilers. Test code for heating

Chimneys. Requirements for metal

chimneys. System chimney products.

testing and maintenance of services supplying water for domestic use within buildings and their curtilages. Complementary guidance to BS EN

806.

Installations. IET Wiring Regulations.

boilers for atomizing oil burners.

If an appliance is to be installed inside a building or within a restricted area externally, a carbon monoxide detector alarm conforming to BS EN 50291-1: 2018 should be installed in accordance with the manufacturer’s instructions.

For condensing boilers, the same requirements apply for installation with regard to cleaning and flushing and providing inhibitors, as are followed for any other boiler. Manufacturer’s instructions must always be followed together with the requirements of

BSEN12828:2012+A1:2014&BSEN12831-1: 2017

and the statutory requirements of the Building Regulations.

2.1 STANDARDS & REGULATIONS - CONDENSATE DISPOSAL

Firebird condensing boilers, when in condensing mode, extract more heat from the flue products and the resulting condensate which is mildly acidic, needs to be drained from the boiler via a condensate pipe to the drainage system.

Provision must be made for the removal of condensate from the boiler to an internal soil stack, waste pipe, external soil stack, gully or soak-away, as per BS 6798: 2014.

The condensate trap is provided with the boiler and situated on the front of the boiler (under the cleaning door). This should be checked at regular intervals and cleaned during annual service.

The condensate line should:

 • beplasticandhaveaminimumdiameterof22mmdia.;  • haveafallfromtheboilerof1:200minimum;  • haveasfewbendsaspossibletoreducetheriskoftrappingcondensate.

Copper or steel cannot be used.

CONDENSATE PIPEWORK THAT IS EXTERNAL OR IN AN UNHEATED GARAGE SHOULD NOT EXCEED

3 METERS AND SHOULD BE LAGGED WITH WATER PROOF INSULATION TO PREVENT FREEZING.

SYSTEM NO. 1 CONDENSATE TRAP

Always prime condensate trap with water.

Before switching on your Firebird condensing liquid fuel boiler check that:

(1) The condensate drain baffle is in place. (2) That the condensate trap is primed. (3) The condensate discharge pipe is a corrosion resistant pipe.

500mm

Discharge Pipe

Sealed

Figure 1

Free Draining Soil

Soak Away

Condensate baffle and condensate trap

Condensate hose

Boiler

Condensate Drain

Lime Stone Chippings

75mm

Figure 3

Condensate Drain

Gully

Condensate drain baffle

Condensate trap

Boiler

Trap

Boiler

75mm

Min. 50mm Air Gap

Condensate Drain

Figure 2

Gully

Boiler

Trap

Waste Pipe

Washing Machine

Discharge Pipe

Figure 4

Condensate drain must have a minimum diameter of 22mm and it must be supported with a 2.5˚ (1:200) fall from boiler.

Stack

Ensure that the boiler combustion chamber cannot be filled through the condensate trap from another

appliance (eg. washing machine) which is drained at a higher level (see Figure 2).

Condensate Drain

2.1 STANDARDS & REGULATIONS - CONDENSATE DISPOSAL

SYSTEM NO. 2 - CONDENSATE PUMP

Control panel

Burner

plug

Condensate

pump

CONDENSATE PUMP

(kit is available as an optional extra)

Condensate pump wired in to come on with burner.

Inlet connected to condensate trap at base of boiler.

Condensate trap

Condensate pump can be positioned within the casing of the boiler, on the base, ﬁxed to the casing of the boiler or mounted on the wall alongside the boiler.

Out to drain.

262.1 STANDARDS & REGULATIONS - CONDENSATE DISPOSAL

Condensate Trap Fitting

1. Push washer into trap socket and screw trap onto boiler socket.

Washer

S/S trap

2. Push ﬂexible pipe onto trap socket.

3. Final assembly.

272.2 STANDARDS & REGULATIONS - FLUE REGULATIONS

BALANCED FLUE SITING

The terminal should be positioned to avoid combustion products entering the building or accumulating in

stagnant pockets around buildings. The terminal must be protected by a guard if it is less than 2 metres above

ground level or in a position where any person has access to it (i.e. a balcony). A heat protection shield should be

fitted if the terminal is less than 850mm from a plastic or painted gutter or less than 450mm from painted eaves.

Prevailing winds should be taken into account when siting a flue.

ALWAYS CHECK FOR ANY BUILDING REGULATIONS AMENDMENTS WHICH MAY

HAVE BEEN ISSUED AFTER THE PUBLICATION OF THIS MANUAL

Clearances advised by BS 5410-1: 2014

Regular Appliance (Open, Low Level Discharge and Balanced) Flue Termination Clearance

The basic requirement with regard to flue positioning is that no hazard or nuisance is caused by the flue gases.

Diagrams 20a and 20b show clearances advised by BS 5410-1: 2014.

Regional requirements where flue clearances differ can be found in the

regional requirements section in OFTEC Book Four.

Diagram 20a

Boundary

C & D

Minimum distances to terminals in millimeters as measured from the top of the chimney

or the outer edge of where flue gases pass through low level discharge openings

Appliance Burner Type

Pressure JetLocation

Condensing

UK ROI & NI

A Directly below an opening, airbrick, opening window etc. 1000mm 600mm

B Horizontally to an opening, airbrick, opening window etc. 1000mm 600mm

C Below a gutter, eaves or balcony with protection 1000mm 1000mm

D Below a gutter or a balcony without protection 1000mm 1000mm

E From vertical sanitary pipe work 300mm 300mm

F From an internal or external corner or surface or boundary alongside the terminal 300mm 600mm

G Above ground or balcony level 300mm 300mm

H From a surface or a boundary facing the terminal 1200mm 1200mm

J From a terminal facing the terminal 2500mm 2500mm

K Vertically from a terminal on the same wall 1500mm 1500mm

L Horizontally from a terminal on the same wall 750mm 750mm

M Above the highest point of an intersection with the roof 600mm 600mm

N From a vertical structure on the side of the terminal 750mm 750mm

O Above a vertical structure less than 750mm from the side of the terminal 600mm 600mm

P From a ridge terminal to a vertical structure on the roof 1500mm 1500mm

Q Above or to the side of any opening on a ﬂat or sloping roof 600mm 600mm

R Below any opening on a sloping roof 2000mm 2000mm

2.2 STANDARDS & REGULATIONS - FLUE REGULATIONS

NOTES: These notes form an integral part of the information shown on the previous page.

1. Terminals should be positioned to avoid products of combustion accumulating in stagnant pockets around the building, or entering into buildings.

2. Appliances burning Class D oil have additional restrictions (see OFTEC Book Four).

3. Vertical structures in N, O and P include lift rooms, parapets, dormers etc.

4. Terminating positions A to L are only permitted for appliances that have been approved for low level flue and low level balanced flue discharge when tested to BS EN 303-1.

5. Terminating positions must be at least 1.8m distant from a fuel storage tank unless a wall with at least 30 minutes fire resistance and extending 300mm higher and wider than the fuel storage tank is provided between the fuel storage tank and the terminating position.

6. Where a flue is terminated less than 1m away from a projection above it and the projection consists of plastic or has a combustible or painted surface, then a heat shield of at least 750mm wide should be fitted to protect these surfaces.

Diagram 20b

Separation Between a Boundary

and Terminal at Right Angles

300mm

minimum

7. If the lowest part of the terminal is less than 2m above the ground, balcony, flat roof or other place to which any person has access, the terminal must be protected by a guard.

8. Notwithstanding the dimensions given in the diagram and table, a terminal should not be sited closer then 300mm to combustible material.

9. It is essential that a flue or chimney does not pass through the roof within the shaded area shown by dimensions Q and R.

Pressure

Jet

Appliance

Boundary as

Party wall

10. Where protection is provided for plastic components, such as guttering, it is essential that this is to the standard specified by the manufacturer of the

Plan at party wall

plastic components.

BALANCED FLUE BOILERS

The Firebird boiler may be set for room-sealed flue operation using a Firebird condensing balanced flue kit. This kit does not draw combustion air from inside the room. It is drawn from outside, direct to the burner by an air pipe supplied with the

boiler. Flue gases are expelled through the same kit. However, if the boiler is installed in a compartment or small room, some ventilation air is necessary to maintain an acceptable temperature in the boiler area.

Balanced flue boiler in room does not require individual ventilation.

BALANCED - FLUE BOILERS IN COMPARTMENTS

550mm

/kW

550mm2/kW

1100mm

of boiler output

1100mm

/kW

2.2 STANDARDS & REGULATIONS - FLUE REGULATIONS

Condensate Plume disPersal

When choosing the location for a condensing boiler, special consideration must be given to the positioning of the flue terminal. Care should be taken to locate it so as to prevent either the end user or their neighbours perceiving the plume to be a nuisance.

It should be noted that the normal statutory clearances required around low level flue terminals may not be sufficient to cope with plume dispersal from a condensing boiler. The following points should be considered:

1. Plumes can extend out horizontally and can also drift out to the sides and above the terminal. Care needs to be taken, therefore, to avoid the plume reaching adjacent surfaces, particularly windows and neighbours dwellings.

2. Flue terminals need to be located where air can pass freely across them to disperse vapours.

3. The effect of the moisture generated must be considered in relation to the possible corrosion of metal parts it might reach

and to the possible formation of ice on pathways in freezing conditions.

4. Keep flue terminals a minimum of 1m (horizontally) from openings in the building.

5. Do not install flue terminals directly below a window.

6. Do not install flue terminals next to a door.

7. Do not install flue terminals within 1m of ventilated soffits or eaves.

8. Keep flue terminals at least 2.5m away from a surface or boundary facing the terminal.

9. In certain circumstances the installation of a plume dispersal extension to the flue may be unavoidable. This takes the

plume exhaust from the boiler up and away from any obstruction, door or window opening and will also prevent the risk of re circulation of the plume gasses into the air intake of the burner.

Please note that only Firebird flue kits should be used for flue installations.

2102.3 STANDARDS & REGULATIONS - FLUE SYSTEMS

CONDENSING BOILER CHIMNEY INSTALLATION

System 35

clamp plate

System 35 flexible liner

suitable for condensing

applications

System 35

adaptor

45˚ bend

500mm

adjustable length

Condensing

birdguard

System 35

clamp plate

System 35 flexible liner

suitable for condensing

applications

Condensing

birdguard

PLUME KIT

80 mm 45˚ bend

Wall bracket

Extensions X=250mm / 500mm / 1000mm

80 mm 90˚ bend

45˚ bend

500mm

length

Boiler adaptor

Condensing

boiler

System 35

adaptor

500mm

Adjustable length

Boiler adaptor

Condensing

boiler

FLUE SIZE

Boiler

12-20kW

20-26kW

26-35kW

NOTE: All brick chimney constructions must comply with current building regulations and BS 5410-1: 2014. Insulated factory made chimneys should comply with BS EN 1856-1: 2009.

Diameter

100mm

Single wall stainless ue

suitable for condensing

boilers. Available in

stainless steel nish or

white nish

2112.4 STANDARDS & REGULATIONS - LIQUID FUEL SUPPLY

FUEL STORAGE TANK SITING

Consult OFTEC Manuals

It is unlikely that a fire will start at a fuel tank. However, the stored fuel must be protected from a fire or heat source that originates nearby. For this reason fuel tanks of up to 3,500 litres should be separated from openings, other than airbricks, in the building by a minimum of 1.8m and a non-fire rated boundary by a minimum of 760mm. Where this cannot be achieved, a 30 minute fire rated barrier should be constructed between the hazard and the tank, which extends a minimum of 300mm higher and 300mm past each end of the tank. Note that a minimum separation distance should be maintained between a flue exit and fire barrier (see page 7 (flue regulations)).

Steel tanks must be mounted on brick or block piers with a waterproof membrane between the piers of the tank.

Fuel storage tanks should not be sited within 1.8m of boiler flue outlets.

Do not allow household waste or hot ashes container in vicinity of oil storage tank or boiler flue outlet.

REGULATIONS & STANDARDS

Please consult all local and regional regulations, relevant to water resources (control of pollution and oil storage) as well as OFTEC Book Three.

FLEXIBLE OIL PIPE(S)

A flexible burner oil hose is supplied with the boiler which must be wholly contained within the appliance case.

Please note: A filter must not be fitted inside the boiler and all joints in the oil line must be oil tight. Soldered joints are not permissible. Before connecting to the boiler, always flush the complete oil supply line and ensure that the liquid fuel supply is completely clean and free of any dirt or foreign matter.

OIL LINE CONFIGURATION

Refer to burner manual section on Hydraulic Systems for:

•Twopipesystems.

•Pipesizing&distance.

•Tankheights.

•Pumppriming.

3.1 COMBI HE & COMBIPAC HE - HOUSEHOLDER/END USER INFORMATION

Please consult with your installer regarding the operation of your boiler. This should include

timer operation/room thermostat operation and any other additional operational features.

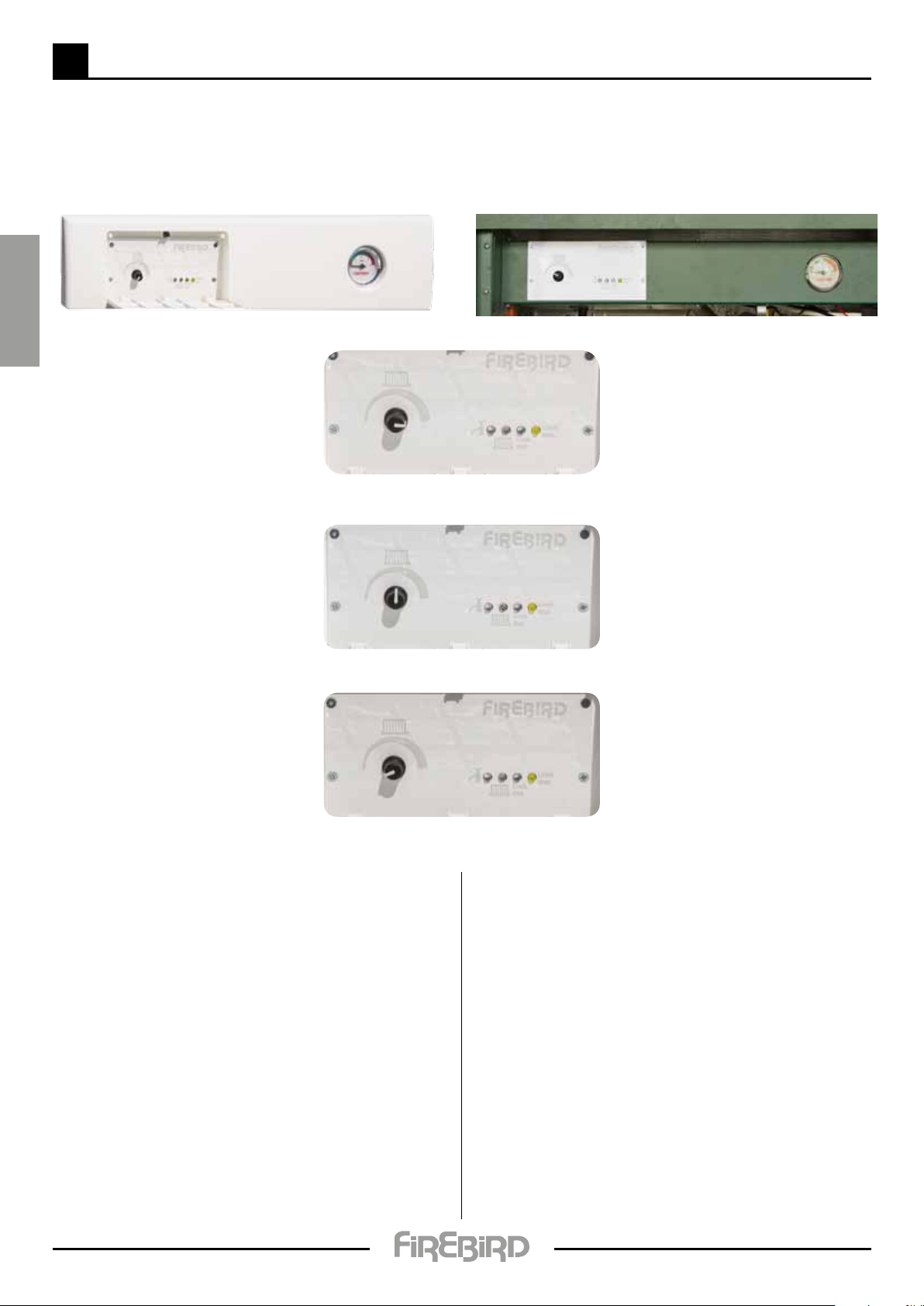

The basic features of the control panel are outlined below.

COMBIPAC HECOMBI HE

Maximum

Medium

Minimum

BOILER THERMOSTAT/THERMISTOR FUNCTION

The control thermostat on the boiler allows the householder to vary temperature to central heating from a low of 60˚C to 80˚C, depending on the model. Thermostats have a tolerance of ± 4˚C.

In accordance with EU boiler standards, your boiler is also fitted with a safety high limit thermostat, fixed at 110˚C. This system protects the boiler in the event of the control thermostat failing and keeps the boiler safe.

The safety high limit thermostat will shut the boiler off and will require the limit button to be pushed to restart the boiler. It is recommended to call a service engineer to establish the cause.

BURNER LOCKOUT

The boiler is factory fitted with a burner control box lockout safety feature which operates automatically if a fault occurs in the burner operation. Should this occur, the light on the front of the burner will illuminate.

Press the reset button a maximum of two times. If the boiler fails to light, call a service engineer who should check the following:

A. An interruption in the fuel supply (eg. empty fuel supply tank).

B. An electrical supply fault. C. A fault with the burner or its safety control system. D. The failure of a burner component. E. Worn or dirty fuel nozzle. F. Incorrect flue installation.

3133.2 COMBI HE & COMBIPAC HE - INSTALLER GUIDELINES

Please note the following important points before commencing installation.

Installation should only be carried out by a competent, qualified engineer, preferably OFTEC registered and familiar with the installation of the Firebird boilers referred to in this manual.

WARNING

The manufacturer cannot accept responsibility for any damage to persons, animals or property due to error in installation or in the burner adjustment or due to improper or unreasonable use or non-observance of the technical instruction enclosed with the burner, or due to the intervention of unqualified personnel.

POSITIONING THE BOILER

Compliance guide to part L now states that when installing a boiler on a new or existing system, the system should be cleaned, flushed and then protected with a suitable protection inhibitor.

Ensure that adequate clearance is available for making the water and flue connections.

The boiler is serviced from the front and a clearance of 750mm must be available at the front of the boiler.

No special hearth is required as the boiler is fully insulated, but the floor must be level and capable of supporting the weight of the boiler and its water content.

PRESSURISED HEATING SYSTEM

The maximum operating working pressure is 2 bar when the system is at full operating temperature.

MAGNETIC FILTRATION

It is recommended at the time of installation of this boiler, to install a permanent effective magnetic filter on the return pipework after the last radiator on the central heating system. This will maintain maximum operational efficiency and protect the boiler from the damaging, long-term effects of “magnetite” (black iron sludge). It is essential that the filter is sized similar to the return pipework. The magnetic filter must be installed in accordance with the manufacturer’s instructions and serviced annually.

HARD WATER - LIMESCALE

On initial fill, where it is suspected that there is a high concentration of scale products, a suitable inhibitor must be used to protect the boiler and system. Check with local water authorities if in doubt (max. 200 ppm).

PIPEWORK

Do not obstruct flue fitting with Pipework. Connect pipework as shown below.

Sound levels must also be a consideration. Whilst Firebird condensing liquid fuel boilers are one of the quietest boilers on the market, some householders are particularly sensitive.

A suitable corrosion inhibitor must be added to the heating system.

UNDERFLOOR HEATING

The boiler should not be directly connected to underfloor heating, as a minimum return temperature of 40˚C is required (it can be used with underfloor heating with adequate temperature controls to ensure return values are as stated above).

PLASTIC PIPING

The boiler thermostat control and safety system is not designed, and must not be relied on, to protect plastic pipe from overheating. Plastic pipe must never be connected directly to the boiler and there must be at least 1 meter of copper pipe between the boiler and the first plastic connection. If you choose to use plastic pipe anywhere on your heating circuits, please consult the plastic pipe manufacturer for their instruction on how to ensure their product never overheats. Our boiler control and safety high limit thermostats are not designed to fulfil this function.

Firebird accepts no responsibility for failure of plastic piping and fittings for whatever reason.

Pressure relief valve

CH flow

CH return

DHW flow

Mains inlet

DHW adjustable mixing valve

Filling loop valves

3 3.2 COMBI HE & COMBIPAC HE - INSTALLER GUIDELINES

FILLING THE SYSTEM

The unit comes with a factory fitted expansion vessel. Should the total water volume of the system exceed the expansion provided, a second vessel should be added (see below table).

Expansion Vessel and System Requirements

Safety Valve Setting 3 bar

Initial System Pressure

Total Water Content

of System

Litres Litres Litres Litres

25 2.1 2.7 3.9

50 4.2 5.4 7.8

75 6.3 8.2 11.7

100 8.3 10.9 15.6

125 10.4 13.6 19.5

0.5 bar 1.0 bar 1.5 bar

Total Vessel Volume **

THERMOSTAT TEMPERATURE CONTROL

Boiler Central Heating Control: 60˚C - 80˚C Boiler Safety Limit: 110˚C Tank (DHW) - Fixed: 78˚C Early Alert - Fixed 87˚C Over-run - Fixed: 93˚C

The Combipac HE has a build in frost protection (unit only).

WIRING

Electrical Supply

The boiler and controls require a 230V 50Hz mains electric supply protected with a 5A fuse.

This appliance must be earthed.

A qualified electrician must carry out all electric wiring in accordance with current ETCI / IET Regulations and any local regulations which may apply.

The boiler must have a permanent power supply to enable overrun and frost protection. The hot water and central heating should be timed separately.

150 12.5 16.3 23.4

175 14.7 19.1 27.2

200 16.7 21.8 31.2

225 18.7 24.5 35.1

250 20.8 27.2 39.0

FOR FURTHER INFORMATION, CONSULT APPROPRIATE TRAINING

MANUALS, BS 7074-1: 1989, EN 12828: 2012 + A1: 2014 AND ANY OTHER

* * When calculating the size of any additional expansion

vessel, remember to deduct the boiler expansion vessel volume

of 12 litres from the calculated total system vessel volume

RELEVANTSTANDARDS&REGULATIONS.

required, as given in the above table.

FILLING LOOP

The diverter valve is factory set to “control heating mode” to facilitate system filling.

Connect the filling loop. Open both valves. Do not allow the unit to exceed 1 bar while filling and a maximum of 2 bar when the radiators are at full operating temperature. The automatic air vent will allow air to dispel from the boiler. To remove air from the storage tank, the manual air vent must be operated. When the system is full, turn off both valves and disconnect the filling loop.

CONNECTING LIQUID FUEL SUPPLY

Using the flexible hose provided, connect the burner to the incoming oil line which must have a remote acting fire valve. The flexible hose must be contained within the

appliance casing.

3 3.2 COMBI HE & COMBIPAC HE - INSTALLER GUIDELINES

Permanent live

Earth

Please note that a permanent live connection

is required to enable the pump over run and frost

protection. It is also required to operate the post-purge

function on the burner, when applicable.

If a permanent live supply is not provided

the burner will not operate.

Neutral

Heating timer switch

live

Hot water timer switch

live

Room stat

Power to burner

L1 = switch live

L3 = permanent live

High limit thermostat probe A

Boiler thermistor probe B

thermostat

IMIT 110°C

Green D.H.W

Green C.H

Boiler

Tank

Flow

Lock out

Limit

Pressure switch

Flow switch thermistor probe D

Tank thermistor probe C

pump

Circulating

Motorized

valve

3 3.2 COMBI HE & COMBIPAC HE - INSTALLER GUIDELINES

COMBI HE FLAP VALVE INSTALLATION

Balanced flue

"TOP" mark

Snorkel

Jubilee clip

Flap valve

"TOP" mark

Jubilee clip

1. Push the flap valve into the balanced flue air intake.

2. Ensure that the flap valve is in the correct position.

3. Push the snorkel hose over the flap valve and air intake and secure with a jubilee clip.

4. Attach the other end of the snorkel hose to the burner with jubilee clip.

Correct position of flap valve

3.2 COMBI HE & COMBIPAC HE - INSTALLER GUIDELINES

COMBIPAC HE FLUE INSTALLATION

Condensate Plume disPersal

It should be noted that the normal statutory clearances required around low level flue terminals may not be sufficient to cope with plume dispersal from a condensing boiler.

installation instruCtions are suPPlied WitH all Flue Kits

90˚ terminal should be tilted up to prevent condensate droping from end of flue

For right hand flue option, remove the

two screws securing the flue, rotate the flue

and swap the removable side panels

Put the 90˚ ue terminal

with the cone on the boiler.

Fig. 1

Fix the guard plate to the boiler and

then the guard to the boiler.

Fig.

Boiler after installation.

ig. 3

3 3.3 COMBI HE & COMBIPAC HE - TECHNICAL DETAILS

Front View Side View Rear View Base

TECHNICAL DETAILS

Front View Side View Rear View Top View

E K

Model - Envirogreen (output range)

Weight

Dimensions (mm)

H W D A B C E F G I J K M N

Envirogreen Combi HE 12-20kW 167 854 595 614 760 300 157 61 642 372 344 72 40 676 47 Envirogreen Combi HE 20-26kW 170 854 595 614 760 300 157 61 642 372 344 72 40 676 47 Envirogreen Combi HE 26-35kW 173 854 595 614 760 300 157 61 642 372 344 72 40 676 47

E M

8 0 1

0 3 4

0 1 1

)

(

5 9 1

6 9 1

520

600

Front

Model - Envirogreen (output range)

Weight

Dimensions (mm)

H W D A C E F G I J K M N

Envirogreen Combipac HE 12-20kW 200 945 720 625 795 180 95 691 285 351 133 34 55 43 Envirogreen Combipac HE 20-26kW 200 945 720 625 795 180 95 691 285 351 133 34 55 43 Envirogreen Combipac HE 26-35kW 203 945 720 625 795 180 95 691 285 351 133 34 55 43

3 3.3 COMBI HE & COMBIPAC HE - TECHNICAL DETAILS

COMBI HE

1213

19 20

No. Qty 

5 4

12-20kW 20-26kW 26-35kW

1 4 Tube baﬄe BA110907 BA110907 BA110907

2 5 Tube baﬄe single BA110908 BA110908 BA110908

3 4 Smoke baﬄe BA212022 BA212028 BA212122

4 1 Door seal

5 1 Door duroboard

ACC000DDS ACC000DDS ACC000DDS

6 1 Flue gasket ACC000FRG ACC000FRG ACC000FRG

7 1 Stat pocket ACC003PKT ACC003PKT ACC003PKT

8 1 Condensate trap ACC000TRP ACC000TRP ACC000TRP

9 1 Condensate hose ACC000FLX ACC000FLX ACC000FLX

10 1 Drain cock ACC012DRC ACC012DRC ACC012DRC

11 1 Heat deﬂector ACC000HTD ACC000HTD ACC000HTD

12 1 Air hose ACC000SSH ACC000SSH ACC000SSH

13 1 Flap valve ACC000FLP ACC000FLP ACC000FLP

14 1 Control panel ACP001CCE ACP001CCE ACP001CCE

15 1 Casing right side ACP002CCE ACP002CCE ACP002CCE

16 1 Casing left side ACP003CCE ACP003CCE ACP003CCE

17 1 Casing back ACP006CCE ACP006CCE ACP006CCE

18 1 Casing front ACP004CCE ACP004CCE ACP004CCE

19 2 Side ﬂue blank ACP007CCE ACP007CCE ACP007CCE

20 1 Side half moon blank ACP008CCE ACP008CCE ACP008CCE

21 1 Casing top ACP005CCE ACP005CCE ACP005CCE

22 1 Top ﬂue blank ACP009CCE ACP009CCE ACP009CCE

23 1 Top half moon blank ACP010CCE ACP010CCE ACP010CCE

24 1 Pressure vessel ACC012PVL ACC012PVL ACC012PVL



3 3.3 COMBI HE & COMBIPAC HE - TECHNICAL DETAILS

COMBIPAC HE

1716

No. Qty 

1 4 Tube baﬄe BA110907 BA110907 BA110907

2 5 Tube baﬄe single BA110908 BA110908 BA110908

3 4 Smoke baﬄe BA212022 BA212028 BA212122

4 1 Door seal

5 1 Door duroboard

6 1 Flue gasket ACC000FRG ACC000FRG ACC000FRG

7 1 Stat pocket ACC003PKT ACC003PKT ACC003PKT

8 1 Condensate trap ACC000TRP ACC000TRP ACC000TRP

9 1 Condensate hose ACCOOOFLX ACCOOOFLX ACCOOOFLX

10 1 Drain cock ACC012DRC ACC012DRC ACC012DRC

11 1 Heat deﬂector ACC000HTD ACC000HTD ACC000HTD

12 1 Flap valve adapter ACC000FVA ACC000FVA ACC000FVA

13 1 Flap valve ACCOOOFLP ACCOOOFLP ACCOOOFLP

14 1 Control panel ACP001CCP ACP001CCP ACP001CCP

15 1 Casing ﬁxed right side ACP002CCP ACP002CCP ACP002CCP

16 1 Casing ﬁxed left side ACP003CCP ACP003CCP ACP003CCP

17 1 Casing removable left side ACP103CCP ACP103CCP ACP103CCP

18 1 Casing removable right side ACP102CCP ACP102CCP ACP102CCP

19 1 Casing front ACP004CCP ACP004CCP ACP004CCP

20 1 Casing back ACP006CCP ACP006CCP ACP006CCP

21 1 Casing top ACP005CCP ACP005CCP ACP005CCP

22 1 Terminal guard ACC000CTG ACC000CTG ACC000CTG

23 1 Pressure vessel ACC012PVL ACC012PVL ACC012PVL

1213

5 4

3 2

12-20kW 20-26kW 26-35kW

ACC000DDS ACC000DDS ACC000DDS

9 8 10

18 22



3 3.3 COMBI HE & COMBIPAC HE - TECHNICAL DETAILS

TECHNICAL SPECIFICATION

HEAT OUTPUT kW 12-20 20-26 26-35

CONNECTIONS - - -

Heating Flow 22 mm dia. 22 mm dia. 28 mm dia.

Heating Return 22 mm dia. 22 mm dia. 28 mm dia.

Mains Cold Feed (Copper) 15 mm dia. 15 mm dia. 15 mm dia.

Hot Water Delivery (Copper) 15 mm dia. 15 mm dia. 15 mm dia.

Drain Off Valve ½” BSP ½” BSP ½” BSP

Safety Pressure Valve Outlet (Copper) 15 mm dia. 15 mm dia. 15 mm dia.

Condensate Trap 22 mm dia. plastic pipe 22 mm dia. plastic pipe 22 mm dia. plastic pipe

CIRCULATING PUMP UPM 3 UPM 3 UPM 3

Domestic Hot Water Plate Heat Exchanger 25 plate 25 plate 25 plate

Integral Expansion Vessel Normal Capacity 12 litres 12 litres 12 litres

Expansion Vessel Pre-charge Pressure 1 bar 1 bar 1 bar

Low Pressure Water Switch?

Filling Loop Included?

WATER CONTENT - - -

Boiler 24 litres 24 litres 24 litres

Primary Tank 20 litres 20 litres 20 litres

D.H.W. GUIDE PERFORMANCE* - - -

in litres/min (120 litre draw-off at 40˚C ∆t.) 16 16 20

FLUE (INDOOR BOILERS) - - -

Balanced Flue Assembly 125 (5”) mm dia. 125 (5”) mm dia. 125 (5”) mm dia.

Max. Low Level Flue Length 1.5m 1.5m 1.5m

✔ ✔ ✔

Max. High Level Balanced Flue Length 6m 6m 6m

HEATING SYSTEM (SEALED) Fit in accordance with BS 7074 Part 1, BS 5449, OFTEC standards and all other relevant legislation.

Max. Operating Pressure 2 bar 2 bar 2 bar

Max. System Pressure Cold 1.5 bar 1.5 bar 1.5 bar

Min. System Pressure Cold 0.5 bar 0.5 bar 0.5 bar

Preset Pressure Relief Valve 3 bar 3 bar 3 bar

MAINS WATER SUPPLY PRESSURE Min. 3 bar - Max. 5 bar (for user comfort, we recommend pressure at tap to be between 2 and 3 bar).

Limescale excess: When over 150/200 ppm, t appropriate scale reducer/water softener.

WATER SIDE RESISTANCE Flow Rate To Give A Nominal Output At 10K Differential 12-20kW 20-26kW 26-35kW

Flow Rate Measured 1642 kg/h 2135 kg/h 2874 kg/h

Waterside Resistance 0.18 mbar 0.18 mbar 0.18 mbar

Flow Rate To Give A Nominal Output At 20K Differential

Flow Rate Measured 870 kg/h 1131 kg/h 1523 kg/h

Waterside Resistance 0.19 mbar 0.19 mbar 0.19 mbar

* where water demand exceeds this, a ow restrictor is recommended. This will ensure a water supply at an adequate temperature.

4.1 SLIMLINE COMBI - HOUSEHOLDER/END USER INFORMATION

Please consult with your installer regarding the operation of your boiler. This should include

timer operation/room thermostat operation and any other additional operational features.

The basic features of the control panel are outlined below.

BOILER THERMOSTAT/THERMISTOR FUNCTION

The control thermostat on the boiler allows the householder to vary temperature to central heating from a low of 60˚C to 80˚C, depending on the model. Thermostats have a tolerance of ± 4˚C.

The safety high limit thermostat will shut the boiler off and will require the limit button to be pushed to restart the boiler. It is recommended to call a service engineer to establish the cause.

BURNER LOCKOUT

MinimumMaximum Medium

Press the reset button a maximum of two times. If the boiler fails to light, call a service engineer who should check the following:

A. An interruption in the fuel supply (eg. empty fuel supply tank).

B. An electrical supply fault. C. A fault with the burner or its safety control system. D. The failure of a burner component. E. Worn or dirty fuel nozzle. F. Incorrect flue installation.

Before attempting to restart the boiler, the front panel and the burner cover should be removed and a visual check made for any obvious problems such as oil leaks, loose connections etc. This should be done by a service engineer.

4234.2 SLIMLINE COMBI - INSTALLER GUIDELINES

Please note the following important points before commencing installation.

Installation should only be carried out by a competent, qualified engineer, preferably OFTEC registered and familiar with the installation of the Firebird boilers referred to in this manual.

WARNING

POSITIONING THE BOILER

Compliance guide to part L now states that when installing a boiler on a new or existing system, the system should be cleaned, flushed and then protected with a suitable protection inhibitor.

Ensure that adequate clearance is available for making the water and flue connections.

The boiler is serviced from the front and a clearance of 750mm must be available at the front of the boiler.

No special hearth is required as the boiler is fully insulated, but the floor must be level and capable of supporting the weight of the boiler and its water content.

Sound levels must also be a consideration. Whilst Firebird condensing liquid fuel boilers are one of the quietest boilers on the market, some householders are particularly sensitive.

A suitable corrosion inhibitor must be added to the heating system.

UNDERFLOOR HEATING

PLASTIC PIPING

Firebird accepts no responsibility for failure of plastic piping and fittings for whatever reason.

PRESSURISED HEATING SYSTEM

The maximum operating working pressure is 2 bar when the system is at full operating temperature.

MAGNETIC FILTRATION

is sized similar to the return pipework. The magnetic filter must be installed in accordance with the manufacturer’s instructions and serviced annually.

HARD WATER - LIMESCALE

PIPEWORK

Do not obstruct flue fitting with Pipework. Connect pipework as shown below.

CH return

Mains inlet

DHW flow

CH flow

Automatic air vent

Manual air vent

DHW adjustable mixing valve

Pressure relief valve

Filling loop valves

FILLING THE SYSTEM

The unit comes with a factory fitted expansion vessel. Should the total water volume of the system exceed the expansion provided, a second vessel should be added (see below table).

Expansion Vessel and System Requirements

Safety Valve Setting 3 bar

Initial System Pressure

Total Water Content

of System

Litres Litres Litres Litres

25 2.1 2.7 3.9 50 4.2 5.4 7.8

75 6.3 8.2 11.7 100 8.3 10.9 15.6 125 10.4 13.6 19.5 150 12.5 16.3 23.4 175 14.7 19.1 27.2 200 16.7 21.8 31.2 225 18.7 24.5 35.1 250 20.8 27.2 39.0

FOR FURTHER INFORMATION, CONSULT APPROPRIATE TRAINING

MANUALS, BS 7074-1: 1989, EN 12828: 2012 + A1: 2014 AND ANY OTHER

RELEVANTSTANDARDS&REGULATIONS.

* * When calculating the size of any additional expansion

vessel, remember to deduct the boiler expansion vessel volume

of 12 litres from the calculated total system vessel volume

required, as given in the above table.

0.5 bar 1.0 bar 1.5 bar

Total Vessel Volume **

4 4.2 SLIMLINE COMBI - INSTALLER GUIDELINES

FILLING LOOP

CONNECTING LIQUID FUEL SUPPLY

Using the flexible hose provided, connect the burner to the incoming oil line which must have a remote acting fire valve. The flexible hose must be contained within the

appliance casing.

THERMOSTAT TEMPERATURE CONTROL

Boiler Central Heating Control: 60˚C - 80˚C Boiler Safety Limit: 110˚C Tank (DHW) - Fixed: 78˚C Early Alert - Fixed 87˚C Over-run - Fixed: 93˚C”

WIRING

Electrical Supply The boiler and controls require a 230V 50Hz mains

electric supply protected with a 5A fuse. This appliance must be earthed.

A qualified electrician must carry out all electric wiring in accordance with current ETCI / IET Regulations and any local regulations which may apply.

The boiler must have a permanent power supply to enable overrun and frost protection. The hot water and central heating should be timed separately.

Permanent live

Power to burner

L1 = Switch live

L3 = Permanent live

Tank thermistor

probe C

Boiler thermistor

probe B

thermistor probe D

D.H.W. Circulating pump

White heat resistant cable

C.H. Circulating pump

Black heat resistant cable

Flow switch

From condensing pump

Green D.H.W

Please note that a permanent live connection is required to enable the pump over run and frost protection. It is also required to operate the post-purge function on the burner, when applicable.

If a permanent live supply is not provided the burner will not operate.

Limit thermostat 110

Tank

Boiler

Flow

Green C.H

Lock out

Limit

From pressure switch

High limit thermostat sensor A

°C

To connecting Firebird twin timer kit

Earth

Neutral

Hot water timer switch live

Heating timer switch live

Room stat

4 4.2 SLIMLINE COMBI - INSTALLER GUIDELINES

FLAP VALVE INSTALLATION

Balanced flue

"TOP" mark

Snorkel

Jubilee clip

Flap valve

"TOP" mark

Jubilee clip

1. Push the flap valve into the balanced flue air intake.

2. Ensure that the flap valve is in the correct position.

3. Push the snorkel hose over the flap valve and air intake and secure with a jubilee clip.

4. Attach the other end of the snorkel hose to the burner with jubilee clip.

Correct position of flap valve

4 4.3 SLIMLINE COMBI - TECHNICAL DETAILS

TECHNICAL DETAILS

Front View Side View Rear View Top View

Cut-out 70x130 mm

770

780

750

730

Central heating flow (22 mm copper pipe)

Domestic hot water (15 mm copper pipe)

65 45

120

135

Mains feed (15 mm copper pipe)

3 bar safety release valve (15 mm copper pipe)

Central heating return (22 mm copper pipe)

Model - Envirogreen (output range)

Weight

Dimensions (mm)

H W D A C I J

Envirogreen Slimline Combi 12-20kW 165 855 520 600 760 147 325 80 Envirogreen Slimline Combi 20-26kW 168 855 520 600 760 147 325 80

4 4.3 SLIMLINE COMBI - TECHNICAL DETAILS



13 12

3 2

No. Qty 

1 4 Tube baﬄe BA110907 BA110907

2 5 Tube baﬄe single BA110908 BA110908

3 4 Smoke baﬄe BA212022 BA212028

4 1 Door seal

5 1 Door duroboard

6 1 Flue gasket ACC000FRG ACC000FRG

7 1 Stat pocket ACC003PKT ACC003PKT

8 1 Condensate trap ACC000TRP ACC000TRP

9 1 Condensate hose ACC000FLX ACC000FLX

10 1 Stat pocket ACC001PKT ACC001PKT

11 1 Heat deﬂector ACC000HTD ACC000HTD

12 1 Air hose ACC000SSH ACC000SSH

13 1 Flap valve ACC000FLP ACC000FLP

14 1 Control panel ACP001CSL ACP001CSL

15 1 Casing right side ACP002CSL ACP002CSL

16 1 Casing left side ACP003CSL ACP003CSL

17 1 Back support ACP006CSL ACP006CSL

18 1 Casing front ACP004CSL ACP004CSL

19 1 Casing top ACP005CSL ACP005CSL

20 1 Top ﬂue blank ACP009CSL ACP009CSL

21 1 Top half moon blank ACP010CSL ACP010CSL

22 1 Pressure vessel ACC012PVL ACC012PVL

12-20kW 20-26kW

ACC000DDS ACC000DDS

1 11

158



4 4.3 SLIMLINE COMBI - TECHNICAL DETAILS

TECHNICAL SPECIFICATION

HEAT OUTPUT kW 12-20 20-26

CONNECTIONS - -

Heating Flow 22 mm dia. 22 mm dia.

Heating Return 22 mm dia. 22 mm dia.

Mains Cold Feed (Copper) 15 mm dia. 15 mm dia.

Hot Water Delivery (Copper) 15 mm dia. 15 mm dia.

Drain Off Valve ½” BSP ½” BSP

Safety Pressure Valve Outlet (Copper) 15 mm dia. 15 mm dia.

Condensate Trap 22 mm dia. plastic pipe 22 mm dia. plastic pipe

CIRCULATING PUMP 25/60 25/60

Domestic Hot Water Plate Heat Exchanger 25 plate 25 plate

Integral Expansion Vessel Normal Capacity 12 litres 12 litres

Expansion Vessel Pre-charge Pressure 1 bar 1 bar

Low Pressure Water Switch?

Filling Loop Included?

WATER CONTENT - -

Boiler 24 litres 24 litres

Primary Tank 11 litres 11 litres

D.H.W. GUIDE PERFORMANCE* - -

in litres/min (120 litre draw-off at 35˚C ∆t.) 14 16

FLUE (INDOOR BOILERS) - -

Balanced Flue Assembly 125 (5”) mm dia. 125 (5”) mm dia.

Max. Low Level Flue Length 1.5m 1.5m

Max. High Level Balanced Flue Length 6m 6m

HEATING SYSTEM (SEALED) Fit in accordance with BS 7074 Part 1, BS 5449, OFTEC standards and all other relevant legislation.

Max. Operating Pressure 2 bar 2 bar

Max. System Pressure Cold 1.5 bar 1.5 bar

Min. System Pressure Cold 0.5 bar 0.5 bar

Preset Pressure Relief Valve 3 bar 3 bar

✔ ✔

MAINS WATER SUPPLY PRESSURE Min. 3 bar - Max. 5 bar (for user comfort, we recommend pressure at tap to be between 2 and 3 bar).

Limescale excess: When over 150/200 ppm, t appropriate scale reducer/water softener.

WATER SIDE RESISTANCE Flow Rate To Give A Nominal Output At 10K Differential 12-20kW 20-26kW

Flow Rate Measured 1642 kg/h 2135 kg/h

Waterside Resistance 0.18 mbar 0.18 mbar

Flow Rate To Give A Nominal Output At 20K Differential

Flow Rate Measured 870 kg/h 1131 kg/h

Waterside Resistance 0.19 mbar 0.19 mbar

* where water demand exceeds this, a ow restrictor is recommended. This will ensure a water supply at an adequate temperature.

COMMISSIONING

u It is the responsibility of the installer to ensure

that the boiler is properly commissioned when first used.

u The boiler should be commissioned by a

competent, qualified engineer, preferably OFTEC registered and familiar with Firebird products.

u The installation certificate and the commissioning

certificate within the Boiler Passport should be completed and posted to Firebird within 28 days of installation (this can also be done online on the Firebird website). A copy should be retained by the commissioning engineer.

u The system should be checked thoroughly.

CHECKLIST FOR INSTALLING AND

COMMISSIONING A FIREBIRD BOILER

Pre-installation check:

u Is the following documentation included with the

boiler, installation manual, boiler passport, burner manufacturer’s manual?

u Is the base on which the boiler is to be installed solid? u Allow sufficient room for future servicing of the boiler.

Boiler check:

u Baffles should be checked as they may have been

disturbed during transport.

u Check that the condensate trap is fitted securely,

primed with water and piped out into a suitable drain. It is easier to check the trap when the boiler door is removed.

u The boiler door should be refitted, complete with

graphite seal and then tightened.

Flue check:

u The flue must be fitted correctly, with a fall back to the

boiler. Note: internal fall of 2.5˚ within the flue.

u For concentric balanced flue:

- the cone supplied should be inserted in to the end

 oftheflue;

- the wall plate should be fitted with an opening

  forairundertheflue;

- check that the flue guard is fitted. u When installing a Combipac HE the 90˚ bend should

be fitted pointing up.

Please refer to burner manual for the following sections:

u Boiler set-up. u Burner settings. u Flue gas analysis and fine tuning of burner.

Where does the flue terminate:

u Make sure there is no window, door or fence within 1

metre of the flue-terminal.

u If the flue terminates in a corner or into an allyway,

re-circulation of the combustion gases in the air intake could occur. A plume dispersal may be required or an alternative flue arrangement might be available. Contact the Firebird technical department for advise.

u The appropriate class 1 flue must be used with a

conventional flue installation. Contact Firebird if unsure.

Power supply:

u Is a timed, permanent, power supply available, via a

fused spur with a 230V 50Hz mains electrical supply and a 5A fuse?

Liquid fuel supply:

u The burner is set for 28 Second Class C2 fuel. u A 15 micron oil filter should be placed in line with an

isolating valve prior to entry to the burner.

u There must be a remote sensing fire valve. u Verify that the fuel tank has been installed correctly as

per building standards.

HANDING OVER

The householder should receive:

• Aclearandconcisedemonstrationoftheboiler

operation and any system controls.

• Thismanual,theburnermanufacturer’smanual

and any other instructions.

• OFTECformsCD10andCD11.

• TheBoilerPassport.

The householder should be advised to:

• Servicetheboilerannuallyandtoensurethatthe

service records in the Boiler Passport are completed.

• Readthetermsandconditionsofwarranty.

• Keepallboilerdocumentationinasafeplace.

A commissioning record should be completed

and a copy retained by the Engineer.

This can be found in the Boiler Passport.

SERVICING

Annual servicing must be carried out by a competent, qualified engineer, preferably OFTEC registered and familiar with Firebird products.

Do not commence service until both the electrical and fuel supply to the boiler have been safely isolated.

THE FUEL TANK

Check for oil leaks. Draw off any accumulated water and sludge from the tank by opening the drain valve. Turn off the liquid fuel supply, remove the filter bowl and wash the element clean with Kerosene. Fit a new element if required.

THE BOILER

Remove combustion access door for access to baffles and to clean heat exchanger.

Cleaning a Firebird condensing boiler:

THE BURNER

Please refer to the burner manual for specification and combustion check information.

Ensure service is recorded in the Boiler Passport.

1. Remove all baffles, including the tubular baffles in the condensing section and clean them.

2. Remove the condensate trap and clean it, place a tray under the connection for the trap. Vacuum out any loose debris from the chamber.

3. Clean the inside of the boiler with a vacuum cleaner.

4. Refit all the baffles and the condensate trap securely.

5. System pressure should not exceed 2 bar at full operating temperature. The expansion vessel should be checked during the annual service to ensure that it is operating correctly.

Check insulation sealing and the silver foil lining in combustion access door - replace if necessary. Check graphite seal and replace if necessary. When refitting this door be careful not to damage the foil and insulation by over tightening.

Check that the condensate trap is secure in position, clean and free of combustion debris. Ensure that the condensate drain is free and not blocked.

Expansion vessel pre -charge pressure should be checked annually and set according to the system design.

TERMS & CONDITIONS OF WARRANTY

Firebird products are designed and manufactured to give many years of trouble free service.

The terms laid down in the warranty must be adhered to

u Firebird provides a comprehensive, conditional

warranty of 5 years on the boiler shell and 2 years on all other parts from date of installation, provided installation has occurred within 12 months from date of purchase.

u The 5 year boiler shell warranty consists of parts and

labour for the first 3 years and parts only for years 4 and

u The warranty will only apply if the boiler is

commissioned by a competent, qualified engineer, preferably OFTEC registered and is serviced annually thereafter.

u Please ensure that the commissioning certificate within

the Boiler Passport is fully completed by a competent, qualified engineer, preferably OFTEC registered and is returned to Firebird within 28 days of complete installation and commissioning. The Boiler Passport is included with every boiler and can also be completed online at the following link:

http://www.firebird.ie/index.php/boiler-passport.html.

u Correct commissioning will ensure that your boiler is

set to operate at its maximum fuel efficiency.

TERMS & CONDITIONS OF WARRANTY

1. Warranty implies that the product shall be free from defective parts or workmanship for a period of warranty cover, which begins from the date of installation.

2. All claims under the warranty programme must be within the time limits stated on the left.

3. Installation and commissioning of the product must be in accordance with (a) instruction/technical manuals (b) all relevant standards and codes of practice.

4. A competent, qualified engineer, preferably OFTEC registered, using the correct installation and test equipment must carry out installation and commissioning.

5. This warranty does not cover special, incidental or consequential damages, injury to persons or property, or any other consequential loss.

6. Servicing of the boiler is to be carried out annually to maintain the manufacturer’s warranty.

7. Firebird accepts no liability in respect of any defect arising from incorrect installation, negligence, fair wear and tear, misuse, alteration or repair by unqualified persons.

8. Firebird will not accept any liability in respect of any defect occurring to the product due to limescale build-up and or low return water temperature.

u Consumable components, the nozzles and the oil hose

are excluded.

9. The warranty programme extends to reasonable labour costs EXCEPT in the case of a 5 year warranty period whereby any valid claim made after 3 years will not include labour costs.

10. Firebird’s prior authorisation must be obtained before examination or repair of the product takes place.

11. Firebird will examine all claims made under the warranty programme and for any claims that are deemed invalid, the costs incurred will be borne by the owner.

12. The warranty programme only applies where the product was used for normal domestic heating purposes.

13. Any defective part removed under any or all of the warranty programmes MUST be returned to Firebird.

14. If this appliance is installed in a pressurised system, failure to correctly size the expansion vessel may damage the boiler and invalidate the warranty

15. A full set of warranty conditions and terms can be found on the Firebird website.

STATUTORY RIGHTS OF THE OWNER ARE NOT

AFFECTED BY THIS WARRANTY

PRODUCT FICHE

ErP A Rated

Rated

Model

Identier

Envirogreen

12-20kW A B 20 93 75 62 21 46 0.155 0.051 0.002

20-26kW A B 26 93 74 80 21 47 0.143 0.046 0.002

26-35kW A B 35 93 70 109 23 52 0.138 0.045 0.002

Energy

efciency

class

Space

Heating

Water

Heating

heat

output

kW % GJ dB

Seasonal Efciency

Base Model

Space

Heating

ENVIROGREEN COmbIPAC HE

Water

Heating

ENVIROGREEN COmbI HE

Annual energy

consumption

Space

Heating

Water

Heating

Sound

power

level

Auxiliary Electrical Consumption

Full

Load

elmax

(kW)

Part

Load

elmin

(kW)

Stand by

Mode

PSB (kW)

12-20kW A B 20 93 75 62 21 N/A 0.155 0.051 0.002

20-26kW A B 26 93 74 80 21 N/A 0.143 0.046 0.002

26-35kW A B 35 93 70 109 23 N/A 0.138 0.045 0.002

ENVIROGREEN SlImlINE COmbI

12-20kW A B 20 93 75 50 19 46 0.155 0.051 0.002

20-26kW A B 26 93 76 71 19 47 0.143 0.046 0.002

HEATING SOLUTIONS

For further information on Firebird products please contact:

Firebird Heating Solutions Ltd.

Údarás Industrial Estate, Baile Mhic Íre, Co. Cork, P12 HK51, Ireland.

t: +353 (0)26 45253 f: +353 (0)26 45309 e: info@firebird.ie web: www.firebird.ie

Firebird Heating Solutions Ltd.

Shean, Forkhill, Newry, BT35 9SY.

t: +44 (0)28 3088 8330 f: +44 (0)28 3088 9096

e: firebirdproducts@hotmail.co.uk web: www.firebird.ie

Firebird Products Ltd.

Phoenix House, Eastern Wood Road,

Plympton, Devon, PL7 5ET, United Kingdom.

t: +44 (0)1752 691177 f: +44 (0)1752 691131

e: sales@firebird.uk.com web: www.firebird.uk.com

prior notice the specification of our products at any time and be without obligation to make similar changes in products previously produced.

MLOBEBCR003

FireBird Envirogreen Combipac HE, Envirogreen Combi HE, Envirogreen Slimline Combi Technical Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
