PHOENIX ARMS@ DELUXE RANGE KIT
AT HOME ON THE RANGE
PURSUANT To STATE OF CALIFORNIA
P.C. 12088.6
WARNING
A
CHILDREN ARE ATTRACTED TO AND CAN OPERATE FIREARMS THAT CAN CAUSE
SEVERE INJURIES OR DEATH. PREVENT CHILD ACCESS BY ALWAYS KEEPING GUNS
LOCKED AWAY AND UNLOADED WHEN NOT IN USE. IF YOU KEEP A LOADED
FIREARM WHERE A CHILD OBTAINS AND IMPROPERLY USES IT, YOU MAY BE FINED
OR SENT TO PRISON.
AOVERTENCIA
A
A LOS NINOS LOS ATRAEN LAS ARMAS DE FUEGO Y LAS PUEOEN HACER
FUNCIONAR. ELLOS PUEDEN CAUSARSE LESIONES GRAVES Y LA MUERTE. EVITE
QUE LOS NINOS TENGAN ACCESO A LAS ARMAS DE FUEGO GUARDANDOLAS
SIEMPRE CON LLAVE Y DESCARGADAS CUANDO NO LAS ESTE UTILIZANDO. 51
USTED TlENE UN ARMA DE FUEGO CARGADA EN UN LUGAR EN QUE UN NINO TIENE
ACCESO A ELLA Y LA USA INDEBIDAMENTE, LE PUEDEN DAR UNA MULTA 0
ENVIARLO A LA CARCEL.
! DANGER
Do NOT STORE, CARRY, DROP, DRIVE A VEHICLE, BICYCLE, WALK OR
RUN WITH A LIVE ROUND IN THE CHAMBER. A GUN THAT IS DROPPED,
BUMPED OR 'JARRED WITH A LIVE ROUND IN THE CHAMBER MIGHT
ACCIDENTALLY DISCHARGE, EVEN WITH THE SAFETY ON, CAUSING
INJURY TO YOU OR SOMEONE ELSE.
ALWAYS WEAR PROPER SHOOTING GLASSES TO PREVENT EYE INJURY
FROM FLYING PARTICLES.
ALWAYS USE HEARING PROTECTION TO PREVENT EAR DAMAGE DUE
TO REPEATED EXPOSURE TO GUN FIRE NOISE.
Do NOT HANDLE THIS PISTOL WITH OUT FIRST CHECKING CHAMBER
FOR LIVE CARTRIDGES, PISTOL SHOULD BE CLEANED FOLLOWING
EACH USE. REFER TO CLEANING INSTRUCTIONS IN THIS BOOKLET.
NEVER SHOOT AT A HARD, FLAT SURFACE OR AT THE SURFACE OF
WATER. BULLETS CAN RICOCHET CAUSING SERIOUS INJURY TO YOU
OR OTHERS.
1
A WARNING
NEVER DEPEND ON ANY FIREARMS SAFETY DEVICE, USE CAUTION.
Do NOT ALTER ANY OF COMPONENTS OF THIS PISTOL.
IF THE TRIGGER IS PULLED WHILE THE SAFETY IS IN THE "FIRE"
POSITION, THIS PISTOL WILL FIRE ANY CARTRIDGE LEFT IN THE
BARREL!
AMMUNITION USED IN THIS FIREARM CONTAINS LEAD. THE USE OF
THIS AMMUNITION MAY EXPOSE YOU TO LEAD, A CHEMICAL KNOWN
TO THE STATE OF CALIFORNIA TO CAUSE CANCER, AND
REPRODUCTIVE HARM. SHOOTING FULL METAL JACKET AMMUNITION
WILL GREATLY REDUCE YOUR EXPOSURE TO LEAD. ALWAYS WASH
YOUR HANDS THOROUGHLY AFTER CLEANING FIREARMS OR
HANDLING AMMUNITION.
NEVER POINT PISTOL AT ANYTHING YOU DO NOT INTEND TO SHOOT,
DAMAGE, INJURE OR KILL.
NEVER PLACE YOUR FINGER ON THE TRIGGER UNLESS THE PISTOL IS
POINTED IN A SAFE DIRECTION AND YOU ARE READY TO SHOOT IT.
2
A CAUTION
Do NOT PUT AMMUNITION INTO THIS PISTOL, OR MAGAZINE, UNTIL
YOU HAVE READ THESE INSTRUCTIONS AND FULLY UNDERSTAND
ALL FUNCTIONS AND SAFE HANDLING OF THIS PISTOL.
Do NOT ATTEMPT TO USE THIS FIREARM UNTIL YOU HAVE
COMPLETELY READ THIS MANUAL. A THOROUGH UNDERSTANDING
OF THIS PISTOL AND ITS SAFETY SYSTEM IS ABSOLUTELY
NECESSARY. NEVER PLACE YOUR FINGER ON THE TRIGGER UNLESS
THE PISTOL IS POINTED IN A SAFE DIRECTION AND YOU ARE READY
TO SHOOT IT. AFTER REMOVING MAGAZINE (CLIP) FROM PISTOL,
ALWAYS LOOK INTO THE CHAMBER END OF THE BARREL FOR ANY
REMAINING AMMUNITION. Do NOT STORE FIREARM WITH A
CARTRIDGE IN THE BARREL. KEEP OUT OF REACH OF CHILDREN
AND THOSE NOT FAMILIAR WITH THE SAFE HANDLING AND
OPERATION OF THIS PISTOL.
FIREARMS SAFETY IS UP TO YOU. MAKE NO MISTAKE ABOUT IT.
ALCOHOL, DRUGS AND GUNS DON'T MIX.
KEEP THIS MANUAL WITH PISTOL WHEN NOT IN USE AND WHEN
TRANSFERRING OWNERSHIP.
3
TABLE OF CONTENTS
DANGER NOTICE
WARNINGS
CAUTION NOTICE
TABLE OF CONTENTS
PISTOL DESCRIPTION
MAGAZINE INTERLOCK SAFETY SYSTEM
FIRING PIN BLOCK
CHECKING THE CHAMBER
LOADING & UNLOADING THE MAGAZINE
UNLOADING THE PISTOL
FIRING OPERATION
ADJUSTING SIGHT
DISASSEMBLY
CLEANING
ASSEM BL Y
LOCKING STORAGE & TRANSPORT CASE
BARREL & MAGAZINE COMPONENTS

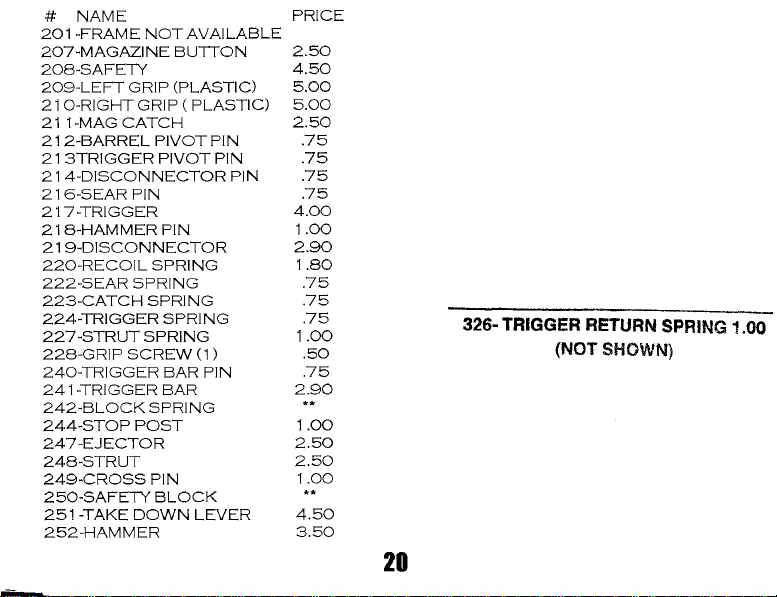

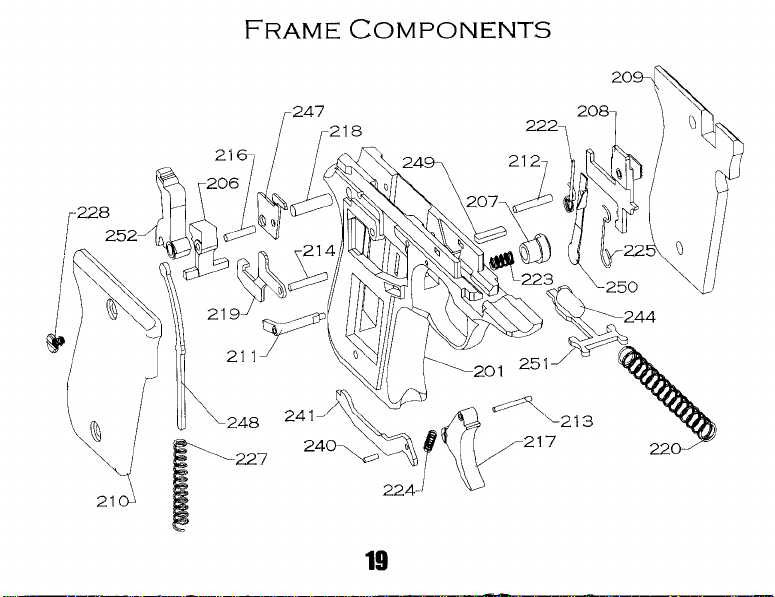

FRAME COMPONENTS

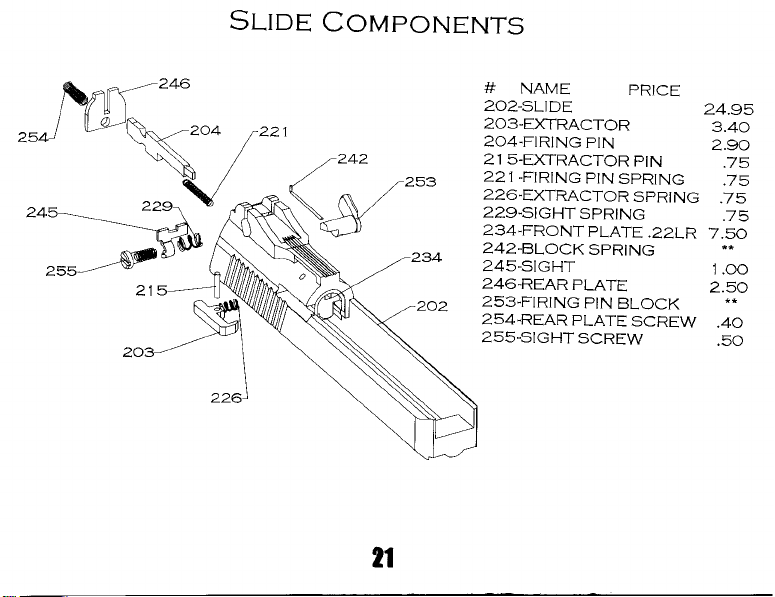

SLIDE COMPONENTS
ACCESSORIES/ORDERING INFORMATION
LIFETIME WARRANTY
4
1
2
3
4
5
6
7
8
9
10
1 1
12
13
14
15-16
17
18
19-20
21
22
23
PISTOL DESCRIPTION
ADJUSTABLE REAR SIGHT
BARREL
SLIDE
TAKE DOWN
LEVER
TRIGGER
MAGAZINE
RELEASE
BUTTON
(
HAMMER
FIRING PIN
BLOCK
SAFETY
MAGAZINE
5

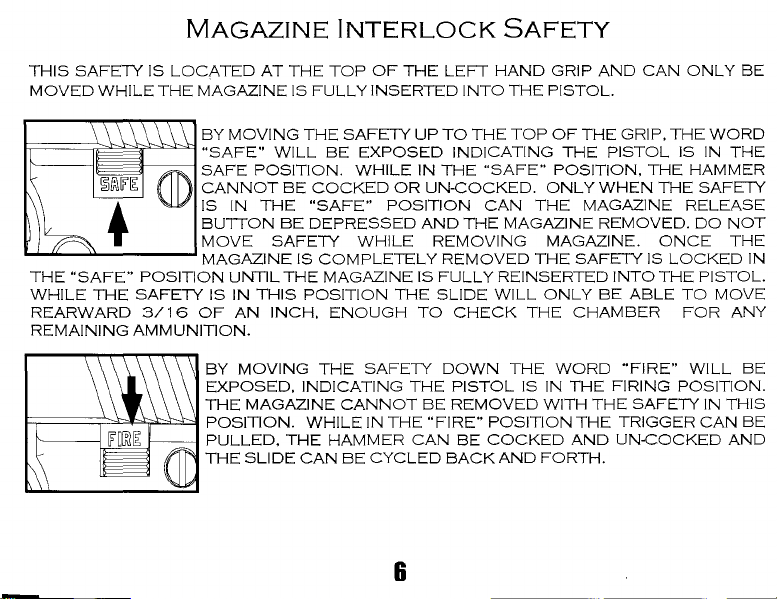

MAGAZINE INTERLOCK SAFETY
THIS SAFETY IS LOCATED AT THE TOP OF THE LEFT HAND GRIP AND CAN ONLY BE
MOVED WHILE THE MAGAZINE IS FULLY INSERTED INTO THE PISTOL.
BY MOVING THE SAFETY UP TO THE TOP OF THE GRIP. THE WORD
"SAFE" WILL BE EXPOSED INDICATING THE PISTOL IS IN THE
~)ff~II[ CANNOT BE COCKED OR UN-COCKED. ONLY WHEN THE SAFETY
THE "SAFE" POSITION UNTIL THE MAGAZINE IS FULLY REINSERTED INTO THE PISTOL.
WHILE THE SAFETY IS IN THIS POSITION THE SLIDE WILL ONLY BE ABLE TO MOVE
REARWARD 3/16 OF AN INCH. ENOUGH TO CHECK THE CHAMBER FOR ANY
REMAINING AMMUNITION.
SAFE POSITION. WHILE IN THE "SAFE" POSITION. THE HAMMER
<ID
IS IN THE "SAFE" POSITION CAN THE MAGAZINE RELEASE
BUTTON BE DEPRESSED AND THE MAGAZINE REMOVED. DO NOT
MOVE SAFETY WHILE REMOVING MAGAZINE. ONCE THE
MAGAZINE IS COMPLETELY REMOVED THE SAFETY IS LOCKED IN
BY MOVING THE SAFETY DOWN THE WORD "FIRE" WILL BE
EXPOSED. INDICATING THE PISTOL IS IN THE FIRING POSITION.
THE MAGAZINE CANNOT BE REMOVED WITH THE SAFETY IN THIS
POSITION. WHILE IN THE "FIRE" POSITION THE TRIGGER CAN BE
PULLED. THE HAMMER CAN BE COCKED AND UN-COCKED AND
THE SLIDE CAN BE CYCLED BACK AND FORTH.
6
FIRING PIN BLOCK
THE FIRING PIN BLOCK LEVER IS LOCATED ON THE LEFT SIDE OF THE SLIDE JUST
ABOVE THE SERRATED FINGER GRIP.
BY ROTATING THE LEVER UP (COUNTERCLOCKWISE), A RED
DOT WILL BE EXPOSED INDICATING THE FIRING PIN IS NOT
BLOCKED AND A PULL OF THE TRIGGER AND FORCE OF THE
HAMMER STRIKING THE FIRING PIN WILL CAUSE ANY CAR-
TRIDGE IN THE BARREL TO BE FIRED.
RED DOT
BY ROTATING THE FIRING PIN BLOCK LEVER DOWN
(CLOCKWISE) AND COVERING THE RED DOT, THE FIRING PIN IS
BLOCKED AND RESTRICTED FROM STRIKING A CARTRIDGE IN
THE CHAMBER. ONLY WHILE IN THIS POSITION SHOULD ANY
ATTEMPT BE MADE TO RELEASE HAMMER FROM FIRING POSI-
TION. ALWAYS POINT PISTOL IN A SAFE DIRECTION, WITH
THUMB FIRMLY ON HAMMER SPUR, PULL TRIGGER AND
SLOWLY MOVE HAMMER TO ITS FORWARD POSITION. DO NOT
DRY FIRE THIS PISTOL.
WARNING: IF HAMMER [S CONTINUALLY FIRED AGAINST PIN BLOCK IN THE BLOCKED
POSITION, PIN BLOCK MAY BECOME DAMAGED AND NOT PREVENT CARTRIDGE IN
CHAMBER FROM FIRING.
1
CHECKING THE CHAMBER
WHENEVER PICKING UP ANY FIREARM. OR BEFORE STORING ANY FIREARM IT IS
IMPORTANT TO CHECK THE CHAMBER FOR ANY LIVE ROUNDS. NEVER PLACE YOUR
FINGER ON THE TRIGGER WHEN CHECKING THE CHAMBER. PLACE FIRING PIN
BLOCK IN THE DOWNWARD POSITION COVERING THE RED DOT. PLACE THE
MAGAZINE INTERLOCK SAFETY IN THE "SAFE" POSITION AND REMOVE MAGAZINE BY
DEPRESSING MAGAZINE RELEASE BUTTON AND COMPLETELY REMOVE MAGAZINE.
PULL SLIDE REWARD. 3/16 OF AN INCH IS AS FAR AS IT WILL BE ALLOWED TO GO
WITH THE SAFETY IN THE "SAFE" POSITION. VISUALLY CHECK CHAMBER FOR ANY
LIVE ROUNDS. REFER TO UNLOADING INSTRUCTIONS IN THIS MANUAL TO UNLOAD
PISTOL WITHOUT FIRING.
8
LOADING & UNLOADING THE MAGAZINE
BEFORE ATTEMPTING TO LOAD MAGAZINE IT IS IMPORTANT THAT YOU READ AND FULLY
UNDERSTAND ALL FUNCTIONS AND SAFE HANDLING OF THIS PISTOL. THE MAGAZINE.
BARREL AND SLIDE ARE MARKED WITH PROPER CALIBER OF CARTRIDGE TO BE USED AND
ALL MUST BE OF THE SAME CALIBER. PLACE ONE ROUND IN AT A TIME. WITH THE REAR
OF THE ROUND AT MIDWAY IN THE TOP OF THE MAGAZINE PUSH DOWNWARD AGAINST
THE MAGAZINE FOLLOWER AND THEN REARWARD. THE FOLLOWING ROUNDS ARE
LOADED INTO THE MAGAZINE IN THE SAME MANNER. THE HP22 AND HP25 HOLD A
MAXIMUM OF TEN ROUNDS IN BOTH THE STANDARD MAGAZINE AND THE EXTENDED
MAGAZINE. THERE ARE HOWIEVER. OLDER HP22 MAGAZINES THAT HOLD ELEVEN
ROUNDS. SO BE SURE TO ALWAYS CHECK CHAMBER AND MAGAZINE FOR REMAINING
AMMO WHEN YOU ARE DONE SHOOTING. DO NOT DEPEND ON COUNTING ROUNDS AS
YOU SHOOT. TO UNLOAD MAGAZINE OF AMMUNITION PUSH THE TOP ROUND FORWARD
AND OUT, OPPOSITE THE DIRECTION USED TO LOAD. REPEAT UNTIL ALL CARTRIDGES
ARE REMOVED. CAUTION DO NOT FORCE WITH ANYTHING THAT MAY DAMAGE OR
RUPTURE CARTRIDGE PRIMER. ALWAYS STORE AMMUNITION SEPARATELY FROM PISTOL.
~
THE HP22 MAGAZINE IS ILLUSTRATED
HERE.<-:i-7\!V))~~Ri:;VlWO-i:\;,-F;'::;:~;Ci[:'/
'H:f:~.:~,-.V"\"IONt5 R;:">~Oh'!I'..ir:::;~~:~~~:~
A'
'i",:c,
t'"";
LOJ'.C,LD
P1ST()LS
WHILE REMOVING CARTRIDGE FROM BARREL CHAMBER. KEEP
UNLOADING PISTOL
THE PISTOL POINTED IN A SAFE DIRECTION. ROTATE FIRING
PIN BLOCK LEVER DOWN (CLOCKWISE) COMPLETELY
COVERING THE RED DOT. TAKE THE PISTOL IN YOUR RIGHT
HAND WITH A FIRM GRIP. MAKING SURE YOUR FINGERS ARE
NOT TOUCHING THE TRIGGER.
WITH YOUR OTHER HAND FIRMLY GRASP THE SERRATED
PORTION OF THE SLIDE AND PULL IT REARWARD AS FAR AS IT
WILL GO.
WITH THE SLIDE HELD AT ITS REARMOST POSITION. MOVE THE
SAFETY UPWARD TO THE "SAFE" POSITION.LOCKING THE SLIDE
IN THE OPEN POSITION. THIS SHOULD EXTRACT ANY
CARTRIDGE FROM THE BARREL CHAMBER.
THE MAGAZINE IS REMOVED BY DEPRESSING THE MAGAZINE
RELEASE BUTTON. REMOVE ALL CARTRIDGES FROM THE
MAGAZINE. CHECK MAGAZINE CAVITY AND BARREL CHAMBER
FOR ANY REMAINING CARTRIDGES. UNLOAD MAGAZINE
BEFORE REINSERTING. CAUTION: IF A LOADED MAGAZINE IS
REINSERTED INTO PISTOL A ROUND WILL BE CHAMBERED
WHEN CLOSING SLIDE.
1.
FIRING OPERATION
PLACE FIRiNG PIN BLOCK LEVER IN THE DOWNWARD POSITION
COVERiNG THE RED DOT, PLACE SAFE1Y IN THE "SAFE" POSI-
TiON AND REMOVE MAGAZINE. LOAD MAGAZiNE FOLLOWING
THE INSTRUCTIONS ON PAGE 9. REINSERT LOADED MAGAZiNE
INTO PISTOl.
TAKE THE PISTOL iN ONE HAND WITH A FiRM GRIP. WHiLE KEEP-
ING YOUR FiNGERS OFF OF TRIGGER AND WITH PISTOL POINTED
iN A SAFE DiRECTION, MOVE SAFE1Y INTO "FIRE" POSITION
(KEEP FIRiNG PIN BLOCK LEVER IN THE DOWNWARD POSiTiON).
WITH YOUR OTHER HAND FIRMLY GRASP THE SERRATED POR-
TiON OF THE SLIDE AND PULL IT AS FAR REARWARD AS IT WiLL
GO. RELEASE THE SLIDE FROM ITS REARMOST POSITION AL-
LOWING IT TO GO FORWARD ON iTS OWN ACCORD. THIS PRO-
CEDURE PLACES THE FIRST CARTRiDGE iNTO THE CHAMBER
AND COCKS THE HAMMER. THE GUN IS READY FOR FIRING
WHEN THE PIN BLOCK LEVER is ROTATED UPWARD EXPOSING
OPERATiONS ARE PERFORMED AUTOMATICALLY EACH TIME THE TRiGGER is PULLED
UNTIL THE PISTOL IS EMP1Y. CAUTiON: UNLOAD PiSTOL IF YOU DO NOT INTEND TO
SHOOT IT IMMEDIATELY.
THE RED DOT. SUBSEQUENT FEEDiNG. FIRiNG AND EJECTION
11
ADJUSTING SIGHT
THIS PISTOL IS EQUIPPED WITH A FIXED FRONT BLADE SIGHT AND A WINDAGE AD-
JUSTABLE REAR SIGHT. THE REAR SIGHT IS ADJUSTED BY THE ADJUSTMENT SCREW
LOCATED AT THE RIGHT REAR OF THE SLIDE. PISTOL SHOULD BE IN THE UNLOADED
1
CONDITION BEFORE ANY ATTEMPT TO ADJUST SIGHT.
,
I jrr"'-,//\ /..rll///II///I
IF BULLET IS HITTING TO THE RIGHT OF TARGET CENTER. TURN
SCREW TO THE RIGHT (CLOCKWISE).
IF BULLET IS HITTING TO THE LEFT OF TARGET CENTER. TURN
SCREW TO THE LEFT (COUNTERCLOCKWISE).
t
ALWAYS BE SURE OF BACKSTOP. BULLETS CAN TRAVEL UP TO FIVE MILES. NEVER
,. SHOOT AT SUCH HARD SURFACES SUCH AS ROCKS. WATER. ETC.-BULLETS CAN
.
RICOCHET AND DAMAGE. INJURE OR KILL SOMETHING YOU DID NOT INTEND TO
SHOOT.
IF YOU ARE HITTING LOW OF TARGET CENTER. RAISE YOUR
SIGHT OF FRONT SIGHT BLADE UP BY ONE MARK ON FRONT
SIGHT BLADE TO TOP LEVEL OF REAR SIGHT.
IF YOU ARE HITTING HIGH OF TARGET CENTER. LOWER YOUR
SIGHT OF FRONT SIGHT BLADE BY ONE MARK TO THE LOWER
LEVEL OF SIGHT BLADE NOTCH.
12
DISASSEMBL Y
THIS PISTOL MUST BE IN THE UNLOADED CONDITION BEFORE DISASSEMBLY IS
PERFORMED (SEE UNLOADING PISTOL PAGE 10).
PLACE FIRING PIN BLOCK LEVER IN THE DOWNWARD POSI-
TION COVERING THE RED DOT. PLACE SAFETY IN THE
"SAFE" POSITION. DEPRESS MAGAZINE RELEASE BUTTON
AND REMOVE MAGAZINE.
~
PUSH ON REAR OF TAKE DOWN LEVER FORWARD TOWARDS
~
THE END OF THE BARREL AND LIFT BARREL END UP AND
OUT OF SLIDE AND FRAME.
TO REMOVE SLIDE. INSERT EMPTY MAGAZINE INTO PISTOL
AND MOVE SAFETY TO THE "FIRE" POSITION. MOVE SLIDE
FORWARD AND UP OFF OF FRAME. THIS PROCEDURE IS
SUFFICIENT FOR NORMAL CLEANING AND OILING OF THE
BARREL. SEE CLEANING INSTRUCTIONS.
13
CLEANING
PISTOL SHOULD BE CLEANED AS SOON AS POSSIBLE AFTER FIRING. BEFORE
ATTEMPTING TO CLEAN PISTOL, EMPTY CHAMBER AND MAGAZINE OF ANY
AMMUNITION AND REMOVE ALL AMMUNITION FROM CLEANING AREA. COVER WORK
AREA WITH OLD NEWSPAPER. IT IS BEST TO REMOVE BARREL FOR clEANING.
ASSEMBLE KNOB ROD AND BRUSH. PLACE A FEW DROPS OF "BREAKFREE CLP" TO
ROD AND BRUSH. INSTALL BRUSH INTO BORE FROM CHAMBER END AND WORK
BACK AND FORTH 5 TIMES. ALLOW OIL TO PENETRATE FOR ABOUT FIVE MINUTES.
WORK BRUSH BACK AND FORTH 10 TIMES TO LOOSEN STREAKS OF LEAD AND
FOULING. ATTACH OIL SOAKED PATCH TO SLOTTED END AND WORK BACK AND
FORTH 10 TIMES. PLACE DRY PATCH ON JAG END AND PUSH THROUGH BORE.
REPEAT UNTIL PATCH COMES OUT CLEAN. USING A LIGHTLY OILED PATCH AND
SLOTTED END. OIL BARREL BORE AND ALLOW TO CURE FOR AT LEAST TWO HOURS.
OTHER AREAS OF PISTOL SHOULD BE CLEANED FROM FOULING WITH A SOFT
CLOTH. AND OILED LIGHTLY.
"BREAKFREE CLP"
BRUSH
,
KNOB
1 1
~
~SCREW
00 ,
)::
~PATCHES
~JAGEND
~ .
~
SLOTTED
END
14
REMOVE ALL AMMUNITION FROM
ASSEMBL Y
WORK AREA. PLACE EMPTY MAGA-
ZINE INTO FRAME. MOVE SAFETY TO
"FIRE" POSITION. MOVE HAMMER TO
COCKED POSITION.
INSTALL TAKEDOWN LEVER INTO
FRAME UNDER CROSS BAR.
PLACE SLIDE DOWN ON FRAME OVER
EJECTOR AND MOVE IT TO ITS MOST
FORWARD POSITION. ABOUT 1/4
INCH FARTHER FORWARD THAN THE
FRAME.
PLACE RECOIL SPRING OVER STOP
POST AND DOWN INSIDE SLIDE.
WHEN PLACING SPRING ROTATE
SPRING OVER POST UNTIL SPRING
WIRE END AT FRONT END OF SLIDE IS
AT THE TOP.
15
Q~
~
~.
IF YOUR PISTOL DID NOT
COME WITH A THREE INCH
BARREL USE YOUR OTHER
EMPTY MAGAZINE AS
SHOWN TO KEEP SPRING IN
PLACE WHILE RECOILING
SPRING.
IF YOUR PISTOL CAME WITH
A THREE INCH BARREL USE
IT AS SHOWN WHILE RECOIL-
ING SPRING
WHILE HOLDING FRAME AND
COMPONENT USED TO RE-
COIL SPRING IN ONE GRIP.
USE YOUR OTHER HAND TO
PULL SLIDE COMPLETELY TO
THE REAR OF ITS STROKE
AND ONCE THERE MOVE
SAFETY TO "SAFE".
REMOVE BARREL. RECOIL
SPRING SHOULD BE COM-
PRESSED AND COILED ON
STOP POST. WITH THE SLIDE
LOCKED IN THE REARWARD
POSITION.
WHILE HOLDING THE SLIDE
REARWARD ON THE FRAME.
MOVE SAFETY TO "FIRE".
ONLY ALLOW THE SLIDE TO
',\I
MOVE FORWARD ABOUT
1/8 OF AN INCH.
PLACE BARREL HOOK IN
FRAME OVER PIN AND RO-
TATE DOWNWARD UNTIL IT
LOCKS INTO PLACE.
CYCLE SLIDE BACK AND
FORTH TO PROPERLY SEAT
SPRING. IT IS NOT NECES-
SARY TO PULL TRIGGER OR
UN-COCK HAMMER WHILE
ATTEMPTING THIS.
SLIDE SHOULD MOVE BACK
AND FORTH WITH OUT BIND-
iNG. YOU SHOULD NOT BE
ABLE TO LIFT BARREL END
UP IF BARREL IS SEATED
PROPERLY.
1.
FOR TEMPORARY LIMITED ACCESS AND TRANSPORT ONLY. THIS IS NOT A
SUBSTITUTE FOR A SAFE. ALL FIREARMS SHOULD BE KEPT IN A LOCKED SAFE WHEN
NOT UNDER YOUR CONTROl. AMMUNITION SHOULD ALWAYS BE STORED
SEPARATELY FROM PISTOl. ALWAYS CHECK FOR AN EMPTY CHAMBER BEFORE
STORING OR TRANSPORTING.
LOCKING TRANSPORT CASE
LATCH
HP CABLE
LANYARD
CLEANING
BRUSHES
CLEANING PATCHES
OIL BOTTLE
SPARE MAGAZINE
EXTRA BARREL
CARRY HANDLE
11
UPPER LOCK
MECHANISM
CLEANING ROD
EAR PLUGS
STORAGE FOR
HP 22/25 MODEL
PISTOLS ONLY
LOWER LOCK
MECHANISM
2 KEYS
TURN RIGHT
~&j
~
TO UNLOCK
BARRELS AND MAGAZINES
W236
~ym
18
# NAME
205-.22 LR 3 INCH BARREL
230-.22 LR STD. MAGAZINE
236-.22 LR FOLLOWER
237-.22 LR MAG SPRING
238-.22 LR MAG BODY
239-.22 LR STD. MAG BASE
243- BASE LOCK
270-.22 LR 5 INCH BARREL
271 -.22 LR EXT. MAG BASE
260...22 LR EXT. MAGAZINE
305-.25 ACP 3 INCH BARREL
330...25 ACP STD. MAGAZINE
336-.25 ACP FOLLOWER
337 -.25 ACP MAG SPRING
338.25 ACP MAG BODY
339.25 ACP STD. MAG BASE
370.25 ACP 5 INCH BARREL
371 .25 ACP EXT. MAG BASE
360.25ACP EXT. MAGAZINE
PRICE
19.50
11.50
2.50
3.50
5.00
2.50
2.50
28.50
7.50
16.00
19.50
11.50
2.50
3.50
5.00
2.50
28.50
7.50
16.00
21
FRAME C
OMPONENTS
19
# NAME
201-FRAME NOT AVAILABLE
207-MAGAZINE BUTTON
208-SAFETY
209-LEFT GRIP (PLASTIC)
21 O-RIGHT GRIP (PLASTIC)
21 1-MAG CATCH
21 2-BARREL PIVOT PIN
21 3TRIGGER PIVOT PIN
21 4-DISCONNECTOR PIN
21 6-SEAR PIN
217 -TRIGGER
21 8-HAMMER PIN
219-DISCONNECTOR
220-RECOIL SPRING
222-SEAR SPRING
223-CATCH SPRING
224-TRIGGER SPRING
227-STRUT SPRING
228-GRIP SCREW (1)
240-TRIGGER BAR PIN
241-TRIGGER BAR
242-BLOCK SPRING
244-STOP POST
247-EJECTOR
248-STRUT
249-CROSS PIN
250-SAFETY BLOCK
251-TAKE DOWN LEVER
252-HAMMER
PRICE
2.50
4.50
5.00
5.00
2.50
.75
.75
.75
.75
4.00
1.00
2.90
1.80
.75
.75
.75
1.00
.50
.75
2.90
1.00
2.50
2.50
1.00
4.50
3.50
326- TRIGGER RETURN SPRING 1.00
(NOT SHOWN)
20
SLIDE COMPONENTS
21
234
202
# NAME
202-SLIDE
203-EXTRACTOR
204-FIRING PIN
21 5-EXTRACTOR PIN
221 -FIRING PIN SPRING
226-EXTRACTOR SPRING
229-SIGHT SPRING
234-FRONTPLATE .22LR
242-BLOCK SPRING
245-SIGHT
246-REAR PLATE
253-FIRING PIN BLOCK
254-REAR PLATE SCREW .40
255-SIGHT SCREW .50
PRICE
24.95
3.40
2.90
.75
7.50
1.00
2.50
.75
.75
.75
NOTES
PHOEN IX ARMS@ MODEL H P ACCESSORI ES
TAKE YOUR PHOENIX ARMS HP PISTOLS TO THE NEXT LEVEL WITH OUR NEW LINE OF
AFFORDABLE, HIGH QUALITY ACCESSORiES. EACH is DESIGNED TO IMPROVE AN ALREADY
SUPERB HANDGUN AND ADD TO YOUR SHOOTING ENJOYMENT.
HP LOCKING GUN
TRANSPORT CASE
LOCKED GUN TRANSPORT
CASE CAN BE KEYED THE
$14.00
SAME AS THE PISTOL
MAGAZINE WELL LOCK.
EXTENDED MAGAZINE
$16.00
FOR LARGER HAND GRIP.
lORD. CAPACITY.
STANDARD MAGAZINE
$11.50
10 RD. CAPACITY.
(NOT SHOWN)
H P PISTOL LOCK
$12.00
INCLUDED WITH ALL
PHOENIX ARMS MODELS.
INSTALLS IN MAGAZINE WELL.
HP NYLON
BELT HOLSTER
$10.00
WITH ADJUSTABLE WEB
STRAP. FITS EITHER
LENGTH BARREL.
CUSTOM HP
HARDWOOD
RESINATED GRIPS
$18.00
DESIGNS, MATERIALS AND PRICES SUBJECT TO CHANGE WITHOUT NOTICE.
HP CLEANING KIT
$8.00
COMES WITH ROD,
BREAKFREE
BRUSH, JAG END, SLOTTED
END, PATCHES, SCREW
AND KNOB.
"CLP"
GUN OIL,
DETACH & MAIL YOUR LIFETIME WARRANTY
To ACTIVATE THIS WARRANTY YOU MUST COMPLETE THIS CARD AND MAIL, WITH PROPER
POSTAGE, WITHIN 30 DAYS OF PURCHASE.
MODEL
1. WHERE DID YOU PURCHASE THIS PISTOL?
CITY,
2. IS THIS YOUR FIRST PURCHASE OF A FIREARM? DYES
3. DID YOU RECEIVE THIS PISTOL IN A PHOENIX ARMS BOX WITH THE
OPERATING INSTRUCTIONS FOR THE PISTOL YOU PURCHASED?
4. DID YOU READ AND UNDERSTAND ALL OF THE OPERATING INSTRUCTIONS?
5. DID YOU RECEIVE ANY VERBAL INSTRUCTION FROM A COMPETENT
FIREARMS INSTRUCTOR ON THE SAFE HANDLING OF THIS PISTOL?
IF YOU ANSWER NO TO 4. OR S., IT IS OUR STRICT RECOMMENDATION FOR YOUR SAFETY, AND THE
SAFETY OF OTHERS, THAT YOU DO NOT ATTEMPT TO LOAD, OR OPERATE THIS PISTOL UNTIL YOU
HAVE OBTAINED SAFE HANDLING INSTRUCTIONS BY A QUALIFIED FIREARMS INSTRUCTOR!
NAME,
ADDRESS,
CITY, ZIP,
SIGNATURE,
SERIAL #,
STATE, ZIP,
STATE,
DATE PURCHASED,
DNO
DYES DNO
DYES
DYES DNO
DNO
ORDERING INFORMATION
CALL WITH MASTERCARDNISA OR SEND CHECK/MONEY
ORDER WITH $4.50 POSTAGE & HANDLING TO ADDRESS
BELOW. BE SURE TO INCLUDE THE MODEL, FINISH, CALIBER
AND SERIAL NUMBER WITH YOUR ORDER. DESIGNS AND
PRICES SUBJECT TO CHANGE WITHOUT NOTICE.
PHIEHIX
1420 SOUTH ARCHIBALD AVE.
ONTARIO, CA 91761
909/937-6900
PHOEHIX
WARRANTY DEPARTMENT
1420 SOUTH ARCHIBALD AVENUE
ONTARIO, CA 91761
PLACE
POSTAGE
HERE
Loading...
