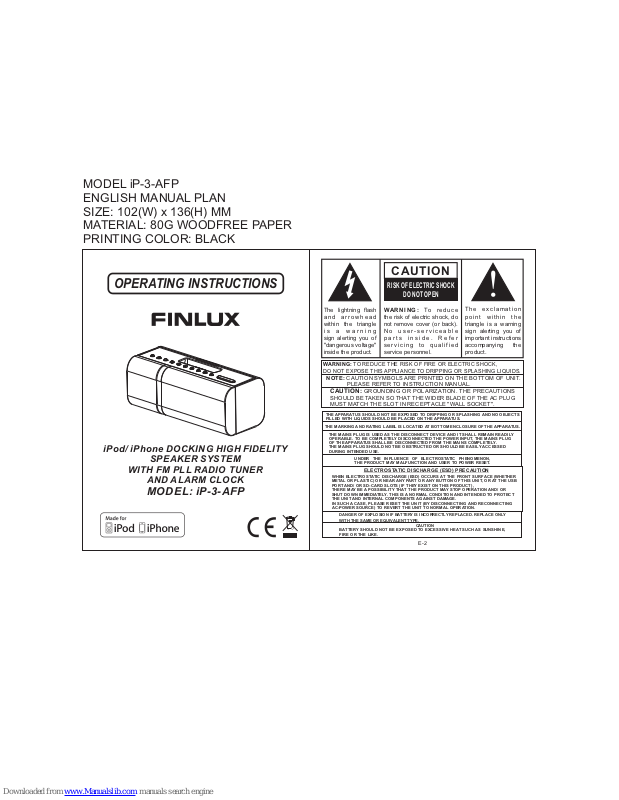

Finlux iP-3-AFP Operating Instructions Manual

Download

E-2

iPod/ iPhone DOCKING HIGH FIDELITY

SPEAKER SYSTEM

WITH FM PLL RADIO TUNER

AND ALARM CLOCK

OPERATING INSTRUCTIONS

WARNING: To reduce the risk of electric shock, do not remove cover (or back). No user-serviceable parts inside. Refer servicing to qualified service personnel.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The exclamation point within the triangle is a warning sign alerting you of important instructions accompanying the product.

The lightning flash and arrowhead within the triangle is a warning sign alerting you of "dangerous voltage" inside the product.

NOTE: CAUTION SYMBOLS ARE PRINTED ON THE BOTTOM OF UNIT.

PLEASE REFER TO INSTRUCTION MANUAL.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO DRIPPING OR SPLASHING LIQUIDS.

CAUTION: GROUNDING OR POLARIZATION. THE PRECAUTIONS

SHOULD BE TAKEN SO THAT THE WIDER BLADE OF THE AC PLUG MUST MATCH THE SLOT IN RECEPTACLE "WALL SOCKET".

MODEL: iP-3-AFP

WHEN ELECTROSTATICDISCHARGE (ESD) OCCURS AT THE FRONT SURFACE (WHETHER METAL OR PLASTIC) OR NEAR ANYPART OR ANY BUTTON OF THIS UNIT, ORAT THE USB PORT AND/ OR SD-CARD SLOTS (IF THEY EXIST ON THIS PRODUCT), THERE MAY BEA POSSIBILITY THAT THE PRODUCT MAY STOP OPERATION AND/ OR SHUT DOWN IMMEDIATELY. THIS IS A NORMAL CONDITIONAND INTENDED TO PROTECT THE UNIT AND INTERNAL COMPONENTS AGAINST DAMAGE. IN SUCH A CASE, PLEASE RESET THE UNIT (BY DISCONNECTING AND RECONNECTING AC-POWER SOURCE) TO REVERT THE UNIT TO NORMAL OPERATION.

ELECTROSTATIC DISCHARGE (ESD) PRECAUTION

BATTERY SHOULD NOT BE EXPOSED TOEXCESSIVE HEAT SUCH AS SUNSHINE, FIRE OR THE LIKE.

THE APPARATUS SHOULD NOT BE EXPOSED TO DRIPPING OR SPLASHING AND NO OBJECTS FILLED WITH LIQUIDS SHOULD BE PLACED ON THE APPARATUS.

THE MARKING AND RATING LABEL IS LOCATED AT BOTTOM ENCLOSURE OFTHE APPARATUS.

THE MAINS PLUG IS USED AS THE DISCONNECT DEVICE AND IT SHALL REMAIN READILY OPERABLE. TO BE COMPLETELY DISCONNECTED THE POWER INPUT, THE MAINS PLUG OF THE APPARATUS SHALL BE DISCONNECTED FROM THE MAINS COMPLETELY. THE MAINS PLUG SHOULD NOT BE OBSTRUCTED OR SHOULD BE EASILYACCESSED DURING INTENDED USE.

UNDER THE INFLUENCE OF ELECTROSTATIC PHENOMENON, THE PRODUCT MAY MALFUNCTIONAND USER TO POWER RESET.

CAUTION

DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE.

MODEL iP-3-AFP ENGLISH MANUAL PLAN SIZE: 102(W) x 136(H) MM MATERIAL: 80G WOODFREE PAPER PRINTING COLOR: BLACK

E-4

E-3

LOCATION OF CONTROLS

1. LED DISPLAY

2. SPEAKER

3. BACK-UP BATTERY

COMPARTMENT (BOTTOM OF UNIT)

4. CAVITY FOR DOCK ADAPTOR

5. ON/ STANDBY KEY

6. PLAY/ PAUSE KEY

7. FUNCTION/ CL. SET

8. SEARCH - / SKIP - KEY

9. SEARCH + / SKIP + KEY

10. AL-MODE/ AL-SET KEY

11. EQ/ SLEEP KEY

12. MEMORY KEY

13. VOL. - KEY

14. VOL. + KEY

15. SNOOZE/ DIMMER KEY

16.

17. DC JACK (DC 7V )

18.

iPod/ iPhone STAND BOARD

FM ANTENNA WIRE

AC OPERATION (EXTERNAL AC-DC POWER ADAPTOR)

- THIS SET IS EQUIPPED WITH A "DC-JACK" CAPABLE OF ACCEPTING AC-ADAPTORS WITH A RATING OF DC = 7V, 2A, AND WITHA PLUG WITH THE FOLLOWING POLARITIES AS SHOWN (CENTER POSITIVE) :

- PLEASE USE ONLY THE SUPPLIEDAC-ADAPTOR TO OPERATE THE UNIT. USE OF OTHER ADAPTORS MAYDAMAGE THE UNIT OR CAUSE IT TO MALFUNCTION.

- PLUG THE TAIL END OFTHE AC-ADAPTOR INTO THE DC-JACK (SOCKET) ON THE REAR OF THE UNIT.

- INSERT THE PLUG OF THE AC-ADAPTOR INTO A WALL OUTLET WITHAC-POWER.

- PRESS THE "ON/ OFF" KEY TO SWITCH ON THE UNIT.

- THIS UNIT IS DESIGNED TO OPERATE WITHOUTEVER BEING TOTALLY POWERED "OFF". IT WILL EITHER BE "ON" OR IN "STANDBY MODE".

- IN STANDBY MODE, THE BLUE BACK-LIGHT OF THE DIGITAL DISPLAY WILLBE DIMMED BUT THE DISPLAY WILLSHOW THE CURRENT TIME (CLOCK FUNCTION).

- ANYTIME DURING STANDBY MODE,YOU CAN SWITCH "ON" THE UNIT BY PRESSING THE "ON/ OFF" KEY.

- SAVE ENERGY BY SWITCHING THE SYSTEM TO "STANDBY" MODE WHEN NOT IN USE.

POWER SUPPLY

---- - -

FRONT VIEW:

BACK VIEW:

TOP VIEW:

- OPEN THE BATTERY DOORAT THE BOTTOM OF UNIT.

- INSERT 2 PCS "AAA-CELL" (UM-4/LR03 TYPE) BATTERIES IN THE BATTERY COMPARTMENT. THESE 2 BATTERIES ARE FOR BACKUP OF THE "CLOCK" DURING BRIEF POWER OUTAGES".

BACK UP BATTERIES

DIMMER FUNCTION

THIS SET HAS A DIMMER FUNCTION TO ADJUST THE BRIGHTNESS LEVEL OF THE DISPLAY BACKLIGHT. SIMPLY ADJUST IT AS DESIRED BY PRESSING THE SNOOZE/ DIMMER KEY REPEATEDLY TO REDUCE EYE STRAIN, AND TO

(HI-DIMMER / LOW-DIMMER / OFF.)

SAVE ENERGY.

THE DISPLAY BACKLIGHT WILLALWAYS RETURN IN HI-DIMMER AFTER RESETTHE UNIT.

678910

E-6

DIGITAL CLOCK FUNCTION

- THE SET HAS A BUILT-IN DIGITAL CLOCK, WHEN THE SET IS IN "STANDBY MODE". (THE DISPLAY WILL CONTINUOUSLY SHOW THE CURRENT TIME).

HOW TO SET CORRECT TIME:

CORRECT TIME IS NOW SET & WILL BE SHOWN IN THE DISPLAY.

SWITCH UNIT TO "STAND-BY" MODE

PRESS & HOLD FUNC./ CL-SET KEY FOR 3 SECONDS DISPLAY SHOWS

HOUR OR HOUR (FLASHING)

12H

24H

PRESS SKIP- / SEARCH- OR SKIP+/SEARCH+ KEY TO SELECT 12-HOUR OR 24-HOUR CLOCK DISPLAY SYSTEM & PRESS

O CONFIRM YOUR SELECTION

FUNC./CL-SET KEY

PRESS REPEATEDLY TO SET THE CORRECT IN THE DISPLAY & PRESS TO CONFIRM

SKIP- / SEARCH- OR SKIP+ /SEARCH+ KEY

FUNC./ CL-SET KEYMINUTE

PRESS REPEATEDLY TO SET THE CORRECT IN THE DISPLAY & PRESS TO CONFIRM

SKIP- / SEARCH- OR SKIP+ /SEARCH+ KEY

FUNC./ CL-SET KEYHOUR

E-5

ALARM FUNCTION

- THIS SET IS EQUIPPED WITH 3 ALARM MODES: BUZZER, RADIO AND iPod. BEFORE SETTING THE ALARM, MAKE SURE TO SET THE CLOCK (SEE "DIGITAL CLOCK FUNCTION" IN THE PERVIOUS SECTION) .

PREPARE FOR THE ALARM SETTINGS

PRESS THE KEY TO SWITCH ON THE SET (DISPLAY BLUE LIGHT WILL BE "ON").

ON/ STANDBY

1. PRESS THE KEY TO PUT THE SET INTO "STANDBY" MODE .

2. PRESS AND HOLD KEY UNTIL

THE DISPLAY WILL NOW SHOW:

3. PRESS SKIP- / SEARCH- AND SKIP+ /SEARCH+ KEY TO REACH THE HOUR

OF THE DESIRED WAKE UP TIME THEN PRESS KEY TO CONFIRM.

THE DISPLAY WILL NOW SHOW:

ON/STANDBY

AL-SET/ AL-MODE

000

HOUR (FLASHING)

MINUTES (FLASHING)

800

4. PRESS SKIP- / SEARCH- AND SKIP+ /SEARCH+ KEY TO REACH THE

MINUTES OF THE DESIRED WAKE UP TIME, THEN PRESS THE KEY TO CONFIRM.

AL-SET/ AL-MODE

"ALARM" TIME SETTING

ONCE THE DESIRED SOURCE HAS BEEN READY, PRESS THE ON/ STANDBY KEY TO PUT THE SET INTO STANDBY MODE AND THEN SHORT PRESS THE AL-SET/ AL-MODE KEY REPEATEDLY TO SELECT THE SOURCE AS DESIRED.

5. "ALARM" MODE SETTING

NOW SELECT THE SOURCE THATYOU WISH THE UNIT TO PLAY AT THE "WAKE UP" TIME AS BELOW: PRESS THE KEY TO SWITCH ON THE SET (DISPLAY BLUE LIGHT WILL BE "ON").

1. CONNECT THE iPod/ iPhoneAS DESCRIBED.

THE

TUNE IN THE DESIRED STATION.

2. ADJUST THE VOLUME LEVELAS DESIRED BY PRESSING OR

KEY.

ON/ STANDBY

VOL. UP + VOL. DN -

FOR iPod/ iPhone

FOR RADIO

SELECT THE SONG OR THE DESIRED PLAYLISTTO PLAY AT

“WAKE UP” TIME. STARTAND PAUSE PLAYBACK OF THE SONG/PLAYLISTAT THE POINT FROM WHICH YOU WANT PLAYBACK TO BEGIN AT THE “WAKE UP” TIME.

*REMARK: = BUZZER ALARM / = RADIO / = iPod/ iPhone

AL FM

iPod

E-7

E-8

SNOOZE FUNCTION

- WHENEVER THEALARM COMES ON, IT CAN BE TEMPORARILY SUSPENDED FOR ASHORT PERIOD OF 9 MINUTES, BY PRESSING THE “SNOOZE/ DIMMER” KEY ONCE.

- THE ALARM WILL THEN AUTOMATICALLY COME ON AGAINAFTER THE 9 MINUTES “SNOOZE” PERIOD HAS ENDED.

- THE PROCEDURE CAN BE REPEATED FOR APPROXIMATELY 90MINUTES FROM ORIGINAL ALARM WAKE-UP TIME.

APPROXIMATELY

7. THE SET WILL NOW AUTOMATICALLY SWITCH "ON" AT THE WAKE-UP TIME AS YOU

HAVE CHOSEN, AS LONGAS THE ALARM FUNCTION IS "ACTIVE".

8. TO TURN OFF THE UNIT AFTER IT HAS AUTOMATICALLY SWITCHED ON,

SIMPLY PRESS THE KEY ONCE. THIS WILL SWITCH OFF THE SET BUT WILL NOT CLEAR THE ALARM SETTINGS, AND THE SET WILL SWITCH ON AGAIN AUTOMATICALLY ON THE NEXT DAYAT EXACTLY THE SAME PRESET TIME.

9. TO DEACTIVATE THE ALARM, PRESS & RELEASE THE KEY.

THE ALARM SYMBOL "AL" DISAPPEARS FROM THE DISPLAY.

10. TO ACTIVATE THE ALARM AGAIN, REPEAT THE PROCEDURE OF "ALARM TIME

SETTING" AS DESCRIBED.

IF THE ALARM IS SET AS WAKE TO iPod, YOU WILL NEED TO CONNECT THE iPod/ iPhone PROPERLY AS DESCRIBED. OTHERWISE, THE BUZZER ALARM WILL SOUND ATTHE SET TIME IF THE iPod HAS NOT BE CONNECTED.

ON/STANDBY

AL-SET/ AL-MODE

IMPORTANT:

MINS80MINS70MINS60MINS50MINS

OFF*

MINS30MINS20MINS10MINS

- THIS SET HAS A SPECIAL SLEEP TIMER FUNCTION WHICH CAN AUTOMATICALLY SWITCH OFF THE UNIT. THIS IS USEFUL FOR SLEEPING TO MUSIC AT NIGHT.

- ATANY TIME WHILE THE UNIT IS OPERATING, PRESS & HOLD THE EQ/SLEEP KEY UNTIL THE "SL" SYMBOL FLASHING, THEN PRESS THE EQ/SLEEP KEY REPEATEDLY TO CHOOSE THE AUTOMATIC POWER OFF TIME.

(*OFF MEANS SLEEP TIMER IS DEACTIVATED)

CURRENT TIME

12:00

ALARM SYMBOL

6. THE ALARM TIME IS NOW FULLY PROGRAMMED AND THE ALARM SYMBOL WILL

APPEAR TO INDICATE THAT THE ALARM FUNCTION IS "ACTIVE".

AUTOMATIC POWER OFF SLEEP FUNCTION

THE ALARM SET-UP MODE, WHERETHE SYMBOL "AL" IS FLASHING, WILL TIME-OUT IF THERE IS NO INPUT FOR 3 SECONDS AND RETURN TO “STANDBY MODE”. SHOULD THE ALARM SET-UPMODE TIME-OUT, THE ALARM SYMBOL"AL" WILL NOT BE DISPLAYED ANDTHE ALARM TIME SETTING INSTRUCTIONS WILL HAVE TO BE REPEATED FOR THE ALARM TO BE SET.

iPod

FLASHING FM SYMBOL

FLASHING iPod SYMBOL

ELECTRONIC VOLUME CONTROL

- THIS UNIT USESAN ELECTRONIC VOLUME CONTROL .

- TO INCREASE OR DECREASE THE LOUDNESS OF UNIT, PRESS THE VOLUME UP (VOL +) OR VOLUME DOWN (VOL -) KEYS RESPECTIVELY.

- RELEASE THE KEY WHEN VOLUME LEVEL ISAT THE DESIRED LOUDNESS.

- SOMETIMES, ESPECIALLYDURING LISTENING TO THE RADIO, YOU MAY NOTICE A "CLICK-CLICK-CLICK" (REPEATING) SOUND WHEN YOU ARE INCREASING OR DECREASING THE VOLUME. THIS IS A NORMAL CONDITION & THE SOUND WILL DISAPPEAR WHEN YOU RELEASE THE VOLUME KEY (WHEN YOU REACH THE DESIRED VOLUME LEVEL).

(PUSH BUTTON TYPE)

- ATANY TIME, THE CURRENTLY DISPLAYED STATION OR FREQUENCY CAN BE STORED INTO ONE OF THE MEMORY POSITIONS.

- PRESS MEMORY KEY UNTIL "C01" FLASHES IN THE DISPLAY.

- PRESS SKIP- /SEARCH- AND SKIP+ /SEARCH+ KEYS TO SELECT DESIRED MEMORY POSITION. (THERE ARE TOTAL 30 MEMORY POSITIONS).

- PRESS MEMORY KEY ONCE TO SAVE THE SELECTED STATION INTO THE SELECTED MEMORY POSITION.

- TO RECALL ANY SAVED MEMORY, SIMPLY PRESS MEMORY KEY ONCE THEN SELECT THE MEMORY POSITIONS BY PRESSING SKIP- /SEARCH- AND SKIP+ /SEARCH+ KEYS THE SAVED RADIO-BAND WILL BE RECALLED.

- TO CLEAR THE MEMORY OF ANY POSITION, SIMPLY SAVE A NEW STATION TO THE SAME MEMORY POSITION.

RADIO MEMORY (STATION PRESET MEMORY STORAGE)

OPERATION OF RADIO

- PRESS AND HOLD (FOR 2 SECONDS) THE SKIP- /SEARCH- AND

SKIP+ /SEARCH+ KEYS TO “SEEK” (AUTOMATICALLY ADJUST) THE RADIO

FREQUENCY “UP” OR “DOWN” TO THE NEXT AVAILABLE RADIO STATION.

- THE RADIO DIGITAL DISPLAY WILL INDICATE THE EXACT FREQUENCY OF THE NEXT STATION THAT IS FOUND.

- WHEN A DESIRED STATION IS REACHED. IT CAN BE SAVED INTO ONE OF THE “MEMORY” POSITIONS. (SEE “RADIO MEMORY” SECTION).

AUTOMATIC FREQUENCY ADJUSTMENT (SEEK MODE)

- PRESS THE "ON/ STANDBY" KEY ONCE TO SWITCH ON THE UNIT.

- PRESS THE KEY REPEATEDLY UNTIL THE DISPLAY SHOWS "FM".

- EXTEND AND ADJUST THE FM-WIRE ANTENNA TO OBTAIN THE BEST RECEPTION.

FUNC./CL-SET

MANUAL FREQUENCY ADJUSTMENT (SCAN MODE)

- PRESS (AND IMMEDIATELY RELEASE) THE SKIP- /SEARCH- AND

SKIP+ /SEARCH+ KEYS TO “SCAN” (MANUALLY ADJUST) THE RADIO

FREQUENCY “UP” OR “DOWN” BY 1-STEP AT A TIME.

- THE RADIO DIGITAL DISPLAY WILL INDICATE THE EXACT FREQUENCY AT EACH STEP’S POSITION.

- WHEN A DESIRED FREQUENCY OR STATION IS REACHED. IT CAN BE SAVED INTO ONE OF THE “MEMORY” POSITIONS. (SEE “RADIO MEMORY” SECTION).

E-9 E-10

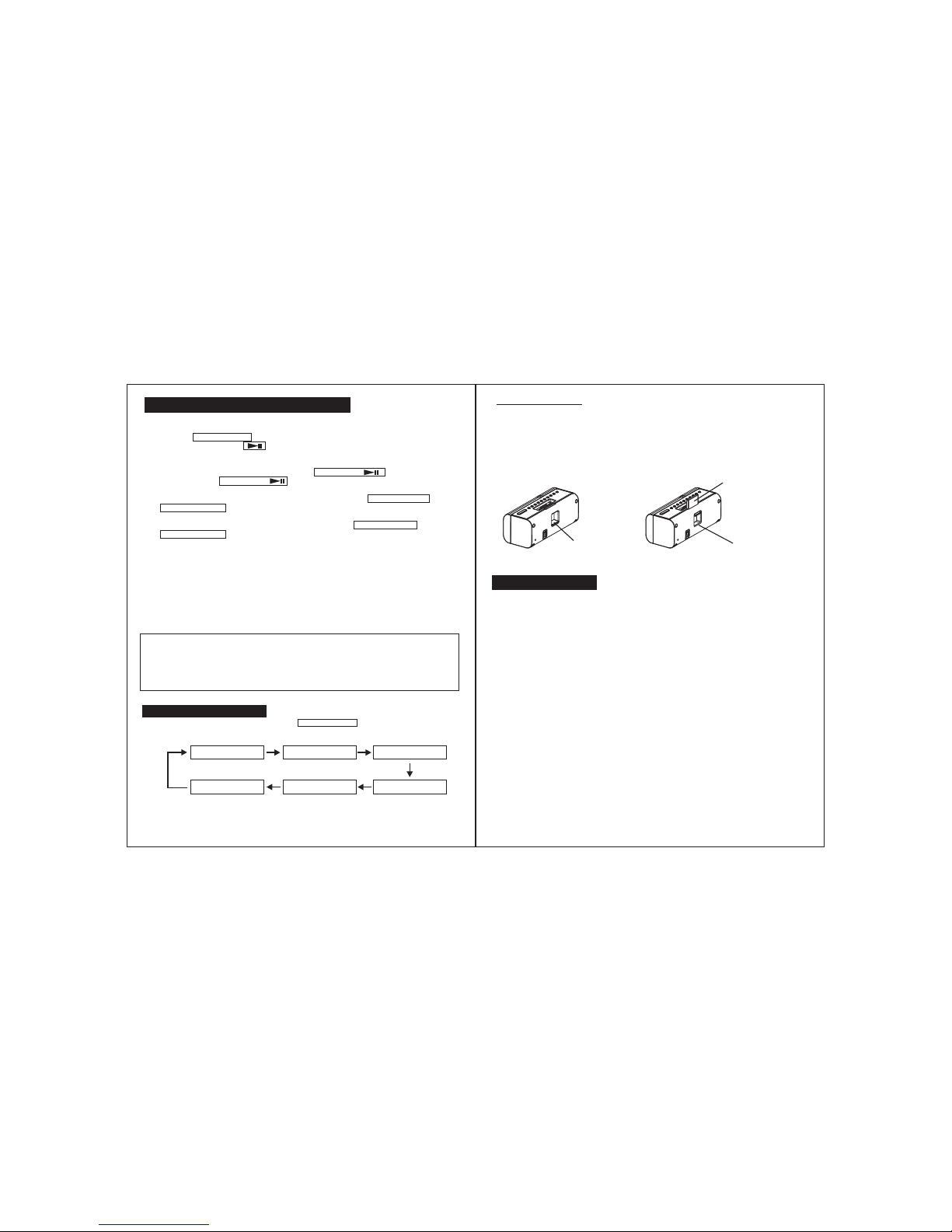

MUSIC EQUALIZER

- AT ANYTIME DURING PLAYBACK, PRESS KEY REPEATEDLY TO CHOOSE THE DESIRED SOUND EFFECTACCORDING TO THE MUSIC YOUARE LISTENING TO :

EQ/SLEEP

E-0 = EQ OFF

E-1 = CLASSIC

OPERATION WITH THE iPod/ iPhone

- TURN ON BOTH THE UNIT ANDTHE iPod/ iPhone.

- CONNECT THE iPod TO THE UNIT AS DESCRIBED.

- PRESS THE FUNC./ CL-SET KEY REPEATEDLY UNTIL THE DISPLAY SHOWS “iPod”.

- PRESS THE PLAY/ PAUSE KEY ON THE UNIT,THEN THE FIRST SONG WILL START PLAYING.

- THE iPod DISPLAY WILL INDICATETHE INFORMATION OF THE CURRENT SONG.

- YOU CAN OPERATE THE iPod USING EITHER THE UNIT'S BUTTONS, OR DIRECTLY WITH THE iPod ITSELF.

- WHEN THE iPod HAS BEEN CONNECTED WITHTHE UNIT, IT WILL START CHARGING THE BATTERY OF THE iPod .

- NEVER REMOVE (OR UNPLUG) THE iPod FROM THE SET DURING PLAYBACK, ALWAYS PAUSE PLAYBACK FIRST AND THEN PRESS THE FUNC/ CL-SET KEY TO SWITCH TO ANOTHER SOURCE (EG. “RADIO”) BEFORE REMOVING OR UNPLUGGING THE iPod , TO PREVENT DAMAGETO YOUR SONG FILES OR MEMORY DEVICES.

/ iPhone

- AT ANYTIME DURING PLAYBACK, PRESS THE PLAY/PAUSE KEY TO PAUSE PLAYBACK. PRESS PLAY/PAUSE KEY TO RESUME PLAYBACK OF THE SAME SONG & POSITION.

- AT ANYTIME DURING PLAYBACK, PRESS AND RELEASE THE SKIP- /SEARCHOR SKIP+ /SEARCH+ KEYS TO SKIP FORWARDOR BACKWARDS BY ONE SONG, AS DESIRED.

- AT ANYTIME DURING PLAYBACK, PRESS AND HOLD THE SKIP- /SEARCHOR SKIP+ /SEARCH+ KEYS TO FAST-FORWARD (CUE) OR FAST-REVERSE (REVIEW) THE SPECIFIC SONG, WHICH IS CURRENTLY PLAYING.

/ iPhone / iPhone

/ iPhone

E-2 = ROCK

E-3 = POPE-4 = JAZZ

"Made for iPod," "Made for iPhone," mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use

of this accessory with iPod, iPhone may affect wireless performance.

E-5 = BASS

SPECIFICATIONS

POWER SUPPLY : ............... DC 7V, 2A THOUGH BUILT-IN DC JACK

EXTERNAL AC-DC POWER ADAPTOR 100V-240V ~ 50/60Hz BACK-UP BATTERY:

POWER CONSUMPTION : .... 15 W

SPEAKER : ........................... SPEAKER 2"

FREQUENCY : ..................... FM 87.5 - 108 MHz

UM-4/"AAA"/LR03,1.5Vx2 PCS

(BATTERIES NOT INCLUDED)

iPod STAND BOARD

THIS UNIT IS DESIGNED TO ALLOW YOU TO CONNECT AN WITHOUT THE NEED FOR DOCK CONNECTORS. THE DESIGN OF THE UNIT HAS BEEN STRUCTURED TO PROVIDE SUPPORT TO THE CONNECTOR UNDER NORMALUSAGE WITHOUT EXCESSIVE PRESSURE ON THE WHEN CONTROLLING PLAYBACK USING THE SCREEN.

- iPod STAND BOARD CAN BE ADJUSTED BYTHE SLIDER WHICH LOCATED AT THE REAROF UNIT.

- SIMPLY SLIDE UPAND DOWN AS DESIRED.

iPod/ iPhone

1. 2.

iPod STAND BOARD SLIDER

COVER

E-2 E-3

E-4 E-5 E-6

E-7

E-8 E-9

E-10

BLANK BLANK

FRONT VIEW

BACK VIEW

MODEL iP-3-AFP ENGLISH MANUAL PLAN MATERIAL: 80G WOODFREE PAPER PRINTING COLOR: BLACK
