Finlux 50F8090S-T User Manual

Download

Contents

Environmental Information ..................................... 2

Accessories included .............................................. 3

TV - Features ......................................................... 3

Safety Precautions and Important Information ....... 3

Viewing the TV ...................................................... 4

TV Control Buttons & Operation ............................. 4

Operation with the Buttons on the TV ..................... 4

Operation with the Remote Control ........................ 4

Remote Control ..................................................... 5

Inserting the Batteries into the Remote Control...... 7

Connect Power & Antenna ..................................... 7

Switching On/Off ..................................................... 7

First Time Installation.............................................. 7

Media Playback via USB Input ............................... 8

Quick Menu ............................................................ 9

Changing Image Size: Picture Formats .................. 9

Using the Channel List ........................................... 9

Menu Features and Functions ............... 10-11-12-13

Menu Features and Functions ...............................11

Menu Features and Functions .............................. 12

Menu Features and Functions .............................. 13

Electronic Programme Guide (EPG) .................... 14

Recording a Programme ...................................... 14

Timeshift Recording ............................................. 15

Instant Recording ................................................. 15

Watching Recorded Programmes ....................... 15

Recording Conguration ....................................... 15

Product Safety ............................................... 15

Wired Connectivity................................................ 16

Wireless Connectivity .......................................... 17

Other Information.................................................. 18

Connectivity Troubleshooting ............................... 18

DLNA ................................................................... 19

iPlayer Application ................................................ 20

Digital Teletext ...................................................... 20

Getting Started with Skype ................................... 22

Software Upgrade................................................. 27

Troubleshooting & Tips ......................................... 27

Licence Notications............................................. 27

Appendix A: Nero MediaHome Installation ........... 28

Appendix B: PC Input Typical Display Modes ...... 29

Appendix C: AV and HDMI Signal Compatibility

(Input Signal Types) .............................................. 29

Appendix D: Supported File Formats for USB Media

Browser ................................................................ 30

Appendix E: Supported DVI Resolutions .............. 31

SKY Remote Control Code ................................... 31

Specications ....................................................... 31

Important Instruction ............................................. 32

English - 1 -

Power cord and plug

• The power cord plug should be easily accessible. If there is lightning or storms, or if the TV is not going to be used for a while (e.g. if going away on holiday), disconnect the TV set from the mains.

•Do not place the TV, furniture, etc. on the power cord or pinch the cord.

• Handle the power cord by the plug, do not unplug the TV by pulling the power cord.

• Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock.

• Never make a knot in the power cord or tie it with other cords.

• Power cords should be placed in such a way that they are not likely to be stepped on or provide a trip hazard.

• A damaged power cord/plug can cause re or give

you an electric shock. When damaged it must be

replaced, this should only be done by qualied

personnel.

Moisture and Water

•Do not use this TV in a humid or damp place (avoid using in the bathroom or near the kitchen sink)

•Do not expose this TV to rain or water, as this may be dangerous.

• If any solid object or liquid falls into the cabinet, unplug the TV and have it checked by qualied

personnel before operating it any further.

Ventilation

• The slots and openings on the TV set are intended for ventilation and to ensure reliable operation.

• To prevent overheating, these openings must not be blocked or covered in any way.

Heat sources and Flames

• Do not expose the TV to direct sunlight or other heat sources.

• The TV should not be placed near open ames or

sources of intense heat such as an electric heater.

• Ensure that no open ame sources, such as lit

candles, are placed on top of the TV.

Headphone Volume

• Excessive sound pressure from earphones and headphones can cause hearing loss, please take care.

Wall Mounting (optional)

• To prevent injury, this TV must be securely attached to the wall in accordance with the installation instructions.

Screen

• Occasionally, a few non-active pixels may appear

on the screen as a xed blue, green or red point.

Please note that this does not affect the performance of your product.

• Take care not to scratch the screen with ngernails

or other hard objects.

Cleaning

• Before cleaning, unplug the TV from the wall socket.

•Do not use liquid or aerosol cleaners. Only use a

soft, dry cloth.

Environmental Information

This television is designed to consume less energy to help save the environment. You can not only help to save the environment but you can also save money by reducing your electricity bills thanks to the energy efficiency features of this TV. To reduce energy consumption, you should take the following steps:

You can use the Power Save Mode setting, located in the Picture menu. If you set the Power Save Mode as Eco, the TV will switch to energy-saving mode and the luminance level of TV set will be decreased to the optimum level. Note that some picture settings will be unavailable to be changed when the TV is in Power Save Mode.

If Picture Off is selected, “Screen will be off in 15 seconds.” message will be displayed on the screen. Select PROCEED and press OK to continue. The screen will be off in 15 seconds.

When the TV is not in use, please switch off or disconnect the TV from the mains plug. This will also reduce energy consumption.

It is highly recommended that you activate the Power Save Mode setting to reduce your annual power consumption.

1) If the TV does not receive any input signal (e.g. from an aerial or HDMI source) for 5 minutes, the TV will go into standby. When you next switch-on, the following message will be displayed:

“Standby Cause No Signal”

Press OK to continue.

2) If the TV has been left on and not been operated for 4 hours, the TV will go into standby. When you next switch-on, the following message will be displayed.

“Standby Cause No Operation”

Press OK to continue.

English - 2 -

Accessories included

Remote Control

Batteries: 2 x AAA

Instruction Book

Side AV Connection Cable

WiFi Dongle

USB Cable

NeroHome Media CD

TV - Features

• Remote controlled colour LED TV

• Fully integrated digital tuner

• DVB-T2 Compliant

• HDMI Inputs are for connecting a device that has

a HDMI socket

• USB input

• 1000 programmes

• OSD menu system

• Scart socket for external devices (such as DVD

Players, PVR, video games, etc.)

• Stereo sound system

• Teletext

• Headphone connection

• Automatic programming system

• Manual tuning

• Automatic power down after up to six hours

• Sleep timer

• Child lock

• Automatic sound mute when no transmission

• NTSC playback

• AVL (Automatic Volume Limiting)

• PLL (Frequency Search)

• PC input

• Plug&Play for Windows 98, ME, 2000, XP, Vista,

Windows 7

• Game Mode (optional)

• Ethernet (LAN) for Internet connectivity

• 802.11n WiFi Support via USB dongle

• DLNA

Safety Precautions and Important Information

Please read these instructions fully before installing or operating.

Preparation

Place the device on a solid even surface. For ventilation purposes, leave a free space of at least 10 cm all around the set. Do not place any objects on top of the set. Use this device in moderate climates. Operation temperature and operation humidity: 5ºC up to 45ºC, 85% humidity max. Note: Don’t block ventilation holes.

Intended Use

This device is used to receive and display TV programmmes. The different connection options expand the reception and display sources possible (various external devices). This device is only suitable for operation in dry interiors. This appliance is intended solely for private domestic use and may not be used for industrial and commercial purposes. We exclude liability in principle, if the device is not used as intended, or unauthorized

modications have been made. To operate your TV

in extreme ambient conditions may cause damage to the device.

WARNING: Never let people (including

children) with reduced physical, sensory or mental capabilities or lack of experience and / or knowledge use electrical devices unsupervised.

Children may not recognize the dangers of incorrect use. The swallowing of batteries can be fatal. Keep batteries out of reach of small children. If a battery is swallowed, immediately seek medical attention. Keep the packaging

lmsoutofreachofchildrentopreventtherisk

of suffocation.

Power source

• The TV should be operated only from a 220-240 V AC, 50 Hz outlet.

Positioning the TV

• For ventilation, please leave a clear space of at least 10cm all around the TV.

•Do not block the ventilation openings.

•Do not place the TV on sloping or unstable surfaces,

the TV may tip over.

• To prevent damage to the TV, do not place any objects on top of the TV.

English - 3 -

Viewing the TV

TV Control Buttons & Operation

Operation with the Buttons on the TV

Volume Setting

You can move the control switch upward or downward for changing the volume. To increase volume, please move the switch upward. Move the switch downward to decrease the volume. A volume level scale (slider) will be displayed on the screen.

Programme Selection

First press the control switch once to change channel. You can move the switch upward to select the next programme or move it downward to select the previous programme.

Viewing Main Menu

Menu screen cannot be displayed by using the control switch.

AV Mode

Press the control switch consecutively until the source OSD is displayed on the screen.

Operation with the Remote Control

Press the MENU button on your remote control to display the main menu screen. Use the “ ” or “ ” buttons to select a menu tab and press the OK button to select option. Use the “ ” / “ ” or “ ” / “ ” buttons to select or set an item. Press BACK or EXIT or MENU button to quit a menu screen.

Input Selection

Once you have connected external systems to your TV, you can switch to different input sources. Press the

“ - (SOURCE)” button on your remote control consecutively to select the different inputs.

Changing Channels and Volume

You can change the channel and adjust the volume using the V+/- and P+/- buttons on the remote.

1. Up direction

2. Down direction

3. Programme/Volume / AV / Standby-On selection

switch

English - 4 -

Remote Control

1. Standby / On

2. Channel list

3. Volume up-down

4. Menu on/off

5. OK / Channel list / Conrm

6. Return / Back

7. Internet Portal

8. My button 1 / Youtube (*)

9. My button 2 (**)

10. Coloured buttons (Red, Green, Yellow, Blue)

11. Mono-Stereo Dual I-II / Current language

12. Fast rewind (in media browser mode)

13. Pause (in media browser mode) / Timeshift

recording

14. Programme recording

15. Play (in media browser mode)

16. Stop (in media browser mode)

17. Fast forward (in media browser mode)

18. Subtitle on-off / Subtitle (in media browser

mode)

19. Image size

20. Teletext - Mix

21. Media Browser

22. Electronic programme guide

23. Exit

24. Navigation buttons

25. Quick menu

26. Info / Reveal (in TXT mode)

27. Programme up/down

28. Mute

29. Previous programme / Now (in EPG mode)

30. Numeric buttons

31. AV / Source

NOTE: The Remote Control range is approximately 7m

/ 23ft.

Using My button 1 (*)

This button’s main function is to run Youtube link. However, if you want to change this function, you can press MY

BUTTON 1 for ve seconds when on a desired source,

channel or link, until the “MY BUTTON IS SET” message

is displayed on the screen. This conrms that the selected

MY BUTTON is now associated with the selected function.

Note that if you perform rst time installation, MY BUTTON

1 will return to its default function.

English - 5 -

Using My Button 2 (**)

This button’s main function is to switch to DVB-T, broadcasts. However, if you press MY BUTTON 2 for

ve seconds, you can set a function to it as described

in My Button 1.

Note that if you perform a first time installation, MY BUTTON 2 will return to its default function.

Connections

AV Connection

Cable (supplied)

Scart

Connection

(back)

VGA

Connection

(back)

PC/YPbPr Audio

Connection

(back)

HDMI

Connection

(back & side)

S/PDIF Optical Out

(back)

S/PDIF

Side AV

Connection

(side)

Headphone Connection

(side)

USB

Connection

(side)

Connector Type Cables Device

Y BPRP

AUDIO L&R

SIDE AV

HEADPHONE

YPbPr Video

Connection

(back)

Connection

(side)

CAM

module

Subwoofer

Connection

(back)

NOTE: When connecting a device via the YPbPr or Side AV input, you must use the supplied connection cables to enable connection. See the illustrations above. | To enable PC audio, you will need to use the PC/YPBPR CONNECTION cable’s WHITE & RED inputs. | If an external device is connected via the SCART socket, the TV will automatically switch to AV mode.| When receiving DTV channels (Mpeg4 H.264) or while in Media Browser mode, output will not be available via the scart socket. | When using the wall mounting kit (optional), we recommend that you plug all your cables into the back of the TV before mounting on the wall. | Insert or remove the CI module only when the TV is SWITCHED OFF. You should refer to the module instruction manual for details of the settings.

English - 6 -

Inserting the Batteries into the Remote Control

HDMI 1

1. Lift the cover on the back of the remote upward gently.

2. Install two AAA batteries. Make sure to match the + and - ends of the batteries in the battery compartment (observe the correct polarity).

3. Replace the cover.

Connect Power & Antenna

IMPORTANT: The TV set is designed to operate on

220-240V AC, 50 Hz socket. After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains. Plug the aerial cable into the ANT socket on your TV.

Switching On/Off

To Switch the TV On

Connect the power cord to the 220-240V AC, 50 Hz. Then the standby LED lights up.

To switch on the TV from standby mode either:

Press the “ the remote control.

Press the control switch located on the left side of the TV. The TV will then switch on.

To Switch the TV Off

Press the “ ” button on the remote control or press and hold the control switch on the TV until the TV shuts down, so the TV will switch to standby mode.

To power down the TV completely, unplug the power cord from the mains socket.

Note: When the TV is switched to standby mode, the standby LED can blink to indicate that features such as Standby Search, Over Air Download or Timer is active. The LED can also blink when you switch on the TV from standby mode.

” button, P+ / P- or a numeric button on

First Time Installation

When turned on for the rst time, the “language

selection” menu appears. The message “Welcome please select your language!” is displayed and all

language options are listed alphabetically.

Press the “ ” or “ ” button to highlight the required language, press OK button to select. “First Time Installation” appears. Use “ required country, and press “ ” button to select Search Type. Use “

” or “ ” to set the desired search type. Available search types are digital and analog, digital only and analog only. When set, press “ Language. Use “ ” or “ ” button to set the “Teletext Language” and select “Scan Encrypted” using “ ” or “

” button. You can set Scan Encrypted as Yes if you

want to scan coded stations.

Default PIN code can change depending on the selected country. If you are asked to enter a PIN code for viewing a menu option, use one of the following codes: 4725, 0000 or 1234.

Press OK button on the remote control to continue and the following message will be displayed on the screen.

” or “ ” button to set the

” to select Teletext

English - 7 -

You can activate Store mode option by using “ ” or “ ” button. If Store Mode is selected, Store mode option will be available in other settings menu and your TV’s features will be illustrated on the top of the

screen. A conrmation screen will be displayed after

selecting the Store Mode. Select YES to proceed.

If Home Mode is selected, Store mode will not be available after the First Time Installation. Press OK button on the remote control to continue and the following message will be displayed on the screen.

You must select YES to search and store broadcasts. The television will search for digital terrestrial TV broadcasts.

the TV. This feature allows you to play les stored in

a USB drive. 2.5” and 3.5” inch (hdd with external power supply) external hard disk drives are supported.

IMPORTANT! You should back up your les before

making any connections to the TV set in order to avoid any possible data loss. The Manufacturer will not be

responsible for any le damage or data loss. It is

possible that certain types of USB devices (e.g. MP3 Players) or USB hard disk drives/memory sticks may not be compatible with this TV. The TV supports FAT32 and NTFS disk formatting but recording will not be available with NTFS formatted disks. Note: While formatting a USB hard disk that has 1TB (Tera Byte)

or more le capacity, you can experience problems

with the formatting process.

Quickly plugging and unplugging USB devices is a very hazardous operation. This may cause physical damage to the USB player and the USB device itself.

Do not pull out the USB module while playing a le.

Media Browser Menu

You can play photo, music, and movie les stored

on a USB disk by connecting it to your TV. Connect a USB disk to one of the USB inputs located on the side of the TV.

NOTE: You can press MENU button to cancel.

After all the available stations are stored, the Channel

List will be displayed on the screen. If you are satised

with the order of channels press the OK button to quit the channel list and watch TV.

Media Playback via USB Input

You can connect a USB hard disk drive or USB memory stick to your TV by using the USB inputs of

English - 8 -

The USB selection OSD will be displayed on the screen. Press the MENU button and select the Media Browser tab by using the Left/Right and OK buttons. The Main media browser screen will be displayed. You can display the approprite content by selecting the Video, Music or Picture tab. Follow the button indications under each on screen menu for media playback features.

Pressing the MENU button while in the Media Browser mode will access the Picture, Sound and Settings menu options. Pressing the MENU button again will exit from this screen.

You can set your Media Browser preferences by using the Settings menu.

Note: If two USB devices are connected to the TV at

the same time, the rst USB device connected to the

TV will be named USB drive 1. Select the drive by using “

” or “ ” buttons and press OK.

Quick Menu

The Quick Settings menu allows you to access some options quickly. This menu includes Power Save Mode,

Picture Mode, Equalizer Settings, Favourites and Sleep Timer options.

Press Q.MENU button on the remote control to view the quick menu. See the following chapters for details of the listed features.

Changing Image Size: Picture Formats

Programmes can be watched in different picture formats, depending on the transmission received. You can change the aspect ratio (image size) of the TV for viewing the picture in different zoom modes. Press the “ SCREEN” button repeatedly to change the image size.

You can shift the screen up or down by using “ ” or “ ” buttons while in 14:9 Zoom, Cinema or Subtitle.

Using the Channel List

The TV sorts all stored stations in the Channel List. You can edit this channel list, set favourites or set active stations to be listed by using the Channel List options. Press the MENU button to view the main menu. Select the Channel List item by using Left or

Right button. Press OK to view menu contents. Select Edit Channel List to manage all stored channels. Use Up or Down and OK buttons to select Edit Channel List. Press the Up or Down button to select the channel that will be processed. Press the Left or Right button to select a function on the Channel List

menu. Use P+/P- buttons to move page up or down. Press MENU button to exit.

Sorting Channel List

You can select which broadcasts will be listed in the

channel list. To display specic types of broadcast,

you should use the Active channel list setting. Select the Active channel list from the Channel list menu by using “ continue. You can select a network type option from the list by using “

” or “ ” button. Press the OK button to

” or “ ” and OK buttons.

English - 9 -

Menu Features and Functions

Brightness

Colour

Contrast

Colour Shift

Reset

PC mode)

While in VGA (PC) mode, some items in Picture menu will be unavailable. Instead, VGA mode settings

Picture Menu Contents

Mode

Contrast Sets the lightness and darkness values of the screen.

Sharpness Sets the sharpness value for the objects displayed on the screen.

Power Save Mode

Backlight (optional)

Noise Reduction

Dynamic

Colour Temp Sets the desired colour tone.

Picture Zoom

HDMI True Black (optional)

Film Mode (optional)

Skin Tone Adjust the desired skin tone.

RGB Gain

Autoposition (in

For your viewing requirements, you can set the related mode option. Picture mode can be set to one of these options: Cinema,Game,Sports, Dynamic and Natural.

Sets the brightness value for the screen.

Sets the colour value, adjusting the colors.

To set Power Save Mode as Eco, Picture Off and Disabled. See the section, “Environmental Information” in this manual for further information on Power Save Mode.

This setting controls the backlight level and it can be set to Auto, Maximum, Minimum and Eco Mode. Backlight function will be inactive if Power Save Mode is set to On. Backlight cannot be activated in VGA, Media Browser mode or while the picture mode is set to Game.

If the broadcast signal is weak and the picture is noisy, use Noise Reduction setting to reduce the noise amount. Noise Reduction can be set to one of these options: Low,

Medium, High or Off.

Advanced Setting

You can change contrast rate by using dynamic contrast function. Dynamic contrast can be set to one of these options: Low, Medium, High or Off.

Sets the picture size to Auto,16:9, Subtitle,14:9, 14:9 Zoom, 4:3 or Cinema.

Auto (Only available in Scart mode with SCART PIN8 high voltage/low voltage switching).

While watching from HDMI source, this feature will be visible in the Picture Settings menu. You can use this feature to enhance blackness in the picture.

Films are recorded at a different number of frames per second to normal television

programmes. Turn this feature on when you are watching lms to see the fast motion

scenes clearly.

Adjust the desired colour tone.

Press OK button to edit RGB gain. You can congure the colour temperature values using the RGB Gain feature.

Resets the picture settings to factory default settings.

Automatically optimizes the display. Press OK to optimize.

H Position (in PC mode)

V Position (in PC mode)

Dot Clock (in PC mode)

Phase (in PC mode)

will be added to the Picture Settings while in PC mode.

This item shifts the image horizontally to right hand side or left hand side of the screen.

This item shifts the image vertically towards the top or bottom of the screen.

Dot Clock adjustments correct the interference that appear as vertical banding in dot intensive presentations like spreadsheets or paragraphs or text in smaller fonts.

Depending on the resolution and scan frequency that you input to the TV set, you may see a hazy or noisy picture on the screen. In such a case you can use this item to get a clear picture by trial and error method.

English - 10 -

Menu Features and Functions

Headphone

(Optional)

Install and Retune Menu Contents

Automatic Channel

Network Channel (Optional)

Sound Menu Contents

Volume Adjusts volume level.

In equalizer menu, the preset can be changed to Music, Movie, Speech, Flat,

Equalizer:

Balance This setting is used for emphasizing left or right speaker balance.

Sound Mode

AVL

Headphone/Lineout

Dynamic Bass

Classic and User. Press the MENU button to return to the previous menu. Equalizer menu settings can be changed manually only when the Equalizer Mode is in User.

Sets headphone volume.

You can select Mono, Stereo, Dual I or Dual II mode, only if the selected channel supports that mode.

Automatic Volume Limiting (AVL) function sets the sound to obtain xed output

level between programmes (For instance, volume level of advertisements tend to be louder than programmes).

When you connect an external amplier to your TV using the headphone jack,

you can select this option as Lineout. If you have connected headphones to the TV, set this option as Headphone.

Enables or disables the Dynamic Bass.

Surround Sound (Optional)

Digital Out Sets digital out audio type.

Scan (Retune)

Manual Channel Scan This feature can be used for direct broadcast entry.

Scan (Optional)

Analogue Fine Tune

First Time Installation

Clear Service List

Surround sound mode can be changed as On or Off.

Displays automatic tuning options.

Digital Aerial: Searches and stores aerial DVB stations.

Digital Cable: Searches and stores cable DVB stations.

Analogue: Searches and stores analogue stations.

Digital Aerial & Analogue: Searches and stores aerial DVB and analogue

stations.

Digital Cable & Analogue: Searches and stores cable DVB and analogue stations.

Searches for the linked channels in the broadcast system.

You can use this setting for ne tuning analogue channels. This feature is not

available if no analogue channels are stored.

Deletes all stored channels and settings, resets TV to factory settings and starts

rst time installation. You can follow the instructions in the Initial Installation section

for more information on this process.

(*) This setting is visible only when the Country option is set to Denmark, Sweden, Norway or Finland. Use this setting to clear channels stored.

English - 11 -

Menu Features and Functions

Timers

Network Settings

Settings Menu Contents

Conditional Access Controls conditional access modules when available.

Language Congures language settings.

Congures parental settings.

Parental

Recording

Conguration

Date/Time

Sources Enables or disables selected source options.

Menu Timeout Changes timeout duration for menu screens.

Scan Encrypted

Blue Background Activates or deactivates the blue background system when the signal is weak or absent.

Software Upgrade

Application Version Displays application version.

Hard of Hearing Enables any special feature sent from the broadcaster.

Audio Description

Auto TV Off

Default PIN code can change depending on the selected country. If you are asked to enter a PIN code for viewing a menu option, use one of the following codes: 4725, 0000 or 1234.

Sets timers for selected programmes. (USB Record)

Displays the recording conguration menu.

Sets date and time.

Note:

* The TV takes the time info via the broadcast. Correct time will be available on Date/Time Settings, if the time info is provided in the broadcast.

If the TV is in no channel mode, Date/Time settings can be changed. However, if there is a channel preset, only “Time Settings Mode” can be changed and if this is set to Manual, Time Zone will be enabled.

* If the TV is switched to standby mode and switched on later and there is no broadcast available, time information will not be updated. If there is a present broadcast; however, time information will be taken via the broadcast. In other

words, time information will be available according to these priorities: The TV rst

looks for the time info in the broadcast, then to the user preference, and lastly to the teletext time information.

Displays network settings.

Other Settings: Displays other setting options of the TV set:

When this setting is on, the search process will locate encrypted channels as well. If it is set as Off, encrypted channels will not be located in automatic or manual searches.

To ensure that your TV always has the most up to date rmware. Please ensure

that the TV is set to standby mode with an aerial connected to pick up the over air download.

Audio description refers to an additional narration track for blind and visually impaired viewers of visual media, including television and movies. You can use this feature, only if the broadcaster supports the additional narration track.

You can set the timeout value of the auto off feature. After the timeout value is reached and the TV has not been operated for a selected time, the TV will go into standby mode.

English - 12 -

Standby Search (optional)

Store Mode

DLNA Renderer

Power Up Mode

Virtual Remote (Optional)

Menu Features and Functions

If you change Standby Search to Off, this function will be unavailable. To use Standby search please make sure that you select Standby Search as On. If the Standby Search is set to On, when the TV is in standby mode, available broadcasts will be searched. If the TV locates any new or missing broadcasts, a menu screen will be displayed, asking you whether or not to execute these changes. The Channel list will be updated and changed after this process. Please activate the Standby Search setting in order to enable your TV to automatically update the broadcast frequency

of the broadcaster, broadcast denition and other similar changes.

If you are displaying the TV in a store, you can activate this mode. Whilst Store Mode is enabled, some items in the TV menu may not be available.

DLNA feature allows you to share les stored on your smartphone. If you have a

DLNA compatible smartphone and the appropriate software is installed, you can play photos on your TV. See instructions of your sharing software for more information.

Standby: The TV powers up into Standby mode when the TV is plugged into the mains.

Last State: The TV powers up into On mode when the TV is plugged into the mains and the last channel/source is selected.

Enable or disable the virtual remote feature.

English - 13 -

Electronic Programme Guide (EPG)

Some, but not all channels send information about the current and next programmes. Press the “ - EPG” button to view the EPG menu.

Up/Down/Left/Right: Navigate EPG.

OK: Displays programme options.

INF(İ): Displays, in detail, information on the programme selected.

GREEN: Switches to List Schedule EPG.

YELLOW: Switches to Timeline Schedule EPG.

BLUE: displays ltering options.

(RECORD): the TV will start to record the selected

progamme. You can press again to stop the recording.

IMPORTANT: To record a programme, you should first connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable the recording feature. Otherwise, the recording feature will not be available.

Note: Switching to a different broadcast or source is not available during a recording.

Programme Options

In the EPG menu, press the OK button to enter the

Event Options menu.

Select Channel

In the EPG menu, using this option, you can switch to the selected channel.

Record / Delete Record Timer

After you have selected a programme in the EPG menu, press the OK button and the Options screen will be displayed. Select the “Record” option and press the OK button. After this operation, a recording will be sheduled for the selected programme.

To cancel an already set recording, highlight that programme and press the OK button and select the option “Delete Rec. Timer”. The recording will be cancelled.

Set Timer / Delete Timer

After you have selected a programme in the EPG menu, press the OK button and the Options screen will be displayed. Select the “Set Timer on Event” option and press the OK button. You can set a timer for future programmes. To cancel an already set timer, highlight that programme and press the OK button. Then select “Delete Timer” option. The timer will be cancelled.

Note: It is not possible to record two channels at the same time.

Recording a Programme

IMPORTANT: When using a new USB hard disk drive, it is

recommended that you rst format the disk using your TV’s

“Format Disk” option.

To record a programme, you should rst connect a

USB disk to your TV while the TV is switched off. You should then switch on the TV to enable the recording feature.

To use the recording function, you need to connect a USB disk or an external hard disk drive to the TV and the connected USB disk should have at least 1GB capacity and should have 2.0 speed compatibility. If the connected USB device does not support 2.0 speed, an error message will be displayed.

Note: Recorded programmes are saved into the connected USB disk. If desired, you can store/copy recordings onto a

computer; however, these les will not be available to be

played on a computer. You can play the recordings only via your TV.

Note: Lip Sync delay may occur during the timeshifting.

Radio recording is not supported. The TV can record programmes up to ten hours.

Recorded programmes are split into 4GB partitions.

If the writing speed of the connected USB disk is not

sufcient, the recording may fail and the timeshifting

feature may not be available.

Recordings of HD programmes can occupy more space on the USB disk compared to SD programmes. For this reason it is recommended to use a USB hard disk drive to record HD programmes.

Do not unplug the USB/HDD during a recording. This may harm the connected USB/HDD.

Multipartiton support is available. A maximum of two different partitions are supported. If the disk has more than two partitions, a crash may occur. The

rst partition of the USB disk is used for PVR ready

features. It also must be formatted as the primary partition to be used for the PVR ready features.

Some stream packets may not be recorded because of signal problems, so sometimes the video may freeze during playback.

English - 14 -

Record, Play, Pause, Display (for PlayListDialog) keys can not be used when teletext is ON. If a recording starts from the timer when teletext is ON, teletext is automatically turned off. Also teletext usage is disabled when there is an ongoing recording or playback.

Timeshift Recording

Press (PAUSE) button while watching a broadcast to activate timeshifting mode. In timeshifting mode, the programme is paused and simultaneously recorded to the connected USB disk. Press (PLAY) button again to resume the paused programme from where you stopped. You will see the timeshift gap between the real and the timeshifted programme in the info bar.

Instant Recording

Press (RECORD) button to start recording an event instantly while watching a programme. You can press (RECORD) button on the remote control again to record the next event on the EPG. In this case, the OSD will display the programmed events for recording. Press (STOP) button to cancel instant recording.

Note: You can not switch broadcasts or view the Media Browser during the recording mode.

Watching Recorded Programmes

In the main menu, use “ ” or “ ” buttons to select the Media Browser. Highlight the Recordings Library using “ enter the Recordings Library. Select a recorded item from the list (if previously recorded) by using “ “ ” buttons. Press the OK button to view the Play Options. Select an option by using “ ” or “ ” or OK buttons.

” or “ ” button and press the OK button to

” or

Press the (STOP) button to stop a playback and return to the Recordings Library.

Slow Forward

If you press recorded programmes, the slow forward feature will be available. You can use Pressing forwarding speed.

(PAUSE) button while watching

button to slow forward.

button consecutively will change slow

Recordings Library

To view the list of recordings, select “Recordings Library” and press the OK button. The Recordings

Library will then be displayed with available recordings. All the recordings are kept in a list in the recordings library.

RED button (Delete) :Erases the selected recording.

GREEN button (Edit): Makes changes on the

selected recording.

BLUE button (Sort): Changes the order of the recordings. You can select from a wide range of sorting options.

OK button: Activates the play options menu:

: Resume Playback.

INFO (Details): Displays the programme information details.

RecordingConguration

Select the Recording Configuration item in the

Settings menu to congure the recording settings.

Format Disk: You can use the Format Disk feature for formatting the connected USB disk. IMPORTANT: Note that ALL the data stored on the USB disk will be lost and the disk format will be converted to FAT32 if you activate this feature. If your USB disk malfunctions, you can try formatting the USB disk. In most cases formatting the USB disk will restore normal operation; however, ALL the data stored on the USB disk will be lost in such a case.

Note: If “USB is too slow” message is displayed on the screen while starting a recording, try restarting the recording. If you still get the same error, it is possible that your USB disk does not meet the speed requirements. Try connecting another USB disk.

Available playback options:

• Play from start: Plays the recording from the beginning.

• Resume: Resumes Playback from the point at which you stopped playback previously.

• Play from offset: Species a playing point.

Note: Viewing main menu and menu items will not be available during the playback.

English - 15 -

Product Safety

• Do not drop objects on the product or knock the product forcefully. This may result in an electric

shock or re.

• Do not use your product near a humidier or kitchen counter. This may result in an electric shock or re.

• Do not disassemble, repair or modify the product

or its parts. Doing so may result in damage to the product or a malfunction.

• Do not spray cleaner directly onto the surface of the product.This may result in discoloration and cracks and may cause the screen display to peel off.

• Do not let water come into contact with the product when cleaning it. Ensure that water does not enter the product. This may result in an electric shock

or re.

• Since the surface of the product is easily scratched,

make sure you clean the product with a soft cloth. As the product may be scratched if there is any foreign material on the cloth, make sure to shake off any dust before using it.

• Do not scratch the surface of the display screen with a sharp tool or clean it using chemicals. This may degrade the screen quality.

• Do not apply force to the display screen.

• Do not drop or bend the product.

• PC/HDD/Media Player or any other devices that are

DLNA 1.5 compatible should be used with a wired connection for higher playback quality.

Tocongure wiredsettings pleaserefer tothe

Network Settings section in the Settings menu.

• You might be able to connect your TV to your LAN

depending on your network’s conguration. In such

a case, use an ethernet cable to connect your TV directly to the network wall outlet.

The modem port on the wall

Rear of TV

Wired Connectivity

To Connect to a Wired Network

For connecting to a wired LAN, you should perform the following steps:

• You must have a modem/router connected to an active broadband connection.

• Ensure that Nero Media Home software is installed to your PC (for DLNA function). See Appendix G for more information on the installation process.

• Connect your PC to your modem/router. This can be a wired or wireless connection.

• Connect your TV to your modem/router via an ethernet cable. There is a LAN port at the rear (back) of your TV.

Broadband ISP Connection

Lan(Ethernet cable)

Rear of TV

• To access and play shared les, you must select the

Media Browser. Press the Menu button and select Media Browser by using the “ ” or “ ” buttons and

press OK to continue. Select the desired le type and

press OK. You must always use the Media Browser

screen to access and play shared network les.

ConguringWiredDeviceSettings

The Network type can be selected as Wired or Wireless, in accordance with the active connection to the TV set. Select this as “Wired” if you are connecting via an ethernet.

CongurationStatus

This section displays the status of the connection. Select Connected if you want to activate a connection. Select as Not Connected to end an active connection.

IP Address

If an active connection is available, the IP address will

be displayed on this section. If you want to congure

an IP address preference, press the GREEN button and switch to the advanced mode.

ConguringWiredNetworkSettingsin

Advanced Mode

After pressing the GREEN button, the “Advanced mode” will be available. While in Advanced Mode, press the RED button to edit settings. When nished, press OK to save, Press RETURN/BACK to cancel

English - 16 -

Wireless Connectivity

Connecting to a Wireless Network

IMPORTANT: USB dongle (supplied) is required to

use wireless network features.

• To use your TV with your wireless network, you need

a Wireless USB dongle. To make your modem’ s SSID visible, you should change your SSID settings via the modem’s software. The TV cannot connect to the networks with a hidden SSID.

To Connect to a wireless LAN, you should perform the following steps:

1. Ensure that Nero Media Home software is

installed to your PC (for DLNA function).

2. Then connect the wireless adaptor to one of the

USB inputs of the TV.

3. To congure your wireless settings please refer to

Network settings section in this manual.

Broadband ISP Connection

USB Inputs (Side of the TV)

• The location where the transmission is most effective differs depending on the usage environment.

• The Wireless LAN adaptor should be connected directly to the TV’s USB port. USB hubs are not supported.

• You can plug your wi dongle into the supplied dock In cases where network quality is poor and the wi

dongle needs to be placed to a location with better signal quality.

• To congure wireless settings please refer to the

WiFi section in the Settings menu.

• Wireless LAN adaptor supports 802.11 a,b,g & n type modems. It is highly recommended that you should use the IEEE 802.11n communication protocol in order to avoid any possible problems while watching videos.

• Use the other USB input, if you experience problems with audio/video performance.

• You must change your modem’s SSID when there are any other modems around with the same SSID. You can encounter connection problems otherwise. Use a wired connection if you experience problems with a wireless connection.

Wireless Lan Adaptor

• A Wireless-N router (IEEE 802.11a/b/g/n) with simultaneous 2.4 and 5 GHz bands is designed to increase bandwidth. These are optimized for smoother and faster HD video streaming, file transfers, and wireless gaming.

• Use a LAN connection for quicker file sharing between other devices like computers.

• The frequency and channel differ depending on the area.

• The transmission speed differs depending on the distance and number of obstructions between the

transmission products, the conguration of these products, the radio wave conditions, the line trafc,

and the products that you use. The transmission may also be cut off or may get disconnected depending on the radio wave conditions, DECT phones, or any other WiFi 11b appliances. The standard values of the transmission speed are the theoretical maximum values for the wireless standards. They are not the actual speeds of data transmission.

English - 17 -

To enable Wi-Fi features, plug in the Wi-Fi dongle to one of the USB ports.

Press the YELLOW button to scan the wireless networks from the network settings menu. A list of available networks will be displayed. Please select your desired network from the list.

Note: If the modem supports N mode, you should set N mode settings.

If the selected network is protected with a password, please enter the correct key by using the virtual keyboard. You can use this keyboard via the navigation buttons (“

” or “

”, “ ” or “ ”) and the OK button on the remote control.

Wait until the IP address is shown on the screen.

Press the GREEN button to switch to advanced mode and then press the OK button to edit settings. This means that the connection is now established. To disconnect from a wireless network, you should highlight CongurationStatus and press OK.

You can navigate between menu tabs by pressing left/right buttons. The help bar on the bottom of the dialog shows features that you may use. Press the BLUE button to check your internet connection speed.

You can check the signal strength by using the network settings menu for the wireless device mode.

Other Information

Configuration Status: Displays Wi-Fi status as

connected or not connected.

IP Address: Displays the current IP address.

Network Name: Connected networks’ name will be

displayed.

DeleteSavedWiFiProles

Saved proles will be deleted if you press the Red

button while the wireless device selection OSD is on the screen.

Connecting to your mobile Phone via WiFi

If your mobile phone has WiFi feature, you can connect your mobile phone to your TV by using a WiFi connection via a router, in order to play content from your phone. For this, your cell phone must have appropriate sharing software.

• Connect to your router following the steps stated above in the Wireless Connection section.

• Afterwards, engage your cell phone with the router and then activate the sharing software on your cell

phone. Then, select les that you would like to share

with your TV.

• If the connection is established correctly, you should now be able to access the shared les from your cell

phone via the Media Browser of your TV.

• Enter the Media Browser menu and the playback device selection OSD will be displayed. Select your mobile phone and press the OK button to continue.

Note: This feature may not be supported on all mobile phones.

English - 18 -

Connectivity Troubleshooting

Wireless Network Not Available

• Ensure that any rewalls of your network allow

the TV wireless connection.

• Ensure the USB WiFi dongle (supplied) is plugged in fully.

• If the wireless network does not function properly, try using the wired network in your home. Refer to the Wired Connection section for more information on the process.

If the TV does not function using the wired connection, check the modem (router). If the router does not have a problem, check the internet connection of your modem.

Try searching for wireless networks again, using the Network Settings menu screen.

Connection is slow

See the instruction book of your wireless modem to get information on the internal service area, connection speed, signal quality and other settings. You need to have a high speed connection for your modem.

Distruption during playback or slow reactions

You could try the following in such a case:

Keep at least three meters distance from microwave ovens, mobile telephones, bluetooth devices or any other Wi-Fi compatible devices. Try changing the active channel on the WLAN router.

Using DLNA Network Service

DLNA (Digital Living Network Alliance) is a standard that eases the viewing process of digital electronics and makes them more convenient to use on a home network. For further information, visit www.dlna.org.

The DLNA standard allows you to view and play photos, music and videos stored in the DLNA media server connected to your home network.

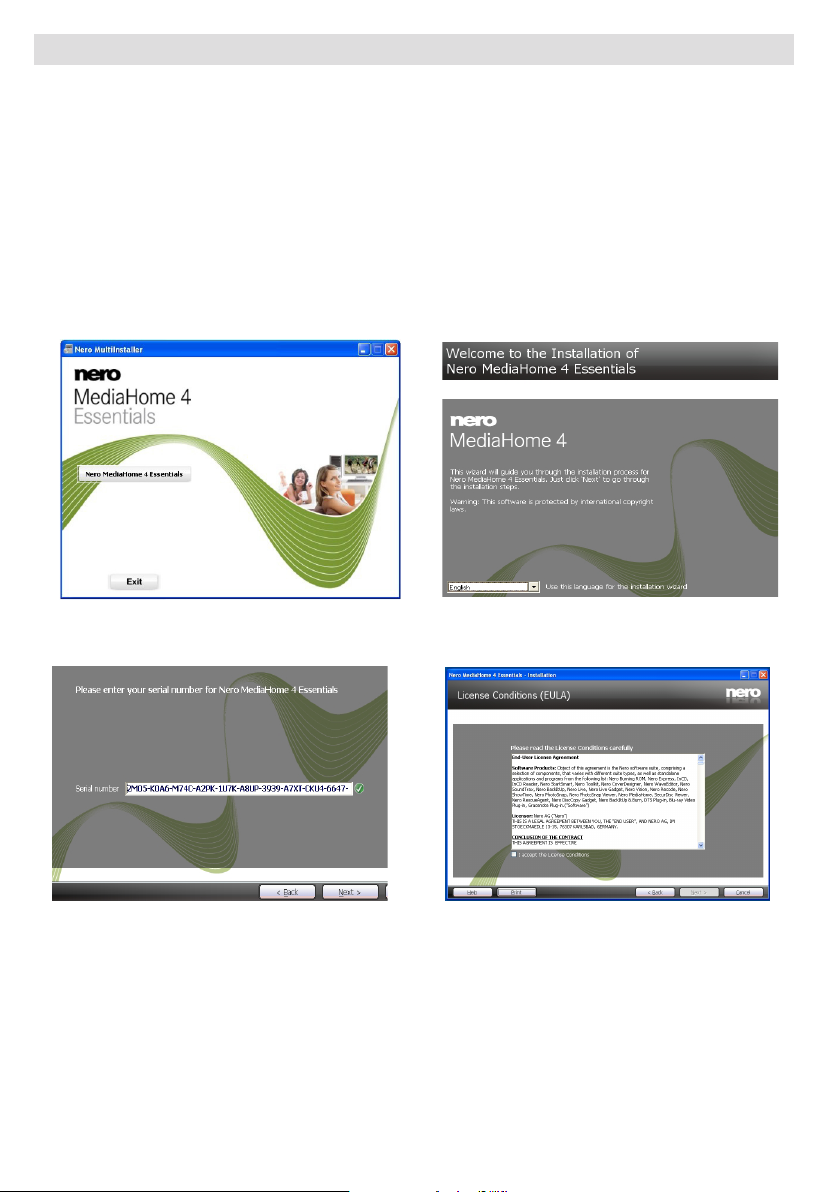

1. Nero Media Home Installation

The DLNA function cannot be used if the server program is not installed on to your PC. Please prepare your PC with the provided Nero Media Home programme. For more information about the

installation, please refer to appendix A.

2. Connect to a Wired or Wireless Network

See the chapter Network Settings for detailed

conguration information.

3. Play Shared Files via Media Browser

Select Media Browser by using the “ ” or “ ” buttons from the main menu and press OK. The Media browser will then be displayed.

DLNA

DLNA support is only available in the Media Browser folder mode. To enable folder mode, go to the Settings tab in the main media browser screen and press OK. In the settings options, highlight View Style and change to Folder using the “ Select the desired media type and press OK.

If sharing congurations are set properly, the following

OSD message will be displayed after selecting the desired media type. Select OK to display the selected network or USB memory content. If you want to refresh the device list, press the GREEN button. You can press MENU to exit.

If available networks are found, they will be listed on this screen. Select media server or network that you want to connect to using the “ ” or “ ” buttons and press OK.

If you select the media type as Video and choose a device from the selection menu, a new menu screen will appear on the screen as below:

” or “ ” buttons.

USB Playback section for further information on le

playback.

Subtitle les do not work if you watch videos from your

network through DLNA.

You can connect only one television with DLNA to the same network. If a problem occurs with the DLNA network, please switch your television off at the wall socket and back on again. Trick mode and jump are not supported with the DLNA function.

Note: There may be some PC’s which may not be able to utilize the DLNA function due to administrator and security settings (such as business PC’s).

For best home network streaming with this TV, the supplied Nero software should be installed.

Internet Portal

You can access PORTAL mode using your TV. To do this, an active internet connection is required. Follow the steps on Connecting to a Wired/Wireless(optional) Network section to connect your TV to internet. After the connection is established, you can select or view portal options.

Note: Broadband internet connection is required for high quality viewing. Ensure that the internet connection is made properly. You must set the Country and Language data correctly in the First Time Installation for the proper operation of internet portal.

Press “ application options will be displayed. Application options will be displayed as the template below. Available applications’ contents may change depending on the application content provider.

” button on your remote control and portal

Select Videos from this screen to list all the available

video les from the selected network.

To play other media types from this screen, you must go back to main Media Browser screen and select the media type as desired and then perform the network selection again. Refer to the Media Browser

English - 19 -

Note on PIP Window

If you switch to portal mode while watching TV channels, current programme will be displayed on the PIP window. You can change channels using P+/P- buttons.

Current HDMI content will be displayed on the PIP window, if you switch to portal mode while watching HDMI source.

Use the “ the items on Portal screen. Press the OK button to

conrm your selection. Press the BACK button to go

to the previous screen.

Press the EXIT button to quit the Internet portal mode.

” or “ ”, “ ” or “ ” to navigate between

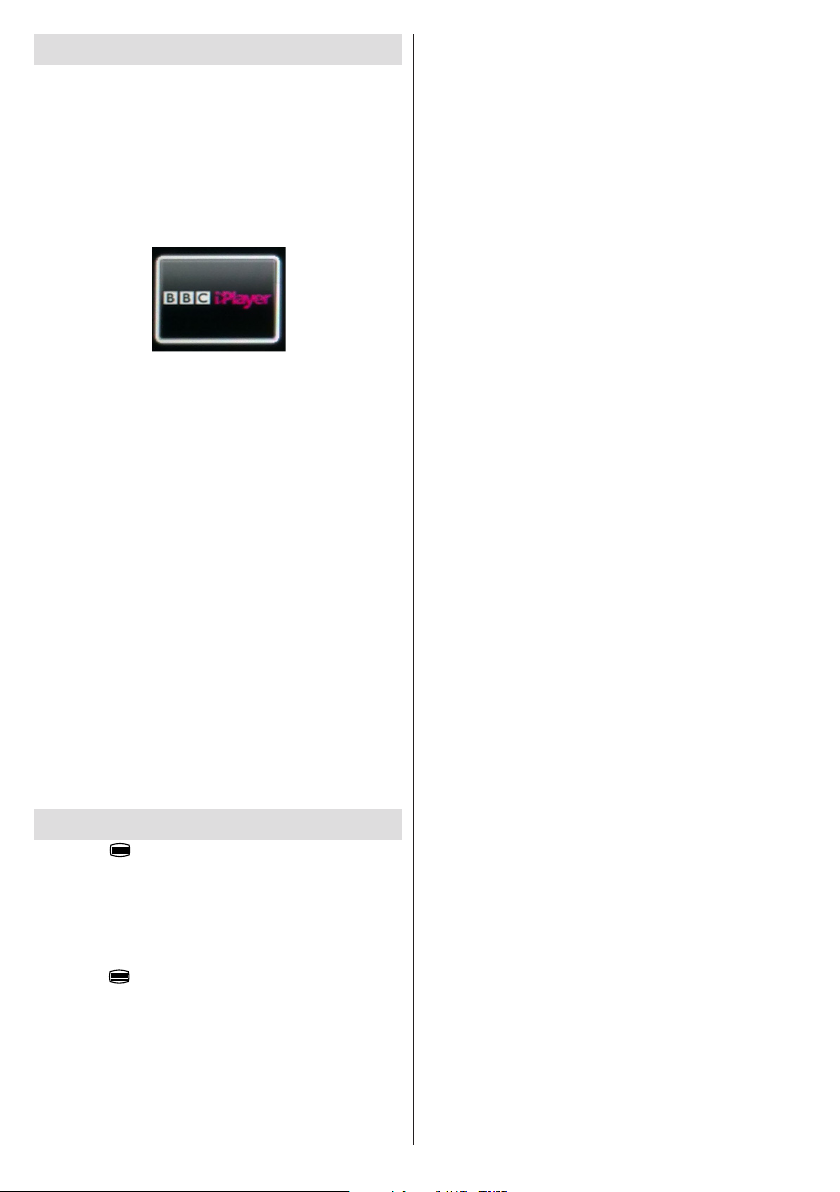

iPlayer Application

You can access BBC iPlayer using your TV. To do this, an active internet connection is required. (See connecting to a Wired/Wireless Network section to connect your TV to internet). After the connection is established, you can select BBC iPlayer among the portal options. (See Internet Portal)

Press the OK button on your remote control to start the BBC iPlayer application.

Note: Broadband internet connection (minumum 2mbps) is required for high quality viewing.

Playing a Programme via iPlayer

Select a programme and press OK button. The programme playback will begin.

You can press the PAUSE button to pause playback. Press the PLAY button to resume the playback.

Use the STOP button to stop the playback.

Press the EXIT button to exit iPlayer. Press the RETURN button for going back to the previous screen.

Note: “Episode is unavailable.” message may be displayed on the screen if a problem occurs during the playback.

Searching a Programme

Highlight the Search tab using the navigation buttons and press the OK button. Use the virtual keyboard to type the letters. Select letters and press the OK

button. When nished, highlight Search option and

press the OK button.

Digital Teletext

Press the “ ” button. The digital teletext information appears. Operate it with the coloured buttons, cursor buttons and the OK button.

The operation method may differ depending on the contents of the digital teletext. Follow the instructions displayed on digital teletext screen.

When the “ to television broadcast.

” button is pressed again, the TV returns

English - 20 -

Internet Browser

To use the internet browser, please select the internet browser logo from the portal section.

Home Page

Remote control shortcuts

(Zoom in-out/Back/Home)

Previous Next

Refresh

• To navigate the web browser, use the arrow buttons on the remote control. Press OK to continue.

• After First time installation, predened web sites and

logos will be displayed on the browser’s access page (see image above). To add a desired web page to the quick access page, whilst on the website you wish to add, select the “Add” menu and select “Quick Access” button.

• If you want to add bookmarks, select this item while the desired web page is on the screen.

Add

Bookmarks

Quick Access

• You can navigate the web browser in three ways. First, enter any URL in the address bar.

Address Bar

History

Add

Quick Access

Bookmarks

Zoom

Settings

pages and these will take you to the appropriate pages.

• When you scroll the pointer down to the middle of the screen, the remote control’s shortcuts will be shown.

• Use the zoom shortcut buttons or the zoom menu to zoom in or zoom out.

• You can clear cookies or clear all browser data from the settings menu.

• Your TV is compatible with USB mice. Plug your mouse or wireless mouse adaptor to the USB input of your TV.

• To view your browsing history, click the history button. You can also clear your browsing history from here.

• You can search keywords by clicking the search button in the address dialog box or another way to navigate to pages is by clicking on links on web

English - 21 -

• The browser does not support multiple tabs.

• Some internet pages include ash content. These

are not supported by the browser.

• Your TV does not support any download processes from the web browser.

Getting Started with Skype

Make voice calls and video calls with Skype on your TV. Select the Skype app from the portal section to start a conversation.

Follow the on screen instructions to see how to operate related features.

NOTE

• Connect your supported webcam directly to the USB port on your TV.

• If the camera is not working properly, switch off and unplug the TV. Connect

your camera again and turn the TV on.

• As soon as the TV is turned off, Skype disconnects.

• Voice level and sound quality are affected by environmental noise.

• Call quality can change with accordance to your internet connection.

• Please visit www.skype.com to learn more information and to see the Terms of Use about Skype.

• The TV must be connected to a network for Skype connection.

• The Skype app will alert you when someone calls whilst you are watching your TV or operating the Skype

application.

• A Skype camera (can be sold separately) is required to get the full bene t of Skype’s features. If you do not already have one, you will need to purchase a camera (compatible with Vesca100) to get the full bene ts

of Skype.

Note : When you turn on the TV and no users have been set up for Skype, the image shown to the side will appear on screen.

LicenceNotication

Skype is a trade mark of Skype or its related companies. This product/application has not been approved or endorsed by Skype, Skype Communications S.a.r.l. or any of their related companies.

No emergency calls with Skype

Skype is not a replacement for your ordinary telephone and can't be used for emergency calling. Select the Skype app from the portal section to start a conversation.

English - 22 -

To use the Skype application, you need a Skype account.

You can create a Skype account, using this app, in the ‘Sign In & Sign Up Now’ menu if you don’t already have one. If you already have a Skype account, enter your name and password correctly. Select Sign In and press OK.

If you have a Skype account and you forgot your password, press the Red button to view the “reset password” screen.

After successfully logging in to your account, the contact list will be displayed on screen.

You can review your contact list on the right side of the screen. Your Skype name, mood message and your camera preview (if connected) will be displayed on the left hand side of screen.

English - 23 -

Adding a contact

By pressing the button select the “Search Contacts” option. Enter the full name, skype name or email

address of the contact you want to  nd and add.

Use the remote control or virtual keyboard to enter a keyword.

Recent history

Incoming call

Outgoing call

Missed call

Icon meaning

Your Skype history can be seen in this section. To view recent history options, use the p+ and p- buttons. To delete a conversation, press the Red button. When you press the OK button , the contact review will be

displayed. Also Pro le information can be displayed in this section.

English - 24 -

Actions

Account Name, mood message and

pro le picture.

Online status

Select a Menu by pressing the button.

Your contact list

(Press Ok to use video&voice call)

Help bar

Select a person from the contact list screen and press OK. Choose an action from the list and then press OK to start the selected process. Voice and video call is ready for your use.

If available you will see the thumbnail view of yours and the other person’s camera feed.

When a conversation is active, you can mute the microphone or put the other person on the line on hold. Press the Red button to end a call.

English - 25 -

Incoming call

Dialing Phones

The incoming call dialog is shown when you are logged into Skype and when other users initiate a Skype call.

A small dialog box will appear in the lower right corner of the TV screen whether the user watches TV or is browsing through Skype. Use the remote control button and choose your action.

The option to call phones is available if you have

Skype Credit. Please buy credit rst. Afterwards,

select a country then enter a phone number which you want to call.

Press the Yellow button to save an entered telephone number. Press the Green button to start a conversation.

Settings

All your Skype settings can be changed by using the Settings menu. Please use P+ and P- buttons on the remote control to move up or down. Select an option, then change the selected option by using the navigation buttons. In the about section, please

nd the Skype terms and conditions.

Please read this notice carefully.

English - 26 -

Software Upgrade

Your TV is capable of finding and updating automatically via the Aerial signal or over the Internet.

Background search and upgrade mode

While the TV is connected to the Internet, if new software is found, it downloads the upgrades automatically when the TV next powers on from standby.

3.00am search and upgrade mode

While the TV is connected to an aerial signal. If Automatic scanning in the Upgrade Options menu is enabled, the TV wakes up at 03:00 and searches broadcast channels for new software upgrades. If new software is found and downloaded successfully, the next time the TV powers up , it will have the new software version.

Note. If the TV fails to come on after the upgrade unplug the TV for 2 minutes and plug in again.

Troubleshooting & Tips

Image persistence - ghosting

Please note that ghosting may occur while displaying a persistent image (still or paused image). LCD/LED TVs’ image persistence may disappear after a short time. Try turning off the TV for a while. To avoid this, do not leave the screen in still picture mode for extended periods of time.

No power

If your TV has no power, please check the power cord plug is connected to the mains power socket.

Poor picture

1. Have you selected the correct TV system?

2. Is your TV or house aerial located too close to a

non-earthed audio equipment or neon lights, etc.?

3. Mountains or high buildings can cause double

pictures or ghost images. Sometimes you can improve the picture quality by changing the direction of the aerial. Is the picture or teletext unrecognisable?

4. Check if you have entered the correct channel

frequency if you have done manual tuning.

5. Please retune the channels.

6. The picture quality may degrade when two devices

are connected to the TV at the same time. In such a case, disconnect one of the devices.

No picture

1. No Picture means that your TV is not receiving a

transmission. Have you selected the correct button on the remote control? Try once more. Also make sure the correct input source has been selected.

2. Is the aerial connected properly?

English - 27 -

LicenceNotications

Manufactured under license from Dolby Laboratories.

TRADEMARK ACKNOWLEDGMENT

“Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

“DLNA®, the DLNA Logo and DLNA CERTIFIED® are

trademarks, service marks, or certication marks of

the Digital Living Network Alliance.”

“HDMI, the HDMI logo and High-Denition Multimedia

Interface are trademarks or registered trademarks of HDMI Licensing LLC.”

Appendix A: Nero MediaHome Installation

This software is compatible with Windows XP and Windows 7.

Note: To use DLNA function, this software should be installed to your PC.

To install Nero MediaHome onto your computer.

1) Insert the Nero MediaHome installation disc into your optical disc drive.

2) The Nero MultiInstaller screen will open automatically.

3) Click on the button labeled Nero MediaHome 4 Essentials to start the installation process.

Note: If the below window is not displayed automatically, double-click on the le SetupX located on the Nero

MediaHome installation disc.

4) The Nero MediaHome installation wizard is displayed. If necessary change installation language from the

language selection menu before continuing.

5) Click the Next button.

The integrated serial is displayed. (Do not change the serial number)

6) Click the Next button. The License Conditions (EULA) screen is displayed.

7) Click the Next button.

The Select Installation Type screen is displayed. It is possible to choose between Typical, meaning standard

installation, or Custom installation. User dened installation allows you to determine languages to be installed

and to choose the installation path.

8) Use Typical installation and click the Next button.

The Prerequisites screen is displayed.•

The Nero MediaHome installation wizard checks the availability of required third-party software on your PC. If applications are missing they are listed and must be installed before continuing installation.

9) As soon as all prerequisites are installed, the Install button will change to a Next button.

10) Ready to Start Installation Process screen is displayed, installation begins and nishes automatically.

English - 28 -

Appendix B: PC Input Typical Display

Modes

The following table is an illustration of some of the typical video display modes. Your TV supports up to 1920x1200.

Index Resolution Frequency

640x350 85Hz

640x400 70Hz

640x400 85Hz

640x480

800x600

832x624 75Hz

1024x768

1152x864

1152x870

1280x768

1280x960

1280x1024

1360x768 60Hz

1400x1050 60Hz

1400x1050 75Hz

1400x1050 85Hz

1440x900 60Hz

1440x900 75Hz

1600x1200 60Hz

1680x1050 60Hz

1920x1080 60Hz

1920x1200 60Hz

60Hz

66Hz

72Hz

75Hz

85Hz

56Hz

60Hz

70Hz

72Hz

75Hz

85Hz

60Hz

66Hz

70Hz

72Hz

75Hz

85Hz

60Hz

70Hz

75Hz

85Hz

75Hz

60Hz

75Hz

85Hz

60Hz

75Hz

85Hz

60Hz

75Hz

85Hz

Appendix C: AV and HDMI Signal Compatibility (Input Signal Types)

Source

EXT-1 (SCART1)

EXT-1 (SCART2)

Side AV

YPbPr

HDMI1

HDMI2

HDMI3

HDMI4

(X: Not Available, O: Available)

In some cases a signal on the TV may not be displayed properly. The problem may be an inconsistency with standards from the source equipment (DVD, Set-top box, etc. ). If you do experience such a problem please contact your dealer and also the manufacturer of the source equipment.

Supported

Signals

PAL O

NTSC 60 O

RGB 50/60 O

SECAM O

PAL O

NTSC 60 O

SECAM O

PAL 50/60 O

NTSC 60 O

SECAM O

480I 60Hz O

480P 60Hz O

576I 50Hz O

576P 50Hz O

720P 50Hz O

720P 60Hz O

1080I 50Hz O

1080I 60Hz O

480I 60Hz O

480P 60Hz O

576I 50Hz O

576P 50Hz O

720P 50Hz O

720P 60Hz O

1080I 50Hz O

1080I 60Hz O

24Hz

25Hz

1080P

30Hz

50Hz

60Hz

Available

English - 29 -

Appendix D: Supported File Formats for USB Media Browser

Media Extension Format Notes

Video Audio

Movie dat, mpg,

Music .mp3

Photo .jpg .jpeg Baseline JPEG max WxH =

Subtitle

mpeg

dat, mpg, mpeg

.vob MPEG2 MPEG1/2 Layer 1/2/3, AC3, LPCM 1080P@ 30fps 50Mbit/

.mkv MPEG1,2,4,

.mp4 .mov MPEG1/2 Layer 3, AAC/HEAAC,

RMVB, RMrv30, rv40 LBR(cook), AAC/HEAAC 1080P@ 30fps 50Mbit/

avi MPEG1,2,4

v H.264,

3gp,3g2 MPEG4, H.264 1920x1080 @ 30P

asf, wmv MPEG2,4, XviD, H.264,

.wav LPCM

WMA/ASF WMA, WMA Pro

.m4a/ .aac AAC, HEAAC

.png Progressive JPEG

.bmp non-interlace

.png

sub - -

srt - -

Mpeg1,2 MPEG1/2 Layer 1/2/3, AAC/

MPEG2 ,H.264, VC1, AVS, MVC

XviD,

H.264,

VC1,WMV3,

Motion JPEG

Xvid

H.264,

VC1,WMV3,

Sorenson H.263

Motion JPEG

Sorenson H.263

VC1,WMV3

HEAAC, AC3/EAC3, LPCM/ADPCM

MPEG1/2 Layer 1/2/3, AAC/ HEAAC, AC3/EAC3, LPCM/ADPCM

MPEG1/2 Layer 1/2/3, AAC/ HEAAC,

AC3/EAC3, LPCM

AC3/EAC3, LPCM/ADPCM

MPEG1/2 Layer 1/2/3, AAC/ HEAAC, AC3/EAC3, LPCM/ ADPCM, WMA

MPEG1/2 Layer 3, AAC/HEAAC, LPCM/ADPCM

MPEG1/2 Layer 1/2/3, AAC/ HEAAC, AC3/EAC3, LPCM, WMA

MPEG1 Layer 1/2/3 (MP3)

interlace

1080P@ 30fps 50Mbit/ sec

H.264:1080Px2@25fps 1080P@ 50fps MVC: 1080P@ 24fps Other: 1080P@ 30fps” 50Mbit/ sec

sec

H.264:1080Px2@25fps 1080P@ 50fps Other:1080P@ 30fps 50Mbit/ sec

H.264: 1080Px2@25fps 1080P@ 50fps Other: 1080P@ 30fps 50Mbit/sec

sec

H.264: 1080Px2@25fps 1080P@ 50fps Other: 1080P@ 30fps” 50Mbit/sec

H.264: 1080Px2@25fps 1080P@ 50fps Other: 1080P@ 30fps” 50Mbit/ sec

20Mbit/sec

1080P@ 30fps 50Mbit/ sec

14592x12288

Up to 8 MegaByte

English - 30 -

Appendix E: Supported DVI Resolutions

When connecting devices to your TV’s connectors using DVI converter cable (not supplied), you can refer to the following resolution information.

24Hz 25Hz 30Hz 50Hz 60Hz

480i

480p

576i

576p

720p

1080i

1080p

þ þ

þ þ þ þ þ

SKY Remote Control Code

The Sky Code is 065:

1 Turn your TV on.

2 Press TV on your Sky remote control handset.

3 Hold down SELECT and the RED button together for about two seconds, until the red light on the Sky remote control blinks twice.

4 Key in 065. The light on the Sky remote control should blink twice.

5 Press the STANDBY button on your Sky remote control. If your TV switches off, press SELECT. The light on the Sky remote control blinks twice. Now try the other functions.

Specications

RF AERIAL INPUT 75 Ohm (unbalanced)

OPERATING VOLTAGE 220-240V AC, 50 Hz.

AUDIO OUTPUT POWER (W

POWER CONSUMPTION (W)

120 W (max)

PANEL

16:9 display, 50” Screen Size

DxLxH (With foot): 224 x 1165 x 730

Weight (Kg): 21,45

DxLxH (Without foot): 42 x 1165 x 686

Weight (Kg): 18,45

Transmission Standards:

VHF (BAND I/III) UHF (BAND U) HYPERBAND

DVB-T, MPEG2,DVB-T, MPEG4 HD, DVB-T2

) (10% THD) 2 x 8

RMS.

English - 31 -

Important Instruction

For your own safety read following instruction carefully before attempting to connect this unit to the mains supply.

MAINS (AC) OPERATION

The wires in the mains lead are coloured in accordance with the following code :

GREEN

FUSE

YELLOW

(Earth)

(if there is earth cable)

BROWN

BLUE

IMPORTANT

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured green and yellow must be connected to the terminal which is marked with the letter E, or by the earth symbol, or coloured green or green and yellow.

The wire which is coloured blue or black must be connected to the terminal which is marked with the letter N or coloured Black.

The wire which is coloured brown or red must be connected to the terminal which is marked with the letter L or coloured Red.

For continued protection against risk of re, replace only with same type and rating of fuse (ASTA

approved 5A 250VAC fuse).

(Neutral)

(Live)

CAUTION

TO PREVENT ELECTRIC SHOCK DISCONNECT FROM THE MAINS BEFORE REMOVING COVER. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

SAFETY PRECAUTION

THIS EQUIPMENT MUST BE DISCONNECTED FROM THE MAINS WHEN NOT IN USE. DO NOT ALLOW THIS UNIT TO BE EXPOSED TO RAIN OR MOISTURE.

English - 32 -

Product Fiche

Commercial Brand: FINLUX

Product No. 10086580

Model No. 50F8090S-T

Energyefciencyclass A

Visible screen size

(diagonal, approx.) (inch/cm)

On mode average power

consumption (Watt)

Annual energy consumption

(kWh/annum)

Standby power consumption

(Watt)

Off mode power consumption

(Watt)

Display resolution (px) 1920 x 1080

50 inches 127 cm

135

0,5

English - 33 -

YEAR

GUARANTEE

WARRANTY CARD

Thank you for your purchase.

We are sure you will enjoy using Finlux for many years.

The product warranty is for a period of twelve (12) months from the date of original purchase. Any defect caused by faulty materials or workmanship will be repaired free of charge where possible during this period by Finlux. If a repair is not possible, the product will be replaced free of charge or a refund will be given.

This guarantee is subject to the following provisions:

•

The guarantee does not cover accidental damage, misuse, cabinet parts, knobs or consumable items

•

The product must be correctly installed and operated in accordance with the instructions in the manual provided

• The product must be used solely for

domestic purposes

•

The guarantee will be invalid if the product is re-sold or has been damaged by inexpert repair.

Repairs

Our authorised service partners will always try to complete any repairs at your home. However, there may be times when the product has to be taken away for further testing. If this happens, you will not be charged for collection or return of the product within the terms of this guarantee.

Disclaimer

The manufacturer disclaims any liability for incidental or consequential damages. This guarantee is in addition to, and does not diminish, your statutory or legal rights.

Customer helpline

In the event of a problem with the product within the guarantee period, please call this number:

Customer Helpline: 0845 459 52 82

notice. On-site service is limited to Vestel 46” Televisions and above.

Warranty Exclusions

A. This Warranty does not extend to loss

(liquid ingression), theft, vermin or insect infestation.

D. This Warranty does not cover any Finlux

branded consumer product installed in a moveable dwelling. Note that the performance of the product may be aected if it is installed in a caravan or other such moveable dwelling.

B. This warranty does not cover damage

caused by:

•

Misuse or abusive use of any Finlux

consumer product

•

Incorrect operation, or not following the operating instructions (as stated in the Product Instruction Manual)

• Improper installation

•

Failure to clean or improper cleaning of the product

•

Incorrect voltage or non-authorised electrical connections

• Use of non-authorised/non-standard parts

•

Password setting/resetting and virus infection

• Repair or other work carried out on the

Finlux consumer product other than by authorised Finlux service personnel.

E. This Warranty does not cover Finlux

consumer products which do not bear the original manufacturer’s factory-applied serial number in its original form (for instance where it or the sticker bearing it has been removed, wiped out, rubbed o, or altered). This applies even if you make a claim while the product is still under Warranty.

F. This Warranty does not cover the loss of

any data no matter how the loss is caused. You are responsible for backing up and protecting data against loss, damage or destruction.

The guarantee is only valid when accompanied by proof of purchase. If the serial number is defaced, missing or illegible, the warranty is null and void.

C. This Warranty does not cover service

costs for the replacement and maintenance of consumable parts, which have stopped working through normal wear and tear. This includes, but is not limited to, parts

Guarantor: Vestel UK Ltd, 16 Hanover Square, London, W1S 1 H T Tel: 0845 459 52 82

Finlux 50F8090S-T User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
