Page 1

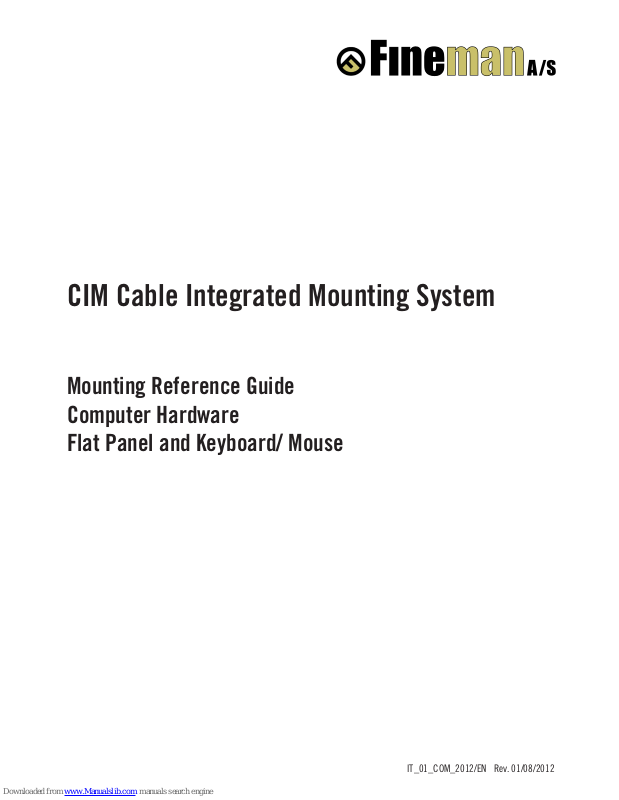

IT_01_COM_2012/EN Rev. 01/08/2012
CIM Cable Integrated Mounting System
Mounting Reference Guide Computer Hardware Flat Panel and Keyboard/ Mouse
Page 2
General Notes
How to create part numbers
IT Lift Fush Mount
Combi systems for flat panel and keyboard/ mouse with W-bracket
Pivot arm
Articulating arm
Height adjustable arm
Articulating height adjustable arm
Combi systems for flat panel and keyboard/ mouse with L-bracket
Pivot arm
Articulating arm
Height adjustable arm
Articulating height adjustable arm
Combi systems for flat panel and keyboard/ mouse with Z-bracket
Pivot arm
Articulating arm
Height adjustable arm
Articulating height adjustable arm

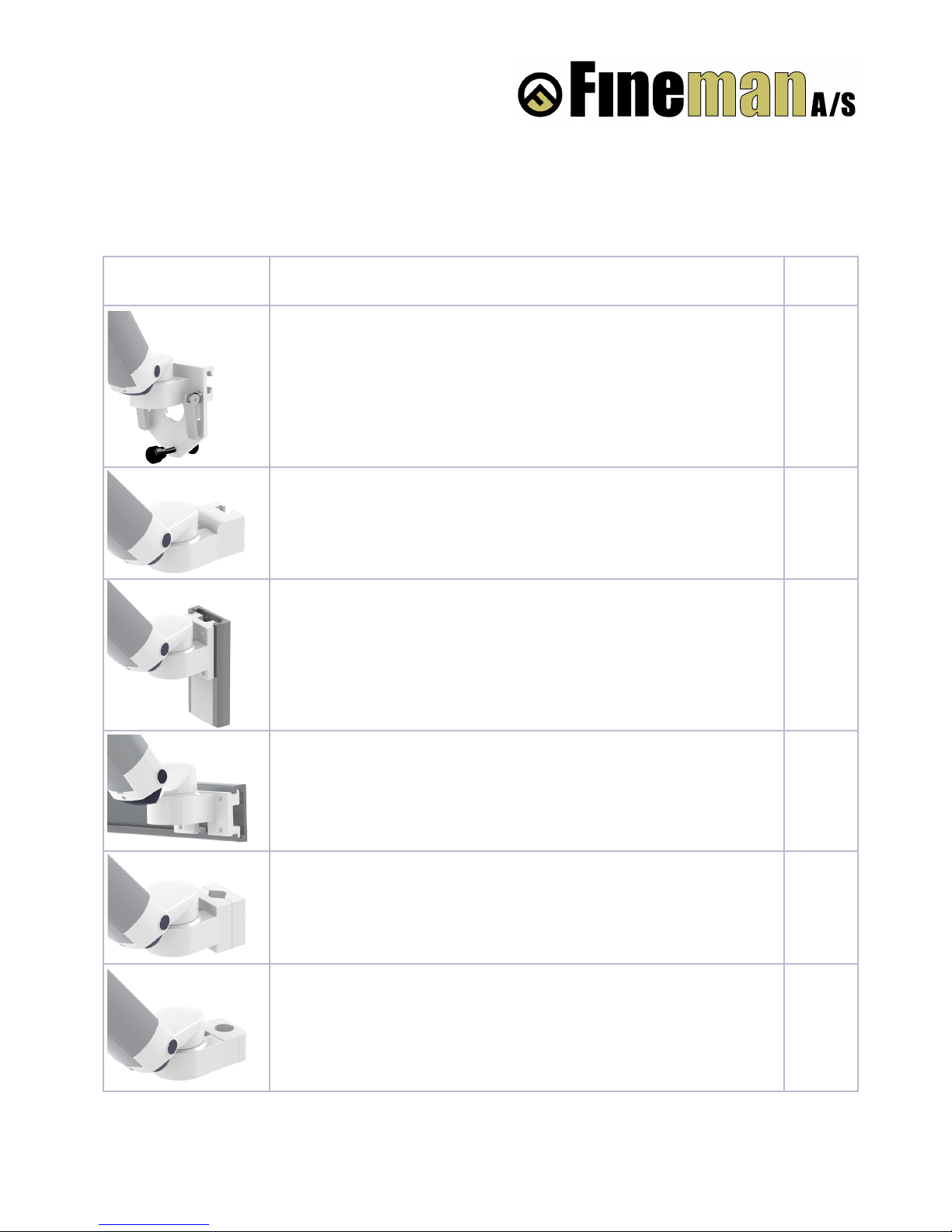

Fixings
CONTENT
3
4
7
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
Page
2
Page 3
Monitor Adaptations
The VESA monitor adaptation for heavy monitors is spring-supported.
Mounting Solutions for Anaesthesia Machines
All CIM arms intended for use in combination with anaesthesia machines are delivered with components’ grounding.
Standard Colours
All decorative plastic parts are available in two different colours:
RAL 5013 (=cobalt blue) or RAL 7024 (= graphite grey). Please specify the colour requested when ordering.
Custom-Designed Solutions
Please contact us for custom-designed solutions.
Product Marking
All CIM products are CE marked and adhere to the latest regulations MDD 93/ 42 ECC.
GENERAL NOTES
Page
3
Page 4
Part numbers can be easily created by following the steps below:
1. Specify the area of application (XX):
65 = ICU/ ER/ OR, PR
93 = anaesthesia machine
2. Choose the arm version required:
224F/ 230F = pivot arm L 240 mm/ 300 mm
32424F/ 33030F = articulating arm L 240 x 240 mm/ 300 x 300 mm
431F = height adjustable arm
73130F = height adjustable articulating arm
3. Specify where you want to mount the arm and select the fixing (Y):
2 = horizontal rail 10 x 25, 8 x 35, 10 x 30, 10 x 50
2W = horizontal rail Uniflex, Duoflex, Modura (no distance to wall)
2K = horizontal rail Uniflex, Duoflex, Modura (with distance to wall)
4V = vertical wall channel and side adapter anaesthesia machine
4H = horizontal wall channel
1V = universal pole clamp (20 - 40 mm)
1 = fixed pole clamp 25 mm
1F = fixed pole clamp 35 mm
1C = fixed pole clamp 38 mm
8 = lateral adapter to Trumpf ceiling pendant
9 = Heinen & Löwenstein anaestesia machine
10 = Maquet anaesthesia machine
11 = Philips/ Dameca anaesthesia machine
4. Choose the colour requested for decorative parts (C):
gr = RAL 7024 (dark grey)
bl = RAL 5013 (blue)
5. Specify the gas spring depending on the weight of your monitor/ device - only with height adjustable arms (X):
80 = 3 - 8 kg
130 = 9 - 14 kg
175 = 13- 18 kg
220 = 16 - 22 kg
HOW TO CREATE PART NUMBERS
Page
4
Page 5
6. Specify the requested size of the keyboard tray (T):
30 = 300 x 210 mm
40 = 400 x 150 mm
50 = 500 x 200 mm
58 = 580 x 200 mm
RC = 480 x 220 mm (retractable mouse tray left/ right 226 mm)
HOW TO CREATE PART NUMBERS
Page
5
Page 6
1
Area of
application
2
Arm version
3
Fixing
4
Colour
5
Weight
6
Keyboard
tray
YOUR NOTES
XX - 431F - Y . C _ X _ T P l e a s e r e p l a c e
65 - 431F - 4 . gr _ 80 _ 30 E x e m p l e
- - . _ _
- - . _ _
- - . _ _
- - . _ _
- - . _ _
- - . _ _
- - . _ _
- - . _ _
- - . _ _
- - . _ _
- - . _ _
- - . _ _
- - . _ _
- - . _ _
HOW TO CREATE PART NUMBERS
Page
6
Page 7
Page
7
Product features

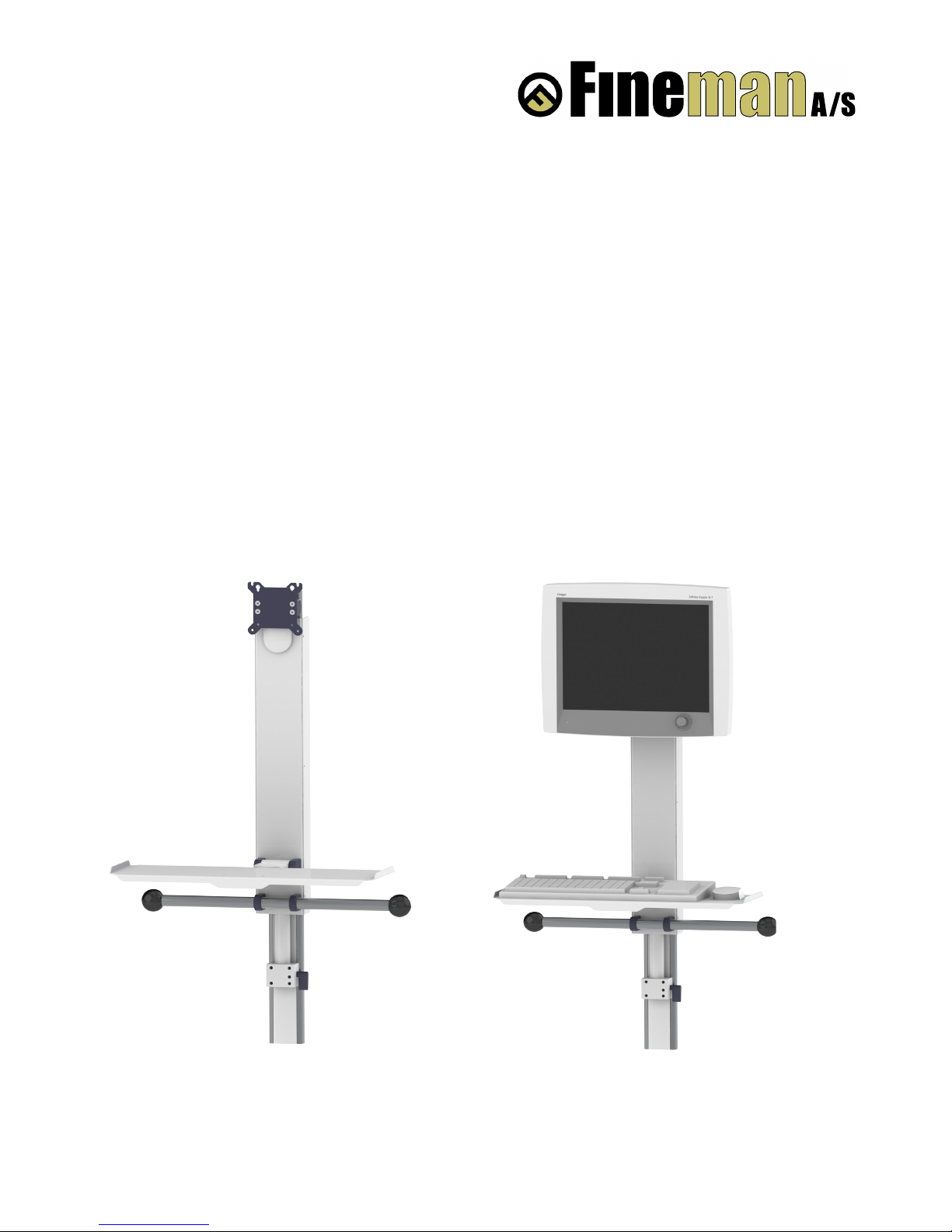

IT LIFT SYSTEM
Part no. 65-VK_10 100 N = 4 - 10 kg
Part no. 65-VK_18 180 N = 10.5 - 18 kg
Part no. 65-VK_24 240 N = 18.5 - 24 kg
Part no. 65-VK_30 300 N = 24.5 - 32 kg
Monitor adaptation:
Height adjustment range:
Distance to wall:
Material:
Surface:
Maximum weight:
Weight capacity of the gas springs:
VESA 75/ 100
250 mm
with keyboard folded up: 100 mm
with keyboard retracted: 490 mm
aluminium, PA6.6
anodized, powder-coated RAL 9016
32 kg (6-fold safety)
100 N (4 - 10 kg); 180 N (10.5 - 18 kg); 240 N (18.5 - 24 kg); 300 N (24.5 - 32 kg)
Page 8
Page
8

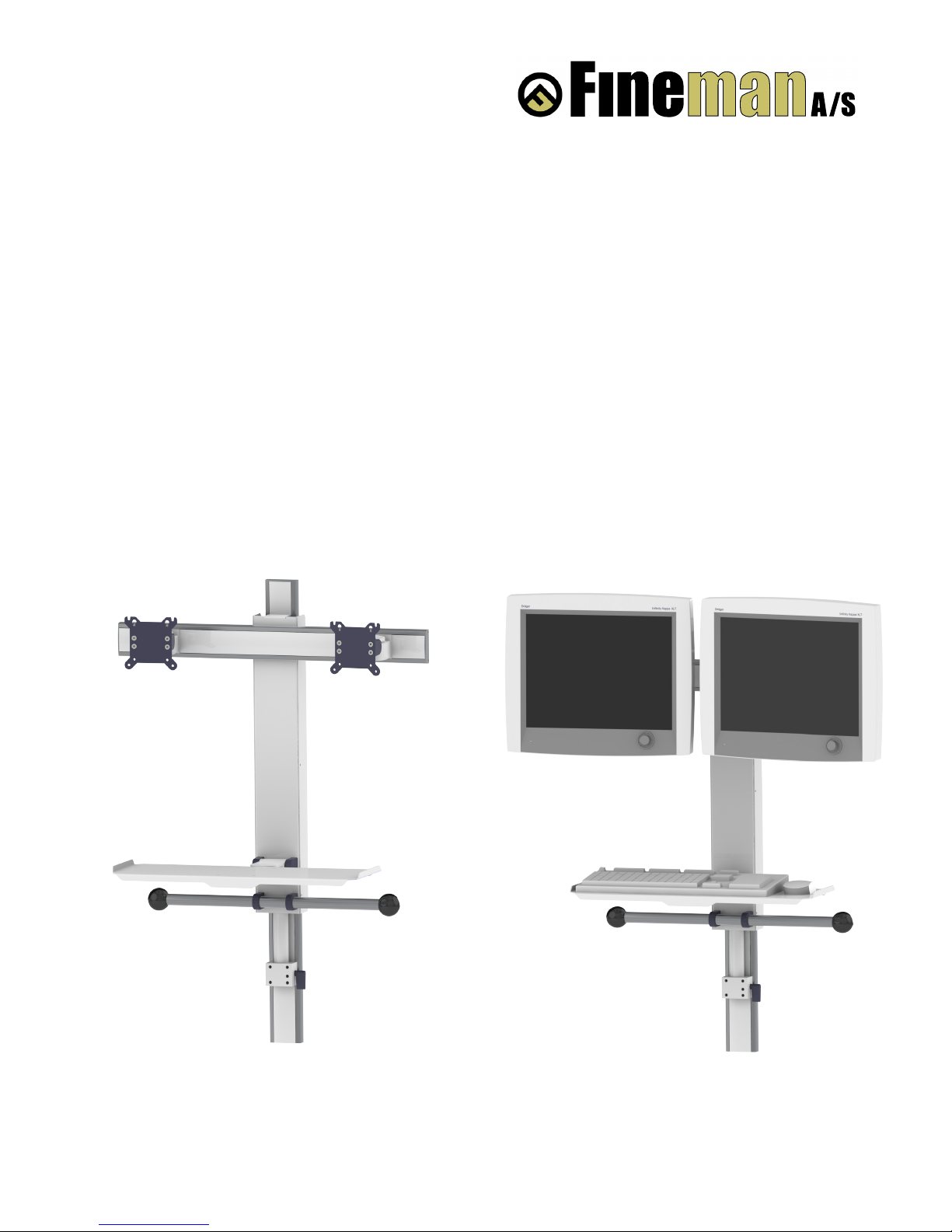

DUAL IT LIFT SYSTEM
Part no. 65-DVK_10 100 N = 4 - 10 kg
Part no. 65-DVK_18 180 N = 10.5 - 18 kg
Part no. 65-DVK_24 240 N = 18.5 - 24 kg
Part no. 65-DVK_30 300 N = 24.5 - 32 kg
Product features
Monitor adaptation:
Height adjustment range:
Distance to wall:
Material:
Surface:
Maximum weight:
Weight capacity of the gas springs:
VESA 75/ 100
250 mm
with keyboard folded up: 100 mm
with keyboard retracted: 490 mm
aluminium, PA6.6
anodized, powder-coated RAL 9016
32 kg per mount (6-fold safety)
100 N (4 - 10 kg); 180 N (10.5 - 18 kg); 240 N (18.5 - 24 kg); 300 N (24.5 - 32 kg)
Page 9
COMBI SYSTEMS WITH ERGONOMIC W-BRACKET
Page
9
Page 10
Page
10
Product features
SUPPORT ARM PIVOT
590
300
10°
436
105°
105°
110°
110°
Arm length 240 mm Arm length 300 mm
Part no. XX-224F-Y.C_T VESA 75/ 100 Part no. XX-230F-Y.C_T VESA 75/ 100
Part no. XX-224FF-Y.C_T VESA 75/ 100 spring supported Part no. XX-230FF-Y.C_T VESA 75/ 100 spring supported
Monitor/ keyboard adaptation:
Arm length:
Material:
Surface:
Standard colours of plastic parts:
Maximum weight:
W-bracket for flat panel VESA 75/ 100 and keyboard/ mouse
240 mm or 300 mm
aluminium, PA6.6
anodized, powder-coated RAL 9016
RAL 5013 cobalt blue or RAL 7024 graphite grey
18 kg (6-fold safety)
Page 11
Page
11
Product features
ARTICULATING ARM
110°
110°
165°
165°
105°
105°
815
300
10°
436
Arm length 240 x 240 mm Arm length 300 x 300 mm
Part no. XX-32424F-Y.C_T VESA 75/ 100 Part no. XX-33030F-Y.C_T VESA 75/ 100
Part no. XX-32424FF-Y.C_T VESA 75/ 100 spring supported Part no. XX-33030FF-Y.C_T VESA 75/ 100 spring supported
Monitor/ keyboard adaptation:
Arm length:
Material:
Surface:
Standard colours of plastic parts:
Maximum weight:
W-bracket for flat panel VESA 75/ 100 and keyboard/ mouse
240 x 240 mm or 300 x 300 mm
aluminium, PA6.6
anodized, powder-coated RAL 9016
RAL 5013 cobalt blue or RAL 7024 graphite grey
300 x 300 mm: 12.5 kg; 240 x 240 mm: 15 kg (6-fold safety)
Page 12
Page
12

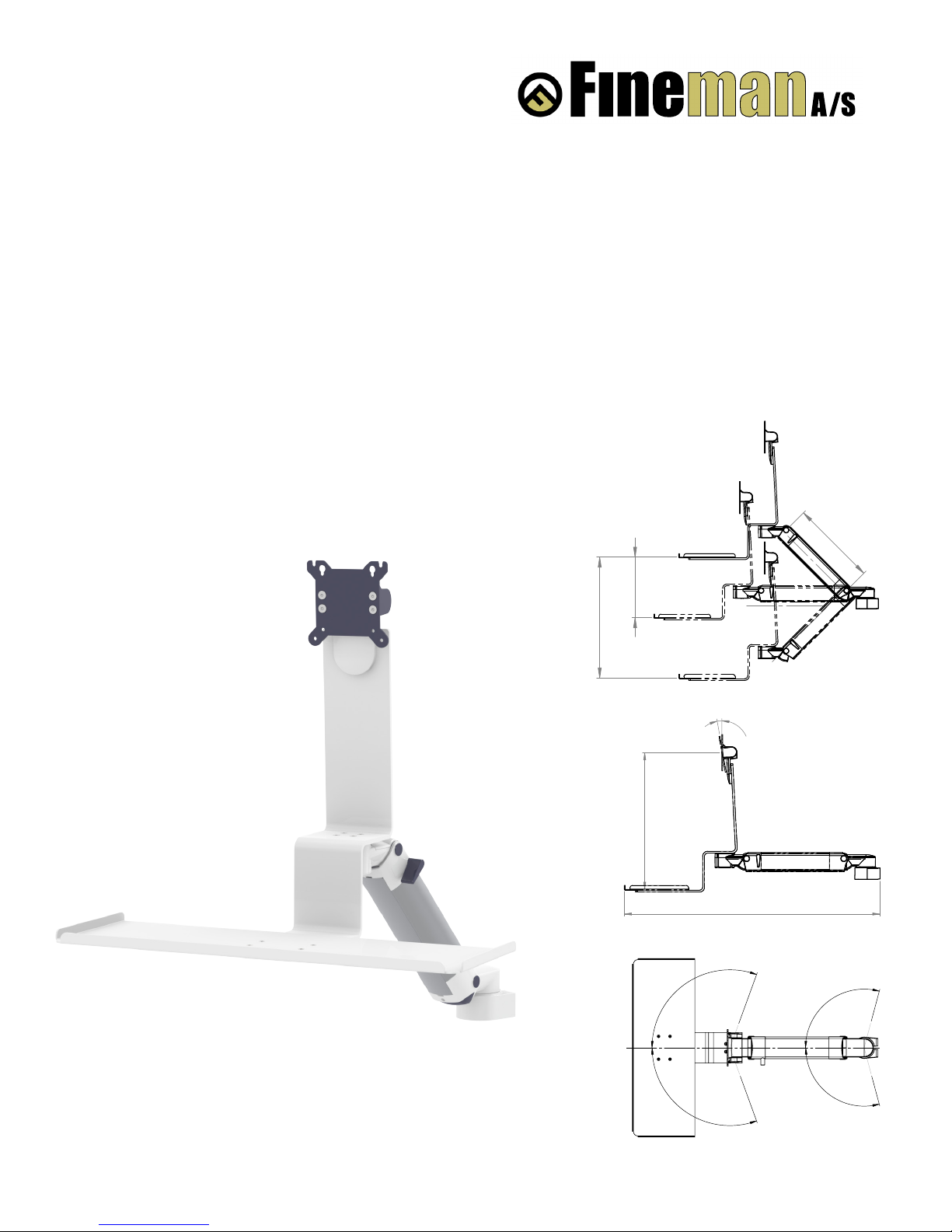

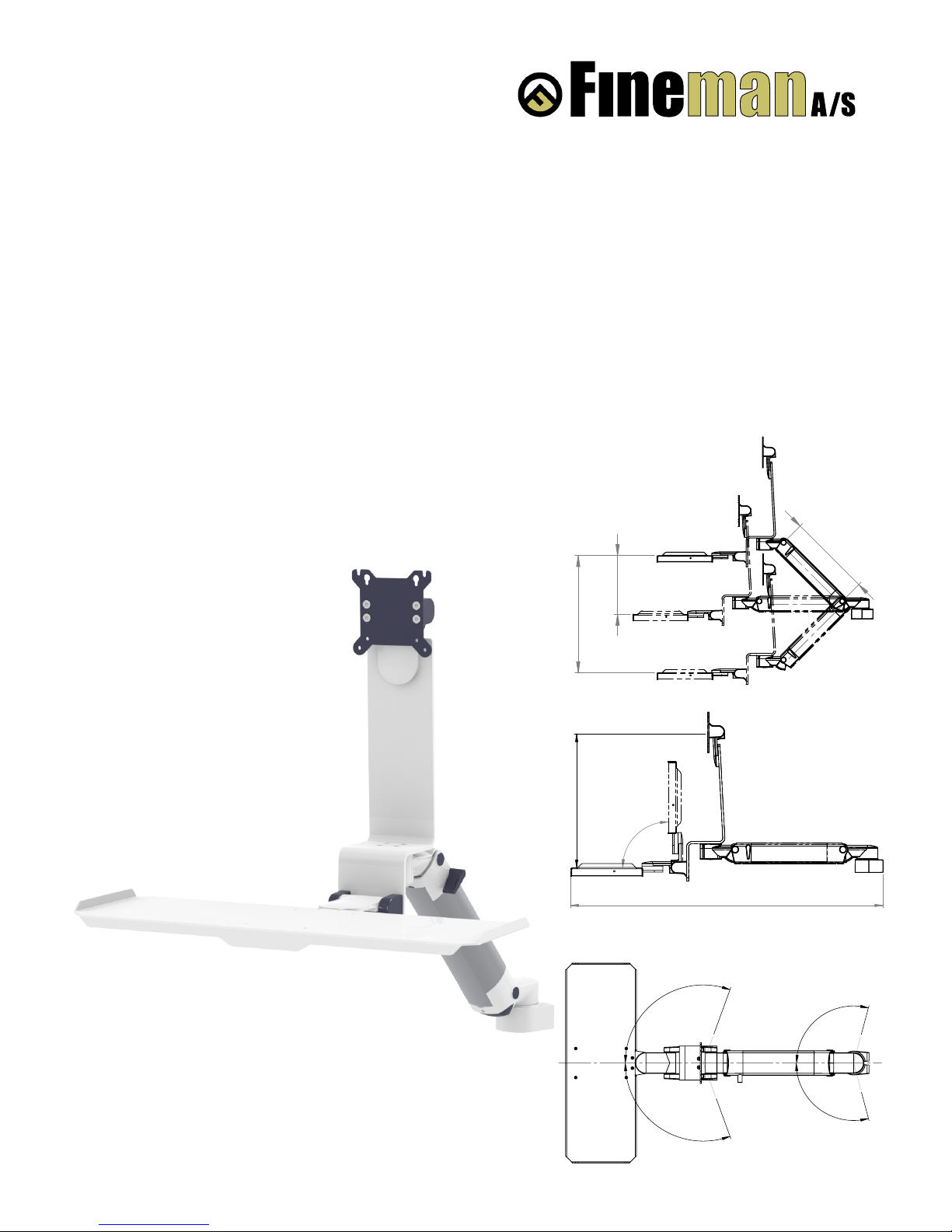

Part no. XX-431F-Y.C_X_T VESA 75/ 100
Part no. XX-431FF-Y.C_X_T VESA 75/ 100 spring supported
310
219
438
815
10°
436
105°
105°
110°
110°
Product Features
Monitor adaptation:
Height adjustment:
Material:
Surface:
Standard colours of the plastic parts:
Maximum weight:
Weight capacity of the gas springs:
W-bracket for flat panel VESA 75/ 100 and keyboard/ mouse
slow-flowing gas spring, parallel linkage for a constant viewing angle
aluminium, PA6.6
anodized, powder-coated RAL 9016
RAL 5013 cobalt blue or RAL 7024 graphite grey
22 kg (6-fold safety)
800 N (3 - 8 kg); 1300 N (9 - 14 kg); 1750 N (13 - 18 kg);
2200 N (16 - 22 kg)
HEIGHT ADJUSTABLE ARM
Page 13
1045
10°
436
310
300
219
438
95°
95°
110°
110°
360°
Page
13

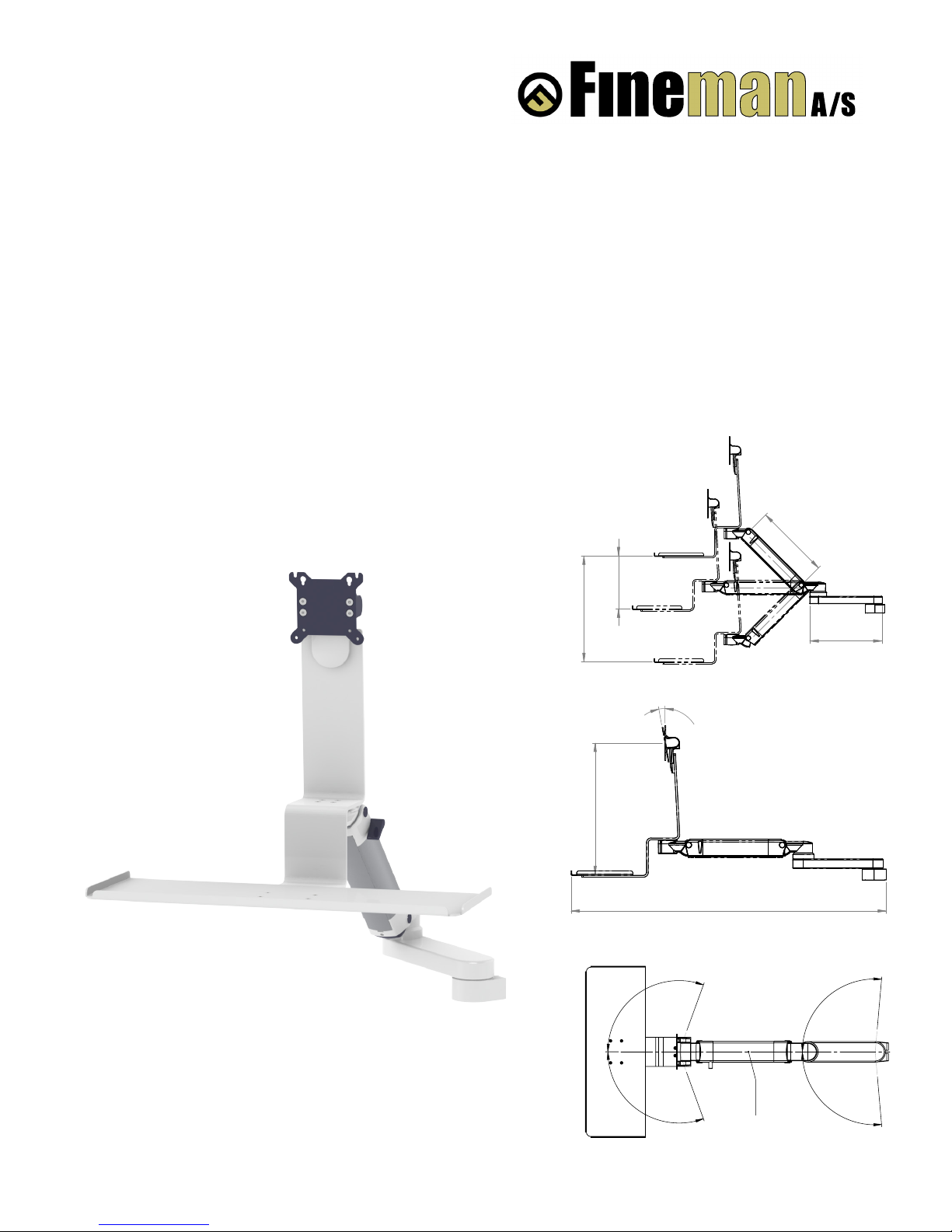

Part no. XX-73130F-Y.C_X_T VESA 75/ 100
Part no. XX-73130FF-Y.C_X_T VESA 75/ 100 spring supported
Product Features
Monitor adaptation:
Height adjustment:
Material:
Surface:
Standard colours of the plastic parts:
Maximum weight:
Weight capacity of the gas springs:
W-bracket for flat panel VESA 75/ 100 and keyboard/ mouse
slow-flowing gas spring, parallel linkage for a constant viewing angle
aluminium, PA6.6
anodized, powder-coated RAL 9016
RAL 5013 cobalt blue or RAL 7024 graphite grey
22 kg (6-fold safety)
800 N (3 - 8 kg); 1300 N (9 - 14 kg); 1750 N (13.5 - 18 kg);
2200 N (16 - 22 kg)
HEIGHT ADJUSTABLE ARTICULATING ARM
Page 14
COMBI SYSTEMS WITH SPACE-SAVING L-BRACKET
Page
14
Page 15
Page
15

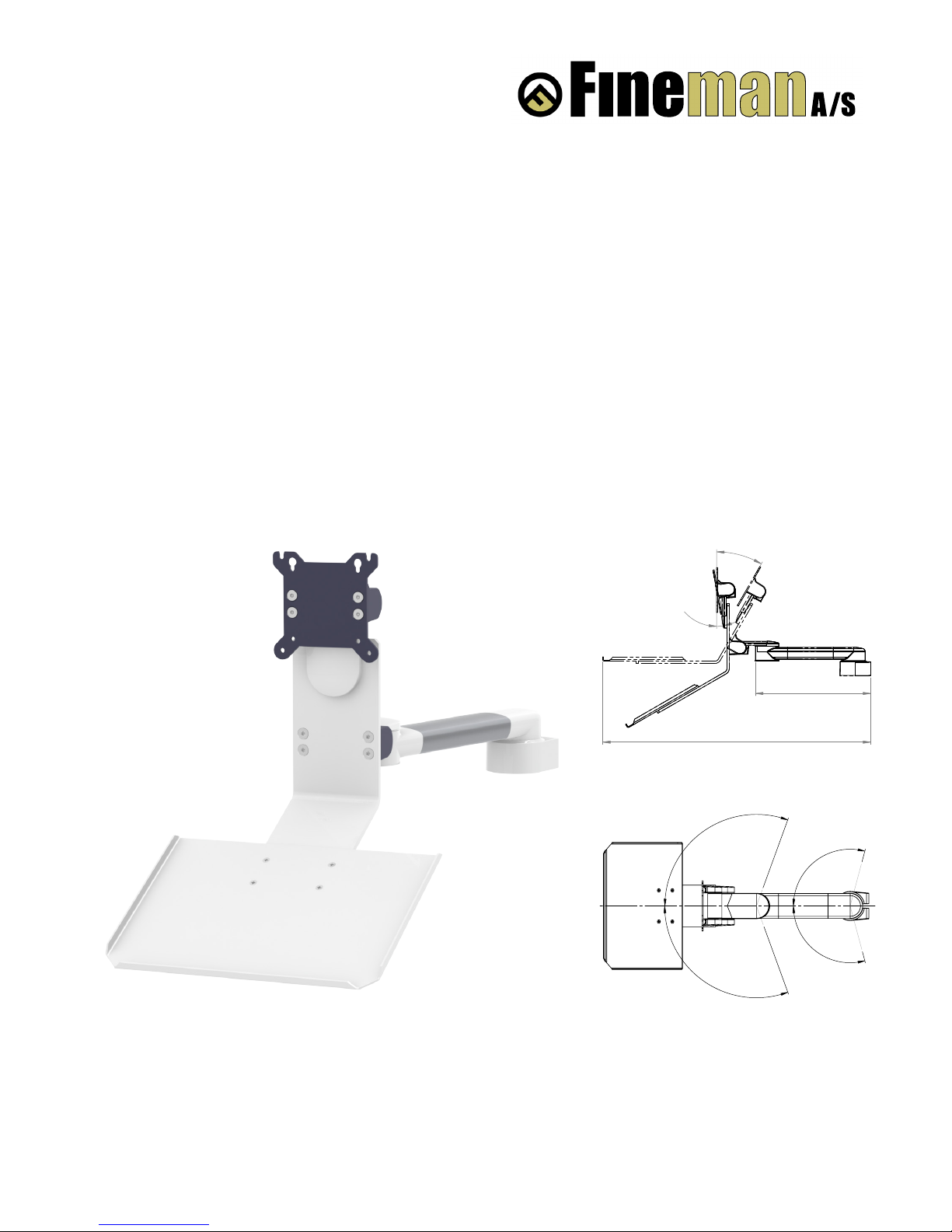

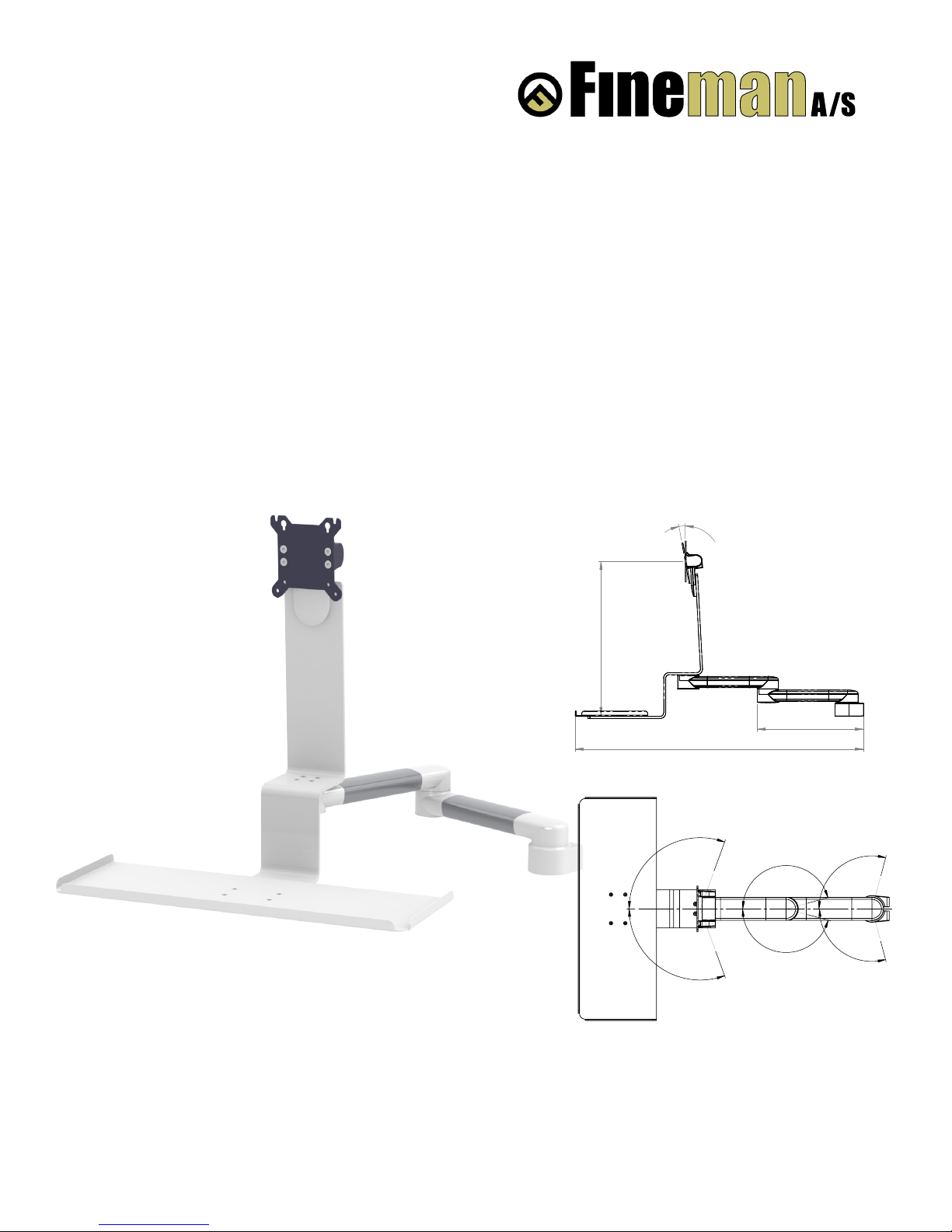

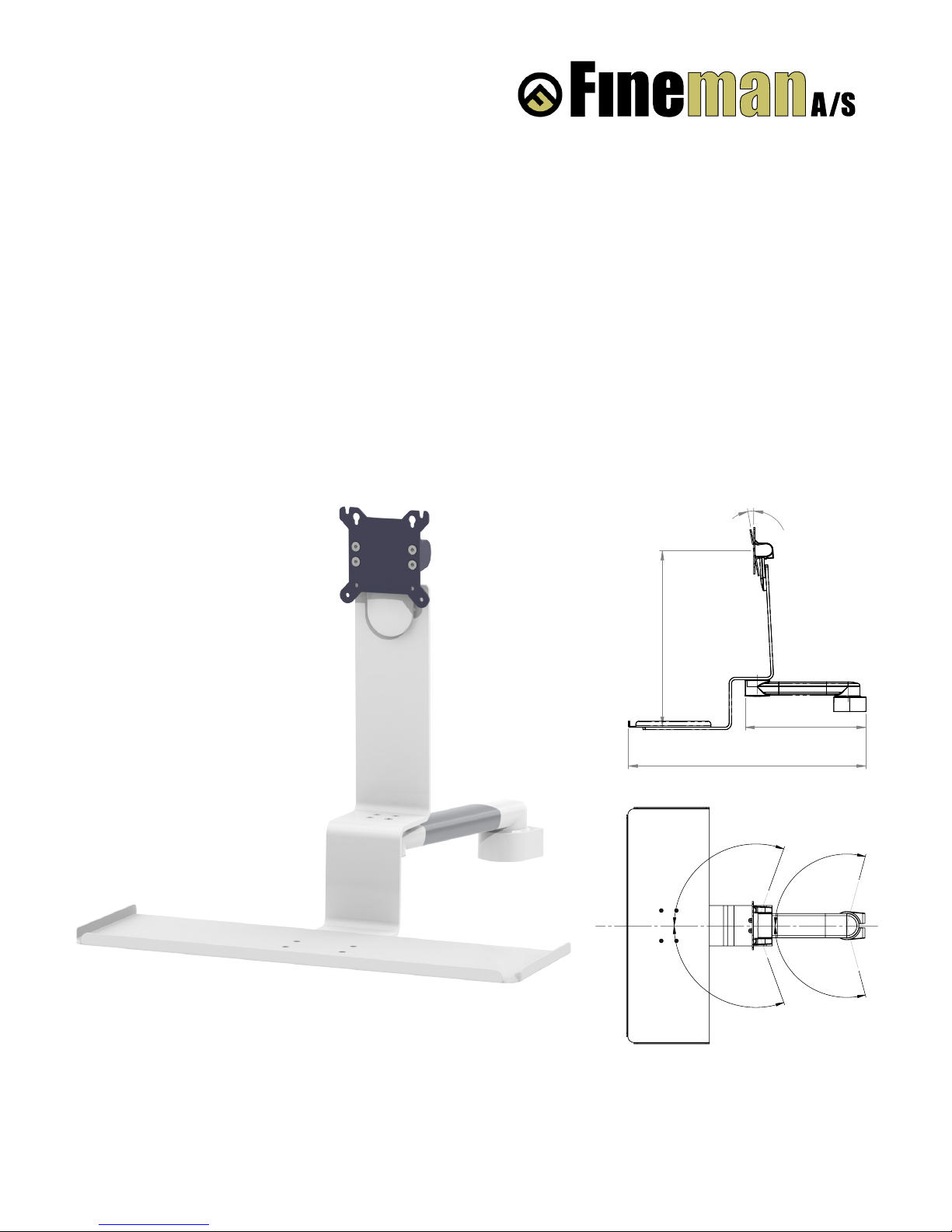

Part no. XX-224L-Y.C_T VESA 75/ 100 Arm length 240 mm
Part no. XX-230L-Y.C_T VESA 75/ 100 Arm length 300 mm
105°
105°
110°
110°
300
697
30°
10°
Product features
SUPPORT ARM PIVOT
Monitor/ keyboard adaptation:
Arm length:
Material:
Surface:
Standard colours of plastic parts:
Maximum weight:
L-bracket for flat panel VESA 75/ 100 and keyboard/ mouse
240 mm or 300 mm
aluminium, PA6.6
anodized, powder-coated RAL 9016
RAL 5013 cobalt blue or RAL 7024 graphite grey
18 kg (6-fold safety)
Page 16
Page
16

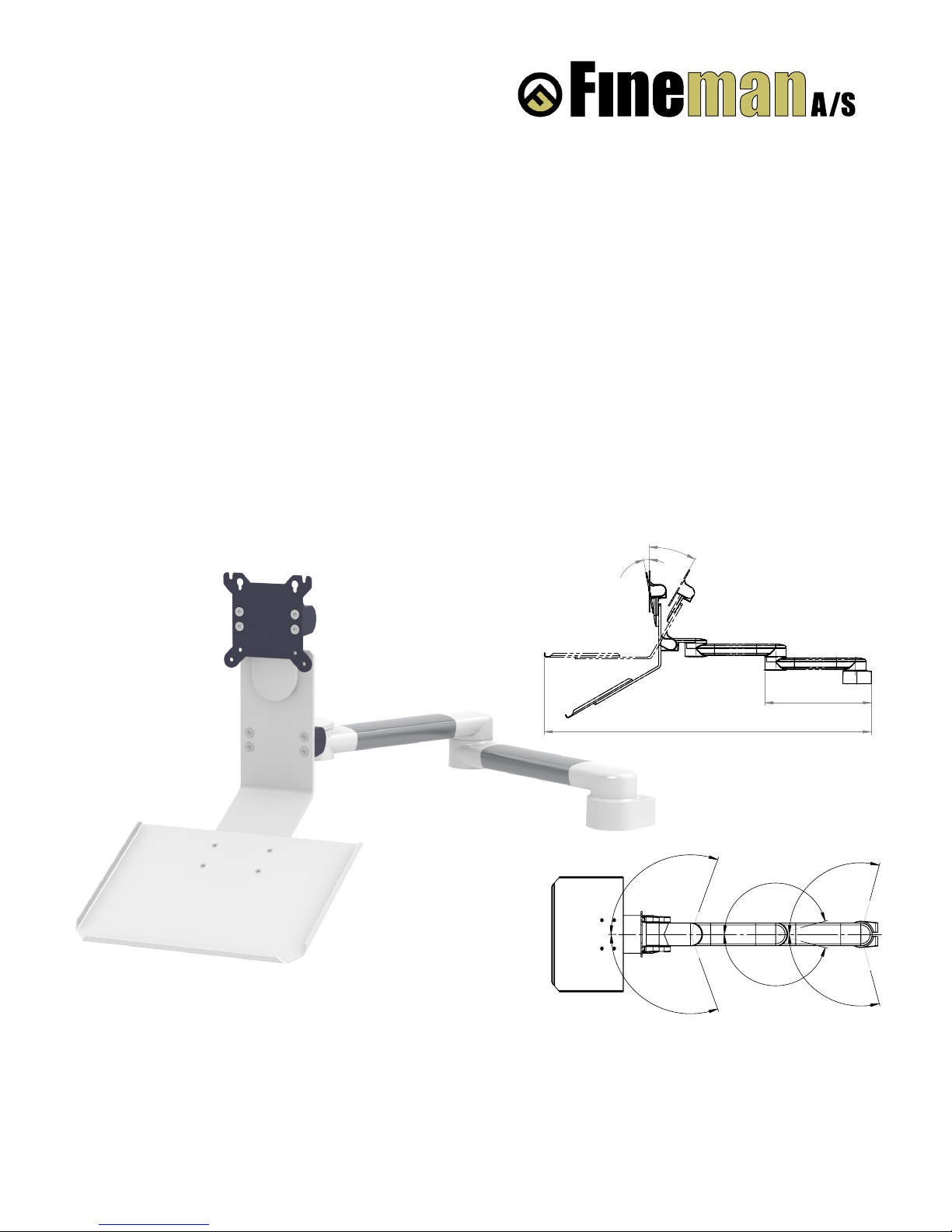

30°
922
300
10°
105°
105°
165°
165°
110°
110°

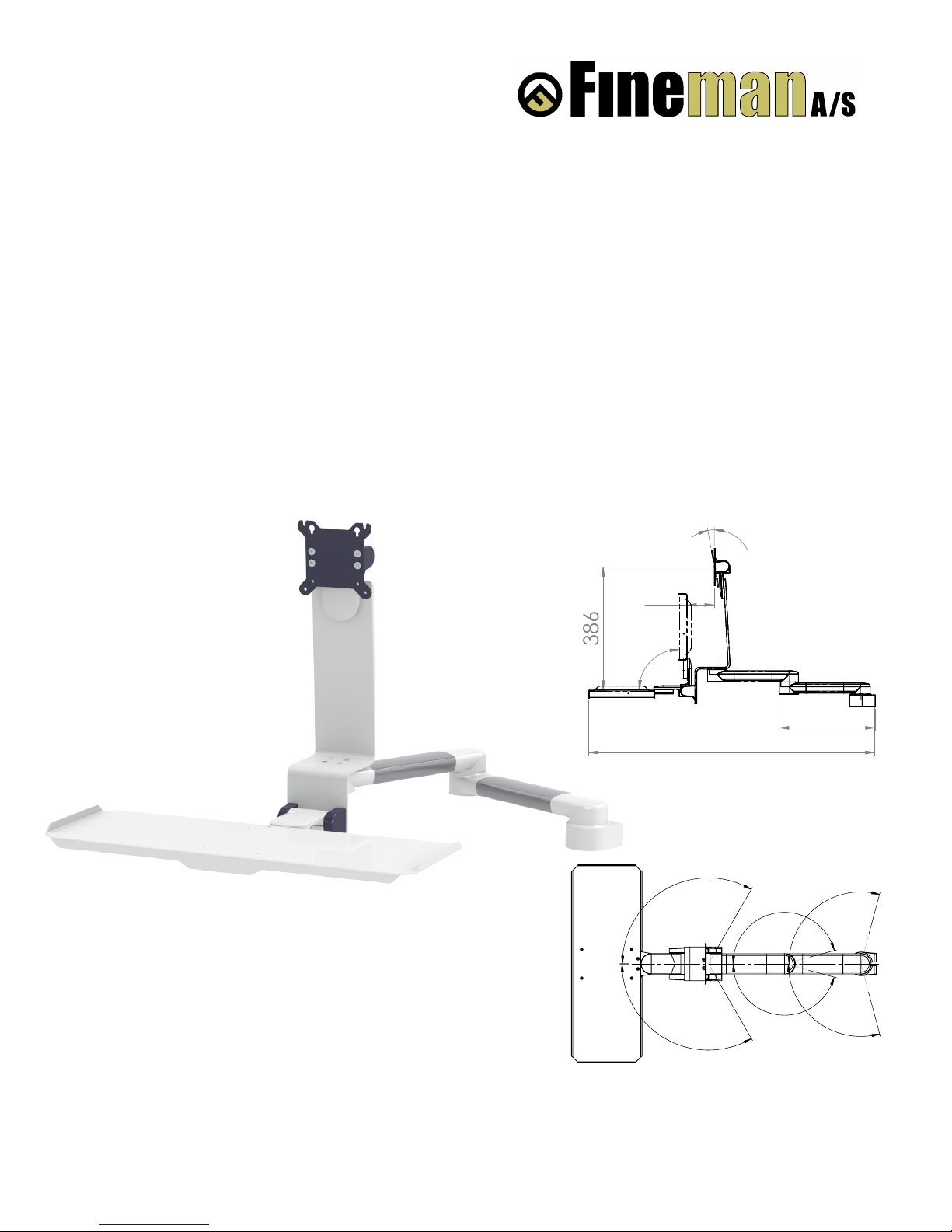

Part no. XX-32424L-Y.C_T VESA 75/ 100 Arm length 240 x 240 mm
Part no. XX-33030L-Y.C_T VESA 75/ 100 Arm length 300 x 300 mm
Product features
ARTICULATING ARM
Monitor/ keyboard adaptation:
Arm length:
Material:
Surface:
Standard colours of plastic parts:
Maximum weight:
L-bracket for flat panel VESA 75/ 100 and keyboard/ mouse
240 x 240 mm or 300 x 300 mm
aluminium, PA6.6
anodized, powder-coated RAL 9016
RAL 5013 cobalt blue or RAL 7024 graphite grey
300 x 300 mm: 12.5 kg; 240 x 240 mm: 15 kg (6-fold safety)
Page 17
Page
17

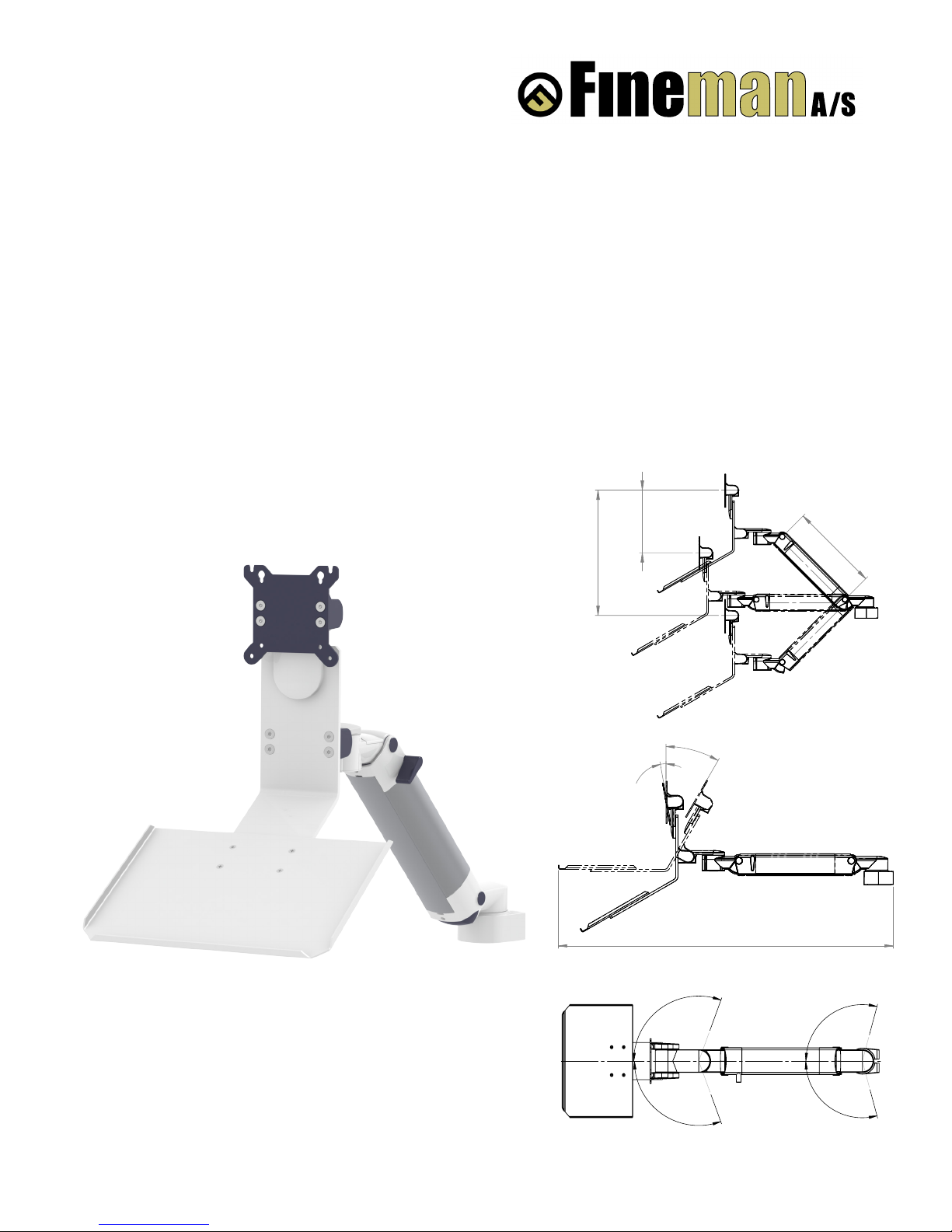

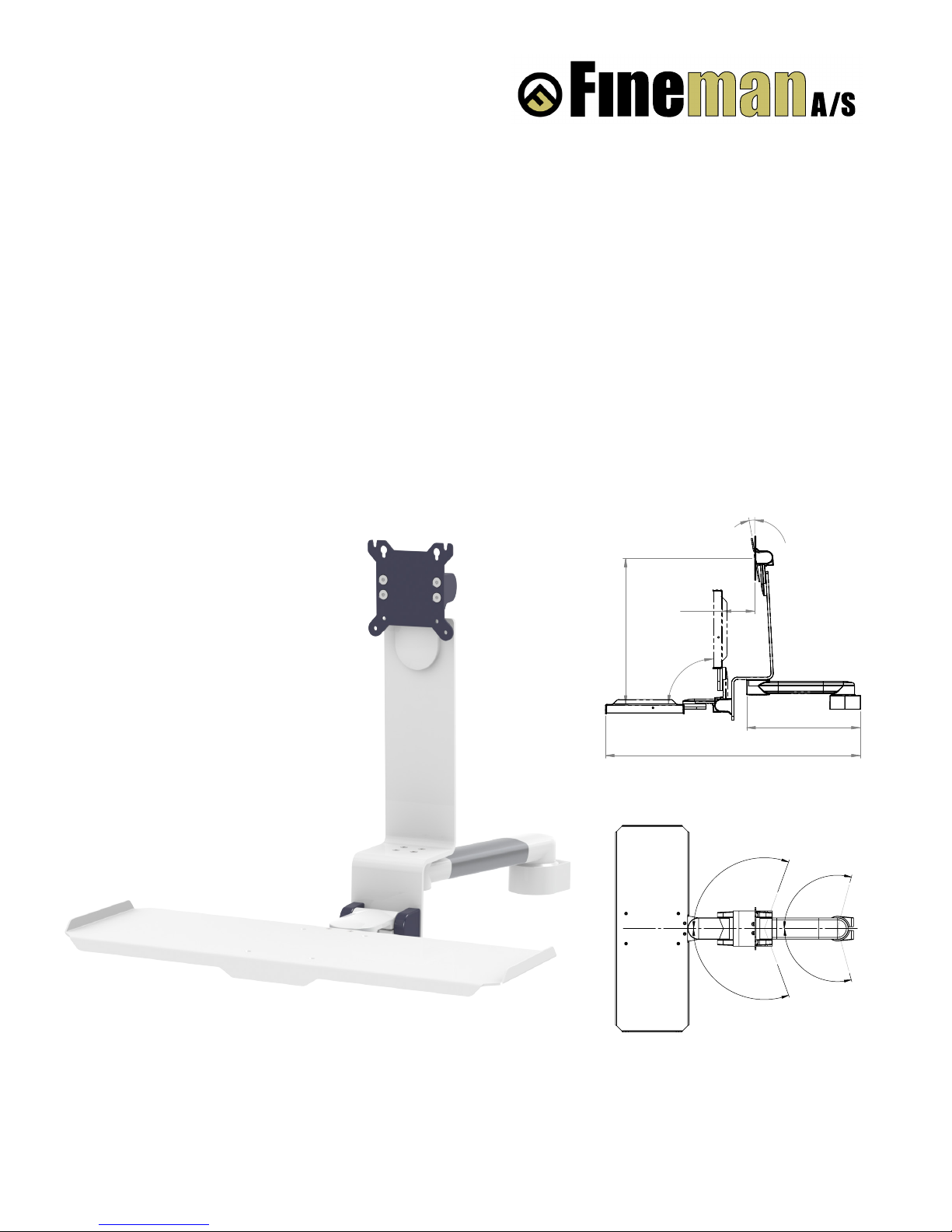

Part no. XX-431L-Y.C_X_T VESA 75/ 100
105°
105°
110°
110°
310
219
438
30°
922
10°
Product Features
Monitor adaptation:
Height adjustment:
Material:
Surface:
Standard colours of the plastic parts:
Maximum weight:
Weight capacity of the gas springs:
L-bracket for flat panel VESA 75/ 100 and keyboard/ mouse
slow-flowing gas spring, parallel linkage for a constant viewing angle
aluminium, PA6.6
anodized, powder-coated RAL 9016
RAL 5013 cobalt blue or RAL 7024 graphite grey
22 kg (6-fold safety)
800 N (3 - 8 kg); 1300 N (9 - 14 kg);
1750 N (13 - 18 kg); 2200 N (16 - 22 kg)
HEIGHT ADJUSTABLE ARM
Page 18
Page
18

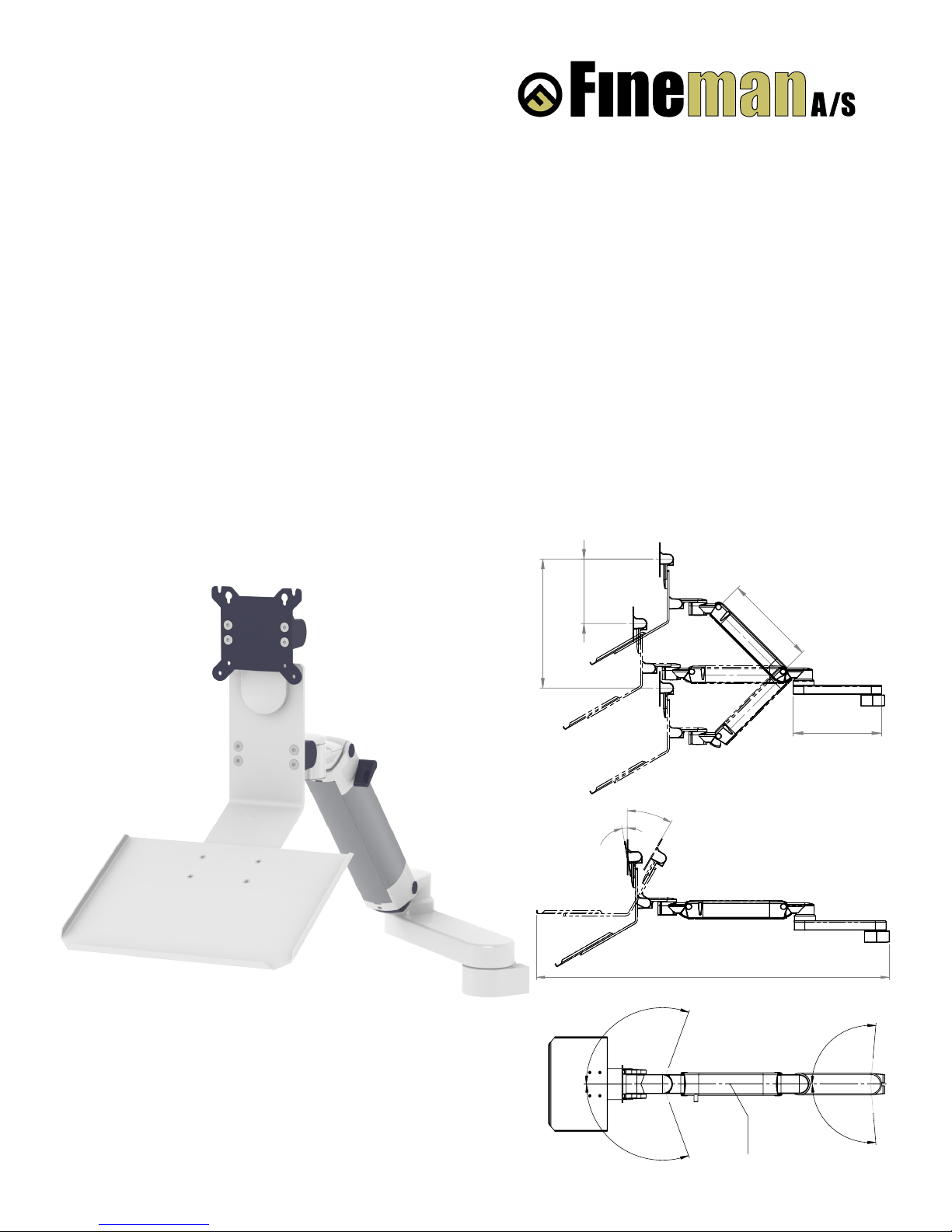

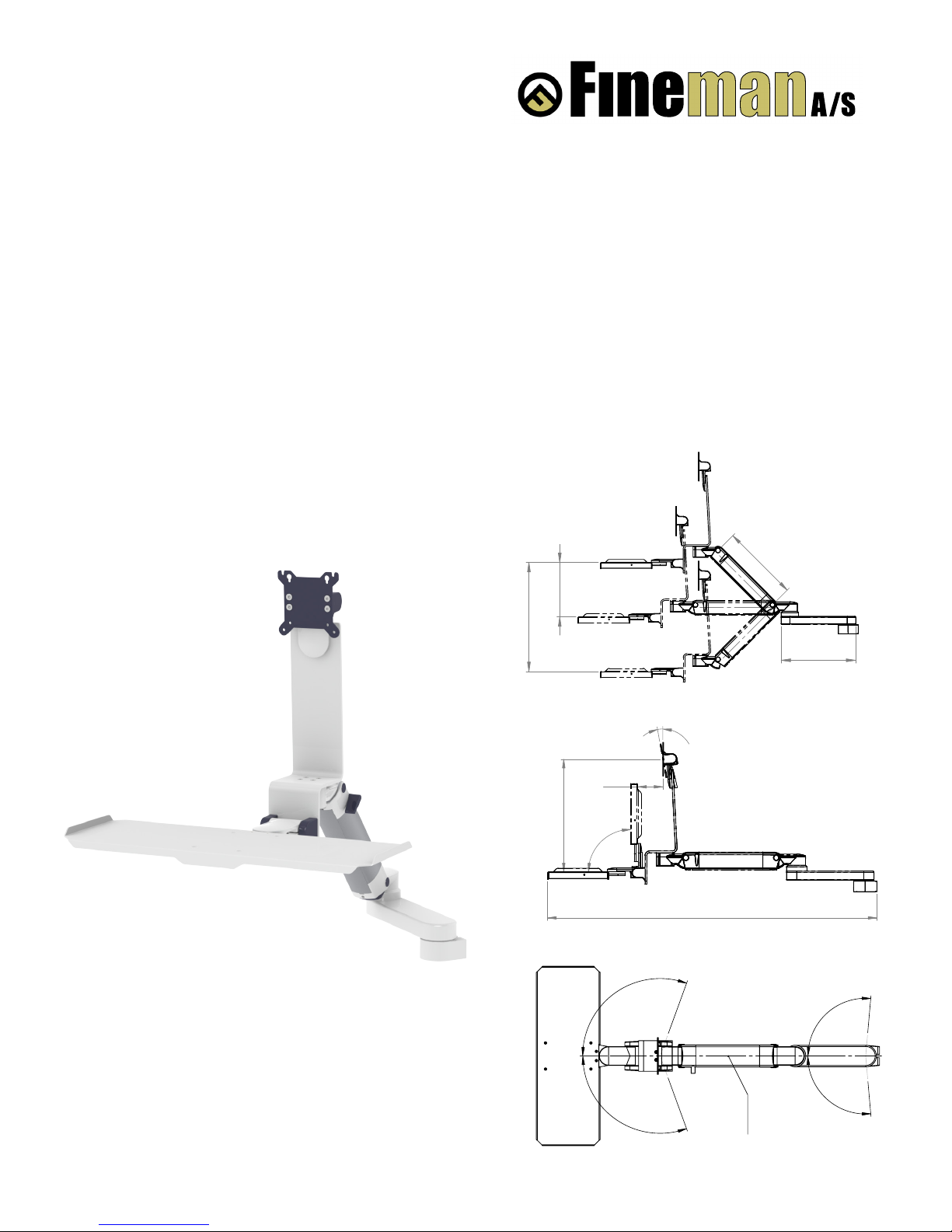

Part no. XX-73130L-Y.C_X_T VESA 75/ 100
95°
95°
110°
110°
360°
310
300
219
438
30°
1152
10°
Product Features
Monitor adaptation:
Height adjustment:
Material:
Surface:
Standard colours of the plastic parts:
Maximum weight:
Weight capacity of the gas springs:
L-bracket for flat panel VESA 75/ 100 and keyboard/ mouse
slow-flowing gas spring, parallel linkage for a constant viewing angle
aluminium, PA6.6
anodized, powder-coated RAL 9016
RAL 5013 cobalt blue or RAL 7024 graphite grey
22 kg (6-fold safety)
800 N (3 - 8 kg); 1300 N (9 - 14 kg); 1750 N (13.5 - 18 kg);
2200 N (16 - 22 kg)
HEIGHT ADJUSTABLE ARTICULATING ARM
Page 19
COMBI SYSTEMS WITH FOLD-UP Z-BRACKET
Page
19
Page 20
Page
20
Arm length 240 mm Arm length 300 mm
Part no. XX-224M-Y.C_T VESA 75/ 100 Part no. XX-230M-Y.C_T VESA 75/ 100
Part no. XX-224MF-Y.C_T VESA 75/ 100 spring supported Part no. XX-230MF-Y.C_T VESA 75/ 100 spring supported
105°
105°
110°
110°
300
674
10°
90°
86
386
Product features
SUPPORT ARM PIVOT
Monitor/ keyboard adaptation:
Arm length:
Material:
Surface:
Standard colours of plastic parts:
Maximum weight:
Z-bracket for flat panel VESA 75/ 100 and keyboard/ mouse
240 mm or 300 mm
aluminium, PA6.6
anodized, powder-coated RAL 9016
RAL 5013 cobalt blue or RAL 7024 graphite grey
18 kg (6-fold safety)
Page 21
Page
21
Arm length 240 x 240 mm Arm length 300 x 300 mm
Part no. XX-32424M-Y.C_T VESA 75/ 100 Part no. XX-33030M-Y.C_T VESA 75/ 100
Part no. XX-32424MF-Y.C_T VESA 75/ 100 spring supported Part no. XX-33030MF-Y.C_T VESA 75/ 100
90°
300
898
10°
86
386
120°
120°
165°
165°
105°
105°
Product features
ARTICULATING ARM
Monitor/ keyboard adaptation:
Arm length:
Material:
Surface:
Standard colours of plastic parts:
Maximum weight:
Z-bracket for flat panel VESA 75/ 100 and keyboard/ mouse
240 x 240 mm or 300 x 300 mm
aluminium, PA6.6
anodized, powder-coated RAL 9016
RAL 5013 cobalt blue or RAL 7024 graphite grey
300 x 300 mm: 12.5 kg; 240 x 240 mm: 15 kg (6-fold safety)
Page 22
Page
22
Part no. XX-431M-Y.C_X_T VESA 75/ 100
Part no. XX-431MF-Y.C_X_T VESA 75/ 100 spring supported
105°
105°
110°
110°
310
219
438
90°
899
386
Product Features
Monitor adaptation:
Height adjustment:
Material:
Surface:
Standard colours of the plastic parts:
Maximum weight:
Weight capacity of the gas springs:
Z-bracket for flat panel VESA 75/ 100 and keyboard/ mouse
slow-flowing gas spring, parallel linkage for a constant viewing angle
aluminium, PA6.6
anodized, powder-coated RAL 9016
RAL 5013 cobalt blue or RAL 7024 graphite grey
22 kg (6-fold safety)
800 N (3 - 8 kg); 1300 N (9 - 14 kg); 1750 N (13 - 18 kg);
2200 N (16 - 22 kg)
HEIGHT ADJUSTABLE ARM
Page 23
95°
95°
110°
110°
360°
310
300
219
438
1129
10°
386
86
90°
Page
23
Part no. XX-73130M-Y.C_X_T VESA 75/ 100
Part no. XX-73130MF-Y.C_X_T VESA 75/ 100 spring supported
Product Features
Monitor adaptation:
Height adjustment:
Material:
Surface:
Standard colours of the plastic parts:
Maximum weight:
Weight capacity of the gas springs:
Z-bracket for flat panel VESA 75/ 100 and keyboard/ mouse
slow-flowing gas spring, parallel linkage for a constant viewing angle
aluminium, PA6.6
anodized, powder-coated RAL 9016
RAL 5013 cobalt blue or RAL 7024 graphite grey
22 kg (6-fold safety)
800 N (3 - 8 kg); 1300 N (9 - 14 kg); 1750 N (13.5 - 18 kg);
2200 N (16 - 22 kg)
HEIGHT ADJUSTABLE ARTICULATING ARM
Page 24
Fixing/ Adaptation Description
Part no.
code
Universal Rail Clamp with Quick Release
European rails 10 x 25, 8 x 35, 10 x 30, 10 x 50
Scandinavian rails Uniflex, Duoflex and Modura, without distance to wall
Scandinavian rails Uniflex, Duoflex and Modura, with distance to wall
2
2W
2K
Vertical Rail Clamp
to attach to vertical European rail 10 x 25
3
Adapter Vertical Wall Channel
to mount to CIM wall channel (compatible with GCX channel)
Please order separately: CIM wall channel, L 480 mm
4V
65-0048
Adapter Horizontal Wall Channel
to mount to CIM wall channel
Please order separately: CIM wall channel
4H
65-0048H
Universal Pole Clamp
V-block for poles 20 - 40 mm
1V
Fixed Pole Clamp
Ø 25 mm
Ø 35 mm
Ø 38 mm
1
1F
1C
FIXINGS
Page
24

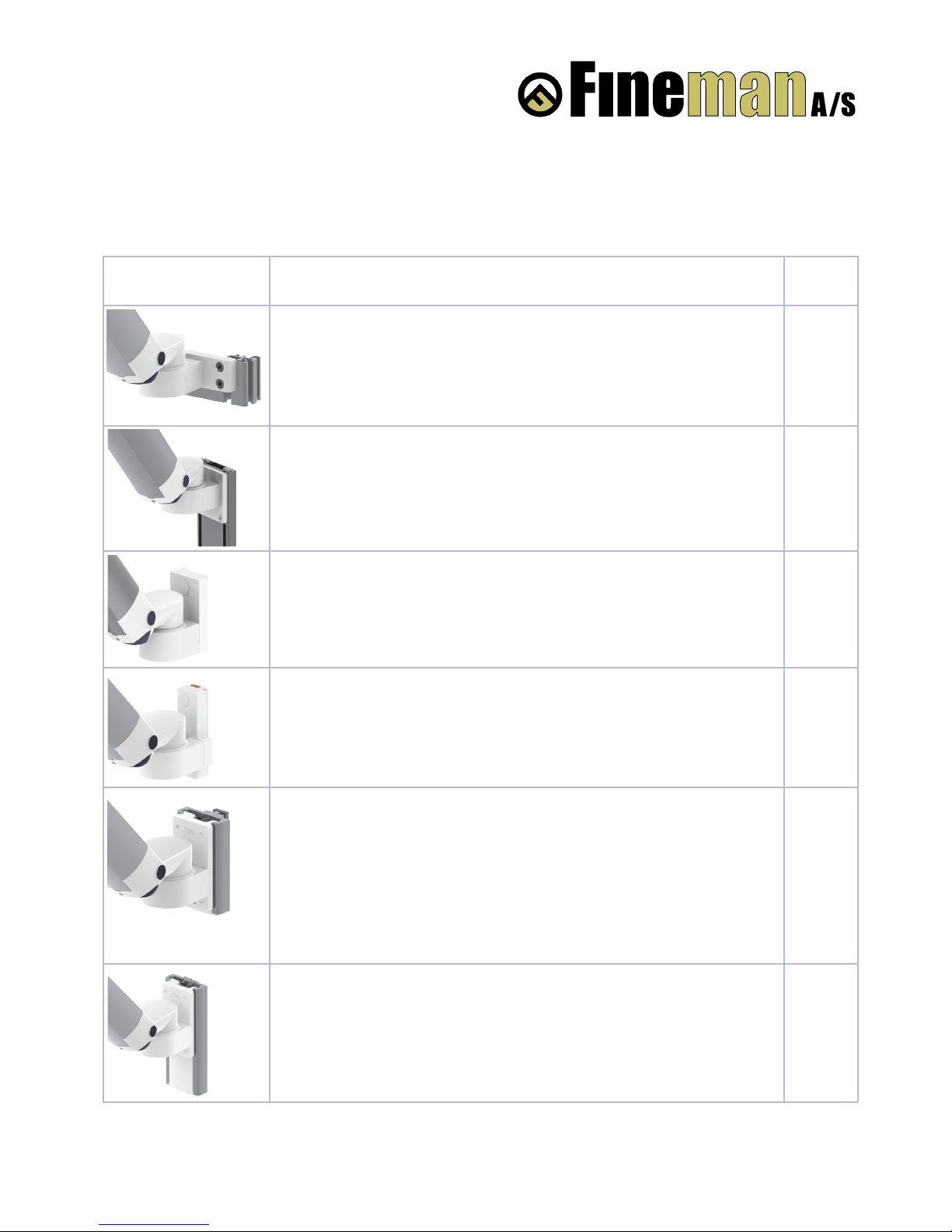

Page 25
Fixing/ Adaptation Description
Part no.
code
Lateral Adapter
for Trumpf ceiling pendant 8
Anaesthesia Adapter
Heinen & Löwenstein Leon/ Leon plus 9
Anaesthesia Adapter
Cone adapter for Maquet FLOW i 10
Anaesthesia Adapter
Philips Siesta i/ Siesta i Whispa/ Siesta i Breasy 11
Anaesthesia Adapter
Dräger Primus/ Julian/ Cato/ Fabius GS/ Zeus
Please order separately:
Side channel adapter L 100 mm
Side channel adapter L 320 mm
4V
DR-J01
DR-J02
Anaesthesia Adapter
GE Avance/ Aespire/ Aestiva
Please order separately:
Side channel adapter L 150 mm
4V
DX-AES-01
FIXINGS
Page
25
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
