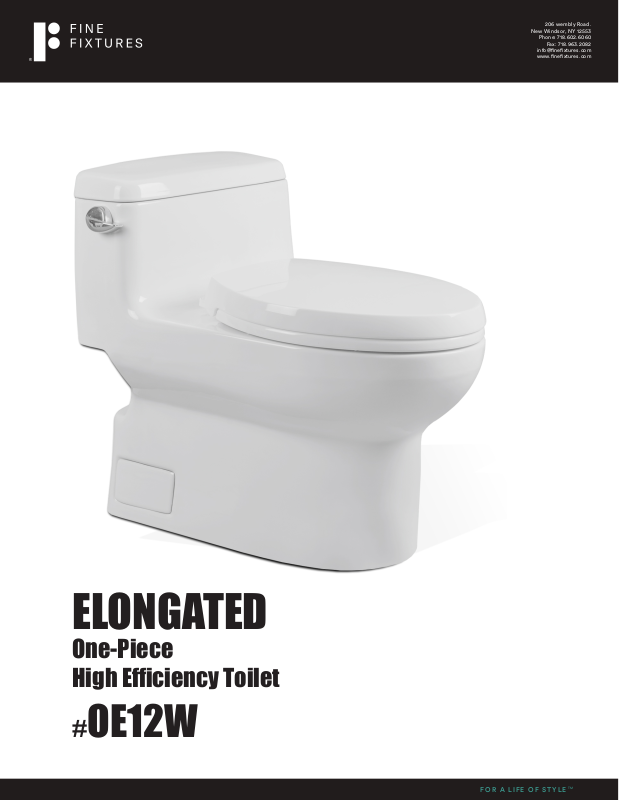

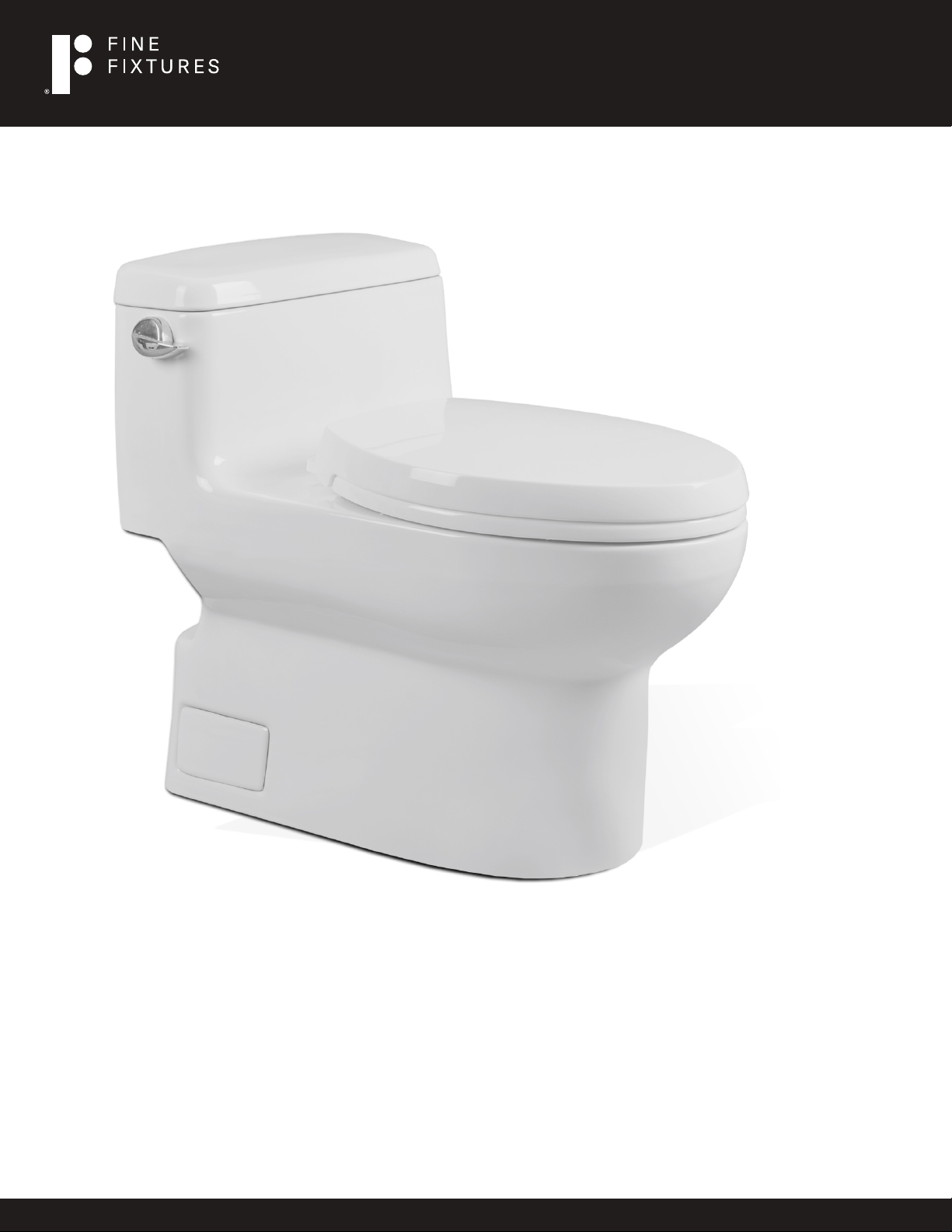

ELONGATED
One-Piece
High Efficiency Toilet
#OE12W
F O R A LIFE O F S TYLE
TM
Page 2
1. SPECIFICATIONS
• Water Use 1.28 GPF/4.8LPF
• Min. Water Pressure 8 psi (fl owing)
• Water Surface 6-7/8" x 9-3/4"
• Trap Diameter 2-1/8"
• Rough-in 12"
• Trap Seal 2-1/8"
• Warranty One Year Limited Warranty
• Material Vitreous china
• Shipping Weight 108 lbs.
206 wembly Road.
New Windsor, NY 12553
Phone: 7 18.602.60 60
Fax: 7 18.963.20 82
info@nextures.com
www.nextures.com
• Shipping Dimensions 29-1/2" L x 18"W
x 19-1/4" H
1
x 27-1/8" H
2
2. INSTALLATION NOTES

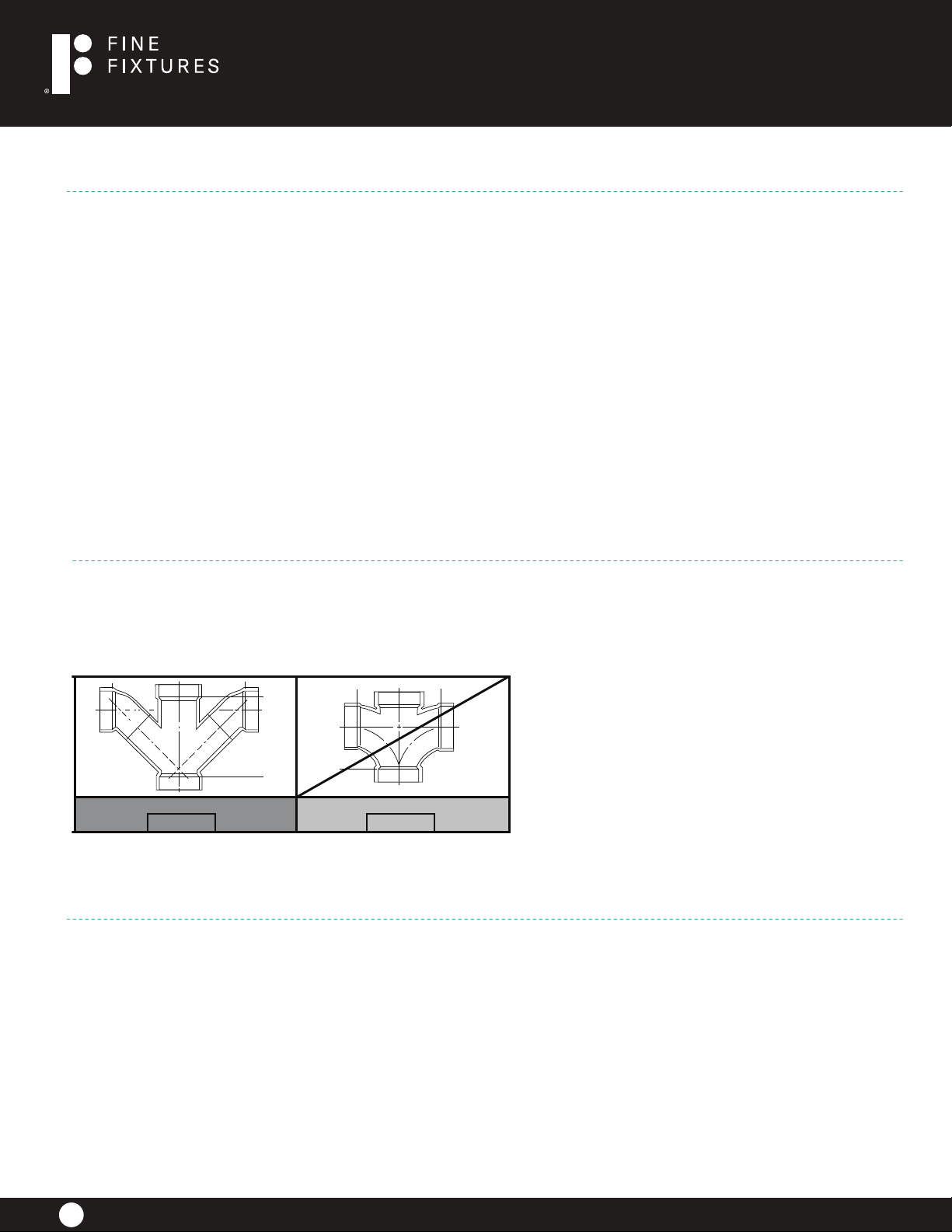

Back-to-Back Toilet Installations:
Fine Fixtures recommends the use of a nationally listed, double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the majority of nationally recognized plumbing codes.
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
ONSEY
3. FEATURES
• Dual Flush flushing system, low consumption (1.28GPF/4.8LPF)
• Skirted design
• ceramic glaze - prevents debris and mold from sticking to ceramic surfaces, leading to fewer chemicals and less
water in cleaning
• Universal Height
• Decorative one-piece design with low-profile tank
• Elongated front bowl with SoftClose seat
• 12" Unifit rough-in (included), less supply
• Chrome trip lever
2
F O R A LIFE O F S TYLE
TM
Page 3

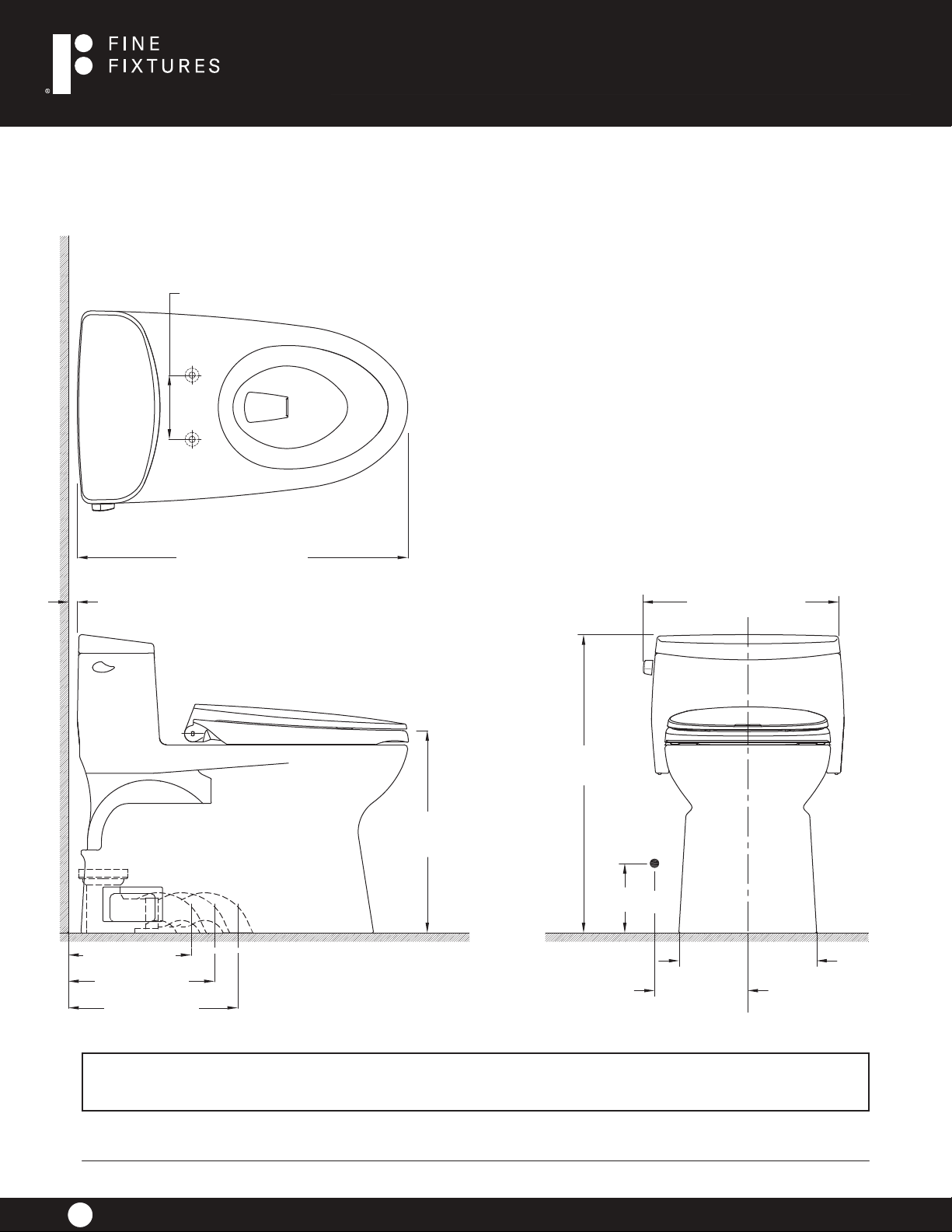

DIMENSIONS/TECHNICAL DATA
5-1/2" (140mm)
206 wembly Road.
New Windsor, NY 12553
Phone: 7 18.602.60 60
Fax: 7 18.963.20 82
info@nextures.com
www.nextures.com
3/4" (19mm)
10" (254mm)
12" (305mm)
14" (356mm)
28-5/16" (720mm)
17-3/8"
(441mm)
25-9/16"
(650mm)
*6" (152mm)
17-1/2" (445mm)
11-13/16" (300mm)
*8" (203mm)
*SUGGESTED
DIMENSIONS
ATTENTION! Dimensions may vary by up to 3/8". It is highly recommended to pull
TECHNICAL DATA
• Dual ush: 1/1.6 GPF
3
all dimensions of actual model for installation and measuring purposes.
