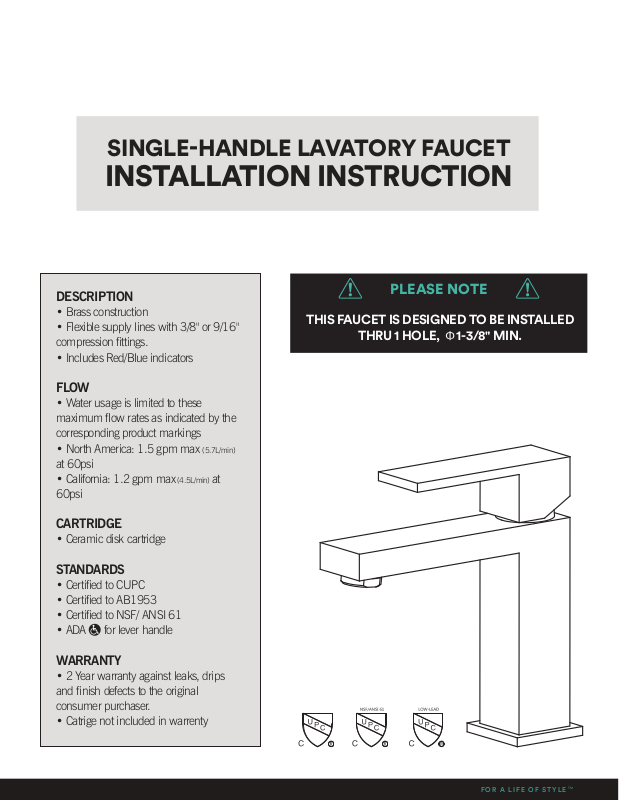

Page 1
SINGLE-HANDLE LAVATORY FAUCET
INSTALLATION INSTRUCTION
206 wembly Road.
New Windsor, NY 12553
Phone: 7 18.602.60 60
Fax: 7 18.963.20 82
info@nextures.com
www.nextures.com
DESCRIPTION
• Brass construction
• Flexible supply lines with 3/8" or 9/16"
compression fittings.
• Includes Red/Blue indicators
FLOW
• Water usage is limited to these
maximum flow rates as indicated by the
corresponding product markings
• North America: 1.5 gpm max (5.7L/min)
at 60psi
• California: 1.2 gpm max (4.5L/min) at
60psi
CARTRIDGE
• Ceramic disk cartridge
STANDARDS
• Certified to CUPC
• Certified to AB1953
• Certified to NSF/ ANSI 61
• ADA for lever handle
PLEASE NOTE
THIS FAUCET IS DESIGNED TO BE INSTALLED
THRU 1 HOLE, 1-3/8" MIN.
WARRANTY
• 2 Year warranty against leaks, drips
and finish defects to the original
consumer purchaser.
• Catrige not included in warrenty
F O R A LIFE O F S TYLE
TM
Page 2
SPECIFICATIONS
206 wembly Road.
New Windsor, NY 12553
Phone: 7 18.602.60 60
Fax: 7 18.963.20 82
info@nextures.com
www.nextures.com
Side ViewFront View
F O R A LIFE O F S TYLE
TM
Page 3
SINGLE-HANDLE LAVATORY FAUCET
INSTALLATION INSTRUCTION
READ ALL INSTRUCTIONS BEFORE UNPACKING THE PRODUCT
INSTALLATION MANUAL
Tools You Will Need ·
206 wembly Road.
New Windsor, NY 12553
Phone: 7 18.602.60 60
Fax: 7 18.963.20 82
info@nextures.com
www.nextures.com
PLEASE NOTE BEFORE INSTALLATION
1. Please check that all components are present.
2. Before installation ensure that all feed lines are clear of
Adjustable wrench
Pipe Tape
Hexagon wrench
debris and on/off valve is present.
3. Ensure water pressure is between 20-125 PSI
combination of hot and cold feed lines).
(Includes
4. Pictures in the manual are general in content and may
not represent exactly your purchased faucet. If you are
having difficulties please contact a professional plumber.
5. If you will be away from home for an extended period
you should shut off the main water supply.
DAILY MAINTENANCE
1.Use a soft cloth and vinegar to remove hard-water spots.
2. Check aerator (if present) regularly for calcium build up
are when water stream is not optimum.
3. DO NOT use caustic cleaning products as the use will
break down finish and will void the product warranty.
4. Acceptable cleaners include vinegar or mild non-abrasive
liquid detergents.
5. If the water pressure appears to be less than optimum
remove, inspect,clean or replace aerator.
F O R A LIFE O F S TYLE
TM
Page 4
SINGLE-HANDLE LAVATORY FAUCET
INSTALLATION INSTRUCTION
206 wembly Road.
New Windsor, NY 12553
Phone: 7 18.602.60 60
Fax: 7 18.963.20 82
info@nextures.com
www.nextures.com
1. Remove the rubber washer,metal
washer and locking nut from the faucet.
2. Screw and hand tighten the hot and
cold flexible hoses to the faucet.DO
NOT use a wrench to tighten hoses as
this may damage the hose and/or the
hos threads.
3. Install faucet through center hole .
4. Re-install the rubber washer followed
by the metal washer and lock-nut.Hand
tighten then tighten further using a
screw driver to tighten lock-nut screws.
5.Attach flexible hose to water supply.
6. Remove the aerator and turn on
faucet for 1minute to flush debris from
faucet and feed lines.
Turn faucet off and re-install aerator.
F O R A LIFE O F S TYLE
TM
