FINDER 97.01 Specification

97.01

97.02

97.02

97.01

97.01

5

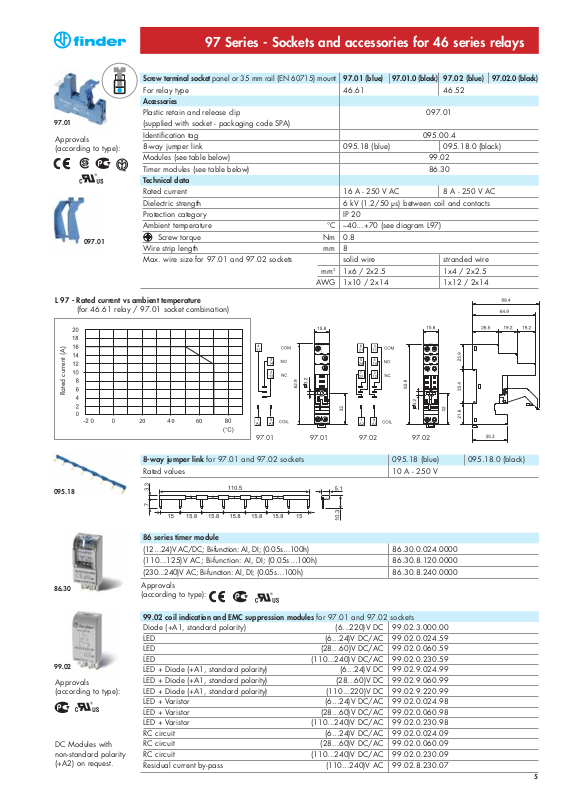

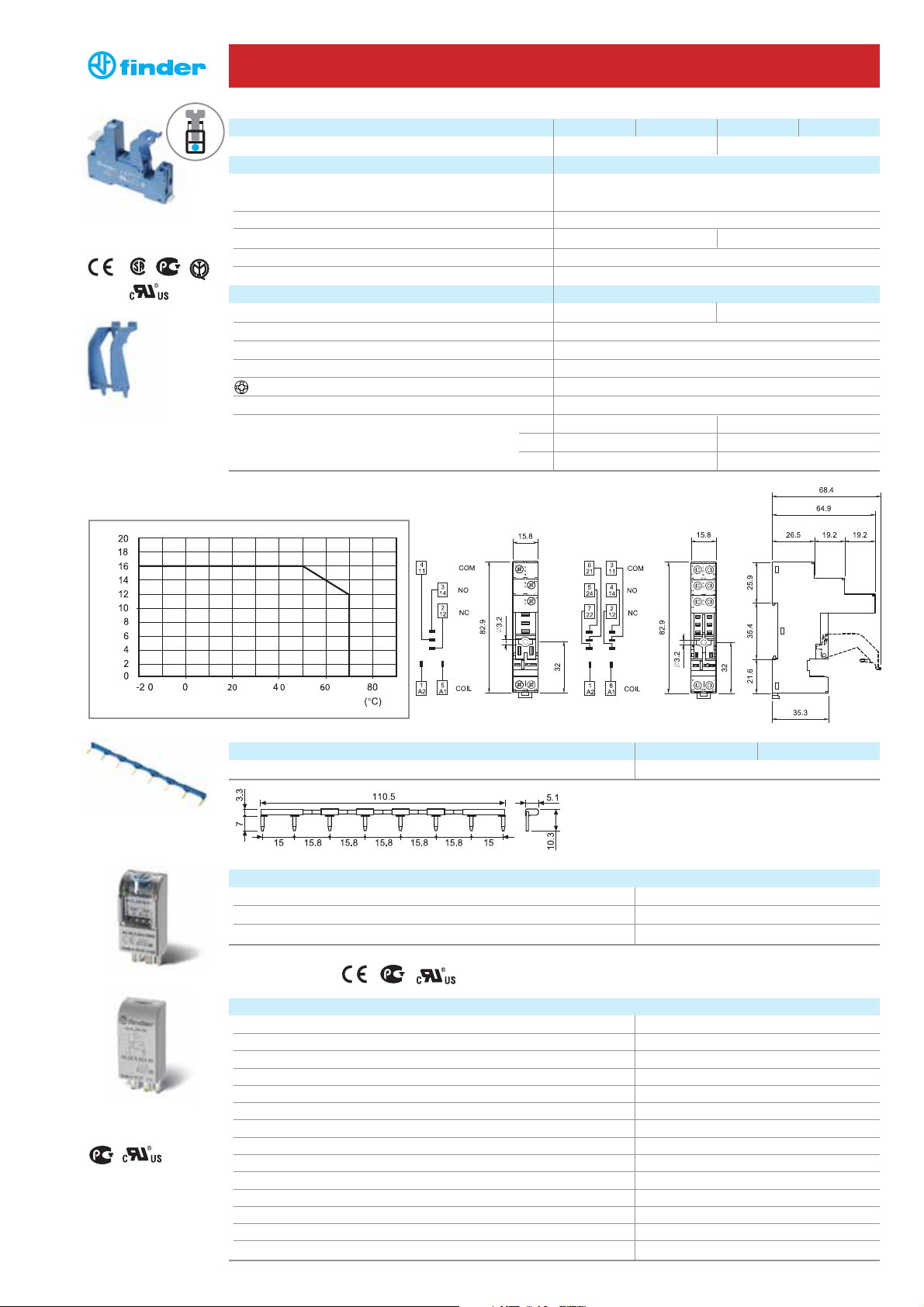

97 Series - Sockets and accessories for 46 series relays

Screw terminal socket panel or 35 mm rail (EN 60715) mount

97.01 (blue)

97.01.0 (black)

97.02 (blue)

97.02.0 (black)

For relay type 46.61 46.52

Accessories

Plastic retain and release clip 097.01
(supplied with socket - packaging code SPA)
Identification tag 095.00.4
8-way jumper link 095.18 (blue) 095.18.0 (black)
Modules (see table below) 99.02
Timer modules (see table below) 86.30

Technical data

Rated current

16 A - 250 V AC 8 A - 250 V AC
Dielectric strength 6 kV (1.2/50 µs) between coil and contacts
Protection category IP 20
Ambient temperature °C –40…+70 (see diagram L97)

Screw torque Nm 0.8
Wire strip length mm 8
Max. wire size for 97.01 and 97.02 sockets solid wire stranded wire

mm21x6 / 2x2.5 1x4 / 2x2.5

AWG 1x10 / 2x14 1x12 / 2x14

99.02 coil indication and EMC suppression modules for 97.01 and 97.02 sockets
Diode (+A1, standard polarity) (6...220)V DC 99.02.3.000.00
LED (6...24)V DC/AC 99.02.0.024.59
LED (28...60)V DC/AC 99.02.0.060.59
LED (110...240)V DC/AC 99.02.0.230.59
LED + Diode (+A1, standard polarity) (6...24)V DC 99.02.9.024.99
LED + Diode (+A1, standard polarity) (28...60)V DC 99.02.9.060.99
LED + Diode (+A1, standard polarity) (110...220)V DC 99.02.9.220.99
LED + Varistor (6...24)V DC/AC 99.02.0.024.98
LED + Varistor (28...60)V DC/AC 99.02.0.060.98
LED + Varistor (110...240)V DC/AC 99.02.0.230.98
RC circuit (6...24)V DC/AC 99.02.0.024.09
RC circuit (28...60)V DC/AC 99.02.0.060.09
RC circuit (110...240)V DC/AC 99.02.0.230.09
Residual current by-pass (110...240)V AC 99.02.8.230.07

86 series timer module

(12…24)V AC/DC; Bi-function: AI, DI; (0.05s…100h)

86.30.0.024.0000
(110...125)V AC; Bi-function: AI, DI; (0.05s…100h) 86.30.8.120.0000
(230...240)V AC; Bi-function: AI, DI; (0.05s…100h)

86.30.8.240.0000

DC Modules with
non-standard polarity
(+A2) on request.

Approvals
(according to type):

Approvals
(according to type):

8-way jumper link for 97.01 and 97.02 sockets 095.18 (blue) 095.18.0 (black)
Rated values 10 A - 250 V

Approvals
(according to type):

Rated current (A)

L 97 - Rated current vs ambient temperature

(for 46.61 relay / 97.01 socket combination)

095.18

097.01

99.02

86.30
