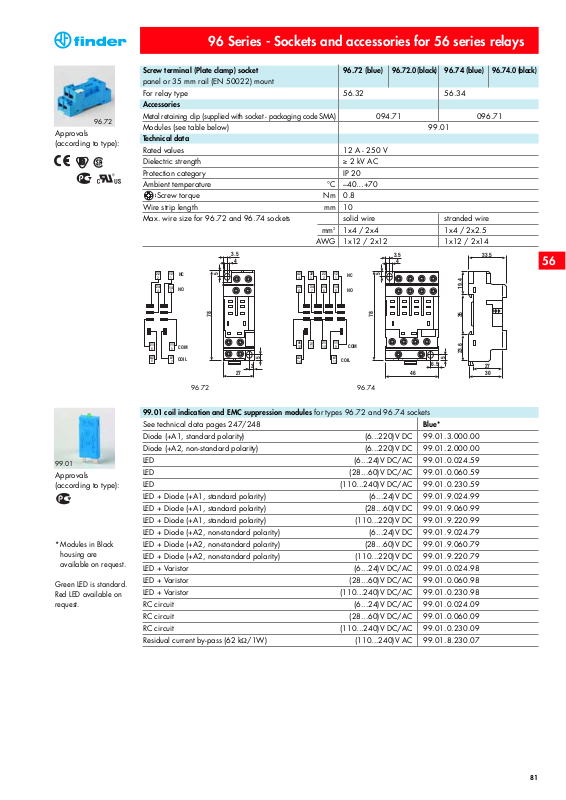

96 Series - Sockets and accessories for 56 series relays
96.72
Approvals
(according to type):
99.01
99.01 coil indication and EMC suppression modules for types 96.72 and 96.74 sockets
See technical data pages 247/248 Blue*
Diode (+A1, standard polarity) (6...220)V DC 99.01.3.000.00
Diode (+A2, non-standard polarity) (6...220)V DC 99.01.2.000.00
LED (6...24)V DC/AC 99.01.0.024.59
LED (28...60)V DC/AC 99.01.0.060.59
LED (110...240)V DC/AC 99.01.0.230.59
LED + Diode (+A1, standard polarity) (6...24)V DC 99.01.9.024.99
LED + Diode (+A1, standard polarity) (28...60)V DC 99.01.9.060.99
LED + Diode (+A1, standard polarity) (110...220)V DC 99.01.9.220.99
LED + Diode (+A2, non-standard polarity) (6...24)V DC 99.01.9.024.79
LED + Diode (+A2, non-standard polarity) (28...60)V DC 99.01.9.060.79
LED + Diode (+A2, non-standard polarity) (110...220)V DC 99.01.9.220.79
LED + Varistor (6...24)V DC/AC 99.01.0.024.98
LED + Varistor (28...60)V DC/AC 99.01.0.060.98
LED + Varistor (110...240)V DC/AC 99.01.0.230.98
RC circuit (6...24)V DC/AC 99.01.0.024.09
RC circuit (28...60)V DC/AC 99.01.0.060.09
RC circuit (110...240)V DC/AC 99.01.0.230.09
Residual current by-pass (62 kΩ/1W) (110...240)V AC 99.01.8.230.07
* Modules in Black
housing are
available on request.
Green LED is standard.
Red LED available on
request.
Approvals
(according to type):
Screw terminal (Plate clamp) socket 96.72 (blue)
96.72.0 (black)
96.74 (blue)96.74.0 (black)
panel or 35 mm rail (EN 50022) mount
For relay type 56.32 56.34
Accessories
Metal retaining clip (supplied with socket - packaging code SMA)
094.71 096.71
Modules (see table below) 99.01
Technical data
Rated values 12 A - 250 V
Dielectric strength ≥ 2 kV AC
Protection category IP 20
Ambient temperature °C –40…+70
Screw torque Nm 0.8
Wire strip length mm 10
Max. wire size for 96.72 and 96.74 sockets solid wire stranded wire
mm21x4 / 2x4 1x4 / 2x2.5
AWG 1x12 / 2x12 1x12 / 2x14
96.74
81
96.72
56
3.5
4
12
22
NC
1
2
24
14
NO
4
3
11
21
COM
5
6
A2
A1
COIL
8
7
5
78
5
3
27
42
32
12
22
2
211011
NC
1
14524634
NO
COM
9
A1
COIL
13
4
3
44
8
7
41
31
12
11
A2
14
3.5
4
5
78
6.5
46
3523.6 19.4
5
33.5
27
30
