Page 1
40
30
95.85.3
Approvals
(according to type):
- Rated values: 10 A - 250 V
with a current >10 A, the contact terminal must be connected
in parallel (21 with 11, 24 with 14, 22 with 12)
- Insulation: ≥ 6 kV (1.2/50 µs)
- between coil and contacts (only for 95.83.3)
- Protection category: IP 20
- Ambient temperature: (–40…+70)°C
- Srew torque: 0.5 Nm
- Wire strip length: 7 mm
- Max wire size:
solid wire
stranded wire
mm21x6 / 2x2.5 1x4 / 2x2.5
AWG
1x10 / 2x14 1x12 / 2x14
Relay type 40.31 40.51, 40.52, 40.61
Colour BLUE BLACK BLUE BLACK
Clamp terminal socket: panel or 35 mm rail (EN 50022) mount 95.83.3
95.83.30
95.85.3
95.85.30
retaining clip 095.91.3 supplied with socket packaging code SPA
Metal retaining clip 095.71
Plastic retaining and release clip 095.91.3
8-way jumper link for 95.83.3 and 95.85.3 sockets 095.08 095.08.0 095.08 095.08.0
Modules (see table below) 99.80
Sheet of marker tags for retaining and release clip 095.91.3 060.72
78.8
81.9
15.5
28.8
46.8
33.9
29.9
78.8
81.9
15.5
35.5 21.621.6
95.83.3
NC
12
11
14
COM
NO
A2
A1
COIL
95.85.3
COM
NO
COIL
NC
A2
A1
22 12
21
11
24 14

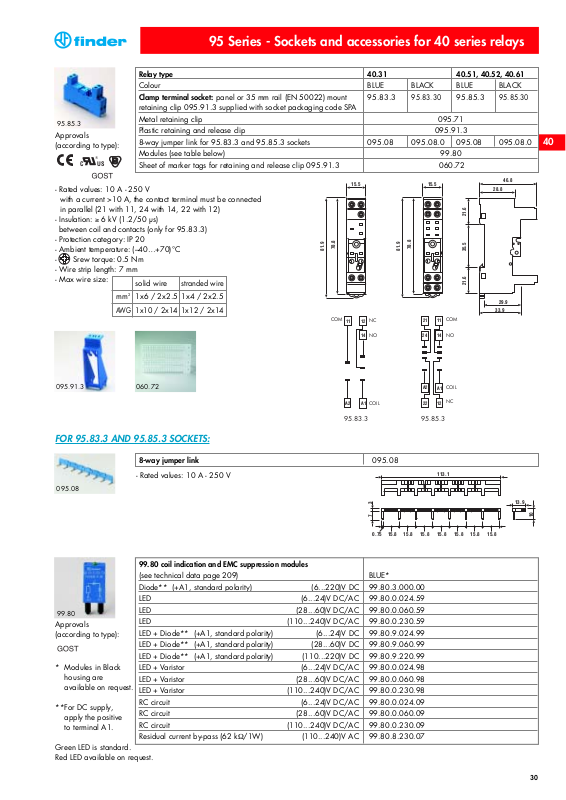

95 Series - Sockets and accessories for 40 series relays
095.08
8-way jumper link 095.08
0.75 15.8 15.8 15.8 15.8 15.8 15.8 15.8
7 3
10
13.9
113.1
- Rated values: 10 A - 250 V
99.80
99.80 coil indication and EMC suppression modules
(see technical data page 209) BLUE*
Diode** (+A1, standard polarity) (6...220)V DC 99.80.3.000.00
LED (6...24)V DC/AC 99.80.0.024.59
LED (28...60)V DC/AC 99.80.0.060.59
LED (110...240)V DC/AC 99.80.0.230.59
LED + Diode** (+A1, standard polarity) (6...24)V DC 99.80.9.024.99
LED + Diode** (+A1, standard polarity) (28...60)V DC 99.80.9.060.99
LED + Diode** (+A1, standard polarity) (110...220)V DC 99.80.9.220.99
LED + Varistor (6...24)V DC/AC 99.80.0.024.98
LED + Varistor (28...60)V DC/AC 99.80.0.060.98
LED + Varistor (110...240)V DC/AC 99.80.0.230.98
RC circuit (6...24)V DC/AC 99.80.0.024.09
RC circuit (28...60)V DC/AC 99.80.0.060.09
RC circuit (110...240)V DC/AC 99.80.0.230.09
Residual current by-pass (62 kΩ/1W) (110...240)V AC 99.80.8.230.07
* Modules in Black
housing are
available on request.
**For DC supply,
apply the positive
to terminal A1.
Green LED is standard.
Red LED available on request.
Approvals
(according to type):
CUS
®
095.91.3
060.72
FOR 95.83.3 AND 95.85.3 SOCKETS:
