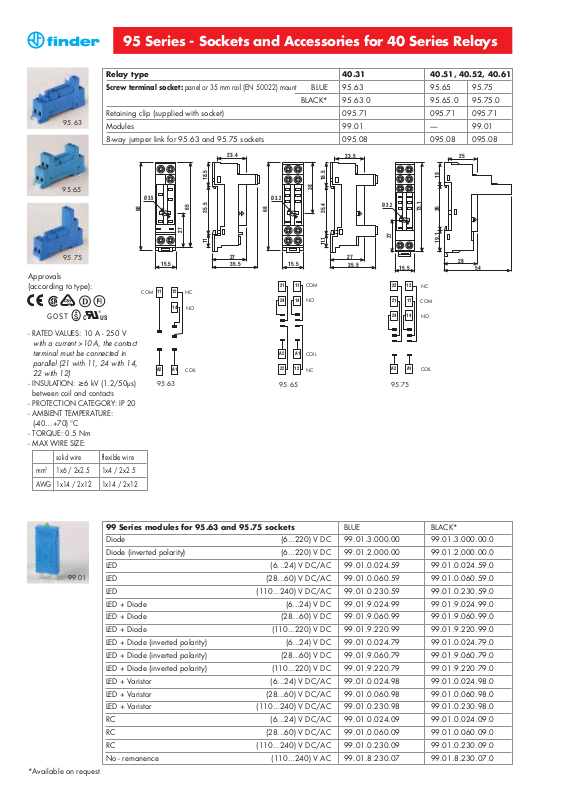

95 Series - Sockets and Accessories for 40 Series Relays
Relay type 40.31 40.51, 40.52, 40.61
Screw terminal socket: panel or 35 mm rail (EN 50022) mount
BLUE 95.63 95.65 95.75
BLACK* 95.63.0 95.65.0 95.75.0
Retaining clip (supplied with socket) 095.71 095.71 095.71
Modules 99.01 — 99.01
8-way jumper link for 95.63 and 95.75 sockets 095.08 095.08 095.08
*Available on request
95.63
Approvals
(according to type):
65
27
15.5
68
Ø 3.5
11
35.5
27
23.4
18.535.5
- RATED VALUES: 10 A - 250 V
with a current >10 A, the contact
terminal must be connected in
parallel (21 with 11, 24 with 14,
22 with 12)
- INSULATION: ≥ 6 kV (1.2/50µs)
- between coil and contacts
- PROTECTION CATEGORY: IP 20
- AMBIENT TEMPERATURE:
(-40…+70) °C
- TORQUE: 0.5 Nm
- MAX WIRE SIZE:
CUS
®
GOST
95.75
95.65
54
28
73.1
15.5
27
Ø 3.2
25
35 1919.1
A2
A1
COIL
22 12
NC
COM
NO
21 11
24 14
95.75
38
15.5
68
Ø 3.2
11.1
35.5
27
23.5
18.535.4
COIL
NC
COM
NO
95.65
A2
A1
22 12
21 11
24 14
A2
A1
COIL
11 12
COM
NC
NO
14
95.63
99.01
99 Series modules for 95.63 and 95.75 sockets BLUE BLACK*
Diode (6...220) V DC 99.01.3.000.00 99.01.3.000.00.0
Diode (inverted polarity) (6...220) V DC 99.01.2.000.00 99.01.2.000.00.0
LED (6...24) V DC/AC 99.01.0.024.59 99.01.0.024.59.0
LED (28...60) V DC/AC 99.01.0.060.59 99.01.0.060.59.0
LED (110...240) V DC/AC 99.01.0.230.59 99.01.0.230.59.0
LED + Diode (6...24) V DC 99.01.9.024.99 99.01.9.024.99.0
LED + Diode (28...60) V DC 99.01.9.060.99 99.01.9.060.99.0
LED + Diode (110...220) V DC 99.01.9.220.99 99.01.9.220.99.0
LED + Diode (inverted polarity) (6...24) V DC 99.01.0.024.79 99.01.0.024.79.0
LED + Diode (inverted polarity) (28...60) V DC 99.01.9.060.79 99.01.9.060.79.0
LED + Diode (inverted polarity) (110...220) V DC 99.01.9.220.79 99.01.9.220.79.0
LED + Varistor (6...24) V DC/AC 99.01.0.024.98 99.01.0.024.98.0
LED + Varistor (28...60) V DC/AC 99.01.0.060.98 99.01.0.060.98.0
LED + Varistor (110...240) V DC/AC 99.01.0.230.98 99.01.0.230.98.0
RC (6...24) V DC/AC 99.01.0.024.09 99.01.0.024.09.0
RC (28...60) V DC/AC 99.01.0.060.09 99.01.0.060.09.0
RC (110...240) V DC/AC 99.01.0.230.09 99.01.0.230.09.0
No - remanence (110...240) V AC 99.01.8.230.07 99.01.8.230.07.0
solid wire flexible wire
mm21x6 / 2x2.5 1x4 / 2x2.5
AWG 1x14 / 2x12 1x14 / 2x12
