94.82
94.72
94.73 94.74
94.82
94.74
9
99.01 coil indication and EMC suppression modules for 94.72, 94.73, 94.74 and 94.82 sockets
Blue*
Diode (+A1, standard polarity) (6...220)V DC 99.01.3.000.00
Diode (+A2, non standard polarity) (6...220)V DC 99.01.2.000.00
LED (6...24)V DC/AC 99.01.0.024.59
LED (28...60)V DC/AC 99.01.0.060.59
LED (110...240)V DC/AC 99.01.0.230.59
LED + Diode (+A1, standard polarity) (6...24)V DC 99.01.9.024.99
LED + Diode (+A1, standard polarity) (28...60)V DC 99.01.9.060.99
LED + Diode (+A1, standard polarity) (110...220)V DC 99.01.9.220.99
LED + Diode (+A2, non standard polarity) (6...24)V DC 99.01.9.024.79
LED + Diode (+A2, non standard polarity) (28...60)V DC 99.01.9.060.79
LED + Diode (+A2, non standard polarity) (110...220)V DC 99.01.9.220.79
LED + Varistor (6...24)V DC/AC 99.01.0.024.98
LED + Varistor (28...60)V DC/AC 99.01.0.060.98
LED + Varistor (110...240)V DC/AC 99.01.0.230.98
RC circuit (6...24)V DC/AC 99.01.0.024.09
RC circuit (28...60)V DC/AC 99.01.0.060.09
RC circuit (110...240)V DC/AC 99.01.0.230.09
Residual current by-pass (110...240)V AC 99.01.8.230.07
*Modules in Black
housing are
available on request.
Green LED is standard.
Red LED available on
request.

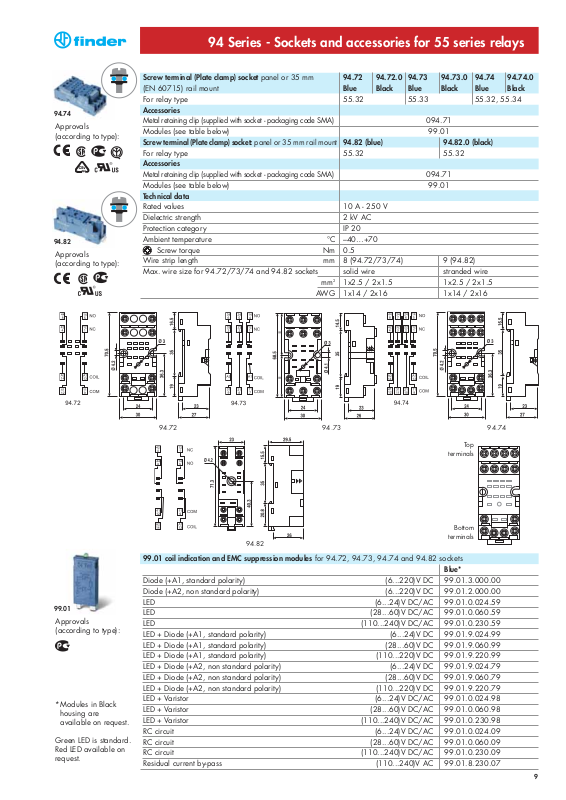

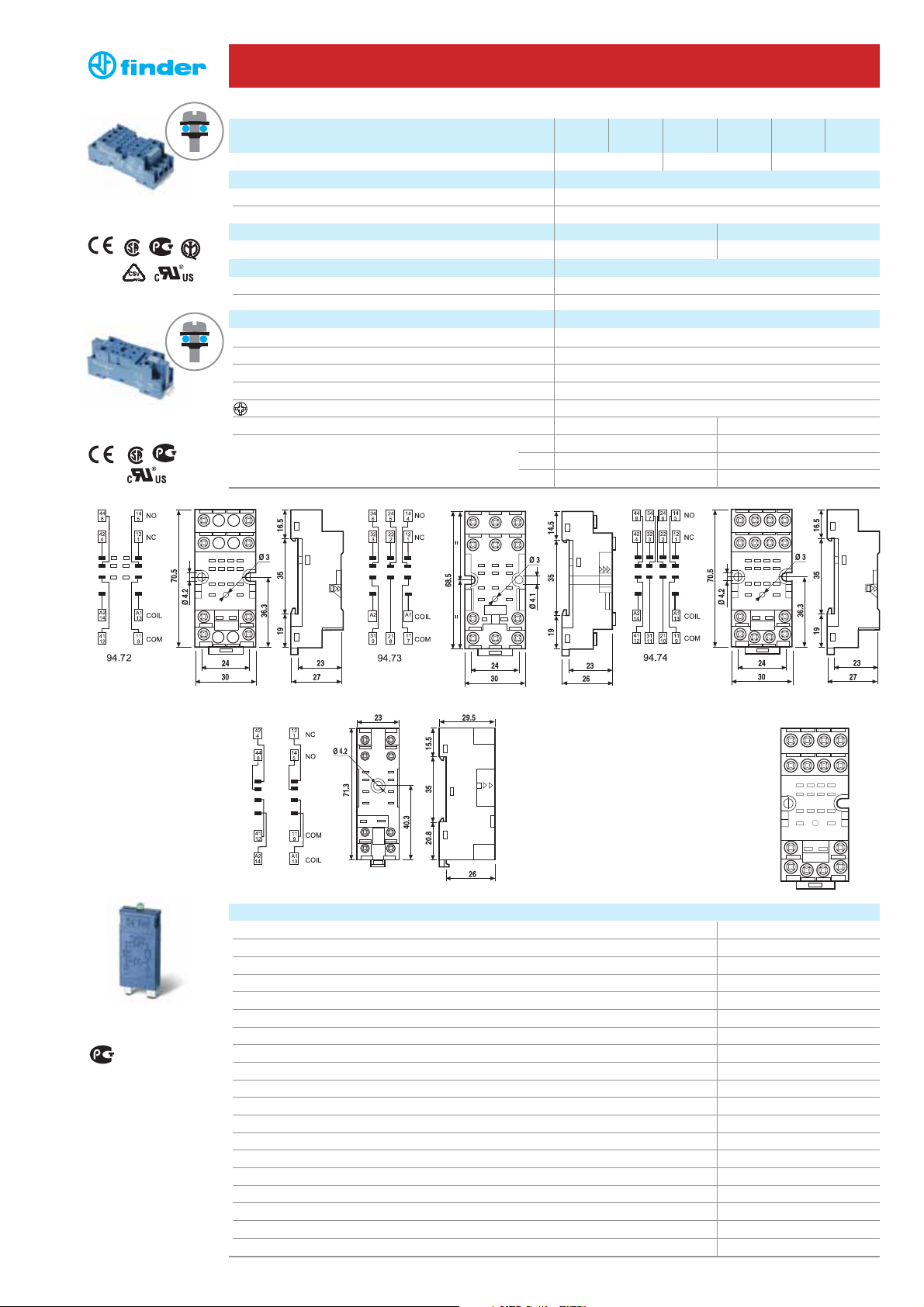

94 Series - Sockets and accessories for 55 series relays
Screw terminal (Plate clamp) socket panel or 35 mm 94.72 94.72.0 94.73 94.73.0 94.74 94.74.0
(EN 60715) rail mount Blue Black Blue Black Blue Black
For relay type 55.32 55.33 55.32, 55.34
Accessories
Metal retaining clip (supplied with socket - packaging code SMA)
094.71
Modules (see table below) 99.01
Screw terminal (Plate clamp) socket: panel or 35 mm rail mount
94.82 (blue) 94.82.0 (black)
For relay type 55.32 55.32
Accessories
Metal retaining clip (supplied with socket - packaging code SMA)
094.71
Modules (see table below) 99.01
Technical data
Rated values 10 A - 250 V
Dielectric strength 2 kV AC
Protection category IP 20
Ambient temperature °C –40…+70
Screw torque Nm 0.5
Wire strip length mm 8 (94.72/73/74) 9 (94.82)
Max. wire size for 94.72/73/74 and 94.82 sockets solid wire stranded wire
mm21x2.5 / 2x1.5 1x2.5 / 2x1.5
AWG 1x14 / 2x16 1x14 / 2x16
Top
terminals
Bottom
terminals
Approvals
(according to type):
Approvals
(according to type):
99.01
Approvals
(according to type):
