FINDER 93.01.0.240 Specification

93.21

93.01

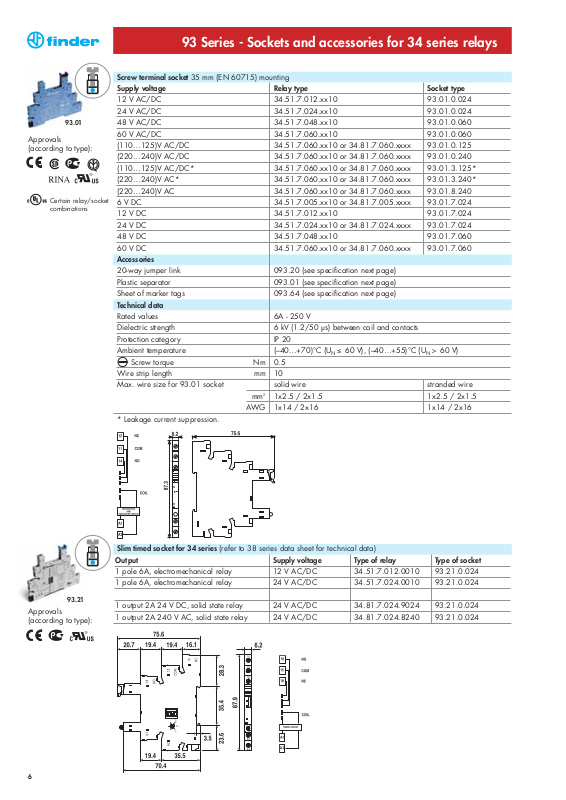

93 Series - Sockets and accessories for 34 series relays

6

Approvals
(according to type):

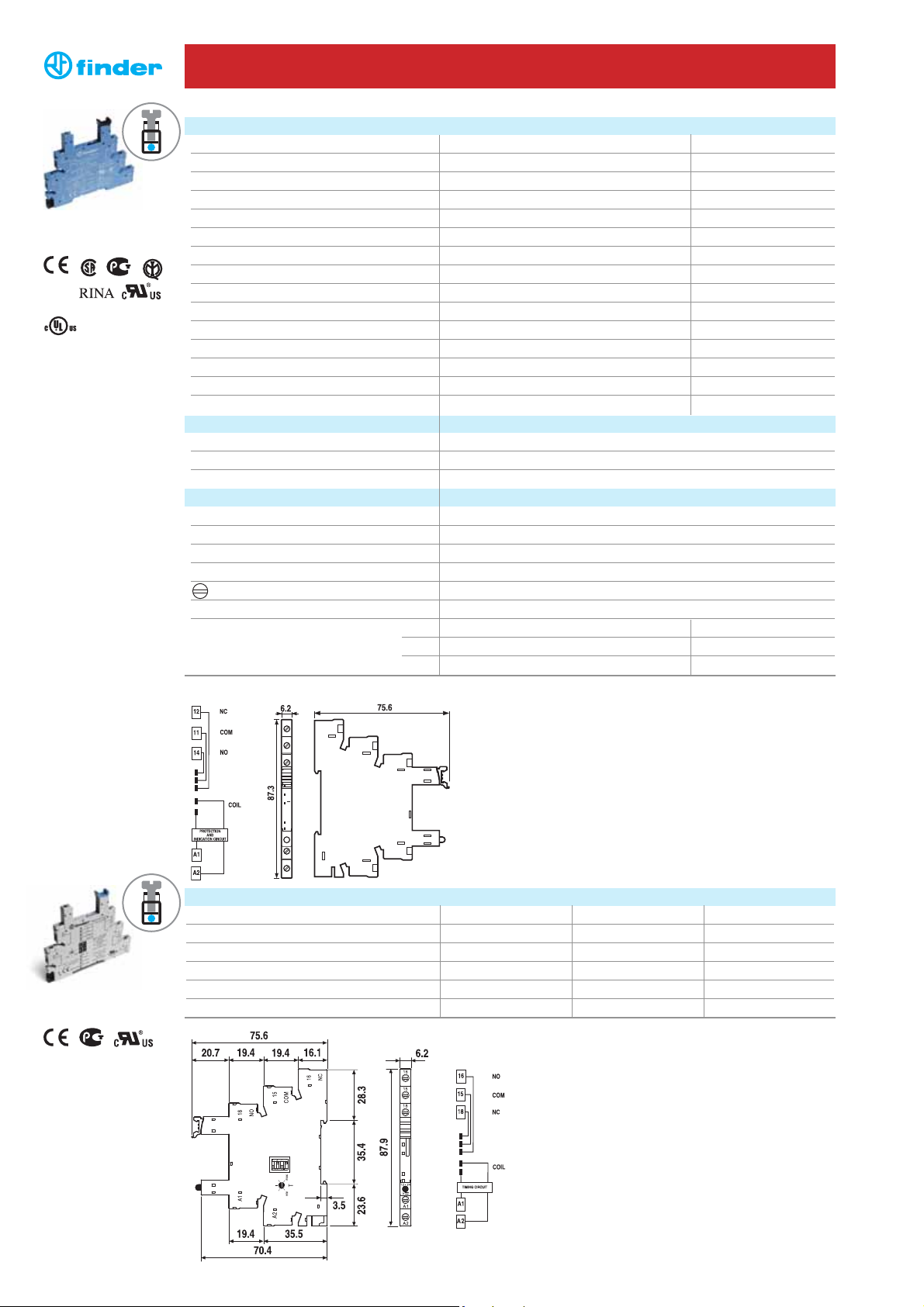

Screw terminal socket 35 mm (EN 60715) mounting
Supply voltage Relay type Socket type

12 V AC/DC 34.51.7.012.xx10 93.01.0.024
24 V AC/DC 34.51.7.024.xx10 93.01.0.024
48 V AC/DC 34.51.7.048.xx10 93.01.0.060
60 V AC/DC 34.51.7.060.xx10 93.01.0.060
(110…125)V AC/DC 34.51.7.060.xx10 or 34.81.7.060.xxxx 93.01.0.125
(220…240)V AC/DC 34.51.7.060.xx10 or 34.81.7.060.xxxx 93.01.0.240
(110…125)V AC/DC* 34.51.7.060.xx10 or 34.81.7.060.xxxx 93.01.3.125*
(220…240)V AC* 34.51.7.060.xx10 or 34.81.7.060.xxxx 93.01.3.240*
(220…240)V AC 34.51.7.060.xx10 or 34.81.7.060.xxxx 93.01.8.240
6 V DC 34.51.7.005.xx10 or 34.81.7.005.xxxx 93.01.7.024
12 V DC 34.51.7.012.xx10 93.01.7.024
24 V DC 34.51.7.024.xx10 or 34.81.7.024.xxxx 93.01.7.024
48 V DC 34.51.7.048.xx10 93.01.7.060
60 V DC 34.51.7.060.xx10 or 34.81.7.060.xxxx 93.01.7.060

Accessories

20-way jumper link 093.20 (see specification next page)
Plastic separator 093.01 (see specification next page)
Sheet of marker tags 093.64 (see specification next page)

Technical data

Rated values 6A - 250 V
Dielectric strength 6 kV (1.2/50 µs) between coil and contacts
Protection category IP 20
Ambient temperature (–40…+70)°C (UN≤ 60 V), (–40…+55)°C (UN> 60 V)

Screw torque Nm 0.5
Wire strip length mm 10
Max. wire size for 93.01 socket solid wire stranded wire

mm21x2.5 / 2x1.5 1x2.5 / 2x1.5

AWG 1x14 / 2x16 1x14 / 2x16

* Leakage current suppression.

Certain relay/socket
combinations

Approvals
(according to type):

Slim timed socket for 34 series (refer to 38 series data sheet for technical data)

Output Supply voltage Type of relay Type of socket

1 pole 6A, electromechanical relay 12 V AC/DC 34.51.7.012.0010 93.21.0.024
1 pole 6A, electromechanical relay 24 V AC/DC 34.51.7.024.0010 93.21.0.024

1 output 2A 24 V DC, solid state relay 24 V AC/DC 34.81.7.024.9024 93.21.0.024
1 output 2A 240 V AC, solid state relay 24 V AC/DC 34.81.7.024.8240 93.21.0.024

093.20

93.51

7

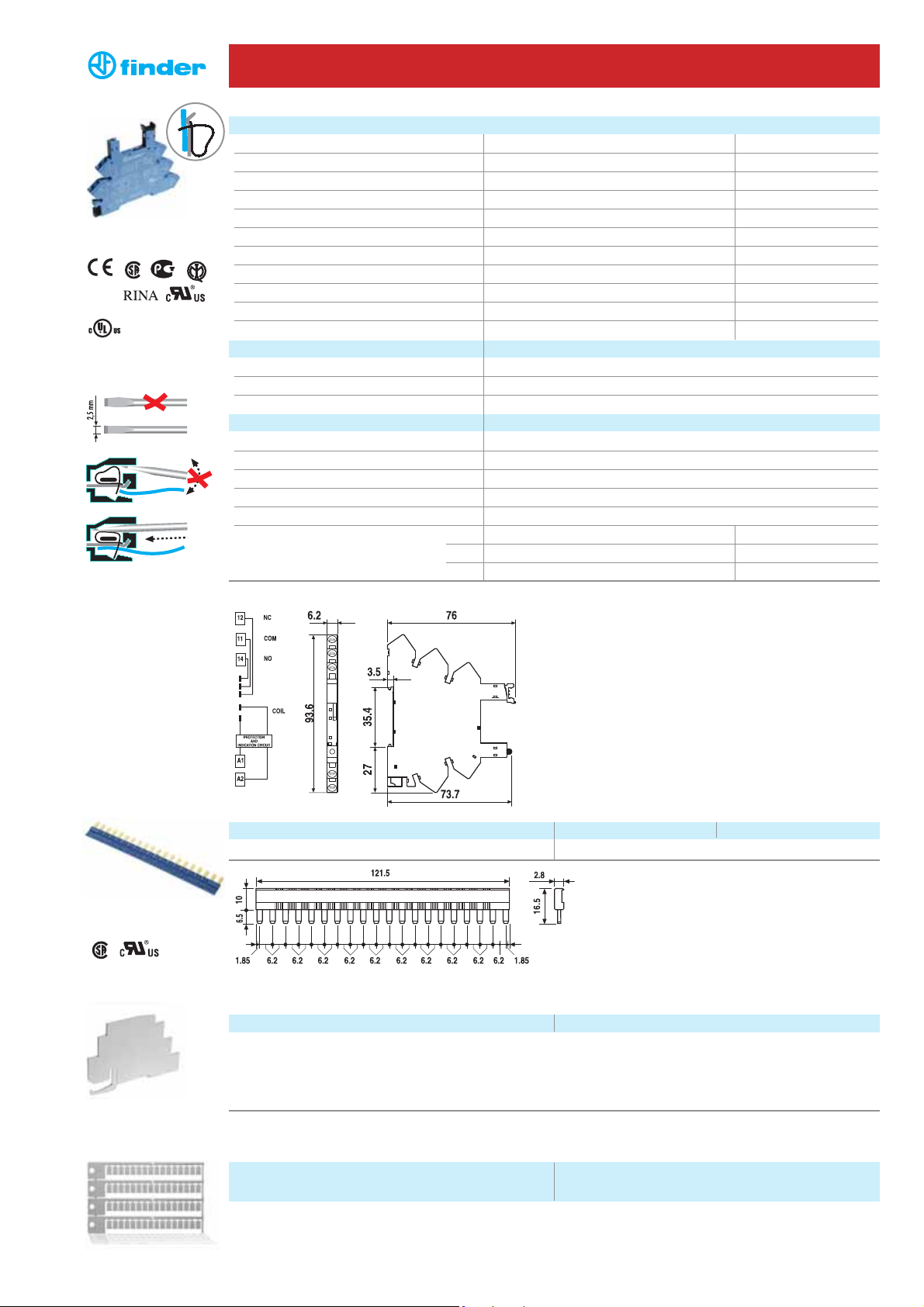

Screwless terminal socket 35 mm (EN 60715) mounting
Supply voltage Relay type Socket type

12 V AC/DC 34.51.7.012.xx10 93.51.0.024
24 V AC/DC 34.51.7.024.xx10 93.51.0.024
(110…125)V AC/DC 34.51.7.060.xx10 or 34.81.7.060.xxxx 93.51.0.125
(220…240)V AC/DC 34.51.7.060.xx10 or 34.81.7.060.xxxx 93.51.0.240
(110…125)V AC/DC* 34.51.7.060.xx10 or 34.81.7.060.xxxx 93.51.3.125*
(220…240)V AC* 34.51.7.060.xx10 or 34.81.7.060.xxxx 93.51.3.240*
(220…240)V AC 34.51.7.060.xx10 or 34.81.7.060.xxxx 93.51.8.240
12 V DC 34.51.7.012.xx10 93.51.7.024
24 V DC 34.51.7.024.xx10 or 34.81.7.024.xxxx 93.51.7.024
60 V DC 34.51.7.060.xx10 or 34.81.7.060.xxxx 93.51.7.060

Accessories

20-way jumper link 093.20 (see table below)
Plastic separator 093.01 (see table below)
Sheet of marker tags 093.64 (see table below)

Technical data

Rated values 6A - 250 V
Dielectric strength 6 kV (1.2/50 µs) between coil and contacts
Protection category IP 20
Ambient temperature (–40…+70)°C (UN≤ 60 V), (–40…+55)°C (UN> 60 V)
Wire strip length mm 10
Max. wire size for 93.51 socket solid wire stranded wire

mm21x2.5 1x2.5

AWG 1x14 1x14

* Leakage current suppression.

20-way jumper link for 93.01 and 93.51 sockets 093.20 (blue) 093.20.0 (black)
Rated values 36 A - 250 V

Approvals
(according to type):

93 Series - Sockets and accessories for 34 series relays

Plastic separator for 93.01 and 93.51 sockets 093.01

Thickness 2 mm, required at the start and the end of a group of interfaces.
Can be used for visual separation of groups. Must be used for:

- protective separation of different voltages of neighbouring PLC interfaces according to VDE 0106-101

- protection of cut jumper links

Sheet of marker tags, plastic, 64 tags, 6x10 mm 093.64
for 93.01 and 93.51 sockets

Accessories

Approvals
(according to type):

Certain relay/socket
combinations

093.01

093.64

A2 A1 12 11 14

Approvals
(according to type):

Copper side view

Retaining and release clip use:

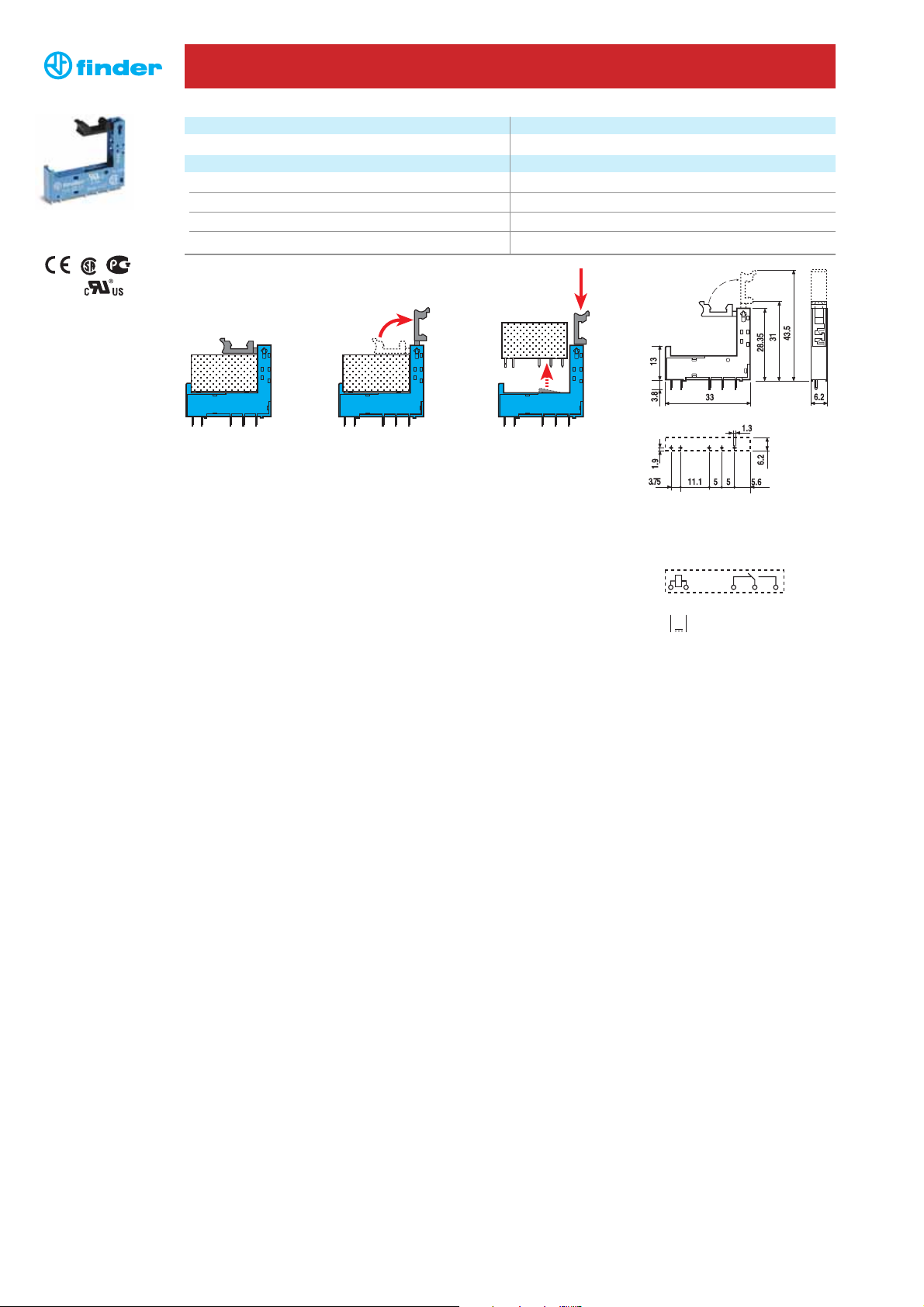

PCB socket with retaining and release clip 93.11 (blue)
For relay type 34.51, 34.81

Technical data

Rated values 6 A - 250 V
Dielectric strength ≥ 6 kV (1.2/50 µs) between coil and contacts
Protection category IP 20
Ambient temperature °C –40…+70

8

93 Series - Sockets and accessories for 34 series relays

(+) (A)

93.11
