90.2390.22
90.82.3
90.83.3
90.23
90.83.3
10
Approvals
(according to type):
Screw (Box clamp) terminal socket 90.22 90.23
panel or 35 mm rail (EN
60715
) mount Blue Blue
For relay type 60.12 60.13
Accessories
Metal retaining clip (supplied with socket - packaging code SMA)
090.33
Technical data
Rated values 10 A - 250 V
Dielectric strength 2 kV AC
Protection category IP 20
Ambient temperature °C –40…+70
Screw torque Nm 0.5
Wire strip length mm 7
Max wire size for 90.22 and 90.23 sockets solid wire stranded wire
mm21x6 / 2x2.5 1x6 / 2x2.5
AWG 1x10 / 2x14 1x10 / 2x14
Approvals
(according to type):

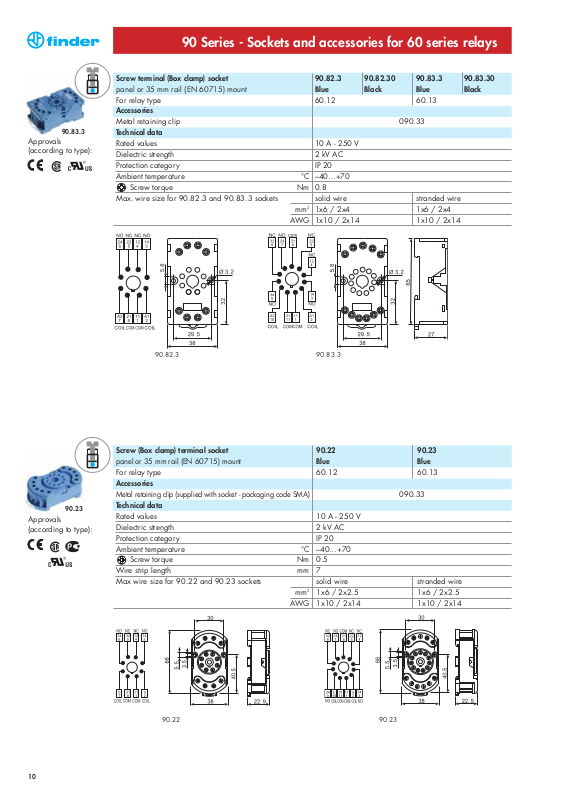

90 Series - Sockets and accessories for 60 series relays
Screw terminal (Box clamp) socket 90.82.3 90.82.30 90.83.3 90.83.30
panel or 35 mm rail (EN 60715) mount Blue Black Blue Black
For relay type 60.12 60.13
Accessories
Metal retaining clip 090.33
Technical data
Rated values 10 A - 250 V
Dielectric strength 2 kV AC
Protection category IP 20
Ambient temperature °C –40…+70
Screw torque Nm 0.8
Max. wire size for 90.82.3 and 90.83.3 sockets solid wire stranded wire
mm21x6 / 2x4 1x6 / 2x4
AWG 1x10 / 2x14 1x10 / 2x14
