FINDER 90 User Manual
90.03
90.26
90.23
90.83.3
90.21
7

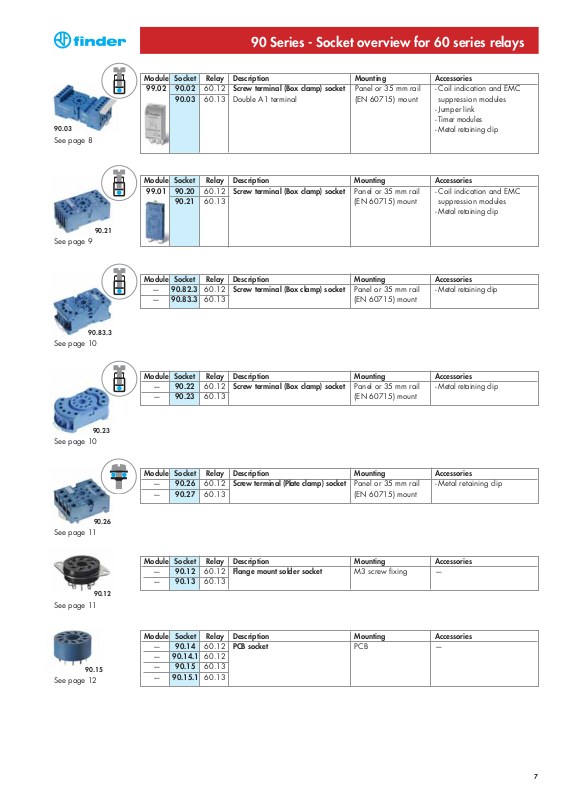

90 Series - Socket overview for 60 series relays
See page 8
See page 9
Module Socket Relay Description Mounting Accessories
— 90.22 60.12 Screw terminal (Box clamp) socket Panel or 35 mm rail -
Metal retaining clip
— 90.23 60.13 (EN 60715) mount
See page 10
Module Socket Relay Description Mounting Accessories
— 90.82.3 60.12 Screw terminal (Box clamp) socket Panel or 35 mm rail -
Metal retaining clip
— 90.83.3 60.13 (EN 60715) mount
See page 10
Module Socket Relay Description Mounting Accessories
— 90.26 60.12
Screw terminal (Plate clamp) socket
Panel or 35 mm rail - Metal retaining clip
— 90.27 60.13 (EN 60715) mount
See page 11
Module Socket Relay Description Mounting Accessories
— 90.12 60.12 Flange mount solder socket M3 screw fixing —
— 90.13 60.13
See page 11
Module Socket Relay Description Mounting Accessories
— 90.14 60.12 PCB socket PCB —
— 90.14.1 60.12
— 90.15 60.13
— 90.15.1 60.13
See page 12
Module Socket Relay Description Mounting Accessories
99.02 90.02 60.12 Screw terminal (Box clamp) socket Panel or 35 mm rail - Coil indication and EMC
90.03 60.13 Double A1 terminal (EN 60715) mount suppression modules
- Jumper link
- Timer modules
- Metal retaining clip
Module Socket Relay Description Mounting Accessories
99.01 90.20 60.12 Screw terminal (Box clamp) socket Panel or 35 mm rail - Coil indication and EMC
90.21 60.13 (EN 60715) mount suppression modules
- Metal retaining clip
90.12
90.15
90.03

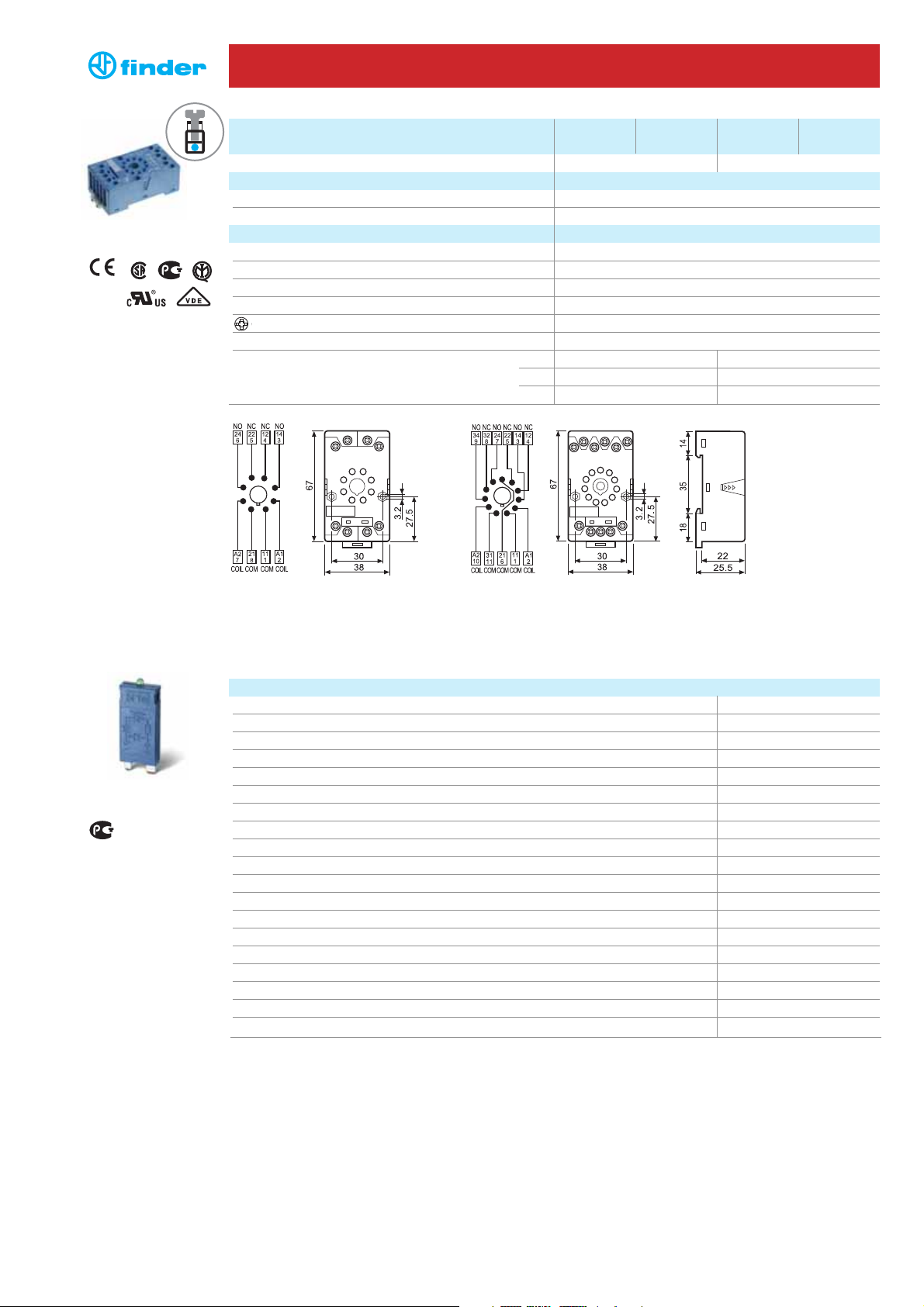

90 Series - Sockets and accessories for 60 series relays
Approvals
(according to type):
Screw terminal (Box clamp) socket 90.02 90.02.0 90.03 90.03.0
panel or 35 mm rail (EN 60715) mount Blue Black Blue Black
For relay type 60.12 60.13
Accessories
Metal retaining clip 090.33
6-way jumper link 090.06
Identification tag 090.00.2
Modules (see table below) 99.02
Timer modules (see table below) 86.00, 86.30
Technical data
Rated values 10 A - 250 V
Dielectric strength 2 kV AC
Protection category IP 20
Ambient temperature °C –40...+70
Screw torque Nm 0.6
Wire strip length mm 10
Max. wire size for 90.02 and 90.03 sockets solid wire stranded wire
mm21x6 / 2x2.5 1x4 / 2x2.5
AWG 1x10 / 2x14 1x12 / 2x14
6-way jumper link for 90.02 and 90.03 sockets 090.06 (blue)
Rated values 10 A - 250 V
DC Modules with
non-standard polarity
(+A2) on request.
99.02 coil indication and EMC suppression modules for 90.02 and 90.03 sockets
Diode (+A1, standard polarity) (6...220)V DC 99.02.3.000.00
LED (6...24)V DC/AC 99.02.0.024.59
LED (28...60)V DC/AC 99.02.0.060.59
LED (110...240)V DC/AC 99.02.0.230.59
LED + Diode (+A1, standard polarity) (6...24)V DC 99.02.9.024.99
LED + Diode (+A1, standard polarity) (28...60)V DC 99.02.9.060.99
LED + Diode (+A1, standard polarity) (110...220)V DC 99.02.9.220.99
LED + Varistor (6...24)V DC/AC 99.02.0.024.98
LED + Varistor (28...60)V DC/AC 99.02.0.060.98
LED + Varistor (110...240)V DC/AC 99.02.0.230.98
RC circuit (6...24)V DC/AC 99.02.0.024.09
RC circuit (28...60)V DC/AC 99.02.0.060.09
RC circuit (110...240)V DC/AC 99.02.0.230.09
Residual current by-pass (110...240)V AC 99.02.8.230.07
86 series timer modules
Multi-voltage: (12…240)V AC/DC;
Multi-functions: AI, DI, SW, BE, CE, DE, EE, FE; (0.05 s…100 h) 86.00.0.240.0000
(12…24)V AC/DC; Bi-function: AI, DI; (0.05 s…100 h) 86.30.0.024.0000
(110...125)V AC; Bi-function: AI, DI; (0.05s…100h) 86.30.8.120.0000
(230...240)V AC; Bi-function: AI, DI; (0.05 s…100 h) 86.30.8.240.0000
Approvals
(according to type):
Approvals
(according to type):
Approvals (according to type):
8
Certain relay/socket
combinations
090.06
86.00
99.02
86.30
