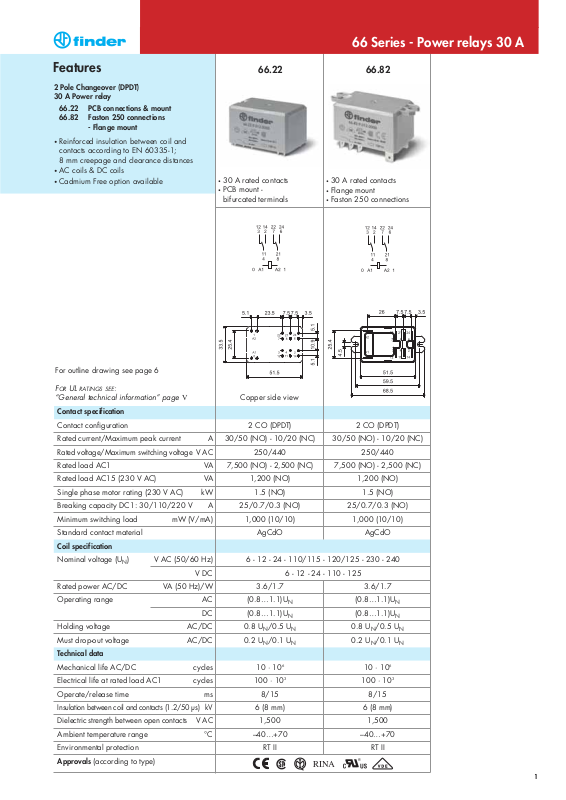

FINDER 66.82.8.230.0000 Specification

66.22 66.82

2 CO (DPDT) 2 CO (DPDT)

30/50 (NO) - 10/20 (NC) 30/50 (NO) - 10/20 (NC)

250/440 250/440

7,500 (NO) - 2,500 (NC) 7,500 (NO) - 2,500 (NC)

1,200 (NO) 1,200 (NO)

1.5 (NO) 1.5 (NO)

25/0.7/0.3 (NO) 25/0.7/0.3 (NO)

1,000 (10/10) 1,000 (10/10)

AgCdO AgCdO

6 - 12 - 24 - 110/115 - 120/125 - 230 - 240

6 - 12 - 24 - 110 - 125

3.6/1.7 3.6/1.7

(0.8…1.1)U

N

(0.8…1.1)U

N

(0.8…1.1)U

N

(0.8…1.1)U

N

0.8 UN/0.5 U

N

0.8 UN/0.5 U

N

0.2 UN/0.1 U

N

0.2 UN/0.1 U

N

10 · 10

6

10 · 10

6

100 · 10

3

100 · 10

3

8/15 8/15

6 (8 mm) 6 (8 mm)

1,500 1,500

–40…+70 –40…+70

RT II RT II

• 30 A rated contacts

• Flange mount

• Faston 250 connections

Contact specification

Contact configuration

Rated current/Maximum peak current A

Rated voltage/Maximum switching voltage V AC

Rated load AC1 VA

Rated load AC15 (230 V AC) VA

Single phase motor rating (230 V AC) kW

Breaking capacity DC1: 30/110/220 V A

Minimum switching load mW (V/mA)

Standard contact material

Coil specification

Nominal voltage (U

N

) V AC (50/60 Hz)

V DC

Rated power AC/DC VA (50 Hz)/W

Operating range AC

DC

Holding voltage AC/DC

Must drop-out voltage AC/DC

Technical data

Mechanical life AC/DC cycles

Electrical life at rated load AC1 cycles

Operate/release time ms

Insulation between coil and contacts (1.2/50 μs)

kV

Dielectric strength between open contacts V AC

Ambient temperature range °C

Environmental protection

Approvals (according to type)

Copper side view

Features

2 Pole Changeover (DPDT)
30 A Power relay

66.22 PCB connections & mount

66.82 Faston 250 connections

- Flange mount

• Reinforced insulation between coil and

contacts according to EN 60335-1;
8 mm creepage and clearance distances

• AC coils & DC coils

• Cadmium Free option available

• 30 A rated contacts

• PCB mount -

bifurcated terminals

1

For outline drawing see page 6

F

OR UL RATINGS SEE:

“General technical information” page V

66 Series - Power relays 30 A

66.22-x300 66.82-x300

2

2 NO (DPST-NO) 2 NO (DPST-NO)

30/50 30/50

250/440 250/440

7,500 7,500

1,200 1,200

1.5 1.5

25/0.7/0.3 25/0.7/0.3

1,000 (10/10) 1,000 (10/10)

AgCdO AgCdO

6 - 12 - 24 - 110/115 - 120/125 - 230 - 240

6 - 12 - 24 - 110 -125

3.6/1.7 3.6/1.7

(0.8…1.1)U

N

(0.8…1.1)U

N

(0.8…1.1)U

N

(0.8…1.1)U

N

0.8 UN/0.5 U

N

0.8 UN/0.5 U

N

0.2 UN/0.1 U

N

0.2 UN/0.1 U

N

10 · 10

6

10 · 10

6

100 · 10

3

100 · 10

3

8/10 8/10

6 (8 mm) 6 (8 mm)

1,500 1,500

–40…+70 –40…+70

RT II RT II

• 30 A rated contacts

• PCB mount -

bifurcated terminals

Contact specification

Contact configuration

Rated current/Maximum peak current A

Rated voltage/Maximum switching voltage V AC

Rated load AC1 VA

Rated load AC15 (230 V AC) VA

Single phase motor rating (230 V AC) kW

Breaking capacity DC1: 30/110/220 V A

Minimum switching load mW (V/mA)

Standard contact material

Coil specification

Nominal voltage (U

N

) V AC (50/60 Hz)

V DC

Rated power AC/DC VA (50 Hz)/W

Operating range AC

DC

Holding voltage AC/DC

Must drop-out voltage AC/DC

Technical data

Mechanical life AC/DC cycles

Electrical life at rated load AC1 cycles

Operate/release time ms

Insulation between coil and contacts (1.2/50 μs) kV

Dielectric strength between open contacts V AC

Ambient temperature range °C

Environmental protection

Approvals (according to type)

66 Series - Power relays 30 A

Copper side view

Features

2 Pole NO (DPST-NO)
30 A Power relay

66.22-x300 PCB mount

66.82-x300 Faston 250 connections

- Flange mount

• Reinforced insulation between coil and

contacts according to EN 60335-1;
8 mm creepage and clearance distances

• AC coils & DC coils

• Cadmium Free option available

• 30 A rated contacts

• Flange mount

• Faston 250 connections

For outline drawing see page 6

F

OR UL RATINGS SEE:

“General technical information” page V

3

66.22-x600 66.22-x600S 66.82-x600

2 NO (DPST-NO) 2 NO (DPST-NO) 2 NO (DPST-NO)

30/50 30/50 30/50

250/440 250/440 250/440

7,500 7,500 7,500

1,200 1,200 1,200

1.5 1.5 1.5

30/1.2/0.5 30/1.2/0.5 30/1.2/0.5

1,000 (10/10) 1,000 (10/10) 1,000 (10/10)

AgCdO AgCdO AgCdO

—

6 - 12 - 24 - 110 -125

—/1.7 —/1.7 —/1.7

———

(0.8…1.1)U

N

(0.7…1.1)U

N

(0.8…1.1)U

N

—/0.5 U

N

—/0.5 U

N

—/0.5 U

N

—/0.1 U

N

—/0.1 U

N

—/0.1 U

N

10 · 10

6

10 · 10

6

10 · 10

6

100 · 10

3

100 · 10

3

100 · 10

3

10/12 10/12 10/12

6 (8 mm) 6 (8 mm) 6 (8 mm)

2,500 2,500 2,500

–40…+70 –40…+70 –40…+70

RT II RT II RT II

• PCB mount -

bifurcated terminals

• Flange mount

• Faston 250 connections

Contact specification

Contact configuration

Rated current/Maximum peak current A

Rated voltage/Maximum switching voltage V AC

Rated load AC1 VA

Rated load AC15 (230 V AC) VA

Single phase motor rating (230 V AC) kW

Breaking capacity DC1: 30/110/220 V A

Minimum switching load mW (V/mA)

Standard contact material

Coil specification

Nominal voltage (U

N

) V AC (50/60 Hz)

V DC

Rated power AC/DC VA (50 Hz)/W

Operating range AC

DC

Holding voltage AC/DC

Must drop-out voltage AC/DC

Technical data

Mechanical life cycles

Electrical life at rated load AC1 cycles

Operate/release time ms

Insulation between coil and contacts (1.2/50 μs) kV

Dielectric strength between open contacts V AC

Ambient temperature range °C

Environmental protection

Approvals (according to type)

Copper side view

Copper side view

Features

2 Pole NO (DPST-NO), ≥1.5mm contact gap
30 A Power relay

66.22-x600 PCB mount

66.22-x600S PCB mount - 5 mm gap
between PCB and relay base

66.82-x600 Faston 250 connections

- Flange mount

•

≥1.5 mm contact gap (according to VDE 0126-1-1
for solar inverter applications)

• Reinforced insulation between coil and

contacts according to EN 60335-1;
8 mm creepage and clearance distances

• Wash tight version (RT III) available

• DC coils

• Cadmium Free option available

• PCB mount -

bifurcated terminals

• 5 mm gap between PCB and

relay base

For outline drawing see page 6

F

OR UL RATINGS SEE:

“General technical information” page V

66 Series - Power relays 30 A

4

Example: 66 series relay, Faston 250 (6.3x0.8 mm) with top flange mount, 2 CO (DPDT) 30 A contacts, 24 V DC coil.

Ordering information

A: Contact material

0 = Standard AgCdO
1 = AgNi

B: Contact circuit

0 = CO (nPDT)
3 = NO (nPST)
6 = NO (nPST), ≥1.5 mm

contact gap

Series
Typ e

2 = PCB
8 = Faston 250 (6.3x0.8 mm)

with top flange mount

No. of poles

2 = 2 pole, 30 A

Coil version

8 = AC (50/60 Hz)
9 = DC

Coil voltage

See coil specifications

8 2 0 09

D: Special versions

0 = Standard
1 = Wash tight (RT III)

C: Options

0 = None

S = PCB version with 5 mm gap

between PCB and relay base
(only 66.22)

0 0

ABCD

... .

02466

Insulation according to EN 61810-1

Nominal voltage of supply system V AC 230/400
Rated insulation voltage V AC 400
Pollution degree 3

Insulation between coil and contact set

Type of insulation Reinforced (8 mm)
Overvoltage category III
Rated impulse voltage kV (1.2/50 μs) 6
Dielectric strength V AC 4,000

Insulation between adjacent contacts

Type of insulation Basic
Overvoltage category III
Rated impulse voltage kV (1.2/50 μs) 4
Dielectric strength V AC 2,500

Insulation between open contacts 2 CO 2 NO, ≥1.5mm (x600 version)

Type of disconnection Micro-disconnection Full-disconnection *
Overvoltage category — II
Rated impulse voltage kV (1.2/50 μs) — 2.5
Dielectric strength V AC/kV (1.2/50 μs) 1,500/2 2,500/3

Conducted disturbance immunity

Burst (5...50)ns, 5 kHz, on A1 - A2 EN 61000-4-4 level 4 (4 kV)
Surge (1.2/50 μs) on A1 - A2 (differential mode) EN 61000-4-5 level 4 (4 kV)

Other data

Bounce time: NO/NC ms 7/10
Vibration resistance (10...150)Hz: NO/NC g 20/19
Shock resistance g 20
Power lost to the environment without contact current W 2.3

with rated current W 5

Recommended distance between relays mounted on PCB mm ≥ 10

Technical data

66 Series - Power relays 30 A

Typ e

Coil version

AB C D

66.22 AC-DC 0 - 1 0 - 3 0 0 - 1
DC 0 - 1 600 - 1

66.22....S DC 0 - 1 600 - 1

66.82 AC-DC 0 - 1 0 - 3 00- 1
DC 0 - 1 600- 1

Selecting features and options: only combinations in the same row are possible.

Preferred selections for best availability are shown in bold.

* Only in applications where over voltage category II is permitted. In applications of over voltage category III: Micro-disconnection.

Coil specifications

Contact specification

Nominal Coil Operating range Resistance Rated coil

voltage code

consumption

U

N

U

min

U

max

R

I at UN (50Hz)

VVVΩ mA

6 8.006 4.8 6.6 3 600
12 8.012 9.6 13.2 11 300
24 8.024 19.2 26.4 50 150

110/115 8.110 88 126 930 32.6
120/125 8.120 96 137 1,050 30

230 8.230 184 253 4,000 15.7
240 8.240 192 264 5,500 15

AC coil data

Nominal Coil Operating range Resistance Rated coil

voltage code

consumption

U

N

U

min

U

max

R I at U

N

VVVΩ mA

6 9.006 4.8 6.6 21 283
12 9.012 9.6 13.2 85 141
24 9.024 19.2 26.4 340 70.5

110 9.110 88 121 7,000 15.7
125 9.125 100 138 9,200 13.6

DC coil data

F 66 - Electrical life (AC) v contact current

250 V (normally open contact)

66 Series - Power relay 30 A

Cycles

F 66 - Electrical life (AC) v contact current

440 V (normally open contact)

Cycles

• When switching a resistive load (DC1) having voltage and current values under the curve, an electrical life of ≥ 100·103can be expected.

• In the case of DC13 loads, the connection of a diode in parallel with the load will permit a similar electrical life as for a DC1 load.

Note: the release time for the load will be increased.

H 66 - Maximum DC breaking capacity

DC breaking current (A)

DC voltage (V)

H 66 - Maximum DC breaking capacity, x600 versions

(>1.5mm contact gap)

DC breaking current (A)

DC voltage (V)

R 66 - DC coil operating range v ambient temperature

1 - Max. permitted coil voltage.
2 - Min. pick-up voltage with coil at ambient temperature.
3 - Min. pick-up voltage with coil at ambient temperature (66.22-x600S).

R 66 - AC coil operating range v ambient temperature

1 - Max. permitted coil voltage.
2 - Min. pick-up voltage with coil at ambient temperature.

Resistive load - 250 V AC cosϕ = 1
Inductive load - 250 V AC cosϕ = 0.4

Resistive load - 440 V AC cosϕ = 1
Inductive load - 440 V AC cosϕ = 0.4

5

Accessories

66 Series - Power relay 30 A

066.07

Top 35 mm rail (EN 60715) mount for types 66.82.xxxx.0x00 066.07

066.07 with relay

066.07

066.07 with relay

6

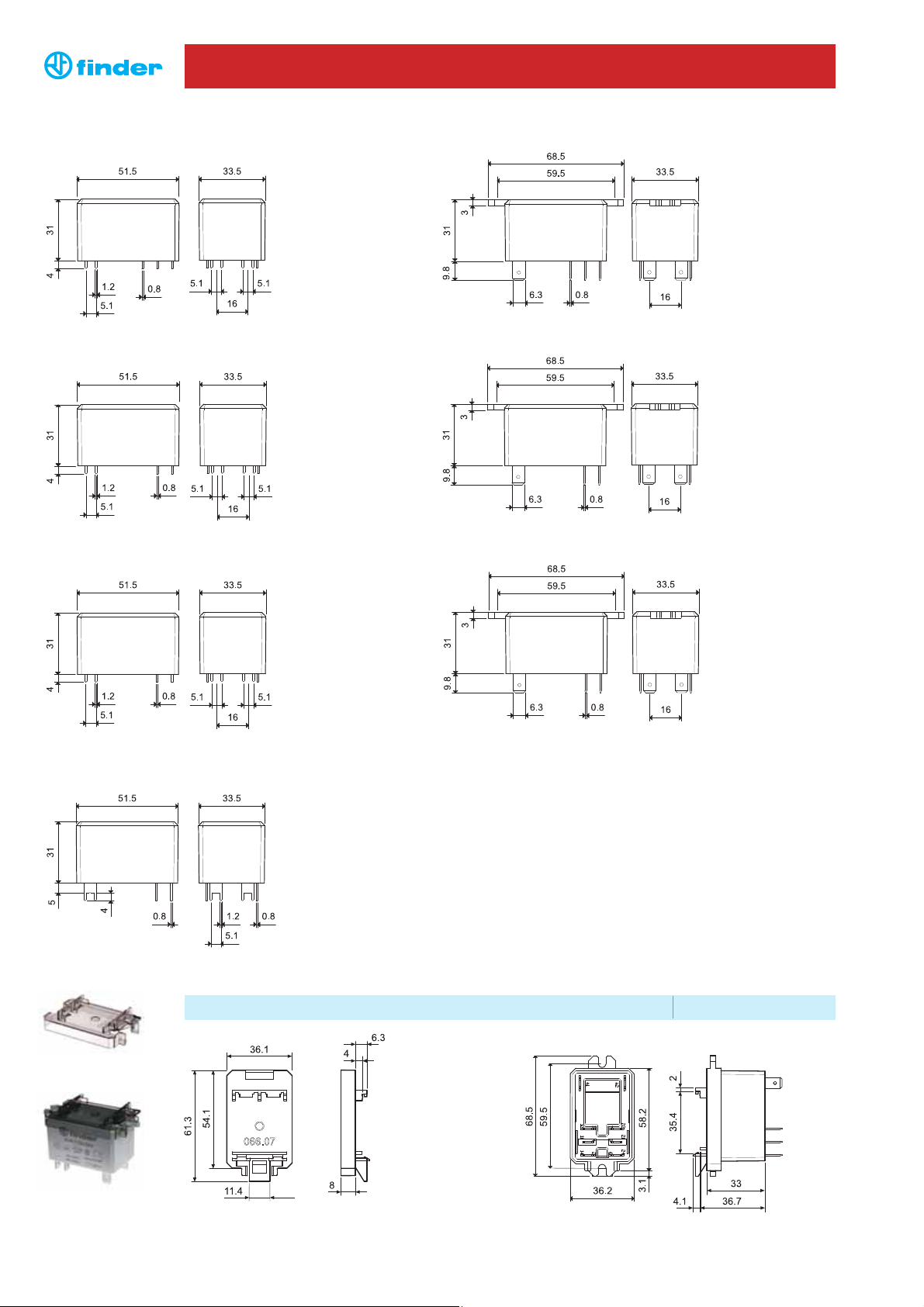

Outline drawings

Type 66.22

Type 66.22-0300

Type 66.82

Type 66.82-0300

Type 66.22-0600

Type 66.82-0600

Type 66.22-0600S
