FINDER 095.91.3 Specification

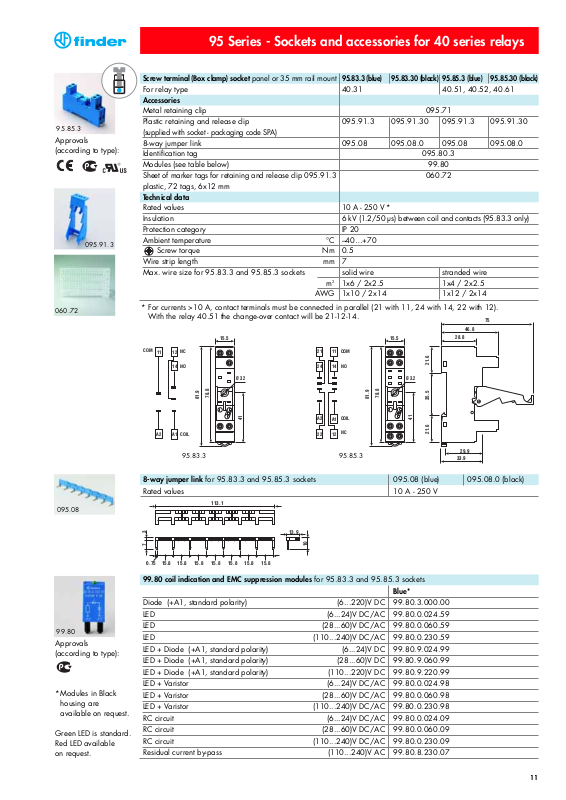

Page 1

99.80

99.80 coil indication and EMC suppression modules for 95.83.3 and 95.85.3 sockets Blue*

Diode (+A1, standard polarity) (6...220)V DC 99.80.3.000.00 LED (6...24)V DC/AC 99.80.0.024.59 LED (28...60)V DC/AC 99.80.0.060.59 LED (110...240)V DC/AC 99.80.0.230.59 LED + Diode (+A1, standard polarity) (6...24)V DC 99.80.9.024.99 LED + Diode (+A1, standard polarity) (28...60)V DC 99.80.9.060.99 LED + Diode (+A1, standard polarity) (110...220)V DC 99.80.9.220.99 LED + Varistor (6...24)V DC/AC 99.80.0.024.98 LED + Varistor (28...60)V DC/AC 99.80.0.060.98 LED + Varistor (110...240)V DC/AC 99.80.0.230.98 RC circuit (6...24)V DC/AC 99.80.0.024.09 RC circuit (28...60)V DC/AC 99.80.0.060.09 RC circuit (110...240)V DC/AC 99.80.0.230.09 Residual current by-pass (110...240)V AC 99.80.8.230.07

*Modules in Black

housing are available on request.

Green LED is standard. Red LED available on request.

Approvals (according to type):

95 Series - Sockets and accessories for 40 series relays

095.08

0.75 15.8 15.8 15.8 15.8 15.8 15.8 15.8

7 3

13.9

113.1

8-way jumper link for 95.83.3 and 95.85.3 sockets 095.08 (blue) 095.08.0 (black) Rated values 10 A - 250 V

Screw terminal (Box clamp) socket panel or 35 mm rail mount

95.83.3 (blue) 95.83.30 (black) 95.85.3 (blue) 95.85.30 (black)

For relay type 40.31 40.51, 40.52, 40.61

Accessories

Metal retaining clip 095.71 Plastic retaining and release clip 095.91.3 095.91.30 095.91.3 095.91.30 (supplied with socket - packaging code SPA) 8-way jumper link 095.08 095.08.0 095.08 095.08.0 Identification tag 095.80.3 Modules (see table below) 99.80 Sheet of marker tags for retaining and release clip 095.91.3

060.72

plastic, 72 tags, 6x12 mm

Technical data

Rated values

10 A - 250 V * Insulation 6 kV (1.2/50 µs) between coil and contacts (95.83.3 only) Protection category IP 20 Ambient temperature °C –40…+70

Screw torque Nm 0.5 Wire strip length mm 7 Max. wire size for 95.83.3 and 95.85.3 sockets solid wire stranded wire

m21x6 / 2x2.5 1x4 / 2x2.5

AWG 1x10 / 2x14 1x12 / 2x14

* For currents >10 A, contact terminals must be connected in parallel (21 with 11, 24 with 14, 22 with 12).

With the relay 40.51 the change-over contact will be 21-12-14.

95.85.3

095.91.3

060.72

78.8

81.9

15.5

Ø 3.2

28.8

46.8

33.9

29.9

35.5 21.621.6

78.8

81.9

15.5

Ø 3.2

COM

COIL

COM

COIL

22 12

24 14

95.83.3 95.85.3

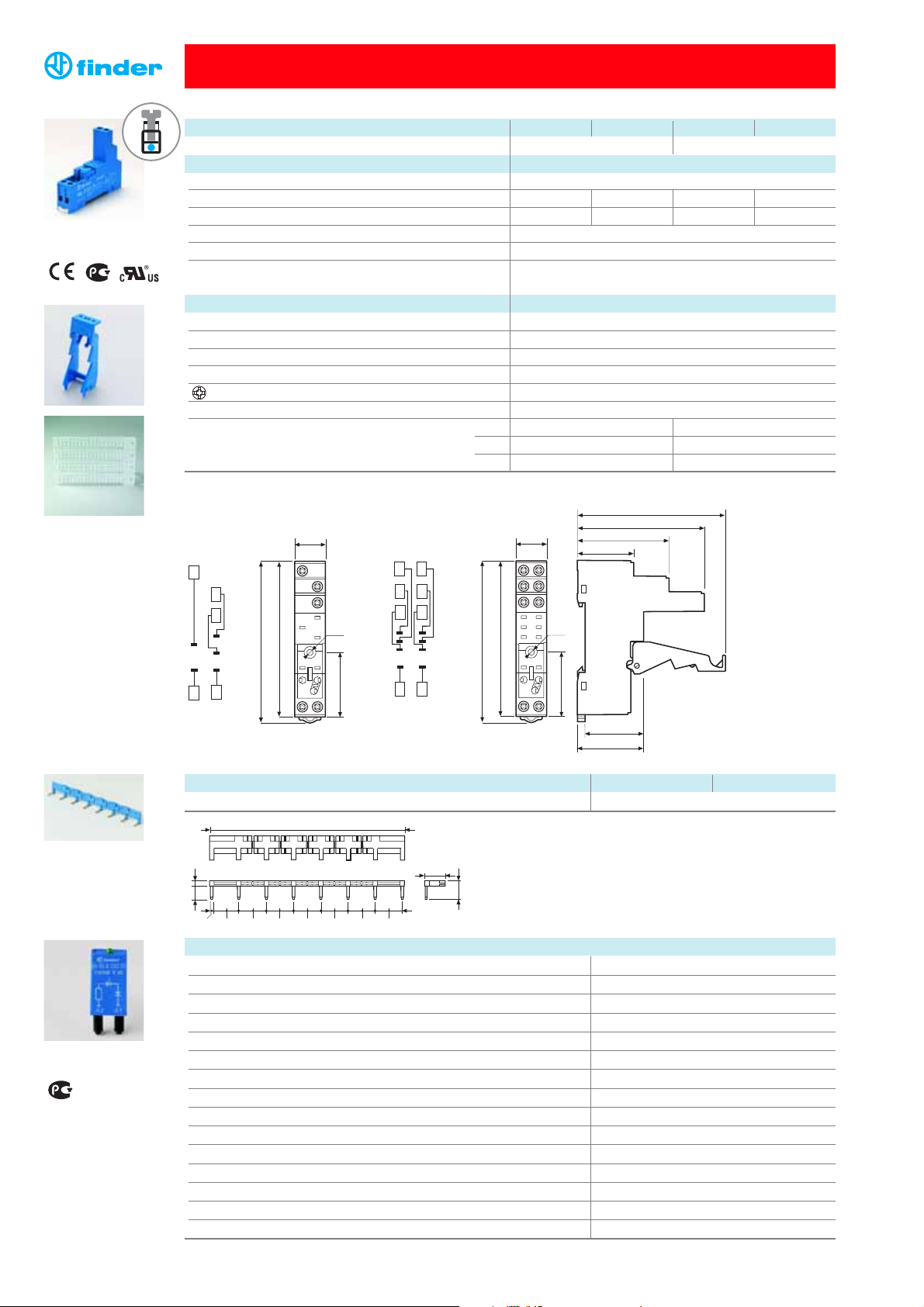

Page 2

99.80

99.80 coil indication and EMC suppression modules for 95.93.3 and 95.95.3 sockets Blue*

*Modules in Black

housing are available on request.

Green LED is standard. Red LED available on request.

Approvals (according to type):

95 Series - Sockets and accessories for 40 series relays

Approvals (according to type):

Screw (Box clamp) terminal socket panel or 35 mm rail mount

95.93.3 (blue) 95.93.30 (black) 95.95.3 (blue) 95.95.30 (black)

For relay type 40.31 40.51, 40.52, 40.61

Accessories

Metal retaining clip

095.71 Plastic retaining and release clip 095.91.3 095.91.30 095.91.3 095.91.30 8-way jumper link 095.08 095.08.0 095.08 095.08.0 Identification tag 095.80.3 Modules (see table below) 99.80 Sheet of marker tags for retaining and release clip 095.91.3

060.72 plastic, 72 tags, 6x12 mm

Technical data

Rated values

10 A - 250 V * Insulation 6 kV (1.2/50 µs) between coil and contacts Protection category IP 20 Ambient temperature °C –40…+70

Screw torque Nm 0.5 Wire strip length mm 8 Max. wire size for 95.93.3 and 95.95.3 sockets solid wire stranded wire

m21x6 / 2x2.5 1x4 / 2x2.5

AWG 1x10 / 2x14 1x12 / 2x14

* For currents >10 A, contact terminals must be connected in parallel (21 with 11, 24 with 14, 22 with 12).

With the relay 40.51 the change-over contact will be 21-12-14.

095.08

0.75 15.8 15.8 15.8 15.8 15.8 15.8 15.8

7 3

13.9

113.1

8-way jumper link for 95.93.3 and 95.95.3 sockets 095.08 (blue) 095.08.0 (black) Rated values 10 A - 250 V

95.95.3

060.72

095.91.3

15.5

81.9

78.6

32.6

Ø 3.2

33.8

29.8

46.8

64.8

28.8

78.6

81.9

15.5

32.6

Ø 3.2

COIL

21 11

COM

24 14

22 12

COIL

COM

95.93.3

95.95.3

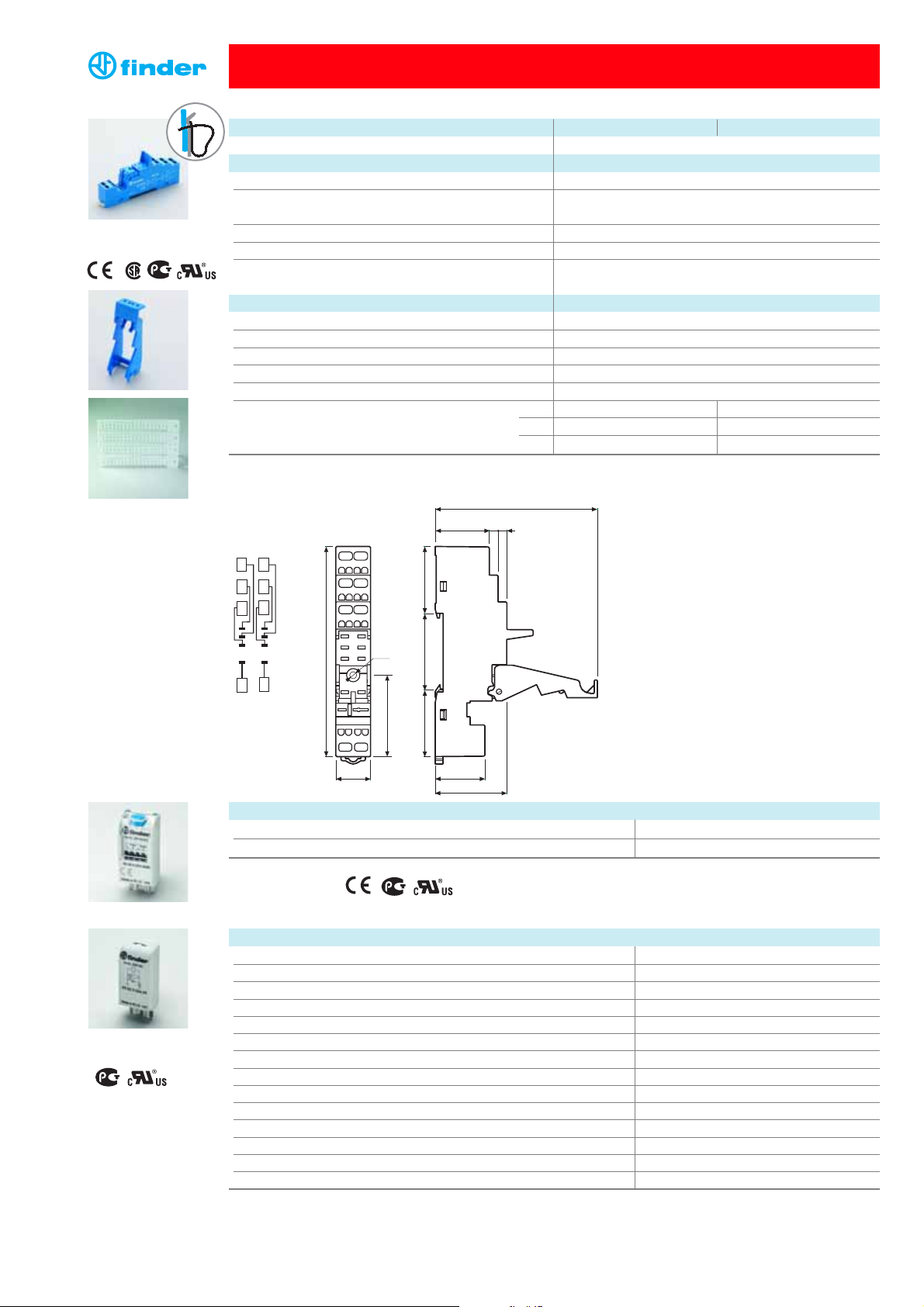

Page 3

Approvals (according to type):

95 Series - Sockets and accessories for 40 series relays

Screwless terminal socket panel or 35 mm rail mount

95.55 (blue) 95.55.0 (black)

For relay type 40.51, 40.52, 40.61

Accessories

Metal retaining clip 095.71 Plastic retaining and release clip 095.91.3 (supplied with socket - packaging code SPA) Modules (see table below) 99.02 Timer modules (see table below) 86.30 Sheet of marker tags for retaining and release clip 095.91.3

060.72

plastic, 72 tags, 6x12 mm

Technical data

Rated values

10 A - 250 V * Insulation 6 kV (1.2/50 µs) between coil and contacts Protection category IP 20 Ambient temperature °C –25…+70 Wire strip length mm 8 Max. wire size for 95.55 socket solid wire stranded wire

mm22x(0.2...1.5) 2x(0.2...1.5)

AWG 2x(24...18) 2x(24...18)

* For currents >10 A, contact terminals must be connected in parallel (21 with 11, 24 with 14, 22 with 12).

With the relay 40.51 the change-over contact will be 21-12-14.

95.55

060.72

095.91.3

COIL

21 11

COM

24 14

22 12

COM

22 NC

COIL

95.6

Ø 3.2

30.3 34.7 30.6

99.02 coil indication and EMC suppression modules for 95.55 socket Diode (+A1, standard polarity) (6...220)V DC 99.02.3.000.00 LED (6...24)V DC/AC 99.02.0.024.59 LED (28...60)V DC/AC 99.02.0.060.59 LED (110...240)V DC/AC 99.02.0.230.59 LED + Diode (+A1, standard polarity) (6...24)V DC 99.02.9.024.99 LED + Diode (+A1, standard polarity) (28...60)V DC 99.02.9.060.99 LED + Diode (+A1, standard polarity) (110...220)V DC 99.02.9.220.99 LED + Varistor (6...24)V DC/AC 99.02.0.024.98 LED + Varistor (28...60)V DC/AC 99.02.0.060.98 LED + Varistor (110...240)V DC/AC 99.02.0.230.98 RC circuit (6...24)V DC/AC 99.02.0.024.09 RC circuit (28...60)V DC/AC 99.02.0.060.09 RC circuit (110...240)V DC/AC 99.02.0.230.09 Residual current by-pass (110...240)V AC 99.02.8.230.07

86 series timer modules

(12…24)V AC/DC; Bi-function: AI, DI; (0.05s…100h) 86.30.0.024.0000 (230...240)V AC; Bi-function: AI, DI; (0.05s…100h) 86.30.8.240.0000

DC Modules with non-standard polarity (+A2) on request.

Approvals (according to type):

99.02

86.30

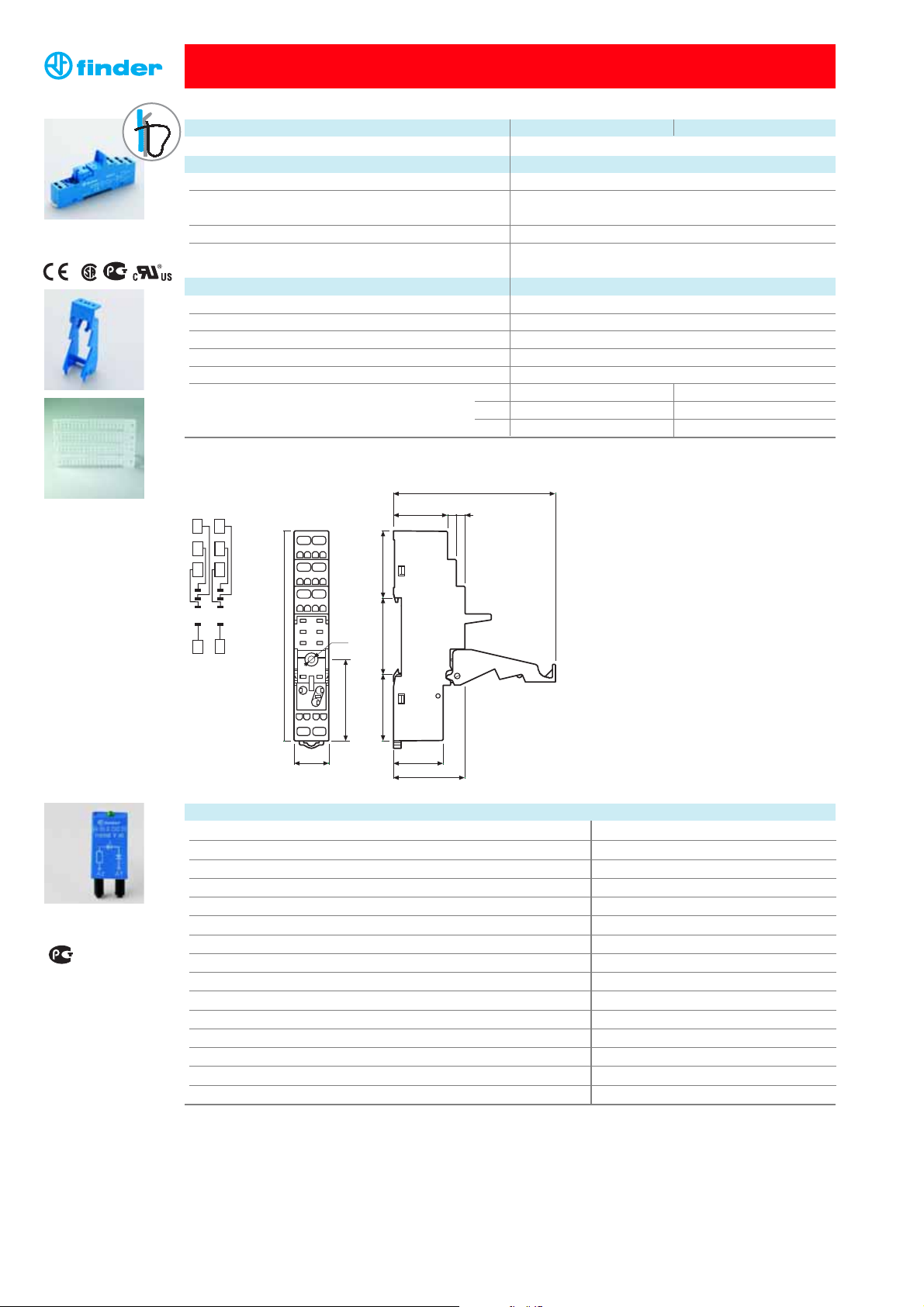

Page 4

95 Series - Sockets and accessories for 40 series relays

99.80

99.80 coil indication and EMC suppression modules for 95.55.3 socket Blue*

*Modules in Black

housing are available on request.

Green LED is standard. Red LED available on request.

Approvals (according to type):

Screwless terminal socket panel or 35 mm rail mount

95.55.3 (blue) 95.55.30 (black)

For relay type 40.51, 40.52, 40.61

Accessories

Metal retaining clip 095.71 Plastic retaining and release clip 095.91.3 (supplied with socket - packaging code SPA) Modules (see table below) 99.80 Sheet of marker tags for retaining and release clip 095.91.3

060.72

plastic, 72 tags, 6x12 mm

Technical data

Rated values

10 A - 250 V * Insulation 6 kV (1.2/50 µs) between coil and contacts Protection category IP 20 Ambient temperature °C –25…+70 Wire strip length mm 8 Max. wire size for 95.55.3 socket solid wire stranded wire

mm22x(0.2...1.5) 2x(0.2...1.5)

AWG 2x(24...18) 2x(24...18)

* For currents >10 A, contact terminals must be connected in parallel (21 with 11, 24 with 14, 22 with 12).

With the relay 40.51 the change-over contact will be 21-12-14.

95.55.3

060.72

095.91.3

COIL

21 11

COM

24 14

22 12

COM

COIL

1424

37.2

Ø 3.2

95.6

30.3 34.7 30.6
