Page 1

Model F90i

Stereo and Home Theatre Systems

User manual

Page 2

WARNING:

Do not exposure to rain, moisture or high humidity. Do not open - High voltage inside Do not cover the speaker. (e.g. with curtains) Use only a mains-adaptor approved for the country of use. Refer servicing to a qualiﬁed Final Sound dealer.

1. IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilations openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliﬁers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not ﬁt into your outlet, consult an electrician for replacement of the obsolete outlet

10. Protect the 12V DC power adaptor cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Use only with the cart, stand, tripod, bracket, or table speciﬁed by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

12. Unplug this apparatus during thunderstorms or when unused for long periods of time.

13. Refer all servicing to qualiﬁed service personnel. Servicing is required when the apparatus has been damaged in any way, for instance when the power-supply cord or plug is damaged, liquid has been spilled or objects are fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

14. Do not open the apparatus.

15. To reduce the risk of electric shock, do not remove the back panel of the subwoofer. There are no user serviceable parts inside. Refer servicing to a qualiﬁed Final Sound dealer.

Warning: High Voltage Inside.

To reduce the risk of ﬁre or electric shock, do not expose this apparatus to rain or moisture.

Warning: The apparatus shall not be exposed to dripping or splashing and no objects ﬁlled with liquids,

such as vases, shall be placed on the apparatus.

Explanation of used symbols:

This ﬂash symbol indicates that the outlet carrying this symbol is carrying a dangerous voltage.

The double insulation symbol indicates a double insulated product. In a double-insulated product, two systems of insulation are provided instead of grounding.

The exclamation mark indicates that special attention has to be given to the indicated remark.

Page 3

2. CONGRATULATIONS!

We congratulate you on the purchase of a Final Sound ﬂat-panel loudspeaker system.

You have invested in the ﬁnest instrument for audio reproduction available. The Final Sound product line consists of front- and rear ﬂat-panel speakers, center speakers and subwoofers.

The product line is based on a unique modular system. Final Sound offers you the possibility to start buying a stereo system and easily extend this at any convenient time into a complete Final Sound Home Theatre system. You can do this just by adding a Final Sound center speaker and/or another set of Final Sound ﬂat-panel speakers. You can choose one or more of our ﬁne Final Sound subwoofers to complete your system.

The Final product line is designed to surpass the performance of other existing speakers and contains some of the most elegant and sophisticated designs ever used for music reproduction.

The ﬂat-panel speakers are capable of producing very pure and accurate sound due to their ultra low mass diaphragm. The Final Sound technology has evolved through many years of research and development.

The Final Sound subwoofers are designed to match perfectly with the characteristics of the Final Sound loudspeaker panels.

The Model F90i speakers are designed for the use in a so-called 5.1 Home Theater conﬁguration.

In the stereo setting there is a left and a right speaker channel. In the Home Theatre setting there are 2 front channels, 2 rear channels, 1 center channel and a subwoofer (low frequency) channel. Each Model F90i ﬂat-panel speaker measures only 20.7 inches tall by 8.1 inches wide (57.5cm tall and 20.7 cm wide). The ﬂat-panel speakers can be easily ﬁxed on the wall by means of brackets and thus can be directed to the ideal listening spot.

The Final sound Model F90i Stereo system consists of the following components:

• 2 Final sound Model F90i ﬂat-panel speakers (left and right channel).

• 1 Final Sound subwoofer S90 or S100 to be purchased separately.

The complete Final Sound Model F90i Home Theatre system consists of the following components:

• 2 Final Sound Model F90i ﬂat-panel front speakers.

• 2 Final Sound Model F90i ﬂat-panel rear speakers.

• 1 Final Sound Model F90i ﬂat-panel center speaker.

• 1 Final Sound subwoofer S90 or S100 to be purchased separately.

This manual includes the instructions for all separate Final Sound components mentioned above.

On page 4 you can ﬁnd where to read the speciﬁc instructions you need.

Please read and follow these instructions carefully before you connect your Final Sound system to your ampliﬁer. These instructions are very important and will prevent you from experiencing any delay or system damage, which might occur in a trial and error situation.

Final Sound wishes you great listening enjoyment!

Page 4

3. TABLE OF CONTENTS

1. IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

2. CONGRATULATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

3. TABLE OF CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

4. WARRANTY CONDITIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

5. HOW TO PERFORM A QUICK AND PROPER INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

6. FINAL SOUND MODEL F90i FLAT-PANEL SPEAKER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

6.1 What is the function of a Center Speaker?

6.2 Where do I place the Final Sound Center Speaker?

6.3 How do I start installing the Final Sound Center Speaker safely?

6.4 How do I clean and maintain the Final Sound Center Speaker?

7. FINAL SOUND MODEL F90i FLAT-PANEL FRONT AND REAR SPEAKERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

7.1 What is the function of the Final Sound front and rear speaker panels?

7.2 Where do I place the Final Sound speaker panels?

7.3 How do I install the Final Sound speaker panels safely?

7.4 How to clean and maintain the Final Sound front and rear speaker panels?

8. FINAL SOUND SUBWOOFER (UNIT HAS ITS OWN USER MANUAL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

8.1 What is the function of the Final Sound subwoofer?

8.2 How do I unpack the Final Sound subwoofer safely?

8.3 How do I perform a safe installation?

8.4 Where do I place the Final Sound subwoofer?

8.5 How do I connect the wires?

8.6 How to clean and maintain the Final Sound subwoofer?

9. CONNECTING THE FINAL SOUND HOME THEATRE SYSTEM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

10. GENERAL INFORMATION ABOUT FINAL TECHNOLOGY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

11. FREQUENTLY ASKED QUESTIONS (FAQ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

12. WARRANTY CARD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Page 5

4. WARRANTY CONDITIONS

Automatic Coverage

Thank you for purchasing this Final Sound product. We have made every effort to insure that it represents the highest level of performance, reliability and ﬁnish. A Limited Ninety Day Warranty covers your Final Sound product. This ninety-day coverage is automatic upon your acceptance of delivery and no registration is required.

Free Extended Warranty Coverage

Additionally, you have the option, at no cost to you, to secure extended warranty coverage for a period of three years from the date of purchase by the original purchaser, simply by returning this completed Limited three Year Warranty Registration Card and a photocopy of your original purchase receipt in the enclosed postage paid envelope to Final Sound within thirty days of product delivery.

Limited Ninety Day Warranty

Final Sound warrants the product designated herein to be free of manufacturing defects in material and workmanship, subject to the conditions hereinafter set forth, for a period of ninety (90) days from the date of purchase by the original purchaser.

Conditions

This warranty is subject to the following conditions and limitations: the warranty is void and inapplicable if the product has been used or handled other than in accordance with the instructions in the owner’s manual, abused or misused, damaged by accident or neglect or in being transported, or the defect is due to the product being repaired or tampered with by anyone other than Final Sound or an authorized Final Sound dealer. If returned, the product must be properly packaged and shipped to Final Sound or an authorized Final Sound dealer by the customer at his or her sole expense. A returned product must be accompanied by a written description of the defect and proof of the date of purchase. Final Sound reserves the right to modify the design of any product without obligation to purchaser of previously manufactured products and to change the prices or speciﬁcations of any product without notice or obligation to any person.

Exclusions

Any implied warranties relating to the above product shall be limited to the duration of the above warranty. The warranty does not extend to any incidental or consequential costs or damages to the purchaser. Some countries/ states do not allow limitations on how long an implied warranty lasts or exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you speciﬁc legal rights, and you may also have other rights, which vary from country/state to country/state. This warranty represents a limited warranty as deﬁned above.

Optional Limited Three Year Warranty

Upon receipt of the completed Limited Three Year Warranty Registration Card and copy of the original purchase receipt, the registered product will carry the following warranty coverage.

Limited Warranty

Final Sound warrants the product designated herein to be free of manufacturing defects in material and workmanship, subject to the conditions hereinafter set forth, for a period of three years from the date of purchase by the original purchaser.

Conditions

This warranty is subject to the following conditions and limitations. The warranty is void and inapplicable if the product has been used or handled other than in accordance with the instructions in the owner’s manual, abused or misused, damaged by accident or neglect or in being transported, or the defect is due to the product being repaired or tampered with by anyone other than Final Sound or an authorized Final Sound dealer. If returned, the product must be properly packaged and shipped to Final Sound or an authorized Final Sound dealer by the customer at his or her sole expense. A written description of the defect and a photocopy of the validated warranty must accompany a returned product. Final Sound reserves the right to modify the design of any product without obligation to purchasers of previously manufactured products and to change the prices or speciﬁcations of any product without notice or obligation to any person.

Page 6

Remedy

In the event the product fails to meet the above Warranty and the above conditions have been met, the purchaser’s sole remedy under this Limited Warranty shall be to return the product to Final Sound or an authorized Final Sound dealer where the defect will be rectiﬁed without charge for parts or labor.

Restriction

This Warranty is for the sole beneﬁt of the original purchaser of the covered product, is restricted to the original purchaser, and shall not be transferred to a subsequent purchaser of the product.

Duration

This Warranty expires on the ﬁfth anniversary of the date of purchase. During the ﬁrst ninety (90) days following the date of purchase by the original purchaser, the Final Sound Limited Ninety Day Warranty supersedes this Warranty.

Exclusions

Any implied warranties relating to the above product shall be limited to the duration of the above warranty. The warranty does not extend to any incidental or consequential costs or damages to the purchaser. Some countries/ states do not allow limitations on how long an implied warranty lasts or exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This Warranty gives you speciﬁc legal rights, and you may also have other rights that vary from country/state to country/state. This Warranty represents a limited warranty as deﬁned above.

Page 7

5. HOW TO PERFORM A QUICK AND PROPER INSTALLATION

The Final Sound loudspeaker system consists of separate products, which can function individually or perform as a complete system.

Every product has its own description. For your comfort we answer hereby the following questions for you:

• What is the function of the speciﬁc product?

• How do I start installing it safely?

• Where do I place this product?

• How to clean and maintain the product?

Thus, you only have to read page 4, 7 and the chapter corresponding with the product you have bought. Whenever necessary, we have provided diagrams to illustrate the answers to these questions. We wish you success with the installation procedures and great listening enjoyment afterwards!

How to unpack the Final Sound Model F90i Stereo/Home Theatre System

The Final Sound Model F90i Stereo/Home Theatre System consists of two separate packaging units. The Model F90i ﬂat-panel speakers and the Final Sound subwoofer are packed separately.

The Model F90i Stereo ﬂat-panel speaker packaging contains:

2 Model F90i ﬂat-panel speakers (left and right) 2 power supplies 12VDC 2 Wall mounts Assembly materials including screws, plugs and a hex key. 1 Manual

The Model F90i Home Theatre ﬂat-panel speaker packaging contains:

1 Model F90i ﬂat-panel center speaker 2 Model F90i front ﬂat-panel speakers (left and right) 2 Model F90i rear ﬂat-panel speakers (left and right) 5 power supplies 12VDC 5 wall mounts Assembly materials including screws, plugs and a hex key. 1 Manual

The front and rear ﬂat-panel speakers are physically identical. However there is a difference between the left and right ﬂat-panel speakers. The speaker panels are divided by two spacers in four segments. The left ﬂat-panel speaker has the narrowest strip on the right side and the right ﬂat-panel speaker has the narrowest strip on the left side. The speaker panels are marked by means of a label; the last two characters indicate the type of speaker: Center speaker: CP, Front left speaker: FL, Front right speaker: FR, Rear left speaker: RL and Rear right speaker: RR.

The ﬂat-panel speakers of the Model F90i Stereo System are physically identical to the front and rear ﬂat-panel speakers of the Model F90i Home Theatre System.

The Final Sound subwoofer packaging contains the following items:

1 Final Sound subwoofer 1 AC power cord 1 Final Sound subwoofer manual

Unpacking procedure

Each individual component is packed in its own carton. The easiest way to unpack is to open the upper side of the box (check the labels), take out the separate units and carefully remove the cartons and plastic bags.

If your packaging is not complete, do not operate the system but contact your dealer. We recommend you to save all packaging materials for possible later use. If any unit appears to be damaged when unpacking, do not operate the damaged unit. Repack the unit in its original carton and notify your authorized Final Sound dealer immediately.

Page 8

6. FINAL SOUND MODL F90i FLAT-PANEL SPEAKER

6.1 What is the function of a Center Speaker?

The center channel is the most important channel in a Home Theatre system. Its audio signals deliver critical localization cues to our ears to keep the voices and special effects locked on-screen. The Final Sound ﬂat-panel center speaker is a true line source, with a single speaker element to deliver precise localization. Today’s electrodynamic and hybrid center channel speakers are ﬂawed using multiple drivers. By refusing to compromise on these important design criteria, Final Sound has created what many people will be calling the most accurate center channel system in the world.

The Final Sound ﬂat-panel center speaker is designed to function in harmony with the Final Sound subwoofer. The subwoofer will add the low frequency information to the center channel.

6.2 Where do I place the Final Sound Center Speaker?

The Final Sound Model F90i center speaker should be placed directly under or above your TV or video screen in a horizontal mode. If you are not sure, contact your dealer for further details.

The center speaker panel is labeled with the F90i WMCP code. The ﬂat-panel center speaker has to be mounted on the wall by means of the special mount (included in the package) or placed on an optional Final Sound stand.

The bracket consists of a wall plate, a ball-bar and a cover plate.

To install the bracket you ﬁrst have to ﬁx the wall plate of the mount to the wall by means off the 4 screws and if necessary the plugs.

You then insert the ball-bar into the cover plate and screw the cover plate onto the wall plate with the two hex screws. Do NOT tighten.

Lastly you take the speaker and screw the ball-bar into its bracket at the back. Tighten it by hand. Then tighten the two hex screws with the supplied Allen key. Do NOT over tighten.

You can now tighten the ball-bar into the speaker by slightly twisting the speaker in clockwise direction when standing in front of the speaker. Do NOT apply excessive force.

Finally, the speaker position can be adjusted be un-tighten the hex screws, bringing the speaker into the required position and re-tighten the hex screws.

Final has also designed matching ﬂoor stands, these ﬂoor stands can be purchased separately by your dealer if you do not want to wall mount the speakers. In the case you want to purchase the Final Sound Floor stands, the wall mounts can be used to assemble the speakers on the ﬂoor stands, allowing you to direct the speakers to the listening area.

Page 9

6.3 How do I start installing the Final Sound Center Speaker safely?

Before connecting the center speaker panel, your audio system should be disconnected from the main power supply until you have gone through all steps as explained in this manual. This will avoid the risk of damage to your system while connections are made of broken.

The center speaker panel comes with a 12VDC power supply, which has to be connected to the mains. It is necessary to connect the ﬂat-panel speakers to the mains; otherwise it will not function. The ﬂat-panel speakers are designed to stay on the mains permanently, however it is better to disconnect them during thunderstorms.

The center speaker is equipped with speaker terminals, which are suited for spades or common loudspeaker wires. The red speaker terminal has to be connected to the red terminal (+) on the Audio/Video receiver and the black terminal has to be connected to the black terminal (-) on the Audio/Video receiver.

For connecting the wires we refer to the chapter “Connecting the Final Home Theatre System”.

6.4 How do I clean and maintain the Final Sound Center Speaker?

Always unplug the Final Sound center speaker from the mains and shut off all sound equipment before start cleaning. To prevent ﬁre or shock hazard, clean only with a DRY cloth and prevent pushing the black (sound producing) part of the speaker and also prevent dust and small particles to fall into the black panel with the diaphragm. Never use cleaners, chemicals or liquids, which might drip into the black sound-producing unit.

Page 10

7. FINAL SOUND F90i FLAT-PANEL FRONT AND REAR SPEAKERS

REAR/ SURROUND

FRONT

REAR/ SURROUND

CENTER SPEAKER

7.1 What is the function of the Final Sound front and rear speaker panels?

The Final Sound ﬂat-panel front speakers are the main channels in a stereo setting and have a dual role in a Home Theater system. The front and rear speakers are used to create ambient effects. In a home cinema setting even actions occurring at the back of the listener will be reproduced. Both in a stereo conﬁguration and a Home Theater conﬁguration, the ﬂat-panel speakers function in close harmony with the Final Sound subwoofer, which does not have to be placed near-by. This is due to the fact that the human ear cannot locate low frequencies as well as middle and high frequencies.

The Final Sound Model F90i ﬂat-panel speakers are designed to mount on the wall. After having mounted the speaker panels on the wall by means of the brackets, the panels can be easily adjusted towards the listening position.

7.2 Where do I place the Final Sound speaker panels?

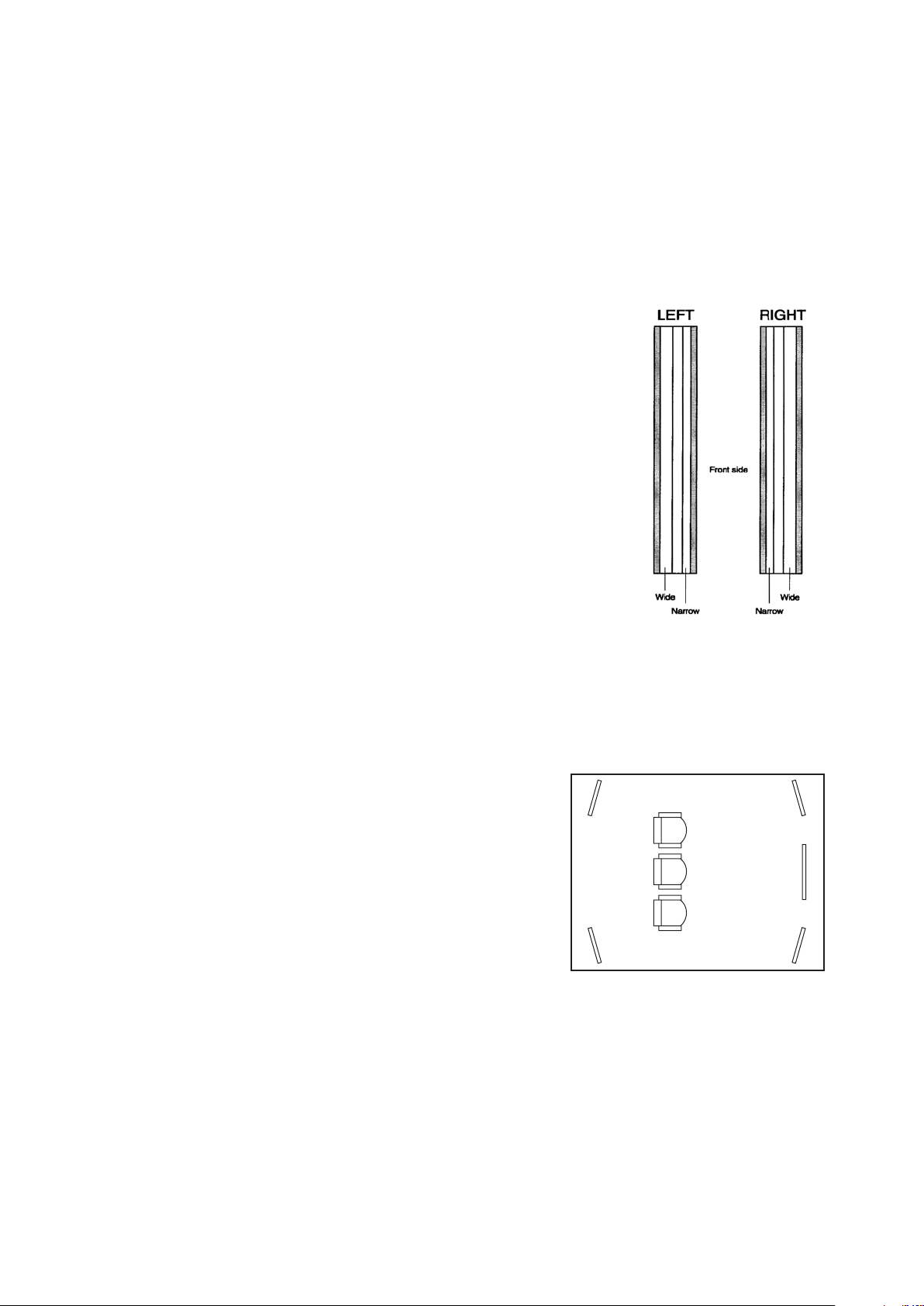

There is a difference between a left (front/rear) and a right (front/rear) Final Sound speaker panel. Spacers in four vertical segments divide each Final Sound loudspeaker panel. The narrow strips have to be oriented to the inside. The difference is shown in the ﬁgure beside. To illustrate the best position of the speaker panels we have to differentiate between Final Sound Stereo and Final Sound Home Theatre conﬁgurations.

Application 1: The Final Sound Home Theatre conﬁguration: The Final Sound Home Theatre conﬁguration consists of two front-speakers, two rear/surround speakers, a center speaker and a subwoofer. We recommend a symmetric positioning of the speakers with respect to the screen, as to enhance the “home cinema experience”. The center speaker and front speaker panels should be located on the same horizontal axis. Sometimes it’s even better to place the center speaker slightly further away than the front speakers. You want to create an “arc” that places the 3 speakers in the front at the same distance from the listener as shown in the illustration. . Please note that electrostatics are dipoles, i.e. the speakers produce sound from both sides of the panels. This means an electrostatic speaker should always placed away from the wall and turned under a slight angle with the wall (not parallel with the wall).

The surround or rear speakers should be positioned adjacent to and slightly behind the primary listening area, on the rear wall or ﬂoor to provide a sense of spaciousness and ambience for all Surround Sound formats.

The subwoofer is not shown in the ﬁgure above since its location has less inﬂuence in the overall sound performance than the position of the front, rear and center speakers. You can read more about the subwoofer location in chapter ‘Final Sound subwoofer’.

Application 2: Final Sound Stereo conﬁguration: The panels in a stereo setting are preferably located in a symmetrical way and slightly away from the walls for optimum imaging. The panels need to point slightly towards the favorite listening position as you can see in the ﬁgure above looking at only the front speakers (the other speakers shown are not applicable in a stereo setting). The subwoofer is not shown in the ﬁgure since its location has less inﬂuence in the overall sound performance compared to the Final Sound panels. You can read more about the subwoofer in the chapter ‘Final Sound subwoofer’.

Page 11

7.3 How do I install the Final Sound speaker panels safely?

The front speaker panels are labeled with a F90iWMP: Front Left en Front Right code. The rear speaker panels are labeled with a F90iWMP: Rear Left en Rear Right code. The front and rear ﬂat-panel speakers have to be mounted on the wall by means of the wall mount (included in the package) or placed on an optional Final Sound stand.

The installing of the wall mount is the same as described in the chapter “Where do I place the Final Sound Center Speaker?”

Each ﬂat-panel speaker panel comes with a 12 VDC power supply, which has to be connected to the mains. It is necessary to connect the ﬂat-panel speakers to the mains; otherwise they will not function. The ﬂat-panel speakers are designed to stay on the mains permanently, however it is better to disconnect them during thunderstorms.

The front and rear ﬂat-panel speakers are equipped with speaker terminals, which are suited for spades or common loudspeaker wires. The red speaker terminal has to be connected to the red terminal (+) on the Audio/Video receiver and the black terminal has to be connected to the black terminal (-) on the Audio/Video receiver. For connecting the wires we refer to the chapter Connecting the Final Home Theatre System.

Before connecting the front and rear speaker panels, all sound system equipment should be disconnected from the mains until you have gone through all steps below. This will avoid the risk of damage to your system while connections are made or broken. If you experience any problems installing the ﬂat-panel speakers please contact your authorized Final Sound dealer.

7.4 How to clean and maintain the Final Sound front and rear speaker panels?

Always unplug the Final Sound ﬂat-panel speakers from the mains and shut off all sound equipment before you start cleaning. To prevent ﬁre or shock hazard, clean only with a DRY clothe and prevent pushing the black (sound producing) part of the speaker panels and also prevent dust and small particles to fall in the panel. Never use cleansers or chemicals or any liquids, which risk dripping into the speaker panels.

Page 12

8. FINAL SOUND SUBWOOFER

8.1 What is the function of the Final Sound subwoofer?

The Final Sound subwoofer is capable to reproduce music signals up to 250 Hz, which is a unique feature and exclusive to the Final Sound concept. This Final Sound Subwoofer is designed to match perfectly with the characteristics of the Final Sound Model F90i ﬂat-panel speakers and belongs with the electronics and its perfect driver to the upper end of the subwoofer range. The Final Sound Subwoofer cabinet is provided with a down-ﬁring active subwoofer and a build-in ampliﬁer.

8.2 How do I unpack the Final Sound subwoofer safely?

This package includes

• One AC-power cord

• One Final Sound subwoofer

• One user manual for the subwoofer

If your package is not complete, do not operate the system but contact your Final Sound Dealer. The easiest way to unpack is the following. Put the box on a ﬂat surface on the ground. Open one side by cutting the tape carefully without damaging the contents of the box. You ﬁnd the subwoofer in a plastic foil, with shock absorbing buffers positioned around the corners. Now carefully take out the subwoofer, please avoid touching the woofer unit positioned at the downside of the cabinet. We recommend saving all packaging materials for possible later use. Avoid touching the woofers.

If any unit appears to be damaged when unpacking, do not operate the damaged unit. Repack the unit in its original carton and notify your authorized Final Sound dealer immediately.

For further details please look at the manual supplied with the subwoofer.

8.3 How do I perform a safe installation?

IMPORTANT: Before connecting the subwoofer, all sound system equipment should be disconnected from the

mains until you have gone through all steps below. This will avoid the risk of damage to your system while connections are made or broken.

. Warning: High Voltage Inside. To reduce the risk of ﬁre or electric shock, do not expose this

apparatus to rain or moisture.

8.4 Where do I place the Final Sound subwoofer?

The Final Sound subwoofer is developed to reproduce music signals of the audio range below 250 Hz. Our human ears can locate the higher frequencies much better than the low frequencies that come out of the subwoofer. This makes the positioning of the subwoofer less critical than full range speakers. The deﬁnite location should be a compromise between sound and your domestic preferences.

For an easy start we recommend to place the unit between the left and right front speaker. Make sure that air can ﬂow around the cabinet also on the back of the subwoofer for cooling reasons, especially when you are planning to place the subwoofer in some kind of furniture or on a small area.

The Final Sound Subwoofers covers the low frequency range (from 25Hz for the S200 and 35Hz for the S100 and 40Hz for the S90)) up to 250Hz. While the F90i covers the frequency range from 150Hz up to 25kHz, it is important to deﬁne carefully the crossover frequency between the subwoofer and the electrostatic panels, which is inﬂuenced by the acoustic properties of the room and the placement of the subwoofer.

Page 13

8.5 How do I connect the wires?

There are various applications and systems where the subwoofer can be used for and therefore there are also various ways how the subwoofer can be connected. The different options are described below to make an easy shift to the applicable audio system possible.

Using an Audio/Video receiver or multi-channel ampliﬁer, the connection of the Final Sound subwoofer in a Home theater system can be done in several ways, depending on the brand of the A/V receiver or ampliﬁer you use. In the ﬁgure in the following chapter ‘Connecting the Final Home Theatre System, the connections between the Audio/Video receiver multi-channel ampliﬁer and the Final Sound subwoofer are represented by means of lines.

The exceptions are:

• the connection between pre-out front and line-input of the subwoofer. This connection will make sure you can use the crossover on the Final Sound subwoofer up to 250 Hz. Please read the ampliﬁer’s manual for further details or ask your Final Sound dealer.

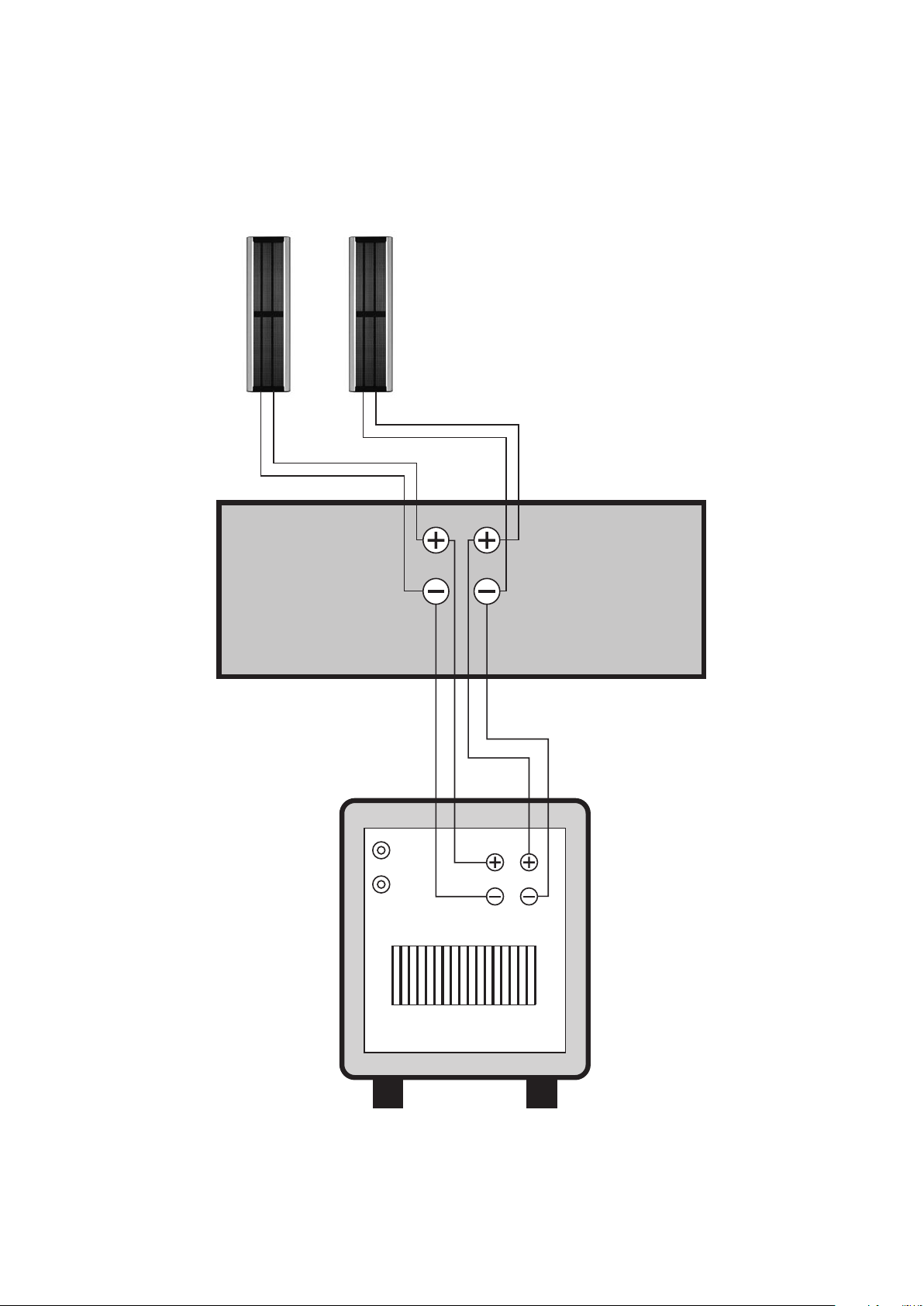

• the connections between the loudspeakers output on your ampliﬁer and the high-power inputs on your subwoofer. Some multi channel ampliﬁers need this connection to be able to play stereo (only left and right panel + subwoofer playing). Please check your ampliﬁer’s manual to check if this will work or ask your Final Sound dealer for further details.

8.6 How to clean and maintain the Final Sound subwoofer?

After switching the Final Sound subwoofer off, always unplug the subwoofer from the ampliﬁer and disconnect the power cord before you start cleaning. To prevent ﬁre or shock hazard, clean only with a damp cloth. Never use cleansers or chemicals. Never leave a wet cloth on the surface of the cabinet.

Page 14

9. CONNECTING THE FINAL SOUND HOME THEATRE SYSTEM

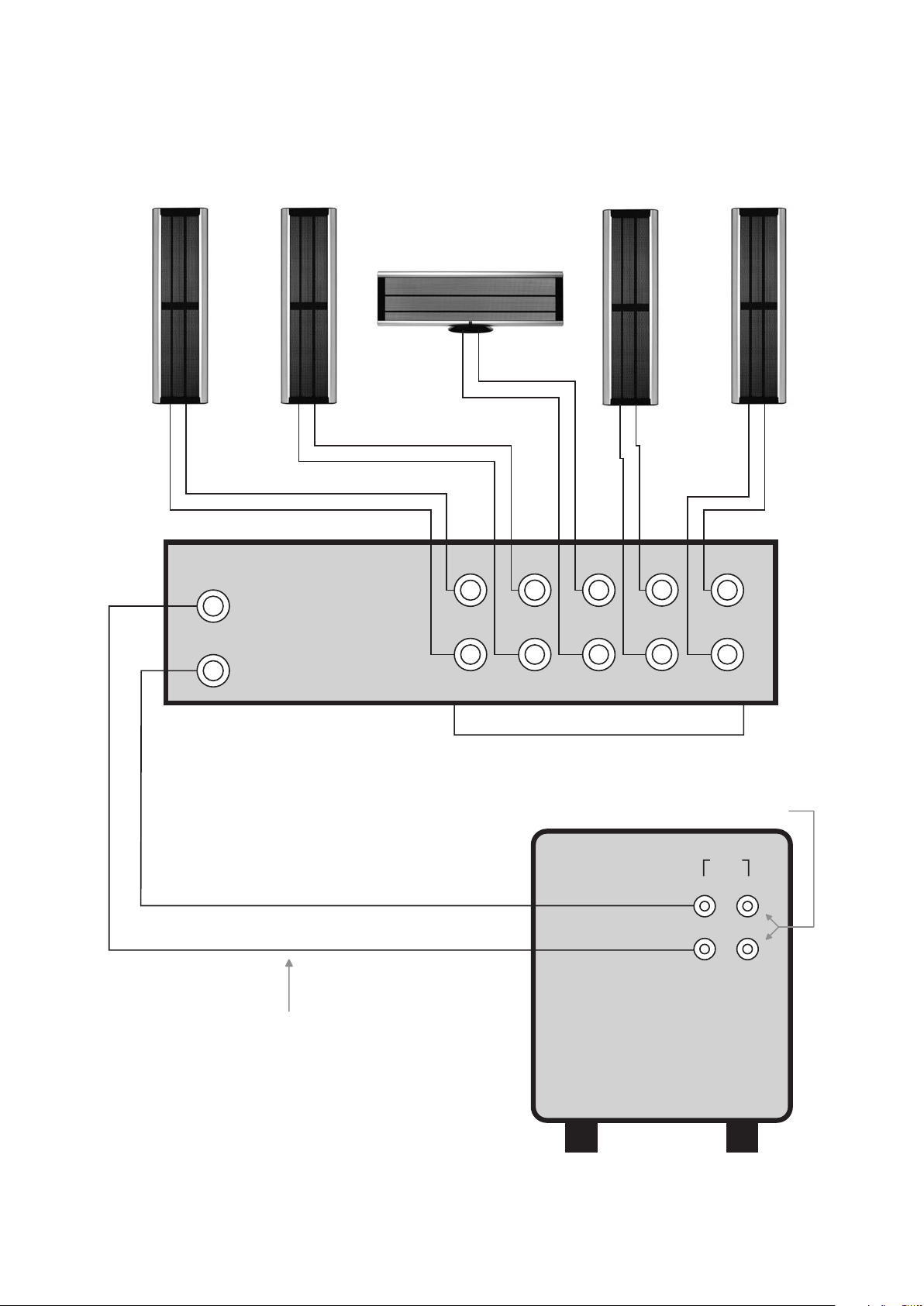

For the wiring scheme of the complete Final Sound Model F90i Home Theatre System please have a look at ﬁgure 1 at page 16. The wiring scheme of the Final Sound Model F90i Stereo system is represented in ﬁgure 2 at page 17.

There are 4 different types of connections shown in this ﬁgure to get the best performance and functionality from your Home Theater System.

Interlinks: these audio signal cables have RCA-type pin leads on both sides, which ﬁt on the pre-output plugs on your ampliﬁer and the subwoofer line-input plugs. These cables are not included in the Final Sound Model F90i Home Theatre System package. These cables are commercially available at your dealer in variable lengths and qualities.

Loudspeaker cable (marked B in ﬁgure 1): these cables ﬁt on the loudspeaker outputs of your ampliﬁer. You can connect them with the high power-input on the Final Sound subwoofer. Normally these wires are equipped with so-called spades. These cables are commercially available at your dealer in variable lengths and qualities.

Please read your manual or contact your dealer if you are not sure to get the optimal sound from your system.

Loudspeaker cable (marked C in ﬁgure 2): these cables ﬁt on the loudspeaker outputs of your Audio/Video receiver or ampliﬁer. These cables, which can be equal to cable B (see above), are used to connect the Model F90i ﬂat-panel speakers to the Audio/Video receiver or ampliﬁer. Please be absolutely sure you connect the red (+) terminal of the ﬂat-panel speaker to the corresponding red (+) terminal of the Audio/Video receiver and the black (-) terminal of the ﬂat-panel speaker to the corresponding black (-) terminal of the Audio/Video receiver! These speaker cables are available at your dealer in variable lengths and quality.

12 VDC power supply cords: these are necessary to connect the Model F90i ﬂat-panel speakers to the mains. All the ﬂat-panel speakers can only function well if they are connected to the mains. The 12 VDC power supply cords are not shown in ﬁgure 1 and 2.

Before connecting the ﬂat-panel speakers, all sound system equipment should be disconnected from the power supply until you have gone through all steps below. This will avoid the risk of damage to your system while connections are made or broken.

Step 1

Make sure before starting that all sound equipment is disconnected from the mains. After doing so, please continue with the install procedure.

First make the connections from the center channel loudspeaker output of your Audio/Video receiver or multi channel ampliﬁer to the Final Sound Model F90i ﬂat-panel center speaker. Make sure that the red (+) terminal of the speaker is connected to the red terminal (+) of the Audio/Video receiver and the black (-) terminal of the speaker is connected to the black terminal (-) of the Audio/Video receiver (see ﬁgure 1).

Make the connection from the Front channel loudspeaker output of your Audio/Video receiver or multi channel ampliﬁer to the Final Sound Model F90i ﬂat-panel front speakers. Make sure that the + and - are properly connected (see ﬁgure 1).

Make the connection from the Rear channel loudspeaker output of your Audio/Video receiver or multi channel ampliﬁer to the Final Sound Model F90i ﬂat-panel rear speakers. Make sure that the + and - are properly connected (see ﬁgure 1).

Step 2

Check all connections of the Final Sound loudspeakers properly before connecting the ﬂat-panel speakers to the mains. Each ﬂat-panel speaker (e.g. the center, front and rear speakers) has to be connected to the mains. The electronics in the ﬂat-panel speakers are designed to stay powered permanently. Figure 1 on page 16 shows the connection scheme of a complete Final Sound Home Theatre conﬁguration.

Page 15

Step 3

Make the necessary connections of the Audio/Video receiver to your Final Sound subwoofer.

The Final Sound subwoofer is designed with two uses in mind. It provides bass to the front channels and to the center channel. Therefore both the subwoofer pre-out and the center pre-out on your Audio/Video receiver or multi channel ampliﬁer have to be connected to the (left and right) line-inputs on the Final Sound subwoofer (as shown in Figure 1).

We recommend connecting the left and right front loudspeaker outputs on your Audio/Video receiver or multi channel ampliﬁer with the left and right high power inputs on the Final Sound subwoofer. Please be aware, that there are several ways to connect the subwoofer to your multi-channel ampliﬁer, depending on the brand of multichannel ampliﬁer that you use. We therefore highly recommend reading your ampliﬁer manual or if any questions are still unsolved, to ask your Final Sound dealer for further details. Wrong or improper connections may cause damage to your system!

Audio/Video receiver settings The speakers in the Final Sound Home Theater System are designed to function in perfect harmony as a full range system. For an optimum performance your Audio/Video receiver settings are very important, since perfect sound starts with the right signal output.

In terms of your Audio/Video receiver settings, the front-, rear- and center speaker channels have to be set as SMALL satellites, when using the Model F90i ﬂat-panel speakers. How to install the optimal channel settings differs with the brands of the Audio/Video receivers and therefore we recommend reading the Audio/Video receiver manual or contact your dealer how to get the best settings in order to get the Real Final Sound out of your system.

As explained before also the Final Sound Model F90i center speaker is designed to function in harmony with the Final Sound subwoofer.

Connecting the Final sound model F90i Stereo System

Figure 2 on page 17 represents the wiring scheme of the Stereo System.

Before connecting the ﬂat-panel speakers, all sound equipment should be disconnected from the mains until you have gone through all steps below. This will avoid the risk of damage to your system while connections are made or broken.

First make the connection from the left and right channel loudspeaker output of your stereo ampliﬁer to the Final Sound Model F90i ﬂat-panel speakers. Make shure that the + and – are properly connected (see ﬁgure 2, cable C).

Then you have to connect the ﬂat-panel speakers to the mains. The electronics in the ﬂat-panel speakers are designed to stay powered permanently.

After having done this you can make the connection from the left and right channel loudspeaker output of your stereo ampliﬁer to the High Level input of the Final Sound subwoofer. Make shure that the + and – are properly connected (see ﬁgure 2).

If the subwoofer is equipped with a High Level Output, it is also possible to connect the left and right channel loudspeaker output of your stereo ampliﬁer to the High Level Input of the Final Sound subwoofer and consequently the High Level Output to your left and right ﬂat-panel speakers.

Make sure that the + and – are properly connected. This alternative connection method is not shown in ﬁgure 2.

Page 16

INSTALLING THE FINAL SOUND MODEL F90I HOME THEATER SYSTEM

Audio Pre-out

Center Pre-out

Subwoofer Pre-out

Front Center Rear

L RL R

Loudspeakers Outputs

used to connect to a second subwoofer

Line

In Out

L R

Optional for Added

Dialogue warmth

Audio / Video Receiver

Flat Panel Front Speakers

Flat Panel Center Speakers

Flat Panel Rear Speakers

BB B B B

Final Sound

Subwoofer

Figure 1

Page 17

INSTALLING THE FINAL SOUND MODEL F90I HOME THEATER SYSTEM

L R

Loudspeaker out

L R

Center

LFE

High Level in

Amplifier (Stereo)

Final Sound

Subwoofer

C C

Flat Panel Front Speakers

Figure 2

Page 18

10. GENERAL INFORMATION ABOUT FINAL TECHNOLOGY

The ﬂat-panel loudspeakers made by Final Sound are speakers with remarkable and unique features. Thanks to many years of research, the Final Sound design and engineering team succeeded in effectively suppressing interfering resonance, thus reducing the resulting distortions to an absolute minimum. The result is an extremely reﬁned and clear sound in which the signal peaks and dynamic extremities are reproduced without any problems. Visually, ﬂat-panel loudspeaker made by Final Sound is a transparent appearance, which will continue to captivate as a result of its sound reproduction and timeless design.

Electrostatic Push-Pull principle

Final Sound ﬂat-panel loudspeakers make use of the complex electrostatic technology. An electrostatic loudspeaker produces sound by allowing a thin ﬂexible diaphragm to move between two ﬁxed plates (stators). ). The unmatched sound quality of the F90i electrostatic speakers has been achieved because of the application of the Final Sound Inverter principle (for more details see our website www.ﬁnalsound.com). An Inverted electrostatic loudspeaker speaker is connected to a power supply to and the stators with a permanent + and - high DC Voltage (low power). The audio signal transmitted by the ampliﬁer is converted by means of an audio transformer (which is incorporated in the electronic modules) to feed the diaphragm (also called the membrane). As a result, the diaphragm vibrates between the stators perfectly following the music signal and producing the life like sound typical for an Inverted electrostatic speaker.

This method has a number of important advantages in comparison with traditional electro-dynamic loudspeakers. The diaphragm of an electrostatic loudspeaker weighs a fraction of the membrane of a conventional electrodynamic loudspeaker, which means the air can be brought into vibration much quicker and accurately. The large surface area of the diaphragm creates a broad distribution of the sound waves, resulting in an optimum spatial effect.

In Final Sound’s design the push-pull principle has been applied. This entirely symmetrical drive of the diaphragm is the basic principle of an extremely low distortion rate. In order to maintain this symmetry we have chosen a level non-curved construction.

Resonance

Interfering resonance, inherent vibrations that can occur in all elements of the electrostatic loudspeaker, has an electrical as well as a mechanical origin. Important physical similarities exist between both types of resonance. Transformers mainly cause the electrical resonance. Therefore, the latter are developed under our direct supervision and are constructed using ﬁrst class materials.

Mechanical resonance

The mechanical resonance can be divided into frame, stator and diaphragm resonance. The Final Sound electrostatic ﬂat-panel loudspeakers have a fully metal frame, which is extremely stable and does not permit any resonance. The stator is constituted of perforated plates with a diaphragm in between them. It has a fully glued sandwich construction and is therefore free of torsion and virtually free of resonance. The diaphragm is braced and divided into three segments in such a fashion that the diaphragm resonance is limited to such an extent that it remains outside the audible acoustic range.

Construction

The construction, the quality of the electronic components and transformers are of vital importance in order to achieve the ultimate quality of sound reproduction. Together with the accurate assembly, which is thoroughly checked in every phase, Final Sound guarantees many years of listening pleasure.

Spatial form

Electrostatic loudspeakers require a considerable surface area to produce superior sound. The advantage of electrostatic loudspeakers is that they are extremely thin and transparent. This results in a slender and transparent form with a superb three-dimensional spatial effect. Not only regarding the sound, but also the design. In spite of their large surface area, Final Sound loudspeakers are not detrimental to your interior; to the contrary they may add an attractive element to your interior.

As every Final Sound loudspeaker is built from individual components made by a partly automated, partly handmade manufacturing process, you are able to choose a design for your loudspeaker that best matches your living room environment. In other words, Final Sound offers everyone great visual as well as sonic satisfaction.

Page 19

11. FREQUENTLY ASKED QUESTIONS (FAQ)

The answers to the following questions for the Final Sound Center, Rear and Front speakers, as well as the subwoofer are described in the previous chapters: What is the function of the particular unit? How do I start installing it safely? Where do I place each speaker? How do I connect the wires? How should I clean and maintain the unit?

More question and answers:

What is the advantage of the Final Sound electrostatic technology in comparison with ordinary electro-dynamic loudspeakers?

The distinguishing feature of the Final Sound loudspeaker is its precision in reproducing sound and of course the fact that they are slim, transparent and elegant looking. Vibrations of the cone generate the sound from ordinary speakers; while in case of an electrostatic loudspeaker vibrations of the transparent diaphragm generate it. There is a huge difference in mass of the material used to bring the air into vibration. In traditional electro-dynamic loudspeakers the ampliﬁer has to activate and move a voice coil and a piece of paper, plastic or metal.

The mass of the diaphragm, which an electrostatic loudspeaker uses to make the air vibrate, is so much lighter, that it is capable of much more rapid acceleration and deceleration, resulting in a more dynamic and transparent reproduction.

Doesn’t a Final Sound ﬂat-panel speaker get dirty?

This depends for a great deal on the place where the loudspeakers are situated. When put next to the ﬁreplace or the cooker, the answer is yes. You should appreciate that a Final Sound electrostatic loudspeaker is not covered, because that would be detrimental to the sound. Come to that, a little dust is not a problem since the stators can easily be cleaned with a vacuum cleaner.

To prevent damage to the panels and diaphragms, please use only a vacuum cleaner with low suction power. Nonetheless, Final Sound has developed diaphragms that repel dust and dirt to a maximum extent, and consequently guarantee the quality of sound for a very long period of time. However, should the diaphragm become dirty after a couple of years, you can then have your Final Sound dealer clean it.

What about funny noises your ﬂat-panel speakers might produce?

Funny noises can occur sometimes when you listen closely to the panels. These are generally only audible when the ampliﬁer is switched off. These are normal to electrostatic loudspeaker in general, and are absolutely harmless. These do not affect the loudspeaker or the audio-system.

Does the Final Sound Home Theatre System have to be connected to a power supply?

The Final Sound Home Theatre System is designed to be connected to the mains for 24 hours a day. The power consumption is negligible. Unlike vapor deposited metal coatings, the conductors on the Final Sound loudspeaker diaphragms are completely inert, and their electrical conductivity cannot degrade. Moreover, the conductivity of the diaphragms is independent from external factors such as the humidity of the air.

How long does a Final Sound ﬂat-panel speaker last?

Electrostatic loudspeakers have been on the market since 1935, although materials allowing for an optimization of the technology have only become available in the last 10 years. Final Sound uses diaphragms that last a great many years. Final Sound has used these diaphragms for well over a period of 10 years.

Page 20

Could my children, pets, or myself be shocked by the high-voltage present in the ﬂat-panel speakers?

No. Whilst your Final Sound loudspeaker systems are indeed connected to a power supply, they have excellent insulation. When you remove your sweater in the winter, its electrostatic charge will be considerably greater than the charge on the diaphragm in a Final Sound speaker. But of course, you should not open the loudspeakers, nor repair them. Only your authorized Final Sound service technician, who is professionally trained in the workings of all Final Sound products, should carry out this work. We stress not to touch any product that is connected to the power supply, during operation.

Will excessive smoke or dust cause any problems?

Exposure to excessive contaminants, such as smoke or dust, may potentially affect the performance of the electrostatic diaphragm and may cause discoloration of the diaphragm. Dirt and dust may be removed by means of a soft brush attached to your vacuum cleaner. Before you clean your loudspeakers it is recommended to unplug the system from the mains 24 hours in advance.

Are Final Sound front and rear ﬂat-panel speakers to be treated as satellites?

Yes, they have to be installed as satellites on your Audio/Video receiver or multi channel ampliﬁer. The correct settings are “SMALL satellites” for the Model F90i ﬂat-panel speakers, which has to do with the frequency range of the loudspeaker output.

Is it possible to change wall-mounted speakers into ﬂoor standers?

Yes, special developed stands are optional. The Final Sound dealer can give you further information.

Should I unplug my Final Sound Home Theatre System during lightning? Yes. Unplugging before the storm is even better. It’s a good idea to disconnect all of your audio/video components during stormy weather.

What is to be done if puncturing, knocking over, or come in contact with ﬂuids and ﬁre damages the Final Sound speakers?

Unplug your Final Sound loudspeakers and contact your Final Sound dealer.

Can I use a separate Final Sound Center Speaker channel as a stand-alone?

Yes, you can. We recommend you play the Final Sound Center together with the Final Sound subwoofer, which is designed to function in harmony with the Final Sound Center Speaker.

Why do I need a Final Sound subwoofer?

The Final Sound Home Theater is based on the 5.1 multi channel ampliﬁers, which require 2 front speakers, two rear speakers, one Center Speaker and a subwoofer. The subwoofer will produce the low frequencies when necessary and is designed to function in harmony with the other Final Sound speakers.

Do I need to spend much for a good matching A/V receiver or multi channel ampliﬁer?

Depends. A good ampliﬁer from 35 watts or more is sufﬁcient. If you want to play music loudly, then the ampliﬁer must be able to supply more energy (voltage).

The most important factor in this respect is that the ampliﬁer should be stable, i.e. that the power-supply is capable of working correctly under different circumstances. It is important to realize that a Final Sound loudspeaker is very transparent and thoroughly revealing. You will hear everything on your CD’s, but you will also be confronted with the characteristics and quality of your ampliﬁer and source. This is why the stability of the ampliﬁer is of considerably greater importance than its’ maximum power.

Which ampliﬁers do you recommend?

Many questions surrounding ampliﬁers, chips, formats, DVD formats etc. are still being evaluated throughout the industry. The quality of the ampliﬁer is important, but so is ease of use and set-up. For example, an ampliﬁer should be easy to switch from stereo to 5.1 by a user without having to call the dealer. Since some ampliﬁers will perform better on the Final Sound system than others, we recommend asking your dealer for the best choice.

Page 21

What are the roles of the six speakers in a Home Theater System?

Your main channels, e.g. the left and right speakers, will handle the larger special effects, the musical score, and any left and right effects.

The Center channel will handle almost all the dialogue as well as 60-70% of the main action on the screen. The rear channels are for ambient effects or to recreate different settings, as well as the screen action that is recorded to happen at the rear of the listener.

The subwoofer handles the extremely low frequencies such as the explosions in an action ﬁlm or the deepest rumble of a bass drum.

What is the difference between Dolby Pro Logic and Dolby Digital?

Dolby Pro Logic is a 4-channel surround system that provides left and right main speaker channels, a Center channel to keep dialogue Centered on the TV regardless of viewer location, and a mono surround channel (This mono signal is usually split between two surround speakers). Dolby Digital is a 5.1 channel surround system that provides left and right main speaker channels, a Center channel, and discrete, full-range left and right surround channels. The .1 in 5.1 is the Low Frequency Effects (LFE) channel. It sends additional bass information to the subwoofer-usually involving dramatic sound effects like explosions.

What is “timbre matching”?

This means that all of the speakers in a Home Theater system have the same sound characteristics or voicing. This allows for a smooth, convincing transitions between left, center, right, and surround channels.

Are Final speakers suitable for Dolby Digital AC-3, DTS, etc.?

Yes. Final speakers are very accurate to be used with any decoding system designed for the Home Theater.

Can my Final Sound loudspeakers become updated?

Absolutely. Technology continues to develop, including that of electrostatic loudspeakers. For this reason, Final Sound loudspeakers are constructed in a way such that it is easy to renew and replace components. Not only does this restrict maintenance costs; it also offers you the opportunity to modify your loudspeakers to keep them thoroughly up-to-date. Your Final Sound dealer can carry out these updates for you.

What is the warranty?

Your Final Sound Home Theatre System can be provided with limited 3-year warranty coverage on the ﬂat-panel speakers and 1-year warranty coverage on the subwoofer if the registry card in the manual is completed and returned to Final Sound. The limited warranty will not be honored when the product has been used or handled other than in accordance with the instructions in the user manual. See for more details the chapter Warranty Conditions on page 5 of this manual.

Is a Final loudspeaker protected against overloading?

Basically: yes The design of the Final Inverted series of electrostatic loudspeakers has been done with the protection of the user in mind and the protection of the loudspeakers against mistreatment in mind. The design has several levels of protection built into the electronics. One of those circuits protects against overloading. In case of an overload condition, the loudspeaker will shut off for a short period of time. If the overload condition is persistent, please reduce the volume of the ampliﬁer. But, protecting a loudspeaker is always a trade off between simply cutting off musical information and allowing dynamics to surpass reasonable sound levels. Before serious damage can be done, every loudspeaker will ﬁrst give a clear warning signal by means of severe audible distortion. That’s the moment to lower the volume. If the state of overloading (and severe audible distortion) will continue, serious damage to the panels can occur. Because of the protection circuit’s ‘trade off’ behavior, we do not guarantee that this circuit will protect the loudspeaker against all possible kinds of mistreatment. Damage resulting from such mistreatment is not covered by our warranty conditions.

Where can I ﬁnd more information about Final Sound?

For any questions about Final Sound or about installing your speakers, contact your Final Sound dealer or visit our website at www.ﬁnalsound.com.

Page 22

12. WARRANTY CARD

In order to validate your warranty registration we kindly ask you to ﬁll in the following data or go to our Web site at www.ﬁnalsound.com to register on-line. For registration, this form has to be accompanied by a copy of your purchase receipt. The address to send to has already been printed on the envelope included. We thank you and wish you great enjoyment with your new Final Sound product.

Name: __________________________________________________________________________

Email: __________________________________________________________________________

Address: __________________________________________________________________________

City: ________________________________________ State _________________________

Country: __________________________________________________________________________

Authorized Final Sound dealer:_______________________________________________________

Salesperson’s Name: _______________________________________________________________

Please ﬁll in for warranty registration the serial numbers of all units you have bought. (Numbers appear on labels at the back of the product)

1 Final Sound Center Speaker: __________________________________

1 set Final Sound Front Speakers (2 panels): __________________________________

1 set Final Sound Rear Speakers (2 panels): __________________________________

1 Final Sound Subwoofer: __________________________________

To improve our products and customer service, we would greatly appreciate your answers to the following questions.

Title or profession: _______________________________________ Age: ___________________

How did you ﬁnd out about Final Sound? __________________________________________

Advertisement in ___________________________________

Relations/friends __________________________________

Internet: __________________________________

Other __________________________________

What kind of ampliﬁer do you use?

Brand: __________________________________________

Type: __________________________________________

If you have any comments on our products and services, please use the back of the form. Thank you very much for taking time to complete in this form and sending it to:

Final Sound Solutions B.V. Eisenhowerweg 8D 5466 AC Veghel The Netherlands

Page 23

Page 24

Final Sound Solutions B.V.

Eisenhowerweg 8D

5466AC Veghel

The Netherlands

www.ﬁnalsound.com
