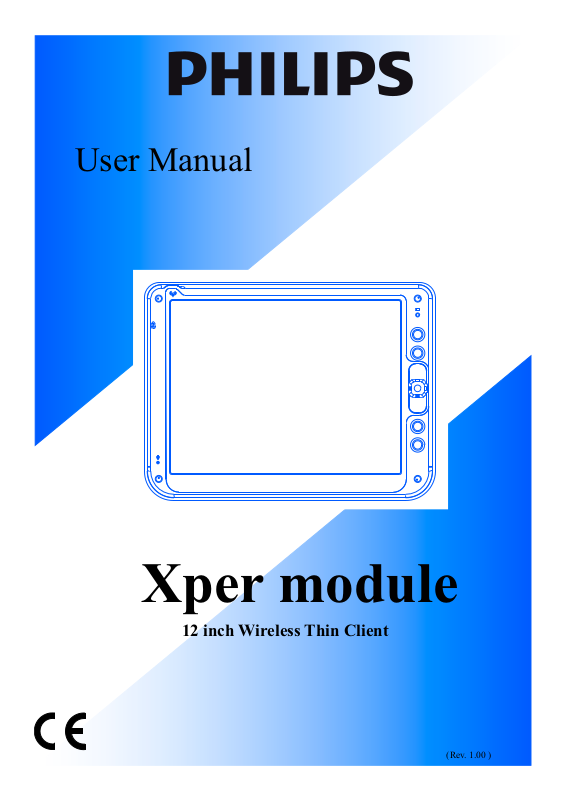

User Manual

Xper module

12 inch Wireless Thin Client

(Rev. 1.00 )

Copyright ©

This manual is copyrighted with all rights reserved. Under the copyright law, this manual may not be copied, in whole or

part, without written consent of Philips. Under the law, copying includes translating into another language or format.
The monitor described in this manual, has been certified/registered by the safety agencies/regulatory authorities as model

n° : CMPD12CV-I

FCC Notice

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of

FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses and can radiate radio frequency energy and , if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, while can be determined by turning the
equipment Off and On, the user is encouraged to try to correct the interference by one or more of the following measures.

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio TV technician for help.

Modification

The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly

approved by the manufacturer may void the user’s authority to operate the equipment.

Cables

Connections to this device must be made with shielded signals cables with metallic RFI/EMI connector hoods to maintain

compliance with FCC Rules and Regulations.

The lighting flash with arrowhead symbol is intend to alert the user of the presence of uninsulated “dangerous voltage”

within the product’s enclosure that may be sufficient magnitude to constitute a risk of electrical shock to people.

The exclamation mark is intended to alert the user of the presence of important operating and maintenance (servicing)

instructions in literature accompanying the appliance.

CAUTION

RISK OF ELECTRICAL SHOCK

DO NOT OPEN

ATTENTION

RISQUE DE CHOC ELECTRIQUE

NE PAS OUVRIR

CAUTION: TO AVOID THE RISK OF ELECTRICAL SHOCK.

DO NOT REMOVE COVER (OR BACK)

NO USER SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

WARNING:
THE ENCLOSURE HAS TO BE CHECKED UPON COLLISION DAMAGE; REFER TO
QUALIFIED SERVICE PERSONNEL

PROSCRIBE MONITOR DO NOT HAVE APPLIED PARTS, AND ARE NOT INTENDED TO BE
CONNECTED TO A PATIENT CIRCUIT.

2

Xper module

RF Exposure Statement

This EUT is compliance with SAR for general population / uncontrolled exposure limits in ANSI/IEEE C95.1-1999 and had been
tested in accordance with the measurement methods and procedures specified in OET bulletin 65 Supplement C.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. In order to avoid the pos­sibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 1.5 cm during
normal operation.

This device and its antenna (s) must not be co-located or operating in conjunction with any other antenna or transmitter.

Xper module

3

INTRODUCTION

A ruggedized wireless thin client display

The Philips ProScribe is a ruggedized wireless thin client display, released with Windows XP embedded, both for ITE and medical
applications.
The ProScribe is designed upon PMS CV requirements. It makes use of wireless technology and thin-client computing to allow
workers to access applications stored on a central server as if they were sitting behind their desktop monitor. Its ruggedized design,
compact size and touch-screen interface makes it also a perfect solution for point of information and system control applications
too.

Main features

With a Intel Ultra Low Voltage Celeron TM-M processor as its engine and Microsoft Windows XP embedded as operation system,
Other main features are:

12.1 inch TFT-LCD with Touch-screen functionality;
1024x768 resolution (XGA);
display emulated keyboard;
integrated WiFi™ 802.11b/g/n USB Module wireless LAN - Built-in internal antenna.
lightweight (2,17kg);

Rugged design for the toughest environments

The ProScribe is compliant with industry standards for liquid and dust resistance (IP21) and is also physically tough, with a highly
durable build capable of surviving a drop from as high as one meter onto a concrete surface.

Easy to integrate, deploy and maintain

The ProScribe allows users to take full benefit of thin-client computing where data and applications are kept on a server where they
can be managed centrally, more securely and at lower total cost. Nearly no downtime is incurred in case a device is lost or stolen: a
new ProScribe straight from the box allows a user to resume an interrupted login session exactly as before.
Server access is provided by one of the three pre-installed thin clients, Microsoft Remote Desktop Protocol (RDP), Internet Explorer
or Citrix Independent Computer Architecture (ICA).

Flexible to fit any vertical application

The ProScribe offers a full suite of utilities and multiple plug-and-play interfaces for easy integration into any type of IT environ­ment, and specifically:

- Full-size XGA resolution: 1024 x 768

- Basic version with 1GB RAM and 4GB flash memory

- Two USB ports

- An 100Mbps RJ-45 Ethernet interface

Approved for medical applications

The Proscribe meets the medical safety and electromagnetic requirements of IEC 60601-1 and IEC 60601-1-2, if used with power
supply unit certified according to the same standard (Medical Grade PSU; check the d.c. supply connector pin-configuration of the
PSU before connecting it to the unit). (see fig. 9b)

Unit shall be used, with power supply.

NOTES:

1 - WiFi and the WiFi logo are the registered trademarks of the Wi-Fi Alliance.
2 - Microsoft and Windows, Windows XP and Windows RDP are registered trademarks of Microsoft Corporation
3 - All other trademarks and registered trademarks are property of their respective owners.

4

Xper module

CONTENTS

TECHNICAL INFORMATION ............................................6

INSTALLATION ....................................................................7

DIMENSIONS ........................................................................8

WEIGHT ................................................................................8

INPUT INSTRUCTION .......................................................9

right view .....................................................................9

left view .......................................................................9

back view ...................................................................10

CONTROL PANEL DESCRIPTION .................................11

BEFORE YOU BEGIN ........................................................12

GETTING STARTED ..........................................................12

stylus re-calibration .......................................................12

power saving mode .......................................................13

set data and time ...........................................................13

WLAN setup ................................................................14

ethernet LAN setup ......................................................14

screen brightness ..........................................................14

DATA INPUT TO THE TOUCH SCREEN ........................15

touch the screen ...........................................................15

left or right click emulation .........................................15

TOUCH-PANEL CALIBRATION .....................................16

CONNECTING TO A NETWORK ....................................19

WLAN .........................................................................19

start a connection .........................................................20

LAN .............................................................................21

FEATURED SOFTWARE APPLICATION .......................22

control panel ................................................................22

microsoft internet explorer ...........................................22

CITRIX ica client ........................................................22

microsoft RDP .............................................................22

windows media player .................................................22

hot key utility ...............................................................23

wordpad .......................................................................23

connecting external peripherals ...................................23

ruggedized design ........................................................23

TROUBLESHOOTING .......................................................24

the ProScribe will not turn ON ....................................24

my system does not run smoothly ...............................24

how do i turn off my ProScribe ...................................24

when I use the stylus pen ............................................24

SAFETY AND PRODUCT CARE INSTRUCTIONS .......25

to clean the screen ........................................................25

to clean the case ...........................................................25

PRECAUTIONS ....................................................................26

installation ....................................................................26

handling ........................................................................26

maintenance ..................................................................26

transportation ................................................................26

disposal of the LCD monitor ........................................27

IDENTIFICATION LABEL ................................................28

SYMBOL DESCRIPTION....................................................29

INDEX ....................................................................................30

Xper module

5

1.1.0 TECHNICAL INFORMATION

Processor INTEL Celeron M 1GHz

Chipset INTEL 852GM+ICH4-M

Graphic processor INTEL 852GM

Bios Insyde software

Operating System Microsoft Windows XP Embedded with SP2

Networking Built-in 802.3 network card (Intel PRO/100 VE)

Built-in 802.11 b/g/n WLAN module with double integral antenna
Built-in Bluetooth 2.1 (Optional)

Remote Protocol Microsoft RDP / Citrix ICA

Memory 1GB SDRAM on board

Flash ROM 4GB flash memory module

LCD Panel Characteristic 12.1 “ TFT LCD panel (Mini required : XGA 1024 x 768 resolution) , LVDS I/F

Audio System AC97 internal microphone and speaker; stereo (supported via earphone jack)

Durability Rugged anti-shock design with standing 1 meter drop / IP21 water and dust resistant construct-

ion (front side)

PAD I/O ● 2 x USB

● 1 x D-SUB 9 pins which supports Ethernet signals and power DC in

● 1 x Speaker

● 1 x Internal microphone

LED indicator ● 1 x WLAN LED

● 1 x Power green LED (ON / OFF status)

Button AND Controls ● 4 x hot keys (three customized)

● 1 x Reset button

● 1 x Four-way direction key with Enter

ProScribe DC input rating ● DC_In 24V (1A)

6

Xper module

2.1.0 INSTALLATION

See BBRS ver. 0.8 PMS CV customer spec. paragraph. 5.1.3 cod. 4522 901 05890

While unpacking the ProScribe, inspect it and other package contents for shipping damage that could cause a fire or shock
hazard. Immediately report any shipping damage to the carrier or transportation company and contact customer service for
assistance. Keep all packing material in case you need to ship, store or return the monitor.

NOTE:

This user’s manual is available in electronic format only, installed on the PAD and accessible by double click up on the
relevant icon on the desktop

Xper module

7

3.1.0 DIMENSIONS

60,5

313,4

235,4

(fig. 8a)

3.2.0 WEIGHT
Weight without packaging : 2,17 Kg.

8

Xper module

4.1.0 INPUT INSTRUCTION

4.1.1 RIGHT VIEW

1. USB 2.0 port type A

2. USB 2.0 port type A

3. Switch reset

1

3

2

(fig. 9a)

4.1.2 LEFT VIEW

1. D-SUB 9 pins male

Pinning configuration:
1 Screen (PE)
2 TX+
3 RX+
4 24V
5 24V
6 TX­ 7 RX­ 8 0V
9 0V

1

(fig. 9b)

Xper module

9

4.1.4 BACK VIEW

1. Speakers

2. Desktop feet support mounting screw holes (2 x M3)

3. VESA MIS-D mounting screw holes (4 x M4)

4. TSM swing-arm and pedestal mounting screw holes (4 x M3)

1

1

2

3

2007 - 02

Windows XP Embedded

xxxxx-xxx-xxx-xxx

4

1.2 - 0.9A

INPUT RATING : 20 - 24V

9919 320 51451

AN000209000001

9919 320 51451

9919 326 12011 Model No. TSM121XE-M

AN000705000001AN00070

FCC ID: GZM802160

IC: 6319A-802160

AN000705000001

(fig. 10a)
