WORKSHOP HANDBOOK
IMx
Version: AB
Date: October 29, 2013
Document Number:10043430/ATE
Page 2
Updates from the previous version.
Section Page Since Serial Number
4.1.14 21 213009132 =⇒
5.6 49 213008830 =⇒
5.14.3 58 213008830 =⇒
5.5.4 48 213009146 =⇒
10.4 86 - =⇒
Page 3
Contents
I Product Introduction 4
1 Serial Number and Technical Support 5
1.1 The Serial Tag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.2 Serial Tag location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2 Main Technical Features 6
II Anomalies Resolution Guide 7
3 Trouble-shooting for the most common anomalies. 8
3.1 Electrical system: what to do if. . . . . . . . . . . . . . . . . . . . . . . . . 8
3.2 Frame and traction system: what to do if. . . . . . . . . . . . . . . . . . . 11
3.3 Mechanical scrubbing system: what to do if. . . . . . . . . . . . . . . . . 12
3.4 Solution delivery system: what to do if. . . . . . . . . . . . . . . . . . . . 13
3.5 Drying system: what to do if. . . . . . . . . . . . . . . . . . . . . . . . . . 14
4 Disassembling Procedures 16
4.1 Electrical Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.1.1 Tools needed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.1.2 Function Dashboard IMx B/BT . . . . . . . . . . . . . . . . . . . 17
4.1.3 Display Card IMx B/BT . . . . . . . . . . . . . . . . . . . . . . . . 17
4.1.4 Potentiometer IMx B/BT . . . . . . . . . . . . . . . . . . . . . . . 17
4.1.5 Power Card IMx B/BT . . . . . . . . . . . . . . . . . . . . . . . . . 18
4.1.6 Rear Dashboard IMx B/BT . . . . . . . . . . . . . . . . . . . . . . 18
4.1.7 Buzzer IMx B/BT . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4.1.8 Key Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4.1.9 BDI (Battery Discharge Indicator) IMx BB . . . . . . . . . . . . . 19
4.1.10Function Switch IMx BB . . . . . . . . . . . . . . . . . . . . . . . 20
4.1.11Vacuum Motor Contactor IMx BB . . . . . . . . . . . . . . . . . . 20
4.1.12Brush Motor Contactor IMx BB . . . . . . . . . . . . . . . . . . . 20
4.1.13Brush Release Switch IMx BB . . . . . . . . . . . . . . . . . . . . 21
4.1.14Dead Man Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
4.1.15Battery Charger IMx CB . . . . . . . . . . . . . . . . . . . . . . . . 22
4.2 Mechanical Friction System . . . . . . . . . . . . . . . . . . . . . . . . . 23
4.2.1 Tools needed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
4.2.2 Brush Deck Assembly . . . . . . . . . . . . . . . . . . . . . . . . . 23
4.2.3 Brush Coupling Flange . . . . . . . . . . . . . . . . . . . . . . . . 24
4.2.4 Brush Stopper Spring . . . . . . . . . . . . . . . . . . . . . . . . . 24
3
Page 4
4.2.5 Brush Motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
4.2.6 Bumper Wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
4.3 Drying System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
4.3.1 Squeegee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
4.3.2 Squeegee Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
4.3.3 Squeegee Support . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
4.3.4 Squeegee adjustment wheels . . . . . . . . . . . . . . . . . . . . . 27
4.3.5 Squeegee Rotation Arm . . . . . . . . . . . . . . . . . . . . . . . . 27
4.3.6 Vacuum Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
4.3.7 Recovery Tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
4.3.8 Drain Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
4.3.9 Vacuum Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
4.3.10Vacuum Motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
4.3.11Squeegee Lifting Chain . . . . . . . . . . . . . . . . . . . . . . . . 30
4.3.12Squeegee Lifting Lever . . . . . . . . . . . . . . . . . . . . . . . . . 31
4.4 Frame and Traction System . . . . . . . . . . . . . . . . . . . . . . . . . 32
4.4.1 Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
4.4.2 Drive Shaft IMx BT . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
4.4.3 Traction Gearmotor IMx BT . . . . . . . . . . . . . . . . . . . . . . 32
4.4.4 Free Shaft IMx B-BB . . . . . . . . . . . . . . . . . . . . . . . . . . 32
4.4.5 Parking Wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
4.4.6 Parking Brake IMx BT . . . . . . . . . . . . . . . . . . . . . . . . . 34
4.5 Solution Delivery System . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
4.5.1 Solution Tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
4.5.2 Hoses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
4.5.3 Solution Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
4.5.4 Water Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
4.5.5 Solenoid Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
III Machine Description 38
5 Electrical System 39
5.1 Structure IMx BB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
5.2 Description IMx BB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
5.3 Structure IMx B/BT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
5.4 Description IMx B/BT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
5.5 Location of Electrical components . . . . . . . . . . . . . . . . . . . . . . 41
5.5.1 IMx BB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
List of Components . . . . . . . . . . . . . . . . . . . . . . . . . . 42
5.5.2 IMx B/BT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
List of Components . . . . . . . . . . . . . . . . . . . . . . . . . . 44
5.5.3 Main Card (IMx B/BT) . . . . . . . . . . . . . . . . . . . . . . . . . 45
5.5.4 Dashboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Functions and Commands . . . . . . . . . . . . . . . . . . . . . . 46
Entry into “Operator Menu” and “Advanced Menu” . . . . . . . . 46
Operator Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Change a Parameter (in the Operator Menu) . . . . . . . . . . . . 47
Page 5
Advanced Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Change a Parameter (in the Advanced Menu) . . . . . . . . . . . 48
Parameters Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Check/Monitor Function . . . . . . . . . . . . . . . . . . . . . . . 48
5.5.5 Control Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
5.6 Safety Microswitch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
5.7 Potentiometer (IMx BT only) . . . . . . . . . . . . . . . . . . . . . . . . . 49
5.8 Hourmeter (IMx BB only) . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
5.9 Charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
5.10Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
5.11Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
5.11.1Battery Control Card (IMx BB only) . . . . . . . . . . . . . . . . . 51
5.11.2Charger (CB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Charging curve SetUp . . . . . . . . . . . . . . . . . . . . . . . . . 52
Error Codes of Charger . . . . . . . . . . . . . . . . . . . . . . . . 52
5.11.3ECO Function (solo IMx B/BT) . . . . . . . . . . . . . . . . . . . . 52
5.12Maintenance and Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
5.12.1Electrical System . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
5.12.2Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
5.13Alarm Table (IMx B/BT only) . . . . . . . . . . . . . . . . . . . . . . . . . 54
5.13.1Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Alarms of Overcurrent and Temperature . . . . . . . . . . . . . . 54
Traction Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
General Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
5.14Menu Tables (IMx B/BT only) . . . . . . . . . . . . . . . . . . . . . . . . 55

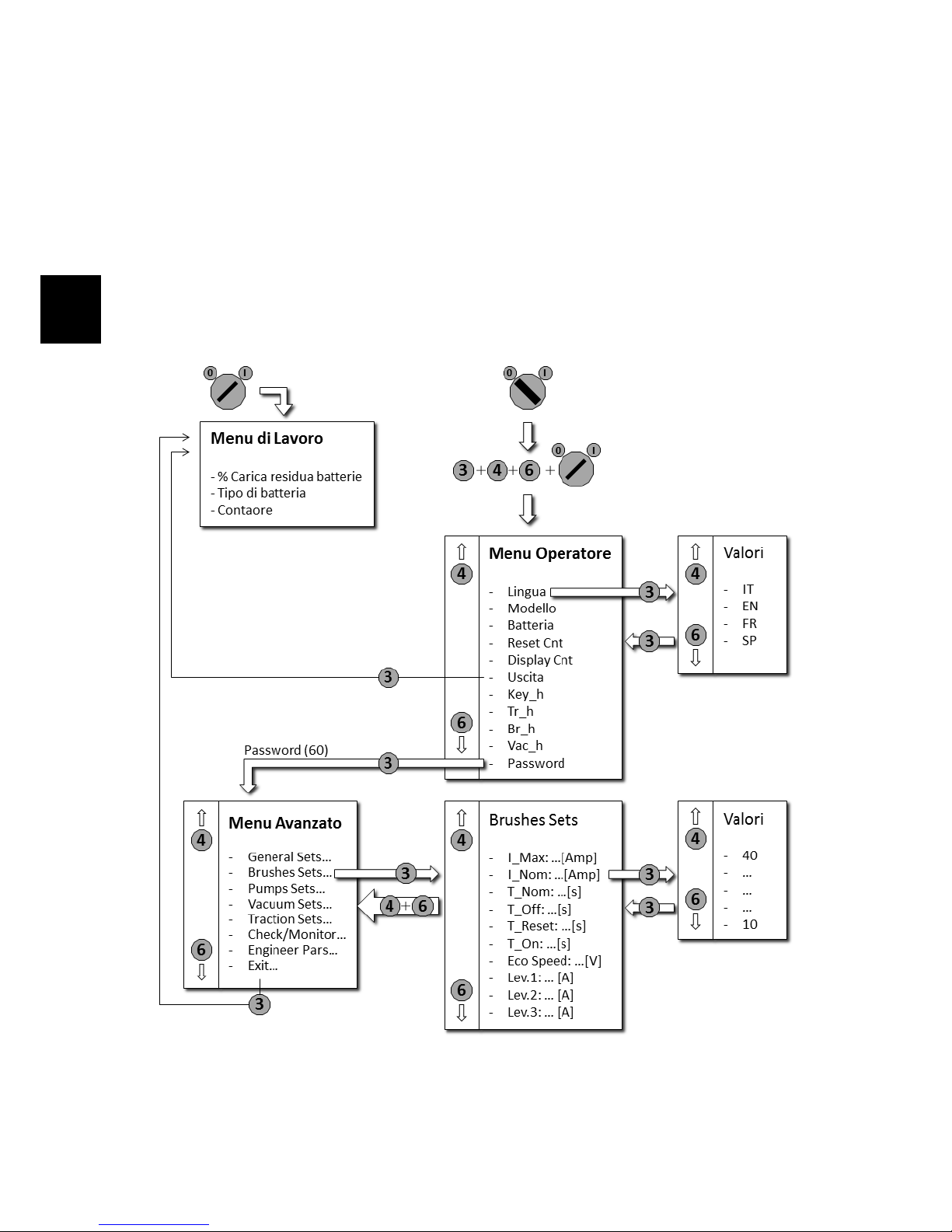

5.14.1Menu Tree . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
5.14.2Working Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
5.14.3Advanced Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
General Sets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Brushes Sets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Pumps Sets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Vacuum Sets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Traction Sets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Check / Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
5.15Technical Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
5.16Recommended Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . 61
6 Mechanical Rubbing System 62
6.1 Structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
6.2 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
6.3 Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
6.3.1 Adjustment system . . . . . . . . . . . . . . . . . . . . . . . . . . 63
6.4 Maintenance and checks . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
6.4.1 Motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Checks: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Maintenance: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Page 6
6.4.2 Brass bushings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Checks: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Maintenance: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
6.4.3 Bumping Wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Checks: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
6.4.4 Brushes Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Checks: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
6.4.5 Brush coupling flange . . . . . . . . . . . . . . . . . . . . . . . . . 65
Checks: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
6.4.6 Fixing and adjustment plate . . . . . . . . . . . . . . . . . . . . . 65
Checks: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
6.5 Technical Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
6.6 Consumable Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
6.7 Recommended Spare parts . . . . . . . . . . . . . . . . . . . . . . . . . . 66
7 Drying System 67
7.1 Structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
7.2 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
7.3 Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
7.3.1 Squeegee Support . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
7.4 Maintenance and Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
7.4.1 Squeegee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
7.4.2 Squeegee Support . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
7.4.3 Vacuum Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
7.4.4 Filter and Floater . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
7.4.5 Recovery Tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
7.4.6 Vacuum Motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
7.4.7 Drain Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
7.5 Technical Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
7.6 Consumable Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
7.7 Recommended Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . 73
8 Machine Frame and Traction System 74
8.1 Structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
8.2 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
8.3 Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Page 7
8.3.1 Parking Brake Lever (IMx BT only) . . . . . . . . . . . . . . . . . . 75
Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
8.4 Maintenance and Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
8.4.1 Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
8.4.2 Traction Motor (Only IMx BT model) . . . . . . . . . . . . . . . . . 75
Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
8.5 Technical Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
8.6 Consumable spare parts . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
8.7 Suggested spare parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
9 Cleaning Solution Supply System 78
9.1 Structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
9.2 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
9.3 Maintenance and Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
9.3.1 Solution Tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Controls: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
9.3.2 Hoses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Checks: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
9.3.3 Water Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Checks: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
9.3.4 Clean Water Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Checks: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
9.3.5 Solenoid Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Checks: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
9.3.6 Distributor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Controls: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
9.4 Technical Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
9.5 Recommended Spare parts . . . . . . . . . . . . . . . . . . . . . . . . . . 81
IV Accessories and Add-On 82
10 Accessories 83
10.1Accessories List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
10.2Splashguard Kit - 223227 . . . . . . . . . . . . . . . . . . . . . . . . . . 83
10.2.1Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
10.2.2Tools needed for the installation . . . . . . . . . . . . . . . . . . . 83
10.2.3Machine Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Installing instructions IMx BT . . . . . . . . . . . . . . . . . . . . 84
Installing Instructions IMx B/BB . . . . . . . . . . . . . . . . . . 84
10.3Onboard Charger Kit - 223232 . . . . . . . . . . . . . . . . . . . . . . . . 85
10.3.1Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
10.3.2Tools needed for the installation . . . . . . . . . . . . . . . . . . . 85
10.3.3Machine Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . 85
10.3.4Installing instructions . . . . . . . . . . . . . . . . . . . . . . . . . 85
10.4Extension Handlebar Kit - 223457 . . . . . . . . . . . . . . . . . . . . . 86
Page 8
10.4.1Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
10.4.2Tools needed for the installation . . . . . . . . . . . . . . . . . . . 86
10.4.3Machine Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Installing instructions . . . . . . . . . . . . . . . . . . . . . . . . . 87
10.5Consumable Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Page 9
Part I
Product Introduction
9
Page 10
1-10
Chapter 1
Serial Number and Technical Support
1.1 The Serial Tag
1.2 Serial Tag location
To have access to the Serial Tag is necessary to remove the recovery tank.
The Serial Number is an extremely important information which has to be provided
each time a Technical Support is required or is necessary to buy spare parts or
accessories. The serial number is the only way to identify the machine by model,
production date type equipments in general.
10
Page 11
2-11
Chapter 2
Main Technical Features
TECHNICAL DESCRIPTION U/M IMx BB IMx B IMx BT
Maximum Ramp Gradient % 2 2 2
Steering Diameter mm 1700 1700 1700
Machine Length mm 1200 1200 1200
Machine Height mm 1030 1030 1030
Machine Width (without squeegee) mm 570 570 570
Machine Weight (empty and without batteries)
kg 69 69 76
Gross Weight of the machine in work conditions (machine + batteries + water)
kg 163 163 170
Weigths and Pressures
1
Weight on front right wheel kg 51.90 ÷ 74.00
Touching surface of the front right wheel cm
2
8.41 ÷ 10.32
Pressure made by the front right wheel
kg
cm
2
5.76 ÷ 7.83
Weight on front left wheel kg 46.10 ÷ 69.30
Touching surface of the front left wheel cm
2
7.79 ÷ 9.66
Pressure made by the front left wheel
kg
cm
2
5.42 ÷ 8.54
Weight on rear wheel kg 10.50 ÷ 44.30
Touching surface of the rear wheel cm
2
0.41 ÷ 0.91
Pressure made by the rear wheel
kg
cm
2
16.49 ÷ 51.64
1
Weight and Pressures depends on how much water there is in the tanks and on what type of battery the
machine fits.
11
Page 12
2-12
Part II
Anomalies Resolution Guide
12
Page 13
3-13
Chapter 3
Trouble-shooting for the most common
anomalies.
3.1 Electrical system: what to do if. . .
The machine doesn’t switch on
1) (Only B-BT) The key is in position 0 ⇒ Rotate the key in position I.
2) (Only BB) The main switch is in position 0
⇒ Push the switch in position I or II.
3) (Only B-BT) The key switch is not
properly connected
⇒ Restore the proper connections.
4) (Only BB) The main switch is not
properly connected
⇒ Restore the proper connections.
5) (Only B-BT) The key switch doesn’t
work
⇒ Replace the key switch (see section 4.1.8
at page 19).
6) (Only BB) The main switch doesn’t
work
⇒ Replace the main switch (see section
4.1.10 at page 20).
7) The machine is not powered properly
⇒ Refer to the proper section (see section
3.1 at page 9).
13
Page 14
3-14
The batteries don’t work properly
1) The batteries are not properly connected
⇒ Restore the proper battery connec-
tions.
2) Battery are discharged ⇒ Perform a complete charge cycle.
3) Battery terminal are oxidized ⇒ Disconnect the batteries, clean the
batteries terminals and reconnect
properly the batteries.
4) With the machine in working conditions one battery has a voltage
lower (difference higher than 2 V)
than the other ones
⇒ Replace the battery with lower volt-
age.
5) The fuse on the loop wire is damaged
⇒ Check for possible short circuits, If
not present replace the loop wire.
6) The power wires are damaged ⇒ Replace the damaged wires.
7) The battery charger is not properly
adjusted
⇒ Adjust properly the battery charger.
8) The battery charger doesn’t work ⇒ Check the proper section (see section 3.1
at page 9).
The battery charger doesn’t work
1) The battery charger is not connected to the power supply
⇒ Connect the charger to a supplied
electric socket.
2) The battery charger is not connected to the batteries
⇒ Connect the charger to the batteries.
3) The battery charger has one or
more lights (or LEDs) blinking continuously
⇒ The battery charger is in error con-
ditions, verify the alarm tables and
solve the issue by following the related instructions (see section 5.9 at page 50).
4) The battery charger is properly connected but it doesn’t switch on
⇒ Replace the battery charger.
Page 15
3-15
(Only B-BT) The display shows an alarm message
1) The display shows an alarm message
⇒ Check what alarm message is
shown and solve the related issue
by following the proper instructions
(see section 5.13.1 at page 54).
The machine has a very limited working autonomy
1) The batteries connections are oxidized
⇒ Unplug the connection wires, wash
the wire connections with water and
reconnect them protecting them with
grease.
2) When the machine is working a battery voltage is lower and lower than
the other batteries (The difference is
bigger than 2V)
⇒ Replace the battery with the lower
voltage.
3) The battery charger is not properly
adjusted
⇒ Verify the type of battery in use and
adjust the battery charger properly
following the instructions (see section 5.9
at page 50).
4) The BDI (Battery Discharge Card) is
not properly adjusted
⇒ Verify the type of battery used on
the machine and adjust properly the
BDI.
5) Batteries have been working for
several cycles
⇒ Replace the batteries.
Page 16
3-16
3.2 Frame and traction system: what to do if. . .
(Only BT) The traction motor doesn’t work properly
1) The machine is switched off ⇒ Switch on the machine.
2) The machine doesn’t switch on ⇒ Check the proper section (see section 3.1
at page 8).
3) The display shows an error message
⇒ Check the proper section.
4) The dead man lever is not pressed ⇒ Push the dead man lever.
5) The dead man switch is not properly connected
⇒ Restore the proper connection to the
dead man switch.
6) The dead man switch doesn’t work ⇒ Replace the dead man switch.
7) The speed adjuster is at its minimum
⇒ Rotate the speed adjuster to in-
crease the speed.
8) The motor is not supplied ⇒ Verify the motor connections.
9) The traction motor is supplied but
it doesn’t work
⇒ Replace the traction motor.
The machine doesn’t move straight
1) (Only BT) The parking brake is engaged
⇒ Release the brake.
2) The brush is not properly engaged ⇒ Release the brush and engage it
properly.
3) The brush deck is not properly adjusted
⇒ Adjust properly the brush deck.
Page 17
3-17
3.3 Mechanical scrubbing system: what to do if. . .
The machine doesn’t clean well
1) The machine is switched off ⇒ Switch on the machine.
2) The machine doesn’t switch on ⇒ Refer to the proper section (see section
3.1 at page 8).
3) (Only B-BT) The display shows an
alarm message
⇒ Refer to the proper section (see section
3.1 at page 8).
4) (Only B-BT) The switch ”Auto” is
not pressed
⇒ Press the ”Auto” switch.
5) The dead man switch doesn’t work ⇒ Replace the dead man switch (see sec-
tion 4.1.14 at page 21).
6) The brush deck motor is not supplied
⇒ Verify the motor connections.
7) The brush rotates in opposite way ⇒ Check the motor connections.
8) The brushdeck is lifted from the
floor
⇒ Tilt down the machine to let the
brush touch the floor.
9) The brush is not properly engaged ⇒ Release and engage properly the
brush.
10) The solution flow rate is not correct
or not enough
⇒ Refer to the proper section.
Page 18
3-18
3.4 Solution delivery system: what to do if. . .
The delivered solution is not correct or not enough
1) The machine is switched off ⇒ Switch on the machine.
2) The machine doesn’t switch on ⇒ Refer to the proper section (see section
3.1 at page 8).
3) The solution tank is empty ⇒ Fill up the solution tank.
4) The proportional valve for the solu-
tion flow adjustment is completely
closed
⇒ Open the proportional valve to the
desired position.
5) (Only B-BT) The water flow is ad-
justed at minimum
⇒ Increase the water flow adjustment.
6) The solenoid valve doesn’t work ⇒ Check the solenoid valve connec-
tions and, if necessary, replace it (see
section 4.5.5 at page 37).
7) The solution filter is stuck ⇒ Clean the solution filter.
8) The display shows an alarm mes-
sage
⇒ Refer to the proper section (see section
5.13.1 at page 54).
9) The detergent doesn’t fit the type of
dirt
⇒ Replace the detergent with a proper
one.
Page 19
3-19
3.5 Drying system: what to do if. . .
The machine doesn’t dry well
1) The machine is switched off ⇒ Switch on the machine.
2) The machine doesn’t switch on ⇒ Refer to the proper section (see section
3.1 at page 8).
3) The vacuum motor is switched off ⇒ Switch on the vacuum motor.
4) The vacuum motor doesn’t switchon⇒ Refer to the proper section (see section
3.5 at page 15).
5) The machine is in ”ECO” mode ⇒ Set up the machine as per standard
configuration.
6) The squeegee is lifted up from the
floor
⇒ Lower down the squeegee.
7) The squeegee rubber blades are
worn out or broken
⇒ Rotate or replace the squeegee rub-
ber blades.
8) The recovery tank is full ⇒ Empty the recovery tank following
the proper procedure.
9) The squeegee is not properly adjusted
⇒ Adjust the squeegee properly follow-
ing the proper procedure (see section 7.3.1
at page 68).
10) The squeegee vacuum chamber is
stuck or dirty
⇒ Clean the squeegee vacuum cham-
ber.
11) The squeegee adapter is stuck or
dirty
⇒ Clean the squeegee adapter.
12) The vacuum hose is stuck or broken
⇒ Clean or replace the vacuum hose.
13) The vacuum hose is not properly
fitted in
⇒ Connect the vacuum hose properly.
14) The intake manifold is stuck or broken
⇒ Clean or replace the intake manifold.
15) The intake manifold is not properly
connected
⇒ Connect the intake manifold prop-
erly.
16) The vacuum filter is dirty or stuck ⇒ Disassemble and clean the vacuum
filter.
17) The vacuum cover is not well positioned or is missing
⇒ Position properly the vacuum cover.
18) The vacuum cover gasket doesn’t
adhere properly
⇒ Replace the vacuum cover gasket.
Page 20
3-20
The vacuum motor doesn’t work properly
1) The vacuum motor is not powered
properly
⇒ Check the power connections on the
vacuum motor.
2) (Only BB) The vacuum motor
switch doesn’t work
⇒ Replace the vacuum motor switch.
3) (Only B-BT) The display shows an
alarm message
⇒ Refer to the proper section (see section
5.13.1 at page 54).
4) The vacuum motor carbon brushes
are worn
⇒ Replace the vacuum motor carbon
brushes.
5) The vacuum motor is supplied but
it doesn’t work
⇒ Replace the vacuum motor.
Page 21
4-21
Chapter 4
Disassembling Procedures
WARNING: BEFOR E TO PE RFORM ANY OPERA TION DESC RIBED BELOW VER IFY TH AT
TH E MAC HINE TANKS ARE COMPLETE LY EMPTY, T HE MA CHINE HAS TO BE TURNED
OFF . DI SCONNECT THE BAT TER IES AND REMOVE THEM FROM THE MAC HINE. AT LA ST,
VE RIFY THAT THE PARKING BRA KE IS ENGAGED AND TH E M ACHINE IS I N A TO TALLY
SA FE CONDITI ON.
21
Page 22
4-22
4.1 Electrical Installation
4.1.1 Tools needed
• Philips screw driver small and
medium
• Screw driver small and medium
• Wrench:
– n. 2,5
– n. 5,5
– n. 6
– n. 8
– n. 10
– n. 13
• Allen Key:
– n. 2,5
– n. 4
– n. 5
• Socket Wrench n. 13
4.1.2 Function Dashboard IMx
B/BT
• Put the machine in safe conditions.
• Loose the screws that block the
Function Dashboard to the machine
(see fig. 4.1.2-1).
• Unplug the cable that connect the
Power Card to the Display Card.
• Remove the function Dashboard.
• Remove the Button Covers from the
Function Dashboard.
• Proceed at reverse to refit the part.
4.1.2-1
4.1.3 Display Card IMx B/BT
• Put the machine in safe conditions.
• Remove the Function Dashboard (see
section 4.1.2 at page 17)
• Unplug the cable that connects the
Display Card to the Power Card.
• Loose the screw that block the Display Card to the Function Dashboard. (see fig. 4.1.3-2) (see fig. 4.1.3-3)
• Proceed at reverse to refit the part.
4.1.3-2 4.1.3-3
4.1.4 Potentiometer IMx B/BT
• Put the machine in safe conditions.
• Remove the Function Dashboard (see
section 4.1.2 at page 17)
• Remove the Display Card (see section
4.1.3 at page 17).
• Unplug the wires connected to the
potentimeter (Rif. POT) (see section 5.5.2
at page 43).
• Slip out the Potentiometer Adjuster
Knob (it’s fit with pressure).
Page 23
4-23
• Loose the nut that blocks the Function Dashboard.
• Remove the Potentiometer. (see fig.
4.1.4-4).
• Proceed at reverse to refit the part.
4.1.4-4
4.1.5 Power Card IMx B/BT
• Put the machine in safe conditions.
• Remove the Function Dashboard (see
section 4.1.2 at page 17)
• Remove the Rear Dashboard (see section
4.1.6 at page 18)
• Unplug all the wires and cables connected to the Power Card.
• Loose the screws that block the
Power Card on the Machine (see fig.
4.1.5-5).
• Proceed at reverse to refit the part.
4.1.5-5
4.1.6 Rear Dashboard IMx
B/BT
• Put the machine in safe conditions.
• Tilt the machine to let the brush
deck to touch the floor.
• Low the Squeegee on the floor (see fig.
4.1.6-6)
• Remove the Squeegee Command
Lever (see fig. 4.1.6-7), (see section 4.3.12 at page
31).
• Unplug the Vacuum Hose (see fig. 4.1.6-8)
• Unhook the Drain Hose from its Clip
(see fig. 4.1.6-8).
• Remove the Function Dashboard (see
fig. ??).
• Loose the screws that block the Rear
Dashboard to the machine (see fig. 4.1.6-
9) (see fig. 4.1.6-10).
• Unplug all the wires and cables that
connect the electrical devices on the
Rear Dashboard.
• Remove the Rear Dashboard (see fig.
4.1.6-11).
• Proceed at reverse to refit the part.
4.1.6-6 4.1.6-7
Page 24
4-24
4.1.6-8 4.1.6-9
4.1.6-10 4.1.6-11
4.1.7 Buzzer IMx B/BT
• Put the machine in safe conditions.
• Remove the Function Dashboard (see
section 4.1.2 at page 17)
• Remove the Rear Dashboard (see section
4.1.6 at page 18)
• Unplug all the wires connected to
the Buzzer.
• Loose the ring that block the Buzzer
on the support bracket (see fig. 4.1.7-12).
• Remove the Buzzer (see fig. 4.1.7-13).
• Proceed at reverse to refit the part.
4.1.7-12 4.1.7-13
4.1.8 Key Switch
• Put the machine in safe conditions.
• Remove the Function Dashboard (see
section 4.1.2 at page 17)
• Remove the Rear Dashboard (see section
4.1.6 at page 18)
• Loose the ring that blocks the Key
Switch to the Rear Dashboard (see fig.
4.1.8-14).
• Remove the Key Switch.
• Proceed at reverse to refit the part.
4.1.8-14
4.1.9 BDI (Battery Discharge
Indicator) IMx BB
• Put the machine in safe conditions.
• Remove the Function Dashboard (see
section 4.1.2 at page 17)
• Unplug the multipolar connector
from the BDI.
• Loose the knobs that block the BDI
to its bracket (see fig. 4.1.9-16)
• Remove the BDI from the Function
Dashboard (see fig. 4.1.9-17).
• Proceed at reverse to refit the part.
Page 25
4-25
4.1.9-15 4.1.9-16
4.1.9-17
4.1.10 Function Switch IMx BB
• Put the machine in safe conditions.
• Remove the Function Dashboard (see
section 4.1.2 at page 17).
• Unplug all the wires and cables connected to the Function Switch.
• Remove the Function Switch (see fig.
4.1.10-18).
• Proceed at reverse to refit the part.
4.1.10-18
4.1.11 Vacuum Motor Contactor IMx BB
• Put the machine in safe conditions.
• Remove the Function Dashboard (see
section 4.1.2 at page 17).
• Remove the Rear Dashboard (see section
4.1.6 at page 18).
• Unplug the wires connected to the
Vacuum Motor Contactor (Rif. RVA)
(see fig. ??).
• Loose the screws that block the Vacuum Motor Contactor to the Electric
Panel (see fig. 4.1.11-19).
• Remove the Vacuum Motor Contactor.
• Proceed at reverse to refit the part.
4.1.11-19
4.1.12 Brush Motor Contactor
IMx BB
• Put the machine in safe conditions.
• Remove the Function Dashboard (see
section 4.1.2 at page 17)
• Remove the Rear Dashboard (see section
4.1.6 at page 18)
• Unplug the wires connected to the
Brush Motor Contactor (Rif. RBR) (see
section 5.5.1 at page 41).
Page 26
4-26
• Loose the screws that block the
Brush Motor Contactor to the Electric Panel (see fig. 4.1.11-19).
• Remove the Brush Motor Contactor(see fig. 4.1.12-20).
• Proceed at reverse to refit the part.
4.1.12-20
4.1.13 Brush Release Switch
IMx BB
• Put the machine in safe conditions.
• Remove the Function Dashboard (see
section 4.1.2 at page 17)
• Remove the Rear Dashboard (see section
4.1.6 at page 18)
• Loose the Rubber Cap that protect
the Brush Release Switch (Rif. SBR)
(see fig. ??).
• Loose the nut that blocks the Brush
Release Switch to the Rear Dashboard (see fig. 4.1.13-21).
• Remove the Brush Release Switch
from the Rear Dashboard.
• Proceed at reverse to refit the part.
4.1.13-21
4.1.14 Dead Man Switch
• Put the machine in safe conditions.
• Loose the screws and remove the
handle (see fig. 4.1.14-22) (see fig. 4.1.14-23).
• Unplug the bipolar connector that
connects the Dead Man Switch to
the Electrical installation of the machine (it’s on the right hand side of
the handle).
• Remove the screws that secure the
microswitch support to the handlebar (see fig. 4.1.14-24) (see fig. 4.1.14-25).
• Remove the Dead Man Switch.
• Proceed at reverse to refit the part.
4.1.14-22 4.1.14-23
4.1.14-24 4.1.14-25
Page 27
4-27
4.1.15 Battery Charger IMx CB
• Put the machine in safe conditions.
• Remove the Function Dashboard (see
section 4.1.2 at page 17)
• Remove the Rear Dashboard (see section
4.1.6 at page 18)
• Loose the screws that block the Battery Charger Cover.
• Remove the Battery Charger Cover.
(see fig. 4.1.15-27)
• Loose the screws that block the Battery Charger to the Rear Dashboard
and remove it (see fig. 4.1.15-28).
• Proceed at reverse to refit the part.
4.1.15-26 4.1.15-27
4.1.15-28
Page 28
4-28
4.2 Mechanical Friction
System
4.2.1 Tools needed
• Pincer for hose clamps
• Pincer for Seeger
• Wrench n. 13
• Allen key n. 4
• Socket screw driver n. 7
4.2.2 Brush Deck Assembly
• Release the brush from the Brush
Deck. (see fig. 4.2.2-29)
• Put the machine in safe conditions.
• Remove the Knob for the Adjustment
of the Machine Direction (see fig. 4.2.2-30)
• Unplug the Motor Electrical Connector and the Solenoid Valve Connector.
• Unplug the Solution Hose (see fig. 4.2.2-
33).
• Remove the screws that block the
Brush Deck to the Machine Frame
(see fig. 4.2.2-31) (see fig. 4.2.2-32).
• Tilt the machine till the parking
position and remove the Complete
Brush Deck with a rototranslatory
movement (see fig. 4.2.2-34).
• Remove the Brush Deck Bushings
(see fig. 4.2.2-35).
• Proceed at reverse to refit the part.
4.2.2-29 4.2.2-30
4.2.2-31 4.2.2-32
4.2.2-33 4.2.2-34
4.2.2-35
Page 29
4-29
4.2.3 Brush Coupling Flange
• Put the machine in safe conditions.
• Disassemble the Brush Deck from
the machine (see section 4.2.2 at page 23).
• Put the Brush Deck to let the Motor
Head touch the floor (or a table).
• Unscrew the Coupling Flange rotating it in the same direction as the
brush in standard working conditions (see fig. 4.2.3-36).
• Remove the spacer (see fig. 4.2.5-40).
• Proceed at reverse to refit the part.
Note: Before to refit the part lubricate
the thread in order to prevent blockings
because of dirt or oxide.
4.2.3-36 4.2.3-37
4.2.4 Brush Stopper Spring
• Put the machine in safe conditions.
• Disassemble the Brush Coupling
Flange (see section 4.2.4 at page 24).
• Loose the screw that block the
Brush Stopper Spring.
• Remove the Brush Stopper Spring
(see fig. 4.2.4-38).
• Proceed at reverse to refit the part.
4.2.4-38
4.2.5 Brush Motor
• Put the machine in safe conditions.
• Disassemble the Brush Coupling
Flange (see section 4.2.4 at page 24).
• Unplug the Solution Hose that connects the Solenoid Valve to the
Brush Motor (see fig. 4.2.5-39).
• Loose the 4 blocking screws and remove the Brush Motor (see fig. 4.2.5-41).
• Proceed at reverse to refit the part.
Note: Use the thread lock liquid on the
screw during the assembling.
4.2.5-39 4.2.5-40
4.2.5-41
Page 30
4-30
4.2.6 Bumper Wheel
• Release the Brush from the Brush
deck (see fig. 4.2.2-29)
• Put the machine in safe conditions.
• Tilt the machine in the parking con-
ditions.
• Loose the upper bushing of the
Bumper Wheel (see fig. 4.2.6-42)
• Remove the Bumper Wheel.
• Proceed at reverse to refit the part.
Note: Use the thread lock liquid on the
screw during the assembling.
4.2.6-42
Page 31
4-31
4.3 Drying System

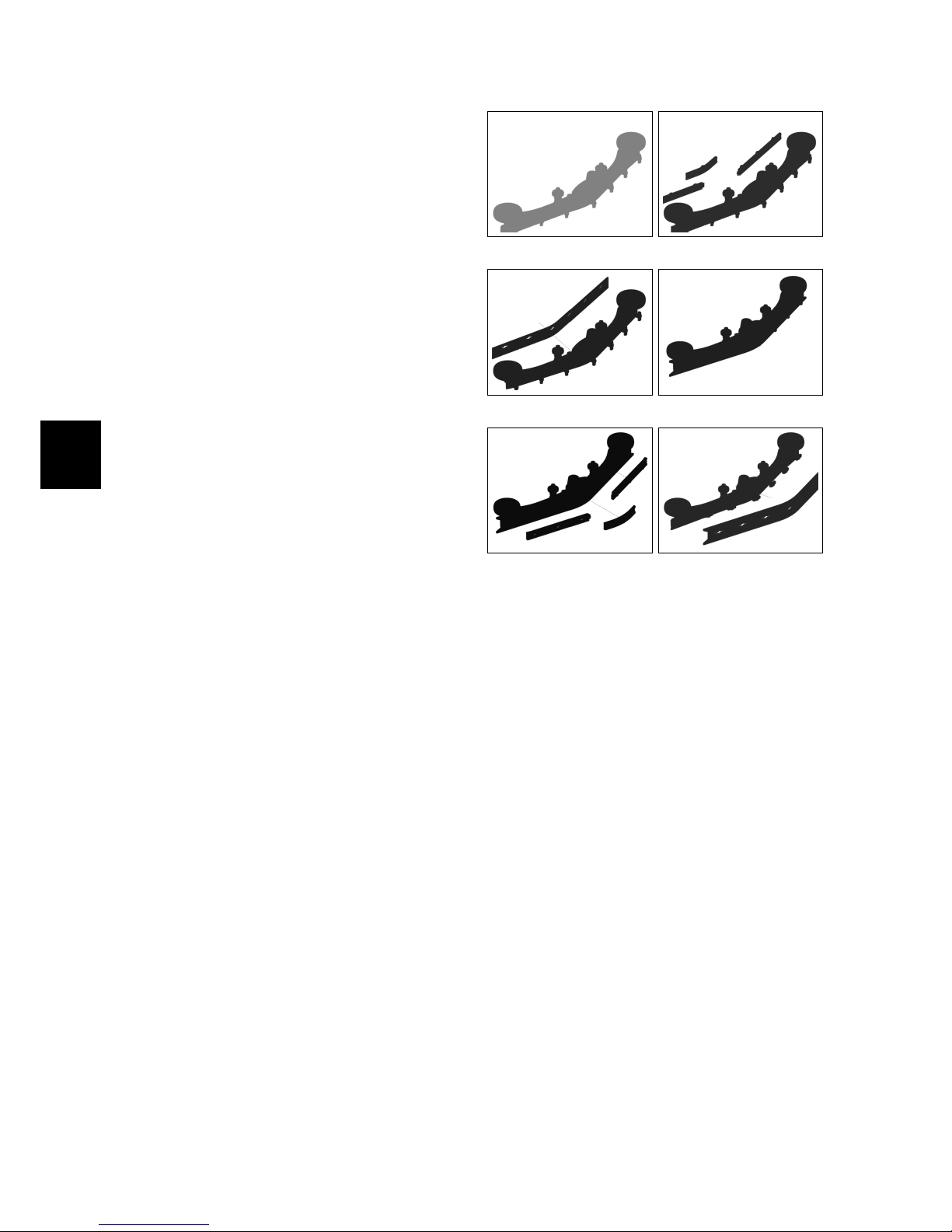

4.3.1 Squeegee
• Put the machine in safe conditions.
• Lower the Squeegee in working con-
ditions.
• Unplug the Vacuum Hose (see fig. 4.3.1-
43).
• Loose the knobs that block the
Squeegee to the Squeegee Support
(see fig. 4.3.1-43).
• Remove the Squeegee from the
Squeegee Support (see fig. 4.3.1-44).
• Proceed at reverse to refit the part.
• Perform the adjustment procedure
for the Squeegee (see section 7.3.1 at page 68).
Note: The Squeegee has to be refit on the
machine with the washers on the upper
part of the Squeegee Support(see fig. 4.3.1-
45).
4.3.1-43 4.3.1-44
4.3.1-45
4.3.2 Squeegee Adapter
• Put the machine in safe conditions.
• Disassemble the Squeegee from the
Machine (see section 4.3.1 at page 26).
• Loose the knobs that block the
Squeegee to the Squeegee Support
(see fig. 4.3.2-46).
• Remove the Squeegee Adapter.
• Proceed at reverse to refit the part.
4.3.2-46
4.3.3 Squeegee Support
• Put the machine in safe conditions.
• Disassemble the Squeegee from the
Machine (see section 4.3.1 at page 26).
• Be sure that the Squeegee Command Lever is in lower position.
• Unscrew the screw that fix the chain
to the Squeegee Command Lever and
let it lie behind the Squeegee Support (see fig. 4.3.12-75).
• Loose the nuts that block the Gas
Spring to the Squeegee Support and
Remove the Gas Spring (see fig. 4.3.3-49).
• Loose the screws that block the
Squeegee Support to the Squeegee
Rotation Arm (see fig. 4.3.3-50).
• Remove the Squeegee Support (see fig.
4.3.3-51).
Page 32
4-32
• Proceed at reverse to refit the part,
paying attention to take care about
the bushing positioning.
4.3.3-47 4.3.3-48
4.3.3-49 4.3.3-50
4.3.3-51
4.3.4 Squeegee adjustment
wheels
• Put the machine in safe conditions.
• Remove the squeegee support (see sec-
tion 4.3.3 at page 26).
• Remove the squeegee adjustment
knob and the spring (see fig. 4.3.4-52).
• Remove the Adjustment Wheel Assembly.
• Unscrew the fixing screw of the
wheel to the support (see fig. 4.3.4-53).
• Proceed at reverse to refit the part.
4.3.4-52 4.3.4-53
4.3.5 Squeegee Rotation Arm
• Put the machine in safe conditions.
• Disassemble the Squeegee Support
(see section 4.3.3 at page 26) (see fig. 4.3.5-54).
• Loose the screws that block the
Squeegee Rotation Arm to the Machine Chassis (see fig. 4.3.5-55).
• Remove the Squeegee Rotation Arm.
• Proceed at reverse to refit the part.
Note: During the reassembly is important to take care about the bushing positioning.
Page 33
4-33
4.3.5-54 4.3.5-55
4.3.6 Vacuum Hose
• Put the machine in safe conditions.
• Unplug the Vacuum Hose from the
Squeegee (see fig. 7.4.3-21).
• Uncouple the squeegee from the
plastic clip. (see fig. 4.3.6-57).
• Uncouple the Vacuum Hose from the
Recovery tank Inlet (see fig. 4.3.6-58).
• Proceed at reverse to refit the part.
4.3.6-56 4.3.6-57
4.3.6-58
4.3.7 Recovery Tank
• Put the machine in safe conditions.
• Uncouple the Vacuum Hose from the
Recovery tank Inlet (see fig. 7.4.3-20).
• Unplug the Vacuum Manifold from
the Recovery Tank (see fig. 4.3.7-60).
• Uncouple the Drain Hose from the
clip and let it lie on the floor (see fig.
4.3.7-61).
• Remove the cap from the Recovery
tank (see fig. 7.4.4-22).
• Remove the Recovery tank from the
machine by lifting up it using the
handles. Be careful to slip off the
Drain hoses without damaging it (see
fig. 4.3.7-63).
• Put the Recovery Tank vertically on
the floor.
• Proceed at reverse to refit the part.
Note: Be careful to not damage the
Drain Hose.
Page 34
4-34
4.3.7-59 4.3.7-60
4.3.7-61 4.3.7-62
4.3.7-63
4.3.8 Drain Hose
• Put the machine in safe conditions.
• Remove the Recovery Tank (see section
4.3.7 at page 28)
• Loose the clamp that block the Drain
Hose to the Recovery Tank (see fig. 4.3.8-
64).
• Unplug the Drain Hose from the Recovery Tank.
• Proceed at reverse to refit the part.
4.3.8-64
4.3.9 Vacuum Filter
• Put the machine in safe conditions.
• Remove the Recovery Tank Lid(see fig.
4.3.9-65).
• Uncouple the Filter Cover. (see fig. 4.3.9-
66)
• Remove the Vacuum Filter pulling it
down (see fig. 4.3.9-67).
• Proceed at reverse to refit the part.
4.3.9-65 4.3.9-66
4.3.9-67
4.3.10 Vacuum Motor
• Put the machine in safe conditions.
• Remove the Recovery Tank (see section
4.3.7 at page 28)
• Remove the clamp that block the
Vacuum Manifold to the Vacuum
Motor and move it apart (see fig. 4.3.10-
68).
• Loose the screws and remove the
Vacuum Motor Cover (see fig. 4.3.10-69).
• Remove the Upper sound-absorbing
Sponges.
Page 35
4-35
• Unplug the electric connection of the
Vacuum Motor (see fig. 4.3.10-70).
• Loose the screws that block the Vacuum Motor to the Solution Tank (see
fig. 4.3.10-71).
• Remove the Lower sound-absorbing
Sponge.
• Loose the screws to remove the Vacuum Motor Bracket (see fig. 4.3.10-72).
• Proceed at reverse to refit the part.
4.3.10-68 4.3.10-69
4.3.10-70 4.3.10-71
4.3.10-72
4.3.11 Squeegee Lifting Chain
• Put the machine in safe conditions.
• Disassemble the Squeegee from the
Machine (see section 4.3.1 at page 26).
• Be sure that the Squeegee Command Lever is in lower position.
• Unscrew the screw that fix the chain
to the Squeegee Command Lever and
let it lie behind the Squeegee Support (see fig. 4.3.12-75).
• Loose the screw that fix the
Squeegee Lifting Chain to the
Squeegee Support (see fig. 4.3.11-74).
• Remove the Squeegee Lifting Chain.
• Proceed at reverse to refit the part.
4.3.11-73 4.3.11-74
Page 36
4-36
4.3.12 Squeegee Lifting Lever
• Put the machine in safe conditions.
• Disassemble the Squeegee from the
Machine (see section 4.3.1 at page 26).
• Be sure that the Squeegee Command Lever is in lower position.
• Unscrew the screw that fix the chain
to the Squeegee Command Lever and
let it lie behind the Squeegee Support (see fig. 4.3.12-75).
• Loose the screw that blocks the
Squeegee Movement Support to the
Electric System Panel (see fig. 4.3.12-76).
• Remove the Squeegee Lifting Lever
from the Machine.
• Remove the hub bushing from the
Squeegee Lifting Lever.
• Proceed at reverse to refit the part.
4.3.12-75 4.3.12-76
Page 37
4-37
4.4 Frame and Traction
System
4.4.1 Wheels
• Put the machine in safe conditions.
• Lift up the wheel from the ground.
• Loose the screw that blocks the
wheel to the Drive Shaft (see fig. 4.4.1-
77).
• Remove the wheel pulling it by
hands or using a extractor.
• Proceed at reverse to refit the part
(Use the thread lock liquid on the
screw during the assembling).
4.4.1-77
4.4.2 Drive Shaft IMx BT
• Put the machine in safe conditions.
• Disassemble the wheel connected to
the axle in question (see section ?? at page
??).
• Remove the spacer (see fig. 4.4.2-78).
• Remove the seeger (see fig. 4.4.2-79).
• Remove the Drive Shaft from the
traction motor pulling it by hands or
using an extractor (see fig. 4.4.2-80).
• Remove the bearings from the Drive
Shaft using an extractor (see fig. 4.4.2-
80).
• Proceed at reverse to refit the part.
4.4.2-78 4.4.2-79
4.4.2-80
4.4.3 Traction Gearmotor IMx
BT
• Put the machine in safe conditions.
• Disassemble both wheels (see section ??
at page ??).
• Disassemble both Drive Shafts from
the Machine (see section ?? at page ??).
• Unplug the Electrical connector of
the Traction Gearmotor (see fig. 4.4.3-81).
• Loose the screws that block the
Traction Gearmotor to the Machine
Frame (see fig. 4.4.3-82).
• Remove the Traction Gearmotor (see
fig. 4.4.3-83).
• Remove the Spacer from the Traction Gearmotor (see fig. 4.4.3-83).
• Proceed at reverse to refit the part.
4.4.4 Free Shaft IMx B-BB
• Put the machine in safe conditions.
• Disassemble both wheels (see section ??
at page ??).
• Disassemble the seeger (see fig. 4.4.4-84)
Page 38
4-38
4.4.3-81 4.4.3-82
4.4.3-83
• Remove the bushings (see fig. 4.4.4-84)
• Disassemble the Free Shaft (see fig.
4.4.4-85)
• Proceed at reverse to refit the part.
4.4.4-84 4.4.4-85
4.4.5 Parking Wheel
• Put the machine in safe conditions.
• Tilt the machine to lower the brush
deck on the floor.
• Loose the bolt that blocks the wheel
to the Machine Frame (see fig. 4.4.5-86).
• Remove the Parking Wheel.
• Remove the bushing from the wheel.
• Proceed at reverse to refit the part.
Note: Lubricate the bushing during assembly.
4.4.5-86
Page 39
4-39
4.4.6 Parking Brake IMx BT
• Put the machine in safe conditions.
• Remove the screws that secure the
Support Bracket of the Parking
Brake to the machine frame (see fig.
4.4.6-87).
• Remove the Parking Brake from its
Support Bracket.
• Proceed at reverse to refit the part.
4.4.6-87
Page 40
4-40
4.5 Solution Delivery System
4.5.1 Solution Tank
• Put the machine in safe conditions.
• Remove the recovery tank. (see section
4.3.7 at page 28)
• Disconnect the water supply hose
from the solenoid valve.
• Loosen the screws securing the solution tank to the scrubdeck (see fig.
4.5.1-88) (see fig. 4.5.1-89) .
• Remove the solution tank from the
machine frame (see fig. 4.5.1-90).
• Loosen the screws of the battery
compartment and remove it from the
tank (see fig. 4.5.1-91).
• Remove the Support plate unscrewing the fixing screws. (see fig. 4.5.1-92)
• Remove the brush/squeegee holder,
by unscrewing the fixing screws (see
fig. 4.5.1-93)
• Remove the object holder and unscrew the screw on the magnet. (see
fig. 4.5.1-94)
• Remove the solution filter (see section
4.5.3 at page 36)
• Remove the water control Valve
Group (see section 4.5.4 at page 36).
• Remove the hose connector and its
fastening clamp (see fig. 4.5.1-95)
• Remove the parking brake (ONLY BT
VERSION) (see section 4.4.6 at page 34)
• Remove the vacuum motor (see section
4.3.10 at page 29)
• Remove the vacuum motor lower
carter.
• Proceed at reverse to refit the part.
4.5.1-88 4.5.1-89
4.5.1-90 4.5.1-91
4.5.1-92 4.5.1-93
4.5.1-94 4.5.1-95
Page 41
4-41
4.5.2 Hoses
• Put the machine in safe conditions.
• Loose the clamps that block the hose
to the fitting.
• Slip off the hose from the fitting.
• Proceed at reverse to refit the part.
4.5.3 Solution Filter
• Put the machine in safe conditions.
• Loose the filter and remove it from
its housing (see fig. 4.5.3-96).
• Slip off the OR gasket from the filter
paying attention to not damage it (see
fig. 4.5.3-97).
• Proceed at reverse to refit the part.
4.5.3-96 4.5.3-97
4.5.4 Water Valve
• Put the machine in safe conditions.
• Unplug the hoses from the Water
Valve loosing the hose clamps (see fig.
4.5.4-98) (see fig. 4.5.4-99)
• Remove the screws that block the
Proportional Valve Bracket to the Solution Tank. (see fig. 4.5.4-100)
• Remove the Proportional Valve Assembly.
• Loose the Proportional Valve adjuster knob from the proportional
valve body and remove the knob.
• Proceed at reverse to refit the part
(Use sealing liquid on the fitting to
refit the part).
4.5.4-98 4.5.4-99
4.5.4-100 4.5.4-101
Page 42
4-42
4.5.5 Solenoid Valve
• Put the machine in safe conditions.
• Remove the Brush Deck Assembly
(see fig. ??).
• Unplug the hoses connected to the
Solenoid Valve (see fig. 4.5.5-102).
• Loose the plastic nut that block the
Solenoid Valve to its support (see fig.
4.5.5-103).
• Loose the solenoid Valve cap and remove the OR gasket (see fig. 4.5.5-104).
• Proceed at reverse to refit the part
(Position the spacer washer properly
to refit the valve).
4.5.5-102 4.5.5-103
4.5.5-104
Page 43
4-43
Part III
Machine Description
43
Page 44
5-44
Chapter 5
Electrical System
IMx scrubber dryer machine is available in three different versions: IMx B,
IMx BB and IMx BT. The IMx BB is
electromechanical without traction motor and speed regulation. The IMx B and
IMX BT are equipped with control card.
Only IMx BT is equipped with a traction
motor and a knob to regulate the speed
of the machine
5.1 Structure IMx BB
Figure 5.1: Electrical System IMx BB
1. Relay vacuum
2. Brush remote control switch
3. Fuses
4. Microswitch brush release
5. Switches
6. Hourmeter/Battery control card
7. Charger
8. Safety lever
9. Batteries
5.2 Description IMx BB
To wash and dry the floor you have to
press the buttons present on the dash
board of the machine. With the buttons
you can switch ON or OFF the brush
base, the solenoid valve and the vacuum
motor. These signal are combined by
electromechanical logic together with the
safety lever; they act in order to operate
in the best way and in absolute safety for
the operator. Near the dash board there
is a switch to release the brush.
44
Page 45
5-45
5.3 Structure IMx B/BT
Figure 5.2: Electrical System IMx B/BT
1. Main Card
2. Control Card
3. Key
4. Safety Micro
5. Batteries
6. Charger
5.4 Description IMx
B/BT
A main card runs all the functions of the
machine, traction, brush base, vacuum
and water. The main card receive as input, all the information from the control card, safety micro and all the electronic devices of the machine. These signals are translated from the main card
to run correctly the scrubber dryer and
to prevent any safety problem to the operator. The dash board can be used
also as a programmer console to modify the parameter of all the machine’s
functions (traction, vacuum and washing) and, also, to check the consumption
of all the motors and batteries.
Page 46
5-46
5.5 Location of Electrical components
5.5.1 IMx BB
Page 47
5-47
List of Components
AP-AP 50A Batteries contact
CBR Charger
1
CTR Hourmeter and Battery control card
EL Solenoid Valve
FAS Fuse of Vacuum Motor
FBR Fuse of Brush Motor
IGEN Main switch
IMVA Vacuum Motor Switch
MBR Brush Motor
MP Safety Micro
MVA Vacuum Motor
RBR Remote control switch Brush Motor
RVA Relay Vacuum Motor
SBR Brush Release Switch
1
Optional
Page 48
5-48
5.5.2 IMx B/BT
Page 49
5-49
List of Components
AP-AP 50A Batteries connection
BEP Buzzer
CBR Charger
2
CD Control Card
CH Main switch
EL Solenoid Valve
J Main Card
M1 Traction Motor
3
MBR Brush Motor
MP Safety Micro
MVA Vacuum Motor Switch
POT Potentiometer
2
Optional
3
BT Only
Page 50
5-50

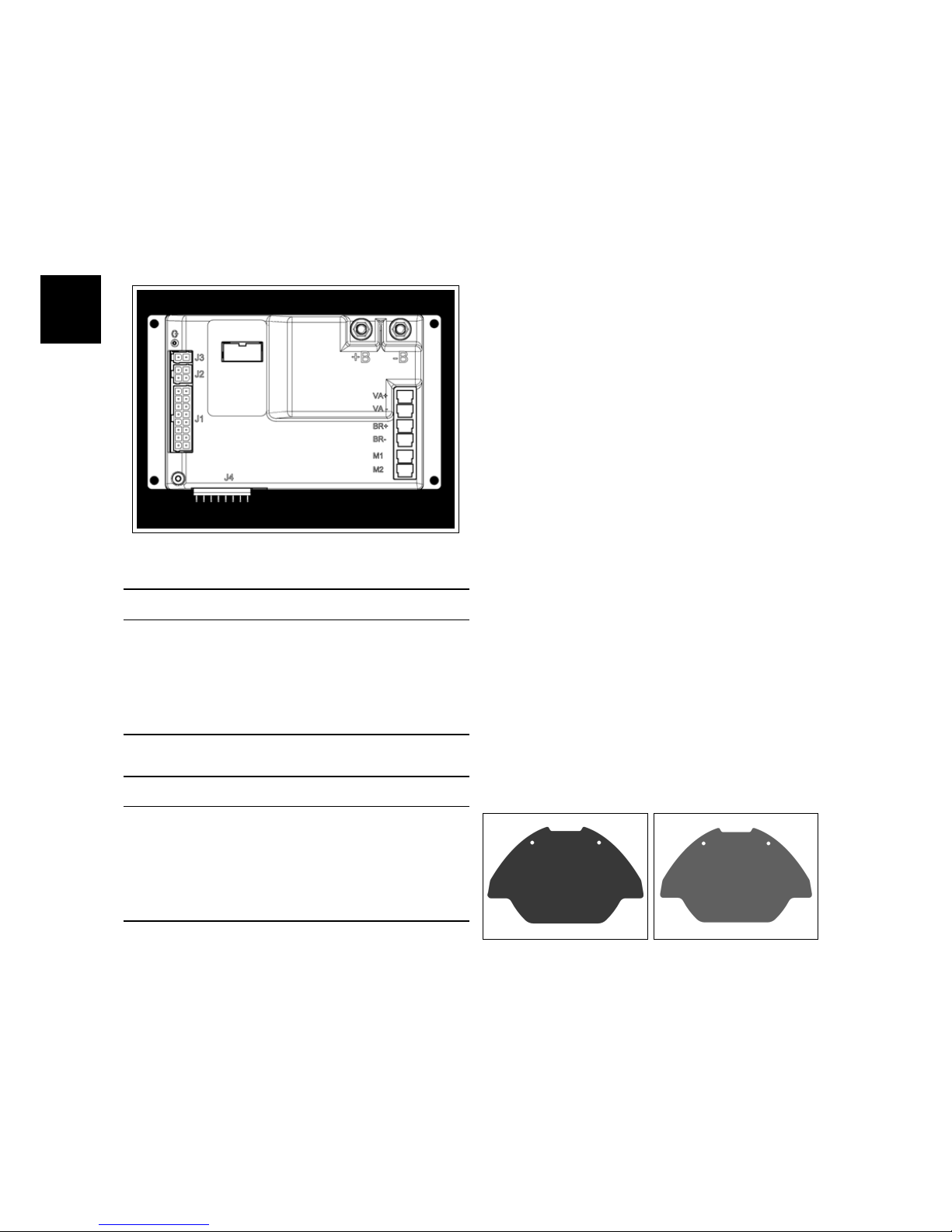

5.5.3 Main Card (IMx B/BT)
The Main Card is the heart of the machine and, depending of the input information, decides how to use the devices
of the machine during normal work. On
the tables here below, is possible to identify the input/output signals.
Main Card
Input Signals
J1 Power from key, Charger, Buzzer,
Safety Micro, Potentiometer (IMx BT
only)
J2 Buttons from control card
J3 Proportional Solenoid Valve
Output Signals
VA Supply to Vacuum Motor
BR Supply to Brush Motor
M1 Supply to Traction Motor
M2 Supply to Traction Motor
5.5.4 Dashboard
Functions of Dashboard:
• Manage and set up the main functions and command of the machine
during the normal work;
• Check the alarm code in order to detect a possible malfunction
• Enter in three different menu:
– The “user menu” to check the
status of the batteries and the
hourmeter of the machine (depending of the set up into “user
menu”). If a defect is detected
on the machine, this menu
show a short message concerning the alarm.
– The “operator menu” contain-
ing the basic adjustment, accessible by the user of the machine.
– The “advanced menu” where is
possible to modify the set up of
the machine by expert technicians.
ATTENT ION: THE “OPERATO R MENU”
IS AC CESSI BLE WI THOUT AN Y RESTRI C-
TI ON, W HEREAS TO ENTER INTO THE “AD-
VANCE D MENU” A PASSW ORD I S NEE DED.
5.5.4-1 Dashboard IMx B 5.5.4-2 Dashboard IMx
BT
Page 51
5-51
Functions and Commands
During the normal working, the display
shows the hourmeter and the battery
control card (in percentage). When the
charge of the batteries goes down to a
fixed value, the battery control card disable the brush motor and, after that, the
vacuum motor; in particular, the battery
control card disable the brush motor
(vacuum motor and traction motor still
work) when the remaining charge of the
batteries are 20% and disable also the
vacuum motor when the remains charge
of the batteries are 10
5.5.4-3 Battery Control
Card
5.5.4-4 Battery Control
Card
Entry into “Operator Menu” and “Advanced Menu”
The dashboard could be used like a programming console. If you press a determinate combination of buttons you can
enter into two menu:
• “Operator Menu”.
• “Advanced Menu”.
The structure of the menu can be shown
in the section (see section 5.14.1 at page 55).
Function of the buttons - IMx B/BT
1 Not Used
2 Not Used
3 ENTER (Confirm)
4 SCROLL UP/PLUS (Scroll up and In-
crease)
5 RESET Confirmation
6 SCROLL DOWN/MINUS (Scroll down
and Decrease)
Page 52
5-52
Operator Menu
To enter to the Operator menu go ahead
as follow:
• With the machine off, press in the
same time button “3”, “4” and “6”
• Turn on the key, with the three buttons pressed.
• Waiting the upload of the “working
menu”
• Release the buttons
To move inside of the menu, press the
button “4” and the button “6”.
To modify a parameter or confirm a
changed value, press the button “3”.
Change a Parameter (in the Operator
Menu)
To change a parameter proceed as follows:
• Run the menu with the button “4”
or “6” and select the parameter to
change.
• Select the submenu to be changed
pressing the button “3”
• Utilize the button “4” and “6”, to shift
all the available values for the parameter necessary to modify.
• To confirm the new value press the
button “3”
• To save the change is necessary to
return to the user menu; to exit from
“working menu” select the menu
“exit”
For example, to modify the language
from EN to IT
• Turn OFF the machine
• Press in the same time, the buttons
“3”, “4” and “6”
• Until the buttons are pressed, turn
ON the key and wait the upload of
the “working menu”
• Use the buttons “4” or “6” to select
the submenu “language”
• To modify the parameters of this
menu, press the button “3”. To confirm the possibility to change parameters, the first line on the display will
blink
• Utilize buttons “4” or “6” to shift all
the values on this menu and select
the value “IT”
• Confirm the new value by pressing
the button “3”
• To save this modification, select
the submenu “exit” and confirm by
pressing button “3”.
Page 53
5-53
Advanced Menu
The Advanced Menu can be reached
from the “operator menu” by accessing
the “password” parameter and setting
the value 60.
Change a Parameter (in the Advanced
Menu)
To change the value of a parameter, proceed as follows:
• Scroll through the submenus with
the buttons “4” and “6”.
• Select the submenu that contains
the parameters to be changed using
the button “3”.
• Scroll through the parameters with
the buttons “4” and “6” to find the
parameter to be edited.
• Select the parameter with the button
“3”.
• Use the buttons “4” and “6” to scroll
through the list of available values of
the parameter.
• Confirm the new value of the parameter using the button “3”.
• To enable the changes, it is necessary to return to the “menu work”;
to exit the parameters and return to
the “Advanced Menu” press simultaneously the buttons “4” and “6”,
then find the sub-menu “Exit” and
confirm with button “3”.
Parameters Reset
Some parameters of the Advanced Menu
(Brushes Sets, Pumps Sets, Vacuum
Sets, Traction Sets) can be restored to
the factory setting. To reset the parameters follow the procedure below:
• In the “Operator Menu” go to the
“password” parameter setting the
value 11 without confirming.
• Press the button “5”.
• The password becomes “0”.
The procedure was successful, now the
default values of brushes, pumps, suction, traction, have been uploaded.
Check/Monitor Function
It is possible to view all the values of the
Check/monitor function during the normal work of the machine. To view the
values, following the instruction:
• Turn OFF the machine
• Press in the same time, the buttons
“3”, “4” and “6”
• Until the buttons are pressed, turn
ON the key and wait the upload of
the “working menu”
• Use the buttons “4” or “6” to select
the submenu “password”
• Confirm pressing button “3”
• Press button “4” or “6” until to select
the password “60”
• Confirm the password by pressing
the button “3” to enter into the “advanced menu”
• Press the button “4” or “6” to select
the menu “Check/Monitor”
• Confirm by pressing the button “3”
Page 54
5-54
• Press the button “4” or “6” to select the parameter you want to check
during normal work.
• Press the button “3” to confirm
• After confirmed, the display will re-
turn to normal view, but instead of
the battery control card it will be displayed the values of the selected parameters.
• By pressing the button “3” it is possible to check the parameters of the
Check/Monitor submenu
• To exit form the “Check/Monitor”
view, turn OFF and ON the machine.
5.5.5 Control Card
The Control Card is located inside of the
dashboard panel and transfers all the information and settings to the Main Card.
The Control Card is linked to the Main
Card by a cable.
5.6 Safety Microswitch
All the IMx versions are equipped with a
safety microswitch, located inside of the
handle of the machine and operated by
the metal lever directly connected to the
same handle. This microswitch runs the
brush base and the traction of the machine if present (IMx BT).
5.7 Potentiometer (IMx
BT only)
The adjustment knob of the potentiometer, located on the control panel, allows
to adjust the speed of the machine, and
send the appropriate control signals to
the Main card.
Page 55
5-55
5.8 Hourmeter (IMx BB
only)
The machine is equipped with an electronic hourmeter, installed on the dashboard. The hourmeter shows the battery
charge level by its leds. The hourmeter
can stop the machine if the charge of the
batteries is under a minimum threshold.
On the hourmeter is possible to set up a
different type of batteries.
5.9 Charger
The charger is available as optional. The
charger is located on the left rear part of
the machine, with free access to connect
the charger to the power supply.
5.10 Batteries
On the machine is possible to install two
different type of batteries: 12V 77Ah and
12V 62Ah (2 batteries for each type on
the machine). Depending of the batteries installed, is necessary to change the
position of the batteries metal supports
on the battery base.
• Batteries 12V 77Ah
• Batteries 12V 62Ah
Page 56
5-56
5.11 Adjustments
5.11.1 Battery Control Card
(IMx BB only)
Check that, when turning on the machine, the battery control card (included
in the hourmeter) has the following
starting sequence:
• Turning on of the LED which correspond to the type of batteries installed.
• Turning on of all the LEDs (functional light check).
• Turning on of the LEDs depending
on the residual battery charge level.
It is possible to check the settings of the
battery control card, simply turning the
machine on and check which is the first
LED that turns on. First yellow LED
for wet cell batteries, fourth yellow LED
for GEL batteries. To adjust the battery
control card depending on the batteries installed, rotate the small round microswitch located under the hourmeter,
(Picture) in position 1 for wet cell batteries, in position 4 for GEL batteries.
5.11.2 Charger (CB)
The charger is located on the rear side of
the machine and easy to access for the
operator. When connected to the power
supply, a red led will blink once, the
yellow led blink once and the green led
blink depending of the type of battery for
which the charger is set.
A Proper Charging cycle follows the below phases order.
Phase LED Description
A Red Blinking, check of battery
status
B Red First charging phase
C YellowSecond charging phase
D Green Charged battery
Check if the charger is properly set according to the installed batteries.
Page 57
5-57
Charging curve SetUp
To set up the charger, follow the instructions:
• Use a screwdriver to remove the
small black plastic cap
• Set-up the internal dipswitches according to the following table
The dipswitches are divided in two couple. The higher couple are the dipswitches 1 and 2, the couple down are
the dipswitches 3 and 4. The following table shows how to setup the dipswitches 1 and 2
Set-up of Charging Curve
DP1 DP2 Set-up Flash
OFF OFF Wet cell batteries 1
ON ON Gel TROJAN 2
OFF ON Generic GEL or
AGM batteries
3
ON OFF Gel EXIDE SON-
NENSCHEIN
4
DP3: OFF (not used)
DP4: OFF (not used)
Restore the the small black plastic cup.
Error Codes of Charger
The charger have an alarm system. The
alarm code is shown by blinks of the yellow led.
Error code
Flash Description
1 Wrong battery, Inverted polarity,
short circuit to the exit
2 Timeout alarm, Defect of the bat-
tery
3 Defect of the Charger
4 Overtemperature alarm
5.11.3 ECO Function (solo IMx
B/BT)
Press the ECO button, and let the vacuum motor and the brush motor work.
with the ECO mode activated, check if
the noise of the vacuum motor and the
brush motor is reduced. Connect an
Amperometric to the positive cable of the
batteries and check if the current consumption is less than normal function
(without ECO mode). ATTENTION. We
don’t give the amperometric values because it can change depending of the
working conditions.
Page 58
5-58
5.12 Maintenance and
Checks
5.12.1 Electrical System
Checks
Check the functions and the proper connections of the switches, microswitches,
motors, solenoid valve, contactors, relay, fuses, thermal fuses and cables.
Check periodically, the wiring connections. To check the wiring, remove the
control panel and the rear cover.
5.12.2 Batteries
Checks
Check the oxidations of the cables and
the connectors
Page 59
5-59
5.13 Alarm Table (IMx B/BT only)
5.13.1 Alarms
Alarms of Overcurrent and Temperature
Id Alarm Meaning Solution
AL 1: Function
Amp. Brush
Brush Amperometric Protection Check consumption of the brush motor. Detected high current
on brush motor.
AL 2: Function
Amp. Vacuum
Vacuum Amperometric Protection
Check consumption of the vacuum motor. Detected high current on vacuum motor.
AL 3: Function
Power Broken
Damage of Power Damage power of brush or vacuum: replace the main card.
This alarm could be shown also during the trailing of the machine.
AL 4: Function
Overcurrent
Output overcurrent on brush or
vacuum
Detect a shortcircuit on output brush motor or vacuum motor:
Check connections and motors.
AL 5: Function
Overtemperature
Thermal protection on
brush/vacuum
Overtemperature of brush/vacuum motor: check consumption of motors.
Traction Alarms
Id Alarm Meaning Solution
AL 14: Traction
Lever pressed
Safety lever pressed before starting
Detected safety microswitch pressed before starting : release
the safety lever.
AL 15: Traction
Overtemperature
Thermal protection on traction Overtemperature on traction : check consumption of traction
motor (IMx BT).
AL 16: Traction
Power damage
Power of traction damage Replace the main card. This alarm could be shown also during
the trailing of the machine. (IMx BT)
AL 17: Traction
Overcurrent
Traction Overcurrent Detected a shortcircuit on the traction motor output: Check
connections and traction motor (IMx BT).
AL 18: Traction
Amp. Traction
Traction Amperometric protection
Check how the traction function is used. Detected too high
working current on traction motor (IMx BT).
General Alarms
Id Alarm Meaning Solution
AL 20: General
EEprom malfunction
Error reading internal memory Replace the main card.
AL 21: General
Key
Error key sequence Error on key signal: Check the key connection. Check, also,
the batteries connections and main card
AL 22: General
General Relay
Damage of general relay Check the traction motor connections. If the connection are
OK, the general relay on the main card is damaged: replace
the main card. The same alarm is present also if power fuse is
damaged
AL 23: General
Overvoltage
Overvoltage Detected a overvoltage on the main card. Check the batteries
connections.
AL 24: Traction
Battery connections
Battery not connected to the
main card
Check the traction motor, Detected high voltage on traction
motor (IMx BT)
AL 25: General
Control Card connection
No communication between control card and main card
Check the connections between control card and main card.
Page 60
5-60
5.14 Menu Tables (IMx B/BT only)
5.14.1 Menu Tree
• Make sure the machine is turned off.
• Press simultaneously the buttons 3,4,6.
• Turn on the machine while holding down the buttons.
• Wait the loading of the Operator Menu.
• For the submenus of the Advanced Menu, refer to the specific tables.
Page 61
5-61
5.14.2 Working Menu
MENU DEFAULT CHOICES DESCRIPTION
General Setup:
Language: ##
IT IT -EN-FR-SP Setup language
General Setup:
Mod: #######
IMX BT IMX B - IMXBTSetup type of machine
General Setup:
Battery: ###
GEL GEL-WET -
AGM-GE1WE1
Setup kind of battery
General Setup:
Reset Cnt: #
N Reset partial hourmeter.
General Setup:
Display Cnt: ###
Key KEY-TR Select the kind of hourmeter: key connect to the key - tr.
connect to the traction motor
General Setup:
Exit. . . . . . . . . .
N Exit from the menu.
General Setup:
Key h: #### h:## m
Total hourmeter connect to the key.
General Setup:
Tr h: #### h:## m
Total hourmeter connect to the traction.
General Setup:
Br h: #### h:## m
Total hourmeter connect to the brush motor.
General Setup:
Vac h: #### h:## m
Total hourmeter connect to the vacuum motor.
General Setup:
password: ###
60 This password is necessary to enter into the “Advanced menu”,
utilized by expert technicians only.
5.14.3 Advanced Menu
MENU DESCRIPTION
Options menu:
General sets.
Enter to the general parameters (language, battery. . . ).
Options menu:
Brushes sets.
Enter to the parameters for the brush base.
Options menu:
Pumps sets.
Enter to the parameters of water and chemical pumps (if present).
Options menu:
Vacuum sets.
Enter to the parameters of vacuum motor.
Options menu:
Traction sets.
Enter to the parameters of traction motors.
Options menu:
Check/Monitor.
Enter to view the list of working parameters.
Options menu:
Engineer pars.
Protected parameters (calibrations and factory settings)
Options menu:
Exit. . . ..
Exit and return to the main menu.
Page 62
5-62
General Sets
MENU DEFAULT VALUES DESCRIPTION
General Sets:
Language: ##
IT IT -EN-FR-SP Setup the language of the display.
General Sets:
Mode: ##
IMX-BT IMX B - IMXBTSetup of the machine model (Normal version or with dosing
system).
General Sets:
Battery: ##
GEL GEL-WET -
AGM-GE1WE1
Setup of the battery type.
General Sets:
Rst.Cnthr: ##
N Reset partial hourmeter (like on “working menu”).
General Sets:
Rst.Main Cnthr: ##
N Reset total hourmeter (key, brush, vacuum, traction).
Brushes Sets
Parameter Default Min ÷ Max Description
Brushes Sets:
I Max: ## [Amp]
40 20 ÷ 50 Maximum current from the main card to the brush motor.
Brushes Sets:
I Nom: ## [Amp]
25 10 ÷ 40 Rated current; with T Nom manages the amperometric protection
(alarm + stop brush motor).
Brushes Sets:
T Nom: ## [s]
30 1 ÷ 60 Rated timer; with I Nom manages the amperometric protection
(alarm + stop brush motor).
Brushes Sets:
T Off: #.# [s]
0.0 0.0 ÷ 10.0 Delay of switching off of the brush motor when the safety lever is
released.
Brushes Sets:
T Reset: ## [s]
10 0 ÷ 100 Timing of reset amperometric protection (overcurrent) - NOT USED.
Brushes Sets:
T On: #.# [s]
0.2 0.0 ÷ 5.0 Delay to switching on of the brush motor when the safety lever is
pressed.
Brushes Sets:
Eco Speed: ## [V]
17 15 ÷ 20 Value of Voltage reduction of brush motor, during ECO mode.
Page 63
5-63
Pumps Sets
Parameter Default Min ÷ Max Description
Pumps Sets:
Wtr Lev1: ### [V]
10.0 5 ÷ 24 First level of water flow of the proportional solenoid valve.
Pumps Sets:
Wtr Lev2: ### [V]
11.0 5 ÷ 24 Second level of water flow of the proportional solenoid valve.
Pumps Sets:
Wtr Lev3: ### [V]
13.5 5 ÷ 24 Third level of water flow of the proportional solenoid valve.
Pumps Sets:
Wtr Lev4: ### [V]
16.0 5 ÷ 24 Fourth level of water flow of the proportional solenoid valve.
Pumps Sets:
Wtr Lev5: ### [V]
20.0 5 ÷ 24 Fifth level of water flow of the proportional solenoid valve.
Vacuum Sets
Parameter Default Min ÷ Max Description
Vacuum Sets:
I Max: ## [Amp]
40 10 ÷ 40 Maximum current from the main card to the vacuum motor.
Vacuum Sets:
I Nom: ## [Amp]
20 5 ÷ 25 Rated current; with T Nom manages the amperometric protection
(alarm + stop vacuum motor).
Vacuum Sets:
T Nom: ## [s]
10 1 ÷ 10 Rated timer; with I Nom manage the amperometric protection (alarm
+ stop vacuum motor).
Vacuum Sets:
T Off: ## [s]
5 0 ÷ 30 Delay of switching on of the vacuum motor when the switch is
pressed.
Vacuum Sets:
T Off stop: ## [s]
15 0 ÷ 100 Delay of switching off of the vacuum motor when the safety lever is
released
Vacuum Sets:
Eco Speed: ## [V]
17 15 ÷ 20 Value of Voltage reduction of vacuum motor, during ECO mode
Page 64
5-64
Traction Sets
Parameter Default Min ÷ Max Description
Traction Sets:
Acc Ramp: #.# [s]
3.5 0.5 ÷ 5.0 Acceleration ramp. The time necessary to arrive at the maximum
speed.
Traction Sets:
Dec Ramp: #.# [s]
1.0 0.5 ÷ 5.0 Deceleration ramp. The time necessary to stop the machine when the
safety lever is released.
Traction Sets:
Rev Ramp: #.# [s]
1.0 0.5 ÷ 5.0 The time necessary to invert the way.
Traction Sets:
FW Speed: ### [%]
100 20 ÷ 100 Maximum speed in forward way (expressed in %).
Traction Sets:
BW Speed: ### [%]
60 20 ÷ 100 Maximum speed in reverse way (expressed in % respect the maximum
speed in forward way).
Traction Sets:
Min
Speed: ### [%]
0 0 ÷ 20 Minimum speed when the safety lever is pressed.
Traction Sets:
Ref 0: #.# [V]
0.5 0.0 ÷ 5.0 Minimum voltage of the potentiometer when released.
Traction Sets:
Ref FW: #.# [V]
12.0 0.5 ÷ 13.0 Maximum voltage of the potentiometer in forward speed when safety
lever is pressed.
Traction Sets:
Ref BW: ## [V]
12.0 5.5 ÷ 15.0 Maximum voltage of the potentiometer in backward speed when safety
lever is pressed.
Traction Sets:
Ref DB: 0.### [V]
0.200 0.000 ÷ 0.500 Potentiometer dead band
Traction Sets:
Brake Del: #.# [S]
0.0 0.0 ÷ 10.0 Engaging time of electronic brake when the machine is stop - NOT
USED.
Traction Sets:
Mode1 V: ## [%]
80 10 ÷ 100 Maximum speed reduction with the input Mode 1 activated - NOT
USED.
Traction Sets:
Mode1 I: ## [Amp]
25 5 ÷ 45 Motor Current limit with the input Mode 1 activated - NOT USED.
Traction Sets:
Runaway: ### [Volt]
20 0 ÷ 20 Parameter not managed.
Traction Sets:
optional3: ##
0 0 Parameter not managed.
Traction Sets:
optional2: ##
0 0 Parameter not managed.
Traction Sets:
optional1: ##
0 0 Parameter not managed.
Traction Sets:
I Max: ## [Amp]
25 10 ÷ 45 Maximum output from the main card to the traction motor.
Traction Sets:
I Nom: ## [Amp]
15 5 ÷ 15 Rated Current; with T Nom detect the amperometric protection
threshold. (Alarm + stop traction motor).
Traction Sets:
T Nom: ## [s]
10 1 ÷ 10 Rated Timer; with I Nom detect the amperometric protection thresh-
old. (Alarm + stop traction motor).
Page 65
5-65
Check / Monitor
Check / Monitor:
I Tr: ### [Amp]
Show current of traction motor (IMx BT only)
Check / Monitor:
I Br: ## [Amp]
Show current of brush motor .
Check / Monitor:
I Vac: ## [Amp]
Show current of vacuum motor .
Check / Monitor:
V Tr: #### [V]
Show voltage of traction motor (IMx BT only).
Check / Monitor:
V Batt: #### [V]
Show battery voltage.
Check / Monitor:
Vref: #.# [V]
Show the voltage reference of the potentiometer (IMx BT only).
Check / Monitor:
Wtr Pump: ### [%]
Show % speed of water pump.
Check / Monitor:
Det Pump: ### [%]
Show % speed of chemical pump.
Check / Monitor:
BR Temp: ## [C]
Show temperature inside of main card, related to brush/vacuum.
Check / Monitor:
TR Temp: ## [C]
Show temperature inside of main card, related to traction (IMx BT only).
Check / Monitor:
TR Ovrld: ### [%]
Show the percentage value of the amperometric protection of traction motor (when 100%
the amperometric protection cuts the current).
Page 66
5-66
5.15 Technical Features
TECHNICAL DESCRIPTION U/M IMx BB IMx B IMx BT
Dimension of Battery compartment (l x L x h) mm 353x333x250
Batteries Rated Voltage
V
Ah
2x(12/77)
Maximum batteries weight (battery 12V 77Ah) kg 2x26,5
5.16 Recommended Spare Parts
iMx
PN Description BB B BT
412123 HOSE FASTENING SPRING D=38 ABS
√ √ √
437657 CHARGER NE286 24V 11A
√ √ √
210516 COMPLETE KEY SWITCH (ELFI D.22)
√ √
436267 CONTROL CARD
√ √
438057 MAIN CARD IMX COD.7CFS0000
√ √
438158 POTENTIOMETER
√
407578 DOUBLE REMOTE CONTR SW. 24V 100A SW84-P
√
407580 RELAY FINDER 65.31 30 A, 24 V SUCT. MOT.
√
409607 FUSE 30A
√
409612 FUSE 50A
√
426356 ELECTRONIC HOURMETER D=51,5 L=49
√
438351 SWITCH BLACK 16A FASTON 6.3
√
438352 SWITCH 16A FASTON 6.3
√
434431 SWITCH ON-MOM 645H/2 10A 250V
√
Page 67
6-67
Chapter 6
Mechanical Rubbing System
6.1 Structure
1. Motor
2. Bumping Wheel
3. Brush Base
4. Brush bushings
5. Adjustment system
6.2 Description
The washing function of the machine
is obtained by the interaction of the
cleaning solution with the dirt present
on the floor. To facilitate and enhance
this interaction, is used a system of
mechanical rubbing which consists in
a device which rubs on the floor. This
device can be of various nature (pad
or brush), in each case, its function is
to mechanically remove the dirt from
the ground and facilitate the reaction
between the dirt and cleaning solution. A direct current electric motor
connected to a case of gear reduction
provides the rotational movement of the
brush coupling flange. To the flange is
coupled the brush (or the pad holder
provided with pad) that rotates together
with the flange. After lowering the base
to the ground, the brush touches and
rubs on the floor providing the desired
mechanical rubbing.
67
Page 68
6-68
6.3 Adjustments
6.3.1 Adjustment system
The base must be free to move pivoted to
its support so that the brush acts parallel to the floor.
This allows the brush to evenly lean
to the ground and perform its function
properly.
Requirements: mounted brush, switched
off machine.
Procedure:
• Hook the brush to the base.
• Adjust the knob for the direction ad-
justment (see fig. 6.3.1-5) and the tilt adjusting screw (see fig. 6.3.1-6) so that the
brush lies uniformly and parallel to
the floor.
6.3.1-5 Directionality 6.3.1-6 Tilt
6.4 Maintenance and
checks
6.4.1 Motor
Checks:
The motor should rotate evenly and
smoothly. It’s important that the reduction case is not noisy and that the motor
current consumption is not higher than
the declared on the plate, regardless of
the load which it is subjected. It is necessary that the motor carbon brushes
are always in good condition and show
no signs of abnormal wear.
Maintenance:
Motor carbon brushes replacement:
Procedure:
• Secure the machine.
• Remove the base from the machine.
• Loosen the screws that secure the
collar brush guard. (see fig. ??)
• Unscrew the Carbon brushes connector from the input power line to
the motor. (see fig. ??)
Page 69
6-69
• Replace the carbon brushes being
careful not to ruin them during assembly. (see fig. ??)
• Proceed to the reverse operations to
reassemble it all.
6.4.2 Brass bushings
Checks:
The brass bushings allow a fluid and
little tiring rotational movement of the
base. To prevent the base is locked in a
position without the possibility of movement, is important that the brass bushings are in good condition and clean. In
case of excessive wear it is necessary to
proceed with the replacement.
Maintenance:
Brass bushings replacement:
Procedure:
• Secure the machine.
• Remove the screws that secure the
base to the machine body.
• Remove the base from the machine.
6.4.2-7 Base fixing screws 6.4.2-8 Base fixing screws
• Remove the bushings and replace
them with new bushings.
• Proceed to the reverse operations to
reassemble it all, sprinkle the new
bushings with lubricating grease before mounting.
• Adjust to the base once finished.
Page 70
6-70
6.4.3 Bumping Wheel
Checks:
The bumping wheel (see fig. ??) must be free
to rotate and its diameter must not be
too small due to wear. A bumping wheel
in poor condition can lead to cracking of
the brush base when working skimming
some obstacles (walls, shelving, etc).
If necessary, replace it (see section 4.2.6 at page
25).
6.4.4 Brushes Base
Checks:
The basement must be kept clean and
intact. A ruined basement may be dangerous to the machine and the operator
that uses it.
If necessary, replace it (see section 4.2.6 at page
25).
6.4.5 Brush coupling flange
Checks:
The brush coupling flange is of plastic material and is not subject to particular wear. Like the other components its cleanliness is essential to allow the brush to engage and disengage
smoothly. ’It is also essential that the
brush locking spring has full functionality in order to keep the brush in the
correct position. If necessary, replace it
(see section 4.2.6 at page 25).
6.4.6 Fixing and adjustment
plate
Checks:
The fixing plate (see fig. ??) must be in
good condition, must not show signs of
corrosion or deformation. An incorrect
fixing and adjustment plate does not
allow the entire Mechanical Rubbing
group to work properly.
Page 71
6-71
6.5 Technical Features
TECHNICAL DESCRIPTION U/M IMx BB IMx B IMx BT
Working width mm 508 508 508
Working capacity, up to m2/h 2032 2032 2032
Number of brushes Nr 1 1 1
Maximum diameter of the active part of the brush φ mm 508 508 508
Brush turns rpm 166 166 166
Brush motor voltage V 24 24 24
Brush motor power W 500 500 500
Max weight on brush kg 25 25 25
6.6 Consumable Spare Parts
PN Bristle type φ Bristle (mm) Bristle colour φ Brush (mm) Description
404654 PPL 0.3 Blue 508 BRUSH PPL 0.3
405631 PPL 0.6 White 508 BRUSH PPL 0.6
404653 PPL 0.9 Black 508 BRUSH PPL 0.9
405632 ABRASIVE 0.9 - 560 BRUSH TYNEX
405527 - - - 500 PAD HOLDER
Carbon Brushes
422462 - - - - BRUSH MOTOR CARBON BRUSHES
6.7 Recommended Spare parts
iMx
PN Description BB B BT
223301 GEAR MOTOR 24V 500W 140RPM H2O W/MOLEX
√ √
436120 BASE BUMPER WHEEL D=100 H=20
√ √
437859 BRUSH FLANGE
√ √ √
438300 GEAR MOTOR 24V 500W 140RPM THREADED SHAFT.
√
Page 72
7-72
Chapter 7
Drying System
7.1 Structure
1. Squeegee
2. Squeegee adjustment
3. Vacuum Hose
4. Recovery Tank
5. Filter and Floating
6. Vacuum Manifold
7. Vacuum Motor
7.2 Description
The machine dries the floor using an integrated Drying System. After the washing, the solution used with the mechanical action of the brush to remove the
dirt, is collected by a system which vacuum it out from the floor. The system
is basically made by a vacuum motor
which produces an underpressure in the
system. This underpressure causes an
air flow which flows in the whole vacuum circuit. The air that flows in the
squeegee (when it is lowered on the floor)
allows it to collect the water on the floor
mixing it with the water and, via the vacuum system, is brought to the recovery tank. In the recovery tank the water mixed with the dirt stops and the
air keep flowing throughout the circuit
reaching the vacuum motor and being
discharged in the environment via the
exhaust manifold.
72
Page 73
7-73
7.3 Adjustments
7.3.1 Squeegee Support
The Squeegee Support has to be adjusted with the Squeegee fitted on, lowered on the floor and vacuum system on.

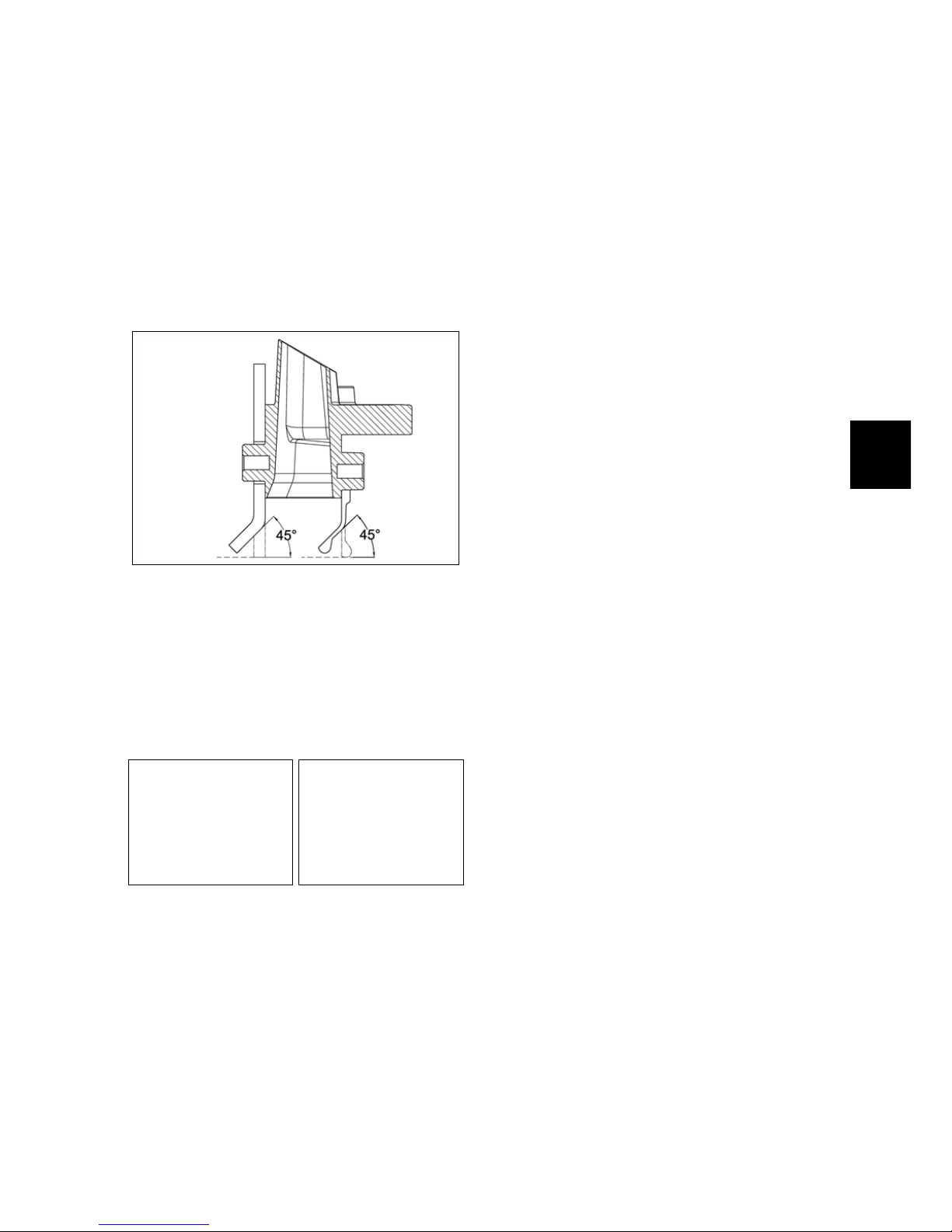

The goal of the adjustment is to let the
squeegee blade be angled 45 degrees to
the floor for its whole length.
To obtain the proper squeegee adjustment act on the wing nuts to adjust the
wheels of the squeegee support to obtain
the proper height of the squeegee from
the floor (see fig. 7.3.1-9) and the inclination
screw to let the blade be bended equally
for its whole length (see fig. 7.3.1-10).
7.3.1-9 Height/Pressure 7.3.1-10 Inclination
Procedure
• Put the machine in safe conditions.
• Lower the squeegee on the floor.
• Act on the wheel nuts (see fig. 7.3.1-9)
until the wheels are lifted 1,5 mm
(±0,1mm eventually help the adjustment with a spacer of that thickness).
• Act on the inclination screw (see fig.
7.3.1-10) in order to let the blade be
equally angled for its whole length.
• Check the obtained adjustment with
a functional test.
Page 74
7-74
7.4 Maintenance and
Checks
7.4.1 Squeegee
Checks
To have a good performance of the
squeegee the blades have to be in a good
conditions. The squeegee chamber and
the squeegee adapter have to be clean
and completely free from debris. Blades
have to adhere perfectly to the squeegee
body and have to be kept in that position by the plastic blade holder which
are kept by the plastic wing nuts.
Maintenance
• Put the machine in safe conditions.
• Remove the squeegee from the ma-
chine
• Rotate the wing nut that block the
blade holders (see fig. 7.4.1-11)
• Remove the blade holder (see fig. 7.4.1-12)
• Remove the front blade and replace
it with a new one (see fig. 7.4.1-13)
• Repeat the same operations for the
rear blade. The rear blade can be
used 4 times (one for each edge) before being replaced.
• Proceed at reverse to reinstall properly the blade holders.
7.4.1-11 Front Rubber 7.4.1-12 Front Rubber
7.4.1-13 Front Rubber 7.4.1-14 Rear Rubber
7.4.1-15 Rear Rubber 7.4.1-16 Rear Rubber
7.4.2 Squeegee Support
Checks
The squeegee support has to be completely free to move to lie perfectly on the
floor. It is important that it can rotate
freely and it is properly pressed on the
floor by the gas spring.
Page 75
7-75
Maintenance
• Put the machine in safe conditions.
• Remove the squeegee from the
squeegee support (see fig. 7.4.2-17), (see sec-
tion 4.3.1 at page 26).
7.4.2-17 Squeegee Removal
• Remove and replace the squeegee
support wheels loosing the adjustment wing nuts (see fig. 7.4.2-18) and the
squeegee wheels screws (see fig. 7.4.2-19),
(see section 4.3.4 at page 27)
7.4.2-18 Adjustment
Wing Nut Removal
7.4.2-19 Blocking Screw
Removal
• Proceed at reverse to reinstall the
parts.
• During the assemblying lubricate
the squeegee support eyelet.
• At the end of the assemblying perform the proper squeegee adjustment (see fig. 7.3.1-9), (see fig. 7.3.1-10)
7.4.3 Vacuum Hose
Checks
The vacuum hose has to be clean and
intact (see fig. 7.4.3-20), (see fig. 7.4.3-21). It is
mandatory that the hose has no crack to
not decrease the underpressure. To verify the vacuum hose goodness turn on
the vacuum motor and block the lower
part of the hose with the hand, in this
way there must be no air passage.
7.4.3-20 Vacuum Hose 7.4.3-21 Vacuum Hose
7.4.4 Filter and Floater
Checks
The filter has to be clean and it is important that nothing blocks or reduces the
floater mobility. The filter has to be clean
to avoid that water or dirt goes inside the
vacuum motor, the floater has to be free
to move and has to block completely the
air flow when it is in blocking position
(UP).
Maintenance
• Put the machine in safe conditions.
• Check that the recovery tank is com-
pletely empty.
• Remove the Recovery tank lid (see fig.
7.4.4-22).
• Loose the filter protection and remove the filter (see fig. 7.4.4-23), (see fig.
7.4.4-24). Verify that the filter ball is
free to move and intact.
Page 76
7-76
• Remove and clean (replace if necessary) the filter.
7.4.4-22 Recovery Tank
Lid
7.4.4-23 Filter Cup
7.4.4-24 Ball Filter
7.4.5 Recovery Tank
Checks
The recovery tank has to be clean and
has not to have cracks or, in general, any
kind of damage. The Lid housing has to
be even and flat to allow the gasket to adhere perfectly to the tank to avoid any air
infiltration. The hose fittings have to be
in optimum condition in order to avoid
any dirty water leakage or any pressure
drop during the job.
7.4.6 Vacuum Motor
Checks
The vacuum motor with the inlet completely open has to absorb between 13
and 18A. The motor carbon brushes
have to be in good conditions and their
length has to be no lower than 6-8mm.
The motor contacts have to be clean,
they have not to be oxidized or have any
kind of damage. The motor wires insulation has to be flexible and intact to avoid
7.4.5-25 Vacuum Cover 7.4.5-26 Recovery Tank
7.4.5-27 Vacuum Hose 7.4.5-28 Vacuum Hose
7.4.5-29 Drain Hose
any possible short circuit. The magnetic
circuit of the motor has to be in good
conditions and clean.
Maintenance
• Put the machine in safe conditions.
• Disassemble the motor from the ma-
chine (see section 4.3.10 at page 29).
• Remove the cooler fan plastic cover
from the motor (see fig. 7.4.6-30).
7.4.6-30 Plastic cover removal
Page 77
7-77
• Slip off the motor carbon brushes (see
fig. 7.4.6-31)
7.4.6-31 Carbon brush removal
• Replace the worn out carbon
brushes with new ones.
• Proceed at reverse to restore the
parts.
7.4.7 Drain Hose
Checks
The Drain Hose has to be perfectly fitted
in the recovery tank fittings. The Drain
Cap (see fig. 7.4.7-32) has to seal perfectly
the hose to avoid any pressure drop or
dirty water leakage. The Drain Flexible
Manifold (see fig. ??) has to be flexible and
has to have no cracks to avoid any break
down during the bending to drain the
machine.
7.4.7-32 Drain Hose
Page 78
7-78
7.5 Technical Features
TECHNICAL DESCRIPTION U/M IMx BB IMx B IMx BT
Squeegee width mm 705 705 705
Vacuum Motor Stages Nr 2 2 2
Squeegee adapter type Vertical Vertical Vertical
Vacuum Motor Power W 310 310 310
VAcuum Motor Voltage V 24 24 24
Vacuum Motor Depression mmH2O 610 610 610
Recovery Tank l 37 37 37
7.6 Consumable Spare Parts
iMx
PN Description BB B BT
219451 KIT SQUEEGEE BLADES 33 SHORE
√ √ √
219452 KIT SQUEEGEE BLADES 40 SHORE PU
√ √ √
219453 KIT SQUEEGEE BLADES LATEX
√ √ √
438487 WHEEL
√ √ √
Carbon Brushes
424210 VACUUM MOTOR CARBON BRUSHES
√ √ √
7.7 Recommended Spare Parts
iMx
PN Description BB B BT
436120 BUMPER WHEEL D=100 H=20
√ √ √
430957 STRAINGHT ADAPTER D=40
√ √ √
438262 GAS SPRING 100N L=274
√ √ √
223322 VACUUM MOTOR ASSY MOLEX
√ √
223250 VACUUM MOTOR ASSY ANDERSON
√
433652 FLOATER PROTECTION D.110 x 182
√ √ √
412363 CARTRIDGE FILTER ASSEMBLY D=60 H=130
√ √ √
434151 HOSE D.38X815 D.50 W/CAP
√ √ √
437956 HOSE D.38X1200
√ √ √
Page 79
8-79
Chapter 8
Machine Frame and Traction System
8.1 Structure
1. Frame
2. Front Wheels
3. Parking Brake Lever (IMx BT only)
4. Traction Motor (IMx BT only)
8.2 Description
The frame is a single structure on which
are coupled the traction system (only
IMx BT) and the tanks group. In the IMx
B and BB models the machine traction is
ensured by the mechanical friction system; in the IMx BT version the machine
traction is given by the electric motor installed in conjunction with a reduction
gear, whose output shafts act directly on
the machine front wheels, ensuring traction. All models are fitted with mixed antiskid / non-marking wheels. The IMx
BT model has a parking brake that acts
on the traction wheels through a control
lever (see fig. 8.3.1-33) situated in proximity of
the right front wheel.
79
Page 80
8-80
8.3 Adjustments
8.3.1 Parking Brake Lever (IMx
BT only)
The lever (see fig. 8.3.1-33) have to be adjusted to ensure the proper arrest of the
machine once it is fully pressed on the
drive wheel.
8.3.1-33 Parking Brake
Lever
Procedure
• Secure the machine.
• Unscrew the adjusting nut, so as
to appropriately increase or decrease
the run of the buffer.
• Check the correct operation of the
parking brake.
• Lock the adjusting nut.
8.4 Maintenance and
Checks
8.4.1 Wheels
Checks
The wheel must be free to rotate
smoothly without friction. The wheel
surface, must always be in good condition.
Maintenance
Periodically check the condition of the
bearings and bushings of the wheels. If
necessary, replace the part (see section 4.4.1
at page 32).
8.4.2 Traction Motor (Only IMx
BT model)
Checks
During normal driving, the power consumption must be between 3 and 5
Amps.
ATTENTION: At the start, the power
consumption of the motor is much
higher.
The carbon brushes of the traction motor must be at least 6-8 mm long. The
insulation of the motor supply cables
should be complete in every part and
show no signs of cracks. The cables
must be flexible. When lifting the machine to put the front wheels in neutral
by spinning a wheel (in any sense) the
other must turn in the opposite direction.
Page 81
8-81
Maintenance
Replacement of traction motor Carbon
Brushes:
Procedure:
• Secure the machine.
• Remove the traction unit from the
machine (see section 4.4.3 at page 32).
• Mark the correct positioning of the
motor hood before proceeding in the
operation
8.4.2-34 Motor Hood Positioning
• Remove the plastic side covers and
unscrew the screws that secure the
hood to the motor (see fig. ??),(see fig. 8.4.2-
35) .
8.4.2-35 Side Covers 8.4.2-36 Fixing Screws
• Remove the connectors that fix the
carbon brushes to the mains supply
and remove the carbon brushes from
the body of the hood (do not miss the
compensating ring) (see fig. 8.4.2-37).
• Replace the carbon brushes being
careful not to ruin them during assembly
8.4.2-37 Carbon Brushes
removing
• Proceed to the reverse operations to
reassemble everything.
Page 82
8-82
8.5 Technical Features
TECHNICAL DESCRIPTION U/M IMx BT
Traction motor Voltage V 24
Traction motor Power W 150
Traction motor Consumption at a constant speed
on flat
A 27.6 ± 1
Traction wheel [number / (diameter / width)] Nr / (φ mm / mm) 2/225/64
Traction wheel material Thermoplastic Polyurethane
Traction wheel hardness Sh 80
Maximum forward speed km/h 3.9
Maximum reverse speed km/h 2.1
8.6 Consumable spare parts
iMx
PN Description BB B BT
436222 FRONT WHEEL D=175 d=20 S=60 WITH BEARINGS
√ √
438029 FRONT WHEEL D=175 d=20 S=60 SPLINED HUB
√
427251 WHEEL D=80 L=23
√ √ √
Carbon Brushes
409413 TRACTION MOTOR CARBON BRUSHES
√
8.7 Suggested spare parts
iMx
PN Description BB B BT
223329 TRACTION MOTOR 24V 150W
√
Page 83
9-83
Chapter 9
Cleaning Solution Supply System
9.1 Structure
1. Solution Tank
2. Hoses
3. Water Valve
4. Solution Filter
5. Solenoid Valve
6. Distributor
9.2 Description
The Cleaning Solution Supply System is
made by a tank commonly called solution tank or clean water tank. In this
tank the clean water is mixed with the
detergent to create the cleaning solution
that the machine will use to clean. The
solution is then canalized to the filter
and the water valve. The filter is used
to stop debris that could stuck the hose
system, the water valve is used to adjust
the solution that will fall on the floor (BB
Version) or to allow or stop the liquid delivery (B and BT Version).
Once passed through the water valve
the solution arrive to the solenoid valve
that blocks the delivery when the brush
is not working and allow the flow while
brush works. In the B and BT versions the solenoid valve is electrically
controlled to adjust the solution flow
rate. The end of the solution path is the
distributor that canalizes the flow in the
middle of the brush.
83
Page 84
9-84
9.3 Maintenance and
Checks
9.3.1 Solution Tank
Controls:
The solution tank has to be clean and
intact. It has not to have cracks or any
other kind of damage. Verify, when the
tank is completely filled up, that there
are not leakage. If necessary replace the
Solution Tank. (see section 4.5.1 at page 35).
Figure 9.1: Solution Tank
9.3.2 Hoses
Checks:
Every single hose has to be intact and
has not to be worn out. It is extremely
important that the hoses kept the original flexibility and they haven’t suffered
any chemical reaction with the detergent
used with the machine. If necessary proceed with the replacement of the damaged hoses (see section 4.5.2 at page 36).
9.3.3 Water Valve
Checks:
It is extremely important that when adjusted at minimum the valve blocks
completely the water flow and it is mechanically free to move for its while
stroke.
Figure 9.2: Water Valve
9.3.4 Clean Water Filter
Checks:
The filter has to be periodically cleaned.
When it is fitted on the machine no leakage has to be present. The filter cartridge
has to be intact and has not to present
any anomaly.
Figure 9.3: Clean Water Filter
Page 85
9-85
9.3.5 Solenoid Valve
Checks:
The solenoid valve has to block completely the solution flow when the brush
deck is not working. Viceversa it has to
grant the full flow rate when the brush
deck is working.
Figure 9.4: Solenoid Valve
9.3.6 Distributor
Controls:
The distributor has to be intact and has
to grant the proper solution flow without
any leakage in the gearbox.
Figure 9.5: Distributor
Page 86
9-86
9.4 Technical Features
DESCRIPTION U/M IMx BB IMx B IMx BT
Solution Tank l 41 41 41
Clean Water Filter Plastic cartridge Plastic cartridge Plastic cartridge
Water Valve Steel ball valve Steel ball valve Steel ball valve
Solenoid Valve Standard Proportional Proportional
9.5 Recommended Spare parts
iMx
PN Description BB B BT
222092 FILTER D=23 H=53 PLUG 3/4 WING NUT
√ √ √
424451 GASKET OR 4100
√ √ √
407887 COMPLETE SOLENOID 24V 1/2” ACL 3
√
438407 PROP. SOLEN. 24V 1/2” ACL K1529
√ √
Page 87
9-87
Part IV
Accessories and Add-On
87
Page 88
10-88
Chapter 10
Accessories
10.1 Accessories List
• Splashguard Kit
• Onboard Charger Ki
• Extension Handlebar Kit
10.2 Splashguard Kit -
223227
10.2.1 Description
Even if the solution output is in the middle of the brush, on particular not absorbing kind of floors could be necessary a Splashguard in order to avoid the
dispersing of the solution outside of the
scrubbing path. The Functioning of this
kit is absolutely equal to the other ones
similar to it.
10.2.2 Tools needed for the in-
stallation
• Wrench 8, 10.
10.2.3 Machine Preparation
Before to install the Splashguard kit is
necessary to secure the machine, release
the brush, switch off the machine and
unplug the batteries.
Move the blocking point of the bumper
wheel using the second hole on the
Brush deck frame.
10.2.3-1 Brush release 10.2.3-2 Machine switching off
10.2.3-3 Disconnection of
the batteries
10.2.3-4 Fitting hole for
the Bumper Wheel
Proceed to install the splashguard carter
included in the kit.
88
Page 89
10-89
Installing instructions IMx BT
Identify the holes on the support brackets where there are the water valve and
the parking brake.
10.2.3-5 Parking Brake 10.2.3-6 Parking Brake
fixing hole
10.2.3-7 Water valve 10.2.3-8 Water valve fixing hole
Use the screws included on the kit to
block the carter inside the two support
brackets.
10.2.3-9 Splashguard
Carter positioning
10.2.3-10 Splashguard
Carter positioning
Installing Instructions IMx B/BB
Block the support bracket on the right
hand side of the Solution Tank inside
the predisposition close to the Mechanical Friction System. Then proceed as per
previous section.
10.2.3-11 Support
Bracket Fixing
10.2.3-12 Support
Bracket Fixing
Page 90
10-90
10.3 Onboard Charger Kit
- 223232
10.3.1 Description
The machine is available in ”CB” version which is the version with the built
in charger. Anyway, in a standard machine, the battery charger can be fitted
acting as follow.
10.3.2 Tools needed for the installation
• Phillips Screw Driver.
10.3.3 Machine Preparation
Before to start the kit installation is
mandatory to put the machine in safe
condition. Release the brush, switch off
the machine and unplug the batteries.
10.3.3-13 Brush release 10.3.3-14 Machine switching off
10.3.3-15 Disconnection
of the batteries
10.3.4 Installing instructions
• Remove the squeegee lifting lever.
• Remove the Dashboard.
• Remove the rear dashboard and put
it on a table.
• Remove the battery charger cover
10.3.4-16 Rear Dashboard
removal
10.3.4-17 Charger cover
removal
• Install the battery charger plug cap.
• Cut with an ”X” sign the hole cap
and pass the wires through it.
10.3.4-18 Plug cover installation
10.3.4-19 Fixing screws
pre-installation
• Screw up a couple of threads the
lower fixing screws.
• Put the battery charger on the fixing
lugs.
• Block the lower screws and fix the
upper screws.
10.3.4-20 Battery Charger
fixing
Page 91
10-91
• Connect the battery charger ca-
bles.1:
– Connect the charger power ca-
ble to the cables ”XCB” of the
machine harness.
– Connect the safety contact ca-
bles to the cables ”XCBR” of the
machine harness.
10.3.4-21 Power wires 10.3.4-22 Safety wires
• Install the charger cover.
• Install the rear dashboard.
• Install the dashboard.
• Install the squeegee lifting lever.
1
Refer also to the Electric Scheme
10.4 Extension Handlebar
Kit - 223457
10.4.1 Description
In order to be able to lift the position
of the handlebar, an extensions kit have
been developed. Useful in case the operator is of high stature, to ensure a correct posture, keeping the comfort of use
in working condition.
10.4.2 Tools needed for the in-
stallation
• Medium star tip screwdriver.
• Drill:
– Ø 14
10.4.3 Machine Preparation
Before to install the extensions kit is
necessary to secure the machine. Release the brush,(see fig. 10.4.3-23) switch off
the machine and unplug the batteries(see
fig. 10.4.3-24)(see fig. 10.4.3-25).Proceed to assem-
ble the handlebar extensions.
10.4.3-23 Brush release 10.4.3-24 Machine switching off
10.4.3-25 Disconnection
of the batteries
Page 92
10-92
Installing instructions
• Remove the handle from the machine by unscrewing the screws on
both sides. (see fig. 10.4.3-26)
• Disconnect the connector of the
handlebar microswitch from the
electrical system (Being careful to
keep the connector outside of the
electrical system compartment) (see fig.
10.4.3-27).
10.4.3-26 Handlebar removing
10.4.3-27 Connector
• Remove the Function Dashboard (see
section 4.1.2 at page 17)
• Remove the Rear Dashboard (see section
4.1.6 at page 18)
10.4.3-28 Extensions installation
• Fit the two extensions to the solution tank with the two screws 5x12
passing in the two respective lower
holes. (Pull the connector through
the lower large hole of the extension)(see fig. 10.4.3-28).
• On the handlebar, enlarge the hole
under in the connector’s side, bringing it to 14 diameter.
• Pass the connector through the enlarged hole (see fig. 10.4.3-29).
• Reconnect the connector of the handlebar microswitch to the electrical
system.
• Pulling gently, accompany the connector inside the electrical system
compartment (see fig. 10.4.3-30).
• Install the handle to the supports
with the screws included in the kit
(see fig. 10.4.3-31).
10.4.3-29 Enlarged hole 10.4.3-30 Connector
pulling
10.4.3-31 Handlebar installation
• Restore the Rear Dashboard.
• Restore the Function Dashboard.
Page 93
10-93
10.5 Consumable Spare Parts
iMx
PN Description BB B BT
438058 SPLASHGUARD BAS.L=1406 H=75 IMX 50
√ √ √
Page 94
10-94
Fimap S.p.A.
Workshop Handbook IMX
Fimap S.p.A. Via Invalidi del Lavoro, 1 - 37050 S.Maria di Zevio Verona - ITALY
Tel. +39 045 6060411 - Fax +39 045 6060417
Edition: October 29, 2013
