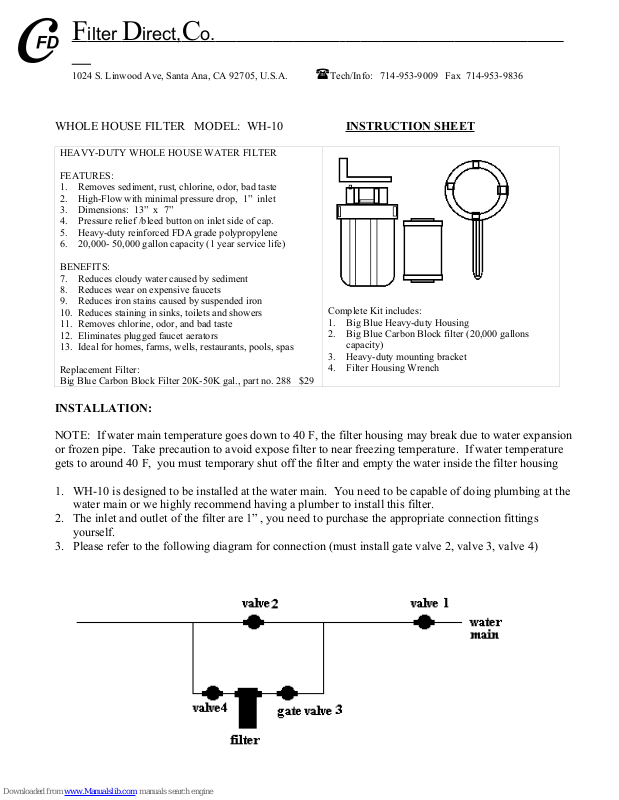

F ilter D irect, C o.
1024 S. Linwood Ave, Santa Ana, CA 92705, U.S.A. Tech/Info: 714-953-9009 Fax 714-953-9836
WHOLE HOUSE FILTER MODEL: WH-10 INSTRUCTION SHEET
HEAVY-DUTY WHOLE HOUSE WATER FILTER
FEATURES:
1. Removes sediment, rust, chlorine, odor, bad taste
2. High-Flow with minimal pressure drop, 1” inlet
3. Dimensions: 13” x 7”
4. Pressure relief /bleed button on inlet side of cap.
5. Heavy-duty reinforced FDA grade polypropylene
6. 20,000- 50,000 gallon capacity (1 year service life)
BENEFITS:
7. Reduces cloudy water caused by sediment
8. Reduces wear on expensive faucets
9. Reduces iron stains caused by suspended iron
10. Reduces staining in sinks, toilets and showers
11. Removes chlorine, odor, and bad taste
12. Eliminates plugged faucet aerators
13. Ideal for homes, farms, wells, restaurants, pools, spas
Replacement Filter:
Big Blue Carbon Block Filter 20K-50K gal., part no. 288 $29
Complete Kit includes:
1. Big Blue Heavy-duty Housing
2. Big Blue Carbon Block filter (20,000 gallons
capacity)
3. Heavy-duty mounting bracket
4. Filter Housing Wrench
INSTALLATION:
NOTE: If water main temperature goes down to 40 F, the filter housing may break due to water expansion
or frozen pipe. Take precaution to avoid expose filter to near freezing temperature. If water temperature
gets to around 40 F, you must temporary shut off the filter and empty the water inside the filter housing
1. WH-10 is designed to be installed at the water main. You need to be capable of doing plumbing at the
water main or we highly recommend having a plumber to install this filter.
2. The inlet and outlet of the filter are 1” , you need to purchase the appropriate connection fittings
yourself.

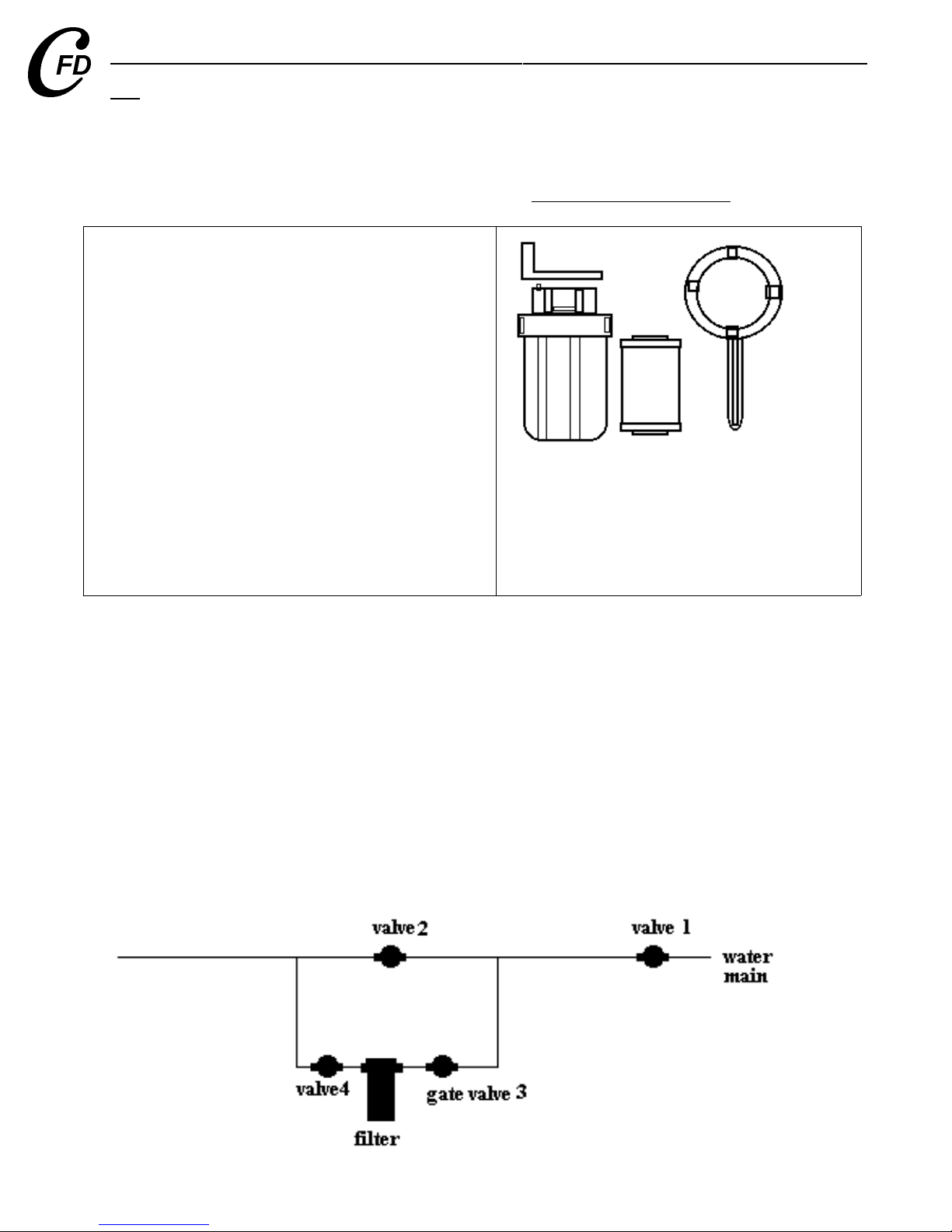

3. Please refer to the following diagram for connection (must install gate valve 2, valve 3, valve 4)
Page 2
GATE VALVE POSITION:
1. Using WH-10 to filter water, position of the gate valves are: Valve 1, Valve 3, Valve 4 OPEN, Valve 2
CLOSE
2. Bypass WH-10 filter, positions of the gate valves are: Valve 1, Valve2 OPEN, Valve 3, Valve 4 CLOSE.
PROCEDURE FOR FILTER REPLACEMENT
1. Turn Valve 3, Valve 4 CLOSE, Valve 2 OPEN
2. Press the pressure relief button (red button on top of filter housing) to release pressure.
3. Use filter wrench to open up the housing.
4. Replace Big Blue Carbon Block filter, (part no. 228)
5. Make sure the O-ring is in place.
6. Screw on the filter housing using wrench
7. Turn on gate valve 3 slowly and observe any leaks.
8. If their is leak from housing, redo procedure #3 to #7
For technical support, please 714-953-9009 or 888-633-7972
