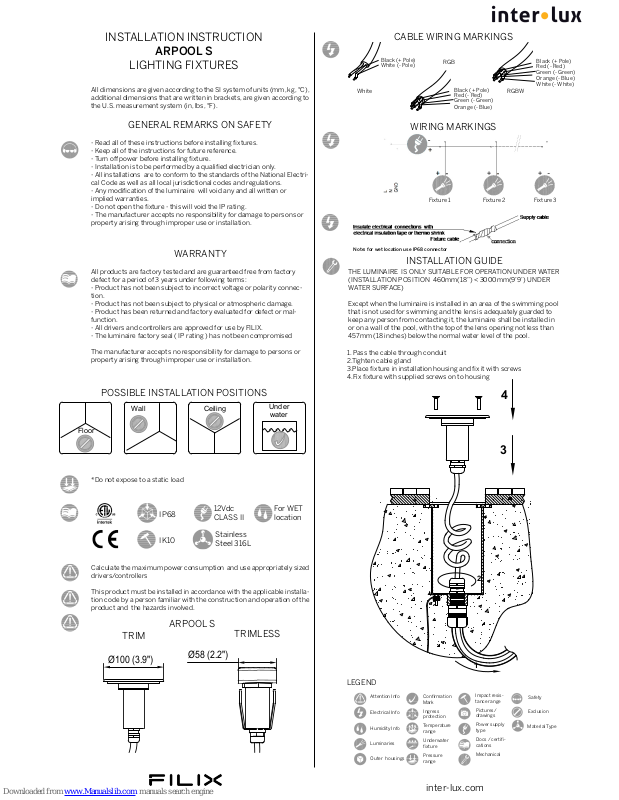

Filix Arpool S Installation Instruction

INSTALLATION INSTRUCTION

ARPOOL S

LIGHTING FIXTURES

All dimensions are given according to the SI system of units (mm, kg, °C), additional dimensions that are written in brackets, are given according to the U.S. measurement system (in, lbs, °F).

GENERAL REMARKS ON SAFETY

- Read all of these instructions before installing ﬁxtures.

- Keep all of the instructions for future reference.

- Turn o power before installing ﬁxture.

- Installation is to be performed by a qualiﬁed electrician only.

- All installations are to conform to the standards of the National Electrical Code as well as all local jurisdictional codes and regulations.

- Any modiﬁcation of the luminaire will void any and all written or implied warranties.

- Do not open the ﬁxture - this will void the IP rating.

- The manufacturer accepts no responsibility for damage to persons or property arising through improper use or installation.

WARRANTY

All products are factory tested and are guaranteed free from factory defect for a period of 3 years under following terms:

- Product has not been subject to incorrect voltage or polarity connection.

- Product has not been subject to physical or atmospheric damage.

- Product has been returned and factory evaluated for defect or malfunction.

- All drivers and controllers are approved for use by FILIX.

- The luminaire factory seal ( IP rating ) has not been compromised

The manufacturer accepts no responsibility for damage to persons or property arising through improper use or installation.

Floor

Wall

Ceiling

Under water

POSSIBLE INSTALLATION POSITIONS

*Do not expose to a static load

12Vdc CLASS II

IP68

IK10

For WET location

Calculate the maximum power consumption and use appropriately sized drivers/controllers

This product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the product and the hazards involved.

Ø100 (3.9")

Ø58 (2.2")

WIRING MARKINGS

Fixture 1 Fixture 2 Fixture 3

Attention Info

Electrical Info

Humidity Info

Luminaries

Outer housings

Conﬁrmation Mark

Ingress protection

Temperature range

Underwater ﬁxture

Pressure range

Impact resistance range

Pictures/ drawings

Power supply type

Docs / certiﬁcations

Mechanical

Safety

Exclusion

Material Type

LEGEND

inter-lux.com

CABLE WIRING MARKINGS

Black (+ Pole) White (- Pole)

Black (+ Pole) Red (- Red) Green (- Green)

Orange (- Blue)

ARPOOL S

Note: for wet location use IP68 connector

INSTALLATION GUIDE

1. Pass the cable through conduit

2.Tighten cable gland

3.Place ﬁxture in installation housing and ﬁx it with screws

4.Fix ﬁxture with supplied screws on to housing

TRIM

TRIMLESS

Stainless Steel 316L

THE LUMINAIRE IS ONLY SUITABLE FOR OPERATION UNDER WATER (INSTALLATION POSITION 460mm(18”) < 3000mm(9’9’) UNDER WATER SURFACE)

Except when the luminaire is installed in an area of the swimming pool that is not used for swimming and the lens is adequately guarded to keep any person from contacting it, the luminaire shall be installed in or on a wall of the pool, with the top of the lens opening not less than 457mm (18 inches) below the normal water level of the pool.

White (- White) Black (+ Pole) Red (- Red) Green (- Green) Orange (- Blue)

White

RGB

RGBW
