Page 1

快速⼊⻔指南

QuickStartGuide

Page 2

English7/12

AboutFiiO

FiiOisahigh-techenterprisefocusingonresearchinganddevelopingportablemusic products,withcurrentmainstayproductsbeingHi-Resmusicplayer,portableheadphone DAC/AMPandheadphones/earphones.

FiiOisspecializedinselfresearchanddevelopment,andsellsFiiO-brandedproducts throughsalesagentsworldwide.Byvirtueofhighqualityproductsandgreatcustomer service,FiiOenjoyshighreputationsintheindustryandhasreceivedcountlesswell-known

awards.

FiiOiscommittedtoitsbrandproposition“ BornforMusic”andceaselesslypursues perfectioninproductdesignandmanufacturing,tosupplyuserswiththebestaudioproducts atthebestprices.

Page 3

English8/12

WearingInstructions

Toidentifytheleftandrightsidesoftheearphoneunitsandcable:L=leftside,R=rightside. Inthecaseofnocharactersigns,the“ blue”markistheleftsideandthe"red"markisthe rightside.

Whenreplacingothercables,pleasechoosecableswiththesametypeofconnectoras thisproduct,soasnottoaﬀectthesoundqualityandexperience.

negativepole

Positivepole

MMCXconnector

Positivepole

negativepole

0.78mm2-pin

Positivepole

Thisproductadoptsover-the-earwearingdesign.Wheninstallingtheearphonecable, pleasemaketheearphoneunitandcableformashapethatcanwraparoundtheear,as shownintheﬁgurebelow.

Whenwearing,gentlyrotateandpresstheearphonesaccordingtothedirectionshownin thepicture.Afterproperlywearing,puttheearphonecableoveryourearandadjustthe earphonesuntilyoufeelcomfortable.

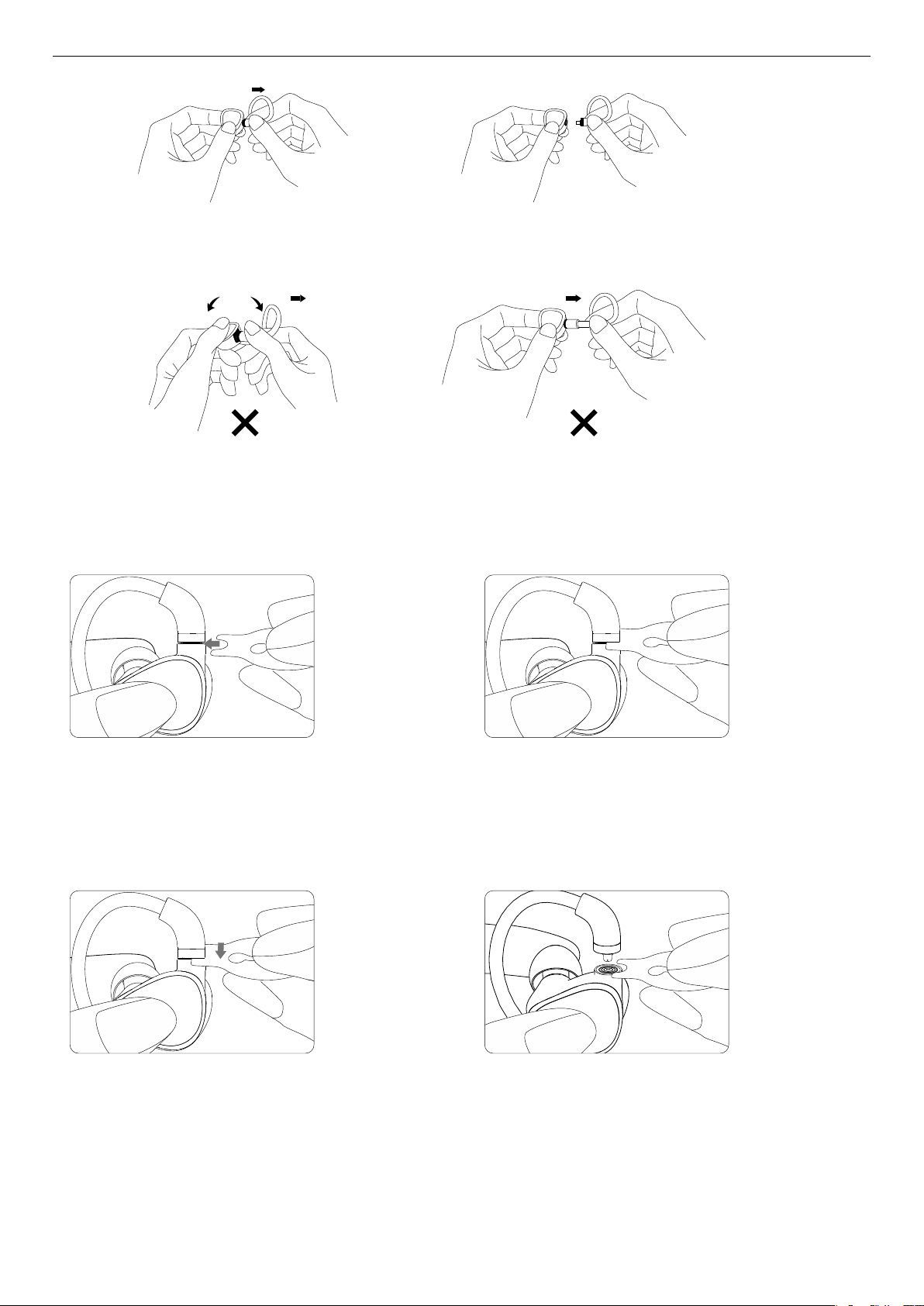

Whenremovingtheearphonecable,holdthecableconnectorandtheearphoneunit tightwithyourﬁngers.Keeptheminthesamelineandthenpullthemapart.Orusethe MMCXassisttooltodetachit(PleaserefertotheinstructionoftheMMCXassisttooltosee howtouseit).Notethatdonotrotatethe0.78mm2-pincable.

Page 4

English9/12

Donotinstallorremovethecableatatiltedangle.Donotpulltheearphonecabledirectly, toavoiditbeingbroken.

Note:Ifitisdiﬃculttoremovetheearphonecable,donotremoveitviolently.Ifnecessary, pleasecontacttheoﬃcialafter-salesstaﬀforassistance.

HowtousetheMMCXassisttool:

①Alignthesemi-circularindentation oftheMMCXassisttooltothegap betweentheconnector'smaleand femalecomponents.

②Ensurethetoolisparalleltothe gapandpositionittowardsthegap betweentheconnector'smaleand femalecomponentsuntilitisinplace.

③Applypressurebypressingdown towardstheotherendofthetool.

Notes: ①Whethertheaccessory/functionisincludedissubjecttotheactualproduct.

②TheMMCXassisttoolshouldonlybeusedforFiiO'searphones. ③AstheMMCXassisttoolisametalproduct,itmayhavethepossibilityofbruisingthe

earphones.Pleasebecarefulwhenusingit.

④Theearphoneunitwillthenbe detachedfromtheearphonecable.

Page 5

English10/12

Instructionforswappableearphoneplug

Whenattachingtheconnector:

①Alignthemaleandfemaleendofthe connector,ensuringthenotchofthemale endisinparallelwiththeraiseddotthat's insidethefemaleend.Plugthemaleend untilitisinanappropriateposition.

Whendetachingtheconnector:

①Rotatethefemaleendinaclockwise manneruntilthefemaleendcanbe pushedfrontandbacktounlockthem.

②Rotatethefemaleendinan anticlockwisemanneruntilitis tighttolockthem.

②Pullthemaleendtodetachthe twoconnectors.(Objectsthatcan generategreaterfrictionliketissues orastripofclothcanbeusedtohelp todetach.)

Notes:Whethertheaccessory/functionisincludedissubjecttotheactualproduct.

NotesandPrecautions

❶Foryoursafety,pleaseavoidusingearphonesindangerousenvironments. ❷Pleaseadjustthevolumetoasuitableleveltoprotectyourhearing. ❸Pleasedonotplacethedeviceinhumidorstrong-magneticenvironmentsforalongtime. ❹Iftheearphonesaretobeleftunusedforalongtime,pleaseunplugitfromtheplaying

device. ❺Pleasedonotdisassembletheearphonesonyourown.

AuthenticityChecking

 Scratchoﬀthecoatingtogeta20-bitsecuritycode.❶

❷Pleaseopenthislink:http://check.ﬁio.com/,andthenenteryour20-bitsecuritycode.

 ❸ Checkingresult:

A.Thesecuritycodeenteredprovestheproductisauthentic. TheproductyoupurchasedisanauthenticproductfromGuangzhouFiiOElectronics TechnologyCo,.Ltd.Thanksforyoursupport!

B.Thesecuritycodeenteredprovestheproductisnotauthentic.

TheproductyoupurchasedisnotanauthenticproductfromGuangzhouFiiOElectronics TechnologyCo,.Ltd.

Page 6

Warranty

English11/12

Producttypes

Onemonthofguaranteefor

Earphoneunits

Accessories exceptforthe earphoneunits (subjecttothe oﬃciallist)

Notes: Theaboveguaranteesstartfromtheissuedateoftheinvoice/receipt.Thesewarranty termsareforreferenceonly.Forspeciﬁcdetails,pleaserefertothewarrntytermsof ourlocalsalesagents.

Accessories

Packagematerials (fragilepartslike thepackingbox)

replacement;oneyearoffree maintenance

Termofservice

N/A

FiiOreservestheﬁnalinterpretationandamendmentfortheabovewarrantytermsand conditions.

Thewarrantyisnullandvoidunderthefollowingcircumstances. --Defectsordamagecausedbyimproperoperationssuchasvibrating,bumping,falling totheground,buckling,tearing,excessivepulling. --Defectsordamagecausedbydisassemblyoftheproductbyuserorunauthorized repairpersonnel. --Defectsordamageforbeingputinhumidenvironments,high-intensitymagneticﬁelds orsoakedintowater. --Defectsordamagecausedbynaturaldisasters. --Unabletoprovidevalidproofsofpurchase.

Note:Man-madedamageisdeterminedbythejudgeofFiiO'smaintenancepersonnel.

ProceduresofAfter-SalesService

❶Pleasecontactthelocaldealerﬁrstonceyouﬁndproblemswiththedevice.Iftheyrefuse togiverelatedafter-salesservices,pleasegivefeedbacktoFiiOSupportbysendingan emailtosupport@ﬁio.com.Wewouldhandleitproperlytoensurecustomers' satisfaction.

❷Forrepairservice,youaresupposedtosendthedefectiveproducttoFiiOwithfreight paid.Afterithasbeenrepaired,wewillsendtheproductbacktoyouwithfreightpaid byFiiO.

❸Itishighlysuggestedtobuyfromlocalauthorizedsalesagentstogetbetter,faster before-andafter-salesservices. ❹Pleasedonotmaintainordismantletheproductonyourownandkeepitawayfrom water.

Page 7

English12/12

❺Forabnormalworkingissuesoranyfurtherquestions,pleaselogintoouroﬃcialwebsite attheSupportareatogetrelatedinformationorsendanemailtosupport@ﬁio.comto consult.

ContactInformationforAfter-SalesService

GuangzhouFiiOElectronicsTechnologyCo,.Ltd. Address:2/F,FBuilding,HougangIndustrialZone,Shigang Village,HuangshiWestRoad,BaiyunDistrict,GuangZhou,China. Postcode:510430 Web:https://www.ﬁio.com Facebook:https://www.facebook.com/FIIOAUDIO

WEEEDirective&ProductDisposal

Attheendofitsserviceablelife,thisproductshouldnotbe handedashouseholdorgeneralwaste.Itshouldbehandedover totheapplicablecollectionpointfortherecyclingofelectrical andelectronicequipment,orreturnedtothesupplierfordisposal.

Internal/SuppliedBatteries

Thissymbolonthebatteryindicatesthatthebatteryistobecollectedseparately.This batteryisdesignedforseparatecollectionatanappropriatecollectionpoint.

ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigital device,pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovide reasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.This equipmentgenerates,usesandcanradiateradiofrequencyenergyand,ifnotinstalled andusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradio communications.However,thereisnoguaranteethatinterferencewillnotoccurina particularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioor televisionreception,whichcanbedeterminedbyturningtheequipmentoﬀandon,the userisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowing measures: —Reorientorrelocatethereceivingantenna. —Increasetheseparationbetweentheequipmentandreceiver. —Connecttheequipmentintoanoutletonacircuitdiﬀerentfromthattowhichthe receiverisconnected. —Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowing twoconditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemust acceptanyinterferencereceived,includinginterferencethatmaycauseundesired operation.
