V70
LED
Viewing Lamp
User Manual
Page 2
Table of Contents
Parts Diagram
Package Contents
Electrical Specifications
Operation
Photometeric Specifications
Safety and Maintenance
1
2
2
2
3
4
Page 3

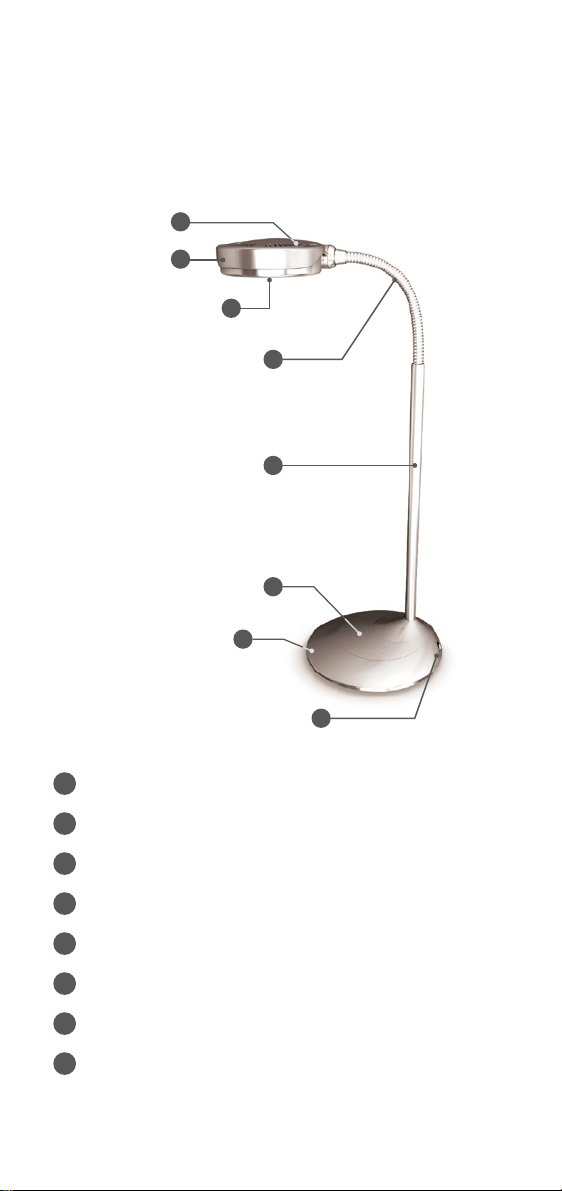

Parts Diagram
A
B
C
D
E
F
G
A
Air Vents
B
Lamp Cover
C
Lens
D
Flexible Arm
E
Stand
F
Touch Pad
G
Base
H
DC Plug
I
H
1
Page 4
Package Contents
V70 LED Desk Lamp
Power Supply
Electrical
Specifications
• V70 LED Desk Lamp
Power Consumption
Input Voltage
• Power Supply
Input
Output
11-13 W Max
24 VDC ± 5%
100-240 VAC 50-60 Hz
24V, 1A max
Operation
1. Insert the DC power plug into the lamp and the AC
power plug into wall outlet.
2. Tap the touch pad to turn V70 on.
3. Tap the touch pad again to change color temperatures.
V70 is programmed to cycle through 3000K, 4500K
and 6000K mode with each tap.
4. Hold the touch pad to adjust the intensity of any color
temperature. V70 has three dimming steps then turns
off for each color temperature. Tap the touch pad again
to return the light to the High intensity setting.
2
Page 5

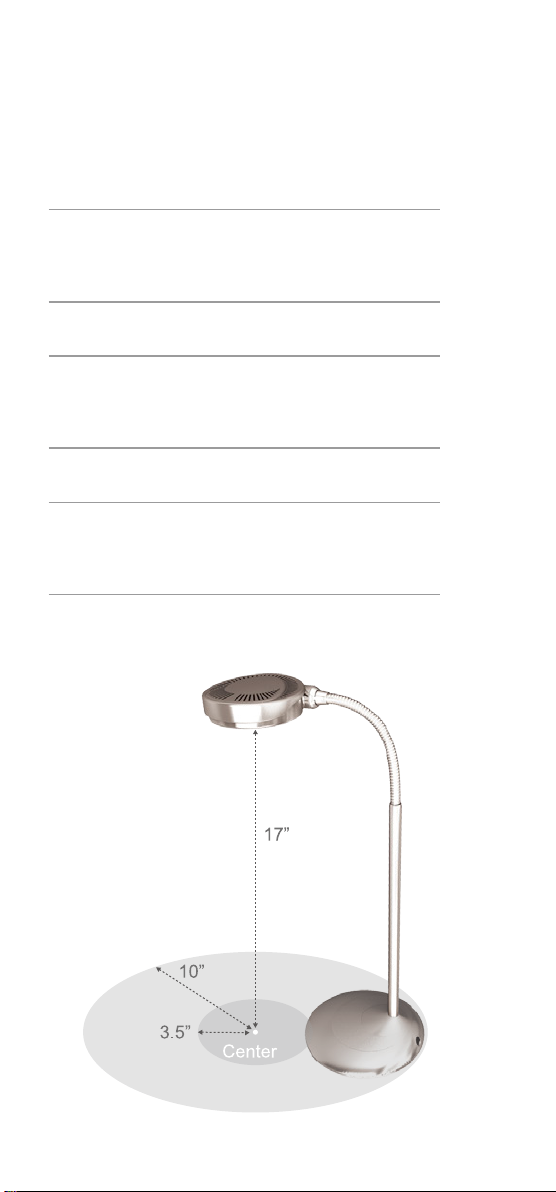

Photometeric
Specifications
High Intensity
Position
Center
3.5”
10”
Medium Intensity
Position
Center
3.5”
10”
Low Intensity
Position
Center
3.5”
10”
CRI values are ≥ 90
3000K 4500K
1250 lux
1130 lux
780 lux
3000K 4500K
950 lux
860 lux
465 lux
3000K 4500K
440 lux
400 lux
215 lux
1385 lux
1285 lux
980 lux
830 lux
770 lux
430 lux
443 lux
400 lux
230 lux
6000K
955 lux
885 lux
700 lux
6000K
665 lux
600 lux
345 lux
6000K
330 lux
300 lux
175 lux
3
Page 6
Safety and
Maintenance
▪ The V70 desk lamp is designed for indoor use only.
▪ Do not attempt to disassemble the lamp body, as this may
damage internal parts and cause electric shock.
▪ Check the AC main voltage before use (between 100-240
VAC at 47/ 63 Hz). Inappropriate voltage will cause
damage to the electronic parts of the lamp and the power
supply.
▪ Strong surrounding radio frequencies may interfere with
the lamp's touch function.
▪ Keep operation temperatures within 0˚C ~ 40˚C.
▪ Use a soft, dry towel to carefully clean the exterior of the
lamp.
▪ Do not use coal oil or corrosive oil on lamp.
▪ Do not expose the product to high humidity.
▪ Keep air vents clear to avoid overheating the lamp.
4
