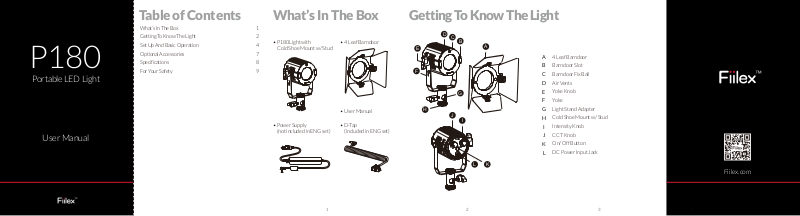

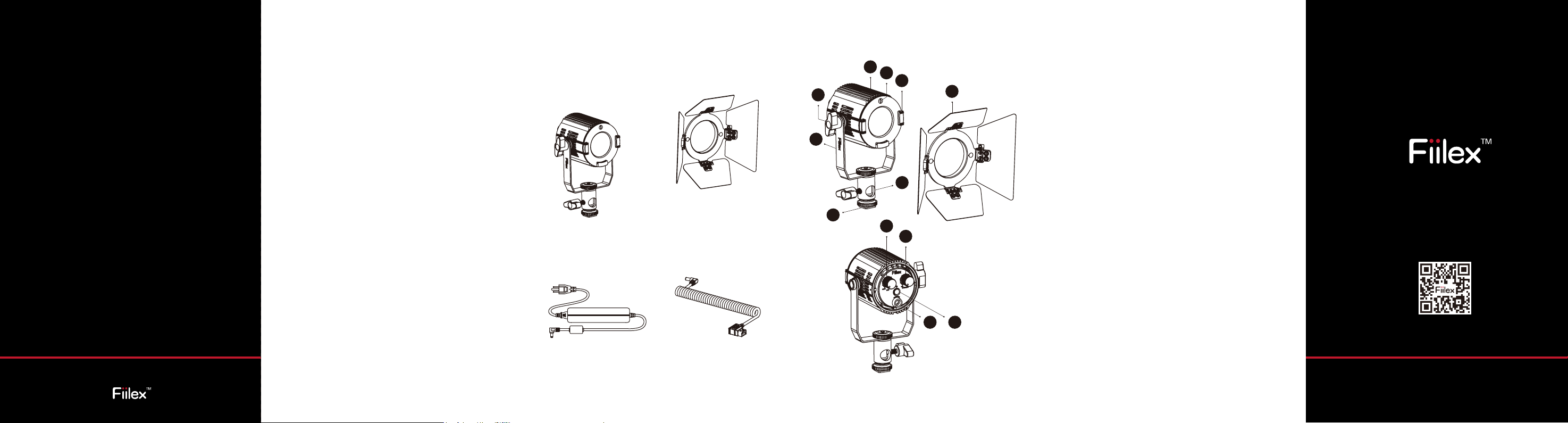

What’s In The Box
Getting To Know The Light
P180
Portable LED Light
User Manual
What’s In The Box
Getting To Know The Light
Set Up And Basic Operation
Optional Accessories
Specifications
For Your Safety
1
2
4
7
8
9
Cold Shoe Mount w/ Stud
• Power Supply
(not included in ENG set)
• 4 Leaf Barndoor• P180 Light with
• User Manual
• D-Tap
(included in ENG set)
E
F
H
D
C
B
G
J
I
A
4 Leaf Barndoor
A
Barndoor Slot
B
Barndoor Fix Ball
C
Air Vents
D
Yoke Knob
E
Yoke
F
Light Stand Adapter
G
Cold Shoe Mount w/ Stud
H
Intensity Knob
I
CCT Knob
J
On/ Off Button
K
DC Power Input Jack
L
KL
Fiilex.com
1
2 3
3
Page 2
Set Up And Basic Operation
Optional Accessories
Specifications
For Your Safety
Fresnel Lens
54

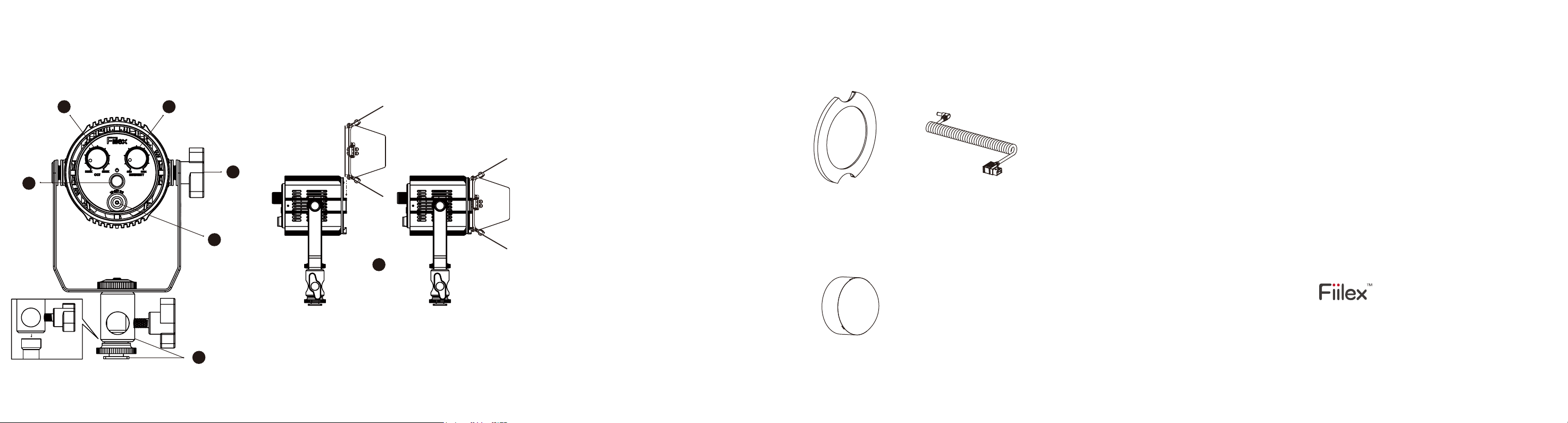

1
Mount Light Stand Adapter (G) to stud on light stand,
tripod, or Cold Shoe Mount(H).
2
Insert the DC Power Plug into DC Power Input Jack (L).
6
3
2
7
1
3
Press the On/Off Button (K) to power on the P180.
4
Adjust the correlated color temperature (CCT) with
the CCT Tuning Knob (J).
Adjust the intensity and dim the light with the
5
Intensity Knob (I).
Loosen the Yoke Knob (E) to install optional Rain
6
Guard or Umbrella Holder.
7
Slide the Barndoor (A) into the Barndoor Slot (B)
until it clicks into place.
654
Dome Diffuser Rain Guard
See website for additional accessories. www.fiilex.com
D-tap Cable
7
Size (without Barndoor)
2.9” x 2.9” x 3.3” / 74.2 x 74.2 x 85mm
Weight (Includes Yoke)
1.2 lb/527g
LED
Dense Matrix LED
Thermal Design
Advanced Vapor Cooling System
CCT Range
Continuous from 3000 - 5600 K
CRI
>90
Power Consumption
40W Max / Comparable in output to 200W Tungsten
Power Input
12 to 24V DC
AC Adapter
100-240V AC, 50-60Hz (In) / 19V DC, 65W Max (Out)
Operating Temperature
- 30 to 40 °C
8 9
•Do not attempt to disassemble the body of the P180.
•Do not install or operate the P180 in a damp or wet area
without the use of rain guard.
•Do not directly cover the side and/or back air vents.
Allow for proper air flow.
•Use only included power supply or optional D-Tap Cable.
Failure to do so may cause damage to the LED light.
•Use only a soft, dry towel to gently clean the exterior of
light when needed.
•Before powering up for the first time, please remove any
or all protective membranes from the light.
