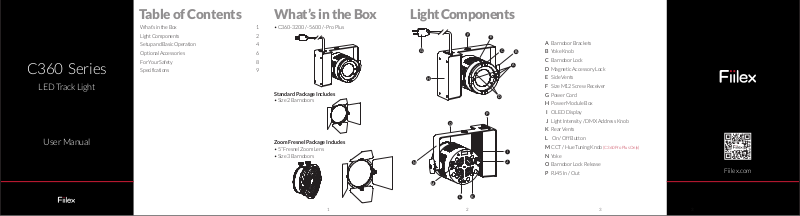

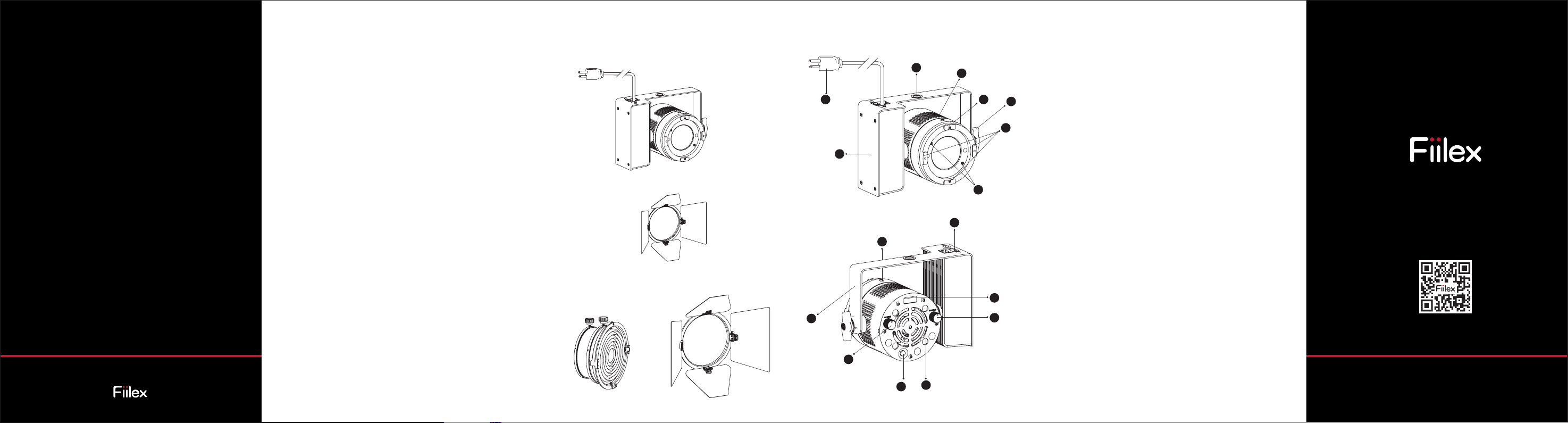

Light ComponentsWhat’s in the Box
C360 Series
LED Track Light
User Manual
What’s in the Box
Light Components
Setup and Basic Operation
Optional Accessories
For Your Safety
Specifications
1
2
4
6
8
9
• C360-3200 / -5600 / -Pro Plus
Standard Package Includes
• Size 2 Barndoors
Zoom Fresnel Package Includes
• 5” Fresnel Zoom Lens
• Size 3 Barndoors
F
G
H
O
N
M
E
A Barndoor Brackets
C
B
A
D
P
I
J
B Yoke Knob
C Barndoor Lock
D Magnetic Accessory Lock
E Side Vents
F Size M12 Screw Receiver
G Power Cord
H Power Module Box
I OLED Display
J Light Intensity / DMX Address Knob
K Rear Vents
L On / Off Button
M CCT / Hue Tuning Knob
N Yoke
O Barndoor Lock Release
P RJ45 In / Out
(C360 Pro Plus Only)
Fiilex.com
K
L
1
2 3
3
Page 2

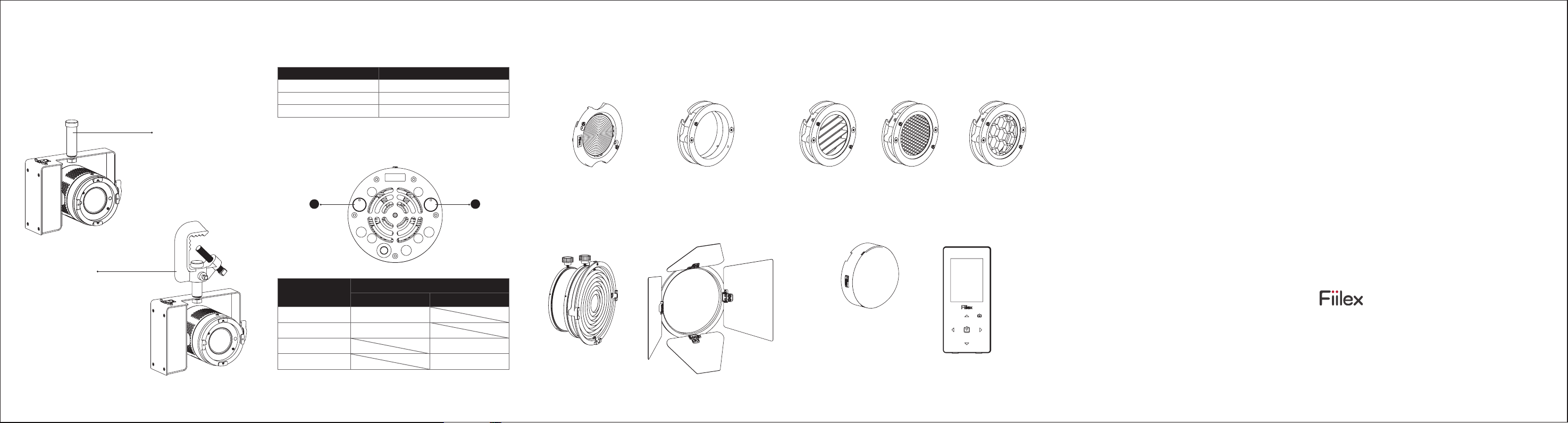

Setup and Basic Operation For Your Safety
Optional Accessories
Specifications
Mounting Options*
Use the size M12 screw receiver on the C360 yoke to
attach the fixture to the desired hanging / mounting
hardware.
M12 Screw
C-Clamp
*Mounting hardware not included with fixture.
Operation Mode Status lndicator
Power Button (I) Color
Red
Green
Yellow
Operation Mode
Off - Local Control
On - Local Control
DMX Control (auto detect)
Local Controls
J
Settings
CCT
Hue
Intensity
DMX Address
Double-Click Knob
Control Knobs
Left (J) Right(G)
Default
G
Default
Double-Click Knob
Fresnel Lens
Snoot Louver Honeycomb N Honeycomb W
5” Fresnel Zoom Lens with Barndoors
654
Dome Diffuser DMX
Controller
For additional accessories go to www.fiilex.com
7
•Do not install the C360 in a damp or wet area.
•Do not attempt to disassemble the body of the C360,
doing so will immediately void the factory warranty.
•Do not submerge C360 in water.
•Do not cover the side or back air vents.
•Only use a soft, dry towel to gently clean the exterior of
the light.
•Make sure to adhere to local building codes when
designing and installing C360 light systems.
•Do not install any luminaire assembly closer than 6
inches from any curtain, or similar combustible
material.
SAVE THESE INSTRUCTIONS!
8 9
Size (without Barndoor and power cord)
W8.2 x H5.7 x T4.1inch/ W209 x H145 x T105mm
Weight (Includes Yoke)
3.1 lb / 1.39 kg
LED
Dense Matrix LED
Thermal Design
Active Cooling (With Fan)
Power Consumption
AC 85W max
Input Voltage
120V AC/60Hz
Operating Temperature
0º to 40ºC / 32º to 104º F
Fiilex.com
1689 Regatta Blvd. Richmond, CA 94804
(510)620-5155 . [email protected]
Information and Specifications in this document are subject to change without notice. DiCon
Lighting, Inc. assumes no responsibility or liability for any error or inaccuracies that may
appear in this manual. Unlawful reproduction or distribution in any manner without the
written permission of DiCon Lighting, is strictly prohibited.
© DiCon Lighting 1996-2017 All Rights Reserved
