FieldServer QuickServer PS-QS-1010, QuickServer PS-QS-1011, QuickServer PS-QS-1510, QuickServer PS-QS-1511 Quick Start Manual

QuickServer Start-up

Guide

PS-QS-1010/1011, PS-QS-1510/1511

APPLICABILITY & EFFECTIVITY

Effective for all systems manufactured after August 2012

Kernel Version: 6.04
Document Revision: 11

QuickServer Start-up Guide

Table of Contents

TABLE OF CONTENTS

1

2

Equipment Set-up

........................................................................................................................................................

4

Supplied

equipment .....................................................................................................................................................

4

1.1

1.2

BTL Mark – BACnet Testing

Laboratory ..........................................................................................................................

4

LonMark

Certification.....................................................................................................................................................

4

3 Mounting

.....................................................................................................................................................................

5

3.1 Dimensions .....................................................................................................................................................................

5

3.1.1

3.1.2

Dimension Drawing

PS-QS-1010/1510-XXXX .........................................................................................................

5

Dimension Drawing

PS-QS-1011/1511-XXXX .........................................................................................................

6

3.2

3.3

Wiring .............................................................................................................................................................................

7

Specifications..................................................................................................................................................................

8

4 Installing the QuickServer

...........................................................................................................................................

10

4.1 RS-485

..........................................................................................................................................................................

10

4.1.1

4.1.2

RS-485 Connection R2

port ...................................................................................................................................

10

RS-485 Connection R1 Port (Only on Non-LonWorks

QuickServers).....................................................................

10

4.2

4.3

4.4

QuickServer LonWorks – (PS-QS-1011/1511-XXX)

......................................................................................................

10

RS-232 (Only available on the PS-QS-1XXX

Models).....................................................................................................

11

Configure the DIP Switches

..........................................................................................................................................

11

4.4.1

4.4.2

4.4.3

Using A0 – A7 to set Node ID/Device

Instance. ....................................................................................................

11

Using B0 – B3 to set Baud Rate

............................................................................................................................

11

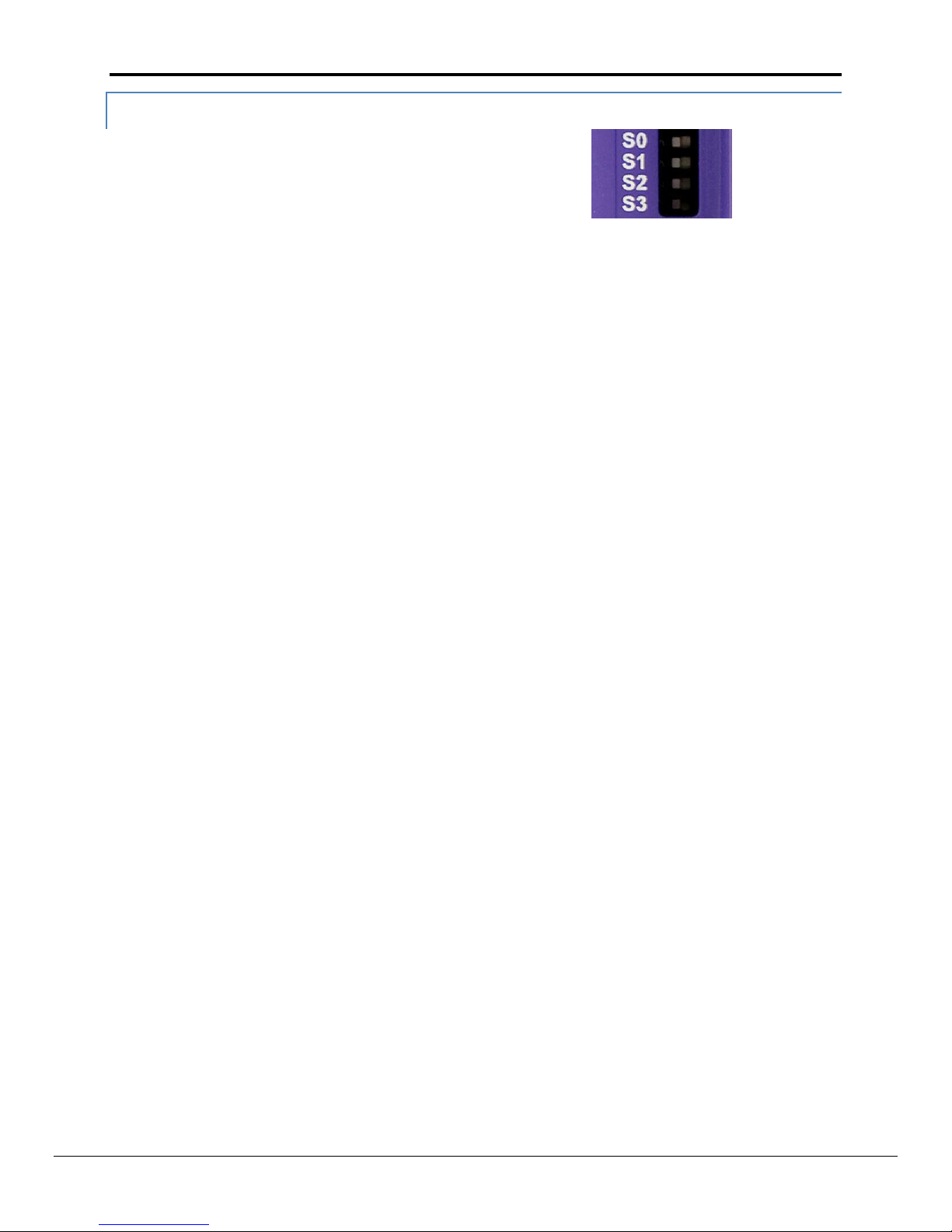

DIP Switches

S0-S3................................................................................................................................................

12

5 Operation .....................................................................................................................................................................

13

5.1

5.2

5.3

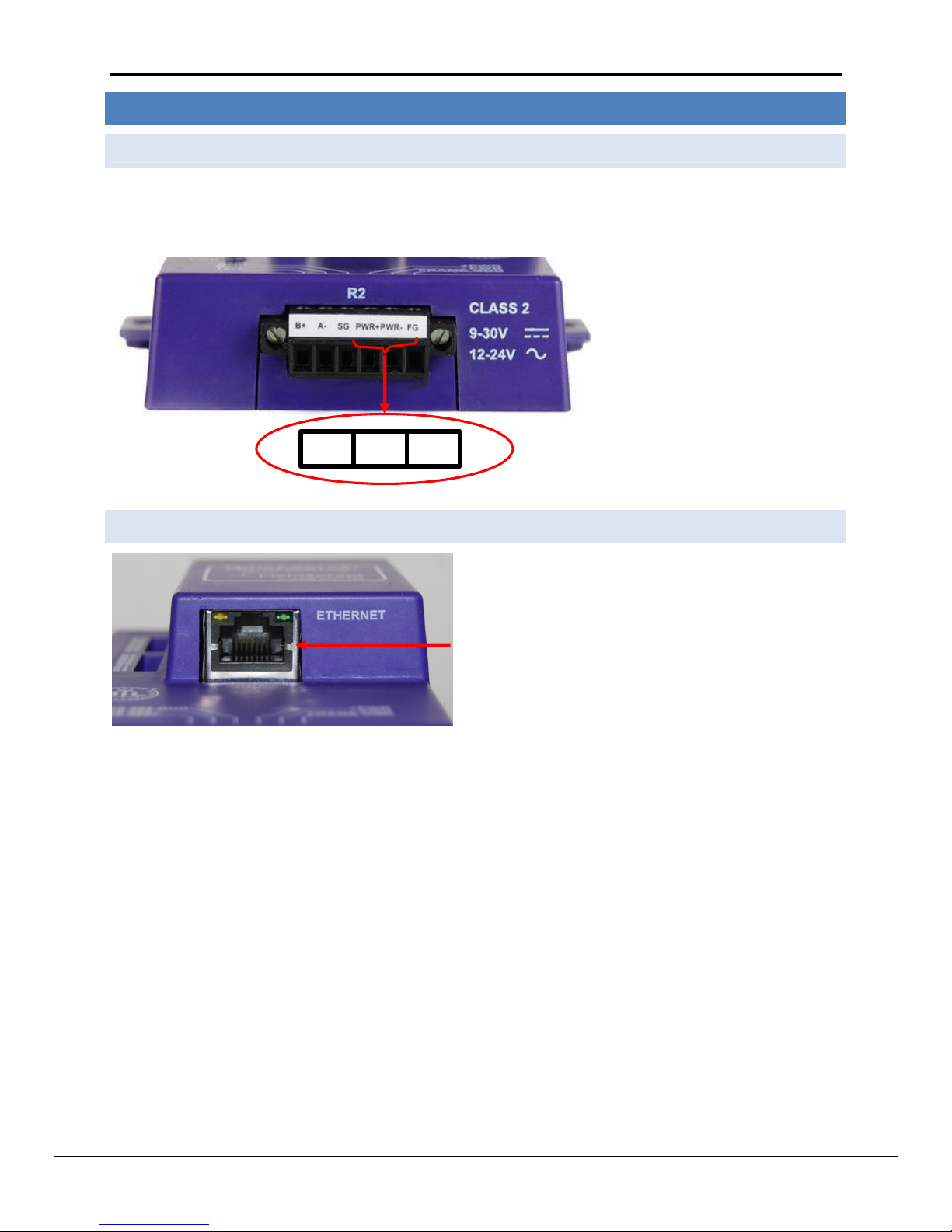

Power up the

device.....................................................................................................................................................

13

Connect the PC to the QuickServer over the Ethernet

port. ........................................................................................

13

Use the FieldServer Web GUI to Connect to the QuickServer

.....................................................................................

14

5.3.1

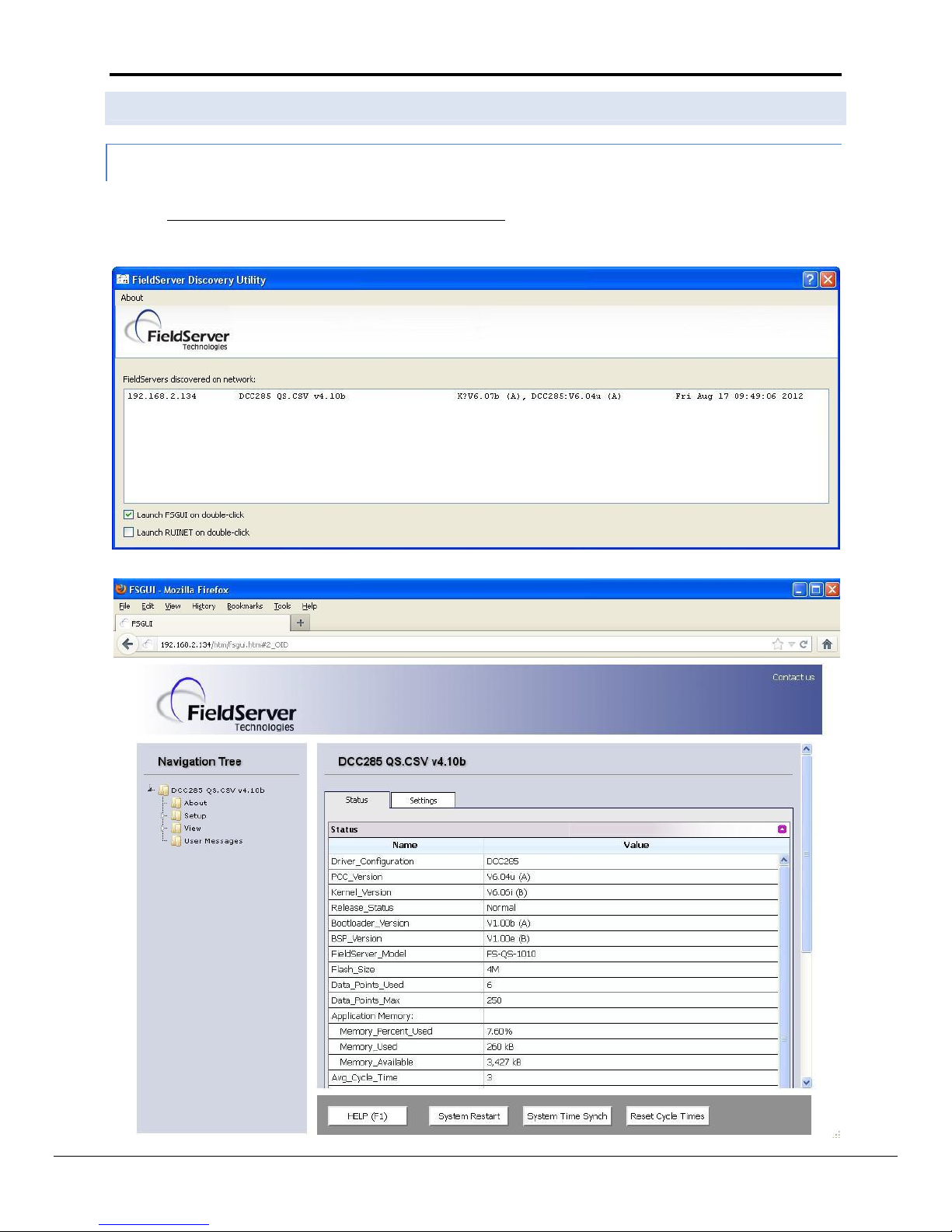

Using the Discovery Tool to Allocate the IP

address:............................................................................................

14

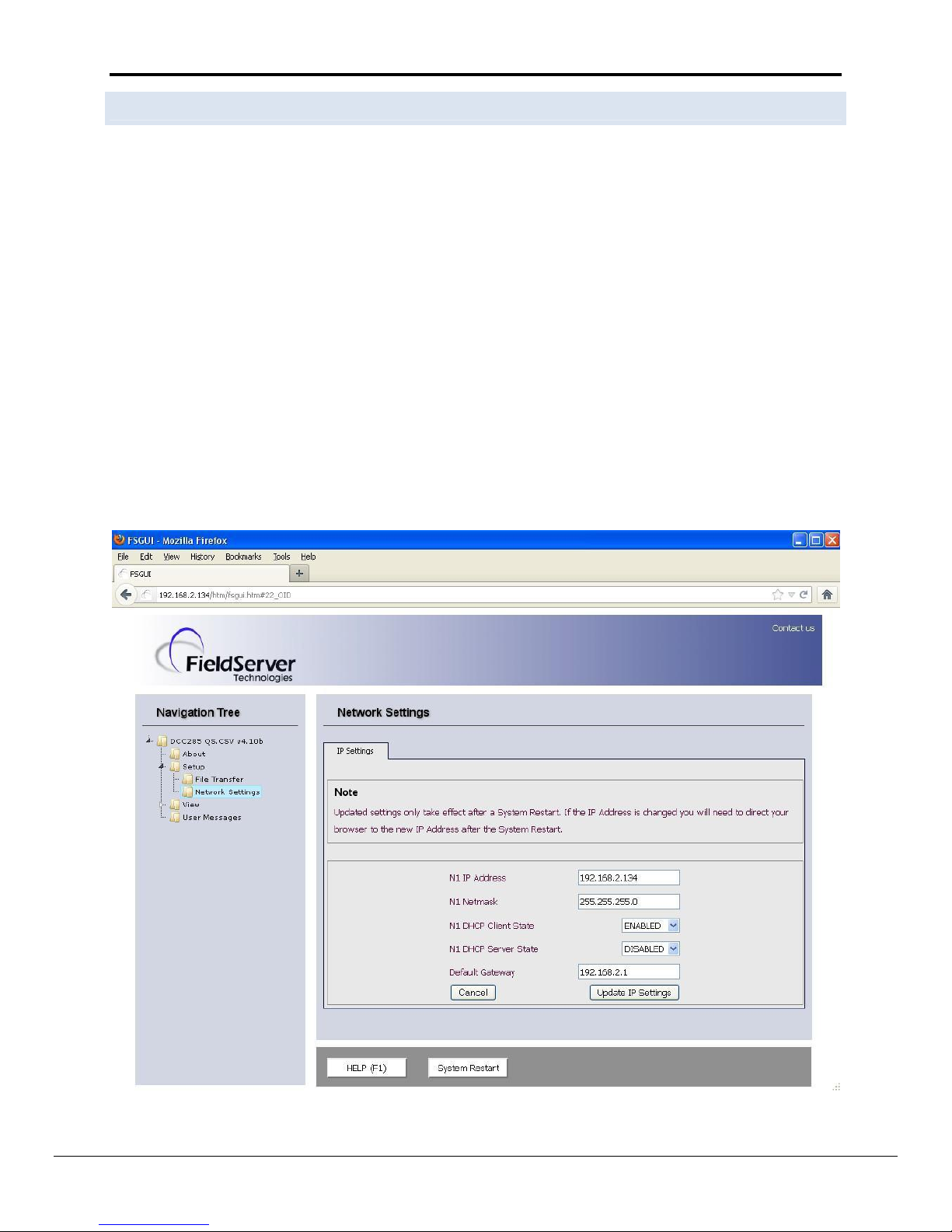

5.4 Set IP Address of the

QuickServer ................................................................................................................................

15

6 Configuring the

QuickServer .........................................................................................................................................

16

6.1

6.2

6.3

6.4

Retrieve the Sample Configuration

File........................................................................................................................

16

Change the Configuration File to Meet the Application

..............................................................................................

16

Load the Updated Configuration

file ............................................................................................................................

17

Test and Commission the

QuickServer .........................................................................................................................

18

Appendix A Useful

Features .................................................................................................................................................

19

Appendix A.1. QuickServer DIP Switch configuration

..............................................................................................................

19

Appendix A.1.1. Configure DIP switches

A0-A7 ....................................................................................................................

19

Appendix A.1.2. Configure DIP switches B0 – B3

..................................................................................................................

19

Appendix A.1.3. Configure DIP switches S0 – S3

..................................................................................................................

20

Appendix A.2. RS-422 (Only available on the FS-QS-12XX models)

.........................................................................................

21

Appendix A.2.1. Connection and Operation of the RS-422

QuickServer ...............................................................................

22

Appendix B Troubleshooting

Tips.........................................................................................................................................

23

App

ProSoft Technology, Inc. is a provider of FieldServer QuickServers. For Technical Support call

+1 661.716.5100

QuickServer Serial and LonWorks Start-up Guide

Table of Contents

Appendix C Limited 2 year Warranty

...................................................................................................................................

24

Appendix D Reference

.........................................................................................................................................................

25

Appendix D.1. PS-QS-1010/1510-XXXX LED’s

...........................................................................................................................

25

Appendix D.1.1. LED

Functions .............................................................................................................................................

25

Appendix D.2. PS-QS-1011/1510-XXXX LED’s

..........................................................................................................................

26

Appendix D.3. QuickServer FS-QS-101X DCC

...........................................................................................................................

27

Appendix D.4. Compliance with UL Regulations

......................................................................................................................

27

Appendix D.5. Address DIP Switch Settings

.............................................................................................................................

28

Appendix D.6. Baud DIP Switch

Settings ..................................................................................................................................

30

ProSoft Technology, Inc. is a provider of FieldServer QuickServers. For Technical Support call

+1 661.716.5100

QuickServer Start-up Guide

Page 4 of 30

QuickServer is a high performance, cost effective Building and Industrial Automation multi-protocol gateway
providing protocol translation between serial, Ethernet, and LonWorks devices and networks.

QuickServer Gateway.

Preloaded with the two selected drivers (on the PS-QS-1011/1500 one of those drivers is
LonWorks). A sample configuration file is also pre-loaded onto the QuickServer.

All instruction manuals, driver manuals, configuration manuals and support utilities are available on the USB
drive provided in the optional accessory kit, or on-line at www.fieldserver.com/QS_Support/

Accessory kit (Optional) (Part # FS-8915-36-QS) including:

7-ft CAT5 cable with RJ45 connectors at both ends

Power Supply -110/220V (p/n 69196)

DIN Rail mounting bracket

Screwdriver for connecting to terminals

USB Flash drive loaded with:

o

o

o

o

o

o
o

QuickServer Start-up Guide
FieldServer Configuration Manual
FieldServer Utilities Manual
All FieldServer Driver Manuals
Support Utilities
Any additional folders related to special files configured for a specific QuickServer
Additional components as required - See Driver Manual Supplement for details

The BTL Mark on the ProtoNode RER is a symbol that indicates to a consumer that a
product has passed a series of rigorous tests conducted by an independent laboratory
which verifies that the product correctly implements the BACnet features claimed in the
listing. The mark is a symbol of a high-quality BACnet product. For more information about
the BACnet Testing Laboratory go to: http://www.bacnetinternational.net/btl/

LonMark International is the recognized authority for certification, education, and
promotion of interoperability standards for the benefit of manufacturers, integrators and

end users.

LonMark International has developed extensive product certification

standards and tests to provide the integrator and user with confidence that products
from multiple manufacturers utilizing LonMark devices will work together. FieldServer
Technologies, manufacturer of the QuickServer has more LonMark Certified gateways than
any other gateway manufacturer.

1 LonWorks is a registered trademark of Echelon Corporation
Metasys is a registered trademark of Johnson Controls Inc.
BACnet is a registered trademark of ASHRAE

2 . 2 L o n M a r k C e r t i f i c a t i o n

2 . 1 B T L M a r k – B A C n e t T e s t i n g L a b o r a t o r y

2 S U P P L I E D E Q U I P M E N T

1 E Q U I P M E N T S E T - UP

1

ProSoft Technology, Inc. is a provider of FieldServer QuickServers. For Technical Support call

+1 661.716.5100

QuickServer Start-up Guide

Page 5 of 30

The following mounting options are available:

Product comes with tabs for wall or surface mount. These can be snapped off if not required.

DIN Rail Mounting Bracket - included in the Accessory Kit or ordered separately)

Din Rail

Tab

R1 Port

R2 Port

3 . 1 . 1 D i m e n s i o n D r a w i n g PS - Q S - 1 0 10/1510 - XXXX

3 . 1 D i m e n s i o n s

3 M O U N T I N G

ProSoft Technology, Inc. is a provider of FieldServer QuickServers. For Technical Support call

+1 661.716.5100

QuickServer Start-up Guide

Page 6 of 30

LonWorks Port

R2 Port

3 . 1 . 2 D i m e n s i o n D r a w i n g PS - QS - 1 011/1511 - XXXX

ProSoft Technology, Inc. is a provider of FieldServer QuickServers. For Technical Support call

+1 661.716.5100

QuickServer Start-up Guide

Page 7 of 30

“This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

This device may not cause harmful interference

This device must accept any interference received, including interference that may cause undesired
operation.

2

Specifications subject to change without notice

PS-QS-1010/1510-XXXX

PS-QS-1011/1511-XXXX

Available Ports

One 6-pin Phoenix connector, one RS­485 +/- ground port, power +/- frame
ground port
One 3-pin RS-485 Phoenix connector,
one RS-485 +/- ground port
One Ethernet-10/100 port

One 6-pin Phoenix connector, one RS-485 (or RS-232
or RS-422) +/- ground port, power +/- frame ground
port
2-pin FTT-10 LonWorks port
One Ethernet-10/100 port

Power
Requirements

Input Voltage: 9-30VDC or 12-24VAC
Input Power Frequency 50/60 Hz.
Power Rating: 2.5 Watts
Current draw @ 12V, 150 mA

Input Voltage: 9-30VDC or 12-24VAC
Input Power Frequency 50/60 Hz.
Power Rating: 2.5 Watts
Current draw @ 12V, 279 mA

Approvals

TUV approved to UL 916 Standard
RoHS Compliant
FCC Part 15 Compliant
DNP compliant
OPC self-tested to conformance
CE Mark
BTL Mark

TUV approved to UL 916 Standard
RoHS Compliant
FCC Part 15 Compliant
DNP compliant
OPC self-tested to conformance
LonMark Certification
SPID: 80:00:95:46:00:84:04:01
Profiles:
0000 - Node object (1)
0001 - Open Loop Sensor Object (5)
0003 - Open Loop Actuator Object (5)

Surge Suppression

EN61000-4-2 ESD EN61000-4-3 EMC EN61000-4-4 EFT

Physical

Dimensions(excluding

the external power supply)

(WxDxH):

5.05 x 2.91 x 1.6 in. (12.82 x 7.39 x 4.06 cm) excluding mounting tabs

Weight:

0.4 lbs (0.2 Kg)

Environment:

Operating Temperature:

-40°C to 75°C (-40°F to167°F)

Humidity:

5 - 90% RH (non-condensing)

3 . 3 S p e c i f i c a t i o n s

2

ProSoft Technology, Inc. is a provider of FieldServer QuickServers. For Technical Support call

+1 661.716.5100

QuickServer Start-up Guide

Page 8 of 30

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, p ursuant to

part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct the interference at his

expense. Modifications
not expressly approved by FieldServer could void the user's authority to operate the equipment under FCC
rules”

ProSoft Technology, Inc. is a provider of FieldServer QuickServers. For Technical Support call

+1 661.716.5100

QuickServer Start-up Guide

Page 9 of 30

Connect to the 3 pins on the left-hand-side of the 6 pin connector as shown.

For connection to RS-232 or RS-422, please refer to Appendix A.2

Connect to the 3-pin connector as shown.

Connect the QuickServer to the LonWorks terminal using a twisted pair non-shielded cable.

LonWorks Service Pin

LonWorks Terminal

To commission the QuickServer LonWorks port, insert a small screwdriver in the commissioning hole on the face of
the QuickServer’s enclosure to access the Service Pin. See the instructions on the QuickServer as to which way to
toggle the screwdriver during commissioning.

4 . 2 Q u i c k S e r v e r L o n W o r k s – ( PS - QS - 1 0 11/1511 - XXXX)

+ -

GND

4 . 1 . 2 RS - 4 8 5 C o n n e c t i o n R 1 P o r t (O n l y o n N o n - L o n W o r k s Q u i c k S e r v e r s

B+

A-

SG

4 . 1 . 1 RS - 485 C o n n e c t i o n R 2 p o r t

4 . 1 RS - 485

4 I N S T A L L I N G T H E Q U I C KS E R V E R
