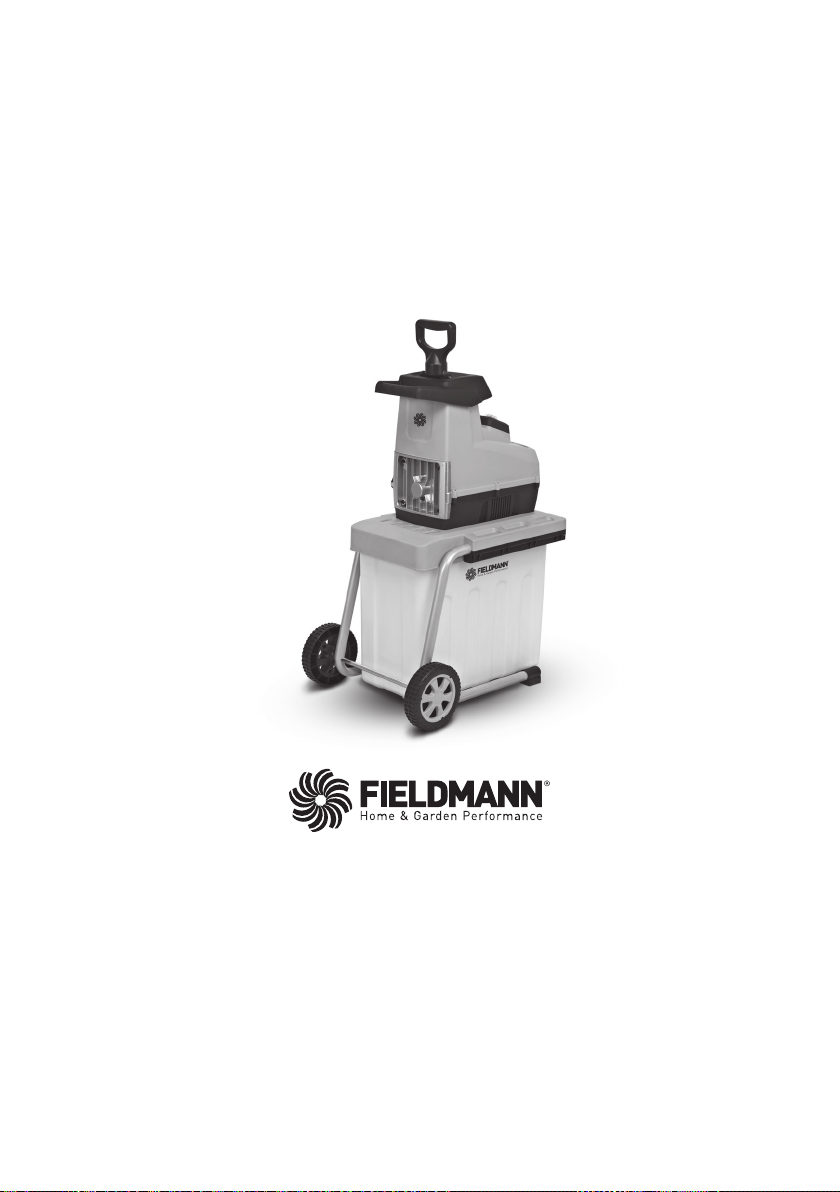

Fieldmann FZD 5015 E User Manual
FZD 5015 E
Contents
3
Garden Shredder
USER’S MANUAL
Dear customer,
thank you very much for the trust that you have expressed!
Before putting this machine into operation, it is imperative to read this user’s manual! In it,
you will fi nd all the instructions for normal operation and for achieving a long lifetime of the
machine. It is imperative to adhere to all safety instructions contained in this user’s manual.
CONTENTS
1. GENERAL SAFETY INSTRUCTIONS ........................................................................................................................ 4
Important safety notice ............................................................................................................................................ 4
Instructions for use .......................................................................................................................................................4
2. SYMBOLS ...........................................................................................................................................................................5
3. BEFORE YOU BEGIN… .................................................................................................................................................6
Operation within the scope of intended use ...............................................................................................6
4. FOR YOUR SAFETY ........................................................................................................................................................6
General safety instructions ..................................................................................................................................... 6
Electrical safety .............................................................................................................................................................7
Maintenance .................................................................................................................................................................7
Notifi cations specifi c to this machine ...............................................................................................................7
5. DESCRIPTION OF THE MACHINE ..........................................................................................................................9
Description of the machine (see Fig. 1) .......................................................................................................... 9
6. ASSEMBLING THE SHREDDER ...............................................................................................................................10
7. OPERATING THE SHREDDER..................................................................................................................................12

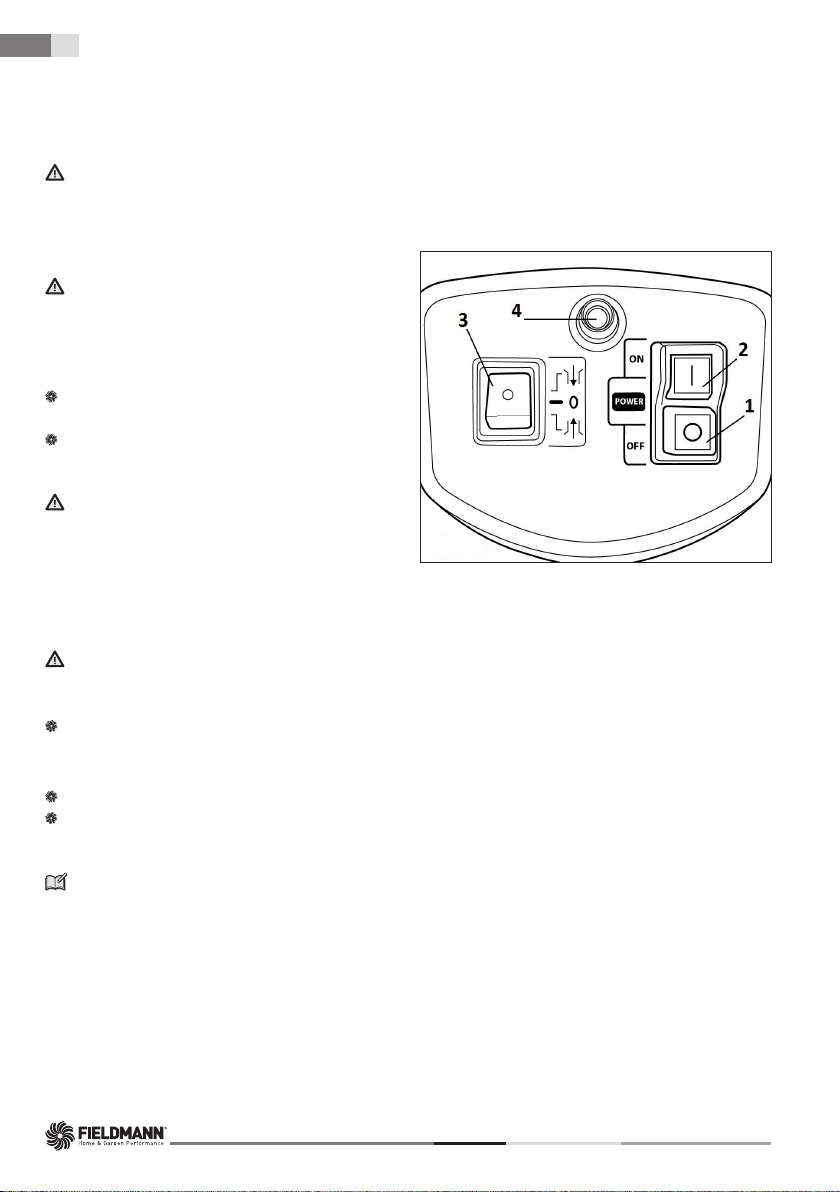

Turning the shredder on and off (Fig. 5) ........................................................................................................12
Forward / reverse rotation switch (Fig. 5, point 3) .....................................................................................12
Protection against overload ................................................................................................................................13
Collection box ..............................................................................................................................................................13
Cutting roller cover (Fig. 1, point 11) .................................................................................................................13
8. SETTING UP AND WORKING WITH THE SHREDDER ...................................................................................14

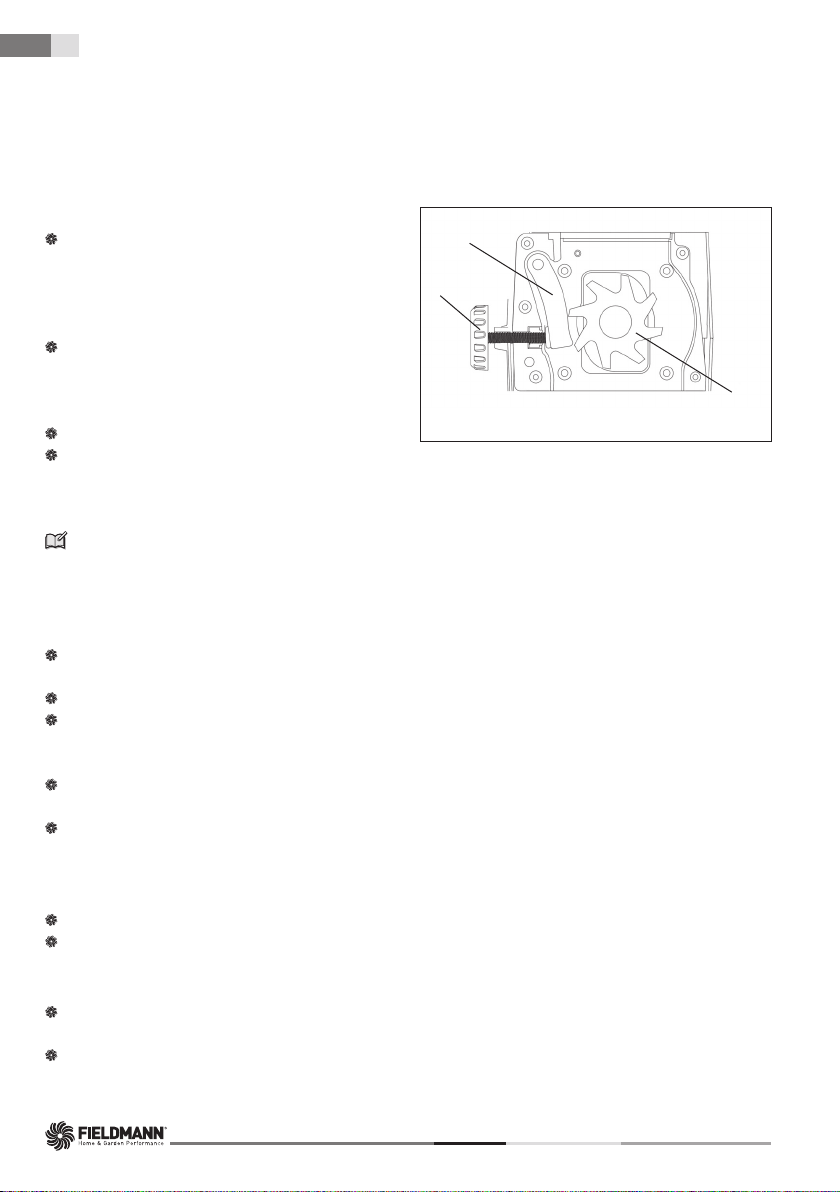

Setting the counter-blade distance .................................................................................................................14
Before turning on ........................................................................................................................................................14
Material that the shredder can process ........................................................................................................14
The shredder MUST NOT process the following types of materials: ................................................14
9. OPERATION ...................................................................................................................................................................15
10. MAINTENANCE ............................................................................................................................................................15
11. TROUBLESHOOTING ..................................................................................................................................................16
12. TECHNICAL SPECIFICATIONS ...............................................................................................................................17
13. DISPOSAL ........................................................................................................................................................................17
14. DECLARATION OF CONFORMITY ......................................................................................................................18
EN
GARDEN SHREDDER USER'S MANUAL
EN 4
General safety instructions
1. GENERAL SAFETY INSTRUCTIONS
Important safety notice
Carefully unpack the product and take care not to throw away any part of the packaging before you fi nd all
the parts of the product.
Store the product in a dry place out of reach of children.
Read all warnings and instructions. Not following warnings or instructions may lead to injury by electrical
shock, a fi re and/or serious injuries.
Packaging
The product is packed in a package that prevents damage during transport. This package is a resource and so
can be handed over for recycling.
Instructions for use
Before you start working with the machine, read the following safety and usage instructions. Acquaint yourself
with the operating elements and the correct use of the machine. Keep the user’s manual in a safe place where
it can be easily retrieved for future use. Save the original packaging, including the internal packing material,
warranty card and proof of purchase receipt at least for the duration of the warranty. If you need to ship this
machine, pack it in the original cardboard box to ensure maximum protection during shipping or transport (e.g.
when moving or when sending it for repair to a service centre).
NOTE: If you hand over the machine to somebody else, do so together with this user’s manual. Following
the instructions in the included user’s manual is a prerequisite for the proper use of the machine. The
user’s manual also contains operating, maintenance and repair instructions.
The manufacturer takes no responsibility for accidents or damages resulting from not
following the instructions in this manual.
FZD 5015 E
2. SYMBOLS
Follow the safety instructions prior to putting into operation.
Prior to putting into operation, read the user's manual and adhere to it.
Danger of amputation.
Do not reach into the funnel.
Risk from defl ected objects.
Maintain a safe distance from bystanders.
If the cable is damaged or interrupted, immediately disconnect the plug from the
mains.
Symbols
EN
5
94 dB
Machine noise level.
ATTENTION: Do not use the shredder in humid or rainy weather
and protect it against moisture.
Wait for all parts of the shredder to come to a stop.
Personal protective work aids
Use hearing protection and wear safety glasses when working with the machine.
Use solid footwear when working with the machine.
Use safety gloves when working with the machine.
Use close-fi tting work clothes when working with the machine.
GARDEN SHREDDER USER'S MANUAL
EN 6
Before you begin... | For you safety
3. BEFORE YOU BEGIN…
Operation within the scope of intended use
it complies with the state of science and technology and safety provisions in force at the time that it is put
into operation within the scope of its intended use. The machine is intended for shredding fi brous and woody
organic household and garden material. It cannot be fi lled with rocks, glass, metals, bones, plastic or textile
waste materials.
it is not designed for professional use. Any other use is in contradiction with the designated purpose.
Operation in contradiction with the determined intended use, modifi cations made to the machine or the use
of parts that were not pre-tested and approved by the manufacturer, may result in unforeseeable damage!
All inappropriate use or any activities not described in this user’s manual performed with the machine
are considered to constitute prohibited misuse that is beyond the legal boundaries for the warranty of the
manufacturer.
4. FOR YOUR SAFETY
General safety instructions
For the safe operation of this machine, its users must read this user’s manual and understand it before fi rst
use.
Respect all safety instructions! If you do not adhere to the safety instructions, you are endangering yourself
and others.
Carefully store all user’s manuals and safety instructions for future reference.
If you sell or hand the machine over to somebody, unconditionally also hand over this user’s manual.
The machine must only be used when it is free of defects. If the machine or its part is damaged, it must be
repaired by a professional.
Do not use the machine in places where there is a risk of explosion or in the vicinity of fl ammable fl uids or
gasses!
Always secure a turned off machine against it being turned on accidentally.
Do not use a machine on which its On/Off switch does not work.
Prevent children access to the machine! Store the machine so that it is secured against children and
unauthorised persons.
Do not overload the machine. Only use the machine for the purposes for which it was designed.
Always use the required protective safety equipment.
Always work very carefully and be in good physical condition: Working when tired or ill, after consuming
alcohol, under the infl uence of medication or narcotics is dangerous because you cannot operate the
machine safely.
Do not use a heating element with a timer switch or another type of switch that automatically switches on
the machine, this would represent a fi re hazard.
Take steps to ensure that children do not play with the product.
Always adhere to valid national and international safety, health and work regulations.
FZD 5015 E
For you safety
Electrical safety
The machine may only be connected to a power socket with a properly installed protective contact.
The machine must be protected by a residual current device (FI switch) with a rated false current not
exceeding 30 mA.
Prior to connecting the machine it is necessary to ensure that the mains connection corresponds to the
values for the connection of the machine.
The machine may only be used within the indicated current, power and speed limits (see rating label).
Do not touch the power plug with wet hands! Always pull the plug holding the connector, not the cable.
Do not bend, crimp, clamp, pull or drive over the power cord; protect it against sharp edges, oil and heat.
Do not lift the machine by the power cord and do not use the power cord for any other purposes.
Prior to every use, inspect the plug and power cord.
In the event that the power cord is damaged, immediately unplug the plug. Do not use a machine with
a damaged power cord.
If the machine is not being used, the power plug must always be unplugged.
Ensure that the machine is turned off before plugging in the power plug.
Always turn off the machine before unplugging the power plug.
Make sure there is not current in the machine before transporting it.
Maintenance
Pull the power plug out of the power socket before performing any type of work on the machine.
Only the maintenance and troubleshooting described in this user’s manual may be performed. All other work
must be performed by a professional.
Use only original spare parts. Only these spare parts are designed for the machine and appropriate.
Other spare parts will not only result in the warranty becoming void but may also endanger you and your
surroundings.
EN
7
Notifi cations specifi c to this machine
Do not reach into the fi lling funnel or the ejection chute while it is running. The machine continues to run
down for approx. 5 seconds after it is turned off.
The machine must be assembled according to the instructions before it is turned on.
Check that all screws, bolts, nuts and other fastening components are fi rmly tightened and that protective
elements are properly installed before turning it on.
When working with the machine, make sure to maintain a stable and natural stance.
Work only under good light and visibility conditions.
The operator’s clothing must be tight-fi tting. Loose clothing must be eliminated. Wear solid footwear and long
work pants.
Only use the machine outdoors on a fi rm even surface.
Leave suffi cient free space around the machine when using it. Do not stand the machine close to a wall.
Do not lift, tilt or transport the machine when it is running.
Before starting the machine, check that the insertion funnel is empty.
Never leave a running machine without supervision.
Make sure that no foreign objects enter the machine when it is running, e.g. rocks, glass, metal, soil, plastic,
etc. The could damage the motor and the cutting roller.
If foreign objects enter the cutting mechanism or the machine makes unusual noises or vibrates unusually,
immediately stop the motor and allow the machine to come to a complete stop.
GARDEN SHREDDER USER'S MANUAL
EN 8
For you safety
Never use the machine without the inserting funnel.
If the shredder becomes clogged, fi rst turn the machine off and pull the plug out of the socket and wait for the
machine to come to a complete stop before removing the clogged material. Keep the On/Off switch clean
and free of foreign objects.
Never attempt to hold or remove shredded material while the cutting roller is in motion. Remove clogged
shredded material only when the machine is turned off.
Prevent direct contact with the rotating cutting roller. Keep hands and feet away from the openings when the
machine is running.
Do not insert your hands or other body parts or clothing into the fi lling chamber, ejection chute or in the
vicinity of other moving parts.
Always remove shredded material from the ejection zone before it accumulates. This will prevent the
shredder from clogging and prevent the shredded material from entering the fi lling funnel by recoil and
causing injuries.
No other persons or animals may stand within the radius of 3 m around the work area as they could be
injured by defl ected objects.
Do not use the machine on a tiled or concrete fl oor. The shredded material could defl ect and cause injury.
The symbols found on your machine must not be removed or covered over. Notifi cations on the machine that
are no longer legible must be replaced with new ones without delay.
FZD 5015 E
Description of the machine
5. DESCRIPTION OF THE MACHINE
7
1
2
3
EN
9
6
4
5
Fig. 1
Description of the machine (see Fig. 1)
1. Filling funnel
2. Control panel
3. Power cord
4. Collection box safety lock
5. Collection box
6. Cutting adjustment screw
7. Plastic pusher
GARDEN SHREDDER USER'S MANUAL
EN 10
Assembling the shredder
6. ASSEMBLING THE SHREDDER
ATTENTION: Prior to performing any work on the machine, check that it is turned off and disconnected
from the power supply.
1. Turn the shredder unit upside down and place it
on an even fl oor.
Then lift the legs upwards. Fig 2.

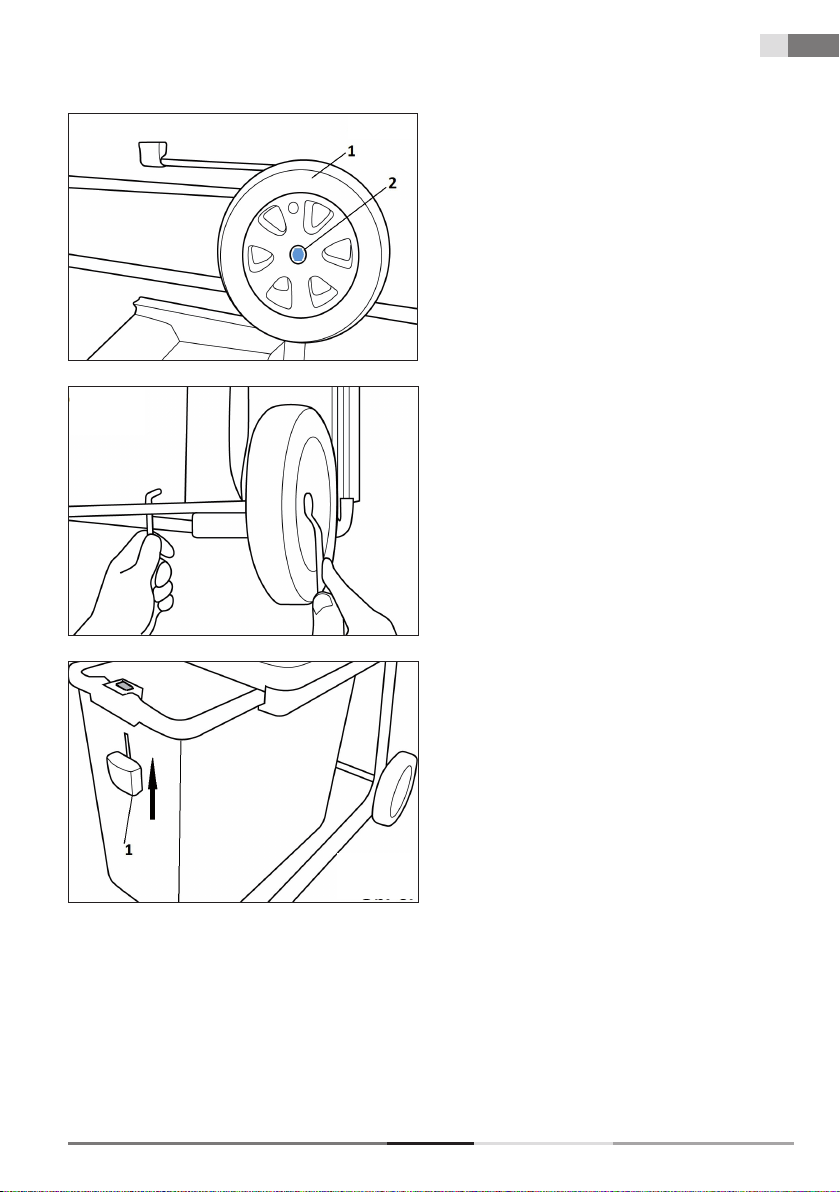

2. Install the wheels as follows:
— Push the wheel axle through the holes in the
frame.
— put a washer and a wheel bushing on each
side of the axle. Fig 3.
— Put on the wheel and secure in place using
a nut. Fig 4.
— Insert a hex key through the opening in the
wheel’s axle and tighten the wheel nut. Fig 5.
— Finally put on the wheel cover.
— Repeat this procedure for both wheels.
3. Insert the collection box and lock in place using
the safety mechanism. Fig. 6, point 1
Fig. 2
ATTENTION! The safety mechanism must be
properly locked, otherwise the machine will not
start.
Fig. 3
Fig. 3.1
FZD 5015 E
Loading...
