Field controls SWG-4AM User Manual

SWG SIDEWALL POWER VENTING KIT

Installation Specifications For The Following Furnaces

Certified As A Component Part of The Furnace Application.

This instruction sheet contains OEM specific information that supercedes the provided instruction
manual where applicable. All field wiring shown in included wiring diagrams are correct regardless
whether the CK-43 or CK-43F is used.

Contents

Kit P/N Furnace Manufacturer Page
46205411 Amana Refrigeration Inc. 2

46205405 American Standard Inc. & The Trane Co. 4
46205407 Armstrong Air Conditioning Inc. 6
46205410 Bard Manufacturing Co. 7
46205403 Carrier Corp. 8
46205408 Consolidated Industries Corp. 10
46205406 Dunkirk Radiator Corp. 11

Evcon Industries Inc. 13
46205401 International Comfort Products (Adjustable) 14
46205413 International Comfort Products (Fixed) 16
46205402 Lennox International Inc. 17
46205409 Rheem Air Conditioning 18
46205404 York International Corp. 19

Field Controls, L.L.C., 2630 Airport Road, Kinston, NC 28504

Technical Support [phone]

SWG-4AM AMANA SIDEWALL POWER VENTING KIT

Field Controls P/N 46205411

Kit Includes:

SWGII-4HD Sidewall Power Venter
CK-43 Control Kit

Includes: 4" MG-1 Barometric Draft Control

Fan Proving Switch
Adjustable Post Purge

Recommended For Use On The Following Amana Model Furnaces:

GBI GCIC GUI GUID GCI GHI GUIA

GCIA GMI GUIB GCIB GSI GUIC

NOT For Use On The Following Amana Model Furnaces:

GCIS GUIS GUIV

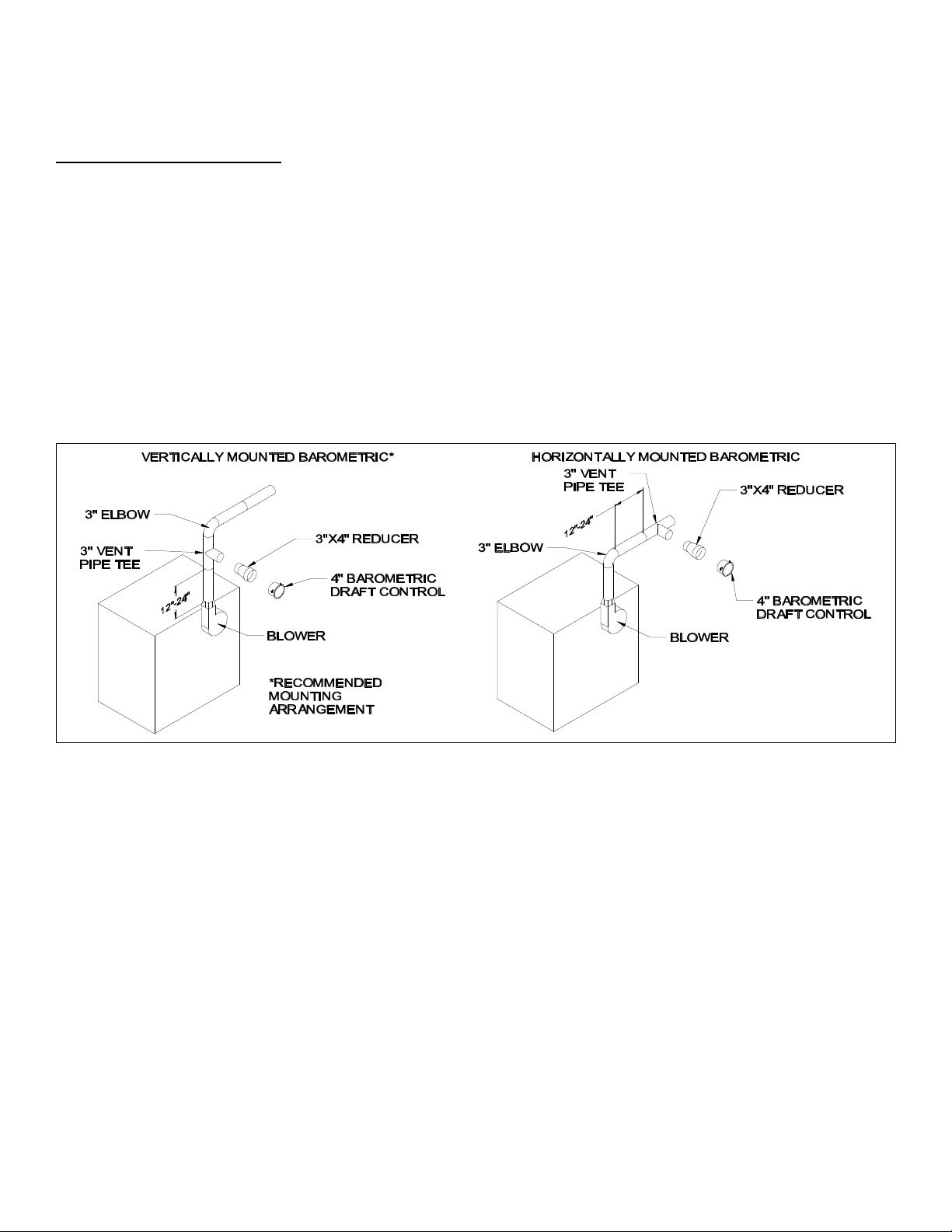

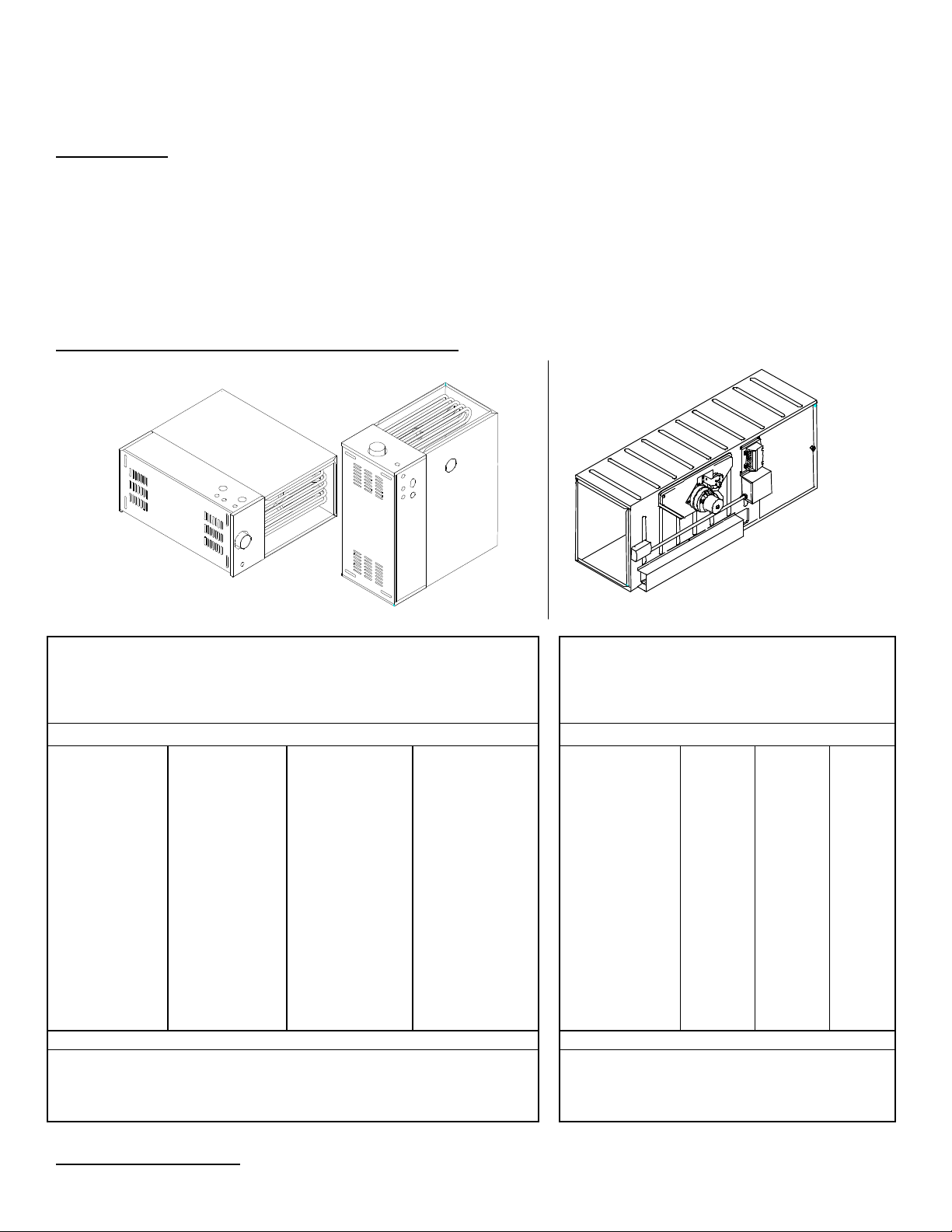

Furnace Configuration and Vent Pipe Restrictions

Type B-1 vent pipe shall be used to join the furnace to the venting system and for the entire length of
the venting system. Exception: Up to 24" of single wall vent pipe may be used to connect the furnace
to the barometric damper. The barometric damper tee may be single wall. Type B-1/double wall vent
pipe MUST be used from the barometric damper tee to the power venter.

For Furnace Models GUIA, GUIB, GUIC, and GUID

BTU/Hr. Diameter of

Flue Collar

on Furnace

46,000 4" None 100 100
69,000 4" None 100 100

92,000 4" None 100 100
115,000 4" None 85 95
138,000 4" None 65 80

For Furnace Models GCIA, GCIB, and GCIC

BTU/Hr. Diameter of

Flue Collar

on Furnace

46,000 3" 3" to 4" 100 100

69,000 3" 3" to 4" 100 100

92,000 3" 3" to 4" 100 100
115,000 3" 3" to 4" 85 95
138,000 3" 3" to 4" 65 80

Installer

Provided Flue
Pipe Transition
Size Diameters

Installer

Provided Flue
Pipe Transition
Size Diameters

Maximum

Equivalent Length

(ft.) for 4" Vent Pipe

Maximum

Equivalent Length

(ft.) for 4" Vent Pipe

Maximum

Equivalent Length

(ft.) for 5" Vent Pipe

Maximum

Equivalent Length

(ft.) for 5" Vent Pipe

Page 2

For Furnace Models GBI, GCI, GHI, GSI, and GUI

BTU/Hr. Diameter of

Flue Collar

on Furnace

45,000 3" 3" to 4" 100 100
70,000 3" 3" to 4" 100 100

90,000 3" 3" to 4" 100 100
115,000 4" None 85 95
140,000 4" None 65 80

For Furnace Models GMI

BTU/Hr. Diameter of

Flue Collar

on Furnace

40,000 3" 3" to 4" 100 100

60,000 4" None 100 100

80,000 4" None 100 100
100,000 4" None 100 100
120,000 4" None 80 90
140,000 4" None 60 80

Installer

Provided Flue
Pipe Transition
Size Diameters

Installer

Provided Flue
Pipe Transition
Size Diameters

Maximum

Equivalent Length

(ft.) for 4" Vent Pipe

Maximum

Equivalent Length

(ft.) for 4" Vent Pipe

Maximum

Equivalent Length

(ft.) for 5" Vent Pipe

Maximum

Equivalent Length

(ft.) for 5" Vent Pipe

General Wiring

For complete installation information refer to the Field Controls SWG-4AM Power Venter Installation
Manual for details (P/N 46333300.)

Page 3

SWG-4AT AMERICAN STANDARD AND TRANE

SIDEWALL POWER VENTING KIT

Field Controls P/N 46205405

Kit Includes:

SWGII-4HD Sidewall Power Venter
CK-43F Control Kit

Includes: 4" MG-1 Barometric Draft Control

Fan Proving Switch
Fixed post purge

For Use With The Following American Standard And Trane Furnaces:

AUD-C CUE-A ADD-R
TUD-C TUE-A TDD-R
AUD-R ADD-C CDE-A
TUD-R TDD-C TDE-A

Furnace Configuration And Vent Pipe Restrictions:

Furnace Input

BTU/Hr

40,000 4 65
60,000 4 65

80,000 4 65
100,000 4 65
120,000 4 65
140,000 4 65

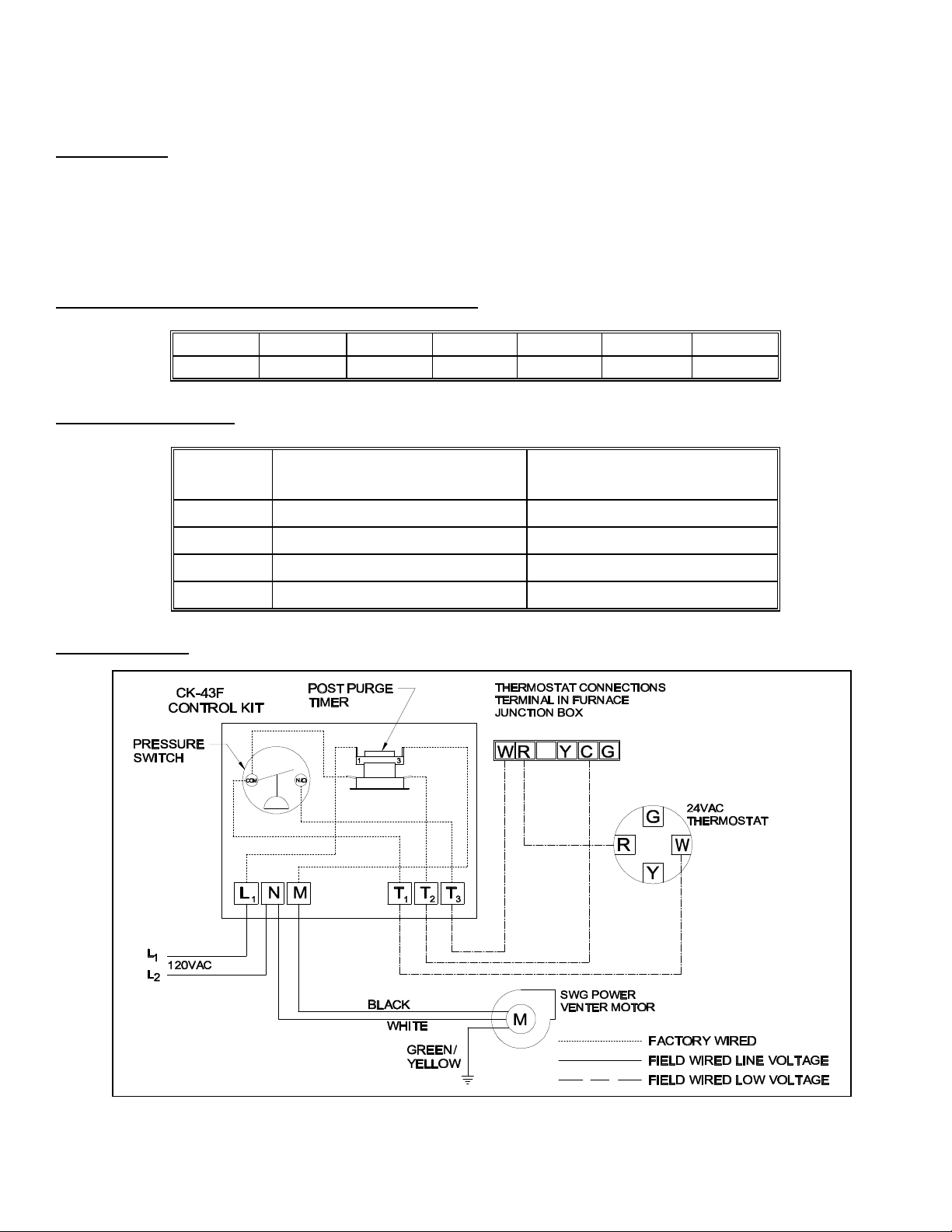

General Wiring
Refer to the Diagrams on the following page for guidance in wiring the Power Venter and Control Kit

to the appliance.

For complete installation information refer to the Field Controls SWG-4AT Power Venter Installation
Manual for details (P/N 46306700.)

Diameter Of Vent Pipe

Collar On Furnace (In.)

Maximum Equivalent

Vent Length (Ft.)

Page 4

Page 5

SWG-4A ARMSTRONG SIDEWALL POWER VENTING KIT

Field Controls P/N 46205407

Kit Includes:

SWGII-4HD Sidewall Power Venter
CK-43F Control Kit

Includes: 4" MG-1 Barometric Draft Control

Fan Proving Switch
Fixed post purge

For use with Armstrong furnace models that begin with the following:

AMEG6G EG5G EG6G EG7G EG8G GCJ GHJ GUJ

Furnace Configuration and Vent Pipe Restrictions

Model

Number

AMEG6G Upflow 4 60

EG5G Lowboy 4 60
EG6G Upflow 4 60
EG7G Downflow 4 60
EG8G Horizontal 4 41

GCJ Downflow-Horizontal 4 60
GHJ Upflow-Horizontal 4 60
GUJ Upflow 4 60

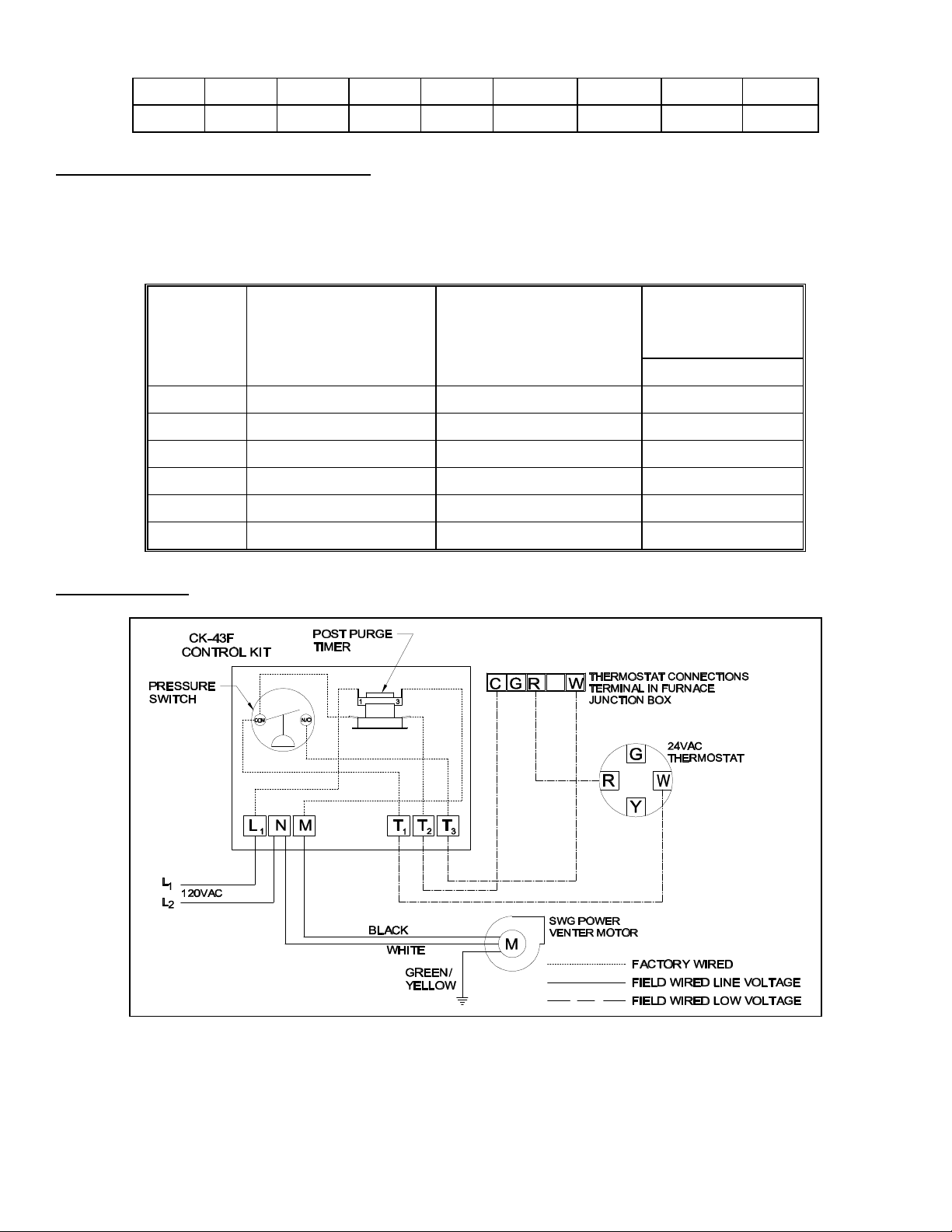

General Wiring

Configuration Furnace Vent

Collar Diameter

(in.)

Max. Equivalent Vent

Length (ft.); 4" Diameter

Vent Pipe

For complete installation information refer to the Field Controls SWG-4A Power Venter Installation
Manual for details (P/N 46333500.)

Page 6
