FIDO NM-1002 User Manual

88 key electronic organ

Nm-1002 function operation manual

Quick guide to electronic organ

一

Operating instructions

7601

NM-1002

01

02

03

、Operating instructions:

 Play (timbre) mode:

Press the power switch to enter the mode of playing (timbre) automatically, and the timbre light will be on. (Figure 2)





Rotate [data wheel] to select the timbre. (Figure 3)

 Rhythm mode:

Press the [start / stop] key and [rhythm] key, the system will enter the rhythm mode and play the rhythm, and the rhythm light will be on. (Figure 15) (Figure 6)



Rotate [data wheel] to select the rhythm track from 0 to 127. (Figure 3)



Press the [sync] key to start the rhythm playing by pressing the piano key. (Figure 11)



In this mode, press [voice] key and rotate [data wheel] to switch voice, and the voice light will be on at the same time. To switch the rhythm again, press the



rhythm key. (Figure 5) (Figure 3) (Figure 6)

04

05

06

07

08

09

10

11

12

14

13

15

16

 Dual keyboard mode：

Press the [double keyboard] key to turn on / off the double keyboard mode, and the double keyboard light is on / off. (Figure 7)



In this mode, the range of keys is divided into two parts: a2-b5 and C4-C8.



01

keyboard

02

power switch

03

Data wheel

04

volume

Operating instructions

操作说明

、 Function introduction:

 Keyboard: 88 standard keys (including black keys), range: A1 ~ C9. Timbres: 128 timbres.

Rhythm: 128 rhythms.



Demonstration song: 80 songs.



Rhythm function, demonstration music function, recording and playing function,



double keyboard function, chord function, metronome function.

Hardware: 64 chord, with 2-channel 16 bit DAC output, built-in power amplifier circuit.



Output function: three digit digital display.



Can be equipped with a tone pedal.



05

timbre

06

rhythm

07

Double keyboard

08

Demonstration song

09

sound recording

10

Playback

11

synchronization

12

chord

13

Metronome

14

intensity

15

Start / stop

16

Digital display



Model song mode:

Press the [demo] key, the system will play all the demo, and the demo light will be on. Press the [start / stop] key to stop the demonstration music,



and the demonstration music light goes out. (Figure 8)

Rotate [data wheel] to select the demo songs, and the tracks range from 0 to 79. (Figure 3)



In this mode, press [voice] key and rotate [data wheel] to switch voice, and the voice light will be on at the same time. To switch the rhythm again,



press the [rhythm] key. (Figure 5) (Figure 3) (Figure 6)

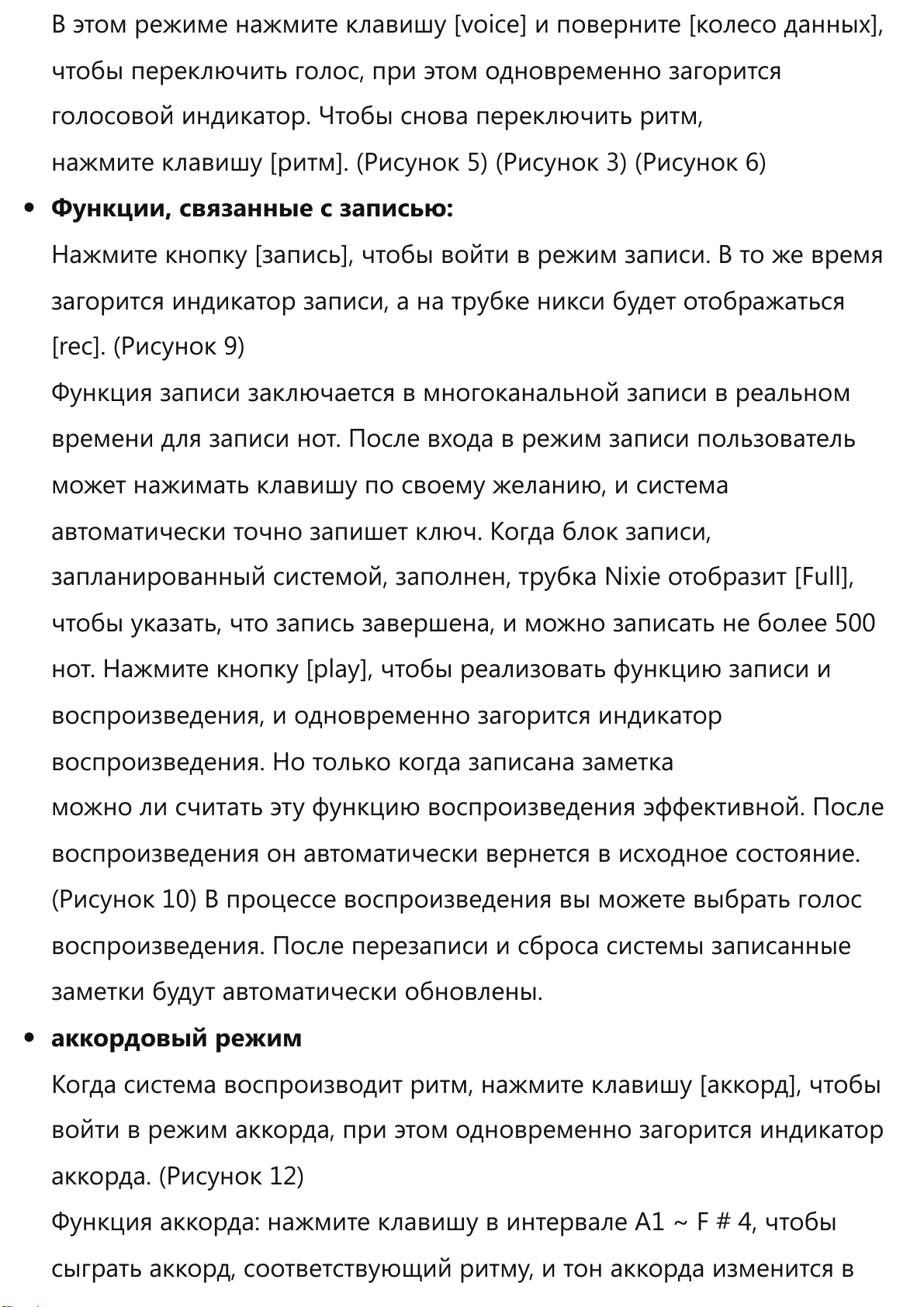

Recording related functions:





Press the [recording] key to enter the recording mode. At the same time, the recording light will light up and the nixie tube will display [rec]. (Figure 9)

Recording function is to take multi-channel real-time recording to record notes.





After entering the recording mode, the user can play the key at will, and the system will automatically record the key faithfully. When the recording

block planned by the system is full, the nixie tube will display [Full] to prompt that the recording is full, and 500 notes can be recorded at most.

Press the [play] key to realize the recording and playback function, and the play light will be on at the same time. But only when a note is recorded



can this playback function be considered effective. After playback, it will automatically return to the original state. (Figure 10)

During the playback process, you can select the playback voice.



After re recording and system reset, the recorded notes will be automatically refreshed.



Operating instructions

 chord mode

When the system is playing rhythm, press the [chord] key to enter chord mode, and the chord light will be on at the same time. (Figure 12)



Chord function: press the key in A1 ~ F # 4 interval to play the chord matching the rhythm, and the tone of the chord changes with the pitch of the key.



appendix

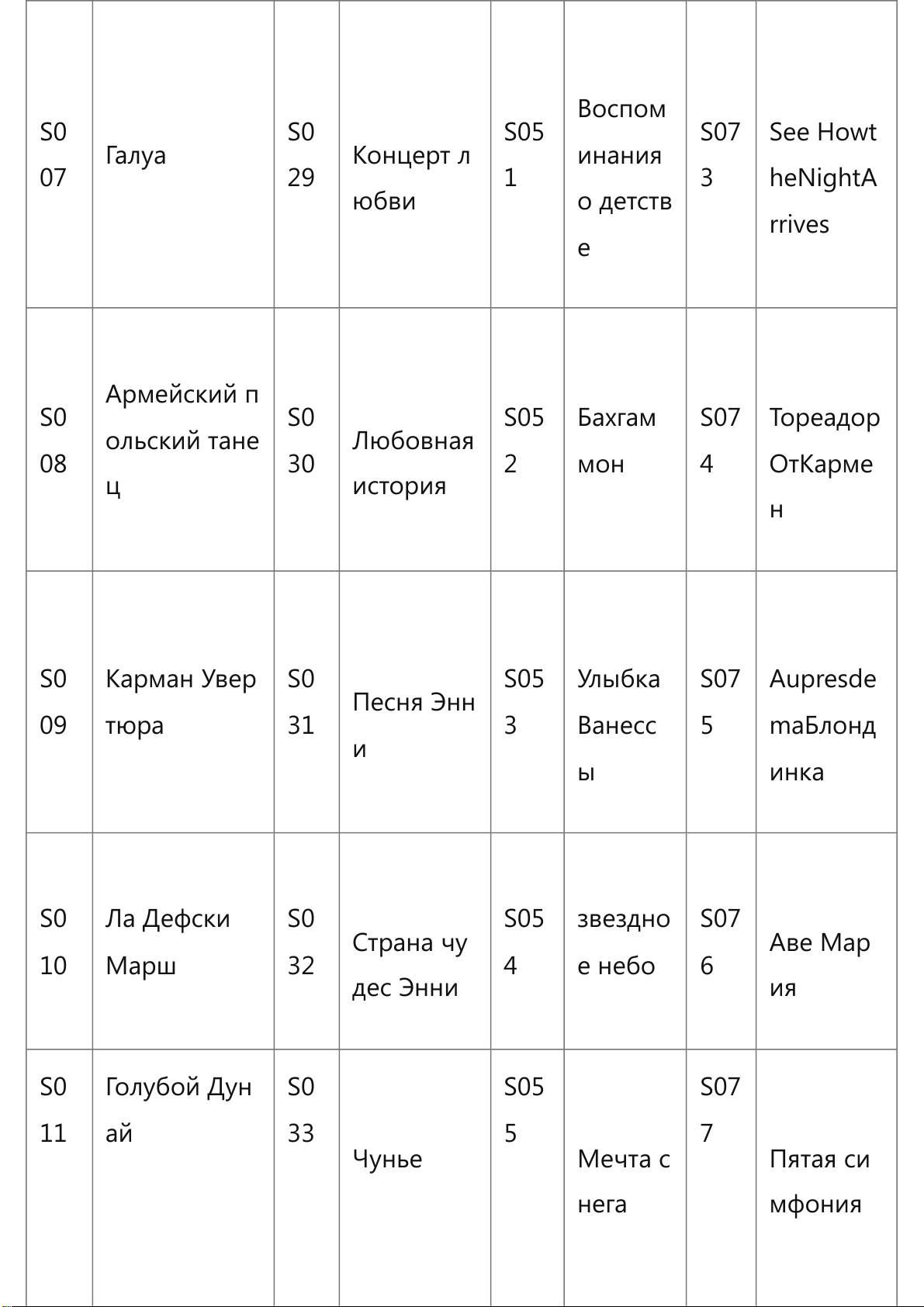

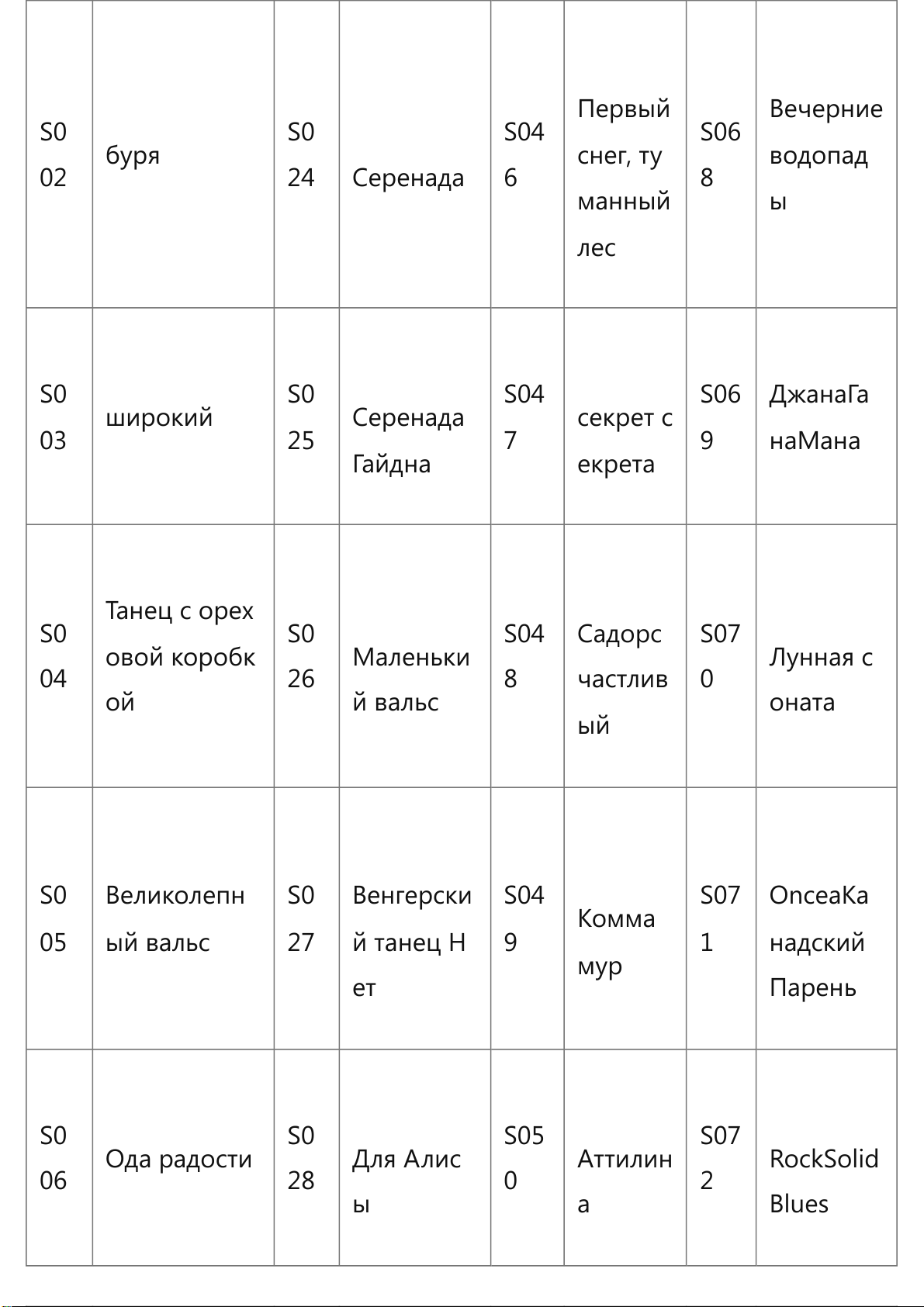

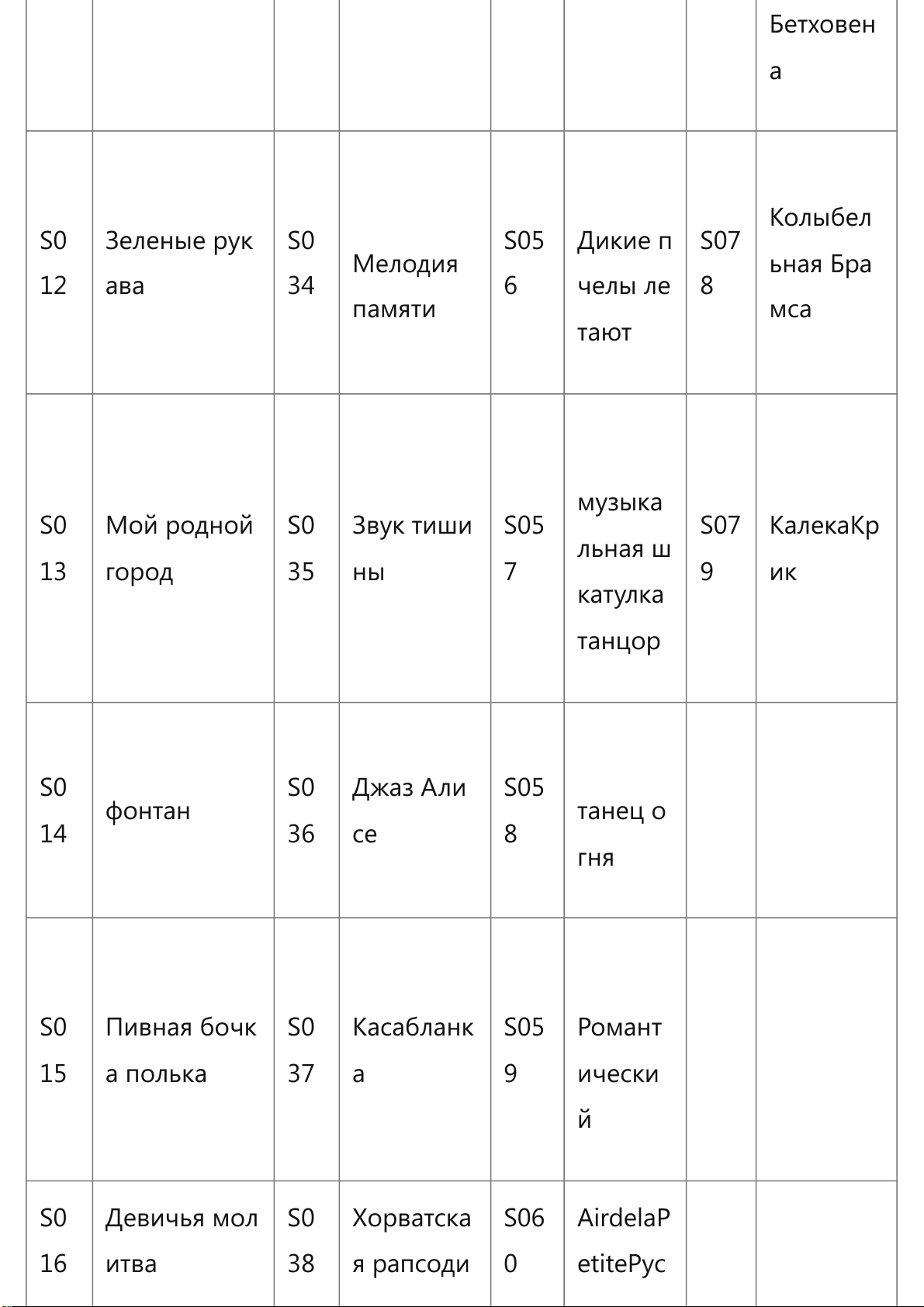

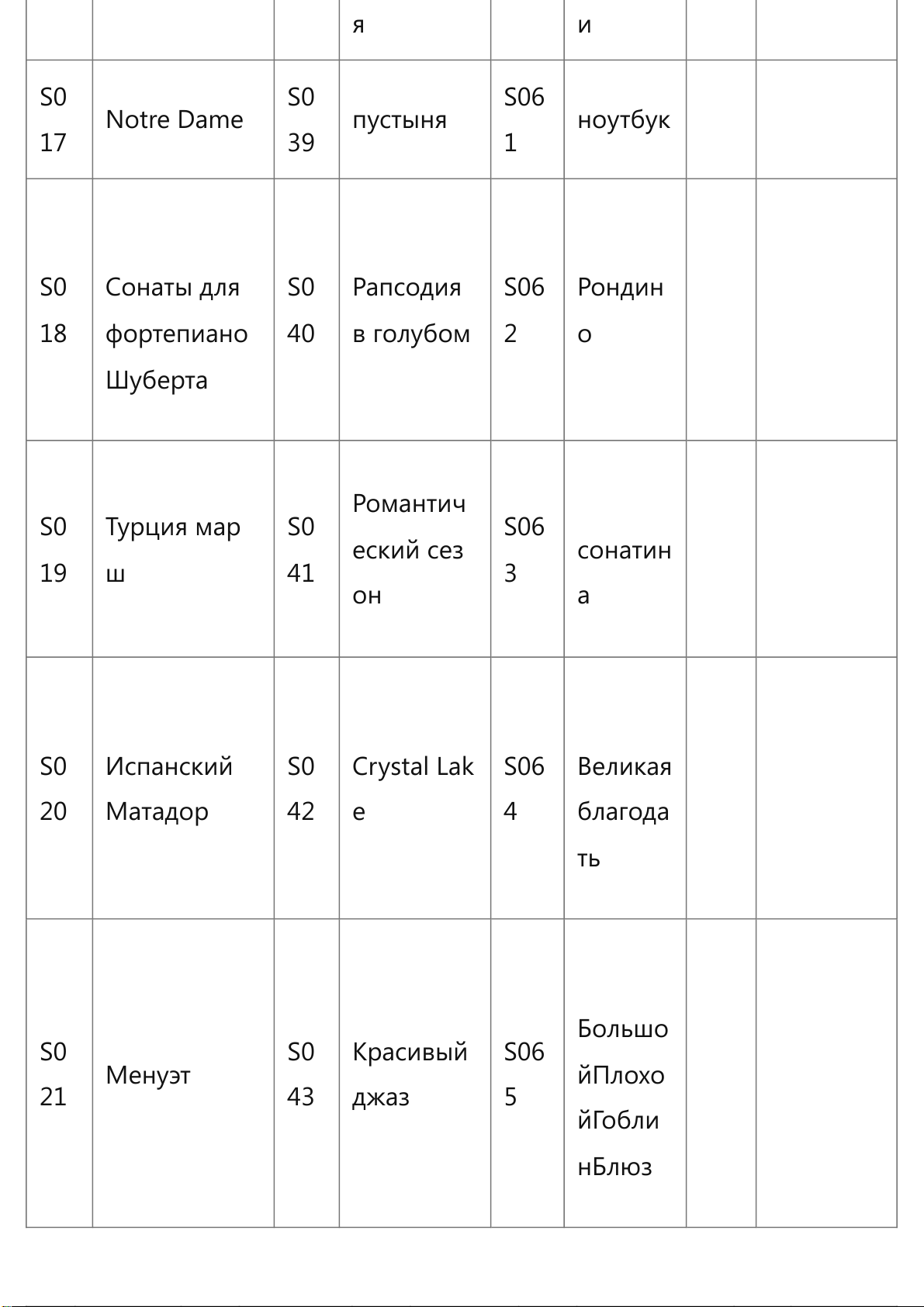

80 demonstration songs

In chord mode, press the chord key to turn off the chord, and the chord light goes out











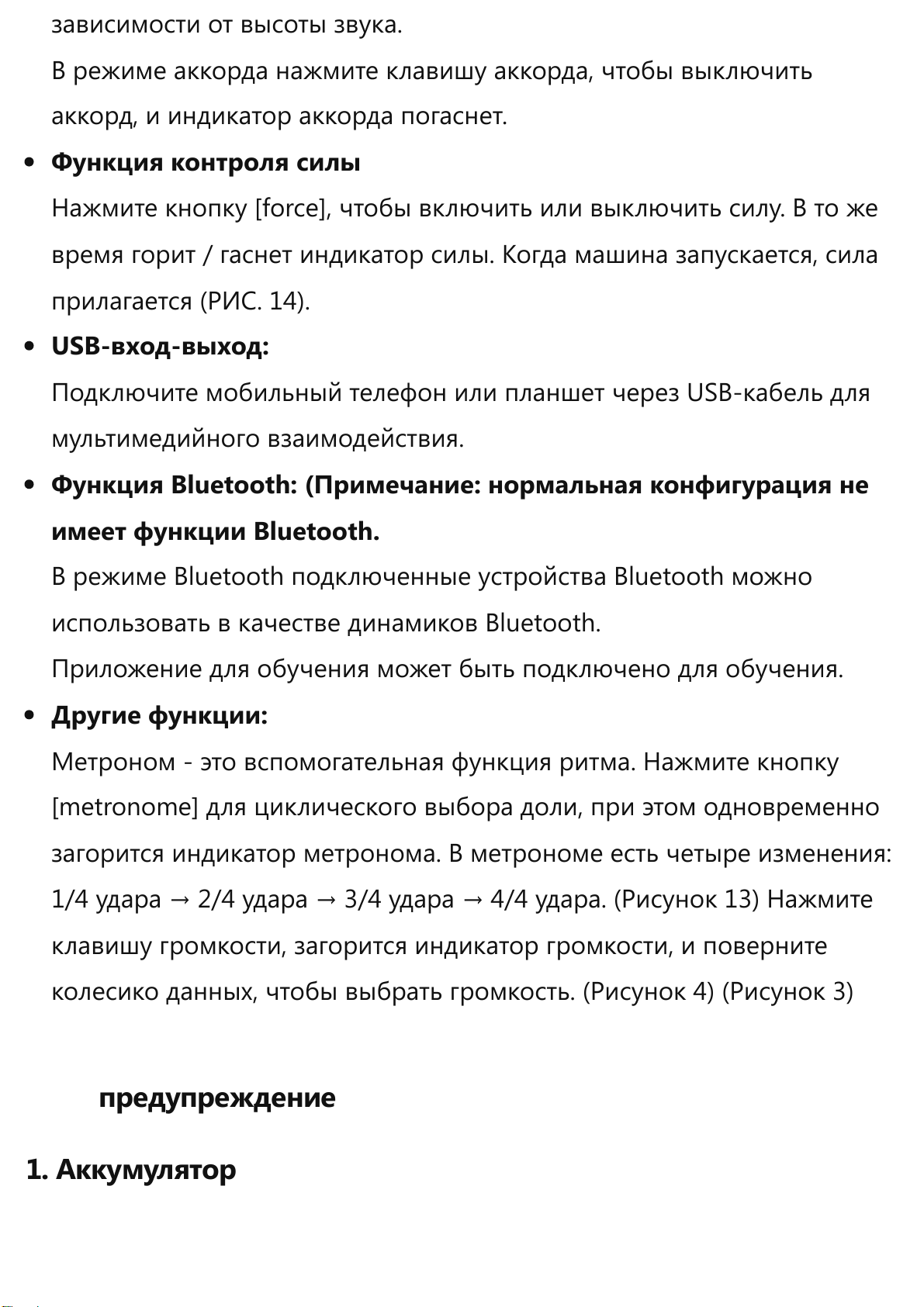

Strength control function:

Press the [force] key to turn on or off the force. At the same time, the force light is on / off. When the machine is started, the force is on (FIG. 14)



Usb-in-out function:

Connect mobile phone or tablet through USB cable for multimedia interaction.



Bluetooth function: (Note: normal configuration does not have Bluetooth function

In Bluetooth mode, connecting Bluetooth devices can be used as Bluetooth speakers.



Teaching app can be connected for teaching.



Other functions:

Metronome is the auxiliary function of beat. Press [metronome] key to cycle select beat, and the metronome light is on at the same time.



There are four changes in metronome: 1 / 4 beat → 2 / 4 beat → 3 / 4 beat → 4 / 4 beat. (Figure 13)

Press the volume key, the volume light will be on, and rotate the data wheel to select the volume. (Figure 4) (Figure 3)



warning

10、示范曲

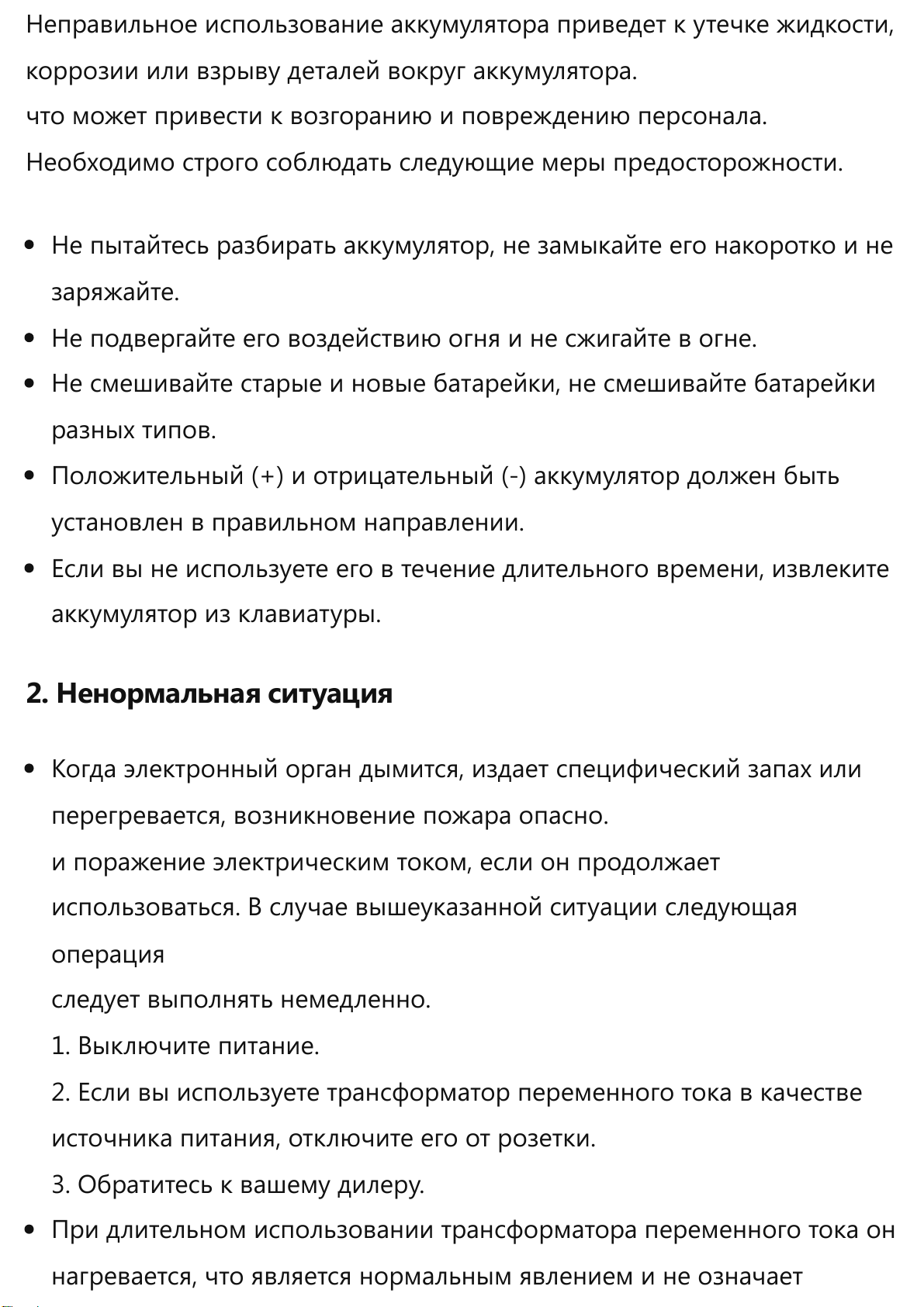

1、Battery

Improper use of the battery will lead to liquid leakage, corrosion or explosion of the parts around the battery,
which may lead to fire and personal damage. The following precautions must be strictly observed.

●

Do not attempt to disassemble or short circuit the battery and do not charge it.

S000 S022 S044 S066

S001 S023 S045 S067

S002 S024 S046 S068

S003 S025 S047 S069

S004 S026 S048 S070

S005 S027 S049 S071

S006 S028 S050 S072

S007 S029 S051 S073

S008 S030 S052 S074

S009 S031 S053 S075

S010 S032 S054 S076

S011 S033 S055 S077

Ecossaise

romance de amor

storm

Breit

Walnut Box Dance

Gorgeous Waltz

Ode to joy

Galois

Army Polish dance

Carman Overture

La defski March

The Blue Danube

Dog Waltz

Violin humorism

Serenade

Serenade Haydn

Petite Valse

Hungarian Dance N o

For Alice

Concerto of love

Love story

Annie's Song

Annie's Wonderland

Chunye

Wedding in dream

Neptu n in the mis ty fore st

The first snow in mis ty fore st

jardin secret

Sad or happy

A Comm amour

Attilina by the water

Memories of childhood

Bach gammon

Vanessa's smile

starry sky

The dream of snow

Carribean Cruise

Danny Boy

Evening Falls

Jana Gana Mana

Moonlight Sonata

Once a Canadian Lad

Rock Solid Blues

See How the NightA rrives

Toreador from Carmen

Aupres de ma Blonde

Ave Maria

Beethoven's Fifth Symphony

●

●

●

●

2、Abnormal situation

●

●

●

Do not expose it to fire or burn it in fire.

Do not mix old and new batteries, do not mix different types of batteries.

The positive (+) and negative (-) of the battery must be installed in the correct direction.

If you don't use it for a long time, please remove the battery from the keyboard.

warning

When the electronic organ smokes, gives off peculiar smell or overheats, it is dangerous to cause fire
and electric shock if it continues to be used. In case of the above situation, the following operation
should be performed immediately.

1. Turn off the power.

2. If you are using an AC transformer for power supply, unplug it from a wall outlet.

3. Contact your dealer.
Long term use of AC transformer will make it hot, which is a normal phenomenon and does not mean failure.
The built-in function of this piano is huge, sometimes it can't react. Please turn off the power switch and
then turn it on to work normally.

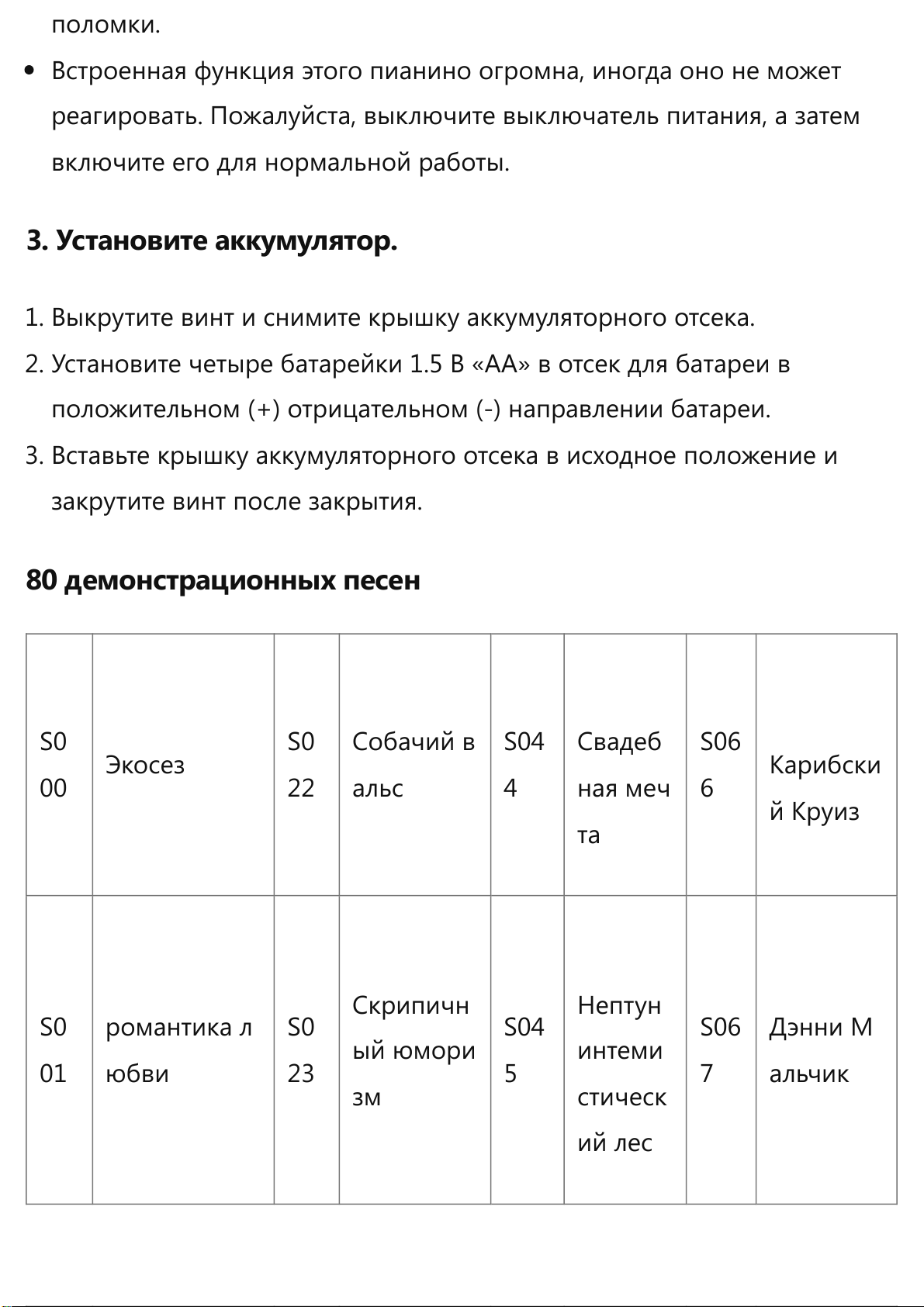

3、Install the battery

1. Withdraw the screw and remove the battery cover.

2. Install four 1.5V "AA" batteries into the battery slot in the positive (+) negative (-) direction of the battery.

3. Insert the battery cover into the original position and lock the screw after covering.

S012 S034 S056 S078

S013 S035 S057 S079

S014 S036 S058

S015 S037 S059

S016 S038 S060

S017 S039 S061

S018 S040 S062

S019 S041 S063

S020 S042 S064

S021 S043 S

Green sleeves

My hometown

fountain

Beer Barrel Polka

Maiden's Prayer

Notre Dame

Schube rt pian o sonatas

Turkey March

Spanish Matador

Minuet

The me lod y of me mor y

The sou nd of si lenc e

Jazz to Alice

Casablanca

Croatian Rh apso dy

wilderness

Rhapsody in blue

Romantic season

crystal lake

Beautiful Jazz

065

Wild bees flying

Music box dancer

dance of fi reflies

Romantic rainy night

Air de la Petite Russie

Notebook

Rondino

Sonatina

Amazing Grace

Big Bad Goblin Blues

Brahms' Lullaby

Cripple Creek

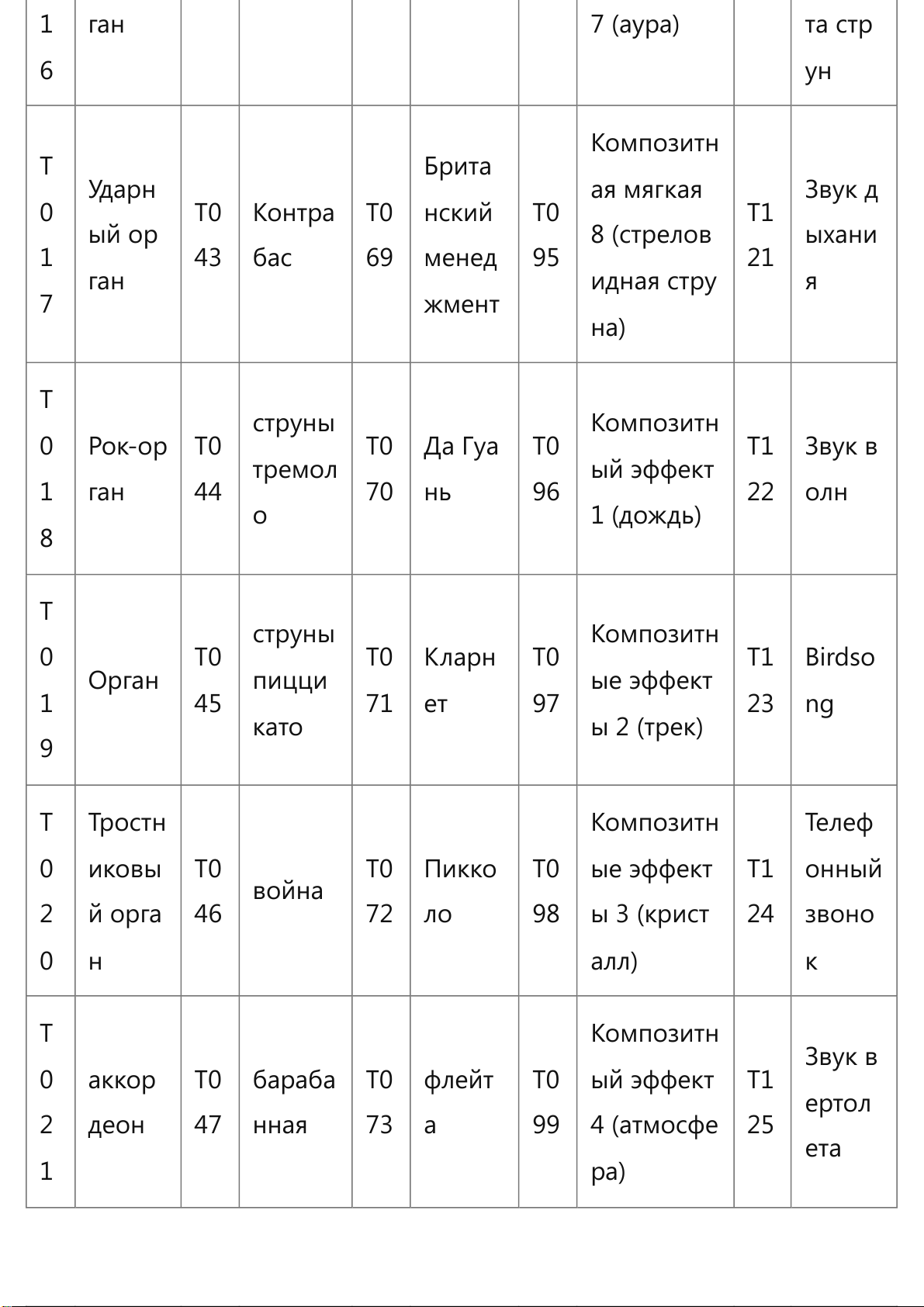

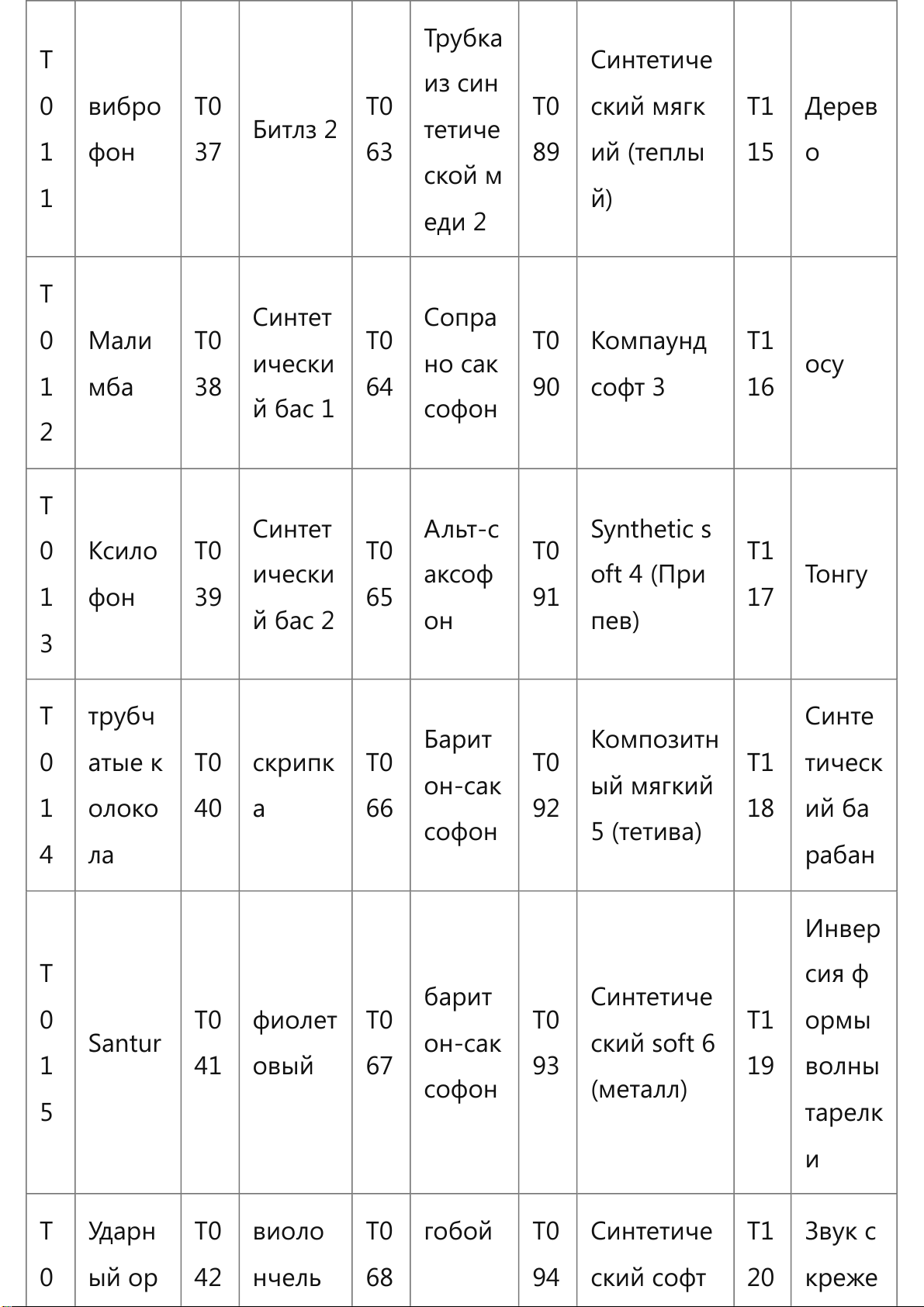

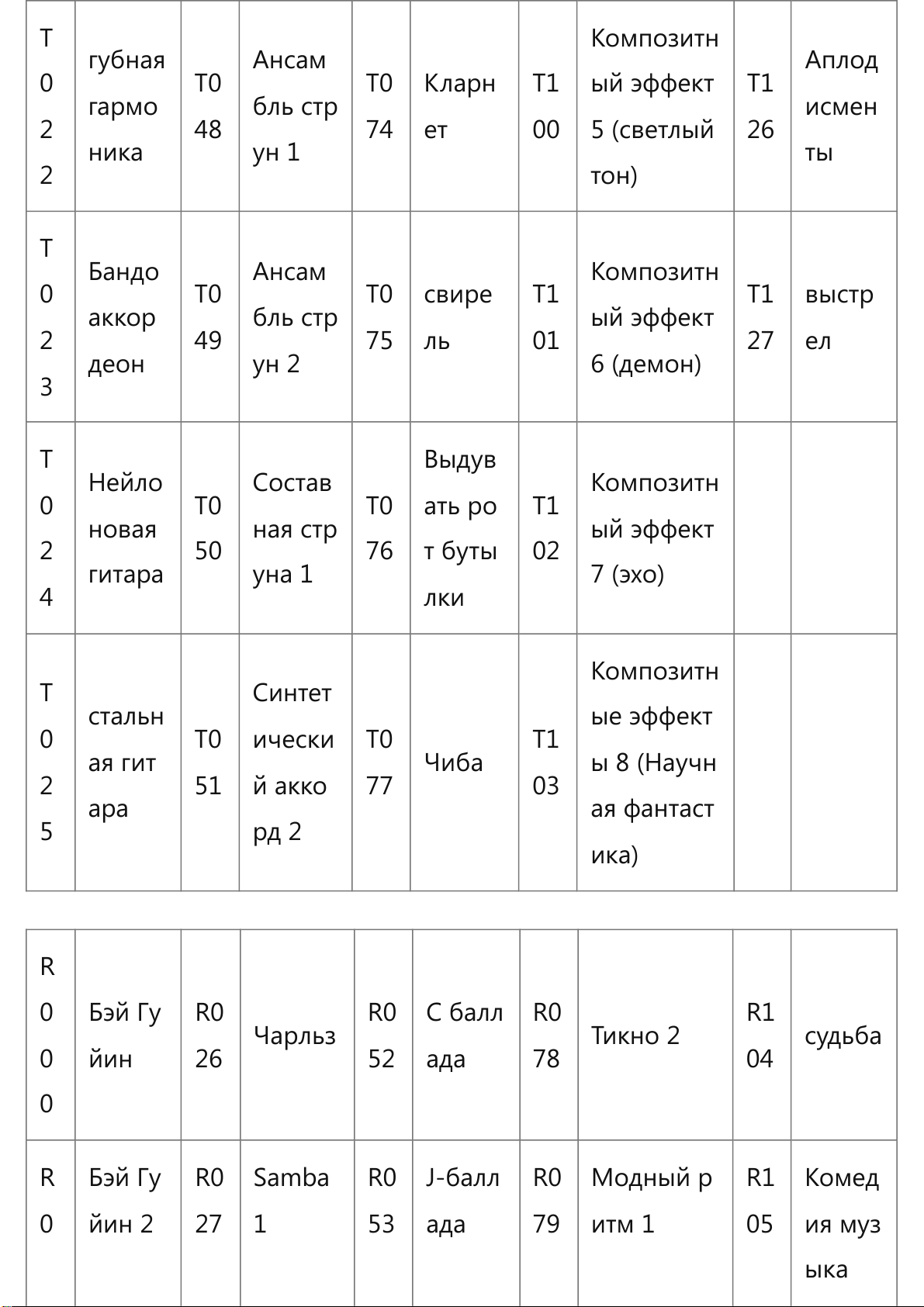

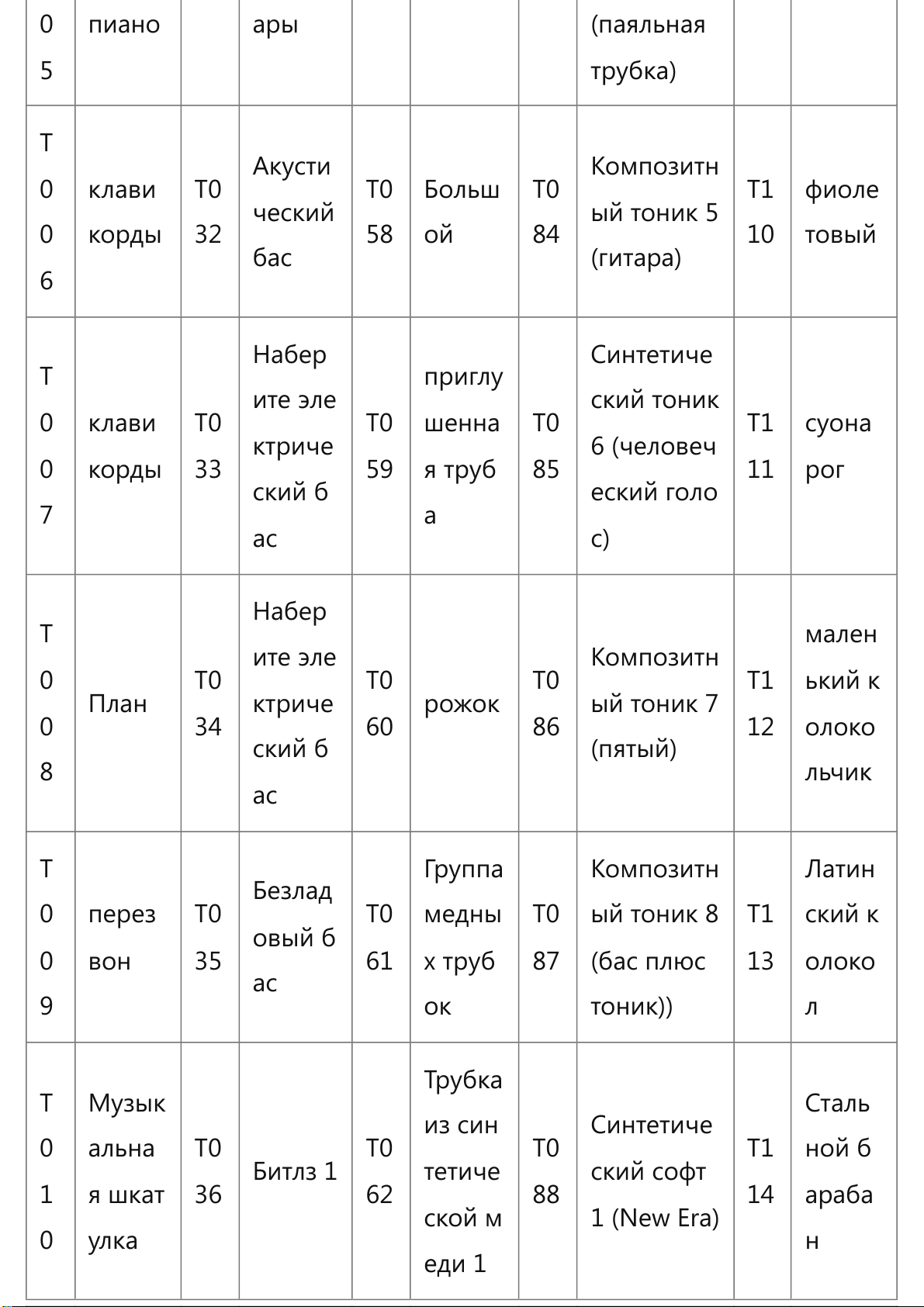

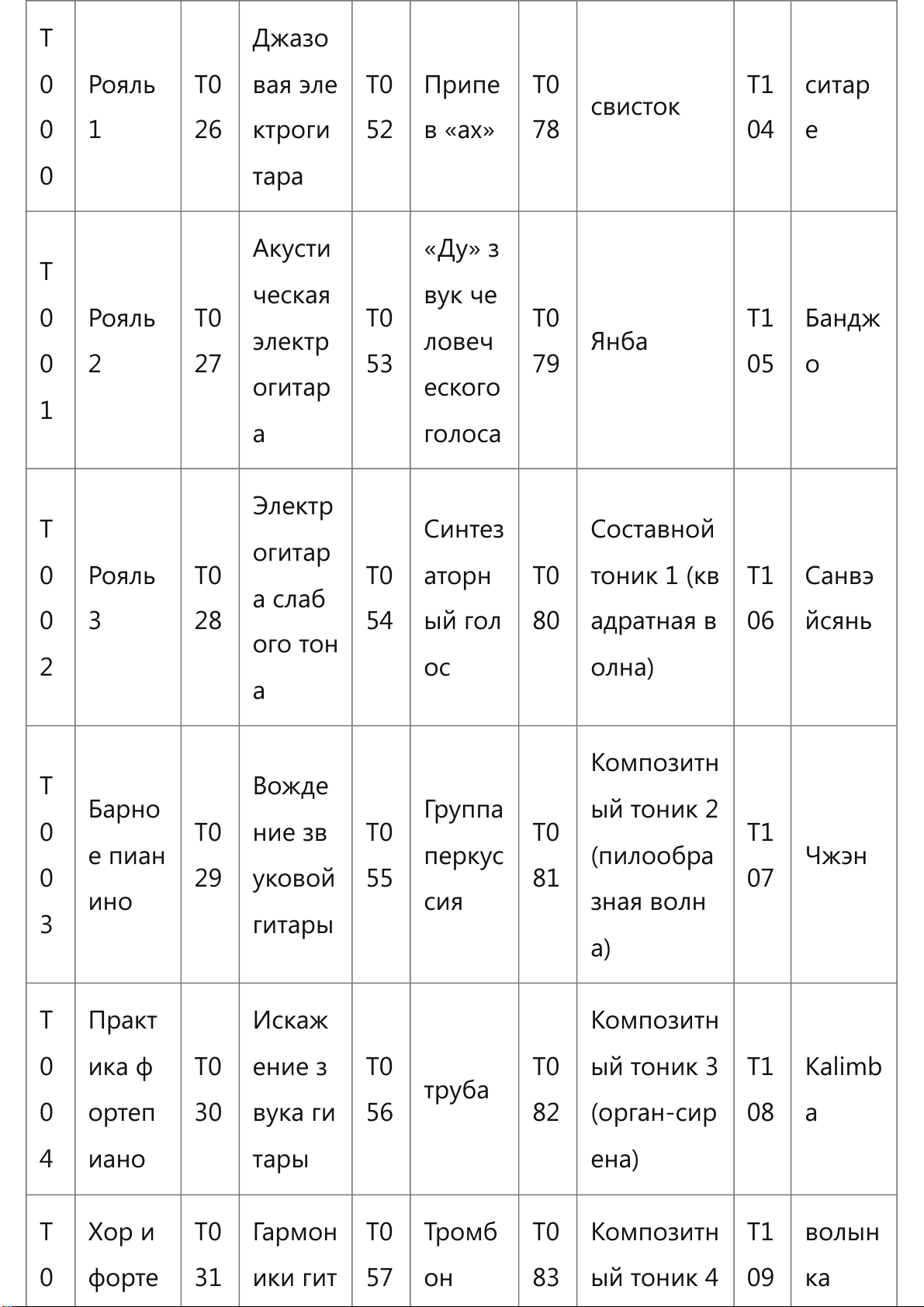

128种音色

128 voices

appendix

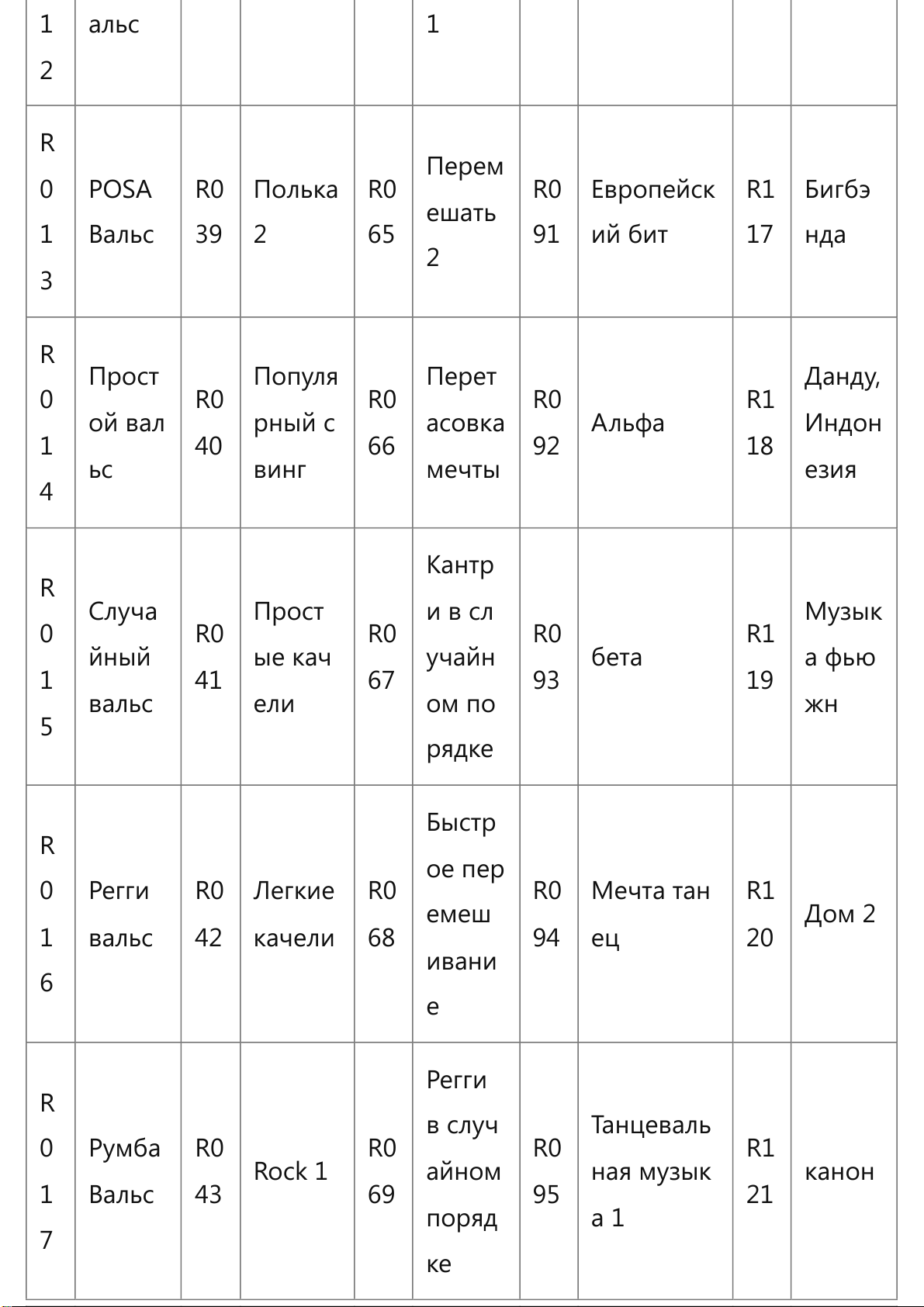

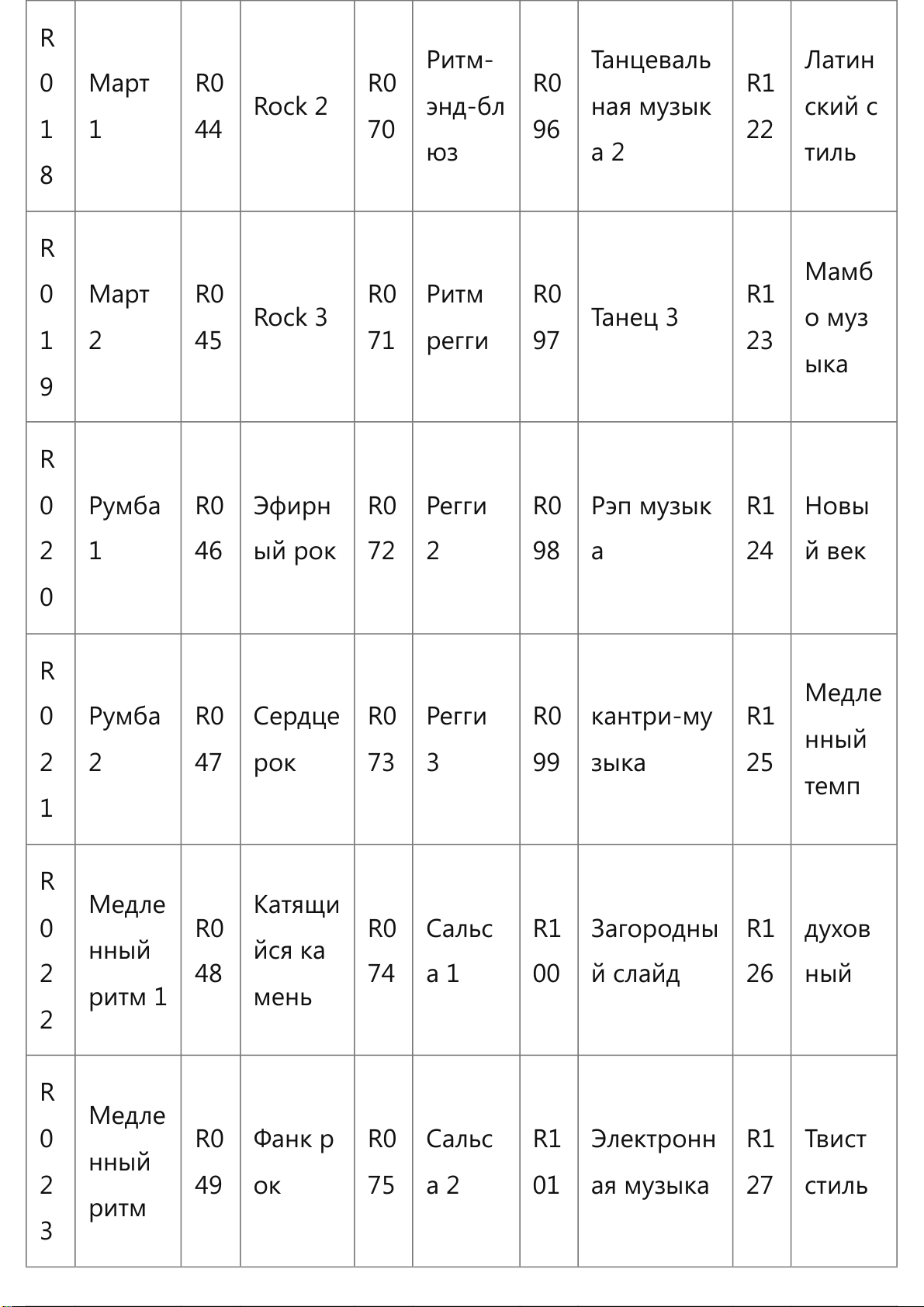

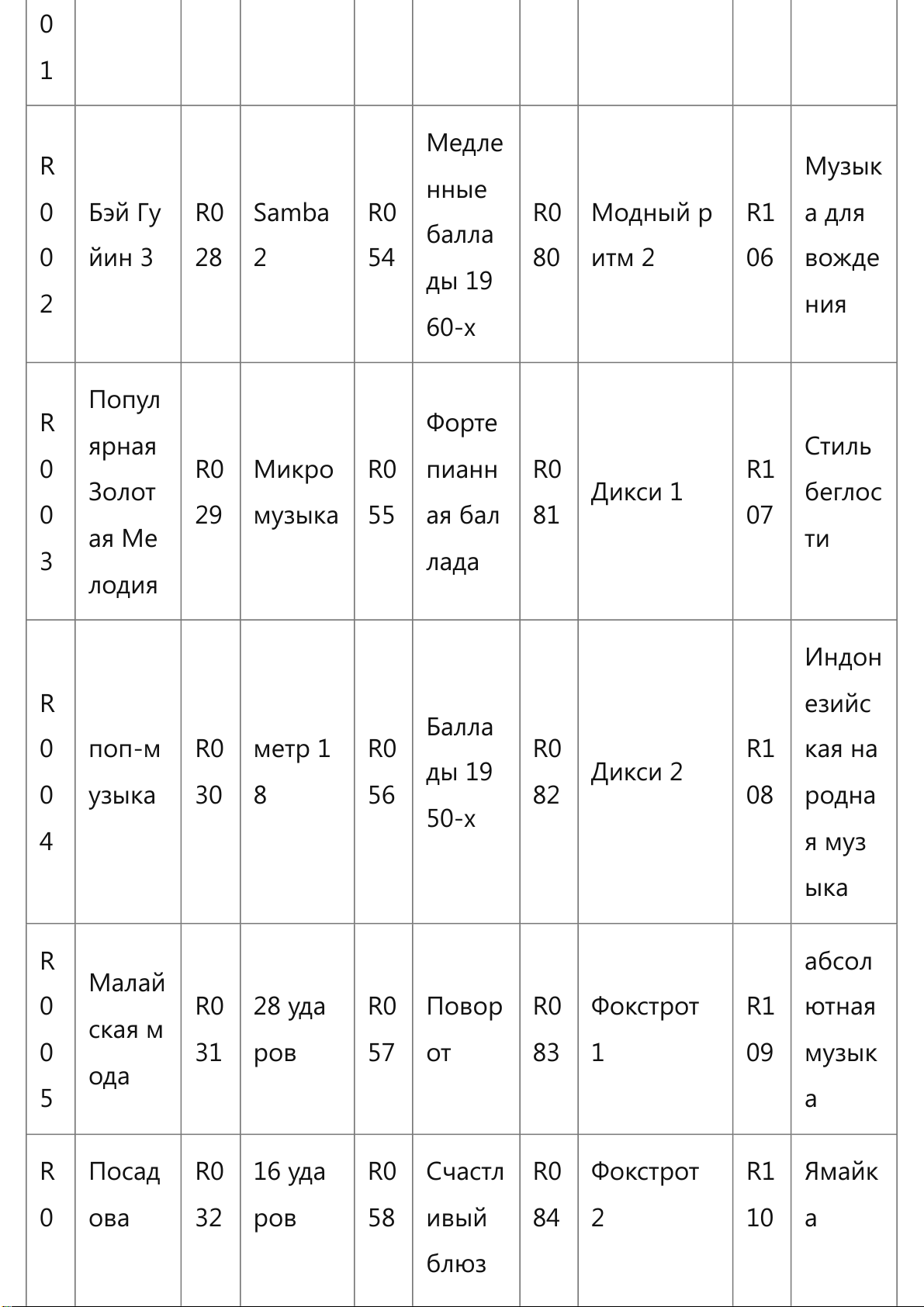

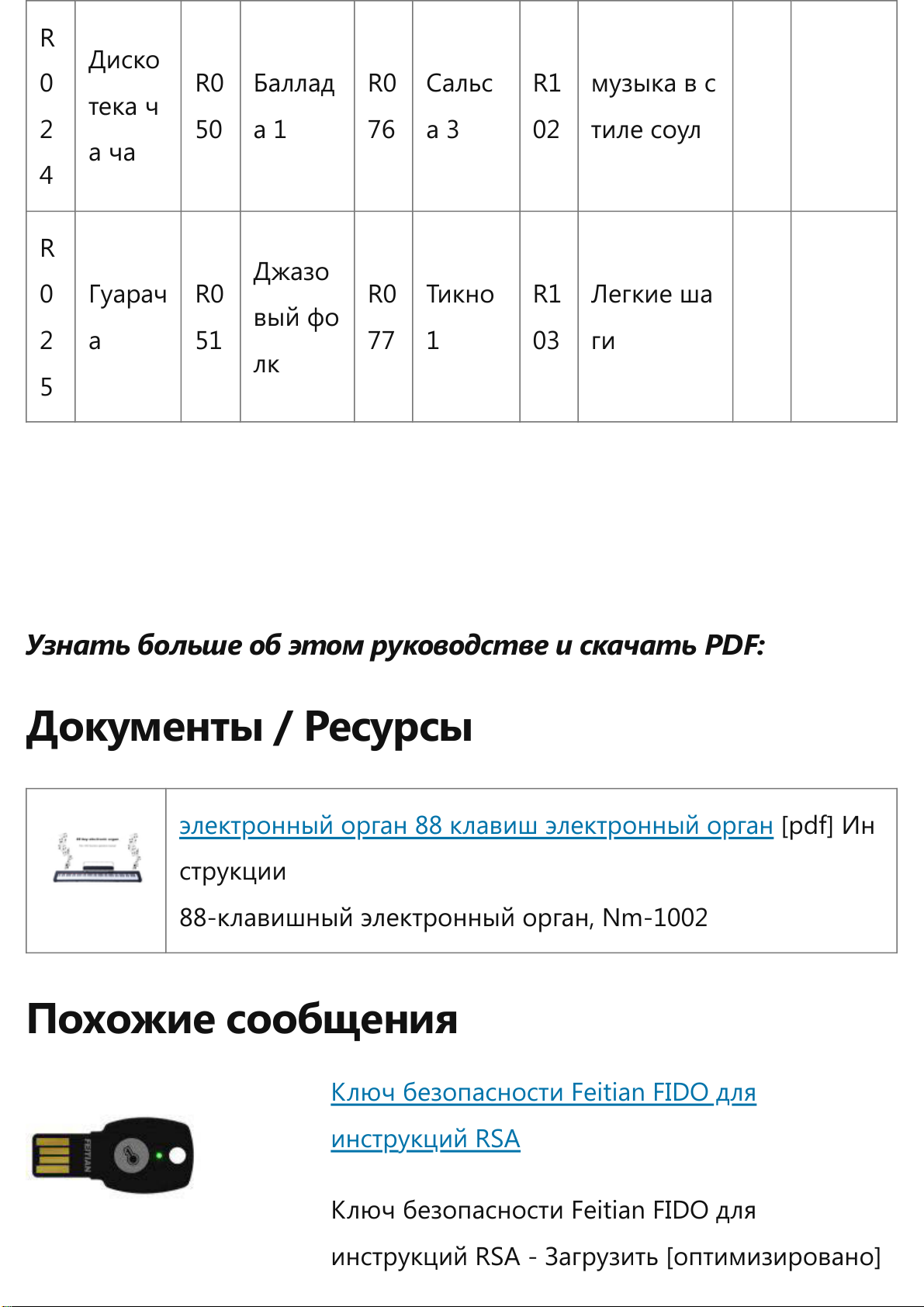

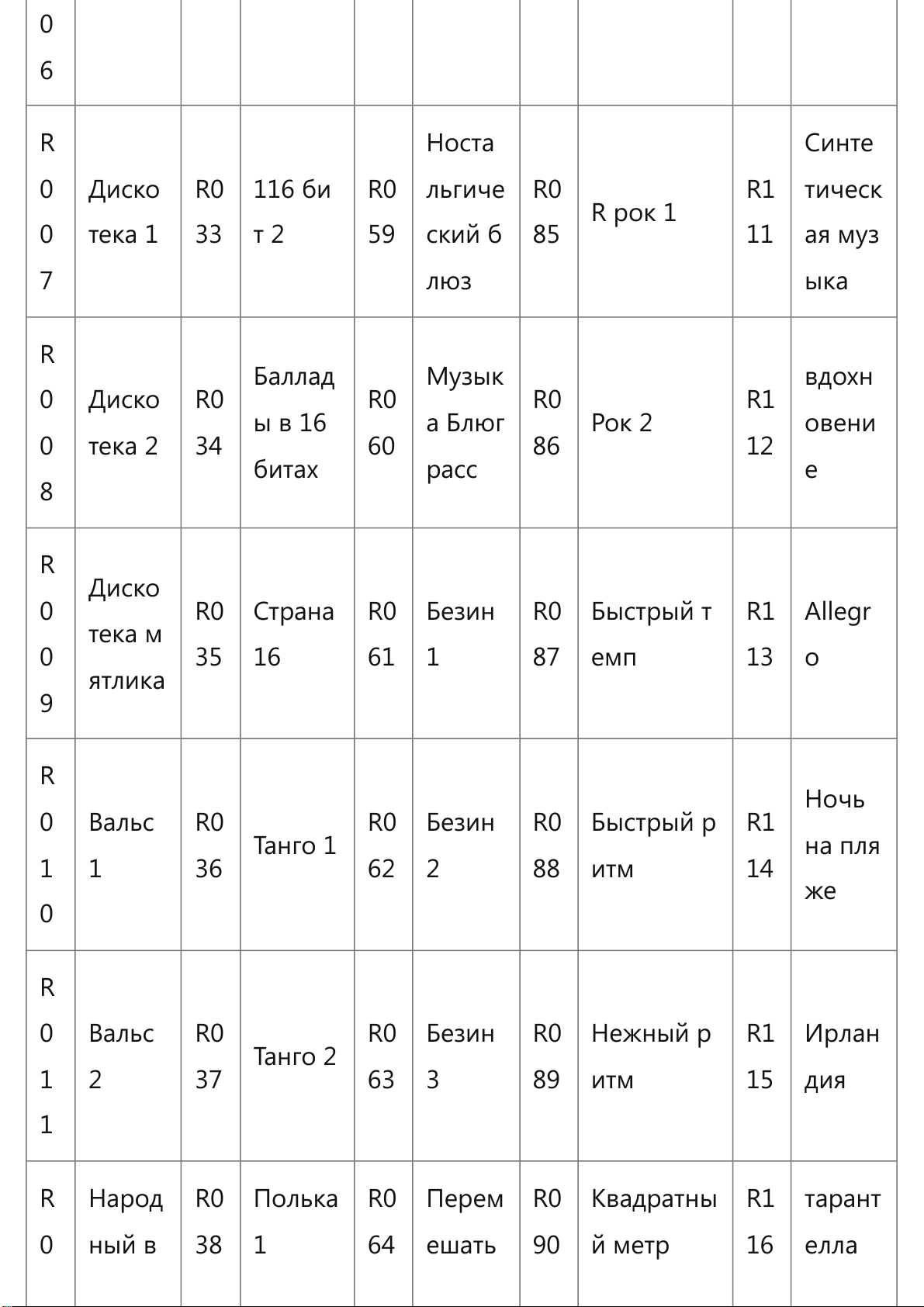

128种节奏

128 rhythms

appendix

T000

T001 T027 T053 T079 T105

T002 T028 T054 T080 T106

T003 T029 T055 T081 T107

T004 T030 T056 T082 T108

T005 T031 T057 T083 T109

T006 T032 T058 T084 T110

T

T008 T034 T060 T086 T112

T009 T035 T061 T087 ) T113

T010 T036 T062 T088 T114

T011 T037 T063 T089 T115

Grand Piano 1

T026 T052 T078 T104

Grand piano 2

Grand piano 3

Bar piano

Practice piano

Chorus and Piano

Clavichord

Clavichord

007 T033 T059 T085 T111

Piano

carillon

Music box

Vibraphone

Jazz electric guitar

Acoustic electric guitar

Weak tone electric guitar

Driving sound guitar

Distortion sound guitar

Guitar Harmonics

Acoustic Bass

Dial electric bass

Dial electric bass

Fretless Bass

Beatles 1

Beatles 2

Chorus "ah"

"Du" sound of human voice

Synth Voice

Band percussion

trumpet

Trombone

Large

muted trumpet

Horn

Copper tube group

Synthetic copper tube 1

Synthetic copper tube 2

whistle

Yangba

Compound tonic 1 (square wave)

Composite tonic 2 (saw tooth wave)

Composite tonic 3 (siren organ)

Composite tonic 4 (blowpipe)

Composite tonic 5 (guitar)

Synthetic tonic 6 (human voice)

Composite tonic 7 (fifth)

Composite tonic 8 (bass plus tonic)

Synthetic soft 1 (New Era)

Synthetic soft (warm)

sitar

Banjo

Sanweixian

Zheng

Kalimba

bagpipe

Viola

a suona horn

small bell

Latin bell

Steel drum

Wood

R000 R026 R052 R078 R104

R001 R027 R053 R079 R105

R002 R028 R054 R080 R106

R003 R029

R004 R030

R005 R031

R006

R007

R008

R009

R010

R011

Bei Guiying

Bei Guiying 2

Bei Guiying 3

Popular Golden Melody

pop music

Malay fashion

Posadova

Disco 1

Disco 2

Bluegrass disco

Waltz 1

Waltz 2

R032

R033

R034

R035

R036

R037

Charles

Samba 1

Samba 2

Micro music

18 meter

28 beats

16 beats

116 beat 2

Ballads in 16 beats

Country 16

Tango 1

Tango 2

R055

R056

R057

R058

R059

R060

R061

R062

R063

C ballad

J ballad

Slow ballads in the 1960s

Piano ballad

Ballads of the 1950s

Twist

Happy Blues

Nostalgic Blues

Bluegrass Music

Bezin 1

Bezin 2

Bezin 3

R081 R107

R082 R108

R083

R084

R085

R086

R087

R088

R089

Tikno 2

Fashion rhythm 1

Fashion rhythm 2

Dixie 1

Dixie 2

Foxtrot 1

Foxtrot 2

R rock 1

R Rock 2

Fast tempo

Rapid beat

A gentle beat

R109

R110

R111

R112

R113

R114

R115

fate

Comedy Music

Driving music

Fluency style

Indonesian folk music

absolute music

Jamaica

Synthetic music

inspiration

Allegro

Beach night

Ireland

T012 T038 T064 T090 T116

T013 T039 T065 T091 T117

T014 T040 T066 T092 T118

T015 T041 T067 T093 T119

T016 T042 T068 T094 T120

T017 T043 T069 T095 T121

T018 T044 T070 T096 T122

T019 T045 T071 T097 T123

T020 T046 T072 T098 T124

T021 T047 T073 T099 T125

T022 T048 T074 T100 T126

T023 　 T049 T075 T101 T127

Malimba

Xylophone

tubular bells

Santur

Percussion organ

Percussion organ

Rock organ

Pipe organ

Reed organ

accordion

harmonica

Bando accordion

Synthetic bass 1

Synthetic Bass 2

violin

Viola

cello

Double bass

tremolo strings

pizzicato strings

harp

timpani

String ensemble 1

String ensemble 2

Soprano saxophone

Alto Saxophone

Baritone Saxophone

baritone saxophone

Oboe

British management

Da Guan

Clarinet

Piccolo

flute

Clarinet

Panpipe

Compound soft 3

Synthetic soft 4 (Chorus)

Composite soft 5 (bowstring)

Synthetic soft 6 (metal)

Synthetic soft 7 (aura)

Composite soft 8 (swept string)

Composite effect 1 (rain)

Composite effects 2 (track)

Composite effects 3 (crystal)

Composite effect 4 (atmosphere)

Composite effect 5 (bright tone)

Composite effect 6 (demon)

osu

Tonggu

Synthetic drum

Cymbal waveform inversion

The sound of grinding strings

Breathing sound

The sound of waves

Birdsong

Telephone ring

The sound of a helicopter

Applause

shot

R012

R013

R014

R015

R016

R017

R018

R019

R020

R021

R022
R023

Folk Waltz

POSA Waltz

Simple Waltz

Shuffle Waltz

Reggae Waltz

Rumba Waltz

March 1

March 2

Rumba 1

Rumba 2

Slow beat 1

Slow beat

R038

R039

R040

R041

R042

R043

R044

R045

R046

R047

R048

R049

Polka 1

Polka 2

Popular swing

Simple swing

Light swing

Rock 1

Rock 2

Rock 3

Ethereal rock

Heart rock

Rolling stone

Funk Rock

R064

R065

R066

R067

R068

R069

R070

R071

R072

R073

R074

R075

Shuffle 1

Shuffle 2

Dream shuffle

Country shuffle

Quick shuffle

Reggae shuffle

Rhythm and blues

Reggae beat

Reggae 2

Reggae 3

Salsa 1

Salsa 2

R090

R091

R092

R093

R094

R095

R096

R097

R098

R099

R100

R101

Square meter

European beat

Alpha

Beta

Dream Dance

Dance music 1

Dance music 2

Dance 3

Rap music

country music

Country slide

Electronic music

R116

R117

R118

R119

R120

R121

R122

R123

R124

R125

R126

R127

Tarantella

Big band

Dandu, Indonesia

Fusion music

House 2

Canon

Latin style

Mambo music

New century

Slow tempo

a spiritual

Twist style

T024 T050 T076 T102

T025 T051 T077 T103

Nylon Guitar

steel guitar

Composite string 1

Synthetic chord 2

Blow bottle mouth

Chiba

Composite effect 7 (echo)

Composite effects 8 (Science Fiction)

R024 R050

R025 R051 R077 R103

Disco cha cha

Guaraccha

Ballad 1

Jazz folk

R076

Salsa 3

Tikno 1

R102

soul music

Easy steps

Главная » электронный орган » 88 основных инструкций по электронному

органу

88 основных инструкций по электрон

88 основных инструкций по электрон

-

-

ному органу

ному органу

Июль 13, 2021

Июль 13, 2021

Руководства +

Руководства +

——Упрощенные руководства пользователя.

Упрощенные руководства пользователя.

Содержание [скрывать]

1 88 основных инструкций по электронному органу

2 Краткое руководство по электронному органу

3 Введение функции:

4 Инструкция по эксплуатации

5 Инструкция по эксплуатации:

6 предупреждение

7 1. аккумулятор

8 2. Ненормальная ситуация

9 3. Установите аккумулятор.

10 80 демонстрационных песен

11 Узнать больше об этом руководстве и скачать PDF:

12 Документы / Ресурсы

13 Похожие сообщения

88 основных инструкций по электронному органу

Краткое руководство по электронному органу

NM-1002

Введение функции:

Клавиатура: 88 стандартных клавиш (включая черные клавиши),
диапазон: A1 ~ C9. Тембры: 128 тембров.
Ритм: 128 ритмов.
Показательная песня: 80 песен.
Функция ритма, функция демонстрации музыки, функция записи и
воспроизведения, функция двойной клавиатуры, функция аккорда,
функция метронома.
Аппаратное обеспечение: 64 аккорда, с 2-канальным 16-битным
выходом ЦАП, встроенное питание ampболее жизненная цепь.
Функция вывода: трехзначный цифровой дисплей.
Может быть оснащен педалью тона.

Инструкция по эксплуатации

Инструкция по эксплуатации:

Режим воспроизведения (тембр):

Нажмите выключатель питания, чтобы автоматически войти в режим
игры (тембр), и загорится свет тембра. (Фигура 2)
Поверните [колесо данных], чтобы выбрать тембр. (Рисунок 3)

Ритмический режим:

Нажмите кнопку [start / stop] и [ритм], система войдет в режим ритма
и сыграет ритм, и загорится индикатор ритма. (Рисунок 15) (Рисунок 6)
Поверните [колесо данных], чтобы выбрать ритм-трек от 0 до 127.
(Рисунок 3)
Нажмите клавишу [sync], чтобы начать воспроизведение ритма, нажав
клавишу пианино. (Рисунок 11)
В этом режиме нажмите клавишу [voice] и поверните [колесо данных],
чтобы переключить голос, при этом одновременно загорится
голосовой индикатор. Чтобы снова переключить ритм, нажмите
кнопку
ритм-ключ. (Рисунок 5) (Рисунок 3) (Рисунок 6)

Режим двойной клавиатуры ：

Нажмите клавишу [двойная клавиатура], чтобы включить / выключить
режим двойной клавиатуры, при этом индикатор двойной клавиатуры
горит / гаснет. (Рисунок 7)
В этом режиме диапазон клавиш делится на две части: a2-b5 и C4-C8.

Режим модельной песни:

Нажмите кнопку [demo], система воспроизведет всю демонстрацию, и
загорится индикатор демонстрации. Нажмите кнопку [start / stop],
чтобы остановить демонстрационную музыку, и индикатор
демонстрационной музыки погаснет. (Рисунок 8)
Поверните [колесо данных], чтобы выбрать демонстрационные песни,
и диапазон треков будет от 0 до 79. (Рисунок 3)
