FIC VG31E User Manual

VG31E

MAINBOARD

MANUAL

DOC No.: M02803
Rev. |: A0
Date |:10, 2002
Part No. |: 25-11661-00

Notice

Handling Precautions

Warning:

1. Static electricity may cause damage to the integrated circuits on

the motherboard. Before handling any motherboard outside of its
protective packaging, ensure that there is no static electric charge
in your body.

2. There is a danger of explosion if the battery is incorrectly
replaced. Replace only with the same or an equivalent type
recommended by the manufacturer.

3. Discard used batteries according to the manufacturer’s
instructions.

4. Never run the processor without the heatsink properly and firmly

attached. PERMANENT DAMAGE WILL RESULT!

Observe the following basic precautions when handling the motherboard

or other computer components:

n Wear a static wrist strap which fits around your wrist and is

connected to a natural earth ground.

n Touch a grounded or anti-static surface or a metal fixture such as a

water pipe.

n Avoid contacting the components on add-on cards, motherboards,

and modules with the golden fingers connectors plugged into the

expansion slot. It is best to handle system components by their

mounting brackets.

The above methods prevent static build-up and cause it to be discharged

properly.

Trademark

All trademarks mentioned in this manual are registered properly of

the respective owners.

Handling Precautions

This manual may not, in whole or in part, be photocopied, reproduced,

transcribed, translated, or transmitted in whatever form without the

written consent of the manufacturer, except for copies retained by the

purchaser for personal archival purposes.

T able of Contents

Table of Contents

Quick Reference (German) G- 1
Quick Reference (French) F- 1
Quick Reference (Spanish) S-1
Quick Reference (Japanese) J-1
Quick Reference (Chinese) C-1
Quick Reference (Simplified Chinese) |||||||||||||SC-1

Chapter 1 Overview

Package Checklist .......................................................................... 1-2

The VG31E Mainboard .............................................................. 1-3

Main Features ................................................................................ 1-4

Chapter 2 Installation Procedures

Quick Reference (from Page 2-2 to 2-4) .......................................... 2-2

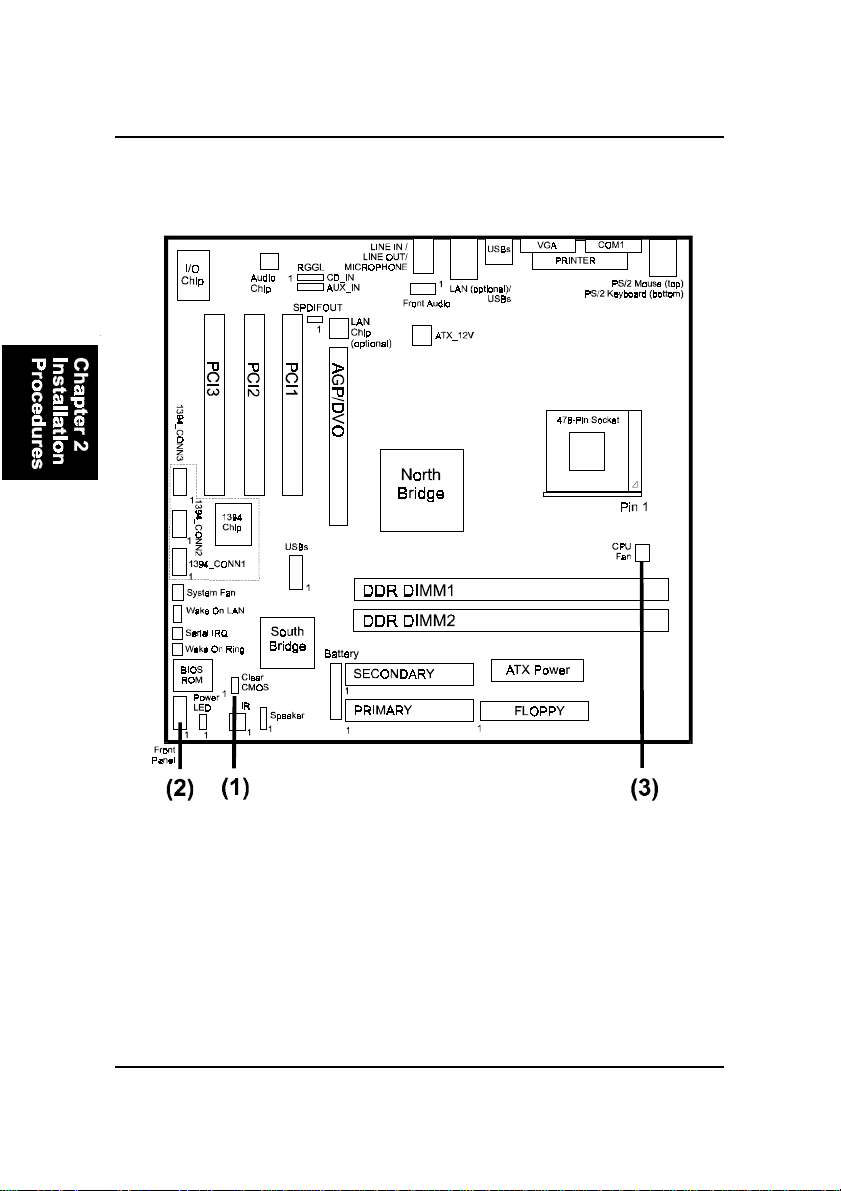

Mainboard Layout .................................................................... 2-2

(1). Clear CMOS ................................................................ 2-3

(2). Front Panel Block Cable Connection ........................... 2-3

(3). CPU Fan Installation .................................................... 2-4

1). Set System Jumper .................................................................... 2-4

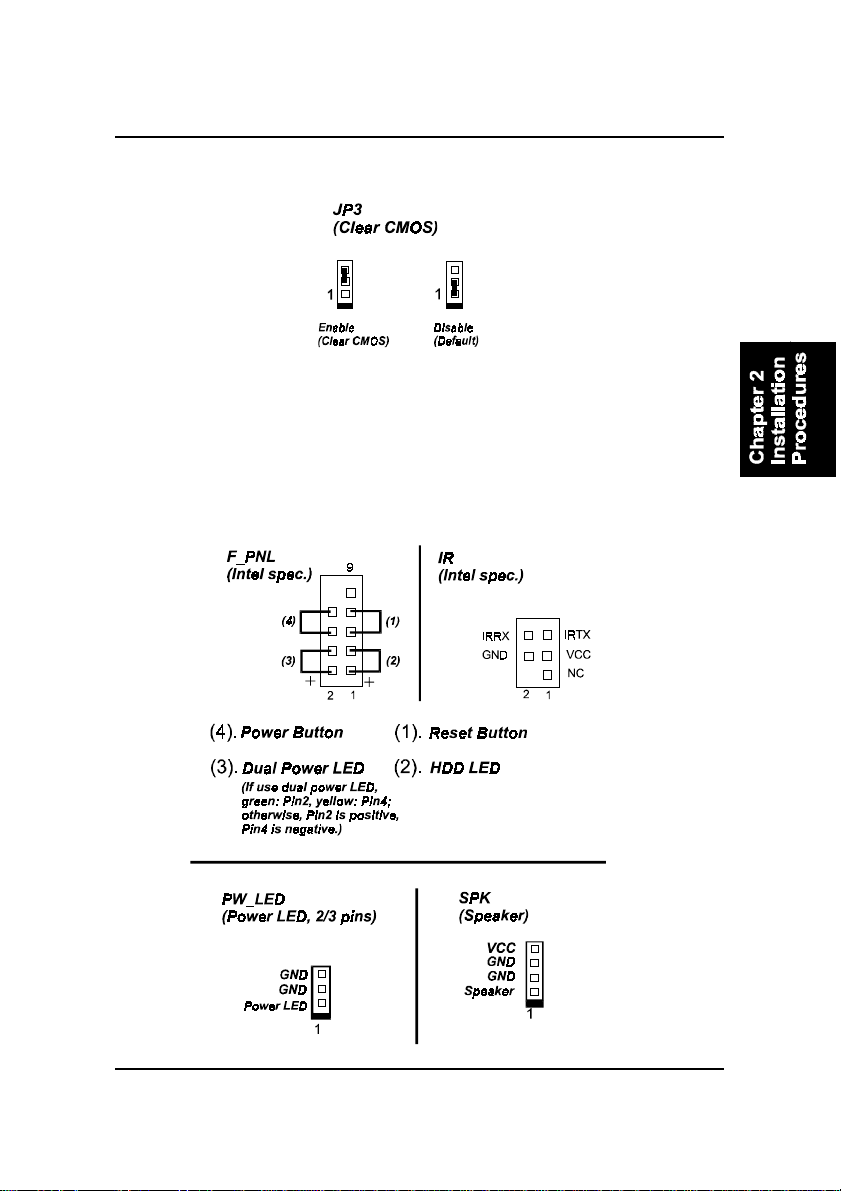

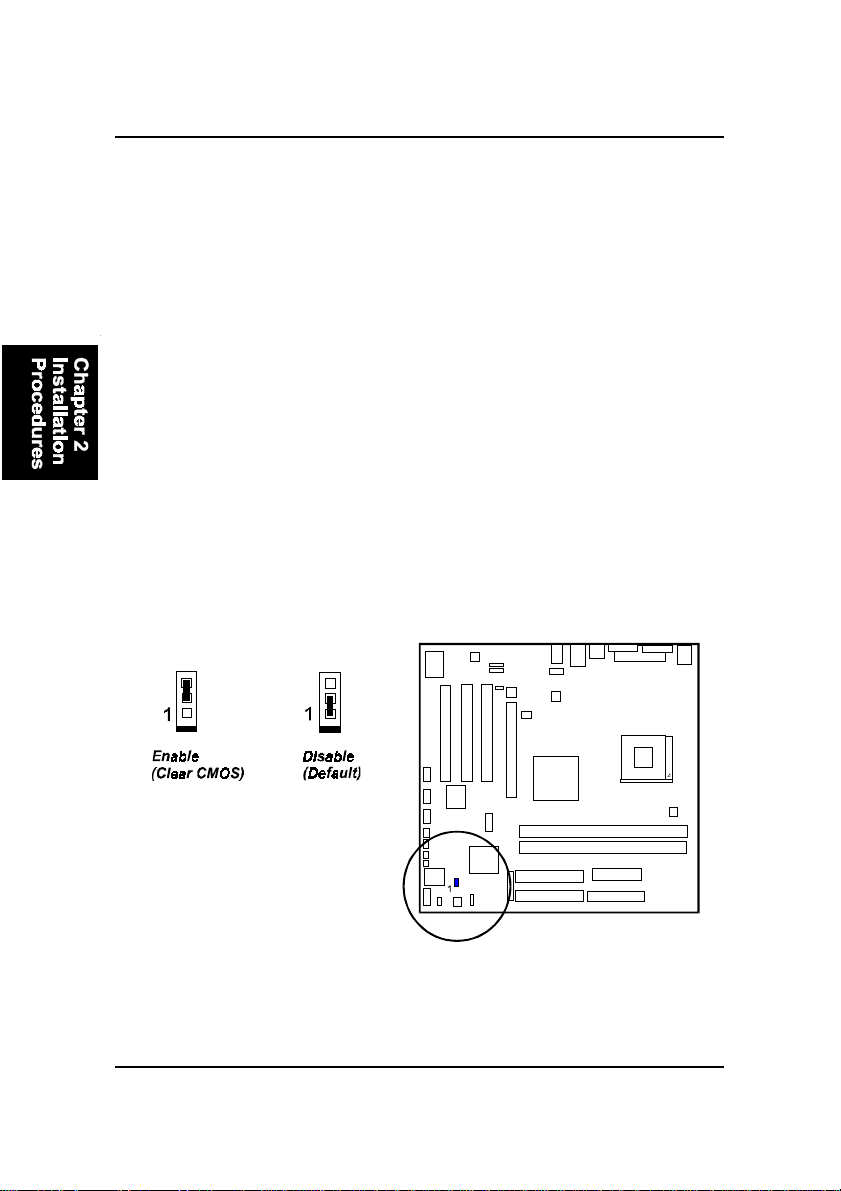

Clear CMOS: JP3 ............................................................... 2-4

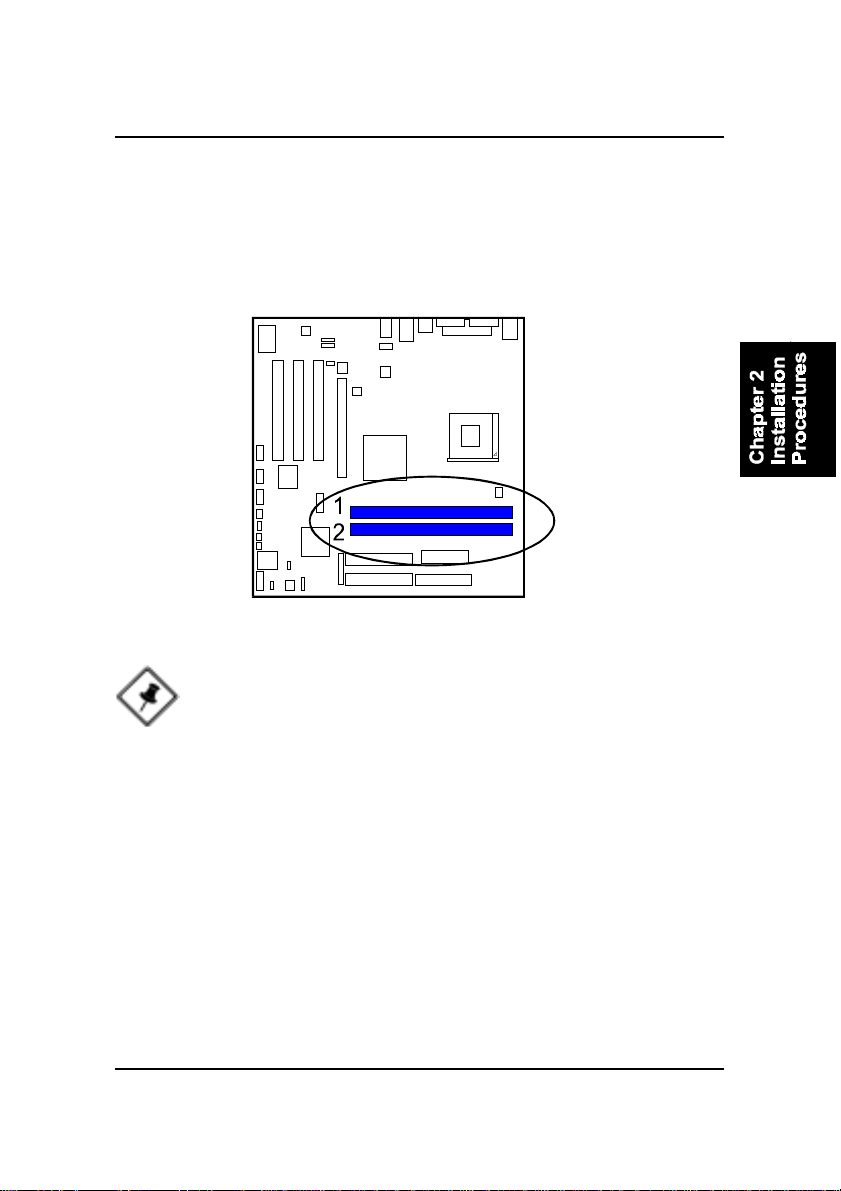

2). Install Memory Modules .......................................................... 2-5

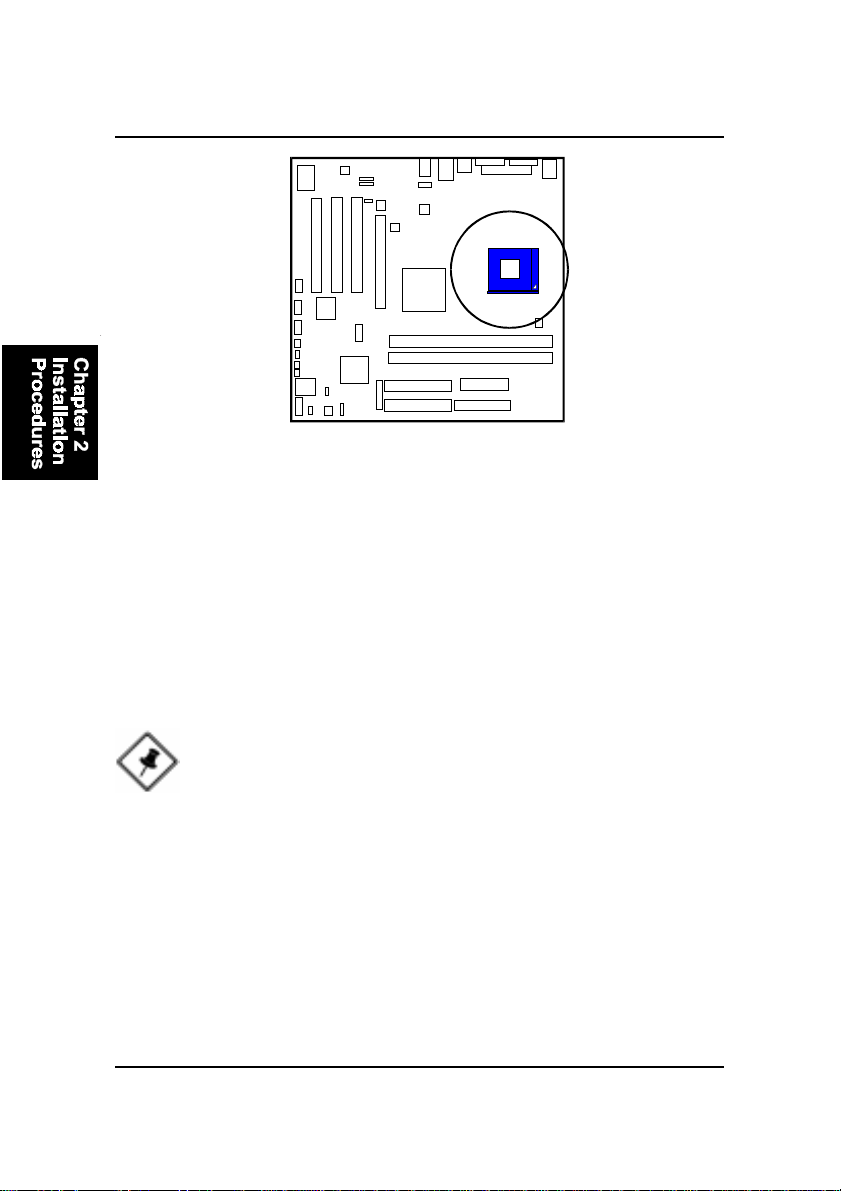

3). Install the CPU .......................................................................... 2-5

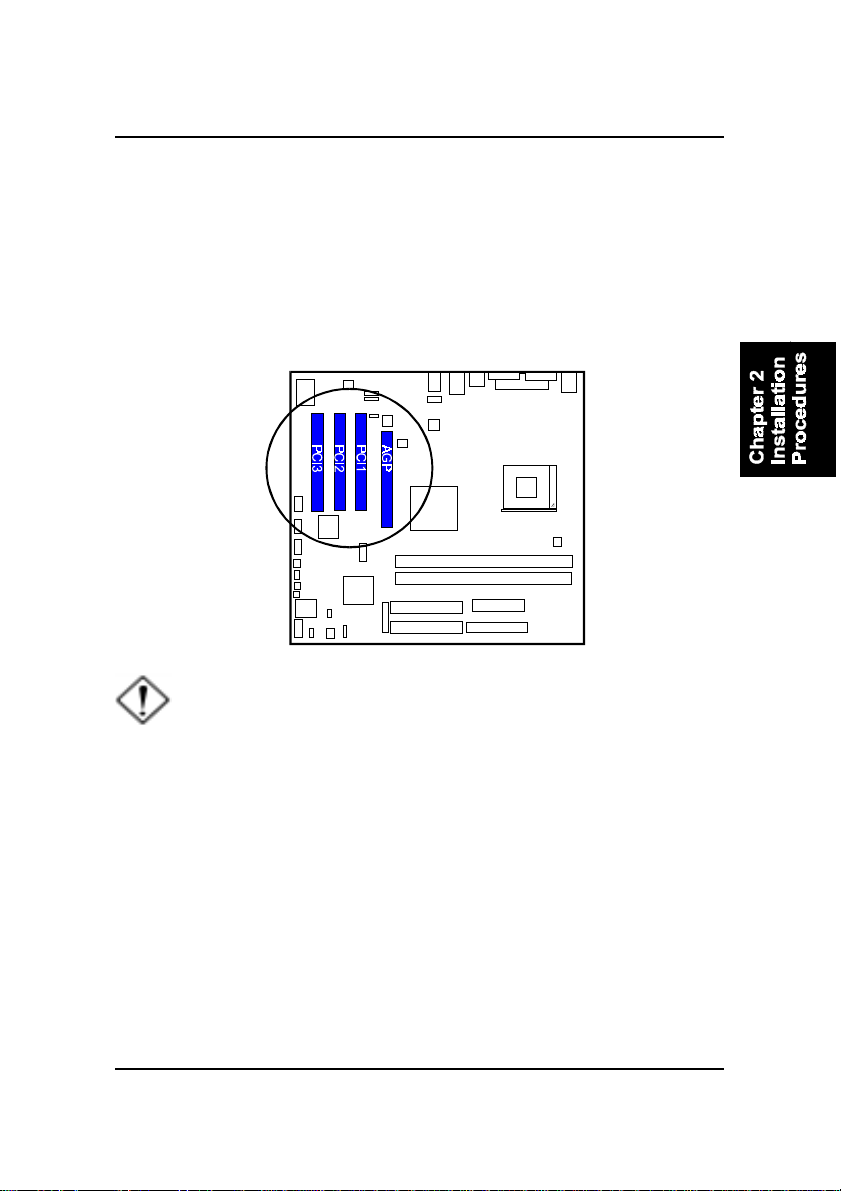

4). Install Expansion Cards ............................................................. 2-7

5). Connect Devices ....................................................................... 2-8

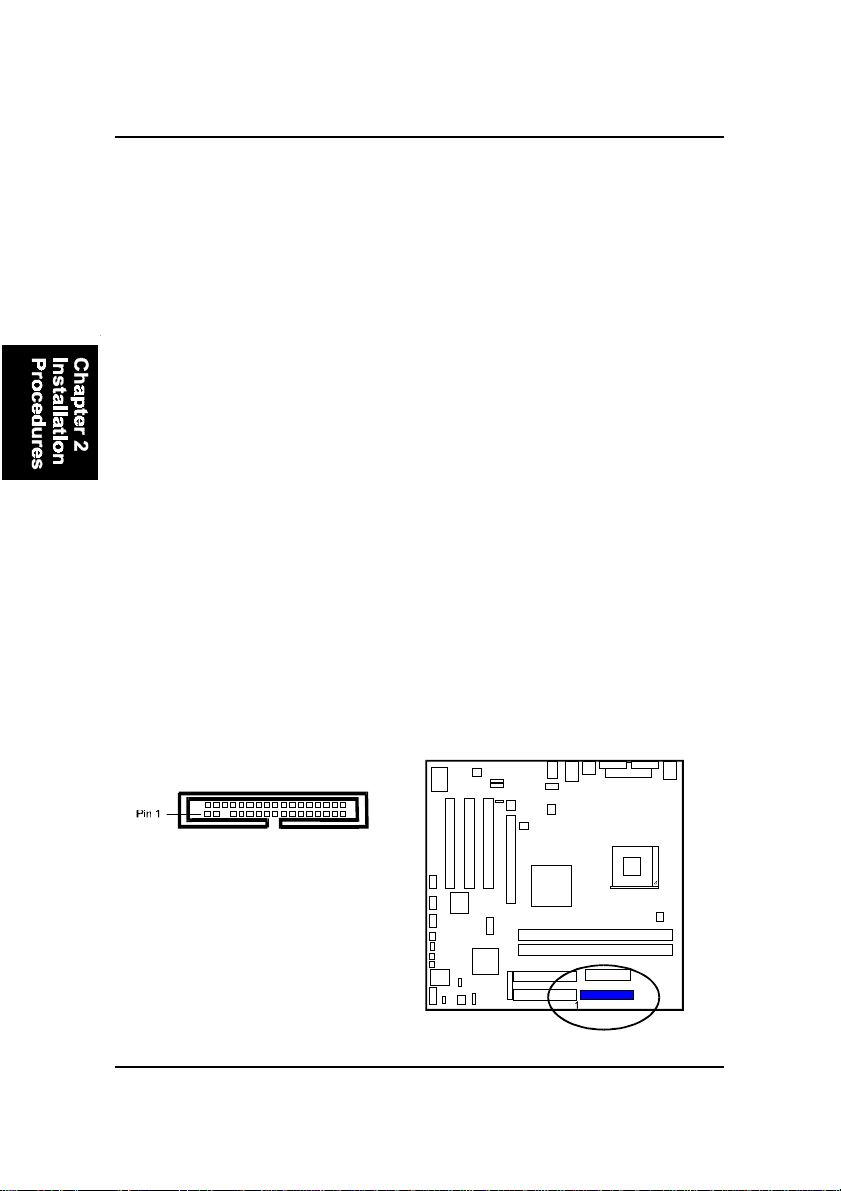

Floppy Diskette Drive Connector ...................................... 2-8

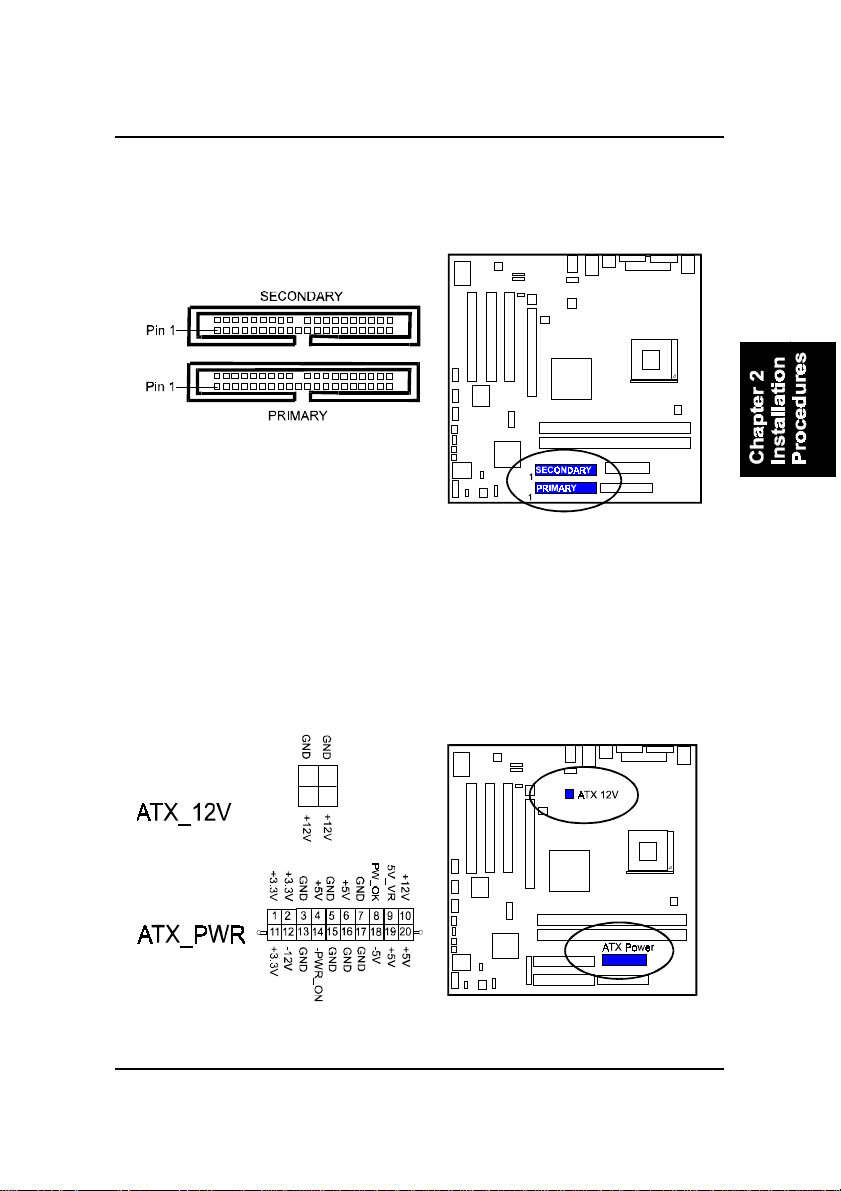

IDE Device Connectors ..................................................... 2-9

Power Connectors ............................................................. 2-9

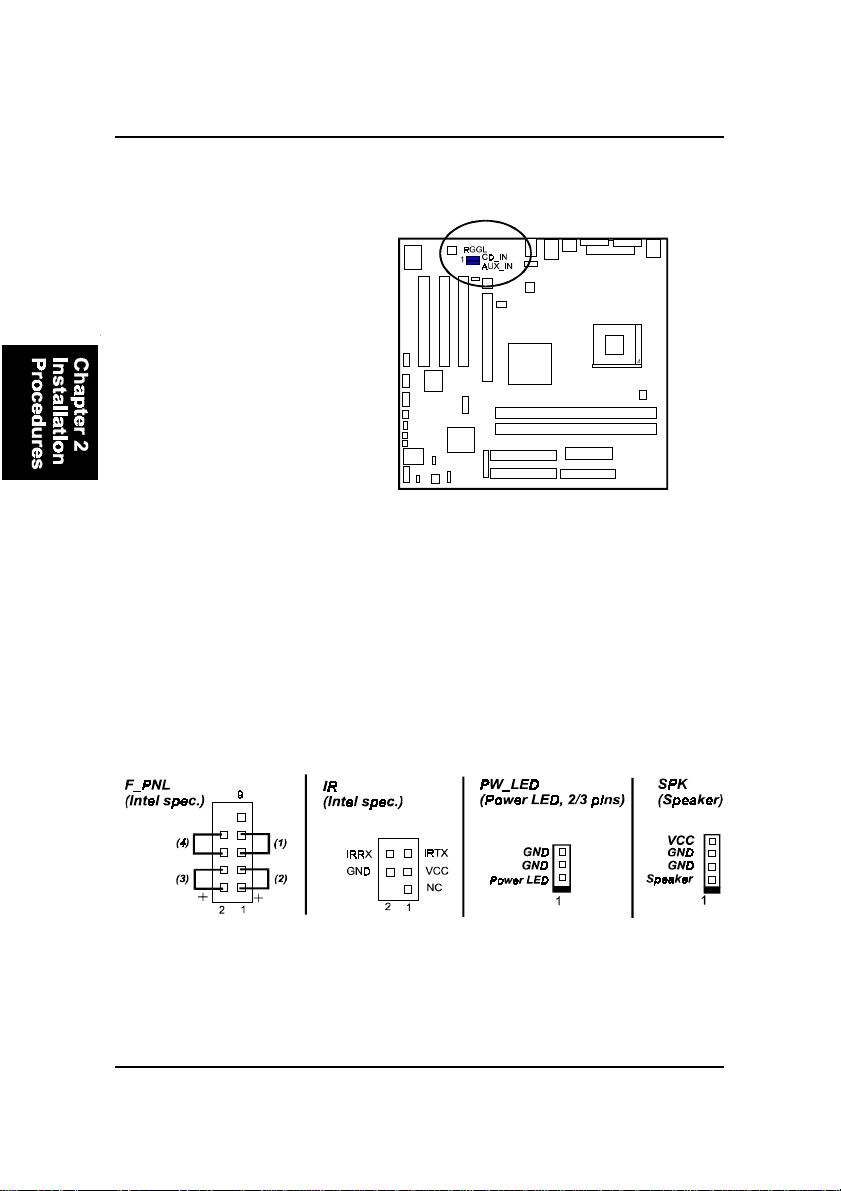

CD Audio-In Connectors ................................................... 2-10

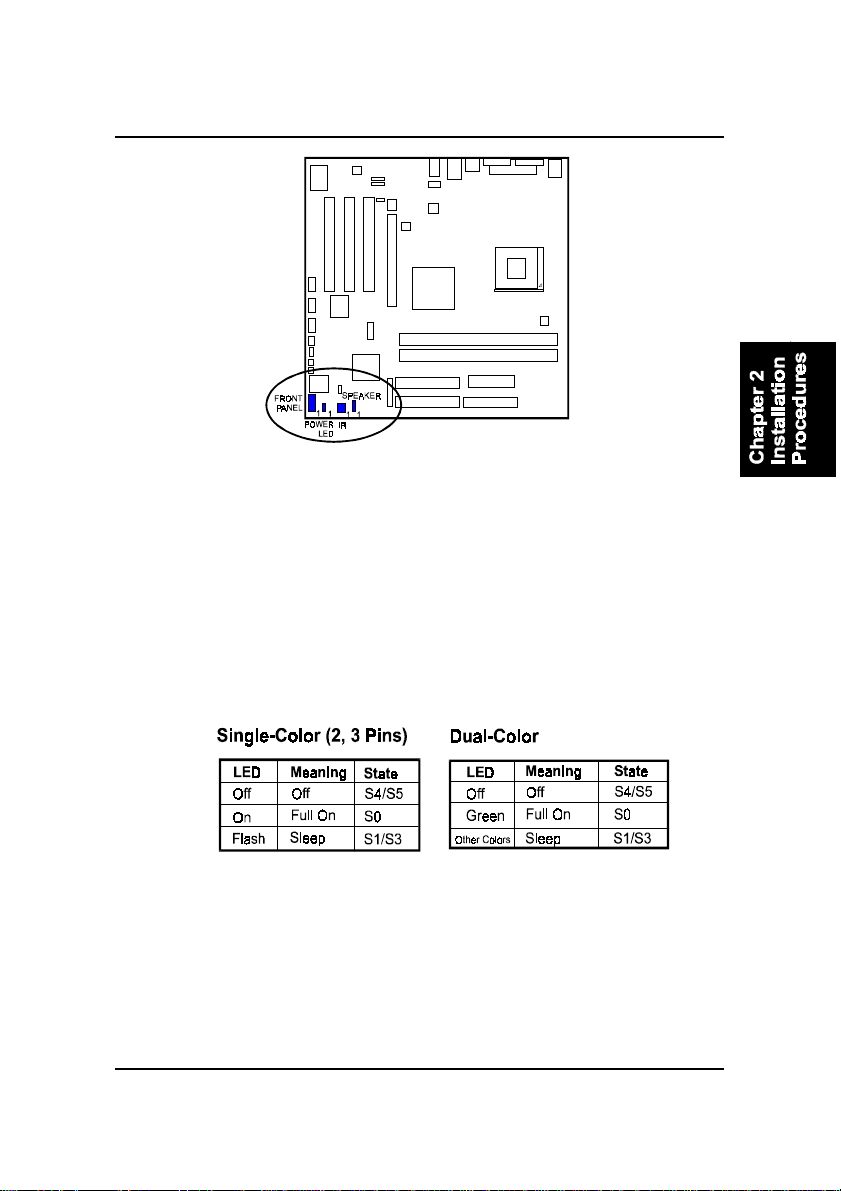

Front Panel Block, Power LED, IR, and Speaker Connector

.......................................................................................... 2-10

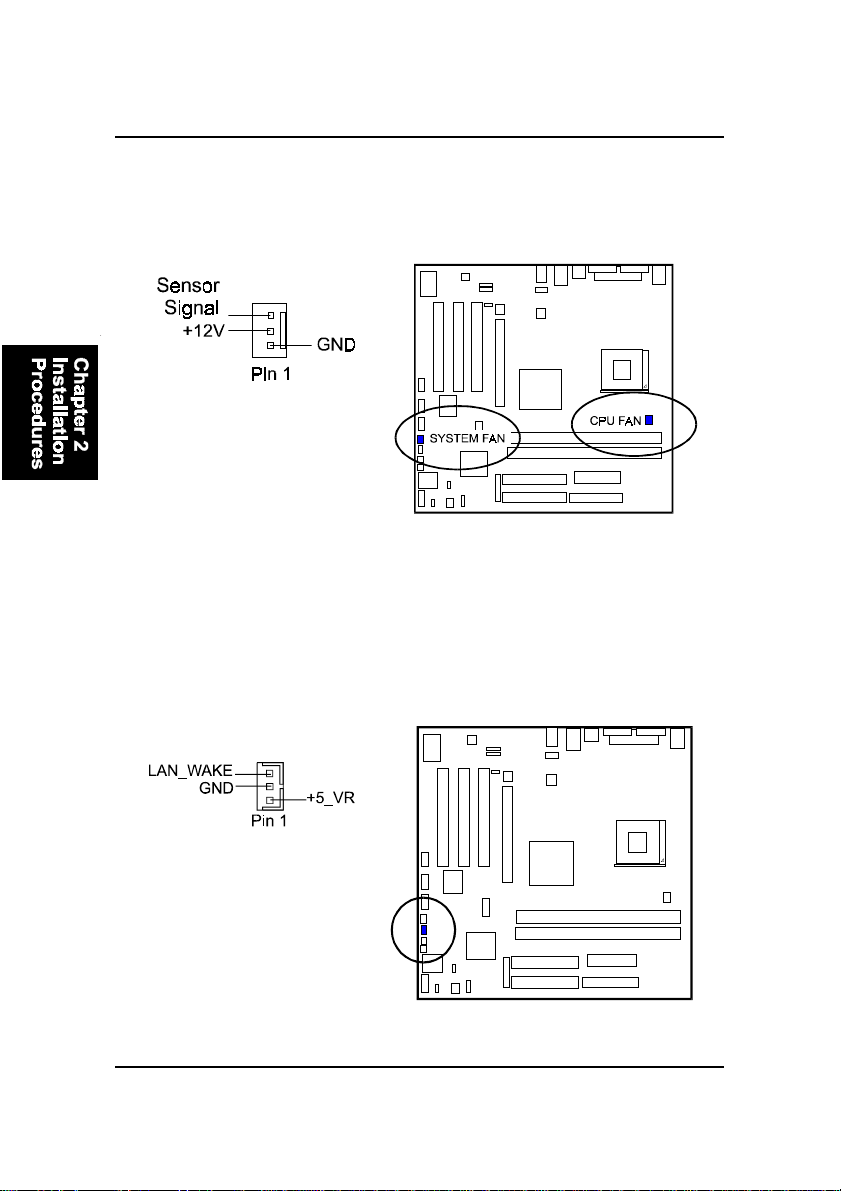

Fan Connectors ................................................................. 2-12

Wake-On-Lan Connector ................................................... 2-12

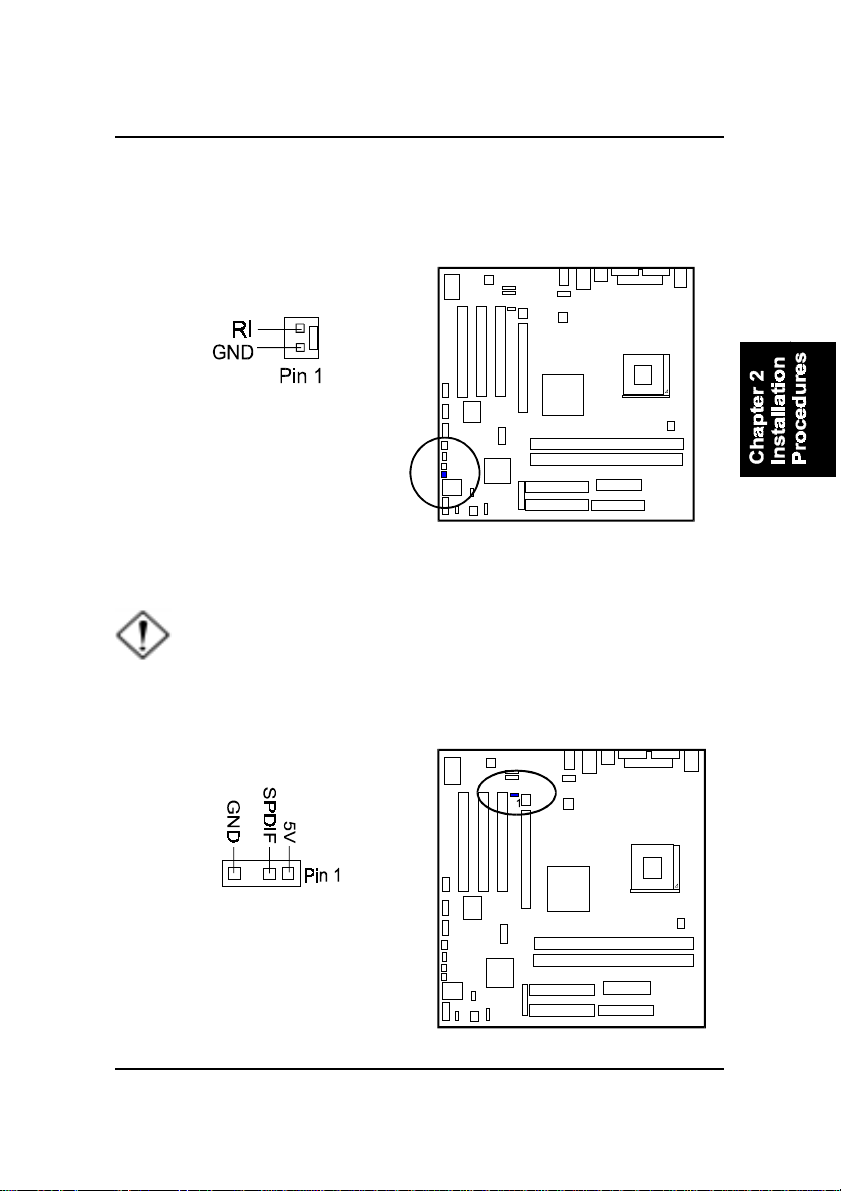

Wake-On-Ring Connector ................................................. 2-13

SPDIF Out Connector ....................................................... 2-13

Serial IRQ Connector ......................................................... 2-14

i

VG31E Mainboard Manual

PS/2 Keyboard and Mouse Connector .............................. 2-14

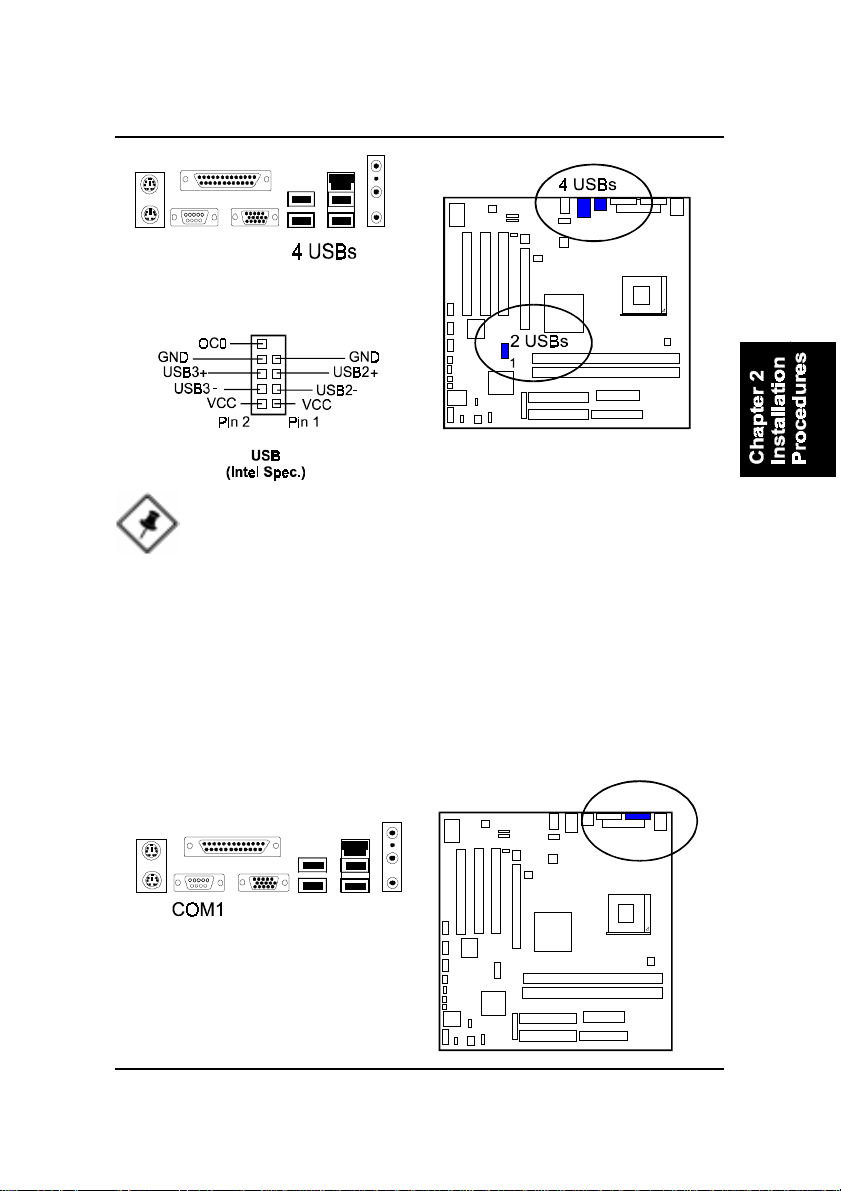

Universal Serial Bus Connectors ....................................... 2-14

Serial Port Connector ........................................................ 2-15

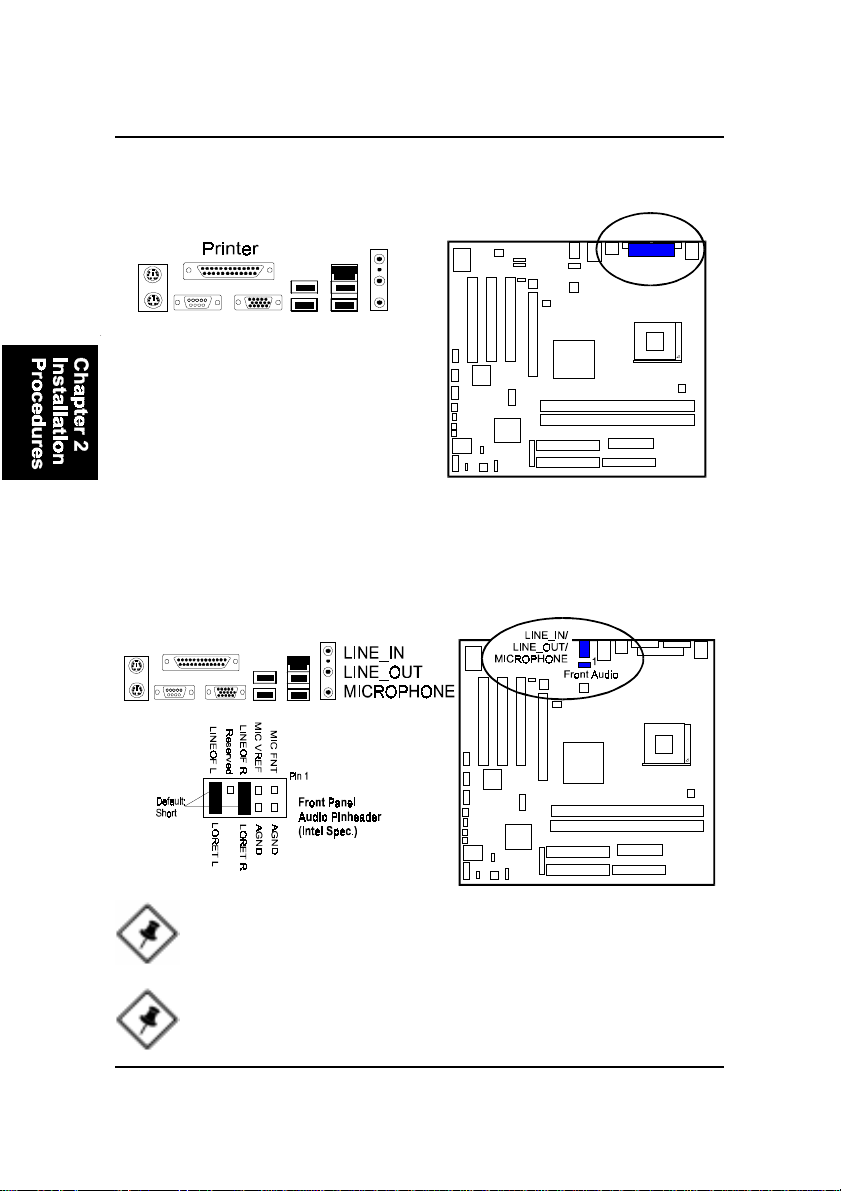

Printer Connector .............................................................. 2-16

Audio I/O Jacks ................................................................ 2-16

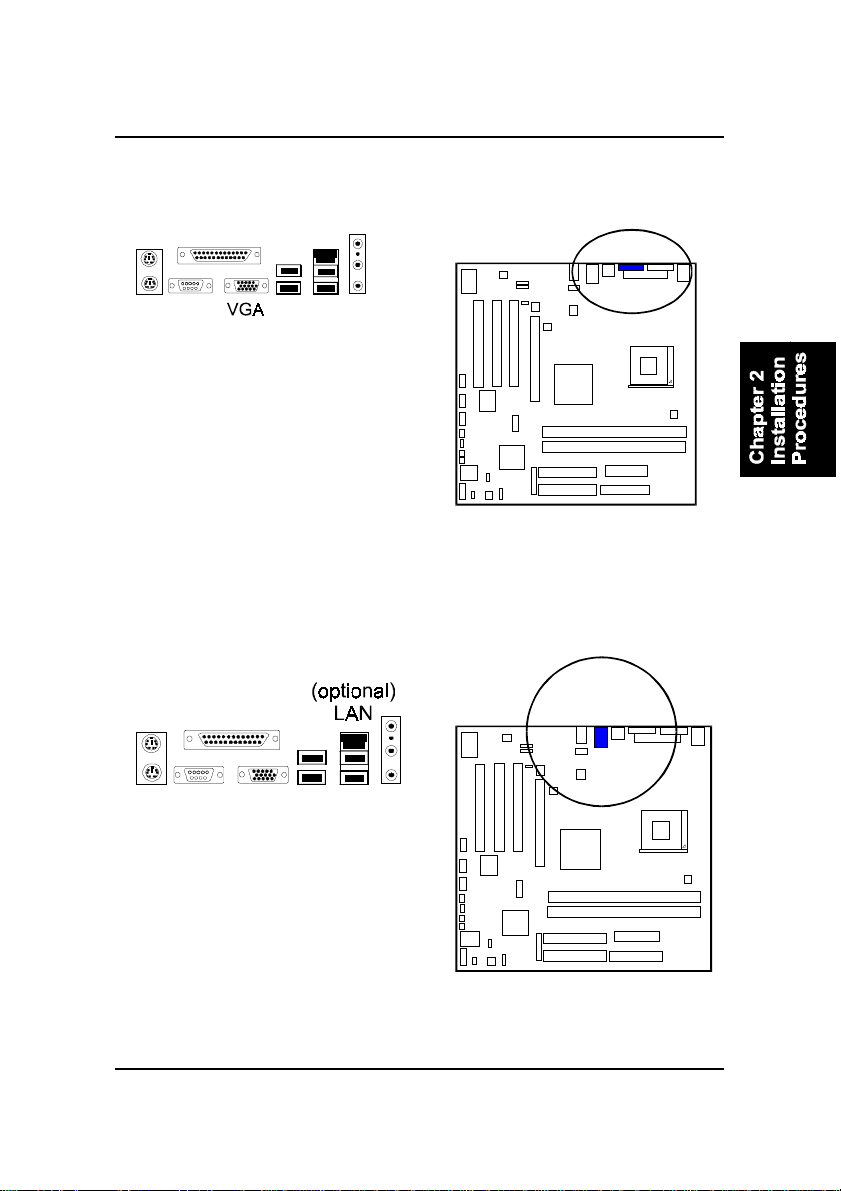

Video Graphics Accelerator Connector.............................. 2-17

LAN Connector (mfg. optional) ........................................ 2-17

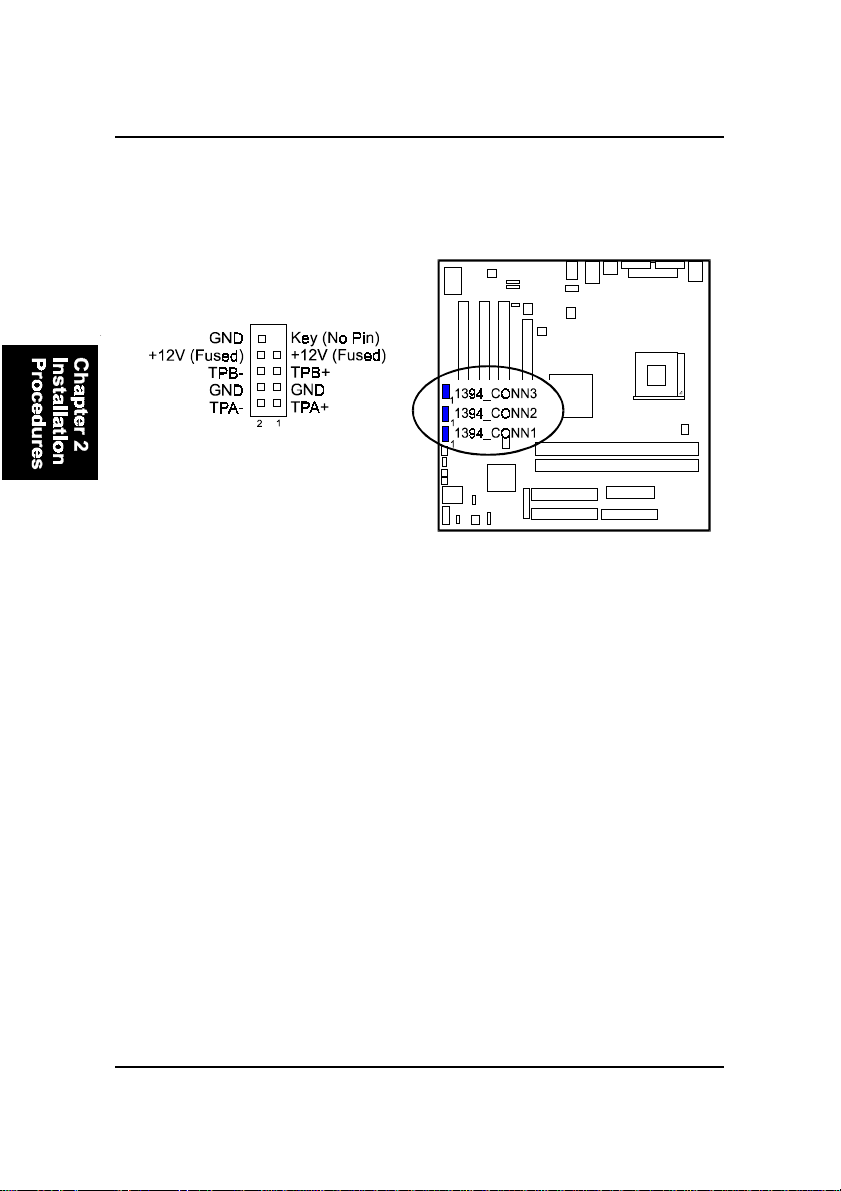

IEEE 1394 Connectors (mfg. optional) ............................... 2-18

Chapter 3 BIOS Setup

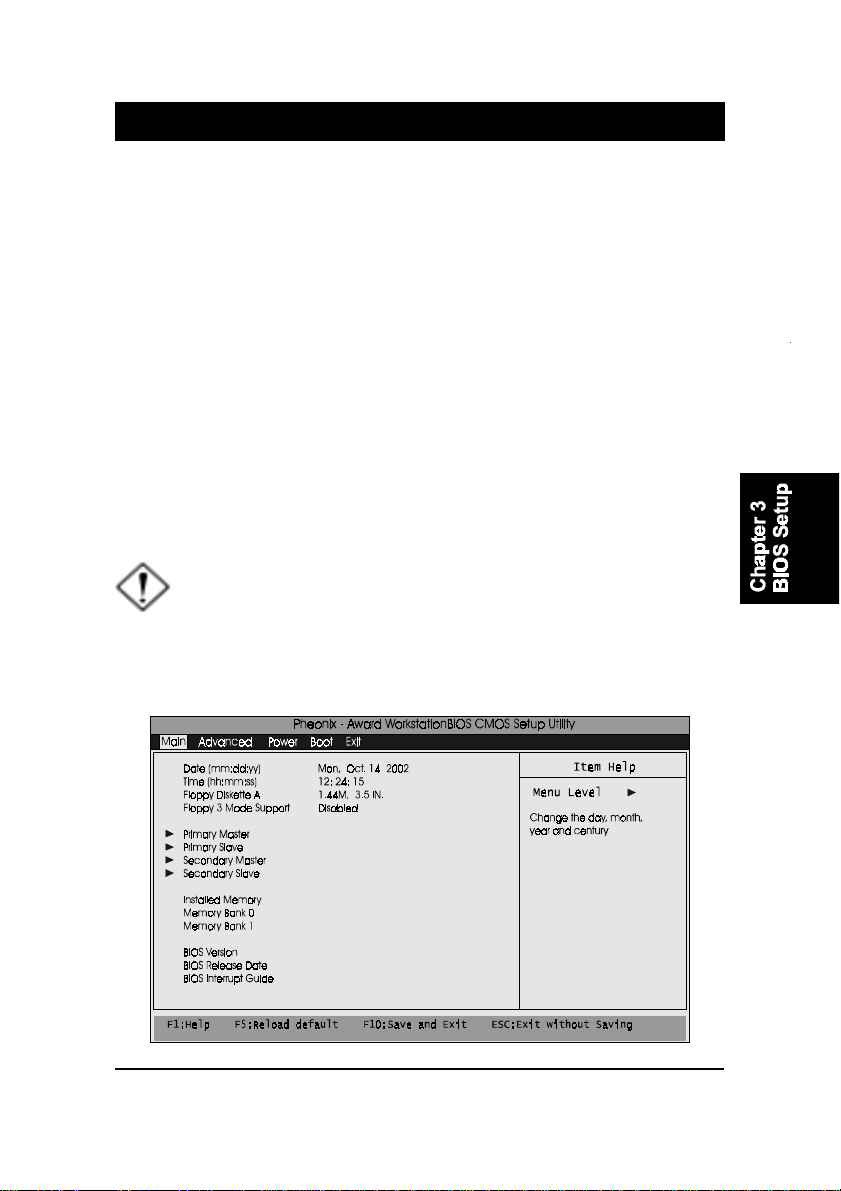

Main Features Setup ...................................................................... 3-1

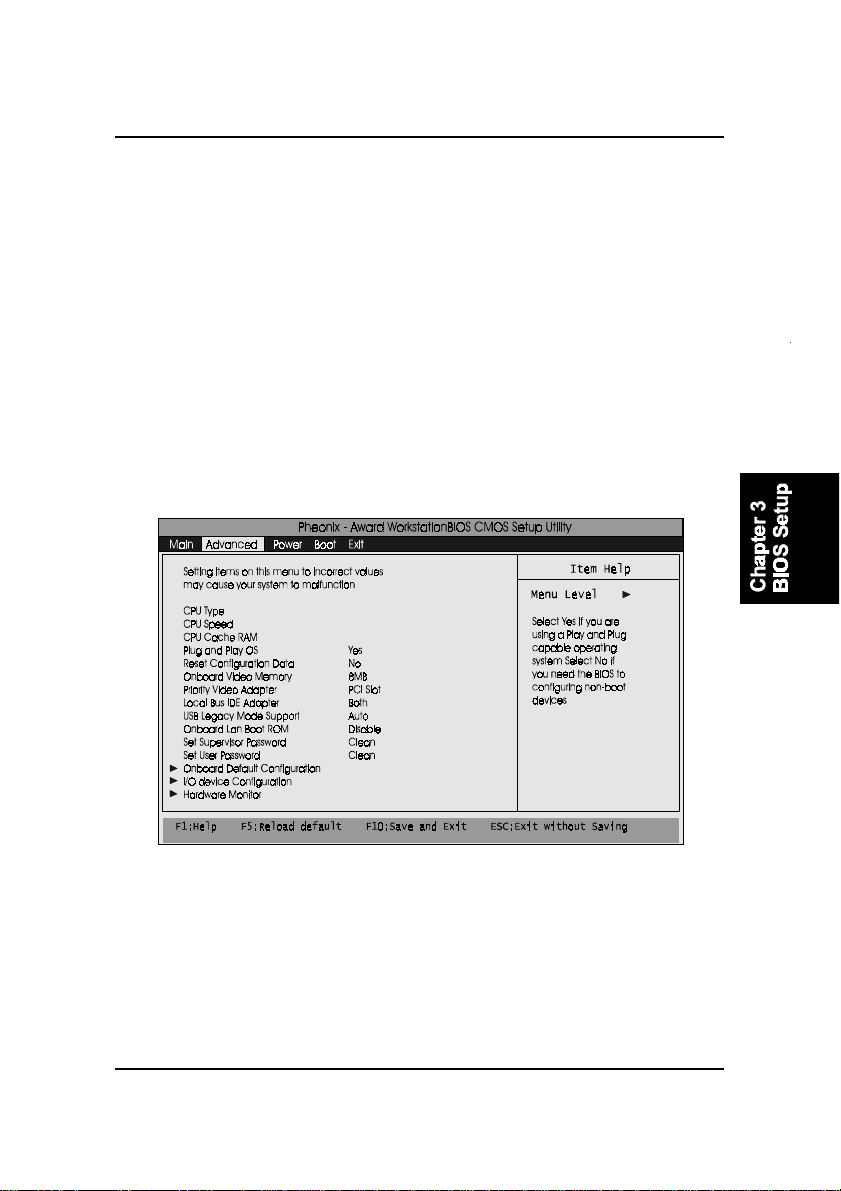

Advanced Features Setup ............................................................. 3-3

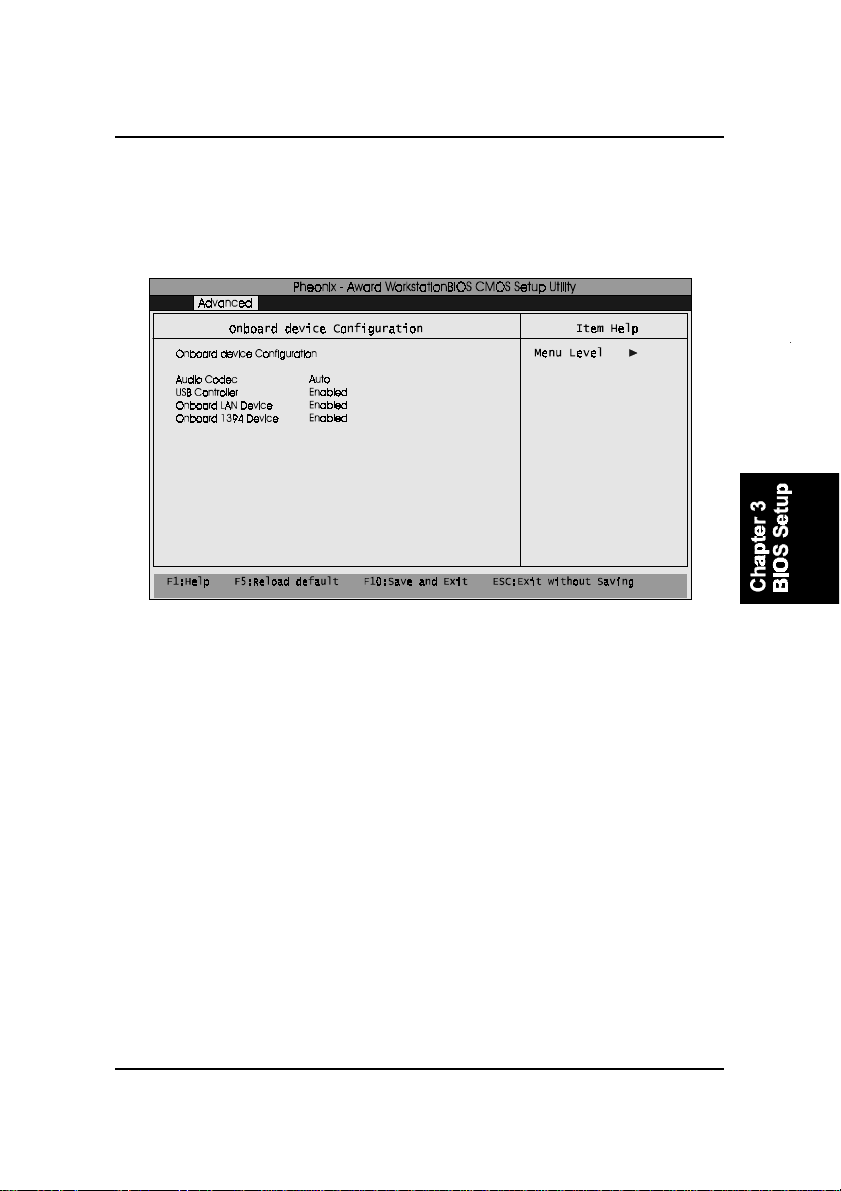

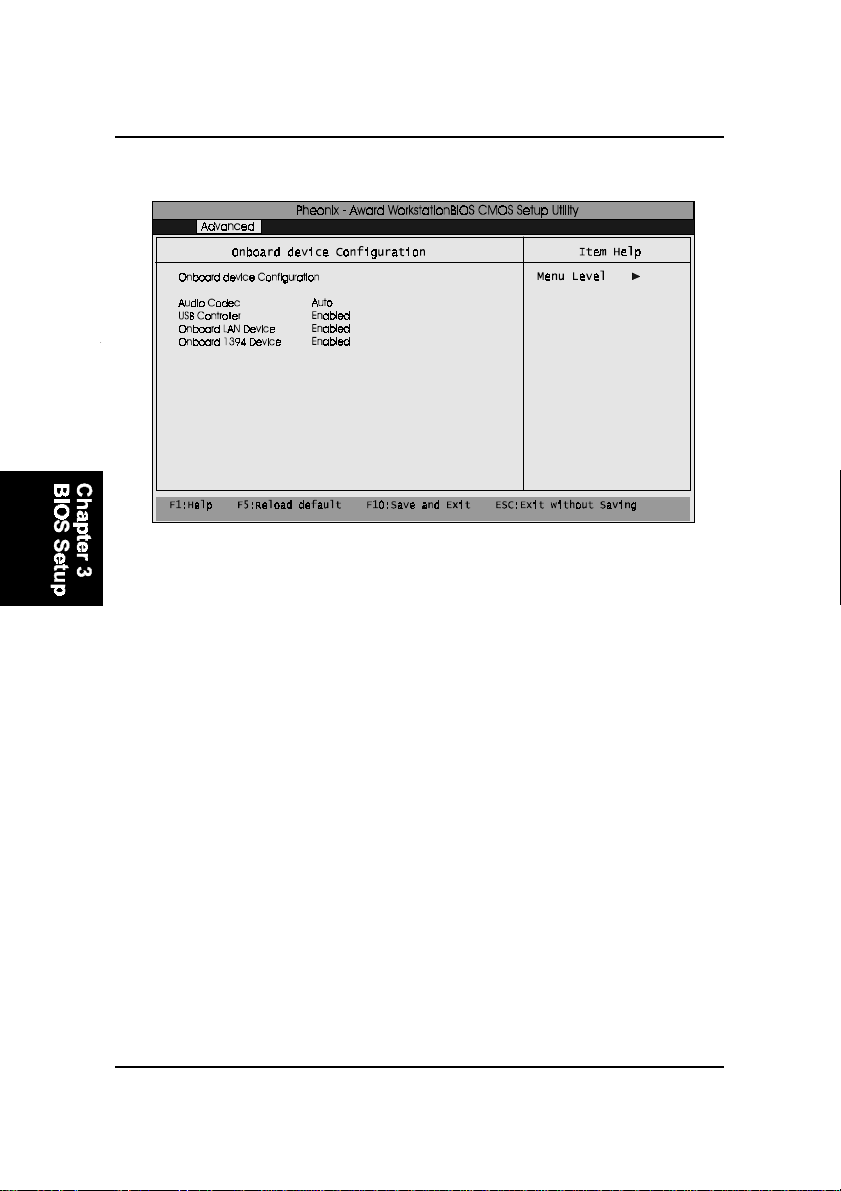

Onboard device Configuration .................................................. 3-5

I/O device Configuration ........................................................... 3-6

Hardware Monitor ..................................................................... 3-7

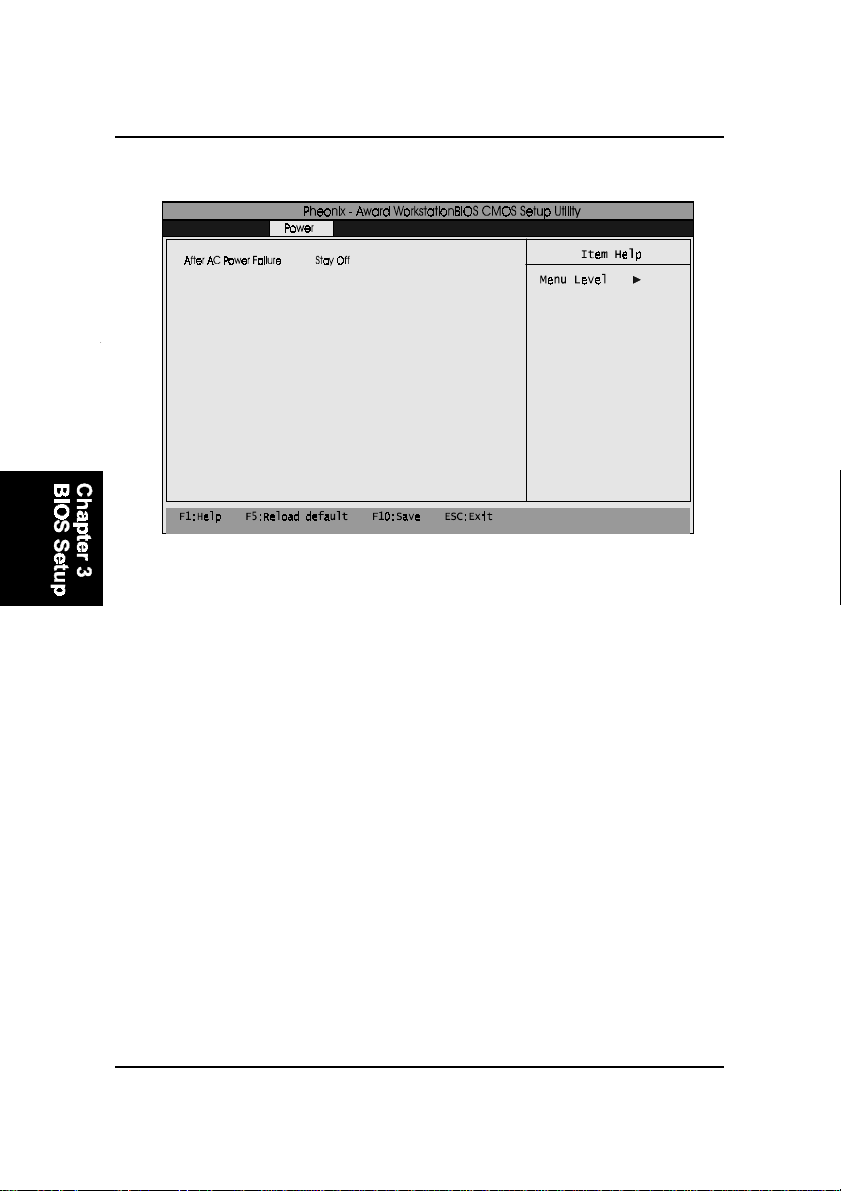

Power Features Setup .................................................................... 3-8

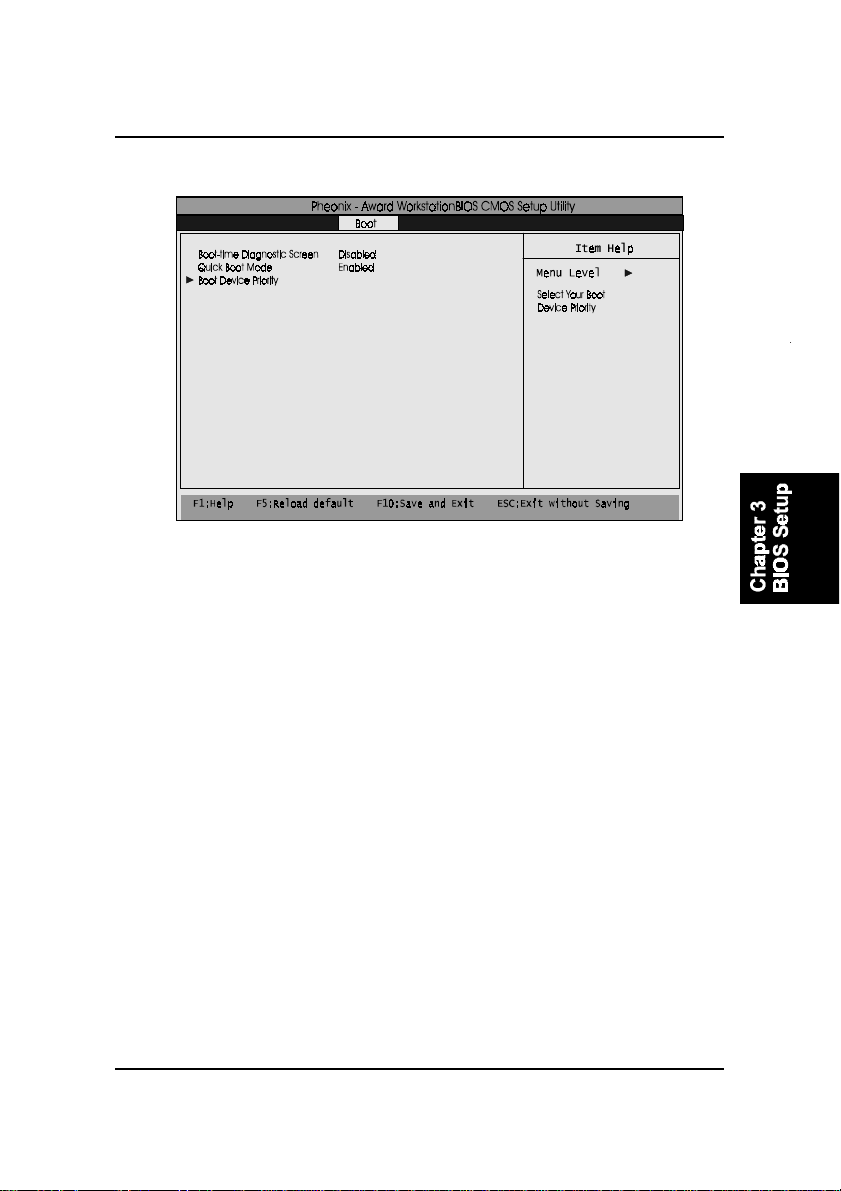

Boot Features Setup ...................................................................... 3-9

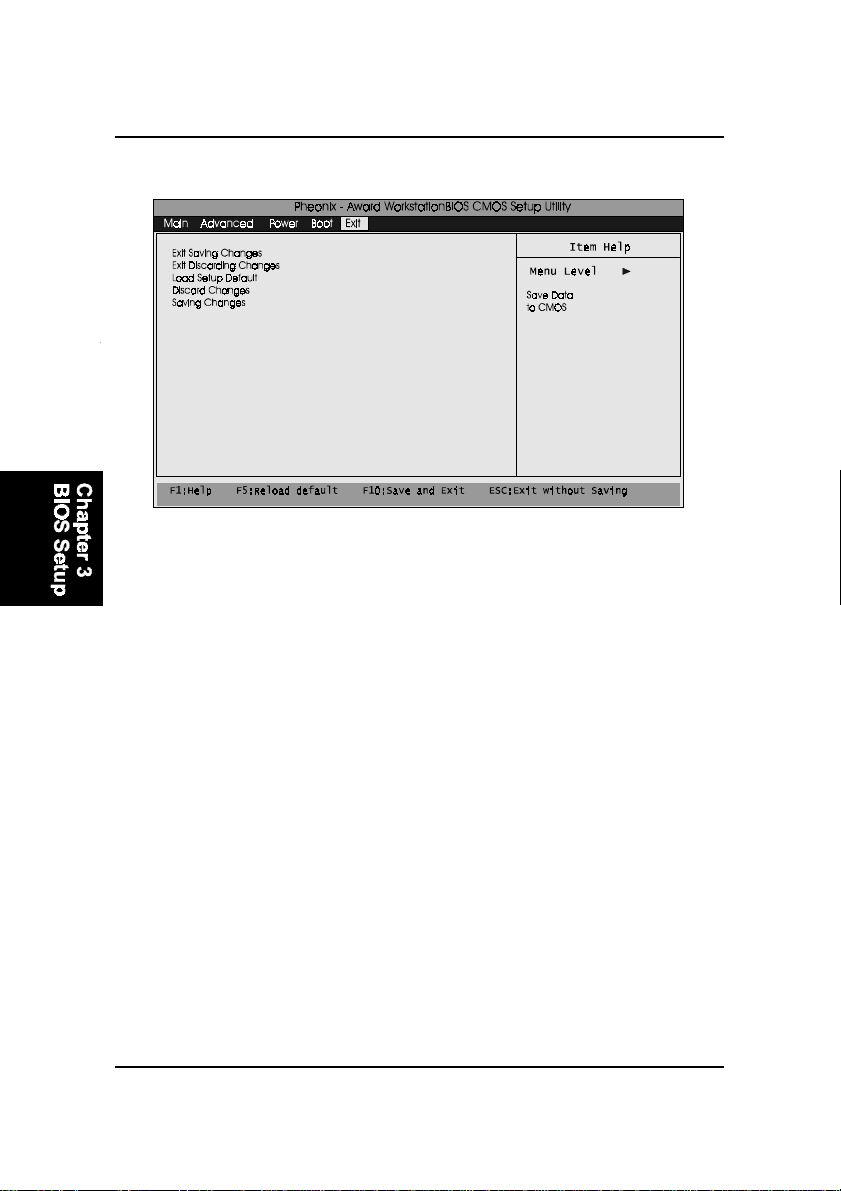

Exit Features Setup ........................................................................ 3-10

ii

Overview

Chapter 1

Overview

The new microATX 1stMainboard® VG31E supports a full range of the latest

generation Intel® Pentium® 4 CPUs. The leading edge chipset Intel® 845GE

MCH was designed for coworking with Pentium® 4 in the mPGA478 CPU

socket based on VRM 9.X spec. and 533 MHz FSB. Being built by the leading

edge technology, the Intel Pentium® 4 processors provide a significant perfor-

mance over previous Pentium® III processors. Onboard two DDR SDRAM

sockets support DDR333 SDRAM for up to 2GB memory capacity. The ICH4

brings the ATA100 IDE performance and its high-speed interface further en-

sures that data transfer speeds are improved, especially for six USB 2.0 periph-

eral devices. The board also features onboard audio with either 2-channel or

5.1-channel. The MCH allows the board to connect with a flat panel monitor or

a TV-out display via an ADD (AGP Digital Display) card that installed on the

onboard DVO/AGP slot.

The board comes with a versatile range of I/O features such as 1 serial port,

three optional 1394 ports (pinheaders onboard), 1 parallel port, 1 optional

LAN, 1 PS/2 mouse and keyboard connector, 6 USB 2.0 ports (two of them are

in one pinheader), 1 media connector (front audio pinheader, Line-in, Line-out

and Mic-in). Ample expansion is available through 3 PCI, 1 DVO/AGP slot to

meet the requirement for fully making use of the P4 CPU benefits in internet

applicatons, video/3D graphics performance, and so forth.

Other key features are Remote On/Off, Auto Power Failure Recovery, inte-

grated temperature monitoring and system fan control. Included also is a CD ,

1st Utilities, with enhanced drivers.

1 - 1

VG31E Mainboard Manual

Package Checklist

If you discover any item below was damaged or lost, please contact your

vendor.

þ The mainboard þ This user manual
þ One FDD cable þ |Software CD
þ One A TA/100 cable þ |I/O shilding

NOTE: lst Utilities CD that contains patch files, onboard video/au-
dio chip drivers, related online help and other useful information
can be found in your mainboard package.

Please install it right after your Windows operating system installa­tion is done.

menu will appears in your monitor. Please select
It will automatically detect which software tools (patch files, drivers)
that the mainboard needs. Press OK button to go through the whole
installation procedure in a very straight forward and easy way. It
also provides you with a custom way to select wanted patch files
and software drivers that for onboard chips use. The top menu of

the lst Utilities CD lists all the functions that allowed by this board.

Place your lst Utilities CD in the drive, an operating

Auto Installation

.

1 - 2

NOTE: About the USB 2.0 driver.
if you use-

Windows XP + Sevice Pack 1:
Windows XP
Windows 2000/98SE/ME

driver in lst Utilities CD, please manually installed it.

: download it from Microsoft web site.

it offers the driver.

:

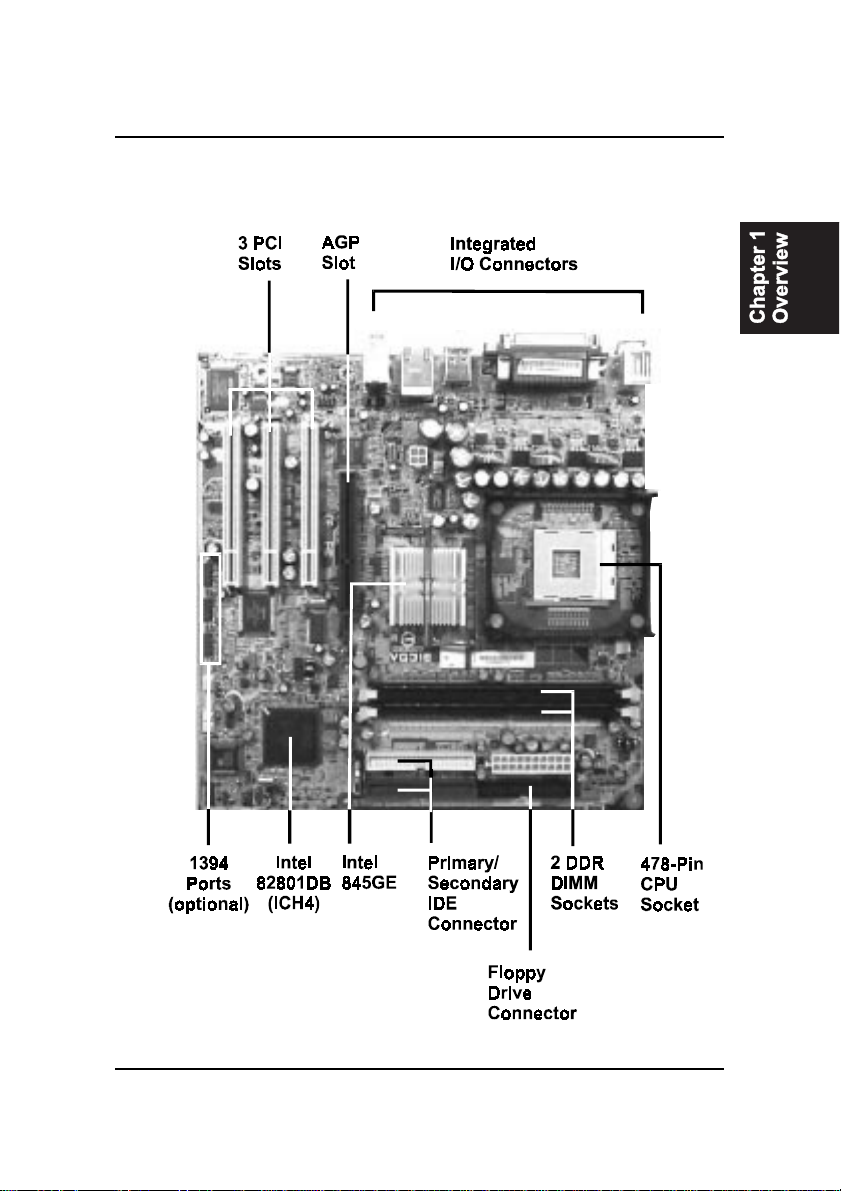

The VG31E Mainboard

Overview

1 - 3

VG31E Mainboard Manual

Main Features

n Easy Installation

||BIOS with support for Plug and Play, auto detection of IDE hard drives,

||LS-120|drives, IDE ZIP drives, Windows 98SE, Windows ME, Windows

||NT, Windows 2000, Windows XP, and OS/2.

n Leading Edge Chipset

Intel® 845GE supports integrated graphic (UMA only) features that of 32

bpp true color and flat panel monitors and TV-out display via 3rd party

DVO devices. The ICH4 provides SMBus 2.0 support, 20-bit AC97 audio,

6 USB 2.0 ports, and Ultra ATA100 IDE performance between mainboard

and peripheral devices.

n Versatile Main Memory Support

Accepts up to 2 GB DDR SDRAM using two memory sockets for allowing

that from 64, 128, 256, 512MB with support for lightenning-fast DDR

SDRAM (DDR 200/266/333 MHz).

n Intel P4 Processors Support

1.4 G to 2.5 GHz and up* (FSB 400) / Celeron 1.7 -2.0 GHz and up* (FSB 400)

2.0 G to 3.06 GHz and up* (FSB 533)

(*: not tested yet)

n AGP and PCI Expansion Slots

One AGP Bus that supports DVO/AGP/DAC(VGA) (only 1.5V AGP 4X

card allowed) and three PCI Bus expansion slots provided the room to

install a full range of add-on cards. The slot that support DVO accepts

ADD (AGP Digital Daughtor) cards that for TV-out, DVI output.

n Super Multi Input/Output (I/O) Support

Integrated Plug and Play multi-I/O chipset features one high-speed UART

16550 compatible serial port, one parallel port and one FDD connector.

1 - 4

Overview

n Integrated Audio Subsystem

Onboard audio features included one SPDIF pinheader for digital audio

resource output use. The onboard AC97 Codec chip has two options:

either supports 2-channel or optional 5.1-channel audio feature. If the

latter one onbaord, the Microphone/Line_In/Line_Out can be used as

audio output.

n Convenient Rear Panel USB Connection Support

Four USB ports integrated in the rear I/O panel and one USB pinheader for

two USB ports to allow the connecting with either front or rear panel jacks

in a convenient way and high-speed Plug and Play connection to the USB

2.0 compliant peripheral devices on the market.

n Enhanced PCI Bus Master IDE Controller with Ultra DMA 33/66/100

Support

Integrated Enhanced PCI Bus Master IDE controller features two dual-

channel connectors that up to four Enhanced IDE devices, including CD-

ROM and Tape Backup Drives, as well as Hard Disk Drives supporting

the new Ultra ATA 100 protocol. Standard PIO Mode 3, PIO Mode 4, DMA

Mode 2, DMA Mode 4, UltraDMA-100 Mode 5 devices are also sup-

ported.

n LAN Support (optional)

Onboard optional LAN controller with one optional RJ45 jack integrated

with other rear panel I/O connectors pvovides users with a convenient

connection with network environment.

n 1394 Support (optional)

One optional 1394 controller with three optional 2x5 pinheaders of 1394

ports (Intel spec.) for more efficient peripheral device connection and

data transaction.

1 - 5

VG31E Mainboard Manual

The Page Left Blank for Note

1 - 6

Installation Procedures

Chapter 2

Installation Procedures

The mainboard has several user-adjustable jumpers on the board that allow you to

configure your system to suit your requirements. This chapter contains information

on the various jumper settings on your mainboard.

To set up your computer, you must complete the following steps:

Step 1 - Set system jumpers

Step 2 - Install memory modules

Step 3 - Install the Central Processing Unit (CPU)

Step 4 - Install expansion cards

Step 5 - Connect ribbon cables, cabinet wires, and power supply

Step 6 - Set up BIOS software

Step 7 - Install supporting software tools

WARNING: Excessive torque may damage the mainboard. When
using an electric screwdriver on the mainboard, make sure that
the torque is set to the allowable range of 5.0 ~ 8.0kg/cm.

Mainboard components contain very delicate Integrated Circuit
(IC) chips. To prevent static electricity from harming any of the
sensitive components, you should follow the following precau­tions whenever working on the computer:

1. Unplug the computer when working on the inside.

2. Hold components by the edges and try not to touch the IC

||||chips, leads, or circuitry.

3. Wear an anti-static wrist strap which fits around the wrist.

4. Place components on a grounded anti-static pad or on the bag
that came with the component whenever the components are
separated from the system.

2 - 1

VG31E Mainboard Manual

Quick Reference (from Page 2-2 to 2-4)

Mainboard Layout

* When link to Line_Out jack, please use a speaker that with amplifier.

* Connector Serial IRQ is for system integration use.

2 - 2

(1). Clear CMOS

(2). Front Panel Block Cable Connection

Installation Procedures

2 - 3

VG31E Mainboard Manual

(3). CPU Fan Installation

This connector is linked to the CPU fan. When the system is in some power saving

mode, the CPU fan will turn off; when it reverts back to full on mode, the fan will turn

back on. Without sufficient air circulation, the CPU may overheat resulting in

damage to both the CPU and the mainboard.

Damage may occur to the mainboard and/or the CPU fan if these pins are

used incorrectly. These are not jumpers, do not place jumper caps over these

pins.

1). Set System Jumper

Clear CMOS: JP3

The CMOS RAM is powered by the onboard button cell battery. To clear the

RTC data: (1) Turn off your computer (2) Place the jumper cap onto the pinpair

2-3 at least 6 seconds to enable CMOS clearance (3) Place the jumper cap onto

the pinpair 1-2 to disable the effect of CMOS clearance (4) Turn on your com-

puter until CMOS checksum error appears (5) Hold down the Delete key when

boots (6) Enter the BIOS Setup to re-enter user preferences.

2 - 4

Installation Procedures

2). Install Memory Modules

1. Locate the DIMM slots on the mainboard.

2. Install the DIMM straight down into the DIMM slot using both hands.

3. The clip on both ends of the DIMM slot will close up to hold the DIMM

in place when the DIMM reaches the slot bottom.

Press the clips with both hands to remove the DIMM.

NOTE:

Owing to the core chip specification, the board supports 2 DDR
DIMMs, single-sided and/or double-sided but not double-sided x
16 DDR DIMMs.

3). Install the CPU

The mainboard has built-in Switching Voltage Regulator to support CPU Vcore

autodetection. That is, It has the ability to detect and recognize the CPU

voltage, clock, ratio and enables users to set up the CPU frequency from the

BIOS Setup Screen. Users can adjust the frequency through Frequency /

Voltage Control of the BIOS Setup Screen.

2 - 5

VG31E Mainboard Manual

When you install your CPU on this mainboard, please use a power supply that

designed and manufactured only for CPU use. Your CPU fansink combined

with its retention module must be completely closed and firmly attached on the

top of the processor.

To install the CPU, do the following:

1. Lift the lever on the side of the CPU socket.

2. Handle the chip by its edges and try not to touch any of the pins.

3. Place the CPU in the socket. Do not force the chip. The CPU should slide

easily into the socket.

4. Swing the lever to the down position to lock the CPU in place.

5. Place the cooling fan with heatsink on top of the installed CPU.

NOTE: Users The CPU installing procedures should be:

1. Insert the CPU (with its fansink and retention module) on the
socket.

2. Connect the 20-pin plug of the power supply

3. Connect the 4-pin plug of the power supply.
To remove the processor, please do it in reverse order.

2 - 6

Installation Procedures

4). Install Expansion Cards

This section describes how to connect an expansion card to one of your

system expansion slots. Expansion cards are printed circuit boards that, when

connected to the mainboard, increase the capabilities of your system. For

example, expansion cards can provide video and sound capabilities. The

mainboard features one AGP/DVO and three PCI bus expansion slots.

CAUTION: Make sure to unplug the power supply when adding or
removing expansion cards or other system components. Failure to
do so may cause severe damage to both the mainboard and
expansioncards.
Always observe static electricity precautions.
Please read Handling Precautions at the start of this manual.

To install an expansion card, follow the steps below:

1. Remove the computer chassis cover and select an empty expansion

slot.

2. Remove the corresponding slot cover from the computer chassis.

Unscrew the mounting screw that secures the slot cover and pull

the slot cover out from the computer chassis. Keep the slot cover

mounting screw nearby.

2 - 7

VG31E Mainboard Manual

3. Holding the edge of the peripheral card, carefully align the edge

connector with the expansion slot.

4. Push the card firmly into the slot. Push down on one end of the

expansion card, then the other. Use this rocking motion until the add

on card is firmly seated inside the expansion slot.

5. Secure the board with the mounting screw removed in Step 2. Make

sure that the card has been placed evenly and completely into the

expansion slot.

6. Replace the computer system cover.

7. Setup the BIOS if necessary.

8. Install the necessary software drivers for the expansion card.

5). Connect Devices

Floppy Diskette Drive Connector

This connector provides the connection with your floppy disk drive.

The red stripe of the ribbon cable must be the same side with the Pin 1.

2 - 8

Installation Procedures

IDE Device Connectors

These two connectors are used for your IDE hard disk drives, CD drives, LS-

120|drives, or IDE ZIP drives. The red stripe of the ribbon cable must be the

same side with the Pin 1.

Power Connectors

The 20-pin male block connector is connected to the ATX power supply. The

4-pin male block connector is for the 12V power use. The connectors are linked

with your ATX power supply. The plug from the power supply will only insert

in one orientation because of the different hole sizes. Find the proper orienta-

tion and push down firmly making sure that the pins are aligned.

2 - 9

VG31E Mainboard Manual

CD Audio-In Connectors

The connectors, CD_IN and AUX_IN, are for CD-ROM drive audio analog

input use.

Front Panel Block, Power LED, IR, and Speaker Connector

This block connector includes the connectors for linking with Power LED (3-

pin), HDD LED, power button, power/sleep/message waiting button, reset

buttonon the front panel of the system case. Please identify polarities of plug

wires for the case speaker and LEDs. Please ask vendor about this information

when you buy them and install the system by yourself. The plug wires polari-

ties of these buttons will not affect the function.

2 - 10

Installation Procedures

(1) Reset Switch is connected to the reset button. Push this switch to reboot

the system instead of turning the power button off and on.

(2) HDD LED is connected to the IDE device indicator. This LED will blink

when the hard disk drives are activated.

(3) Power (Single and Dual) /Sleep LED

Please refer to the tables below for the representations of LED states.

There is another 3-Pin Power LED connector on board for some cases that with

a 3-pin plug.

(4) Power Button is connected with power button. Push this switch allows the

system to be turned on and off rather than using the power supply button.

IR is a pinheader that is used for linking with your ID device to allow transmis-

sion of data to another system that also supports the IR feature.

Speaker is connected with the case speaker.

2 - 11

VG31E Mainboard Manual

Fan Connectors

The two connectors, CPU_FAN, SYS_FAN are linked to the CPU fan, case fan,

respectively.

Wake-On-Lan Connector

This 3-pin connector allows the remove servers to manage the system that

installed this mainboard via your network adapter which also supports WOL.

2 - 12

Installation Procedures

Wake-On-Ring Connector

The 2-pin connector allows you to link with your modem card which outputs

a WOR singal; the system can be turned on from the power-off status by a

remote phone call via the modem card.

CAUTION: Improper orientation of SPDIF connection may cause
damage of your device.

SPDIF Out Connector

The mainboard equipped one 1x4 pinheader. It is used for SPDIF digital audio

output.

2 - 13

VG31E Mainboard Manual

Serial IRQ Connector

This 2-pin connector is used for some system integration use.

PS/2 Keyboard and Mouse Connector

These two 6-pin female (PS/2 keyboard is purple color and PS/2 mouse is

green color) connectors are used for your PS/2 keyboard and PS/2 mouse.

Universal Serial Bus Connectors

These two black connectors integrated on the edge of the board are used for

linking with USB peripheral devices. This board also provides two extra USB

ports for either linking with front or rear USB sockets of system cases. Please

note that your operating system must support USB features.

2 - 14

The figure below is the pin assignment

of the USB pinheader.

NOTE: About the USB 2.0 driver .
if you use-

Windows XP + Sevice Pack 1:
Windows XP
Windows 2000/98SE/ME

driver in lst Utilities CD, please manually installed it.

: download it from Microsoft web site.

:

Installation Procedures

it offers the driver.

Serial Port Connector

COM1 (9-pin D-sub male connector with teal color) allows you to connect

with your devices that use serial ports, such as a serial mouse or an external

modem.

2 - 15

VG31E Mainboard Manual

Printer Connector

This 25-pin D-Sub female burgundy-colored connector is attached to your

printer.

Audio I/O Jacks

LINE_OUT (lime) can be connected to headphones or preferably powered

speakers. LINE_IN (light blue) allows tape players or other audio sources to

be recorded by your computer or played through the LINE_OUT. MIC_IN

(pink) allows microphones to be connected for voice input. The mainboard

offers a front panel audio connector (Intel spec.). Its pin definitions were

presented far below left.

2 - 16

NOTE: If you do not use front audio pinheader, please keep the
pinpair 5-6, 9-10 short as default; also, when the front headphone
is plugged in, the rear audio output will be disabled.

NOTE: If your mainboard has 5.1-channel audio option, use LINE_IN,
LINE_OUT, MICROPHONE jacks can be the 5.1-channel audio out­put.

Installation Procedures

Video Graphics Accelerator Connector

This 15-pin female D-sub blue connector is connected to your display monitor.

LAN Connector (mfg. optional)

The optional RJ45 LAN jack is used for the LAN cable plug.

2 - 17

VG31E Mainboard Manual

IEEE 1394 Connectors (mfg. optional)

The board has three pinheaders of IEEE 1394 port to connect with their com-

patible peripheral devices for higher system performance.

2 - 18

BIOS Setup

Chapter 3

BIOS Setup

The mainboard comes with the chip that BIOS that contains the ROM Setup

information of your system. (This chip serves as an interface between the

processor and the rest of the mainboard components.) This section explains

the information contained in the Setup program and tells you how to modify

the settings according to your system configuration.

The Setup utility program allows updates to the mainboard configuration set-

tings. The BIOS setup values will be saved in the CMOS. It is executed when

the user changes system configuration; user changes system backup battery;

or the system detects a configuration error and asks the user to run the Setup

program. Use the arrow keys to select and press Enter to run the selected

program.

WARNING: While booting, press
enter setting menus that for end users. Press
menus that for manufacturer use only. End users are not encour­aged to configure attributes under this mode.

Main Features Setup

Delet

e key will allows users to

F9

key will enter

3 - 1

VG31E Mainboard Manual

The CMOS Setup screen is displayed above. Each item may have one or more

option settings. The system BIOS automatically detects memory size, thus no

changes are necessary. Use the arrow keys to highlight the item and then press

Enter key to select the value you want in each item.

Date

To set the date, highlight the Date field and then press Page Up/Page

Down or +/- keys to set the current date. Follow the month, day and year

format.

Time

To set the time, highlight the Time field and then press Page Up/Page Down

or +/- keys to set the current time. Follow the hour, minute, and second

format.

Hard Disks

This field records the specifications for all non-SCSI hard drives installed

in the system. The onboard PCI IDE connectors provide Primary and Sec-

ondary channels for connecting up to four IDE hard disks or other IDE

devices. Each channel can support up to two hard disks, the first of which

is the Master and the second is the Slave.

Hard Disk Configurations

Capacity: The hard disk size. The unit is Bytes.

Cylinder: The cylinder number of the hard disk.

Head: The read/write head number of hard disk.

Precomp: The cylinder number at which the disk drive

changes the write current.

Landing Zone: The cylinder number that the disk drive heads

(read/write) are seated when the disk drive is

parked.

Sector: The sector number of each track defined on the

hard disk.

Floppy Diskette A

This field records the types of floppy drives installed in the system. To

enter the configuration value for a particular drive, highlight its corre-

sponding field and then select the drive type using the left- or right-arrow

key.

3 - 2

BIOS Setup

Floppy 3 Mode Support

This is a Japanese standard floppy type drive. The standard stores 1.2MB

in a 3.5 inch diskette.

Installed Memory/Memory Bank

These three items tell users the information about the installed memory

modules, type, and sizes.

BIOS Version/BIOS Relese Date/BIOS Implement Guide

These three items tell users the information about the BIOS of the com-

puter system.

Advanced Features Setup

CPU Type/CPU Speed/CPU Cache RAM

The three items present the working data about the installed CPU.

Plug and Play OS

The item is set at Yes when you use Plug and Play operating system.

The options are: Yes, No.

3 - 3

VG31E Mainboard Manual

Reset Configuration Data

Enabling it to reset the system Extended System Configuration Data (ESCD)

when you exit Setup if you have installed a new add-on card and the

system reconfiguration has caused such a serious conflict that the operat-

ing system can not boot. The options are: No, Enabled.

Onboard Video Memory

The feature allows users to select the video memory size in the core chip

for VGA use.

The options are: 8MB, 1MB

Priority Video Adapter

The feature allows users to select which display device full on first if two

display device onboard.

The options are: PCI Slot, Onboard AGP.

Local Bus IDE Adapter

The feature allows users to select or disable the IDE controller function.

If disabled, the IDE device will not be detected.

The options are: Disabled, Primary, Secondary, Both.

USB Legacy Mode Support

The features allows users to decide which way that the attached USB

keyboard was supported under legacy mode of operating system. When

set at Auto, the BIOS will detect if a USB keyboard being connected while

booting; if it is, BIOS will accept it under legacy mode, if not, the BIOS will

not release the related resourece.

The options are: Auto, Enabled, Disabled.

Onboard Lan Boot ROM

Allows you to enable or disable the onboard Lan boot ROM.

The options are: Disabled, Enabled.

Set Supervisor Password/Set User Password

The two features allow users to set the supervisor/user password. To set

supervisor password is a must. To set user password is not allowed if

supervisor password is clean. It is common to set both passwords.

3 - 4

BIOS Setup

Once it is set, the option will become Set automatically. Its default value is

Clean. The options are: Clean, Set

Onboard device Configuration

Audio Codec

Allows you to disable the onboard audio codec function.

The options are: Auto, Disabled.

USB Controller

Disable this option if you are not using the onboard USB feature.

The options are: Disabled, Enabled.

Onboard LAN Device

Allows you to enable or disable the optional LAN function.

The options are: Enabled, Disabled.

Onboard 1394 Device

Allows you to enable or disable the optional 1394 function.

The options are: Enabled, Disabled.

3 - 5

VG31E Mainboard Manual

I/O device Configuration

Serial Port A

Allows you to disable the COM1 port when it is needed to do so.

The options are: Enabled, Disabled.

Onboard Serial Port 1

If the serial port 1uses the onboard I/O controller, you can modify your

serial port parameters. If an I/O card needs to be installed, COM3 and

COM4 may be needed. The options are: Disabled, 3F8/IRQ4, 2F8/IRQ3,

3E8/IRQ4, 2E8/IRQ3, Auto.

Interrupt

It allows users to select the IRQ for COM1 port.

The options are: IRQ4, IRQ3.

Parallel Port

Allows you to disable the parallel port when it is needed to do so.

The options are: Enabled, Disabled.

Onboard Parallel Port

Allows you to select from a given set of parameters if the parallel port uses

the onboard I/O controller.

The options are: Disabled, 378/IRQ7, 278/IRQ5, 3BC/IRQ7.

3 - 6

BIOS Setup

Onboard Parallel Port

Allows you to select from a given set of parameters if the parallel port uses

the onboard I/O controller.

The options are: Disabled, 378/IRQ7, 278/IRQ5, 3BC/IRQ7.

Parallel Port Mode

Allows you to connect with an advanced printer via the port mode it

supports. The options are: SPP, EPP1.9+SPP, ECP, EPP1.9+ECP,

EPP1.7+SPP,EPP1.7+ECP.

Interrupt

It allows users to select the some IRQ for parallel port.

The options are: IRQ7, IRQ5.

IR Controller

It allows users to disable the IR controller when needed.

The options are: Enabled, Disabled.

Hardware Monitor

CPU T emperature / Current CPU F AN Speed / Current SYS F AN Speed

These items allow end users and technicians to monitor data provided by

the BIOS on this mainboard. It is not user-configurable.

3 - 7

VG31E Mainboard Manual

Power Features Setup

After AC Power Failure

When the system is shut down owing to the power failure, the system will

not be back to power on by itself. This feature allows you to set the

system back to which power status of the system when the system power

is resumed. The system always be back to off if set at Stay Off. It always

will be back to on. It will be back to on.

The options are Stay Off, Auto, Power On.

3 - 8

BIOS Setup

Boot Features Setup

Boot-time Diagnostic Screen

This feature allows to be enabled for troubleshooting or other reason.

The options are Disabled, Enabled.

Quick Boot Mode

This feature allows users to disable the quick boot mode for troubleshoot-

ing or other reason. The options are Disabled, Enabled.

Boot Device Priority

This feature will auto detect all hard disks of bootable device on the sys-

tem. It also allows users to select the device booting priority.

First/Second/Third/Fourth Boot Device

This feature allows user to select the boot device priority. The options are:

Removable, CDROM, Hard DiskLAN, Disabled.

Removable Device Priority

This feature allows user to select the removable device boot priority. The

options are: Floppy, ZIP100, LS120, USB-FDD, USB-ZIP, USB-CDROM,

USB-HDD.

Hard Disk Boot Priority

This feature allows user to select the hard disk boot priority.

3 - 9

VG31E Mainboard Manual

Exit Features Setup

Exit Saving Changes

After you have made changes under Setup, press Esc to return to the main

menu. Move highlight bar to this item and press Enter key, then press Y to

change the CMOS Setup.

Exit Discarding Changes

Select this feature to allow you to exit the setup utility without saving

CMOS modifications.

Load Setup Defaults

This item is selected to place all manufacturing default settings. These

settings do not give optimal performance.

Discarding Changes

This feature allows you to discard the current CMOS modifications.

Saving Changes

This feature allows you to save the current CMOS modifications.

3 - 10
