FIC VC35 User Manual

VC35

MAINBOARD

MANUAL

DOC No.: M01801
Rev. : A0
Date : 10, 2001
Part No. : 25-11630-00

Notice

Handling Precautions

Warning:

1. Static electricity may cause damage to the integrated circuits on

the motherboard. Before handling any motherboard outside of its
protective packaging, ensure that there is no static electric charge
in your body.

2. There is a danger of explosion if the battery is incorrectly
replaced. Replace only with the same or an equivalent type
recommended by the manufacturer.

3. Discard used batteries according to the manufacturer’s
instructions.

4. Never run the processor without the heatsink properly and firmly

attached. PERMANENT DAMAGE WILL RESULT!

Observe the following basic precautions when handling the motherboard

or other computer components:

n Wear a static wrist strap which fits around your wrist and is

connected to a natural earth ground.

n Touch a grounded or anti-static surface or a metal fixture such as a

water pipe.

n Avoid contacting the components on add-on cards, motherboards,

and modules with the golden fingers connectors plugged into the

expansion slot. It is best to handle system components by their

monting brackets.

The above methods prevent static build-up and cause it to be discharged

properly.

Trademark

All trademarks mentioned in this manual are registered properly of

the respective owners.

Handling Precautions

This manual may not, in whole or in part, be photocopied, reproduced,

transcribed, translated, or transmitted in whatever form without the

written consent of the manufacturer, except for copies retained by the

purchaser for personal archival purposes.

T able of Contents

Table of Contents

Quick Reference (German) G- 1
Quick Reference (French) F- 1
Quick Reference (Spanish) S-1
Quick Reference (Japanese) J-1
Quick Reference (Chinese) C-1
Quick Reference (Simplified Chinese) |||||||||||||SC-1

Chapter 1 Overview

Package Checklist .......................................................................... 1-1

The VC35 Mainboard ................................................................ 1-2

Main Features ................................................................................ 1-3

FIC Unique Innovation for Users (NOVUS) -

Enhanced Mainboard Features and System Support ..................... 1-5

Chapter 2 Installation Procedures

Quick Reference (from Page 2-2 to 2-4) .......................................... 2-2

Mainboard Layout .................................................................... 2-2

1). Clear CMOS, Clear Password, FSB Speed Select .......... 2-3

2). Front Panel Block Cable Connection ............................ 2-3

3). CPU Fan Installation .................................................... 2-4

1). Set System Jumpers/Switches ................................................... 2-4

Clear CMOS: SW1-1 .......................................................... 2-4

Clear Password: SW1-2 ..................................................... 2-5

FSB Speed Select: JP1 ....................................................... 2-6

2). Install Memory Modules .......................................................... 2-6

3). Install the CPU .......................................................................... 2-7

4). Install Expansion Cards ............................................................. 2-8

5). Connect Devices ....................................................................... 2-9

Floppy Diskette Drive Connector ..................................... 2-9

IDE Device Connectors ..................................................... 2-10

Power Connectors ............................................................. 2-10

Fan Connectors ................................................................. 2-11

Wake-On-LAN Connector................................................. 2-11

CD Audio-In Connector .................................................... 2-12

Front Panel Block, Power LED and Speaker Connector .... 2-12

PS/2 Keyboard and Mouse Connector ............................. 2-13

i

VC35 Mainboard Manual

Universal Serial Bus Connectors ....................................... 2-14

Serial Port Connectors ....................................................... 2-14

Printer Connector .............................................................. 2-15

Audio I/O Jacks ................................................................ 2-15

Game/MIDI Connector ...................................................... 2-16

Optional LAN Connector .................................................. 2-16

Chapter 3 BIOS Setup

CMOS Setup Utility ....................................................................... 3-1

Standard CMOS Setup ................................................................... 3-2

Advanced BIOS Features .............................................................. 3-4

Advanced Chipset Features .......................................................... 3-7

Integrated Peripherals .................................................................... 3-9

Power Management Setup ............................................................. 3-14

PnP/PCI Configurations ................................................................. 3-18

PC Health Status ............................................................................ 3-19

Frequency/Voltage Control ............................................................ 3-20

Load Fail-Safe Defaults .................................................................. 3-21

Load Optimized Defaults ................................................................ 3-21

Supervisor/User Password ............................................................ 3-21

Save and Exit Setup ....................................................................... 3-22

Exit without Saving ........................................................................ 3-22

ii

Overview

Chapter 1

Overview

The new microATX, 478-pin 1stMainboard® VC35 supports a full range of the

latest generation Intel® Pentium® 4 processors. The leading edge chipset

Intel® 845 MCH was designed for coworking with Pentium® 4 (up to 2GHz)

and Northwood® processor (min 2GHz) in the 478-pin package based on the

VRM 9.0 spec and 400MHz.Built using the leading edge technology the Intel

Pentium® 4 processors provide a significant performance over previous

Pentium® III processors. Two (DDR 266MHz) PC-2100 SDRAM sockets allow

for up to 2GB memory capacity. Support for the Ultra DMA/100protocol and its

high-speed interface further ensures that data transfer speeds are improved,

especially for long sequential transfers required by audio/visual applications.

The board also features onboard audio and optional onboard LAN function.

The 1stMainboard VC35 comes with a versatile range of I/O features such as

2 serial ports, 1 parallel port, 1 optional LAN, 1 PS/2 mouse and keyboard

connector, 4 USB connectors, 1 media connector (front audio, Line-in, Line-

out and Mic-in, game/MIDI port). Ample expansion is available through 3 PCI,

1AGP 4X (only 1.5V cards allowed) and 1 CNR to meet the requirement for

enjoying the P4 CPU benefits in internet applicatons, video/3D graphics per-

formance, and so forth. Other key features are Remote On/Off, Auto Power

Failure Recovery, integrated temperature monitoring and system fan control.

Included also is CD Pro with enhanced drivers and the new CD Plus package

containing a few bundled soft-ware solutions such as Norton® AntiVirus,

Norton Ghost, Norton Virtual Drive.

Package Checklist

If you discover any item below was damaged or lost, please contact your

vendor.

þ The mainboard þ This user manual
þ One FDD cable þ One HDD cable
þ One A T A/100 cable þ Two software CDs (CD Pro, CD Plus)

1 - 1

VC35 Mainboard Manual

NOTE: CD Pro that contains patch files, onboard video/audio chip
drivers, related online help and other useful information can be
found in your mainboard package.

Please install it right after your Windows operating system installa­tion is done.

appears in your monitor. Please select
matically detect which software tools (patch files, drivers) that the
mainboard needs. Press OK button to go through the whole instal­lation procedure in a very straight forward and easy way. It also
provides you with a custom way to select wanted patch files and
software drivers that for onboard chips use.

Place your CDPro in the drive, an operating menu will

The VC35 Mainboard

Auto Installation

. It will auto-

1 - 2

Overview

Main Features

n Easy Installation

||BIOS with support for Plug and Play, auto detection of IDE hard drives,

||LS-120|drives, IDE ZIP drives, Windows 98SE, Windows ME, Windows

||NT, Windows 2000, Windows XP, and OS/2.

n Leading Edge Chipset

Intel® 845 provides integrated DRAM controllers with new Dynamic

Power Management Architecture (DPMA), concurrent PCI, AGP and USB.

The built-in audio and vedio features of the Intel chipset 845 (MCH +

ICH2) provide better visual performance with the Dynamic Video Memory

Technology (DVMT) properties.

n Versatile Main Memory Support

Accepts up to 2 GB DDR SDRAM using two memory sockets for allowing

that from 64, 128, 256, 512MB with support for lightenning-fast PC-2100

DDR SDRAM (266 MHz).

n Flexible Processor Support

Onboard CPU 478-pin socket supports:

Intel® Pentium 4 / Northwood Processor 1.4 GHz - 2.0 GHz and up*

(*: not test yet)

n Onboard IrDA Connector

An IrDA port integrated with front panel block connector for wireless

infrared connections is available.

n CNR, AGP, and PCI Expansion Slots

One CNR, one AGP Bus expansion slot (only 1.5V card allowed), and three

PCI Bus expansion slots provided the room to install a full range of add-on

cards.

n Super Multi Input/Output (I/O) Support

Integrated Plug and Play multi-I/O chipset features two high-speed UART

16550 compatible serial ports, one parallel port, one game port, and one

FDD connector.

1 - 3

VC35 Mainboard Manual

n LAN Support (optional)

Onboard optional LAN controller with one optional RJ45 jack integrated

with other rear panel I/O connectors pvovides users with a convenient

connection with network environment.

n Integrated Audio Subsystem

Embedded audio features in the ICH2 with an integrated PCI audio con-

troller, DOS games compatible engine. The subsystem utilizes line-out,

line-in, and MIC external jacks, one joystick port with MIDI interface.

n Convenient Rear Panel USB Connection Support

Two USB ports integrated in the rear I/O panel and two extra USB ports for

either front or rear panel connection allow convenient and high-speed

Plug and Play connections to the growing number of USB compliant

peripheral devices on the market.

n Enhanced PCI Bus Master IDE Controller with Ultra DMA 33/66/100

Support

Integrated Enhanced PCI Bus Master IDE controller features two dual-

channel connectors that up to four Enhanced IDE devices, including CD-

ROM and Tape Backup Drives, as well as Hard Disk Drives supporting

the new Ultra DMA 100 protocol. Standard PIO Mode 3, PIO Mode 4,

DMA Mode 2, DMA Mode 4, UltraDMA-100 Mode 5 devices are also

supported.

n Onboard Accelerated Graphics Port (AGP)

The motherboard is installed one 32-bit AGP bus with a dedicated path

from the graphics card to the system memory offering much greater band-

width than the 32-bit PCI bus does. AGP enabled 3D graphics cards can

directly access main memory across this fast path instead of using local

memory.

1 - 4

Overview

FIC Unique Innovation for Users (NOVUS) -

Enhanced Mainboard Features and System Support

n LogoGenie

A user friendly GUI supporting Windows 95/98/98SE (not Windows 2000/

NT/ME), LogoGenie allows you to customize, create or select a Logo

which will be displayed when the system is booting.

NOTE:

1. LogoGenie supports Award BIOS only.

2. If you create a Logo file (.bmp) by LogoGenie, the file size must

||||be 640 x 464 x 256 colors.

To enable this utility, please proceed as follows:

1. Insert CD Pro. Select LogoGenie from the Menu and

follow the installation instructions.

2. After LogoGenie has been installed, go to Windows Start Box.

In Programs Menu, select LogoGenie (ver.), then select LogoGenie.

3. Press F1 to read Help file to understand how to use this software if

it is new to you.

n BIOS Guardian

BIOS Guardian by default is enabled. It must be disabled in order to

reflash BIOS, thus effectively acts as a fire-wall against viruses that can

attack the BIOS while the system is running.

WARNING: While excute Step3 below, please do not turn off the
sytsem power in order to avoid BIOS damage.

BIOS Guardian can be disabled as follows:

1. Go to BIOS Set Up Menu. (Press Del key while booting.)

2. Go to Advanced BIOS Features Set Up Submenu.

3. Disable BIOS Guardian.

4. Save the setting, and restart system.

1 - 5

VC35 Mainboard Manual

NOTE: However, if it is disabled and while boot the system, the
POST screen will be held and shows you the message to let you
know the current status of BIOS Guardian. To press G key will en­able the BIOS Guardian again; or simply to press the space bar
will continue the booting process.

n Easy Key

Instead of completing the multi-layered BIOS setup process these 3 Easy

Key functions provide direct access to Sub-Menus when completing

BIOS settings adjustments.

Easy-Keys are as follows:

Ctrl + c: To enter clock settings menu.

Ctrl + p: To load Performance Default settings and restart.

Ctrl + f: To load Fail-Safe Default settings and restart.

n Overclock Partner

Should the system not start because clock speed settings have been

increased to a speed incompatible with the system, the Overclock Partner

allows you to reboot at system default settings, protecting hardware from

any damages.

Complete the following steps:

1. Turn the system off.

2. Restart while holding down the Insert key. It is important that the

Insert key is held down until the default clock speed is shown on

the POST screen.

3. Enter BIOS settings menu, and re-set clock speed desired or default.

1 - 6

Installation Procedures

Chapter 2

Installation Procedures

The mainboard has several user-adjustable jumpers on the board that allow you to

configure your system to suit your requirements. This chapter contains information

on the various jumper settings on your mainboard.

To set up your computer, you must complete the following steps:

■ Step 1 - Set system jumpers/switches

■ Step 2 - Install memory modules

■ Step 3 - Install the Central Processing Unit (CPU)

■ Step 4 - Install expansion cards

■ Step 5 - Connect ribbon cables, cabinet wires, and power supply

■ Step 6 - Set up BIOS software

■ Step 7 - Install supporting software tools

WARNING: Excessive torque may damage the mainboard. When
using an electric screwdriver on the mainboard, make sure that
the torque is set to the allowable range of 5.0 ~ 8.0kg/cm.

Mainboard components contain very delicate Integrated Circuit
(IC) chips. To prevent static electricity from harming any of the
mainboard sensitive components, you should follow the follow­ing precautions whenever working on the computer:

1. Unplug the computer when working on the inside.

2. Hold components by the edges and try not to touch the IC

||||chips, leads, or circuitry.

3. Wear an anti-static wrist strap which fits around the wrist.

4. Place components on a grounded anti-static pad or on the bag
that came with the component whenever the components are
separated from the system.

2 - 1

VC35 Mainboard Manual

Quick Reference (from Page 2-2 to 2-4)

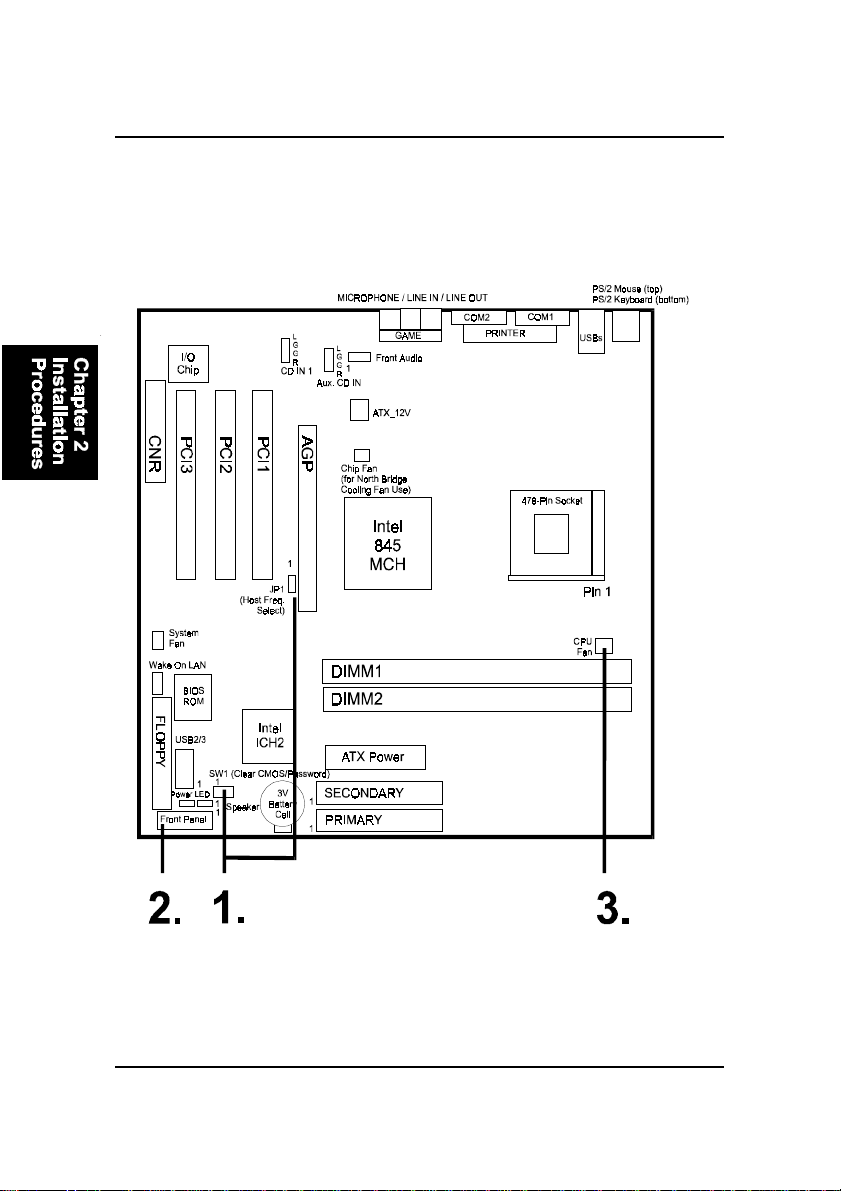

Mainboard Layout

2 - 2

Installation Procedures

1). Clear CMOS, Clear Password,
FSB Speed Select

2). Front Panel Block Cable Connection

2 - 3

VC35 Mainboard Manual

3). CPU Fan Installation

This connector is linked to the CPU fan. When the system is in some power saving

mode, the CPU fan will turn off; when it reverts back to full on mode, the fan will turn

back on.

damage to both the CPU and the mainboard.

Damage may occur to the mainboard and/or the CPU fan if these pins are

used incorrectly. These are not jumpers, do not place jumper caps over these

pins.

Without sufficient air circulation, the CPU may overheat resulting in

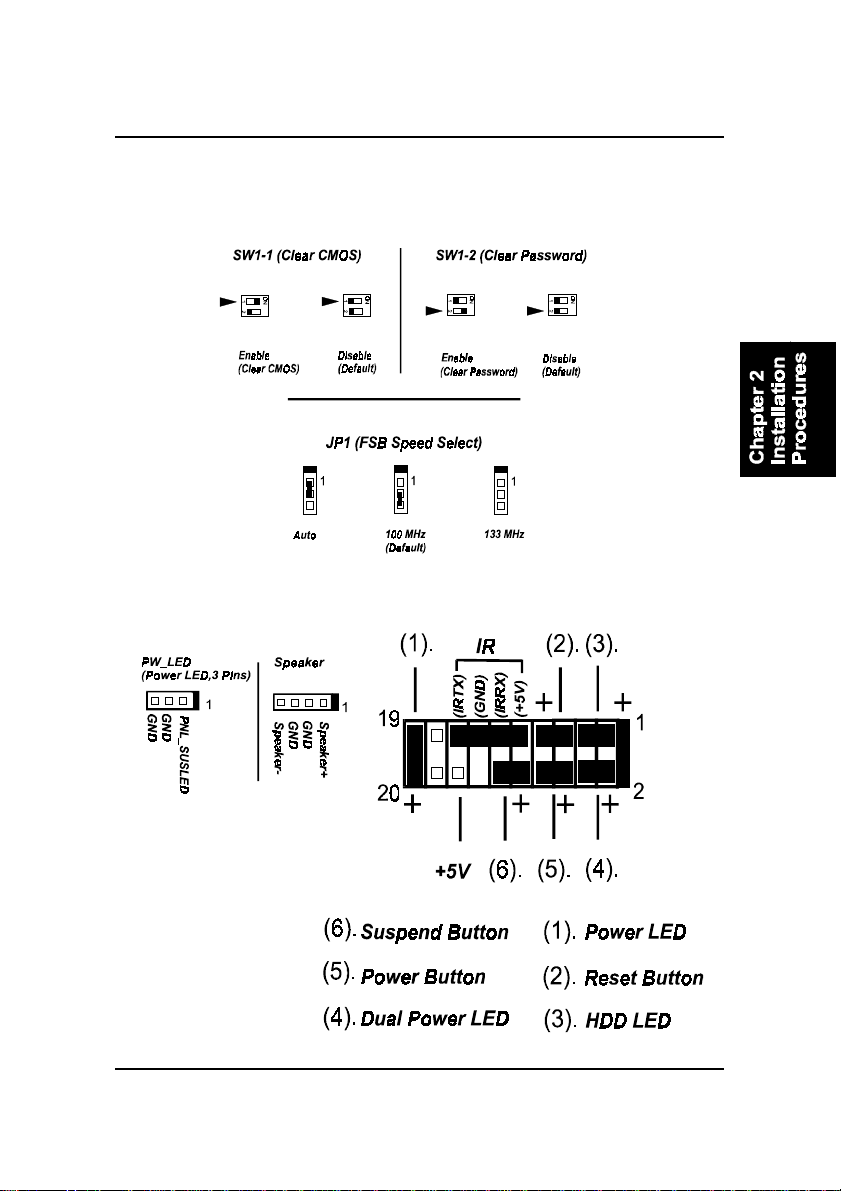

1). Set System Jumpers/Switches

Jumpers are used to select the operation modes for your system. Some jump-

ers on the board have three metal pins with each pin representing a different

function. A 1 is written besides pin 1 on jumpers with three pins. To set a

jumper, a black cap containing metal contacts is placed over the jumper pin/s

according to the required configuration. A jumper is said to be shorted when

the black cap has been placed on one or two of its pins. The types of jumpers

used in this manual are shown below:

NOTE: Users are not encouraged to change the jumper settings
not listed in this manual. Changing the jumper settings improperly
may adversely affect system performance.

Clear CMOS: SW1-1

The CMOS RAM is powered by the onboard button cell battery. To clear the

RTC data: (1) Turn off your computer. (2) Move the CMOS Clear switch SW1-

1 to On (Enabled). (3) Turn on your computer to display CMOS checksum

error. (4) Turn off your computer. (5) Move the CMOS Clear switch SW1-1 to

Off (Disabled). (6) Turn on your computer. (7) Hold down the Delete key when

boots. (8) Enter the BIOS Setup to re-enter user preferences.

2 - 4

Installation Procedures

Clear Password: SW1-2

This switch allows you to enable or disable the password configuration. You

may need to enable this switch by moving it to the On (Enabled) position if

you forget your password. To clear the password setting: (1) Turn off your

computer. (2) Move the Clear Password switch SW1-2 to On (Enabled). (3)

Turn on your computer. (4) Hold down the Delete key during bootup and enter

BIOS Setup to re-enter user preferences. (5) Turn off your computer, (6) Move

the Clear Password switch SW1-2 to Off (Disabled). (7) Turn on your com-

puter for the new settings to take effect.

2 - 5

VC35 Mainboard Manual

FSB Speed Select: JP1

This jumper allows you to select the FSB speed of your mainboard.

2). Install Memory Modules

1. Locate the DIMM slots on the mainboard.

2. Install the DIMM straight down into the DIMM slot using both hands.

3. The clip on both ends of the DIMM slot will close up to hold the DIMM

in place when the DIMM reaches the slot bottom.

Press the clips with both hands to remove the DIMM.

2 - 6

Installation Procedures

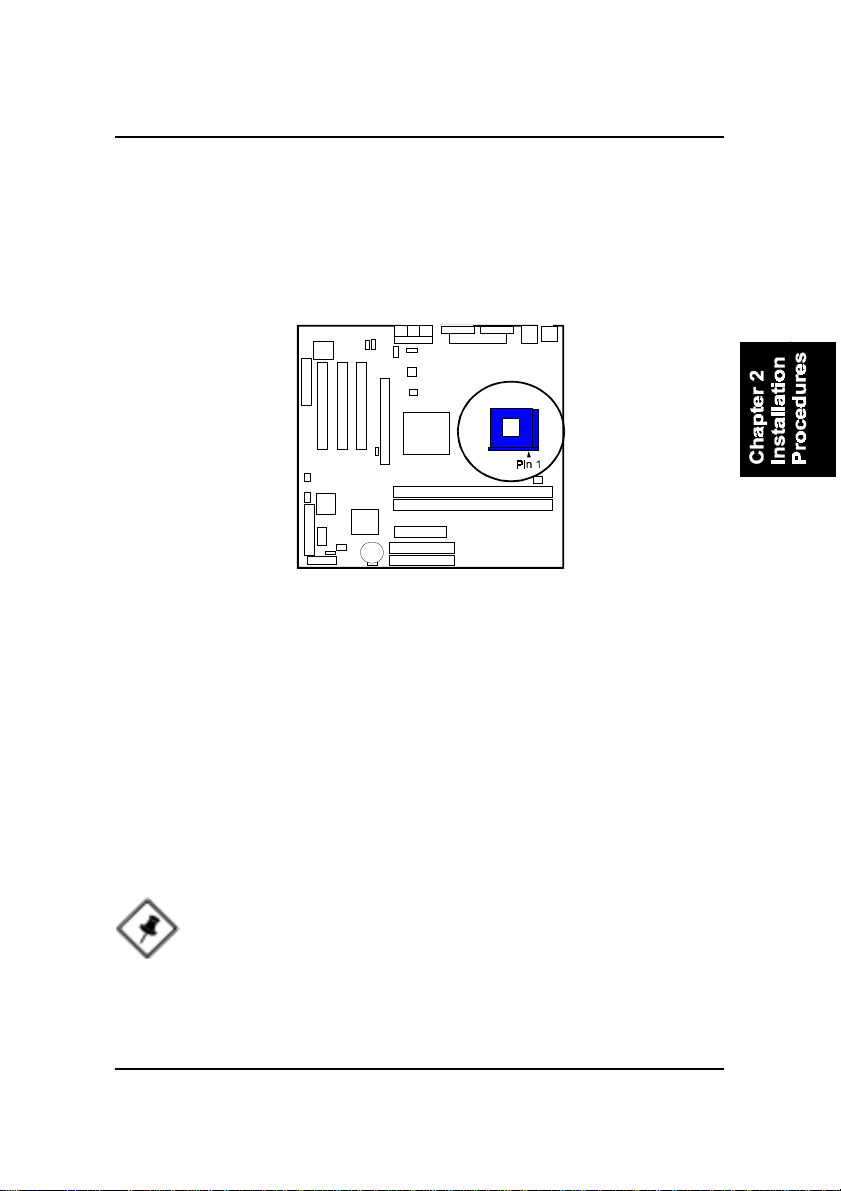

3). Install the CPU

The mainboard has built-in Switching Voltage Regulator to support CPU Vcore

autodetection. That is, It has the ability to detect and recognize the CPU

voltage, clock, ratio and enables users to set up the CPU frequency from the

BIOS Setup Screen. Users can adjust the frequency through Frequency /

Voltage Control of the BIOS Setup Screen.

When you install your Pentium® 4 CPU on this mainboard, please use a power

supply that designed and manufactured only for Pentium® 4 CPUs use. Your

CPU fansink combined with its retention module must be completely closed

and firmly attached on the top of the processor.

To install the CPU, do the following:

1. Lift the lever on the side of the CPU socket.

2. Handle the chip by its edges and try not to touch any of the pins.

3. Place the CPU in the socket. Do not force the chip. The CPU should slide

easily into the socket.

4. Swing the lever to the down position to lock the CPU in place.

5. Place the cooling fan with heatsink on top of the installed CPU.

NOTE: Users The CPU installing procedures should be:

1. Insert the CPU (with its fansink and retention module) on the
socket.

2. Connect the 20-pin plug of the power supply

3. Connect the 6-pin plug of the power supply.

4. Connect the 4-pin plug of the power supply.
To remove the processor, please do it in reverse order.

2 - 7

VC35 Mainboard Manual

4). Install Expansion Cards

This section describes how to connect an expansion card to one of your

system expansion slots. Expansion cards are printed circuit boards that, when

connected to the mainboard, increase the capabilities of your system. For

example, expansion cards can provide video and sound capabilities. The

mainboard features one CNR, one AGP, and three PCI bus expansion slots.

CAUTION: Make sure to unplug the power supply when adding or
removing expansion cards or other system components. Failure to
do so may cause severe damage to both the mainboard and
expansioncards.
Always observe static electricity precautions.
Please read Handling Precautions at the start of this manual.
This mainboard supports 1.5V AGP 2X/4X card only; other type
cards may damage card and mainboard.

To install an expansion card, follow the steps below:

1. Remove the computer chassis cover and select an empty expansion

slot.

2. Remove the corresponding slot cover from the computer chassis.

Unscrew the mounting screw that secures the slot cover and pull

the slot cover out from the computer chassis. Keep the slot cover

mounting screw nearby.

2 - 8

Installation Procedures

3. Holding the edge of the peripheral card, carefully align the edge

connector with the expansion slot.

4. Push the card firmly into the slot. Push down on one end of the

expansion card, then the other. Use this rocking motion until the add

on card is firmly seated inside the expansion slot.

5. Secure the board with the mounting screw removed in Step 2. Make

sure that the card has been placed evenly and completely into the

expansion slot.

6. Replace the computer system cover.

7. Setup the BIOS if necessary.

8. Install the necessary software drivers for the expansion card.

5). Connect Devices

Floppy Diskette Drive Connector

This connector provides the connection with your floppy disk drive.

The red stripe of the ribbon cable must be the same side with the Pin 1.

2 - 9

VC35 Mainboard Manual

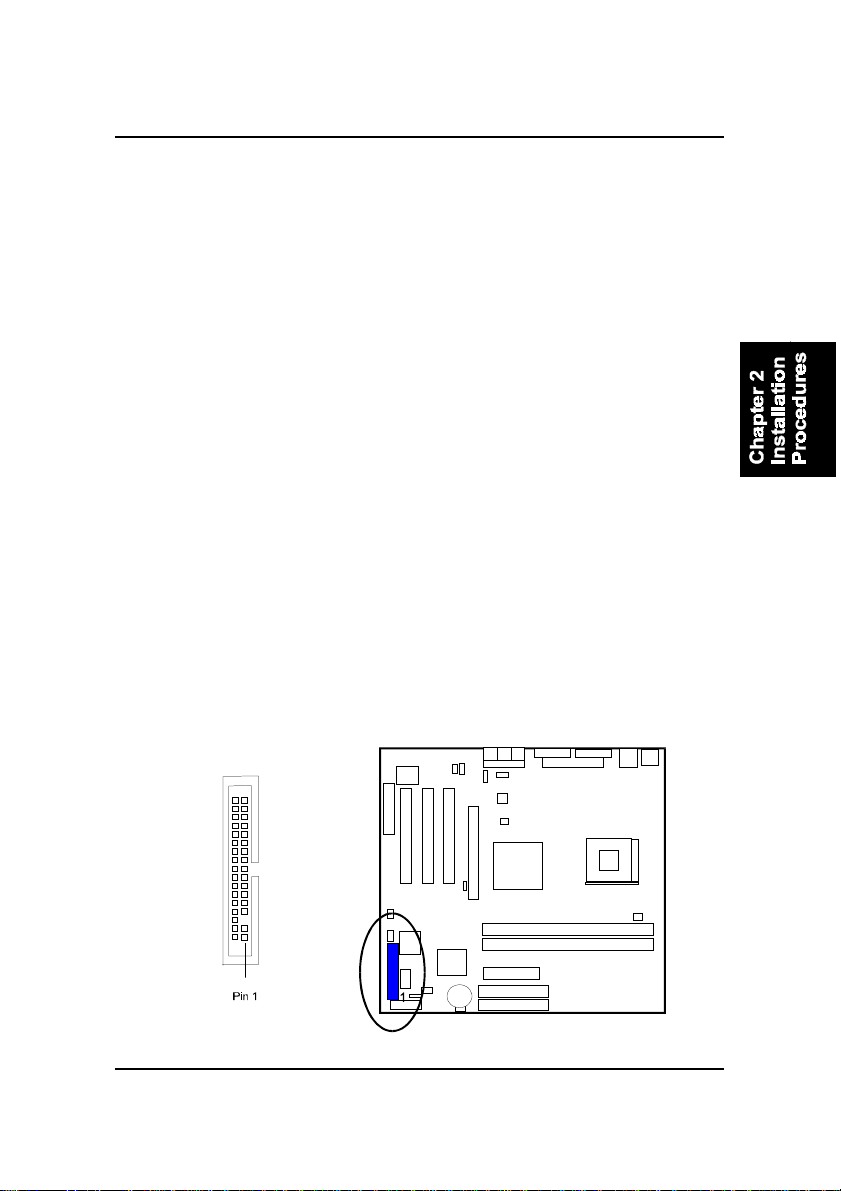

IDE Device Connectors

These two connectors are used for your IDE hard disk drives, CD drives, LS-

120|drives, or IDE ZIP drives. The red stripe of the ribbon cable must be the

same side with the Pin 1.

Power Connectors

The 20-pin male block connector is connected to the ATX power supply. The

4-pin male block connector is for the 12V power use. The connectors are linked

with your ATX power supply. The plug from the power supply will only insert

in one orientation because of the different hole sizes. Find the proper orienta-

tion and push down firmly making sure that the pins are aligned.

2 - 10

Installation Procedures

Fan Connectors

The two connectors, CPU_FAN, SYS_FAN are linked to the CPU fan, case fan,

respectively. CHIP_FAN can be used either with the case fan or North Bridge

chip fan. For preventing the system and chip from overheat damage, the fans

on this board will keep running when the system in suspend mode.

Wake-On-Lan Connector

This 3-pin connector allows the remove servers to manage the system that

installed this mainboard via your network adapter which also supports WOL.

2 - 11

VC35 Mainboard Manual

CD Audio-In Connectors

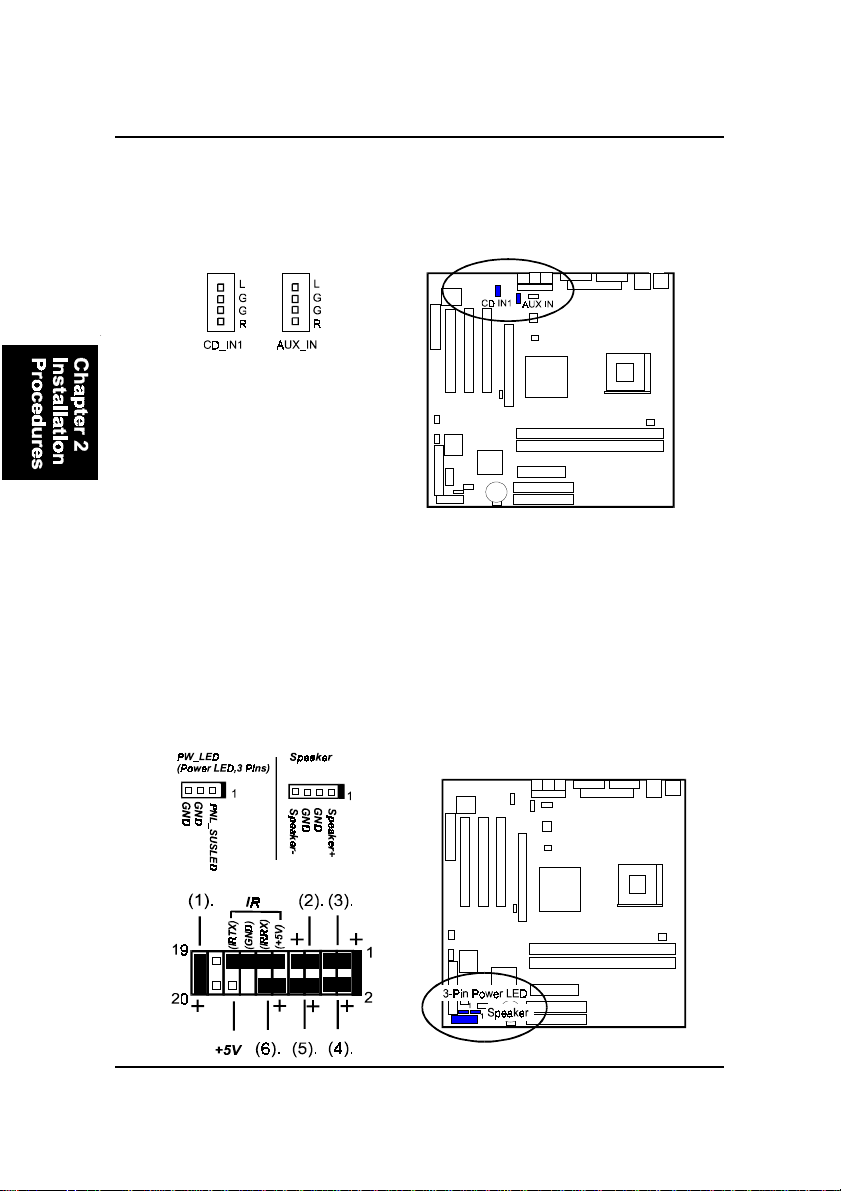

The connectors are for CD-ROM drive audio input use.

Front Panel Block, Power LED and Speaker Connector

This block connector includes the connectors for linking with HDD LED,

power LED (2 and 3 pins), dual power LED, power button, suspend button,

reset button, and IR on the front panel of the system case. Please identify

polarities of plug wires for the case speaker and LEDs. Please ask vendor

about this information when you buy them and install the system by yourself.

The plug wires polarities of these buttons will not affect the function.

2 - 12

Installation Procedures

1. Power LED (2-Pin) is connected with the system power indicator to indicate

whether the system is on/off. It will blink when the system enters suspend

mode. There is a 3-Pin Power LED connector on board for some cases that with

a 3-pin plug.

2. Reset Button is connected to the reset button. Push this switch to reboot

the system instead of turning the power button off and on.

3. HDD LED is connected to the IDE device indicator. This LED will blink

when the hard disk drives are activated.

4. Dual Power LED it is in green light when the system in power on status.

It is in yellow light when the system in suspend mode.

5. Power Button is connected with power button. Push this switch allows the

system to be turned on and off rather than using the power supply button.

6. Suspend Button is connected with suspend button. To enter the system

into power saving mode, simply press this button when the system is in full-

on mode.

Speaker is connected with the case speaker.

PS/2 Keyboard and Mouse Connector

These two 6-pin female (PS/2 keyboard is purple color and PS/2 mouse is

green color) connectors are used for your PS/2 keyboard and PS/2 mouse.

2 - 13

VC35 Mainboard Manual

Universal Serial Bus Connectors

These two black connectors integrated on the edge of the board are used for

linking with USB peripheral devices. This board also provides a connector

USB2/3 for linking with the two extra USB connections. They can link with

front panels of some system cases.

The figure below is the pin assignment

of the USB2/3.

Serial Port Connectors

COM1/2 (9-pin D-sub male connector with teal color) allow you to connect

with your devices that use serial ports, such as a serial mouse or an external

modem.

2 - 14

Installation Procedures

Printer Connector

This 25-pin D-Sub female burgundy-colored connector is attached to your

printer.

Audio I/O Jacks

LINE_OUT (lime) can be connected to headphones or preferably powered

speakers. LINE_IN (light blue) allows tape players or other audio sources to

be recorded by your computer or played through the LINE_OUT. MIC_IN

(pink) allows microphones to be connected for voice input. The mainboard

also provides you with a front panel audio port connector, FNT_AUDIO,

when needed. Its pin definitions were presented below.

2 - 15

VC35 Mainboard Manual

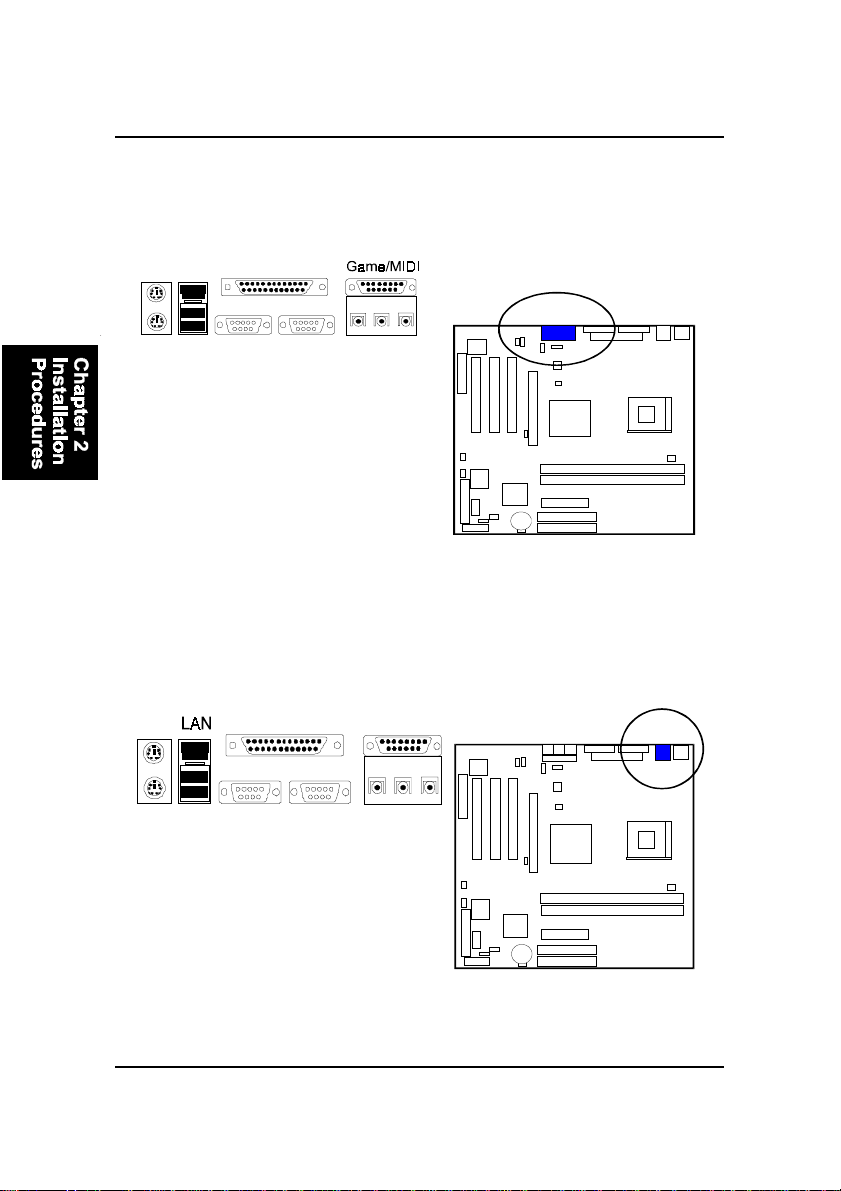

Game/MIDI Connector

This 15-pin female gold-colored connector allows you to connect game joy-

sticks or game pads. Connect MIDI devices for playing or editing audio.

Optional LAN Connector

The optional RJ45 LAN jack is used for the LAN cable plug.

2 - 16

BIOS Setup

Chapter 3

BIOS Setup

The mainboard comes with the chip that Award BIOS that contains the ROM

Setup information of your system. (This chip serves as an interface between

the processor and the rest of the mainboard components.) This section ex-

plains the information contained in the Setup program and tells you how to

modify the settings according to your system configuration.

CMOS Setup Utility

A Setup program, built into the system BIOS, is stored in the CMOS. This

Setup utility program allows updates to the mainboard configuration settings.

It is executed when the user changes system configuration; user changes

system backup battery; or the system detects a configuration error and asks

the user to run the Setup program. Use the arrow keys to select and press

Enter to run the selected program.

3 - 1

VC35 Mainboard Manual

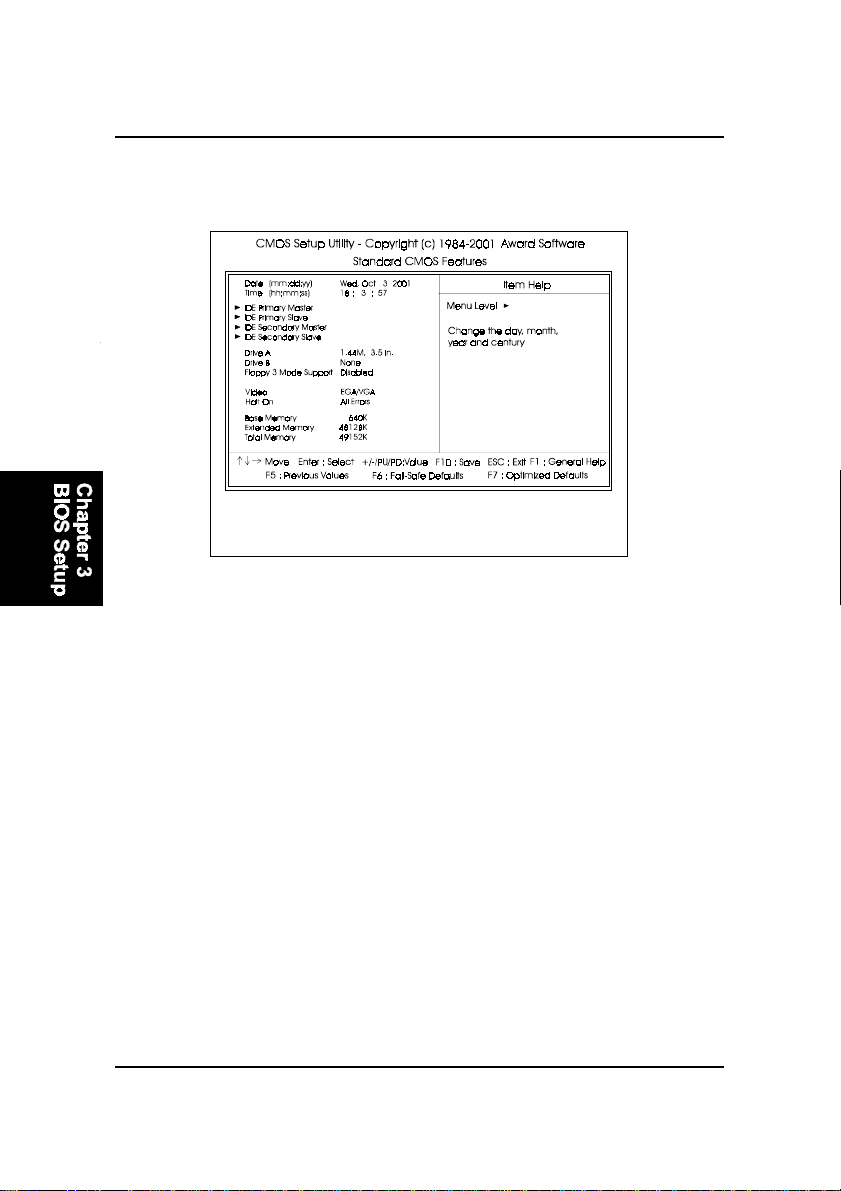

Standard CMOS Setup

The Standard CMOS Setup screen is displayed above. Each item may have

one or more option settings. The system BIOS automatically detects memory

size, thus no changes are necessary. Use the arrow keys to highlight the item

and then use PgUp or PgDn keys to select the value you want in each item.

Date

To set the date, highlight the Date field and then press Page Up/Page

Down or +/- keys to set the current date. Follow the month, day and year

format.

Time

To set the time, highlight the Time field and then press Page Up/Page Down

or +/- keys to set the current time. Follow the hour, minute, and second

format.

3 - 2

BIOS Setup

Hard Disks

This field records the specifications for all non-SCSI hard drives installed

in the system. The onboard PCI IDE connectors provide Primary and Sec-

ondary channels for connecting up to four IDE hard disks or other IDE

devices. Each channel can support up to two hard disks, the first of which

is the Master and the second is the Slave.

Hard Disk Configurations

Capacity: The hard disk size. The unit is Bytes.

Cylinder: The cylinder number of the hard disk.

Head: The read/write head number of hard disk.

Precomp: The cylinder number at which the disk drive

changes the write current.

Landing Zone: The cylinder number that the disk drive heads

(read/write) are seated when the disk drive is

parked.

Sector: The sector number of each track defined on the

hard disk.

Drive A / Drive B

This field records the types of floppy drives installed in the system. To

enter the configuration value for a particular drive, highlight its corre-

sponding field and then select the drive type using the left- or right-arrow

key.

Floppy 3 Mode Support

This is a Japanese standard floppy type drive. The standard stores 1.2MB

in a 3.5 inch diskette.

Video

Set this field to the type of video display card installed in the system.

Halt On

This field determines which types of errors will cause the system to halt.

3 - 3

VC35 Mainboard Manual

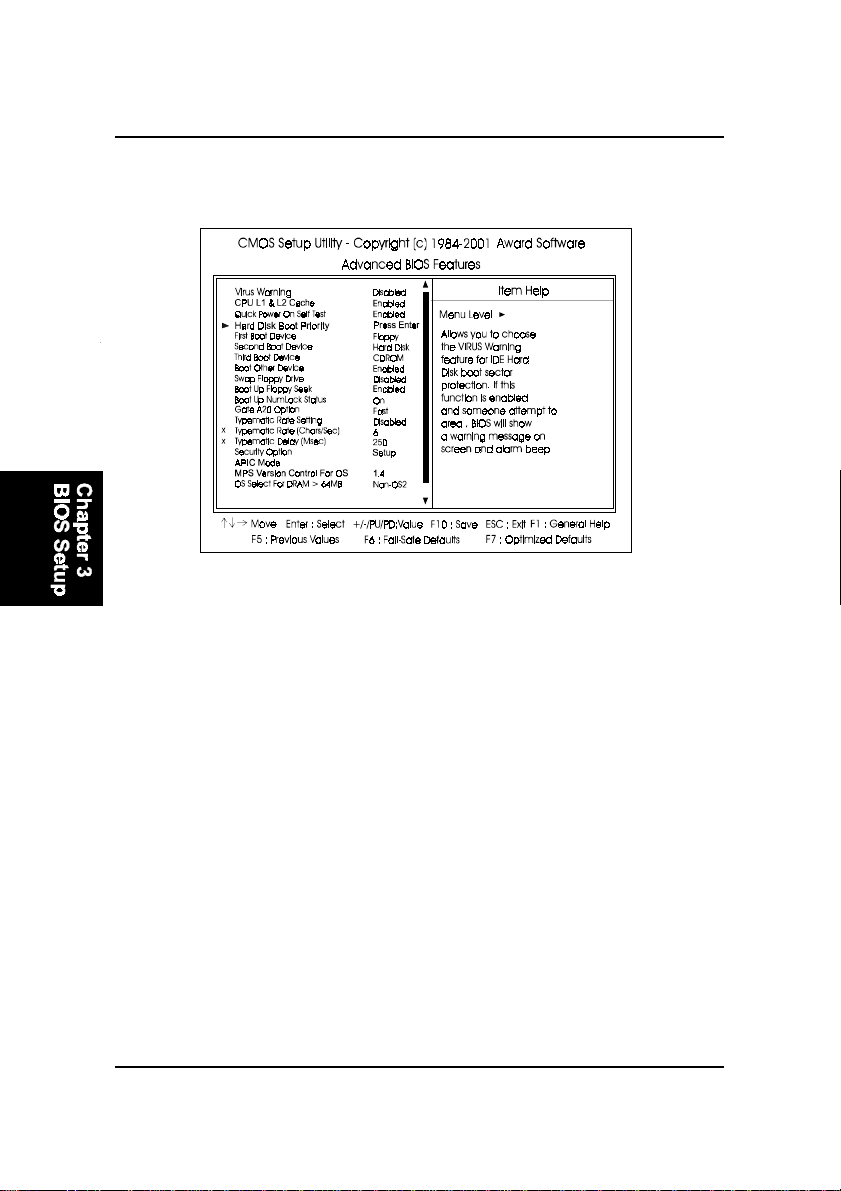

Advanced BIOS Features

Virus Warning

This feature starts the virus scan tool to detect if boot virus in boot sector

of the first hard disk drive when booting up.

The options are: Enabled, Disabled.

CPU L1 & L2 Cache

When enabled, improves the system performance. Disable this item when

testing or trouble-shooting. The options are: Enabled, Disabled.

Quick Power On Self T est

When enabled, allows the BIOS to bypass the extensive memory test.

The options are: Enabled, Disabled.

Hard Disk Boot Priority

This feature will auto detect all hard disks of bootable device on the sys-

tem. It also allows users to select hard disk device booting priority.

First/Second/Third Boot Device

This feature allows user to select the boot device priority. The options are:

Floppy, LS120, Hard Disk, CDROM, ZIP100, LAN, Disabled.

3 - 4

BIOS Setup

Boot Other Device

This feature allows user to select the boot device priority.

The options are: Enabled, Disabled.

Swap Floppy Drive

Allows you to switch the order in which the operating system accesses

the floppy drives during boot up.

The options are: Enabled, Disabled.

Boot Up Floppy Seek

When enabled, assigns the BIOS to perform floppy diskette drive tests by

issuing the time-consuming seek commands.

The options are: Enabled, Disabled.

Boot Up Numlock Status

When set to On, allows the BIOS to automatically enable the Num Lock

Function when the system boots up. The options are: On, Off.

Gate A20 Option

When set at Fast, allows a faster access response under Protected mode.

The options are: Fast, Normal.

Typematic Rate Setting

The term typematic means that when a keyboard key is held down, the

character is repeatedly entered until the key is released.

The options are: Disabled, Enabled.

Typematic Rate (Chars/Sec)

This feature is available only if the above item, Typematic Rate Setting, is

set at Enabled. Sets the rate of a character repeat when the key is held

down. The options are: 6, 8, 10, 12, 15, 20, 24, 30.

Typematic Delay (Msec)

This feature is available only if the item, Typematic Rate Setting, is set at

Enabled. Sets the delay time before a character is repeated.

The options are: 250, 500, 750, 1000 millisecond.

Security Option

Allows you to set the security level of the system.

The options are: Setup, System.

3 - 5

VC35 Mainboard Manual

APIC Mode

Allows you to decide if the system enters the APIC (Advanced Program-

mable Interrupt Controller) mode or not for more IRQs can be released.

The options are: Enabled, Disabled.

MPS Version Control For OS

When two CPUs onboard (not this board) this feature allows you to select

MPS (Multi-Processor Spec.) version control for OS when logo test ex-

ecutes. The options are: 1.1, 1.4.

OS Select For DRAM > 64MB

If your operating system (OS) is OS/2, select the option OS2. Otherwise,

stay with the default setting Non-OS2.

The options are: Non-OS2, OS2.

HDD S.M.A.R.T . Capability

S.M.A.R.T. stands for Self-Monitoring and Analysis Reporting Technol-

ogy which allows your hard disk drive to report any read/write errors and

issues a warning with LDCM installed.

The options are: Disabled, Enabled.

Report No FDD For WIN 95

When the field under the Standard CMOS Setup Menu for Drive A and/or

Drive B is set at None, users must set this field is set at Yes for it to function

properly. Otherwise, set at No, even if field for Drive A and/or Drive B is set

at None, system will still detect and recognize of a floppy drive(s).

The options are: Yes, No.

BIOS Guardian

It allows the system to prevent computer viruses. Users will need to dis-

able it to update BIOS. The options are: Enabled, Disabled.

NOTE: Please disable this BIOS feature about BIOS Guardian
before you start to reflash BIOS.

Full Screen LOGO Show

It decides whether or not the full screen logo is shown during system

booting up. The options are: Enabled, Disabled.

3 - 6

BIOS Setup

Advanced Chipset Features

DRAM Timing Selectable

This feature allows user to select the way to set DRAM timing.

The options are: Manual, By SPD.

CAS Latency Time

This feature allows user to select the CAS latency time, when any SDRAM

DIMM installed. The options are: 1.5, 2, 2.5, 3.

Active to Precharge Delay

This feature allows user to set Active to Precharge Delay, if any SDRAM

installed. The options are: 7, 6, 5.

DRAM RAS# to CAS# Delay

The feature allows user to set the delay time that from the DRAM RAS#

active to CAS#. The options are: 3, 2.

DRAM RAS# Precharge Time

The feature allows user to set the DRAM RAS# Precharge Time.

The options are: 3, 2.

3 - 7

VC35 Mainboard Manual

DRAM Data Integrity Mode

The feature allows you to set the DRAM data integrity mode.

The options are: Non-ECC, ECC.

Memory Frequency For

This feature allows users to set the memory frequency.

Dram Read Thermal Mgmt

The feature allows users to set the DRAM Read Thermal Management

register which in the chip of Intel 845 for the trade-off between system

temperature and its performance. The options are: 3, 2.

System BIOS Cacheable

Setting at Enabled will allow the caching of the BIOS ROM F0000H-FFFFFH,

resulting in better system performance. It may cause system error when

some programd try to access the memory area.

The options are: Disabled, Enabled.

Video BIOS Cacheable

Setting at Enabled will allow the caching of the video BIOS ROM at C0000H-

C7FFFH, resulting in better video performance. It may cause system error

when some programd try to access the memory area.

The options are: Disabled, Enabled.

Video RAM Cacheable

Setting at Enabled will allow the caching of the video RAM at A0000H-

BFFFFH, resulting in better video performance. It may cause system error

when some programd try to access the memory area.

The options are: Disabled, Enabled.

Memory Hole At 15M-16M

When set at Enabled, the memory hole at 15MB address will be relocated

to the 15M-16MB address range of the ISA or PCI cycle when the CPU

accesses the 15M-16MB address area. When set at Disabled, the memory

hole at 15MB address will be treated as a DRAM cycle when the CPU

accesses the 15M-16MB address area. The options are: Disabled, Enabled.

3 - 8

BIOS Setup

Delayed Transaction

Setting at Eanbled will abort the current PCI master cycle and to accept the

new PCI master request, it reaccepts the original PCI master and returns

the PCI data phase to the original PCI master. It will enhance the system

performance. The options are: Disabled, Enabled.

AGP Aperature Size (MB)

It allows user to select the main memory frame size of AGP use.

The options are: 4, 8, 16, 32, 64, 128, 256.

Delay Prior to Thermal

It allows user to select the Delay Prior to Thermal.

The options are: 4 Min, 8 Min, 16 Min, 32 Min.

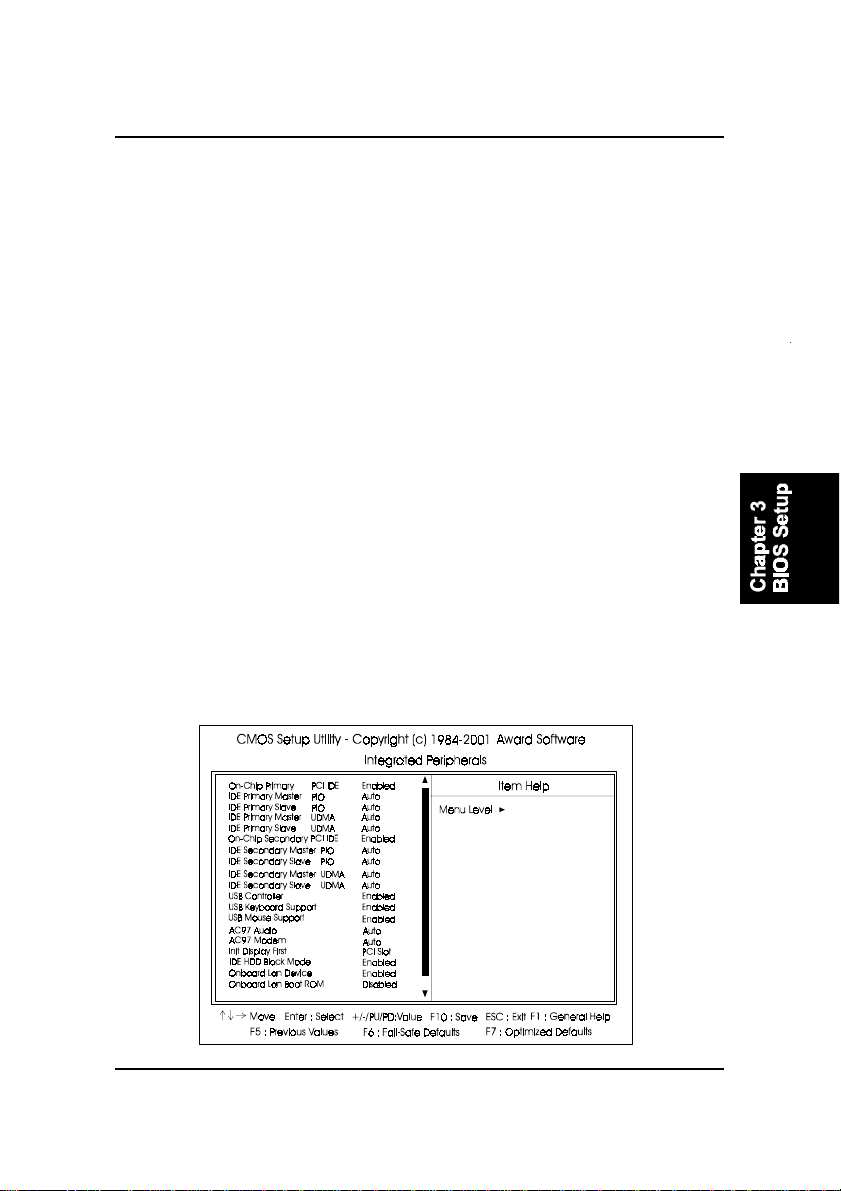

Integrated Peripherals

3 - 9

VC35 Mainboard Manual

On-Chip Primary PCI IDE

When enabled, it allows you to use the onboard primary PCI IDE.

The options are: Enabled, Disabled.

IDE Primary Master PIO

Allows an automatic or a manual configuration of the PCI primary IDE

hard drive (master) mode. The options are: Auto, Mode 0, Mode 1, Mode

2, Mode 3, Mode 4.

IDE Primary Slave PIO

Allows an automatic or a manual configuration of the PCI primary IDE

hard drive (slave) mode. The options are: Auto, Mode 0, Mode 1, Mode 2,

Mode 3, Mode 4.

IDE Primary Master UDMA

Allows an automatic configuration of the PCI primary IDE hard drive

(master) mode if Ultra DMA is supported both on the motherboard and

the hard disk. The options are: Auto, Disabled.

IDE Primary Slave UDMA

Allows an automatic configuration of the PCI primary IDE hard drive

(slave) mode if Ultra DMA is supported both on the motherboard and the

hard disk. The options are: Auto, Disabled.

On-Chip Secondary PCI IDE

When enabled, it allows you to use the onboard secondary PCI IDE.

The options are: Enabled, Disabled.

IDE Secondary Master PIO

Allows an automatic or a manual configuration of the PCI secondary IDE

hard drive (master) mode. The options are: Auto, Mode 0, Mode 1, Mode

2, Mode 3, Mode 4.

IDE Secondary Slave PIO

Allows an automatic or a manual configuration of the PCI secondary IDE

hard drive (slave) mode.The options are: Auto, Mode 0, Mode 1, Mode 2,

Mode 3, Mode 4.

3 - 10

BIOS Setup

IDE Secondary Master UDMA

Allows an automatic configuration of the PCI secondary IDE hard drive

(master) mode if Ultra DMA is supported both on the motherboard and

the hard disk. The options are: Auto, Disabled.

IDE Secondary Slave UDMA

Allows an automatic configuration of the PCI secondary IDE hard drive

(slave) mode if Ultra DMA is supported both on the motherboard and the

hard disk. The options are: Auto, Disabled.

USB Controller

Disable this option if you are not using the onboard USB feature.

The options are: Disabled, Enabled.

USB Keyboard Support

When a USB keyboard is installed, please set at Enabled.

The options are: Disabled, Enabled.

USB Mouse Support

When a USB mouse is installed, please set at Enabled.

The options are: Disabled, Enabled.

AC97 Audio

This feature auto detects if you use an AMR card that with a CODEC to

enable or disable the AC97 audio function.

The options are: Auto, Disabled.

AC97 Modem

This feature auto detects if you use an AMR card that with a CODEC to

enable or disable the AC97 modem function.

The options are: Auto, Disabled.

Init Display First

When you install an AGP VGA card and a PCI VGA card on the board, this

feature allows you to select the first initiation of the monitor display from

which card. The options are: PCI Slot, AGP.

IDE HDD Block Mode

When enabled, the system executes read/write requests to hard disk in

block mode. The options are: Enabled, Disabled.

3 - 11

VC35 Mainboard Manual

Onboard Lan Device

This feature allows users to enable or disable the onboard Lan device.

The options are: Enabled, Disabled.

Onboard Lan Boot ROM

This feature allows users to enable or disable the onboard Lan boot ROM

to boot system. The options are: Enabled, Disabled.

POWER ON Function

Allows you to set the method for powering-on the system. The default

option of BUTTON ONLY allows system power-on using the standard

system case mounted ON/OFF switch. The option of Keyboard 98 allows

power-on by pressing Power key on a standard 98 keyboard.

The options are: BUTTON ONLY, Keyboard 98.

Onboard FDC Controller

When enabled, the floppy diskette drive (FDD) controller is activated.

The options are: Enabled, Disabled.

Onboard Serial Port 1/2

If the serial port 1/2 uses the onboard I/O controller, you can modify your

serial port parameters. If an I/O card needs to be installed, COM3 and

COM4 may be needed. The options are: Disabled, 3F8/IRQ4, 2F8/IRQ3,

3E8/IRQ4, 2E8/IRQ3.

UART Mode Select

Allows you to select the IR modes if the serial port 2 is used as an IR port.

Set at Standard, if you use COM2 as the serial port as the serial port,

instead as an IR port. The options are: IrDA, ASKIR, Normal.

UR2 Duplex Mode

Allows you to select the IR modes.

The options are: Half, Full.

TxD , RxD Polarity Active

This feature is available only if the item, UART 2 Mode, is set at ASKIR or

HPSIR. The feature allows you to select the active signals of the reception

end and the transmission end. This is for technician use only.

The options are: Hi, Lo; Hi, Hi; Lo, Hi; Lo, Lo.

3 - 12

BIOS Setup

Use IR Pins

Allows you to select IR pin mode.

The options are: RxD2, TxD2; IR-Rx2Tx2.

Onboard Parallel Port

Allows you to select from a given set of parameters if the parallel port uses

the onboard I/O controller.

The options are: Disabled, 378/IRQ7, 278/IRQ5, 3BC/IRQ7.

Parallel Port Mode

Allows you to connect with an advanced printer via the port mode it sup-

ports. The options are: SPP, EPP1.9+SPP, ECP, EPP1.9+ECP, PRINTER,

EPP1.7+SPP, EPP1.7+ECP.

ECP Mode Use DMA

This feature allows you to select Direct Memory Access (DMA) channel.

The options are: 1, 3.

Game Port Address

This feature allows you to select the game port address or disable it.

The options are: Disabled, 201, 209.

Midi Port Address

This feature allows you to select the Midi port address or disable it.

The options are: Disabled, 330, 300.

Midi Port IRQ

It allows you to select Midi IRQ if Midi is enabled.

The options are: 5, 10.

3 - 13

VC35 Mainboard Manual

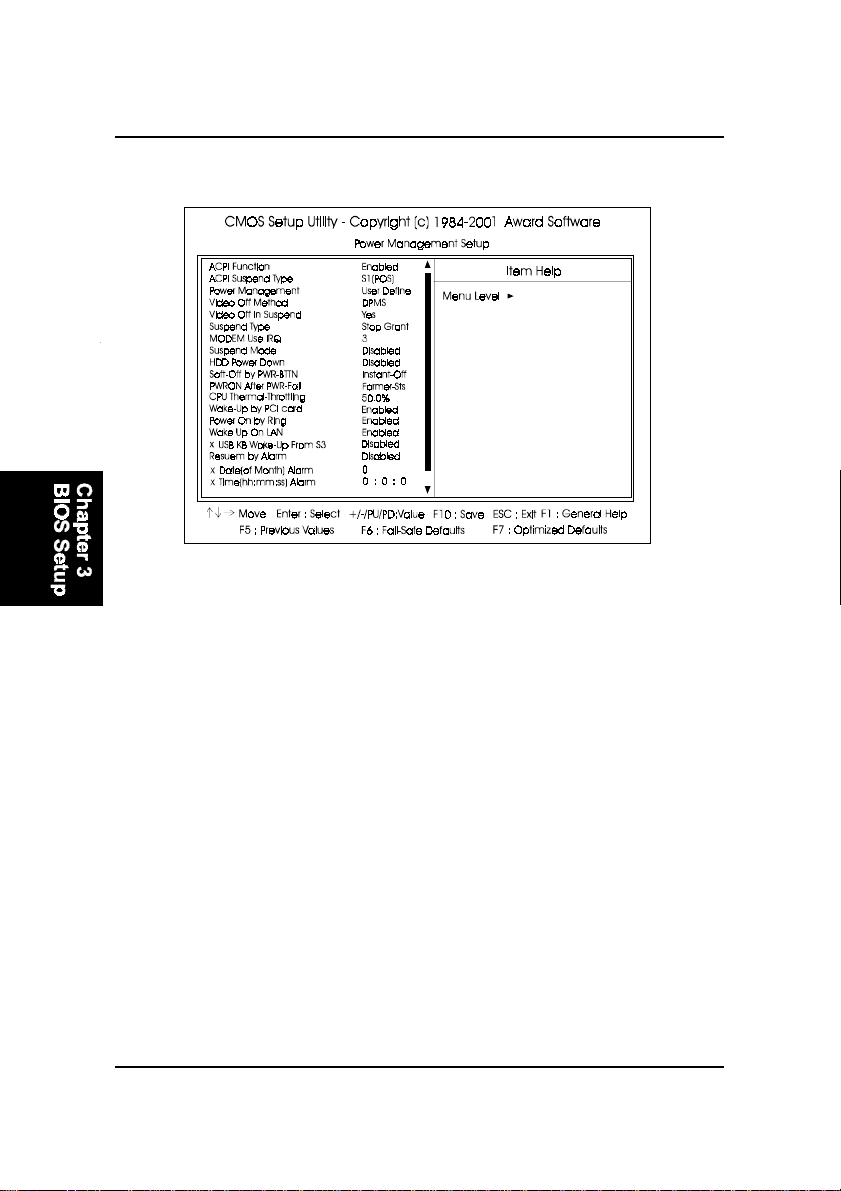

Power Management Setup

ACPI function

This item allows you to disable the ACPI function.

The options are: Enabled, Disabled.

ACPI Suspend Type

This item allows you to select suspend mode when the system in ACPI

mode. The options are: S1 (POS), S3 (PTR).

Power Management

This item allows you to adjust the power management features.

Select User Define for configuring your own power management features.

Min Saving initiates all predefined timers in their minimum values. Max

Saving, on the other hand, initiates maximum values. The options are: User

Define, Min Saving, Max Saving.

Video Off Method

The option V/H SYNC+Blank allows the BIOS to blank off screen display

by turning off the V-Sync and H-Sync signals sent from add-on VGA card.

3 - 14

BIOS Setup

DPMS allows the BIOS to blank off screen display by your add-on VGA

card which supports DPMS (Display Power Management Signaling func-

tion). Blank Screen allows the BIOS to blank off screen display by turning

off the red-green-blue signals.

The options are: Blank Screen, V/H SYNC+Blank, DPMS.

Video Off In Suspend

The option allows you to select VGA status when the system goes to

suspend mode. The options are: No, Yes.

Suspend Type

The option allows you to select VGA status when the system goes to

suspend mode. The options are: Stop Grant, PwrOn Suspend.

MODEM Use IRQ

This feature allows you to select the IRQ# to meet your modem IRQ#.

The options are: NA, 3, 4, 5, 7, 9, 10, 11.

Suspend Mode

When disabled, the system will not enter Suspend mode. The specified

time option defines the idle time the system takes before it enters Suspend

mode. The options are: Disabled, 1, 2, 4, 8, 12, 20, 30, 40 Min, 1 Hour.

HDD Power Down

The option lets the BIOS turn the HDD motor off when system is in Sus-

pend mode. Selecting 1 Min..15 Min allows you define the HDD idle time

before the HDD enters the Power Saving Mode.

The options 1 Min..15 Min will not work concurrently. When HDD is in the

Power Saving Mode, any access to the HDD will wake the HDD up.

The options are: Disabled, 1 Min..15 Min.

Soft-Off by PWR-BTTN

The selection Delay 4 Sec. will allow the system shut down after 4 seconds

after the power button is pressed. The selection Instant-Off will allow the

system shut down immediately once the power button is pressed.

The settings are: Instant-Off, Delay 4 Sec.

3 - 15

VC35 Mainboard Manual

PWRON After PWR-Fail

When the system is shut down owing to the power failure, the system will

not be back to power on by itself. This feature allows you to set the

system back to which power status of the system when the system power

is resumed. The options are Former-Sts, On, Off.

CPU Thermal-Throttling

When thermal override condition occur, this item allows users to deter-

mine the duty cycle of the throttling.

The options are: 87.5%, 75.0%, 62.5%, 50.0%, 37.5%, 25.0%, 12.5%.

Wake-Up by PCI card

When set at Enabled, any PCI-PM event awakes the system from a PCI-

PM controlled state. The options are Disabled, Enabled.

Power On by Ring

An incoming call via modem awakes the system from its soft-off mode.

The options are Disabled, Enabled.

Wake Up On LAN

When set at Enabled, an input signal comes from the other client/server on

the LAN awakes the system from a soft off state if connected over LAN.

The options are Disabled, Enabled.

USB KB Wake-Up From S3

When set at Enabled, it allows USB keyboard to activate the system from

ACPI S3 power saving mode. The options are Disabled, Enabled.

Resume by Alarm

This feature allows you to set the when the system being turned on from

the system power-off status.

The options are: Enabled, Disabled.

Date (of Month) Alarm

This feature allows you to set the day of the alarm starts when the RTC

Alarm Resume From Soft Off is set to be Enabled. The options are: 0, 1..31.

3 - 16

BIOS Setup

Timer (hh:mm:ss) Alarm

If an ATX power supply is installed and when RTC Alarm Resume is En-

abled, this feature allows you to set the time of the alarm starts when the

RTC Alarm Resume From Soft Off is set to be Enabled.

The options are: 7: 0: 0 (Default). hh (hour) - 0, 1, 2,.., 23; mm (minute) - 0,

1, 2,..,59; ss (second) - 0, 1, 2,..,59.

Primary IDE 0

When the primary master HDD is working, the system timer will be re-

loaded and the system will not be into the suspend mode.

The options are: Disabled (Default), Enabled.

Primary IDE 1

When the primary slave HDD is working, the system timer will be reloaded

and the system will not be into the suspend mode.

The options are: Disabled (Default), Enabled.

Secondary IDE 0

When the secondary master HDD is working, the system timer will be

reloaded and the system will not be into the suspend mode.

The options are: Disabled (Default), Enabled.

Secondary IDE 1

When the secondar slave HDD is working, the system timer will be re-

loaded and the system will not be into the suspend mode.

The options are: Disabled (Default), Enabled.

FDD, COM, LPT Port

When FDD, COM, or LPT is working, the system timer will be reloaded and

the system will not be into the suspend mode.

The options are: Disabled, Enabled.

PCI PIRQ[A-D]#

When the PCI PIRQ[A-D]# has been alerted, the system timer will be re-

loaded and the system will not be into the suspend mode.

The options are: Disabled, Enabled.

3 - 17

VC35 Mainboard Manual

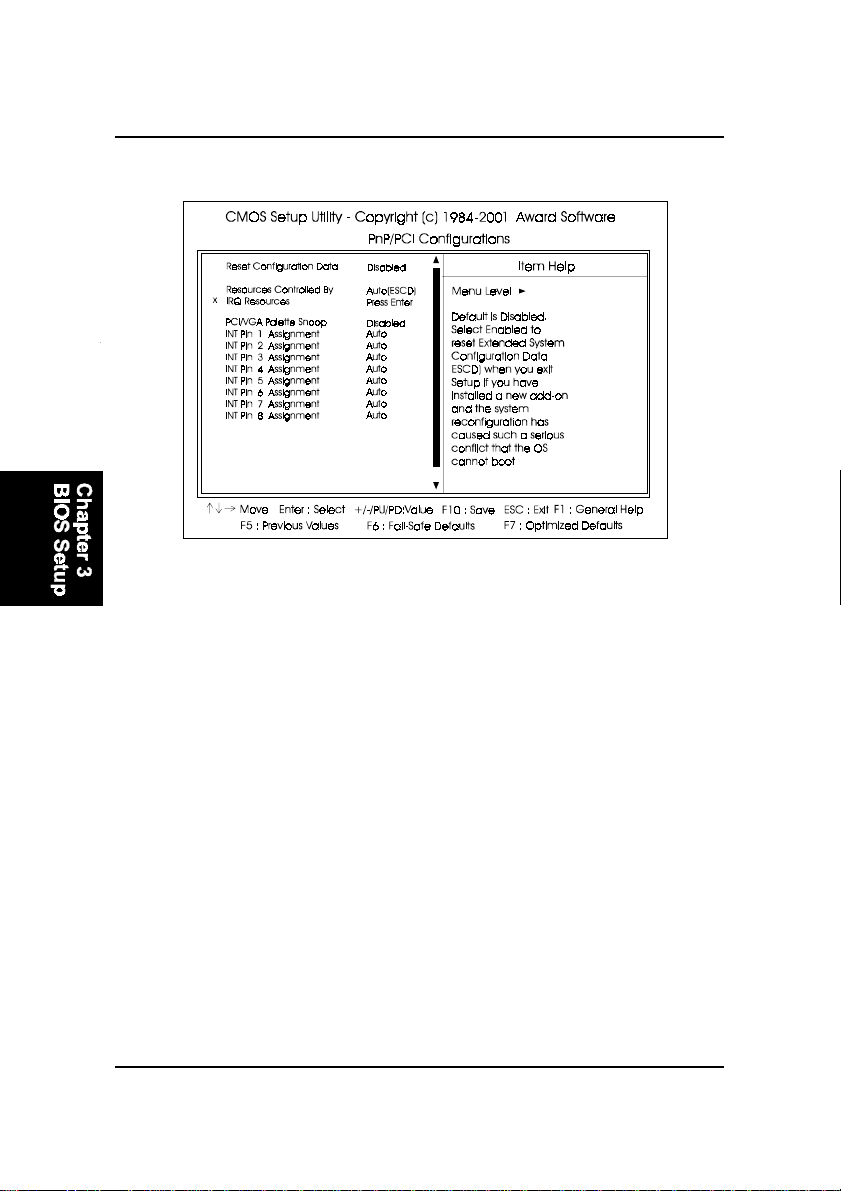

PnP/PCI Configurations

Reset Configuration Data

Enabling it to reset the system Extended System Configuration Data (ESCD)

when you exit Setup if you have installed a new add-on card and the

system reconfiguration has caused such a serious conflict that the operat-

ing system can not boot. The options are: Disabled, Enabled.

Resources Controlled By

If set at Auto, the BIOS arranges all system resources. If there exists con-

flict, select Manual. The options are: Auto (ESCD), Manual.

If the manual options, after the featrue IRQ Resources being pressed, of

IRQ-3/4/5/7/9/10/11/12/14/15 Assigned To are: PCI Device, Reserved.

When resources were controlled manually, assign each system interrupt a

type, depending on each device type to use the interrupt.

PCI/VGA Palette Snoop

Set this feature to be enabled if any ISA adapter card installed in the

system requires the VGA palette snoop function.

The options are: Disabled, Enabled.

3 - 18

BIOS Setup

INT Pin 1/2/3/4/5/6/7/8 Assignment

This feature allows you to assign the PCI IRQ numbers for PCI slots.

Selecting the default, Auto, allows the PCI controller to automatically allo-

cate the IRQ numbers. The options are: Auto, 3, 4, 5, 7, 9, 10, 11, 12, 14, 15.

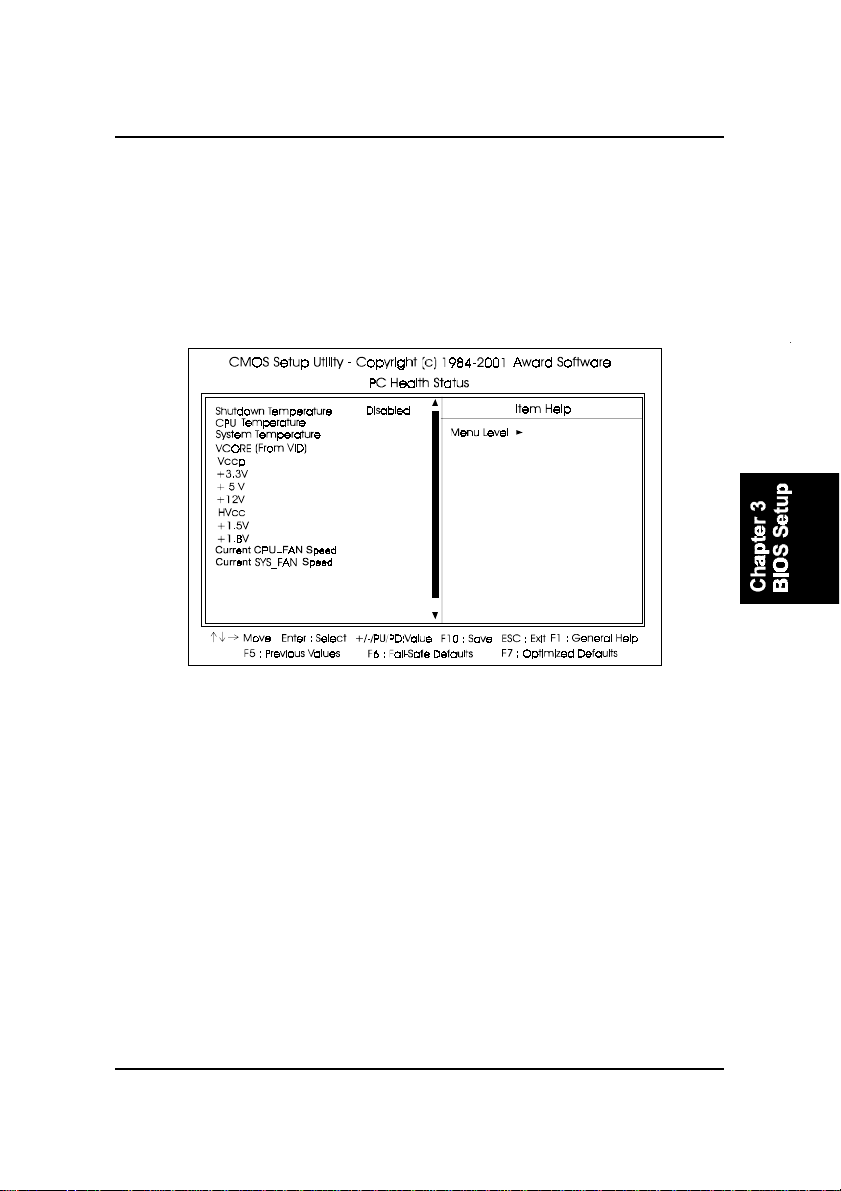

PC Health Status

Shutdown T emperature

This feature helps to shutdown the system when the system temperature

is as high as the selected temperature to prevent from the overheat prob-

lem. The option list presents all the temperatures that supported by the

board and Disabled.

CPU Temperature / System Temperature / Vcore (Fom VID) / Vccp /
+3.3V / +5V / +12V / HVcc / +1.5V / +1.8V / Current CPU_FAN Speed
/ Current SYS_FAN Speed

These items allow end users and technicians to monitor data provided by

the BIOS on this mainboard. It is not user-configurable.

3 - 19

VC35 Mainboard Manual

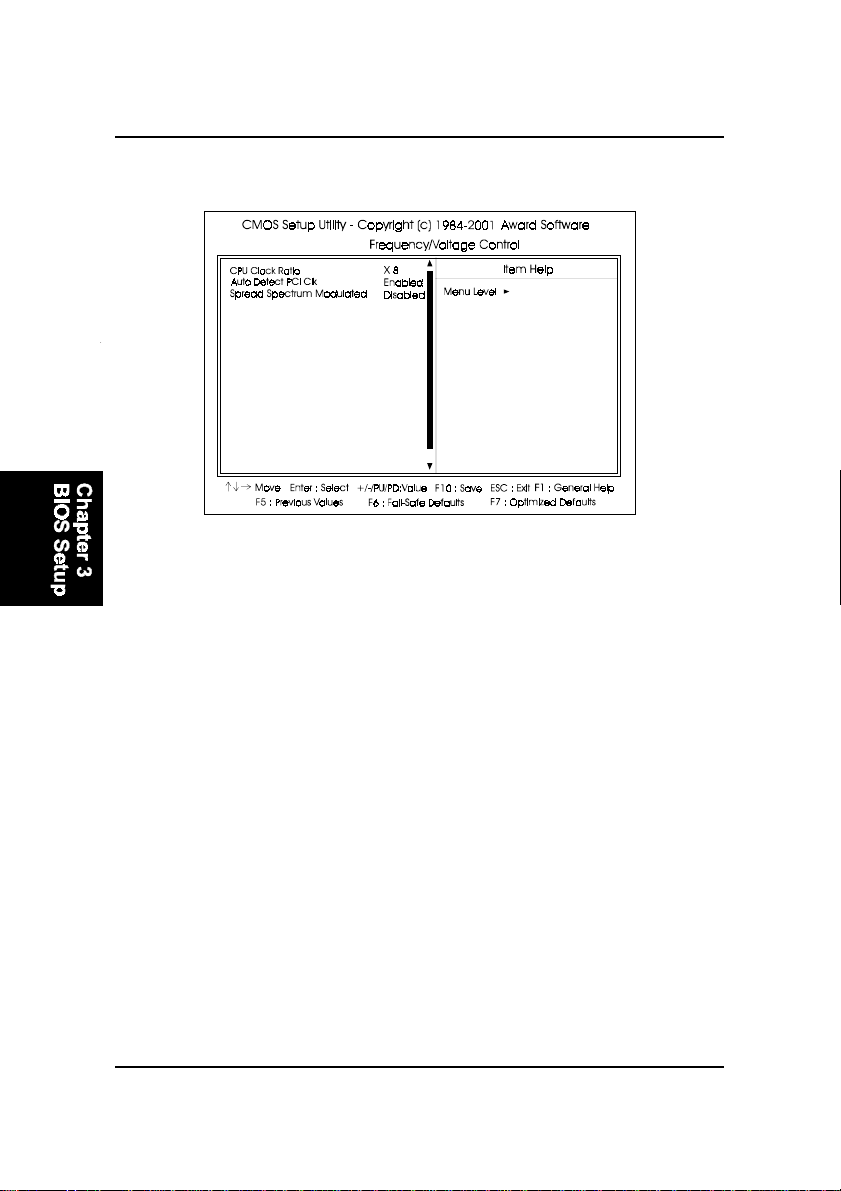

Frequency/Voltage Control

CPU Clock Ratio

This feature allows you to set the frequency mulitplier for CPU host clock.

Auto Detect PCI Clk

When enabled, BIOS will detect the PCI slot and DIMM slot. If no any

device in, BIOS will auto disable its clock.

The options are: Enabled, Disabled.

Spread Spectrum Modulated

This feature is used to shut off or activate the modulated spread spectrum

function. The options are: Disabled, Enabled.

3 - 20

BIOS Setup

Load Fail-Safe Defaults

This submenu is selected to diagnose the problem after the computer boots, if

the computer will not boot. These settings do not give optimal performance.

Load Optimized Defaults

This submenu is selected for default settings which provide the best system

performance.

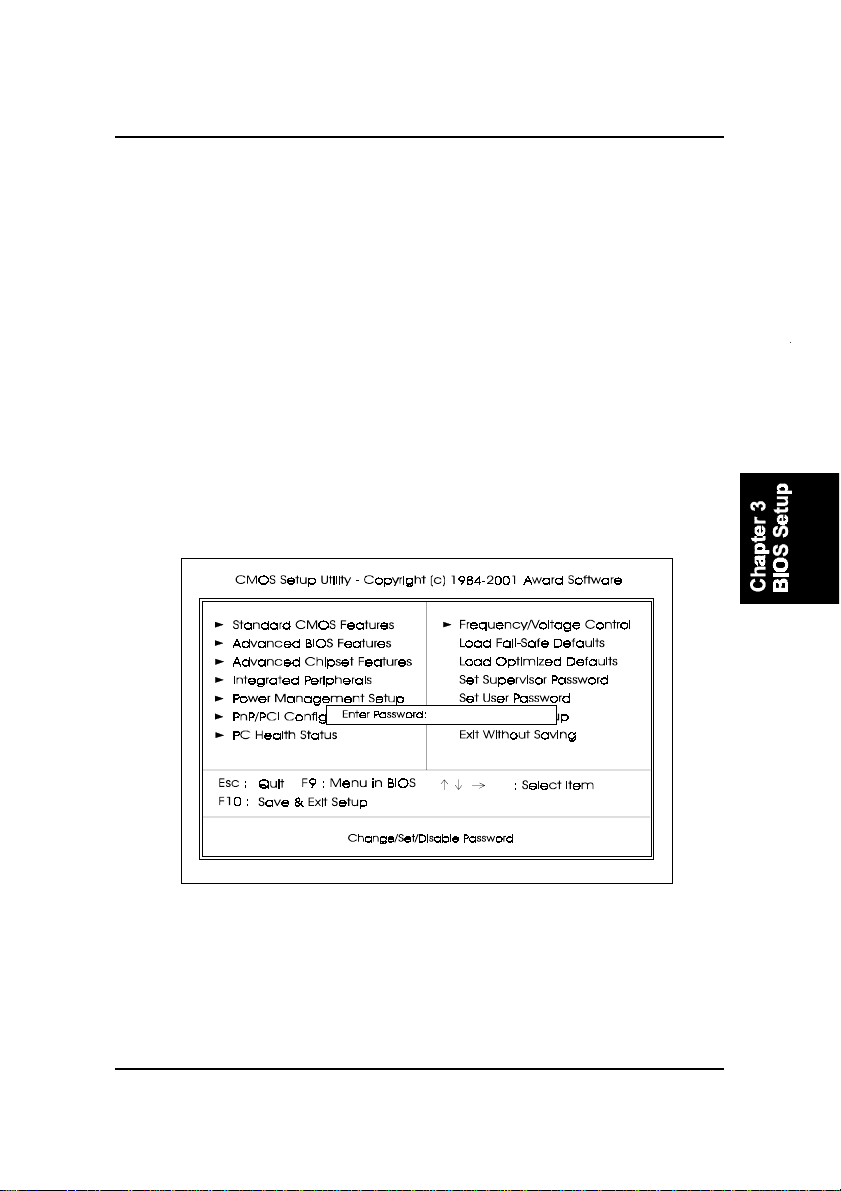

Supervisor/User Password

To enable the Supervisor/User passwords, select the item from the Standard

CMOS Setup. You will be prompted to create your own password. Type your

password up to eight characters and press Enter. You will be asked to confirm

the password. Type the password again and press Enter. To disable password,

press Enter twice when you are prompted to enter a password. A message

appears, confirming the password is disabled.

3 - 21

VC35 Mainboard Manual

Under the BIOS Feature Setup, if Setup is selected under the Security Option

field and the Supervisor/User Password is enabled, you will be prompted

password every time you try to enter the CMOS Setup Utility. If System is

selected and the Supervisor/User Password is enabled, you will be requested

to enter the Password every time when you reboot the system or enter the

CMOS Setup utility.

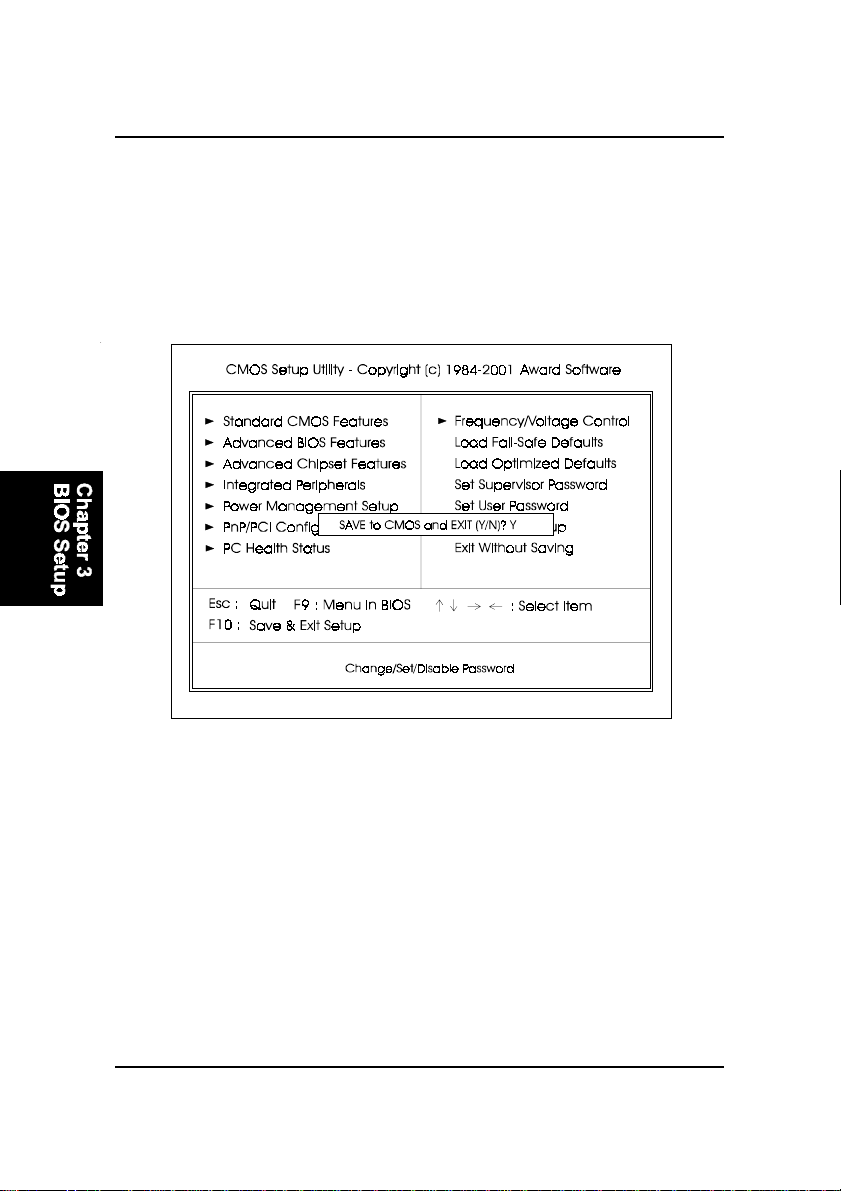

Save and Exit Setup

After you have made changes under Setup, press Esc to return to the main

menu. Move cursor to Save and Exit Setup or press F10 and then press Y to

change the CMOS Setup. If you did not change anything, press Esc again or

move cursor to Exit Without Saving and press Y to retain the Setup settings.

The following message will appear at the center of the screen to allow you to

save data to CMOS and exit the setup utility: SAVE to CMOS and EXIT (Y/N)?

Exit without Saving

If you select this feature, the following message will appear at the center of the

screen to allow you to exit the setup utility without saving CMOS modifica-

tions: Quit Without Saving (Y/N)?

3 - 22
