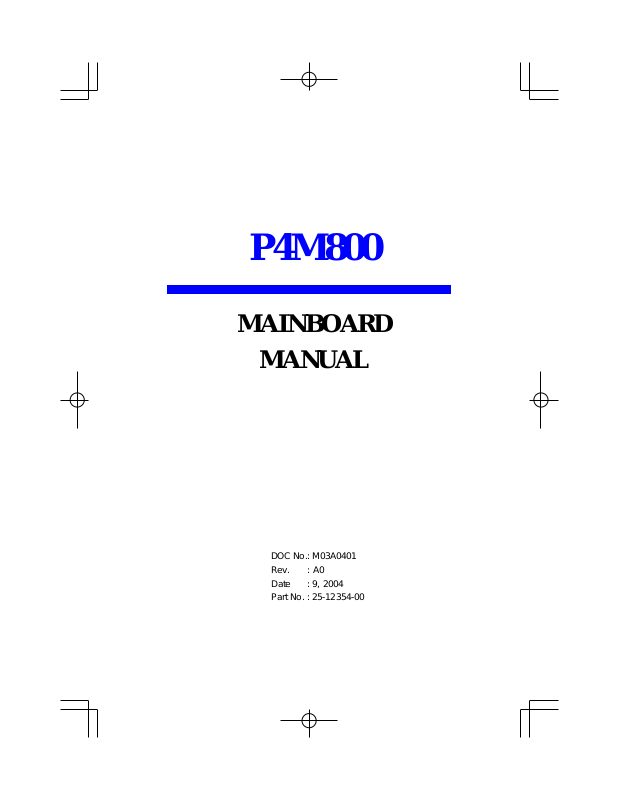

FIC P4M800 User Manual

P4M800

MAINBOARD

MANUAL

DOC No.: M03A0401
Rev. : A0
Date : 9, 2004
Part No. : 25-12354-00

Notice

Handling Precautions

Warning:

1. Static electricity may cause damage to the integrated circuits on

the motherboard. Before handling any motherboard outside of its
protective packaging, ensure that there is no static electric

||||||charge in your body.

2. There is a danger of explosion if the battery is incorrectly
replaced. Replace only with the same or an equivalent type

||||||recommended by the manufacturer.

3. Discard used batteries according to the manufacturer’s
instructions.

4. Never run the processor without the heatsink properly and firmly

attached. PERMANENT DAMAGE WILL RESULT!

Observe the following basic precautions when handling the motherboard
or other computer components:

 Wear a static wrist strap which fits around your wrist and is

|||||||||connected to a natural earth ground.

 Touch a grounded or anti-static surface or a metal fixture such as a

water pipe.

 Avoid contacting the components on add-on cards, motherboards,

and modules with the golden fingers connectors plugged into the
expansion slot. It is best to handle system components by their
mounting brackets.

The above methods prevent static build-up and cause it to be discharged
properly.

Tr ademark

All trademarks mentioned in this manual are registered properly of
the respective owners.

Handling Precautions

This ma nual may not, in whole or in part, be photocopied, re produced,
transcribed, translated, or transmitted in whatever form without the
written consent of the manufacturer, except for copies retained by the
purchaser for personal archival purposes.

Table of Contents

Cha pter 1 Overview

Package Checklist .......................................................................... 1-2

The P4M800 Mainboard........................................................... 1-3

Main Features................................................................................ 1-4

Chapter 2 Installation Procedures

1). Set System Jumpers .................................................................. 2-2

Clear CMOS............................................................................... 2-2

2). Install Memory Modules .......................................................... 2-3

3). Install the CPU .......................................................................... 2-3

Connect A TX Power.......................................................... 2-5

4). Install Expa nsion Cards............................................................. 2-6

5). Connect Devices ....................................................................... 2-7

Floppy Diskette Drive Connector ...................................... 2-7

IDE Device Connectors ..................................................... 2-8

Fan Connectors ................................................................. 2-8

SPDIF Connector .............................................................. 2-9

Power Connectors ............................................................. 2-9

Front Pa nel Block, Power LED, IR, a nd Speaker Connector 2-10

CD Audio-In Connectors................................................... 2-11

Serial IRQ Connector......................................................... 2-12

IEEE 1394 Connectors (optional)....................................... 2-12

Chassis Intrusion Connector (optional) ............................ 2-13

Serial A TA Connectors ...................................................... 2-13

Types of Rear Panel I/O Connectors ................................. 2-14

PS/2 Keyboard and Mouse Connector.............................. 2-14

RJ45 LAN Connector ........................................................ 2-14

CRT Connector (Chipset-PM800).... .................................. 2-15

Printer Connector .............................................................. 2-15

Serial Port Connectors (Chipset-PM800)........................... 2-16

Serial Port Connectors (Chipset-PT800CE) ....................... 2-16

Audio I/O Jacks ................................................................ 2-17

Front Audio Connector ..................................................... 2-17

Universal Serial Bus Connectors....................................... 2-18

P4M800 Mainboard Manual

Cha pter 3 BIOS Setup

CMOS Setup Utility ....................................................................... 3-1

Sta ndard CMOS Setup................................................................... 3-2

Advanced BIOS Features .............................................................. 3- 4

Advanced Chipset Features .......................................................... 3-7

Integrated Peripherals.................................................................... 3-10

Power Management Setup ............................................................. 3-14

PnP/PCI Configurations................................................................. 3-17

PC Health Status ............................................................................ 3-18

Frequency/Voltage Control ............................................................ 3-19

Load Opti mized Defaults ................................................................ 3-20

Supervisor/User Password ............................................................ 3-20

Save a nd Exit Setup........................................................................ 3-20

Exit without Saving ........................................................................ 3-20

ii

Overview

Chapter 1

Overview

The new microA TX, 478-pin 1stM ainboard® supports a full ra nge of the latest
generation Intel® Pentium® 4 processors. The leading edge VIA® PM800/
PT800CE chipset was designed f or coworking with Pentium® 4 (3.4 GHz and
up) in the 478-pin package based on the VRM 10.0 spec and 400/533/800 MHz.
Built using the leading edge technology the Intel Pentium® 4 processors
provide a significant performance over previous Pentium® III processors.
T wo DDR 266/333/400 SD RAM sockets allow f or up to 2 GB memory capa city .
Support for the Ultra DMA/133 protocol and its high-speed interface further
ensures that data transfer speeds are improved, especially for long sequential
transfers required by audio/visual applications.

The board features onboard audio and LAN function; also, the serial ATA
feature replaces the standard parallel ATA physical storage interface and al­lows future enhancements to the computing platform. It completely software
compatible with parallel AT A, requiring no mofication to your operating system.
For more detail, please rea d the help file in the lst Utilitie s CD.

The 1stMainboard comes with a versatile range of I/O features such as 2 COM
ports (chipset-PT800CE) / 1 COM port and 1 CRT port (chipset-PM800), 1
parallel port, 1 LAN, 2 optional IEEE 1394, 1 PS/2 mouse a nd keyboard connec­tor, 8 USB 2.0 ports, 1 medi a connector (front audio, Line-in, Line-out a nd M ic­in). In addition, the board is equipped with 2 dual channel enhanced PCI bus
master IDE connectors. Ample expansion is available through 1AGP (8X) and
3 PCI slots to meet the requirement for enjoying the P4 CPU benefits in internet
applicatons, video/3D graphics performance, and so forth.

Other key features are Remote On/Off, Auto Power Failure Recovery, inte­grated temperature monitoring and system fan control. Included also is lst
Utilities CD with enhanced drivers and a few bundled soft-ware solutions.

1 - 1

P4M800 Mainboard Manual

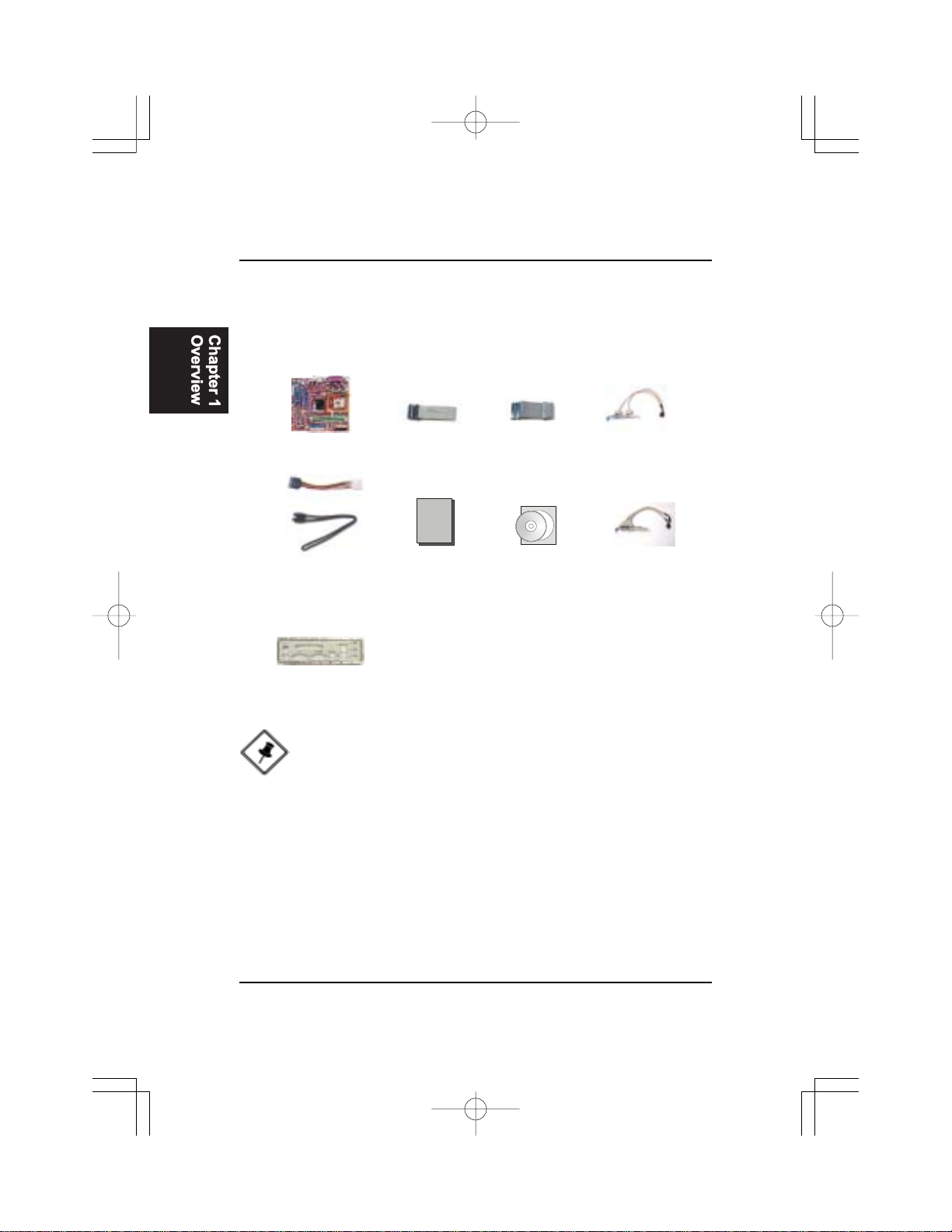

Package Checklist

If you discover any item below was damaged or lost, please contact your
vendor.

Mainboard

SATA Power Cab l e (top)

SATA Data Cable (bottom)

(optional)

I/O Shielding

Floppy Drive
Cable

Manual

Manual

IDE

Drivers

Cable

NOTE: A 1st Utilities CD, which contains patch files, onboard video/
audio chip drivers, related online help and other useful information,
can be found in your mainboard package.

Please install it immediately after your Windows operating system
installation is complete. Place your 1st Utilities CD in the drive and
an operating menu will appear on your monitor. Please select Auto
Installation. It will automatically detect which software tools (patch

files, drivers) the mainboard needs. Press OK to go through the
whole installation procedure in a very straight forward and easy
way. It will also provide you with a custom installation feature to
select the patch files and software drivers you want for the onboard
chip’s use. The top menu of the 1st Utilities CD lists all the func-

tions that are allowed by this board.

USB Cable

1394 Bracket
with Cable
(optional)

1 - 2

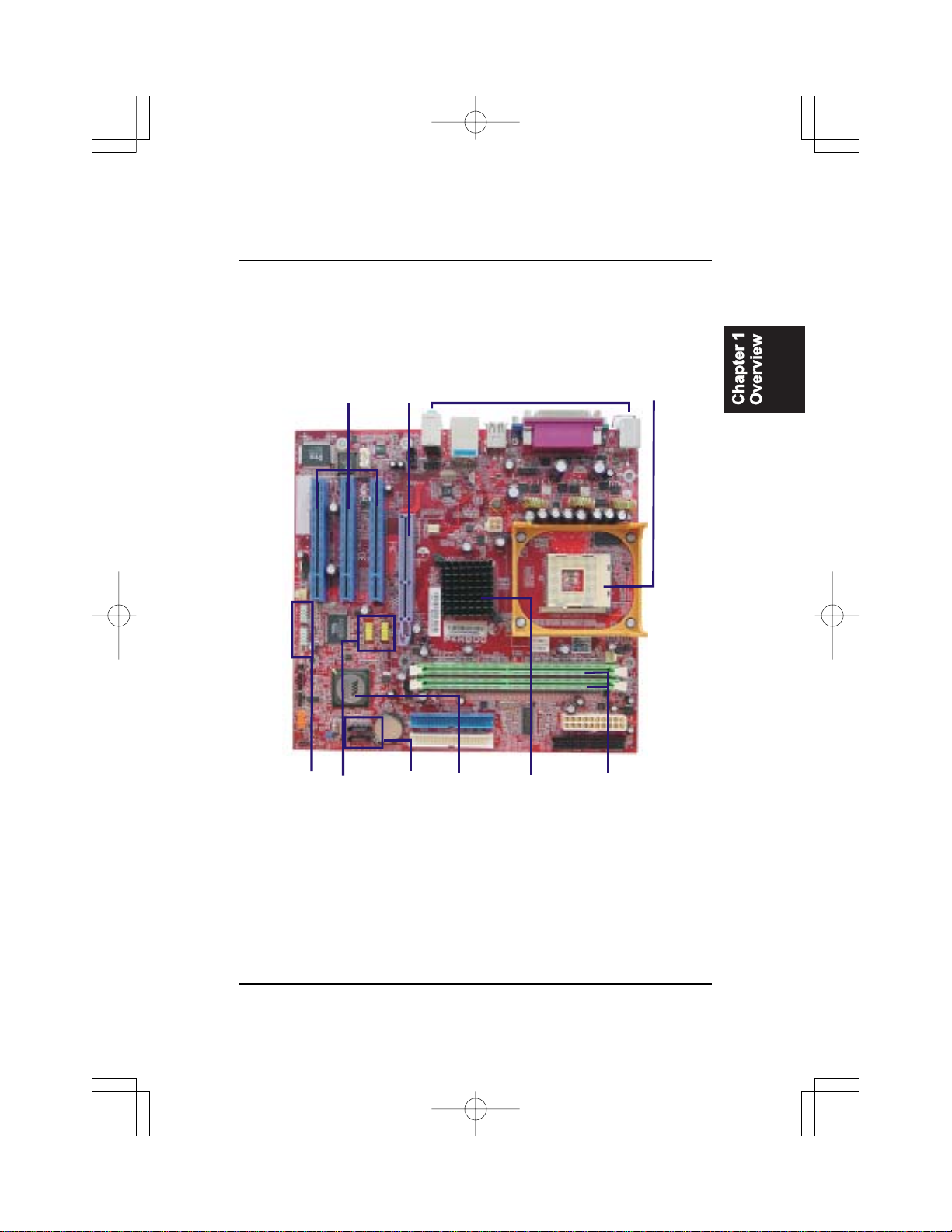

The P4M800 Mainboard

Overview

3 PCI
Slots

Two

4 Extra

1394

USB

Ports

Ports

(optional)

AGP
Slot

2 SATA
Ports

Integrated I/O
Connectors

VIA
VT8237R
Chip

VIA
PM800/
PT800C E

Chip

478-Pin

CPU

Socket

2 DDR
DIMM
Sockets

1 - 3

P4M800 Mainboard Manual

Main Features



 CPU



Celeron -

1.7 to 1.9 GHz (FSB 400)

2.0 to 2.8 GHz and up* (FSB 400)
Prescott 2.8 GH z and up* (FSB 533)

Pentium 4 -

1.6 to 2.6 GHz and up* (FSB 400)

2.26 to 3.06 GHz a nd up* (FSB 533)

2.4 to 3.4 GHz and up* (FSB 800)
Prescott 2.4 to 2.8 G Hz and up* (FSB 533)
Prescott 2.8 to 3.4 G Hz and up* (FSB 800)

(* not tested yet)



 Chipset



North Bridge: VIA® PM800

VIA® PT800CE

South Bridge: VIA® VT8237R



 Memory



2 Memory Sockets:
Support 184-pin DD R 266/333/400 MHz
total Memory Size up to 2 GBs



 Expa nsion Slots



1 AG P Slot: Support 2.0 4X/8X (0.8 - 1.5V)
3 PCI Slots



 IDE Connections



2 IDE Connectors - PIO Mode, Ultra DM A 66/100/133
Up to 4 Devices



 S ATA Connections



2 Ports Controlled by embedded VT8237® SAT A Function

1 - 4



 Audio Features



ALC655 (5.1 Audio Cha nnel)
AC97 2.3 complia nt
LINE_IN, LINE_OUT, MICROPHONE_IN Jack
Front audio pinheaders
1 SPDIF OUT



 I/O Ports



2 IDE connectors ­PIO, Bus Master , Ultra DMA 66/100/133
up to 4 devices

-1 serial port and 1 CRT port (chipset-PM800)

-2 serial port COM1/2 (chipset-PT800CE)

1 parallel port
1 PS/2 mouse a nd 1 PS/2 keyboard
8 USB 1.1/2.0 ports



 LAN



VIA® VT6103L (10/100)



 IEEE 1394 Ports (optional)



VIA® VT6307L
2 ports
1 bracket with cable

Overview



 Mounting Holes



6 holes



 Mainboard Size



9.0 x 9.6 (unit: inch)

1 - 5

P4M800 Mainboard Manual

This Page Left Blank for Note

1 - 6

Installation Procedures

Chapter 2

Installation Procedures

The mainboard has several user-adjustable jumpers that allow you to configure the
system to suit your requirements. This chapter contains information on the various
jumper settings on your mainboard.

To set up your computer, you must complete the following steps:

Step 1 - Set system jumpers.
Step 2 - Install memory modules.
Step 3 - Install the Central Processing Unit (CPU).
Step 4 - Install expansion cards.
Step 5 - Connect ribbon cables, cabinet wires and power supply.
Step 6 - Set up BIOS software.
Step 7 - Install supporting software tools.

WARNING: Excessive torque may damage the mainboard. When
using an electric screwdriver on the mainboard, make sure that
the torque is set to the allowable range of 5.0 ~ 8.0kg/cm.

Mainboard components contain very delicate Integrated Circuit
(IC) chips. To prevent static electricity from harming any of the
sensitive components, you should follow the following precau­tions whenever working on the computer:

1. Unplug the computer when working on the inside.

2. Hold components by the edges and try not to touch the IC

||||chips, leads or circuitry.

3. Wear an anti-static wrist strap.

4. Place components on a grounded anti-static pad or on the bag
that came with the component whenever the components are
separated from the system.

2 - 1

P4M800 Mainboard Manual

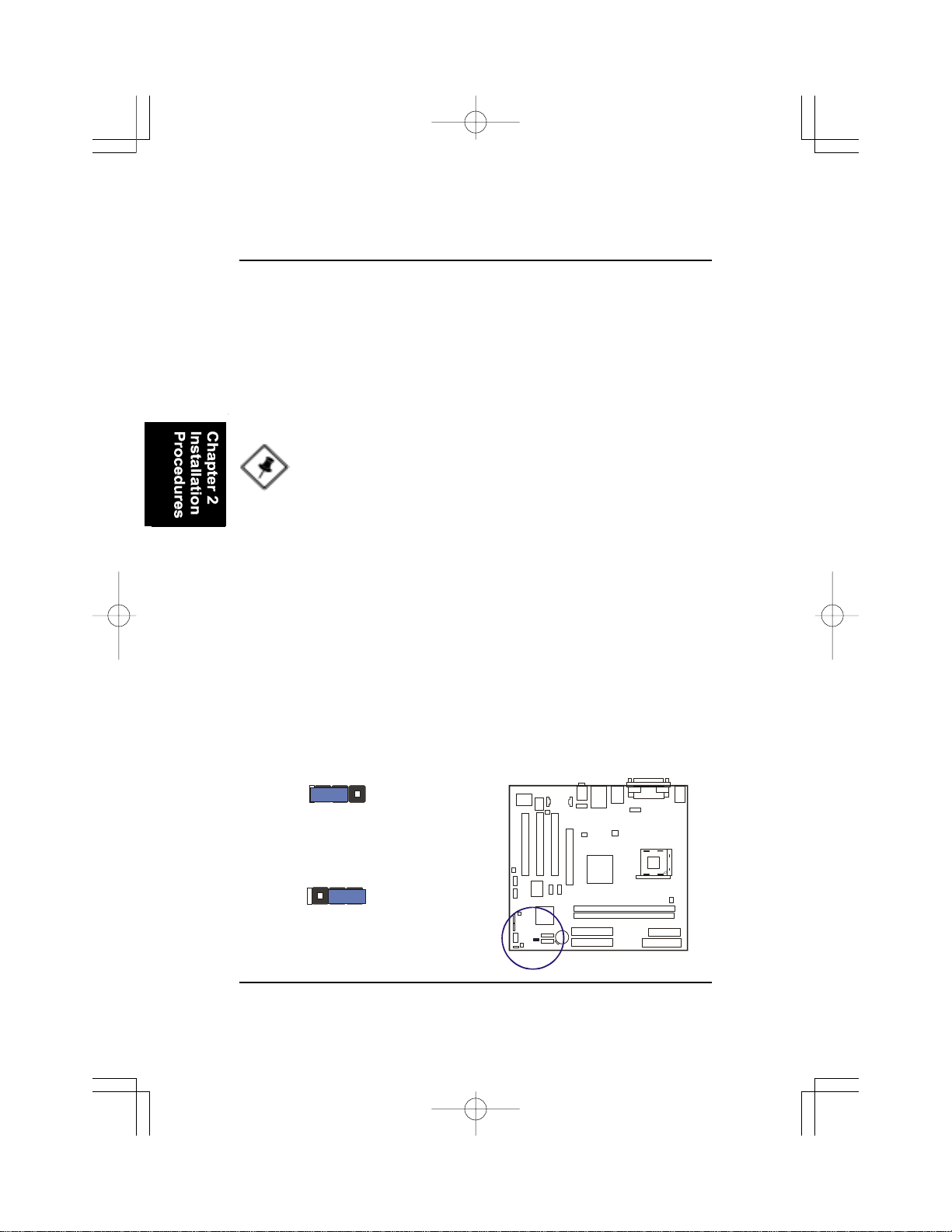

1.) Set System Jumpers

Jumpers are used to select the operation modes for your system. Some jump­ers on the board have three metal pins with each pin representing a different
function. A 1 is written besides pin 1 on jumpers with three pins. To set a
jumper, a black cap containing metal contacts is placed over the jumper pin(s)
according to the required configuration. A jumper is said to be shorted when
the black cap has been placed on one or two of its pins.

NOTE: Users are not encouraged to change to jumper settings not
listed in this manual. Changing the jumper settings improperly may
adversely affect system performance.

Clear CMOS

The CMOS RAM is powered by the onboard button cell battery.
T o clear the RTC data:

(1) Turn off your computer;
(2) Open the system case and disconnect the ATX power cable;
(3) Place the jumper cap onto the pinpair 2-3 for at least 6 seconds

to enable CMOS clearance;

(4) Place the jumper cap onto the pinpair 1-2 to disa ble the eff ect of

CMOS clearance;
(5) Connect the ATX power cable and close the system case;
(6) Turn on your computer until CMOS checksum error appears;
(7) Hold down the Delete key as it boots;
(8) Enter the BIOS Setup to re-enter user preferences.

2 - 2

1 2 3

1 2 3

Normal
(Default)

Enable
(Clear CMOS)

1

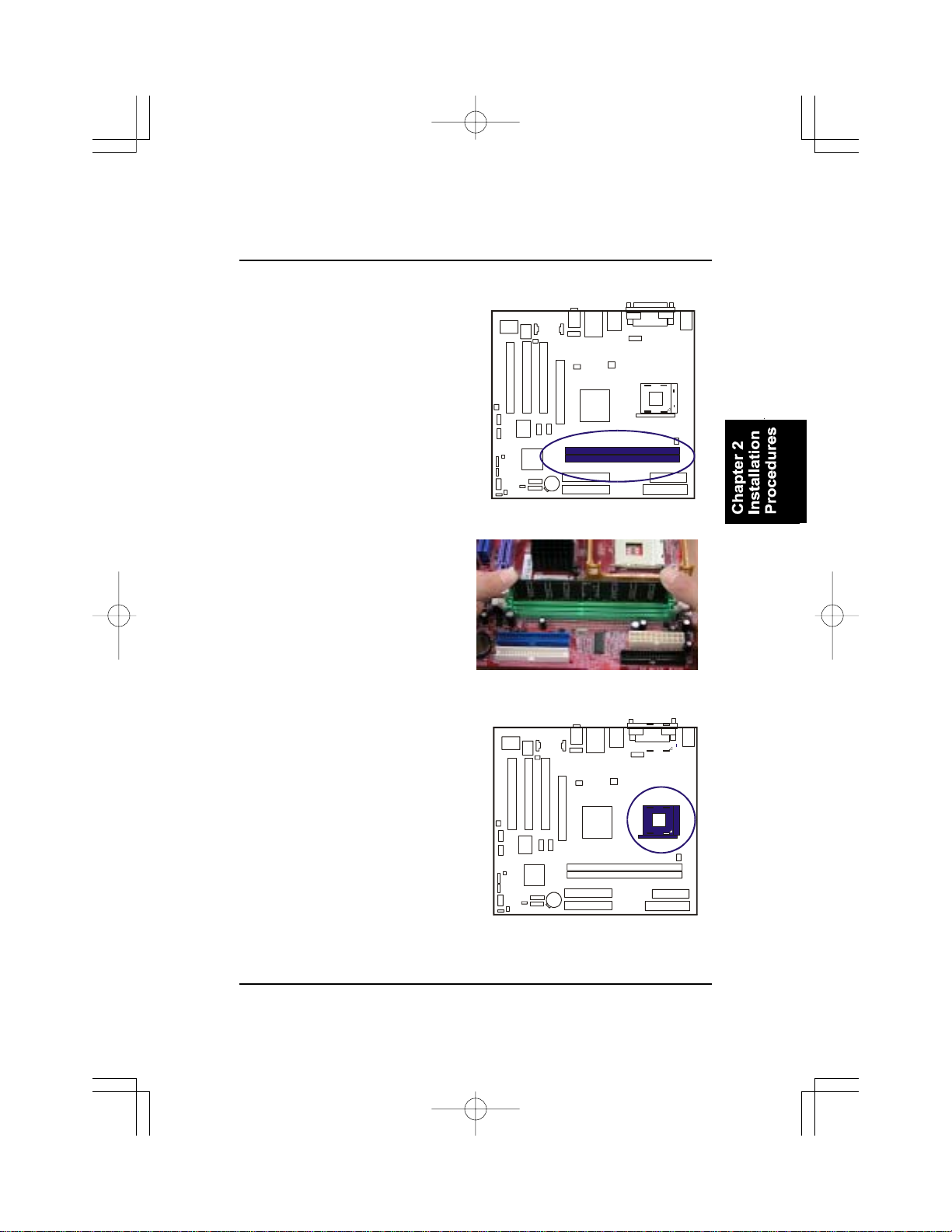

2). Install Memory Modules

1. Locate DDR DIMM sockets
on the mainboard.

2. Install DDR DIMM straight down

into the socket 1 using both hands,
then socket 2, and so forth.

3. The clip on both ends of the
socket will close up to hold the
DDR DIMM in pla ce when the DD R
DIMM reaches the socket bottom.

3). Install the CPU

The mainboard has built-in Switch­ing Voltage Regulator to support CPU
Vcore autodetection. That is, It has
the ability to detect and recognize the
CPU voltage, clock, ratio a nd enable s
users to set up the CPU frequency
from the BIOS Setup Screen. Users
can adjust the frequency through
Frequency / Voltage Control of the
BIOS Setup Screen.

Installation Procedures

1
2

The procedures below shows
you how to install your CPU a n d
its fan and heatsink. First of all,
locate the CPU socket on this
mainboard.

2 - 3

P4M800 Mainboard Manual

1. Swing the lever upword to 90 degree.

2. Install the CPU and make sure the the pin 1

orientation by aligning the socket corner marking
with the socket corner closest to the lever tip.
Do not insert the CPU by force. Make sure the
processor is fully inserted into the socket on all
sides.

Apply some thermal materials, such as paste or
tape, on the CPU top; and install a fan with
heatsink that approved by CPU manufacturer
to avoid CPU damage. For detail information,
please refer to the CPU manufacturer website.

Affix the CPU by pressing the lever downward
and locking it beside the socket.

3. Place the fan with heatsink on the CPU top
and press down two plastic clips to hook up
with the holes on the retention module on two
sides.

4. Press down the white bar on each clip to
fasten the fan set on the retention module.

2 - 4

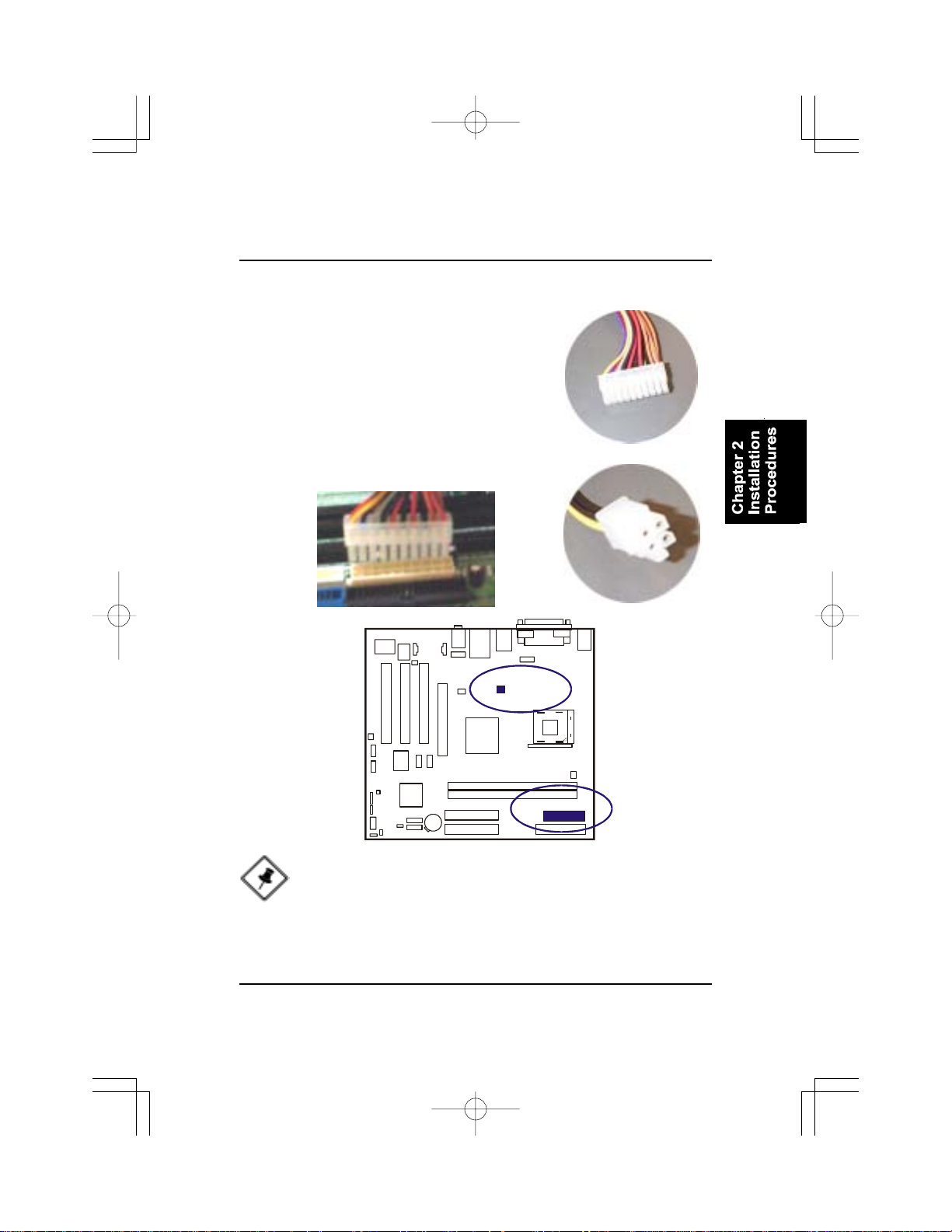

Connect ATX Power

A

A

The 20-hole power plug (top right) is connected
to the ATX power 20-pin pinheaders. The 4-hole
12V power plug (bottom right) is inserted in the
ATX_12V power connector.

The plug from the power supply will only insert
in one orientation because of the different hole
sizes. Find the proper orientation a nd push down
firmly making sure that the pins are aligned.

TX_12V

Installation Procedures

TX_PWR

NOTE:

1. Insert the CPU (with fansink and retention module) on

||||socket.

2. Connect the 4-pin plug of the power supply

3. Connect the 20-pin plug of the power supply.

To remove the processor, please do it in reverse order.

2 - 5

P4M800 Mainboard Manual

4). Install Expansion Cards

This section describes how to connect an expansion card to one of your
system expansion slots.

Expansion cards are printed circuit boards that, when connected to the
mainboard, increase the capabilities of your system.

For example, expansion cards can provide video and sound capabilities. The
mainboard features, one AGP and three PCI bus expansion slots.

CAUTION:

1.Make sure to unplug the power supply when adding or removing

expansion cards or other system components. Failure to do so
may cause severe damage to both the mainboard and expansion
cards.

2. Always observe static electricity precautions.

3. Please read Handling Precautions at the start of this manual.

1. Select an availa ble expansion slot.

PCI1

PCI2

PCI3

AGP

2. Remove the corresponding slot cover from the computer chassis. Un­screw the mounting screw that secures the slot cover and pull the slot cover
out from the computer chassis. Keep the slot cover mounting screw nearby.

2 - 6

Installation Procedures

3. Push the card firmly into the slot.
Push down on one end of the expan­sion card, then the other. Use this rock­ing motion until them card is firmly
seated inside the expansion slot. Se­cure the card with the screw removed
in Step 2.

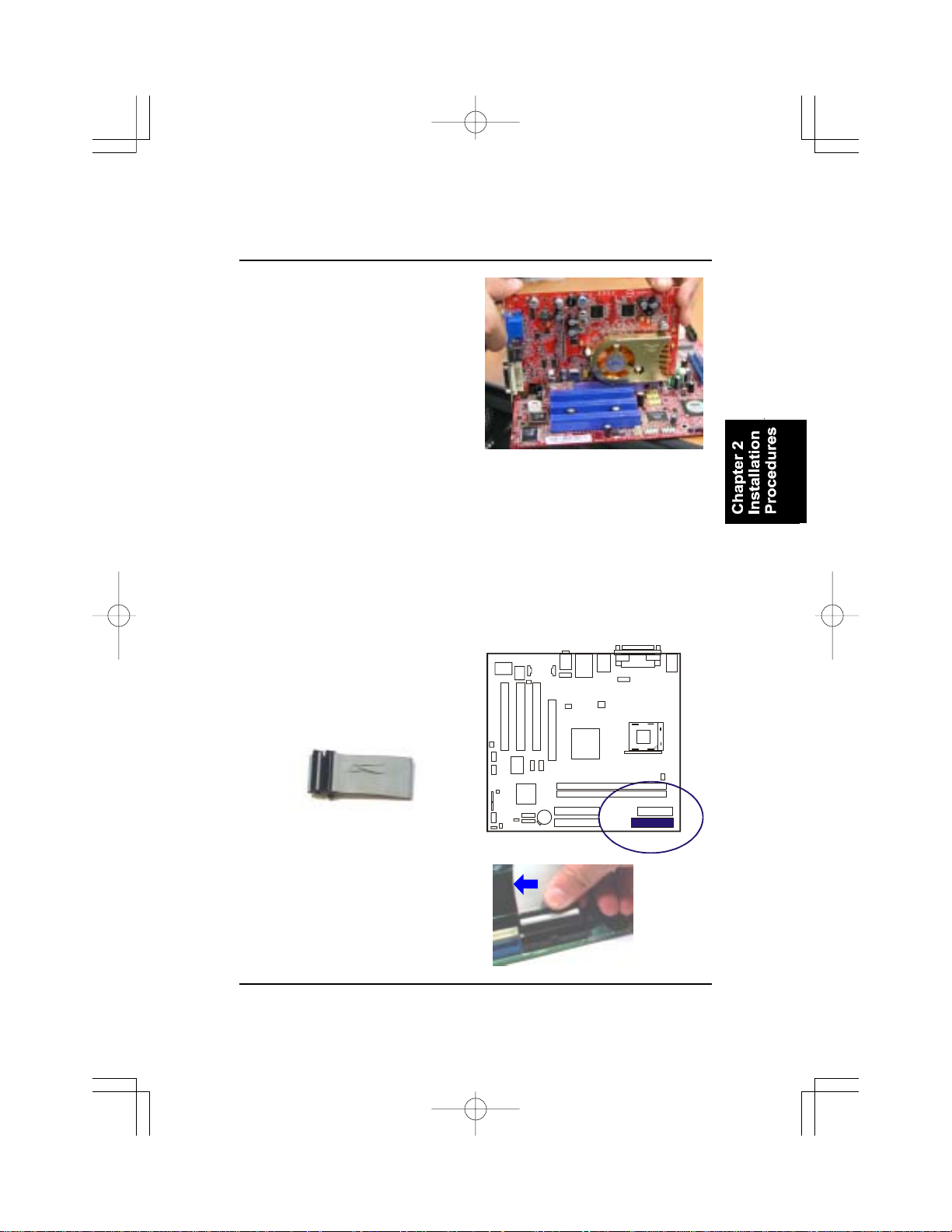

5). Connect Devices

Floppy Diskette Drive Connector

This connector provides the connection with your floppy disk drive.

Insert the floppy ribbon cable
(below) onto the floppy connector.

The colored stripe (indicated by the
arrow head, right) of the ribbon cable
must be the same side with the Pin 1.

1

2 - 7

P4M800 Mainboard Manual

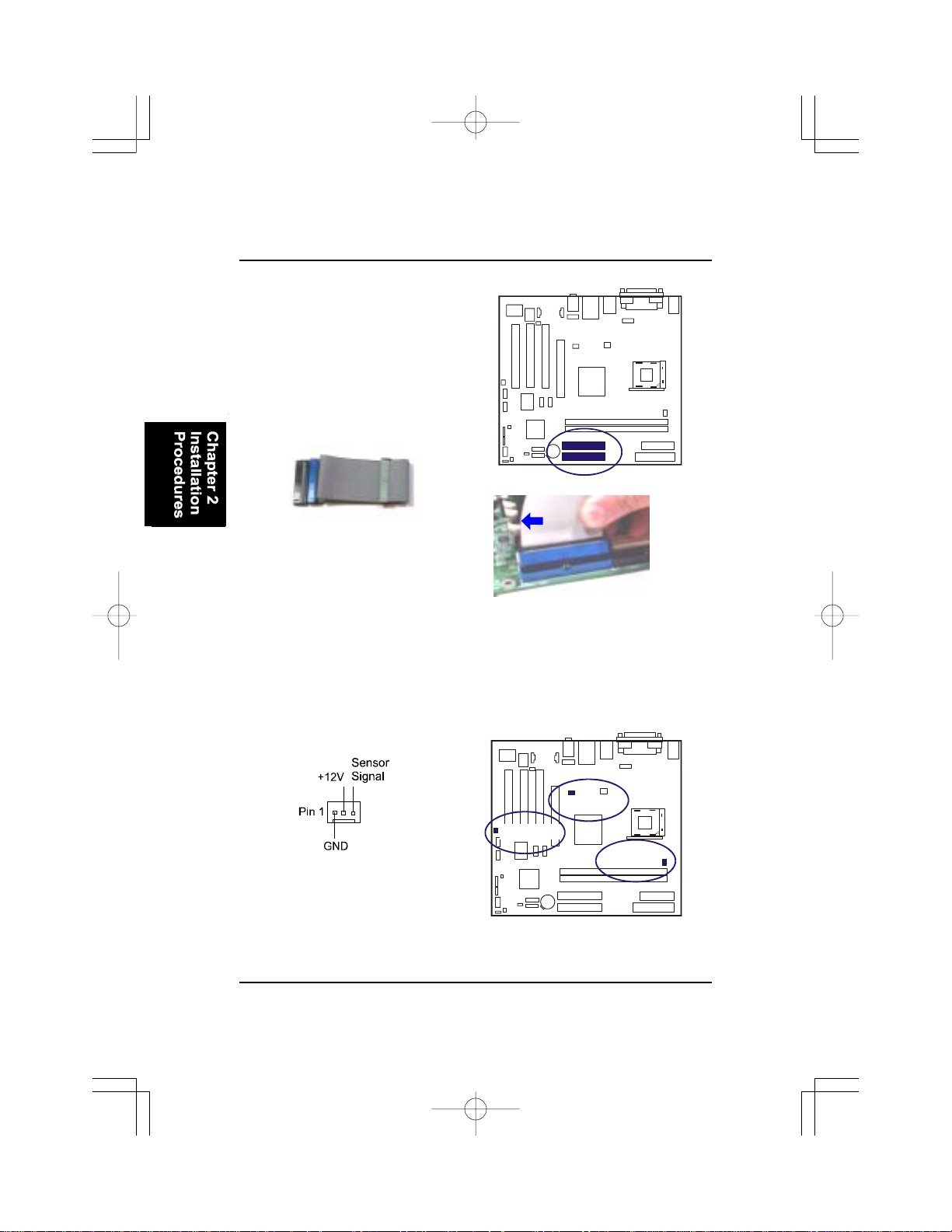

IDE Device Connectors

The two connectors, IDE1 (PRIMARY)
a nd IDE2 (SECONDARY), are used f or
your IDE hard disk drives, CD drives,
LS-120|drives, or IDE ZIP drives.

Insert the IDE ribbon cable (below)
onto the IDE connector.

IDE1

1

IDE2

1

The colored stripe (indicated by the
arrow head, right) of the ribbon cable
must be the same side as Pin 1.

Fan Connectors

The two connectors, CPU_F A N and SYS_F A N are linked to the CPU fa n and
case fan, respectively. PWR_FAN can be used with the power supply cooling
fa n. Pin1 is GND, Pin2 is +12V, Pin3 is Signal (PWR_FAN Pin3 is no use).

2 - 8

PWR_FAN

SYS_FAN

CPU_FAN

Installation Procedures

CAUTION: Improper orientation of SPDIF connection may cause
damage of your device.

SPDIF Connector

The mainboard equipped a 1x3 pin
connector. It is used for SPDIF digi­tal audio output. Pin 1 is +5V, Pin 2

SPDIF

is SPDIF , Pin3 is GND.

Power Connectors

The 20-pin male block connector is connected to the ATX power supply . The
4-pin male block connector is for the ATX_12V power use. Both connectors
are linked with your ATX power supply. The plug from the power supply can
only be inserted in one orientation because of the different hole sizes. Find the
proper orientation a nd push down firmly making sure that the pins are aligned.

2 - 9

P4M800 Mainboard Manual

Front Panel Block, Power LED, IR, and Speaker Connector

This block connector includes the connectors for linking with Power LED (3­pin), HDD LED, power button, power/sleep/message waiting button, and the
reset button on the front panel of the system case. Please identify the polari­ties of the plug wires for the case speaker and LEDs.
The plug wires (below) polarities
of these buttons will not affect
the function.

1

F_PNL

1

PW_LED

(1) Reset Switch is connected to the reset button. Push this switch to reboot
the system instead of turning the power button off and on.

(2) HDD LED is connected to the IDE device indicator. This LED will blink
when the hard disk drives are activated.

(3) Power (Single a nd Dual) /Slee p LED

Please refer to the ta bles below f or the represen­tations of LED states.
There is a nother 3-Pin Power LED connector on
board for some cases that have a 3-pin plug.

2 - 10

Installation Procedures

(4) Power Button is connected with the power button. Pushing this switch
allows the system to be turned on and off rather than using the power supply
button.

SPK
(Speaker)

+5V
GND
GND
Signal

IR is a pinhea der that is used for
linking with your ID device to
allow transmission of data to
another system that also sup­ports the IR feature.

Ir1

+5V
IRRX

GND
IRTX

Speaker is connected with the case speaker.

NOTE: To use IR functions you must adjust the BIOS features intro­duced in the section of Integrated Peripherals, Chapter 3, for your
IR devices.

CD Audio-In Connectors

The two 1x4 connectors are for CD-ROM drive audio a nalog input use. The pin
assignment are: Pin 1 is Left, Pin2 and 3 are GND, Pin 4 is Right.

CD_IN

AUX_IN

2 - 11

P4M800 Mainboard Manual

Serial IRQ Connector
(Optional)

This 2-pin connector is used for some
system integration use.
The pin assignment are: Pin 1 is singal,
Pin2 is NC.

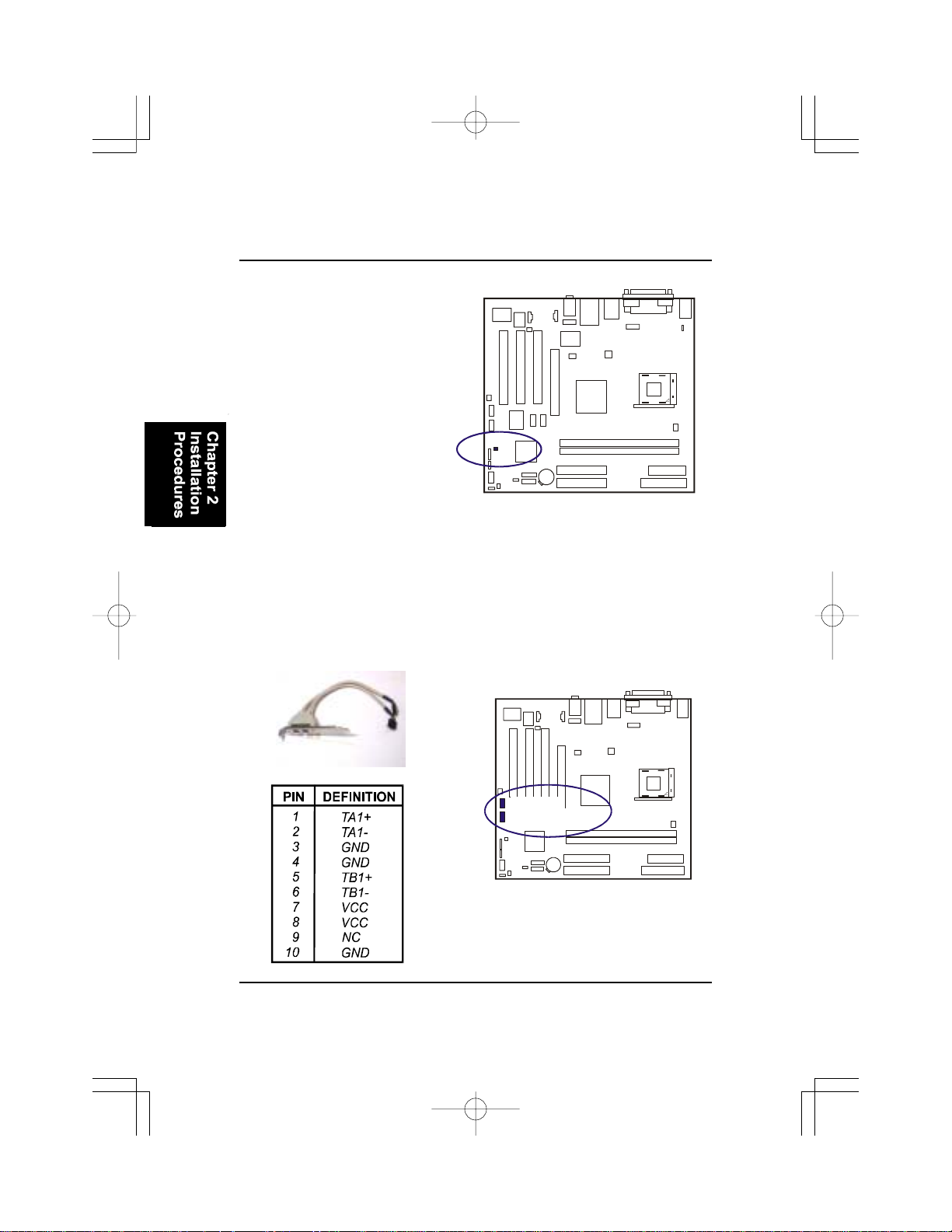

IEEE 1394 Connectors (optional)

The 2 optional 1394 pinheaders on the board provides you with two connec­tions with the peripherals which own 1394 connectors by an optional bracket
with cable (see the figure below). The pin definitions of the 1394 pinheaders
are listed below also.

2 - 12

1394_16

1

1394_26

1

Chassis Intrusion Con­nector (optional)

This connector is for a chassis
designed with intrusion detec­tion feature. It needs a chassis
intrusion sensoror on the
chassis. If a chassis part is
moved, the sensor activates and
releases a signal in order to this
connector to record a chassis in­trusion event. Pin 1is Signal, Pin
2 is GND.

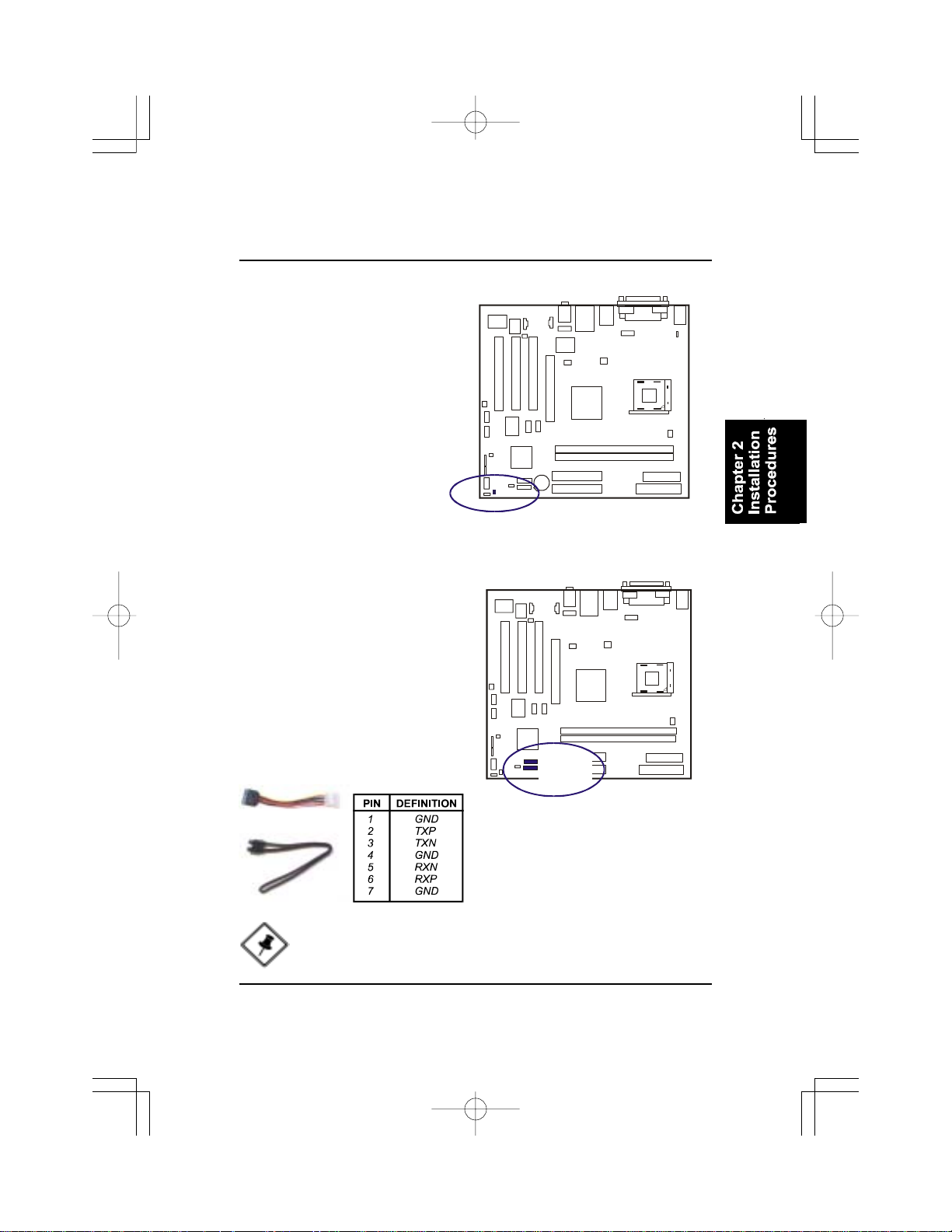

Serial ATA Connectors

The 2 SATA connectors provide you
with the connections to serial ATA
devices that confirm to the Serial ATA
specification. Serial AT A supports all
ATA and ATAPI devices. The figures
below left are two SATA cables (the
top one is for power; the next one is
for data). The data cable pin assign­ments of SATA connector.

Installation Procedures

SA TA1
SA TA2

NOTE: Please re a d BIOS Setup, se ction of Integrated Peripherals,
for more information.

2 - 13

P4M800 Mainboard Manual

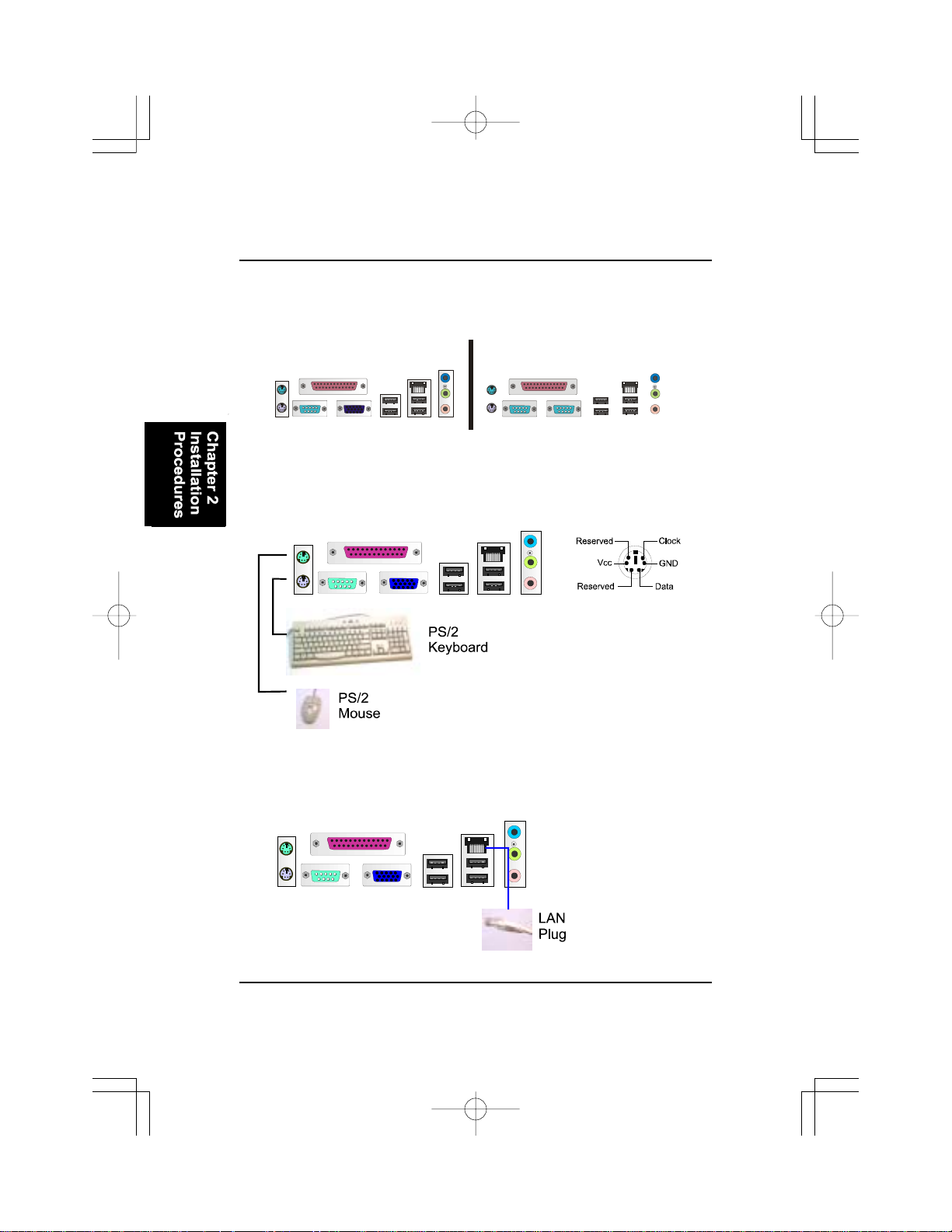

Types of Rear Panel I/O Connectors

The rear pa nel I/O connectors of the (Chi pset-PM800) a nd (Chi pset-PT800CE)
are different.

Chipset/

PM800

Chipset/

PT800CE

PS/2 Keyboard and Mouse Connector

These two 6-pin female connectors (keyboard is purple and mouse is green)
are used for your PS/2 keyboard and PS/2 mouse.

RJ45 LAN Connector

The RJ45 jack of the LAN port is used f or the LAN cable plug.

2 - 14

Installation Procedures

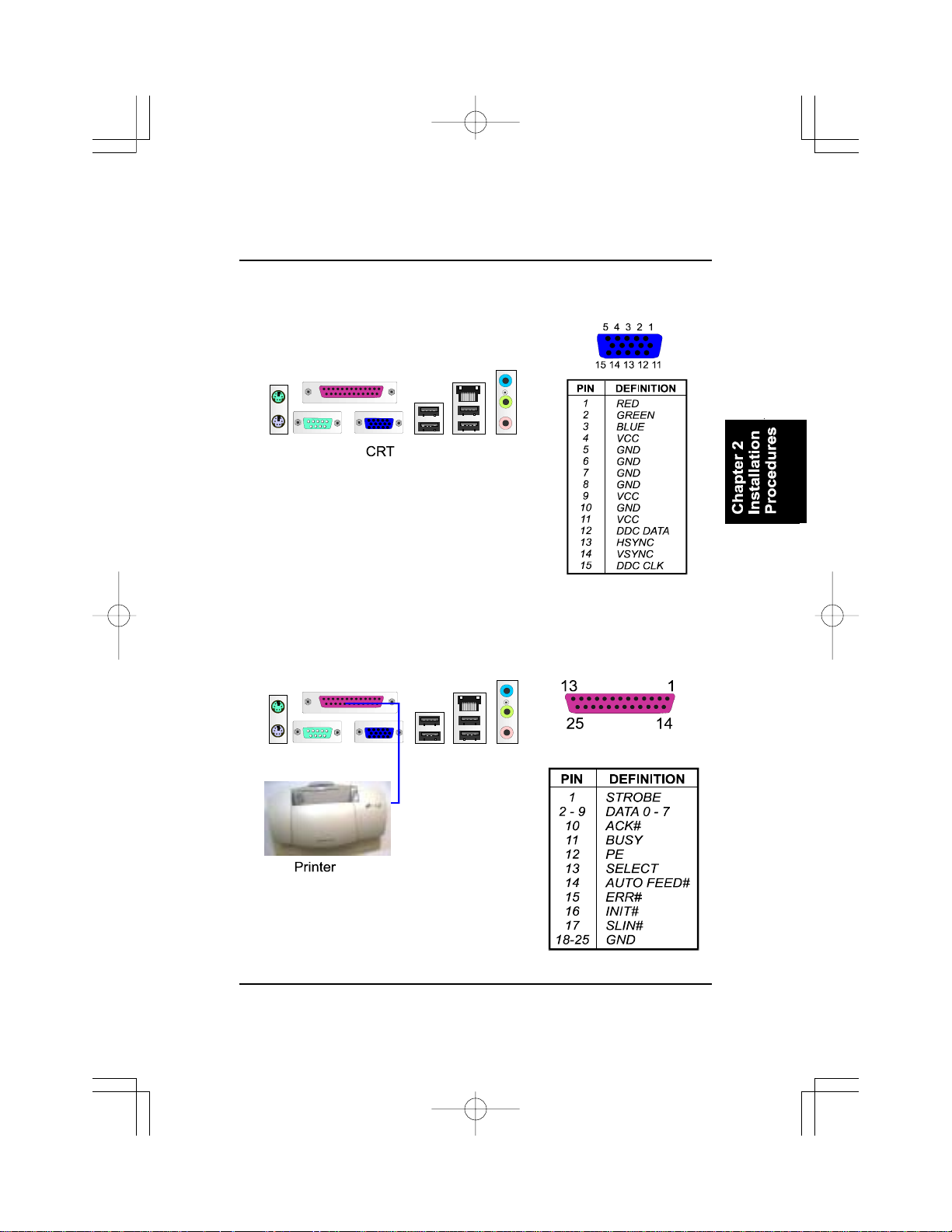

CRT Connector (Chipset PM800)

This connector is linked to your monitor. The
pinheaders pin assignments are shown at right side.

Printer Connector

This burgundy-colored 25-pin D-Sub female connector is attached to your
printer.

2 - 15

P4M800 Mainboard Manual

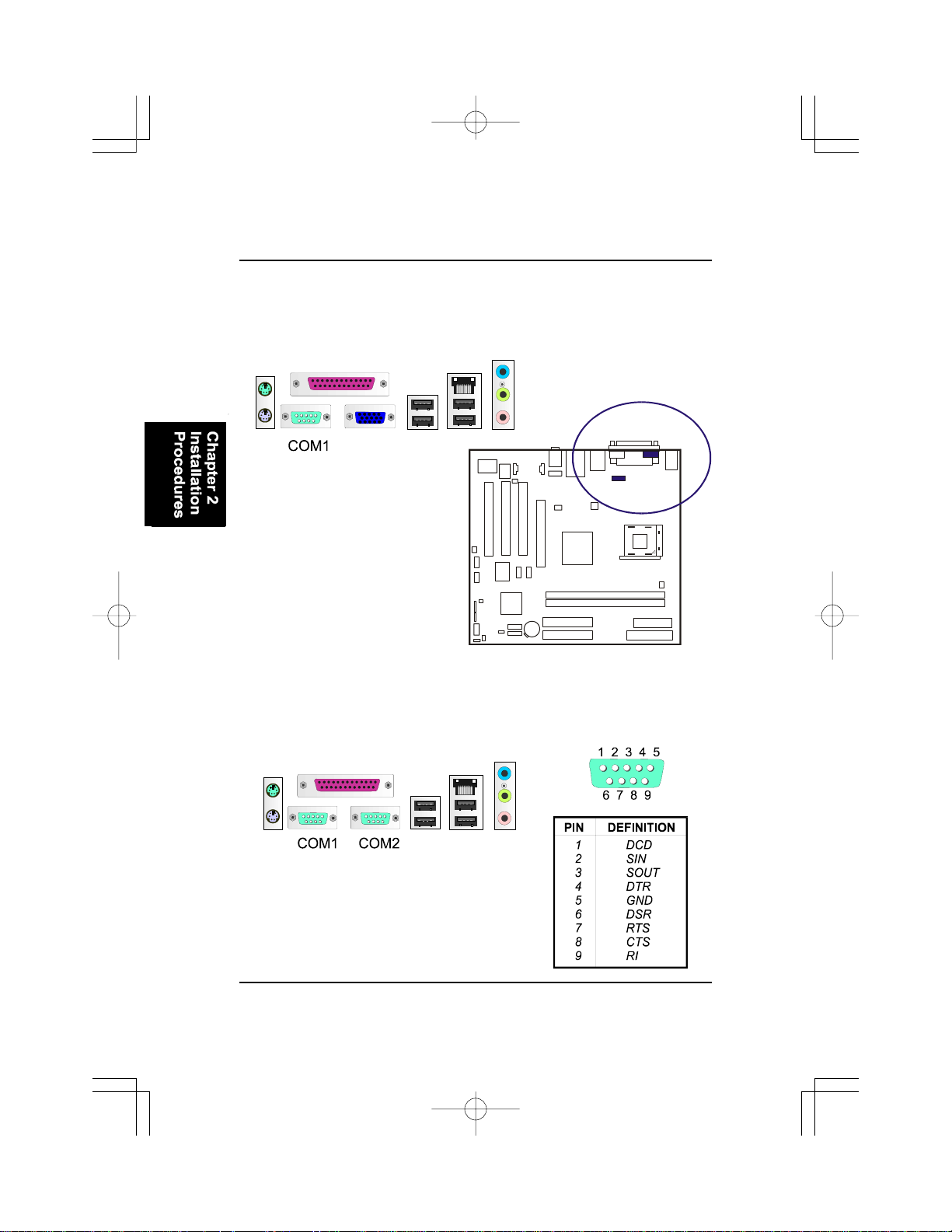

Serial Port Connectors(Chipset-PM800)

COM1 is teal colored 9-pin D-sub male connector and COM2 is a 9-pin male
connector, allowing you to connect with devices that use serial ports, such as
a serial mouse or an external modem.

COM1

1

COM2

Serial Port Connectors (Chipset-PT800CE)

COM1 a nd COM2 are both teal colored 9-pin D-sub male connectors, allowing
you to connect with devices that use serial ports, such as a serial mouse or an
external modem.

2 - 16

Installation Procedures

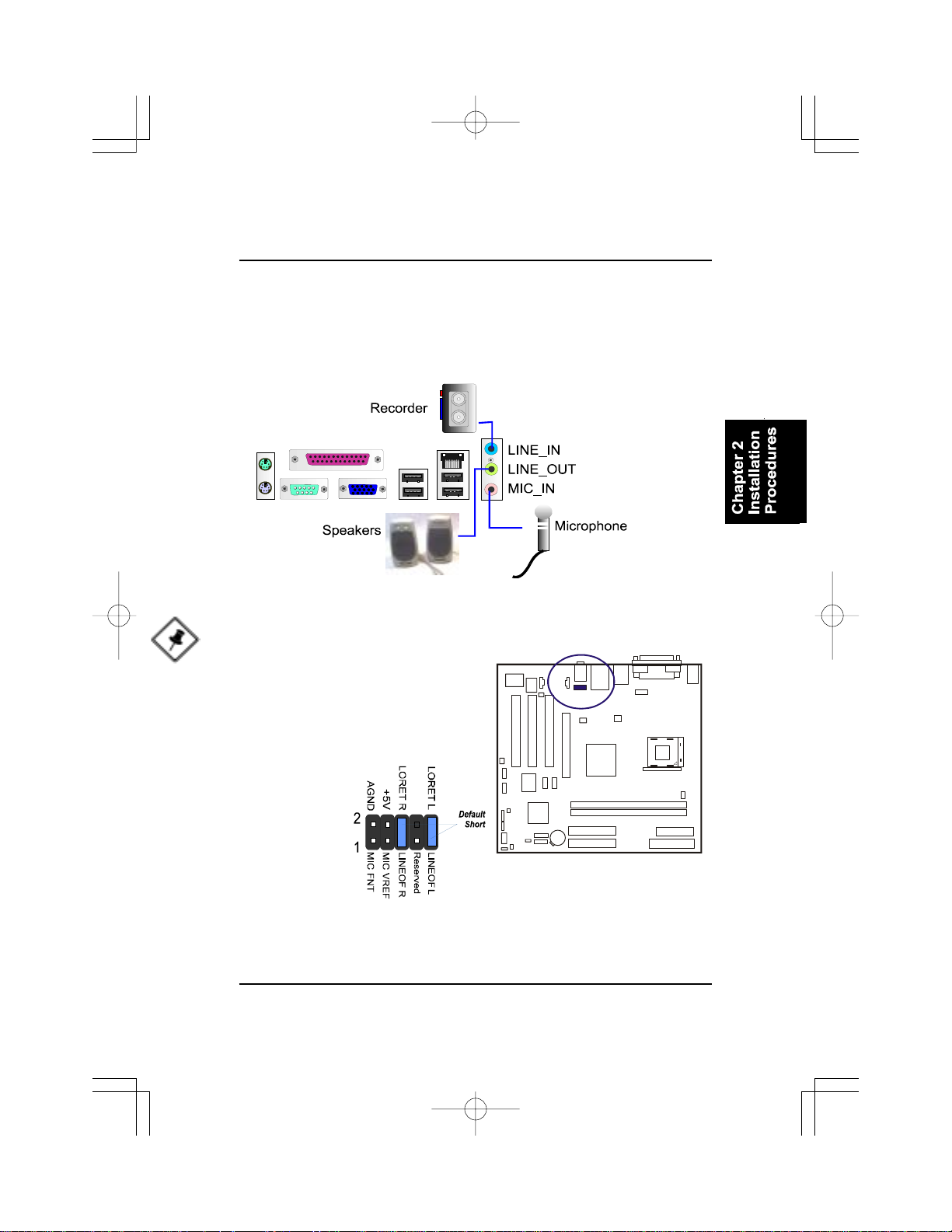

Audio I/O Jacks

LINE_OUT (lime) can be connected to headphones or preferably powered
speakers. LINE_IN (light blue) allows tape players or other audio sources to
be recorded by your computer or played through the LINE_OUT. MIC_IN
(pink) allows microphones to be connected for audio input.

Front Audio Connector

The mainboard has a front panel
audio, F_AUDIO, connector
(Intel spec.). It allows you to
attach an audio device via the front
pa nel (instead of rear panel) by a
ribbon cable. Its pin definitions
are presented below.

1

NOTE: If you do not use F_AUDIO, plea se keep the pinpair 5-6, 9-10
short as default; also, when the front headphone is plugged in,
the rear audio output will be disabled.

2 - 17

P4M800 Mainboard Manual

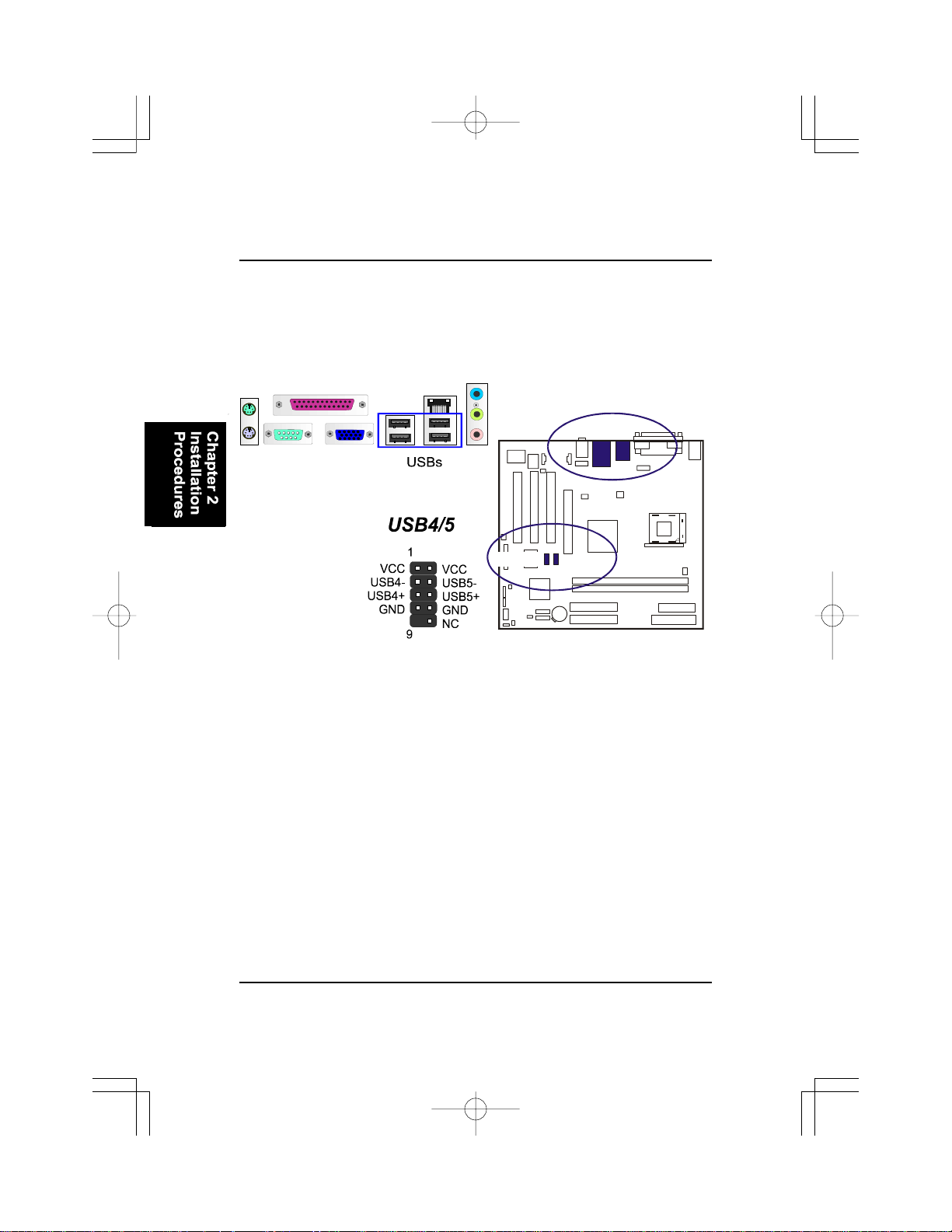

Universal Serial Bus Connectors

The mainboard has eight USB ports; four USB black jacks that are integrated
on the edge of the board, a nd four other USB ports (pinheaders) on the board.
They allow users to attach to USB devices either from the rear or front panels.
Please note that your operating system must support USB 1.1/2.0 features.

USB2/3 USB0/1

The figure at right shows the pin as­signments of the USB4/5. Those of
USB6/7 are similar.

1 1

USB6/7

USB4/5

2 - 18

BIOS Setup

Chapter 3

BIOS Setup

The mainboard comes with the chip that Award BIOS that contains the ROM
Setup information of your system. (This chip serves as an interface between
the processor and the rest of the mainboard components.) This section ex­plains the information contained in the Setup program and tells you how to
modify the settings according to your system configuration.

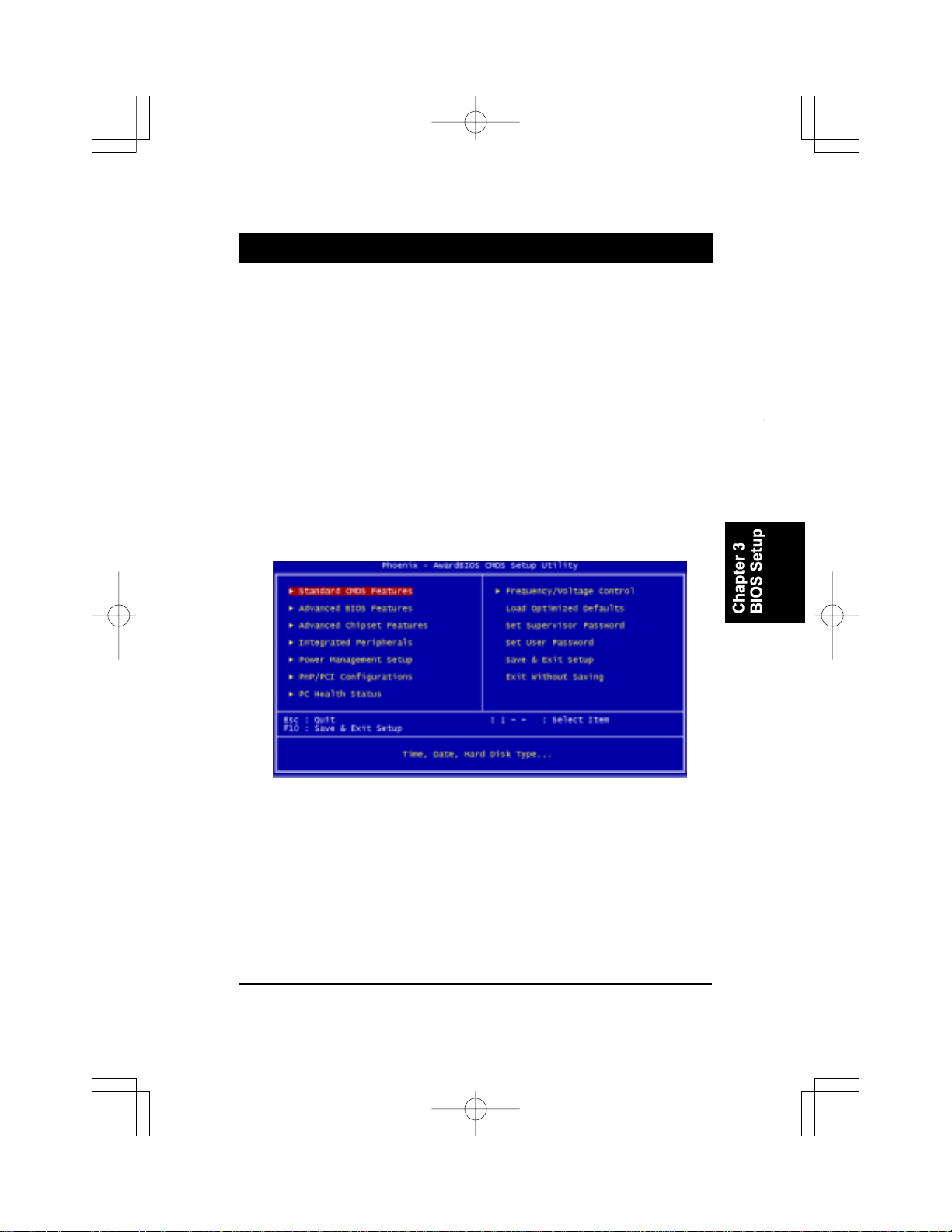

CMOS Setup Utility

The Setup utility program allows updates to the mainboard configuration set­tings. The BIOS setup values will be saved in the CMOS. It is executed when
the user changes system configuration; user changes system backup battery;
or the system detects a configuration error and asks the user to run the Setup
program. Use the arrow keys to select and press Enter to run the selected
program.

3 - 1

P4M800 Mainboard Manual

Standard CMOS Setup

The Standard CMOS Setup screen is displayed above. Each item may have
one or more option settings. The system BIOS automatically detects memory
size, thus no changes are necessary. Use the arrow keys to highlight the item
and then use PgUp or PgDn keys to select the value you want in each item.

Date

T o set the date, highlight the Date field a nd then press Page Up/Page Down
or +/- keys to set the current date. Follow the month, day and year format.

Time

T o set the time, highlight the Time field a nd then press Page Up/Page Down
or +/- keys to set the current time. Follow the hour, minute, and second
format.

3 - 2

BIOS Setup

Hard Disks

This field records the specifications for all non-SCSI hard drives installed
in the system. The onboard PCI IDE connectors provide Pri mary and Sec­ondary channels for connecting up to four IDE hard disks or other IDE
devices. Each channel can support up to two hard disks, the first of which
is the Master and the second is the Slave.

Hard Disk Configurations

Capacity: The hard disk size. The unit is Bytes.
Cylinder: The cylinder number of the hard disk.
Head: The read/write head number at the hard disk.
Precomp: The cylinder number of which the disk drivechanges the

write current.

Landing Zone: The cylinder number on which the disk drive heads

(read/write) are seated when the disk drive is parked.

Sector: The sector number of each track defined on the hard

disk.

Drive A / Drive B

This field records the types of floppy drives installed in the system. To
enter the configuration value for a particular drive, highlight its corre­sponding field a nd then select the drive type using the left- or right-arro w
key.

Video

Set this field to the type of video display card installed in the system.

Halt On

This field determines which types of errors will cause the system to halt.

3 - 3

P4M800 Mainboard Manual

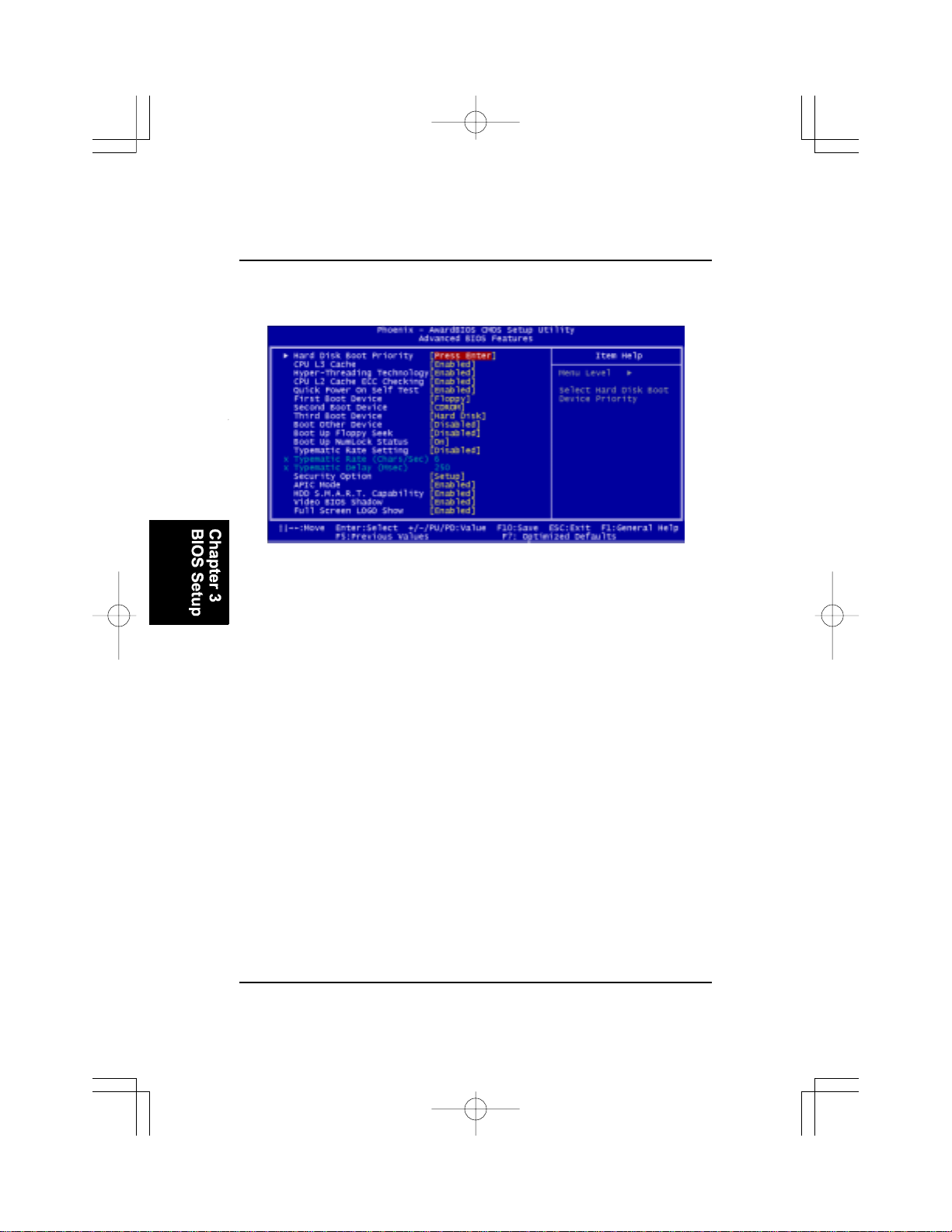

Advanced BIOS Features

Hard Disk Boot Priority

This feature will auto detect all hard disks of bootable device on the system.
It also allows users to select hard disk device booting priority.

CPU L3 Cache

When enabled, improves the system performance. Disable this item when
testing or trouble-shooting. The options are: Enabled, Disabled.
Note: Only used P4 Extrme Edition CPU.

Hyper-Threading T echnology

When enabled, it performs as Hyper-Threa ding tech. does if the CPU sup­port it.The options are: Enabled, Disabled.

CPU L2 Cache ECC Checking

When enabled, it activates the CPU L2 cache check and error correction.
The options are: Enabled, Disabled.

Quick Power On Self Test

When enabled, allows the BIOS to bypass the extensive memory test.
The options are: Enabled, Disabled.

3 - 4

BIOS Setup

First/Second/Third Boot Device

This feature allows user to select the boot device priority. The options are:
Floppy, LS120, Hard Disk, CDROM, ZIP100, USB-FDD, USB-ZIP , USB­CDROM, LAN, Disabled.

Boot Other Device

This feature allows user to select the boot device priority.
The options are: Enabled, Disabled.

Boot Up Floppy Seek

When enabled, assigns the BIOS to perform floppy diskette drive tests by
issuing the time-consuming seek commands.
The options are: Enabled, Disabled.

Boot Up Numlock Status

When set to On, allows the BIOS to automatically enable the Num Lock
Function when the system boots up. The options are: On, Off.

Typematic Rate Setting

The term typematic means that when a keyboard key is held down, the
character is repeatedly entered until the key is released.
The options are: Disabled, Enabled.

Typematic Rate (Chars/Sec)

This feature is available only if the above item, Typematic Rate Setting, is
set at Enabled. Sets the rate of a character repeat when the key is held
down. The options are: 6, 8, 10, 12, 15, 20, 24, 30.

Typematic Delay (Msec)

This feature is available only if the item, Typematic Rate Setting, is set at
Enabled. Sets the delay ti me before a character is repeated.
The options are: 250, 500, 750, 1000 millisecond.

3 - 5

P4M800 Mainboard Manual

Security Option

Allows to set the security level of the system.The options: Setup, System.

APIC Mode

Allows you to decide if the system enters the APIC (Advanced Program­mable Interrupt Controller) mode or not for more IRQs can be released.
The options are: Enabled, Disabled.

HDD S.M.A.R.T. Capability

S.M.A.R.T. stands for Self-Monitoring and Analysis Reporting Technol­ogy which allows your hard disk drive to report any read/write errors and
issues a warning with LDCM installed. The options: Disabled, Enabled.

Video BIOS Shadow

Enabling this feature will copy the video BIOS to shadow RAM, it will
improve the system perf ormance.
The options are: Enabled, Disabled.

Full Screen LOGO Show

It decides whether or not the full screen logo is shown during system
booting up. The options are: Enabled, Disabled.

3 - 6

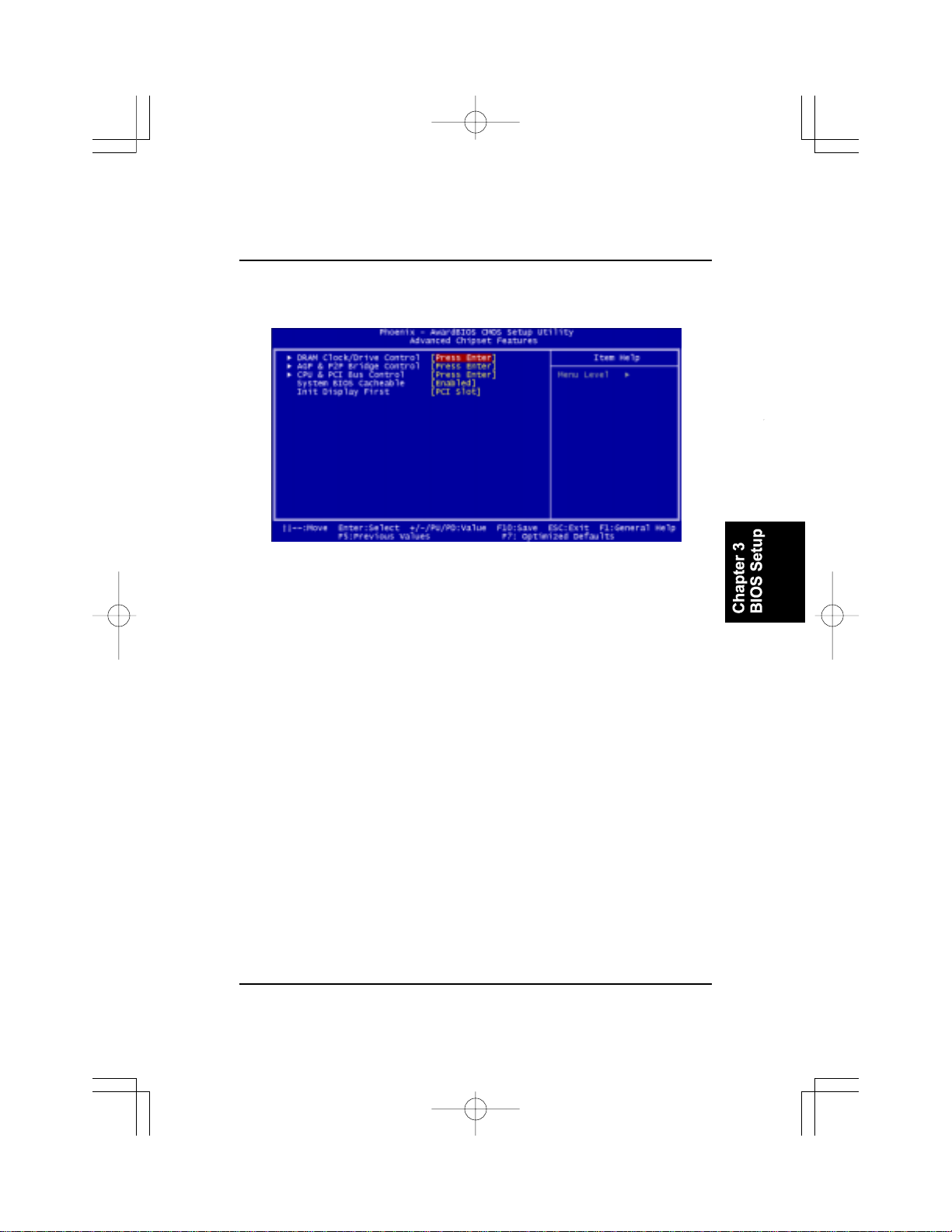

Advanced Chipset Features

DRAM Clock/Drive Control

Current FSB Frequency , Current D RAM Frequency

This item allows you to get current FSB and DRAM frequencies.

DRAM Clock

The feature allows users to select the DRAM clock.
The options are: 133 MHz, 166 MHz, 200 MHz, By SPD.

DRAM Timing

This feature allows user to select the way to set DRAM timing.
The options are: By SPD, Manual.

BIOS Setup

DRAM CAS Latency

If the CAS latency of your installed memory medule is 2 Cycle, The selec­tion 2 will enha nce system perf ormance. The options are: 1.5, 2, 2.5, 3.

Bank Interleave

This item allows users to select the bank interleave function of DRAM,
when the feature DRAM Timing By SPD set at Disabled.
The options are: Disa bled, 2 Bank, 4 Bank.

3 - 7

P4M800 Mainboard Manual

Precharge to Active (T rp)

This item allows users to set the clock time from Precharge to Active com­mand. The options are: 2T, 3T, 4T, 5T.

Active to Precharge (Tra s)

This item allows users to set the clock time from Active to Precharge com­mand. The options are: 6T, 7T, 8T, 9T.

Active to CMD (Trcd)

This item allows users to set the clock time from Active to Read/Write
Delay comma nd. The options are: 2T, 3T, 4T, 5T .

DRAM Command Rate

This item allows users to set Address Time After command.
The options are: 2T Comma nd, l T Command.

AGP & P2P Bridge Control

AGP Aperture Size

It allows you to select the main memory frame size for AGP use.
The options list presents all provided possibilities.

AGP 2.0 Mode

This feature allows users to select the AGP mode when an AGP add-on
card installed. The options are: 4X, 2X, 1X.

AGP Driving Control / AGP Driving Value

These two features allow user to improve the performance of AGP card
manually by pressing Page Down/Page UP key if necessary.
The options of AGP Driving Control are: Auto, M anual.

AGP Fast Write

This feature allows you to set AG P fast write mode.
The options are: Disabled, Enabled.

AGP Master 1 WS Write

When enabled, the AGP bus master write access to DRAMs will add one
wait-state cycle. The options are: Enabled, Disabled.

3 - 8

BIOS Setup

AGP Master 1 WS Read

When enabled, the AGP bus master read access to the DRAMs will a dd one
wait-state cycle. The options are: Disabled, Enabled.

AGP 3.0 Calibration cycle

This feature allows you to enable or disable AGP 3.0cablibration cycle.
The options are: Disabled, Enabled.

V GA Share Memory Size (For P4M800 North Bridge only)

This feature allows you to select the size in the VGA shared memory.
The options are: 32M, 64M.

Direct Frame Buf fer (For P4M800 South Bridge only)

This feature allows you to disable the direct access to the video memory
frame buffer. The options are: Disabled, Enabled.

CPU & PCI Bus Control

PCI Master 0 WS Write

When enabled, allows a zero-wait-state-cycle delay when the PCI master
drive writes data to DRAM. The options are: Enabled, Disabled.

PCI Delay Transa ction

Enable it to a bort the current PCI ma ster cycle and accept a new PCI master
request, it reaccepts the original PCI master, returns PCI data phase to the
original PCI master . The options are: Disabled, Enabled.

VLink mode selection

Select VLink mode. The options are: Auto, Mode 0, Mode 1, Mode 2,
Mode 3, Mode 4.

VLink 8X Support

Enables VLink 8X support. The options are: Enabled, Disabled.

3 - 9

P4M800 Mainboard Manual

System BIOS Cacheable

When enabled, allows the ROM area F000H-FFFFH to be cacheable when
cache controller is activated. The options are: Enabled, Disabled.

Init Display First

When you install a n AGP VGA card a nd a PCI VGA card on the board, this
feature allows you to select which card the first initiation of the monitor
display comes from. The options are: PCI Slot, Onboard AG P.

Integrated Peripherals

VIA OnChip IDE Device

On Chip SA TA

This item allows users to Enabled\Disabled SATA.
The options are: Enabled, Disabled.

SA T A Mode

This item allows users to select the serial ATA mode
The options are: IDE, Raid.

3 - 10

BIOS Setup

IDE DMA tras fer access

This item allows users to disable the IDE DMA transfer access.
The options are: Enabled, Disabled.

OnChip IDE Channel0/1

When enabled, allows you to use the onboard pri mary/secondary PCI IDE.
If a hard disk controller card is used, set at Disabled.
The options are: Enabled, Disabled.

IDE Prefetch Mode

When set at Enabled, it allows data to be posted to and prefetched from the
primary IDE data ports. Data prefetching is initiated when a data port read
occurs. The rea d prefetch eli ments latency to the IDE data ports and allows
them to be performed ba ck to back for the highest possible PIO data trans­fer rates. The first data port read of a sector is called the demand read.
Subsequent data port reads from the sector are called prefetch reads.

The demand read a nd all pref etch reads must be of the same size (16 or 32
bits). The options are: Enabled, Disabled.

Primary Ma ster/Slave PIO

Allows an automatic or a manual configuration of the PCI primary IDE
hard drive (master/slave) mode. The options are: Auto, Mode 0, Mode 1,
Mode 2, Mode 3, Mode 4.

Secondary Ma ster/Slave PIO

Allows a n automatic or a manual configuration of the PCI secondary IDE
hard drive (master/slave) mode. The options are: Auto, Mode 0, Mode 1,
Mode 2, Mode 3, Mode 4.

Primary Ma ster/Slave UDMA

Allows an automatic configuration of the PCI primary IDE hard drive
(master/slave) mode if Ultra DMA is supported both on the motherboard
and the hard disk. The options are: Auto, Disabled.

Secondary Ma ster/Slave UDMA

Allows an automatic configuration of the PCI secondary IDE hard drive
(master/slave) mode if Ultra DMA is supported both on the motherboard
and the hard disk. The options are: Auto, Disabled.

3 - 11

P4M800 Mainboard Manual

VIA OnChip PCI Device

VIA-3058 AC97 Audio

It allows users to disable AC97 audio function in South Bridge.
The options are: Auto, Disabled.

OnChip USB Controller

Disable this option if you are not using the onboard USB 1.1 and USB 2.0
feature. The options are: Disabled, Ena bled.

OnChip USB2.0 Controller

Disable this option if you are not using the onboard USB 2.0 feature (USB

1.1 not effected). The options are: Disabled, Enabled.

USB Legacy Support

When set at Auto, the BIOS will detect if USB keyboard is installed
automatically . The options are: Auto, Disabled, Enabled.

SuperIO Device

Onboard F DC Controller

When enabled, the floppy diskette drive (FDD) controller is activated.
The options are: Enabled, Disabled.

Onboard Serial Port 1/2

If the serial port 1/2 uses the onboard I/O controller, you can modify your
serial port parameters.
The options are: 3F8/IRQ4, 3E8/IRQ4, 2F8/IRQ3, 2E8/IRQ3, Disa bled.

UART Mode Select

Allows you to select the IR modes if the serial port 2 is used as an IR port.
Set at Standard, if you use COM2 as the serial port as the serial port,
instead a s an IR port. The options are: Normal, IrDA, ASKIR, SCR.

3 - 12

BIOS Setup

UR2 Duplex Mode

Allows you to select the IR modes. The options are: Half, Full.

Onboard Parallel Port

Allows you to select from a given set of parameters if the parallel port uses
the onboard I/O controller.
The options are: Disa bled, 378/IRQ7, 278/IRQ5, 3BC/IRQ7.

Parallel Port Mode

Allows you to connect with an advanced printer via the port mode it
supports. The options are: SPP, EPP, ECP, ECP+EPP.

ECP Mode Use DMA

This feature allows you to select Direct Me mory Access (DMA) channel if
the ECP mode selected. The options are: 1, 3.

Onboard LAN Support

This feature allows users to enable or disable the onboard LAN support.
The options are: Enabled, Disabled.

Onboard Lan Boot ROM

This feature allows users to enable or disable the onboard Lan boot
ROM to boot system. The options are: Ena bled, Disabled.

Onboard 1394 Support

This feature allows you to disable the onboard 1394 feature.
The options are: Enabled, Disabled.

3 - 13

P4M800 Mainboard Manual

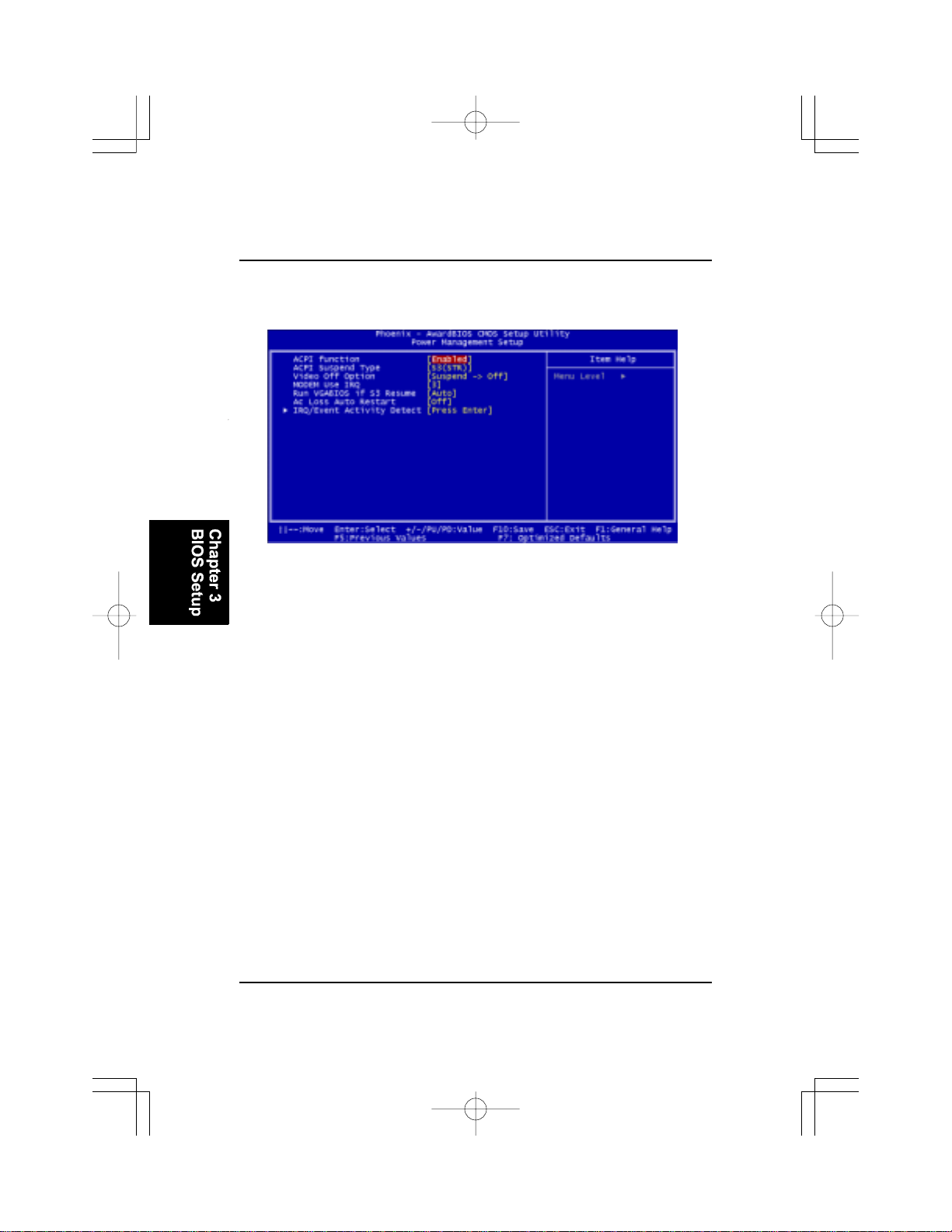

Power Management Setup

ACPI Function

This item allows you to disable the ACPI function.
The options are: Enabled, Disabled.

ACPI Suspend T ype

This item allows you to select suspend mode when the system in ACPI
mode. The options are: S1 (POS), S3 (PTR), S1&S3.

Video Off Option

This feature provides the selections of the video display power saving
mode. The option Suspend - Off allows the video display to go blank if the
system enters Suspend mode. The option All Modes - Of f allows the video
display to go bla nk if the syste m enters Doze mode or Suspend mode. The
option Always On allows the video display to stay in Standby mode even
when the system enters Doze or Suspend mode.
The options are: Suspend - Off, All Modes -> Off, Always On.

3 - 14

BIOS Setup

MODEM Use IRQ

This feature allows you to select the IRQ# to meet your modem IRQ#.
The options are: NA, 3, 4, 5, 7, 9, 10, 1 1.

Run V GABIOS if S3 Resume

This determines whether or not to enable the system to run the VGA BIOS
when resuming from S3(STR) or S1&S3. The options are: Auto, Yes, No.

AC Loss Auto Restart

When the system is shut down owing to the power failure, the system will
not be back to power on by itself. This feature allows you to set the
system back to which power status of the system when the system power
is resumed. It always will be back to on if set at On. The system always be
back to off if set at Of f. The options are Auto, On, Of f.

3 - 15

P4M800 Mainboard Manual

IRQ/Event Activity Detect

USB Resume from S3

This item allows you to wake-up the system by USB device when you save
the computer power at S3. The options are: Enabled, Disabled.

PowerOn by PCI Card

When set at Enabled, any PCI-PM event awakes the system from a PCI-PM
controlled state. The options are Disabled, Enabled.

Date (of Month)

This feature allows you to set the day of the alarm starts when the RTC
Alarm Resume From Soft Off is set to be Enabled. The options are: 0, 1..31.

Resume Time (hh:mm:ss)

If a n ATX power supply is installed a nd when RTC Alarm Resume is Ena bled,
this feature allows you to set the time of the alarm starts when the RTC
Alarm Resume From Soft Off is set to be Enabled. The options are: hh
(hour) - 0, 1, 2,.., 23; mm (minute) - 0, 1, 2,..,59; ss (second) - 0, 1, 2,..,59.

RTC Alarm Resume

Enabled allows you to set the time the system will be turned on from the
system power-off status. The options are: Enabled, Disabled.

IRQs Activity Monitoring

Primary INTR

If set at ON, the Primary interrupt (the Primary option in the feature of IRQ#
Acitivity) will make the power ma nagement wake up the syste m.
The options are: ON, OFF.

IRQ3/../15

After the time period which you set, the system advances from doze mode
to suspend mode in which the CPU clock stops and the screen display is
off. At this moment, if the IRQ activity occurs, the syste m goes back to full­on mode directly.
If the IRQ activity which is defined a s Non Pri mary takes pla ce, the syste m
remains off until the corresponding IRQ handler finishes.
The options of IRQ 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15 are: Enabled,
Disabled.

3 - 16

BIOS Setup

PnP/PCI Configurations

PNP OS Installed

If your operating system is a Plug-and-Play one, such as Windows NT,
Windows 95, select Yes. The options are: No, Yes.

Reset Configuration Data

Enabling it to reset the system Extended Syste m Configuration Data (ESCD)
when you exit Setup if you have installed a new add-on card and the
system reconfiguration has caused such a serious conflict that the operat­ing system can not boot. The options are: Disabled, Enabled.

Resources Controlled By

If set at Auto, the BIOS arranges all system resources. If there exists con­flict, select Manual. The options are: Auto (ESCD), Manual.
The ma nual options of IRQ- / DMA- a ssigned to are: PCI/ISA PnP, Lega cy
ISA.

Assign IRQ For VGA

If your PCI VGA card devices do not need a n IRQ, select Disabled; there­fore, an IRQ can be released for the system use.
The options are: Enabled, Disabled.

3 - 17

P4M800 Mainboard Manual

Assign IRQ For USB

If your USB devices do not need a n IRQ, select Disa bled; therefore, an IRQ
can be released for the system use.
The options are: Enabled, Disabled.

INT Pin 1/2/3/4 Assign ment

This feature allows you to assign the PCI IRQ numbers for PCI slots.
Selecting the default, Auto, allows the PCI controller to automatically allo­cate the IRQ numbers. The options are: Auto, 3, 4, 5, 7, 9, 10, 11, 12, 14, 15.

PC Health Status

Smart FAN

This feature allows you to disable to configure para meters of cooling fans.
The options are: Disabled, Enabled.

Shutdown T emperature

This feature helps to shutdown the system when the system temperature
is as high as the selected temperature to prevent from the overheat problem.
The option list presents all the temperatures that supported by the board
a nd Disabled.

3 - 18

BIOS Setup

Vcore / 3.3V / +5V / +12V / CPU Temperature / SYSTEM Temperature
/CPU FAN Speed / SYS FAN Speed

These items allow end users and technicians to monitor data provided by
the BIOS on this mainboard. It is not user-configurable.

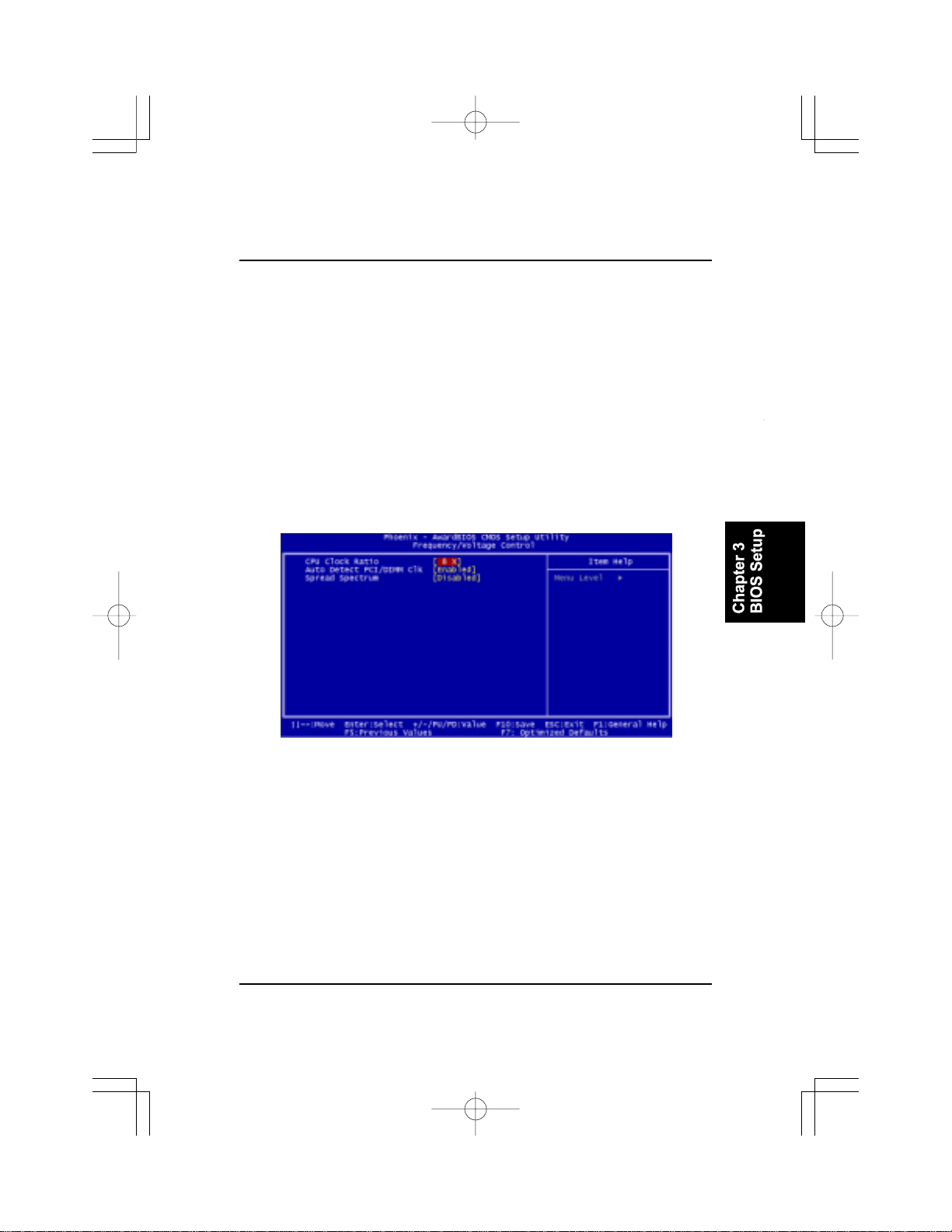

Frequency/Voltage Control

CPU Clock Ratio

This item allows users to set the wanted CPU clock ratio.

Auto Detect DIMM/PCI Clk

When enabled, BIOS will detect the PCI slot and DIMM slot. If no any
device in, BIOS will auto disable its clock. The options are: Ena bled, Disa bled.

Spread Spectrum

This feature allows users to select the range of spread spectrum.
The options are: Disa bled, -1.50%, -1.00%, -0.70%, -0.50%, +/-0.75%,
+/-0.50%, +/-0.35%, +/-0.25%.

3 - 19

P4M800 Mainboard Manual

Load Optimized Defaults

This submenu is selected for default settings which provide the best system
performance.

Supervisor/User Password

To enable the Supervisor/User passwords, select the item from the Standard
CMOS Setup. You will be prompted to create your own password. Type your
password up to eight characters and pre ss Enter. You will be asked to confirm
the password. Type the password again and press Enter. To disable password,
press Enter twice when you are prompted to enter a password. A message
appears, confirming the password is disabled.

Under the BIOS Feature Setup, if Setup is selected under the Security Option
field a nd the Supervisor/User Pa ssword is ena bled, you will be prompted pa ss­word every time you try to enter the CMOS Setup Utility. If System is selected
and the Supervisor/User Password is enabled, you will be requested to enter
the Password every time when you reboot the system or enter the CMOS
Setup utility.

Save and Exit Setup

After you have made changes under Setup, press Esc to return to the main
menu. Move cursor to Save and Exit Setup or press F10 and then press Y to
change the CMOS Setup. If you did not change anything, press Esc again or
move cursor to Exit Without Saving and press Y to retain the Setup settings.
The following message will appear at the center of the screen to allow you to
save data to CMOS a nd exit the setup utility: SA VE to CMOS a nd EXIT (Y/N)?

Exit without Saving

If you select this feature, the following message will appear at the center of the
screen to allow you to exit the setup utility without saving CMOS modifications:

Quit Without Saving (Y/N)?

3 - 20
