FIC KB-6130 User Manual

KB-6130

MOTHERBOARD

MANUAL

DOC No. : 16599
Rev. : A0
Date : 8, 1998
Part No. : 25-10894-

Table of Contents

Chapter 1 Installation Procedures

Clear CMOS: SW1-5............................................................... 2

Clear Password: SW1-6 ........................................................... 2

Flash ROM Type Selection: EP1, EP2 ..................................... 3

CPU Internal Frequency Selection: SW-1, SW-2, SW-3, SW-4 . 4

Chapter 2 BIOS Setup

CMOS Setup Utility ......................................................................... 5

Standard CMOS Setup...................................................................... 6

Hard Disk Configurations........................................................ 6

Software Turbo Speed ............................................................. 7

BIOS Features Setup ........................................................................ 8

Chipset Features Setup..................................................................... 11

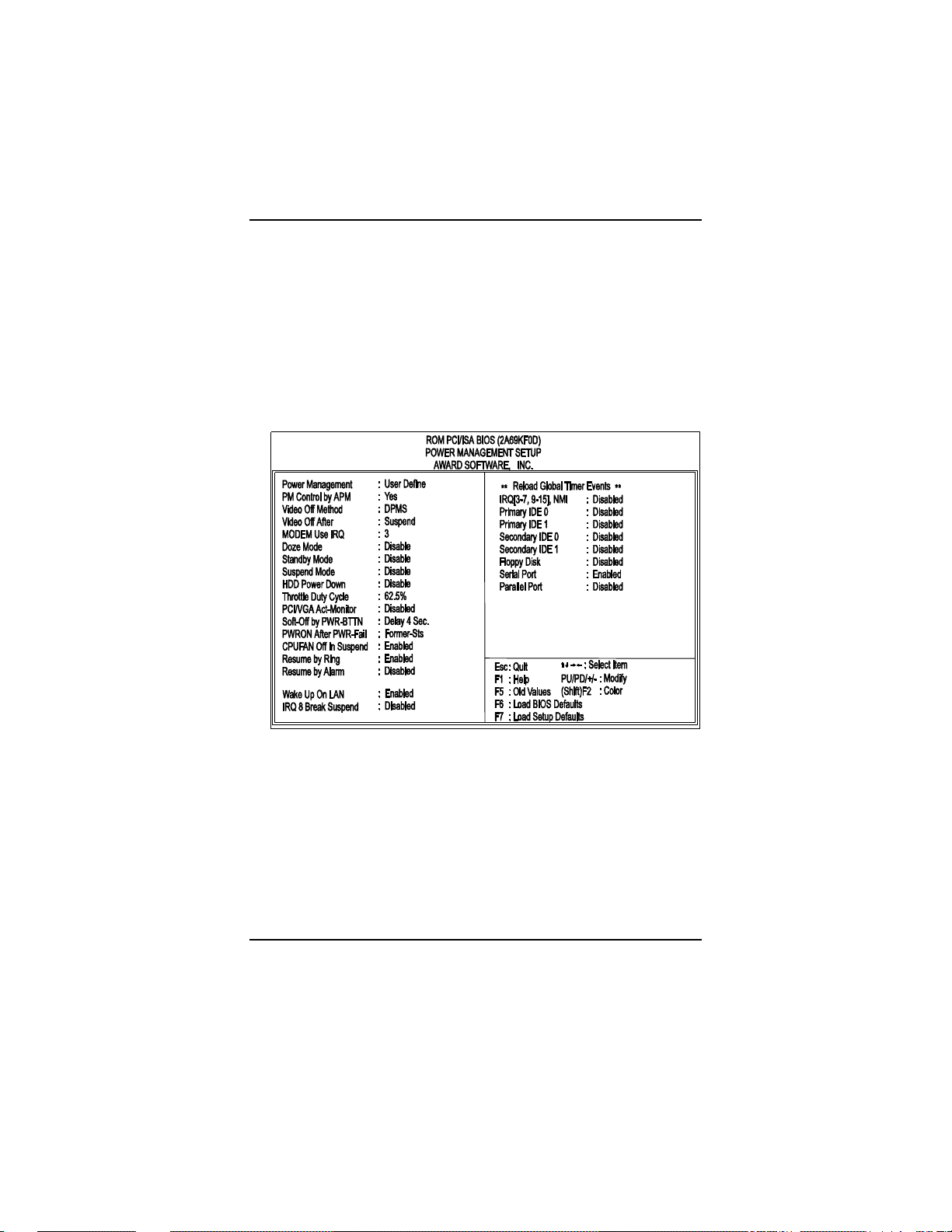

Power Management Setup ................................................................ 15

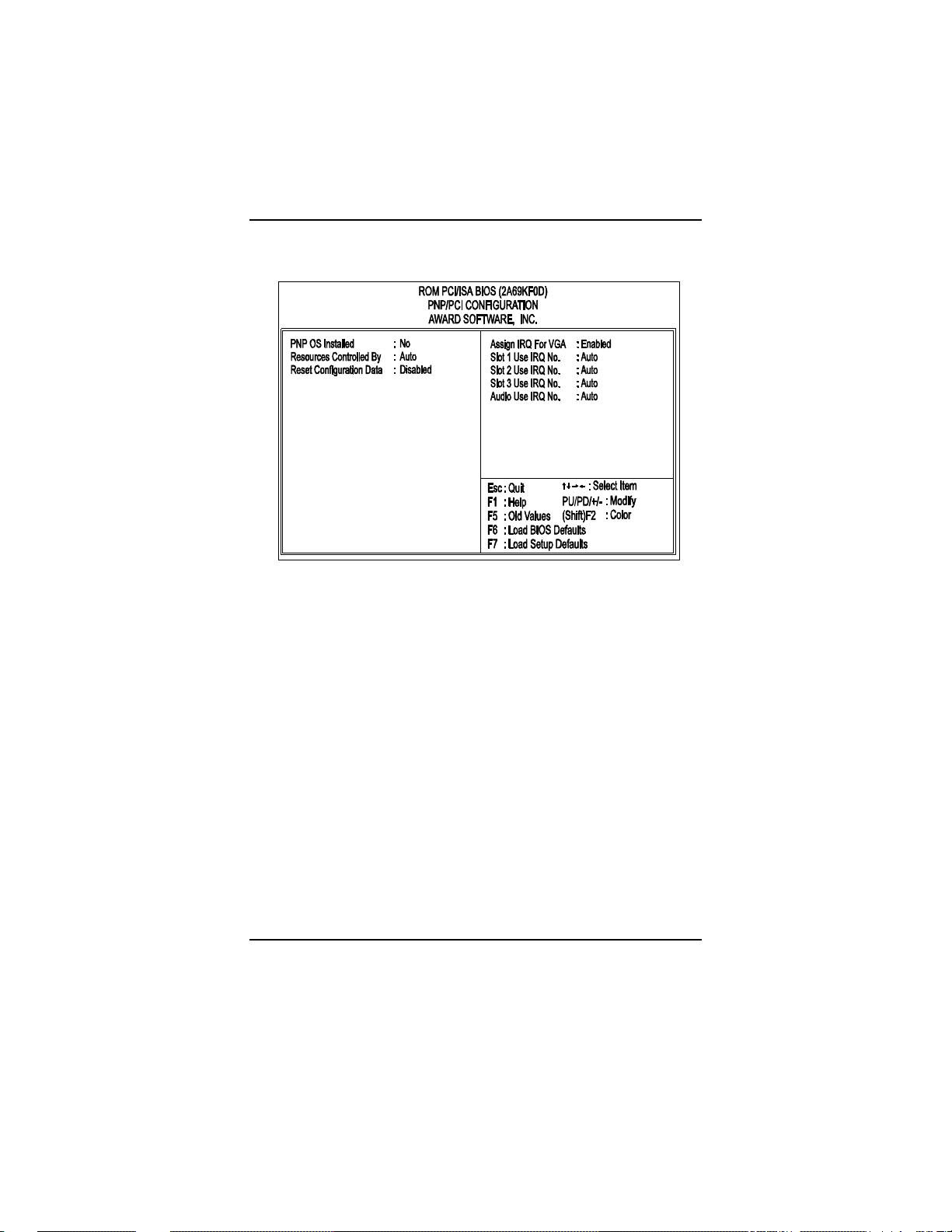

PNP/PCI Configuration..................................................................... 20

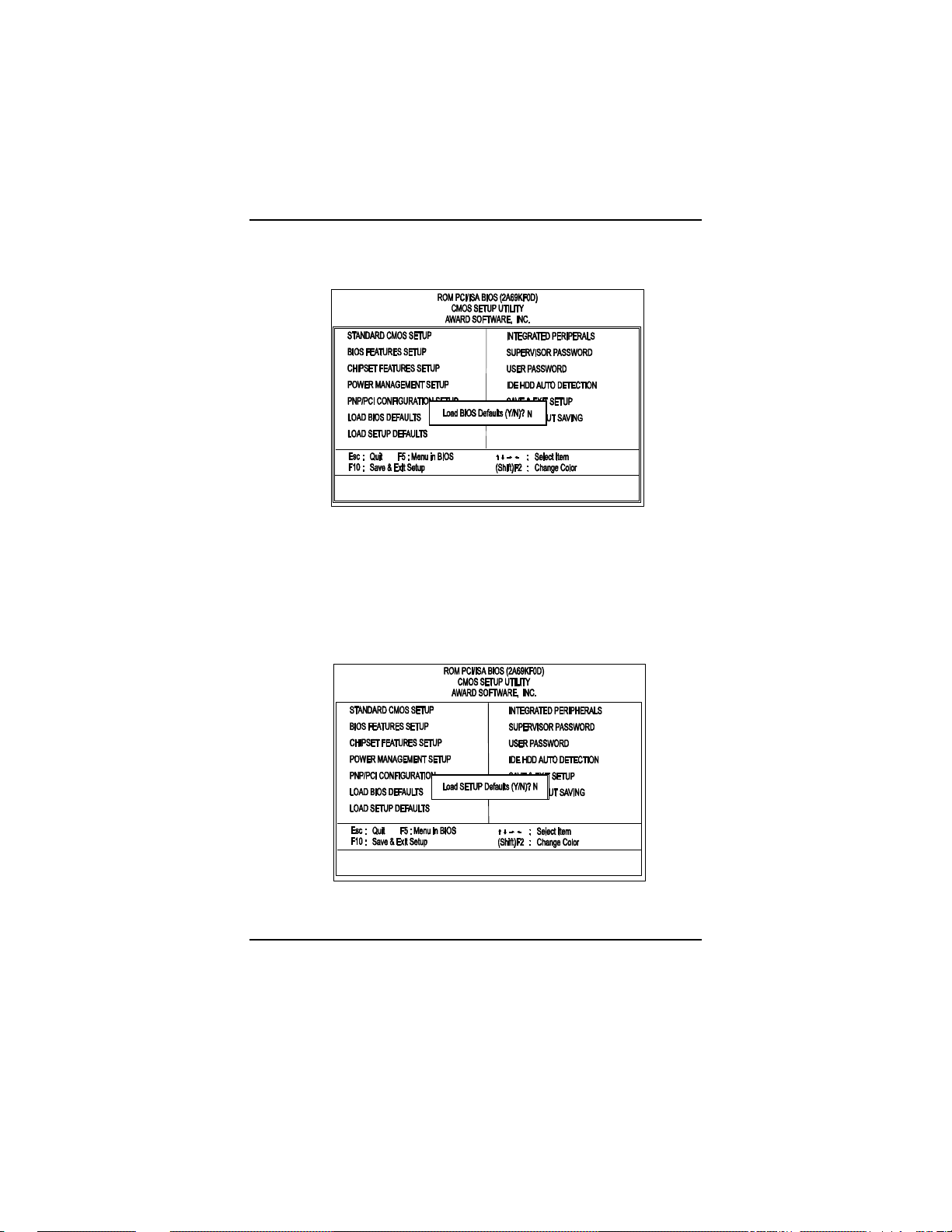

Load BIOS Defaults.......................................................................... 22

Load Setup Defaults ......................................................................... 22

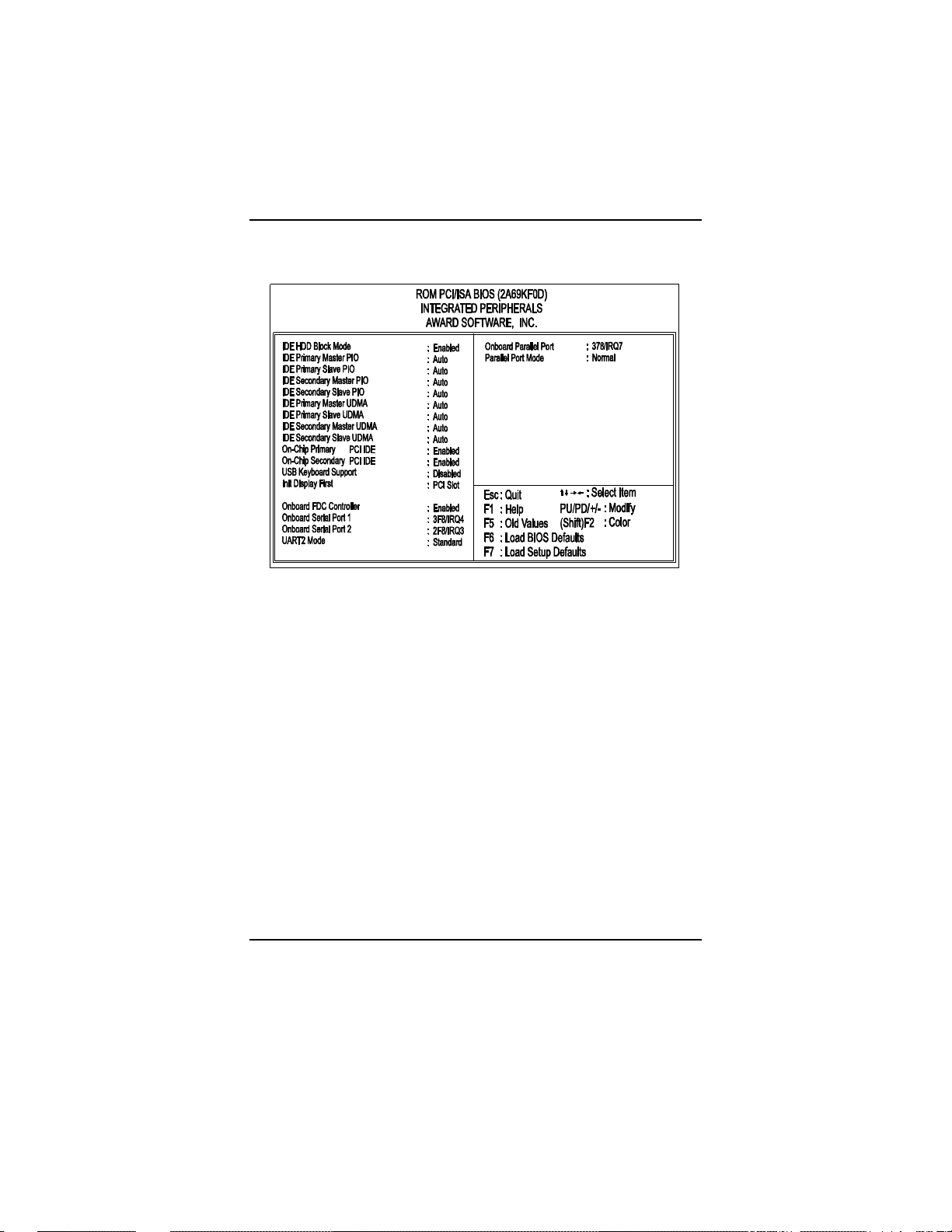

Integrated Peripherals....................................................................... 23

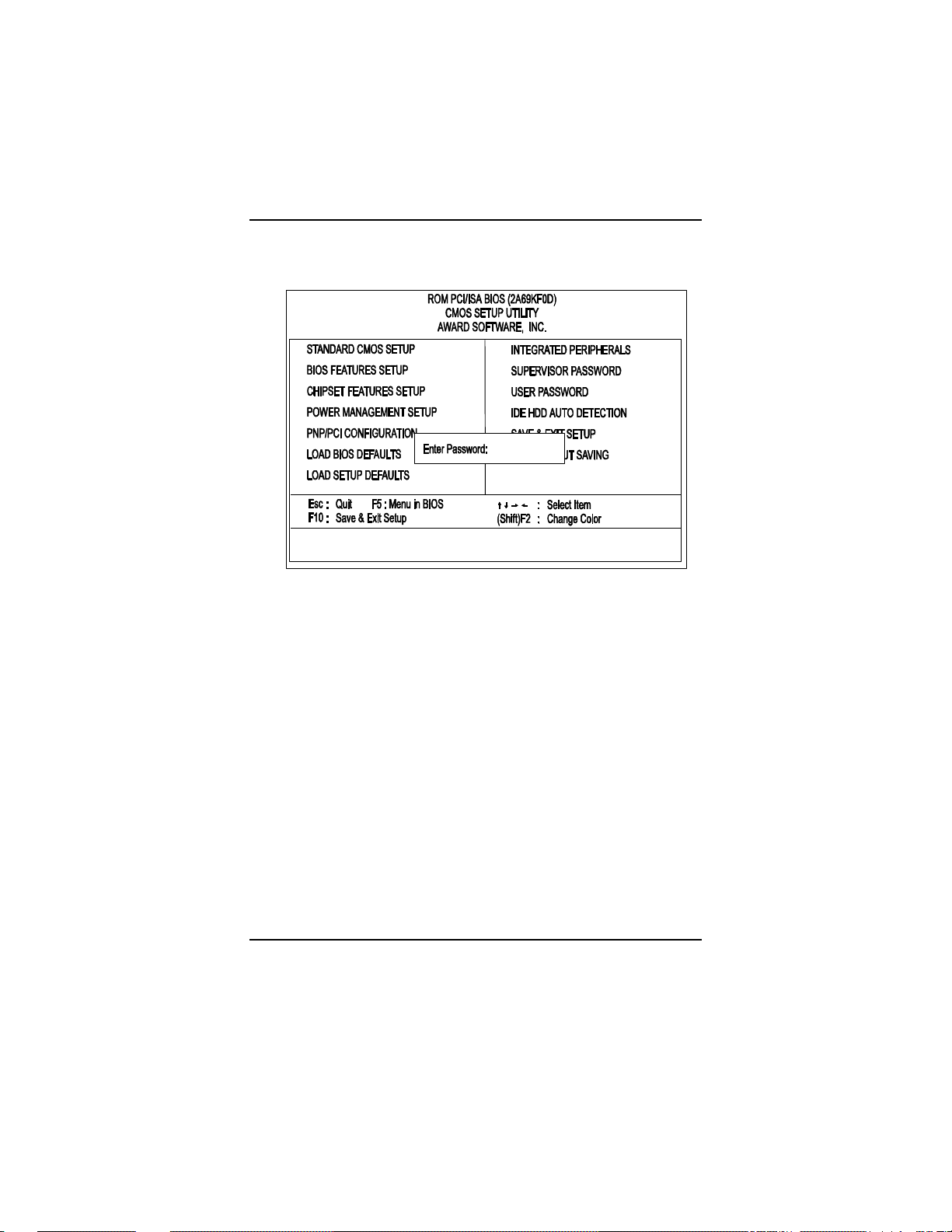

Supervisor/User Password ................................................................ 27

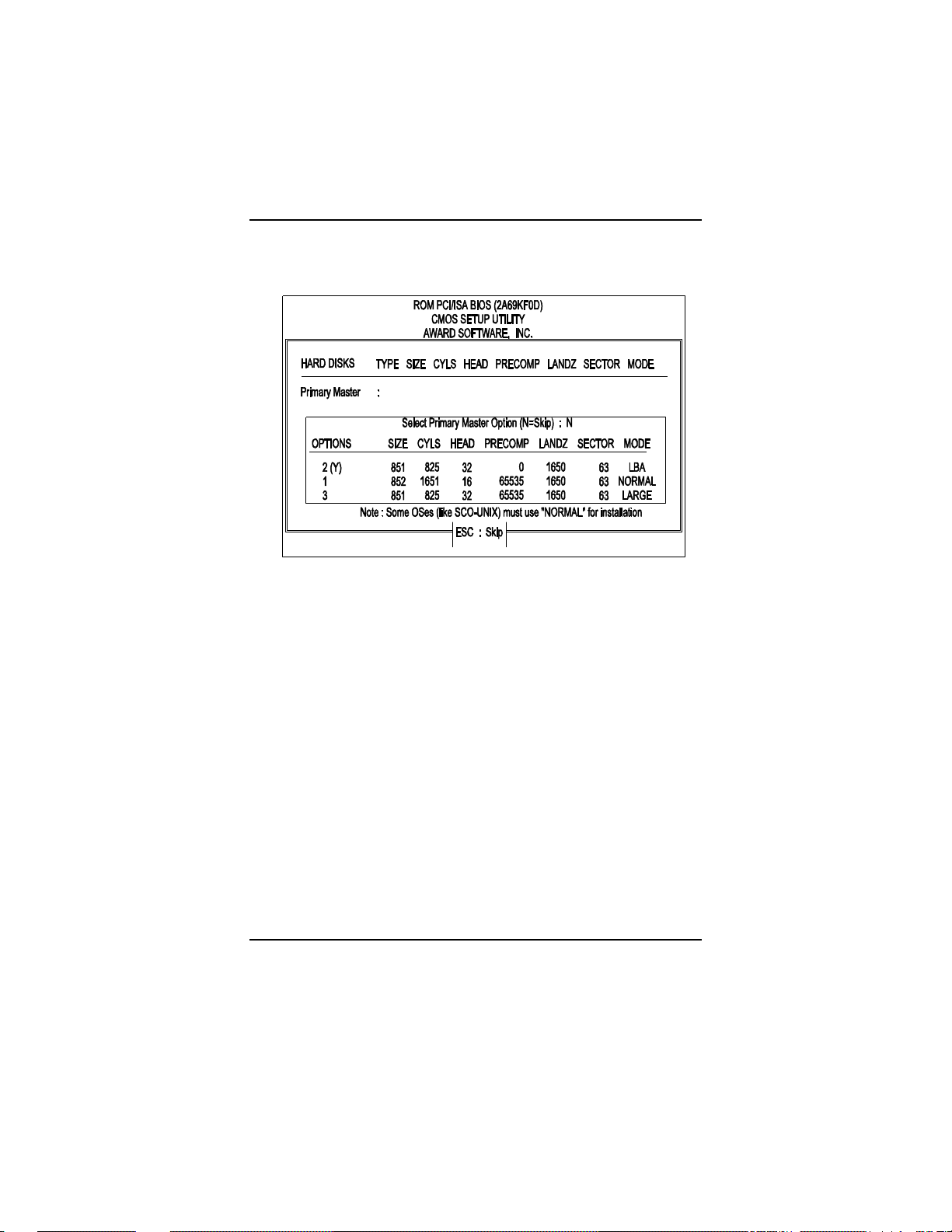

IDE HDD Auto Detection ................................................................. 28

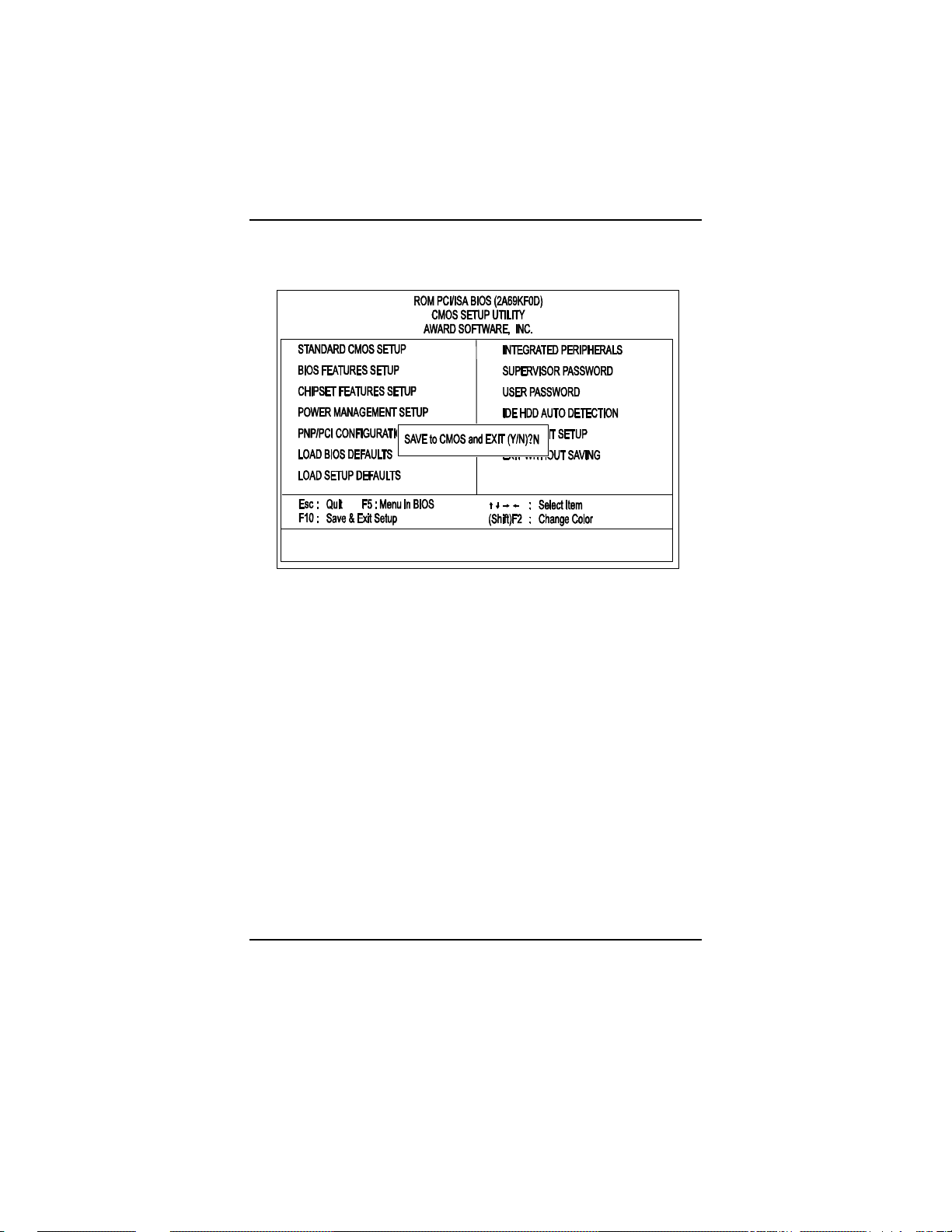

Save and Exit Setup.......................................................................... 29

Exit without Saving.......................................................................... 29

i

Chapter 1

Installation Procedures

The motherboard has several user-adjustable jumpers/switches on the board
that allow you to configure your system to suit your requirements. This
chapter contains information on the various hardware settings on your
motherboard.

To set up your computer, you should follow these installation steps:

n Step 1 - Set system jumpers/switches
n Step 2 - Install memory modules
n Step 3 - Install the CPU
n Step 4 - Install expansion cards
n Step 5 - Connect devices
n Step 6 - Set up BIOS feature
n Step 7 - Set up software utilities

CAUTION: If you use an electric drill to install this motherboard on
your chassis, please wear a static wrist strap. The recommended
electric drill torque is from 5.0 to 8.0 kg/cm to avoid damaging the
chips’ pins.

1

KB-6130 Motherboard Manual

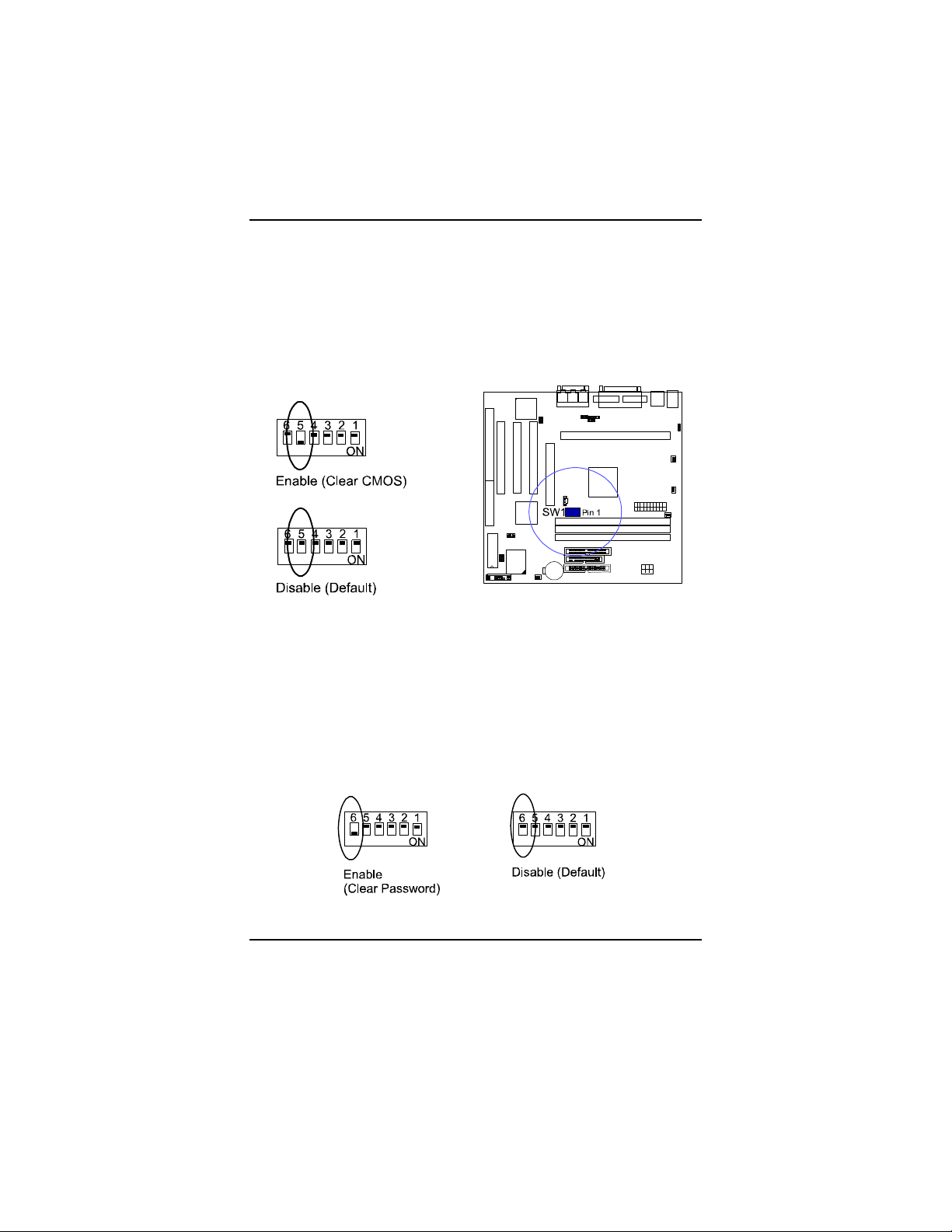

Clear CMOS: SW1-5

The CMOS RAM is powered by the onboard button cell battery. To clear
the RTC data: (1). Turn off your computer, (2). Enable this feature by
setting the SW1-5 to On position, (3). Turn on your computer, (4). Turn off
the computer, (5). Disable the Clear CMOS feature, (6). Turn on the
computer. (7). Hold down the Delete key when boots and enter BIOS Setup
to re-enter user preferences.

Clear Password: SW1-6

This switch allows you to enable or to disable the password settings. You
may need to adjust switch if you forget your password. To clear the
password setting: (1). Turn off your computer, (2). Enable this feature by
setting the SW1-6 to On position, (3). Turn on your computer, (4). Turn off
your computer, (5). Disable the Clear Password feature by setting the SW1­6 to Off position, (6). Turn on your computer, (7). Hold down the Delete
key when boots and enter BIOS Setup to re-enter user preferences.

2

Installation Procedures

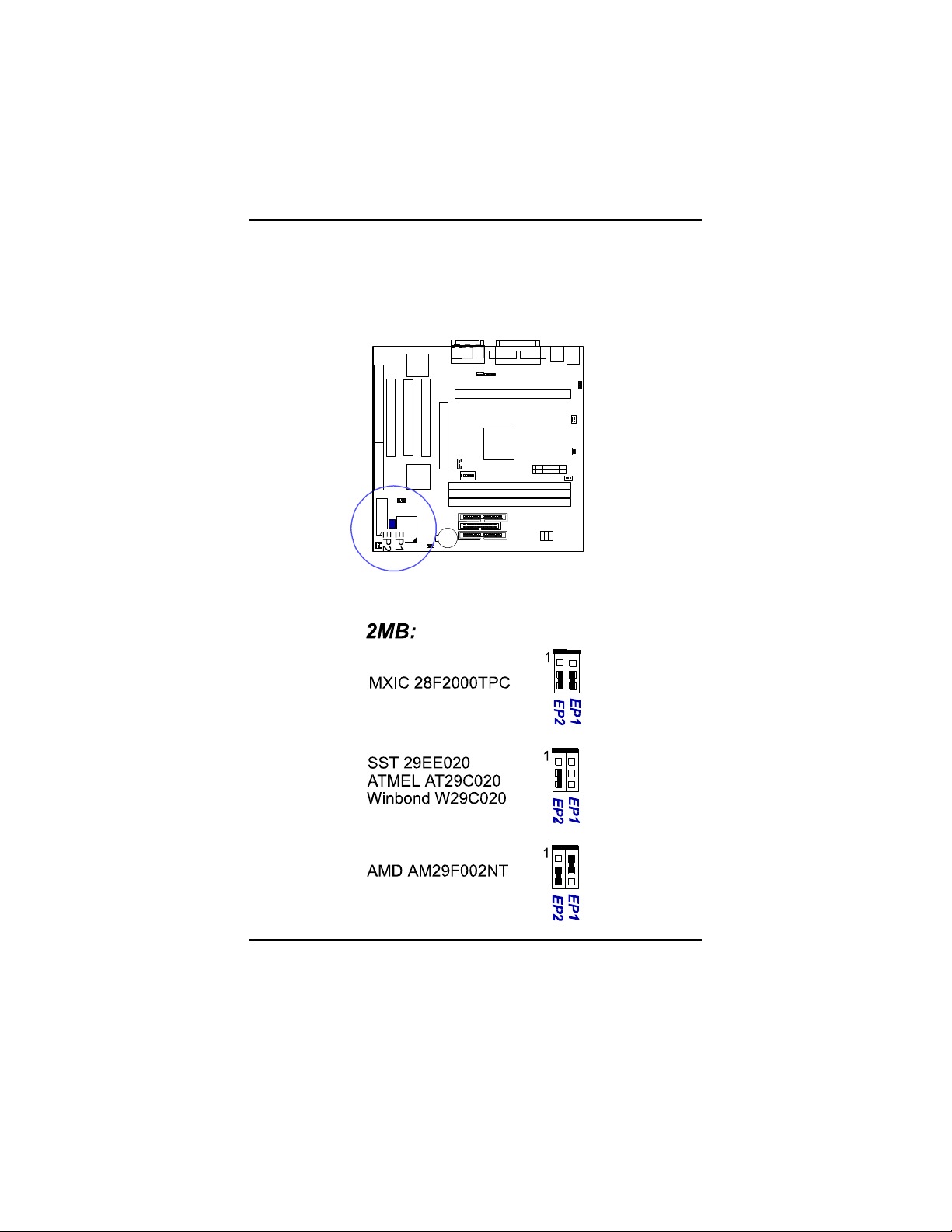

Flash ROM Type Selection: EP1, EP2

These two jumpers allow you to configure the type of flash ROM chip. This
jumper setting is correct by manufactory default. If you want to know the
flash ROM type installed on this motherboard, remove the sticker from the
chip to see its type.

3

KB-6130 Motherboard Manual

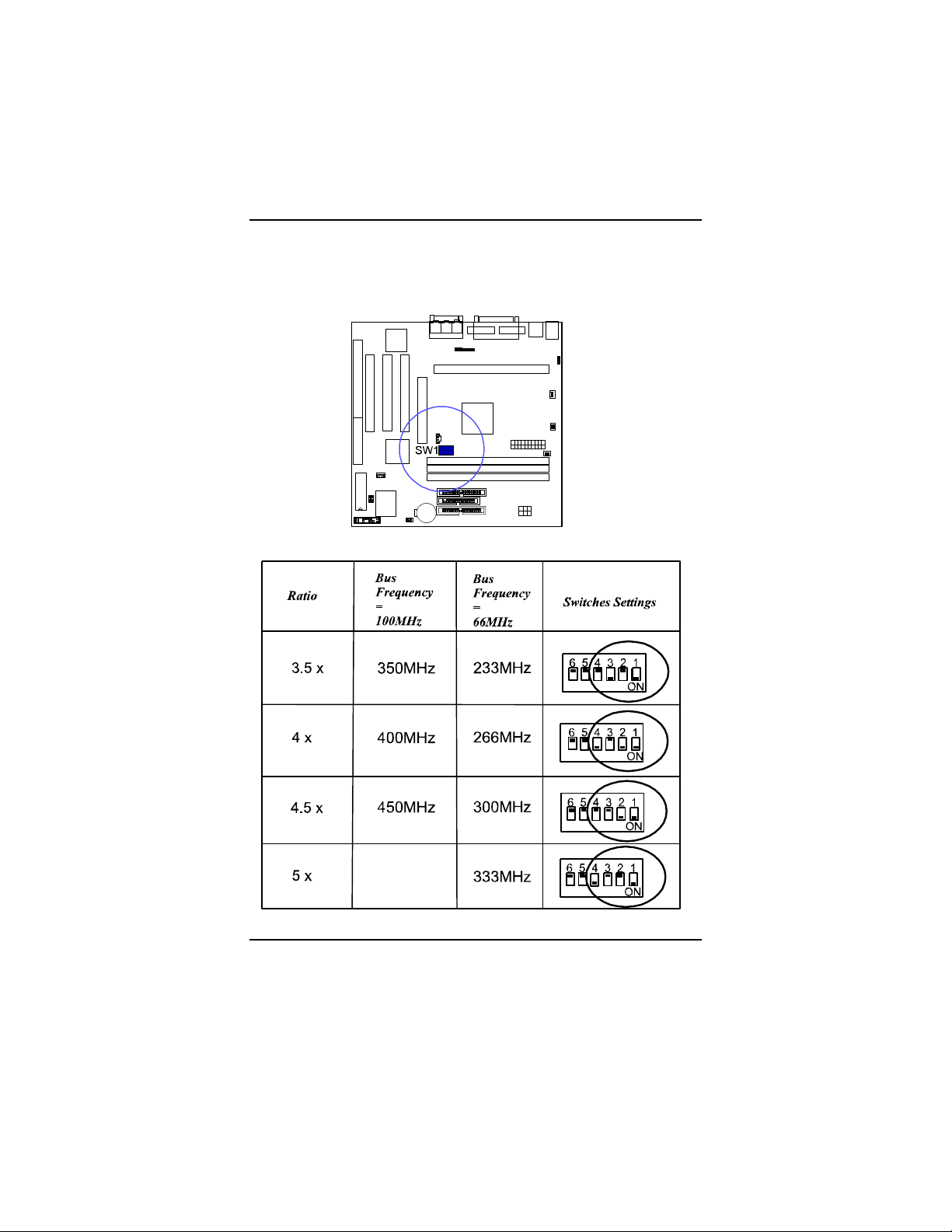

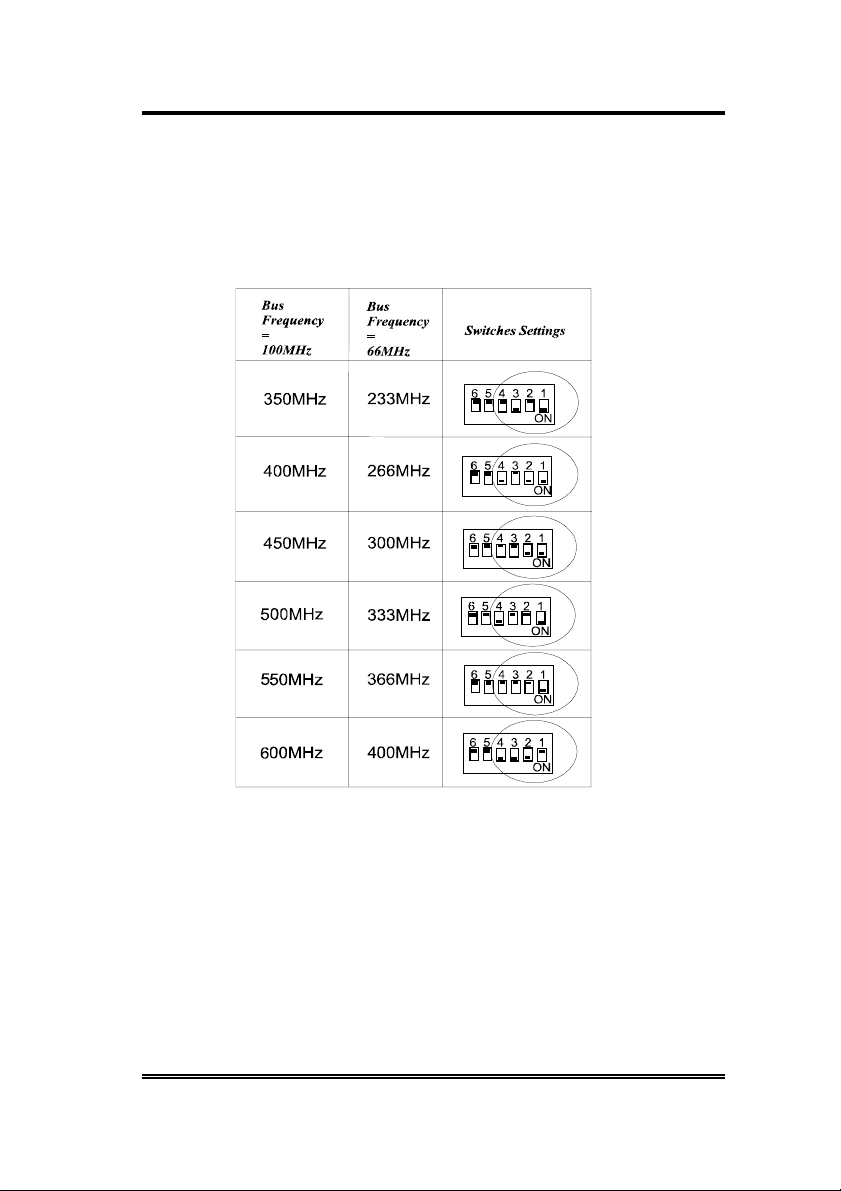

CPU Internal Frequency Selection:
SW1-1, SW1-2, SW1-3, SW1-4

These four switches are used to decide the internal frequency of the CPU.

4

Addendum

KB-6130

(25-10894-30 / Jan. 1999)

The mainboard had been improved to support more CPU frequency

selections since this manual was printed. The new table below is used to

replace the table on Page 19.

Chapter 2

BIOS Setup

The motherboard comes with an Award BIOS chip that contains the ROM
Setup information of your system. This chip serves as an interface between
the processor and the rest of the motherboard's components. This chapter
explains the information contained in the Setup program and tells you how
to modify the settings according to your system configuration.

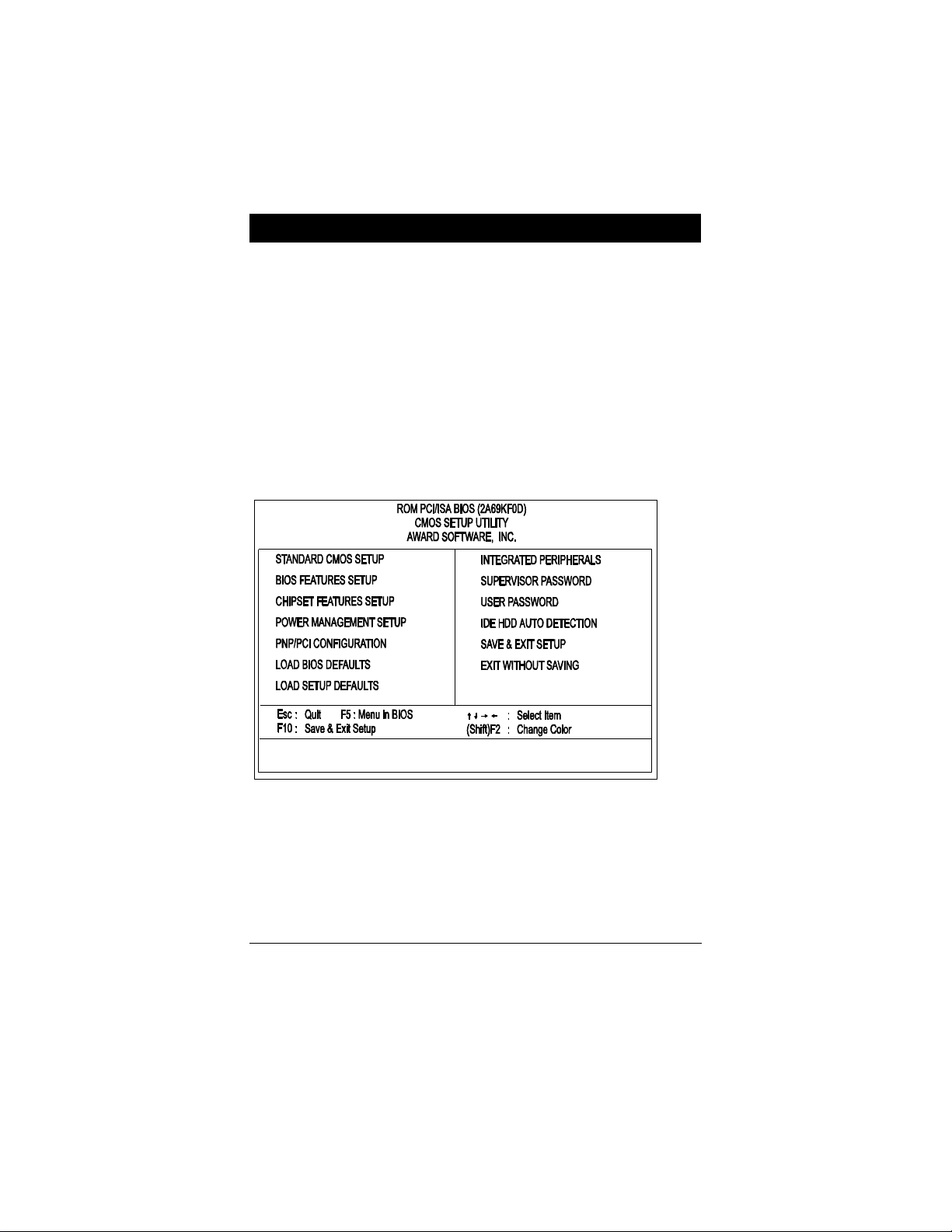

CMOS Setup Utility

A Setup program, built into the system BIOS, is stored in the CMOS
RAM. This Setup utility program allows changes to the motherboard
configuration settings. It is executed when the user changes system
configuration; user changes system backup battery; or the system detects a
configuration error and asks the user to run the Setup program. Use the
arrow keys to select and press Enter to run the selected program. The F5:

5

KB-6130 Motherboard Manual

Menu in BIOS is a convenient feature for users to refer the board settings
in this BIOS top level menu.

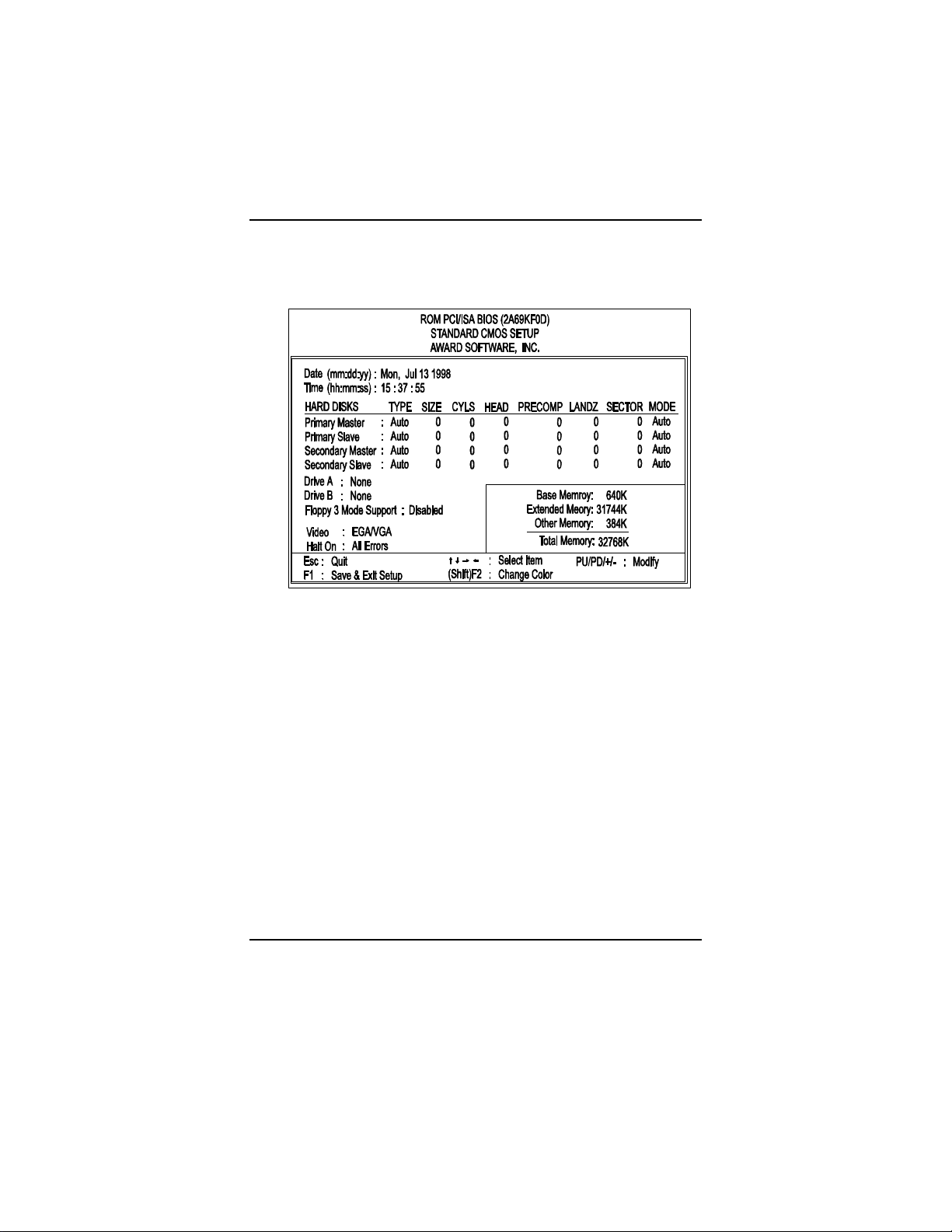

Standard CMOS Setup

The Standard CMOS Setup screen is displayed above. Each item may have
one or more option settings. The system BIOS automatically detects
memory size, thus no changes are necessary. Use the arrow keys to
highlight the item and then use the PgUp or PgDn keys to select the value
you want in each item.

Hard Disk Configurations

TYPE: Select User to fill the remaining fields. Select Auto to
detect the HDD type automatically (recommended).

SIZE: The hard disk size. The unit is Mega Bytes.
CYLS: The cylinder number of the hard disk.
HEAD: The read/write head number of hard disk.
PRECOMP: The cylinder number at which the disk drive changes

the write current.
LANDZ: The cylinder number that the disk drive heads
(read/write) are seated when the disk drive is parked.

6

BIOS Setup

SECTOR: The sector number of each track defined on the hard
disk.
MODE: Select Auto to detect the mode type automatically. If your
hard disk supports the LBA mode, select LBA or Large. However,
if your hard disk cylinder is more than 1024 and does not support
the LBA function, set at Large. Select Normal if your hard disk
supporting cylinders is below 1024.

Floppy 3 Mode Support

This feature allows you to install a 3.5” (1.2MB) NEC 9801 floppy
drive.
The options are: Disabled (Default), Drive A.

Software Turbo Speed

The BIOS supports Software Turbo Speed feature. Instead of pressing the
Turbo Speed Button on the front panel, simply press the Alt, Ctrl, and +
keys at the same time to enable the Turbo Speed feature; and press the Alt,
Ctrl, and - keys at the same time to disable the feature.

7

KB-6130 Motherboard Manual

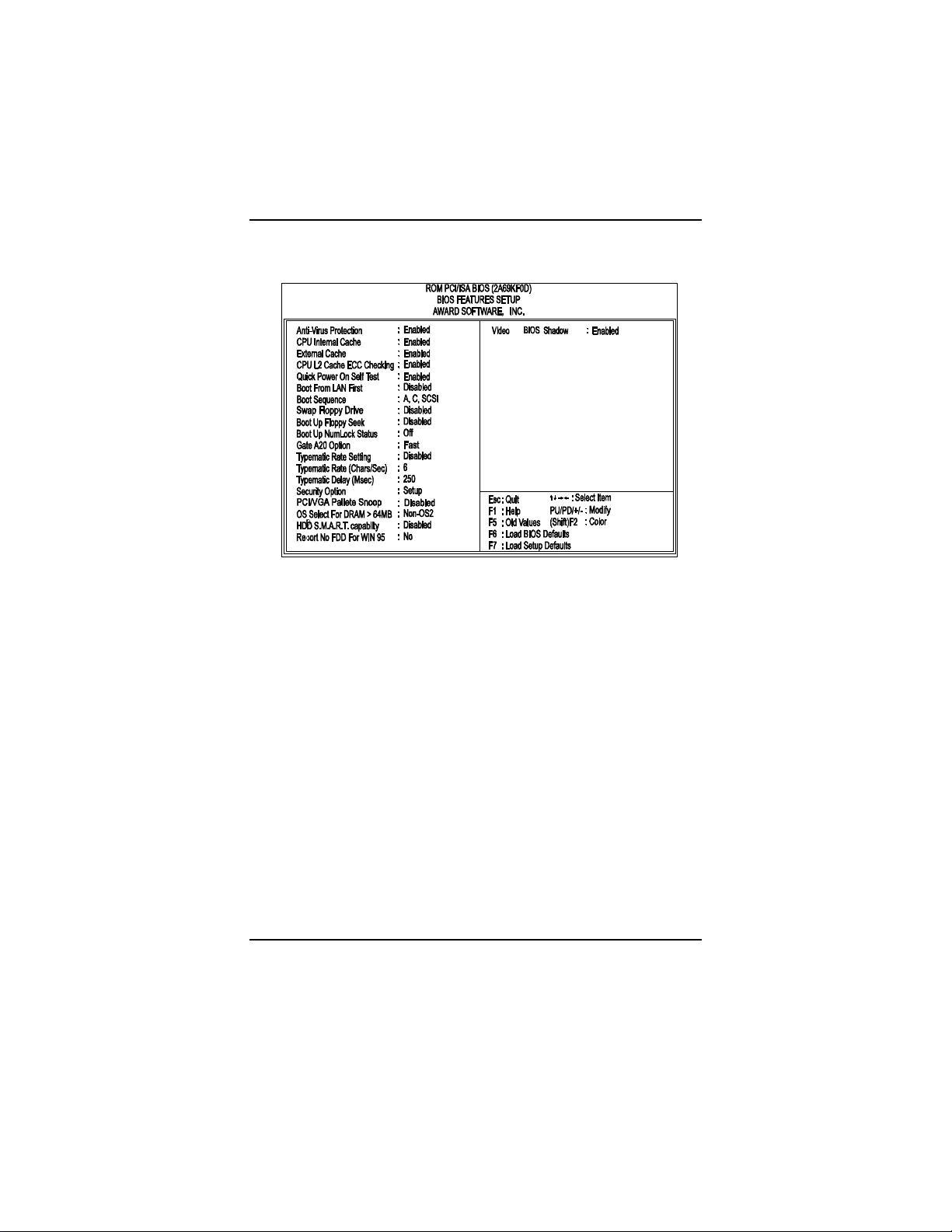

BIOS Features Setup

Anti-Virus Protection

This feature starts the virus scan tool to detect if boot virus in boot
sector of the first hard disk drive when booting up.
The options are: Enabled (Default), Disabled.

CPU Internal Cache

When enabled, improves the system performance. Disable this item
when testing or trouble-shooting.
The options are: Enabled (Default), Disabled.

External Cache

When enabled, supports an optional cache SRAM.
The options are: Enabled (Default), Disabled.

CPU L2 Cache ECC Checking

The default setting, Enabled, activates the CPU L2 cache’s Error
Check & Correction feature.

The options are: Enabled (Default), Disabled.

8

BIOS Setup

Quick Power On Self Test

When enabled, allows the BIOS to bypass the extensive memory
test. The options are: Enabled (Default), Disabled.

Boot From LAN First

This feature makes the system bootable by the remote server via
LAN. The options are: Enabled, Disabled (Default).

Boot Sequence

Allows the system BIOS to first try to boot the operating system
from the selected disk drive. The options are: A, C, SCSI (Default);
C, A, SCSI; C, CDROM, A; CDROM, C, A; D, A, SCSI; E, A,
SCSI; F, A, SCSI; SCSI, A, C; SCSI, C, A; C Only; LS/ZIP, C.

Swap Floppy Drive

Allows you to switch the order in which the operating system
accesses the floppy drives during boot up.
The options are: Enabled, Disabled (Default).

Boot Up Floppy Seek

When enabled, assigns the BIOS to perform floppy diskette drive
tests by issuing the time-consuming seek commands.
The options are: Enabled (Default), Disabled.

Boot Up Numlock Status

When set to On, allows the BIOS to automatically enable the Num
Lock function when the system boots up. With the NumLock
enabled, numerical keypad on the keyboard can be used right after
bootup. The options are: On (Default), Off.

Gate A20 Option

Gate A20 refers to the way the system addresses memory above 1
MB (extended memory). When set to Fast, the system chipset
controls Gate A20. When set to Normal, a pin in the keyboard
controller controls Gate A20. Setting Gate A20 to Fast improves
system speed, particularly with OS/2 and Windows.
The options are: Fast (Default), Normal.

Typematic Rate Setting

9

KB-6130 Motherboard Manual

The term typematic means that when a keyboard key is held down,
the character is repeatedly entered until the key is released. When
this item is enabled, you may change the typematic repeat rate.
The options are: Disabled (Default), Enabled.

Typematic Rate (Chars/Sec)

Sets the rate of a character repeat when the key is held down.
The options are: 6 (Default), 8, 10, 12, 15, 20, 24, 30.

Typematic Delay (Msec)

Sets the delay time before a character is repeated.
The options are: 250 (Default), 500, 750, 1000 millisecond.

Security Option

Allows you to set the security level of the system.
The options are: Setup (Default), System.

PCI/VGA Pallete Snoop

This feature must be set at Enabled if any ISA adapter card
installed in the computer requires VGA pallete Snoop.
The options are: Disabled (Default), Enabled.

OS Select For DRAM > 64MB

Select OS2 only if you are running OS/2 operating system with
greater than 64 MB of RAM on your system.
The options are: Non-OS2 (Default), OS2.

HDD S.M.A.R.T. Capability

“S.M.A.R.T” is the abbrevation of “Self-Mointoring, Analysis and
Reproting Technology”. To enable it will assist you in preventing
some (but not all) system down time due to hard disk drive failure.
The harddisk must be S.M.A.R.T-comptiblel in order to use this
feature. The options are: Enabled, Disabled (Default).

10

BIOS Setup

Report No FDD For WIN 95

When the features of Drive A set at None. This feature BIOS will
not report to the opeating system Windows 95 or Windows 98 if set
at Yes. If set at No, the BIOS will report to the the opeating system
Windows 95 or Windows 98 the message 5.24” floppy for Win
95”. The options are: Yes, No (Default).

Video BIOS Shadow

Allows the BIOS to copy the video ROM code of the add-on video
card to the system memory for faster access.
The options are: Enabled (Default), Disabled.

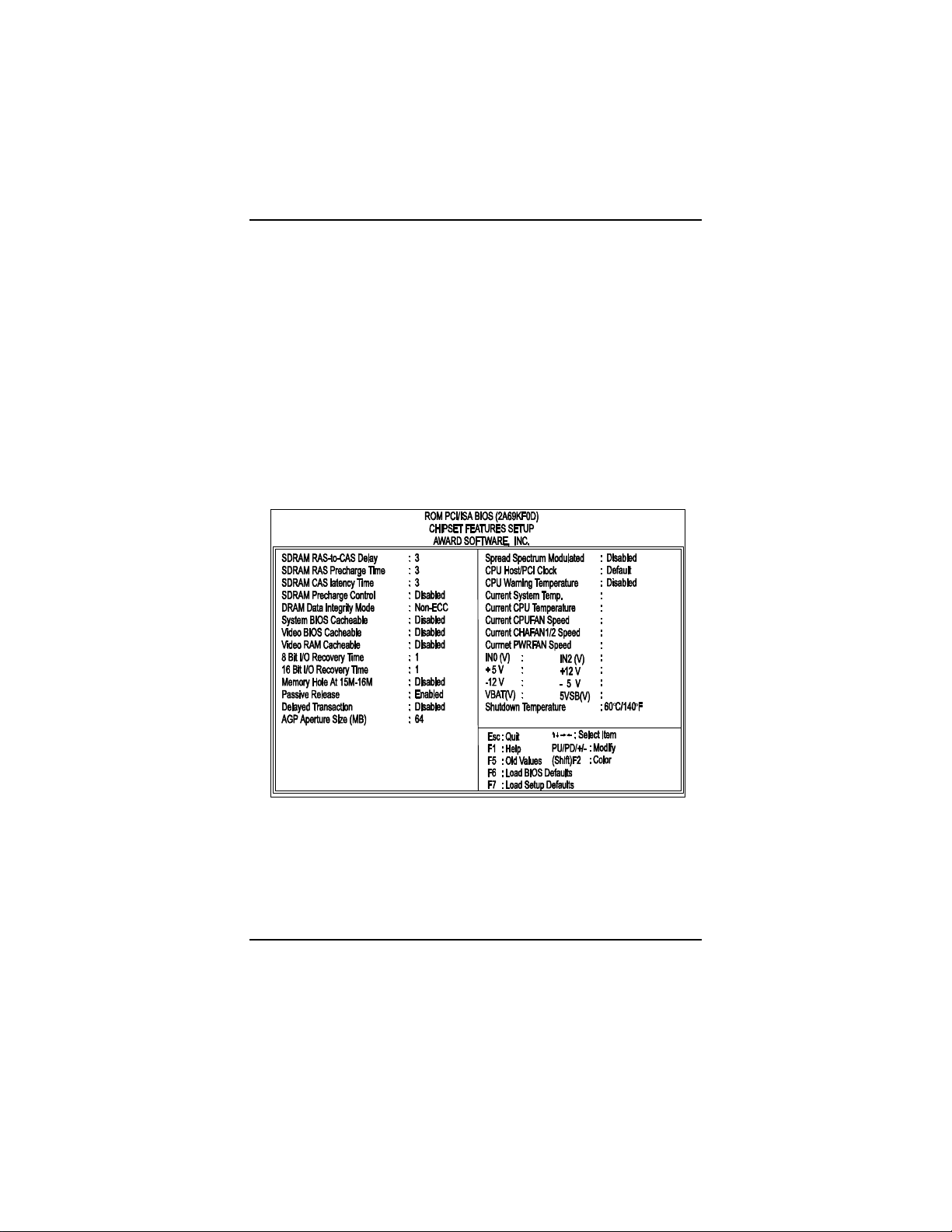

Chipset Features Setup

SDRAM RAS-to-CAS Delay

This feature allows you to define the delay time that from the
SDRAM RAS# active to CAS# active.
The settings are 2 Clocks or 3 Clocks. The default setting is 3
Clocks, depends on the CPU frequency and DRAM type.

11

KB-6130 Motherboard Manual

SDRAM RAS Precharge Time

Allows you to select the DRAM RAS# Precharge Time (unit:
clock).
The options are: 4, 3 (Default).

SDRAM CAS lattency Time

If any SDRAM DIMM is installed, this feature allows you to select
the CAS Latency. The options are: 3 (Default), 2.

DRAM Data Integrity Mode

This feature provides software configurablity of selecting between
ECC (ECC generation and checking/correction) mode or non-ECC
mode of operation of the DRAM interface.
The options are: Non-ECC (Default), ECC.

System BIOS Cacheable

Selecting Enabled allows caching of the system BIOS ROM at
F0000h-FFFFFh, resulting in better system performance. However,
if any program writes to this memory area, a system error may
result.
The options are: Disabled (Default), Enabled.

Video RAM Cacheable

Selecting Enabled allows caching of the video BIOS ROM at
C0000h to C7FFFh, resulting in better video performance.
However, if any program writes to this memory area, a memory
access error may result.
The options are: Enabled, Disabled (Default).

8 Bit I/O Recovery Time

Allows you to set the 8-bit ISA I/O recovery time.
The options are: 1 (Default), 2, 3, 4, 5, 6, 7, NA, 8. Unit: Bus
clock.

16 Bit I/O Recovery Time

Allows you to set the 16-bit ISA I/O recovery time.
The options are: 1 (Default), 2, 3, NA, 4. Unit: Bus clock.

12

BIOS Setup

Memory Hole At 15M-16M

When enabled, the memory hole at the 15MB address will be
relocated to the 15~16MB address range of the ISA or PCI cycle
when the processor accesses the 15~16MB address area.
When disabled, the memory hole at the 15MB address will be
treated as a DRAM cycle when the processor accesses the
15~16MB address area.
The options are: Enabled, Disabled (Default).

Passive Release

Set this option to Enabled to enable passive release for the Intel
PIIX4E chip. The options are: Enabled (Default), Disabled.

Delayed Transaction

Enable this feature to abort the current PCI master cycle and to
accept the new PCI master request, it reaccepts the original PCI
master and returns the PCI data phase to the original PCI master.
It will enhance the system performance. The options are: Enabled,
Disabled (Default).

AGP Aperture Size (MB)

It allows you to select the main memory frame size fo AGP use.
The options are 4, 8, 16, 32, 64 (Default), 128, 256MB.

Spread Spectrum Modulated

This feature is used to set the spread Spectrum to be center spread
type or down spread type.
The options are: Enabled, Disabled (Default).

CPU Host/PCI Clock

This feature allows you to set the CPU/PCI clock frequency.
The options are: Default (Default), 63/34MHz, 75/37MHz,
83/41MHz, 66/33MHz, 103/34MHz, 112/33MHz, 133/44MHz,
100/33MHz.

13

KB-6130 Motherboard Manual

CPU Warning Temperature

This feature allows you to set the temperature to slow down the
CPU clock frequency.
The options are: Disabled (Default), 50oC/122oF, 53oC/127oF,
56oC/133oF, 60oC/140oF, 63oC/145oF, 66oC/151oF, 70oC/158oF.

Current System Temp.

This field displays the current system temperature, if your
computer contains a monitoring system.

Current CPU Temperature

If your CPU internal frequency is 333MHz or above, it supports the
internal thermal diode. This feature will report the CPU internal
temperature.

Current CPUFAN Speed

These fields display the current speed of the CPU fan, if your
computer contains a monitoring system.

Current CHAFAN1/2 Speed

These fields display the current speed of he chassis fan
CHA_FAN1/2, if your computer contains a monitoring system.

Current PWRFAN Speed

These fields display the current speed of the fan of the power
supply PWR_FAN, if your computer contains a monitoring system.

IN0-IN2 (V)

The IN0 is Vcore, the CPU Core Voltage. The IN2 is 3.3V
These fields display the current voltage of up to seven voltage input
lines, if your computer contains a monitoring system.

+5V,;+12V; -12V; -5V; VBAT(V); 5VSB(V);

This fields display the power supply voltages.

14

BIOS Setup

Shutdown Temperature

When Windows 98 installed, this feature helps to shutdown the
system when the system temperature is as high as the selected
temperature to prevent from the overheat problem.
The options are: 60oc/140oF (Default), 65oc/149oF, 70oc/158oF,
75oc/167oF .

Power Management Setup

Power Management

This item allows you to adjust the power management features.
Select Disable for disabling global power management features.
Select User Defined for configuring your own power management
features. MIN Saving initiates all predefined timers in their
minimum values. MAX Saving, on the other hand, initiates
maximum values.
The options are: Disabled, User Defined (Default), MIN Saving,
MAX Saving.

15

KB-6130 Motherboard Manual

PM Control by APM

The option No allows the BIOS to ignore the APM (Advanced
Power Management) specification. Selecting Yes will allow the
BIOS wait for APM's prompt before it enters Doze mode, Standby
mode, or Suspend mode. If the APM is installed, it will prompt the
BIOS to set the system into power saving mode when all tasks are
done. The options are: No, Yes (Default).

Video Off Method

The option V/H SYNC+Blank allows the BIOS to blank off screen
display by turning off the V-Sync and H-Sync signals sent from
add-on VGA card. DPMS Supported allows the BIOS to blank off
screen display by your add-on VGA card which supports DPMS
(Display Power Management Signaling function). Blank Screen
allows the BIOS to blank off screen display by turning off the red­green-blue signals.
The options are: V/H SYNC+Blank, DPMS (Default), Blank
Screen.

Video Off After

This feature allows you to select under which mode to power off
your monitor. The options are: Standby, Doze, NA, Suspend
(Default).

MODEM Use IRQ

This feature allows you to select the IRQ# of the system that is the
same IRQ# as the modem use.
The options are: NA, 3 (Default), 4, 5, 7, 9, 10, 11.

Doze Mode

When disabled, the system will not enter Doze mode. The specified
time option defines the idle time the system takes before it enters
Doze mode.
The options are: Disable (Default), 1, 2, 4, 8, 12, 20, 30, 40 Min, 1
Hr.

16

BIOS Setup

Standby Mode

When disabled, the system will not enter the Standby mode. The
specified time option defines the idle time before enters Standby
mode.
The options are: Disable (Default), 1, 2, 4, 8, 12, 20, 30, 40 Min, 1
Hr.

Suspend Mode

When disabled, the system will not enter Suspend mode. The
specified time option defines the idle time the system takes before
it enters Suspend mode.
The options are: Disable (Default), 1, 2, 4, 8, 12, 20, 30, 40 Min, 1
Hr.

HDD Power Down

Selecting Disable will turn off the hard disk drive (HDD) motor.
Selecting 1 Min..15 Min allows you define the HDD idle time
before the HDD enters the Power Saving Mode. The option When
Suspend lets the BIOS turn the HDD motor off when system is in
Suspend mode.
The options 1 Min..15 Min and When Suspend will not work
concurrently. When HDD is in the Power Saving Mode, any access
to the HDD will wake the HDD up.
The options are: Disable (Default), 1 Min..15 Min, When Suspend.

Throttle Duty Cycle

This option specifies the speed at which the system clock runs in
power saving modes. The settings are expressed as a ratio between
the normal clock speed and the power down clock speed.
The settings are 12.5 %, 25 %, 37.5 %, 50 %, 62.5 % (Default),
75%.

PCI/VGA Act-Monitor

Enable this feature to check if your PCI/VGA monitor can enter
power-saving modes. The options are: Disabled (Default), Enabled.

17

KB-6130 Motherboard Manual

Soft-Off by PWR-BTTN

This feature is designed for the case when you use an ATX power
supply. The selection Delay 4 Sec. will allow the system shut down
after 4 seconds after the power button is pressed. The selection
Instant-Off will allow the system shut down immediately once the
power button is pressed.
The settings are Delay 4 Sec. (Default) or Instant-Off.

PWRON After PWR-Fail

When the system is shut down owing to the power failure, the
system will not be back to power on by itself. This feature allows
you to set the system back to which power status of the system
when the system power is resumed.
The options are Former-Sts (Default), On, or Off.

CPUFAN Off In Suspend

Enabling this feature will allow the CPU fan stop running when
the system enters Suspend mode.
The options are Disabled or Enabled (Default).

Resume by Ring

An input signal on the serial Ring Indicator (RI) line (in other
words, an incoming call on the modem) awakens the system from a
soft off state.
The options are Disabled or Enabled (Default).

Resume by Alarm

When set at Enabled, it allows you to set the time when the system
to be turned on from the system power-off status.
The settings are Disabled (Default) or Enabled.

Date (of Month) Alarm

If Resume by Ring is set at Enabled , this feature allows you to set
the day of the alarm starts when the RTC Alarm Resume From
Soft Off is set to be Enabled. The options are: 0 (Default), 1..31.

18

BIOS Setup

Time (hh:mm:ss) Alarm

If Resume by Ring is set at Enabled , this feature allows you to set
the time of the alarm starts when the RTC Alarm Resume From
Soft Off is set to be Enabled. The options are: 7: 0: 0 (Default). hh
(hour) - 0, 1, 2,.., 23; mm (minute) - 0, 1, 2,..,59; ss (second) - 0,
1, 2,..,59.

Wake Up On LAN

When set at Enabled, an input signal comes from the other
client/server on the LAN awakes the system from a soft off state if
connected over LAN.
The options are Disabled or Enabled (Default).

IRQ 8 Break Suspend

Enable this feature will keep the system not in the Suspend mode
when IRQ8 is active.
The settings are Disabled (Default) or Enabled.

IRQ[3-7,9-15], NMI

Enable this feature will keep the system not in the Suspend mode
when IRQ3, 4, 5, 6, 7, 9, 10, 11, 12, 13, 14, 15 is active.
The options are Disabled (Default) or Enabled.

Primary IDE 0, Primary IDE 1, Secondary IDE 0, Secondary IDE
1, Floppy Disk, Serial Port, Parallel Port

Enable this feature will keep the system not in the Suspend mode
when the selected device is active. The settings are Disabled or
Enabled. The default setting is Disabled, except Serial Port.

19

KB-6130 Motherboard Manual

PNP/PCI Configuration

PNP OS Installed

If your operating system is a Plug-and-Play one, such as Windows
95, select Yes. The options are: No (Default), Yes.

Resources Controlled By

If set at Auto, the BIOS arranges all system resources. If there
exists conflict, select Manual. The options are: Auto (default),
Manual. The manual options of IRQ- / DMA- assigned to are:
Legacy ISA, PCI/ISA PnP.

Reset Configuration Data

When enabled, allows the system to clear the last BIOS
configuration data and reset with the default data. The options are:
Enabled, Disabled (default).

Assign IRQ For VGA

If your PCI VGA card does not need an IRQ, select Disabled to
release an IRQ for system use.
The options are: Enabled, Disabled (Default).

20

BIOS Setup

Slot 1/2/3 Use IRQ No.

This feature allows you to assign the PCI IRQ numbers for PCI
slots. Selecting the default, AUTO, allows the PCI controller to
automatically allocate the IRQ numbers.
The options are: Auto (Default), 3, 4, 5, 7, 9, 10, 11, 12, 14, 15.

Audio Use IRQ No.

This feature allows you to assign the PCI IRQ numbers for onboard
PCI audio device. Selecting the default, AUTO, allows the PCI
controller to automatically allocate the IRQ numbers.
The options are: Auto (Default), 3, 4, 5, 7, 9, 10, 11, 12, 14, 15.

21

KB-6130 Motherboard Manual

Load BIOS Defaults

BIOS defaults contain the most appropriate values of the system parameters
that allow minimum system performance. The OEM manufacturer may
change the defaults through MODBIN before the binary image burns into
the ROM.

Load Setup Defaults

Selecting this field loads the factory defaults for BIOS and Chipset
Features which the system automatically detects.

22

BIOS Setup

Integrated Peripherals

IDE HDD Block Mode

When enabled, the system executes read/write requests to hard disk
in block mode. The options are: Enabled (Default), Disabled.

IDE Primary Master PIO

Allows an automatic or a manual configuration of the PCI primary
IDE hard disk (master) mode.
The options are: Auto (Default), Mode 0, Mode 1, Mode 2, Mode
3, Mode 4.

IDE Primary Slave PIO

Allows an automatic or a manual configuration of the PCI primary
IDE hard disk (slave) mode. The options are: Auto (Default), Mode
0, Mode 1, Mode 2, Mode 3, Mode 4.

23

KB-6130 Motherboard Manual

IDE Secondary Master PIO

Allows an automatic or a manual configuration of the PCI
secondary IDE hard disk (master) mode.
The options are: Auto (Default), Mode 0, Mode 1, Mode 2, Mode
3, Mode 4.

IDE Secondary Slave PIO

Allows an automatic or a manual configuration of the PCI
secondary IDE hard disk (slave) mode.
The options are: Auto (Default), Mode 0, Mode 1, Mode 2, Mode
3, Mode 4.

IDE Primary Master UDMA

Allows you to select the first PCI IDE channel of the first master
hard disk mode or to detect it by the BIOS if the hard disk supports
UDMA (Ultra DMA, faster than DMA). The options are: Auto
(Default), Disabled.

IDE Primary Slave UDMA

Allows you to select the first PCI IDE channel of the first slave
hard disk mode or to detect it by the BIOS if the hard disk supports
UDMA (Ultra DMA, faster than DMA). The options are: Auto
(Default), Disabled.

IDE Secondary Master UDMA

Allows you to select the second PCI IDE channel of the secondary
master hard disk mode or to detect it by the BIOS if the hard disk
supports UDMA (Ultra DMA, faster than DMA). The options are:
Auto (Default), Disabled.

IDE Secondary Slave UDMA

Allows you to select the second PCI IDE channel of the secondary
slave hard disk mode or to detect it by the BIOS if the hard disk
supports UDMA (Ultra DMA, faster than DMA). The options are:
Auto (Default), Disabled.

24

BIOS Setup

On-Chip Primary PCI IDE

When enabled, allows you to use the onboard primary PCI IDE.
The options are: Enabled (Default), Disabled.

On-Chip Secondary PCI IDE

When enabled, allows you to use the onboard secondary PCI IDE.
The options are: Enabled (Default), Disabled.

USB Keyboard Support

If you install a USB keyboard, please set at Enabled.
The options are: Enabled, Disabled (default).

Init Display First

When you install an AGP VGA card and/or a PCI VGA card on
the board, this feature allows you to select the initiation of the
monitor display from which card. The options are: PCI Slot
(Default), AGP.

Onboard FDC Controller

When enabled, the floppy diskette drive (FDD) controller is
activated.
The options are: Enabled (Default), Disabled.

Onboard Serial Port 1

If the serial port 1 uses the onboard I/O controller, you can modify
your serial port parameters. If an I/O card needs to be installed,
COM3 and COM4 may be needed.
The options are: 3F8/IRQ4 (Default), 2F8/IRQ3, 3E8/IRQ4,
2E8/IRQ3, Disabled.

Onboard Serial Port 2

If the serial port 2 uses the onboard I/O controller, you can modify
your serial port parameters. If an I/O card needs to be installed,
COM3 and COM4 may be needed.
The options are: 2F8/IRQ3 (Default), 3E8/IRQ4, 2E8/IRQ3,
Disabled, 3F8/IRQ4.

25

KB-6130 Motherboard Manual

UART2 Mode

Select an operating mode for the second serial port. Set at
Standard, if you use COM2 as the serial port as the serial port,
instead as an IR port.
The options are: Standard (Default), ASK-IR, IrDA 1.0.

Duplex Select

When the option ASK-IR of the above feature selected, this feature
appears on the display to allow users to select the duplex mode.
The options are: Half (Default), Full.

Onboard Parallel Port

Allows you to select from a given set of parameters if the parallel
port uses the onboard I/O controller.
The options are: 378/IRQ7 (Default), 278/IRQ5, Disabled,
3BC/IRQ7.

Parallel Port Mode

Allows you to connect with an advanced printer.
The options are: Normal (Default), EPP1.7+SPP, ECP+EPP1.7,
SPP, EPP1.9+SPP, ECP+EPP1.9, ECP.

ECP Mode Use DMA

If your select ECP, ECP+EPP1.9, or ECP+EPP1.7 in Parallel Port
Mode, this feature allows you to select Direct Memory Access
(DMA) channel. The options are: 3 (Default), 1.

26

BIOS Setup

Supervisor/User Password

To enable the Supervisor/User passwords, select the item from the Standard
CMOS Setup. You will be prompted to create your own password. Type
your password up to eight characters and press Enter. You will be asked to
confirm the password. Type the password again and press Enter. You may
also press Esc to abort the selection and not enter a password. To disable
password, press Enter when you are prompted to enter password. A
message appears, confirming the password is disabled.

Under the BIOS Feature Setup, if System is selected under the Security
Option field and the Supervisor Password is enabled, you will be prompted
for the Supervisor Password every time you try to enter the CMOS Setup
Utility. If System is selected and the User Password is enabled, you will be
requested to enter the User Password every time you reboot the system. If
Setup is selected under the Security Option field and the User Password is
enabled, you will be prompted only when you reboot the system.

27

KB-6130 Motherboard Manual

IDE HDD Auto Detection

The IDE Hard Disk Drive Auto Detection feature automatically configures
your new hard disk. Use it for a quick configuration of new hard drives.
This feature allows you to set the parameters of up to four IDE HDDs. The
option with (Y) are recommended by the system BIOS. You may also keys
in your own parameters instead of setting by the system BIOS. After all
settings, press Esc key to return the main menu. For confirmation, enter the
Standard CMOS Setup feature.

28

BIOS Setup

Save and Exit Setup

After you have made changes under Setup, press Esc to return to the main
menu. Move cursor to Save and Exit Setup or press F10 and then press Y to
change the CMOS Setup. If you did not change anything, press Esc again
or move cursor to Exit Without Saving and press Y to retain the Setup
settings. The following message will appear at the center of the screen to
allow you to save data to CMOS and exit the setup utility:

SAVE to CMOS and EXIT (Y/N)?

Exit without Saving

If you select this feature, the following message will appear at the center of
the screen to allow you to exit the setup utility without saving CMOS
modifications:

Quit Without Saving (Y/N)?

29

KB-6130 Motherboard Manual

This Page Left Blank for Note

30
