FIC FW37M, FW37B, FW37 User Manual

FW37

MAINBOARD

MANUAL

DOC No.: M99B01
Rev. : A1
Date : 6, 2000
Part No. : 25-11427-21

Notice

Handling Precautions

Warning:

1. Static electricity may cause damage to the integrated circuits on

the mainboard. Before handling any motherboard outside of its
protective packaging, ensure that your body is not electrostatically
charged.

2. There is a danger of explosion if the battery is incorrectly replaced.
Replace only with the same or an equivalent type of battery as
recommended by the manufacturer.

3. Discard used batteries according to the manufacturer’s
instructions.

Observe the following basic precautions when handling the motherboard
or other computer components:

n Wear a static wrist strap which fits around your wrist and is

connected to a natural earth ground.

n Touch a grounded or anti-static surface or a metal fixture such as a

water pipe.

n Ensure add-on cards, mainboards, and models do not come into

contact with the golden fingers connectors, plugged into the expan­sion slot.

The above methods prevent static build-up and allow it to be discharged
properly.

Trademark

All trademarks mentioned in this manual are registered property of
the respective owners.

Handling Precautions

This manual may not, in whole or in part, be photocopied, reproduced,
transcribed, translated, or transmitted in whatever form without the
written consent of the manufacturer, except for copies retained by the
purchaser for personal archival purposes.

T able of Contents

Table of Contents

Chapter 1 Overview

Package Checklist...................................................................... 1- 2

Mfg. Optional Spec. of FW37, FW37(M), FW37(B) .................. 1- 2

The FW37 Mainboard ............................................................... 1-3

Main Features................................................................................ 1-4

ACPI Ready ................................................................................... 1- 6

FIC Unique Innovation for Users (NOVUS) -

Enhanced Mainboard Features and System Support .................. 1-7

Chapter 2 Installation Procedures

Quick Reference (from Page 2-2 to 2-4) .......................................... 2- 2

Mainboard Layout .................................................................... 2-2

Mfg. Optional Spec. of FW37, FW37(M), FW37(B) .................. 2- 3

1). Clear CMOS, Clear Password, Front Side Bus Speed Select,
Over Clock Driving, Onboard LAN Disable, CPU T ype

Select ............................................................................ 2- 3

2). Front Panel Block Cable Connection ............................ 2 - 4

3). CPU Fan Installation .................................................... 2- 4

1). Set System Jumpers .................................................................. 2-5

CMOS Clearance Function: JP1 (CLRCMOS) ................... 2- 6

Password Clearance Function: JP2 (CLRPWD) ................. 2- 6

Disabling Onboard LAN Feature: JP4 ............................... 2 - 7

Enabling Over V oltage Driving: JP45 (Magic T uner) ......... 2 -8

CPU Type Selection: JP6 ................................................... 2- 8

2). Install RAM Modules .............................................................. 2-9

Install and Remove DIMMs .............................................. 2 - 9

3). Install the CPU .......................................................................... 2-10

4). Install Expansion Cards............................................................. 2-10

5). Connectors ............................................................................... 2-12

Floppy Diskette Drive Connector: FDD ............................ 2-12

IDE HDD Device Connectors: PRIMARY, SECONDARY.. 2-13

Front Panel Block Connector: J1 ....................................... 2-13

A TX Power Connector: POWER1 ..................................... 2-14

CPU Fan Connector: F AN1 ............................................... 2-15

System Case Fan Connector: FAN2 .................................. 2-16

W ake-On-LAN Connector: WOL1 .................................... 2-16

i

FW37 Mainboard Manual

TV Audio Input Connector: J9 (VIDEO AD) ..................... 2-17

Flat Panel Display Connector: FTP1

(for specified customers)................................................... 2-17

Infrared Connector: IR....................................................... 2-18

CD Audio-In Connector: J10, J11 ...................................... 2-18

PS/2 Keyboard and Mouse Connector: PS2_KB, PS2_MS 2-19
Universal Serial Bus Connectors: Rear and Front USBs ... 2-19

Serial Port Connectors: COM1, COM2 .............................. 2-20

Printer Connector: LPT...................................................... 2-20

Video Graphics Accelerator Connectors: VGA.................. 2-20

GAME/MIDI Connector: GAME....................................... 2-21

Audio I/O Jacks: LINE_OUT , LINE_IN, MIC_IN .............. 2-21

Local Area Network Jack: LAN (optional)......................... 2-21

Chapter 3 BIOS Setup

CMOS Setup Utility ....................................................................... 3- 1

Standard CMOS Setup................................................................... 3-2

Hard Disk Configurations.......................................................... 3- 2

Advanced BIOS Features .............................................................. 3-3

Advanced Chipset Features .......................................................... 3-7

Integrated Peripherals.................................................................... 3-10

Power Management Setup ............................................................. 3-16

PnP/PCI Configurations................................................................. 3-21

PC Health Status ............................................................................ 3-22

Frequency/Voltage Control ............................................................ 3-23

Load Fail-Safe Defaults.................................................................. 3-24

Load Optimized Defaults................................................................ 3-24

Supervisor/User Password ............................................................ 3-25

Save and Exit Setup ....................................................................... 3-26

Exit without Saving ........................................................................ 3-26

Quick Reference (German) G- 1
Quick Reference (French) F- 1
Quick Reference (Spanish) S-1
Quick Reference (Japanese) J-1
Quick Reference (Chinese Simplified) C-1

ii

Overview

Chapter 1

Overview

The new Micro A TX, Socket 370 1stMainboard FW37 supports a full range of
the latest generation Intel® and Cyrix processors. Intel’s new Celeron ™ and
lightening fast Coppermine processors of up to 866 MHz and up* are sup­ported with Front Side Bus speeds of 66/100/133 MHz. Built using the leading
edge 0.18 micron technology the Intel FCPGA Pentium®!!! processors pro­vide a significant performance scaling boost over previous Pentium®!!! pro­cessors. (*: not tested yet)

The Intel 810/810E accelerated Hub architecture provides exceptional onboard
video. Direct AGP and it’s ef ficient memory utilization allows a 4MB SDRAM
display cache (mfg. option) and Dynamic Video Memory Technology. The
1stMainboard FW37 also features Onboard Audio provided by the state of
the art embedded Codec and onboard Lan supported by the Realtek RTL
8139B/C (mfg. option).

Support for the Ultra DMA/66 protocol and its high-speed interface further
ensures that data transfer speeds are improved, especially for long sequential
transfers required by audio/visual applications. With 2 DIMM there is up to
512 MB available SDRAM.

The 1stMainboard FW37 comes with a versatile range of I/O features such as
2 serial port, 1 parallel port, 1 PS/2 mouse and keyboard connector, 2 USB
connectors, 1 LAN jack (mfg. option), 1 front USB pin header (mfg. option), 1
VGA connector, 1 media connector (MIDI /game port, Line-in, Line-out and
Mic-in) .1 DFTV Pin Header provides TV out and LCD panel support. Ample
expansion is available through 3 PCI and 1 AMR.

Other key features are Remote On/Off, Auto Power Failure Recovery, Key­board /Mouse Power On, W ake on Lan ( WOL ), integrated temperature moni­toring and system fan control. Included also is CD Pro with enhanced drivers
and the new CD Plus package containing 9 bundled soft-ware solutions in­cluding Norton AntiVirus, Ghost, V irtual Drive.

1 - 1

FW37 Mainboard Manual

Package Checklist

If you discover any item below was damaged or lost, please contact your
vendor.

þ The mainboard þ This user manual
þ One FDD cable þ One HDD cable
þ One A TA/66 cable þ One COM2 cable (optional)
þ Two Software CDs (CD Pro, CD Plus and its manual)

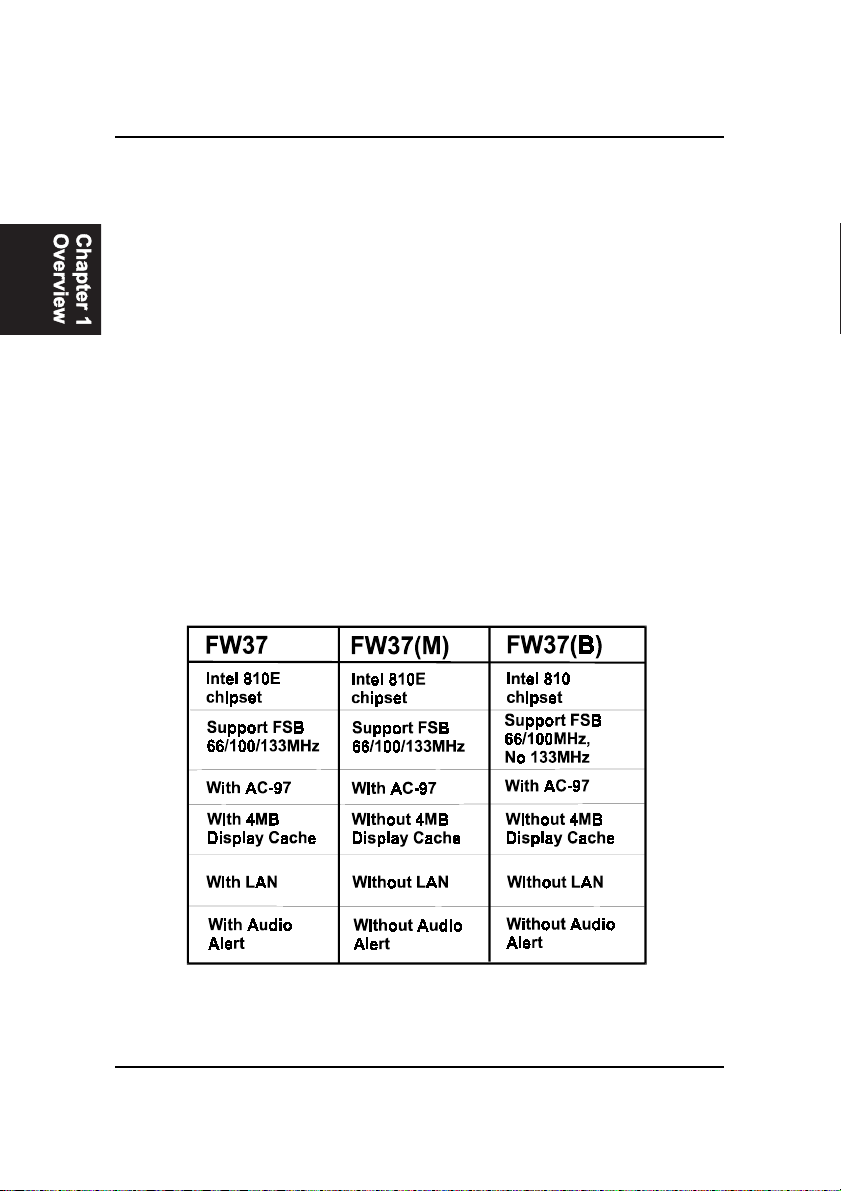

Mfg. Optional Spec. of FW37, FW37(M), FW37(B)

1 - 2

The FW37 Mainboard

Overview

1 - 3

FW37 Mainboard Manual

Main Features

■ Easy Installation

||BIOS with support for Plug and Play , auto detection of IDE hard drives,
||LS-120|drives, IDE ZIP drives, Windows 95, W indows 98, Windows NT
||4.0, Windows 2000, |and OS/2.

■ Leading Edge Chipset

Intel 810/810E provides integrated DRAM controllers with new Dynamic
Power Management Architecture (DPMA), concurrent PCI (2.0/2.1), AGP

1.0/2.0 compliant and USB. The built-in audio and vedio features of the
Intel chipset 810/810E (with optional 4MB display cache) provides better
visual performance with the Dynamic V ideo Memory Technology (DVMT)
properties.

■ V ersatile Main Memory Support

Accepts up to 512MB DRAM using two DIMMs of 32, 64, 128, 256MB
with support for lightning-fast SDRAM (100MHz).

■ Flexible Processor Support

Onboard CPU socket supports:
Intel® Celeron PPGA/FCPGA 433/500/533/566/600/667/700/733MHz at
66MHz FSB
Intel® CuMine FCPGA 500/550/600/650/700/750/800/850MHz at 100MHz
FSB
Intel® CuMine FCPGA 533/566/600/667/733/800/866/933MHz at 133MHz
FSB
Cyrix® III 466/500/533/550/600/650/700/733MHz at 133MHz FSB

■ PCI Expansion Slots and AMR Slot

Three 32-bit PCI Bus expansion slots provide the room to install a full
range of add-on cards and an AMR slot for audio-modem riser card.

1 - 4

Overview

■ Enhanced PCI Bus Master IDE Controller with Ultra DMA/33 and

Ultra DMA/66 Support
Integrated Enhanced PCI Bus Master IDE controller features two dual­channel connectors that accept up to four Enhanced IDE devices, includ­ing CD-ROM and T ape Backup Drives, as well as Hard Disk Drives sup­porting the new Ultra DMA/66 protocol. Standard PIO Mode 3, PIO Mode
4, DMA Mode 2, DMA Mode 4 devices are also supported.

■ Integrated Audio Subsystem

Embedded audio features in the ICH with an integrated PCI audio con­troller, DOS games compatible engine. The subsystem utilizes line-out,
line-in, and MIC mini-jack external jacks, one joystick port with MIDI
interface.

■■

■ Super Multi Input/Output (I/O) Support

■■

Integrated Plug and Play multi-I/O chipset features two high-speed UART
16550 compatible serial ports, one infrared port, one EPP/ECP capable
parallel port, and one FDD connector.

■■

■ USB Support

■■

Two USB jacks for rear panel connection and two front USB ports for
front panel connections provide you with convenient, high-speed Plug
and Play connections to the growing number of USB compliant external
peripheral devices on the market. (When two front USBs are used, two
rear USBs will not work and vice versa).

■■

■ Remote W ake-Up Support

■■

One LAN wake-up connector, WOL, supports LAN cards equipped for
remote wake-up functionality .

■ Onboard IrDA Connector

An IrDA connector for wireless infrared connections is available.

1 - 5

FW37 Mainboard Manual

■ Enjoy TV Program on Monitor

The connector, J9 (Video AD), attaches with a PCI TV convertor card
allows you to enjoy TV programs by software and remote control. It can
be done by accepting the audio signals from the TV card and output
voices via the sound jacks. Your monitor displays TV programs.

■ Flat Panel Display Support (Reserved for specified customers)

This mainboard supports flat panel displays via a PCI convertor card
which output digital signals to the display . The card attaches to the FTP1
connector on the mainboard via a ribbon cable. It gives you one more
choice about visual demostration.

ACPI Ready

This mainboard fully implements the new ACPI (Advanced Configuration and
Power Interface) 1.0 Hardware and BIOS requirement. If you install ACPI aware
operating system, such as Windows 98/98 SE, you fully utilized the power
saving under ACPI. (Windows 2000 Professional supports ACPI functions.)

It is compatible with all other none ACPI operating systems. If you want to
setup ACPI feature under Windows 98, please follow the description below:
Run Windows 98 setup by using setup/p j on the command line for installing
Windows 98 with the ACPI control feature.
If you type setup without the parameter /p j, Windows 98 will be installed as
APM, PnP mode, no ACPI will be used. For more detail information, please
visit the web site of Microsoft. Its address is: www .microsoft.com/hwtest/.

1 - 6

NOTE: If BIOS date is after 12/02/1999, the ACPI will be installed
automatically. Users do not need to setup in the above-mentioned
way.

Overview

FIC Unique Innovation for Users (NOVUS) -

Enhanced Mainboard Features and System Support

■■

■ LogoGenie

■■

A user friendly GUI supporting Windows 98, LogoGenie allows you to
customize, create or select a Logo which will be displayed when the sys­tem is booting.

Before execute this LogoGenie function, please make sure the related
BIOS feature, BIOS Guardian, is disabled; and refer to its related
README file.

NOTE:

1. LogGenie supports Award BIOS only.

2. If you create a Logo file (.bmp) by LogoGenie, the file size must

||||be 640 x 464 x 16 colors (around 145K).

T o enable this utility, please proceed as follows:

1 . Insert CD Pro 4.X. Select LogoGenie from the Menu and follow the

installation instructions.

2 . After LogoGenie has been installed, go to Windows Start Box.

In Programs Menu, select LogoGenie.
Click three check boxes in the pop-up menu for making sure of the
BIOS feature (BIOS Guardian) and other anti-virus software are
disabled. Read README file carefully . After all these, the next
procedure proceeds.

3 . In LogoGenie Dialogue Box, choose one of 3 options; and then

proceed as introduced in 4 or 5 steps listed on the left hand side of
the Dialogue Box.

4 . After complete the last step, press OK. The system will reboot to

restore the BIOS with your new customized Logo.

5 . The system will automatically restart with your customized Logo

that appears in background.

1 - 7

FW37 Mainboard Manual

WARNING: While excute Step3 below, please do not turn off the
sytsem power in order to avoid BIOS damage.

■■

■ BIOS Guardian

■■

BIOS Guardian by default is enabled. It must be disabled in order to
reflash BIOS, thus effectively acts as a fire-wall against viruses that can
attack the BIOS while the system is running.

BIOS Guardian can be disabled as follows:
1 . Go to BIOS Set Up Menu. (Press Del key while booting.)
2 . Go to BIOS Features Set Up Submenu.

3. Disable BIOS Guardian.

4. Save the setting, and restart system.

NOTE: However, if it is disabled and while boot the system, the
POST screen will be held and shows you the message to let you
know the current status of BIOS Guardian. To press G key will en­able the BIOS Guardian again; or simply to press the space bar
will continue the booting process.

■■

■ Easy Key

■■

Instead of completing the multi-layered BIOS setup process these 3 Easy
Key functions provide direct access to Sub-Menu’s when completing
BIOS settings adjustments.

Easy-Keys are as follows:

Ctrl + c: T o enter clock settings menu.
Ctrl + p: To load Performance Default settings and restart.
Ctrl + f: T o load Fail-Safe Default settings and restart.

1 - 8

Overview

■■

■ Audio Alert (mfg. option)

■■

After complete a system upgrade, should the computer be assembled
incorrectly, a friendly onboard voice caution, will advice of the error dur­ing system boot up.

A convenient onboard LED will also flash, waring that there is a system
problem. If you do not hear the Audio Alert , please check that your
speakers are connected.

Audio warning are activated as follows:

No CPU: ‘Caution! Processor not detected. Please check your PC’
No Memory: ‘Caution! Memory not detected. Please check your PC’
No Graphics: ‘Caution! VGA not detected. Please check your PC’

■■

■ Overclock Partner

■■

Should the system not start because clock speed settings have been
increased to a speed incompatible with the system, the Overclock Partner
allows you to reboot at system default settings, protecting hardware from
any damages caused by changes to the BIOS.

Complete the following steps:

1. Turn the system off.
2 . Restart while holding down the Insert key. It is important that the

Insert key is held down until the default clock speed is shown on
the POST screen.

3 . Enter BIOS setting menu, and re-set clock speed desired or default.

1 - 9

FW37 Mainboard Manual

■■

■ Clockometer

■■

Clockometer is a Windows 98 compatible, attractive and user friendly
Graphic User Interface (GUI). Clockometer enables you to change clock
speed settings directly, without having to enter the BIOS Sub-Menus.
With the on-screen display panel you can easily monitor your new clock
speed settings with gauges that identify your system speed, Front Side
Bus settings and CPU Ratios

On screen buttons:
1 . "+" and "-" buttons : adjust the Front Side Bus ( FSB )and CPU ratio.

( the 'hand' cursor means the active button)

2 . "OK" button : changes the FSB and CPU ratio (if adjustable) set

tings right away . If you do not save your new setting, your system

will not implement the new setting when rebooting the next time.
3 . "SAVE" button : save your new settings for rebooting the computer.
4 . "Quit" button will escape the Clockometer program.
5 . In order to run the other application programs more smoothly, it

is strongly recommended to restart your computer after

completing any adjustments.

1 - 10

Installation Procedures

Chapter 2

Installation Procedures

The mainboard has several user-adjustable jumpers on the board that allow you to
configure your system to suit your requirements. This chapter contains information
on the various jumper settings on your mainboard.

To set up your computer, you must complete the following steps:

■ Step 1 - Set system jumpers/switches

■ Step 2 - Install memory modules

■ Step 3 - Install the Central Processing Unit (CPU)

■ Step 4 - Install expansion cards

■ Step 5 - Connect ribbon cables, cabinet wires, and power supply

■ Step 6 - Set up BIOS software

■ Step 7 - Install supporting software tools

WARNING: Excessive torque may damage the mainboard. When

using an electric screwdriver on the mainboard, make sure that

the torque is set to the allowable range of 5.0 ~ 8.0kg/cm.

Mainboard components contain very delicate Integrated Circuit

(IC) chips. To prevent static electricity from harming any of the

mainboard’s sensitive components, you should follow the

following precautions whenever working on the computer:

1. Unplug the computer when working on the inside.

2. Hold components by the edges and try not to touch the IC

||||chips, leads, or circuitry.

3. Wear an anti-static wrist strap which fits around the wrist.

4. Place components on a grounded anti-static pad or on the bag

that came with the component whenever the components are

separated from the system.

2 - 1

FW37 Mainboard Manual

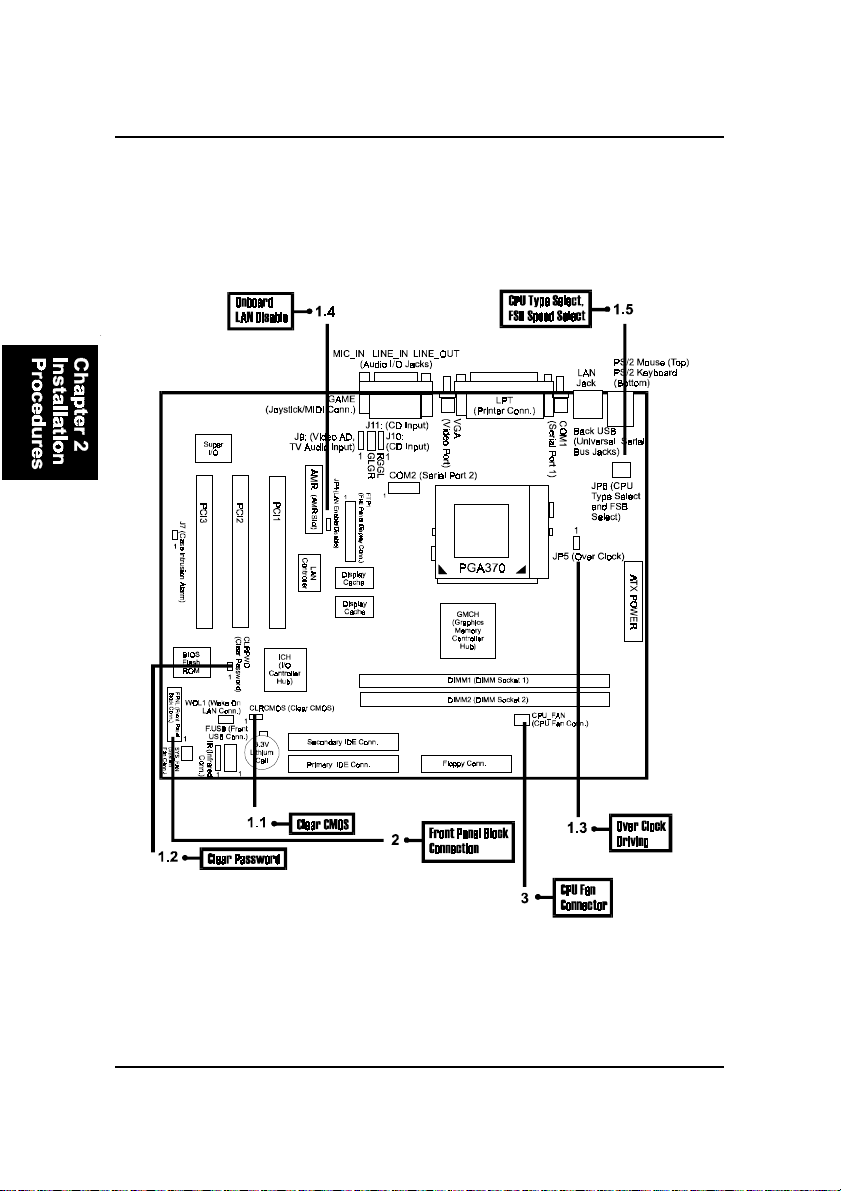

Quick Reference (from Page 2-2 to 2-4)

Mainboard Layout

2 - 2

Installation Procedures

Mfg. Optional Spec. of FW37, FW37(M), FW37(B)

1). Clear CMOS, Clear Password,
Over Clock Driving, Onboard LAN Disable,
CPU Type Select, FSB Speed Select

2 - 3

FW37 Mainboard Manual

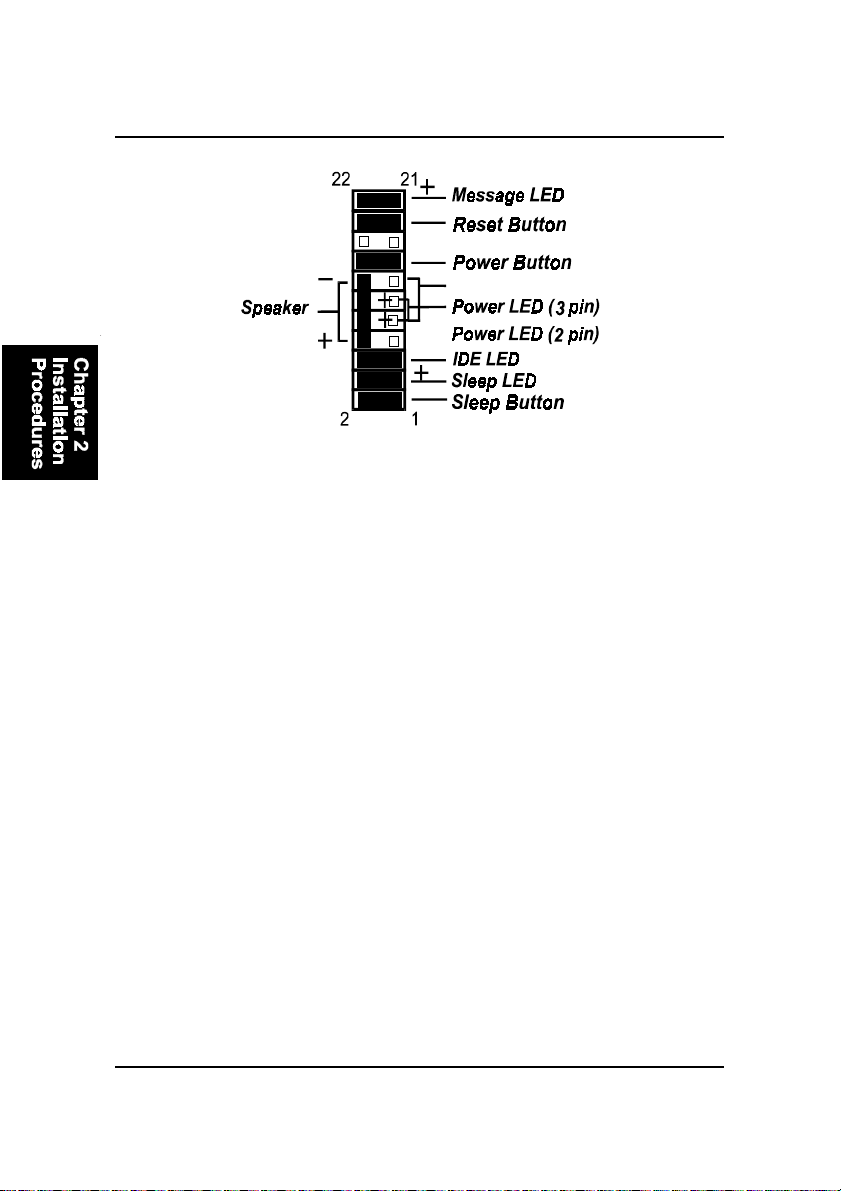

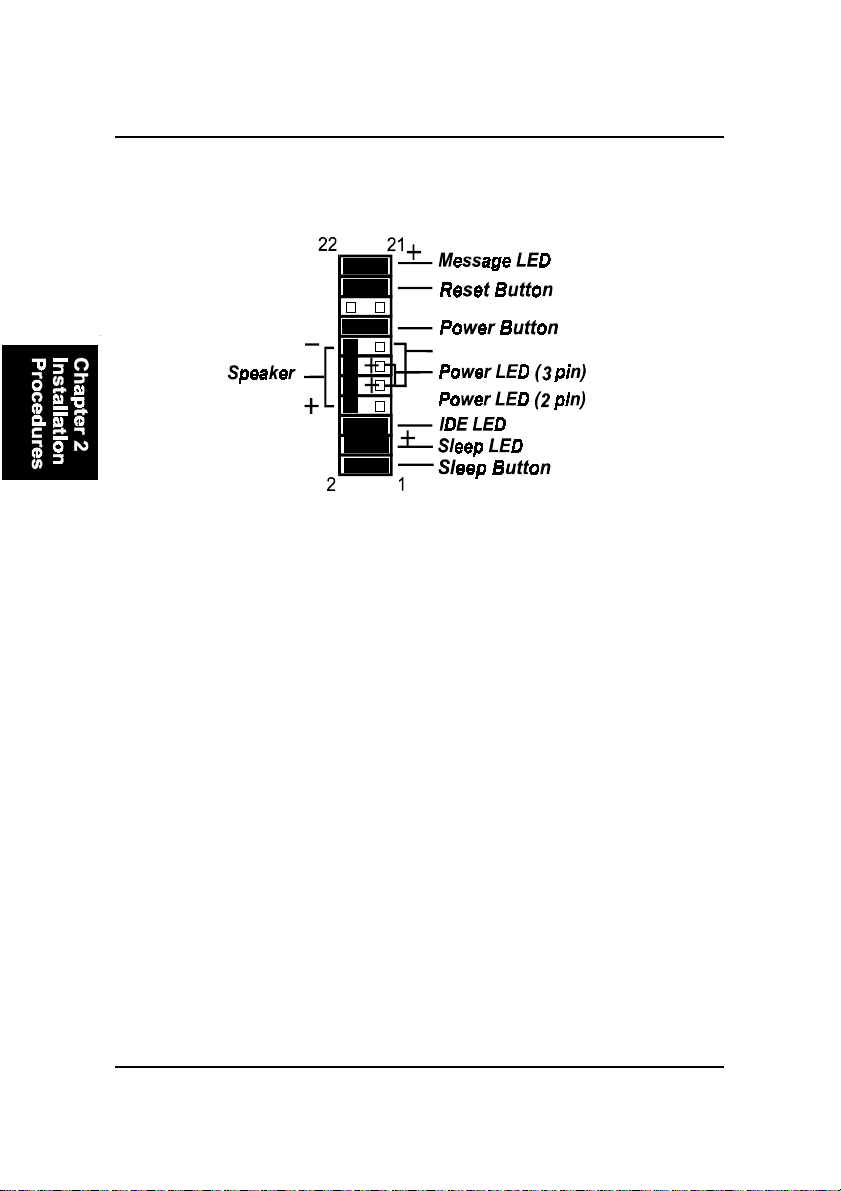

2). Front Panel Block Cable Connection

3). CPU Fan Installation

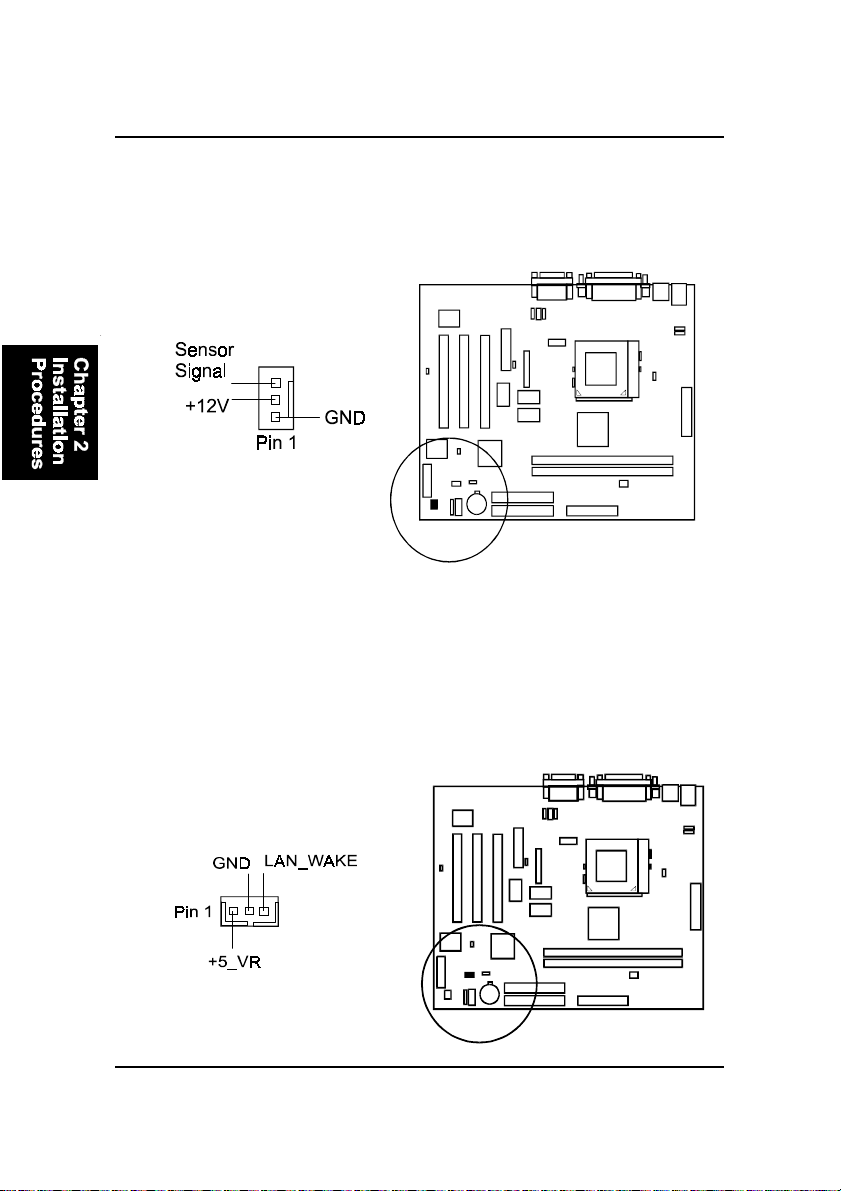

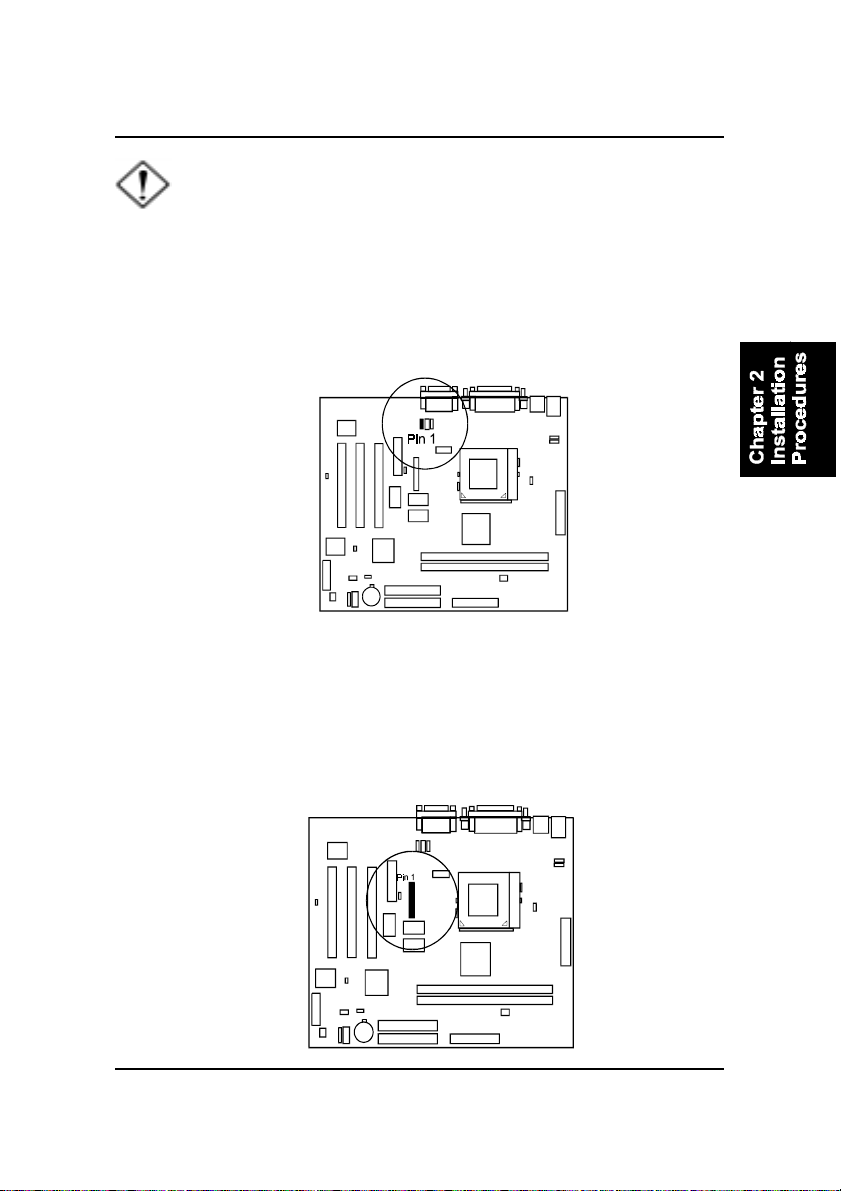

This connector is linked to the CPU fan. When the system is in suspend mode, the
CPU fan will turn off; when it reverts back to full on mode, the fan will turn back on.

Without sufficient air circulation, the CPU may overheat resulting in damage
to both the CPU and the mainboard.

Damage may occur to the mainboard and/or the CPU fan if these pins are
used incorrectly. These are not jumpers, do not place jumper caps over these
pins.

2 - 4

Installation Procedures

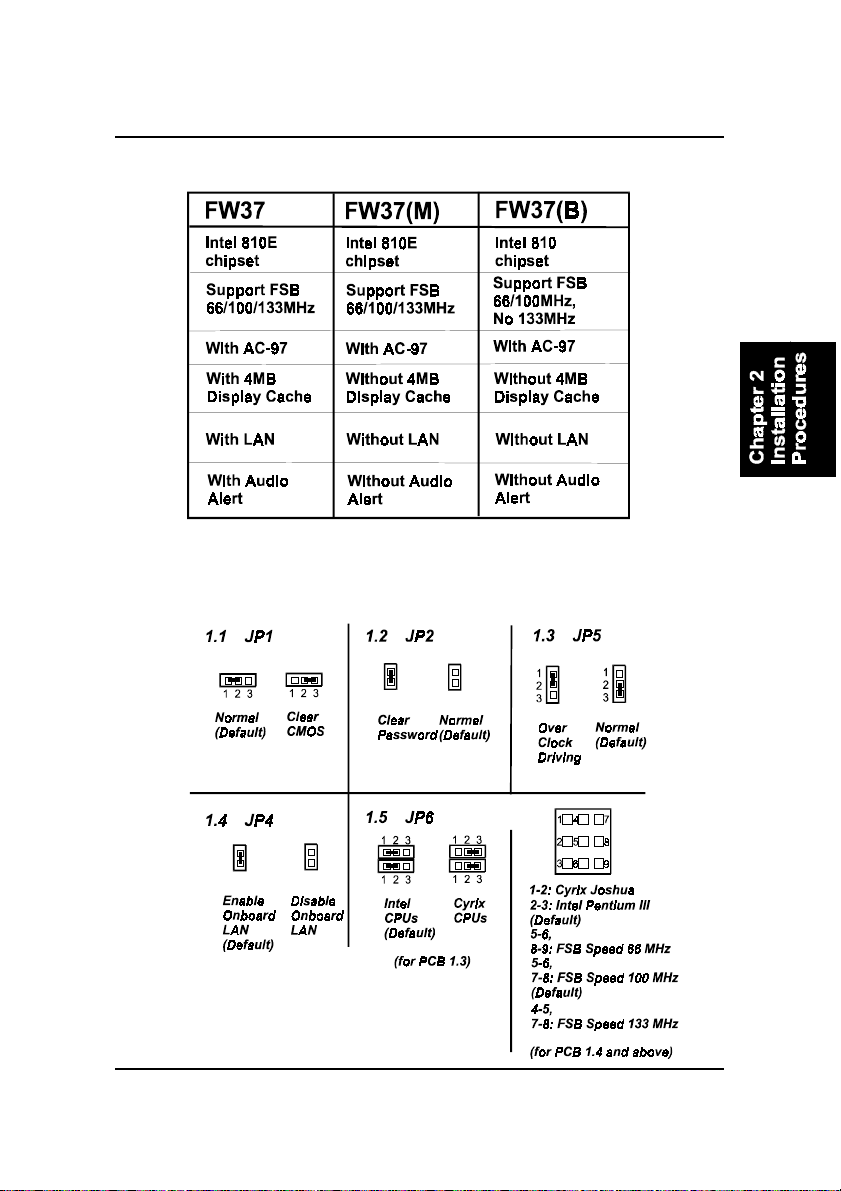

1). Set System Jumpers

Jumpers are used to select the operation modes for your system. Some jump­ers on the board have three metal pins with each pin representing a different
function. A “1” is written besides pin 1 on jumpers with three pins. To set a
jumper, a black cap containing metal contacts is placed over the jumper pin/s
according to the required configuration. A jumper is said to be shorted when
the black cap has been placed on one or two of its pins. The types of jumpers
used in this manual are shown below:

NOTE: Users are not encouraged to change the jumper settings
not listed in this manual. Changing the jumper settings improperly
may adversely affect system performance.

2 - 5

FW37 Mainboard Manual

CMOS Clearance Function: JP1 (CLRCMOS)

The CMOS RAM is powered by the onboard button cell battery. To clear the
R TC data: (1). Turn off your computer, (2). Move this jumper to Enable, (3).
Move the jumper back to Disable, (4). Turn on your computer , (5). Hold down
the Delete key during boot and enter BIOS Setup to re-enter user preferences.

Password Clearance Function: JP2 (CLRPWD)

This jumper allows you to enable or to disable the password configuration.
You may need to enable this jumper by shorting it with a jumper cap if you
forget your password. To clear the password setting: (1). Turn off your com­puter, (2). Short this jumper by placing a jumper cap on it; (3). T urn on your
computer, (4). Hold down the Delete key during boot and enter BIOS Setup to
re-enter user preferences, (5). Turn off your computer , (6). Remove the jumper
cap, (7). Turn on your computer for the new settings to take ef

2 - 6

Installation Procedures

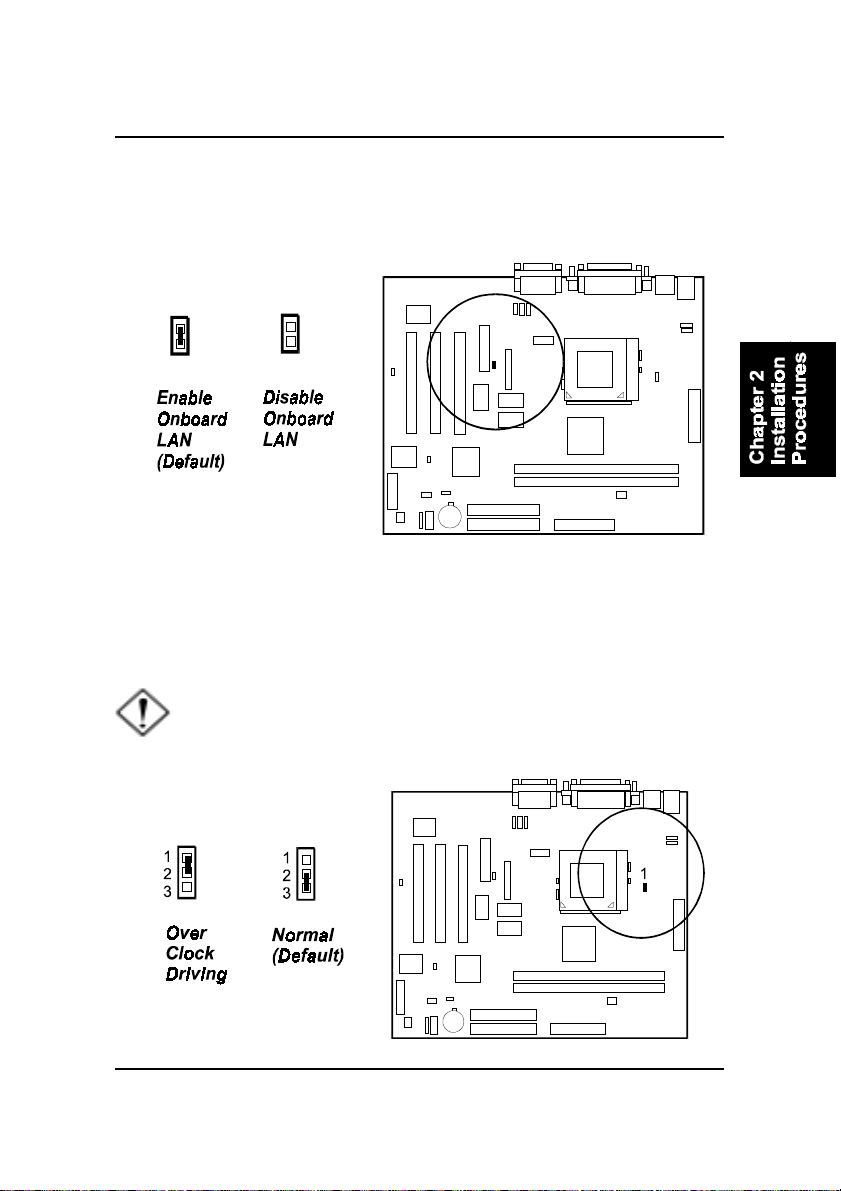

Disabling Onboard LAN Feature: JP4

The 2-pin jumper allows you to disable onboard LAN feature of your com­puter system if you install a LAN card.

Enabling Over Voltage Driving: JP5 (Magic Tuner)

The 3-pin jumper allows you to start the over voltage driving capability of this
mainboard to approach the best performance.

WARNING: Voltage and frequency above CPU’s original specifica­tions are not guaranteed to be stable.

2 - 7

FW37 Mainboard Manual

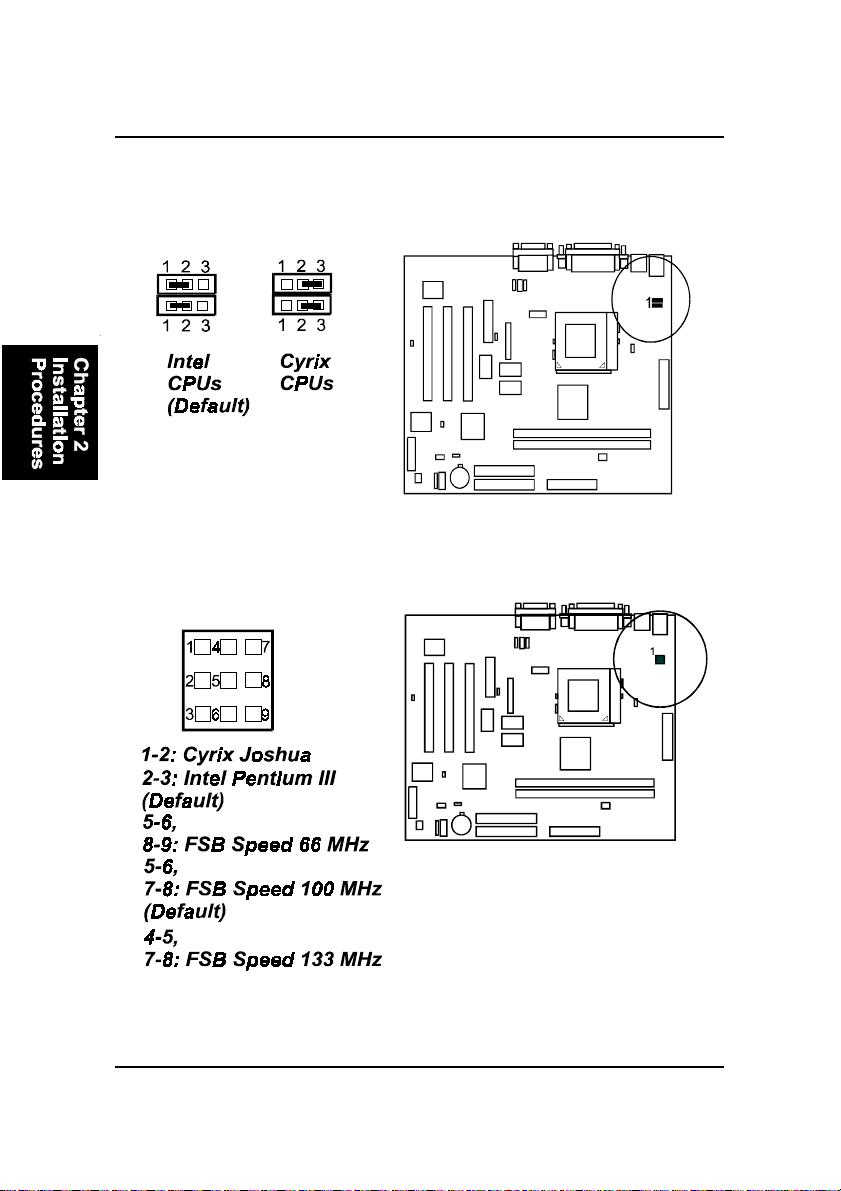

CPU Type Selection: JP6

(for PCB 1.3) These two 3-pin jumpers are used together to select the CPU
types that you will install.

(for PCB 1.4 and above) The 3x3-pin jumper are used together to select the
CPU types that you will install.

2 - 8

Installation Procedures

2). Install Memory Modules

This mainboard provides two onboard DIMM sockets supporting 3.3V (un­buffered) SDRAM DIMM modules. Either 32, 64, 128, 256MB DIMM can be
installed on these three sockets. The maximum total memory supported is up
to 512MB.

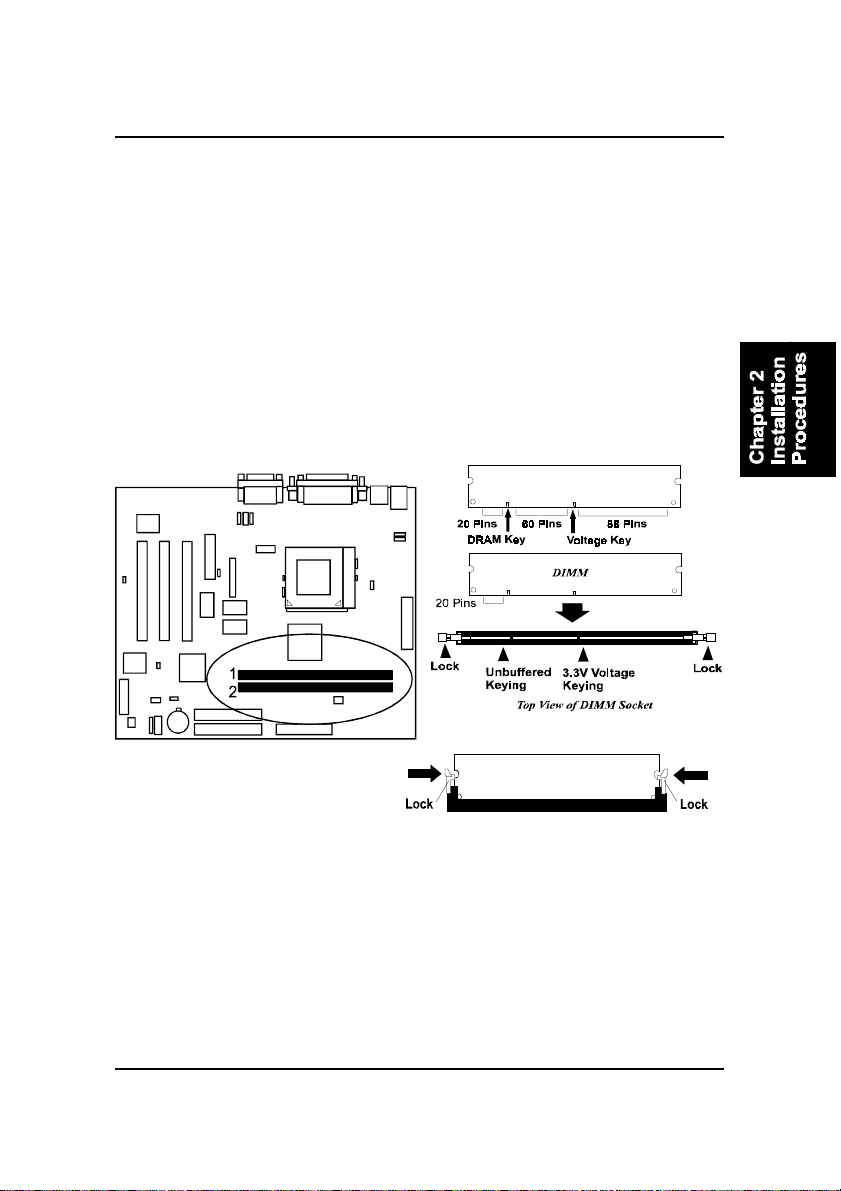

Install and Remove DIMMs

1 . Locate the DIMM slots on the mainboard.

2. Install the DIMM straight down into the DIMM slot using both hands.

3. The clip on both ends of the DIMM slot will close up to hold the DIMM
in place when the DIMM reaches the slot’s bottom.

Press the clips with both hands to remove the DIMM.

2 - 9

FW37 Mainboard Manual

3). Install the CPU

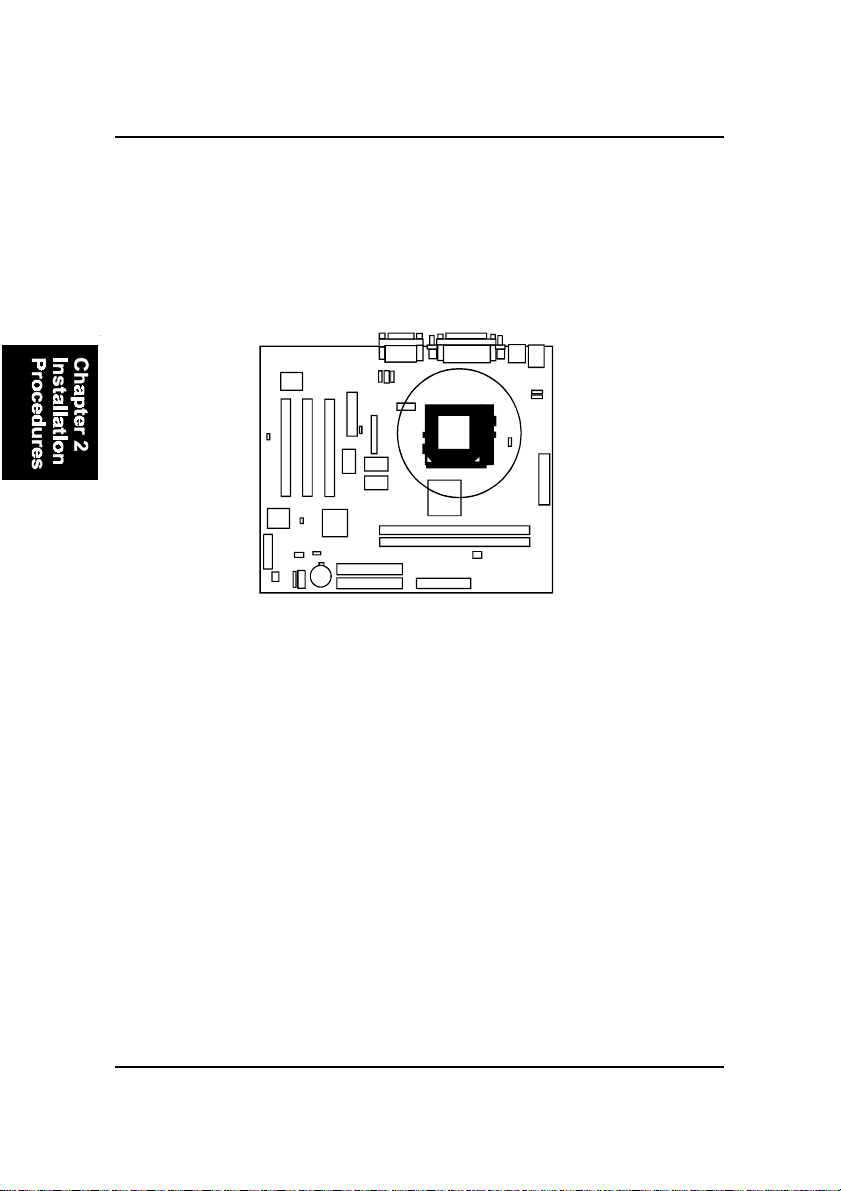

The mainboard has built-in Switching Voltage Regulator to support CPU Vcore
autodetection. That is, It has the ability to detect and recognize the CPU
voltage, clock, ratio and enables users to set up the CPU frequency from the
BIOS Setup Screen. Users can adjust the frequency through “Frequency /
Voltage Control” of the BIOS Setup Screen.

T o install the CPU, do the following:

1 . Lift the lever on the side of the CPU socket.

2. Handle the chip by its edges and try not to touch any of the pins.

3 . Place the CPU in the socket. The chip has two notches to correctly locate

the chip. Align two notches of the processor with the two triangular
marks on the socket. Do not force the chip. The CPU should slide easily
into the socket.

4 . Swing the lever to the down position to lock the CPU in place.
5 . Place the cooling fan with heatsink on top of the installed CPU.

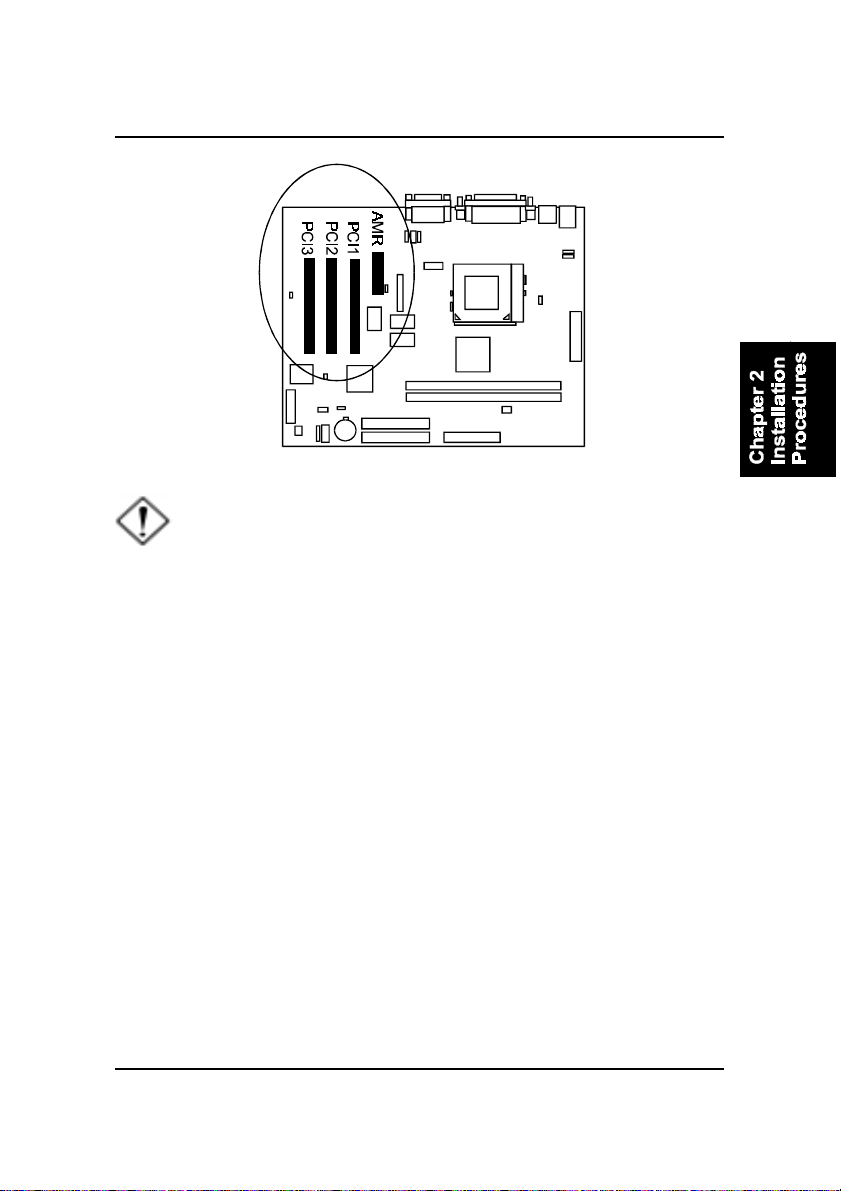

4). Install Expansion Cards

This section describes how to connect an expansion card to one of your
system’s expansion slots. Expansion cards are printed circuit boards that,
when connected to the mainboard, increase the capabilities of your system.
For example, expansion cards can provide video and sound capabilities. The
mainboard features three PCI bus, one AMR slot for audio-modem riser card.

2 - 10

CAUTION: Make sure to unplug the power supply when adding or
removing expansion cards or other system components. Failure to
do so may cause severe damage to both the mainboard and
expansioncards.
Always observe static electricity precautions.
Please read “Handling Precautions” at the start of this manual.

T o install an expansion card, follow the steps below:

Installation Procedures

1. Remove the computer chassis cover and select an empty expansion
slot.

2. Remove the corresponding slot cover from the computer chassis.
Unscrew the mounting screw that secures the slot cover and pull
the slot cover out from the computer chassis. Keep the slot cover
mounting screw nearby.

2 - 11

FW37 Mainboard Manual

3 . Holding the edge of the peripheral card, carefully align the edge

connector with the expansion slot.

4. Push the card firmly into the slot. Push down on one end of the
expansion card, then the other. Use this “rocking” motion until the
add–on card is firmly seated inside the expansion slot.

5. Secure the board with the mounting screw removed in Step 2. Make
sure that the card has been placed evenly and completely into the
expansion slot.

6 . Replace the computer system’s cover.

7 . Setup the BIOS if necessary .

8. Install the necessary software drivers for the expansion card.

Connectors

Floppy Diskette Drive Connector: FDD

This connector provides the connection with your floppy disk drive.
The red stripe of the ribbon cable must be the same side with the Pin 1.

2 - 12

Installation Procedures

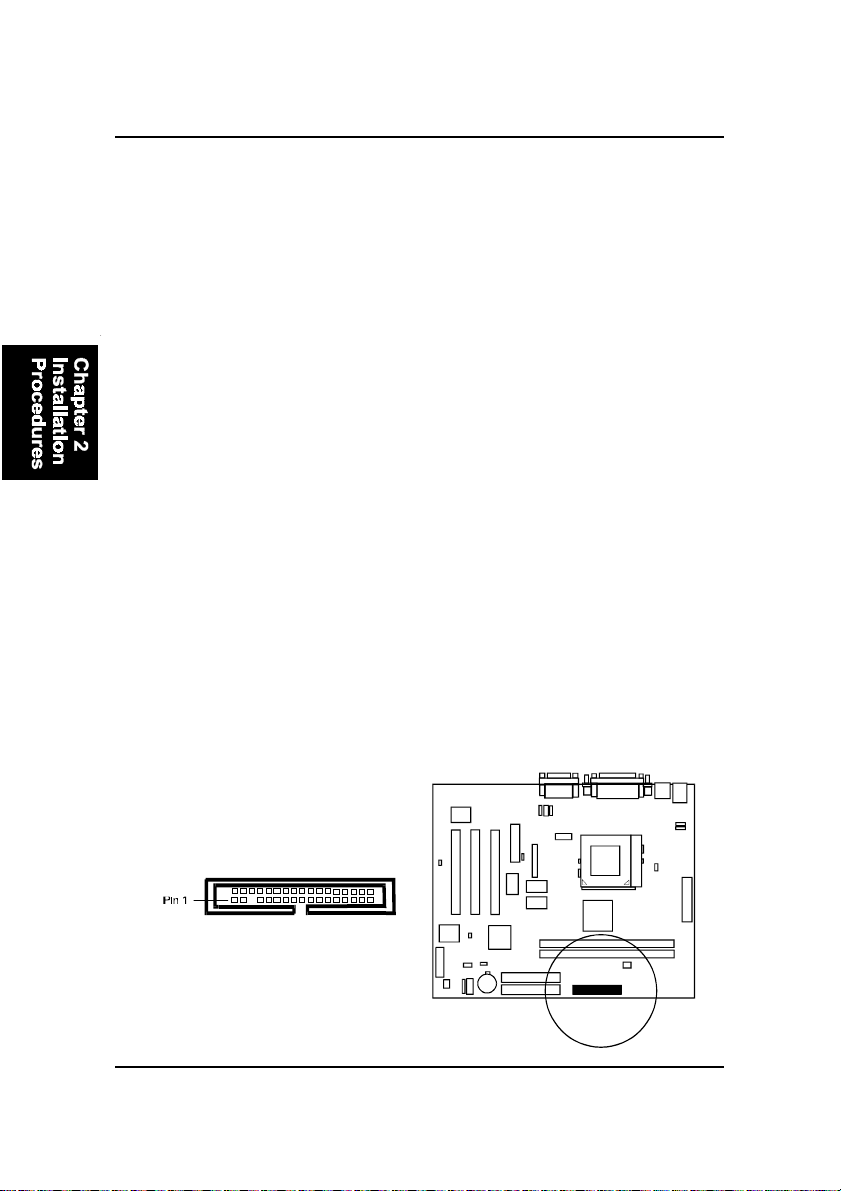

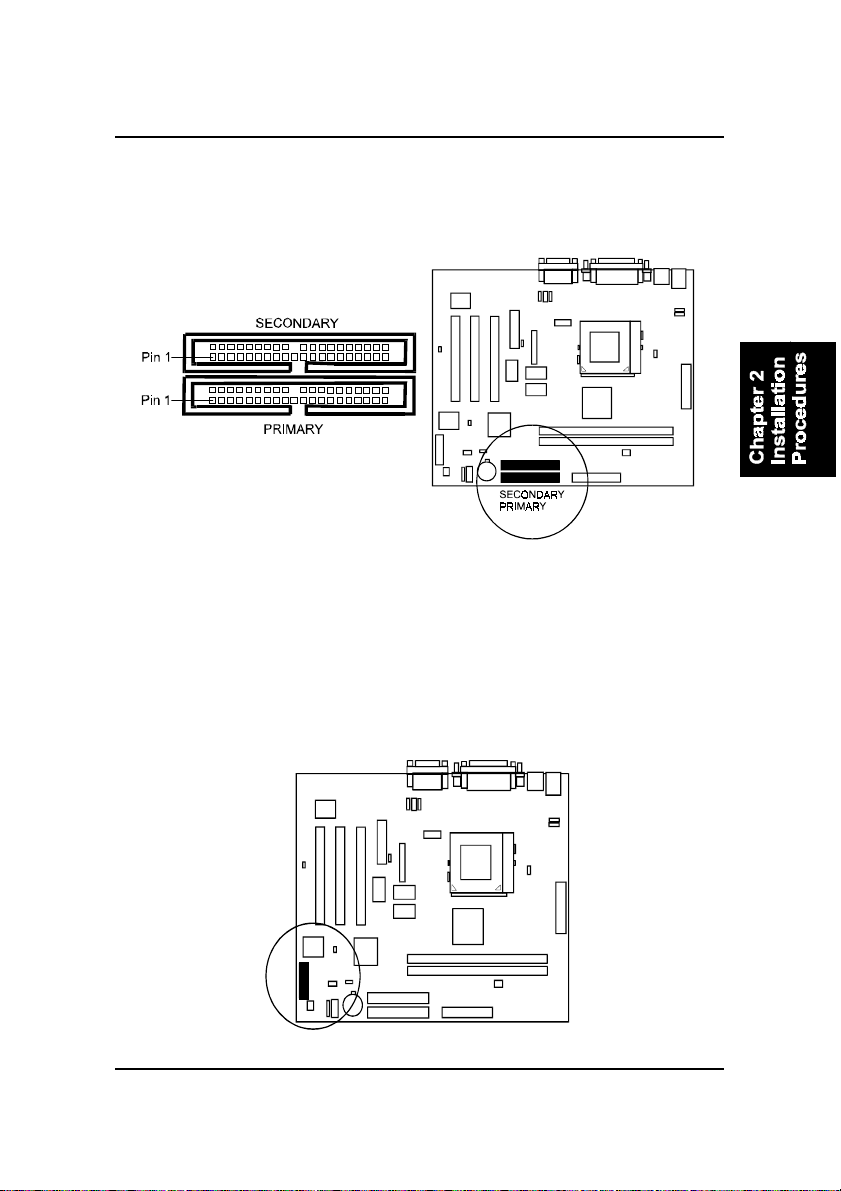

IDE Device Connectors: PRIMARY, SECONDARY

These two connectors are used for your IDE hard disk drives, CD drives, LS­120|drives, or IDE ZIP drives. The red stripe of the ribbon cable must be the
same side with the Pin 1.

Front Panel Block Connector: J1

This block connector includes the connectors for linking with IDE LED, power
LED, remote power button, message LED, suspend button, reset button and
speaker on the front panel of the system case. Please identify polarities of plug
wires for the case speaker and LEDs. Please ask vendor about this information
when you buy them and install the system by yourself. The plug wires’ polari­ties of these buttons will not affect the function.

2 - 13

FW37 Mainboard Manual

Power LED is connected with the system power indicator to indicate whether
the system is on/off. It will blink when the system enters suspend mode.

Remote Power Button is connected with remote power (soft power) button.
Push this switch This button allows the system to be turned on and off rather
than using the power supply button.

Message LED is connected with the message LED. When the system is run­ning normally, the indicator is of f. It is controlled by the operating system or
application software.

Sleep Button is connected with sleep mode button.

Reset Button is connected to the reset button. Push this switch to reboot the

system instead of turning the power button off and on.

Speaker is connected with the case speaker.

IDE LED is connected to the IDE device indicator. This LED will blink when

the hard disk drives are activated.

2 - 14

Installation Procedures

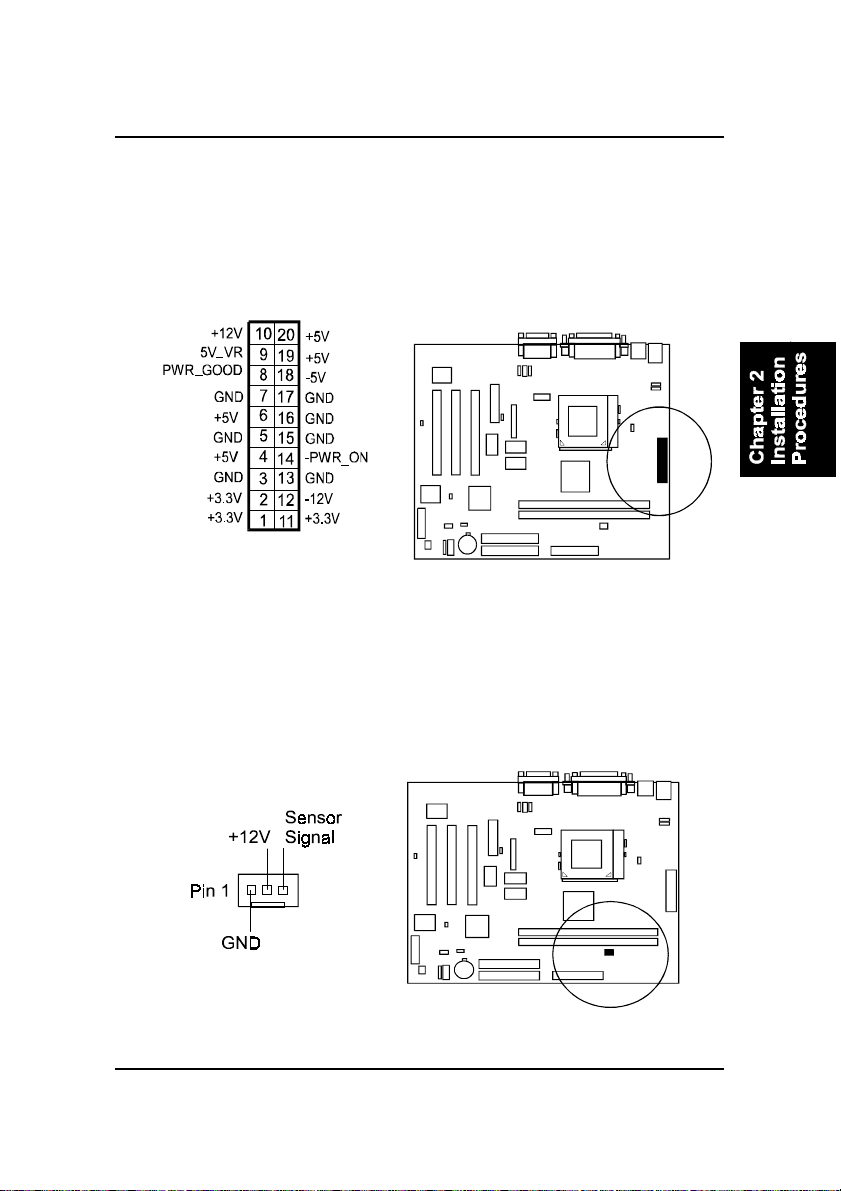

ATX Power Connector: POWER

This 20-pin male block connector is connected to the A TX power supply . The
plug from the power supply will only insert in one orientation because of the
different hole sizes. Find the proper orientation and push down firmly making
sure that the pins are aligned.

CPU Fan Connector: FAN1

This connector is linked to the CPU fan. When the system is in suspend mode,
the CPU fan will turn off; when it reverts back to full–on mode, the fan will turn
back on. Please refer to the CPU fan installation manual for more information.

2 - 15

FW37 Mainboard Manual

System Case Fan Connector: FAN2

There two 3-pin connectors onboard that either one allows you to link with the
cooling fan on the system case to lower the system temperature.

Wake-On-Lan Connector: WOL1

This 3-pin connector allows the remove servers to manage the system that
installed this mainboard via your network adapter which also supports WOL.
When you install such a LAN card, please read its installation guide for more
information.

2 - 16

Installation Procedures

CAUTION:

Before connecting with the TV audio ribbon cable to VIDEO AD
connector, make sure your system power is off. Failure to do so
may cause damage to the mainboard.

TV Audio Input Connector: J9 (VIDEO AD)

This 1x4-pin connector is connected with your TV PCI card for taking the
audio signal inputs through the card conversion. You can tune the TV pro­gram which display on your monitor together with your computer and a re­mote control.

Flat Panel Display Connector: FTP1
(for specified customers)

(If PCB 1.3, it is reserved for specified customers. If PCB 1.4 and above, it is
removed; , it is onboard only for specified customers.)

This mainboard supports your flat panel display through this pinhead to a PCI
convertor card that outputs the signals to the display.

2 - 17

FW37 Mainboard Manual

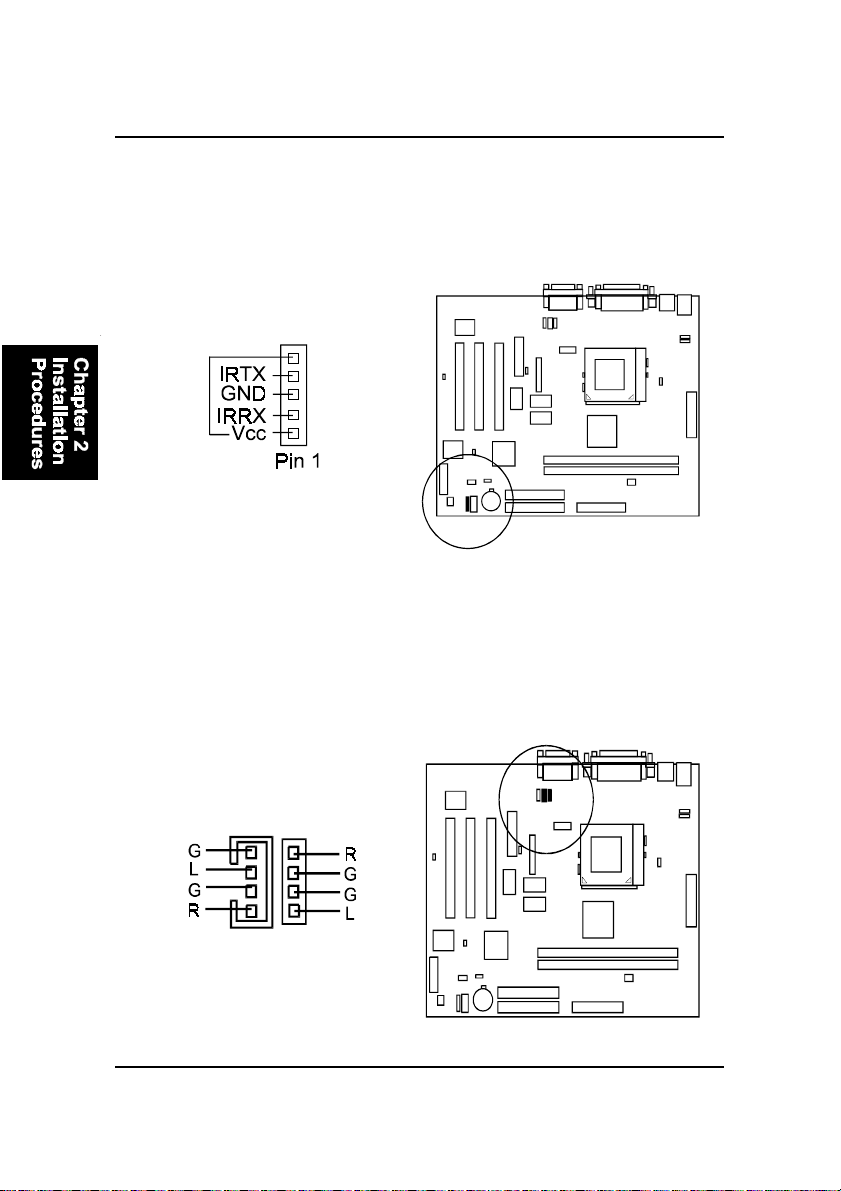

Infrared Connector: IR

This 5-pin connector is used to link with your ID device to allow transmission
of data to another system that also supports the IR feature. This module
mounts to a small opening on system cases that support it.

CD Audio-In Connectors: J10, J11

These two 4-pin connectors are used for different types of the AUDIO-OUT
port of your CD drive.

2 - 18

Installation Procedures

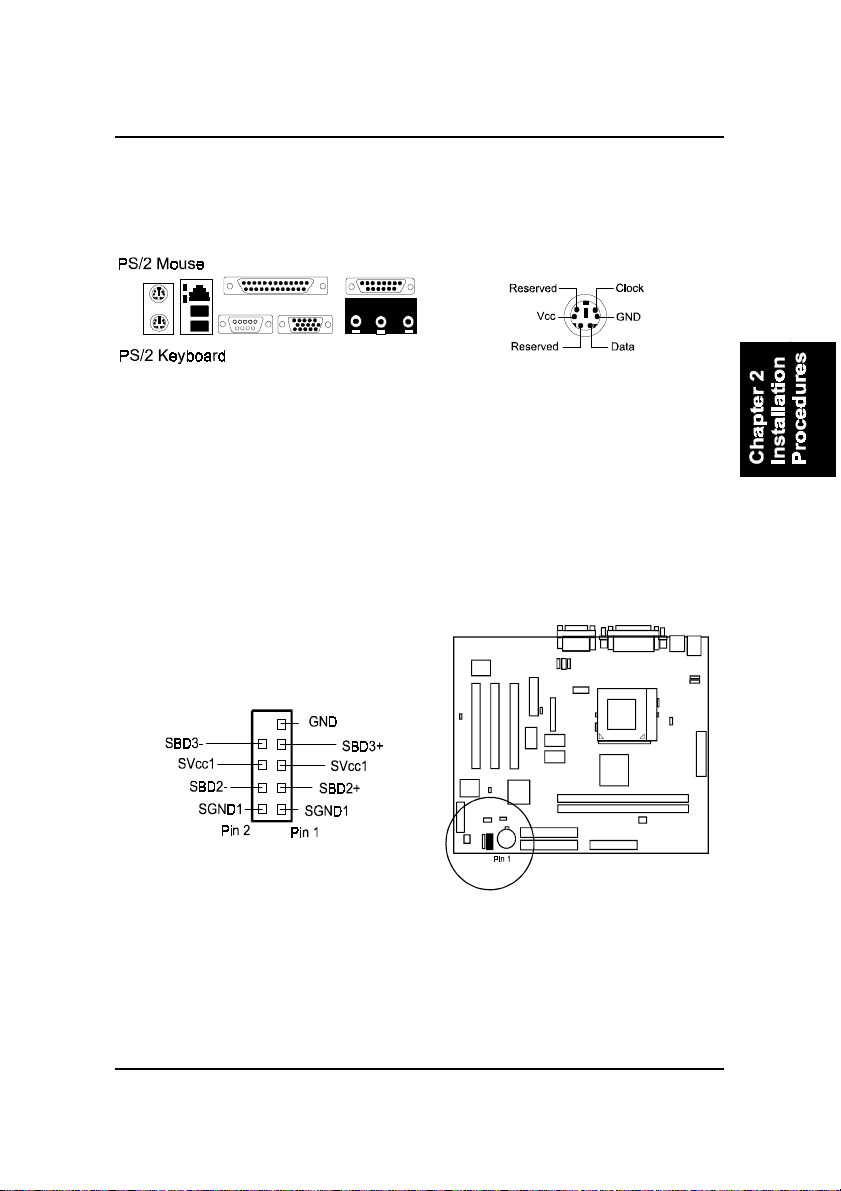

PS/2 Keyboard and Mouse Connector: PS2_KB, PS2_MS

These two 6-pin female connectors are used for your PS/2 keyboard and
PS/2 mouse.

Universal Serial Bus Connectors: Rear and Front USBs

These two connectors integrated on the edge of the board are used for linking
with USB peripheral devices. This board also provides a connector F .USB for
linking with the two USB sockets on the front panel of some system cases.
Please note your operating system must support USB features, such as MS
Windows 98, MS W indows 95 OSR2.5 with USB Supplement. (When two front
USBs are used, two rear USBs will not work and vice versa).

The figure above left is the pin assignment of the F.USB connector for two
front panel USB connections.

2 - 19

FW37 Mainboard Manual

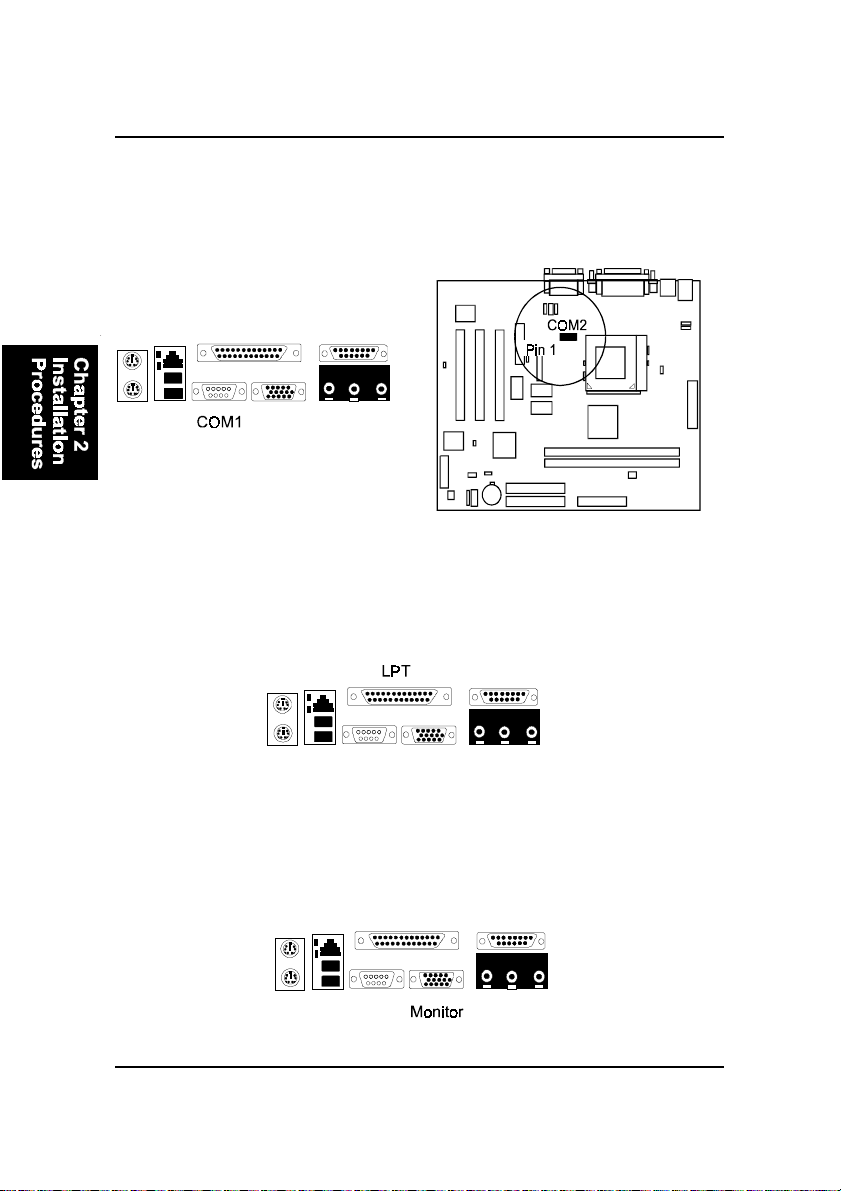

Serial Port Connectors: COM1, COM2

COM1 (9-pin D-sub male connector) and COM2 (9-pin male connector) allow
you to connect with your devices that use serial ports, such as a serial mouse
or an external modem.

Printer Connector: LPT

This 25-pin D-Sub female connector is attached to your printer.

Video Graphics Accelerator Connector: VGA

This 15-pin female D-sub connector is connected to your display monitor.

2 - 20

Installation Procedures

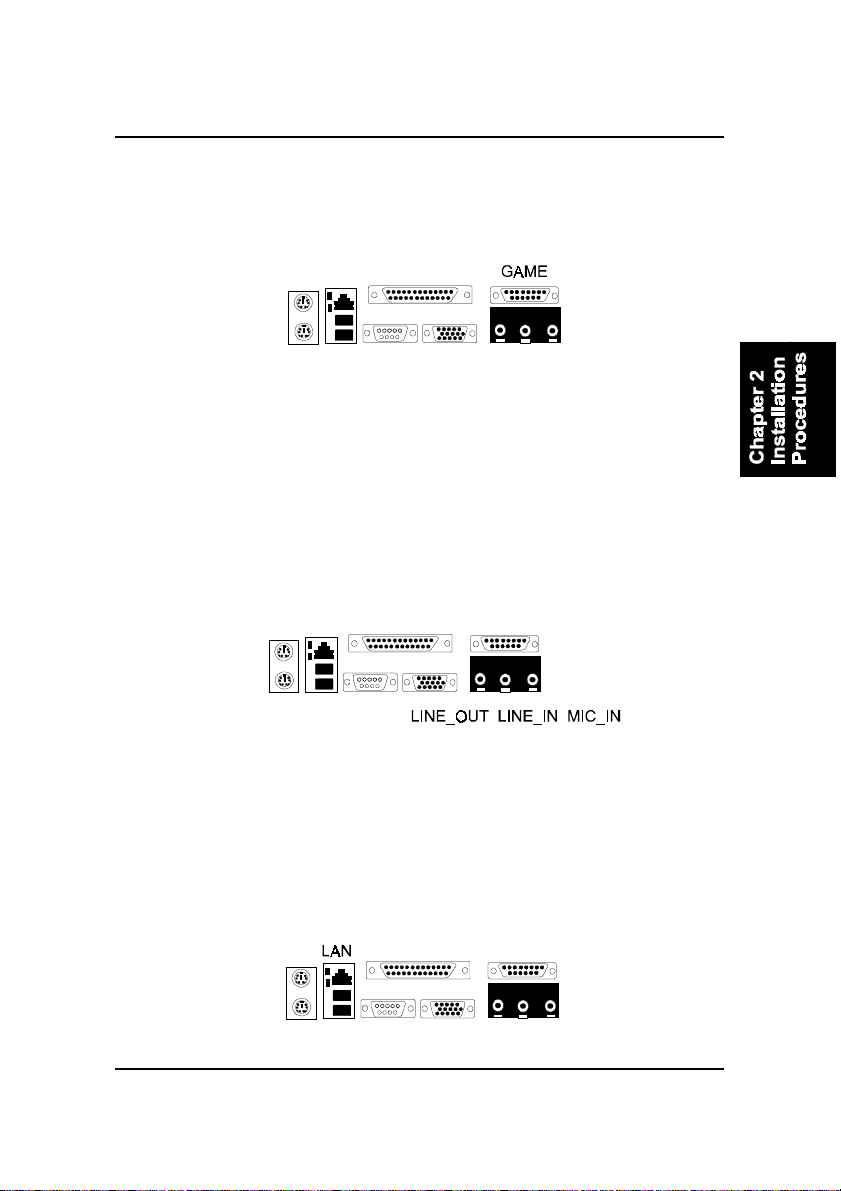

GAME/MIDI Connector: GAME

This 15-pin female connector allows you to connect game joysticks or game
pads. Connect MIDI devices for playing or editing audio.

Audio I/O Jacks: LINE_OUT, LINE_IN, MIC_IN

LINE_OUT can be connected to headphones or preferably powered speakers.
LINE_IN allows tape players or other audio sources to be recorded by your
computer or played through the LINE_OUT . MIC_IN allows microphones to
be connected for voice input.

Local Area Network Jack: LAN (optional)

Please plug your LAN cable into this jack to connect with your LAN and make
sure the jumper LAN EN is set at Enable.

2 - 21

FW37 Mainboard Manual

This Page Left Blank for Note

2 - 22

Installation Procedures

Chapter 2

Installation Procedures

The mainboard has several user-adjustable jumpers on the board that allow you to
configure your system to suit your requirements. This chapter contains information
on the various jumper settings on your mainboard.

To set up your computer, you must complete the following steps:

■ Step 1 - Set system jumpers/switches

■ Step 2 - Install memory modules

■ Step 3 - Install the Central Processing Unit (CPU)

■ Step 4 - Install expansion cards

■ Step 5 - Connect ribbon cables, cabinet wires, and power supply

■ Step 6 - Set up BIOS software

■ Step 7 - Install supporting software tools

WARNING: Excessive torque may damage the mainboard. When
using an electric screwdriver on the mainboard, make sure that
the torque is set to the allowable range of 5.0 ~ 8.0kg/cm.

Mainboard components contain very delicate Integrated Circuit
(IC) chips. To prevent static electricity from harming any of the
mainboard’s sensitive components, you should follow the
following precautions whenever working on the computer:

1. Unplug the computer when working on the inside.

2. Hold components by the edges and try not to touch the IC

||||chips, leads, or circuitry.

3. Wear an anti-static wrist strap which fits around the wrist.

4. Place components on a grounded anti-static pad or on the bag
that came with the component whenever the components are
separated from the system.

2 - 1

FW37 Mainboard Manual

Quick Reference (from Page 2-2 to 2-4)

Mainboard Layout

2 - 2

Installation Procedures

Mfg. Optional Spec. of FW37, FW37(M), FW37(B)

1). Clear CMOS, Clear Password,
Over Clock Driving, Onboard LAN Disable,
CPU Type Select, FSB Speed Select

2 - 3

FW37 Mainboard Manual

2). Front Panel Block Cable Connection

3). CPU Fan Installation

This connector is linked to the CPU fan. When the system is in suspend mode, the
CPU fan will turn off; when it reverts back to full on mode, the fan will turn back on.

Without sufficient air circulation, the CPU may overheat resulting in damage
to both the CPU and the mainboard.

Damage may occur to the mainboard and/or the CPU fan if these pins are
used incorrectly. These are not jumpers, do not place jumper caps over these
pins.

2 - 4

Installation Procedures

1). Set System Jumpers

Jumpers are used to select the operation modes for your system. Some jump­ers on the board have three metal pins with each pin representing a different
function. A “1” is written besides pin 1 on jumpers with three pins. To set a
jumper, a black cap containing metal contacts is placed over the jumper pin/s
according to the required configuration. A jumper is said to be shorted when
the black cap has been placed on one or two of its pins. The types of jumpers
used in this manual are shown below:

NOTE: Users are not encouraged to change the jumper settings
not listed in this manual. Changing the jumper settings improperly
may adversely affect system performance.

2 - 5

FW37 Mainboard Manual

CMOS Clearance Function: JP1 (CLRCMOS)

The CMOS RAM is powered by the onboard button cell battery. To clear the
R TC data: (1). Turn off your computer, (2). Move this jumper to Enable, (3).
Move the jumper back to Disable, (4). Turn on your computer , (5). Hold down
the Delete key during boot and enter BIOS Setup to re-enter user preferences.

Password Clearance Function: JP2 (CLRPWD)

This jumper allows you to enable or to disable the password configuration.
You may need to enable this jumper by shorting it with a jumper cap if you
forget your password. To clear the password setting: (1). Turn off your com­puter, (2). Short this jumper by placing a jumper cap on it; (3). T urn on your
computer, (4). Hold down the Delete key during boot and enter BIOS Setup to
re-enter user preferences, (5). Turn off your computer , (6). Remove the jumper
cap, (7). Turn on your computer for the new settings to take ef

2 - 6

Installation Procedures

Disabling Onboard LAN Feature: JP4

The 2-pin jumper allows you to disable onboard LAN feature of your com­puter system if you install a LAN card.

Enabling Over Voltage Driving: JP5 (Magic Tuner)

The 3-pin jumper allows you to start the over voltage driving capability of this
mainboard to approach the best performance.

WARNING: Voltage and frequency above CPU’s original specifica­tions are not guaranteed to be stable.

2 - 7

FW37 Mainboard Manual

CPU Type Selection: JP6

(for PCB 1.3) These two 3-pin jumpers are used together to select the CPU
types that you will install.

(for PCB 1.4 and above) The 3x3-pin jumper are used together to select the
CPU types that you will install.

2 - 8

Installation Procedures

2). Install Memory Modules

This mainboard provides two onboard DIMM sockets supporting 3.3V (un­buffered) SDRAM DIMM modules. Either 32, 64, 128, 256MB DIMM can be
installed on these three sockets. The maximum total memory supported is up
to 512MB.

Install and Remove DIMMs

1 . Locate the DIMM slots on the mainboard.

2. Install the DIMM straight down into the DIMM slot using both hands.

3. The clip on both ends of the DIMM slot will close up to hold the DIMM
in place when the DIMM reaches the slot’s bottom.

Press the clips with both hands to remove the DIMM.

2 - 9

FW37 Mainboard Manual

3). Install the CPU

The mainboard has built-in Switching Voltage Regulator to support CPU Vcore
autodetection. That is, It has the ability to detect and recognize the CPU
voltage, clock, ratio and enables users to set up the CPU frequency from the
BIOS Setup Screen. Users can adjust the frequency through “Frequency /
Voltage Control” of the BIOS Setup Screen.

T o install the CPU, do the following:

1 . Lift the lever on the side of the CPU socket.

2. Handle the chip by its edges and try not to touch any of the pins.

3 . Place the CPU in the socket. The chip has two notches to correctly locate

the chip. Align two notches of the processor with the two triangular
marks on the socket. Do not force the chip. The CPU should slide easily
into the socket.

4 . Swing the lever to the down position to lock the CPU in place.
5 . Place the cooling fan with heatsink on top of the installed CPU.

4). Install Expansion Cards

This section describes how to connect an expansion card to one of your
system’s expansion slots. Expansion cards are printed circuit boards that,
when connected to the mainboard, increase the capabilities of your system.
For example, expansion cards can provide video and sound capabilities. The
mainboard features three PCI bus, one AMR slot for audio-modem riser card.

2 - 10

CAUTION: Make sure to unplug the power supply when adding or
removing expansion cards or other system components. Failure to
do so may cause severe damage to both the mainboard and
expansioncards.
Always observe static electricity precautions.
Please read “Handling Precautions” at the start of this manual.

T o install an expansion card, follow the steps below:

Installation Procedures

1. Remove the computer chassis cover and select an empty expansion
slot.

2. Remove the corresponding slot cover from the computer chassis.
Unscrew the mounting screw that secures the slot cover and pull
the slot cover out from the computer chassis. Keep the slot cover
mounting screw nearby.

2 - 11

FW37 Mainboard Manual

3 . Holding the edge of the peripheral card, carefully align the edge

connector with the expansion slot.

4. Push the card firmly into the slot. Push down on one end of the
expansion card, then the other. Use this “rocking” motion until the
add–on card is firmly seated inside the expansion slot.

5. Secure the board with the mounting screw removed in Step 2. Make
sure that the card has been placed evenly and completely into the
expansion slot.

6 . Replace the computer system’s cover.

7 . Setup the BIOS if necessary .

8. Install the necessary software drivers for the expansion card.

Connectors

Floppy Diskette Drive Connector: FDD

This connector provides the connection with your floppy disk drive.
The red stripe of the ribbon cable must be the same side with the Pin 1.

2 - 12

Installation Procedures

IDE Device Connectors: PRIMARY, SECONDARY

These two connectors are used for your IDE hard disk drives, CD drives, LS­120|drives, or IDE ZIP drives. The red stripe of the ribbon cable must be the
same side with the Pin 1.

Front Panel Block Connector: J1

This block connector includes the connectors for linking with IDE LED, power
LED, remote power button, message LED, suspend button, reset button and
speaker on the front panel of the system case. Please identify polarities of plug
wires for the case speaker and LEDs. Please ask vendor about this information
when you buy them and install the system by yourself. The plug wires’ polari­ties of these buttons will not affect the function.

2 - 13

FW37 Mainboard Manual

Power LED is connected with the system power indicator to indicate whether
the system is on/off. It will blink when the system enters suspend mode.

Remote Power Button is connected with remote power (soft power) button.
Push this switch This button allows the system to be turned on and off rather
than using the power supply button.

Message LED is connected with the message LED. When the system is run­ning normally, the indicator is of f. It is controlled by the operating system or
application software.

Sleep Button is connected with sleep mode button.

Reset Button is connected to the reset button. Push this switch to reboot the

system instead of turning the power button off and on.

Speaker is connected with the case speaker.

IDE LED is connected to the IDE device indicator. This LED will blink when

the hard disk drives are activated.

2 - 14

Installation Procedures

ATX Power Connector: POWER

This 20-pin male block connector is connected to the A TX power supply . The
plug from the power supply will only insert in one orientation because of the
different hole sizes. Find the proper orientation and push down firmly making
sure that the pins are aligned.

CPU Fan Connector: FAN1

This connector is linked to the CPU fan. When the system is in suspend mode,
the CPU fan will turn off; when it reverts back to full–on mode, the fan will turn
back on. Please refer to the CPU fan installation manual for more information.

2 - 15

FW37 Mainboard Manual

System Case Fan Connector: FAN2

There two 3-pin connectors onboard that either one allows you to link with the
cooling fan on the system case to lower the system temperature.

Wake-On-Lan Connector: WOL1

This 3-pin connector allows the remove servers to manage the system that
installed this mainboard via your network adapter which also supports WOL.
When you install such a LAN card, please read its installation guide for more
information.

2 - 16

Installation Procedures

CAUTION:

Before connecting with the TV audio ribbon cable to VIDEO AD
connector, make sure your system power is off. Failure to do so
may cause damage to the mainboard.

TV Audio Input Connector: J9 (VIDEO AD)

This 1x4-pin connector is connected with your TV PCI card for taking the
audio signal inputs through the card conversion. You can tune the TV pro­gram which display on your monitor together with your computer and a re­mote control.

Flat Panel Display Connector: FTP1
(for specified customers)

(If PCB 1.3, it is reserved for specified customers. If PCB 1.4 and above, it is
removed; , it is onboard only for specified customers.)

This mainboard supports your flat panel display through this pinhead to a PCI
convertor card that outputs the signals to the display.

2 - 17

FW37 Mainboard Manual

Infrared Connector: IR

This 5-pin connector is used to link with your ID device to allow transmission
of data to another system that also supports the IR feature. This module
mounts to a small opening on system cases that support it.

CD Audio-In Connectors: J10, J11

These two 4-pin connectors are used for different types of the AUDIO-OUT
port of your CD drive.

2 - 18

Installation Procedures

PS/2 Keyboard and Mouse Connector: PS2_KB, PS2_MS

These two 6-pin female connectors are used for your PS/2 keyboard and
PS/2 mouse.

Universal Serial Bus Connectors: Rear and Front USBs

These two connectors integrated on the edge of the board are used for linking
with USB peripheral devices. This board also provides a connector F .USB for
linking with the two USB sockets on the front panel of some system cases.
Please note your operating system must support USB features, such as MS
Windows 98, MS W indows 95 OSR2.5 with USB Supplement. (When two front
USBs are used, two rear USBs will not work and vice versa).

The figure above left is the pin assignment of the F.USB connector for two
front panel USB connections.

2 - 19

FW37 Mainboard Manual

Serial Port Connectors: COM1, COM2

COM1 (9-pin D-sub male connector) and COM2 (9-pin male connector) allow
you to connect with your devices that use serial ports, such as a serial mouse
or an external modem.

Printer Connector: LPT

This 25-pin D-Sub female connector is attached to your printer.

Video Graphics Accelerator Connector: VGA

This 15-pin female D-sub connector is connected to your display monitor.

2 - 20

Installation Procedures

GAME/MIDI Connector: GAME

This 15-pin female connector allows you to connect game joysticks or game
pads. Connect MIDI devices for playing or editing audio.

Audio I/O Jacks: LINE_OUT, LINE_IN, MIC_IN

LINE_OUT can be connected to headphones or preferably powered speakers.
LINE_IN allows tape players or other audio sources to be recorded by your
computer or played through the LINE_OUT . MIC_IN allows microphones to
be connected for voice input.

Local Area Network Jack: LAN (optional)

Please plug your LAN cable into this jack to connect with your LAN and make
sure the jumper LAN EN is set at Enable.

2 - 21

FW37 Mainboard Manual

This Page Left Blank for Note

2 - 22

BIOS Setup

Chapter 3

BIOS Setup

The mainboard comes with the A ward BIOS chipthat contains the ROM Setup
information of your system. This chip serves as an interface between the
processor and the rest of the mainboard’s components. This section explains
the information contained in the Setup program and tells you how to modify
the settings according to your system configuration.

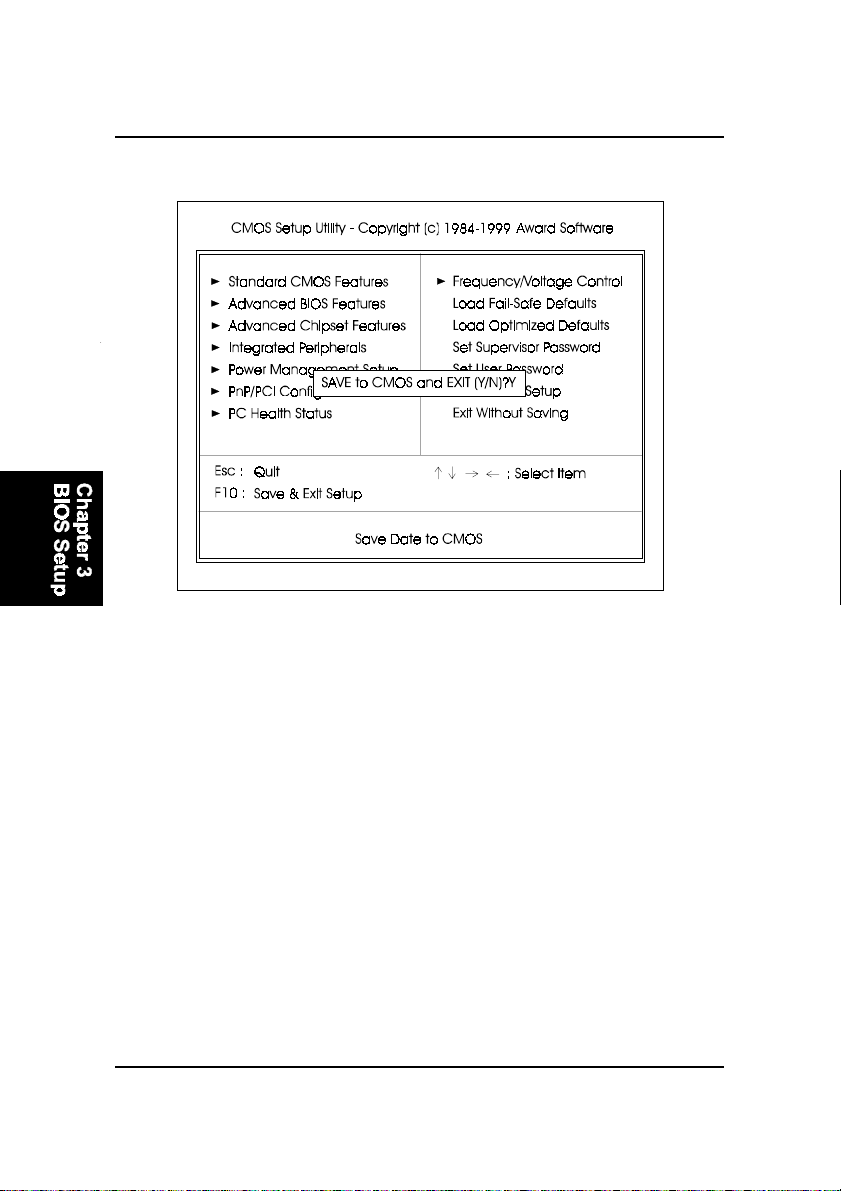

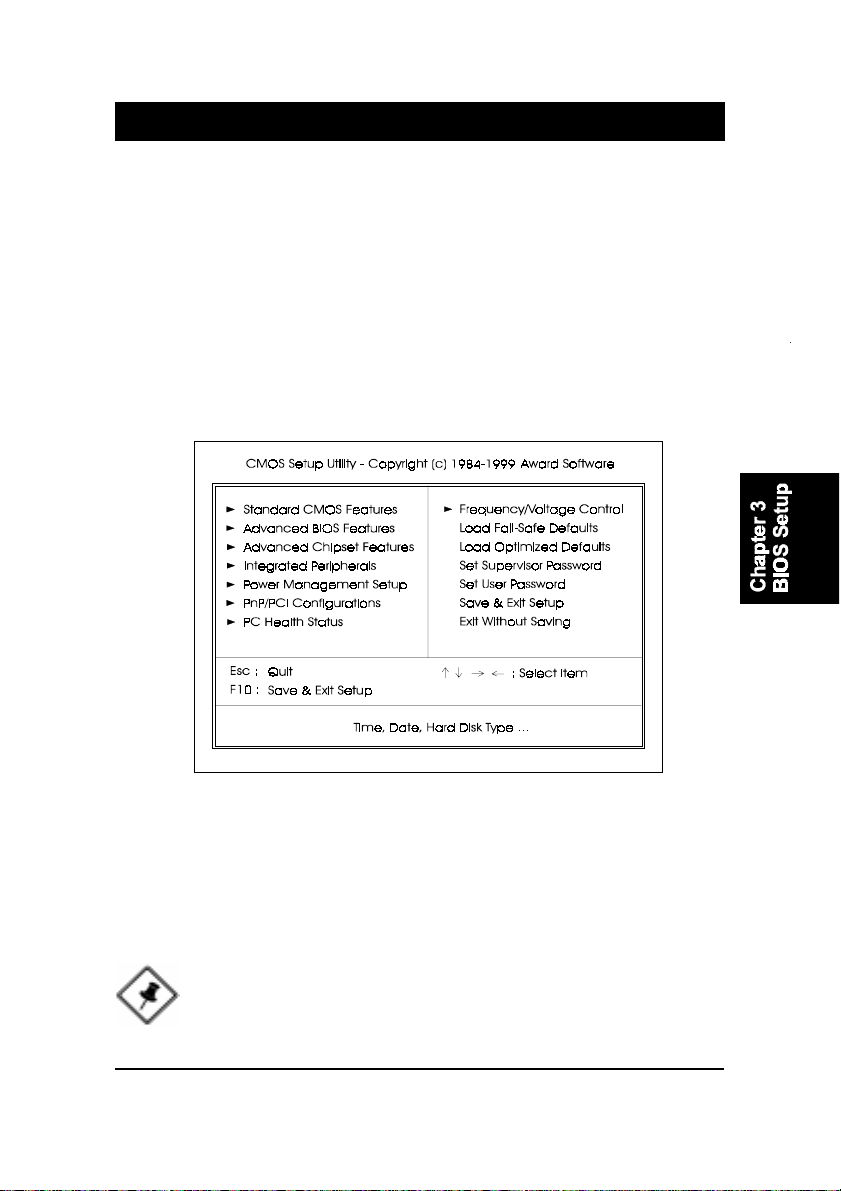

CMOS Setup Utility

A Setup program, built into the system BIOS, is stored in the CMOS RAM.
This Setup utility program allows changes to the mainboard configuration
settings. It is executed when the user changes system configuration; user
changes system backup battery; or the system detects a configuration error
and asks the user to run the Setup program. Use the arrow keys to select and
press Enter to run the selected program.

NOTE: Please disable this BIOS feature about BIOS Guardian
before you start to reflash BIOS.
(Please read Page 1-8, Page 3-6 for detail information).

3 - 1

FW37 Mainboard Manual

Standard CMOS Setup

The Standard CMOS Setup screen is displayed above. Each item may have
one or more option settings. The system BIOS automatically detects memory
size, thus no changes are necessary. Use the arrow keys to highlight the item
and then use PgUp or PgDn keys to select the value you want in each item.

Hard Disk Configurations

Capacity: The hard disk size. The unit is Mega Bytes.
Cylinder: The cylinder number of the hard disk.
Head: The read/write head number of hard disk.
Precomp: The cylinder number at which the disk drive changes the write

current.
Landing Zone: The cylinder number that the disk drive heads (read/write)
are seated when the disk drive is parked.
Sector: The sector number of each track defined on the hard disk.

3 - 2

Advanced BIOS Features

BIOS Setup

3 - 3

FW37 Mainboard Manual

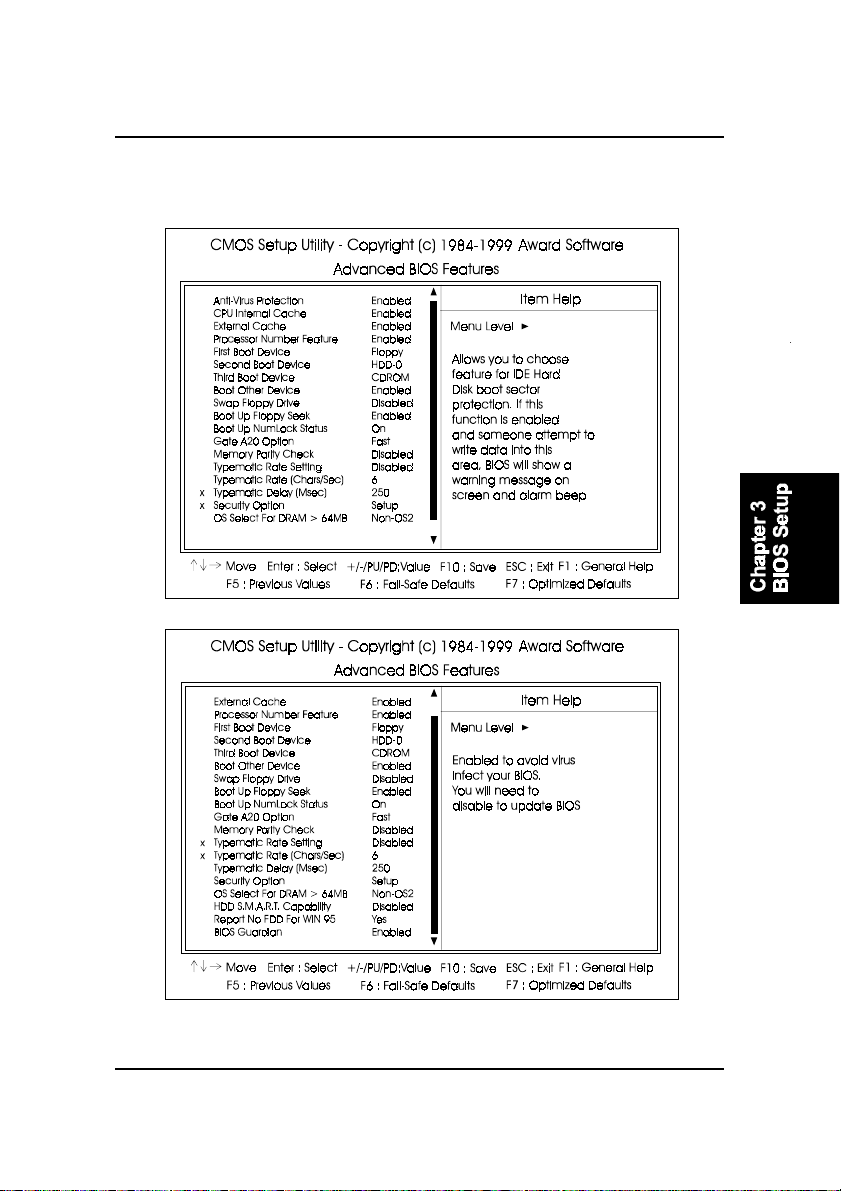

Anti-Virus Protection

This feature starts the virus scan tool to detect if boot virus in boot sector
of the first hard disk drive when booting up.
The options are: Enabled (Default), Disabled.

CPU Internal Cache

When enabled, improves the system performance. Disable this item when
testing or trouble-shooting. The options are: Enabled (Default), Disabled.

External Cache

When enabled, supports an optional cache SRAM. This feature allows
you to disable the cache function when the system performance is un­stable to run some software. The options are: Enabled (Default), Disabled.

Processor Number Feature

If a Pentium III processor is installed on this mainboard, the system BIOS
will allow other utilities to access the Intel Pentium III serial number while
this feature set at Enabled. The options are: Enabled (Default), Disabled.

Quick Power On Self T est

When enabled, allows the BIOS to bypass the extensive memory test.
The options are: Enabled (Default), Disabled.

First Boot Device

This feature allows user to select the boot device priority .
The options are: Floppy (Default), LS120, HDD-0, SCSI, CDROM, HDD-1,
HDD-2, HDD-3, ZIP100, LAN, Disabled.

Second Boot Device

This feature allows user to select the boot device priority .
The options are: Floppy , LS120, HDD-0 (Default), SCSI, CDROM, HDD-1,
HDD-2, HDD-3, ZIP100, LAN, Disabled.

Third Boot Device

This feature allows user to select the boot device priority .
The options are: Floppy , LS120, HDD-0, SCSI, CDROM (Default), HDD-1,
HDD-2, HDD-3, ZIP100, LAN, Disabled.

3 - 4

BIOS Setup

Boot Other Device

This feature allows user to select the boot device priority .
The options are: Enabled (Default), Disabled.

Swap Floppy Drive

Allows you to switch the order in which the operating system accesses
the floppy drives during boot up.
The options are: Enabled, Disabled (Default).

Boot Up Floppy Seek

When enabled, assigns the BIOS to perform floppy diskette drive tests by
issuing the time-consuming seek commands.
The options are: Enabled (Default), Disabled.

Boot Up Numlock Status

When set to On, allows the BIOS to automatically enable the Num Lock
Function when the system boots up. The options are: On (Default), Off.

Gate A20 Option

When set at Fast, allows a faster access response under Protected mode.
The options are: Fast (Default), Normal.

Memory Parity Check

Enabling it will add a parity check to the boot-up memory tests. Set at
Enabled only if the system DRAM contains parity .
The options are: Disabled (Default), Enabled.

Typematic Rate Setting

The term typematic means that when a keyboard key is held down, the
character is repeatedly entered until the key is released.
The options are: Disabled (Default), Enabled.

Typematic Rate (Chars/Sec)

This feature is available only if the above item, T ypematic Rate Setting, is
set at Enabled. Sets the rate of a character repeat when the key is held
down. The options are: 6 (Default), 8, 10, 12, 15, 20, 24, 30.

3 - 5

FW37 Mainboard Manual

Typematic Delay (Msec)

This feature is available only if the item, T ypematic Rate Setting, is set at
Enabled. Sets the delay time before a character is repeated.
The options are: 250 (Default), 500, 750, 1000 millisecond.

Security Option

Allows you to set the security level of the system.
The options are: Setup (Default), System.

OS Select For DRAM > 64MB

If your operating system (OS) is OS/2, select the option OS2. Otherwise,
stay with the default setting Non-OS2.
The options are: Non-OS2 (Default), OS2.

HDD S.M.A.R.T . Capability

S.M.A.R.T . stands for Self-Monitoring and Analysis Reporting Technol­ogy which allows your hard disk drive to report any read/write errors and
issues a warning with LDCM installed.
The options are: Disabled (Default); Enabled.

Report No FDD For WIN 95

When the field under the Standard CMOS Setup Menu for Drive A and/or
Drive B is set at None, users must set this field is set at Y es for it to function
properly. Otherwise, set at No, even if field for Drive A and/or Drive B is set
at None, system will still detect and recognize of a floppy drive(s).
The options are: Y es, No (Default).

Video BIOS Shadow

Allows the BIOS to copy the video ROM code of the add-on video card to
the system memory for faster access.
The options are: Enabled (Default), Disabled.

BIOS Guardian

It allows the system to prevent computer viruses. Users will need to dis­able it to update BIOS. The options are: Enabled (Default), Disabled.

NOTE: Please disable this BIOS feature about BIOS Guardian
before you start to reflash BIOS.

3 - 6

BIOS Setup

Advanced Chipset Features

SDRAM CAS Latency Time

If the CAS latency of your installed SDRAM DIMM is 2, set it at 2 to
enhance system performance. If the CAS latency is 3, stay with the default
setting of 3. The options are: 3 (Default); 2.

SDRAM Cycle Time Tras/Trc

This item controls the number system clock for an access cycle.
The options are: 6/8 (Default); 5/7.

SDRAM RAS-to-CAS Delay

This item, which is available only when the above item Auto Configuration
is set at Disabled, allows you to define the time delay from DRAM CAS#
active to CAS# active, depending on the CPU frequency and DRAM type
used, whether 2 clocks or 3 clocks. The options are: 3 (Default); 2.

3 - 7

FW37 Mainboard Manual

SDRAM RAS Precharge Time

This item, which is available only when the above item Auto Configuration
is set at Disabled, allows you to select the DRAM RAS# precharge time
whether 3 clocks or 4 clocks. The options are: 3 (Default); 2.

System BIOS Cacheable

When enabled, allows the ROM area of F000H-FFFFH to be cacheable
when the cache controller is activated.
The options are Enabled (default), Disabled.

Video BIOS Cacheable

As with caching the system BIOS above, enabling the video BIOS cache
will cause access to the video BIOS addressed at C0000H-C7FFFH to be
cached, if the cache controller is also enabled.
The options are Enabled (default), Disabled.

Memory Hole at 15M-16M

Enabling this feature reserves between 15MB and 16MB memory address
space for expansion cards that specifically require this setting. This makes
the memory for 15MB to 16MB unavailable to the system. Expansion cards
can only access memory above 16MB.
The options are Disabled (Default), Enabled.

CPU Latency Timer

CPU latency item setting to fix Japanese Win 95 problem.
The options are Disabled (Default), Enabled.

Delayed Transaction

When enabled, it allows the current PCI bus master to retry the current
PCI bus master cycle and to accept the new PCI bus master request. It re­accepts the original PCI bus master and returns data to the original PCI
bus master, thereby enhancing system performance.
The options are: Disabled; Enabled (Default).

On-Chip Video Window Size

This feature allows you to select the main memory frame size of AGP use.
The options are: 64MB (Default), 32MB, Disabled.

3 - 8

BIOS Setup

Local Memory Frequency

This item allows users to select the SDRAM frequency.
The options are: 100MHz (Default); 133MHz.

CAS# Latency

When the display cache onboard, this item allows you to select CAS
Latency . The options are: 3 (Default); 2.

Paging Mode Control

This feature allows users to open or close the GMCH memory controller
page mode. The options are: 3 (Default); 2.

RAS-to-CAS Override

This feature allows users to select the unit of cache clock periods.
The options are: by CAS#L T (Default); Override (2).

RAS# Timing

This feature allows users to control RAS# active to precharge, and refresh
to RAS# active delay (in local memory clocks).
The options are: Fast (Default); Slow.

RAS# Precharge Timing

This feature allows users to control RAS# precharge (in local memory
clocks). The options are: Fast (Default); Slow.

3 - 9

FW37 Mainboard Manual

Integrated Peripherals

3 - 10

BIOS Setup

On-Chip Primary PCI IDE

When enabled, it allows you to use the onboard primary PCI IDE. The
options are: Enabled (Default); Disabled.

On-Chip Secondary PCI IDE

When enabled, it allows you to use the onboard secondary PCI IDE. The
options are: Enabled (Default); Disabled.

IDE Primary Master PIO

Allows an automatic or a manual configuration of the PCI primary IDE
hard drive (master) mode. The options are: Auto (Default); Mode 0; Mode
1; Mode 2; Mode 3; Mode 4.

IDE Primary Slave PIO

Allows an automatic or a manual configuration of the PCI primary IDE
hard drive (slave) mode. The options are: Auto (Default); Mode 0; Mode
1; Mode 2; Mode 3; Mode 4.

IDE Secondary Master PIO

Allows an automatic or a manual configuration of the PCI secondary IDE
hard drive (master) mode. The options are: Auto (Default); Mode 0; Mode
1; Mode 2; Mode 3; Mode 4.

IDE Secondary Slave PIO

Allows an automatic or a manual configuration of the PCI secondary IDE
hard drive (slave) mode. The options are: Auto (Default); Mode 0; Mode
1; Mode 2; Mode 3; Mode 4.

IDE Primary Master UDMA

Allows an automatic configuration of the PCI primary IDE hard drive
(master) mode if Ultra DMA is supported both on the motherboard and
the hard disk. The options are: Auto (Default); Disabled.

IDE Primary Slave UDMA

Allows an automatic configuration of the PCI primary IDE hard drive
(slave) mode if Ultra DMA is supported both on the motherboard and the
hard disk. The options are: Auto (Default); Disabled.

3 - 11

FW37 Mainboard Manual

IDE Secondary Master UDMA

Allows an automatic configuration of the PCI secondary IDE hard drive
(master) mode if Ultra DMA is supported both on the motherboard and
the hard disk. The options are: Auto (Default); Disabled.

IDE Primary Slave UDMA

Allows you to select the first PCI IDE channel of the first slave hard disk
mode or to detect it by the BIOS if the hard disk supports UDMA (Ultra
DMA, faster than DMA). The options are: Auto (Default), Disabled.

USB Controller

Disable this option if you are not using the onboard USB feature.
The options are: Disabled (Default); Enabled.

BIOS Support USB Keyboard

When a USB keyboard is installed, please set at Enabled.
The options are: Enabled (Default); Disabled.

Init Display First

When you install an AGP VGA card and a PCI VGA card on the board, this
feature allows you to select the first initiation of the monitor display from
which card. The options are: PCI Slot (Default), Onboard.

AC97 Audio

This feature allows users to enable or disable the AC97 audio function.
The options are: Auto (Default), Disabled.

AC97 Modem

This feature allows users to enable or disable the AC97 modem function.
The options are: Auto (Default), Disabled.

IDE HDD Block Mode

When enabled, the system executes read/write requests to hard disk in
block mode. The options are: Enabled (Default), Disabled.

3 - 12

BIOS Setup

POWER ON Function

Allows you to set the method for powering-on the system. The default
option of BUTTON-ONLY allows system power-on using the standard
system case mounted ON/OFF switch. The option Password allows you
to set up to 5 alphanumeric characters to power-on the system. The option

Hot KEY allows you to set which of the 12 keyboard function keys (F1 to
F12) in combination with the Ctrl key to power-on the system. The option

Mouse Click allows you to use the PS/2 mouse to power-on the system by
double-clicking on the mouse button. The options are: Button Only (De­fault); Password; Hot KEY ; Mouse Right, Mouse Left.

NOTE: When using Password, Hot KEY, or Mouse Click options for
the item POWER ON Function will render the power button on the
system case ineffective. In case user forgets password or hot key
setting, use the clear password switch or jumper to clear RTC data
(refer to section about clear password on Chapter 2). Another
method is to unplug system power from the AC power outlet and
then re-insert the power cord. Previous password and hot key set­tings will be disabled allowing user to set a new one.

Hot Key power ON

Allows you to set which of the 12 keyboard function keys (F1 to F12) in
combination with the Ctrl key will be used to power-on the system. The
options are: Ctrl-F1 (default) up to Ctrl-F12.

Onboard FDC Controller

When enabled, the floppy diskette drive (FDD) controller is activated.
The options are: Enabled (Default), Disabled.

Onboard Serial Port 1

If the serial port 1 uses the onboard I/O controller, you can modify your
serial port parameters. If an I/O card needs to be installed, COM3 and
COM4 may be needed. The options are: 3F8/IRQ4 (Default), 3E8/IRQ4,
2F8/IRQ3, 2E8/IRQ3, Disabled.

3 - 13

FW37 Mainboard Manual

Onboard Serial Port 2

If the serial port 2 uses the onboard I/O controller, you can modify your
serial port parameters. If an I/O card needs to be installed, COM3 and
COM4 may be needed. The options are: 2F8/IRQ3 (Default), 3E8/IRQ4,
2E8/IRQ3, 3F8/IRQ4, Disabled.

UART Mode Select

Allows you to select the IR modes if the serial port 2 is used as an IR port.
Set at Standard, if you use COM2 as the serial port as the serial port,
instead as an IR port. The options are: HPSIR, ASKIR, Normal (Default).

RxD , TxD Active

This feature is available only if the item, UAR T 2 Mode, is set at ASKIR or
HPSIR. The feature allows you to select the active signals of the reception
end and the transmission end. This is for technician use only.
The options are: Hi, Lo (Default); Hi, Hi; Lo, Hi; Lo, Lo.

IR Transmission Delay

When Enabled, the transmission delays 4 characters-time (40 bit-time) if
SIR is changed from RX mode to TX mode. When Disabled, no transmis­sion delay if SIR is changed from RX mode to TX mode.
The options are: Enabled (Default), Disabled.

UR2 Duplex Mode

Allows you to select the IR modes.
The options are: Half (Default), Full.

Use IR Pins

Allows you to select IR pin mode.
The options are: IR-Rx2Tx2 (Default), RxD2, TxD2.

Onboard Parallel Port

Allows you to select from a given set of parameters if the parallel port uses
the onboard I/O controller.
The options are: 378/IRQ7 (Default), 278/IRQ5, 3BC/IRQ7, Disabled.

3 - 14

BIOS Setup

Parallel Port Mode

Allows you to connect with an advanced printer via the port mode it
supports.
The options are: SPP (Default), EPP , ECP, ECP+EPP .

EPP Mode Select

This feature allows you to select the EPP type version.
The options are: EPP1.7 (Default), EPP1.9.

ECP Mode Use DMA

This feature allows you to select Direct Memory Access (DMA) channel if
the ECP mode selected. The options are: 3 (Default), 1.

PWRON After PWR-Fail

When the system is shut down owing to the power failure, the system will
not be back to power on by itself. This feature allows you to set the
system back to which power status of the system when the system power
is resumed. The options are Former-Sts (Default), On, or Off.

Game Port Address

This feature allows you to select the game port address or disable it.
The options are: 201 (Default), 209, Disabled.

Midi Port Address

This feature allows you to select the Midi port address or disable it.
The options are: 330 (Default), 300, 290, Disabled.

Midi Port IRQ

It allows you to select Midi IRQ if Midi is enabled.
The options are: 10 (Default), 5.

3 - 15

FW37 Mainboard Manual

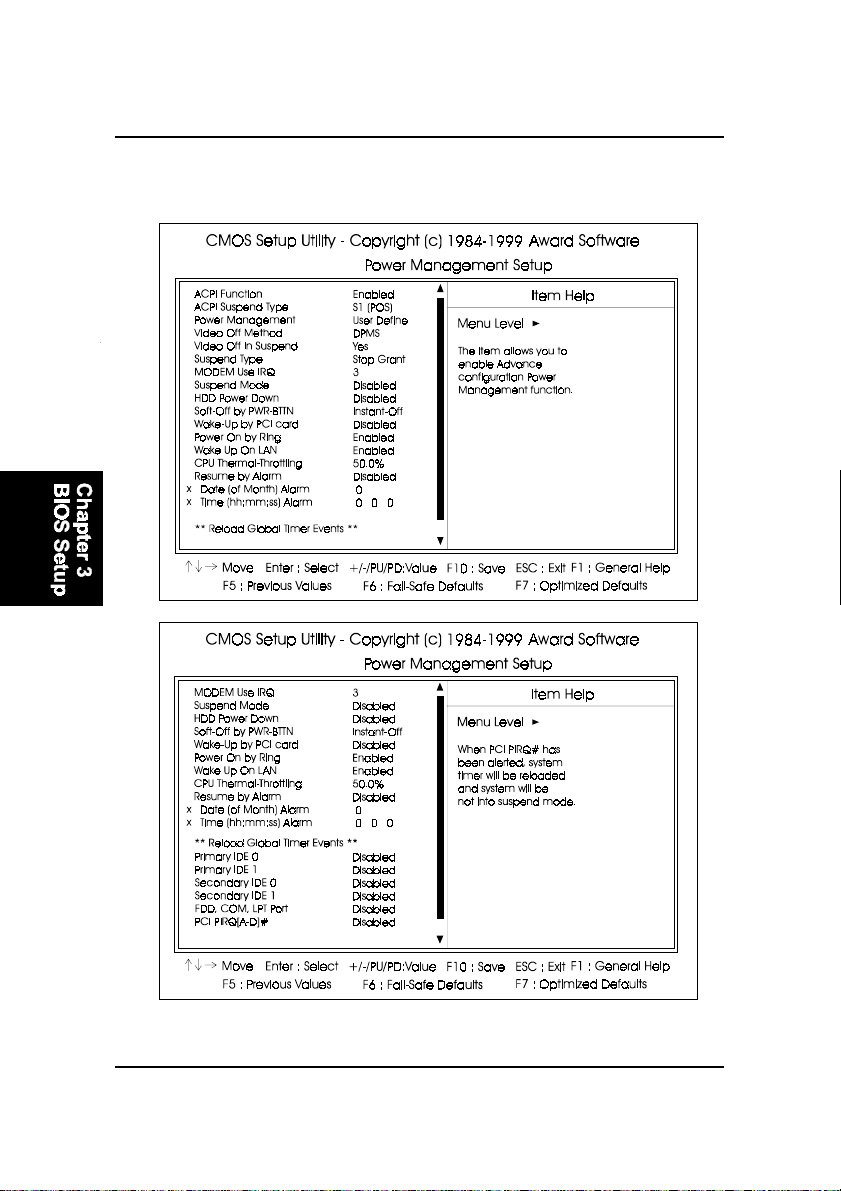

Power Management Setup

3 - 16

BIOS Setup

ACPI function

This item allows you to disable the ACPI function.
The options are: Enabled (Default), Disabled.

ACPI Suspend Type

This item allows you to select suspend mode when the system in ACPI
mode. The options are: S1 (POS) (Default), S3 (PTR).

Power Management

This item allows you to adjust the power management features.
Select User Define for configuring your own power management features.

Min Saving initiates all predefined timers in their minimum values. Max
Saving, on the other hand, initiates maximum values. The options are: User
Define (Default), Min Saving, Max Saving.

Video Off Method

The option V/H SYNC+Blank allows the BIOS to blank off screen display
by turning off the V-Sync and H-Sync signals sent from add-on VGA card.
DPMS allows the BIOS to blank off screen display by your add-on VGA
card which supports DPMS (Display Power Management Signaling func­tion). Blank Screen allows the BIOS to blank off screen display by turning
off the red-green-blue signals.
The options are: V/H SYNC+Blank, DPMS (Default), Blank Screen.

Video Off In Suspend

The option allows you to select VGA status when the system goes to
suspend mode. The options are: Yes (Default), No.

Suspend Type

The option allows you to select VGA status when the system goes to
suspend mode. The options are: Stop Grant (Default), PwrOn Suspend.

3 - 17

FW37 Mainboard Manual

HDD Power Down

The option lets the BIOS turn the HDD motor off when system is in Sus­pend mode. Selecting 1 Min..15 Min allows you define the HDD idle time
before the HDD enters the Power Saving Mode.
The options 1 Min..15 Min will not work concurrently . When HDD is in the
Power Saving Mode, any access to the HDD will wake the HDD up.
The options are: Disable (Default), 1 Min..15 Min.

Soft-Off by PWR-BTTN

The selection Delay 4 Sec. will allow the system shut down after 4 seconds
after the power button is pressed. The selection Instant-Off will allow the
system shut down immediately once the power button is pressed.
The settings are: Delay 4 Sec, Instant-Off (Default).

Wake-Up by PCI card

When set at Enabled, any PCI-PM event awakes the system from a PCI­PM controlled state. The options are Disabled (Default) or Enabled.

Power On by Ring

An incoming call via modem awakes the system from its soft-off mode.
The options are Enabled (Default) or Disabled.

Wake Up On LAN

When set at Enabled, an input signal comes from the other client/server on
the LAN awakes the system from a soft off state if connected over LAN.
The options are Disabled or Enabled (Default).

CPU Thermal-Throttling

When thermal override condition occur, this item allows users to deter­mine the duty cycle of the throttling.
The options are: 12.5%, 25.0%, 37.5%, 50.0% (Default), 62.5, 75.0%, 87.5%.

MODEM Use IRQ

This feature allows you to select the IRQ# to meet your modem’s IRQ#.
The options are: 3 (Default), 4, 5, 7, 9, 10, 11.

3 - 18

BIOS Setup

Resume by Alarm

This feature allows you to set the when the system being turned on from
the system power-off status.
The options are: Enabled (Default), Disabled.

Date (of Month)

This feature allows you to set the day of the alarm starts when the RTC
Alarm Resume From Soft Off is set to be Enabled. The options are: 0, 1..31.

Timer (hh:mm:ss)

If an ATX power supply is installed and when RTC Alarm Resume is En­abled, this feature allows you to set the time of the alarm starts when the
RTC Alarm Resume From Soft Of f is set to be Enabled.
The options are: 7: 0: 0 (Default). hh (hour) - 0, 1, 2,.., 23; mm (minute) - 0,
1, 2,..,59; ss (second) - 0, 1, 2,..,59.

Primary IDE 0

When the primary master HDD is working, the system timer will be re­loaded and the system will not be into the suspend mode.
The options are: Disabled (Default), Enabled.

Primary IDE 1

When the primary slave HDD is working, the system timer will be reloaded
and the system will not be into the suspend mode.
The options are: Disabled (Default), Enabled.

Secondary IDE 0

When the secondary master HDD is working, the system timer will be
reloaded and the system will not be into the suspend mode.
The options are: Disabled (Default), Enabled.

Secondary IDE 1

When the secondar slave HDD is working, the system timer will be re­loaded and the system will not be into the suspend mode.
The options are: Disabled (Default), Enabled.

3 - 19

FW37 Mainboard Manual

FDD, COM, LPT Port

When FDD, COM, or LPT is working, the system timer will be reloaded and
the system will not be into the suspend mode.
The options are: Disabled (Default), Enabled.

PCI PIRQ[A-D]#

When the PCI PIRQ[A-D]# has been alerted, the system timer will be re­loaded and the system will not be into the suspend mode.
The options are: Disabled (Default), Enabled.

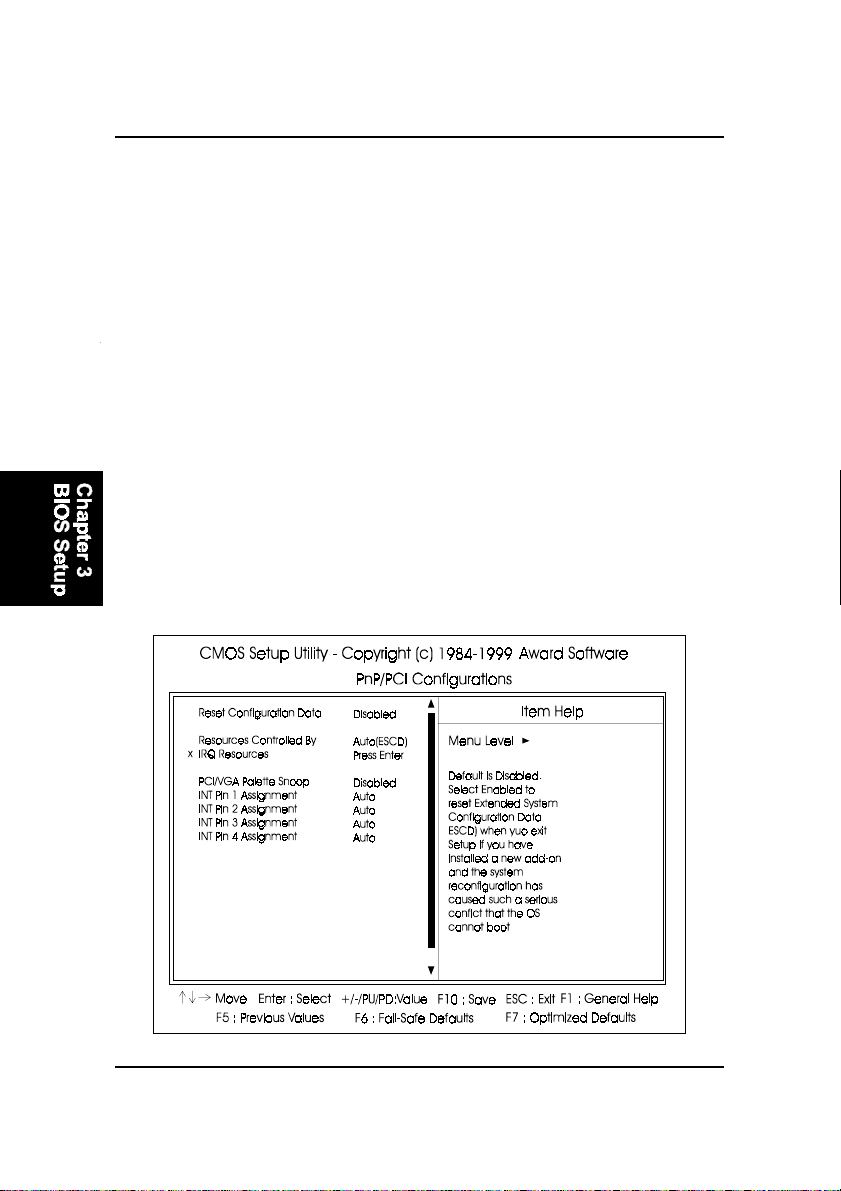

PnP/PCI Configurations

3 - 20

BIOS Setup

Reset Configuration Data

Enabling it to reset the system Extended System Configuration Data (ESCD)
when you exit Setup if you have installed a new add-on card and the
system reconfiguration has caused such a serious conflict that the operat­ing system can not boot. The options are: Disabled (Default), Enabled.

Resources Controlled By

If set at Auto, the BIOS arranges all system resources. If there exists con­flict, select Manual. The options are: Auto (ESCD) (Default), Manual.

IRQ Resources

If resources are controlled manually, assign each system interrupt a type,
depending on the device type using the interrupt.

IRQ-3/4/5/7/9/10/1 1/12/14/15

Legacy ISA for devices compliant with the original PC AT bus specifica­tion, PCI/ISA PnP for devices compliant with PnP standard whether de­signed for PCI or ISA bus architecture.
The options are: PCI Device (Default), Reserved.

PCI/VGA Palette Snoop

Set this feature to be enabled if any ISA adapter card installed in the
system requires the VGA palette snoop function.
The options are: Disabled (Default), Enabled.

INT Pin 1/2/3/4 Assignment

This feature allows you to assign the PCI IRQ numbers for PCI slots.
Selecting the default, Auto, allows the PCI controller to automatically allo­cate the IRQ numbers.
The options are: Auto (Default), 3, 4, 5, 7, 9, 10, 11, 12, 14, 15.

3 - 21

FW37 Mainboard Manual

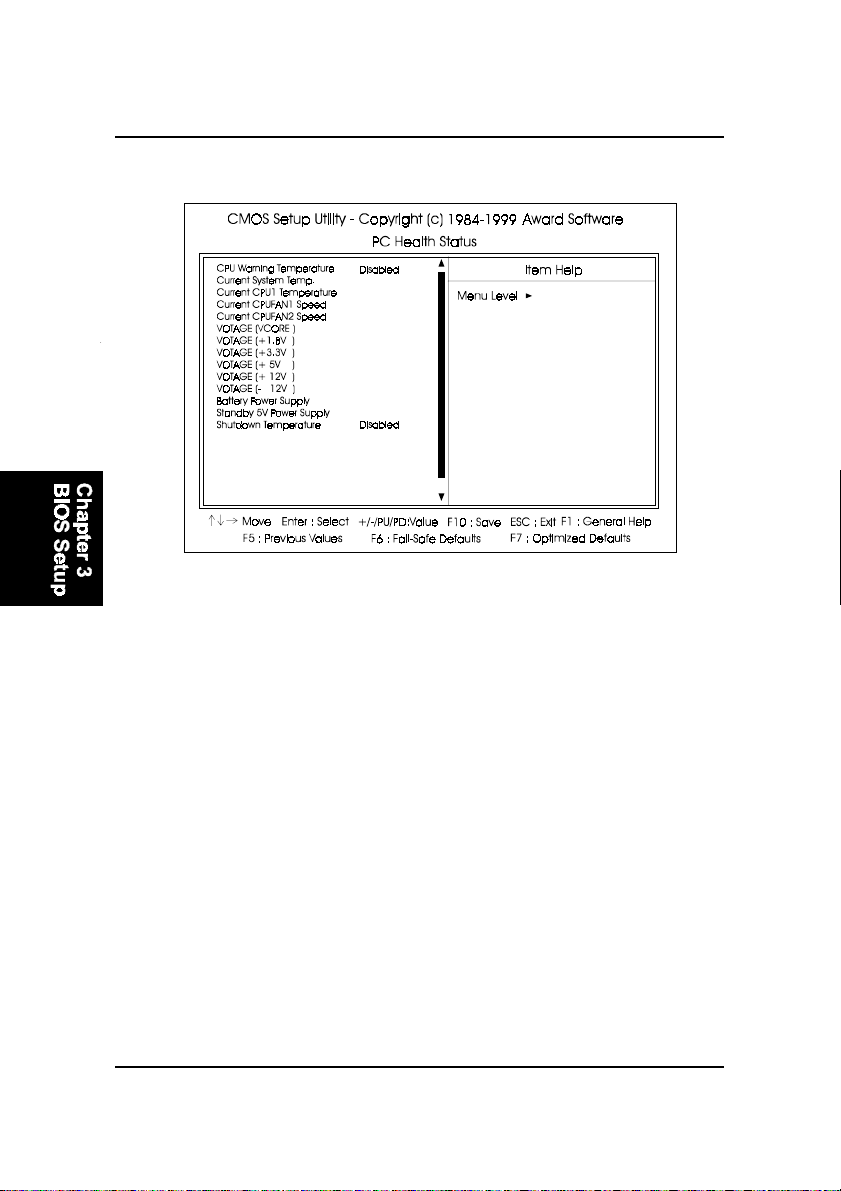

PC Health Status

CPU Warning T emperature

This feature allows you to set the temperature to slow down the CPU clock
frequency .
The options are: Disabled (Default), 50oC/122oF, 53oC/127oF, 56oC/133oF,
60oC/140oF, 63oC/145oF, 66oC/151oF, 70oC/158oF.

Current System T emp. / Current CPU1 T emperature / Current CPUF AN1
Speed / Current CPUFAN1 Speed / Current CPUF AN2 Speed / VOT AGE
/Batter Power Supply / Standard 5V Power Supply

These items allow end users and technicians to monitor data provided by
the BIOS on this mainboard. It is not user-configurable.

Shutdown T emperature

When Windows 98 ACPI mode installed, this feature helps to shutdown
the system when the system temperature is as high as the selected tem­perature to prevent from the overheat problem.
The options are: 60oc/140oF, 65oc/149oF, 70oc/158oF, 75oc/167oF , Disabled
(Default).

3 - 22

BIOS Setup

Frequency/Voltage Control

This submenu allows you to configure the frequency and voltage of your
processor.

Auto Detect DIMM/PCI Clk

When set at Enabled, the system BIOS will detect the PCI slots and DIMM
slots. If a slot is found no device on it, the system BIOS will automatically
disable the slot clock.
The options are: Enabled (Default), Disabled.

CPU/SDRAM/PCI/Spectrum

This feature is used to set the CPU, SDRAM, PCI clock frequencies. The
option list provides all available combinations provided by this system.

CPU Clock Ratio

This feature allows you to select the frequency mulitplier for CPU host
clock. The option list offers the ratios from X 3 to X 8.

3 - 23

FW37 Mainboard Manual

Load Fail-Safe Defaults

This submenu is selected to diagnose the problem after the computer boots, if
the computer will not boot. These settings do not give optimal performance.

Load Optimized Defaults

This submenu is selected for settings which provide the best system perfor­mance.

3 - 24

BIOS Setup

Supervisor/User Password

To enable the Supervisor/User passwords, select the item from the Standard
CMOS Setup. Y ou will be prompted to create your own password. Type your
password up to eight characters and press Enter. You will be asked to confirm
the password. Type the password again and press Enter. To disable password,
press Enter twice when you are prompted to enter a password. A message
appears, confirming the password is disabled.

Under the BIOS Feature Setup, if Setup is selected under the Security Option
field and the Supervisor/User Password is enabled, you will be prompted
password every time you try to enter the CMOS Setup Utility. If System is
selected and the Supervisor/User Password is enabled, you will be requested
to enter the Password every time when you reboot the system or enter the
CMOS Setup utility.

3 - 25

FW37 Mainboard Manual

Save and Exit Setup

After you have made changes under Setup, press Esc to return to the main
menu. Move cursor to Save and Exit Setup or press F10 and then press Y to
change the CMOS Setup. If you did not change anything, press Esc again or
move cursor to Exit Without Saving and press Y to retain the Setup settings.
The following message will appear at the center of the screen to allow you to
save data to CMOS and exit the setup utility: SA VE to CMOS and EXIT (Y/N)?

3 - 26

BIOS Setup

Exit without Saving

If you select this feature, the following message will appear at the center of the
screen to allow you to exit the setup utility without saving CMOS modifica­tions: Quit Without Saving (Y/N)?

3 - 27
