FIC FA15T User Manual

FA15T

MAINBOARD

MANUAL

DOC No.: M01304
Rev. : A0
Date : 6, 2000
Part No. : 25-11617-20

Notice

Handling Precautions

Warning:

1. Static electricity may cause damage to the integrated circuits on

the motherboard. Before handling any motherboard outside of its
protective packaging, ensure that there is no static electric charge
in your body.

2. There is a danger of explosion if the battery is incorrectly
replaced. Replace only with the same or an equivalent type
recommended by the manufacturer.

3. Discard used batteries according to the manufacturer’s
instructions.

4. Never run the processor without the heatsink properly and firmly

attached. PERMANENT DAMAGE WILL RESULT!

Observe the following basic precautions when handling the motherboard

or other computer components:

n Wear a static wrist strap which fits around your wrist and is

connected to a natural earth ground.

n Touch a grounded or anti-static surface or a metal fixture such as a

water pipe.

n Avoid contacting the components on add-on cards, motherboards,

and modules with the golden fingers connectors plugged into the

expansion slot. It is best to handle system components by their

monting brackets.

The above methods prevent static build-up and cause it to be discharged

properly.

Trademark

All trademarks mentioned in this manual are registered properly of

the respective owners.

Handling Precautions

This manual may not, in whole or in part, be photocopied, reproduced,

transcribed, translated, or transmitted in whatever form without the

written consent of the manufacturer, except for copies retained by the

purchaser for personal archival purposes.

T able of Contents

Table of Contents

Quick Reference (German) G- 1
Quick Reference (French) F- 1
Quick Reference (Spanish) S-1
Quick Reference (Japanese) J-1
Quick Reference (Chinese) C-1
Quick Reference (Simplified Chinese) |||||||||||||SC-1

Chapter 1 Overview

Package Checklist .......................................................................... 1-2

The FA15T Mainboard .............................................................. 1-2

Main Features ................................................................................ 1-3

ACPI Ready ................................................................................... 1-5

FIC Unique Innovation for Users (NOVUS) -

Enhanced Mainboard Features and System Support .................... 1-5

Chapter 2 Installation Procedures

Quick Reference (from Page 2-2 to 2-5) .......................................... 2-2

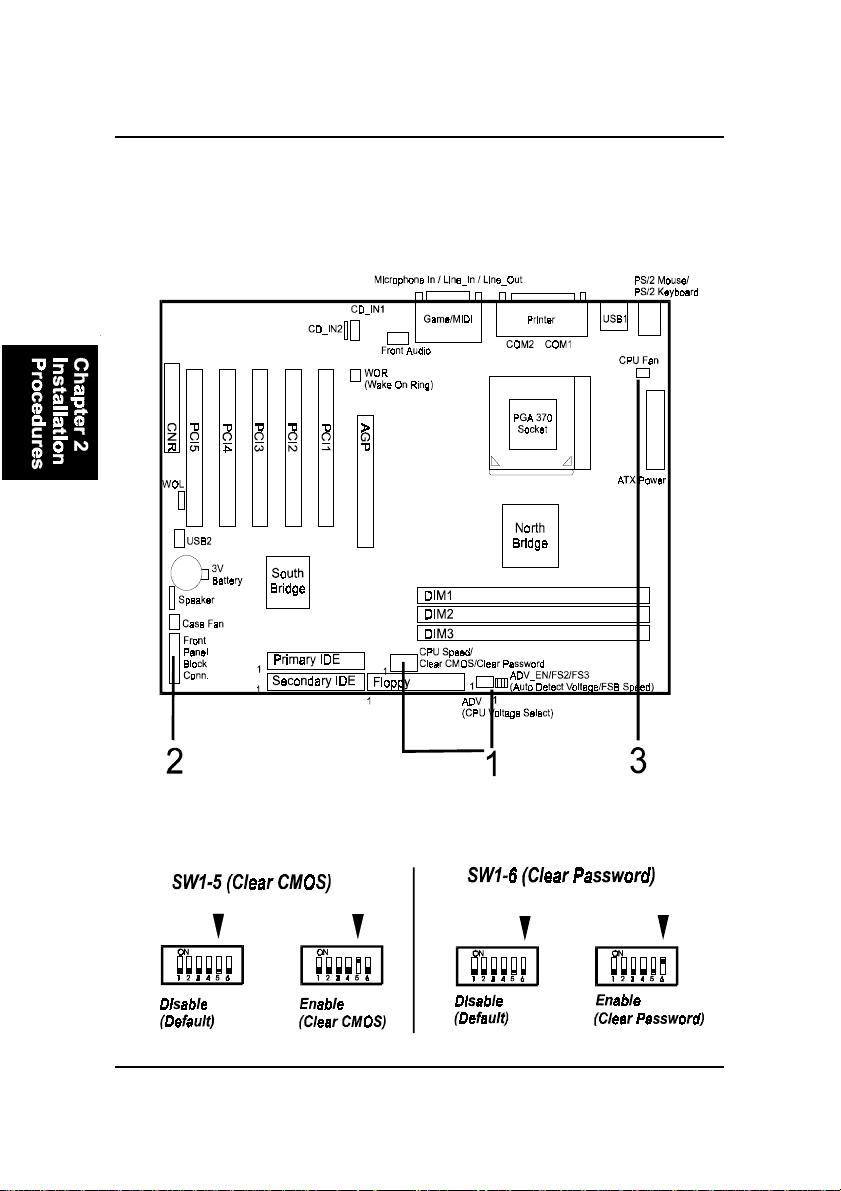

Mainboard Layout .................................................................... 2-2

1). Clear CMOS, Clear Password

Auto Detect CPU Core Voltage, CPU Core Voltage Select

FSB Speed Select, CPU Speed Select ............................ 2-3

2). Front Panel Block Cable Connection ............................ 2-5

3). CPU Fan Installation .................................................... 2-5

1). Set System Switches/Jumpers ................................................... 2-6

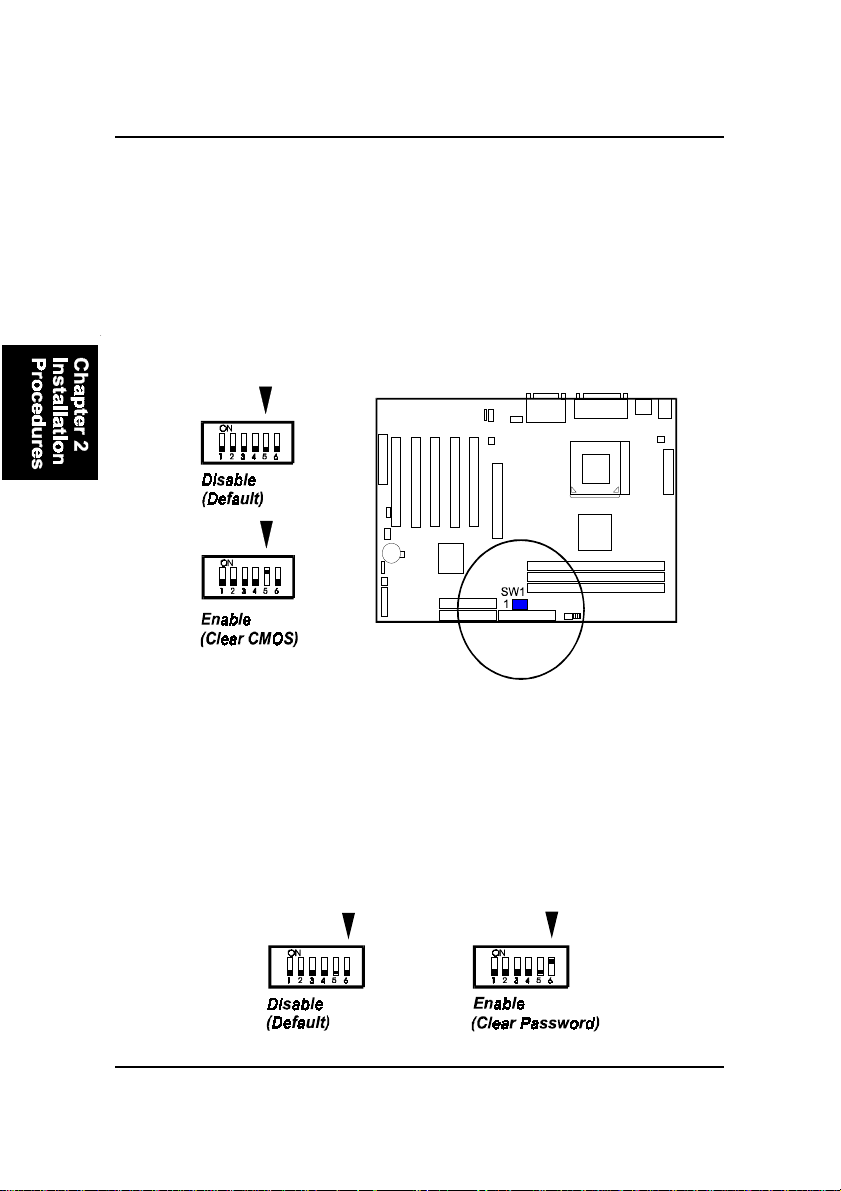

Clear CMOS: SW1-5 .......................................................... 2-6

Clear Password: SW1-6 ..................................................... 2-6

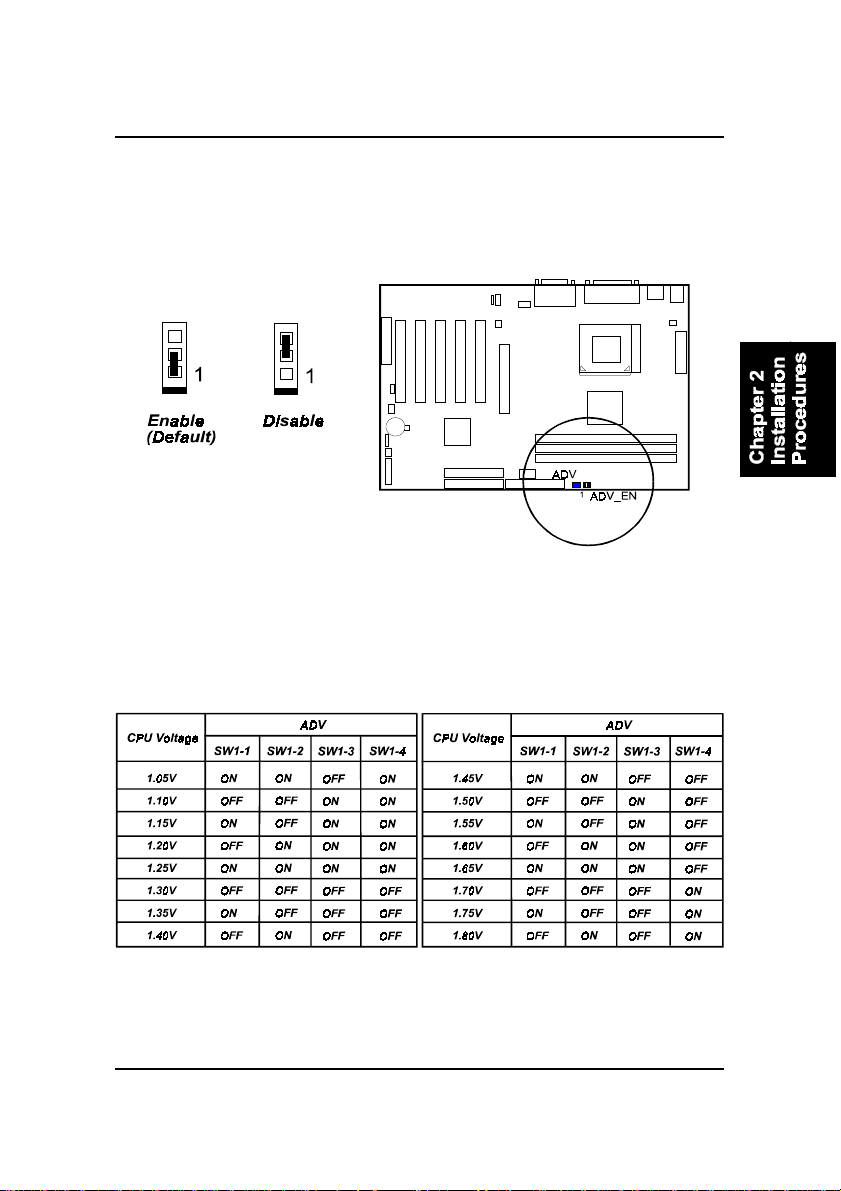

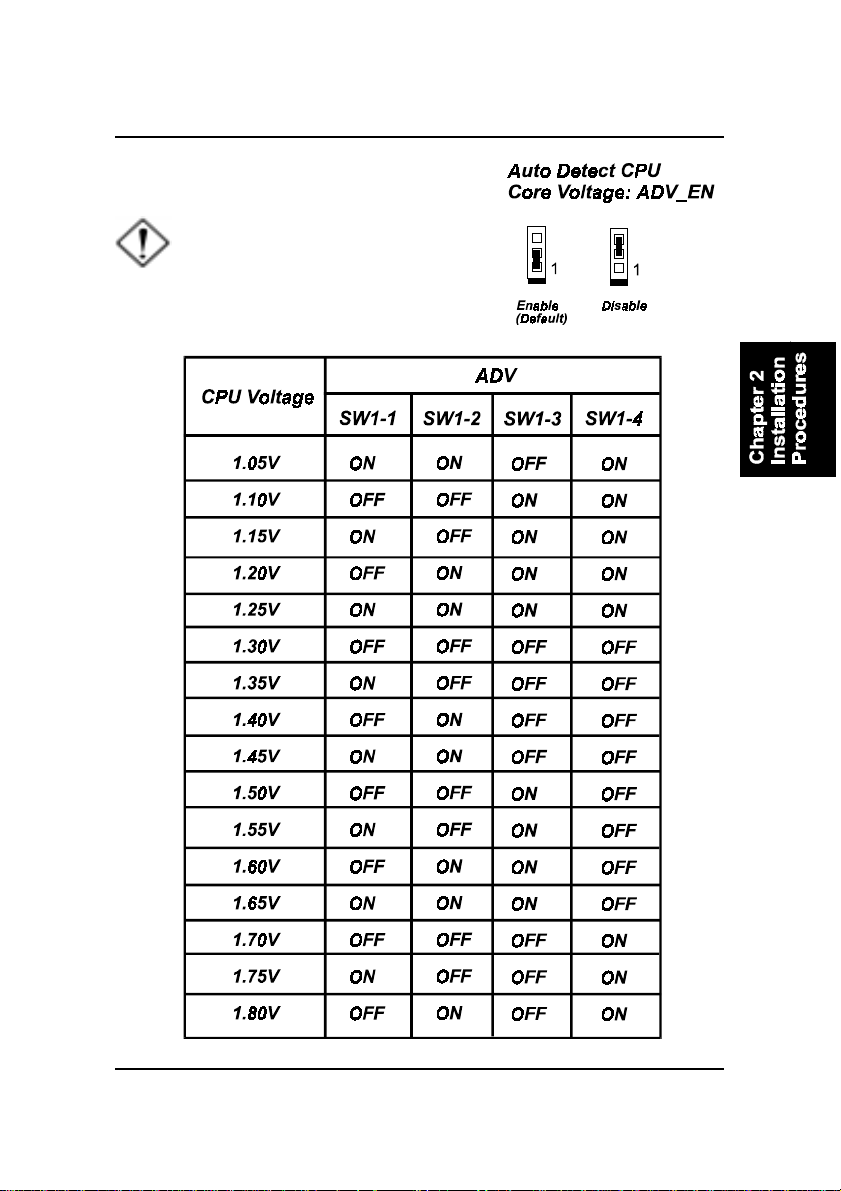

Auto Detect CPU Core Voltage: ADV_EN ......................... 2-7

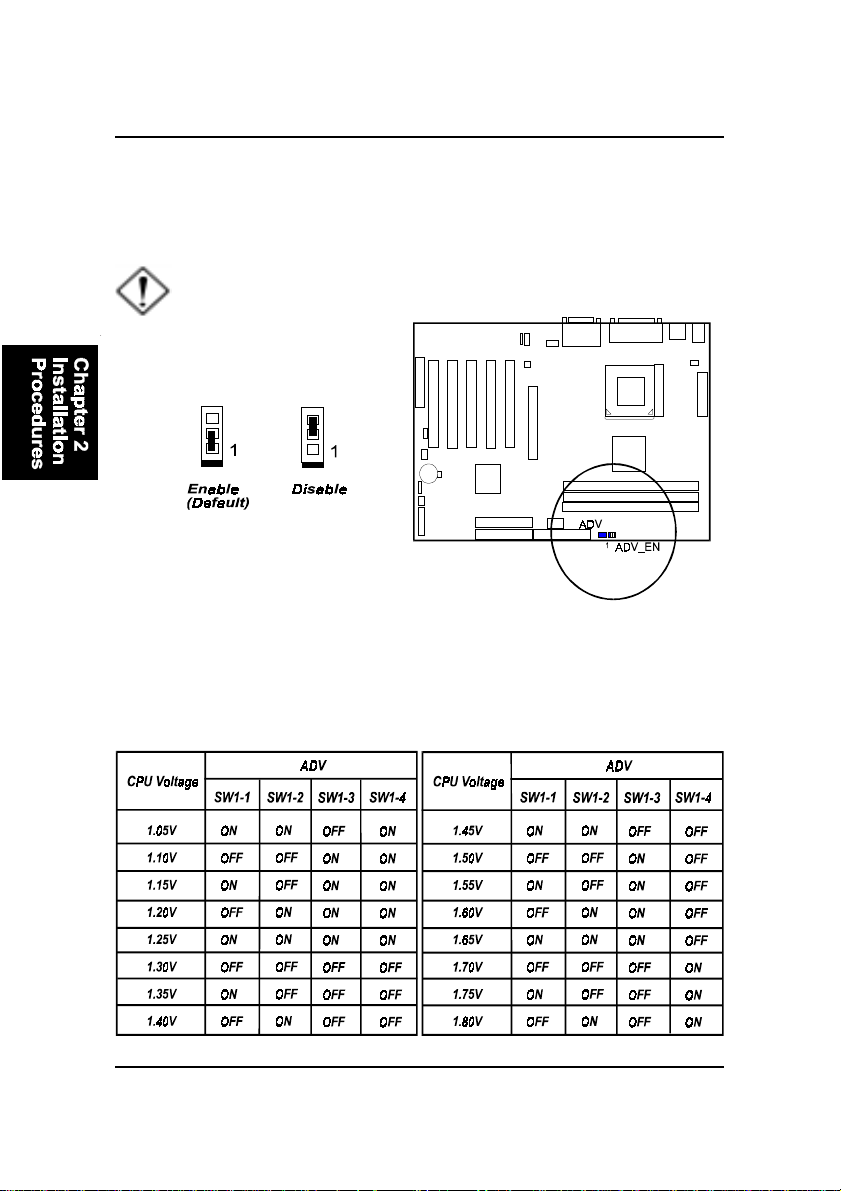

CPU Core Voltage Setting: ADV ........................................ 2-7

2). Install Memory Modules .......................................................... 2-8

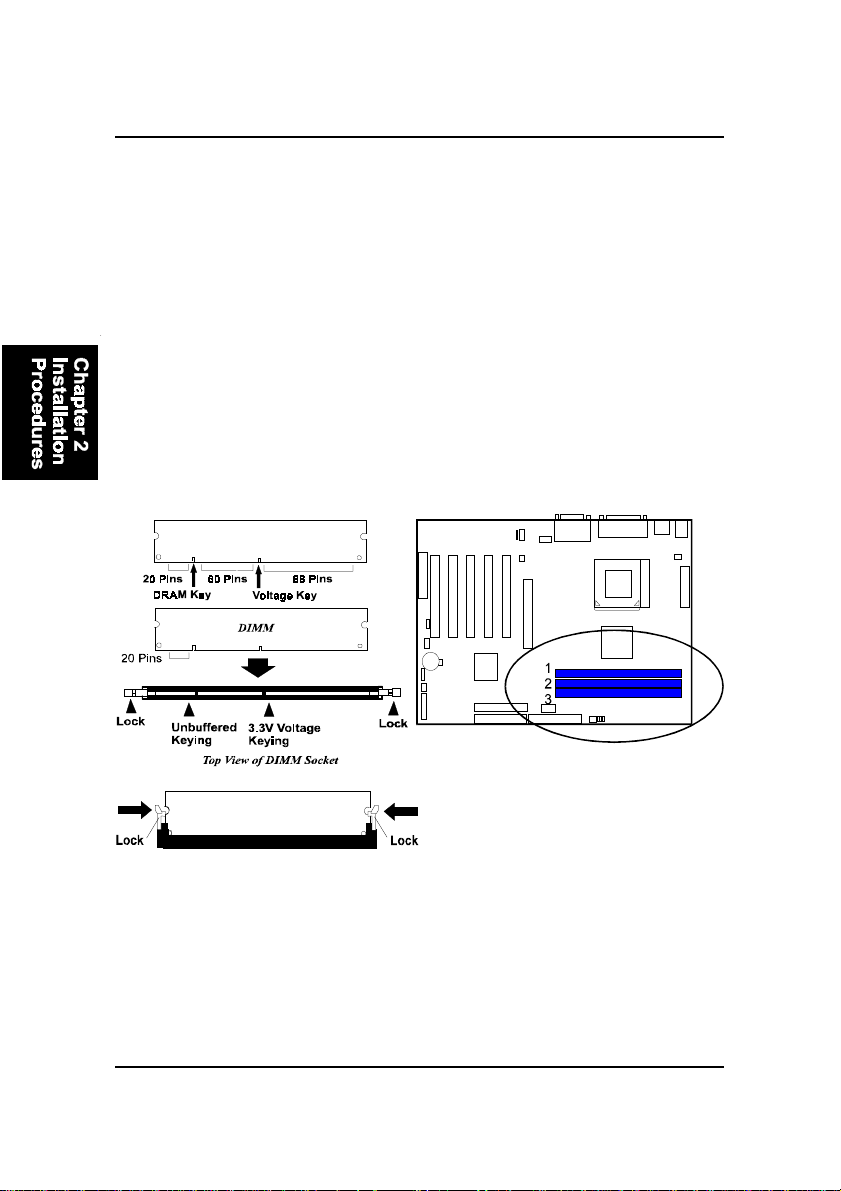

Install and Remove Memory Modules .............................. 2-8

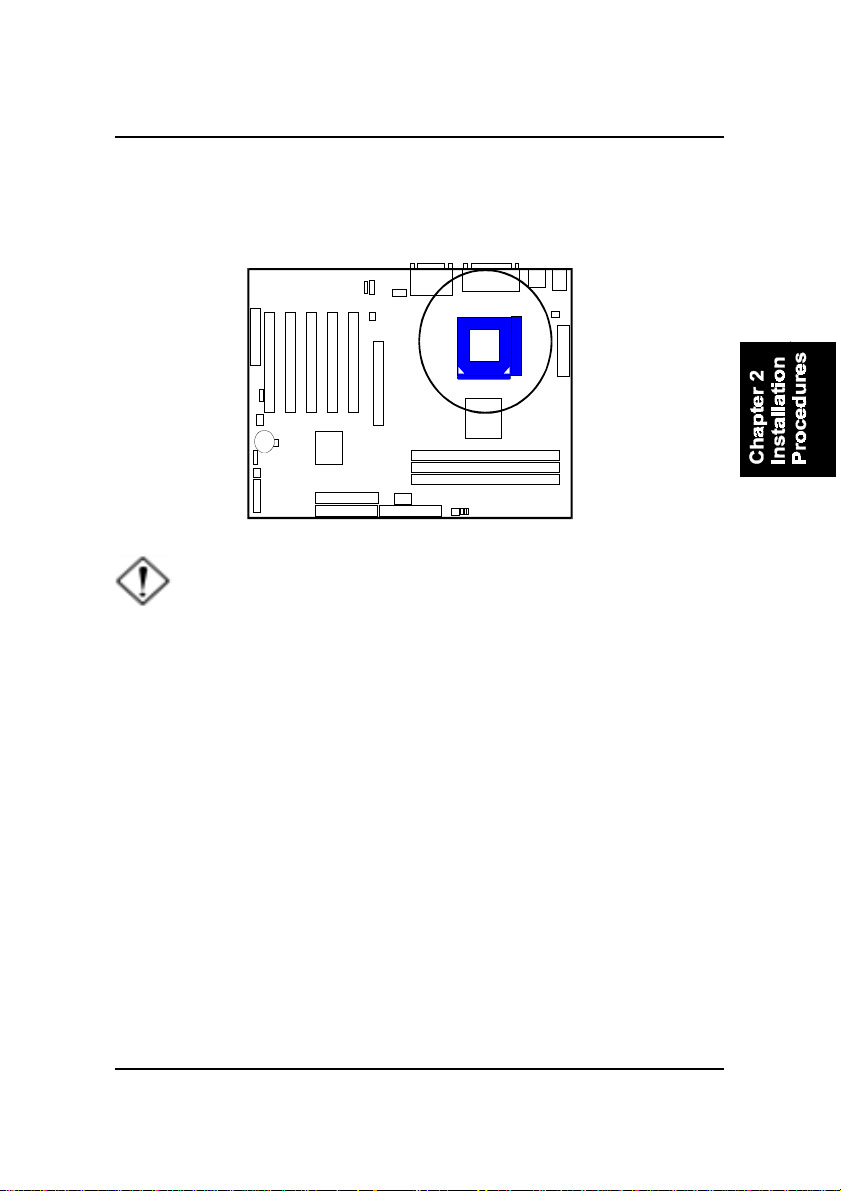

3). Install the CPU .......................................................................... 2-7

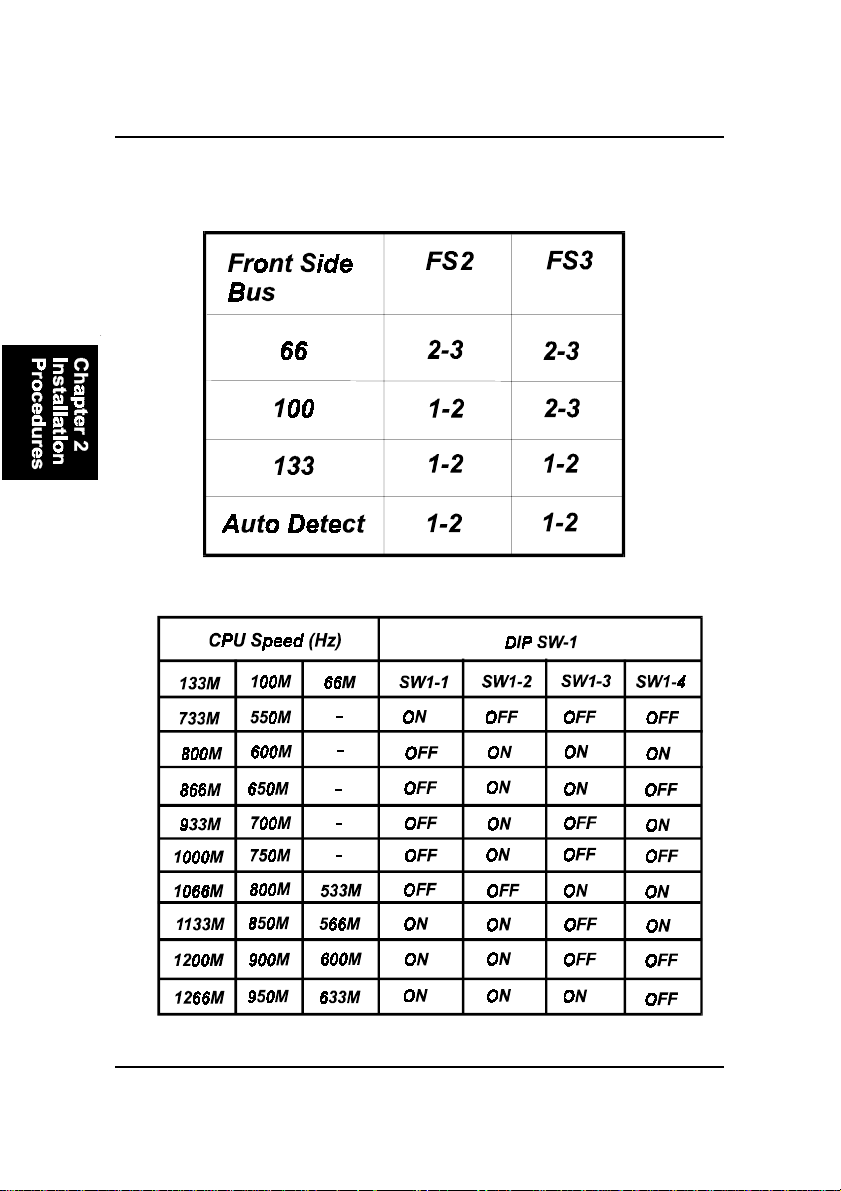

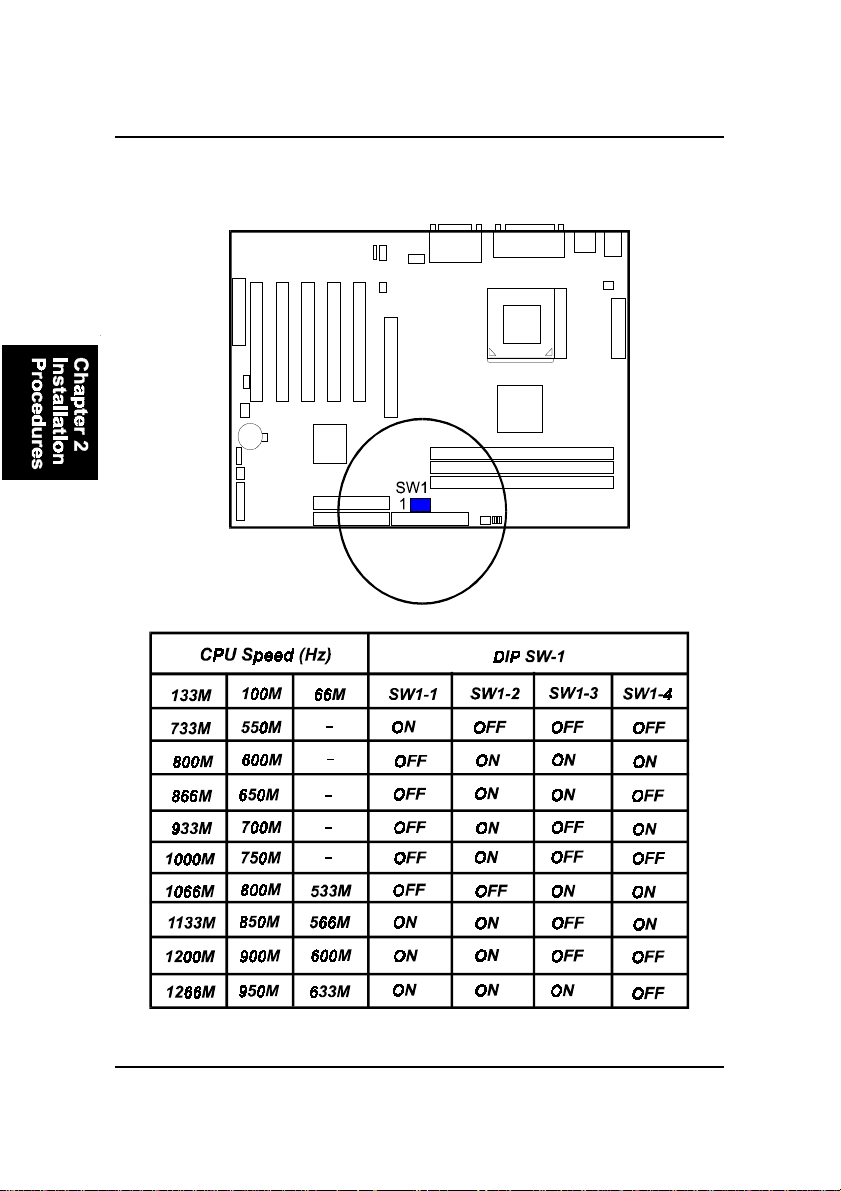

CPU Speed Select .............................................................. 2-10

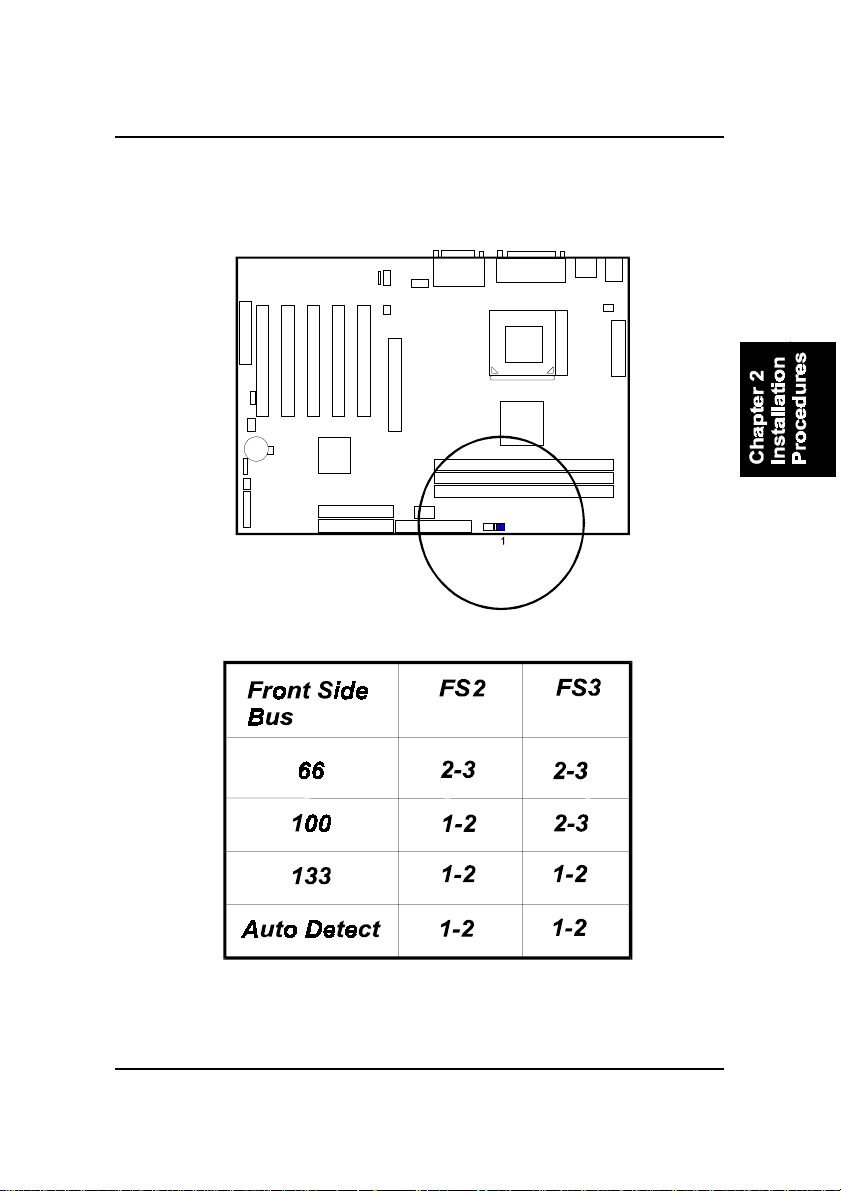

FSB Speed Select .............................................................. 2-11

Auto Detect CPU Core Voltage: ADV_EN ......................... 2-12

CPU Core Voltage Setting: ADV ........................................ 2-12

i

FA15T Mainboard Manual

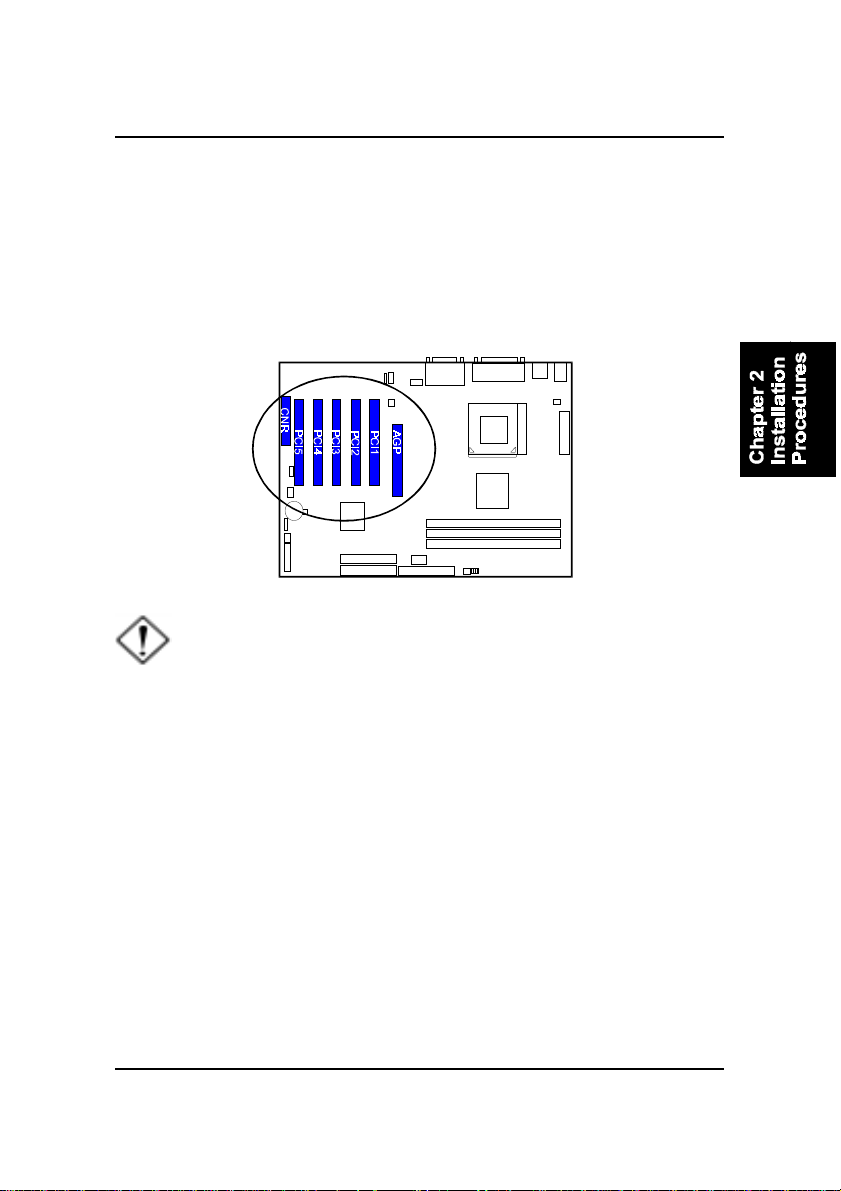

4). Install Expansion Cards ............................................................. 2-13

5). Connect Devices ....................................................................... 2-14

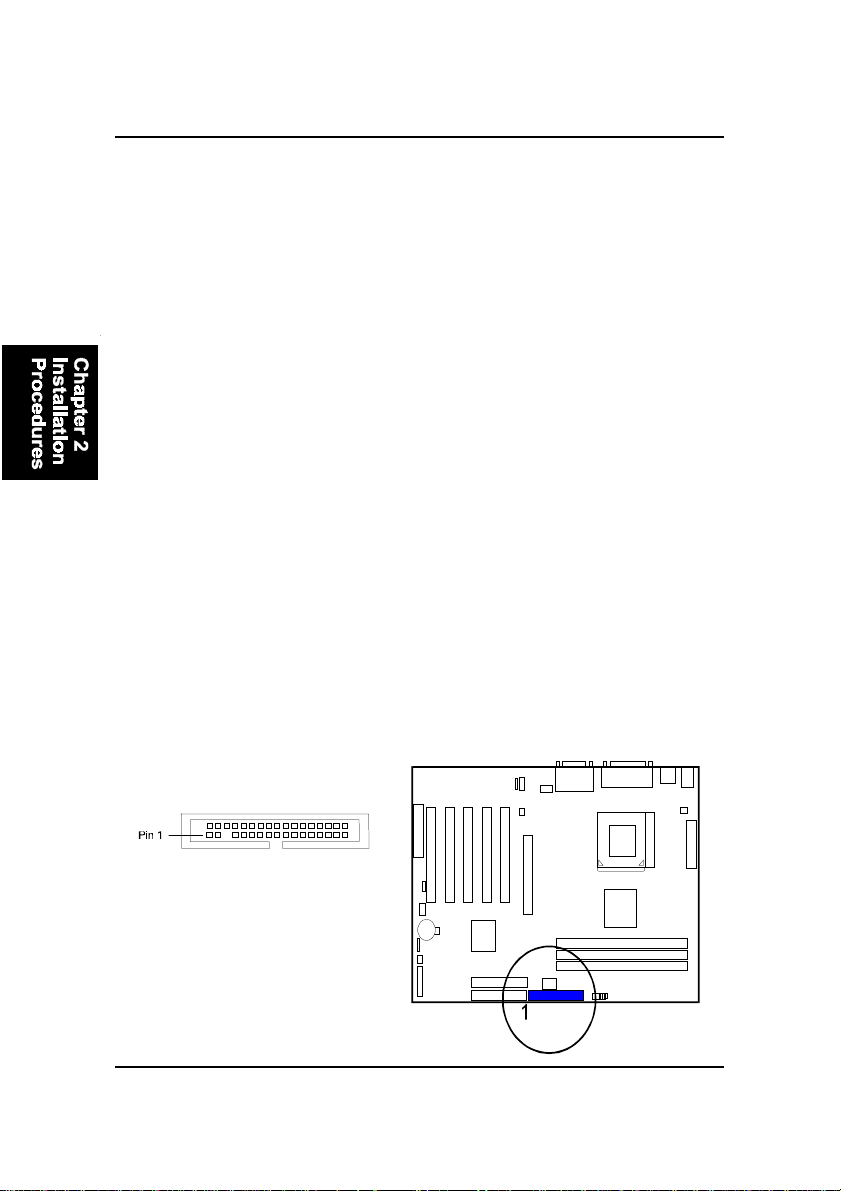

Floppy Diskette Drive Connector ..................................... 2-14

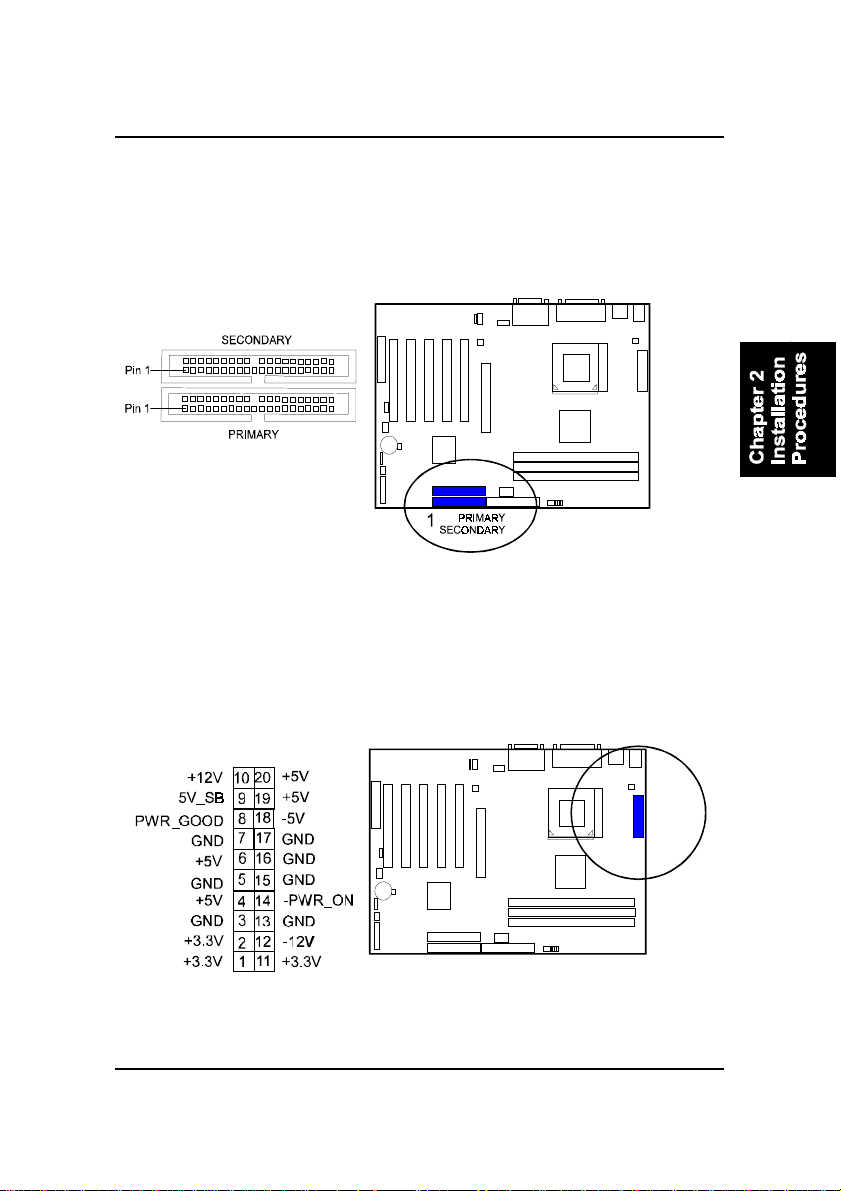

Primary and Secondary IDE Device Connectors ............... 2-15

ATX Power Connector ...................................................... 2-15

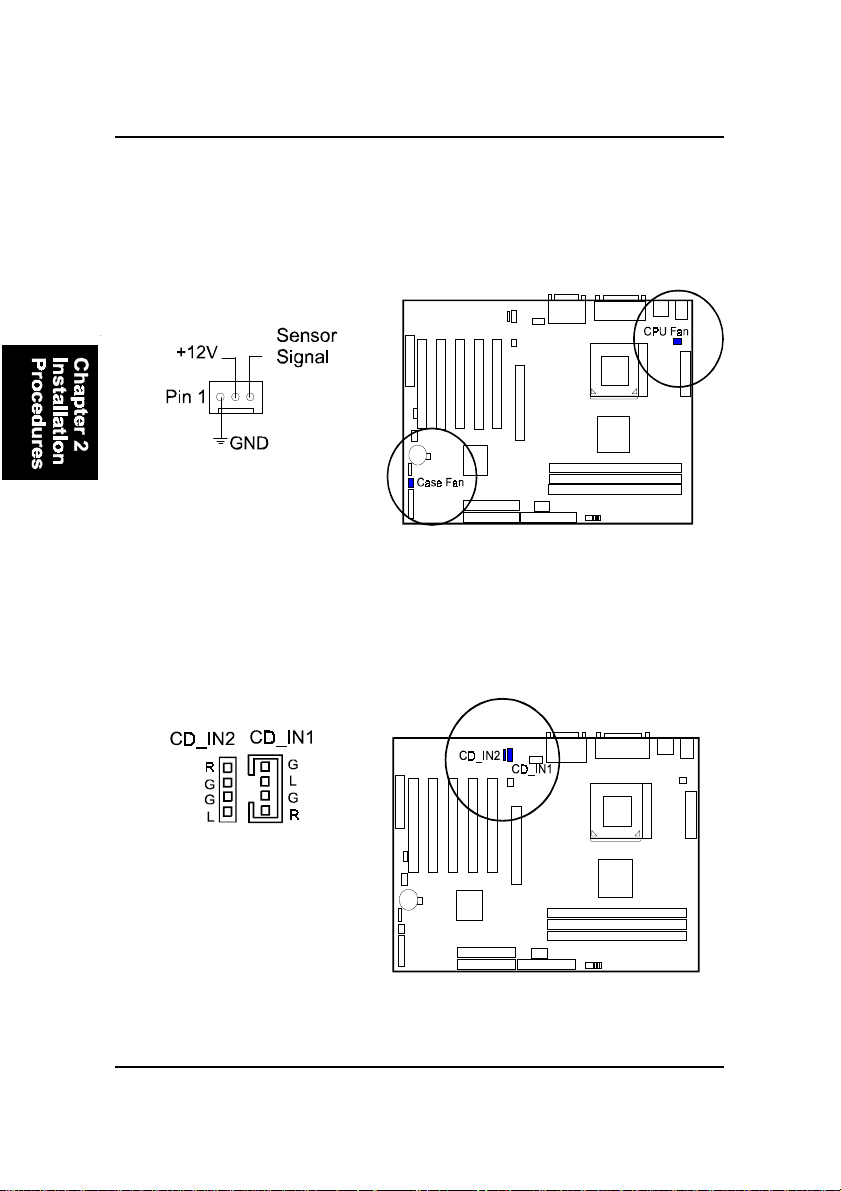

Fan Connectors ................................................................. 2-16

CD Audio-In Connectors .................................................. 2-16

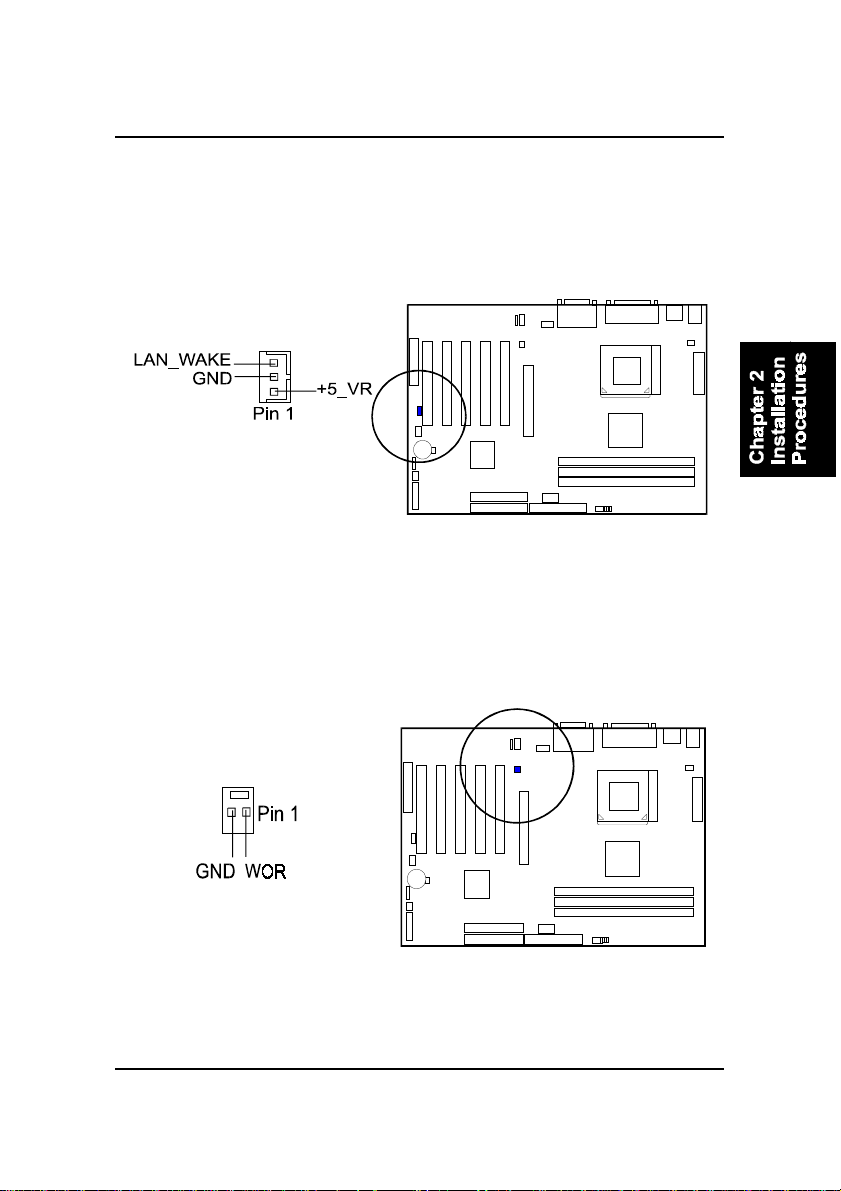

Wake-On-LAN Connector ................................................. 2-17

Wake-On-Ring Connector ................................................. 2-17

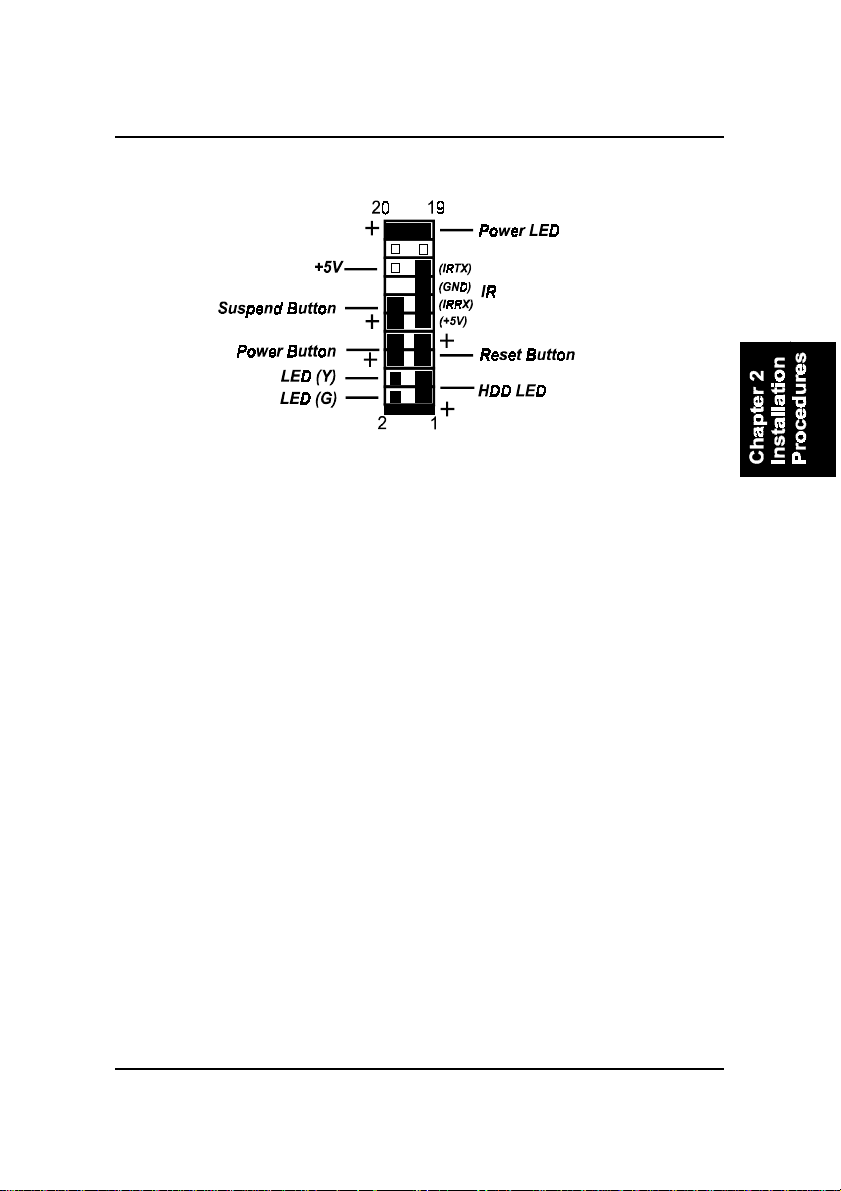

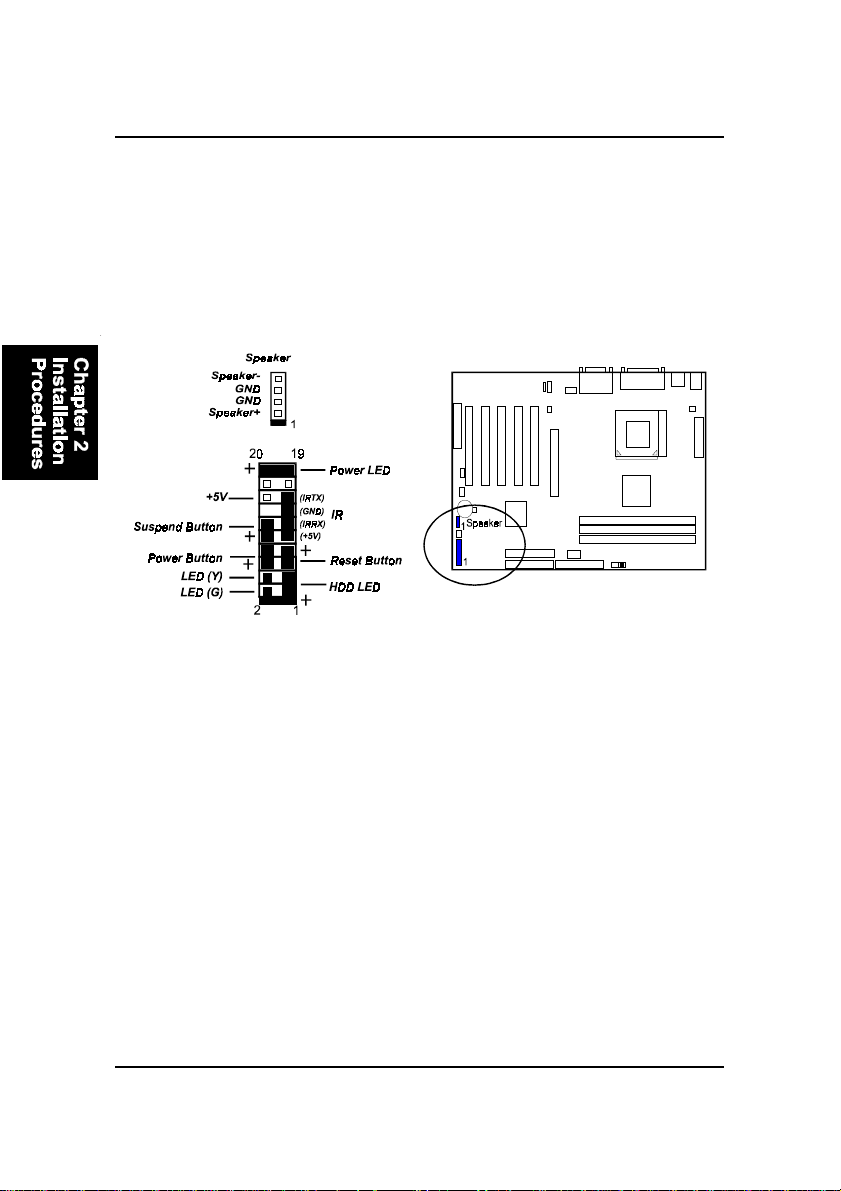

Front Panel Block and Speaker Connector ........................ 2-18

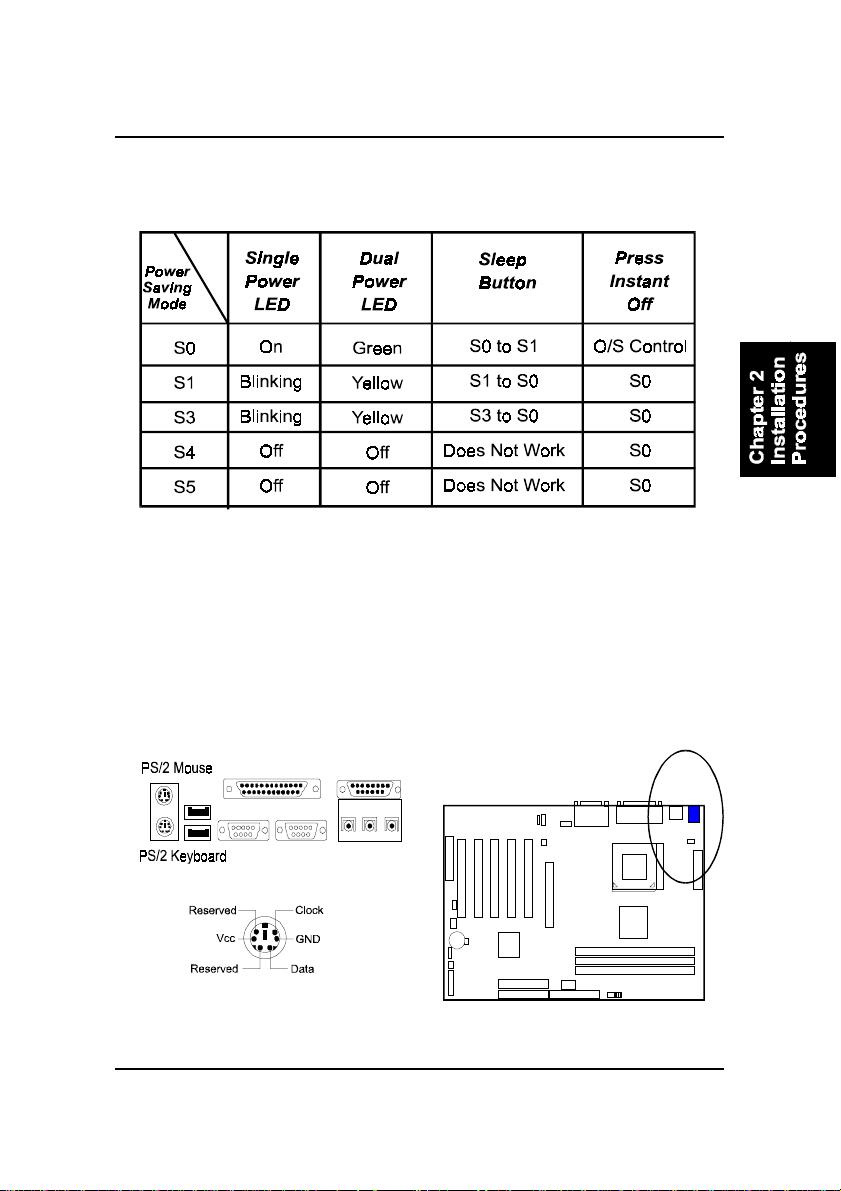

PS/2 Keyboard and Mouse Connector ............................. 2-19

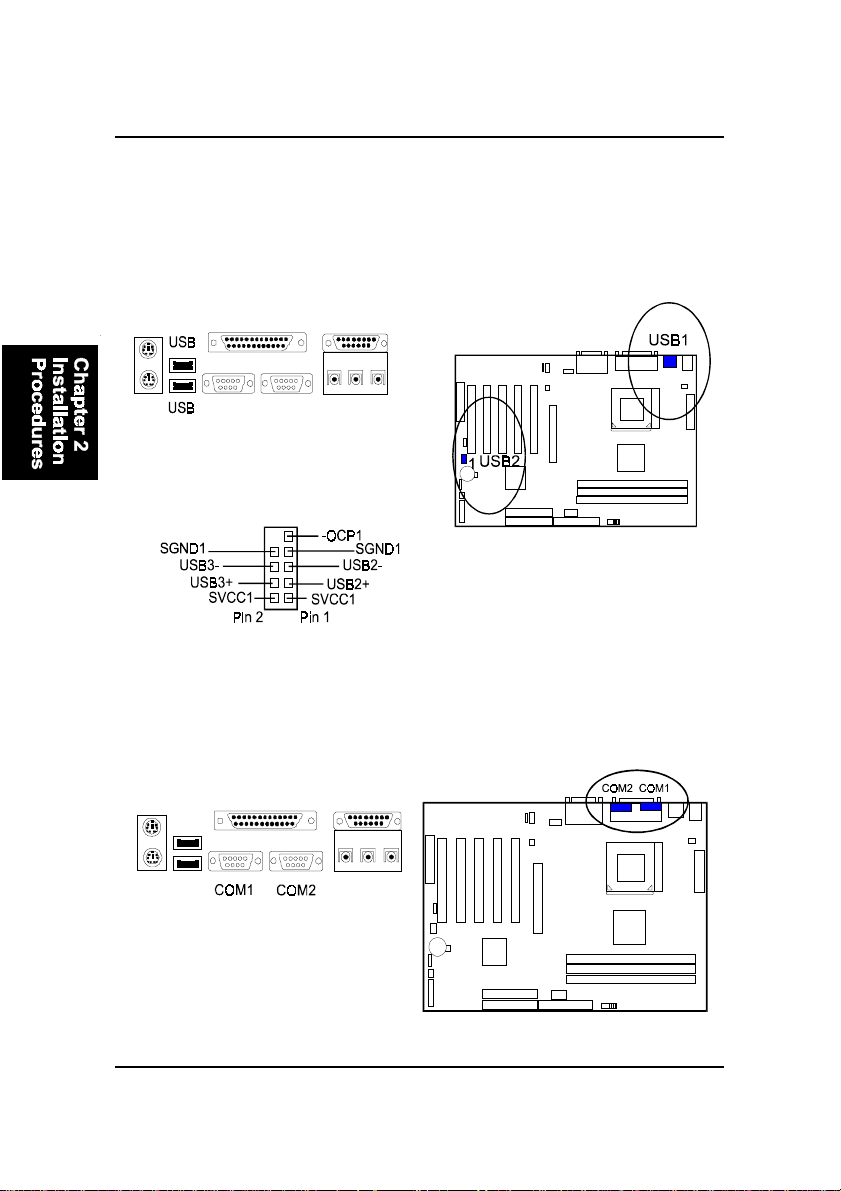

Front and Rear Universal Serial Bus Connectors .............. 2-20

Serial Port Connectors ....................................................... 2-20

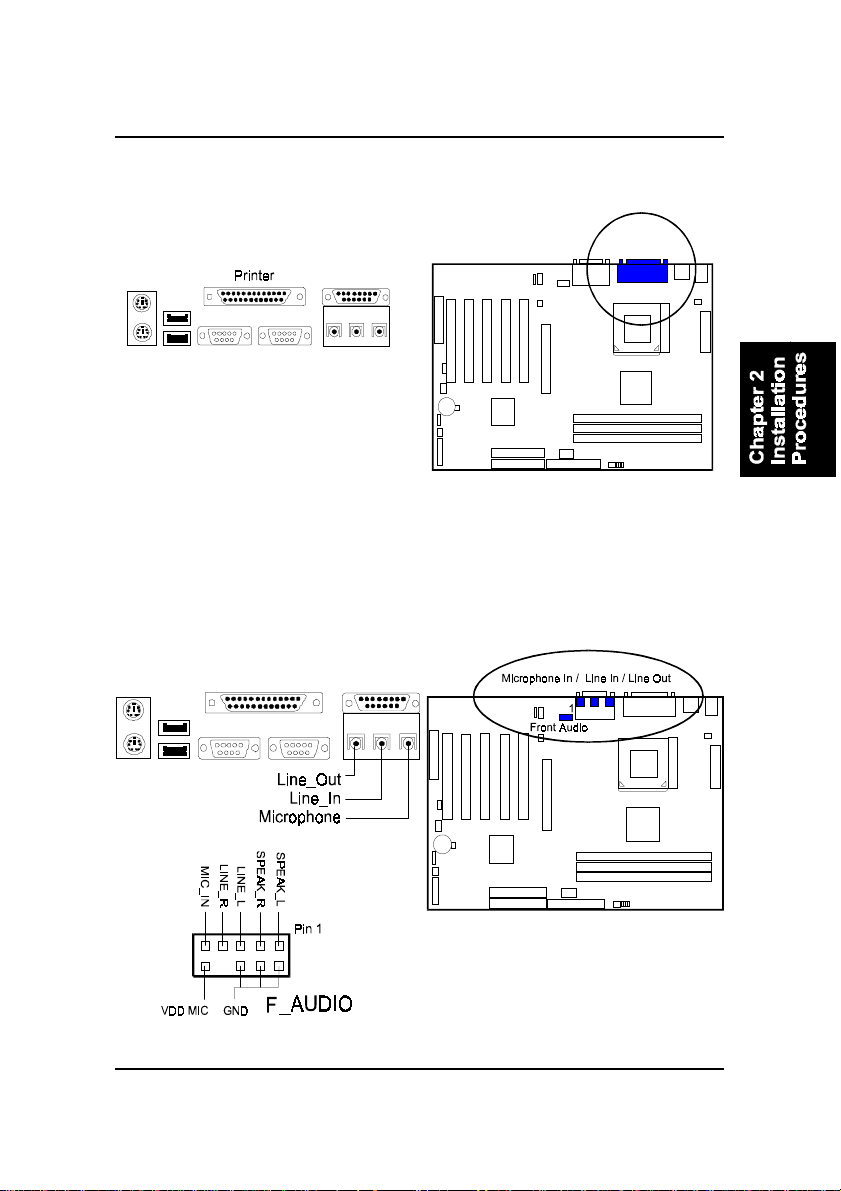

Printer Connector .............................................................. 2-21

Audio I/O Jacks ................................................................ 2-21

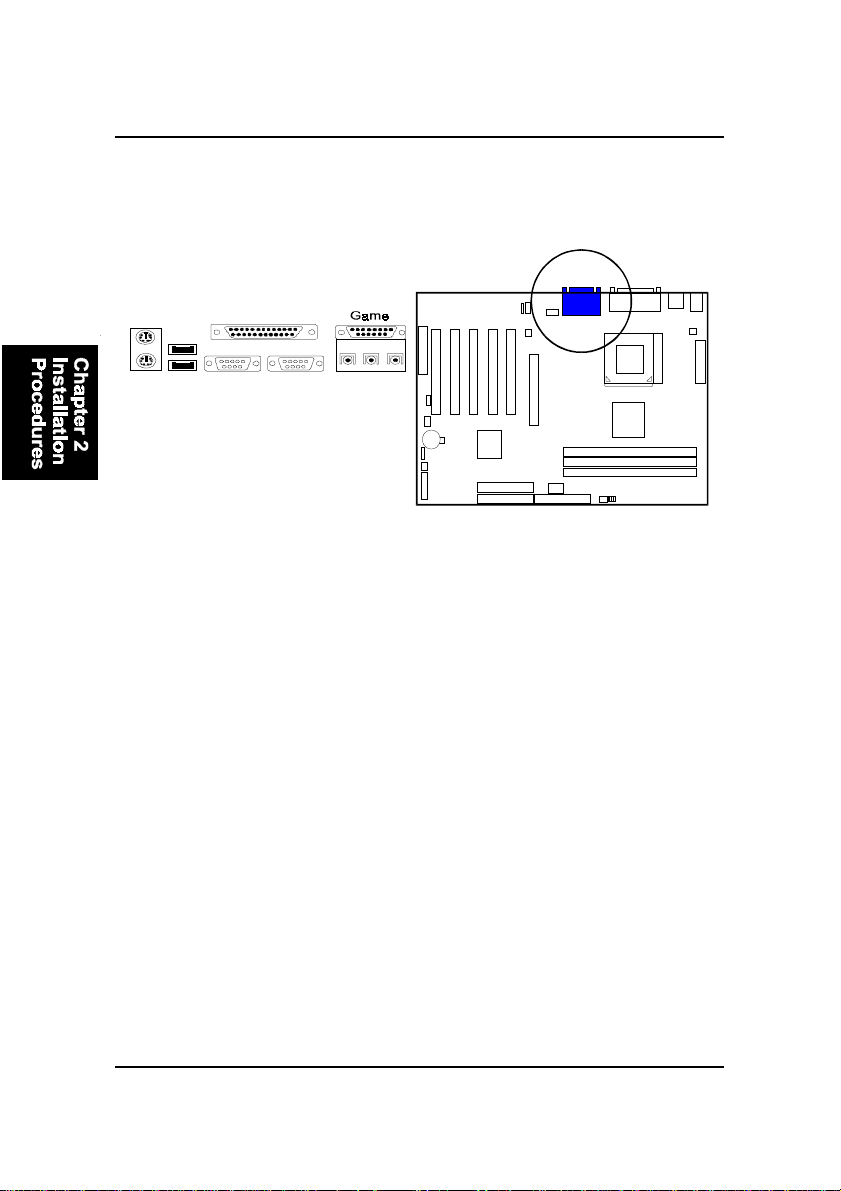

Game/MIDI Connector ...................................................... 2-22

Chapter 3 BIOS Setup

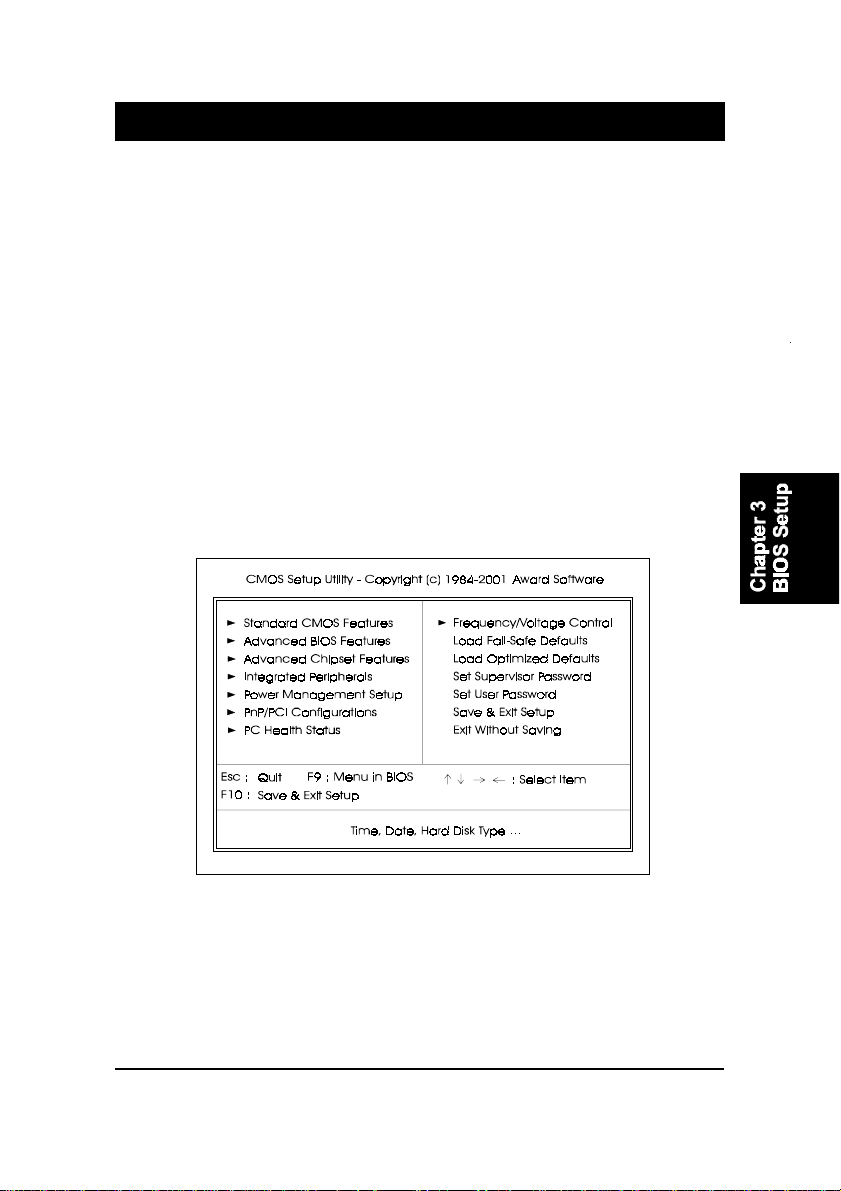

CMOS Setup Utility ....................................................................... 3-1

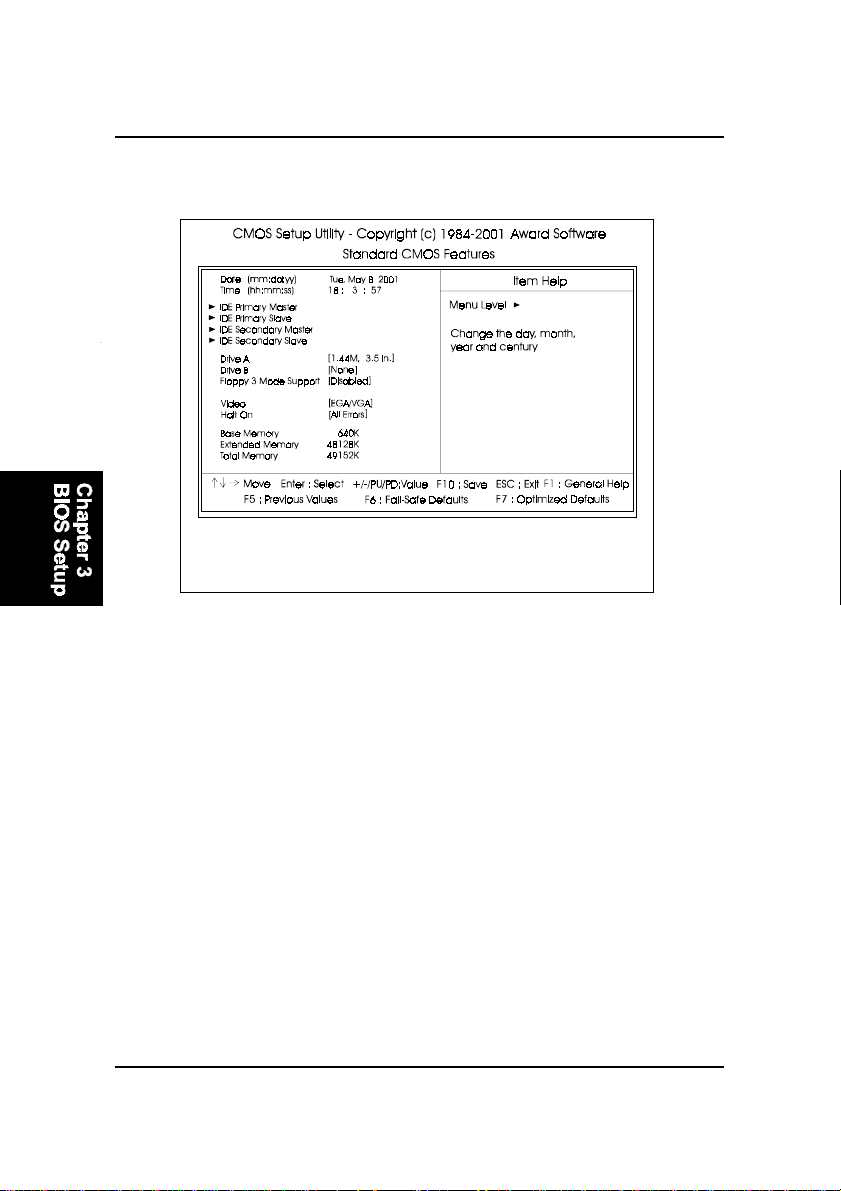

Standard CMOS Setup ................................................................... 3-2

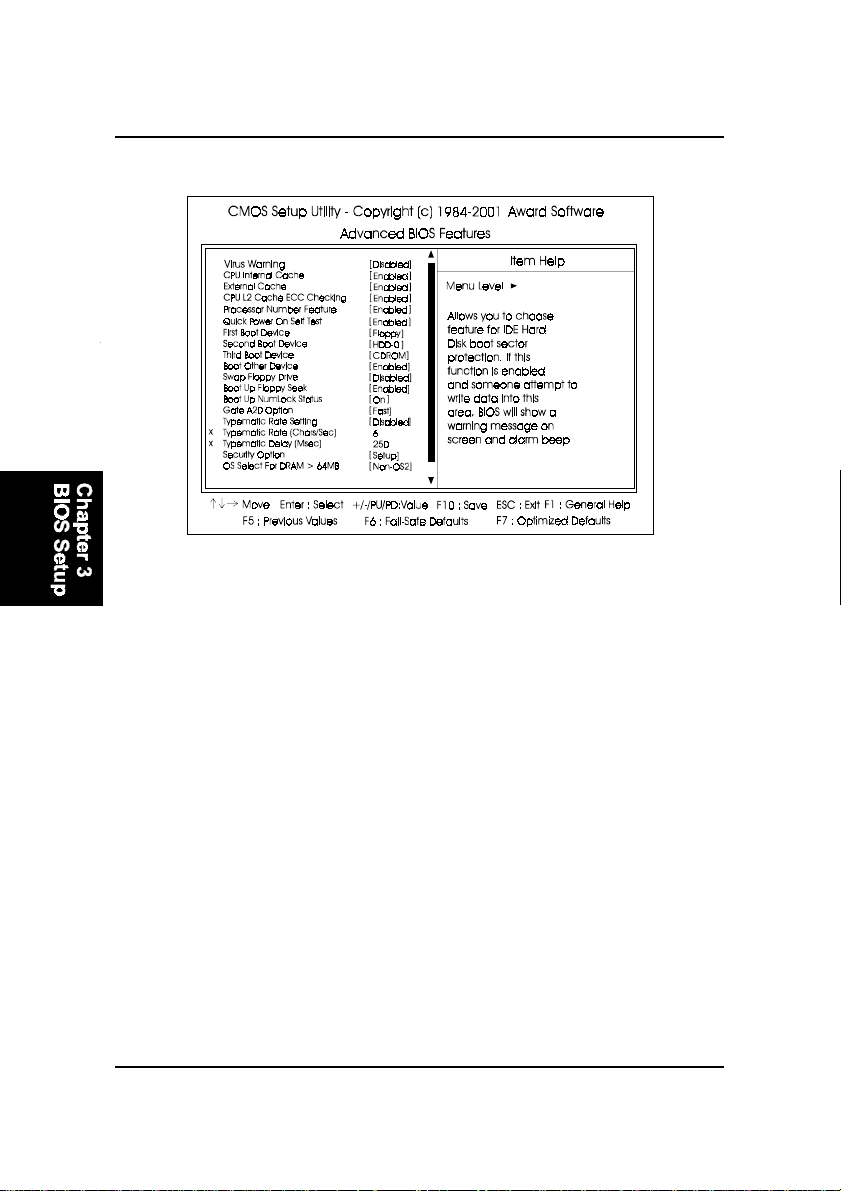

Advanced BIOS Features .............................................................. 3-4

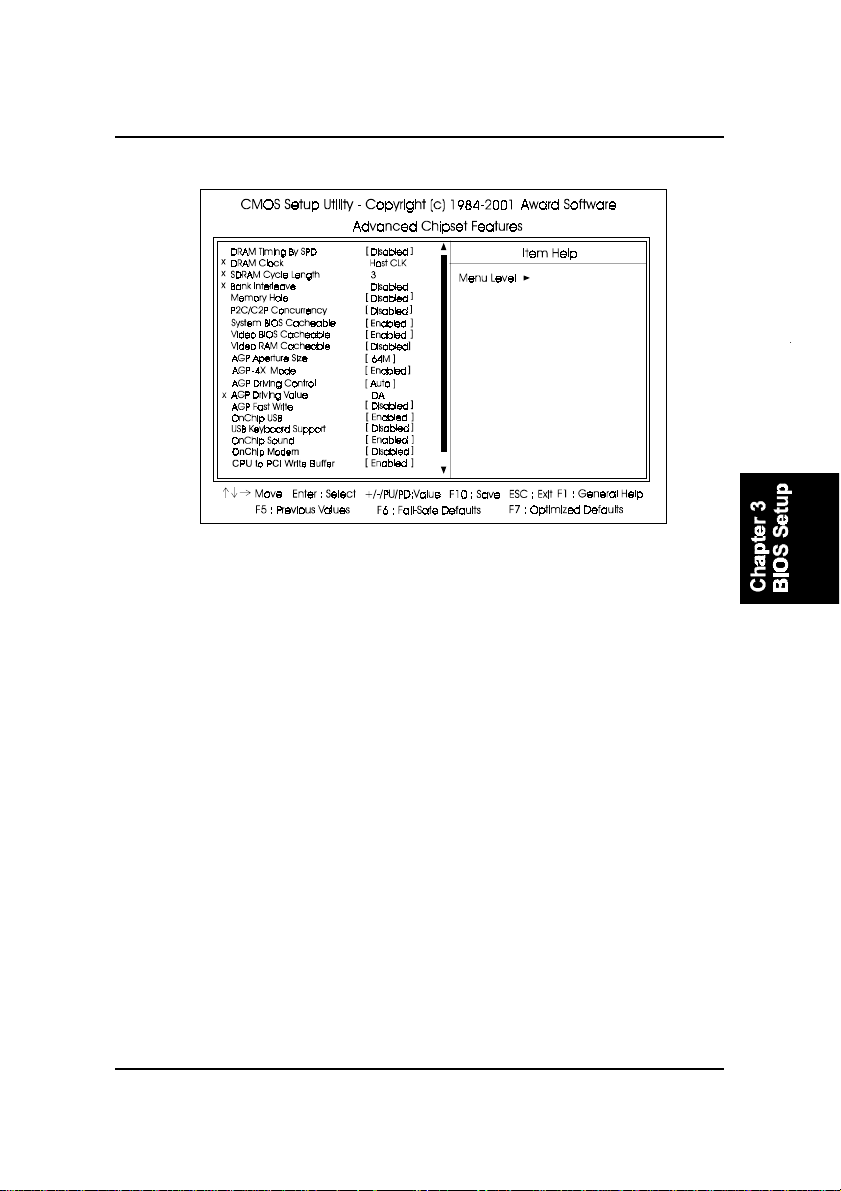

Advanced Chipset Features .......................................................... 3-7

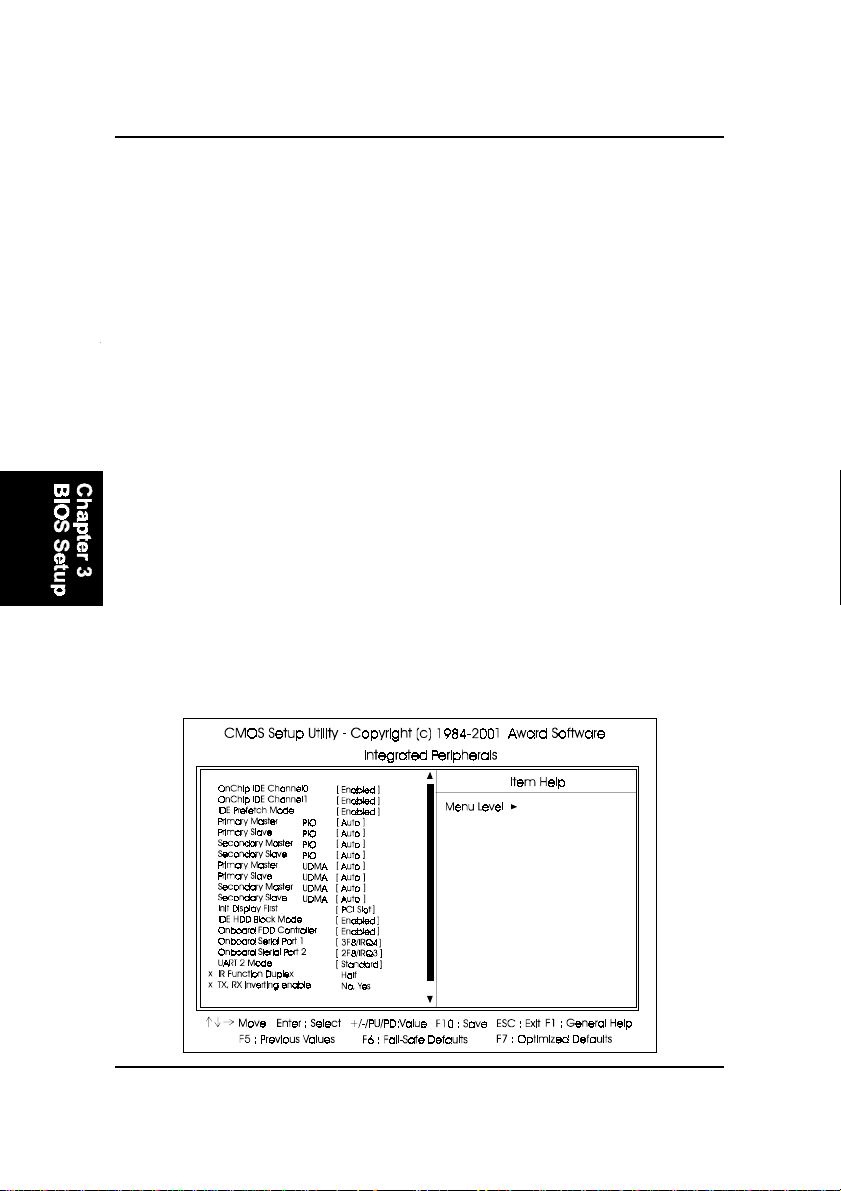

Integrated Peripherals .................................................................... 3-10

Power Management Setup ............................................................. 3-15

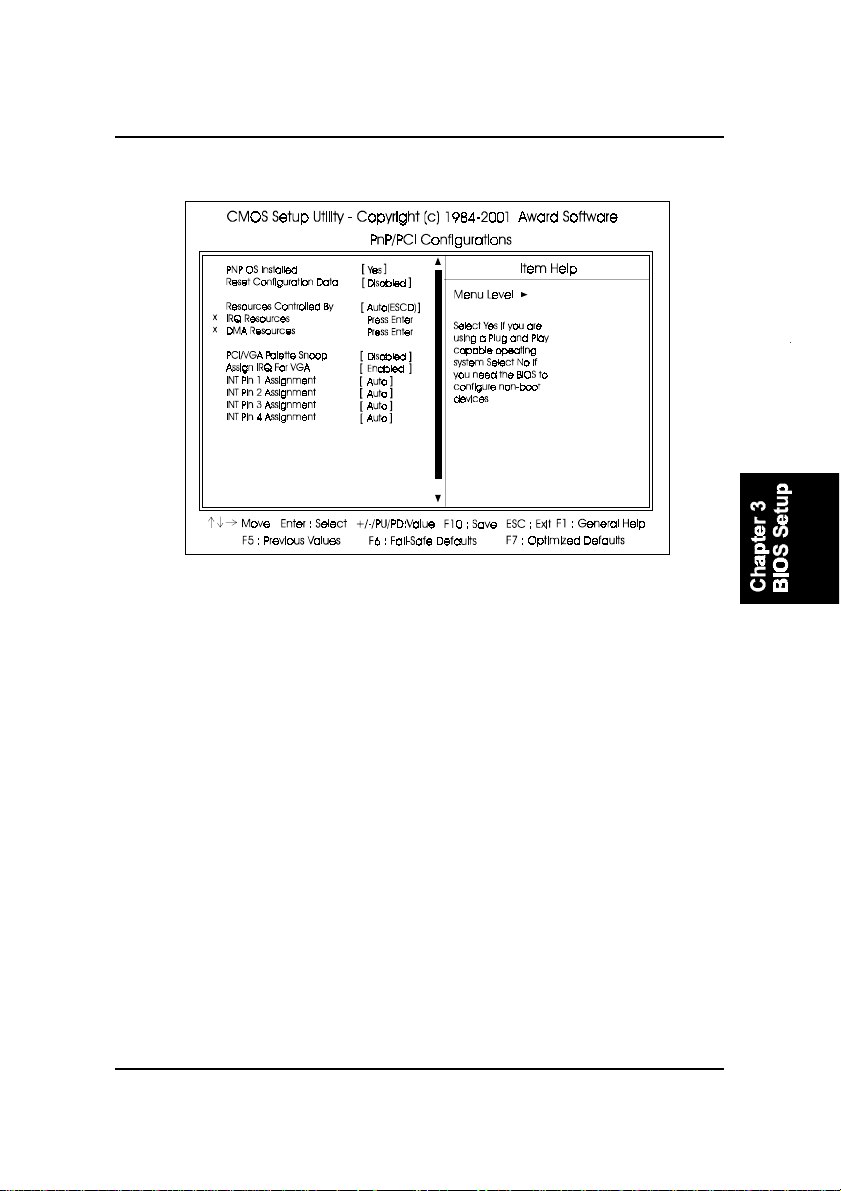

PnP/PCI Configurations ................................................................. 3-19

PC Health Status ............................................................................ 3-20

Frequency/Voltage Control ............................................................ 3-21

Load Fail-Safe Defaults .................................................................. 3-22

Load Optimized Defaults ................................................................ 3-22

Supervisor/User Password ............................................................ 3-22

Save and Exit Setup ....................................................................... 3-22

Exit without Saving ........................................................................ 3-22

ii

Overview

Chapter 1

Overview

The new Socket 370 1stMainboard FA15T supports a full range of the latest

generation Intel® Celeron FC-PGA 533-900 MHz, Pentium III FC-PGA

550MHz-1.26* GHz and Cyrix III 667-733 MHz processors at Front Side Bus

speeds of 66 / 100 /133 MHz. The 1stMainboard FA15T is based around the

state-of-the-art architecture of the VIA 694T core chip which supports AGP 4

x bandwidth enabling the increase of the AGP bus of up to 66x4 MHz, thus

providing vastly improved data transfer speeds for graphics applications. 3

DIMM sockets allow for a maximum memory capacity of 1.5 GB of the latest

PC133 SDRAM and VCM SDRAM technology. Ultra DMA 100 support al-

lows for high-range bandwidth and the high-speed data transfer necessary for

the improvement of idle CPU sequential transfers. (*: not tested yet)

The 1stMainboard FA15T also includes NOVUS, a range of innovative fea-

tures that assist in the installation and maintenance of your 1stMainboard.

NOVUS includes EasyKey, which provides instant keyboard access to the

BIOS for adjustments to Clock and Default settings and LogoGenie, which

allows you to create your own customized logo to be displayed during system

boot up. BIOS Guardian is an Anti Virus utility that prevents viruses from

damaging your system BIOS.

Extensive connectivity is provided by 2 serial ports, 1 parallel port, 1 PS/2

mouse and 1 keyboard connector, 4 USB connectors, and 1 media connector (

MIDI/Game port, Line-in, Line-out, Mic-in, Front Audio). Expansion is pro-

vided by 1 AGP 4X, 5 PCI and 1 CNR. In addition, the 1stMainboard FA15T is

equipped with 2 dual channeled enhanced PCI bus master IDE connectors.

The 1stMainboard FA15T is ACPI ready, while other features include Hard-

ware Monitoring and S.M.A.R.T. support.

1 - 1

FA15T Mainboard Manual

Package Checklist

If you discover any item below was damaged or lost, please contact your

vendor.

þ The mainboard þ This user manual
þ One FDD cable þ One HDD cable
þ One ATA 66 cable þ Two Software CDs (CD Pro, CD Plus)

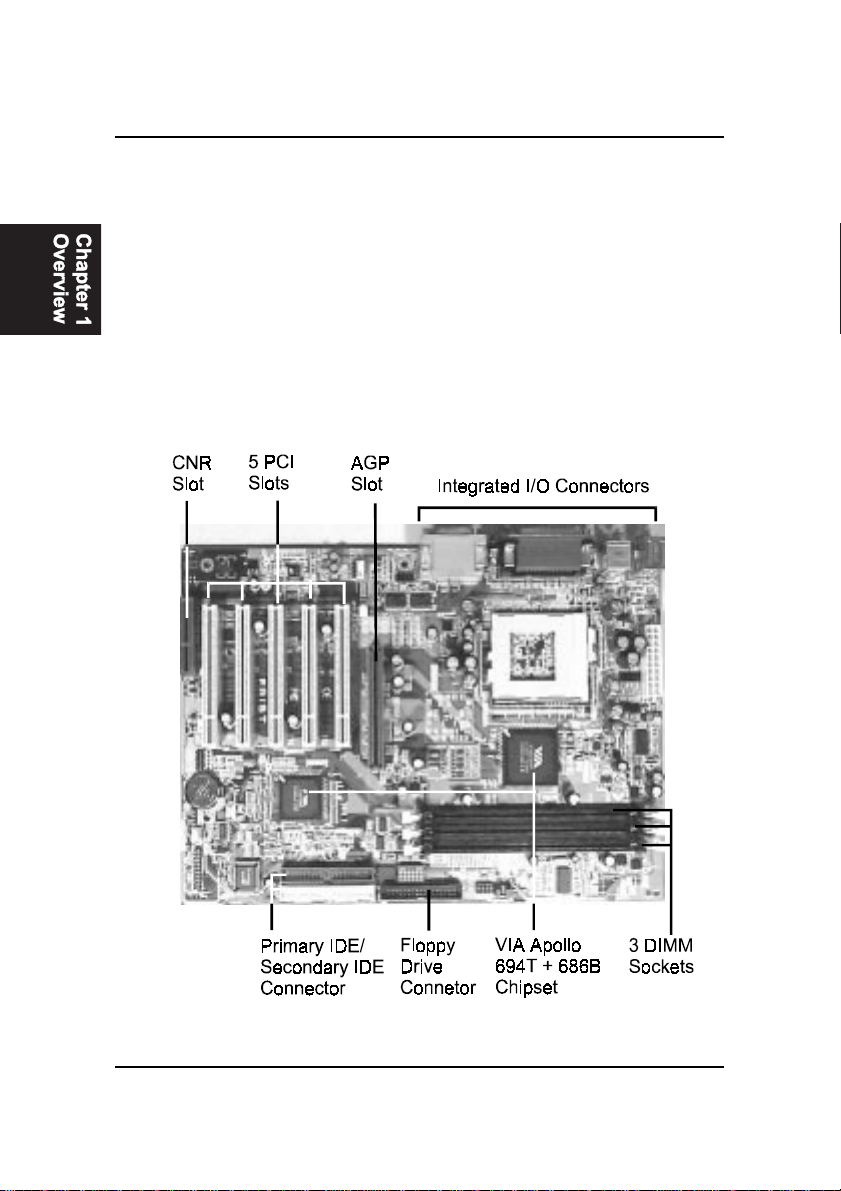

The F A15T Mainboard

1 - 2

Overview

Main Features

■ Easy Installation

||BIOS with support for Plug and Play, auto detection of IDE hard drives,

||LS-120|drives, IDE ZIP drives, Windows 95, Windows 98SE/ME, Win-

dows |NT |4.0, Windows 2000, |and OS/2.

■ Leading Edge Chipset

VIA 694T and 686B provide integrated DRAM controllers with new Dy-

namic Power Management Architecture (DPMA), concurrent PCI , AGP

and USB.

■ Versatile Main Memory Support

Accepts up to 1.5GB DRAM using three DIMMs of 64, 128, 256, 512MB

with support for lightning-fast SDRAM (100/133MHz). This board al-

lows the FSB and DRAM to be asynchronous.

■ Flexible Processor Support

Onboard CPU socket supports:

Intel® Celeron FC-PGA 533-766MHz at 66MHz FSB; 800-900MHz and

up* @100MHz FSB

Intel® Pentium III FC-PGA 550-850MHz and up* @100MHz FSB

Intel® Pentium III FC-PGA533MHz-1GHz and up* @133MHz FSB

Intel® Tualatin 933MHZ-1.0BGHz @133MHz FSB

Cyrix® III 700 MHz @ 100MHz FSB

Cyrix® III 667 MHz and up* MHz @ 133MHz FSB

(*: not tested yet)

■ AGP, CNR, and PCI Expansion Slots

One AGP Bus expansion slot, five PCI Bus expansion slots, and one CNR

slot provide the room to install a full range of add-on cards.

NOTE:

The CNR slot of the board does not support LAN function for the
card installed on it.

1 - 3

FA15T Mainboard Manual

■ Enhanced PCI Bus Master IDE Controller with Ultra DMA 33/66/100

Support

Integrated Enhanced PCI Bus Master IDE controller features two dual-

channel connectors that up to four Enhanced IDE devices, including CD-

ROM and Tape Backup Drives, as well as Hard Disk Drives supporting

the new Ultra DMA 100 protocol. Standard PIO Mode 3, PIO Mode 4,

DMA Mode 2, DMA Mode 4, UltraDMA-100 Mode 5 devices are also

supported.

■ Integrated Audio Subsystem

Embedded audio features in the 686B with an integrated PCI audio con-

troller, DOS games compatible engine. The subsystem utilizes line-out,

line-in, and MIC mini-jack external jacks, one joystick port with MIDI

interface.

■■

■ Super Multi Input/Output (I/O) Support

■■

Integrated Plug and Play multi-I/O chipset features two high-speed serial

ports, one parallel port, and one FDD connector.

■■

■ Convenient Rear Panel USB Connection Support

■■

Two USB ports integrated in the rear I/O panel and two extra USB connec-

tions allow connections for either front or rear panel connections to pro-

vide a convenient and high-speed Plug and Play way for the growing

number of USB compliant peripheral devices on the market.

■■

■ Remote Wake On LAN and Wake On Ring Support

■■

Onboard Wake On LAN (WOL) connector allows remote management on

your network even the system is power off. The feature provides a sim-

pler and convenient control to LAN-based networks. Also, the onboard

Wake On Ring (WOR) connector allows a remote ring call to wake up your

system via modem.

■■

■ Onboard Accelerated Graphics Port (AGP)

■■

The motherboard is installed one 32-bit AGP bus with a dedicated path

from the graphics card to the system memory (in 4x mode) offering much

greater bandwidth than the 32-bit PCI bus does. AGP enabled 3D graph-

ics cards can directly access main memory across this fast path instead of

using local memory.

1 - 4

Overview

ACPI Ready

This mainboard fully implements the new ACPI (Advanced Configuration and

Power Interface) 1.0b Hardware and BIOS requirement. If you install ACPI

aware of operating system, such as Windows 98, you fully utilized the power

saving under ACPI. (Windows ME/2000 Professional supports ACPI func-

tions.)

FIC Unique Innovation for Users (NOVUS) -

Enhanced Mainboard Features and System Support

■■

■ LogoGenie

■■

A user friendly GUI supporting Windows 95/98/98SE (not Windows 2000/

NT/ME), LogoGenie allows you to customize, create or select a Logo

which will be displayed when the system is booting.

NOTE:

1. LogoGenie supports Award BIOS only.

2. If you create a Logo file (.bmp) by LogoGenie, the file size must

||||be 640 x 464 x 256 colors.

To enable this utility, please proceed as follows:

1. Insert CD Pro. Select LogoGenie from the Menu and

follow the installation instructions.

2. After LogoGenie has been installed, go to Windows Start Box.

In Programs Menu, select LogoGenie 2.x, then select LogoGenie.

3. Press F1 to read Help file to understand how to use this software if

it is new to you.

■■

■ BIOS Guardian

■■

BIOS Guardian by default is enabled. It must be disabled in order to reflash

BIOS, thus effectively acts as a fire-wall against viruses that can attack

the BIOS while the system is running.

1 - 5

FA15T Mainboard Manual

WARNING: While excute Step3 below, please do not turn off the
sytsem power in order to avoid BIOS damage.

BIOS Guardian can be disabled as follows:

1. Go to BIOS Set Up Menu. (Press Del key while booting.)

2. Go to Advanced BIOS Features Set Up Submenu.

3. Disable BIOS Guardian.

4. Save the setting, and restart system.

NOTE: However, if it is disabled and while boot the system, the
POST screen will be held and shows you the message to let you
know the current status of BIOS Guardian. To press G key will en­able the BIOS Guardian again; or simply to press the space bar
will continue the booting process.

■■

■ Easy Key

■■

Instead of completing the multi-layered BIOS setup process these 3 Easy

Key functions provide direct access to Sub-Menus when completing

BIOS settings adjustments.

Easy-Keys are as follows:

Ctrl + c: To enter clock settings menu.

Ctrl + p: To load Performance Default settings and restart.

Ctrl + f: To load Fail-Safe Default settings and restart.

■■

■ Overclock Partner

■■

Should the system not start because clock speed settings have been

increased to a speed incompatible with the system, the Overclock Partner

allows you to reboot at system default settings, protecting hardware from

any damages.

Complete the following steps:

1. Turn the system off.

2. Restart while holding down the Insert key. It is important that the

Insert key is held down until the default clock speed is shown on

the POST screen.

3. Enter BIOS settings menu, and re-set clock speed desired or default.

1 - 6

Installation Procedures

Chapter 2

Installation Procedures

The mainboard has several user-adjustable jumpers on the board that allow you to

configure your system to suit your requirements. This chapter contains information

on the various jumper settings on your mainboard.

To set up your computer, you must complete the following steps:

■ Step 1 - Set system jumpers/switches

■ Step 2 - Install memory modules

■ Step 3 - Install the Central Processing Unit (CPU)

■ Step 4 - Install expansion cards

■ Step 5 - Connect ribbon cables, cabinet wires, and power supply

■ Step 6 - Set up BIOS software (see Chapter Three)

■ Step 7 - Set up supporting software tools

WARNING: Excessive torque may damage the mainboard. When
using an electric screwdriver on the mainboard, make sure that
the torque is set to the allowable range of 5.0 ~ 8.0kg/cm.

Mainboard components contain very delicate Integrated Circuit
(IC) chips. To prevent static electricity from harming any of the
mainboard’s sensitive components, you should follow some
precautions whenever working on the computer:

1. Unplug the computer when working on the inside.

2. Hold components by the edges and try not to touch the IC

||||chips, leads, or circuitry.

3. Wear an anti-static wrist strap which fits around the wrist.

4. Place components on a grounded anti-static pad or on the bag
that came with the component whenever the components are
separated from the system.

2 - 1

FA15T Mainboard Manual

Quick Reference (from Page 2-2 to 2-5)

Mainboard Layout

1). Clear CMOS, Clear Password

2 - 2

Auto Detect CPU Core Voltage,
CPU Core Voltage Select

WARNING: When set the switch below,

be sure of your CPU voltage in advance.
It will cause damage, if you select an
improper voltage .

Installation Procedures

2 - 3

FA15T Mainboard Manual

FSB Speed Select, CPU Speed Select

2 - 4

Installation Procedures

2). Front Panel Block Cable Connection

3). CPU Fan Installation

This connector is linked to the CPU fan. When the system is in suspend mode, the

CPU fan will turn off; when it reverts back to full on mode, the fan will turn back on.

Without sufficient air circulation, the CPU may overheat resulting in damage

to both the CPU and the mainboard.

Damage may occur to the mainboard and/or the CPU fan if these pins are

used incorrectly. These are not jumpers, do not place jumper caps over these

pins.

2 - 5

FA15T Mainboard Manual

1). Set System Switches/Jumpers

Clear CMOS: SW1-5

The CMOS RAM is powered by the onboard button cell battery. To clear the

RTC data: (1) Turn off your computer. (2) Move the CMOS Clear switch SW1-

5 to On (Enabled). (3) Turn on your computer to display CMOS checksum

error. (4) Turn off your computer. (5) Move the CMOS Clear switch SW1-5 to

Off (Disabled). (6) Turn on your computer. (7) Hold down the Delete key

when boots. (8) Enter the BIOS Setup to re-enter user preferences.

Clear Password: SW1-6

This switch allows you to enable or disable the password configuration. You

may need to enable this switch by moving it to the On (Enabled) position if

you forget your password. To clear the password setting: (1) Turn off your

computer. (2) Move the Clear Password switch SW1-6 to On (Enabled). (3)

Turn on your computer. (4) Hold down the Delete key during bootup and enter

BIOS Setup to re-enter user preferences. (5) Turn off your computer, (6) Move

the Clear Password switch SW1-6 to Off (Disabled). (7) Turn on your com-

puter for the new settings to take effect.

2 - 6

Installation Procedures

Auto Detect CPU Core Voltage: ADV_EN

The 3-pin jumper allows you to start the capability of auto detection the CPU

core voltage of this mainboard and disabling this jumper to set the switch ADV

according to the table below to approach the best performance.

CPU Core Voltage Setting: ADV

The switch allows you to set the CPU core voltage to approach the best

performance according to the table below after you set the jumper ADV_EN at

Disable. Please set the jumper ADV_EN at Disable before you adjust the

switch ADV.

2 - 7

FA15T Mainboard Manual

2). Install RAM Modules

This mainboard provides three onboard DIMM sockets for allowing 3.3V (un-

buffered) SDRAM DIMM modules. Either 64, 128, 256, 512MB DIMM can be

installed on these four sockets. The maximum total memory supported is up to

1.5GB.

Install and Remove Memory Modules

1. Locate the DIMM slots on the mainboard.

2. Install the DIMM straight down into the DIMM slot using both hands.

3. The clip on both ends of the DIMM slot will close up to hold the DIMM

in place when the DIMM reaches the slots bottom.

Press the clips with both hands to remove the DIMM.

2 - 8

Installation Procedures

3). Install the CPU

The CPU module resides in the PGA370 socket on the motherboard.

CAUTION:

1. The heatsink and fan you installed must be approved by CPU

|||||manufactories.

2. The mainboard must be placed on a solid place to avoid shaking

|||||while install the heatsink and fan on the board.

3. The heatsink must be contact with the CPU top tightly.

4. Never run the processor without the heatsink properly and firmly

attached. PERMANENT DAMAGE WILL RESULT!

To install the CPU, do the following:

1. Lift the lever on the side of the CPU socket.

2. Handle the chip by its edges and try not to touch any of the pins.

3. Place the CPU in the socket. The chip has two notches to correctly locate

the chip. Align two notches of the processor with the two triangular

marks on the socket. Do not force the chip. The CPU should slide easily

into the socket.

4. Swing the lever to the down position to lock the CPU in place.

5. Place the cooling fan with heatsink on top of the installed CPU.

2 - 9

FA15T Mainboard Manual

CPU Speed Select

2 - 10

FSB Speed Select

Installation Procedures

2 - 11

FA15T Mainboard Manual

Auto Detect CPU Core Voltage: ADV_EN

The 3-pin jumper allows you to start the over voltage driving capability of this

mainboard by disabling this jumper and set the switch ADV according to the

table below to approach the best performance.

WARNING: Voltage and frequency above CPUs original specifi-

cations are not guaranteed to be stable.

CPU Core Voltage Setting: ADV

The switch allows you to set the CPU core voltage to approach the best

performance according to the table below after you set the jumper ADV_EN at

Disable.

2 - 12

Installation Procedures

4). Install Expansion Cards

This section describes how to connect an expansion card to one of your

systems expansion slots. Expansion cards are printed circuit boards that,

when connected to the mainboard, increase the capabilities of your system.

For example, expansion cards can provide video and sound capabilities. The

mainboard features one AGP bus, one CNR bus, and five PCI bus expansion

slots.

CAUTION: Make sure to unplug the power supply when adding or
removing expansion cards or other system components. Failure to
do so may cause severe damage to both the mainboard and ex­pansion cards.
Always observe static electricity precautions.
Please read “Handling Precautions” at the start of this manual.

To install an expansion card, follow the steps below:

1. Remove the computer chassis cover and select an empty expansion

slot.

2. Remove the corresponding slot cover from the computer chassis.

Unscrew the mounting screw that secures the slot cover and pull

the slot cover out from the computer chassis. Keep the slot cover

mounting screw nearby.

2 - 13

FA15T Mainboard Manual

3. Holding the edge of the peripheral card, carefully align the edge

connector with the expansion slot.

4. Push the card firmly into the slot. Push down on one end of the

expansion card, then the other. Use this rocking motion until the

addon card is firmly seated inside the expansion slot.

5. Secure the board with the mounting screw removed in Step 2. Make

sure that the card has been placed evenly and completely into the

expansion slot.

6. Replace the computer systems cover.

7. Setup the BIOS if necessary.

8. Install the necessary software drivers for the expansion card.

5). Connect Devices

Floppy Diskette Drive Connector

This connector provides the connection with your floppy disk drive.

The red stripe of the ribbon cable must be the same side with the Pin 1.

2 - 14

Installation Procedures

Primary and Secondary IDE Device Connectors

These two connectors are used for your IDE hard disk drives, CD drives, LS-

120|drives, or IDE ZIP drives. The red stripe of the ribbon cable must be the

same side with the Pin 1.

ATX Power Connector

This 20-pin male block connector is connected to the ATX power supply. The

plug from the power supply will only insert in one orientation because of the

different hole sizes. Find the proper orientation and push down firmly making

sure that the pins are aligned.

2 - 15

FA15T Mainboard Manual

Fan Connectors

The CPU fan connector is linked to the CPU fan. When the system is in some

saving modes, the CPU fan will turn off; when it reverts back to full on mode,

the fan will turn on. The case fan connector links to your cooling fan on the

system case to lower the system temperature.

CD Audio-In Connectors

The two connectors are used for CD drive audio input.

2 - 16

Installation Procedures

Wake-On-LAN Connector

This 3-pin connector allows the remote LAN server to wake up the system

with a LAN card installed. Please also refer to the LAN card installation guide

for related information.

Wake-On-Ring Connector

This 2-pin connector allows the modem ring call to wake up your computer

system by connecting a wire between this connector and your modem card

that installed on the CNR slot.

2 - 17

FA15T Mainboard Manual

Front Panel Block and Speaker Connector

This block connector includes the connectors for linking with HDD LED,

power LED, dual power LED, power button, suspend button, reset button, and

IR on the front panel of the system case. Please identify polarities of plug

wires for the case speaker and LEDs. Please ask vendor about this information

when you buy them and install the system by yourself. The plug wires polari-

ties of these buttons will not affect the function.

Power LED is connected with the system power indicator to indicate whether

the system is on/off. It will blink when the system enters suspend mode.

IR is used to communicate with another IR device via a 4-wire plug.

Reset Button is connected to the reset button. Push this switch to reboot the

system instead of turning the power button off and on.

HDD LED is connected to the IDE device indicator. This LED will blink when

the hard disk drives are activated.

LED(G) is in green light when the system in power on status.

LED(Y) is in yellow light when the system in suspend mode.

Power Button is connected with power button. Push this switch allows the

system to be turned on and off rather than using the power supply button.

Suspend Button is connected with suspend button. To enter the system into

power saving mode, simply press this button when the system is in full-on

mode.

Speaker is connected with the case speaker.

2 - 18

Installation Procedures

The table below shows the relationship between power saving modes with

LEDs and buttons.

PS/2 Keyboard and Mouse Connector

These two 6-pin female (PS/2 keyboard is purple color and PS/2 mouse is

green color) connectors are used for your PS/2 keyboard and PS/2 mouse.

2 - 19

FA15T Mainboard Manual

Front and Rear Universal Serial Bus Connectors

These two black connectors integrated on the edge of the board are used for

linking with USB peripheral devices. This board also providesa front USB

connector for linking with the two USB sockets on the front panel of some

system cases. Please note your operating system must support USB features,

such as MS Windows 95 OSR2.5 or later.

The figure below is the pin assignment

of the USB2 connector for two extra

USB connections.

Serial Port Connectors

COM1/2 (9-pin D-sub male connector with teal color) allow you to connect

with your devices that use serial ports, such as a serial mouse or an external

modem.

2 - 20

Installation Procedures

Printer Connector

This 25-pin D-Sub female burgundy-colored connector is attached to your

printer.

Audio I/O Jacks

LINE_OUT* (lime) can be connected to powered speakers. LINE_IN (light

blue) allows tape players or other audio sources to be recorded by your com-

puter. MIC_IN (pink) allows microphones to be connected for voice input.

The mainboard also provides you with a front panel audio port connector,

FNT_AUDIO, when needed. Its pin definitions were presented below right.

* Please use an active speaker with LINE_OUT.

2 - 21

FA15T Mainboard Manual

Game/MIDI Connector

This 15-pin female gold-colored connector allows you to connect game joy-

sticks or game pads. Connect MIDI devices for playing or editing audio.

2 - 22

BIOS Setup

Chapter 3

BIOS Setup

The mainboard comes with the chip that Award BIOS that contains the ROM

Setup information of your system. (This chip serves as an interface between

the processor and the rest of the mainboards components.) This section

explains the information contained in the Setup program and tells you how to

modify the settings according to your system configuration.

CMOS Setup Utility

A Setup program, built into the system BIOS, the settings are stored in the

CMOS. This Setup utility program allows updates to the mainboard configura-

tion settings. It is executed when the user changes system configuration; user

changes system backup battery; or the system detects a configuration error

and asks the user to run the Setup program. Use the arrow keys to select and

press Enter to run the selected program.

3 - 1

FA15T Mainboard Manual

Standard CMOS Setup

The Standard CMOS Setup screen is displayed above. Each item may have

one or more option settings. The system BIOS automatically detects memory

size, thus no changes are necessary. Use the arrow keys to highlight the item

and then use Page Up/Page Down keys to select the value you want in each

item.

Date

To set the date, highlight the Date field and then press Page Up/Page

Down keys to set the current date. Follow the month, day and year format.

Time

To set the time, highlight the Time field and then press Page Up/Page Down

keys to set the current time. Follow the hour, minute, and second format.

3 - 2

BIOS Setup

Hard Disks

This field records the specifications for all non-SCSI hard drives installed

in the system. The onboard PCI IDE connectors provide Primary and Sec-

ondary channels for connecting up to four IDE hard disks or other IDE

devices. Each channel can support up to two hard disks, the first of which

is the Master and the second is the Slave.

Hard Disk Configurations

Capacity: The hard disk size. The unit is Bytes.

Cylinder: The cylinder number of the hard disk.

Head: The read/write head number of hard disk.

Precomp: The cylinder number at which the disk drive

changes the write current.

Landing Zone: The cylinder number that the disk drive heads

(read/write) are seated when the disk drive is

parked.

Sector: The sector number of each track defined on the

hard disk.

Drive A / Drive B

This field records the types of floppy drives installed in the system. To

enter the configuration value for a particular drive, highlight its corre-

sponding field and then select the drive type using the Page Up or Page

Down key.

Floppy 3 Mode Support

This is a Japanese standard floppy type drive. The standard stores 1.2MB

in a 3.5 inch diskette.

Video

Set this field to the type of video display card installed in the system.

Halt On

This field determines which types of errors will cause the system to halt.

3 - 3

FA15T Mainboard Manual

Advanced BIOS Features

Virus Warning

This feature will prompt uses a warning message, when any write boot

sector commend executed. The options are: Enabled, Disabled.

CPU Internal Cache

When enabled, improves the system performance. Disable this item when

testing or trouble-shooting. The options are: Enabled, Disabled.

External Cache

When enabled, supports CPU L2 cache. This feature allows you to disable

the cache function when the system performance is unstable to run some

software. The options are: Enabled, Disabled.

CPU L2 Cache ECC Checking

When enabled, it activates the CPU L2 cache check and error correction.

The options are: Enabled, Disabled.

Processor Number Feature

If a Pentium III processor is installed on this mainboard, the system BIOS

will allow other utilities to access the Intel Pentium III serial number while

this feature set at Enabled. The options are: Enabled, Disabled.

3 - 4

BIOS Setup

Quick Power On Self T est

When enabled, allows the BIOS to bypass the extensive memory test.

The options are: Enabled, Disabled.

First/Second/Third Boot Device

This feature allows user to select the boot device priority. The options are:

Floppy, LS120, HDD-0, SCSI, CDROM, HDD-1, HDD-2, HDD-3, ZIP100,

USB-FDD, USB-ZIP, USB-CDROM, USB-HDD, LAN, Disabled.

Boot Other Device

This feature allows user to select the boot device priority.

The options are: Enabled, Disabled.

Swap Floppy Drive

Allows you to switch the order in which the operating system accesses

the floppy drives.

The options are: Enabled, Disabled.

Boot Up Floppy Seek

When enabled, assigns the BIOS to perform floppy diskette drive tests by

issuing the time-consuming seek commands.

The options are: Enabled, Disabled.

Boot Up Numlock Status

When set to On, allows the BIOS to automatically enable the Num Lock

Function when the system boots up. The options are: On, Off.

Gate A20 Option

When set at Fast, allows a faster access response of address Line No. 20.

The options are: Fast, Normal.

Typematic Rate Setting

The term typematic means that when a keyboard key is held down, the

character is repeatedly entered until the key is released.

The options are: Disabled, Enabled.

Typematic Rate (Chars/Sec)

This feature is available only if the above item, Typematic Rate Setting, is

set at Enabled. Sets the rate of a character repeat when the key is held

down. The options are: 6, 8, 10, 12, 15, 20, 24, 30.

3 - 5

FA15T Mainboard Manual

Typematic Delay (Msec)

This feature is available only if the item, Typematic Rate Setting, is set at

Enabled. Sets the delay time before a character is repeated.

The options are: 250, 500, 750, 1000 millisecond.

Security Option

Allows you to set the security level of the system.

The options are: Setup, System.

OS Select For DRAM > 64MB

If your operating system (OS) is OS/2, select the option OS2. Otherwise,

stay with the default setting Non-OS2.

The options are: Non-OS2, OS2.

HDD S.M.A.R.T . Capability

S.M.A.R.T. stands for Self-Monitoring and Analysis Reporting Technol-

ogy which allows your hard disk drive to report any read/write errors and

issues a warning with LDCM installed.

The options are: Disabled, Enabled.

Report No FDD For WIN 95

When the field under the Standard CMOS Setup Menu for Drive A and/or

Drive B is set at None, users must set this field is set at Yes for it to function

properly. Otherwise, set at No, even if field for Drive A and/or Drive B is set

at None, system will still detect and recognize of a floppy drive(s).

The options are: Yes, No.

Video BIOS Shadow

Enabling this feature will copy the video BIOS to shadow RAM, it will

improve the system performance.

The options are: Enabled, Disabled.

BIOS Guardian

It allows the system to prevent computer viruses. Users will need to dis-

able it to update BIOS. The options are: Enabled, Disabled.

NOTE: Please disable this BIOS feature about BIOS Guardian
before you start to reflash BIOS.

3 - 6

BIOS Setup

Advanced Chipset Features

DRAM Timing By SPD

This item allows you to use supports of Serial Presence Detect (SPD), the

system BIOS can recongnize its specificity, then do automatic timer setting

SPD data. If you set any timing manually, please set this feature at Dis-

abled. The options are: Enabled, Disabled.

DRAM Clock

The feature allows users to select the DRAM clock.

The options are: Host CLK, HCLK-33M, HCLK+33M.

SDRAM Cycle Length

This item will function only when SDRAM DIMM/s are installed on the

mainboard (BIOS auto detection). If the CAS latency of your SDRAM

DIMM is 2, set it at 2 to enhance your system performance. If the CAS

latency of your SDRAM DIMM is 3, stay with the default setting, 3.

The options are: 3, 2.

Bank Interleave

This item allows users to select the bank interleave function of DRAM,

when the feature DRAM Timing By SPD set at Disabled.

The options are: Disabled, 2 Bank, 4 Bank.

3 - 7

FA15T Mainboard Manual

Memory Hole

When you install a Legacy ISA card, this feature allows you to select the

memory holes address range of the ISA cycle when the processor ac-

cesses the selected address area. Please read your card manual for detail

information. When disabled, the memory hole at the (15-16MB) address

will be treated as a DRAM cycle when the processor accesses the 15~16MB

address area. The options are: 15M - 16M, Disabled.

P2C/C2P Concurrency

This feature allows users to set PCI/AGP Master-to-CPU/ CPU-to-PCI/

AGP Slave concurrent.

The options are: Enabled, Disabled.

System BIOS Cacheable

When enabled, allows the ROM area F000H-FFFFH to be cacheable when

cache controller is activated. The options are: Enabled, Disabled.

Video BIOS Cacheable

As with caching the system BIOS above, enabling the video BIOS cache

will cause access to the video BIOS addressed at C0000H-C7FFFH to be

cached, if the cache controller is also enabled.

The options are Enabled, Disabled.

Video RAM Cacheable

When enabled, allows the video RAM area to be cacheable.

The options are: Enabled, Disabled.

AGP Aperture Size

It allows you to select the main memory frame size for AGP use.

The options are 4M, 8M, 16M, 32M, 64M, 128M.

AGP-4X Mode

This feature allows user to select the AGP mode be to 2x or 4x when an

AGP add-in card installed. However, when set at Enabled and the AGP

card only support 1x mode, the system will fall back 1x mode automatically.

The options are: Enabled, Disabled.

3 - 8

BIOS Setup

AGP Driving Control / AGP Driving V alue

These two features allow user to improve the performance of AGP card

manually by pressing Page Down/Page UP key if necessary.

The options of AGP Driving Control are: Auto, Manual.

AGP Fast Write

This feature allows you to set AGP fast write mode.

The options are: Enabled, Disabled.

OnChip USB

When enabled, this feature allows you to use the onboard USB feature.

The options are: Enabled, Disabled.

USB Keyboard Support

This feature will appear only if the above item Onchip USB is set at En-

abled. Set this feature to Enabled to use a USB keyboard with your system.

The options are: Disabled, Enabled.

OnChip Sound

This feature allows you to disable the onboard audio function if needed.

The options are: Auto, Disable.

OnChip Modem

This feature allows you to disable the CNR modem function if needed.

The options are: Auto, Disable.

CPU to PCI Write Buffer

When enabled, allows data and address access to the internal buffer of

the system controller; so the processor can be released from the waiting

state. The options are: Enabled, Disabled.

PCI Dynamic Bursting

When enabled, the PCI controller allows Bursting PCI transfer if the con-

secutive PCI cycles come with the address falling in same 1KB space. This

improves the PCI bus throughput.

The options are: Enabled, Disabled.

3 - 9

FA15T Mainboard Manual

PCI Master 0 WS Write

When enabled, allows a zero-wait-state-cycle delay when the PCI master

drive writes data to DRAM. The options are: Enabled, Disabled.

PCI Delay Transaction

Enable this feature to abort the current CPI master cycle and to accept the

new PCI master request, it reaccepts the original PCI master and returns

the PCI data phase to the original PCI master.

The options are: Disabled, Enabled.

PCI#2 Access #1 Retry

When enabled, the AGP (PCI#2) access to PCI (PCI#1) will be retried until

the maximum count. The options are: Disabled, Enabled.

AGP Master 1 WS Write

When enabled, the AGP bus master write access to DRAMs will add one

wait-state cycle. The options are: Enabled, Disabled.

AGP Master 1 WS Read

When enabled, the AGP bus master read access to the DRAMs will add

one wait-state cycle. The options are: Disabled, Enabled.

Integrated Peripherals

3 - 10

BIOS Setup

OnChip IDE Channel0

When enabled, allows you to use the onboard primary PCI IDE. If a hard

disk controller card is used, set at Disabled.

The options are: Enabled, Disabled.

OnChip IDE Channel1

When enabled, allows you to use the onboard secondary PCI IDE. If a

hard disk controller card is used, set at Disabled.

The options are: Enabled, Disabled.

IDE Prefetch Mode

When set at Enabled, it allows data to be posted to and prefetched from

the primary IDE data ports. Data prefetching is initiated when a data port

read occurs. The read prefetch eliments latency to the IDE data ports and

allows them to be performed back to back for the highest possible PIO data

transfer rates. The first data port read of a sector is called the demand read.

Subsequent data port reads from the sector are called prefetch reads. The

demand read and all prefetch reads must be of the same size (16 or 32 bits).

The options are: Enabled, Disabled.

Primary Master PIO

Allows an automatic or a manual configuration of the PCI primary IDE hard

disk (master) mode. The options are: Auto, Mode 0, Mode 1, Mode 2,

Mode 3, Mode 4.

Primary Slave PIO

Allows an automatic or a manual configuration of the PCI primary IDE hard

disk (slave) mode. The options are: Auto, Mode 0, Mode 1, Mode 2, Mode

3, Mode 4.

Secondary Master PIO

Allows an automatic or a manual configuration of the PCI secondary IDE

hard disk (master) mode. The options are: Auto, Mode 0, Mode 1, Mode 2,

Mode 3, Mode 4.

3 - 11

FA15T Mainboard Manual

Secondary Slave PIO

Allows an automatic or a manual configuration of the PCI secondary IDE

hard disk (slave) mode. The options are: Auto, Mode 0, Mode 1, Mode 2,

Mode 3, Mode 4.

Primary Master UDMA

Allows you to select the first PCI IDE channel of the first master hard disk

mode or to detect it by the BIOS if the hard disk supports UDMA (Ultra

DMA, faster than DMA). The options are: Auto, Disable.

IDE Primary Slave UDMA

Allows you to select the first PCI IDE channel of the first slave hard disk

mode or to detect it by the BIOS if the hard disk supports UDMA (Ultra

DMA, faster than DMA). The options are: Auto, Disable.

IDE Secondary Master UDMA

Allows you to select the second PCI IDE channel of the secondary master

hard disk mode or to detect it by the BIOS if the hard disk supports UDMA

(Ultra DMA, faster than DMA). The options are: Auto, Disable.

IDE Secondary Slave UDMA

Allows you to select the second PCI IDE channel of the secondary slave

hard disk mode or to detect it by the BIOS if the hard disk supports UDMA

(Ultra DMA, faster than DMA). The options are: Auto, Disable.

Init Display First

When you install a PCI VGA card on the board, this feature allows you to

select the first initiation of the monitor display from PCI or onboard AGP.

The options are: PCI Slot, AGP.

IDE HDD Block Mode

When enabled, the system executes read/write requests to hard disk in

block mode. The options are: Enabled, Disabled.

Onboard FDD Controller

When enabled, the floppy diskette drive (FDD) controller is activated.

The options are: Enabled, Disabled.

3 - 12

BIOS Setup

Onboard Serial Port 1

If the serial port 1 uses the onboard I/O controller, you can modify your

serial port parameters. If an I/O card needs to be installed, COM3 and

COM4 may be needed. The options are: 3F8/IRQ4, 3E8/IRQ4, 2F8/IRQ3,

2E8/IRQ3, Disabled.

Onboard Serial Port 2

If the serial port 2 uses the onboard I/O controller, you can modify your

serial port parameters. If an I/O card needs to be installed, COM3 and

COM4 may be needed. The options are: 2F8/IRQ3, 3E8/IRQ4, 2E8/IRQ3,

3F8/IRQ4, Disabled.

UART 2 Mode

Select an operating mode for the second serial port. Set at

Standard, if you use COM2 as the serial port as the serial port,

instead as an IR port. The options are: Standard, ASK-IR, HPSIR.

IR Function Duplex

This feature is available only it the above item , UART2 Mode, is set at

ASKIR or HPSIR. It allows you to select the infrared data transaction way.

The options are: Half , Full.

TX, RX Inverting Enable

This feature is available only it the above item , UART2 Mode, is set at

ASKIR or HPSIR. It allows you to select the active signals of the recep-

tion end and the transmission end.

The options are: No, Yes; Yes, Yes; No, No; Yes, No.

Onboard Parallel Port

Allows you to select from a given set of parameters if the parallel port uses

the onboard I/O controller.

The options are: 378/IRQ7, 278/IRQ5, 3BC/IRQ7, Disabled.

Onboard Parallel Port Mode

Allows you to connect with an advanced printer.

The options are: Normal, EPP, ECP, ECP/ ECP.

3 - 13

FA15T Mainboard Manual

ECP Mode Use DMA

This feature allows you to select Direct Memory Access (DMA) channel if

the ECP mode selected. The options are: 3, 1.

Parallel Port EPP Type

This feature allows you to select the EPP type for the parallel port.

The options are: EPP1.9, EPP1.7.

Onboard Legacy Audio

Set Audio to be compatible with legacy mode.

The options are: Enabled, Disabled.

Sound Blaster

This feature allows you to set audio to Sound Blaster mode, if the onboard

Legacy audio chosen. The options are: Enabled, Disabled.

SB I/O Base Address

This feature allows you to select the SB I/O base address, if the onboard

Legacy audio chosen. The options are: 220H, 240H, 260H, 280H.

SB IRQ Select

This feature allows you to select the SB IRQ, if the onboard Legacy audio

chosen. The options are: IRQ 5, IRQ 7, IRQ 9, IRQ 10.

SB DMA Select

This feature allows you to select the SB DMA channel, if the onboard

Legacy audio chosen.

The options are: DMA 1, DMA 2, DMA 3, DMA0.

MPU-401

This feature allows you to enable MPU-401, if the onboard Legacy audio

chosen. The options are: Disabled, Enabled.

MPU-401 I/O Address

This feature allows you to select the MPU-401 I/O address, if the onboard

Legacy audio chosen.

The options are: 310-313H, 320-323H, 330-333H, 300-303H.

3 - 14

BIOS Setup

Game Port (200-207H)

This feature allows you to select the game port (200-207H), if the onboard

Legacy audio chosen.

The options are: Enabled, Disabled.

Power Management Setup

ACPI function

This item allows you to disable the ACPI function.

The options are: Enabled, Disabled.

Power Management

This item allows you to adjust the power management features.

Select User Define for configuring your own power management features.

Min Saving initiates all predefined timers in their minimum values. Max

Saving, on the other hand, initiates maximum values. The options are: User

Define, Min Saving, Max Saving.

HDD Power Down

The option lets the BIOS turn the HDD motor off when system is in Sus-

pend mode. Selecting 1 Min..15 Min allows you define the HDD idle time

before the HDD enters the Power Saving Mode.

The options 1 Min..15 Min will not work concurrently. When HDD is in the

Power Saving Mode, any access to the HDD will wake the HDD up.

The options are: Disable, 1 Min..15 Min.

3 - 15

FA15T Mainboard Manual

Doze Mode

When disabled, the system will not enter Doze mode. The specified time

option defines the idle time the system takes before it enters Doze mode.

The options are: Disable, 1, 2, 4, 6, 8, 10, 20, 30, 40 Min, 1 Hour.

Suspend Mode

When disabled, the system will not enter Suspend mode. The specified

time option defines the idle time the system takes before it enters Suspend

mode. The options are: Disable, 1, 2, 4, 6, 8, 10, 20, 30, 40 Min, 1 Hour.

ACPI Suspend Type

This item allows you to select ACPI suspend types.

The options are: S1(POS), S3 (STR).

PM Control by APM

The option No allows the APM (Advanced Power Management) specifi-

cation be ignored. Selecting Yes will allow the BIOS wait for APMs prompt

before it enters Doze mode, Standby mode, or Suspend mode. If the APM

is installed, it will prompt the BIOS to set the system into power saving

mode when all tasks are done. The options are: No, Yes.

Video Off Option

This feature provides the selections of the video display power saving

mode. The option Suspend - Off allows the video display to go blank if the

system enters Suspend mode. The option All Modes - Off allows the video

display to go blank if the system enters Doze mode or Suspend mode. The

option Always On allows the video display to stay in Standby mode even

when the system enters Doze or Suspend mode.

The options are: Suspend - Off, All Modes -> Off, Always On.

Video Off Method

The option V/H SYNC+Blank allows the BIOS to blank off screen display

by turning off the V-Sync and H-Sync signals sent from add-on VGA card.

DPMS Support allows the BIOS to blank off screen display by your add-

on VGA card which supports DPMS (Display Power Management Signal-

ing function). Blank Screen allows the BIOS to blank off screen display by

turning off the red-green-blue signals.

The options are: V/H SYNC+Blank, DPMS Support, Blank Screen.

3 - 16

BIOS Setup

MODEM Use IRQ

This feature allows you to select the IRQ# to meet your modems IRQ#.

The options are: NA, 3, 4, 5, 7, 9, 10, 11.

Soft-Off by PWR-BTTN

The selection Delay 4 Sec. will allow the system shut down after 4 seconds

after the power button is pressed. The selection Instant-Off will allow the

system shut down immediately once the power button is pressed.

The settings are: Delay 4 Sec, Instant-Off.

State After Power Failure

The item allows you to select the state that your personal computer re-

turns to after a power failure. If set at Off, the system will not boot after a

power failure. If set On, the system will restart after power failure.

The settings are: Auto, On, Off.

VGA

When set at On, any VGA activity will awake the system.

The options are: OFF, ON.

LPT & COM

When LPT/COM is selected, any access of LPT and COM ports will awake

the system. Likewise, either LPT or COM is chosen, the system will be

awaken by any activity of LPT or COM port.

The options are: LPT/COM, LPT, COM, NONE.

HDD & FDD

When it is set at ON, any access happened at hard drives and floppy

drives will awake the system.

The options are: OFF, ON.

PCI Master

To set this feature at ON activates that Power Management feautre (PM)

wake-up event for the PCI bus master card.

The options are: OFF, ON.

Wake Up On LAN

When set at Enabled, an input signal comes from the other client/server on

the LAN awakes the system from a soft off state if connected over LAN.

The options are Disabled or Enabled.

3 - 17

FA15T Mainboard Manual

PowerOn by PCI Card

When set at Enabled, any PCI-PM event awakes the system from a PCI-

PM controlled state.

The options are Disabled, Enabled.

Modem Ring Resume

An input signal on the serial Ring Indicator (RI) line (in other words, an

incoming call on the modem) awakens the system from a soft off state.

The options are: Enabled, Disabled.

RTC Alarm Resume

Enabled allows you to set the time the system will be turned on from the

system power-off status. The options are: Enabled, Disabled.

Date (of Month)

This feature allows you to set the day of the alarm starts when the RTC

Alarm Resume From Soft Off is set to be Enabled. The options are: 0, 1..31.

Resume Time (hh:mm:ss)

If an ATX power supply is installed and when RTC Alarm Resume is En-

abled, this feature allows you to set the time of the alarm starts when the

RTC Alarm Resume From Soft Off is set to be Enabled.

The options are: 7: 0: 0. hh (hour) - 0, 1, 2,.., 23; mm (minute) - 0, 1, 2,..,59;

ss (second) - 0, 1, 2,..,59.

IRQs Activity Monitoring

After the time period which you set, the system advances from doze mode

to suspend mode in which the CPU clock stops and the screen display is

off. At this moment, if the IRQ activity occurs, the system goes back to

full-on mode directly.

If the IRQ activity which is defined as Non Primary takes place, the system

remains off until the corresponding IRQ handler finishes.

The options of IRQ 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15 are: Enabled,

Disabled.

3 - 18

BIOS Setup

PnP/PCI Configurations

PNP OS Installed

If your operating system is a Plug-and-Play one, such as Windows NT,

Windows 95, select Yes. The options are: No, Yes.

Reset Configuration Data

Enabling it to reset the system Extended System Configuration Data (ESCD)

when you exit Setup if you have installed a new add-on card and the

system reconfiguration has caused such a serious conflict that the operat-

ing system can not boot. The options are: Disabled, Enabled.

Resources Controlled By

If set at Auto, the BIOS arranges all system resources. If there exists con-

flict, select Manual. The options are: Auto (ESCD), Manual.

The manual options of IRQ- / DMA- assigned to are: PCI/ISA PnP, Legacy

ISA.

PCI/VGA Palette Snoop

Set this feature to be enabled if any ISA adapter card installed in the

system requires the VGA palette snoop function.

The options are: Disabled, Enabled.

3 - 19

FA15T Mainboard Manual

Assign IRQ For VGA

If your PCI VGA card devices do not need an IRQ, select Disabled; there-

fore, an IRQ can be released for the system use.

The options are: Enabled, Disabled.

INT Pin 1/2/3/4 Assignment

This feature allows you to assign the PCI IRQ numbers for PCI slots.

Selecting the default, Auto, allows the PCI controller to automatically allo-

cate the IRQ numbers.

The options are: Auto, 3, 4, 5, 7, 9, 10, 11, 12, 14, 15.

PC Health Status

It allows you and technicians to monitor data provided by the BIOS on this

mainboard. Some of them are not user-configurable.

Current CPU T emp. / Current System Temp. / Current CPUF AN Speed /
Current SYSFAN2 Speed

These items allow end users and technicians to monitor data such as the

current CPU temperature, CPU and case cooling fans rotating speed.

3 - 20

BIOS Setup

Frequency/Voltage Control

Auto Detect DIMM/PCI Clk

When enabled, BIOS will detect the PCI slot and DIMM slot. If no any

device in, BIOS will auto disable its clock.

The options are: Enabled, Disabled.

Spread Spectrum

This feature is used to set the spread Spectrum to be center spread type or

down spread type. The options are: Disabled, Enabled.

CPU Host/PCI Clock

This feature allows you to set the CPU/PCI clock frequency. The default

setting, Default, will detect your CPU/PCI clock frequency automatically. If

you set a unappropriate option which leads to a booting problem, keep

pressing the Insert key until the display appears will solve it.

The option list offered all combinations that supported by this mainboard.

Load Fail-Safe Defaults

This submenu is selected to diagnose the problem after the computer boots, if

the computer will not boot. These settings do not give optimal performance.

3 - 21

FA15T Mainboard Manual

Load Optimized Defaults

This submenu is selected for default settings which provide the best system

performance.

Supervisor/User Password

To enable the Supervisor/User passwords, select the item from the Standard

CMOS Setup. You will be prompted to create your own password. Type your

password up to eight characters and press Enter. You will be asked to confirm

the password. Type the password again and press Enter. To disable password,

press Enter twice when you are prompted to enter a password. A message

appears, confirming the password is disabled.

Under the BIOS Feature Setup, if Setup is selected under the Security Option

field and the Supervisor/User Password is enabled, you will be prompted

password every time you try to enter the CMOS Setup Utility. If System is

selected and the Supervisor/User Password is enabled, you will be requested

to enter the Password every time when you reboot the system or enter the

CMOS Setup utility.

Save and Exit Setup

After you have made changes under Setup, press Esc to return to the main

menu. Move cursor to Save and Exit Setup or press F10 and then press Y to

change the CMOS Setup. If you did not change anything, press Esc again or

move cursor to Exit Without Saving and press Y to retain the Setup settings.

The following message will appear at the center of the screen to allow you to

save data to CMOS and exit the setup utility: SAVE to CMOS and EXIT (Y/N)?

Exit without Saving

If you select this feature, the following message will appear at the center of the

screen to allow you to exit the setup utility without saving CMOS modifica-

tions: Quit Without Saving (Y/N)?

3 - 22
