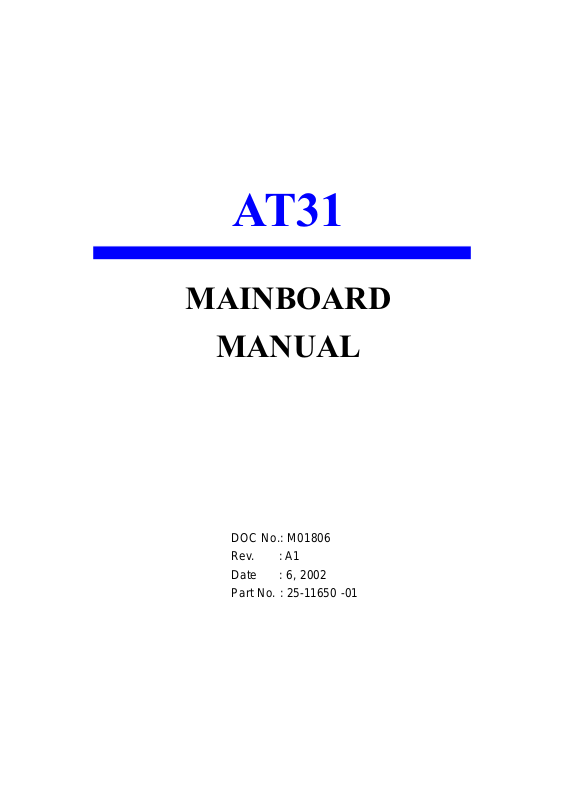

FIC AT31 User Manual

AT31

MAINBOARD

MANUAL

DOC No.: M01806
Rev. : A1
Date : 6, 2002
Part No. : 25-11650 -01

Notice

Handling Precautions

Warning:

1. Static electricity may cause damage to the integrated circuits on

the motherboard. Before handling any motherboard outside of its
protective packaging, ensure that there is no static electric charge
in your body.

2. There is a danger of explosion if the battery is incorrectly
replaced. Replace only with the same or an equivalent type
recommended by the manufacturer.

3. Discard used batteries according to the manufacturer’s
instructions.

4. Never run the processor without the heatsink properly and firmly

attached. PERMANENT DAMAGE WILL RESULT!

Observe the following basic precautions when handling the motherboard

or other computer components:

n Wear a static wrist strap which fits around your wrist and is

connected to a natural earth ground.

n Touch a grounded or anti-static surface or a metal fixture such as a

water pipe.

n Avoid contacting the components on add-on cards, motherboards,

and modules with the golden fingers connectors plugged into the

expansion slot. It is best to handle system components by their

mounting brackets.

The above methods prevent static build-up and cause it to be discharged

properly.

Trademark

All trademarks mentioned in this manual are registered properly of

the respective owners.

Handling Precautions

This manual may not, in whole or in part, be photocopied, reproduced,

transcribed, translated, or transmitted in whatever form without the

written consent of the manufacturer, except for copies retained by the

purchaser for personal archival purposes.

T able of Contents

Table of Contents

Quick Reference (German) G- 1
Quick Reference (French) F- 1
Quick Reference (Spanish) S-1
Quick Reference (Japanese) J-1
Quick Reference (Chinese) C-1
Quick Reference (Simplified Chinese) |||||||||||||SC-1

Chapter 1 Overview

Package Checklist .......................................................................... 1-2

The AT31 Mainboard ................................................................ 1-3

Main Features ................................................................................ 1-4

FIC Unique Innovation for Users (NOVUS) -

Enhanced Mainboard Features and System Support .................... 1-6

Chapter 2 Installation Procedures

Quick Reference (from Page 2-2 to 2-4) .......................................... 2-2

Mainboard Layout .................................................................... 2-2

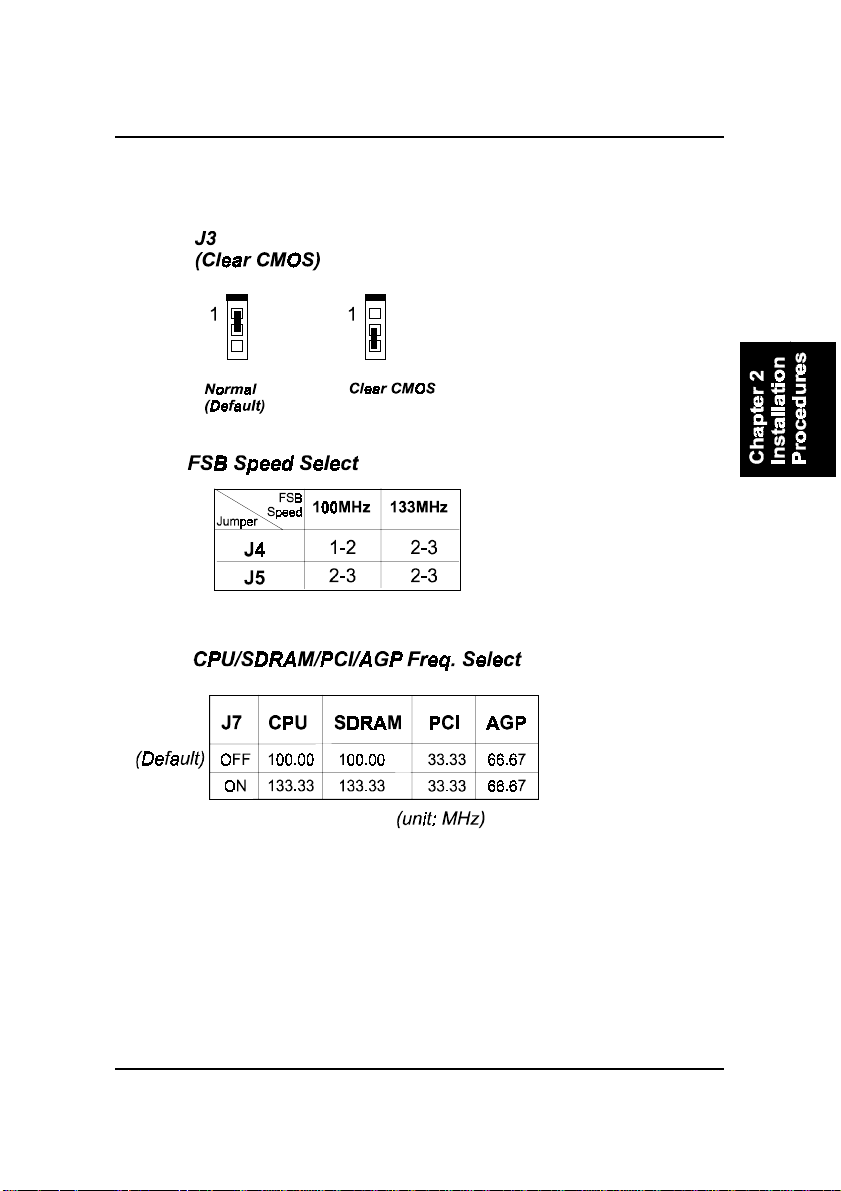

1). Clear CMOS, FSB Speed Select

CPU/SDRAM/PCI/AGP Speed Select ........................... 2-3

2). Front Panel Block Cable Connection ............................ 2-4

3). CPU Fan Installation .................................................... 2-4

1). Set System Jumpers/Switches ................................................... 2-5

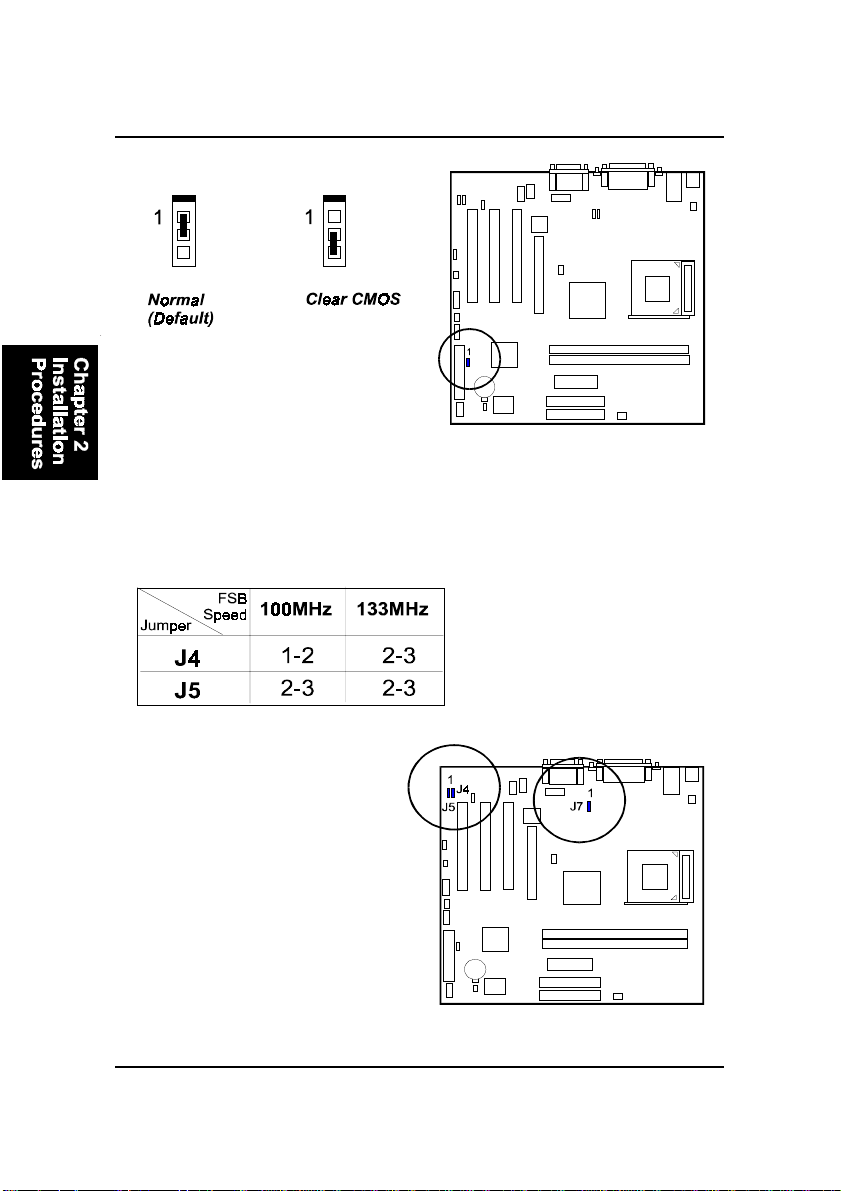

Clear CMOS: J3 ................................................................. 2-5

FSB and CPU/SDRAM/PCI/AGP Speed Select:

J4, J5, and J7 ...................................................................... 2-6

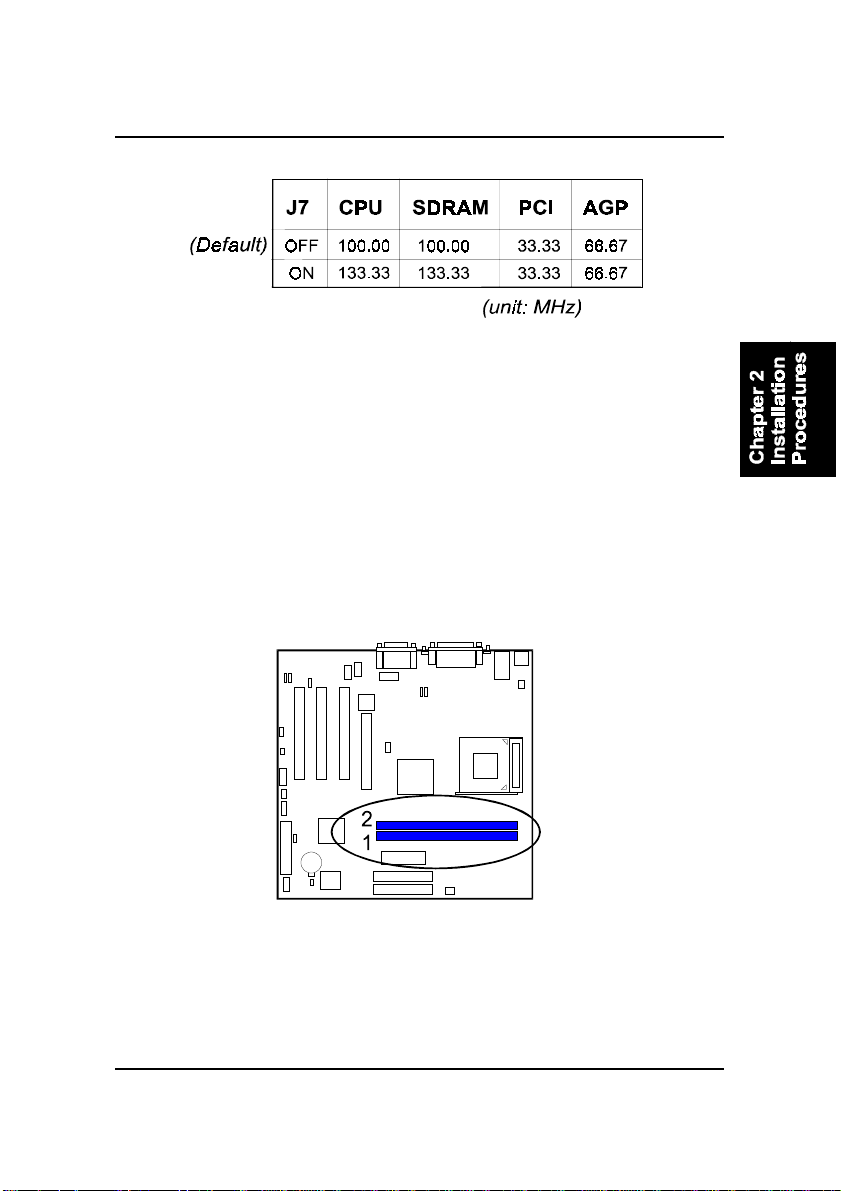

2). Install Memory Modules .......................................................... 2-7

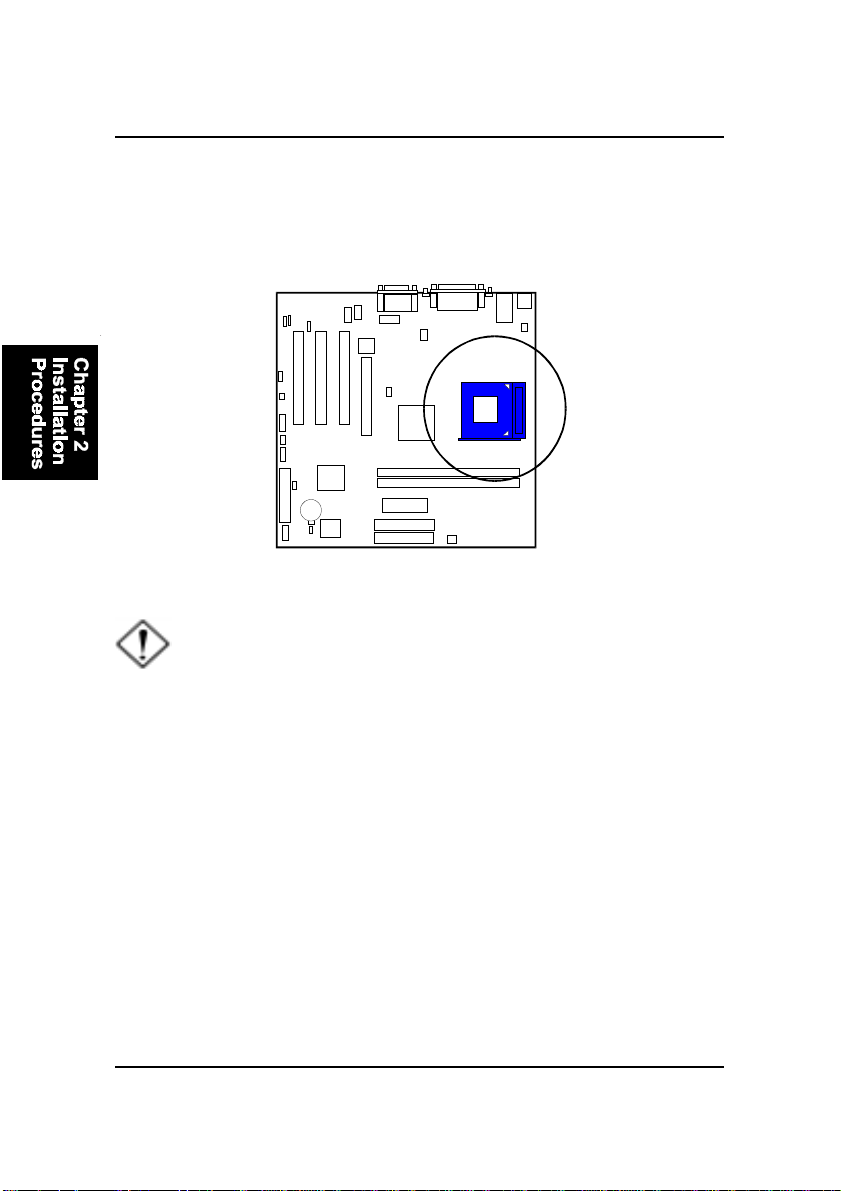

3). Install the CPU .......................................................................... 2-8

4). Install Expansion Cards ............................................................. 2-9

5). Connect Devices ....................................................................... 2-10

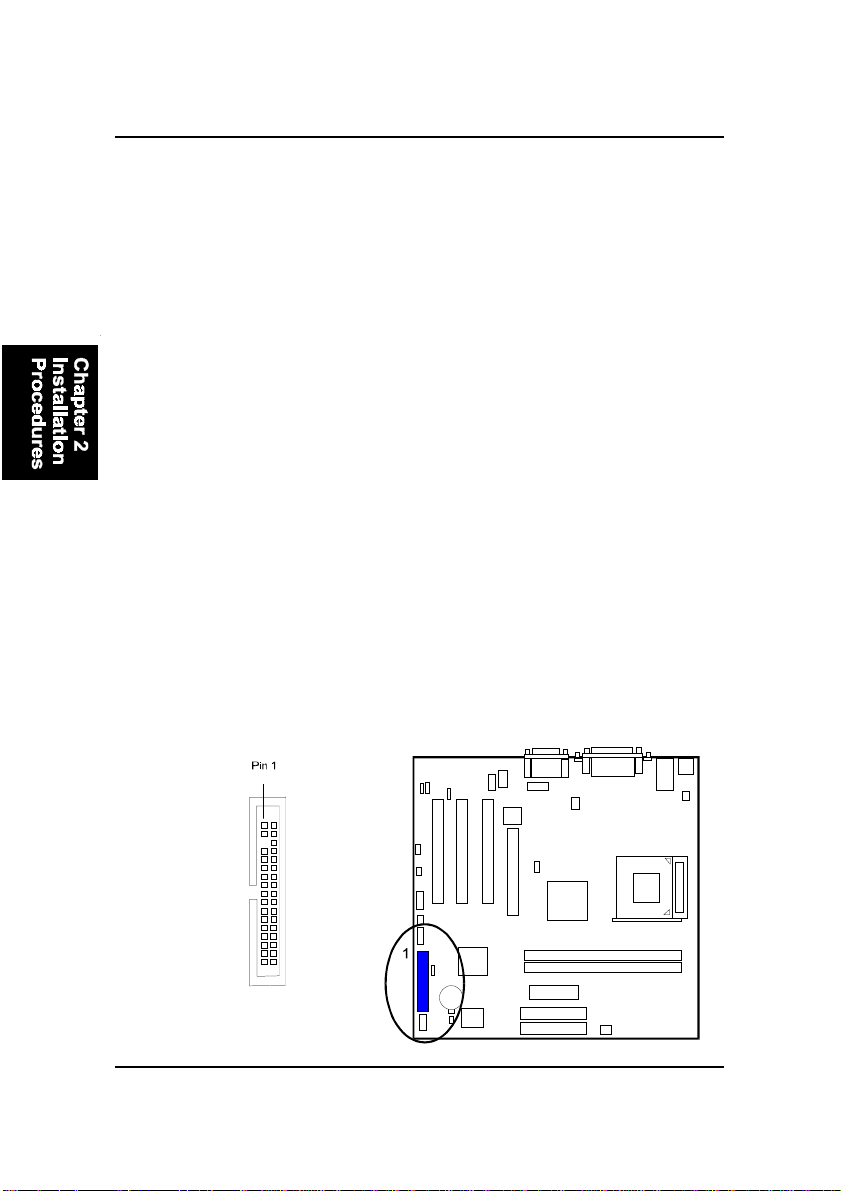

Floppy Diskette Drive Connector ..................................... 2-10

IDE Device Connectors ..................................................... 2-11

ATX Power Connectors .................................................... 2-11

Fan Connectors ................................................................. 2-12

TV Out Connector ............................................................. 2-12

Wake-On-Ring Connector ................................................. 2-13

i

A T31 Mainboard Manual

Wake-On-Lan Connector .................................................. 2-13

CD Audio-In Connectors ................................................... 2-14

SPDIF Out Connector (optional) ....................................... 2-14

Front Panel Block and IR Connector .................................. 2-15

PS/2 Keyboard and Mouse Connector ............................. 2-16

Game/MIDI Connector ...................................................... 2-16

Universal Serial Bus Connectors ....................................... 2-17

Serial Port Connectors ....................................................... 2-17

Printer Connector .............................................................. 2-18

Audio I/O Jacks ................................................................ 2-18

LAN I/O Connector (optional) .......................................... 2-19

Chapter 3 BIOS Setup

CMOS Setup Utility ....................................................................... 3-1

Standard CMOS Setup ................................................................... 3-2

Advanced BIOS Features .............................................................. 3-4

Advanced Chipset Features .......................................................... 3-8

Integrated Peripherals .................................................................... 3-9

Power Management Setup ............................................................. 3-14

PnP/PCI Configurations ................................................................. 3-18

PC Health Status ............................................................................ 3-20

Frequency/Voltage Control ............................................................ 3-20

Load Fail-Safe Defaults .................................................................. 3-21

Load Optimized Defaults ................................................................ 3-21

Supervisor/User Password ............................................................ 3-21

Save and Exit Setup ....................................................................... 3-22

Exit without Saving ........................................................................ 3-22

ii

Overview

Chapter 1

Overview

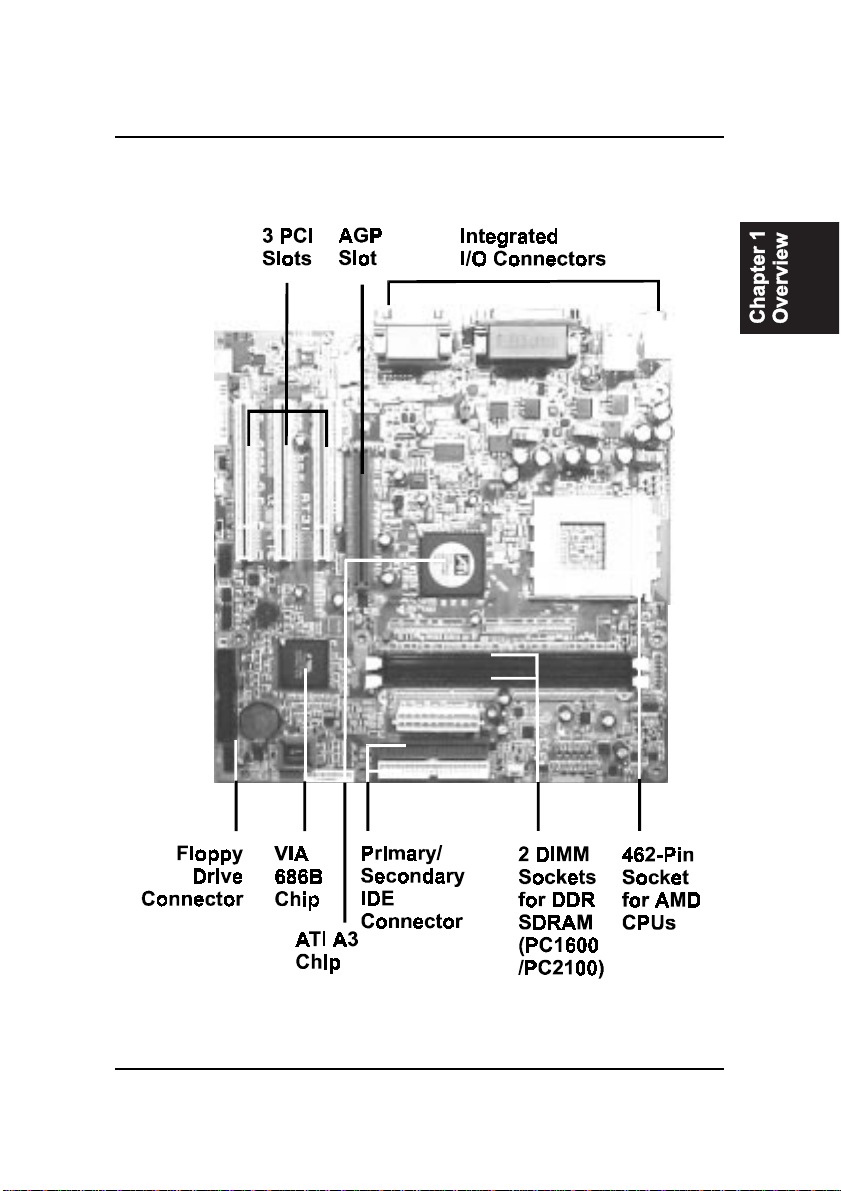

The new 1stMainboard® AT31Ô is an Micro ATX sized motherboard sup-

porting the latest generation of AMD® processors at industry leading speeds.

By utilizing DDR ( Double Data Rate ) transfer rate the 100/133 MHz system bus

effectively reaches Front Side Bus speeds of 200/266 MHz. The board pro-

vides users with an ATA100 data transaction for hard drives and allows up to

2 GB memory totally by 2 PC1600/PC2100 (DDR200/266) DIMM sockets.

The AT31 is based around the high performance ATI IGP320Ô core chip as a
North Bridge and VIA VT82686BÔ as a South Bridge. The virtual AGP4x
functions supported by ATI IGP320Ô that ideal for Windows 2000Ô pro-

vides you with a photo-realistic 3D experience suitable for the most 3D games

and software environments. AC97 Codec that embedded in VIA 686B, ensures

high quality sound effect.

The mainboard also comes equipped with the new NOVUS® range of innova-

tive features that assist in the installation and maintenance. The features in-

clude Easy Key, which provides instant keyboard access to the BIOS for

adjustments to Clock and Default settings and LogoGenie, which allows you

to create your own customized logo to be displayed during system boot up.

The BIOS Guardian is an Anti Virus utility that prevents viruses from damag-

ing your system BIOS and rendering your system inoperative.

Expansion is provided by 1 AGP 4X and 3 PCI slots. In addition, the

1stMainboard is equipped standard I/O connections include 2 serial ports (1

by pinheader), 1 parallel port, 1 VGA port, 1 PS/2 mouse and keyboard connec-

tor, 4 USB ports (2 by pinheader), 1 IR port by pinheader, and 1 media connec-

tor (Line-In, Line-Out, Mic-In, 1 front audio, 1 game port).

1 - 1

A T31 Mainboard Manual

Package Checklist

If you discover any item below was damaged or lost, please contact your

vendor.

þ The mainboard þ This user manual
þ One FDD cable þ CD software
þ One A T A100 cable
o TV Out Paddle Card (Giftbox only)

IMPORT ANT : AMD CPU HEAT SINK INST ALLA TION

Be ware finish heat sink install. Before you boot system, please
check the heat sink is complete contact with die of CPU.

The poor contact will bring about over heat, it may damage your
processor.

It is strongly recommended that at least a 250-watt A TX power pupply
be used for this motherboard. Make sure that your ATX power sup­ply can supply at least 20 amperes on teh +5-Volt lead and 10mA
on the +5-Volt standby lead (+5VSB). Your system may become
unstable / unreliable and may experience difficulty in powering up if
your power supply is inadequate.

1 - 2

NOTE: CD Pro that contains patch files, onboard video/audio chip
drivers, related online help and other useful information can be
found in your mainboard package.

Please install it right after your Windows operating system installa­tion is done.

appears in your monitor. Please select
matically detect which software tools (patch files, drivers) that the
mainboard needs. Press OK button to go through the whole instal­lation procedure in a very straight forward and easy way. It also
provides you with a custom way to select wanted patch files and
software drivers that for onboard chips use. The top menu of the

CD Pro lists all the functions that allowed by this board.

Place your CD Pro in the drive, an operating menu will

Auto Installation

. It will auto-

The A T31 Mainboard

Overview

1 - 3

A T31 Mainboard Manual

Main Features

n Easy Installation

||BIOS with support for Plug and Play, auto detection of IDE hard drives,

||LS-120|drives, IDE ZIP drives. The mainboard supports Windows 2000,

|Windows XP only.

n Leading Edge Chipset

ATI IGP320 is a North Bridge with integrated 2D/3D graphics accelerator.

The chip is designed for offering a reliable, effective,and excellent perfor-

mance. It contains internal AGP controller, concurrent PCI bus controller,

advanced DRAM controller, and power management support.

n Versatile Main Memory Support

Accepts up to total 2 GB DRAM using two DDR DIMMs from 256 MB to

2 GB with support for lightenning-fast PC1600/PC2100 (DDR200/266) DDR

SDRAM .

n AMD Processors Support

Athlon: 900 MHz to 1.4 GHz and up*at 200 MHz FSB/

1.1 GHz to 1.4 GHz at 266 MHz FSB; (1.2 GHz not included)

Athlon XP: 1500+ to 2100+ and up* at 266 MHz FSB;

Duron: 900 MHz to 1.3 GHz and up* at 200 MHz FSB

(1.0, 1.2 GHz not included)

(*: not tested yet)

n Enhanced PCI Bus Master IDE Controller with Ultra DMA 33/66/100

Support

Integrated Enhanced PCI Bus Master IDE controller features two dual-

channel connectors that up to four Enhanced IDE devices, including CD-

ROM and Tape Backup Drives, as well as Hard Disk Drives supporting

the new Ultra DMA 100 protocol. Standard PIO Mode 3, PIO Mode 4,

DMA Mode 2, DMA Mode 4, UltraDMA-100 Mode 5 devices are also

supported.

1 - 4

Overview

n AGP and PCI Expansion Slots

One AGP and three PCI Bus expansion slots provided the room to install

a full range of add-on cards.

(For supported AGP cards, please refer to the approval sheet on FIC

web site.)

n Integrated Audio Subsystem

Embedded audio features in the VIA 686B provide hardware Sound

BlasterProfor Windows DOS box and real mode DOS legacy compatibil-

ity, dual full-duplex Direct Sound channels between system memory and

AC97 link.

n Super Multi Input/Output (I/O) Support

Integrated super I/O controller in the VIA 686B features two high-speed

UART serial ports, one multi-mode (standard/ECP/EPP) parallel port, one

IR port, and one FDD connector.

n Convenient Rear Panel USB Connection Support

Two USB ports integrated in the rear I/O panel with two extra USB pin-

heads for either front or rear panel connections to the growing number of

USB compliant peripheral devices on the market.

n LAN Support (optional)

One RJ45 LAN jack on the rear panel and onboard LAN controller allows

you to connect with network system in a very easy way.

n TV Out Support (optional)

Support both NTSC and PAL TV with an optional TV out bracket and a

cable.

1 - 5

A T31 Mainboard Manual

FIC Unique Innovation for Users (NOVUS) -

Enhanced Mainboard Features and System Support

n LogoGenie

A user friendly GUI supporting Windows 95/98/98SE (not Windows 2000/

NT/ME/XP), LogoGenie allows you to customize, create or select a Logo

which will be displayed when the system is booting.

NOTE:

Please read Page 3-7 for detail information.

n BIOS Guardian

BIOS Guardian effectively acts as a fire-wall against viruses that can

attack the BIOS while the system is running and by default is enabled.

WARNING:

BIOS Guardian must be disabled before reflash BIOS.

NOTE:

Please read Page 3-7 for detail information.

n Easy Key

Instead of completing the multi-layered BIOS setup process these 3 Easy

Key functions provide direct access to Sub-Menu when completing BIOS

settings adjustments.

Easy-Keys are as follows:

Ctrl + c: To enter clock settings menu.

Ctrl + p: To load Performance Default settings and restart.

Ctrl + f: To load Fail-Safe Default settings and restart.

1 - 6

Installation Procedures

Chapter 2

Installation Procedures

The mainboard has several user-adjustable jumpers on the board that allow you to

configure your system to suit your requirements. This chapter contains information

on the various jumper settings on your mainboard.

To set up your computer, you must complete the following steps:

n Step 1 - Set system jumpers

Step 2 - Install memory modules

n

n

Step 3 - Install the Central Processing Unit (CPU)

n

Step 4 - Install expansion cards

n

Step 5 - Connect ribbon cables, cabinet wires, and power supply

n

Step 6 - Set up BIOS software

n

Step 7 - Install supporting software tools

WARNING: Excessive torque may damage the mainboard. When
using an electric screwdriver on the mainboard, make sure that
the torque is set to the allowable range of 5.0 ~ 8.0kg/cm.

Mainboard components contain very delicate Integrated Circuit
(IC) chips. To prevent static electricity from harming any of the
sensitive components, you should follow the following precau­tions whenever working on the computer:

1. Unplug the computer when working on the inside.

2. Hold components by the edges and try not to touch the IC

||||chips, leads, or circuitry.

3. Wear an anti-static wrist strap which fits around the wrist.

4. Place components on a grounded anti-static pad or on the bag
that came with the component whenever the components are
separated from the system.

2 - 1

A T31 Mainboard Manual

Quick Reference (from Page 2-2 to 2-4)

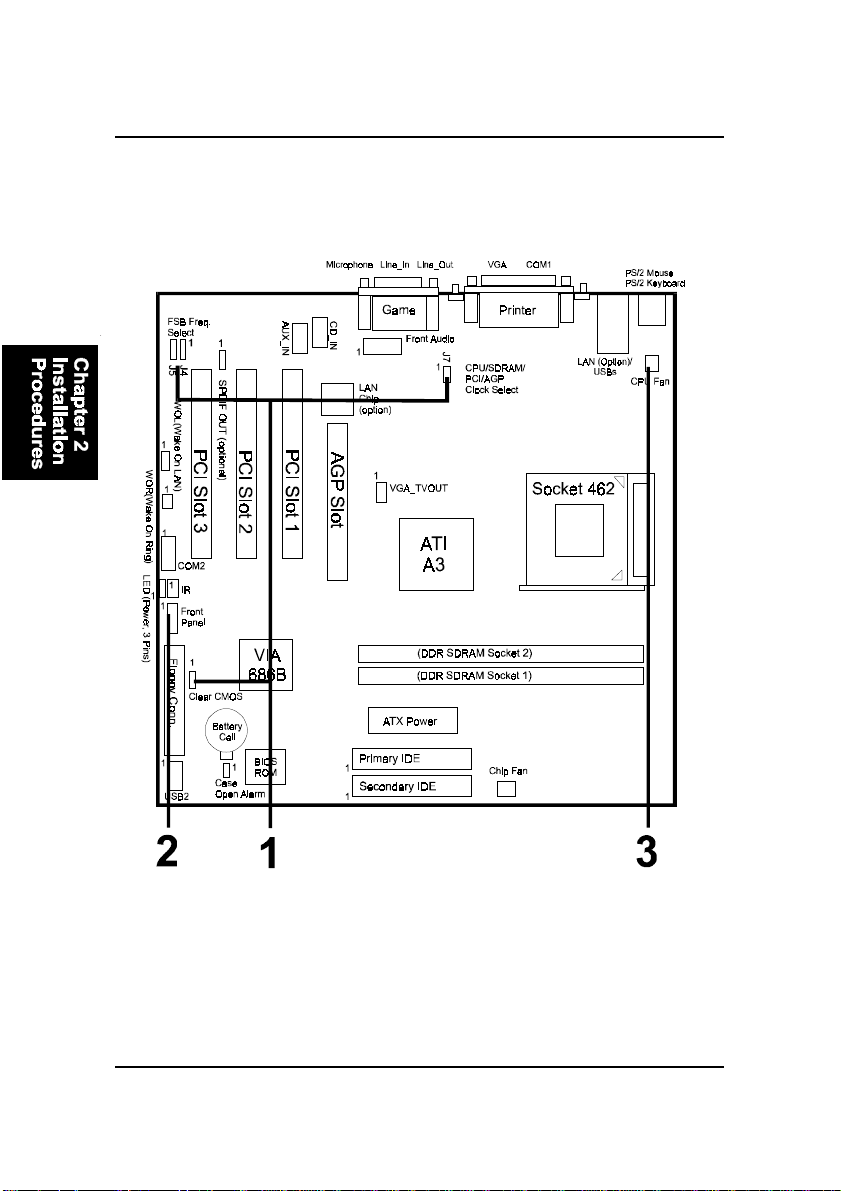

Mainboard Layout

* When link to Line_Out jack, please use a speaker that with amplifier.

2 - 2

Installation Procedures

1). Clear CMOS, FSB Speed Select,
CPU/SDRAM/PCI/AGP Speed Select

2 - 3

A T31 Mainboard Manual

2). Front Panel Block Cable Connection

3). CPU Fan Installation

CAUTION:

1. The heatsink and fan you installed must be approved by AMD.

2. The mainboard must be placed on a solid place to avoid shaking

|||||while install the heatsink and fan on the board.

3. The heatsink must be contact with the CPU top tightly.

4. Never run the processor without the heatsink properly and firmly

attached. PERMANENT DAMAGE WILL RESULT!

Without sufficient air circulation, the CPU may overheat resulting in damage

to both the CPU and the mainboard.

Damage may occur to the mainboard and/or the CPU fan if these pins are

used incorrectly. These are not jumpers, do not place jumper caps over these

pins.

2 - 4

Installation Procedures

1). Set System Jumpers/Switches

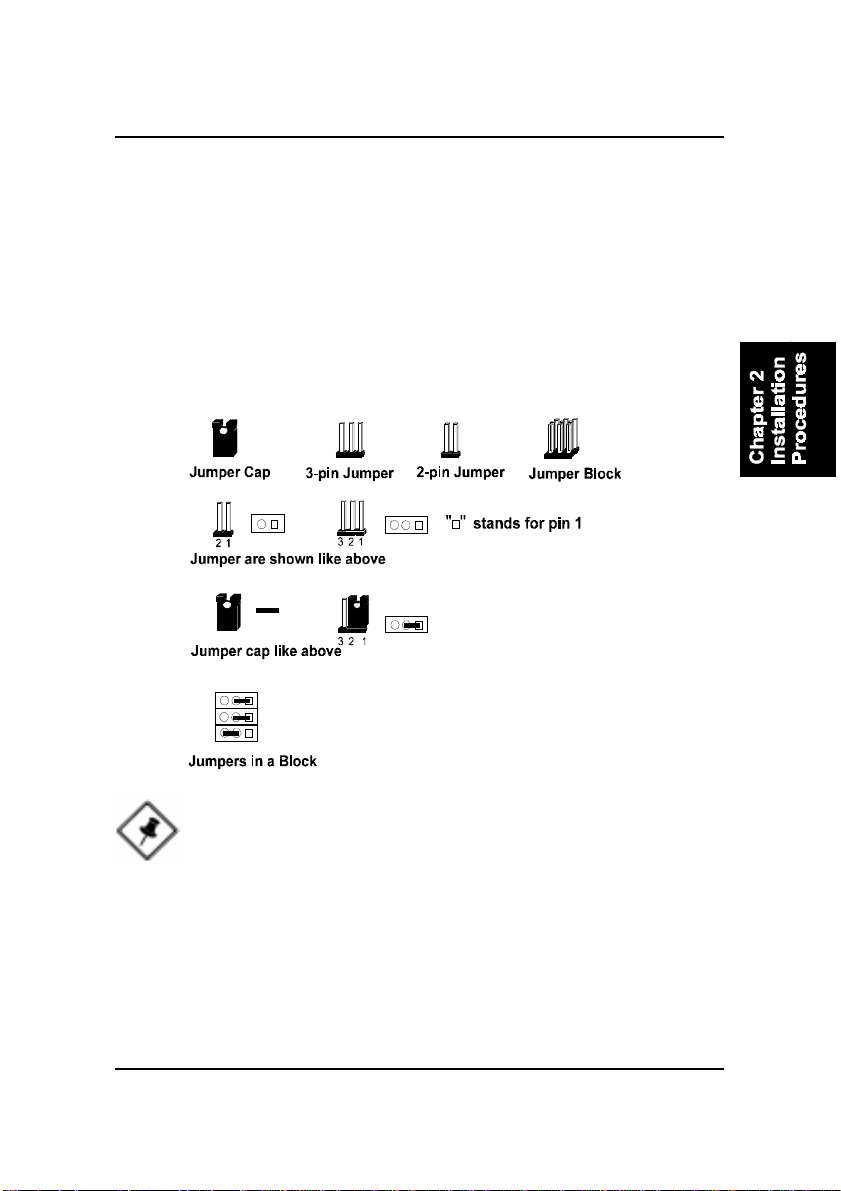

Jumpers are used to select the operation modes for your system. Some jump-

ers on the board have three metal pins with each pin representing a different

function. A 1 is written besides pin 1 on jumpers with three pins. To set a

jumper, a black cap containing metal contacts is placed over the jumper pin/s

according to the required configuration. A jumper is said to be shorted when

the black cap has been placed on one or two of its pins. The types of jumpers

used in this manual are shown below:

NOTE: Users are not encouraged to change the jumper settings
not listed in this manual. Changing the jumper settings improperly
may adversely affect system performance.

Clear CMOS: J3

The CMOS RAM is powered by the onboard button cell battery. To clear the

RTC data: (1) Turn off your computer (2) Place the jumper cap onto the pinpair

2-3 at least 6 seconds to clear CMOS (3) Place the jumper cap onto the pinpair

1-2 to Normal (4) Turn on your computer until CMOS checksum error appears

(5) Hold down the Delete key when boots (6) Enter the BIOS Setup to re-enter

user preferences.

2 - 5

A T31 Mainboard Manual

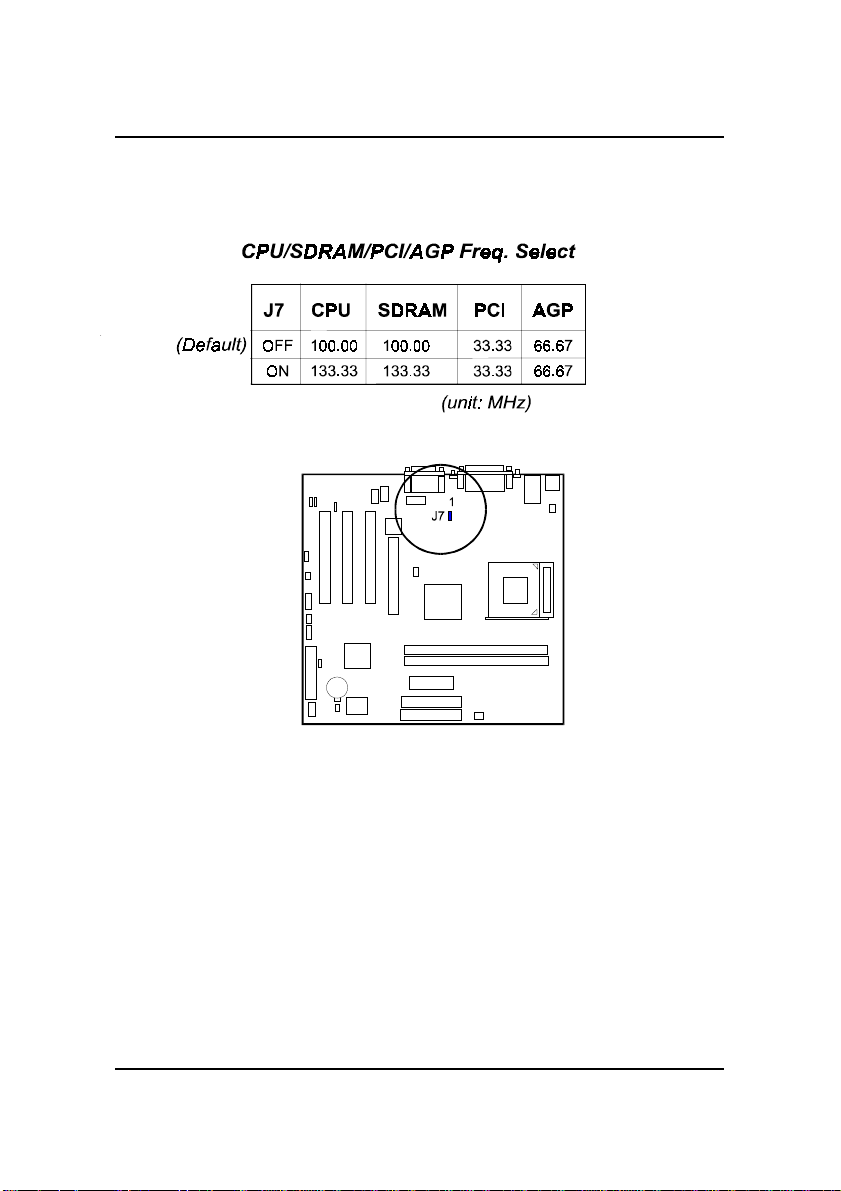

FSB and CPU/SDRAM/PCI/AGP Clock Select: J4, J5, and

J7

The jumper J4 and J5 allow users to set FSB frequency. The J7 sets the combi-

nation of CPU/SDRAM/PCI/AGP clock.

2 - 6

Installation Procedures

2). Install Memory Modules

1. Locate the DIMM slots on the mainboard.

2. Install the DIMM straight down into the DIMM slot using both hands.

3. The clip on both ends of the DIMM slot will close up to hold the DIMM

in place when the DIMM reaches the slot bottom.

Press the clips with both hands to remove the DIMM.

2 - 7

A T31 Mainboard Manual

3). Install the CPU

The AMD CPU module resides in the socket on the board. Please follow the

steps introduced below to complete the CPU installation.

CAUTION:

1. The heat sink and fan you installed must be approved by AMD.

2. The mainboard must be placed on a solid place to avoid shaking

|||||while install the heat sink and fan on the board.

3. The heat sink must be contact with the CPU top tightly.

4. Never run the processor without the heat sink properly and firmly

attached. PERMANENT DAMAGE WILL RESULT!

To install the CPU, do the following:

1. Lift the lever on the side of the CPU socket.

2. Handle the chip by its edges and try not to touch any of the pins.

3. Place the CPU in the socket. The chip has two notches to correctly locate

the chip. Align two notches of the processor with the two triangular

marks on the socket. Do not force the chip. The CPU should slide easily

into the socket.

4. Swing the lever to the down position to lock the CPU in place.

5. Install the cooling fan with heat sink on top of the installed CPU.

6. Place the mainboard (with the CPU, its cooling fan, and heat sink) into the

system chassis and affix it with screws.

2 - 8

Installation Procedures

4). Install Expansion Cards

This section describes how to connect an expansion card to one of your

system expansion slots. Expansion cards are printed circuit boards that, when

connected to the mainboard, increase the capabilities of your system. For

example, expansion cards can provide video and sound capabilities. The

mainboard features one AGP and three PCI bus expansion slots.

CAUTION: Make sure to unplug the power supply when adding or
removing expansion cards or other system components. Failure to
do so may cause severe damage to both the mainboard and
expansioncards.
Always observe static electricity precautions.
Please read Handling Precautions at the start of this manual.

To install an expansion card, follow the steps below:

1. Remove the chassis cover and select an empty expansion slot.

2. Remove the corresponding slot cover from the computer chassis.

Unscrew the mounting screw that secures the slot cover and pull

the slot cover out from the computer chassis. Keep the slot cover

mounting screw nearby.

3. Holding the edge of the peripheral card, carefully align the edge

connector with the expansion slot.

2 - 9

A T31 Mainboard Manual

4. Push the card firmly into the slot. Push down on one end of the

expansion card, then the other. Use this rocking motion until the add-

on card is firmly seated inside the expansion slot.

5. Secure the board with the mounting screw removed in Step 2. Make

sure that the card has been placed evenly and completely into the

expansion slot.

6. Replace the computer system cover.

7. Setup the BIOS if necessary.

8. Install the necessary software drivers for the expansion card.

5). Connect Devices

Floppy Diskette Drive Connector

This connector provides the connection with your floppy disk drive.

The red stripe of the ribbon cable must be the same side with the Pin 1.

2 - 10

Installation Procedures

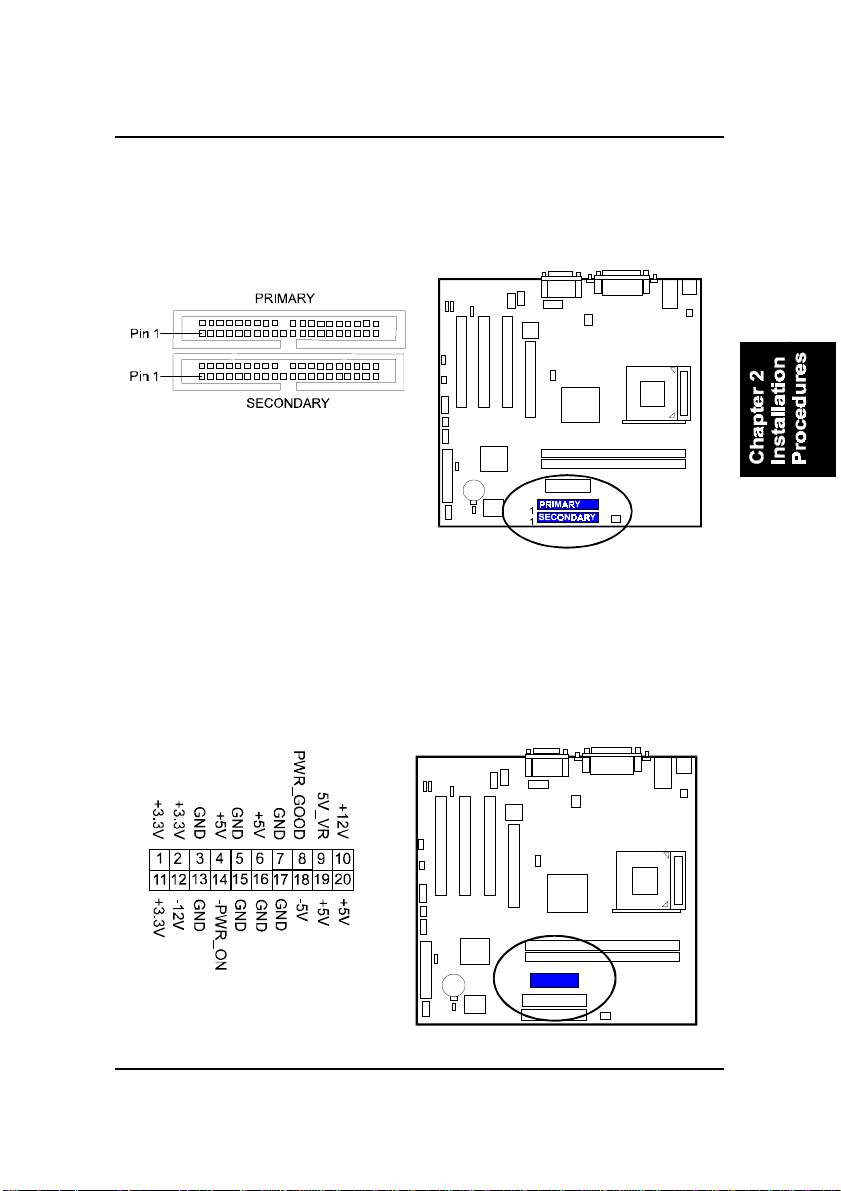

IDE Device Connectors

The two connectors, PRIMARY and SECONDARY, are used for your IDE hard

disk drives, CD drives, LS-120|drives, or IDE ZIP drives. The red stripe of the

ribbon cable must be the same side with the Pin 1.

ATX Power Connector

This 20-pin male block connector is connected to the ATX power supply. The

plug from the power supply will only insert in one orientation because of the

different hole sizes. Find the proper orientation and push down firmly making

sure that the pins are aligned.

2 - 11

A T31 Mainboard Manual

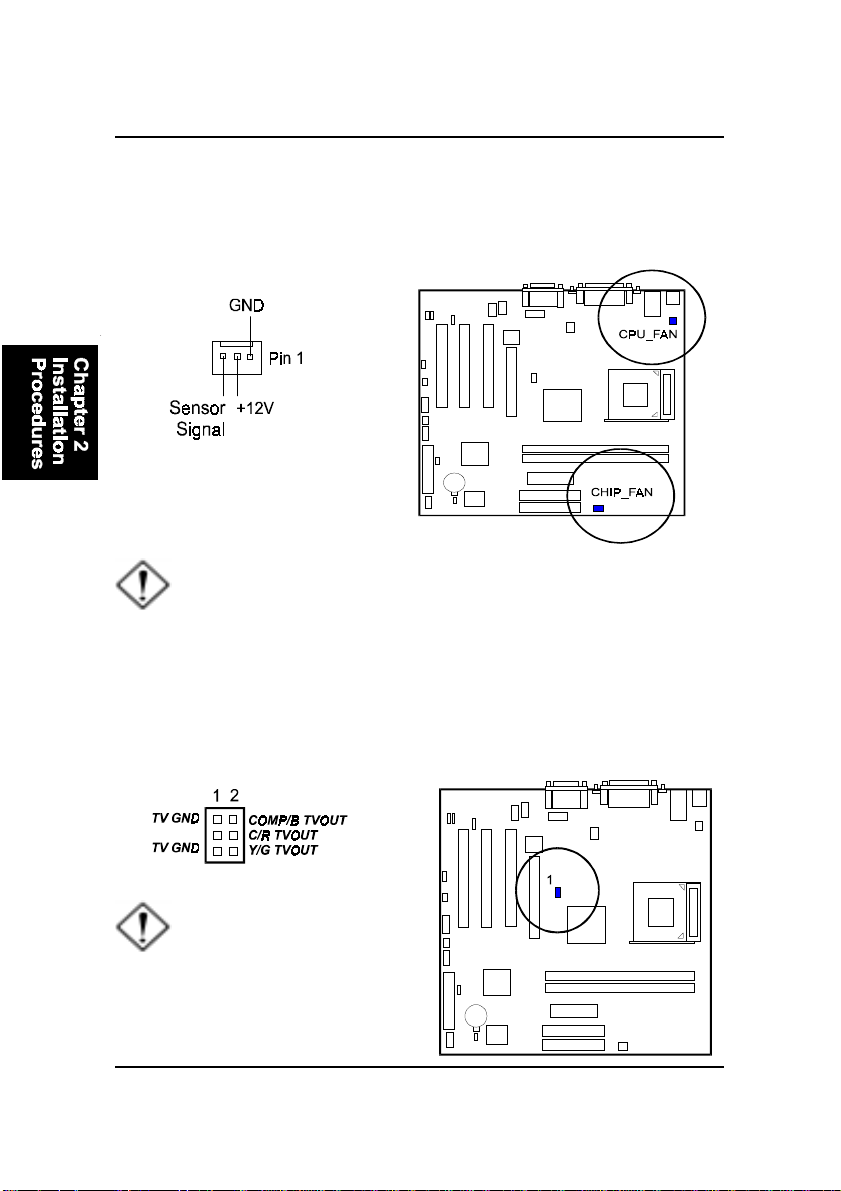

Fan Connectors

The connector CPU_FAN is linked to the CPU fan. CHIP_FAN can be used

either with the case fan or North Bridge chip fan. For preventing the system

and chip from overheat damage, the fans on this board will keep running when

the system in suspend mode.

CAUTION:

Before installing the TV card on these two connectors, make sure
your system power is off. Failure to do so may cause damage to the
mainboard.

TV Out Connector

The VGA_TVOUT connector is provided for an optional TV-OUT cable with a

bracket that being installed in the rear panel for connecting signals to TV set.

It allows you use your TV as a monitor.

2 - 12

CAUTION:

The two jacks on the optional
TV-OUT bracket can not be
used at the same time.

Installation Procedures

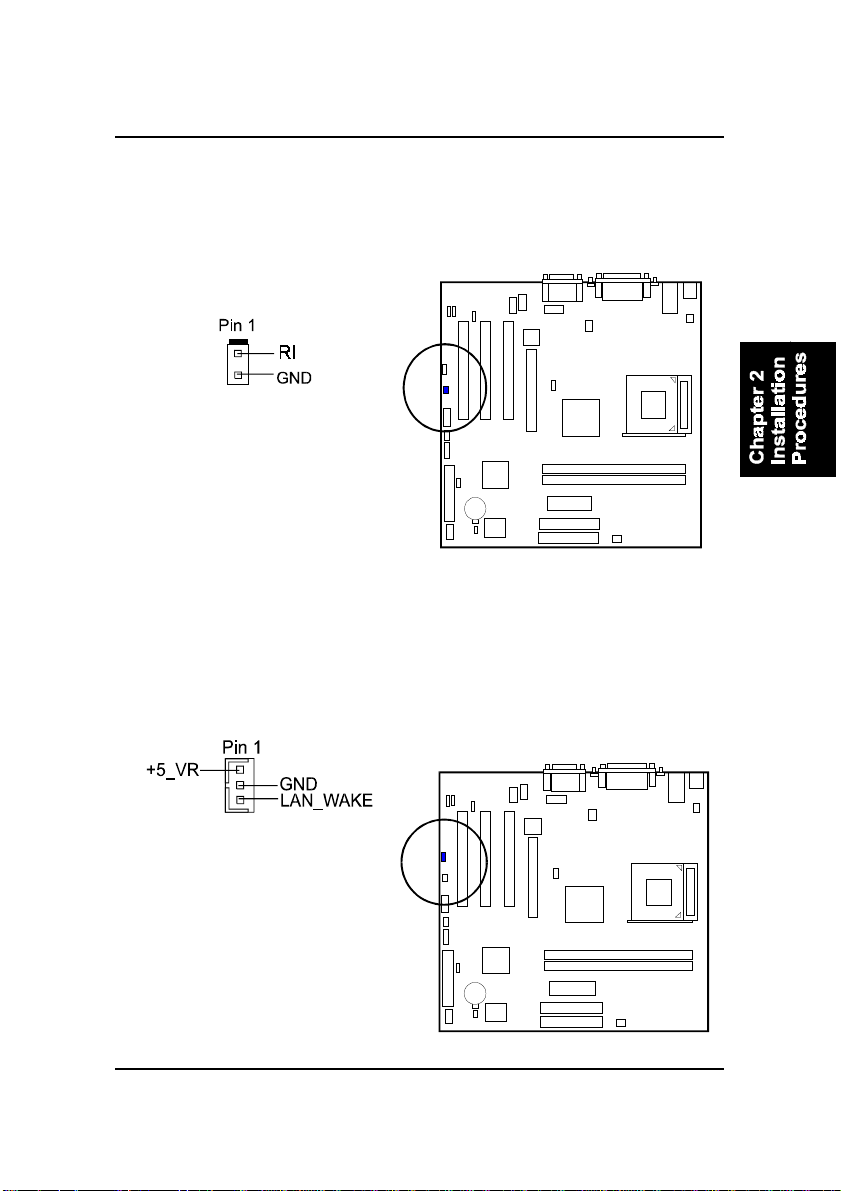

Wake-On-Ring Connector

The 2-pin connector allows you to link with your modem card which outputs

a WOR singal; the system can be turned on from the power-off status by a

remote phone call via the modem card.

Wake-On-Lan Connector

This 3-pin connector allows the remove servers to manage the system that

installed this mainboard via your network adapter which also supports WOL.

2 - 13

A T31 Mainboard Manual

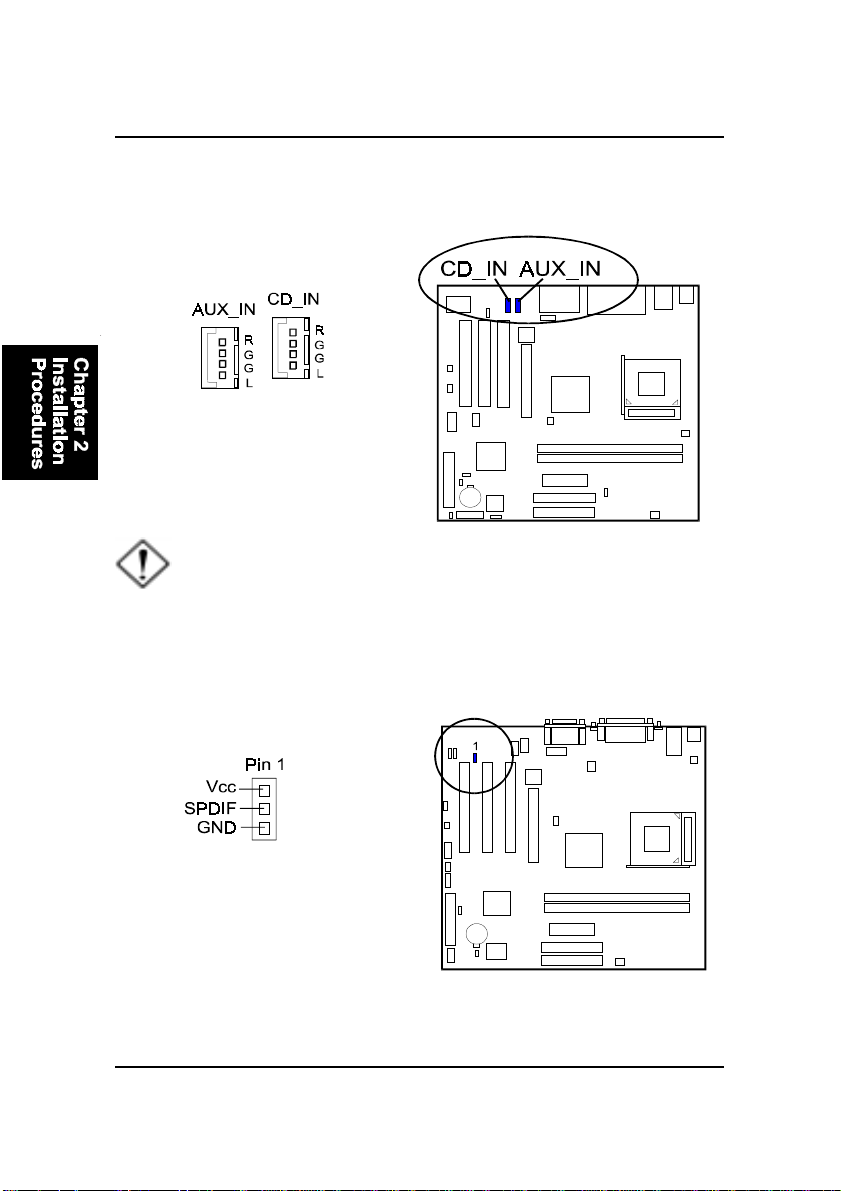

CD Audio-In Connectors

The CD_IN connector is used as a port for audio input from CD drive. The

AUX_IN privided users with one extra audio input port from CD drive.

CAUTION: Improper orientation of SPDIF connection may cause
damage of your device.

SPDIF Out Connector (optional)

The mainboard equipped one 1x3 pinheader. It is used for SPDIF digital audio

output.

2 - 14

Installation Procedures

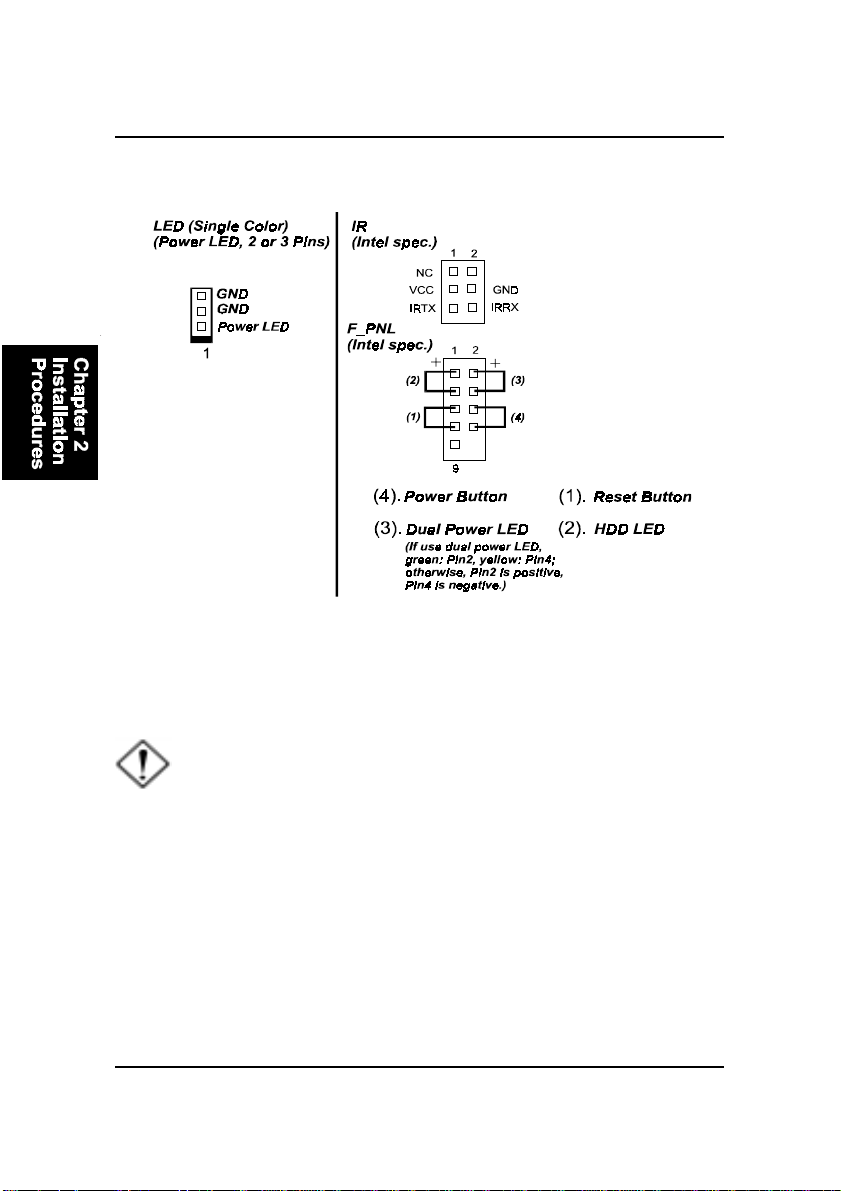

Front Panel Block and IR Connector

This block connector includes the connectors for linking with Power LED (2

pins and 3 pins), HDD LED, power button, power/sleep/message waiting but-

ton, reset buttonon the front panel of the system case. Please identify polari-

ties of plug wires for the case speaker and LEDs. Please ask vendor about this

information when you buy them and install the system by yourself. The plug

wires polarities of these buttons will not affect the function.

(1) Reset Switch is connected to the reset button. Push this switch to reboot

the system instead of turning the power button off and on.

(2) HDD LED is connected to the IDE device indicator. This LED will blink

when the hard disk drives are activated.

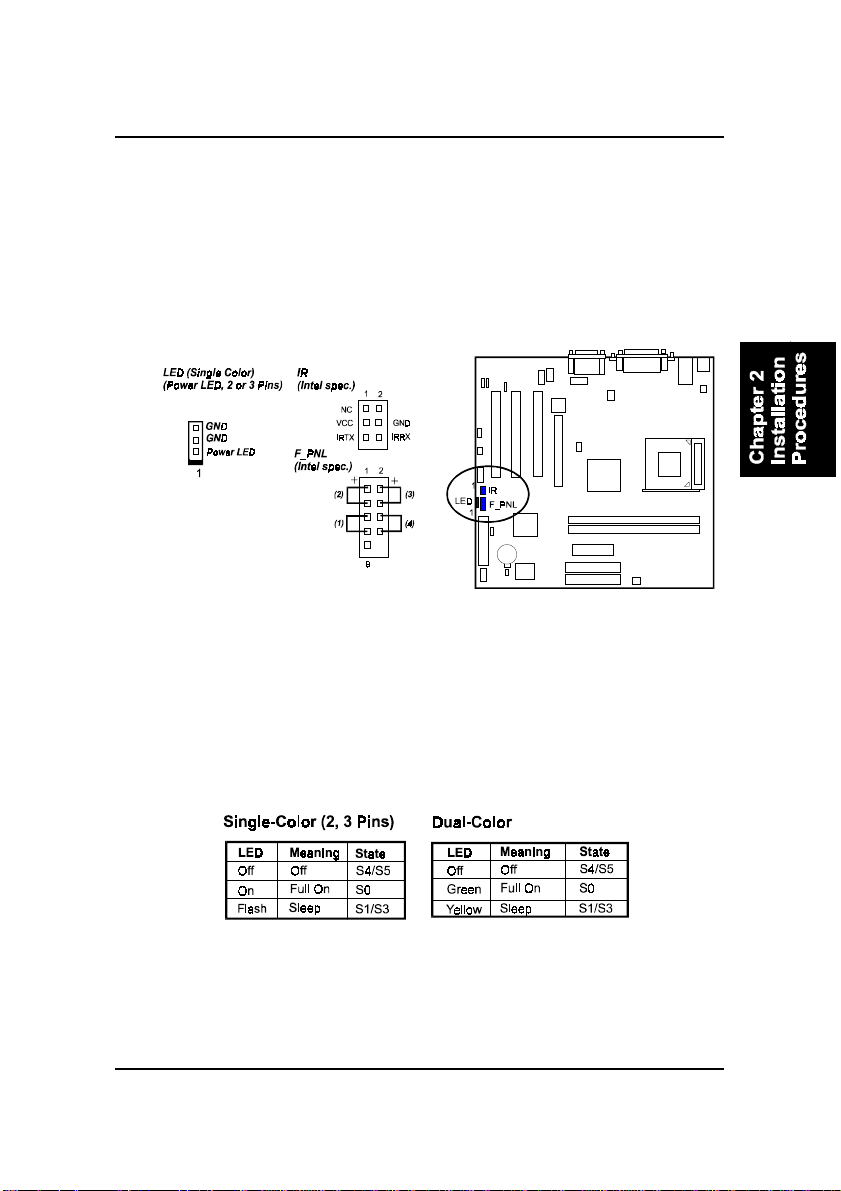

(3) Power /Sleep LED (2-Pin/3-Pin)

Please refer to the tables below for the representations of LED states.

(4) Power Button is connected with power button. Push this switch allows the

system to be turned on and off rather than using the power supply button.

IR is a pinheader that is used for linking with your ID device to allow transmis-

sion of data to another system that also supports the IR feature.

2 - 15

A T31 Mainboard Manual

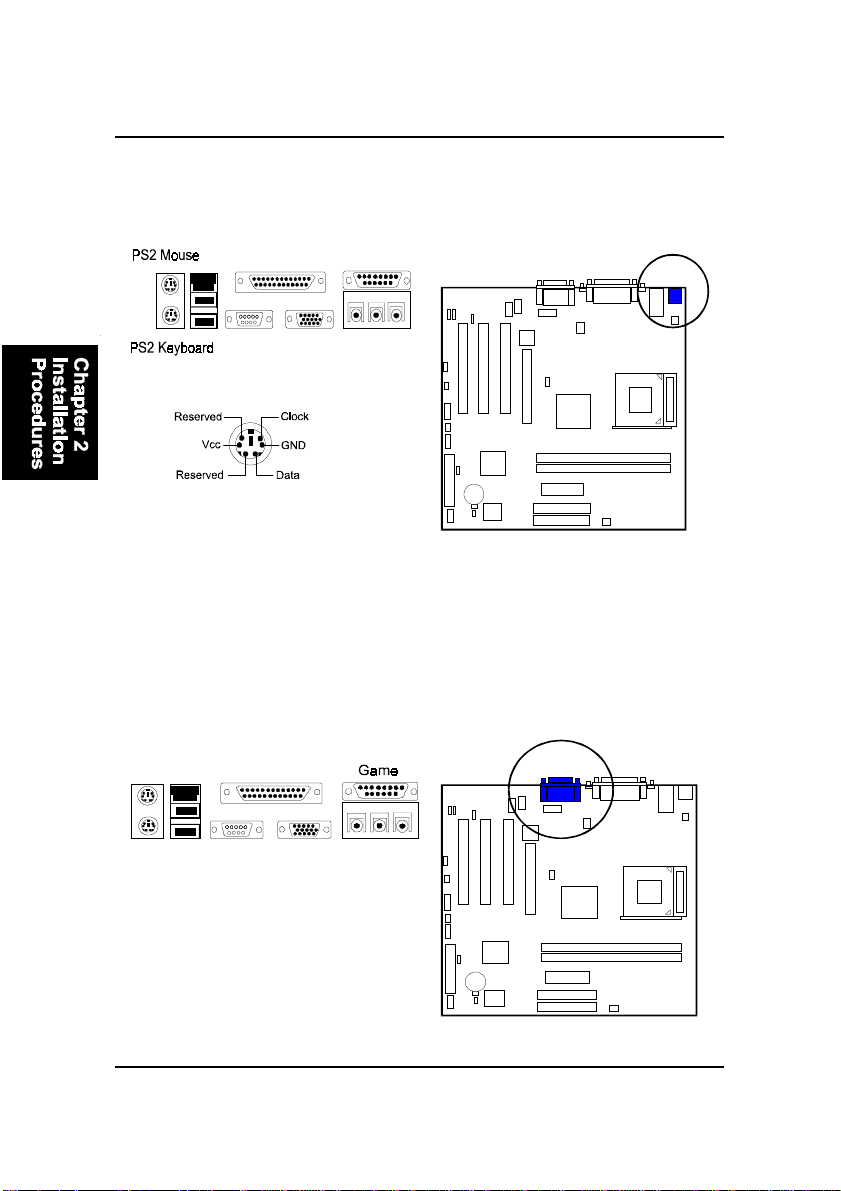

PS/2 Keyboard and Mouse Connector

These two 6-pin female (PS/2 keyboard is purple color and PS/2 mouse is green

color) connectors are used for your PS/2 keyboard and PS/2 mouse.

Game/MIDI Connector

This 15-pin female gold-colored connector allows you to connect game joy-

sticks or game pads. Connect MIDI devices for playing or editing audio.

2 - 16

Installation Procedures

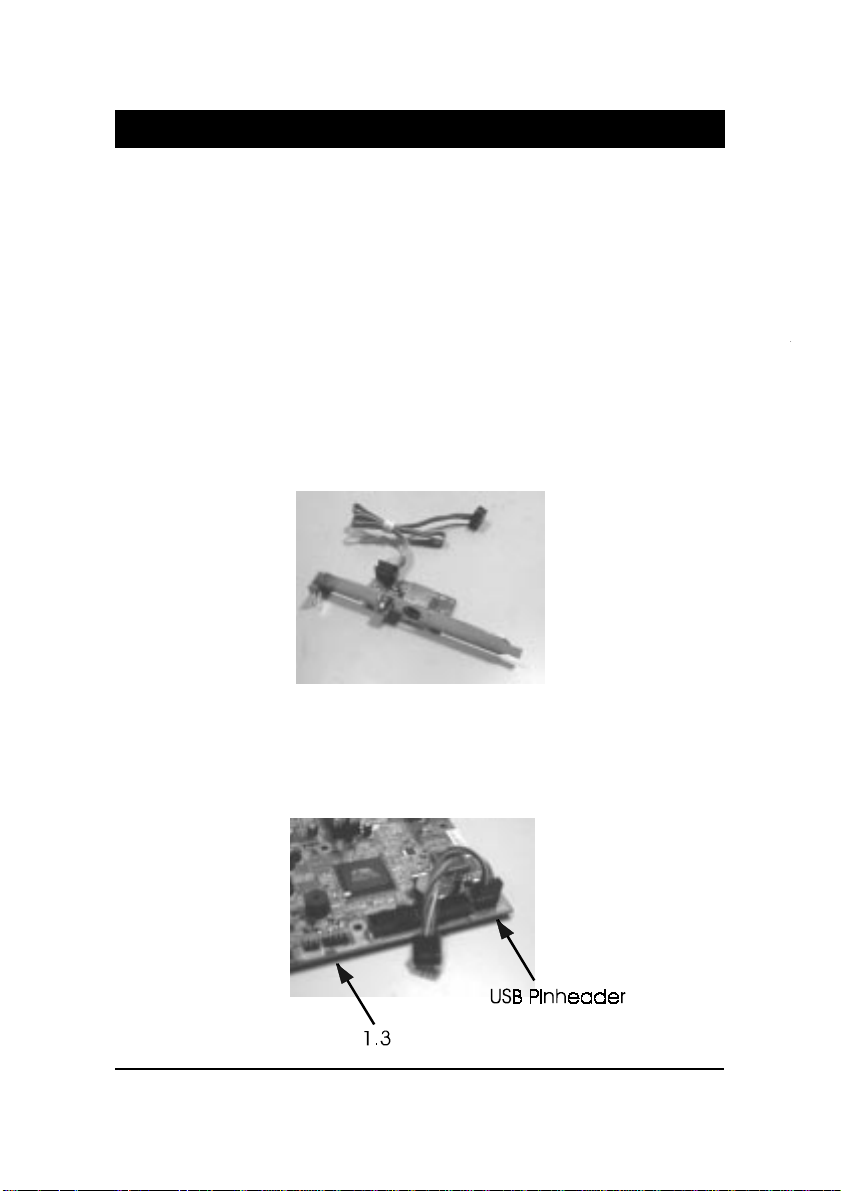

Universal Serial Bus Connectors

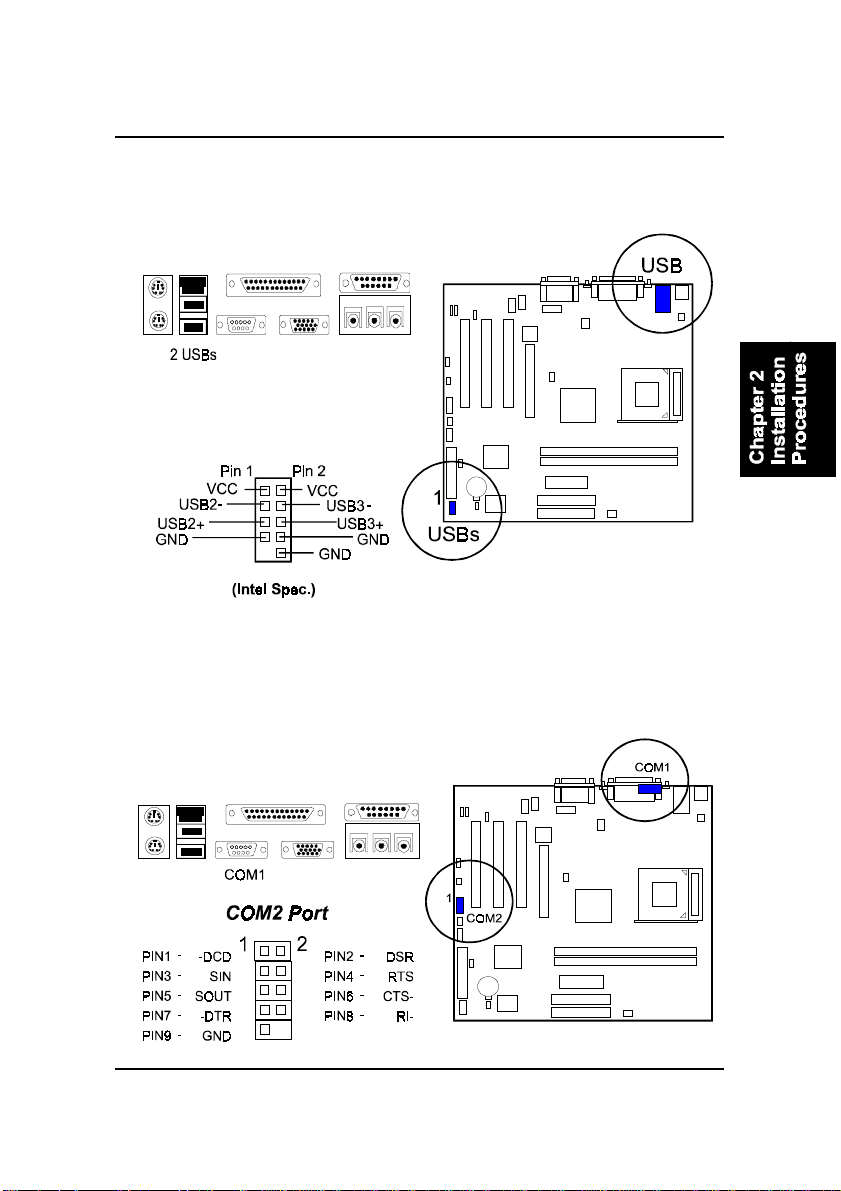

These two black jacks are integrated on the rear edge of the board for linking

with USB devices. This board has a pinheader, USB2, for two extra USB ports

that either on front or rear panel.

The figure below is the pin assignment

of the USB2.

Serial Port Connectors

COM1 (9-pin D-sub male connector with teal color) and COM2 (9-pin male

connector) allow you to connect with your devices that use serial ports, such

as a serial mouse or an external modem.

2 - 17

A T31 Mainboard Manual

Printer Connector

This 25-pin D-Sub female burgundy-colored connector is attached to your

printer.

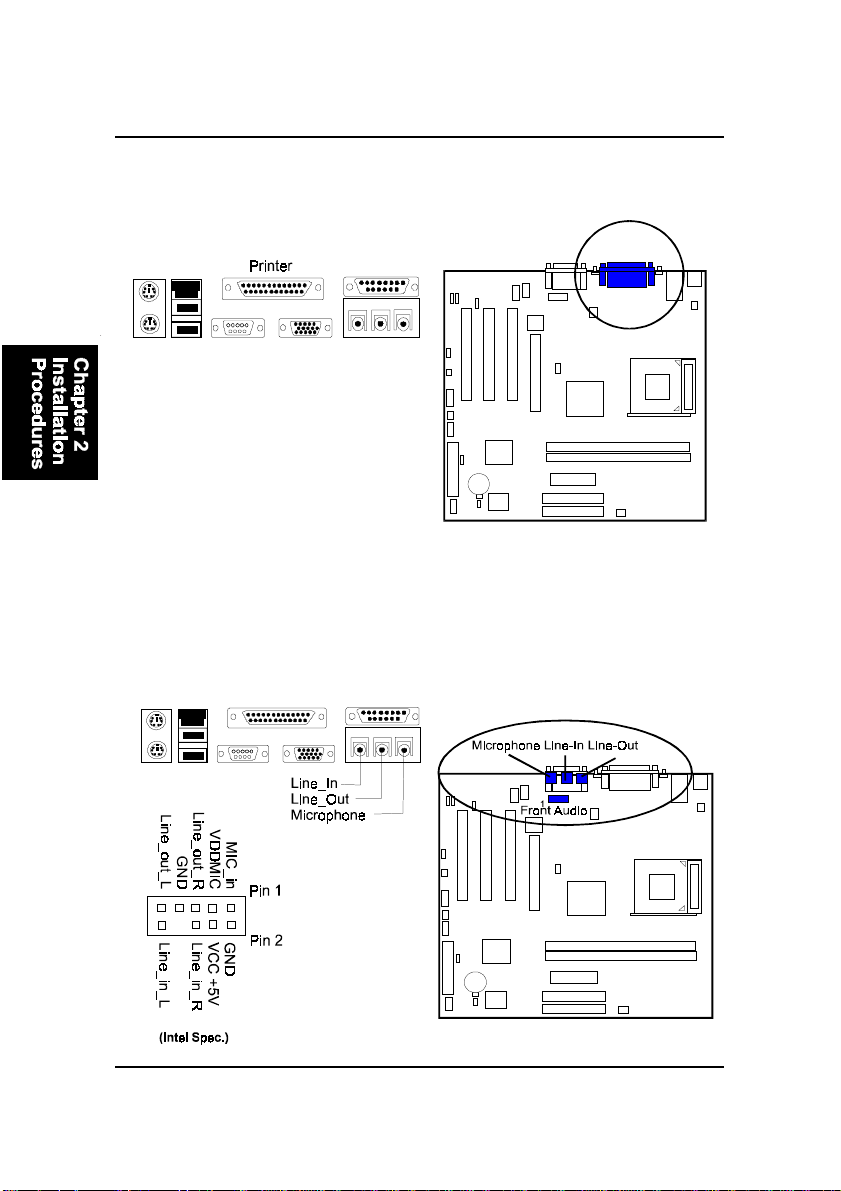

Audio I/O Jacks

LINE_OUT (lime) can be connected to headphones or preferably powered

speakers. LINE_IN (light blue) allows tape players or other audio sources to

be recorded by your computer or played through the LINE_OUT. MIC_IN

(pink) allows microphones to be connected for voice input. The mainboard

also provides you with a front panel audio port connector, FNT_AUDIO,

when needed. Its pin definitions were presented below.

2 - 18

Installation Procedures

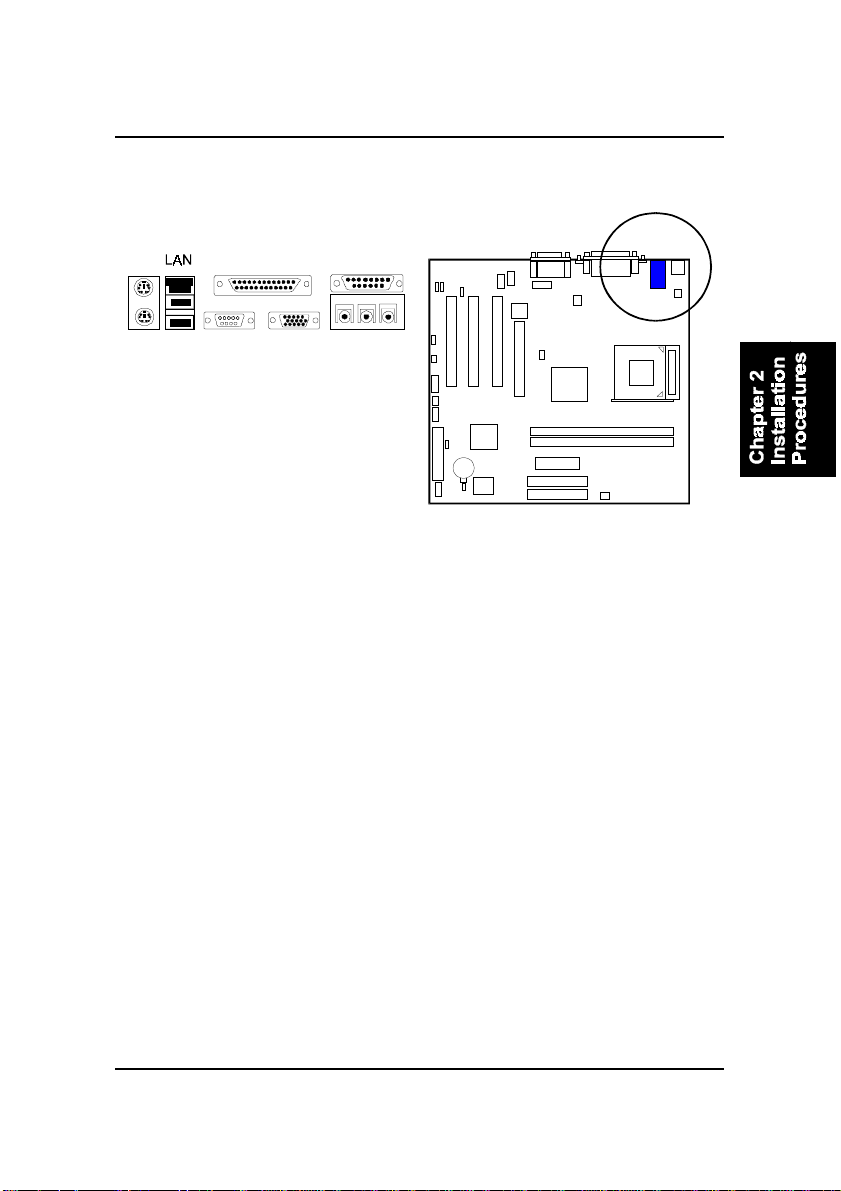

LAN Connector (optional)

The optional LAN jack is connected to the LAN cable.

2 - 19

A T31 Mainboard Manual

This Page Left Blank for Note

2 - 20

BIOS Setup

Chapter 3

BIOS Setup

The mainboard comes with the chip that Award BIOS that contains the ROM

Setup information of your system. (This chip serves as an interface between

the processor and the rest of the mainboard components.) This section ex-

plains the information contained in the Setup program and tells you how to

modify the settings according to your system configuration.

CMOS Setup Utility

The Setup utility program allows updates to the mainboard configuration set-

tings. The BIOS setup values will be saved in the CMOS. It is executed when

the user changes system configuration; user changes system backup battery;

or the system detects a configuration error and asks the user to run the Setup

program. Use the arrow keys to select and press Enter to run the selected

program.

3 - 1

A T31 Mainboard Manual

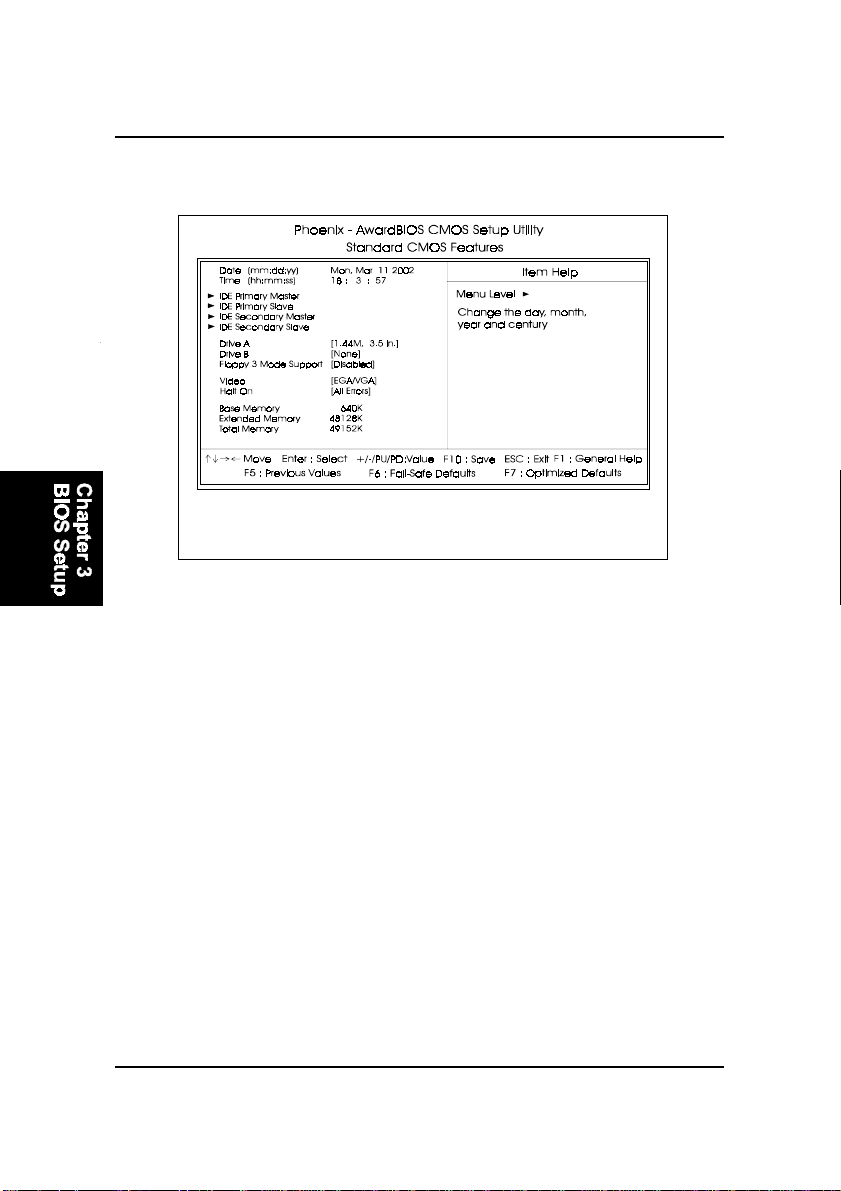

Standard CMOS Setup

The Standard CMOS Setup screen is displayed above. Each item may have

one or more option settings. The system BIOS automatically detects memory

size, thus no changes are necessary. Use the arrow keys to highlight the item

and then use PgUp or PgDn keys to select the value you want in each item.

Date

To set the date, highlight the Date field and then press Page Up/Page

Down or +/- keys to set the current date. Follow the month, day and year

format.

Time

To set the time, highlight the Time field and then press Page Up/Page Down

or +/- keys to set the current time. Follow the hour, minute, and second

format.

3 - 2

BIOS Setup

Hard Disks

This field records the specifications for all non-SCSI hard drives installed

in the system. The onboard PCI IDE connectors provide Primary and Sec-

ondary channels for connecting up to four IDE hard disks or other IDE

devices. Each channel can support up to two hard disks, the first of which

is the Master and the second is the Slave.

Hard Disk Configurations

Capacity: The hard disk size. The unit is Bytes.

Cylinder: The cylinder number of the hard disk.

Head: The read/write head number of hard disk.

Precomp: The cylinder number at which the disk drive

changes the write current.

Landing Zone: The cylinder number that the disk drive heads

(read/write) are seated when the disk drive is

parked.

Sector: The sector number of each track defined on the

hard disk.

Drive A / Drive B

This field records the types of floppy drives installed in the system. To

enter the configuration value for a particular drive, highlight its corre-

sponding field and then select the drive type using the left- or right-arrow

key.

Floppy 3 Mode Support

This is a Japanese standard floppy type drive. The standard stores 1.2MB

in a 3.5 inch diskette.

Video

Set this field to the type of video display card installed in the system.

Halt On

This field determines which types of errors will cause the system to halt.

3 - 3

A T31 Mainboard Manual

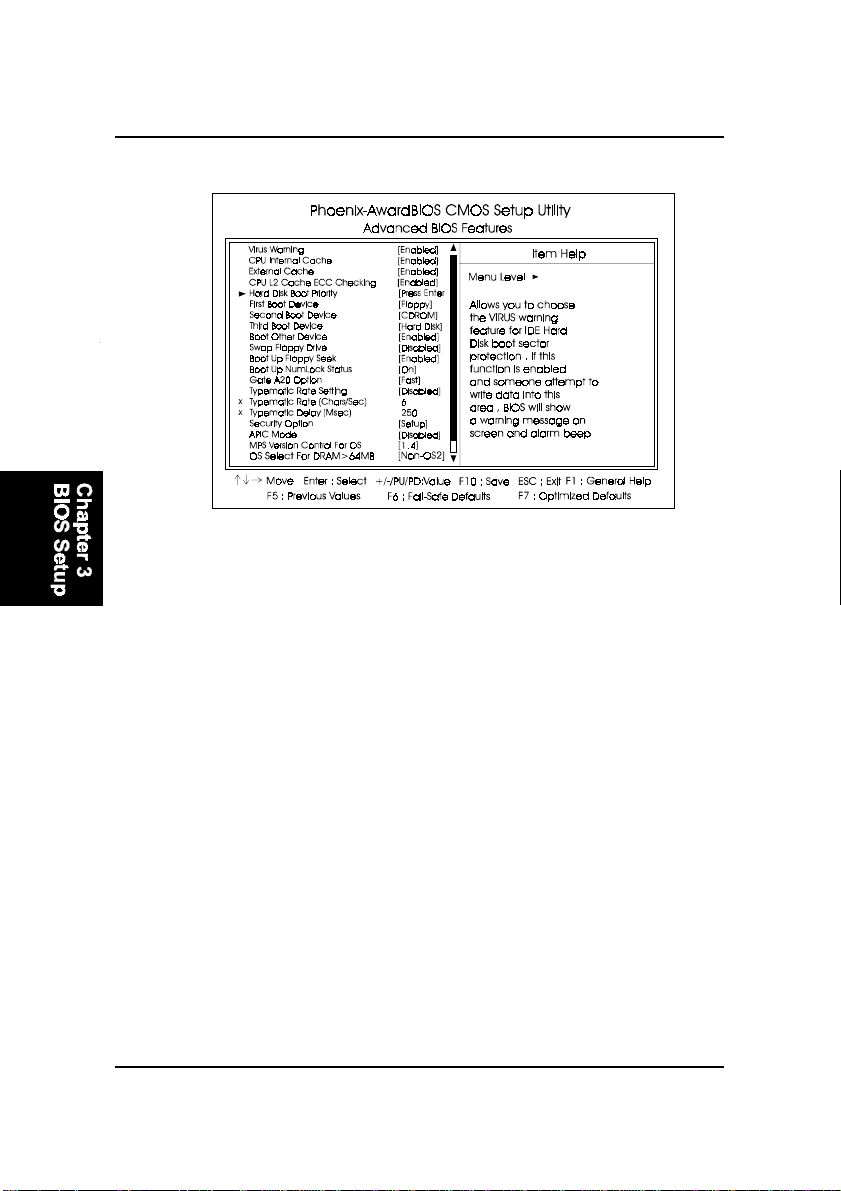

Advanced BIOS Features

Virus Warning

This feature allows users to enable the computer virus warning for IDE

hard disk boot sector protection. If enabled, BIOS will show a warning

message and alarm will beep whenever someone write data into this area.

The options are: Enabled, Disabled.

CPU Internal Cache

When enabled, improves the system performance. Disable this item when

testing or trouble-shooting. The options are: Enabled, Disabled.

External Cache

When enabled, supports CPU L2 cache. This feature allows you to disable

the cache function when the system performance is unstable to run some

software. The options are: Enabled, Disabled.

Hard Disk Boot Priority

This feature will auto detect all hard disks of bootable device on the sys-

tem. It also allows users to select hard disk device booting priority.

First/Second/Third Boot Device

This feature allows user to select the boot device priority. The options are:

Floppy, LS120, Hard Disk, CDROM, ZIP100, USB-FDD, USB-ZIP, USB-

CDROM, USB-HDD, LAN, Disabled.

3 - 4

BIOS Setup

Boot Other Device

This feature allows user to select the boot device priority.

The options are: Enabled, Disabled.

Swap Floppy Drive

Allows you to switch the order in which the operating system accesses

the floppy drives during boot up.

The options are: Enabled, Disabled.

Boot Up Floppy Seek

When enabled, assigns the BIOS to perform floppy diskette drive tests by

issuing the time-consuming seek commands.

The options are: Enabled, Disabled.

Boot Up Numlock Status

When set to On, allows the BIOS to automatically enable the Num Lock

Function when the system boots up. The options are: On, Off.

Gate A20 Option

When set at Fast, allows a faster access response under Protected mode.

The options are: Fast, Normal.

Typematic Rate Setting

The term typematic means that when a keyboard key is held down, the

character is repeatedly entered until the key is released.

The options are: Disabled, Enabled.

Typematic Rate (Chars/Sec)

This feature is available only if the above item, Typematic Rate Setting, is

set at Enabled. Sets the rate of a character repeat when the key is held

down. The options are: 6, 8, 10, 12, 15, 20, 24, 30.

Typematic Delay (Msec)

This feature is available only if the item, Typematic Rate Setting, is set at

Enabled. Sets the delay time before a character is repeated.

The options are: 250, 500, 750, 1000 millisecond.

3 - 5

A T31 Mainboard Manual

Security Option

Allows you to set the security level of the system.

The options are: Setup, System.

APIC Mode

Allows you to decide if the system enters the APIC (Advanced Program-

mable Interrupt Controller) mode or not for more IRQs can be released.

The options are: Enabled, Disabled.

MPS Version Control For OS

When two CPUs onboard (not this board) this feature allows you to select

MPS (Multi-Processor Spec.) version control for OS when logo test ex-

ecutes. The options are: 1.1, 1.4.

OS Select For DRAM > 64MB

If your operating system (OS) is OS/2, select the option OS2. Otherwise,

stay with the default setting Non-OS2.

The options are: Non-OS2, OS2.

HDD S.M.A.R.T . Capability

S.M.A.R.T. stands for Self-Monitoring and Analysis Reporting Technol-

ogy which allows your hard disk drive to report any read/write errors and

issues a warning with LDCM installed.

The options are: Disabled, Enabled.

Video BIOS Shadow

Enabling this feature will copy the video BIOS to shadow RAM, it will

improve the system performance.

The options are: Enabled, Disabled.

BIOS Guardian

It allows the system to prevent computer viruses. Users will need to dis-

able it to update BIOS. The options are: Enabled, Disabled.

NOTE: Please disable this BIOS feature about BIOS Guardian
before you start to reflash BIOS.

3 - 6

BIOS Setup

BIOS Guardian and Reflash BIOS

BIOS Guardian by default is enabled, thus effectively acts as a fire-

wall against viruses that can attack the BIOS while the system is

running. It must be disabled before reflash BIOS.

The steps below show you how to off and on BIOS Guardian when

reflash BIOS:

1. Press Del key while booting. Go to CMOS Setup Utility menu.

2. Go to Advanced BIOS Features submenu.

3. Set the feature BIOS Guardian at Disabled.

4. Save the setting and exit. The system restarts.

5. POST screen holds. A message about BIOS Guardian shows.

6. Press Space bar.

7. Reflash BIOS. Restart the system after complete it.

8. POST screen holds. A message about BIOS Guardian shows.

9. Press G key. The feature BIOS Guardian will be enabled again.

Full Screen LOGO Show

It decides whether or not the full screen logo is shown during system

booting up. The options are: Enabled, Disabled.

NOTE:

1. LogoGenie supports Award BIOS only.

2. If you create a Logo file (.bmp) by LogoGenie, the file size must

||||be 640 x 464 x 256 colors.

To enable this utility, please proceed as follows:

1. Insert CD Pro. Select LogoGenie from the Menu

and follow the installation instructions.

2. After LogoGenie has been installed, go to Windows Start Box.

In Programs Menu, select LogoGenie, then select LogoGenie.

3. Press F1 to read Help file to understand how to use this software if

it is new to you.

3 - 7

A T31 Mainboard Manual

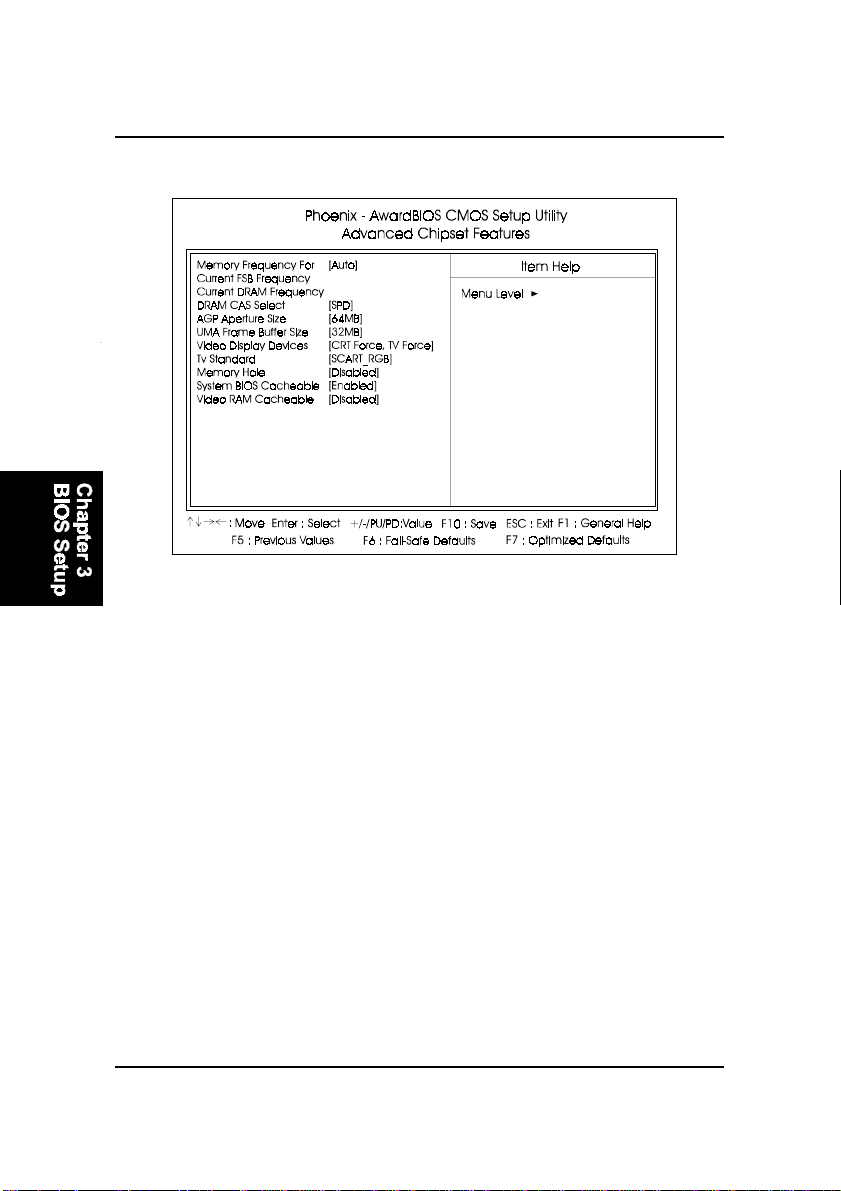

Advanced Chipset Features

Memory Frequency For

This feature allows users to set the memory frequency.

The options are: Auto, DDR-200, DDR-266, SYNC.

DRAM CAS Select

This feature allows user to select the CAS latency time for the installed

DDR SDRAMs.

The options are: SPD, 2, 2.5.

AGP Aperture Size

It decides the mapped size in system memory for AGP graphics data.

The options are: 32MB, 64MB, 128MB, 256MB.

UMA Frame Buffer Size

It allows user to select the main memory frame size of AGP use.

The options are: 8MB, 16MB, 32MB, 64MB, 128MB, 256MB.

Video Display Devices

It allows user to select the video display device.

The options are: Auto; CRT Only; TV Only; CRT Force, Other Auto; TV

Force, Other Auto; CRT Force, TV Force.

3 - 8

BIOS Setup

TV Standard

It allows user to select the TV output signal format.

The options are: NTSC, PAL, PAL-M, PAL-60, NTSC-JAP, PAL-CN, PAL-

N, SCART-RGB.

Memory Hole

When set at Enabled, the memory hole at 15MB address will be relocated

to the 15M-16MB address range of the ISA or PCI cycle when the CPU

accesses the 15M-16MB address area. When set at Disabled, the memory

hole at 15MB address will be treated as a DRAM cycle when the CPU

accesses the 15M-16MB address area. The options are: Disabled, Enabled.

System BIOS Cacheable

Setting at Enabled will allow the caching of the BIOS ROM F0000H-FFFFFH,

resulting in better system performance. It may cause system error when

some programd try to access the memory area.

The options are: Disabled, Enabled.

Video RAM Cacheable

When enabled, allows the video RAM area to be cacheable.

The options are: Enabled, Disabled.

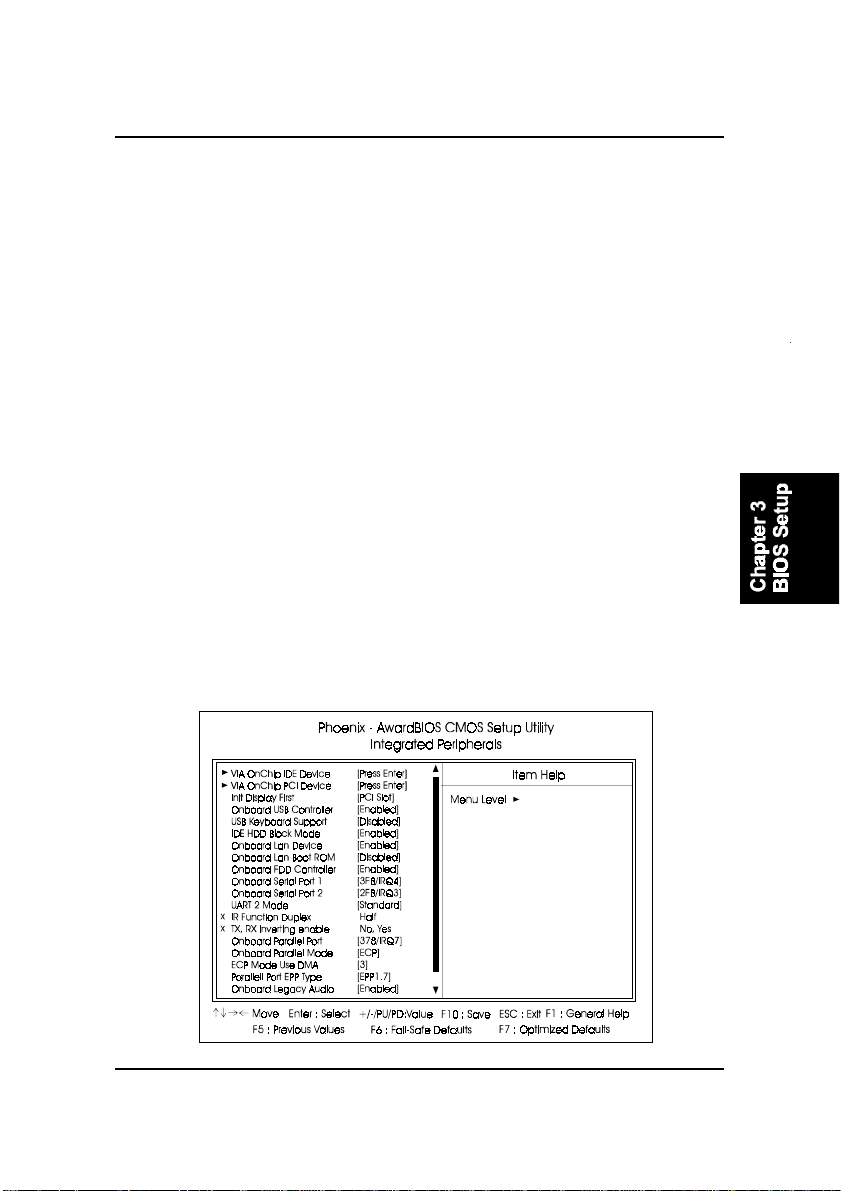

Integrated Peripherals

3 - 9

A T31 Mainboard Manual

VIA OnChip IDE Device

OnChip IDE Channel0

When enabled, allows you to use the onboard primary PCI IDE. If a hard

disk controller card is used, set at Disabled.

The options are: Enabled, Disabled.

OnChip IDE Channel1

When enabled, allows you to use the onboard secondary PCI IDE. If a

hard disk controller card is used, set at Disabled.

The options are: Enabled, Disabled.

IDE Prefetch Mode

When set at Enabled, it allows data to be posted to and prefetched from

the primary IDE data ports. Data prefetching is initiated when a data port

read occurs. The read prefetch eliments latency to the IDE data ports and

allows them to be performed back to back for the highest possible PIO data

transfer rates. The first data port read of a sector is called the demand read.

Subsequent data port reads from the sector are called prefetch reads. The

demand read and all prefetch reads must be of the same size (16 or 32 bits).

The options are: Enabled, Disabled.

Primary Master PIO

Allows an automatic or a manual configuration of the PCI primary IDE hard

disk (master) mode. The options are: Auto, Mode 0, Mode 1, Mode 2,

Mode 3, Mode 4.

Primary Slave PIO

Allows an automatic or a manual configuration of the PCI primary IDE hard

disk (slave) mode. The options are: Auto, Mode 0, Mode 1, Mode 2, Mode

3, Mode 4.

Secondary Master PIO

Allows an automatic or a manual configuration of the PCI secondary IDE

hard disk (master) mode. The options are: Auto, Mode 0, Mode 1, Mode 2,

Mode 3, Mode 4.

3 - 10

BIOS Setup

Secondary Slave PIO

Allows an automatic or a manual configuration of the PCI secondary IDE

hard disk (slave) mode. The options are: Auto, Mode 0, Mode 1, Mode 2,

Mode 3, Mode 4.

Primary Master UDMA

Allows you to select the first PCI IDE channel of the first master hard disk

mode or to detect it by the BIOS if the hard disk supports UDMA (Ultra

DMA, faster than DMA). The options are: Auto, Disabled.

Primary Slave UDMA

Allows you to select the first PCI IDE channel of the first slave hard disk

mode or to detect it by the BIOS if the hard disk supports UDMA (Ultra

DMA, faster than DMA). The options are: Auto, Disabled.

Secondary Master UDMA

Allows you to select the second PCI IDE channel of the secondary master

hard disk mode or to detect it by the BIOS if the hard disk supports UDMA

(Ultra DMA, faster than DMA). The options are: Auto, Disabled.

Secondary Slave UDMA

Allows you to select the second PCI IDE channel of the secondary slave

hard disk mode or to detect it by the BIOS if the hard disk supports UDMA

(Ultra DMA, faster than DMA). The options are: Auto, Disabled.

VIA OnChip PCI Device

VIA-3058 AC97 Audio

It allows users to disable AC97 link in South Bridge.

The options are: Auto, Disabled.

Init Display First

When you install a PCI VGA card on the board, this feature allows you to

select the first initiation of the monitor display from PCI or onboard AGP.

The options are: PCI Slot, AGP.

OnChip USB Controller

Disable this option if you are not using the onboard USB feature.

The options are: Disabled, Enabled.

3 - 11

A T31 Mainboard Manual

USB Keyboard Support

When a USB keyboard is installed, please set at Enabled.

The options are: Disabled, Enabled.

IDE HDD Block Mode

When enabled, the system executes read/write requests to hard disk in

block mode. The options are: Enabled, Disabled.

Onboard Lan Device

This feature allows users to enable or disable the onboard Lan device.

The options are: Enabled, Disabled.

Onboard Lan Boot ROM

This feature allows users to enable or disable the onboard Lan boot ROM

to boot system.

The options are: Enabled, Disabled.

Onboard FDD Controller

When enabled, the floppy diskette drive (FDD) controller is activated.

The options are: Enabled, Disabled.

Onboard Serial Port 1

If the serial port 1 uses the onboard I/O controller, you can modify your

serial port parameters. The options are: 3F8/IRQ4, 3E8/IRQ4, 2F8/IRQ3,

2E8/IRQ3, Disabled, Auto.

Onboard Serial Port 2

If the serial port 2 uses the onboard I/O controller, you can modify your

serial port parameters. The options are: 2F8/IRQ3, 3E8/IRQ4, 2E8/IRQ3,

3F8/IRQ4, Disabled, Auto.

UART 2 Mode

Select an operating mode for the second serial port. Set at

Standard, if you use COM2 as the serial port as the serial port,

instead as an IR port. The options are: Standard, ASKIR, HPSIR.

3 - 12

BIOS Setup

IR Function Duplex

This feature is available only it the above item , UART2 Mode, is set at

ASKIR or HPSIR. It allows you to select the infrared data transaction way.

The options are: Half , Full.

TX, RX Inverting Enable

This feature is available only it the above item , UART2 Mode, is set at

ASKIR or HPSIR. It allows you to select the active signals of the recep-

tion end and the transmission end.

The options are: No, Yes; Yes, Yes; No, No; Yes, No.

Onboard Parallel Port

Allows you to select from a given set of parameters if the parallel port uses

the onboard I/O controller.

The options are: 378/IRQ7, 278/IRQ5, 3BC/IRQ7, Disabled.

Onboard Parallel Port Mode

Allows you to connect with an advanced printer.

The options are: Normal, EPP, ECP, ECP/ ECP.

ECP Mode Use DMA

This feature allows you to select Direct Memory Access (DMA) channel if

the ECP mode selected. The options are: 3, 1.

Parallel Port EPP Type

This feature allows you to select the EPP type for the parallel port.

The options are: EPP1.9, EPP1.7.

Onboard Legacy Audio

Set Audio to be compatible with legacy mode.

The options are: Enabled, Disabled.

SB I/O Base Address

This feature allows you to select the SB I/O base address, if the onboard

Legacy audio chosen. The options are: 220H, 240H, 260H, 280H.

SB IRQ Select

This feature allows you to select the SB IRQ, if the onboard Legacy audio

chosen. The options are: IRQ 5, IRQ 7, IRQ 9, IRQ 10.

3 - 13

A T31 Mainboard Manual

SB DMA Select

This feature allows you to select the SB DMA channel, if the onboard

Legacy audio chosen.

The options are: DMA 1, DMA 2, DMA 3, DMA0.

MPU-401

This feature allows you to enable MPU-401, if the onboard Legacy audio

chosen. The options are: Disabled, Enabled.

MPU-401 I/O Address

This feature allows you to select the MPU-401 I/O address, if the onboard

Legacy audio chosen.

The options are: 310-313H, 320-323H, 330-333H, 300-303H.

Game Port (200-207H)

This feature allows you to select the game port (200-207H), if the onboard

Legacy audio chosen.

The options are: Enabled, Disabled.

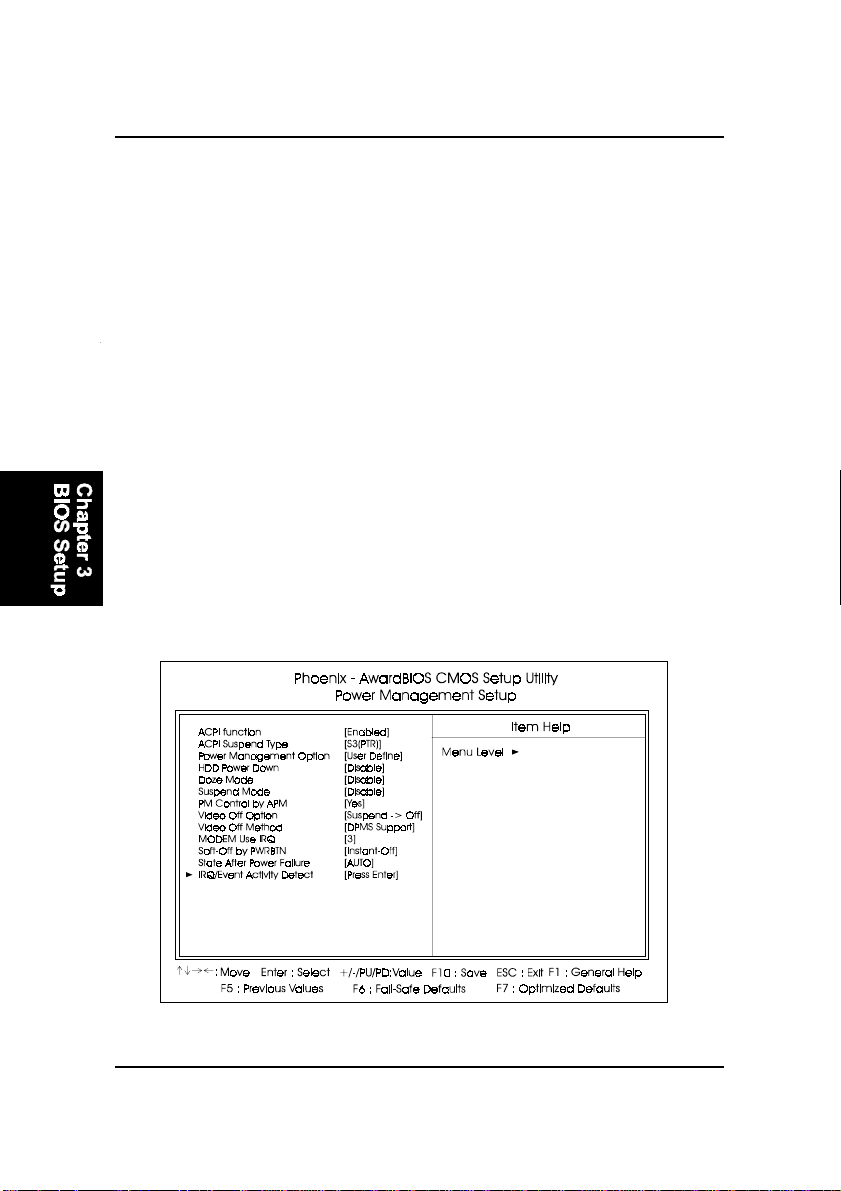

Power Management Setup

3 - 14

BIOS Setup

ACPI Function

This item allows you to disable the ACPI function.

The options are: Enabled, Disabled.

ACPI Suspend Type

This item allows you to select suspend mode when the system in ACPI

mode. The options are: S1 (POS), S3 (PTR), S1&S3.

Power Management

This item allows you to adjust the power management features.

Select User Define for configuring your own power management features.

Min Saving initiates all predefined timers in their minimum values. Max

Saving, on the other hand, initiates maximum values.

The options are: User Define, Min Saving, Max Saving.

HDD Power Down

The option lets the BIOS turn the HDD motor off when system is in Sus-

pend mode. Selecting 1 Min..15 Min allows you define the HDD idle time

before the HDD enters the Power Saving Mode.

The options 1 Min..15 Min will not work concurrently. When HDD is in the

Power Saving Mode, any access to the HDD will wake the HDD up.

The options are: Disabled, 1 Min..15 Min.

Doze Mode

When disabled, the system will not enter Doze mode. The specified time

option defines the idle time the system takes before it enters Doze mode.

The options are: Disable, 1, 2, 4, 6, 8, 10, 20, 30, 40 Min, 1 Hour.

Suspend Mode

When disabled, the system will not enter Suspend mode. The specified

time option defines the idle time the system takes before it enters Suspend

mode. The options are: Disable, 1, 2, 4, 6, 8, 10, 20, 30, 40 Min, 1 Hour.

PM Control by APM

The option No allows the APM (Advanced Power Management) specifi-

cation be ignored. Selecting Yes will allow the BIOS wait for APMs prompt

before it enters Doze mode, Standby mode, or Suspend mode. If the APM

is installed, it will prompt the BIOS to set the system into power saving

mode when all tasks are done. The options are: No, Yes.

3 - 15

A T31 Mainboard Manual

Video Off Option

This feature provides the selections of the video display power saving

mode. The option Suspend - Off allows the video display to go blank if the

system enters Suspend mode. The option All Modes - Off allows the video

display to go blank if the system enters Doze mode or Suspend mode. The

option Always On allows the video display to stay in Standby mode even

when the system enters Doze or Suspend mode.

The options are: Suspend - Off, All Modes -> Off, Always On.

MODEM Use IRQ

This feature allows you to select the IRQ# to meet your modem IRQ#.

The options are: NA, 3, 4, 5, 7, 9, 10, 11.

Soft-Off by PWR-BTTN

The selection Delay 4 Sec. will allow the system shut down after 4 seconds

after the power button is pressed. The selection Instant-Off will allow the

system shut down immediately once the power button is pressed.

The settings are: Instant-Off, Delay 4 Sec.

State After Power Failure

The item allows you to select the state that your personal computer re-

turns to after a power failure. If set at Off, the system will not boot after a

power failure. If set On, the system will restart after power failure.

The settings are: Auto, On, Off.

IRQ/Event Activity Detect

USB Resume From S3

When set at Enabled, it allows USB devices that linked with the system to

activate the system from ACPI S3 power saving mode.

The options are Disabled, Enabled.

VGA

When set at On, any VGA activity will awake the system.

The options are: OFF, ON.

3 - 16

BIOS Setup

LPT & COM

When LPT/COM is selected, any access of LPT and COM ports will awake

the system. Likewise, either LPT or COM is chosen, the system will be

awaken by any activity of LPT or COM port.

The options are: LPT/COM, LPT, COM, NONE.

HDD & FDD

When it is set at ON, any access happened at hard drives and floppy

drives will awake the system.

The options are: OFF, ON.

PCI Master

To set this feature at ON activates that Power Management feautre (PM)

wake-up event for the PCI bus master card.

The options are: OFF, ON.

PowerOn by PCI Card

When set at Enabled, any PCI-PM event awakes the system from a PCI-

PM controlled state.

The options are Disabled, Enabled.

Modem Ring Resume

An input signal on the serial Ring Indicator (RI) line (in other words, an

incoming call on the modem) awakens the system from a soft off state.

The options are: Enabled, Disabled.

RTC Alarm Resume

Enabled allows you to set the time the system will be turned on from the

system power-off status. The options are: Enabled, Disabled.

Date (of Month)

This feature allows you to set the day of the alarm starts when the RTC

Alarm Resume From Soft Off is set to be Enabled. The options are: 0, 1..31.

3 - 17

A T31 Mainboard Manual

Resume Time (hh:mm:ss)

If an ATX power supply is installed and when RTC Alarm Resume is En-

abled, this feature allows you to set the time of the alarm starts when the

RTC Alarm Resume From Soft Off is set to be Enabled.

The options are: 7: 0: 0. hh (hour) - 0, 1, 2,.., 23; mm (minute) - 0, 1, 2,..,59;

ss (second) - 0, 1, 2,..,59.

IRQs Activity Monitoring

After the time period which you set, the system advances from doze mode

to suspend mode in which the CPU clock stops and the screen display is

off. At this moment, if the IRQ activity occurs, the system goes back to

full-on mode directly. If the IRQ activity which is defined as Non Primary

takes place, the system remains off until the corresponding IRQ handler

finishes. The options of IRQ 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15 are:

Enabled, Disabled.

PnP/PCI Configurations

PNP OS Installed

If your operating system is a Plug-and-Play one, such as Windows NT,

Windows 95, select Yes. The options are: No, Yes.

3 - 18

BIOS Setup

Reset Configuration Data

Enabling it to reset the system Extended System Configuration Data (ESCD)

when you exit Setup if you have installed a new add-on card and the

system reconfiguration has caused such a serious conflict that the operat-

ing system can not boot. The options are: Disabled, Enabled.

Resources Controlled By

If set at Auto, the BIOS arranges all system resources. If there exists con-

flict, select Manual. The options are: Auto (ESCD), Manual.

The manual options of IRQ- / DMA- assigned to are: PCI/ISA PnP, Legacy

ISA.

PCI/VGA Palette Snoop

Set this feature to be enabled if any ISA adapter card installed in the

system requires the VGA palette snoop function.

The options are: Disabled, Enabled.

Assign IRQ For VGA

If your PCI VGA card devices do not need an IRQ, select Disabled; there-

fore, an IRQ can be released for the system use.

The options are: Enabled, Disabled.

Assign IRQ For USB

If your USB devices do not need an IRQ, select Disabled; therefore, an

IRQ can be released for the system use.

The options are: Enabled, Disabled.

INT Pin 1/2/3/4 Assignment

This feature allows you to assign the PCI IRQ numbers for PCI slots.

Selecting the default, Auto, allows the PCI controller to automatically allo-

cate the IRQ numbers.

The options are: Auto, 3, 4, 5, 7, 9, 10, 11, 12, 14, 15.

3 - 19

A T31 Mainboard Manual

PC Health Status

It allows you and technicians to monitor data provided by the BIOS on this

mainboard. Some of them are not user-configurable.

Current CPU_FAN Speed / Current SYS_FAN Speed / Vcore / 2.5V /

3.3V / 5V / 12V

These items allow end users and technicians to monitor data such as CPU

and case cooling fans rotating speed.

Frequency/Voltage Control

3 - 20

BIOS Setup

CPU Host/DRAM/PCI Clock

This feature allows you to select the combinations of CPU frequency,

inslot DRAM frequency, and PCI clock. The default setting, Default, will

detect this combination automatically. If you set a unappropriate option

which leads to a booting problem, keep pressing the Insert key until the

display appears will solve it. The options lists all combinations that pro-

vided by the system BIOS.

Auto Detect DIMM/PCI Clk

When enabled, BIOS will detect the PCI slot and DIMM slot. If no any

device in, BIOS will auto disable its clock.

The options are: Enabled, Disabled.

Spread Spectrum

This feature is used to disable the spread Spectrum function.

The options are: Enabled, Disabled.

Load Fail-Safe Defaults

This submenu is selected to diagnose the problem after the computer boots, if

the computer will not boot. These settings do not give optimal performance.

Load Optimized Defaults

This submenu is selected for default settings which provide the best system

performance.

Supervisor/User Password

To enable the Supervisor/User passwords, select the item from the Standard

CMOS Setup. You will be prompted to create your own password. Type your

password up to eight characters and press Enter. You will be asked to confirm

the password. Type the password again and press Enter. To disable password,

press Enter twice when you are prompted to enter a password. A message

appears, confirming the password is disabled.

3 - 21

A T31 Mainboard Manual

Under the BIOS Feature Setup, if Setup is selected under the Security Option

field and the Supervisor/User Password is enabled, you will be prompted

password every time you try to enter the CMOS Setup Utility. If System is

selected and the Supervisor/User Password is enabled, you will be requested

to enter the Password every time when you reboot the system or enter the

CMOS Setup utility.

Save and Exit Setup

After you have made changes under Setup, press Esc to return to the main

menu. Move cursor to Save and Exit Setup or press F10 and then press Y to

change the CMOS Setup. If you did not change anything, press Esc again or

move cursor to Exit Without Saving and press Y to retain the Setup settings.

The following message will appear at the center of the screen to allow you to

save data to CMOS and exit the setup utility: SAVE to CMOS and EXIT (Y/N)?

Exit without Saving

If you select this feature, the following message will appear at the center of the

screen to allow you to exit the setup utility without saving CMOS modifica-

tions: Quit Without Saving (Y/N)?

3 - 22

Addendum (25-11643-1 1)

The AT31 Mainboard Manual Updated

The mainboard manual were updated since it was printed.

1). Page 1-4:

n Easy Installation

||BIOS with support for Plug and Play, auto detection of IDE hard drives,

||LS-120|drives, IDE ZIP drives. The mainboard supports Windows 2000,

|Windows XP only.

2). Page 2-12:

The TV-OUT bracket with cable is optional.

The two jacks on the optional TV-OUT bracket can not be used at the same

time.

3). Page 2-17:

If your mainboard version is 1.3, a conversion cable is provided for Intel spec.

USB pin assignments.

2-1

4). Page 2-3, 2-7:

The allowed settings of CPU/SDRAM/PCI/AGP freq. are listed below:

2-2
