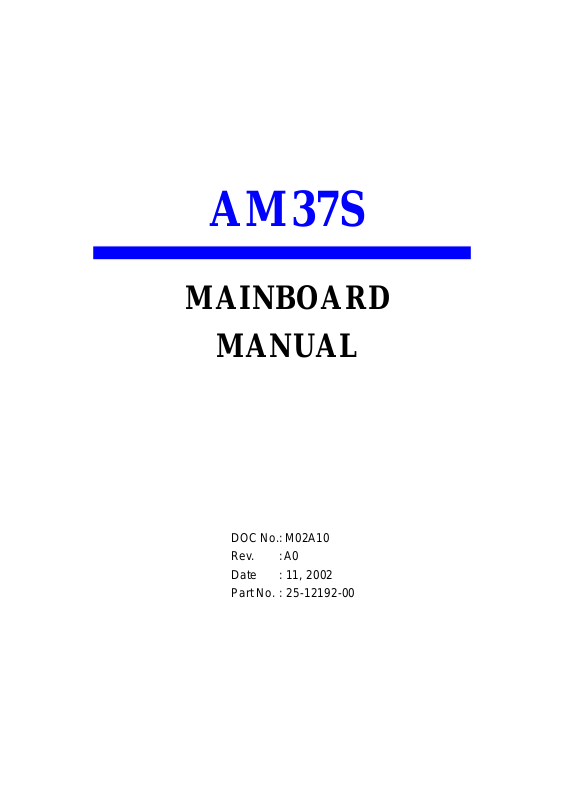

Page 1
AM37S
MAINBOARD
MANUAL
DOC No.: M02A10
Rev. : A0
Date : 11, 2002
Part No. : 25-12192-00
Page 2
Notice
Handling Precautions
Warning:
1. Static electricity may cause damage to the integrated circuits on
the motherboard. Before handling any motherboard outside of its
protective packaging, ensure that there is no static electric charge
in your body.
2. There is a danger of explosion if the battery is incorrectly
replaced. Replace only with the same or an equivalent type
recommended by the manufacturer.
3. Discard used batteries according to the manufacturer’s
instructions.
4. Never run the processor without the heatsink properly and firmly
attached. PERMANENT DAMAGE WILL RESULT!
Observe the following basic precautions when handling the motherboard
or other computer components:
Wear a static wrist strap which fits around your wrist and is
connected to a natural earth ground.
Touch a grounded or anti-static surface or a metal fixture such as a
water pipe.
Avoid contacting the components on a dd-on cards, motherboards,
and modules with the golden fingers connectors plugged into the
expansion slot. It is best to handle system components by their
mounting brackets.
The above methods prevent static build-up and cause it to be discharged
properly.
Trademark
All trademarks mentioned in this manual are registered properly of
the respective owners.
Handling Precautions
This manual may not, in whole or in part, be photocopied, reproduced,
transcribed, translated, or transmitted in whatever form without the
written consent of the manufacturer, except for copie s retained by the
purchaser for personal archival purposes.
Page 3
T able of Contents
Table of Contents
Quick Reference (German) G- 1
Quick Reference (French) F- 1
Quick Reference (Spanish) S-1
Quick Reference (Japanese) J-1
Quick Reference (Chinese) C-1
Quick Reference (Simplified Chinese) |||||||||||||SC-1
Chapter 1 Overview
Package Checklist .......................................................................... 1-2
The AM37S Mainboard............................................................. 1 -3
Main Features................................................................................ 1-4
FIC Unique Innovation for Users (NOVUS) -
Enhanced Mainboard Features and System Support ..................... 1-6
Chapter 2 Installation Procedures
Quick Reference (from Page 2-2 to 2-4) .......................................... 2-2

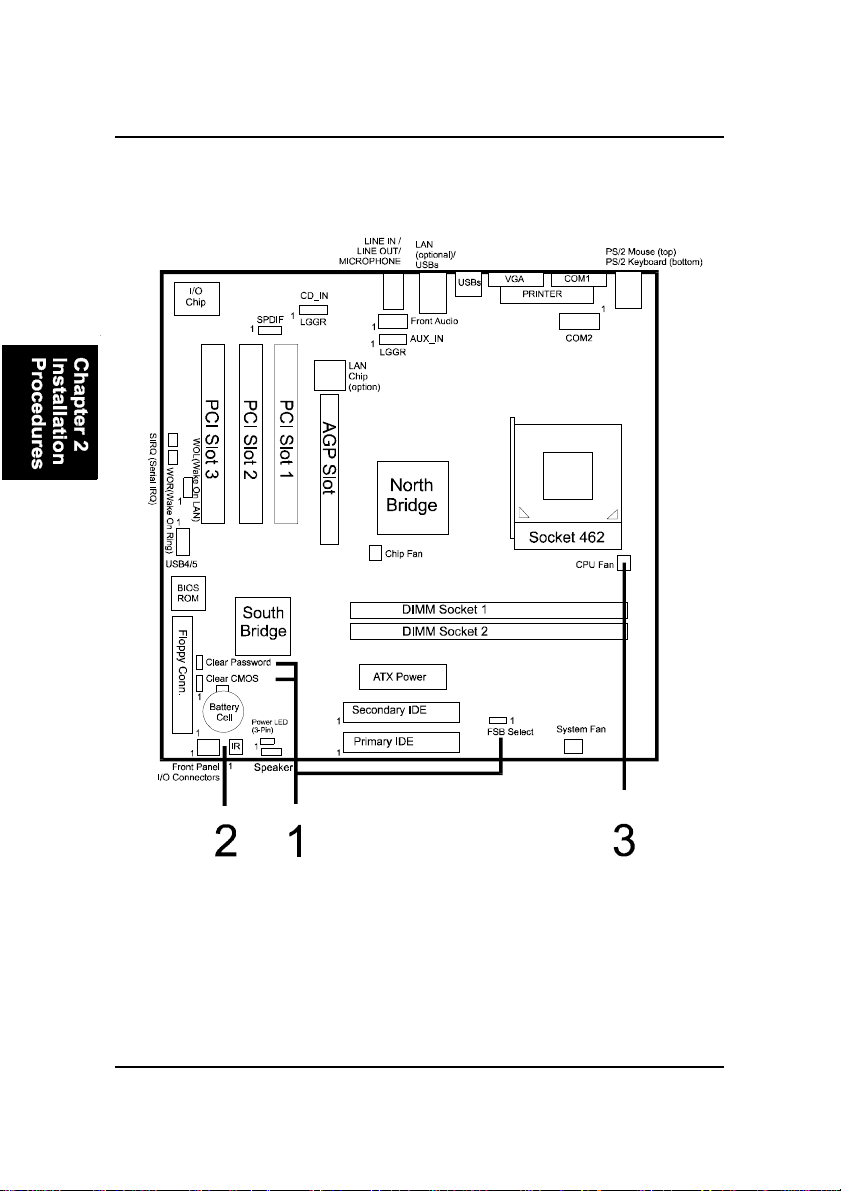

Mainboard Layout .................................................................... 2-2

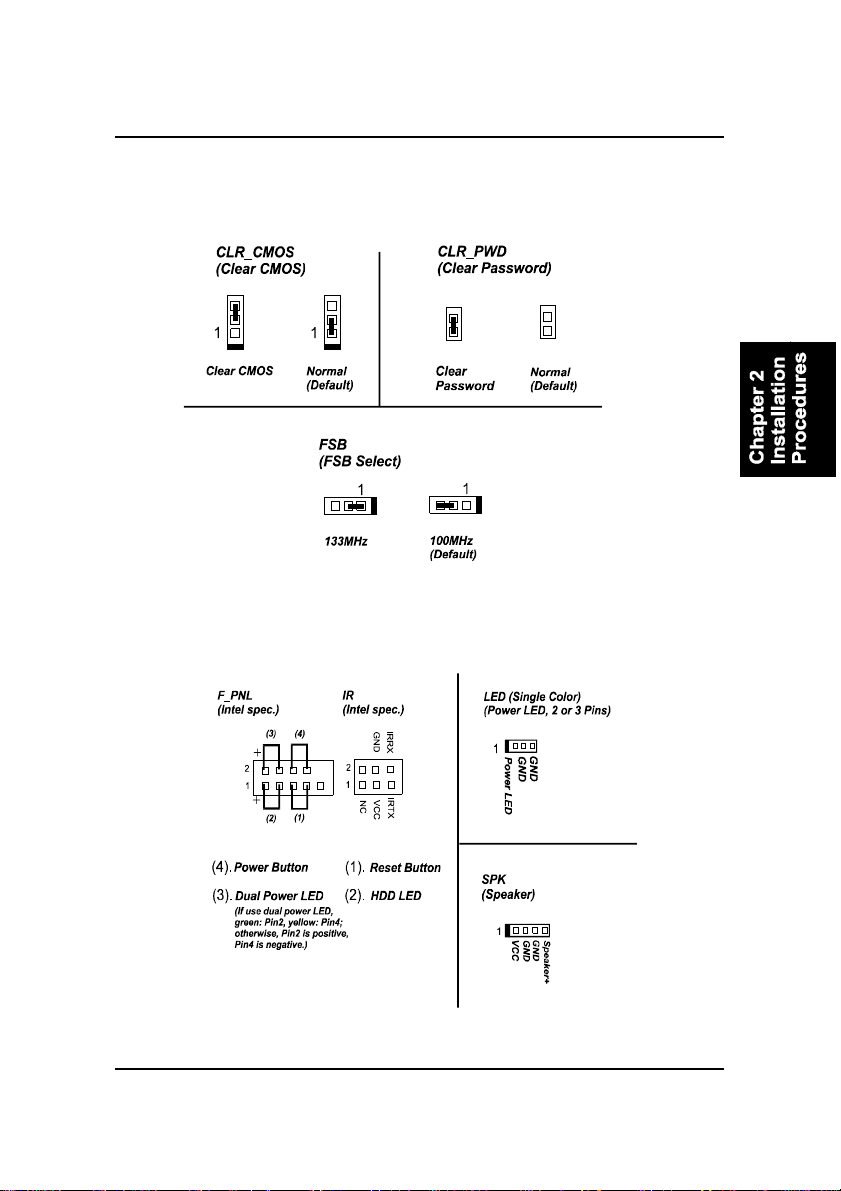

1). Clear CMOS, Clear Password, FSB Speed Select
.......................................................................................... 2-3
2). Front Pa nel Block Cable Connection ............................ 2-3
3). CPU Fa n Installation..................................................... 2-4
1). Set System Jumpers .................................................................. 2-4

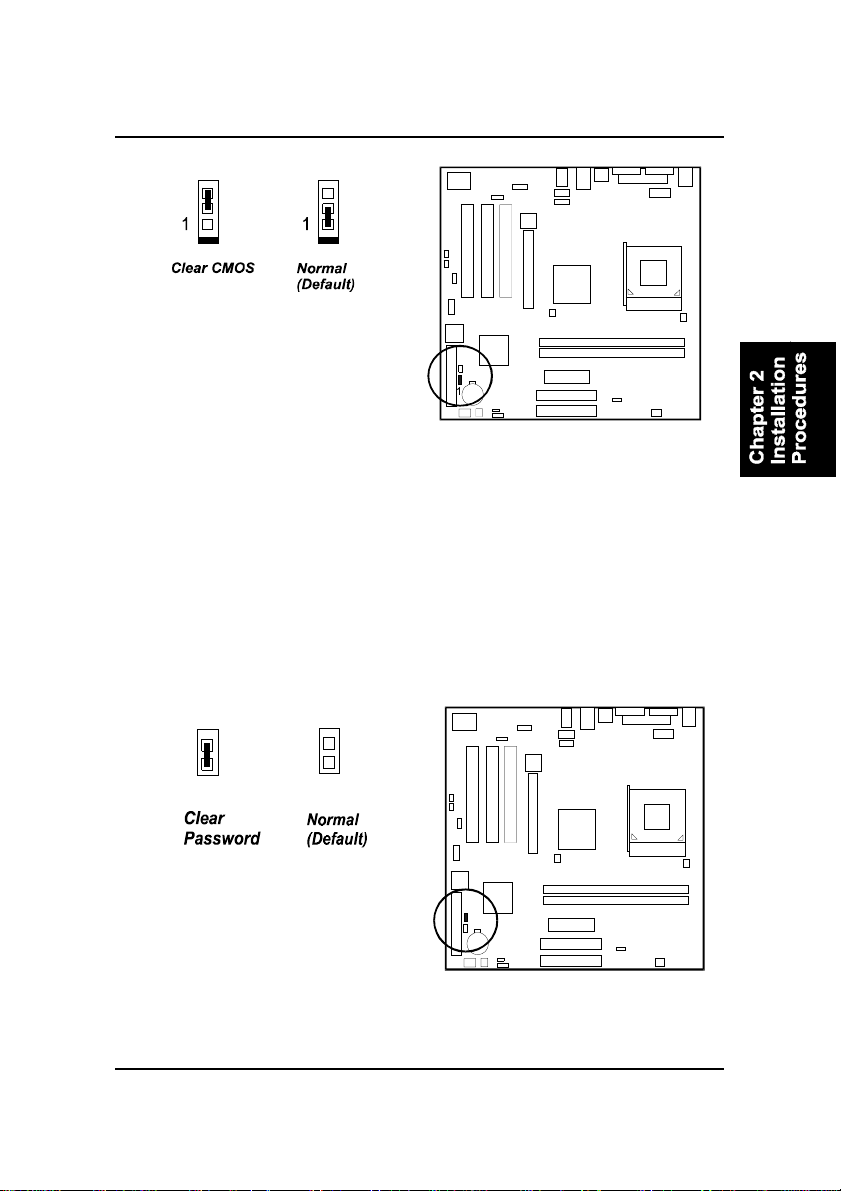

Clear CMOS: CLR_CMOS ................................................. 2-4
Clear Password: CLR_PWD............................................... 2-5

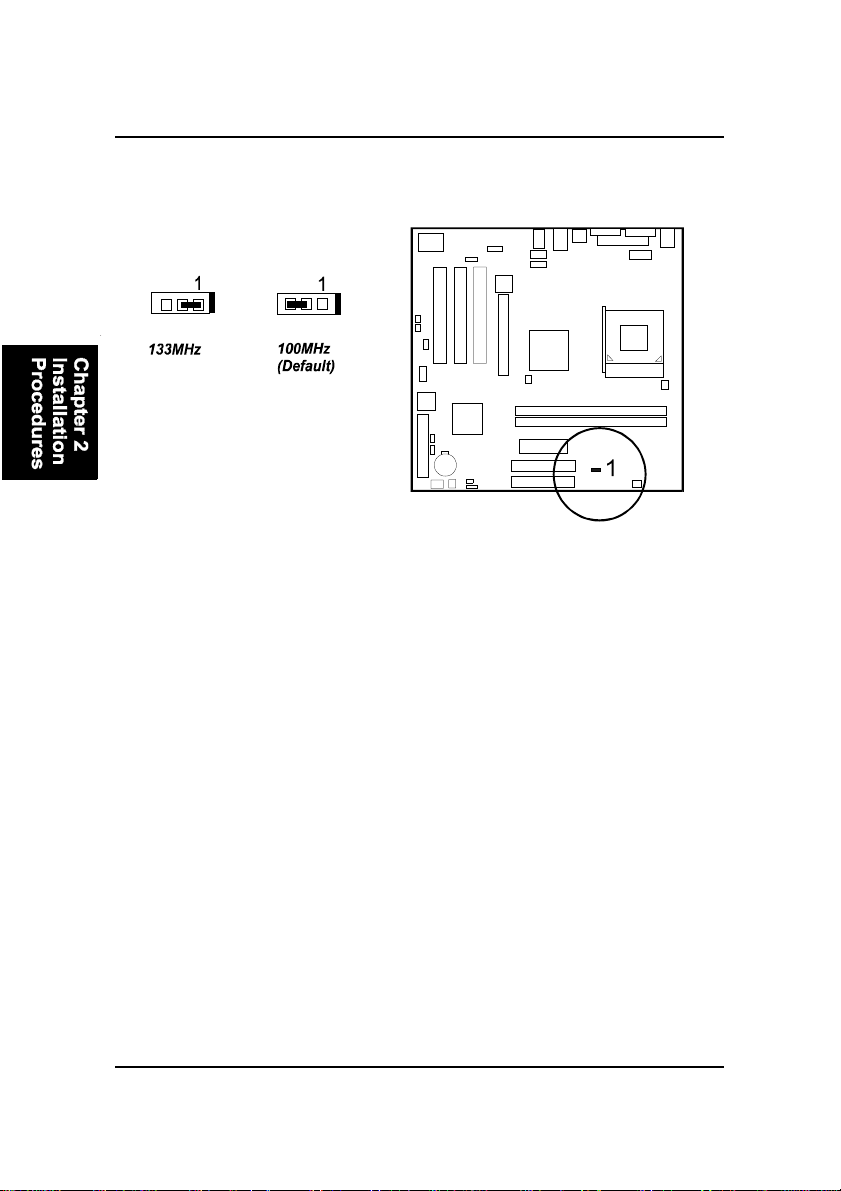

FSB Frequency Select: FSB ............................................... 2-6

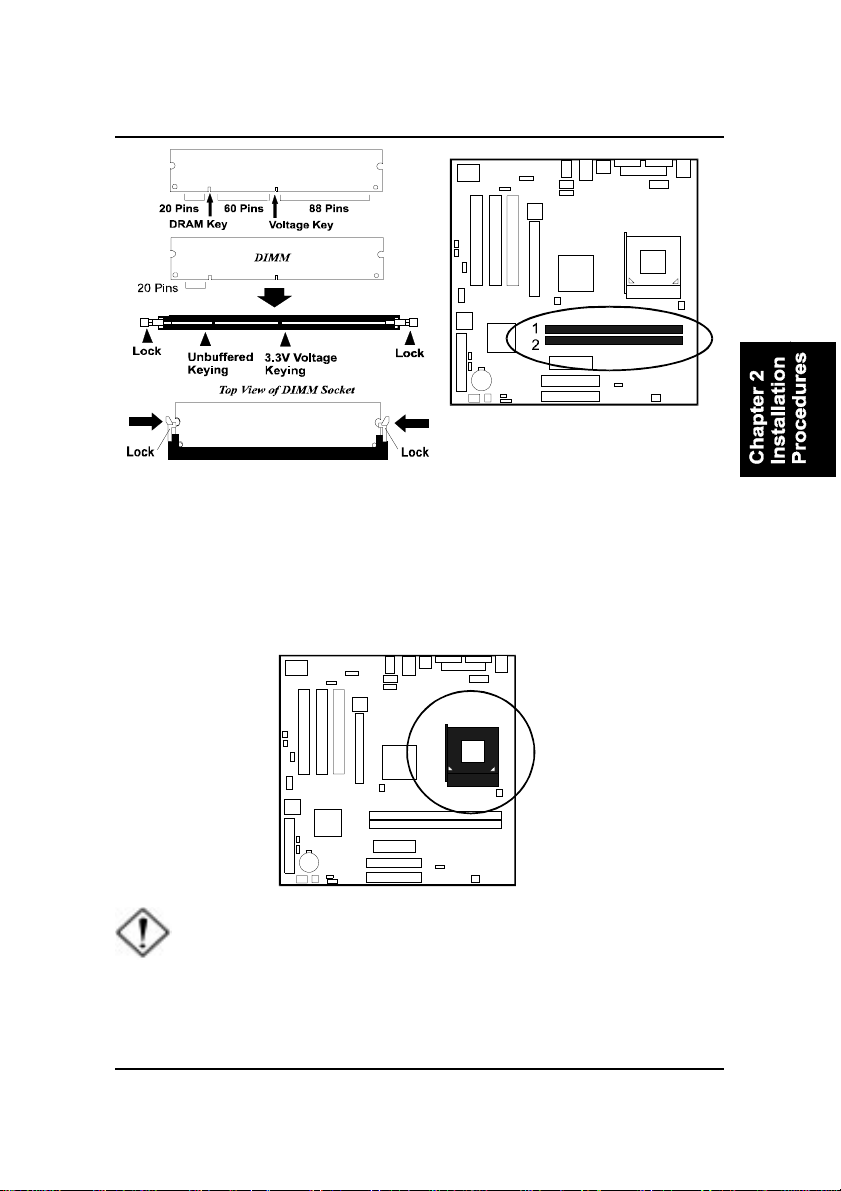

2). Install Memory Modules .......................................................... 2- 6
3). Install the CPU .......................................................................... 2-7

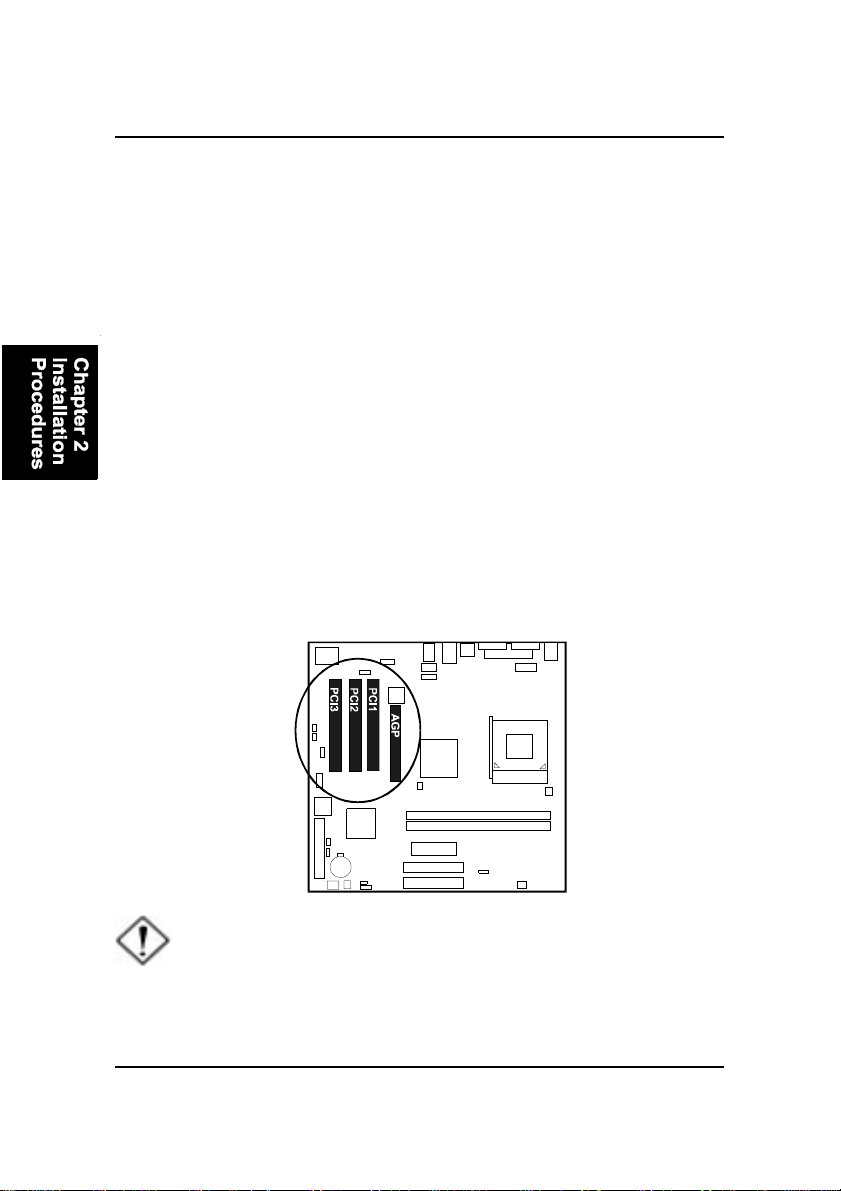

4). Install Expa nsion Cards ............................................................. 2-8
5). Connect Devices ....................................................................... 2- 9

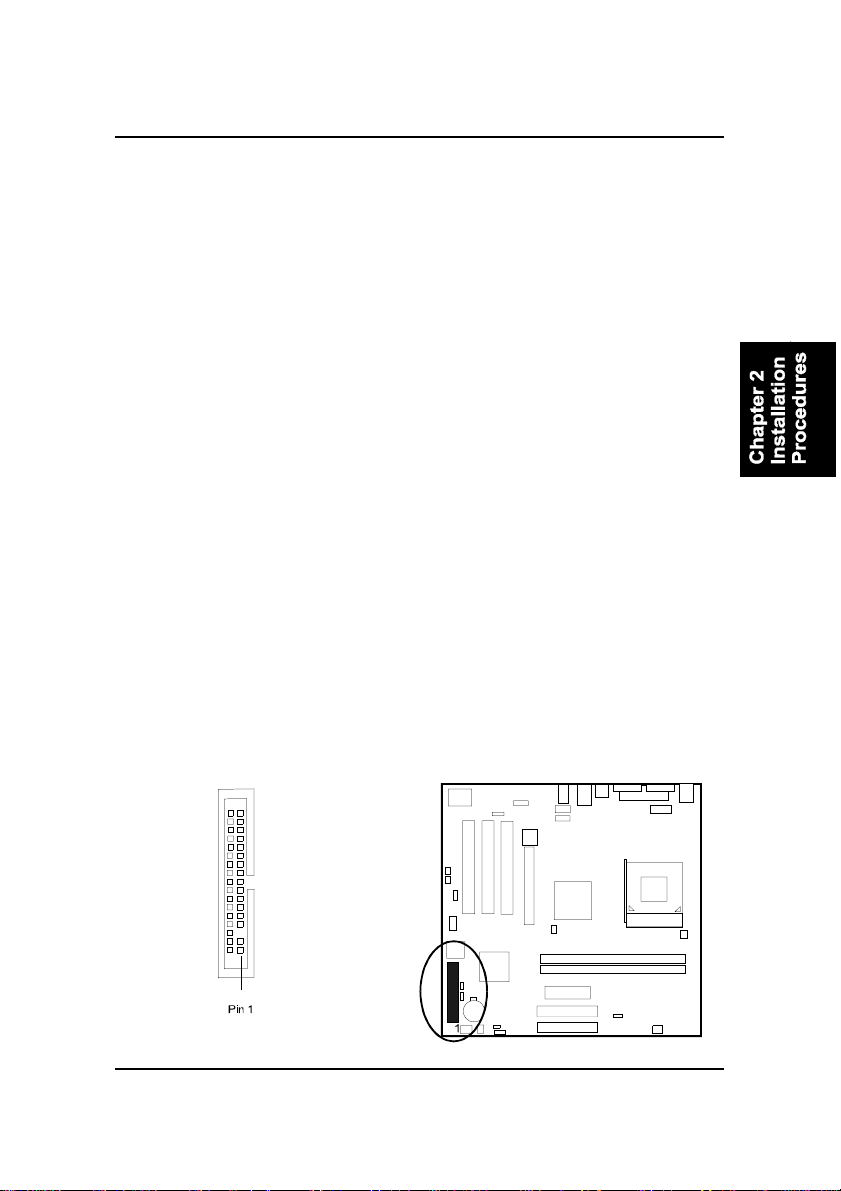

Floppy Diskette Drive Connector ...................................... 2- 9

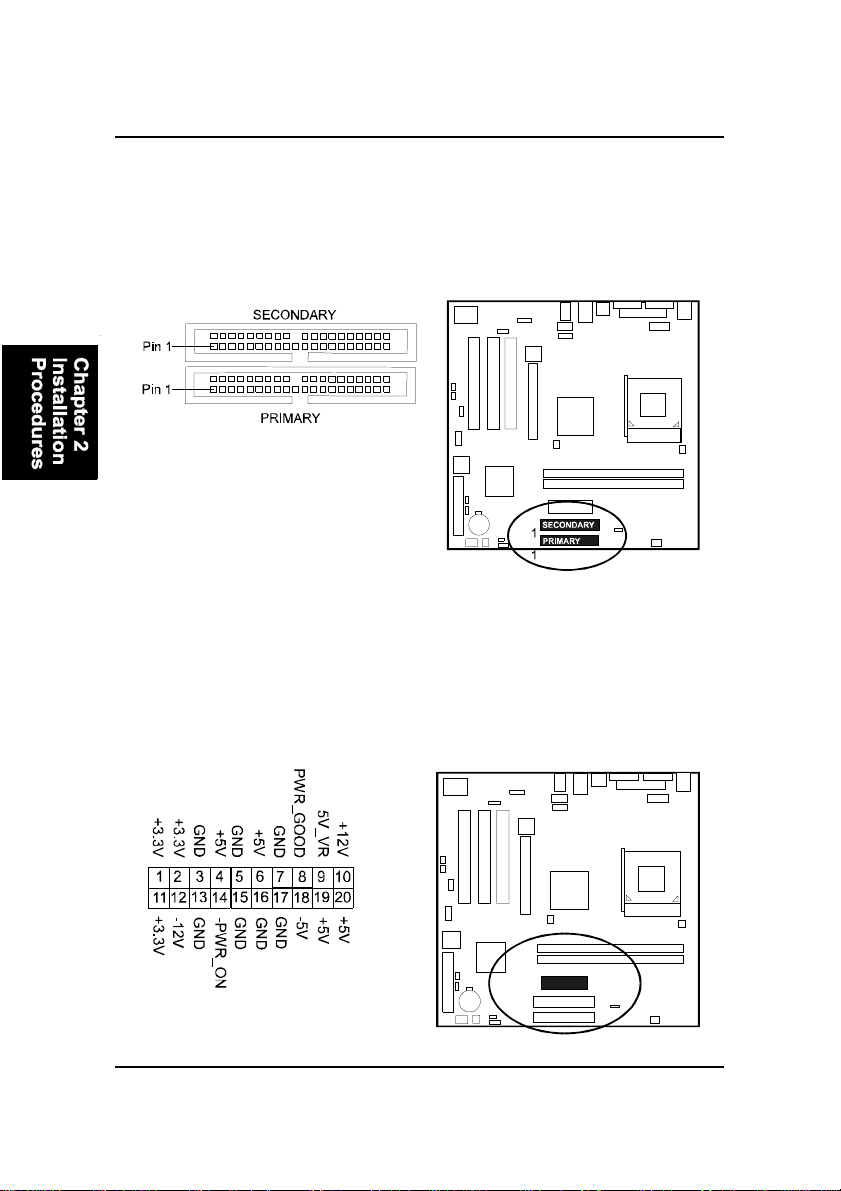

IDE Device Connectors ..................................................... 2-10
ATX Power Connectors .................................................... 2-10

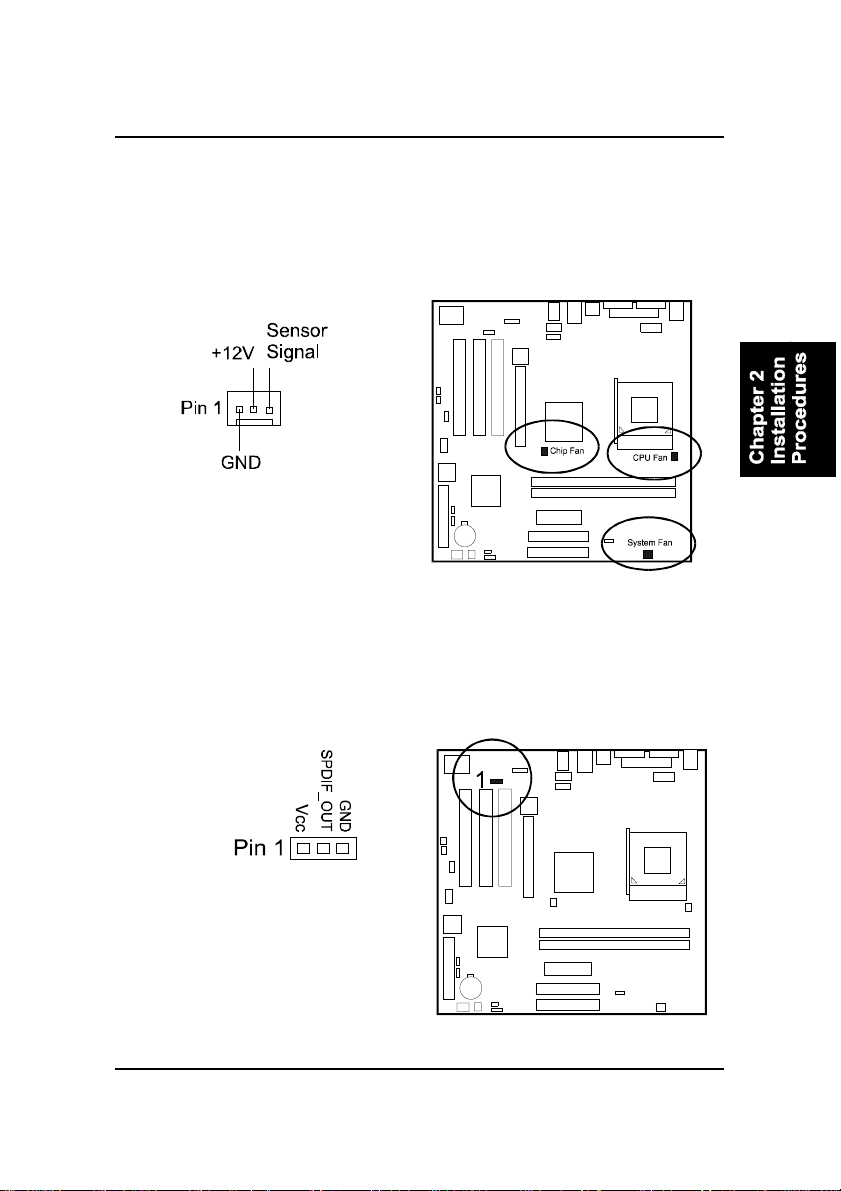

Fan Connectors................................................................. 2-11
SPDIF_OUT Connector .................................................... 2-11

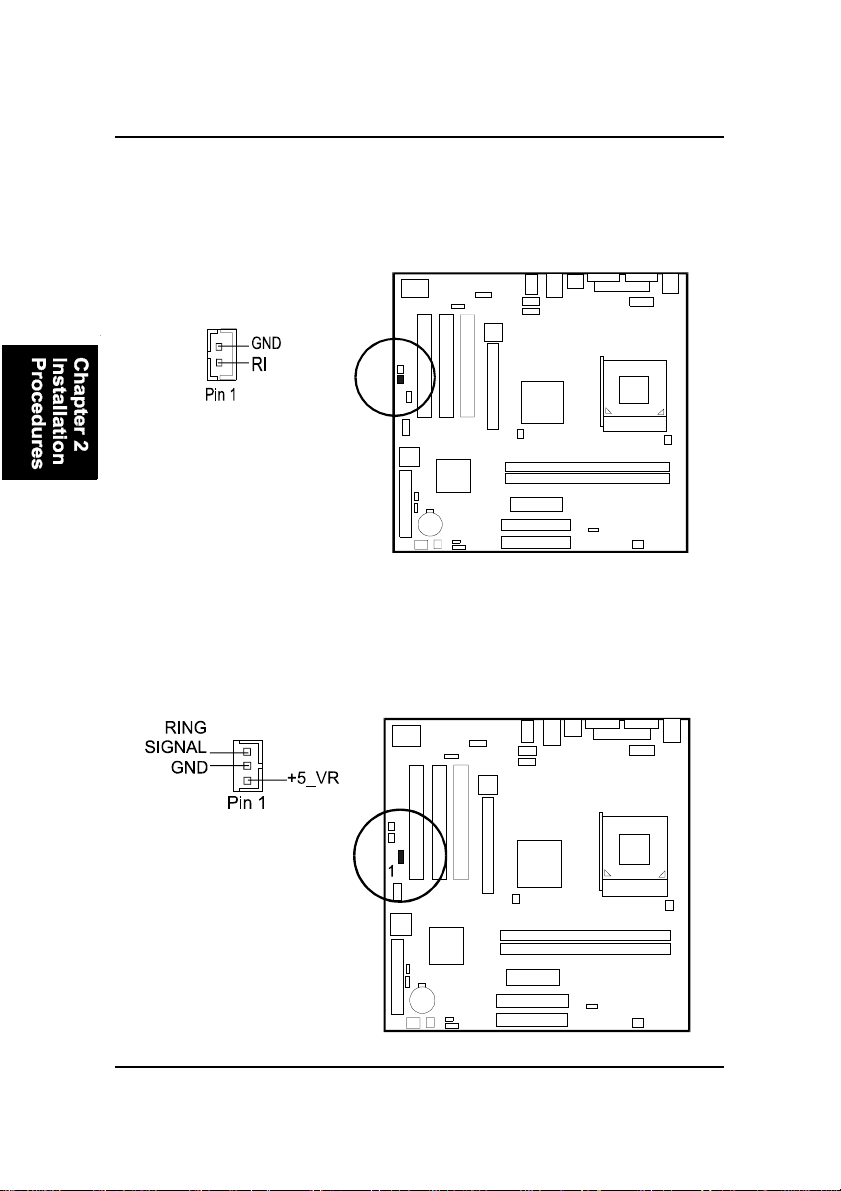

Wake-On-Ring Connector................................................. 2-12
i
Page 4
AM37S Mainboard Manual
Wake-On-Lan Connector................................................... 2-12

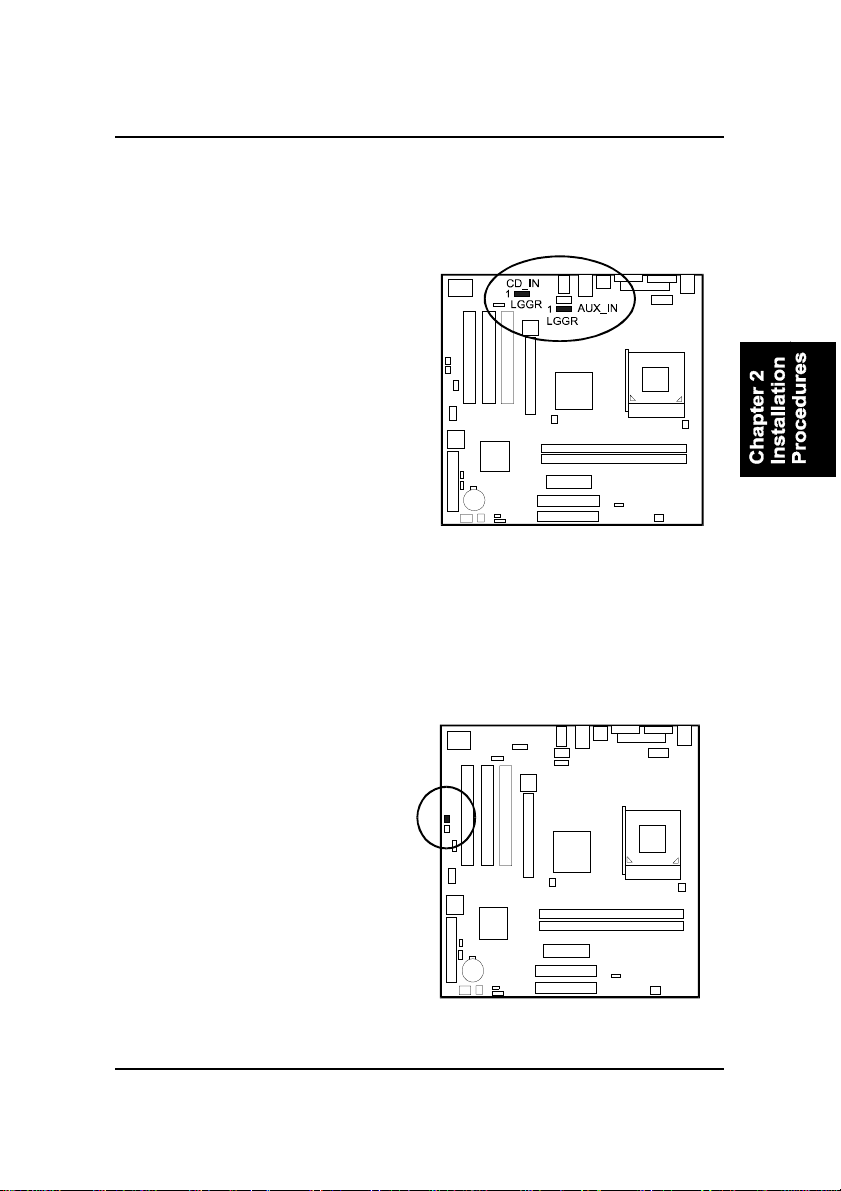

CD Audio-In Connectors................................................... 2-13
SIRQ Connector ................................................................ 2-13

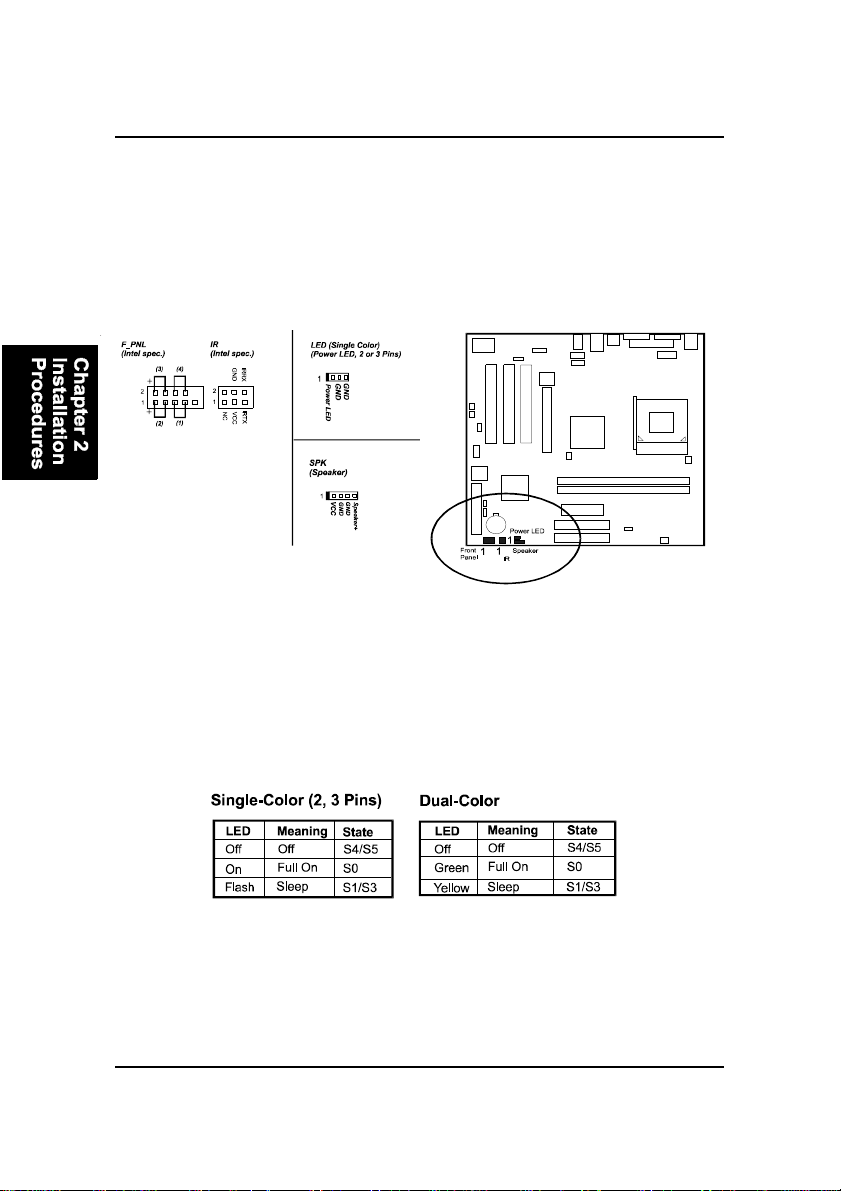

Front Pa nel Block a nd IR Connector.................................. 2-14

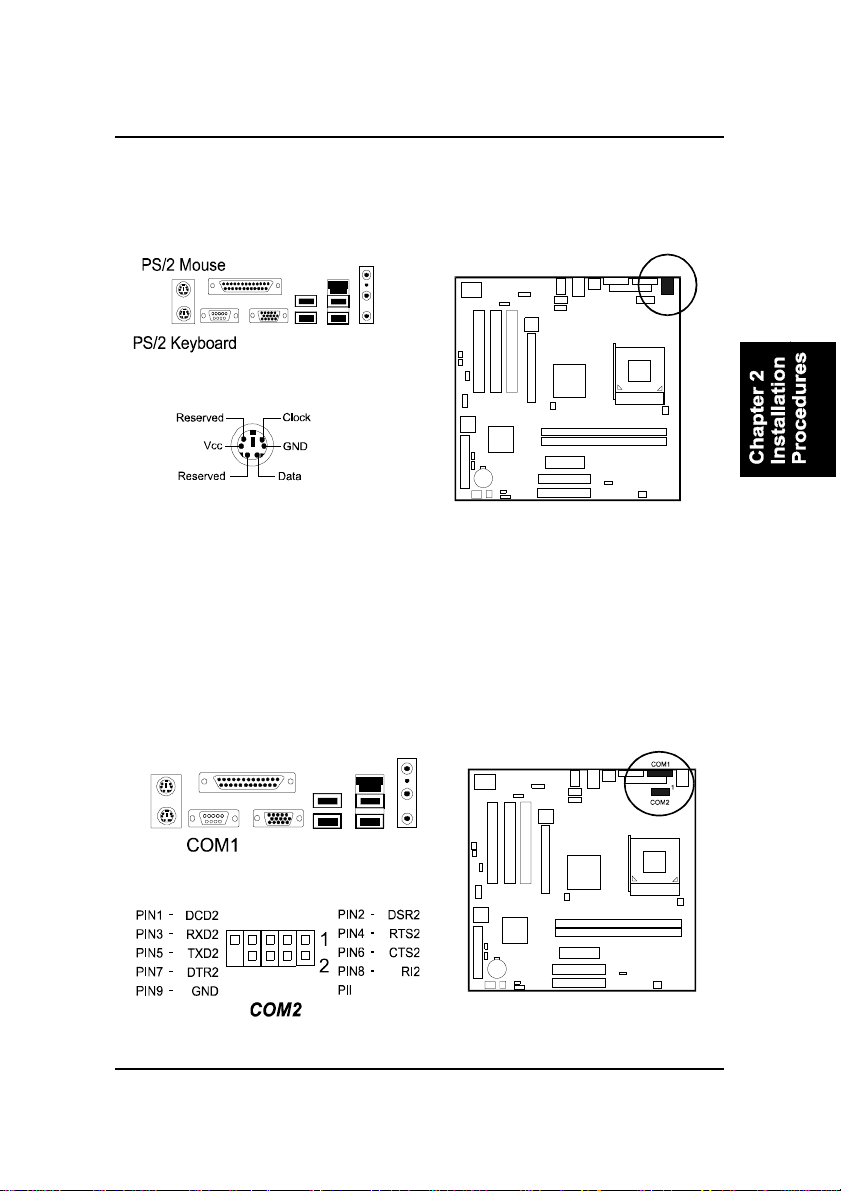

PS/2 Keyboard and Mouse Connector.............................. 2-15
Serial Port Connectors....................................................... 2-15

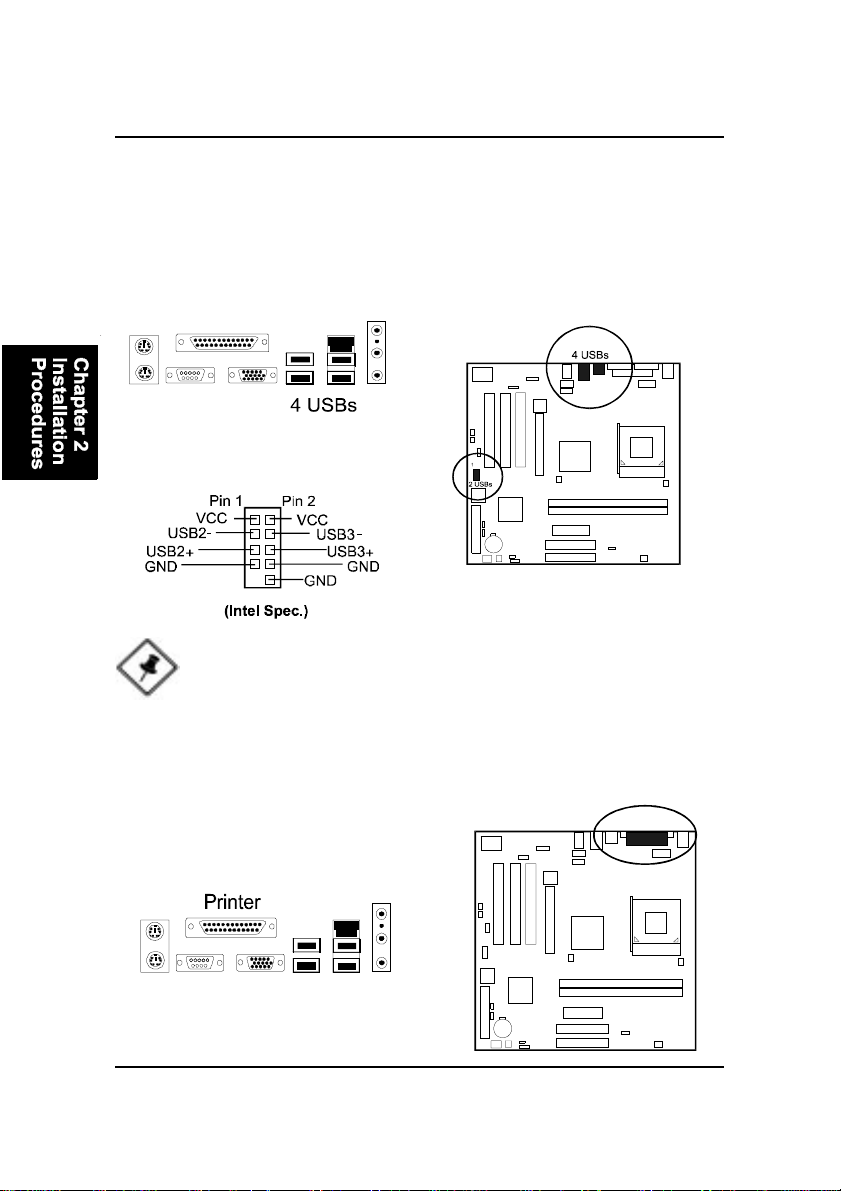

Universal Serial Bus Connectors....................................... 2-16
Printer Connector .............................................................. 2-16

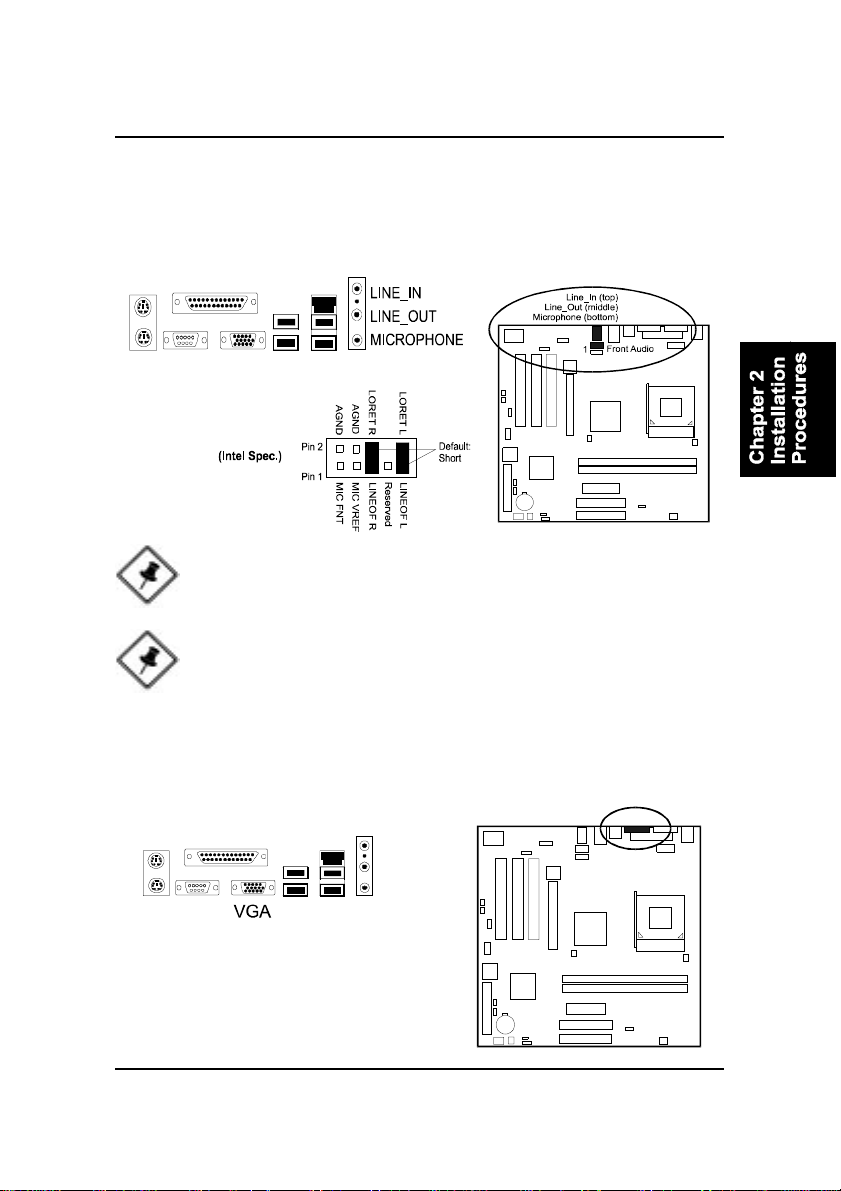

Audio I/O Jacks ................................................................ 2-17
Video Gra phics Accelerator Connector.............................. 2-17

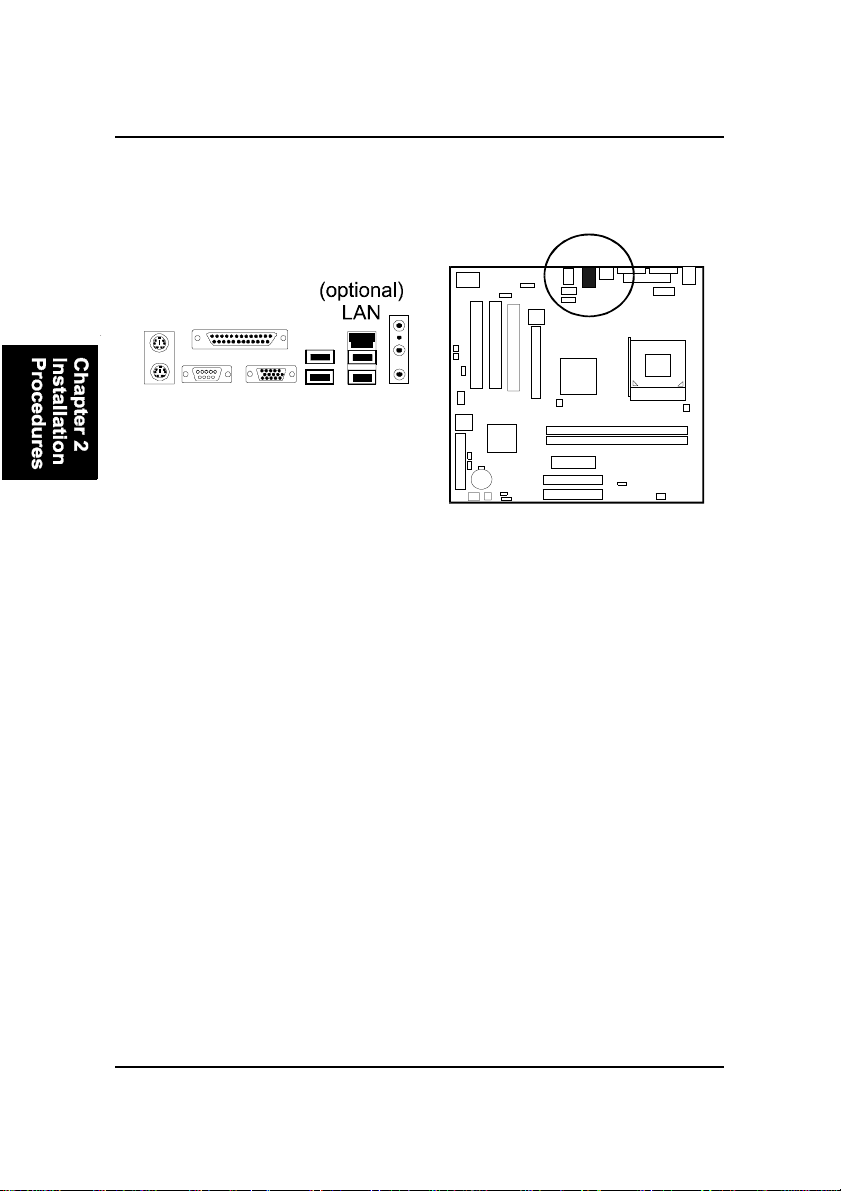

LAN Connector (optional) ................................................ 2-18
Chapter 3 BIOS Setup
CMOS Setup Utility ....................................................................... 3-1

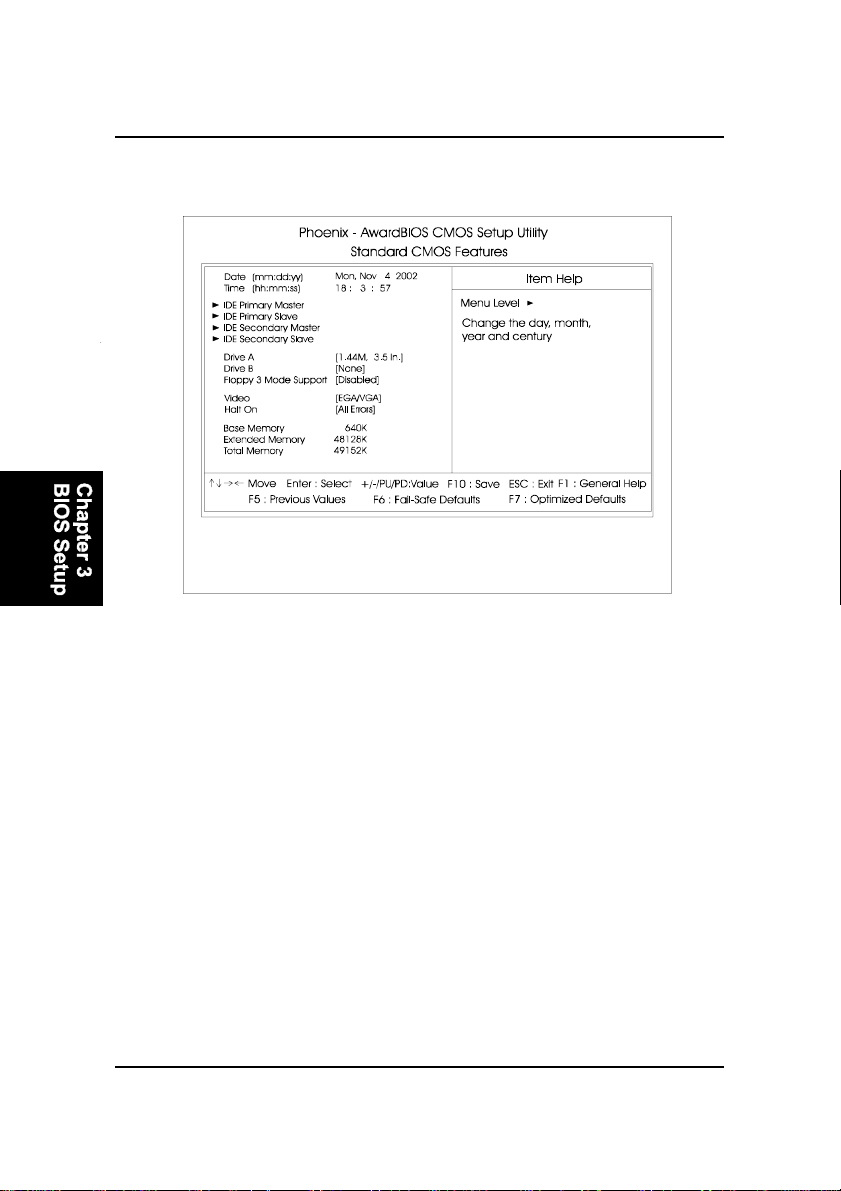

Sta ndard CMOS Setup................................................................... 3 - 2

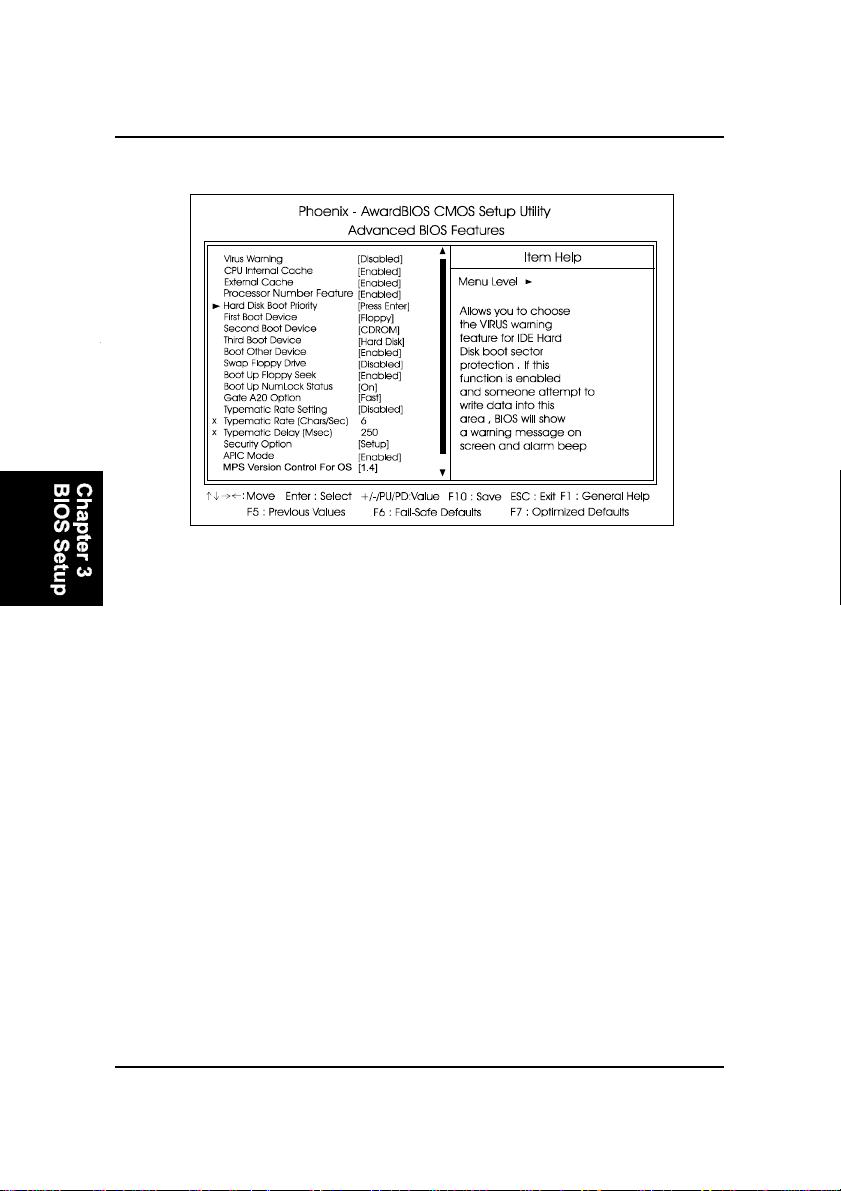

Adva nced BIOS Features .............................................................. 3-4
Advanced Chipset Features .......................................................... 3-8
Integrated Peripherals.................................................................... 3-11

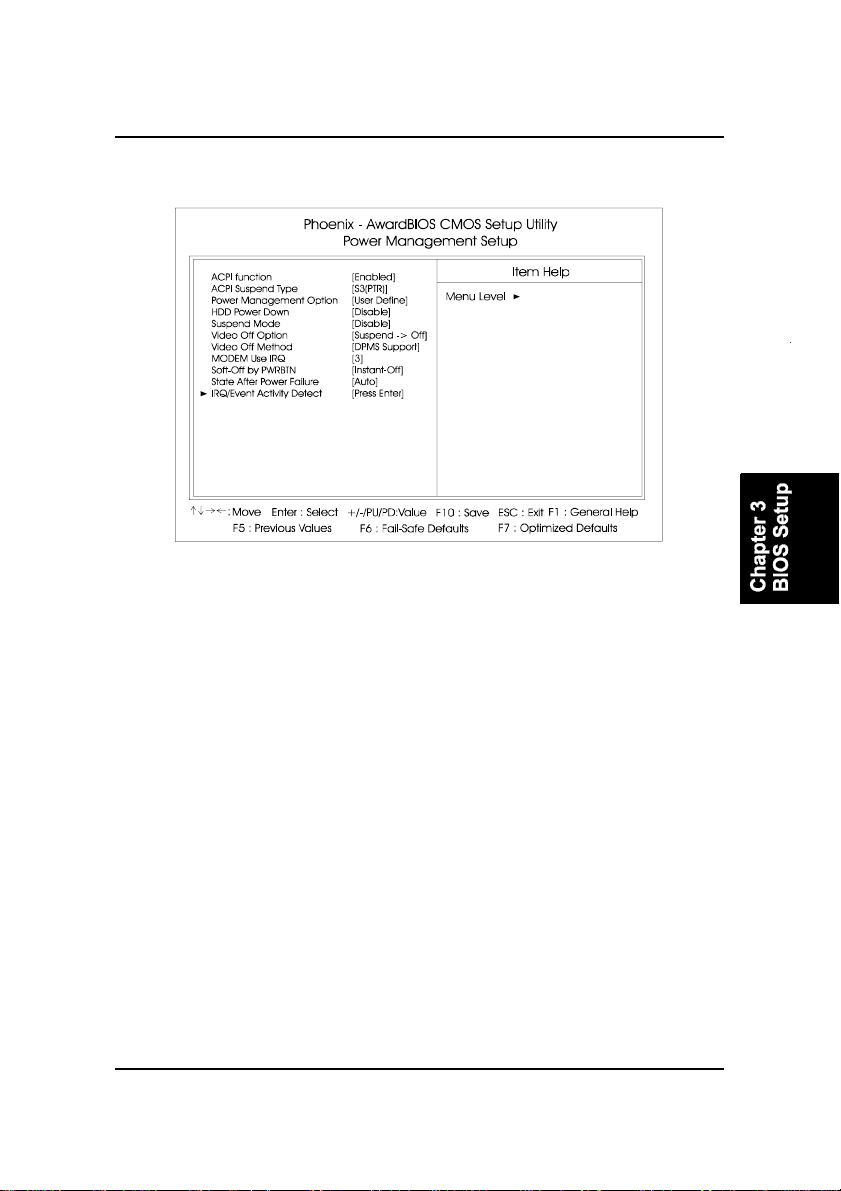

Power Management Setup ............................................................. 3-15
PnP/PCI Configurations................................................................. 3-19

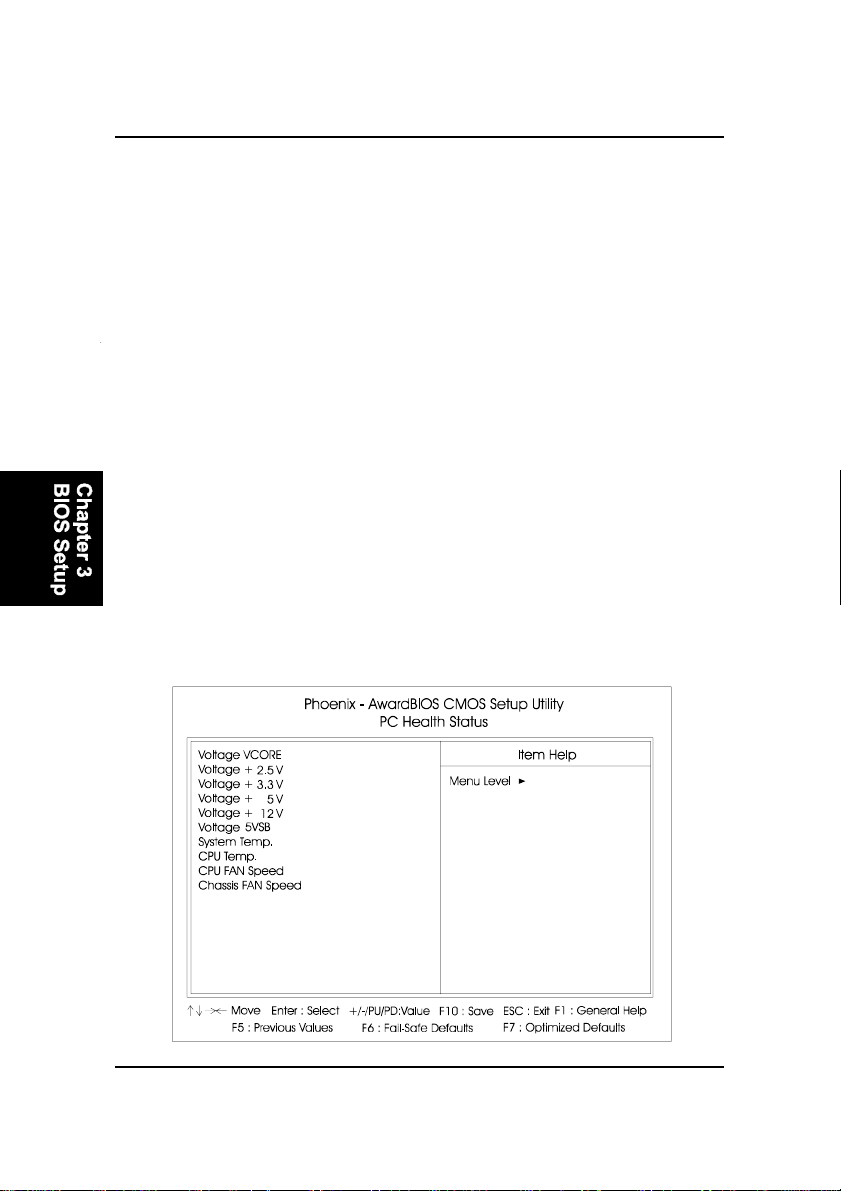

PC Health Status ............................................................................ 3-20
Frequency/Voltage Control ............................................................ 3-21
Load Fail-Saf e Defaults .................................................................. 3-22
Load Opti mized Defaults ................................................................ 3-22
Supervisor/User Password ............................................................ 3-22
Save a nd Exit Setup........................................................................ 3-22
Exit without Saving ........................................................................ 3-22
ii
Page 5
Overview
Chapter 1
Overview
The new 1stMainboard® AM37S is an Micro ATX sized motherboard sup-
porting the latest generation of AMD® processors at industry lea ding speeds.
By utilizing DDR ( Double Data Rate ) transfer rate the 100/133 MHz system
bus effectively reaches Front Side Bus speeds of 200/266 MHz. The board
provides users with a n ATA133 data transaction for hard drives a nd allows up
to 2 GB me mory totally by 2 PC100/133 SDRAM DIMM sockets.
The AM37S is based around the high performance KM266 core chip with
VIA VT8235 as a South Bridge. The video functions supported by KM266
provides you with a photo-realistic 3D experience suita ble for the most robust
3D ga mes a nd software environments. AC97 Codec that embedded in VT8235,
ensures high quality video and audio effect. The mainboard f eatures onboard
audio with either 2-cha nnel or 5.1-cha nnel.
The mainboard also comes equipped with the new NOVUS® ra nge of innova-
tive features that assist in the installation and maintenance. The features include Easy Key, which provides instant keyboard access to the BIOS for
adjustments to Clock and Default settings and the BIOS Guardian is an Anti
Virus utility that prevents viruse s from da maging your syste m BIOS and rendering your system inoperative.
Expansion is provided by 1 AGP 4X and 3 PCI slots. In addition, the
1stMainboard is equipped standard I/O connections include 2 serial ports (1
by pinheader), 1 parallel port, 1 VGA port, 1 PS/2 mouse and keyboard connector, 6 USB 2.0 ports (2 ports by one pinheader), 1 IR port by pinhea der, a nd 1
media connector (Line-In, Line-Out, Mic-In, 1 front audio).
1 - 1
Page 6
AM37S Mainboard Manual
Package Checklist
If you discover any item below was damaged or lost, please contact your
vendor.
The mainboard This user manual
One F DD cable CD software
One ATA100 cable I/O shielding
IMPORTANT: AMD CPU HEA T SINK INST ALLATION
Be ware finish heat sink install. Before you boot system, please
check the heat sink is complete contact with die of CPU.
The poor contact will bring about over heat, it may damage your
processor.
It is strongly recommended that at lea st a 250-watt A TX power pupply
be used for this motherboard. Make sure that your ATX power supply can supply at least 20 a mperes on teh +5-Volt lead a nd 10mA on
the +5-Volt standby lead (+5VSB). Your system may become unstable / unreliable and may experience difficulty in powering up if
your power supply is inadequate.
1 - 2
NOTE: Software driver/utility CD that contains patch files, onboard
video/audio chip drivers, related online help and other useful information can be found in your mainboard package.
Please install it right after your Windows operating system installation is done. Place the CD in the drive, an operating menu will ap-
pears in your monitor. Please select Auto Installation. It will automatically detect which software tools (patch files, drivers) that the
mainboard needs. Press OK button to go through the whole installation procedure in a very straight forward and easy way. It also
provides you with a custom way to select wanted patch files and
software drivers that for onboard chips use. The top menu of the
CD lists all the functions that allowed by this board.
Page 7

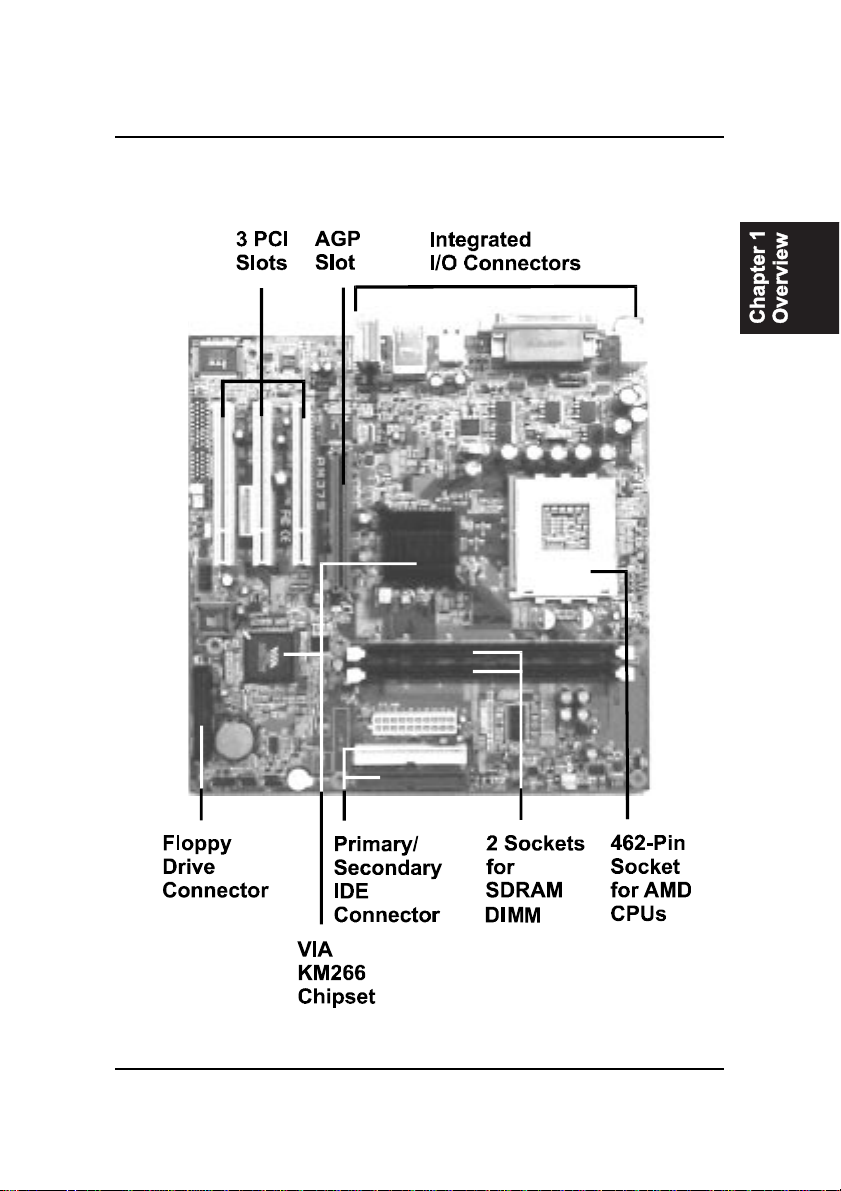

The AM37S Mainboard
Overview
1 - 3
Page 8
AM37S Mainboard Manual
Main Features
Easy Installation
||BIOS with support for Plug and Play , auto detection of IDE hard drives,
||LS-120|drives, IDE ZIP drives, Windows 98SE, W indows ME, W indows
||NT , W indows 2000, Windows XP , a nd OS/2.
Lea ding Edge Chipset
VIA KM266 is a single-chip North Bridge for AMD CPUs with 200/266
MHz Front Side Bus with AGP and PCI plus advanced memory controller
that supports DD R266/200 SDRAM. VIA VT8235 is a V-Link client highly
integrated controller that supports PC99-compliant system. The VT8235
also supports AT A100/133 protocol.
Advanced High Performa nce Memory Controller
Accepts up to 1GB D RAM using two DIMMs of 32, 64, 128, 256, 512MB
with support for lightenning-fast PC100/133 SD RAM.
AMD Processors Support
Athlon XP: 1500+ to 2600+* a nd up* at 266 MHz FSB;
Athlon: 900 MHz to 1.4 GHz a nd up*at 200 MHz FSB;
1.0 GHz to 1.4 GHz at 266 MHz FSB;
Duron: 900 MHz to 1.3 GHz a nd up* at 200 MHz FSB
(*: not tested yet)
Enhanced PCI Bus Master IDE Controller with UltraDMA/33/66/100/
133 Support
Integrated Enhanced PCI Bus Master IDE controller features two dualchannel connectors that up to four Enhanced IDE devices, including CDROM and Tape Backup Drives, as well as Hard Disk Drives supporting
the new UltraDMA/133 Mode 6 protocol, standard PIO Mode 3, PIO
Mode 4, DMA Mode 2, DMA Mode 4, UltraDMA/100 Mode 5 devices
are also supported.
1 - 4
Page 9
Overview
AGP a nd PCI Expa nsion Slots
One AGP Bus and three PCI Bus expansion slots provided the room to
install a full ra nge of a dd-on cards.
Compact Onboard Audio Subsystem
Embeded in VIA VT82335, a n integrated high bandwidth V-Link client
controller, direct sound AC97 audio subsystem. UltraDMA ma ster mode
EIDE controller, USB controller, ACPI enha nced power ma nage ment, a nd
PC99 compliant. The onboard AC97 Codec chip has two options: e ither
supports 2-channel or 5.1-channel audio feature. If the latter one onbaord,
the Microphone/Line_In/Line_Out can be used as audio output.
Super Multi Input/Output (I/O) Support
Integrated Plug a nd Play multi-I/O chipset feature s two high-speed UART
16550 compatible serial ports, one EPP/ECP capa ble parallel port, one IR
port, a nd one FDD connector.
Convenient Rear Panel USB Connection Support
Four USB 2.0 ports integrated in the rear I/O pa nel a nd two extra USB 2.0
ports for either front or rear panel connection allow convenient and highspeed Plug and Play connections to the growing number of USB 2.0
complia nt peri pheral devices on the market.
Onboard Accelerated Graphics Port (AGP)
The motherboard is installed one 32-bit AGP 4X bus with a dedicated
66MHz/133MHz path from the graphics card to the system memory offering much greater ba ndwidth tha n the 32-bit PCI bus does. AGP ena bled 3D
graphics cards can directly access main memory across this fast path
instead of using local me mory .
LAN Support (optional)
Onboard optional LAN controller with one optional LAN jack integrated
with other rear panel I/O connectors pvovides users with a convenient
connection with network environment.
1 - 5
Page 10
AM37S Mainboard Manual
FIC Unique Innovation for Users (NOVUS) -
Enhanced Mainboard Features and System Support
BIOS Guardi an
BIOS Guardian effectively acts as a fire-wall against viruses that can attack the BIOS while the system is running and by default is enabled.
WAR NING:
BIOS Guardi an must be disa bled before refla sh BIOS.
NOTE:
Please read Page 3-7 for detail information.
Easy Key
Instea d of completing the multi-layered BIOS setup process these 3 Ea sy
Key functions provide direct access to Sub-Menu when completing BIOS
settings adjustments.
Easy-Keys are as follows:
Ctrl + c: T o enter clock settings menu.
Ctrl + p: To load Performance Default settings and re start.
Ctrl + f: T o load Fail-Safe Default settings and restart.
1 - 6
Page 11
Installation Procedures
Chapter 2
Installation Procedures
The mainboard has several user-adjustable jumpers on the board that allow you to
configure your system to suit your requirements. This chapter contains information
on the various jumper settings on your mainboard.
To set up your computer, you must complete the following steps:
Step 1 - Set system jumpers
Step 2 - Install memory modules
Step 3 - Install the Central Processing Unit (CPU)
Step 4 - Install expansion cards
Step 5 - Connect ribbon cables, cabinet wires, and power supply
Step 6 - Set up BIOS software
Step 7 - Install supporting software tools
WARNING: Excessive torque may damage the mainboard. When
using an electric screwdriver on the mainboard, make sure that
the torque is set to the allowable range of 5.0 ~ 8.0kg/cm.
Mainboard components contain very delicate Integrated Circuit
(IC) chips. To prevent static electricity from harming any of the
sensitive components, you should follow the following precautions whenever working on the computer:
1. Unplug the computer when working on the inside.
2. Hold components by the edges and try not to touch the IC
||||chips, leads, or circuitry.
3. Wear an anti-static wrist strap which fits around the wrist.
4. Place components on a grounded anti-static pad or on the bag
that came with the component whenever the components are
separated from the system.
2 - 1
Page 12
AM37S Mainboard Manual
Quick Reference (from Page 2-2 to 2-4)
Mainboard Layout
* When link to Line_Out ja ck, please use a speaker that with amplifier .
2 - 2
Page 13
Installation Procedures
1). Clear CMOS, Clear Password,
FSB Speed Select
2). Front Panel Block Cable Connection
2 - 3
Page 14
AM37S Mainboard Manual
3). CPU Fan Installation
CAUTION:
1. The heatsink and fan you installed must be approved by AMD.
2. The mainboard must be placed on a solid place to avoid shaking
|||||while install the heatsink and fan on the board.
3. The heatsink must be contact with the CPU top tightly.
4. Never run the processor without the heatsink properly and firmly
attached. PERMANENT DAMAGE WILL RESULT!
Without suf ficient air circulation, the CPU may overheat resulting in da mage
to both the CPU and the mainboard.
Damage may occur to the mainboard and/or the CPU fan if these pins are
used incorrectly. These are not jumpers, do not place jumper caps over these
pins.
1). Set System Jumpers
NOTE: Users are not encouraged to change the jumper settings
not listed in this manual. Changing the jumper settings improperly
may adversely affect system performance.
Clear CMOS: CLR_CMOS
(1) Turn off your computer
(2) Place the jumper cap onto the pinpair 2-3 at least 6 seconds to clear CMOS
(3) Place the jumper ca p onto the pinpair 1-2 to Normal
(4) Turn on your computer until CMOS checksum error appears
(5) Hold down the Delete key when boots
(6) Enter the BIOS Setup to re-enter user preferences, save it a nd exit.
2 - 4
Page 15
Installation Procedures
Clear Password: CLR_PWD
(1). Turn off your computer
(2). Short this jumper by placing a jumper cap on it
(3). Turn on your computer
(4). Hold down the Delete key during boot and enter BIOS Setup
to clear password
(5). Save the password setting and exit
(5). Turn off your computer
(6). Remove the jumper cap
(7). Turn on your computer for the new password to take effect.
2 - 5
Page 16
AM37S Mainboard Manual
FSB Frequency Select: FSB
This jumper allows you to select the front side bus frequency of the board.
2). Install Memory Modules
1. Locate the DIMM slots on the mainboard.
2. Install the DIMM straight down into the DIMM slot using both hands.
3. The clip on both ends of the DIMM slot will close up to hold the DIMM
in place when the DIMM reaches the slot bottom.
2 - 6
Page 17
Installation Procedures
Press the clips with both hands to remove the memory module.
3). Install the CPU
The AMD CPU module resides in the socket on the board. Please follow the
steps introduced below to complete the CPU installation.
CAUTION:
1. The heat sink and fan you installed must be approved by AMD.
2. The mainboard must be placed on a solid place to avoid shaking
|||||while install the heat sink and fan on the board.
3. The heat sink must be contact with the CPU top tightly.
4. Never run the processor without the heat sink properly and firmly
attached. PERMANENT DAMAGE WILL RESULT!
2 - 7
Page 18
AM37S Mainboard Manual
T o install the CPU, do the following:
1 . Lift the lever on the side of the CPU socket.
2. Handle the chip by its edges and try not to touch any of the pins.
3 . Place the CPU in the socket. The chip has two notches to correctly locate
the chip. Align two notches of the processor with the two triangular
marks on the socket. Do not force the chip. The CPU should slide easily
into the socket.
4 . Swing the lever to the down position to lock the CPU in place.
5 . Install the cooling fan with heat sink on top of the installed CPU.
6 . Place the mainboard (with the CPU, its cooling fan, and heat sink) into the
system chassis and affix it with screws.
4). Install Expansion Cards
This section describes how to connect an expansion card to one of your
system expansion slots. Expansion cards are printed circuit boards that, when
connected to the mainboard, increase the capabilities of your system. For
example, expansion cards can provide video and sound capabilities. The
mainboard features one AGP 4X and three PCI bus expansion slots.
2 - 8
CAUTION: Make sure to unplug the power supply when adding or
removing expansion cards or other system components. Failure to
do so may cause severe damage to both the mainboard and
expansioncards.
Always observe static electricity precautions.
Please read Handling Precautions at the start of this manual.
Page 19
Installation Procedures
T o install an expansion card, follow the steps below:
1. Remove the chassis cover and select an empty expansion slot.
2. Remove the corresponding slot cover from the computer chassis.
Unscrew the mounting screw that secures the slot cover and pull
the slot cover out from the computer chassis. Keep the slot cover
mounting screw nearby.
3 . Holding the edge of the peripheral card, carefully align the edge
connector with the expansion slot.
4. Push the card firmly into the slot. Push down on one end of the
expa nsion card, then the other . Use this rocking motion until the addon card is firmly seated inside the expansion slot.
5. Secure the board with the mounting screw removed in Step 2. Make
sure that the card has been placed evenly and completely into the
expansion slot.
6. Replace the computer system cover.
7 . Setup the BIOS if necessary.
8. Install the necessary software drivers for the expansion card.
5). Connect Devices
Floppy Diskette Drive Connector
This connector provides the connection with your floppy disk drive.
The red stripe of the ribbon cable must be the same side with the Pin 1.
2 - 9
Page 20
AM37S Mainboard Manual
IDE Device Connectors
The two connectors, PRIMARY a nd SECONDAR Y , are used f or your IDE hard
disk drives, CD drives, LS-120|drives, or IDE ZIP drives. The red stripe of the
ribbon cable must be the sa me side with the Pin 1.
ATX Power Connector
This 20-pin male block connector is connected to the ATX power supply. The
plug from the power supply will only insert in one orientation because of the
different hole sizes. Find the proper orientation and push down firmly making
sure that the pins are aligned.
2 - 10
Page 21
Installation Procedures
Fan Connectors
The connector, CPU_F AN, is linked to the CPU fa n to lower the CPU te mperature. The CHIP_F AN connector can be used by North Bridge cooling fa n. The
SYS_FAN connector allows you to link with the cooling fan on the system
case to lower the system temperature.
SPDIF_OUT Connector
The mainboard equipped a 1x3 pinhead. It is used for audio output that with
SPDIF spec. .
2 - 11
Page 22
AM37S Mainboard Manual
Wake-On-Ring Connector
The 2-pin connector allows you to link with your modem card which outputs
a WOR singal; the system can be turned on from the power-off status by a
remote phone call via the modem card.
Wake-On-Lan Connector
This 3-pin connector allows the remove servers to manage the system that
installed this mainboard via your network adapter which also supports WOL.
2 - 12
Page 23
Installation Procedures
CD Audio-In Connectors
The CD_IN connector is used as a port for audio input from CD drive. The
AUX_IN privided users with one extra audio input port from CD drive.
SIRQ Connector
The 2-pin connector provides with a connection for some add-on cards that
require a serial IRQ linkage to the mainboard for the system operation use.
2 - 13
Page 24
AM37S Mainboard Manual
Front Panel Block and IR Connector
This block connector includes the connectors for linking with Power LED (2
pins a nd 3 pins), HDD LED, power/sleep button, power/sleep LED, reset button on the front panel of the system case. Please identify polarities of plug
wires for the case speaker and LEDs. Please ask vendor about this inf ormation
when you buy them and install the system by yourself. The plug wires polarities of these buttons will not affect the function.
(1) Reset Switch is connected to the reset button. Push this switch to reboot
the system instead of turning the power button off and on.
(2) HDD LED is connected to the IDE device indicator. This LED will blink
when the hard disk drives are activated.
(3) Power /Sleep LED (2-Pin/3-Pin)
Please refer to the tables below for the representations of LED states.
(4) Power Button is connected with power button. Push this switch allows the
system to be turned on and off rather than using the power supply button.
IR is a pinheader that is used f or linking with your ID device to allow transmission of data to another system that also supports the IR feature.
Speaker is a pinheader f or connecting to speaker.
2 - 14
Page 25
Installation Procedures
PS/2 Keyboard and Mouse Connector
These two 6-pin female (PS/2 keyboard is purple color a nd PS/2 mouse is green
color) connectors are used for your PS/2 keyboard and PS/2 mouse.
Serial Port Connectors
COM1 (9-pin D-sub male connector with teal color) and COM2 (9-pin male
connector) allow you to connect with your devices that use serial ports, such
as a serial mouse or an external modem.
2 - 15
Page 26
AM37S Mainboard Manual
Universal Serial Bus Connectors
These four USB black jacks integrated on the edge of the board are used for
linking with USB 2.0 peripheral devices. This board also provides one USB
pinheader (two extra USB 2.0 ports) f or either linking with some system ca ses.
Please note that your operating system must support USB features.
The figure below is the pin assignment
of the USB4/5 pinheader .
NOTE: The CD in the board package supports Windows XP/2000.
For a user who installs Windows 98/ME, please go to VIA site to
download the latest USB 2.0 driver.)
Printer Connector
This 25-pin D-Sub female burgundy-colored connector is attached to your
printer.
2 - 16
Page 27
Installation Procedures
Audio I/O Jacks
LINE_IN (light blue) allows tape players or other audio sources to be recorded
by your computer or played through the LINE_OUT. LINE_OUT (lime) ca n be
connected to headphones or preferably powered speakers. MIC_IN (pink)
allows microphones to be connected for audio input.
The front audio pin definitions are
shown below:
NOTE: When the front headphone is plugged in, the rear audio
output will be disabled. If you do not use the front audio pinheader,
please keep the pinpair 5-6, 9-10 short as default.
NOTE: If your mainboard has 5.1-cha nnel audio option, the LINE_IN,
LINE_OUT, MICROPHONE jacks will be the 5.1-channel audio output.
V ideo Graphics Accelerator Connector
This 15-pin female D-sub blue connector is connected to your display monitor .
2 - 17
Page 28
AM37S Mainboard Manual
LAN Connector (optional)
The optional RJ45 LAN jack is used f or the LAN ca ble plug.
2 - 18
Page 29
BIOS Setup
Chapter 3
BIOS Setup
The mainboard comes with the chip that A ward BIOS that contains the ROM
Setup information of your system. (This chip serves as an interface between
the processor and the rest of the mainboard components.) This section explains the information contained in the Setup program and tells you how to
modify the settings according to your system configuration.
CMOS Setup Utility
The Setup utility program allows updates to the mainboard configuration settings. The BIOS setup values will be saved in the CMOS. It is executed when
the user changes system configuration; user changes system backup battery;
or the system detects a configuration error and asks the user to run the Setup
program. Use the arrow keys to select and press Enter to run the selected
program.
3 - 1
Page 30
AM37S Mainboard Manual
Standard CMOS Setup
The Standard CMOS Setup screen is displayed above. Each item may have
one or more option settings. The system BIOS automatically detects memory
size, thus no changes are necessary . Use the arrow keys to highlight the item
and then use PgUp or PgDn keys to select the value you want in each item.
Date
To set the date, highlight the Date field and then press Page Up/Page
Down or +/- keys to set the current date. Follow the month, day and year
format.
Time
T o set the time, highlight the Time field a nd then press Page Up/Page Down
or +/- keys to set the current time. Follow the hour, minute, and second
format.
3 - 2
Page 31
BIOS Setup
Hard Disks
This field records the specifications for all non-SCSI hard drives installed
in the system. The onboard PCI IDE connectors provide Primary and Secondary channels for connecting up to four IDE hard disks or other IDE
devices. Each channel can support up to two hard disks, the first of which
is the Master and the second is the Slave.
Hard Disk Configurations
Capacity: The hard disk size. The unit is Bytes.
Cylinder: The cylinder number of the hard disk.
Head: The read/write head number of hard disk.
Precomp: The cylinder number at which the disk drive
changes the write current.
Landing Zone: The cylinder number that the disk drive heads
(read/write) are seated when the disk drive is
parked.
Sector: The sector number of each track defined on the
hard disk.
Drive A / Drive B
This field records the types of floppy drives installed in the system. To
enter the configuration value for a particular drive, highlight its corresponding field and then select the drive type using the left- or right-arrow
key.
Floppy 3 Mode Support
This is a Japanese standard floppy type drive. The standard stores 1.2MB
in a 3.5 inch diskette.
Video
Set this field to the type of video display card installed in the system.
Halt On
This field determines which types of errors will cause the system to halt.
3 - 3
Page 32
AM37S Mainboard Manual
Advanced BIOS Features
Virus Warning
This feature will prompt uses a warning message, when any write boot
sector commend executed. The options are: Enabled, Disabled.
CPU Internal Cache
When enabled, improves the system performance. Disable this item when
testing or trouble-shooting. The options are: Enabled, Disabled.
External Cache
When enabled, supports CPU L2 cache. This feature allows you to disable
the cache function when the system performance is unstable to run some
software. The options are: Enabled, Disabled.
Processor Number Feature
If a Pentium III processor is installed on this mainboard, the system BIOS
will allow other utilities to access the Intel Pentium III serial number while
this feature set at Enabled. The options are: Enabled, Disabled.
Hard Disk Boot Priority
This feature will auto detect all hard disks of bootable device on the system. It also allows users to select hard disk device booting priority .
3 - 4
Page 33
BIOS Setup
First/Second/Third Boot Device
This feature allows user to select the boot device priority . The options are:
Floppy , LS120, Hard Disk, CD ROM, ZIP100, USB-FDD, USB-ZIP , USBCDROM, USB-HDD, LAN, Disabled.
Boot Other Device
This feature allows user to select the boot device priority.
The options are: Enabled, Disabled.
Swap Floppy Drive
Allows you to switch the order in which the operating system accesses
the floppy drives.
The options are: Enabled, Disabled.
Boot Up Floppy Seek
When enabled, assigns the BIOS to perform floppy diskette drive tests by
issuing the time-consuming seek commands.
The options are: Enabled, Disabled.
Boot Up Numlock Status
When set to On, allows the BIOS to automatically enable the Num Lock
Function when the system boots up. The options are: On, Off.
Gate A20 Option
When set at Fast, allows a faster access response of address Line No. 20.
The options are: Fast, Normal.
Typematic Rate Setting
The term typematic means that when a keyboard key is held down, the
character is repeatedly entered until the key is released.
The options are: Disabled, Enabled.
Type matic Rate (Chars/Sec)
This feature is available only if the a bove item , Typematic Rate Setting, is
set at Enabled. Sets the rate of a character repeat when the key is held
down. The options are: 6, 8, 10, 12, 15, 20, 24, 30.
3 - 5
Page 34
AM37S Mainboard Manual
Type matic Delay (Msec)
This feature is available only if the item, Typematic Rate Setting, is set at
Enabled. Sets the delay time before a character is repeated.
The options are: 250, 500, 750, 1000 millisecond.
Security Option
Allows to set the security level of the system.The options: Setup, System.
APIC Mode
Allows you to decide if the system enters the APIC (Advanced Programmable Interrupt Controller) mode or not for more IRQs can be released.
The options are: Enabled, Disabled.
MPS V ersion Control For OS
When two CPUs onboard (not this board) this feature allows you to select
MPS (Multi-Processor Spec.) version control for OS when logo test executes. The options are: 1.1, 1.4.
OS Select For DRAM > 64MB
If your operating system (OS) is OS/2, select the option OS2. Otherwise,
stay with the default setting Non-OS2.The options are: Non-OS2, OS2.
HDD S.M.A.R.T. Ca pa bility
S.M.A.R.T. stands for Self-Monitoring and Analysis Reporting Technology which allows your hard disk drive to report any read/write errors and
issues a warning with LDCM installed. The options: Disabled, Enabled.
Report No FDD For WIN 95
When the field under the Standard CMOS Setup Menu for Drive A and/or
Drive B is set at None, users must set this field is set at Y e s for it to function
properly. Otherwise, set at No, even if field f or Drive A a nd/or Drive B is set
at None, system will still detect and recognize of a floppy drive(s).
The options are: Yes, No.
Video BIOS Shadow
Enabling this feature will copy the video BIOS to shadow RAM, it will
improve the system performance.
The options are: Enabled, Disabled.
3 - 6
Page 35
BIOS Setup
BIOS Guardian
It allows the system to prevent computer viruses. Users will need to disable it to update BIOS. The options are: Enabled, Disabled.
NOTE: Please disable this BIOS feature about BIOS Guardian
before you start to reflash BIOS.
BIOS Guardian and Reflash BIOS
BIOS Guardian by default is enabled, thus effectively acts as a firewall against viruses that can attack the BIOS while the system is
running. It must be disabled before reflash BIOS.
The steps below show you how to off and on BIOS Guardian when
reflash BIOS:
1. Press Del key while booting. Go to CMOS Setup Utility menu.
2. Go to Advanced BIOS Features submenu.
3. Set the feature BIOS Guardian at Disabled.
4. Save the setting and exit. The system restarts.
5. POST screen holds. A message about BIOS Guardian shows.
6. Press Space bar.
7. Reflash BIOS. Restart the system after complete it.
8. POST screen holds. A message about BIOS Guardian shows.
9. Press G key . The f eature BIOS Guardian will be enabled again.
3 - 7
Page 36
AM37S Mainboard Manual
Advanced Chipset Features
DRAM Clock/Drive Control
Current FSB Frequency , Current D RAM Frequency
This item allows you to get current FSB and DRAM frequencies.
DRAM Clock
The feature allows users to select the DRAM clock.
The options are: 100 MHz, 133 MHz, By SPD.
DRAM Timing
This feature allows user to select the way to set DRAM timing.
The options are: By SPD, Manual.
DRAM CAS Latency
If the CAS latency of your installed memory medule is 2 Cycle, The selection 2 will enhance system performance. The options are: 3, 2.
Bank Interleave
This item allows users to select the bank interleave function of DRAM,
when the feature DRAM Timing By SPD set at Disabled.
The options are: Disabled, 2 Bank, 4 Bank.
3 - 8
Page 37
BIOS Setup
Precharge to Active (Trp)
This item allows users to set the clock time from Precharge to Active
comma nd. The options are: 2T, 3T
Active to Precharge (Tras)
This item allows users to set the clock time from Active to Precharge
comma nd. The options are: 5T, 6T
Active to CMD (Trcd)
This item allows users to set the clock time from Active to Read/Write
Delay comma nd. The options are: 2T, 3T
DRAM Burst Length
This item allows users to set DRAM burst length.
The options are: 4, 8.
DRAM Queue Depth
This item allows users to set DRAM queue depth.
The options are: 2 level, 4 level, 3 level.
DRAM Command Rate
This item allows users to set Address Time After command.
The options are: 2T Command, l T Command.
AGP & P2P Bridge Control
AGP Aperture Size
It allows you to select the main memory frame size for AGP use.
The options are: 256M, 128M, 64M, 32M, 16M, 8M, 4M.
AGP Mode
This feature allows users to select the AGP mode when an AGP add-on
card installed. The options are: 4X, 2X, 1X.
AGP Driving Control / AGP Driving V alue
These two features allow user to improve the performance of AGP card
manually by pressing Page Down/Page UP key if necessary.
The options of AGP Driving Control are: Auto, Manual.
3 - 9
Page 38
AM37S Mainboard Manual
AGP Fast Write
This feature allows you to set AGP fast write mode.
The options are: Disabled, Enabled.
AGP Master 1 WS Write
When enabled, the AGP bus master write access to DRAMs will add one
wait-state cycle. The options are: Ena bled, Disabled.
AGP Master 1 WS Read
When enabled, the AGP bus ma ster rea d acce ss to the D RAMs will a dd one
wait-state cycle. The options are: Disabled, Ena bled.
CPU & PCI Bus Control
PCI1/2 Master 0 WS Write
When enabled, allows a zero-wait-state-cycle delay when the PCI1/2 master drive writes data to DRAM. The options are: Enabled, Disabled.
PCI1/2 Post Write
When enabled, allows the CPU to PCI1/2 master drive excutes post write.
The options are: Enabled, Disabled.
PCI Delay Transaction
Enable this feature to abort the current PCI master cycle and to accept the
new PCI master request, it reaccepts the original PCI master and returns
the PCI data phase to the original PCI master. The options are: Disabled,
Enabled.
System BIOS Cacheable
When enabled, allows the ROM area F000H-FFFFH to be cacheable when
cache controller is activated. The options are: Enabled, Disabled.
Video RAM Cacheable
When enabled, allows the video RAM area to be cacheable.
The options are: Enabled, Disabled.
VGA Share Memory Size
It allows user to select the frame buff er size of VGA share memory .
The options are: Disabled, 8M, 16M, 32M.
3 - 10
Page 39
BIOS Setup
Integrated Peripherals
VIA OnChip IDE Device
OnChip IDE Channel0
When enabled, allows you to use the onboard primary PCI IDE. If a hard
disk controller card is used, set at Disabled.
The options are: Enabled, Disabled.
OnChip IDE Channel1
When enabled, allows you to use the onboard secondary PCI IDE. If a
hard disk controller card is used, set at Disabled.
The options are: Enabled, Disabled.
IDE Prefetch Mode
When set at Enabled, it allows data to be posted to and prefetched from
the primary IDE data ports. Data prefetching is initiated when a data port
read occurs. The read prefetch eliments latency to the IDE data ports and
allows them to be performed back to back for the highest possible PIO data
transfer rates. The first data port read of a sector is called the demand read.
Subsequent data port reads from the sector are called prefetch reads. The
demand read and all prefetch reads must be of the same size (16 or 32 bits).
The options are: Enabled, Disabled.
3 - 11
Page 40
AM37S Mainboard Manual
Primary Master PIO
Allows an automatic or a manual configuration of the PCI primary IDE hard
disk (master) mode. The options are: Auto, Mode 0, Mode 1, Mode 2,
Mode 3, Mode 4.
Primary Slave PIO
Allows an automatic or a manual configuration of the PCI primary IDE hard
disk (slave) mode. The options are: Auto, Mode 0, Mode 1, Mode 2, Mode
3, Mode 4.
Secondary Master PIO
Allows an automatic or a manual configuration of the PCI secondary IDE
hard disk (master) mode. The options are: Auto, Mode 0, Mode 1, Mode 2,
Mode 3, Mode 4.
Secondary Slave PIO
Allows an automatic or a manual configuration of the PCI secondary IDE
hard disk (slave) mode. The options are: Auto, Mode 0, Mode 1, Mode 2,
Mode 3, Mode 4.
Primary Master UDMA
Allows you to select the first PCI IDE channel of the first master hard disk
mode or to detect it by the BIOS if the hard disk supports UDMA (Ultra
DMA, faster than DMA). The options are: Auto, Disabled.
Primary Slave UDMA
Allows you to select the first PCI IDE channel of the first slave hard disk
mode or to detect it by the BIOS if the hard disk supports UDMA (Ultra
DMA, faster than DMA). The options are: Auto, Disabled.
Secondary Master/Slave UDMA
Allows you to select the second PCI IDE channel of the secondary master/
slave hard disk mode or to detect it by the BIOS if the hard disk supports
UDMA (Ultra DMA, faster than DMA). The options are: Auto, Disabled.
VIA OnChip PCI Device
VIA-3058 AC97 Audio
It allows users to disable AC97 link in South Bridge.
The options are: Auto, Disabled.
3 - 12
Page 41
BIOS Setup
SuperIO PCI Device
Onboard FDC Controller
When enabled, the floppy diskette drive (FDD) controller is activated.
The options are: Enabled, Disabled.
Onboard Serial Port 1
If the serial port 1 uses the onboard I/O controller, you can modify your
serial port parameters. If an I/O card needs to be installed, COM3 and
COM4 may be needed. The options are: Disabled, 3F8/IRQ4, 2F8/IRQ3,
3E8/IRQ4, 2E8/IRQ3.
Onboard Serial Port 2
If the serial port 2 uses the onboard I/O controller, you can modify your
serial port parameters. If an I/O card needs to be installed, COM3 and
COM4 may be needed. The options are: Disabled, 3F8/IRQ4, 2E8/IRQ3,
3E8/IRQ4, 2F8/IRQ3.
UART Mode Select
This filed allows the users to configure what IR mode the 2nd serial port
should use. The default is Normal.
The options are: Normal, IrDA, ASKIR, SCR.
UR2 Duplex Mode
Allows you to select the IR modes.
The options are: Half, Full.
Onboard Parallel Port
Allows you to select from a given set of parameters if the parallel port uses
the onboard I/O controller.
The options are: Disabled, 378/IRQ7, 278/IRQ5, 3BC/IRQ7.
Parallel Port Mode
Allows you to connect with an advanced printer via the port mode it
supports. The options are: SPP, EPP, ECP, ECP+EPP .
ECP Mode Use DMA
This feature allows you to select Direct Memory Access (DMA) channel if
the ECP mode selected. The options are: 1, 3.
3 - 13
Page 42
AM37S Mainboard Manual
Init Display First
When you install a PCI VGA card on the board, this f eature allows you to
select the first initiation of the monitor display from PCI or onboard AGP.
The options are: PCI Slot, AGP.
OnChip USB Controller
Disable this option if you are not using the onboard USB feature.
The options are: All Disa bled, All Enabled.
USB Keyboard Support
When a USB keyboard is installed, please set at Enabled.
The options are: Disabled, Enabled.
IDE HDD Block Mode
When enabled, the system executes read/write requests to hard disk in
block mode. The options are: Enabled, Disa bled.
Onboard Lan Device
This feature allows users to enable or disable the onboard Lan device.
The options are: Enabled, Disabled.
Onboard Lan Boot ROM
This feature allows users to enable or disable the onboard Lan boot ROM
to boot system.
The options are: Enabled, Disabled.
3 - 14
Page 43
Power Management Setup
ACPI function
This item allows you to disable the ACPI function.
The options are: Enabled, Disabled.
ACPI Suspend T ype
This item allows you to select ACPI suspend types.
The options are: S1(POS), S3 (STR), S1&S3.
BIOS Setup
Power Management
This item allows you to adjust the power management features.
Select User Define for configuring your own power management features.
Min Saving initiates all predefined timers in their minimum values. Max
Saving, on the other hand, initiates maximum values. The options are: User
Define, Min Saving, Max Saving.
HDD Power Down
The option lets the BIOS turn the HDD motor off when system is in Suspend mode. Selecting 1 Min..15 Min allows you define the HDD idle time
before the HDD enters the Power Saving Mode.
The options 1 Min..15 M in will not work concurrently . When HDD is in the
Power Saving Mode, any access to the HDD will wake the HDD up.
The options are: Disable, 1 Min..15 Min.
3 - 15
Page 44
AM37S Mainboard Manual
Suspend Mode
When disabled, the system will not enter Suspend mode. The specified
time option defines the idle time the system takes before it enters Suspend
mode. The options are: Disable, 1, 2, 4, 6, 8, 10, 20, 30, 40 M in, 1 Hour .
Video Off Option
This feature provides the selections of the video display power saving
mode. The option Suspend -> Off allows the video display to go blank if
the system enters Suspend mode. The option Always On allows the video
display to stay in Standby mode even when the system enters Doze or
Suspend mode. The options are: Always On, Suspend -> Off.
Video Off Method
The option Blank Screen allows the BIOS to blank off screen display by
turning off the red-green-blue signals.V/H SYNC+Blank allows the BIOS
to blank off screen display by turning off the V-Sync and H-Sync signals
sent from add-on VGA card. DPMS Support allows the BIOS to blank off
screen display by your add-on VGA card which supports DPMS (Display
Power Management Signaling function).
The options are: Blank Screen, V/H SYNC+Blank, DPMS Support.
MODEM Use IRQ
This feature allows you to select the IRQ# to meet your modem IRQ#.
The options are: NA, 3, 4, 5, 7, 9, 10, 11.
Soft-Off by PWR-BTTN
The selection Delay 4 Sec. will allow the system shut down after 4 seconds
after the power button is pressed. The selection Instant-Off will allow the
system shut down immediately once the power button is pressed.
The settings are: Delay 4 Sec, Instant-Off.
State After Power Failure
The item allows you to select the state that your personal computer returns to after a power failure. If set at Auto, the system will automatically
go back to the state that before its power failure. If set at On, the system
will restart after power failure. If set at Off, the system will not boot after a
power failure. The settings are: Auto, On, Off.
3 - 16
Page 45
BIOS Setup
IRQ/Event Activity Detect
USB Resume From S3
When set at Enabled, it allows USB devices that linked with the system to
activate the system from ACPI S3 power saving mode.
The options are Disabled, Enabled.
VGA
When set at On, any VGA activity will awake the system.
The options are: OFF , ON.
LPT & COM
When LPT/COM is selected, any access of LPT and COM ports will awake
the system. Likewise, either LPT or COM is chosen, the system will be
awaken by any activity of LPT or COM port.
The options are: LPT/COM, LPT , COM, NONE.
HDD & FDD
When it is set at ON, any access happened at hard drives and floppy
drives will awake the system. The options are: OFF, ON.
PCI Master
To set this feature at ON activates that Power Management feautre (PM)
wake-up event for the PCI bus master card.
The options are: OFF , ON.
PowerOn by PCI Card
When set at Enabled, any PCI-PM event awakes the system from a PCIPM controlled state.
The options are Disabled, Enabled.
Modem Ring Resume
An input signal on the serial Ring Indicator (RI) line (in other words, an
incoming call on the modem) awakens the system from a soft off state.
The options are: Enabled, Disabled.
RTC Alarm Resume
Enabled allows you to set the time the system will be turned on from the
system power-off status. The options are: Enabled, Disabled.
3 - 17
Page 46
AM37S Mainboard Manual
Date (of Month)
This feature allows you to set the day of the alarm starts when the RTC
Alarm Resume From Soft Off is set to be Enabled. The options are: 0, 1..31.
Resume Time (hh:mm:ss)
If a n ATX power supply is installed and when RTC Alarm Re sume is Enabled, this feature allows you to set the time of the alarm starts when the
RT C Alarm Re sume From Soft Off is set to be Enabled.
The options are: hh (hour) - 0, 1, 2,.., 23; mm (minute) - 0, 1, 2,..,59; ss
(second) - 0, 1, 2,..,59.
Primary INTR
If set at ON, the Primary interrupt (the Primary option in the feature of IRQ#
Acitivity) will make the power management wake up the system.
The options are: ON, OFF .
IRQs Activity Monitoring
After the time period which you set, the system advances from doze mode
to suspend mode in which the CPU clock stops and the screen display is
off. At this moment, if the IRQ activity occurs, the system goes back to
full-on mode directly.
If the IRQ activity which is defined as Non Primary takes place, the system
remains off until the corresponding IRQ handler finishes.
The options of IRQ 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15 are: Enabled,
Disabled.
3 - 18
Page 47
BIOS Setup
PnP/PCI Configurations
PNP OS Installed
If your operating system is a Plug-and-Play one, such as Windows NT,
Windows 95, select Yes. The options are: No, Yes.
Reset Configuration Data
Enabling it to reset the system Extended System Configuration Data (ESCD)
when you exit Setup if you have installed a new add-on card and the
system reconfiguration has caused such a serious conflict that the operating system can not boot. The options are: Disabled, Enabled.
Resources Controlled By
If set at Auto, the BIOS arranges all system resources. If there exists conflict, select Manual. The options are: Auto (ESCD), Manual.
The ma nual options of IRQ- / DMA- a ssigned to are: PCI/ISA PnP , Lega cy
ISA.
PCI/VGA Palette Snoop
Set this feature to be enabled if any ISA adapter card installed in the
system requires the VGA palette snoop function.
The options are: Disabled, Enabled.
3 - 19
Page 48
AM37S Mainboard Manual
Assign IRQ For VGA
If your PCI VGA card devices do not need an IRQ, select Disabled; therefore, an IRQ can be released for the system use.
The options are: Enabled, Disabled.
Assign IRQ For USB
If your USB devices do not need an IRQ, select Disabled; therefore, an
IRQ can be released for the system use.
The options are: Enabled, Disabled.
INT Pin 1/2/3/4 Assignment
This feature allows you to assign the PCI IRQ numbers for PCI slots.
Selecting the default, Auto, allows the PCI controller to automatically allocate the IRQ numbers.
The options are: Auto, 3, 4, 5, 7, 9, 10, 11, 12, 14, 15.
PC Health Status
3 - 20
Page 49
BIOS Setup
Voltage VCORE / Voltage + 2.5 V / Voltage +3.3 V / Voltage +5 V /
Voltage +12 V / V oltage 5VSB / Voltage 5VSB / SYSTEM Temp. / CPU
Temp. / CPU F A N Speed / Cha ssis FAN Speed
These items allow end users and technicians to monitor data provided by
the BIOS on this mainboard. It is not user-configurable.
Frequency/Voltage Control
Auto Detect DIMM/PCI Clk
When enabled, BIOS will detect the PCI slot and DIMM slot. If no any
device in, BIOS will auto disable its clock.
The options are: Enabled, Disabled.
Spread Spectrum
This feature is used to select the spread Spectrum range or disable it.
The options are: Disabled and all allowed ranges in percentage.
3 - 21
Page 50
AM37S Mainboard Manual
Load Fail-Safe Defaults
This submenu is selected to diagnose the problem after the computer boots, if
the computer will not boot. These settings do not give optimal performance.
Load Optimized Defaults
This submenu is selected for default settings which provide the best system
performance.
Supervisor/User Password
To enable the Supervisor/User passwords, select the item from the Standard
CMOS Setup. You will be prompted to create your own password. T ype your
password up to eight chara cters and press Enter. You will be asked to confirm
the password. Type the password again and pre ss Enter. To disa ble pa ssword,
press Enter twice when you are prompted to enter a password. A message
appears, confirming the password is disabled.
Under the BIOS Feature Setup, if Setup is selected under the Security Option
field and the Supervisor/User Password is enabled, you will be prompted
password every time you try to enter the CMOS Setup Utility. If System is
selected and the Supervisor/User Password is enabled, you will be requested
to enter the Password every time when you reboot the system or enter the
CMOS Setup utility.
Save and Exit Setup
After you have made changes under Setup, press Esc to return to the main
menu. Move cursor to Save and Exit Setup or press F10 and then press Y to
change the CMOS Setup. If you did not change anything, press Esc again or
move cursor to Exit Without Saving and press Y to retain the Setup settings.
The following message will appear at the center of the screen to allow you to
save data to CMOS a nd exit the setup utility: SA VE to CMOS a nd EXIT (Y/N)?
Exit without Saving
If you select this feature, the following message will appear at the center of the
screen to allow you to exit the setup utility without saving CMOS modifications: Quit Without Saving (Y/N)?
3 - 22
Loading...
