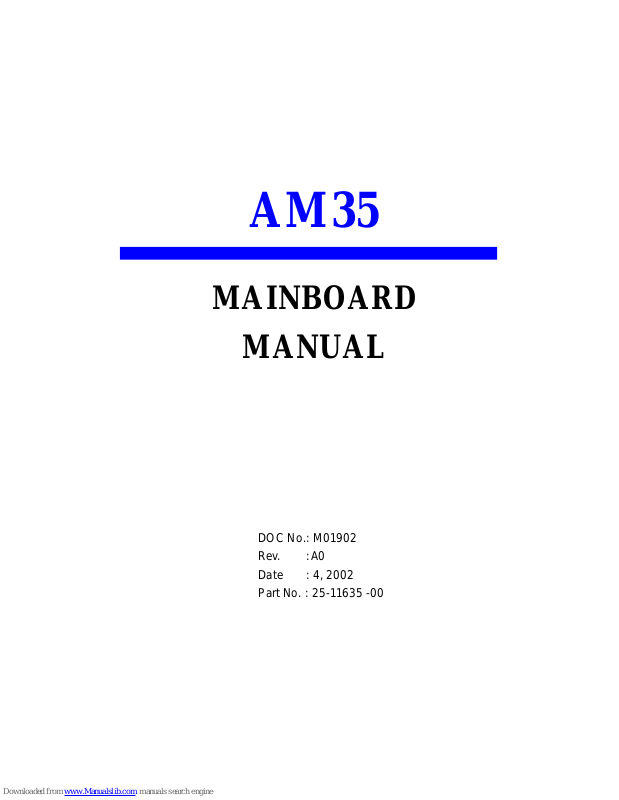

FIC AM35 User Manual

AM35

MAINBOARD

MANUAL

DOC No.: M01902
Rev. : A0
Date : 4, 2002
Part No. : 25-11635 -00

1 - 1

Overview

Overview

Chapter 1

The new 1stMainboard® AM35 is an Micro ATX sized motherboard sup-
porting the latest generation of AMD® processors at industry leading speeds.
By utilizing DDR ( Double Data Rate ) transfer rate the 100/133 MHz system
bus effectively reaches Front Side Bus speeds of 200/266 MHz. The board
provides users with an ATA133 data tra nsa ction f or hard drive s and allows up
to 2 GB memory totally by 2 PC1600/PC2100 DIMM sockets.

The AM35 is based around the high performance V-link VIA ProSavageDDR
KM266 core chip with VIA VT8233A as a South Bridge. The AGP(2X/4X)
functions supported by KM266 provides you with a photo-realistic 3D expe­rience suitable for the most robust 3D games and software environments.
AC97 Codec that embedded in VT8233A, ensures high quality sound effect.

The mainboard also comes equipped with the new NOVUS® range of innova-
tive features that assist in the installation and maintenance. The features in­clude Easy Key, which provides instant keyboard access to the BIOS for
adjustments to Clock and Default settings and LogoGenie, which allows you
to create your own customized logo to be displayed during system boot up.
The BIOS Guar di a n is a n Anti V irus utility that prevents viruse s from da mag­ing your system BIOS and rendering your system inoperative.

Expansion is provided by 1 AGP(2X/4X) and 3 PCI slots. In addition, the
1stMainboard is equipped standard I/O connections include 2 serial ports (1
by pinheader), 1 parallel port, 1 VGA port, 1 PS/2 mouse and keyboard connec­tor, 4 USB ports (2 by pinhea der), 1 IR port by pinhea der , a nd 1 medi a connec­tor (Line-In, Line-Out, Mic-In, 1 front audio, 1 game port).

1 - 2

AM35 Mainboard Manual

Package Checklist

If you discover any item below was damaged or lost, please contact your
vendor.

 The mainboard  This user manual
 One FDD cable  CD software
 One ATA100 cable

IMPORT ANT : AMD CPU HEA T SINK INST ALLA TION

Be ware finish heat sink install. Before you boot system, please
check the heat sink is complete contact with die of CPU.

The poor contact will bring about over heat, it may damage your
processor.

It is strongly recommended that at lea st a 250-watt A TX power pupply
be used for this motherboard. Make sure that your ATX power sup­ply can supply at least 20 amperes on teh +5-Volt lead and 10mA
on the +5-Volt standby lead (+5VSB). Your system may become
unstable / unreliable and may experience difficulty in powering up if
your power supply is inadequate.

NOTE: CD Pro that contains patch files, onboard video/audio chip
drivers, related online help and other useful information can be
found in your mainboard package.

Please install it right after your Windows operating system installa­tion is done.Place your CD Pro in the drive, an operating menu will

appears in your monitor. Please select Auto Installation. It will auto-
matically detect which software tools (patch files, drivers) that the
mainboard needs. Press OK button to go through the whole instal­lation procedure in a very straight forward and easy way. It also
provides you with a custom way to select wanted patch files and
software drivers that for onboard chips use. The top menu of the

CD Pro lists all the functions that allowed by this board.

1 - 3

Overview

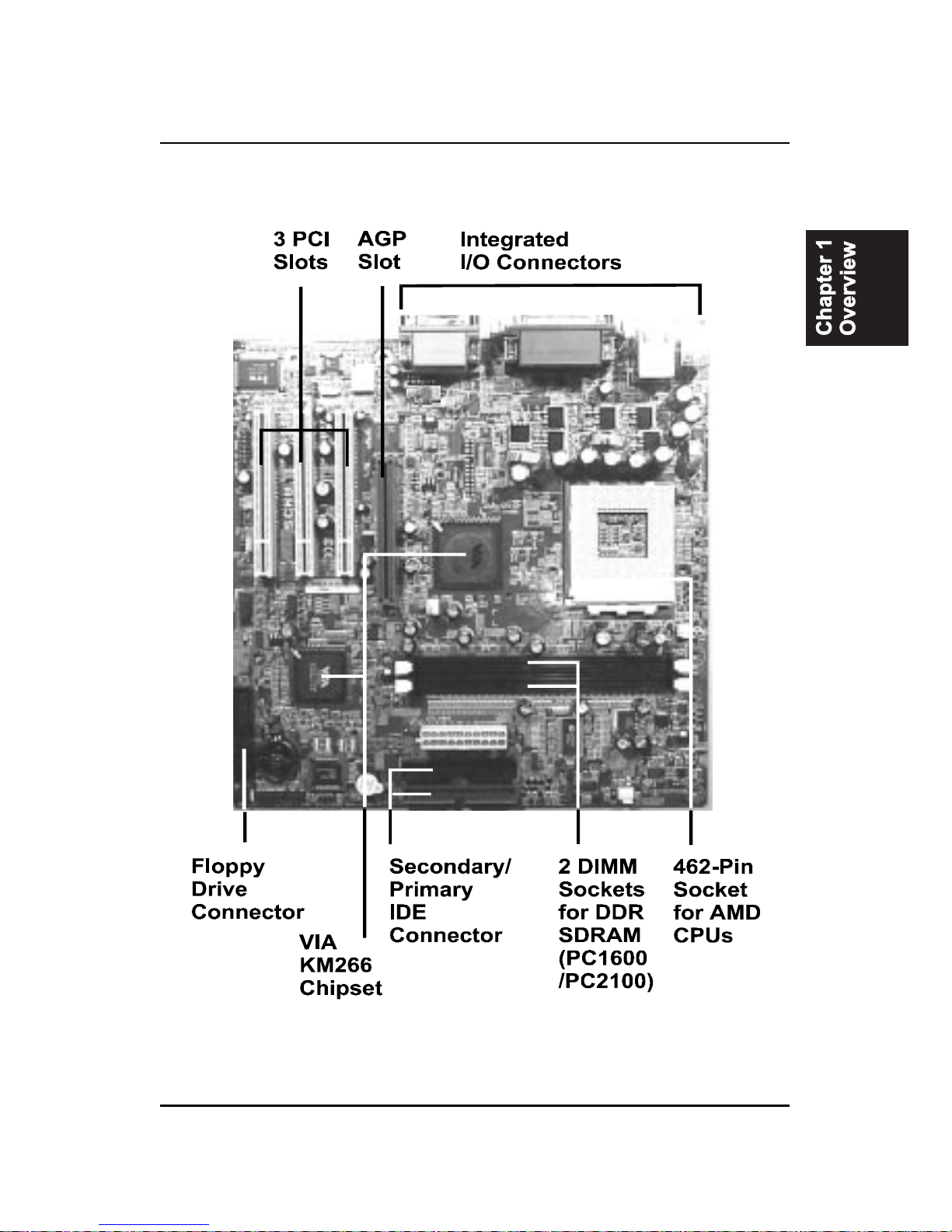

The AM35 Mainboard

1 - 4

AM35 Mainboard Manual

Main Features





 Easy Installation

||BIOS with support for Plug and Play, auto detection of IDE hard drives,
||LS-120|drives, IDE ZIP drives, W indows 98SE, W indows ME, W indows
||NT , W indows 2000, Windows XP , a nd OS/2.





 Leading Edge Chipset

VIA KM266 is a single-chip North Bridge for AMD CPUs with 200/266
MHz Front Side Bus with AGP and PCI plus advanced memory controller
that supports PC1600/PC2100 DDR SDRAM. VIA VT8233A is a Vlink
client highly integrated controller that supports PC99-compliant system.
The VT8233A also supports ATA133 protocol.





 Versatile Main Memory Support

Accepts up to 2 GB DRAM using three DDR266 DIMMs from 256 MB to
2 GB with support for lightenning-fast (PC1600/PC2100) DDR SDRAM .





 Enhanced PCI Bus Master IDE Controller with UltraDMA/33/66/100/

133 Support
Integrated Enhanced PCI Bus Master IDE controller features two dual­channel connectors that up to four Enhanced IDE devices, including CD­ROM and Tape Backup Drives, as well as Hard Disk Drives supporting
the new UltraDMA/133 Mode 6 protocol, standard PIO Mode 3, PIO
Mode 4, DMA Mode 2, DMA Mode 4, UltraDMA/100 Mode 5 devices
are also supported.





 AMD Processors Support

Athlon: 700 MHz to 1.4 GHz and up*at 200 MHz FSB/

1.0 GHz to 1.4 GHz at 266 MHz FSB;
Athlon XP: 1500+ to 2100+ and up* at 266 MHz FSB;
Duron: 800 MHz to 1.3 GHz and up* at 200 MHz FSB

(*: not tested yet)

1 - 5

Overview





 AGP and PCI Expansion Slots

One AGP Bus and three PCI Bus expansion slots provided the room to
install a full range of add-on cards.





 Compact Onboard Audio Subsystem

Embeded in VIA VT8233A, an integrated high bandwidth Vlink client
controller, direct sound AC97 audio subsystem. UltraDMA ma ster mode
EIDE controller, USB controller , ACPI enha nced power ma nagement, a nd
PC99 complia nt.





 Super Multi Input/Output (I/O) Support

Integrated Plug a nd Play multi-I/O chipset feature s two high-speed UAR T
16550 compatible serial ports, one EPP/ECP capable parallel port, one
VGA port, one IR port, one game port, and one FDD connector.





 Convenient Rear Panel USB Connection Support

Two USB ports integrated in the rear I/O panel and two extra USB ports
for either front or rear panel connection allow convenient and high-speed
Plug and Play connections to the growing number of USB compliant
peripheral devices on the market.





 Onboard Accelerated Graphics Port (AGP)

The motherboard is installed one 32-bit 1.5V AGP(2X/4X) bus with a
dedicated 66MHz/133MHz path from the graphics card to the system
memory offering much greater bandwidth than the 32-bit PCI bus does.
AGP enabled 3D graphics cards can directly access main memory across
this fast path instead of using local memory.

1 - 6

AM35 Mainboard Manual





 BIOS Guardia n

BIOS Guardia n by default is ena bled. It must be disabled in order to refla sh
BIOS, thus effectively acts as a fire-wall against viruses that can attack
the BIOS while the system is running.

WARNING: While excute Step3 below, please do not turn off the
sytsem power in order to avoid BIOS damage.

BIOS Guardian can be disabled as follows:
1 . Go to BIOS Set Up Menu. (Press Del key while booting.)
2 . Go to Advanced BIOS Features Set Up Submenu.
3 . Disable BIOS Guardian.

4. Save the setting, and restart system.

FIC Unique Innovation for Users (NOVUS) -

Enhanced Mainboard Features and System Support





 LogoGenie

A user friendly GUI supporting Windows 95/98/98SE (not Windows 2000/
NT/ME), LogoGenie allows you to customize, create or select a Logo
which will be displayed when the system is booting.

NOTE:

1. LogoGenie supports Award BIOS only.

2. If you create a Logo file (.bmp) by LogoGenie, the file size must

||||be 640 x 464 x 256 colors.

To enable this utility, please proceed as follows:

1 . Insert CD Pro. Select LogoGenie from the Menu

and follow the installation instructions.

2 . After LogoGenie ha s been installed, go to Windows Start Box.

In Programs Menu, select LogoGenie, then select LogoGenie.

3. Press F1 to rea d Help file to understand how to use this software if

it is new to you.

1 - 7

Overview





 Easy Key

Instead of completing the multi-layered BIOS setup process these 3 Easy
Key functions provide direct access to Sub-Menu when completing BIOS
settings adjustments.

Easy-Keys are as follows:

Ctrl + c: To enter clock settings menu.
Ctrl + p: To load Performance Default settings and restart.
Ctrl + f: To load Fail-Safe Default settings and restart.

NOTE: However, if it is disabled and while boot the system, the
POST screen will be held and shows you the message to let you
know the current status of BIOS Guardian. To press G key will en­able the BIOS Guardian again; or simply to press the space bar
will continue the booting process.

1 - 8

AM35 Mainboard Manual

This Page Left Blank for Note

2 - 1

Installation Procedures

Chapter 2

Installation Procedures

The mainboard has several user-adjustable jumpers on the board that allow you to
configure your system to suit your requirements. This chapter contains information
on the various jumper settings on your mainboard.

To set up your computer, you must complete the following steps:





 Step 1 - Set system jumpers







Step 2 - Install memory modules







Step 3 - Install the Central Processing Unit (CPU)







Step 4 - Install expansion cards







Step 5 - Connect ribbon cables, cabinet wires, and power supply







Step 6 - Set up BIOS software







Step 7 - Install supporting software tools

WARNING: Excessive torque may damage the mainboard. When
using an electric screwdriver on the mainboard, make sure that
the torque is set to the allowable range of 5.0 ~ 8.0kg/cm.

Mainboard components contain very delicate Integrated Circuit
(IC) chips. To prevent static electricity from harming any of the
sensitive components, you should follow the following precau­tions whenever working on the computer:

1. Unplug the computer when working on the inside.

2. Hold components by the edges and try not to touch the IC

||||chips, leads, or circuitry.

3. Wear an anti-static wrist strap which fits around the wrist.

4. Place components on a grounded anti-static pad or on the bag
that came with the component whenever the components are
separated from the system.

2 - 2

AM35 Mainboard Manual

Quick Reference (from Page 2-2 to 2-4)

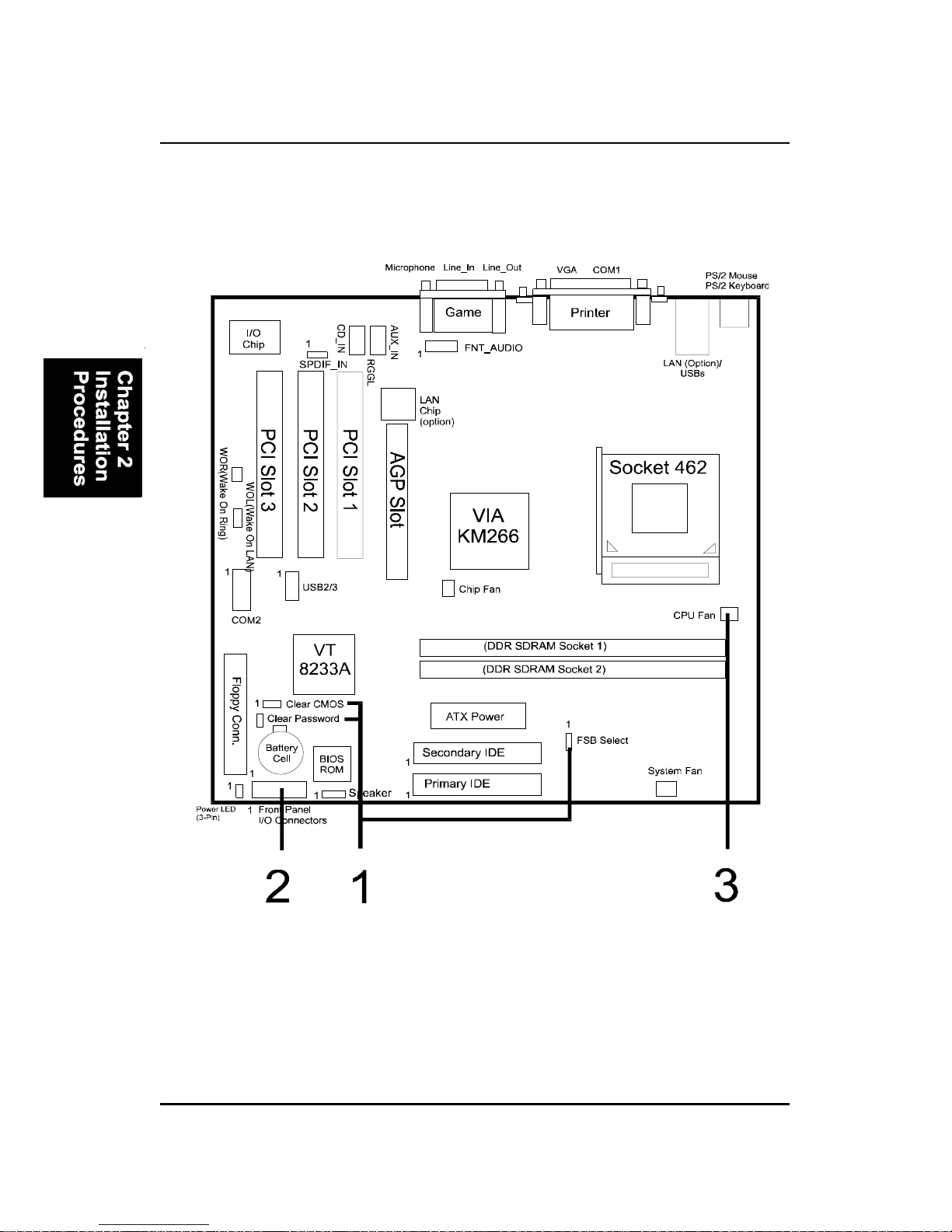

Mainboard Layout

* When link to Line _Out jack, please use a speaker that with amplifier.

2 - 3

Installation Procedures

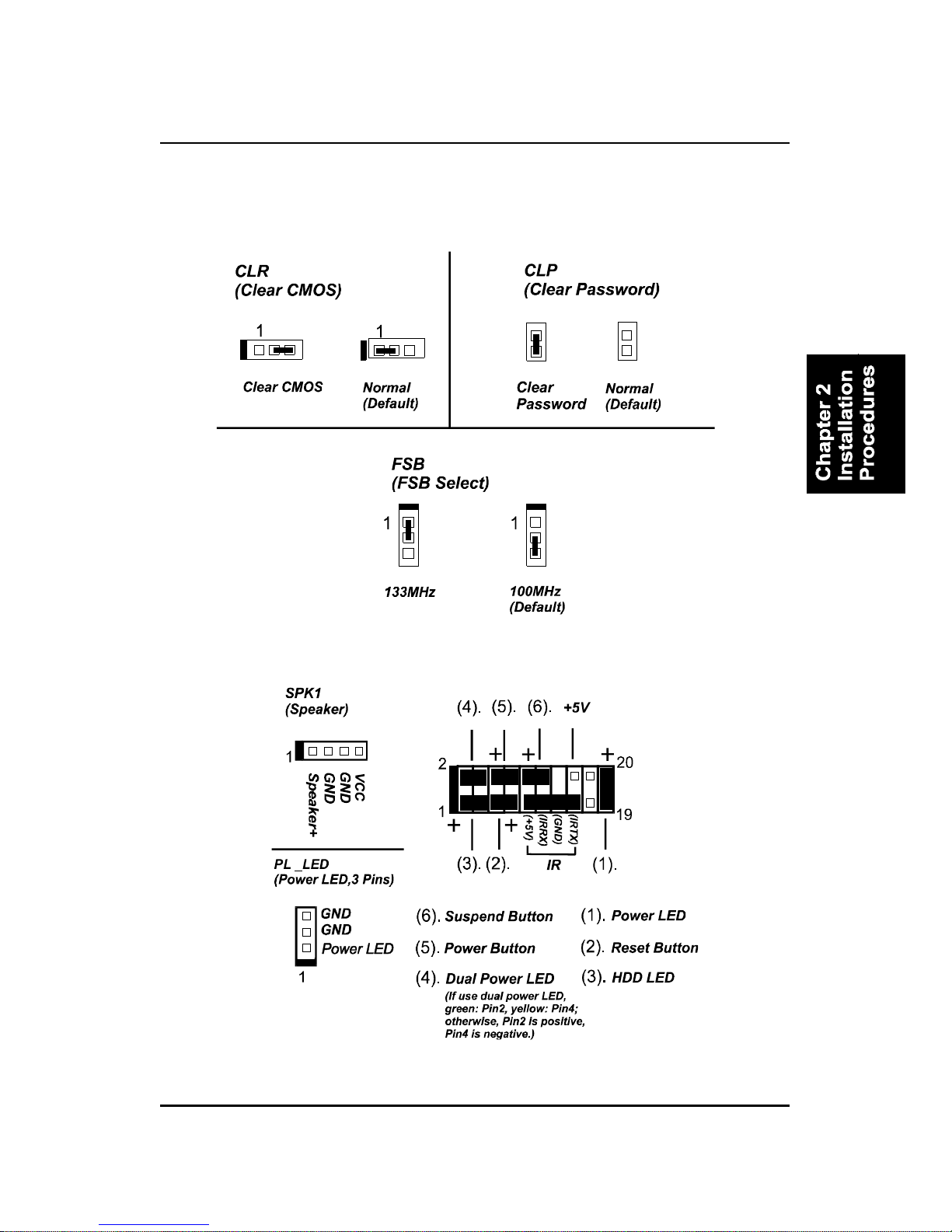

1) . Clear CMOS, Clear Password,
FSB Speed Select

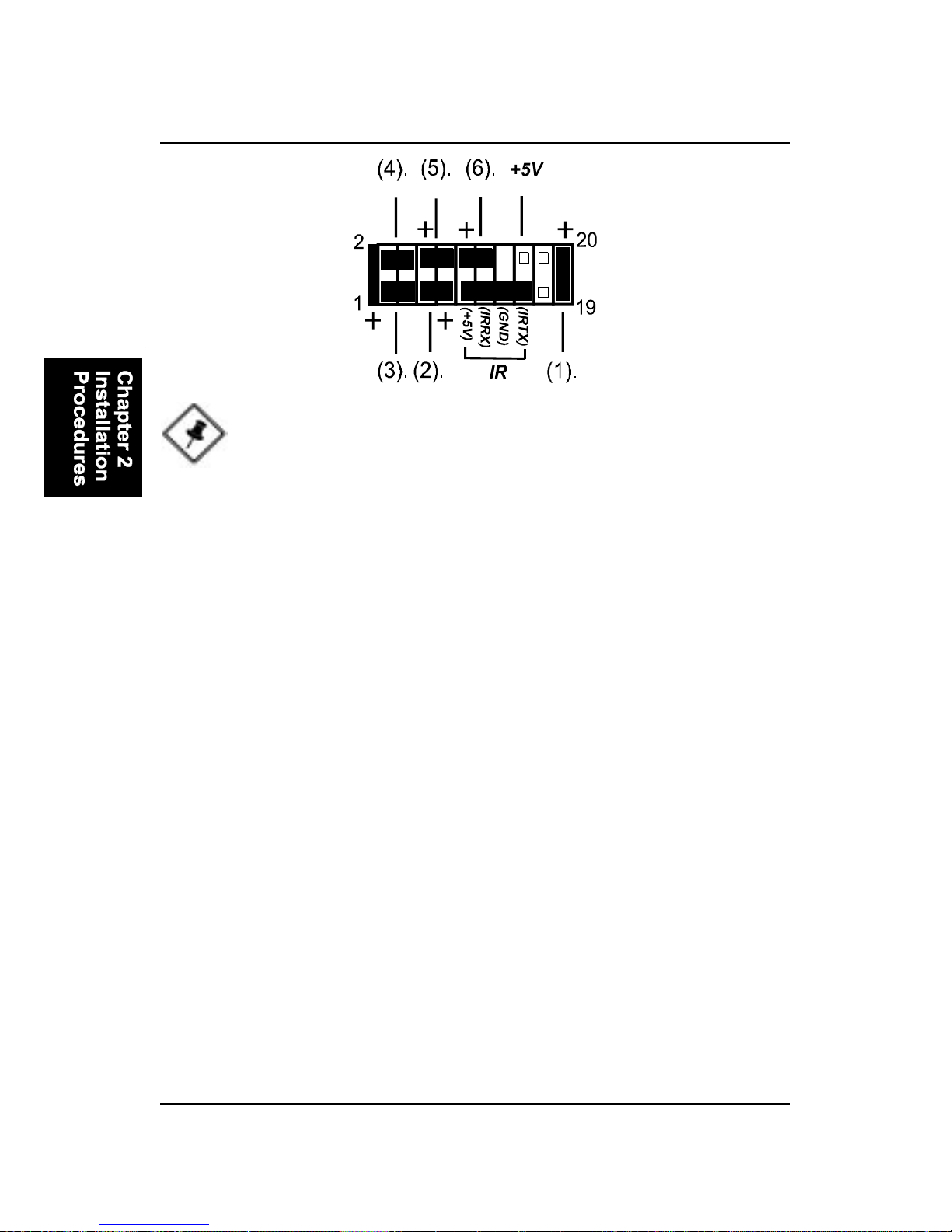

2). Front Panel Block Cable Connection

2 - 4

AM35 Mainboard Manual

1). Set System Jumpers

NOTE: Users are not encouraged to change the jumper settings

not listed in this manual. Changing the jumper settings improperly
may adversely affect system performance.

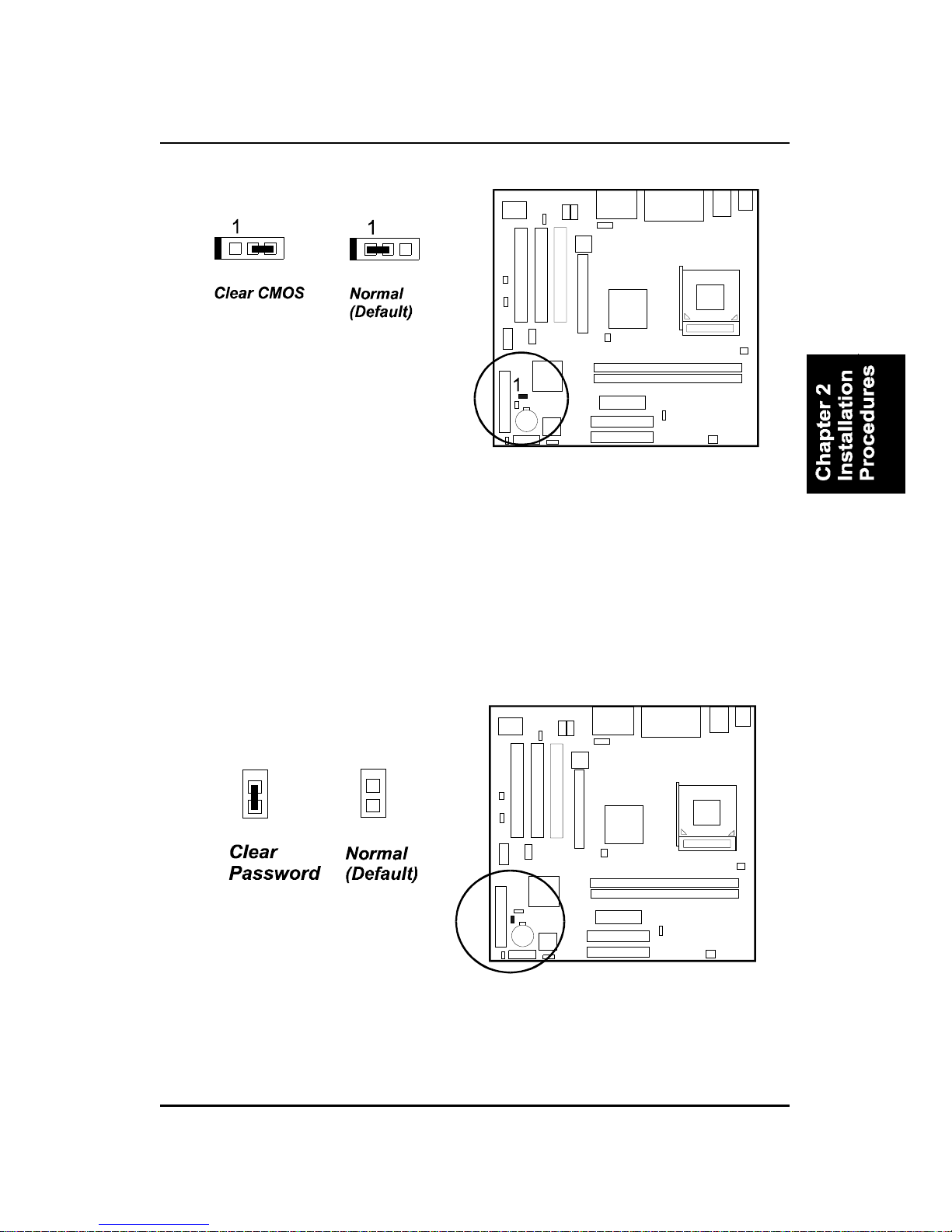

Clear CMOS: CLR

The CMOS RAM is powered by the onboard button cell battery. T o clear the
R TC data: (1) T urn off your computer (2) Place the jumper ca p onto the pinpair
2-3 at least 6 seconds to clear CMOS (3) Place the jumper cap onto the pinpair
1-2 to Normal (4) Turn on your computer until CMOS checksum error appears
(5) Hold down the Delete key when boots (6) Enter the BIOS Setup to re-enter
user preferences.

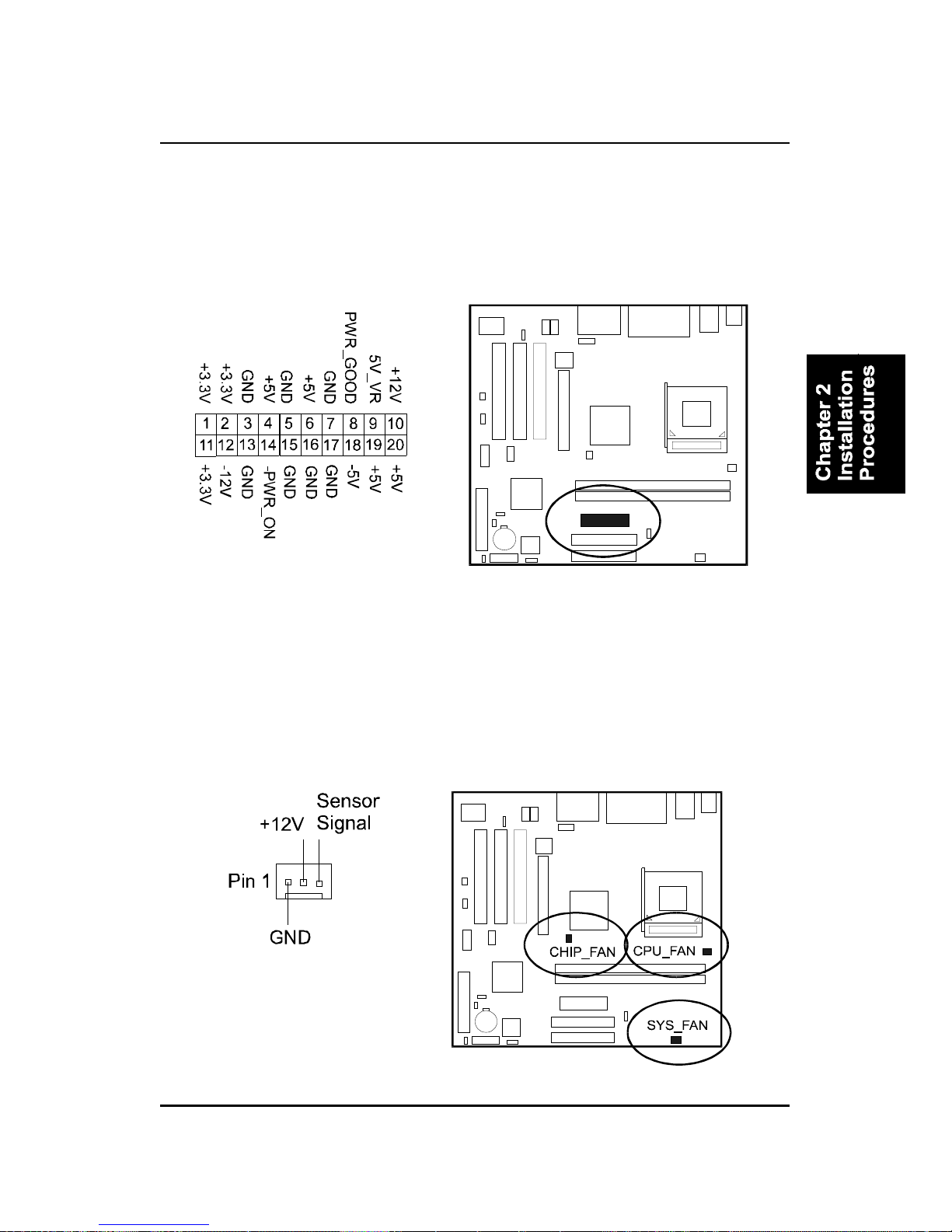

3) . CPU Fan Installation

W ithout sufficient air circulation, the CPU may overheat resulting in damage
to both the CPU and the mainboard.

Damage may occur to the mainboard and/or the CPU fan if these pins are
used incorrectly. These are not jumpers, do not place jumper caps over these
pins.

CAUTION:

1. The heatsink and fan you installed must be approved by AMD.

2. The mainboard must be placed on a solid place to avoid shaking

|||||while install the heatsink and fan on the board.

3. The heatsink must be contact with the CPU top tightly.

4. Never run the processor without the heatsink properly and firmly

attached. PERMANENT DAMAGE WILL RESUL T!

2 - 5

Installation Procedures

Clear Password: CLP

This jumper allows you to enable or disable the password configuration. You
may need to enable it if you forget your password. To clear the password
setting: (1) Turn off your computer (2) Place the jumper cap onto pinpair (3)
Turn on your computer (4) Hold down the Delete key during bootup a nd enter
BIOS Setup to clear password (5) Save the setting and exit (6) Turn off your
computer.

2 - 6

AM35 Mainboard Manual

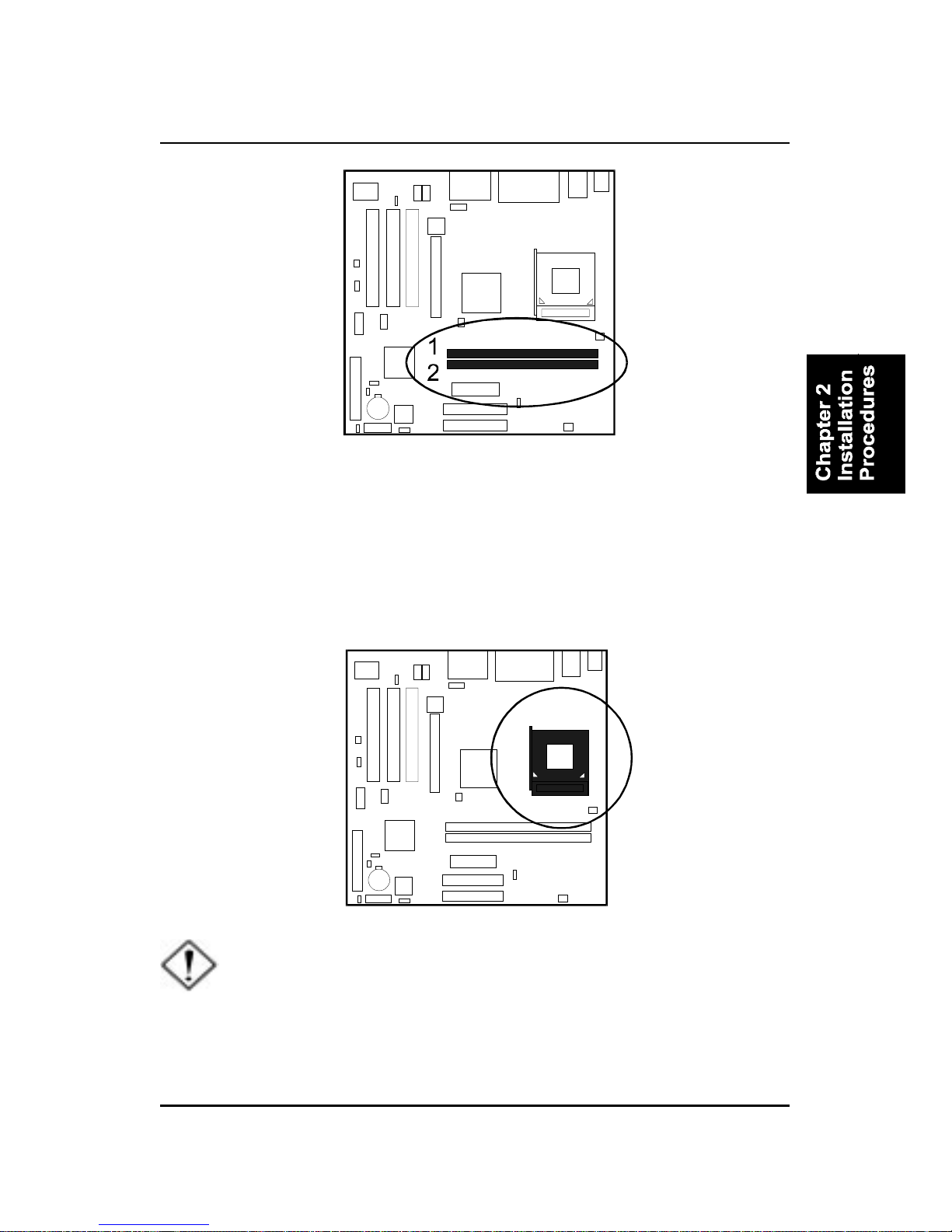

2). Install Memory Modules

1. Locate the DIMM slots on the mainboard.

2. Install the DIMM straight down into the DIMM slot using both hands.

3. The clip on both ends of the DIMM slot will close up to hold the DIMM
in place when the DIMM reaches the slot bottom.

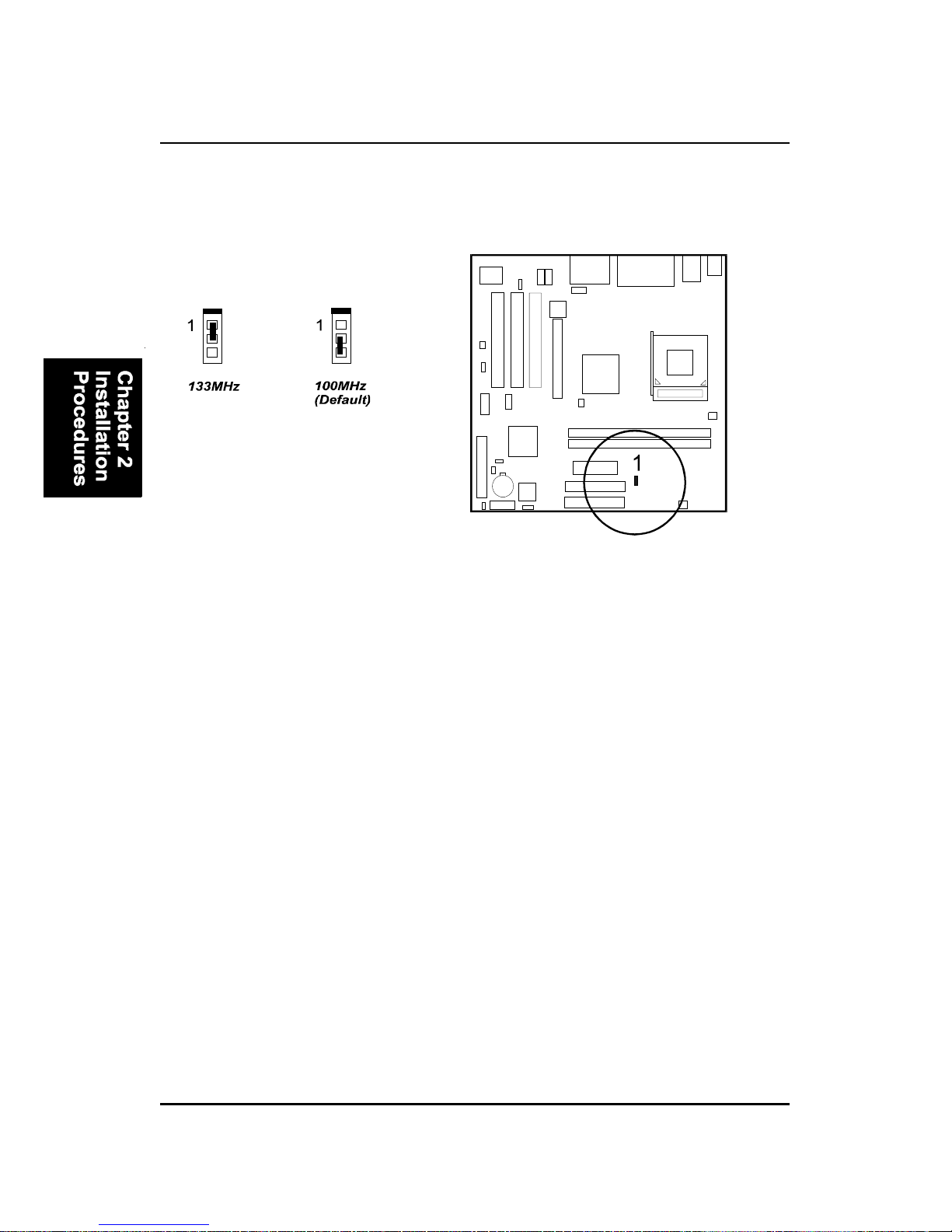

FSB Frequency Select: FSB

This jumper allows you to select the front side bus frequency of the board.

2 - 7

Installation Procedures

CAUTION:

1. The heat sink and fan you installed must be approved by AMD.

2. The mainboard must be placed on a solid place to avoid shaking

|||||while install the heat sink and fan on the board.

3. The heat sink must be contact with the CPU top tightly.

4. Never run the processor without the heat sink properly and firmly

attached. PERMANENT DAMAGE WILL RESULT!

3). Install the CPU

The AMD CPU module resides in the socket on the board. Please follow the
steps introduced below to complete the CPU installation.

Press the clips with both hands to remove the DIMM.

2 - 8

AM35 Mainboard Manual

4). Install Expansion Cards

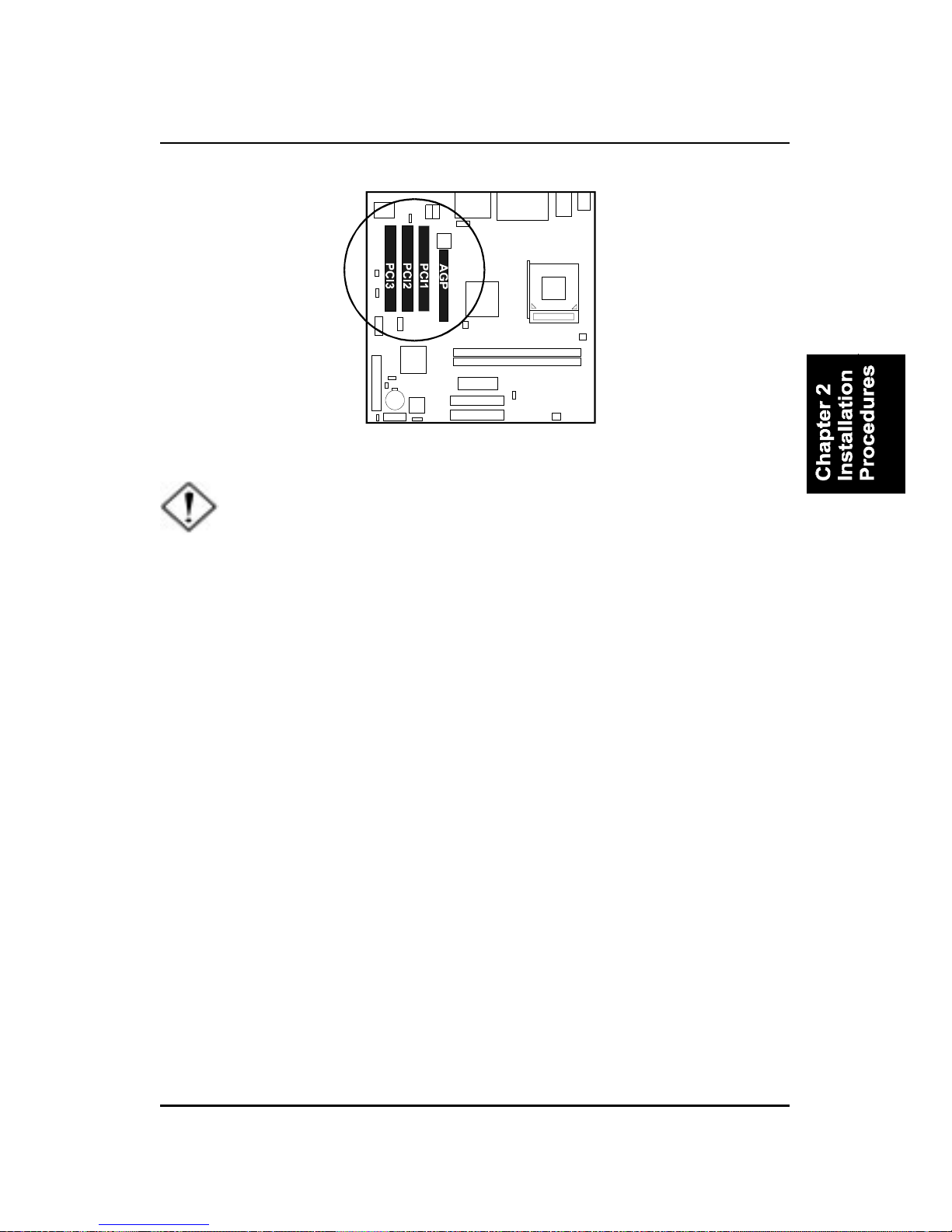

This section describes how to connect an expansion card to one of your
system expansion slots. Expansion cards are printed circuit boards that, when
connected to the mainboard, increase the capabilities of your system. For
example, expansion cards can provide video and sound capabilities. The
mainboard features one AGP(2X/4X) and three PCI bus expa nsion slots.

T o install the CPU, do the following:

1 . Lift the lever on the side of the CPU socket.

2. Handle the chip by its edges and try not to touch any of the pins.

3 . Place the CPU in the socket. The chip has two notches to correctly locate

the chip. Align two notches of the processor with the two triangular
marks on the socket. Do not force the chip. The CPU should slide easily
into the socket.

4 . Swing the lever to the down position to lock the CPU in place.

5. Install the cooling fan with heat sink on top of the installed CPU.

6 . Place the mainboard (with the CPU, its cooling fan, and heat sink) into the

system chassis and affix it with screws.

2 - 9

Installation Procedures

5. Secure the board with the mounting screw removed in Step 2. Make
sure that the card has been placed evenly and completely into the
expansion slot.

6. Replace the computer syste m cover.

7 . Setup the BIOS if necessary.

8. Install the necessary software drivers for the expansion card.

4. Push the card firmly into the slot. Push down on one end of the
expa nsion card, then the other . Use this rocking motion until the add­on card is firmly seated inside the expansion slot.

CAUTION: Make sure to unplug the power supply when adding or
removing expansion cards or other system components. Failure to
do so may cause severe damage to both the mainboard and
expansioncards.
Always observe static electricity precautions.
Please read Handling Precautions at the start of this manual.

To install an expansion card, follow the steps below:

1. Remove the chassis cover and select an empty expansion slot.

2. Remove the corresponding slot cover from the computer chassis.
Unscrew the mounting screw that secures the slot cover and pull
the slot cover out from the computer chassis. Keep the slot cover
mounting screw nearby .

3 . Holding the edge of the peripheral card, carefully align the edge

connector with the expansion slot.

2 - 10

AM35 Mainboard Manual

IDE Device Connectors

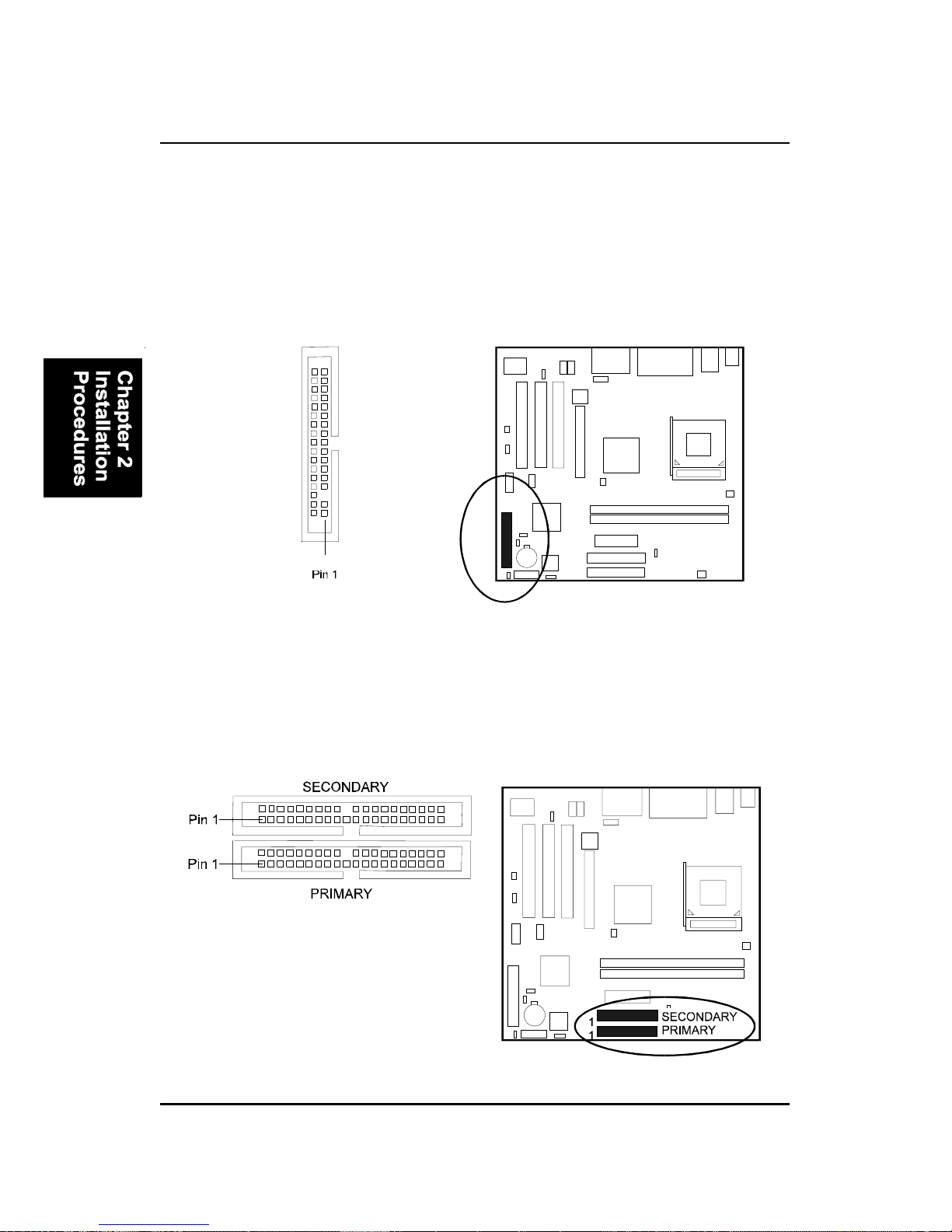

The two connectors, PRIMARY a nd SECONDAR Y, are used for your IDE hard
disk drives, CD drives, LS-120|drives, or IDE ZIP drives. The red stripe of the
ribbon cable must be the sa me side with the Pin 1.

5). Connect Devices

Floppy Diskette Drive Connector

This connector provides the connection with your floppy disk drive.
The red stripe of the ribbon cable must be the same side with the Pin 1.

2 - 11

Installation Procedures

Fan Connectors

The connector, CPU_F AN, is linked to the CPU fan to lower the CPU tempera­ture. The CHIP_F AN connector ca n be used by North Bridge cooling fa n. The
SYS_FAN connector allows you to link with the cooling fan on the system
case to lower the system temperature.

ATX Power Connector

This 20-pin male block connector is connected to the ATX power supply . The
plug from the power supply will only insert in one orientation because of the
different hole sizes. Find the proper orientation and push down firmly making
sure that the pins are aligned.

2 - 12

AM35 Mainboard Manual

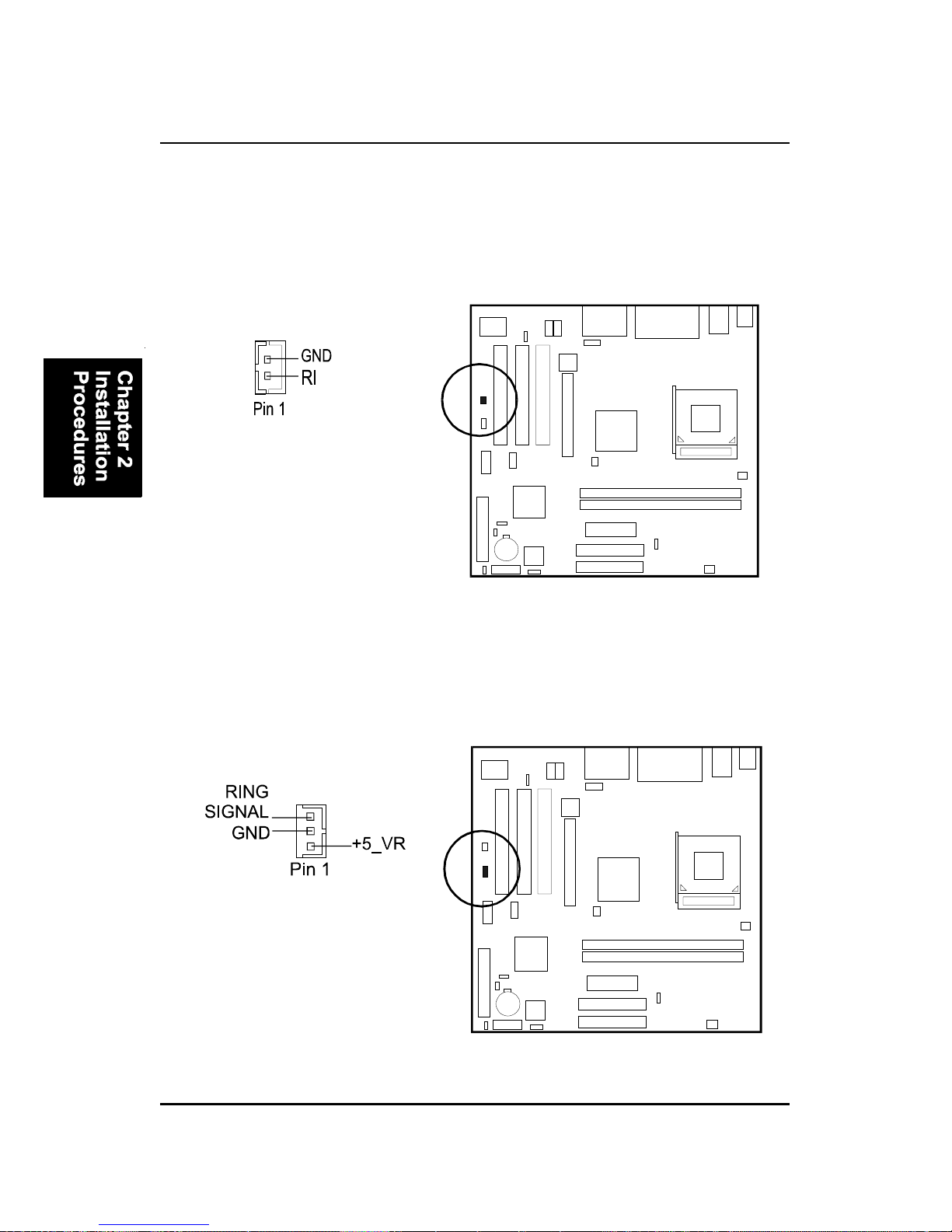

Wake-On-Ring Connector

The 2-pin connector allows you to link with your modem card which outputs
a WOR singal; the system can be turned on from the power-off status by a
remote phone call via the modem card.

Wake-On-Lan Connector

This 3-pin connector allows the remove servers to manage the system that
installed this mainboard via your network adapter which also supports WOL.

2 - 13

Installation Procedures

Front Panel Block, Power LED and Speaker Connector

This block connector includes the connectors for linking with HDD LED,
power LED (2 and 3 pins), dual power LED, power button, suspend button,
reset button, and IR on the front panel of the system case. Please identify
polarities of plug wires for the case speaker and LEDs. Please ask vendor
about this information when you buy them and install the system by yourself.
The plug wires polarities of these buttons will not affect the function.

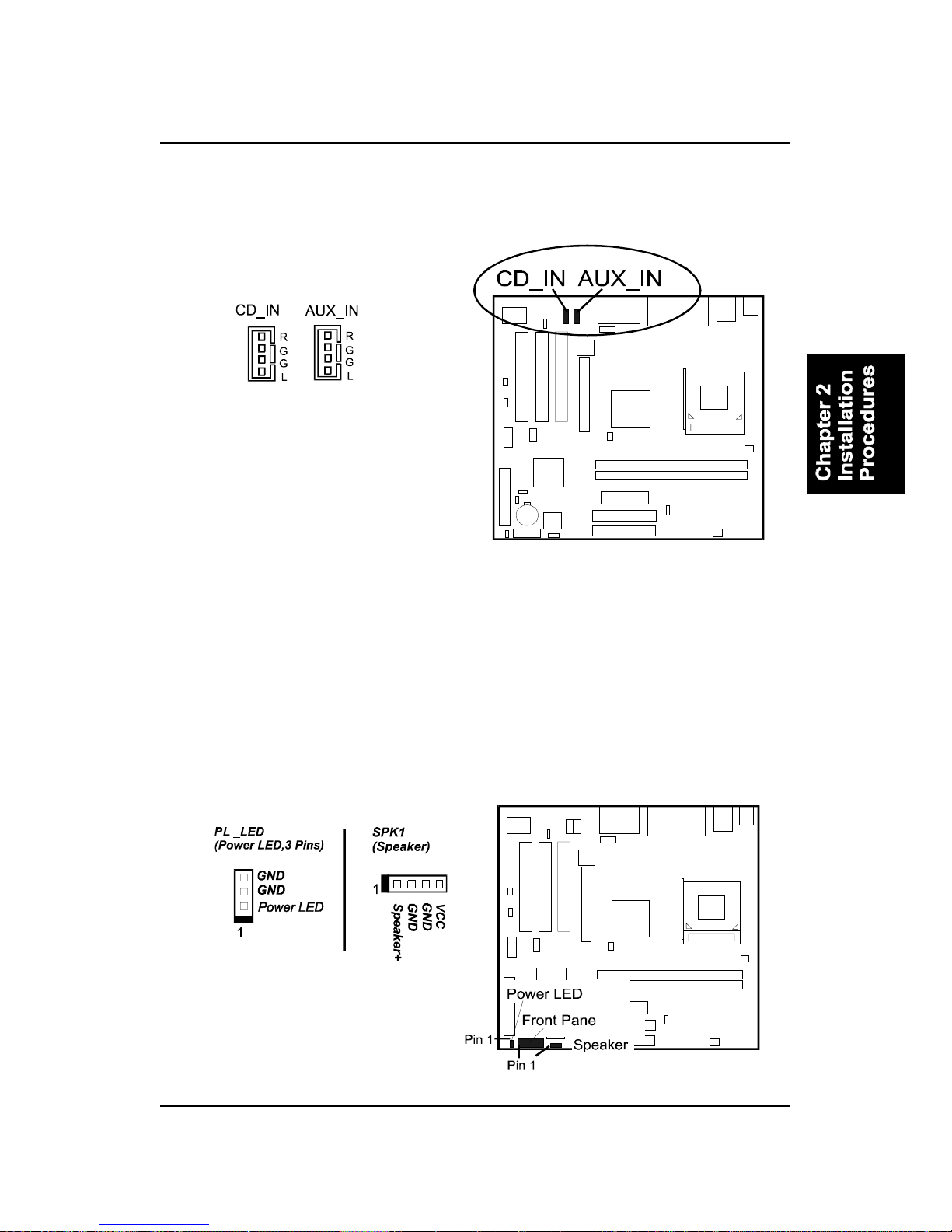

CD Audio-In Connectors

The CD_IN connector is used as a port for audio input from CD drive. The
AUX_IN privided users with one extra audio input port from CD drive.

2 - 14

AM35 Mainboard Manual

1. Power LED (2-Pin) is connected with the system power indicator to indicate
whether the system is on/off. It will blink when the system enters suspend
mode. There is a 3-Pin Power LED connector on board for some cases that with
a 3-pin plug.

2. Reset Button is connected to the reset button. Push this switch to reboot
the system instead of turning the power button off and on.

3. HDD LED is connected to the IDE device indicator. This LED will blink
when the hard disk drives are activated.

4. Dual Power LED it is in green light when the system in power on status.
It is in yellow light when the system in suspend mode.

5. Power Button is connected with power button. Push this switch allows the
system to be turned on and off rather than using the power supply button.

6. Suspend Button is connected with suspend button. To enter the system
into power saving mode, simply press this button when the system is in full­on mode.

Speaker is connected with the case speaker.

NOTE: When a dual power LED is used, Pin 2 is for green one and
Pin 4 is for yellow one. If single power LED installed, Pin 2 is for
positive and Pin 4 is for negative.

IR is a 4-pin connector that is used for linking with your ID device to allow
transmission of data to another system that also supports the IR feature. An
IR module mounts to a small opening on system cases that support it.

2 - 15

Installation Procedures

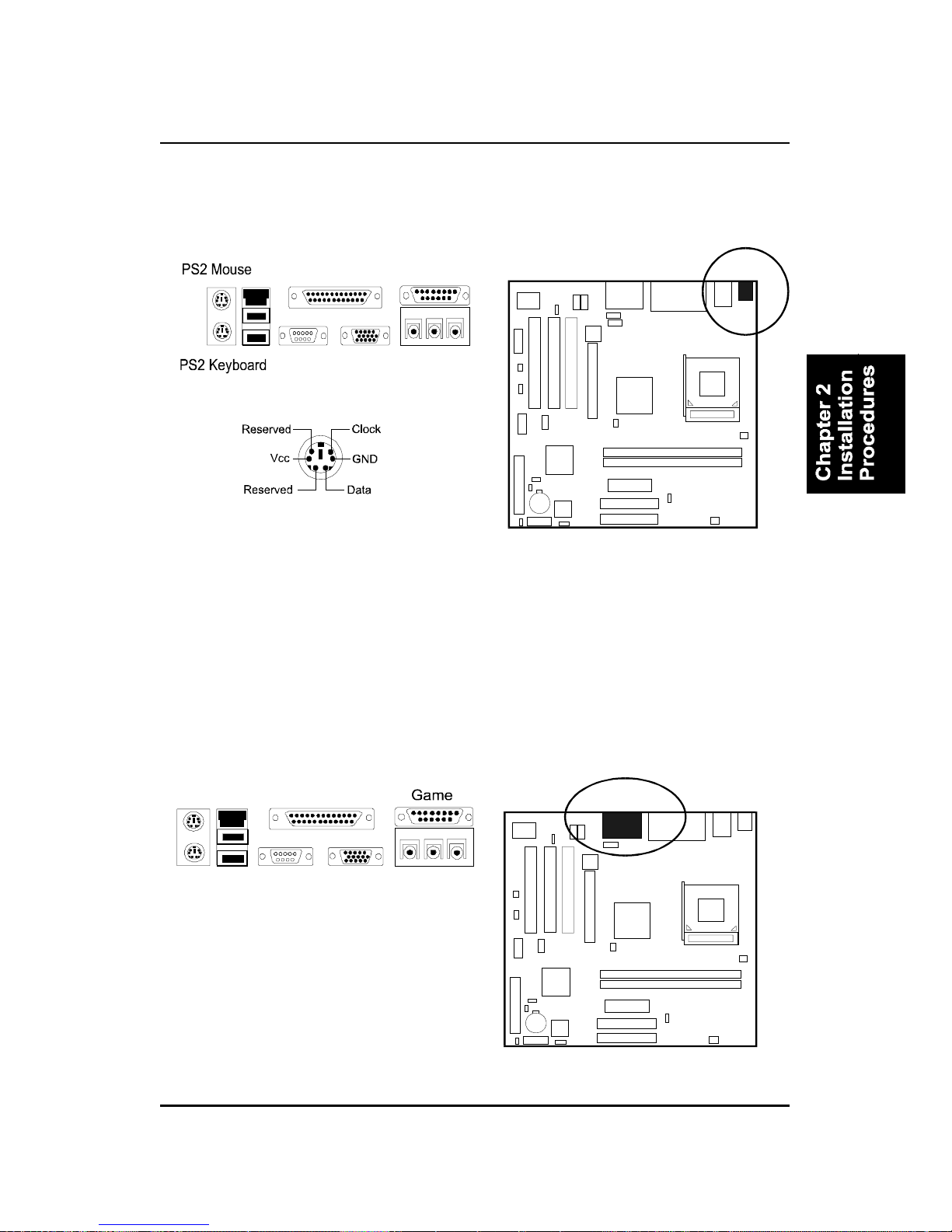

PS/2 Keyboard and Mouse Connector

These two 6-pin female (PS/2 keyboard is purple color a nd PS/2 mouse is green
color) connectors are used for your PS/2 keyboard and PS/2 mouse.

Ga me/MIDI Connector

This 15-pin female gold-colored connector allows you to connect game joy­sticks or game pads. Connect MIDI devices for playing or editing audio.

2 - 16

AM35 Mainboard Manual

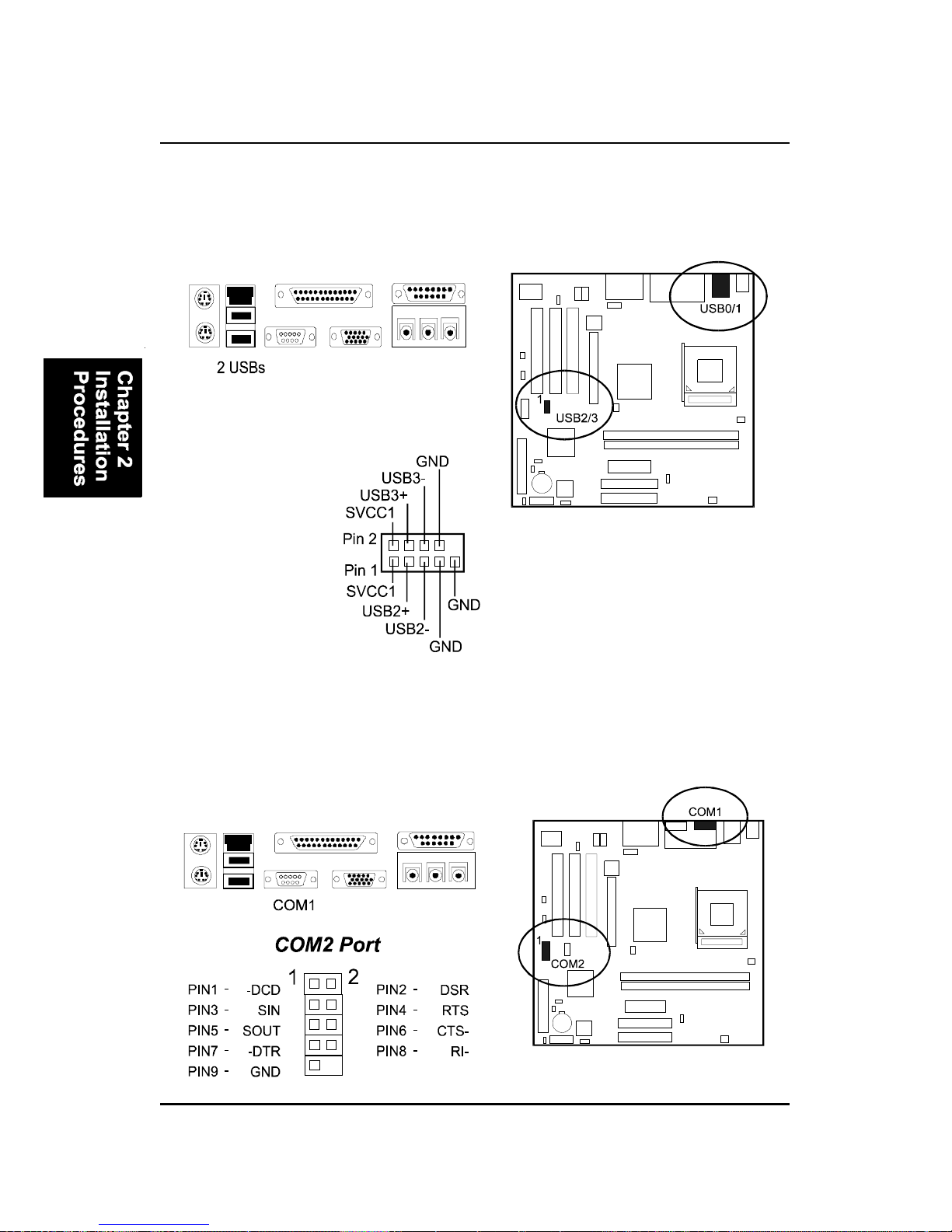

Universal Serial Bus Connectors

These two black jacks are integrated on the rear edge of the board for linking
with USB devices. This board ha s a pinhea d, USB2/3, for two extra USB ports
that either on front or rear panel.

The figure below is the pin assignment
of the USB2/3.

Serial Port Connectors

COM1 (9-pin D-sub male connector with teal color) and COM2 (9-pin male
connector) allow you to connect with your devices that use serial ports, such
as a seri al mouse or a n external mode m.

2 - 17

Installation Procedures

Printer Connector

This 25-pin D-Sub female burgundy-colored connector is attached to your
printer .

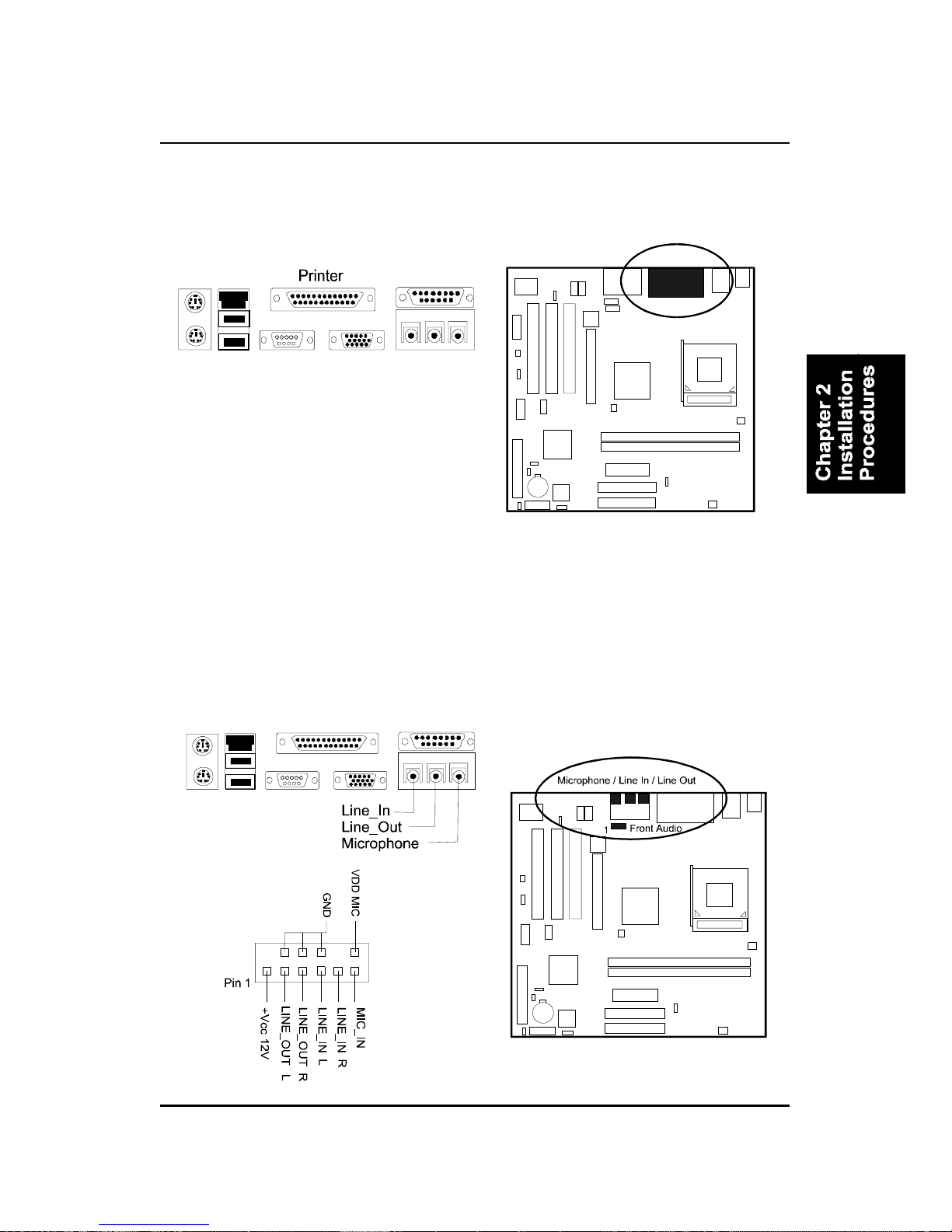

Audio I/O Jacks

LINE_OUT (lime) can be connected to headphones or preferably powered
speakers. LINE_IN (light blue) allows tape players or other audio sources to
be recorded by your computer or played through the LINE_OUT. MIC_IN
(pink) allows microphones to be connected for voice input. The mainboard
also provides you with a front panel audio port connector, FNT_AUDIO,
when needed. Its pin definitions were presented below.

2 - 18

AM35 Mainboard Manual

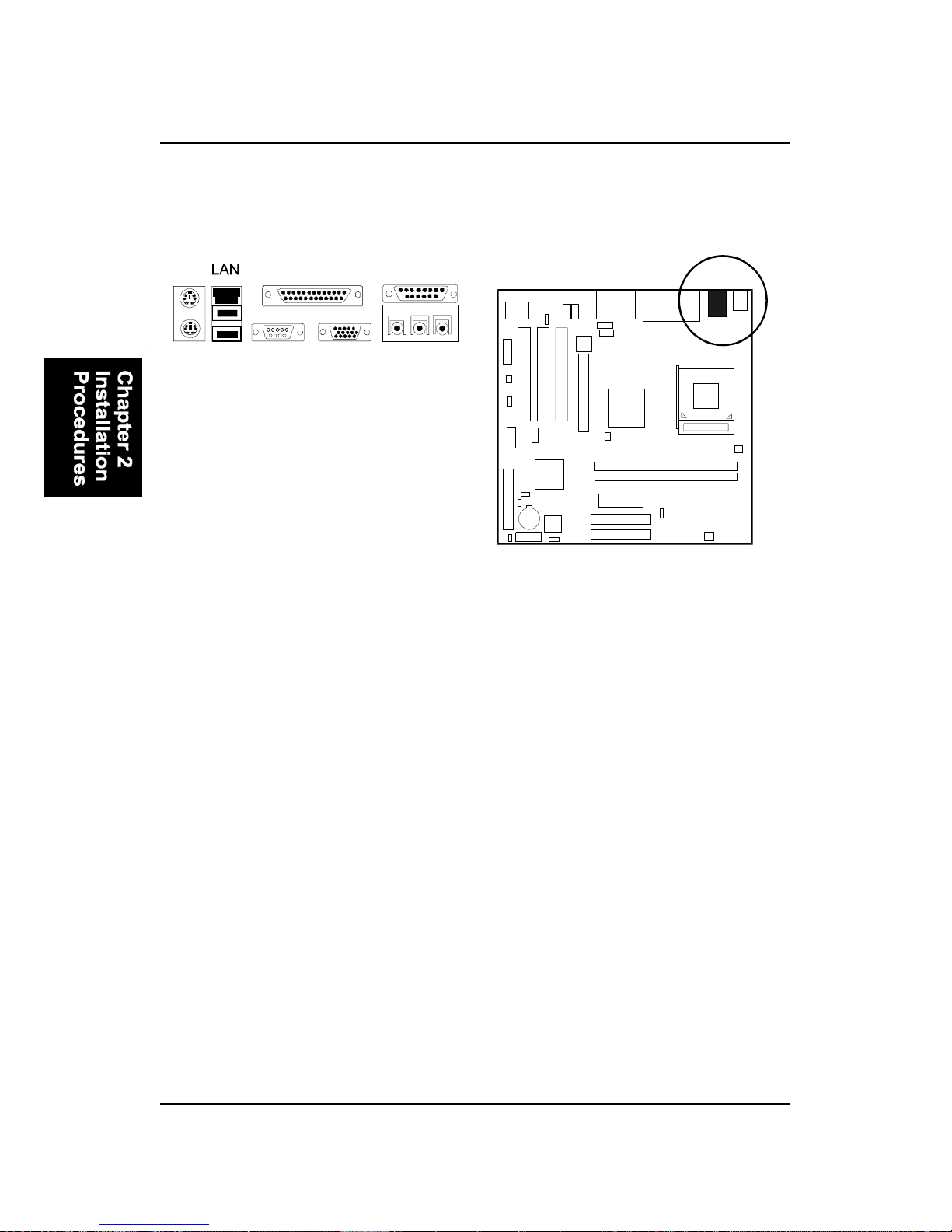

LAN Connector (optional)

The optional LAN ja ck is connected to the LAN cable.

3 - 1

BIOS Setup

Chapter 3

BIOS Setup

The Setup utility program allows updates to the mainboard configuration set­tings. The BIOS setup values will be saved in the CMOS. It is executed when
the user changes system configuration; user changes system backup battery;
or the system detects a configuration error and asks the user to run the Setup
program. Use the arrow keys to select and press Enter to run the selected
program.

The mainboard comes with the chip that A ward BIOS that contains the ROM
Setup information of your system. (This chip serves as an interface between
the processor and the rest of the mainboard components.) This section ex­plains the information contained in the Setup program and tells you how to
modify the settings according to your system configuration.

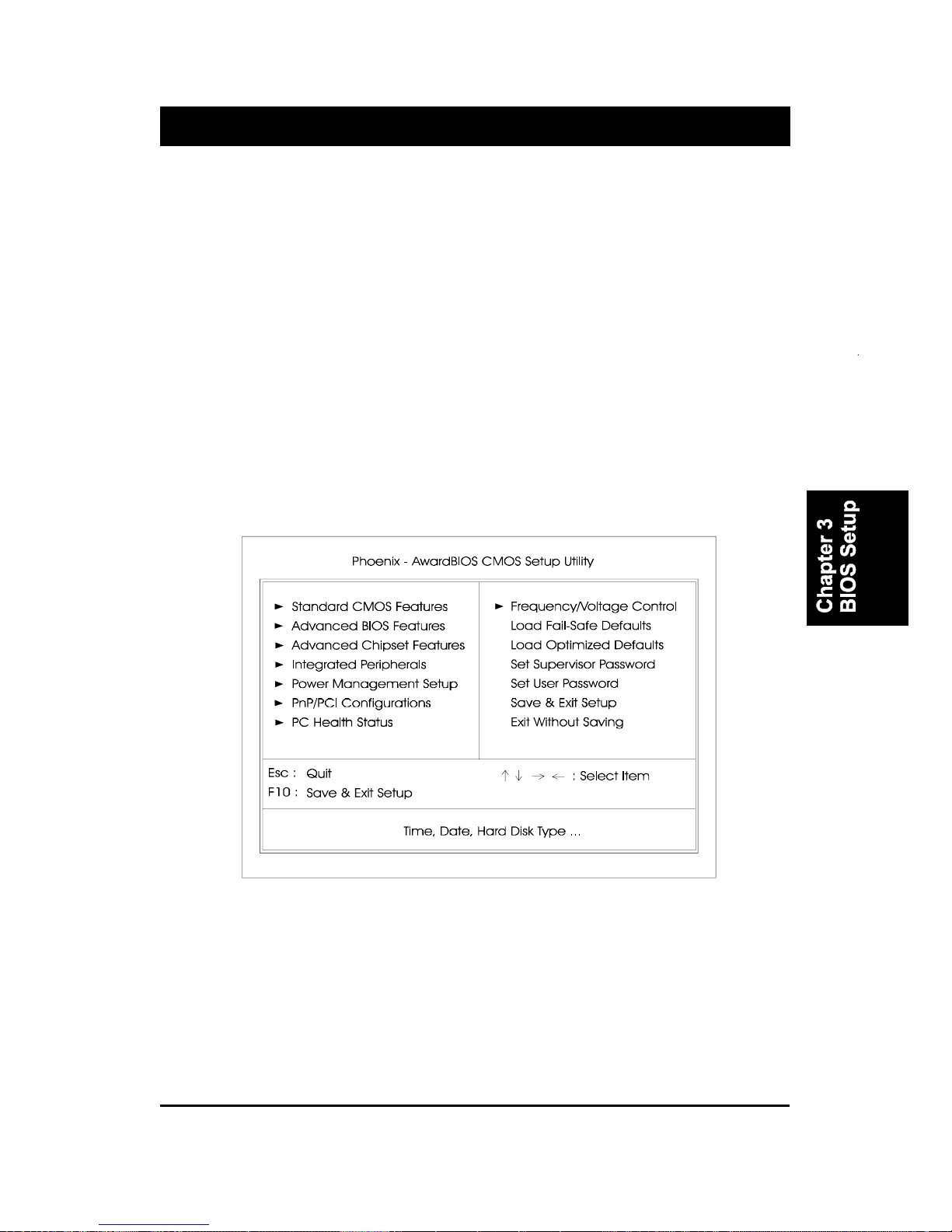

CMOS Setup Utility

3 - 2

AM35 Mainboard Manual

Standard CMOS Setup

The Standard CMOS Setup screen is displayed above. Each item may have
one or more option settings. The system BIOS automatically detects memory
size, thus no changes are necessary. Use the arrow keys to highlight the ite m
and then use PgUp or PgDn keys to select the value you want in each item.

Date

To set the date, highlight the Date field and then press Page Up/Page
Down or +/- keys to set the current date. Follow the month, day and year

format.

Time

T o set the time, highlight the Time field and then press Page Up/Page Down
or +/- keys to set the current time. Follow the hour, minute, and second
format.

3 - 3

BIOS Setup

Hard Disks

This field records the specifications for all non-SCSI hard drives installed
in the system. The onboard PCI IDE connectors provide Primary and Sec­ondary channels for connecting up to four IDE hard disks or other IDE
devices. Each channel can support up to two hard disks, the first of which
is the Master and the second is the Slave.

Hard Disk Configurations

Capacity: The hard disk size. The unit is Bytes.
Cylinder: The cylinder number of the hard disk.
Head: The read/write head number of hard disk.
Precomp: The cylinder number at which the disk drive

changes the write current.

Landing Zone: The cylinder number that the disk drive heads

(read/write) are seated when the disk drive is
parked.

Sector: The sector number of each track defined on the

hard disk.

Drive A / Drive B

This field records the types of floppy drives installed in the system. To
enter the configuration value for a particular drive, highlight its corre­sponding field and then select the drive type using the left- or right-arrow
key .

Floppy 3 Mode Support

This is a Japanese standard floppy type drive. The standard stores 1.2MB
in a 3.5 inch diskette.

Video

Set this field to the type of video display card installed in the system.

Halt On

This field determines which types of errors will cause the system to halt.

3 - 4

AM35 Mainboard Manual

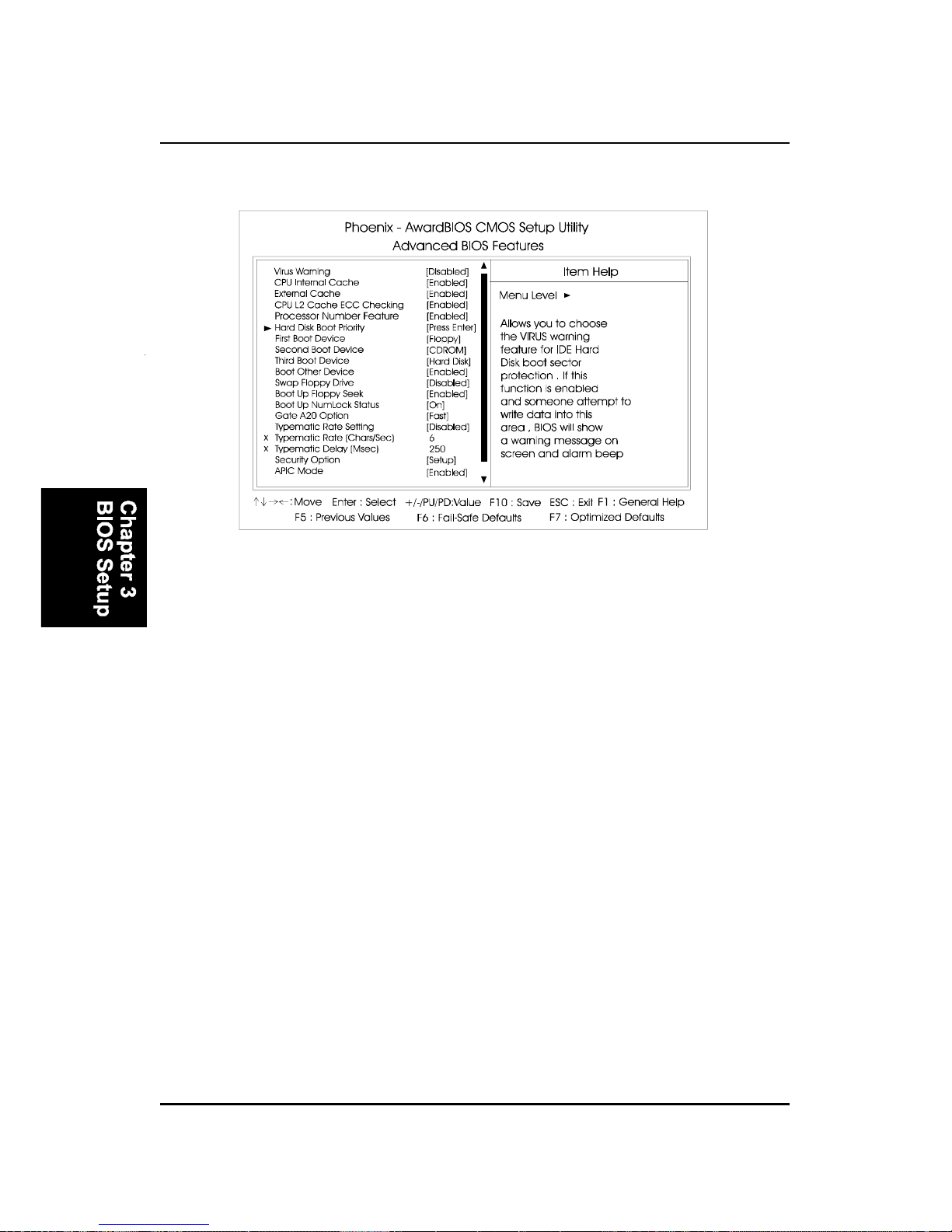

Advanced BIOS Features

Virus Warning

This feature will prompt uses a warning message, when any write boot
sector commend executed. The options are: Enabled, Disabled.

CPU Internal Cache

When enabled, improves the system performance. Disable this item when
testing or trouble-shooting. The options are: Enabled, Disabled.

External Cache

When enabled, supports CPU L2 cache. This feature allows you to disable
the cache function when the system performance is unstable to run some
software. The options are: Enabled, Disabled.

CPU L2 Cache ECC Checking

When enabled, it activates the CPU L2 cache check and error correction.
The options are: Enabled, Disabled.

Processor Number Feature

If a Pentium III processor is installed on this mainboard, the system BIOS
will allow other utilities to access the Intel Pentium III serial number while
this feature set at Enabled. The options are: Enabled, Disabled.

3 - 5

BIOS Setup

First/Second/Third Boot Device

This feature allows user to select the boot device priority . The options are:
Floppy , LS120, Hard Disk, CD ROM, ZIP100, USB-FDD, USB-ZIP , USB­CDROM, USB-HDD, LAN, Disabled.

Boot Other Device

This feature allows user to select the boot device priority.
The options are: Enabled, Disabled.

Swap Floppy Drive

Allows you to switch the order in which the operating system accesses
the floppy drives.
The options are: Enabled, Disabled.

Boot Up Floppy Seek

When enabled, assigns the BIOS to perform floppy diskette drive tests by
issuing the time-consuming seek commands.
The options are: Enabled, Disabled.

Boot Up Numlock Status

When set to On, allows the BIOS to automatically enable the Num Lock
Function when the system boots up. The options are: On, Off.

Gate A20 Option

When set at Fast, allows a faster access response of address Line No. 20.
The options are: Fast, Normal.

T ypematic Rate Setting

The term typematic means that when a keyboard key is held down, the
character is repeatedly entered until the key is released.
The options are: Disabled, Enabled.

Hard Disk Boot Priority

This feature will auto detect all hard disks of bootable device on the sys­tem. It also allows users to select hard disk device booting priority.

3 - 6

AM35 Mainboard Manual

Report No FDD For WIN 95

When the field under the Standard CMOS Setup Menu for Drive A and/or
Drive B is set at None, users must set this field is set at Yes f or it to function
properly . Otherwise, set at No, even if field for Drive A a nd/or Drive B is set
at None, system will still detect and recognize of a floppy drive(s).
The options are: Yes, No.

Typematic Delay (Msec)

This feature is available only if the ite m, Typematic Rate Setting, is set at
Enabled. Sets the delay time before a character is repeated.
The options are: 250, 500, 750, 1000 millisecond.

MPS V ersion Control For OS

When two CPUs onboard (not this board) this feature allows you to select
MPS (Multi-Processor Spec.) version control for OS when logo test ex­ecutes. The options are: 1.1, 1.4.

OS Select For DRAM > 64MB

If your operating system (OS) is OS/2, select the option OS2. Otherwise,
stay with the default setting Non-OS2.The options are: Non-OS2, OS2.

HDD S.M.A.R.T. Capability

S.M.A.R.T. stands for Self-Monitoring and Analysis Reporting Technol­ogy which allows your hard disk drive to report any read/write errors and
issues a warning with LDCM installed. The options: Disabled, Enabled.

Security Option

Allows to set the security level of the system.The options: Setup, System.

APIC Mode

Allows you to decide if the system enters the APIC (Advanced Program­mable Interrupt Controller) mode or not for more IRQs can be released.
The options are: Enabled, Disabled.

T ypematic Rate (Chars/Sec)

This feature is availa ble only if the a bove item, T ype matic Rate Setting, is
set at Enabled. Sets the rate of a character repeat when the key is held
down. The options are: 6, 8, 10, 12, 15, 20, 24, 30.

3 - 7

BIOS Setup

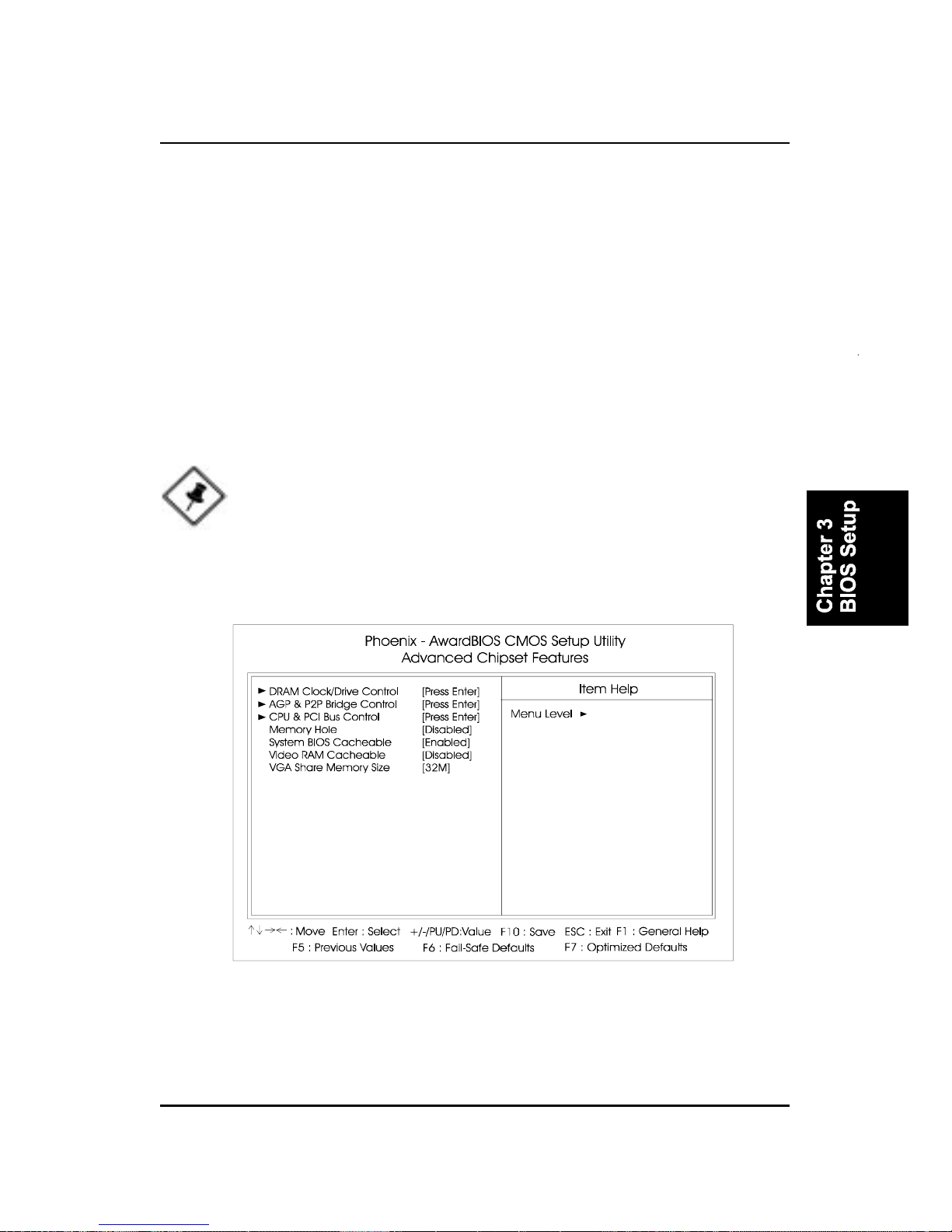

Advanced Chipset Features

DRAM Clock/Drive Control

Current FSB Frequency , Current D RAM Frequency

This item allows you to get current FSB and DRAM frequencies.

Video BIOS Shadow

Enabling this feature will copy the video BIOS to shadow RAM, it will
improve the system performance.
The options are: Enabled, Disabled.

Full Screen LOGO Show

It decides whether or not the full screen logo is shown during system
booting up. The options are: Enabled, Disabled.

BIOS Guardian

It allows the system to prevent computer viruses. Users will need to dis­able it to update BIOS. The options are: Enabled, Disabled.

NOTE: Please disable this BIOS feature about BIOS Guardian
before you start to reflash BIOS.

3 - 8

AM35 Mainboard Manual

Precharge to Active (Trp)

This item allows users to set the clock time from Precharge to Active
comma nd. The options are: 2T, 3T

Active to Precharge (Tras)

This item allows users to set the clock time from Active to Precharge
comma nd. The options are: 5T, 6T

Active to CMD (Trcd)

This item allows users to set the clock time from Active to Read/Write
Delay comma nd. The options are: 2T, 3T

DRAM Queue Depth

This item allows users to set DRAM queue depth.
The options are: 2 level, 4 level, 3 level.

DRAM Comma nd Rate

This item allows users to set Address Ti me After command.
The options are: 2T Comma nd, l T Comma nd.

DRAM Timing

This feature allows user to select the way to set DRAM timing.
The options are: By SPD, Manual.

DRAM CAS Latency

If the CAS latency of your installed memory medule is 2 Cycle, The selec­tion 2 will enhance system performance. The options are: 2.5, 2.

Bank Interleave

This item allows users to select the bank interleave function of DRAM,
when the feature DRAM Timing By SPD set at Disabled.
The options are: Disabled, 2 Bank, 4 Bank.

DRAM Clock

The feature allows users to select the DRAM clock.
The options are: 100 MHz, 133 MHz, Host CLK, By SPD.

3 - 9

BIOS Setup

AGP & P2P Bridge Control

AGP Aperture Size

It allows you to select the main memory frame size for AGP use.
The options are: 256M, 128M, 64M, 32M, 16M, 8M, 4M.

AGP Fast Write

This feature allows you to set AGP fast write mode.
The options are: Disabled, Enabled.

CPU & PCI Bus Control

PCI1/2 Master 0 WS Write

When enabled, allows a zero-wait-state-cycle delay when the PCI1/2 mas­ter drive writes data to DRAM. The options are: Enabled, Disabled.

PCI1/2 Post Write

When enabled, allows the CPU to PCI1/2 master drive excutes post write.
The options are: Enabled, Disabled.

AGP Master 1 WS Write

When enabled, the AGP bus master write access to DRAMs will add one
wait-state cycle. The options are: Ena bled, Disa bled.

AGP Master 1 WS Read

When enabled, the AGP bus master rea d a ccess to the DRAM s will a dd one
wait-state cycle. The options are: Disa bled, Enabled.

AGP Mode

This feature allows users to select the AGP mode when an AGP add-on
card installed. The options are: 4X, 2X, 1X.

AGP Driving Control / AGP Driving Value

These two features allow user to improve the performance of AGP card
manually by pressing Page Down/Page UP key if necessary.
The options of AGP Driving Control are: Auto, Manual.

3 - 10

AM35 Mainboard Manual

Video RAM Cacheable

When enabled, allows the video RAM area to be cacheable.
The options are: Enabled, Disabled.

System BIOS Cacheable

When enabled, allows the ROM area F000H-FFFFH to be cacheable when
cache controller is activated. The options are: Enabled, Disabled.

Memory Hole

When you install a Legacy ISA card, this feature allows you to select the
memory hole address range of the ISA cycle when the processor accesses
the selected address area. Please read your card manual for detail informa­tion. When disabled, the memory hole at the (15-16MB) address will be
treated as a DRAM cycle when the processor accesses the15~16MB ad­dress area. The options are: 15M - 16M, Disabled.

VGA Share Memory Size

It allows user to select the frame buf fer size of VGA share memory.
The options are: Disabled, 8M, 16M, 32M, .

PCI Delay Transaction

Enable this feature to abort the current PCI master cycle and to accept the
new PCI master request, it reaccepts the original PCI master and returns
the PCI data phase to the original PCI master. The options are: Disabled,
Enabled.

3 - 11

BIOS Setup

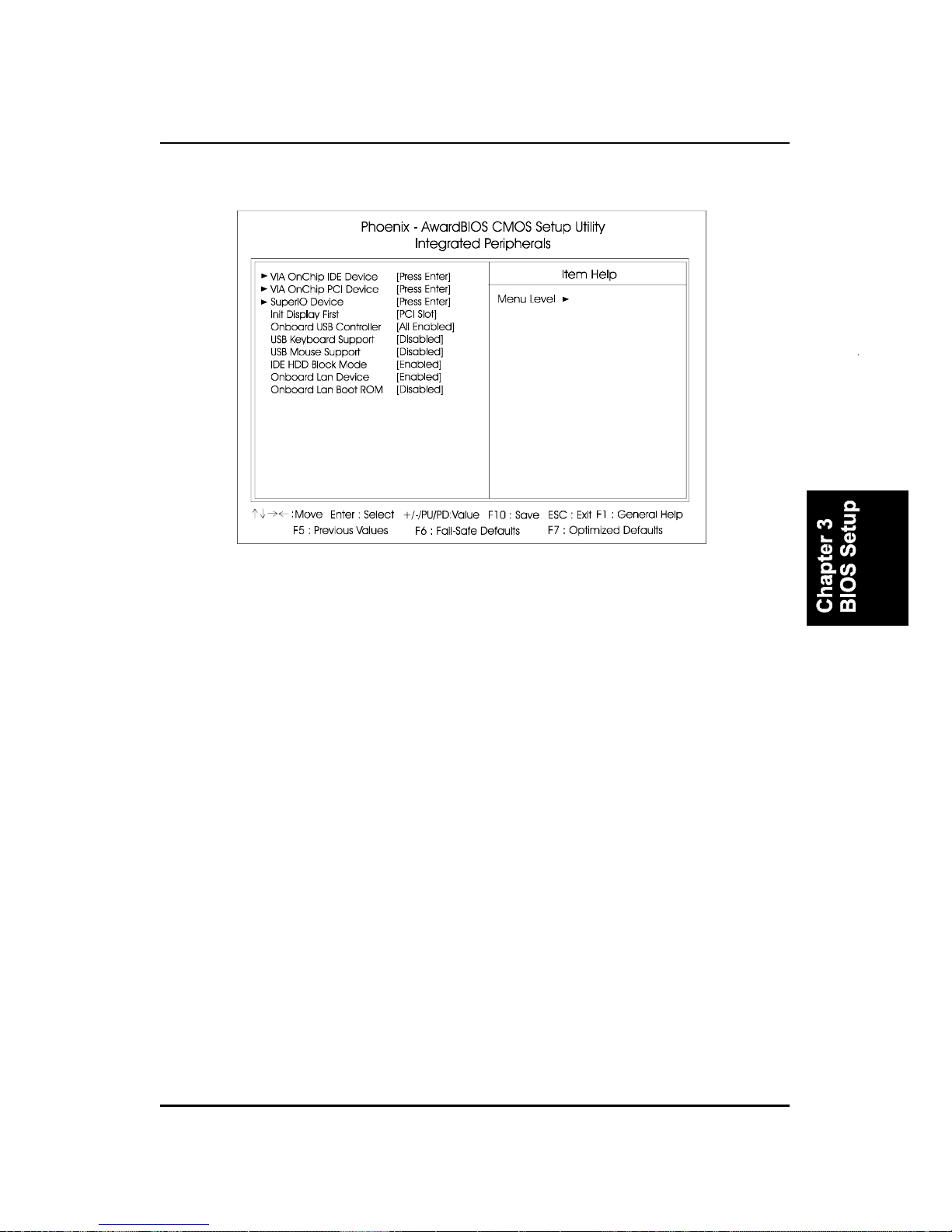

Integrated Peripherals

VIA OnChip IDE Device

OnChip IDE Channel0

When enabled, allows you to use the onboard primary PCI IDE. If a hard
disk controller card is used, set at Disabled.
The options are: Enabled, Disabled.

OnChip IDE Channel1

When enabled, allows you to use the onboard secondary PCI IDE. If a
hard disk controller card is used, set at Disabled.
The options are: Enabled, Disabled.

IDE Prefetch Mode

When set at Enabled, it allows data to be posted to and prefetched from
the primary IDE data ports. Data prefetching is initiated when a data port
read occurs. The read prefetch eliments latency to the IDE data ports and
allows them to be performed back to back for the highest possible PIO data
transfer rates. The first data port read of a sector is called the demand read.
Subsequent data port reads from the sector are called prefetch reads. The
demand read and all prefetch reads must be of the same size (16 or 32 bits).
The options are: Enabled, Disabled.

3 - 12

AM35 Mainboard Manual

Secondary Slave UDMA

Allows you to select the second PCI IDE channel of the secondary slave
hard disk mode or to detect it by the BIOS if the hard disk supports UDMA
(Ultra DMA, faster than DMA). The options are: Auto, Disabled.

Secondary Slave PIO

Allows an automatic or a manual configuration of the PCI secondary IDE
hard disk (slave) mode. The options are: Auto, Mode 0, Mode 1, Mode 2,
Mode 3, Mode 4.

Primary Master UDMA

Allows you to select the first PCI IDE channel of the first master hard disk
mode or to detect it by the BIOS if the hard disk supports UDMA (Ultra
DMA, faster than DMA). The options are: Auto, Disabled.

Primary Slave UDMA

Allows you to select the first PCI IDE channel of the first slave hard disk
mode or to detect it by the BIOS if the hard disk supports UDMA (Ultra
DMA, faster than DMA). The options are: Auto, Disabled.

Secondary Master UDMA

Allows you to select the second PCI IDE channel of the secondary master
hard disk mode or to detect it by the BIOS if the hard disk supports UDMA
(Ultra DMA, faster than DMA). The options are: Auto, Disabled.

Primary Master PIO

Allows an automatic or a manual configuration of the PCI primary IDE hard
disk (master) mode. The options are: Auto, Mode 0, Mode 1, Mode 2,
Mode 3, Mode 4.

Primary Slave PIO

Allows an automatic or a manual configuration of the PCI primary IDE hard
disk (slave) mode. The options are: Auto, Mode 0, Mode 1, Mode 2, Mode
3, Mode 4.

Secondary Master PIO

Allows an automatic or a manual configuration of the PCI secondary IDE
hard disk (master) mode. The options are: Auto, Mode 0, Mode 1, Mode 2,
Mode 3, Mode 4.

3 - 13

BIOS Setup

VIA OnChip PCI Device

VIA-3058 AC97 Audio

It allows users to disable AC97 link in South Bridge.
The options are: Auto, Disabled.

VIA-3068 MC97 Modem

It allows users to disable MC97 link in South Bridge.
The options are: Auto, Disabled.

Onboard FDC Controller

When enabled, the floppy diskette drive (FDD) controller is activated.
The options are: Enabled, Disabled.

Onboard Serial Port 1

If the serial port 1 uses the onboard I/O controller, you can modify your
serial port parameters. If an I/O card needs to be installed, COM3 and
COM4 may be needed. The options are: 3F8/IRQ4, 3E8/IRQ4, 2F8/IRQ3,
2E8/IRQ3, Disabled, Auto.

Onboard Serial Port 2

If the serial port 2 uses the onboard I/O controller, you can modify your
serial port parameters. If an I/O card needs to be installed, COM3 and
COM4 may be needed. The options are: 2F8/IRQ3, 3E8/IRQ4, 2E8/IRQ3,
3F8/IRQ4, Disabled, Auto.

UART Mode Select

Allows you to select the IR modes if the serial port 2 is used as an IR port.
Set at Standard, if you use COM2 as the serial port as the serial port,
instead as an IR port. The options are: IrDA, ASKIR, Normal.

UR2 Duplex Mode

Allows you to select the IR modes.
The options are: Half, Full.

SuperIO PCI Device

3 - 14

AM35 Mainboard Manual

Onboard Parallel Port

Allows you to select from a given set of parameters if the parallel port uses
the onboard I/O controller .
The options are: Disabled, 378/IRQ7, 278/IRQ5, 3BC/IRQ7.

Parallel Port Mode

Allows you to connect with an advanced printer via the port mode it
supports. The options are: SPP, EPP, ECP , ECP+EPP.

ECP Mode Use DMA

This feature allows you to select Direct Memory Access (DMA) channel if
the ECP mode selected. The options are: 1, 3.

Game Port Address

This feature allows you to select the game port address or disable it.
The options are: Disabled, 201, 209.

Midi Port Address

This feature allows you to select the Midi port address or disable it.
The options are: Disabled, 330, 300.

Midi Port IRQ

It allows you to select Midi IRQ if Midi is enabled.
The options are: 5, 10.

Init Display First

When you install a PCI VGA card on the board, this feature allows you to
select the first initiation of the monitor display from PCI or onboard AGP .
The options are: PCI Slot, AGP .

OnChip USB Controller

Disable this option if you are not using the onboard USB feature.
The options are: All Disabled, All Enabled, 1 USB Port, 2 USB Port.

USB Keyboard Support

When a USB keyboard is installed, please set at Enabled.
The options are: Disabled, Enabled.

3 - 15

BIOS Setup

IDE HDD Block Mode

When enabled, the system executes read/write requests to hard disk in
block mode. The options are: Enabled, Disabled.

Onboard Lan Device

This feature allows users to enable or disable the onboard Lan device.
The options are: Enabled, Disabled.

Onboard Lan Boot ROM

This feature allows users to enable or disable the onboard Lan boot ROM
to boot system.
The options are: Enabled, Disabled.

USB Mouse Support

When a USB mouse is installed, please set at Enabled.
The options are: Disabled, Enabled.

3 - 16

AM35 Mainboard Manual

HDD Power Down

The option lets the BIOS turn the HDD motor off when system is in Sus­pend mode. Selecting 1 Min..15 Min allows you define the HDD idle time
before the HDD enters the Power Saving Mode.
The options 1 Min..15 M in will not work concurrently . When HDD is in the
Power Saving Mode, any access to the HDD will wake the HDD up.
The options are: Disable, 1 Min..15 Min.

ACPI Suspend T ype

This item allows you to select ACPI suspend types.
The options are: S1(POS), S3 (STR), S1&S3.

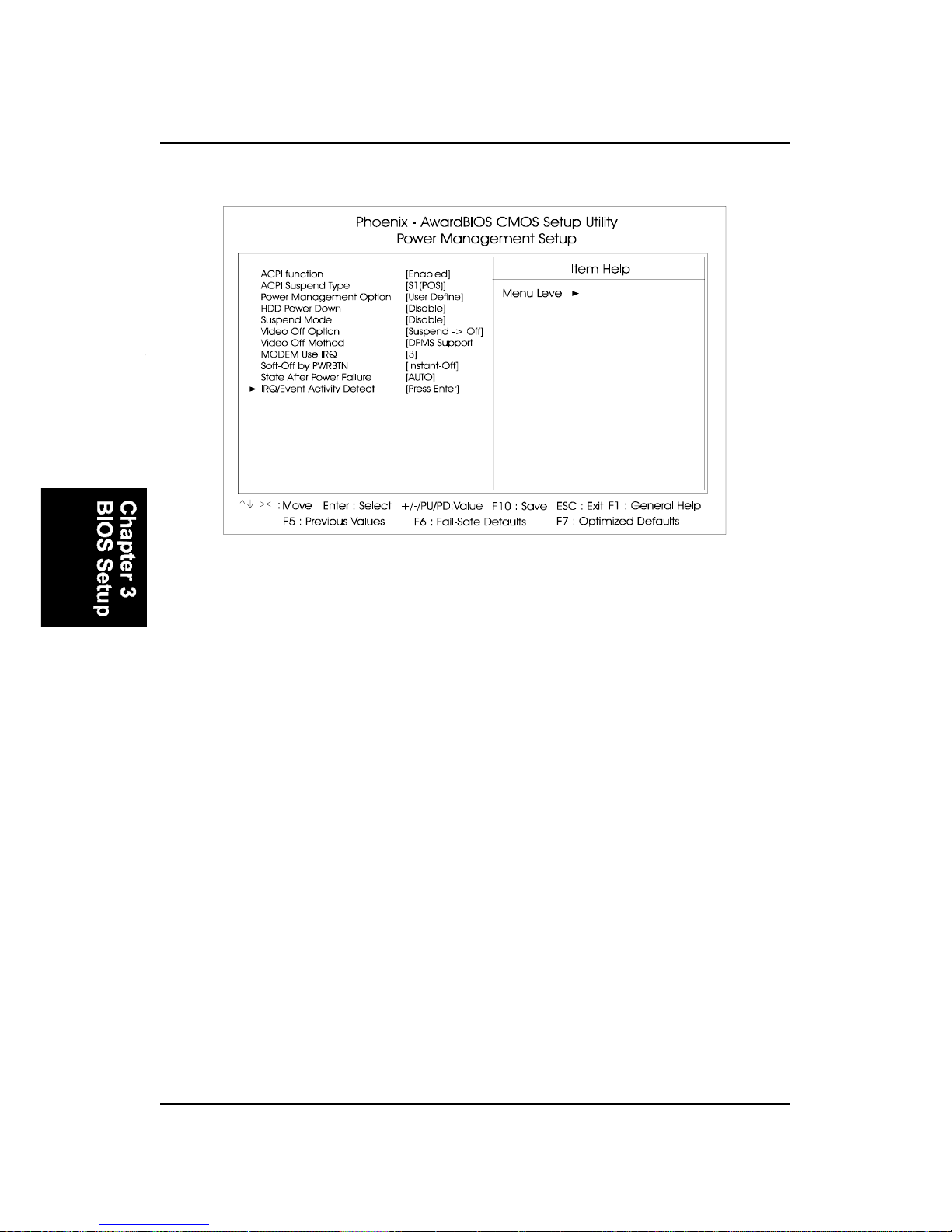

Power Management Setup

Power Management

This item allows you to adjust the power management features.

ACPI function

This item allows you to disable the ACPI function.
The options are: Enabled, Disabled.

Select User Define for configuring your own power management features.
Min Saving initiates all predefined timers in their minimum values. Max
Saving, on the other hand, initiates maximum values. The options are: User
Define, Min Saving, Max Saving.

3 - 17

BIOS Setup

Video Off Method

The option V/H SYNC+Blank allows the BIOS to blank off screen display
by turning off the V-Sync and H-Sync signals sent from add-on VGA card.
DPMS Support allows the BIOS to blank off screen display by your add­on VGA card which supports DPMS (Display Power Management Signal­ing function). Blank Screen allows the BIOS to blank off screen display by
turning off the red-green-blue signals.
The options are: V/H SYNC+Blank, DPMS Support, Blank Screen.

MODEM Use IRQ

This feature allows you to select the IRQ# to meet your modem IRQ#.
The options are: NA, 3, 4, 5, 7, 9, 10, 11.

Suspend Mode

When disabled, the system will not enter Suspend mode. The specified
time option defines the idle time the system takes before it enters Suspend
mode. The options are: Disa ble, 1, 2, 4, 6, 8, 10, 20, 30, 40 Min, 1 Hour .

Video Off Option

This feature provides the selections of the video display power saving
mode. The option Suspend - Off allows the video display to go blank if the
system enters Suspend mode. The option All Modes - Off allows the video
display to go blank if the system enters Doze mode or Suspend mode. The
option Always On allows the video display to stay in Standby mode even
when the system enters Doze or Suspend mode.
The options are: Suspend - Off, All Modes -> Off, Always On.

State After Power Failure

The item allows you to select the state that your personal computer re­turns to after a power failure. If set at Off, the system will not boot after a
power failure. If set On, the system will restart after power failure.
The settings are: Auto, On, Off.

Soft-Off by PWR-BTTN

The selection Delay 4 Sec. will allow the system shut down after 4 seconds
after the power button is pressed. The selection Instant-Off will allow the
system shut down immediately once the power button is pressed.
The settings are: Delay 4 Sec, Instant-Off.

3 - 18

AM35 Mainboard Manual

PowerOn by PCI Card

When set at Enabled, any PCI-PM event awakes the system from a PCI­PM controlled state.
The options are Disabled, Enabled.

RTC Alarm Resume

Enabled allows you to set the time the system will be turned on from the
system power-off status. The options are: Enabled, Disabled.

PCI Master

To set this feature at ON activates that Power Management feautre (PM)
wake-up event for the PCI bus master card.
The options are: OFF , ON.

LPT & COM

When LPT/COM is selected, any access of LPT and COM ports will awake
the system. Likewise, either LPT or COM is chosen, the system will be
awaken by any activity of LPT or COM port.
The options are: LPT/COM, LPT , COM, NONE.

VGA

When set at On, any VGA activity will awake the system.
The options are: OFF , ON.

HDD & FDD

When it is set at ON, any access happened at hard drives and floppy
drives will awake the system. The options are: OFF , ON.

IRQ/Event Activity Detect

USB Resume From S3

When set at Enabled, it allows USB devices that linked with the system to
activate the system from ACPI S3 power saving mode.
The options are Disabled, Enabled.

Modem Ring Resume

An input signal on the serial Ring Indicator (RI) line (in other words, an
incoming call on the modem) awakens the system from a soft off state.
The options are: Enabled, Disabled.

3 - 19

BIOS Setup

Resume Time (hh:mm:ss)

If an ATX power supply is installed and when RTC Alarm Resume is En­abled, this feature allows you to set the time of the alarm starts when the
R TC Alarm Resume From Soft Off is set to be Ena bled.
The options are: hh (hour) - 0, 1, 2,.., 23; mm (minute) - 0, 1, 2,..,59; ss
(second) - 0, 1, 2,..,59.

Primary INTR

If set at ON, the Primary interrupt (the Primary option in the feature of IRQ#
Acitivity) will make the power management wake up the system.
The options are: ON, OFF.

Date (of Month)

This feature allows you to set the day of the alarm starts when the RTC
Alarm Resume From Soft Off is set to be Enabled. The options are: 0, 1..31.

IRQs Activity Monitoring

After the time period which you set, the system advances from doze mode
to suspend mode in which the CPU clock stops and the screen display is
off. At this moment, if the IRQ activity occurs, the system goes back to
full-on mode directly .
If the IRQ activity which is defined as Non Primary takes place, the system
remains off until the corresponding IRQ handler finishes.
The options of IRQ 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15 are: Enabled,
Disabled.

3 - 20

AM35 Mainboard Manual

PCI/VGA Palette Snoop

Set this feature to be enabled if any ISA adapter card installed in the
system requires the VGA palette snoop function.
The options are: Disabled, Enabled.

Resources Controlled By

If set at Auto, the BIOS arranges all system resources. If there exists con­flict, select Manual. The options are: Auto (ESCD), Manual.
The ma nual options of IRQ- / DMA- assigned to are: PCI/ISA PnP, Legacy
ISA.

Reset Configuration Data

Enabling it to reset the system Extended System Configuration Data (ESCD)
when you exit Setup if you have installed a new add-on card and the
system reconfiguration has caused such a serious conflict that the operat­ing system can not boot. The options are: Disabled, Enabled.

PNP OS Installed

If your operating system is a Plug-and-Play one, such as Windows NT,
W indows 95, select Yes. The options are: No, Yes.

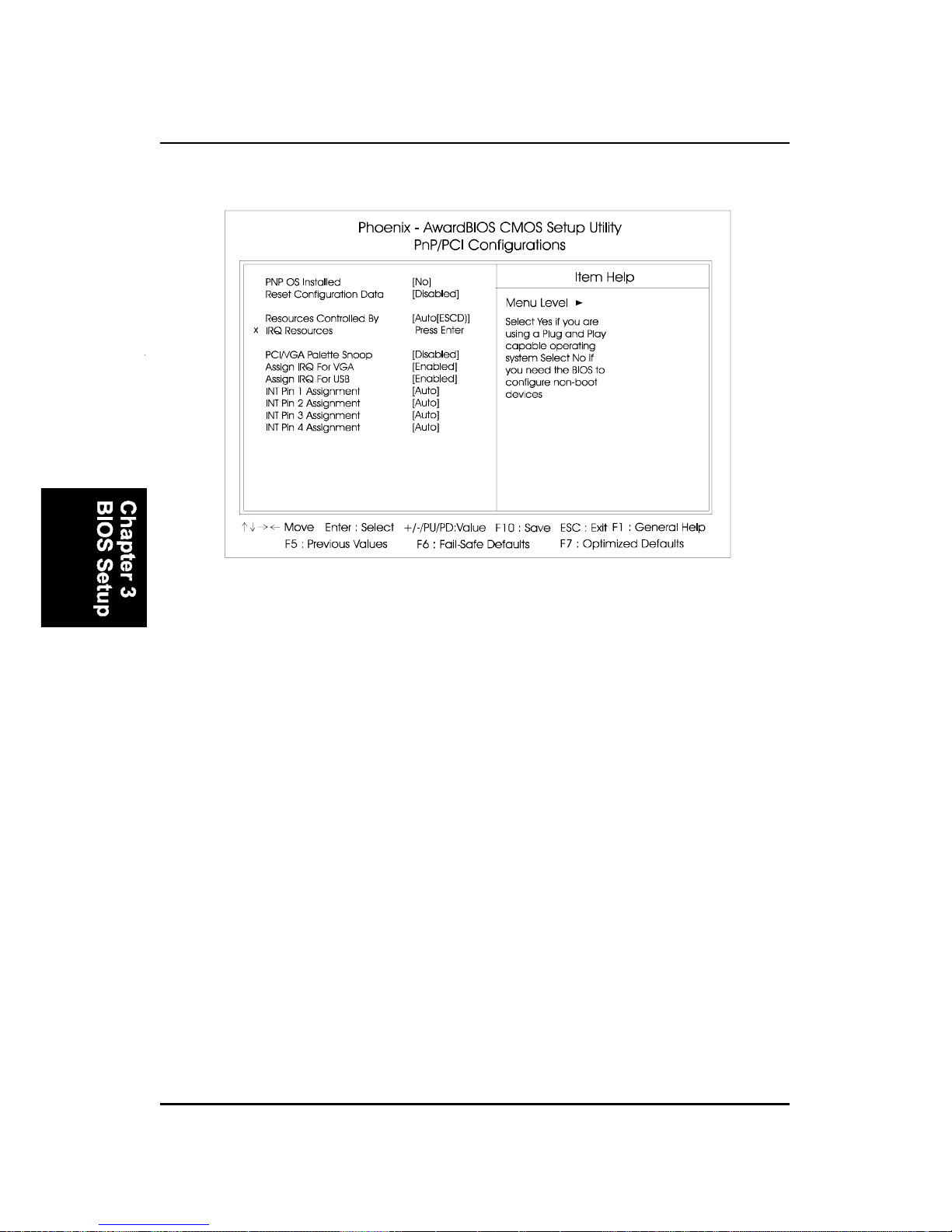

PnP/PCI Configurations

3 - 21

BIOS Setup

Assign IRQ For VGA

If your PCI VGA card devices do not need an IRQ, select Disabled; there­fore, an IRQ can be released for the system use.
The options are: Enabled, Disabled.

Assign IRQ For USB

If your USB devices do not need an IRQ, select Disabled; therefore, an
IRQ can be released for the system use.
The options are: Enabled, Disabled.

INT Pin 1/2/3/4 Assignment

This feature allows you to assign the PCI IRQ numbers for PCI slots.
Selecting the default, Auto, allows the PCI controller to automatically allo­cate the IRQ numbers.
The options are: Auto, 3, 4, 5, 7, 9, 10, 11, 12, 14, 15.

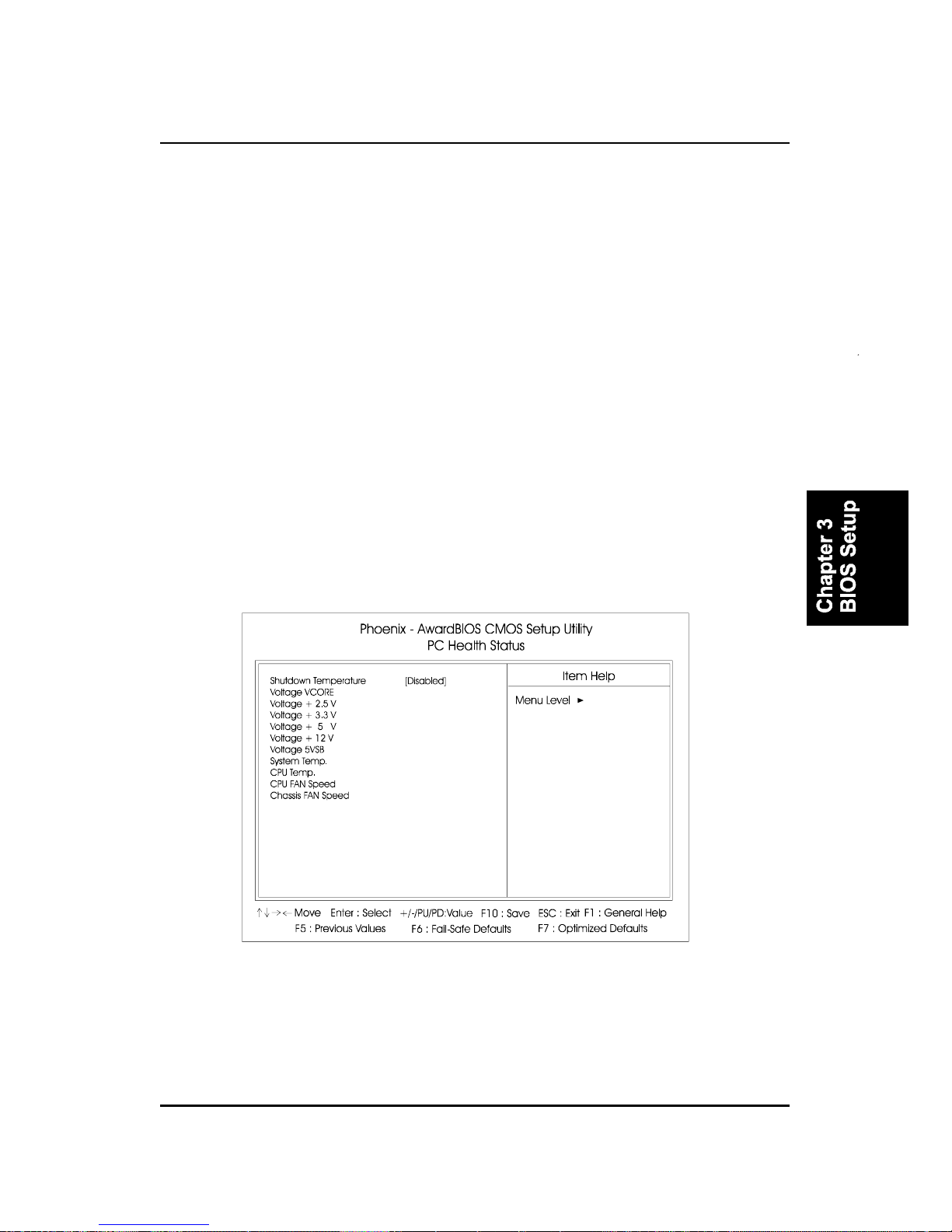

PC Health Status

Shutdown T emperature

This feature helps to shutdown the system when the system temperature
is as high as the selected temperature to prevent from the overheat prob­lem. The option list presents all the temperatures that supported by the
board and Disabled.

3 - 22

AM35 Mainboard Manual

Frequency/Voltage Control

Voltage VCORE / Voltage + 2.5 V / Voltage +3.3 V / Voltage +5 V /
Voltage +12 V / Voltage 5VSB / Voltage Battery / SYSTEM Temp. /
CPU Temp. / CPU FAN Speed / Chassis FAN Speed

These items allow end users and technicians to monitor data provided by
the BIOS on this mainboard. It is not user-configurable.

Auto Detect DIMM/PCI Clk

When enabled, BIOS will detect the PCI slot and DIMM slot. If no any
device in, BIOS will auto disable its clock.
The options are: Enabled, Disabled.

Spread Spectrum

This feature is used to select the spread Spectrum range or disable it.
The options are: Disabled and all allowed ranges in percentage.

3 - 23

BIOS Setup

Load Fail-Safe Defaults

This submenu is selected to diagnose the problem after the computer boots, if
the computer will not boot. These settings do not give optimal performance.

Under the BIOS Feature Setup, if Setup is selected under the Security Option
field and the Supervisor/User Password is enabled, you will be prompted
password every time you try to enter the CMOS Setup Utility. If System is
selected and the Supervisor/User Password is enabled, you will be requested
to enter the Password every time when you reboot the system or enter the
CMOS Setup utility .

Load Optimized Defaults

This submenu is selected for default settings which provide the best system
performance.

Supervisor/User Password

To enable the Supervisor/User passwords, select the item from the Standard
CMOS Setup. You will be prompted to create your own pa ssword. Type your
password up to e ight chara cters and press Enter . You will be asked to confirm
the password. Type the password again and press Enter . To disable password,
press Enter twice when you are prompted to enter a password. A message
appears, confirming the password is disabled.

CPU Host/PCI Clock/3V66

This feature allows you to select the combinations of CPU, onboard de­vices (such as AGP bus, South Bridge) that runs with 66MHz frequency,
and PCI clock frequency. The default setting, Default, will detect your
CPU/PCI/3V66 clock frequency automatically . If you set a unappropri ate
option which leads to a booting problem, keep pressing the Insert key
until the display appears will solve it. The options lists all combinations
that provided by the system BIOS.

3 - 24

AM35 Mainboard Manual

Save and Exit Setup

After you have made changes under Setup, press Esc to return to the main
menu. Move cursor to Save and Exit Setup or press F10 and then press Y to
change the CMOS Setup. If you did not change anything, press Esc again or
move cursor to Exit Without Saving and press Y to retain the Setup settings.
The following message will appear at the center of the screen to allow you to
save data to CMOS a nd exit the setup utility: SAVE to CMOS a nd EXIT (Y/N)?

Exit without Saving

If you select this feature, the following message will appear at the center of the
screen to allow you to exit the setup utility without saving CMOS modifica­tions: Quit Without Saving (Y/N)?
