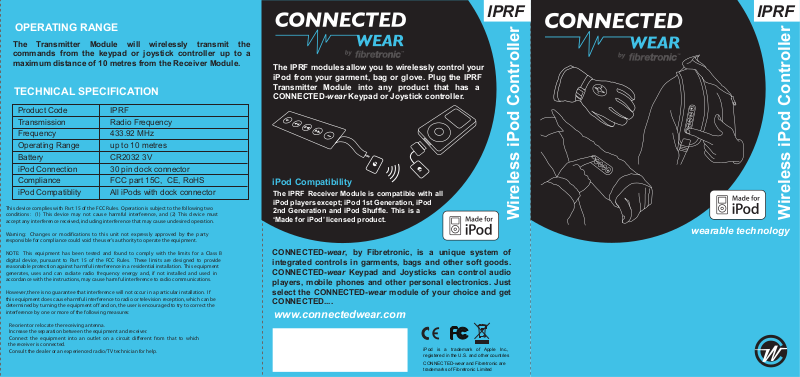

OPERATING RANGE
The Transmitter Module will wirelessly transmit the
commands from the keypad or joystick controller up to a
maximum distance of 10 metres from the Receiver Module.
TECHNICAL SPECIFICATION
Product Code IPRF
Transmission Radio Frequency
Frequency 433.92 MHz
Operating Range up to 10 metres
Battery CR2032 3V
iPod Connection 30 pin dock connector
Compliance FCC part 15C, CE, RoHS
iPod Compatiblity All iPods with dock connector
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) This device must
accept any interference received, including interference that may cause undesired operation.
Warning: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
IPRF
The IPRF modules allow you to wirelessly control your
iPod from your garment, bag or glove. Plug the IPRF
Transmitter Module into any product that has a
CONNECTED-wear Keypad or Joystick controller.
+
-
-
-
iPod Compatibility
The IPRF Receiver Module is compatible with all
iPod players except; iPod 1st Generation, iPod
2nd Generation and iPod Shuffle. This is a
‘Made for iPod’ licensed product.
CONNECTED-wear, by Fibretronic, is a unique system of
integrated controls in garments, bags and other soft goods.
CONNECTED-wear Keypad and Joysticks can control audio
players, mobile phones and other personal electronics. Just
select the CONNECTED-wear module of your choice and get
CONNECTED....
www.connectedwear.com
iPod is a trademark of Apple Inc.,
registered in the U.S. and other countries
CONNECTED-wear and Fibretronic are
trademarks of Fibretronic Limited
+
Wireless iPod Controller
IPRF
+
Wireless iPod Controller
wearable technology

IPRF
Wireless iPod Controller
CONNECTION INSTRUCTIONS
Connect any CONNECTED-wear Keypad or Joystick controller to
the Transmitter Module using the Jack Plug. Connect the Receiver
Module to your iPod using the Dock Connector.
CONNECTED-wear
Joystick or Keypad Controller
iPod
2
OPERATING INSTRUCTIONS
To operate the Keypad controller simply press the flexible buttons.
To operate the Joystick controller toggle the flexible stick to the
right, to the left, upwards or downwards. Push the Joystick in the
centre for Play/Pause.
VOLUME
FAST
FORWARD
PLAY /
PAUSE
REWIND
Press to increase the volume.
+
Press to skip forward to the next track.
Press and hold to fast forward through a track.
Press to start and stop the music.
Press and hold to turn off the iPod.
Press to skip backwards to the previous track.
Press and hold to rewind through a track.
INSTRUCTIONS FOR CHANGING THE BATTERY
IN THE TRANSMITTER MODULE
With normal use the CR2032 3V battery in the Transmitter Module
should last for the lifetime of the product. The battery is rated for
operating temperatures between -10 C to +50 C. Should the
battery need replacement, undo the snap fastener on the
Transmitter Module case to access the battery compartment.
Slide out the old battery and insert a new battery. Close the snap
fastener.
Transmitter Module
O O
Jack Plug
Transmitter Module
For further information, product support and
warranty advice go to www.connectedwear.com
Earphones
Dock Connector
fibretronic
Receiver Module
VOLUME
Press to decrease the volume.
CARE INSTRUCTIONS
Please follow the garment manufacturer’s care instructions listed
on the apparel item. DO NOT WASH OR DRY CLEAN THE
TRANSMITTER OR RECEIVER MODULES. Disconnect and
remove the Transmitter and Receiver modules from the garment
before cleaning. After washing, ensure the Keypad and Joystick
controllers are thoroughly dry before use.
fibretronic
Do Not Wash Transmitter
or Receiver Modules
open cover at snap fastener
Transmitter Module
CR2032
slide out old battery from holder
and insert new battery
www.connectedwear.com
