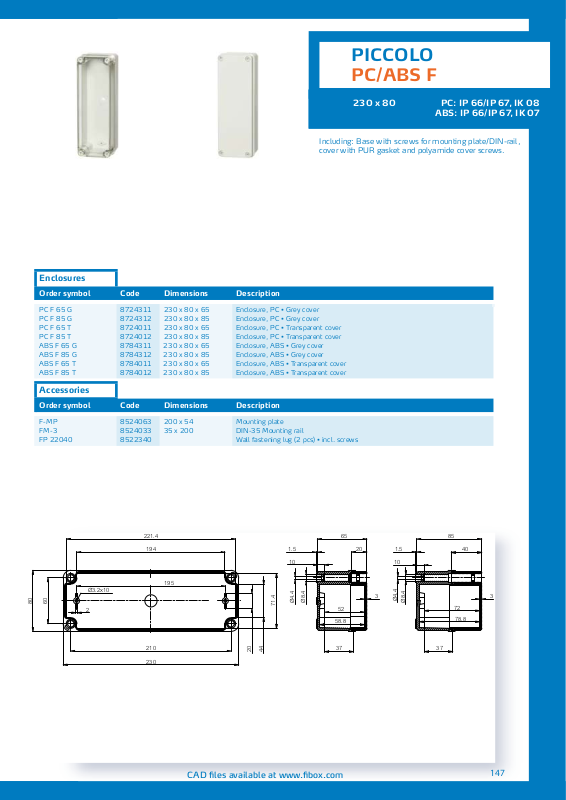

Fibox Enclosures PC F, ABS F Catalog Page

CAD files available at www.fibox.com

PICCOLO

PC/ABS F

230 x 80 PC: IP 66/IP 67, IK 08
ABS: IP 66/IP 67, IK 07

Including: Base with screws for mounting plate/DIN-rail,
cover with PUR gasket and polyamide cover screws.

1.5

85

40

10

72

37

78.8

Ø4.4

10

65

1.5

37

52

20

58.8

33

195

194

221.4

210

230

60

80

71.4

44

2

20

Ø3.2x10

Ø8.4

Ø8.4

Ø4.4

Enclosures

Order symbol Code Dimensions Description

PC F 65 G 8724311 230 x 80 x 65 Enclosure, PC • Grey cover
PC F 85 G 8724312 230 x 80 x 85 Enclosure, PC • Grey cover
PC F 65 T 8724011 230 x 80 x 65 Enclosure, PC • Transparent cover
PC F 85 T 8724012 230 x 80 x 85 Enclosure, PC • Transparent cover
ABS F 65 G 8784311 230 x 80 x 65 Enclosure, ABS • Grey cover
ABS F 85 G 8784312 230 x 80 x 85 Enclosure, ABS • Grey cover
ABS F 65 T 8784011 230 x 80 x 65 Enclosure, ABS • Transparent cover
ABS F 85 T 8784012 230 x 80 x 85 Enclosure, ABS • Transparent cover

Accessories

Order symbol Code Dimensions Description

F-MP 8524063 200 x 54 Mounting plate
FM-3 8524033 35 x 200 DIN-35 Mounting rail
FP 22040 8522340 Wall fastening lug (2 pcs) • incl. screws
