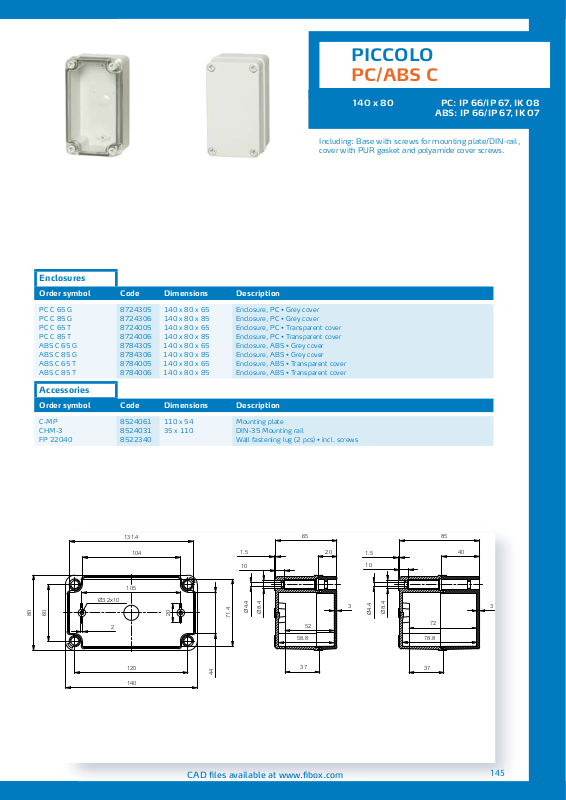

Fibox Enclosures PC C, ABS C Catalog Page

CAD files available at www.fibox.com

PICCOLO

PC/ABS C

140 x 80 PC: IP 66/IP 67, IK 08
ABS: IP 66/IP 67, IK 07

Including: Base with screws for mounting plate/DIN-rail,
cover with PUR gasket and polyamide cover screws.

1.5

85

40

10

72

37

78.8

Ø4.4

10

65

1.5

37

52

20

58.8

33

105

104

131.4

120

140

60

80

71.4

44

2

20

Ø3.2x10

Ø8.4

Ø8.4

Ø4.4

Enclosures

Order symbol Code Dimensions Description

PC C 65 G 8724305 140 x 80 x 65 Enclosure, PC • Grey cover
PC C 85 G 8724306 140 x 80 x 85 Enclosure, PC • Grey cover
PC C 65 T 8724005 140 x 80 x 65 Enclosure, PC • Transparent cover
PC C 85 T 8724006 140 x 80 x 85 Enclosure, PC • Transparent cover
ABS C 65 G 8784305 140 x 80 x 65 Enclosure, ABS • Grey cover
ABS C 85 G 8784306 140 x 80 x 85 Enclosure, ABS • Grey cover
ABS C 65 T 8784005 140 x 80 x 65 Enclosure, ABS • Transparent cover
ABS C 85 T 8784006 140 x 80 x 85 Enclosure, ABS • Transparent cover

Accessories

Order symbol Code Dimensions Description

C-MP 8524061 110 x 54 Mounting plate
CHM-3 8524031 35 x 110 DIN-35 Mounting rail
FP 22040 8522340 Wall fastening lug (2 pcs) • incl. screws
