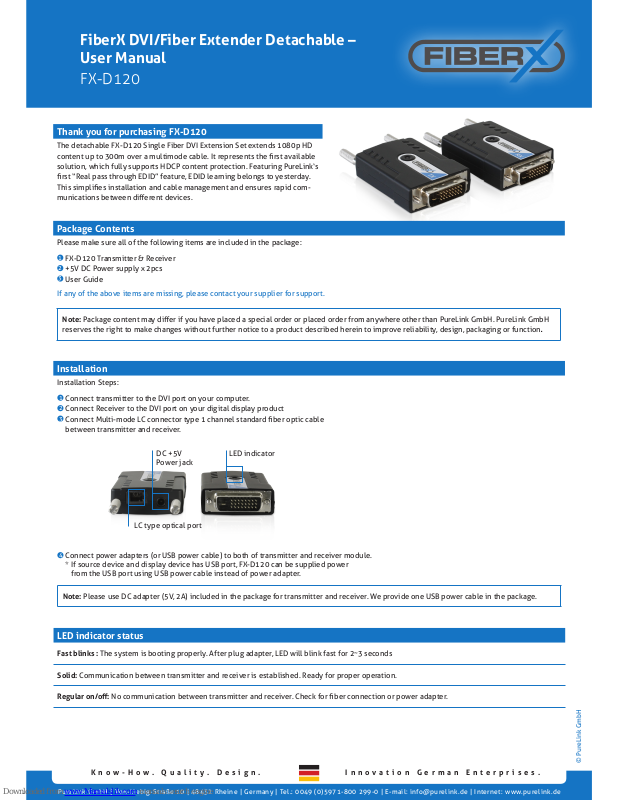

FiberX DVI/Fiber Extender Detachable – User Manual

FX-D120

Package Contents

Please make sure all of the following items are included in the package:

FX-D120 Transmitter & Receiver

+5V DC Power supply x 2pcs

User Guide

If any of the above items are missing, please contact your supplier for support.

Note: Package content may dier if you have placed a special order or placed order from anywhere other than PureLink GmbH. PureLink GmbH

reserves the right to make changes without further notice to a product described herein to improve reliability, design, packaging or function.

Thank you for purchasing FX-D120

The detachable FX-D120 Single Fiber DVI Extension Set extends 1080p HD content up to 300m over a multimode cable. It represents the rst available solution, which fully supports HDCP content protection. Featuring PureLink‘s rst “Real pass through EDID” feature, EDID lear ning belongs to yesterday. This simplies installation and cable manage ment and ensures rapid communications between dierent devices.

Installation

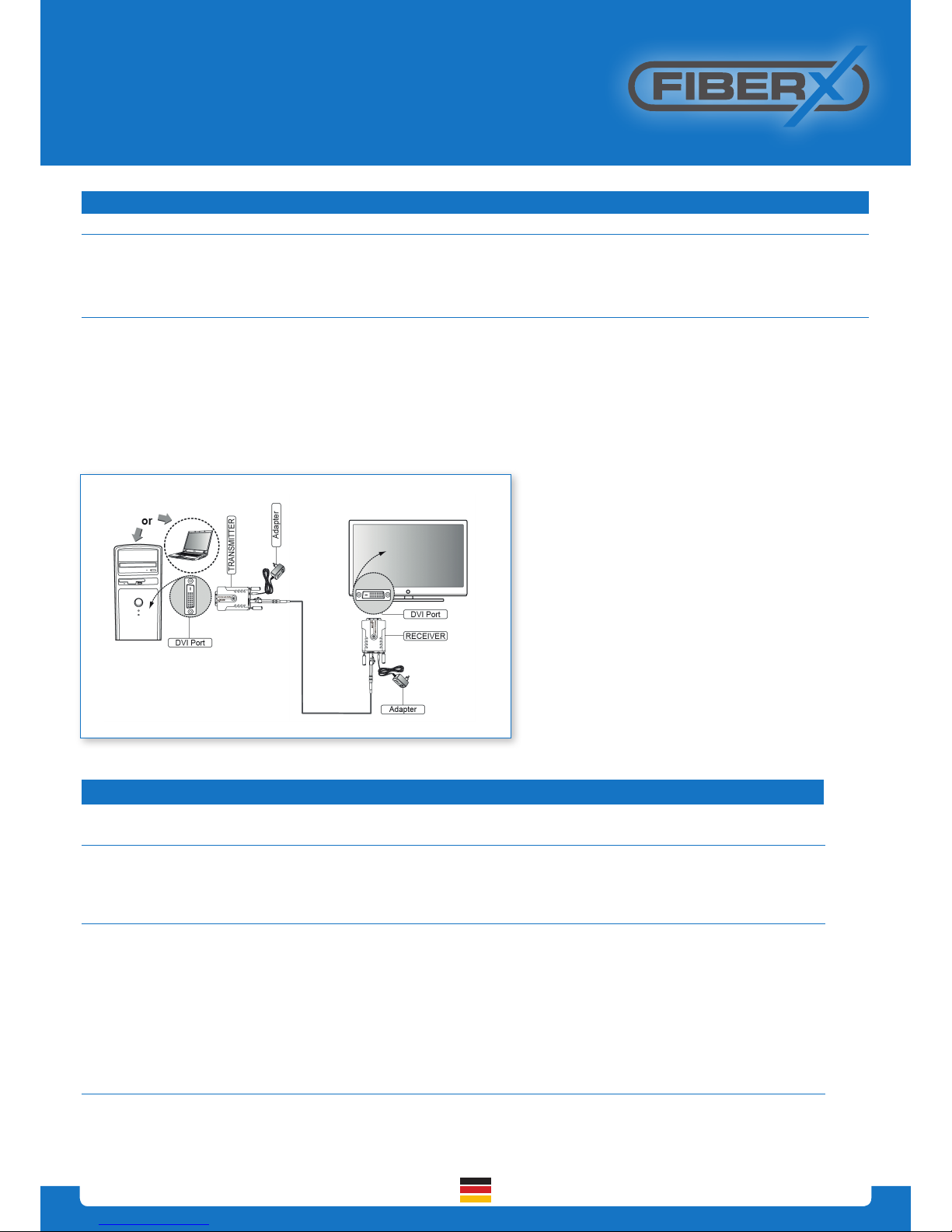

Installation Steps:

Connect transmitter to the DVI port on your computer.

Connect Receiver to the DVI port on your digital display product

Connect Multi-mode LC connector type 1 channel standard ber optic cable

between transmitter and receiver.

Connect power adapters (or USB power cable) to both of transmitter and receiver module.

* If source device and display device has USB port, FX-D120 can be supplied power

from the USB port using USB power cable instead of power adapter.

Note: Please use DC adapter (5V, 2A) included in the package for transmitter and receiver. We provide one USB power cable in the package.

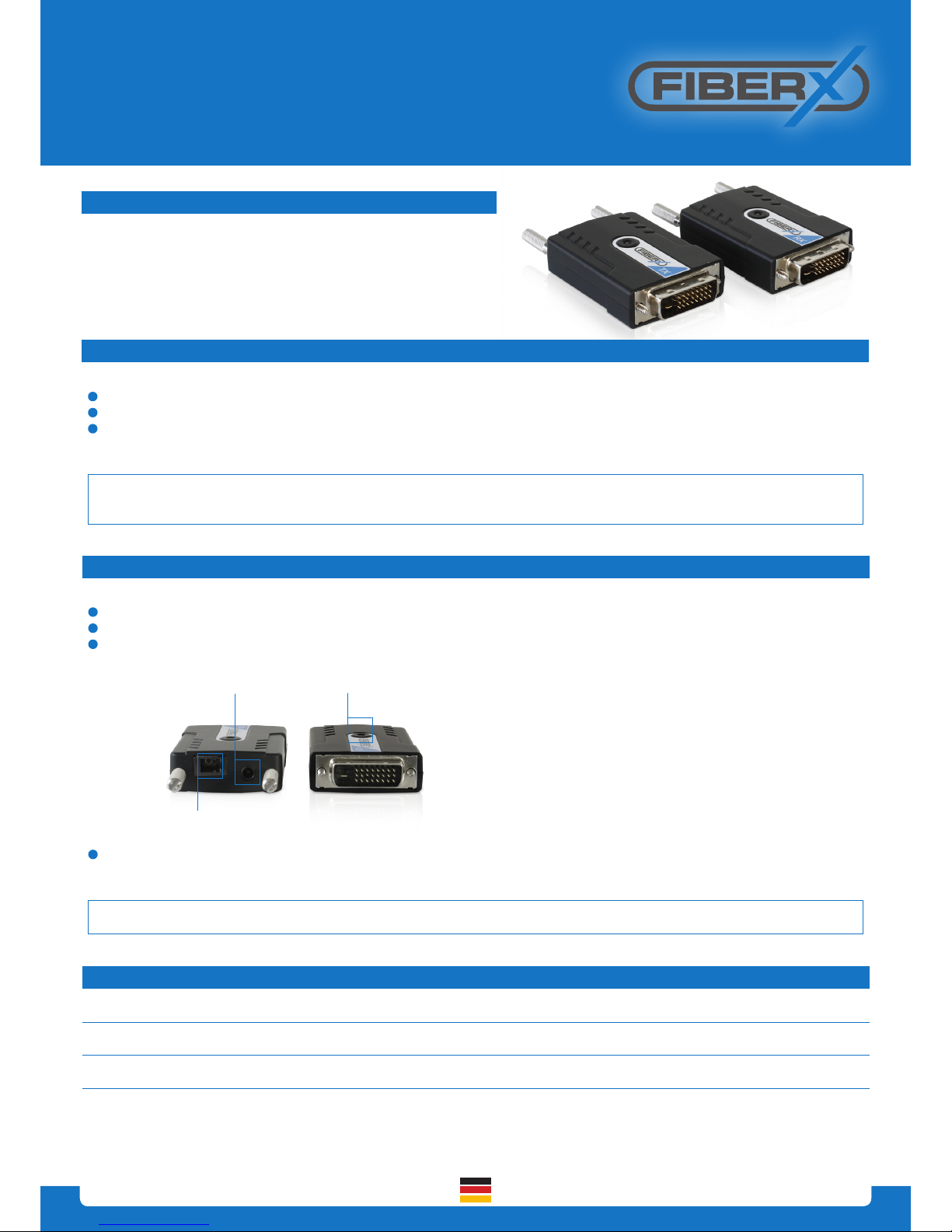

DC +5V Power jack

LC type optical port

LED indicator

LED indicator status

Fast blinks : The system is booting properly. After plug adapter, LED will blink fast for 2~3 seconds

Solid: Communication between transmitter and receiver is established. Ready for proper operation.

Regular on/o: No communication between transmitter and receiver. Check for ber connection or power adapter.

Page 2

Innovation German Enterprises.Know-How. Quality. Design.

FiberX DVI/Fiber Extender Detachable – User Manual

FX-D120

Application

Trouble shooting

Screen is not displayed

• Check if the PC power is on

• Check if connection to the computer and the monitor are correct

• Turn the PC power o and on again

Noise is shown on the screen

• Check the DVI connection

• Check the display resolution

For local support, please contact your reseller directly.

NOTE:

If you are still experiencing problems, It may be neccessary to clean the module connector or LC ber cable. Around 80% of connection issues with Fiber optic systems are due to dirty connectors - for more information see the Purelink ber cleaning guide on our website: http://www.purelink.de/leadmin/purelink/media/sonstige/PureLink_Fiber_CleaningInstructions.pdf
