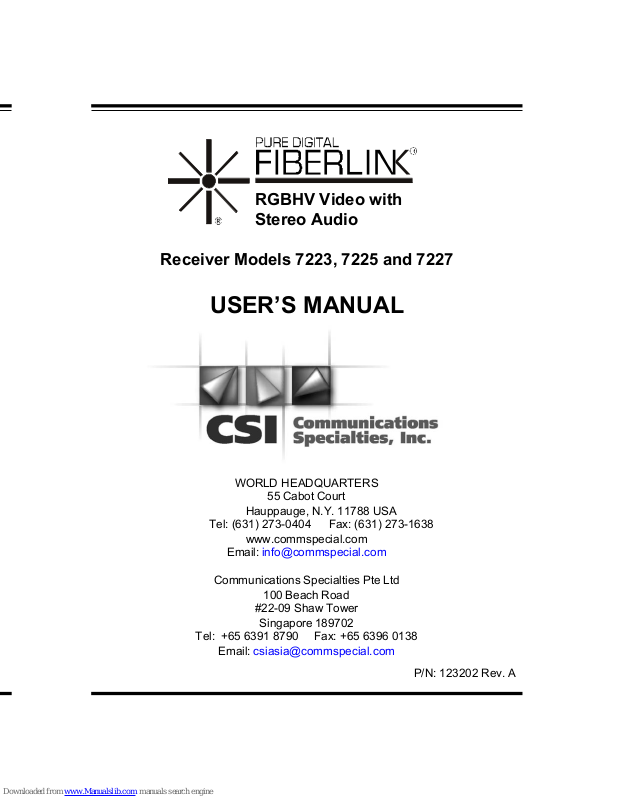

USER’S MANUAL

P/N: 123202 Rev. A

Receiver Models 7223, 7225 and 7227

RGBHV Video with
Stereo Audio

WORLD HEADQUARTERS

55 Cabot Court

Hauppauge, N.Y. 11788 USA

Tel: [phone] Fax: [phone]

www.commspecial.com

Email: [e-mail]

Communications Specialties Pte Ltd

100 Beach Road

#22-09 Shaw Tower

Singapore 189702

Tel: [phone] Fax: [phone]

Email: [e-mail]

General Information ................................................... 3

Introduction ............................................................ 3

Technical Specifications ......................................... 3

Installation Instructions .............................................. 6

Installation Procedure ............................................. 6

System Connections ............................................... 7

Indicator LEDs ....................................................... 8

Operating Pointers and Troubleshooting ................... 9

Maintenance and Repairs ......................................... 10

Limited Warranty ..................................................... 11

CONTENTS

1

GENERAL INFORMATION

The Pure Digital Fiberlink® 7223, 7225 and 7227 receiver units for
RGBHV video with stereo audio provide a combination of multiple
baseband outputs and optical loop-through capabilities for drop-and­repeat system configurations. All three models are compatible with any
transmitter unit within the 7220 Series. They operate at 1310 nm wave­length and work with either single mode or multimode fiber. Following
are general descriptions of each unit:

7223 Receiver: 4 baseband outputs of high-res RGB with stereo audio

7225 Receiver: 1 baseband output of high-res RGB with stereo audio,
plus one optical loop-through output

7227 Receiver: 4 baseband outputs of high-res RGB with stereo audio,
plus one optical loop-through output

The units’ all digital encoding delivers noise-free transmissions that
retain all of their initial parameters, regardless of fiber optic cable at­tenuation. System operation may be easily monitored using integral
LEDs on each unit that continuously signify the presence of baseband
video and audio signals.

Introduction

Technical Specifications

Model Part Number Configurations:

All units operate at
1310 nm wavelength
with single mode or
multimode fiber. ST
connectors are
provided.

Receiver Type Part Number

4 baseband outputs 7223-B7S
1 baseband output; drop & repeat 7225-B7S

4 baseband outputs; drop & repeat 7227-B7S
