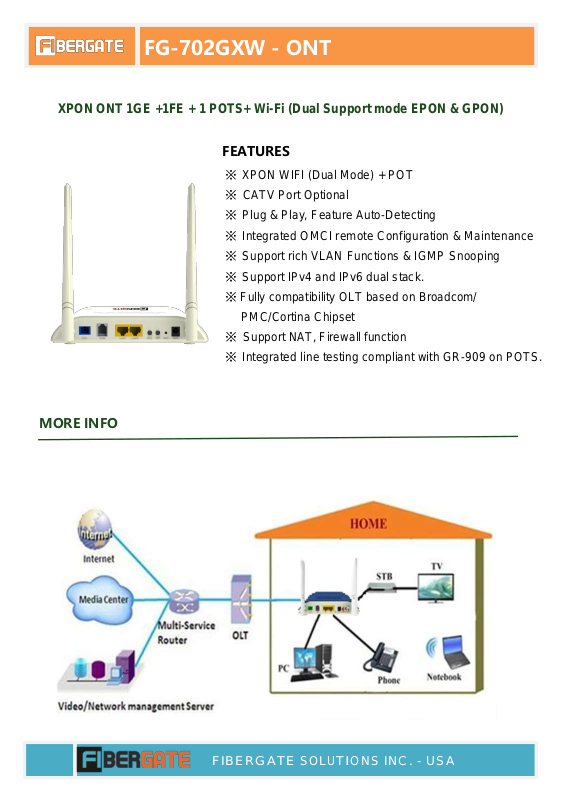

Page 1
FG-702GXW - ONT
FIBERGATE SOLUTIONS INC. - USA
XPON ONT 1GE +1FE + 1 POTS+ Wi-Fi (Dual Support mode EPON & GPON)
FEATURES
※ XPON WIFI (Dual Mode) + POT
※ CATV Port Optional
※ Plug & Play, Feature Auto-Detecting
※ Integrated OMCI remote Configuration & Maintenance
※ Support rich VLAN Functions & IGMP Snooping
※ Support IPv4 and IPv6 dual stack.
※ Fully compatibility OLT based on Broadcom/
PMC/Cortina Chipset
※ Support NAT, Firewall function
※ Integrated line testing compliant with GR-909 on POTS.
MORE INFO
Page 2
FG-702GXW - ONT
FIBERGATE SOLUTIONS INC. - USA
SPECIFICATIONS
Technical Parameters
PON Interface
XPON Receiving Sensitivity: ≤ -28dBm,
Transmitting Optical Power: 0~+4dBm, Transmission distance: 20KM
Wavelength
Tx 1310nm, Rx 1490nm
For CA TV: Tx1310nm, Rx 1490nm and 1550nm
Optical Interface
SC/UPC Connector
For CATV : SC/APC connector (Signal fiber with WDM)
LAN Interface
1 x10/100/1000Mbps and 1 x 10/100Mbps Auto adaptive Ethernet interfaces.
Full/Half, RJ45 connector
WIFI Interface
Compliant with IEEE802.11b/g/n, 2R2T
Operating frequency: 2.400-2.483GHz,support MIMO,
Rate up to 300Mbps, 2T2R, 2 external antenna 5dBi
Supports: Multiple SSID
Channel: 13
Modulation type: DSSS, CKK and OFDM, Encoding scheme: BPSK,
QPSK, 16QAM and 64QAM
POTS Interface
1 FXS, RJ11 Connectors,
Support: G.711/G.723/G.726/G.729 codec
Support: T.30/T.38/G.711 Fax Mode,
DTMF Relay line testing according to GE- 909
CATV Interface
(Optional)
RF, Optical Power: +2 ~ -18dBm
Optical reflection loss: ≥45dB
Optical receiving wavelength: 1550+10nm
RF frequency range: 47~10000Mz. RF output impedance: 75Ω
RF output level: ≥82dBuV (-7dbm optical input)
AGC Range: +2 ~ -7dm/ -4~-13dBm/ -5~-14dBm
MER: ≥32db (-14dBM optical input), >35 (-10dBm)
LED Indicators
8LED, For Status of Power, LOS, PON, LAN1, LAN2, Phone, Pair, WiFi
For CATV : 8, For Status of Power, LOS, REG, GE,FE,FXS, CATV, WiFi
Power Consumption
≤3W
Page 3
FG-702GXW - ONT
FIBERGATE SOLUTIONS INC. - USA
Operating Temperature
Temperature: 0℃~+50 ℃ /
Humidity: 10% ~ 90% (Non-Condensing)
Storing Condition
Temperature: -30℃~+50 ℃ /
Humidity: 10% ~ 90% (Non-Condensing)
Instrument Dimension
185 x 120x 34 mm ( LxWxH)
Power Switch
1
Power Supply
12V/1A, ≤6W, External AC-DC Power Adaptor
Net Weight
240 gm / 290 gm
